551597 1 Weinman L1 L6 Split Case Double Suction Repair Parts W1200 RP User Manual

User Manual: Pump 551597 1 Weinman L1-L6 Split Case Double Suction Repair Parts 551597_1_Weinman L1-L6 Split Case Double Suction Repair Parts pdf

Open the PDF directly: View PDF .
Page Count: 30

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

183

RP

www.cranepumps.com

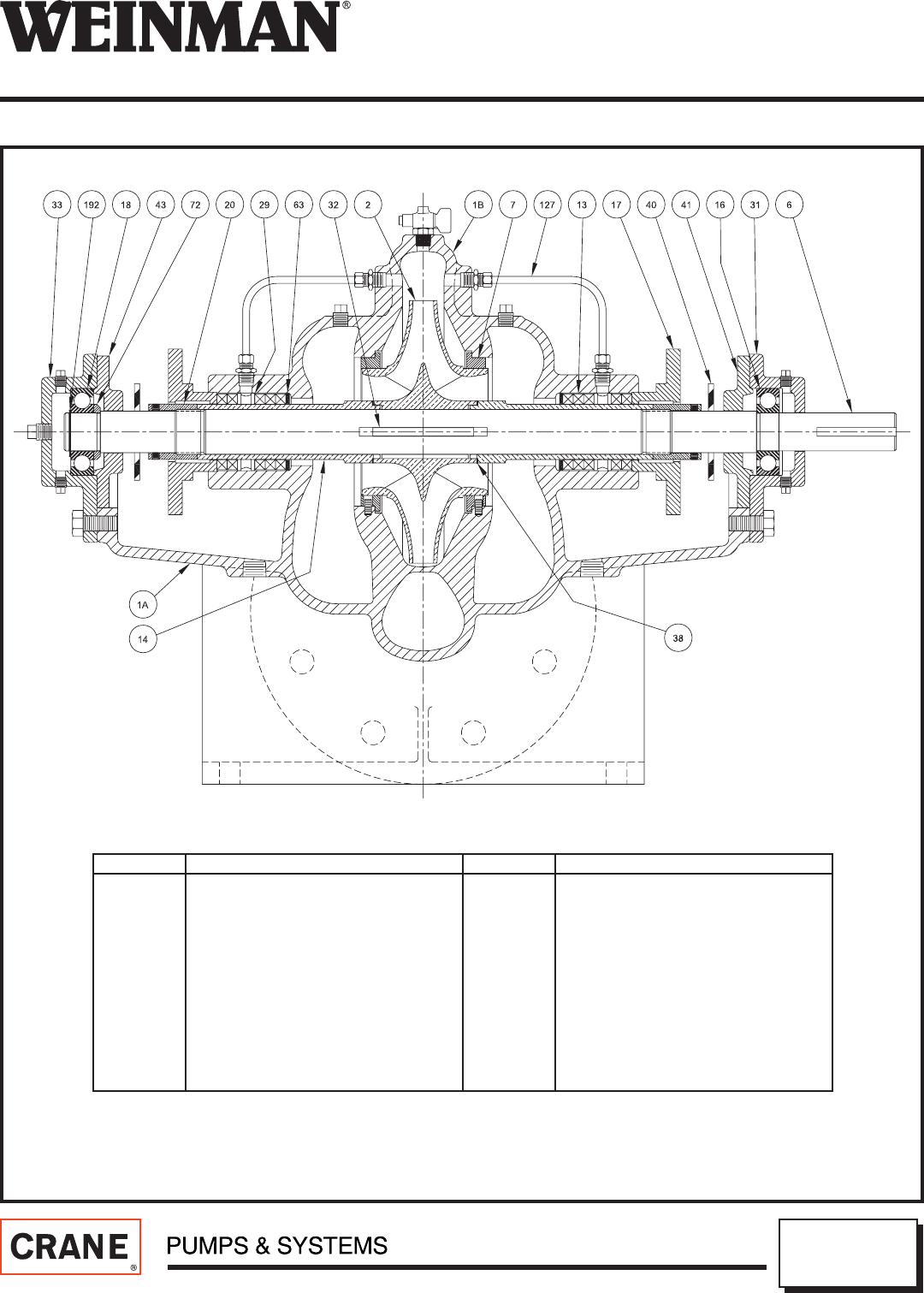

Types L1, L2, L3, L4, L5, L6 Split Case Pumps Double

Suction with Stuffi ng Box - Bulletin Repair Parts - 1200

Assembly Parts

Item No. Name of Part Item No. Name of Part

† 1A

† 1B

* 2

* 6

* 7

‡ * 8

* 13

* 14

* 16

17

* 18

20

29

Casing (Lower Half)

Casing (Upper Half)

Impeller

Shaft

Casing Ring

Impeller Ring (Not Shown)

Packing

Shaft Sleeve

Inboard Bearing

Stuffi ng Box Gland

Outboard Bearing

Shaft Sleeve Nut

Seal Cage

31

* 32

33

* 38

40

41

43

63

72

* 73

* 73A

127

192

Inboard Bearing Housing

Impeller Key

Outboard Bearing Housing

Shaft Sleeve Gasket

Defl ector (Liquid)

Inboard Bearing Cap

Outboard Bearing Cap

Stuffi ng Box Bushing

Thrust Collar

Casing Gasket - Suction Side (Not Shown)

Casing Gasket - Discharge Side (Not Shown)

Seal Piping

Retaining Ring (Bearing)

† Furnished only in Pairs as complete units

* For domestic service we recommend these parts be carried in stock as spares

‡ Double Wearing Rings Furnished as Standard on 8" and larger pumps.

All other are special option.

Seal Piping (127) & Seal Cage (29) will be furnished only when suction pressure is less than atmospheric

4/11

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

184

RP

www.cranepumps.com

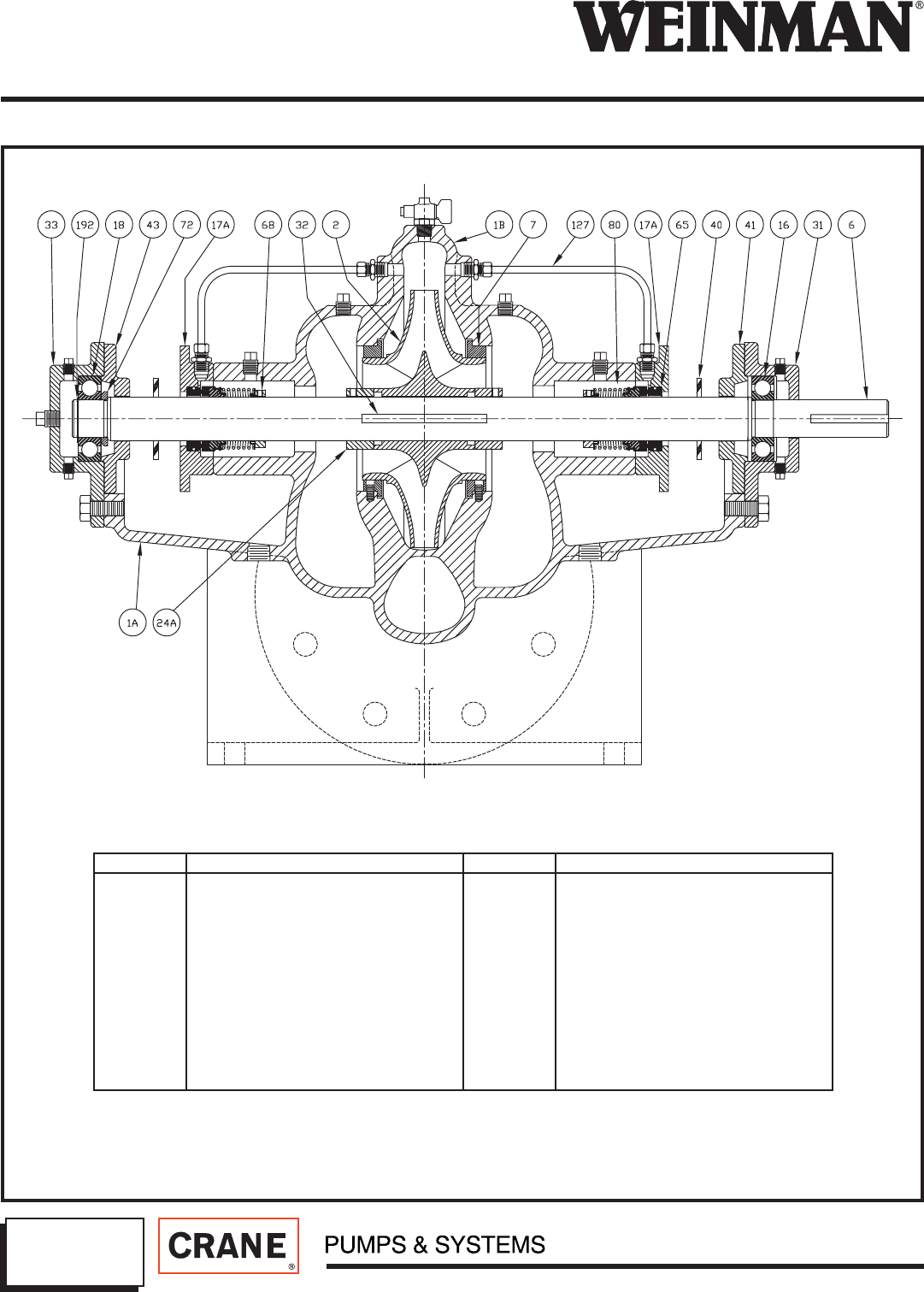

Types L1, L2, L3, L4, L5, L6 Split Case Pumps Double Suction

with Mechanical Shaft Seals - Bulletin Repair Parts - 1200

Assembly Parts

Item No. Name of Part Item No. Name of Part

† 1A

† 1B

* 2

6

* 7

‡ * 8

* 16

17A

* 18

24A

31

* 32

33

Casing (Lower Half)

Casing (Upper Half)

Impeller

Shaft

Casing Ring

Impeller Ring (Not Shown)

Inboard Bearing

Seal Cap

Outboard Bearing

Shaft Collar

Inboard Bearing Housing

Impeller Key

Outboard Bearing Housing

40

41

43

†* 65

68

72

* 73

* 73A

†* 80

127

192

Defl ector (Liquid)

Inboard Bearing Cap

Outboard Bearing Cap

Mechanical Shaft Seal

(Stationary Element)

Seal Collar

Thrust Collar

Casing Gasket - Suction Side (Not Shown)

Casing Gasket - Discharge Side (Not Shown)

Mechanical Shaft Seal

(Rotating Element)

Seal Piping

Retaining Ring (Bearing)

† Furnished only in Pairs as complete units

* For domestic service we recommend these parts be carried in stock as spares

‡ Double Wearing Rings Furnished as Standard on 8" and larger pumps.

All other are special option.

Seal Piping (127) & Seal Cage (29) will be furnished only when suction pressure is less than atmospheric

6/15

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

185

RP

www.cranepumps.com

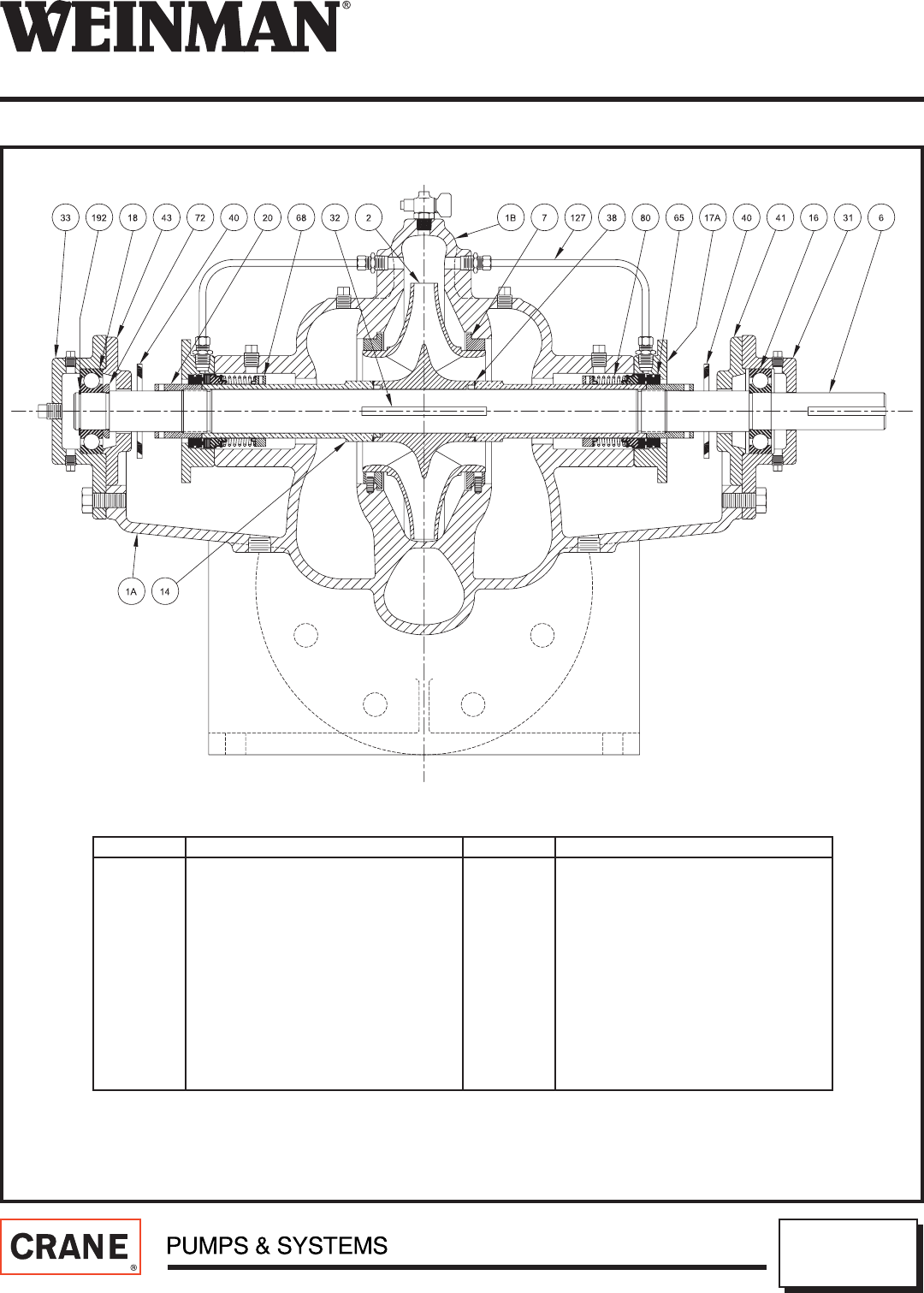

Types L1, L2, L3, L4, L5, L6 Split Case Pumps Double Suction with

Mechanical Shaft Seals & Shaft Sleeve - Bulletin Repair Parts - 1200

Assembly Parts

Item No. Name of Part Item No. Name of Part

† 1A

† 1B

* 2

6

* 7

‡ * 8

* 16

14

17A

* 18

20

31

* 32

33

Casing (Lower Half)

Casing (Upper Half)

Impeller

Shaft

Casing Ring

Impeller Ring (Not Shown)

Inboard Bearing

Shaft Sleeve

Seal Cap

Outboard Bearing

Shaft Sleeve Nut

Inboard Bearing Housing

Impeller Key

Outboard Bearing Housing

38

40

41

43

†* 65

68

72

* 73

* 73A

†* 80

127

192

Shaft Sleeve Gasket

Defl ector (Liquid)

Inboard Bearing Cap

Outboard Bearing Cap

Mechanical Shaft Seal

(Stationary Element)

Seal Collar

Thrust Collar

Casing Gasket - Suction Side (Not Shown)

Casing Gasket - Discharge Side (Not Shown)

Mechanical Shaft Seal

(Rotating Element)

Seal Piping

Retaining Ring (Bearing)

† Furnished only in Pairs as complete units

* For domestic service we recommend these parts be carried in stock as spares

‡ Double Wearing Rings Furnished as Standard on 8" and larger pumps.

All other are special option.

Seal Piping (127) & Seal Cage (29) will be furnished only when suction pressure is less than atmospheric

6/15

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

186

RP

www.cranepumps.com

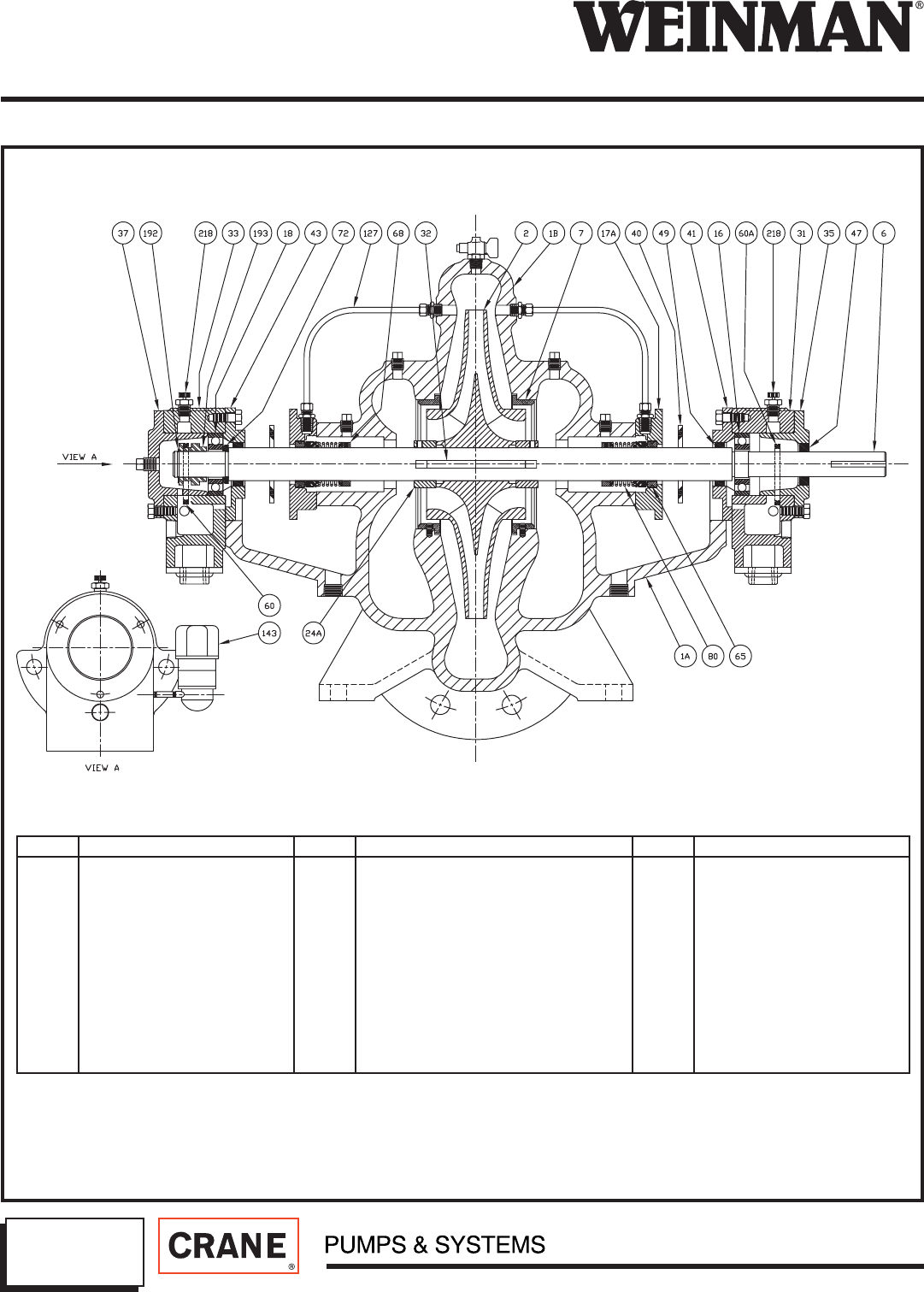

Types L1, L2, L3, L4, L5, L6 Split Case Pumps Double Suction with Oil

Lubricated Bearings (with Mechanical Shaft Seal) - Bulletin Repair Parts - 1200

Assembly Parts

Item No. Name of Part Item No. Name of Part Item No. Name of Part

† 1A

† 1B

* 2

6

* 7

‡ * 8

* 16

17A

* 18

24A

31

* 32

33

Casing (Lower Half)

Casing (Upper Half)

Impeller

Shaft

Casing Ring

Impeller Ring (Not Shown)

Inboard Bearing

Seal Cap

Outboard Bearing

Shaft Collar

Inboard Bearing Housing

Impeller Key

Outboard Bearing Housing

35

37

40

41

43

* 47

* 49

* 60

* 60A

†* 65

68

72

Inboard Bearing Cover

Outboard Bearing Cover

Defl ector (Liquid)

Inboard Bearing Cap

Outboard Bearing Cap

Inboard Bearing Cover Seal

Bearing Cap Seal

Outboard Oil Ring

Inboard Oil Ring

Mechanical Shaft Seal

(Stationary Element)

Seal Collar

Thrust Collar

* 73

* 73A

†* 80

127

143

192

193

* 194

* 195

218

Casing Gasket - Suction Side

(Not Shown)

Casing Gasket - Discharge Side

(Not Shown)

Mechanical Shaft Seal

(Rotating Element)

Seal Piping

Constant Level Oiler

Bearing Retaining Ring

Ring Guide

Inboard Bearing Housing Gaskets

Outboard Bearing Housing Gaskets

Plug Vent

† Furnished only in Pairs as complete units

* For domestic service we recommend these parts be carried in stock as spares

‡ Double Wearing Rings Furnished as Standard on 8" and larger pumps.

All other are special option.

Seal Piping (127) & Seal Cage (29) will be furnished only when suction pressure is less than atmospheric

7/14

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

187

RP

www.cranepumps.com

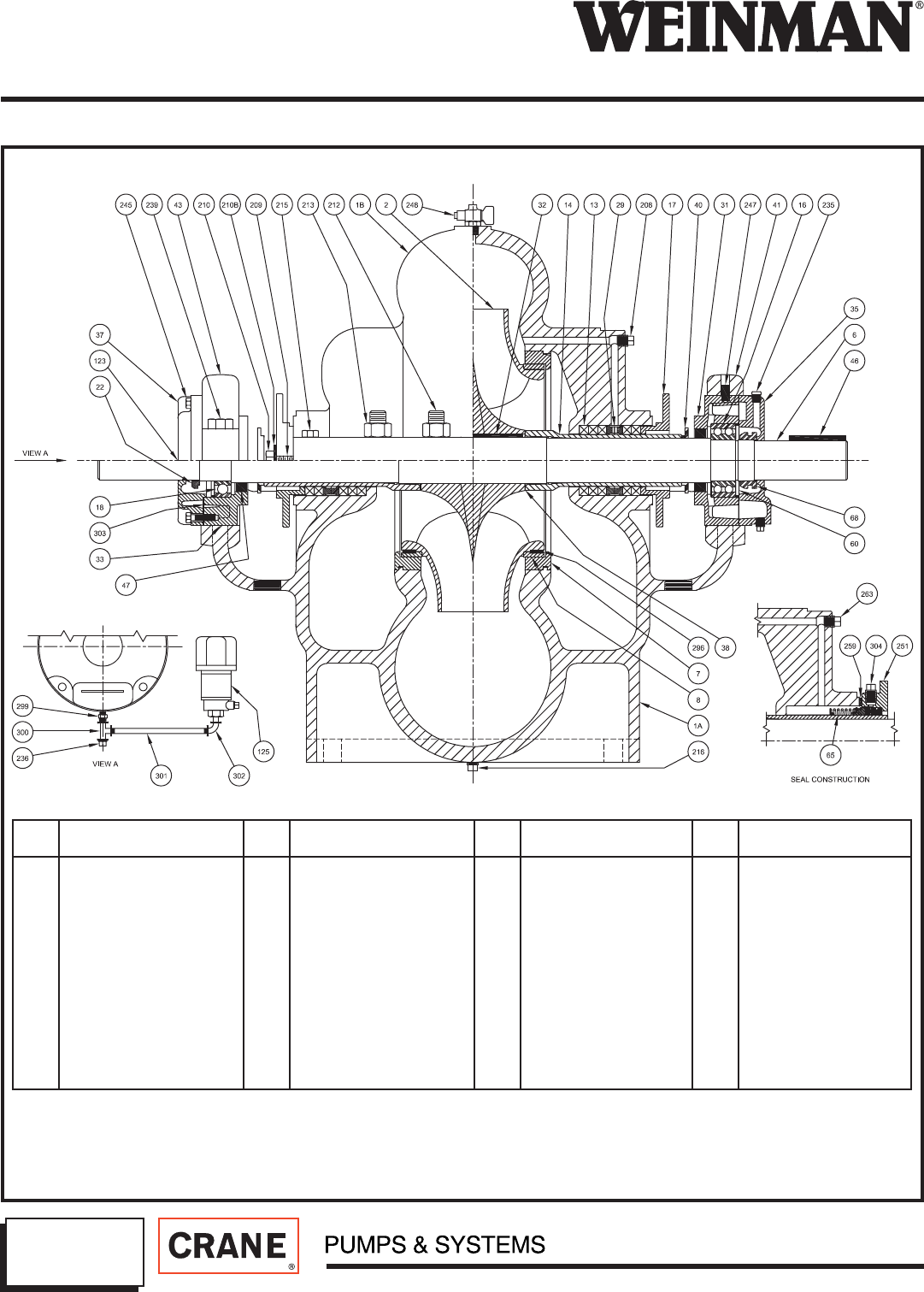

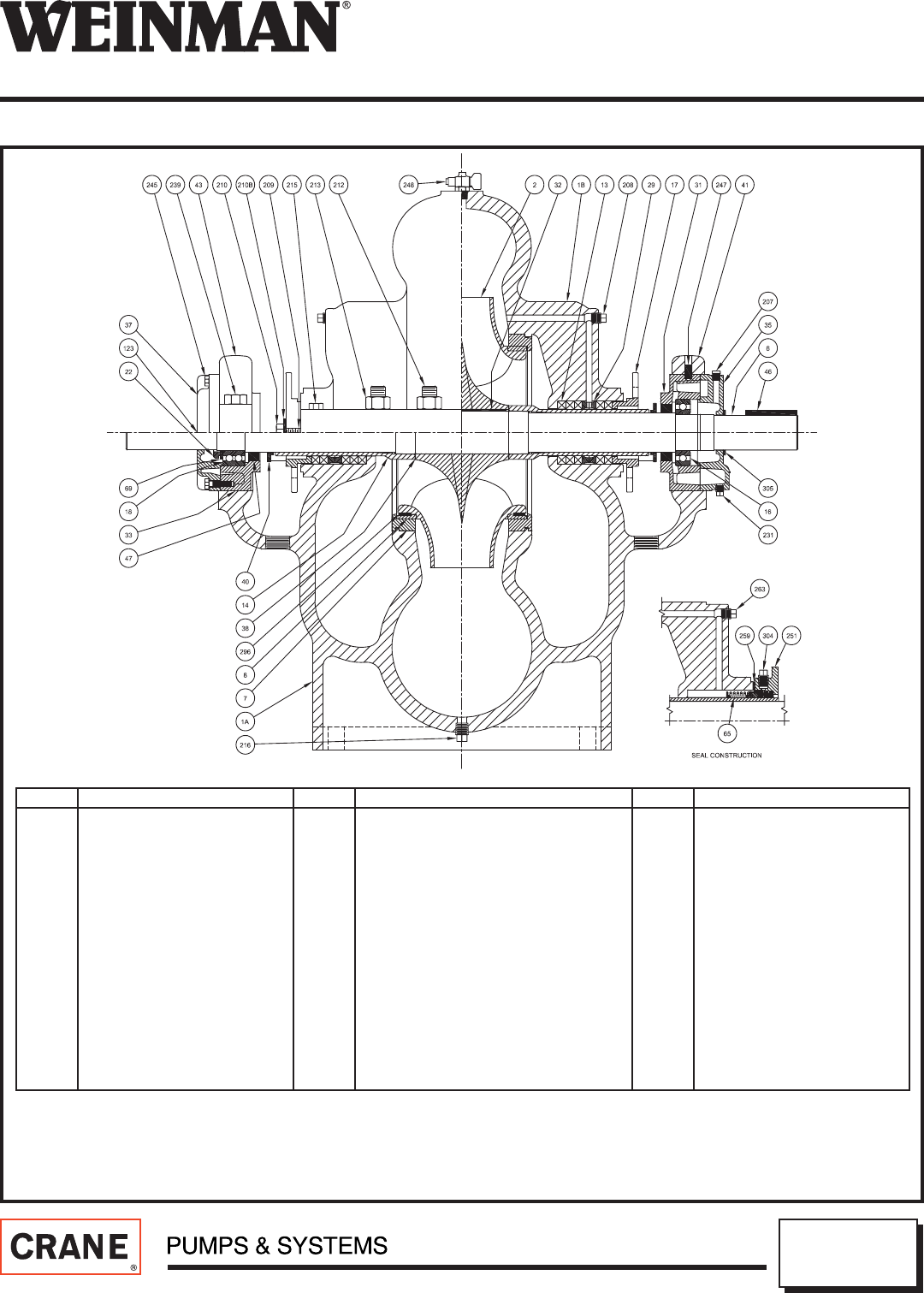

Types L7, L8 Horizontal Split Case,

Grease Lubricated - Bulletin Repair Parts - 1200

Assembly Parts

Item No. Name of Part Item No. Name of Part Item No. Name of Part

1A

1B

2

6

* 7

* 8

* 13

* 14

* 16

17

* 18

22

29

31

32

33

Casing (Lower Half)

Casing (Upper Half)

Impeller

Shaft

Casing Ring

Impeller Ring

Packing

Shaft Sleeve

Inboard Ball Bearing

Stuffi ng Box Gland

Outboard Ball Bearing

Lock Nut

Lantern Ring

Inboard Bearing Housing

Impeller Key

Outboard Bearing Housing

35

37

38

40

41

43

46

47

* 65

69

* 73

123

207

208

209

210

Inboard Bearing Cover

Outboard Bearing Cover

Shaft Sleeve Gasket

Defl ector (Liquid)

Inboard Bearing Cap

Outboard Bearing Cap

Coupling Key

Inboard Bearing Cover Seal

Mechanical Shaft Seal

Lock Washer

Parting Gasket

Bearing End Cover

Grease Fitting

Pipe Plug

Swing Bolt

Nuts

212

213

215

216

231

239

245

246

247

248

251

* 259

263

296

304

305

Studs

Nuts

Cap Screws

Pipe Plug

Pipe Plug

Cap Screws

Cap Screws

Dowel Pin

Dowel Pin

Pet Cock

Seal Cap

Seal Gasket

Pipe Plug (Socket Head)

when specifi ed

Set Screws

Pipe Plug

Forsheda Ring

† Furnished only in Pairs as complete units

* For domestic service we recommend these parts be carried in stock as spares

‡ Double Wearing Rings Furnished as Standard on 8" and larger pumps.

All other are special option.

Seal Piping (127) & Seal Cage (29) will be furnished only when suction pressure is less than atmospheric

7/14

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

188

RP

www.cranepumps.com

Types L7, L8 Horizontal Split Case,

Grease Lubricated - Bulletin Repair Parts - 1200

Assembly Parts

Item

No. Name of Part Item

No. Name of Part Item

No. Name of Part Item

No. Name of Part

1A

1B

2

6

* 7

* 8

* 13

* 14

* 16

17

* 18

22

29

31

Casing (Lower Half)

Casing (Upper Half)

Impeller

Shaft

Casing Ring

Impeller Ring

Packing

Shaft Sleeve

Inboard Ball Bearing

Stuffi ng Box Gland

Outboard Ball Bearing

Lock Nut

Lantern Ring

Inboard Bearing Housing

32

33

35

37

38

40

41

43

46

47

60

* 65

68

* 73

Impeller Key

Outboard Bearing Housing

Inboard Bearing Cover

Outboard Bearing Cover

Shaft Sleeve Gasket

Defl ector

Inboard Bearing Cap

Outboard Bearing Cap

Coupling Key

Inboard Bearing Cover Seal

Oil Ring

Mechanical Shaft Seal

Shaft Collar

Parting Gasket

123

125

208

209

210

212

213

215

216

235

236

239

245

246

Bearing End Cover

Oiler

Pipe Plug

Swing Bolt

Nuts

Studs

Nuts

Cap Screws

Pipe Plug

Vent

Pipe Plug

Cap Screws

Cap Screws

Dowel Pin

247

248

251

* 259

263

296

299

300

301

302

303

304

Dowel Pin

Pet Cock

Seal Cap

Seal Gasket

Pipe Plug when specifi ed

Set Screws

Nipple Reducing

Tee

Nipple

Street Elbow

Bearing Cover Gasket

Pipe Plug

† Furnished only in Pairs as complete units

* For domestic service we recommend these parts be carried in stock as spares

‡ Double Wearing Rings Furnished as Standard on 8" and larger pumps.

All other are special option.

Seal Piping (127) & Seal Cage (29) will be furnished only when suction pressure is less than atmospheric

7/14

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

189

RP

www.cranepumps.com Bulletin Repair Parts - 1200

Parts Lists

1200 Series with Stuffi ng Box 2L4A 2L4B 2L5 2L6 3L4 Qty.

1 Casing - 125# (Iron) C5207-1-A2 C5207-1-A2 C5306-A2 C5317-11-A2 C5293-A2 1

1 Casing - 250# (Iron) N/A N/A N/A N/A C5293-10-A2 1

1 Casing - 250# (Ductile Iron) C5207-11-A12 C5207-11-A12 C5306-10-A12 C5317-12-A12 C5293-10-A12 1

2 Impeller (BRZ) C5223-1-B12 C5223-1-B12 C329465P01-B12 C5318-B12 C5294-B12 1

6 Shaft (Steel) C5339-E22 C5339-E22 C5339-E22 C5339-E22 C5346-E22 1

7 Casing Ring (BRZ) A5047-2-C9 A5047-2-C9 A5045-5-C9 A5045-5-C9 A5045-5-C9 2

* 7 Casing Ring (BRZ) A5047-1-C9 A5047-1-C9 A5045-4-C9 A5045-4-C9 A5045-4-C9 2

* 8 Impeller Ring (BRZ) A5058-C9 A5058-C9 A5056-C9 A5056-C9 A5056-C9 2

13 Packing *Q27-61-M2 *Q27-61-M2 *Q27-61-M2 *Q27-61-M2 *Q27-62-M2 *1 / 2

14 Shaft Sleeve (416 SS) B4000-3-J2 B4000-3-J2 B4000-3-J2 B4000-3-J2 B4100-6-J2 2

16 Inboard Bearing (Steel) Q10-36-E4 Q10-36-E4 Q10-36-E4 Q10-36-E4 625-00719 1

17 Stuffi ng Box Gland (BRZ) A5197-B12 A5197-B12 A5197-B12 A5197-B12 A5198-B5 2

18 Outboard Bearing (Steel) Q10-36-E4 Q10-36-E4 Q10-36-E4 Q10-36-E4 625-00719 1

20 Shaft Sleeve Nut (BRZ) A5338-C9 A5338-C9 A5338-C9 A5338-C9 A5348-C9 2

29 Seal Cage / Lantern Ring

(Tefl on) A6074-V2 A6074-V2 A6074-V2 A6074-V2 A5350-V2 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5337-1-A2 B5337-1-A2 B5337-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-84-J8 Q21-84-J8 Q21-84-J8 Q21-84-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5337-A2 B5337-A2 B5337-A2 B5347-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-2-L14 H1043-2-L14 H1043-2-L14 H1043-2-L14 H1043-4-L14 2

40 Liquid Defl ector (Rubber) H1936-15-K2 H1936-15-K2 H1936-15-K2 H1936-15-K2 H1936-9-K2 2

41 Inboard Bearing Cap (Iron) B4298-A2 B4298-A2 B4298-A2 B4298-A2 B4103-A2 1

43 Outboard Bearing Cap (Iron) B4298-A2 B4298-A2 B4298-A2 B4298-A2 B4103-A2 1

63 Stuffi ng Box Bushing (18-8 SS) A7192-J10 A7192-J10 A7192-J10 A7192-J10 A6759-J2 2

72 Thrust Collar (Steel) A5340-E4 A5340-E4 A5340-E4 A5340-E4 A5351-E4 1

73 Casing Gasket (Cellulose) B5237-1-L13 B5237-1-L13 B5308-L13 B5319-1-L13 B5295-L13 1

73A Casing Gasket (Cellulose) B5238-1-L13 B5238-1-L13 B5309-L13 B5320-L13 B5296-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-55-E4 Q27-55-E4 Q27-55-E4 Q27-55-E4 Q27-56-E4 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

190

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series with Stuffi ng Box 3L5 3L6 4L1A 4L1B 4L1C 4L2 Qty.

1 Casing - 125# (Iron) C5321-11-A2 C5617-A2 C6626-A2 C6626-A2 C6626-A2 C6663-A2 1

1 Casing - 250# (Iron) C5321-12-A2 C5617-10-A2 N/A N/A N/A C6663-10-A2 1

1 Casing - 250# (Ductile Iron) C5321-12-A12 C5617-10-A12 C6626-10-A12 C6626-10-A12 C6626-10-A12 C6663-10-A12 1

2 Impeller (BRZ) C5322-B12 C5618-B12 C6813-B12 C5322-B12 C6813-10-B12 C7665-B12 1

6 Shaft (Steel) C5346-E22 C5339-E22 C5346-E22 C5346-E22 C5346-E22 C5339-E22 1

7 Casing Ring (BRZ) A5045-5-C9 A5045-5-C9 A5052-4-C9 A5052-4-C9 A5052-4-C9 A5044-3-C9 2

* 7 Casing Ring (BRZ) A5045-4-C9 A5045-4-C9 A5052-1-C9 A5052-4-C9 A5052-1-C9 A5044-1-C9 2

* 8 Impeller Ring (BRZ) A5056-C9 A5056-C9 A5062-C9 A5847-C9 A5062-C9 A5055-C9 2

13 Packing Q62-M2 *Q27-61-M2 Q27-62-M2 Q27-62-M2 Q27-62-M2 *Q27-61-M2 *1 / 2

14 Shaft Sleeve (416 SS) B4100-6-J2 B4000-3-J2 B4100-6-J2 B4100-6-J2 B4100-6-J2 B4000-3-J2 2

16 Inboard Bearing (Steel) 625-00719 Q10-36-E4 625-00719 625-00719 625-00719 Q10-36-E4 1

17 Stuffi ng Box Gland (Brass) A5198-B5 A5197-B12 A5198-B5 A5198-B5 A5198-B5 A5197-B12 2

18 Outboard Bearing (Steel) 625-00719 Q10-36-E4 625-00719 625-00719 625-00719 Q10-36-E4 1

20 Shaft Sleeve Nut (BRZ) A5348-C9 A5338-C9 A5348-C9 A5348-C9 A5348-C9 A5338-C9 2

29 Seal Cage / Lantern Ring

(Tefl on) A-5350-V2 A6074-V2 A5350-V2 A5350-V2 A5350-V2 A6074-V2 2

31 Inboard Bearing Housing

(Iron) B5347-1-A2 B5337-1-A2 B5347-1-A2 B5347-1-A2 B5347-1-A2 B5337-1-A2 1

32 Impeller Key (303 SS) Q21-23-J8 Q21-84-J8 Q21-23-J8 Q21-23-J8 Q21-23-J8 Q21-84-J8 1

33 Outboard Bearing Housing

(Iron) B5347-A2 B5337-A2 B5347-A2 B5347-A2 B5347-A2 B5337-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-4-L14 H1043-2-L14 H1043-4-L14 H1043-4-L14 H1043-4-L14 H1043-2-L14 2

40 Liquid Defl ector (Rubber) H1936-9-K2 H1936-15-K2 H1936-9-K2 H1936-9-K2 H1936-9-K2 H1936-15-K2 2

41 Inboard Bearing Cap (Iron) B4103-A2 B4298-A2 B4103-A2 B4103-A2 B4103-A2 B4298-A2 1

43 Outboard Bearing Cap (Iron) B4103-A2 B4298-A2 B4103-A2 B4103-A2 B4103-A2 B4298-A2 1

63 Stuffi ng Box Bushing (416 SS) A6759-J2 A7192-J10 A6759-J2 A6759-J2 A6759-J2 A7192-J10 2

72 Thrust Collar (Steel) A5351-E4 A5340-E4 A5351-E4 A5351-E4 A5351-E4 A5340-E4 1

73 Casing Gasket (Cellulose) C7484-L13 B5627-L13 C6632-L13 C6632-L13 C6632-L13 C6668-L13 1

73A Casing Gasket (Cellulose) C7485-L13 B5628-L13 C6633-L13 C6633-L13 C6633-L13 C6669-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-56-E4 Q27-55-E4 Q27-56-E4 Q27-56-E4 Q27-56-E4 Q27-56-E4 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

191

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series with Stuffi ng Box 4L3 4L4 5L1 5L2 Qty.

1 Casing - 125# (Iron) C3997-A2 C5299-10-A2 C6638-A2 C6523-A2 1

1 Casing - 250# (Iron) C3997-10-A2 C5299-11-A2 C6638-10-A2 C6523-10-A2 1

1 Casing - 250# (Ductile Iron) C3997-10-A12 C5299-11-A12 C6638-10-A12 C6523-10-A12 1

2 Impeller (BRZ) B3999-B12 C5300-B12 3369-1-B12 C6535-10-B12 1

6 Shaft (Steel) C5339-E22 C5352-E22 C5352-E22 C5346-E22 1

7 Casing Ring (BRZ) A5045-5-C9 A5044-3-C9 A5048-C9 A5052-4-C9 2

* 7 Casing Ring (BRZ) A5045-4-C9 A5044-1-C9 A5048-1-C9 A5052-1-C9 2

* 8 Impeller Ring (BRZ) A5056-C9 A5055-C9 A5059-C9 A5062-C9 2

13 Packing *Q27-61-M2 *Q27-63-M2 *Q27-63-M2 Q27-62-M2 *1 / 2

14 Shaft Sleeve (416 SS) B4000-3-J2 B4205-3-J2 B4205-3-J2 B4100-6-J2 2

16 Inboard Bearing (Steel) Q10-36-E4 M-6142 M-6142 625-00719 1

17 Stuffi ng Box Gland (BRZ) A5197-B12 A5199-B12 A5199-B12 A5198-B5 2

18 Outboard Bearing (Steel) Q10-36-E4 M-6142 M-6142 625-00719 1

20 Shaft Sleeve Nut (BRZ) A5338-C9 A5354-C9 A5354-C9 A5348-C9 2

29 Seal Cage / Lantern Ring (Tefl on) A6074-V2 A5356-V2 A5356-V2 A5350-V2 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5353-1-A2 B5353-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-5-J8 Q21-22-J8 Q21-22-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5353-A2 B5353-A2 B5347-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-2-L14 H1043-5-L14 H1043-5-L14 H1043-4-L14 2

40 Liquid Defl ector (Rubber) H1936-15-K2 H1936-16-K2 H1936-16-K2 H1936-9-K2 2

41 Inboard Bearing Cap (Iron) B4298-A2 B5375-A2 B5375-A2 B4103-A2 1

43 Outboard Bearing Cap (Iron) B4298-A2 B5375-A2 B5375-A2 B4103-A2 1

63 Stuffi ng Box Bushing (18-8 SS) A7192-J10 A7804-J2 A7804-J2 A6759-J2 2

72 Thrust Collar (Steel) A5340-E4 A5357-E4 A5357-E4 A5351-E4 1

73 Casing Gasket (Cellulose) 3488-1-L13 B5301-L13 C7576-L13 C6537-L13 1

73A Casing Gasket (Cellulose) 3488-2-L13 B5302-L13 C7577-L13 C6538-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-55-E4 Q27-50-E4 Q27-50-E4 Q27-56-E4 2

* = Double Wear Ring Construction

11/16

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

192

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series with Stuffi ng Box 5L3 6L1 6L2 6L3 Qty.

1 Casing - 125# (Iron) C4015-12-A2 C6677-A2 C8703-A2 C4054-11-A2 1

1 Casing - 250# (Iron) C4015-13-A2 C6677-10-A2 C8703-10-A2 C4054-12-A2 1

1 Casing - 250# (Ductile Iron) C4015-13-A12 C6677-10-A12 C8703-10-A12 C4054-12-A12 1

2 Impeller (BRZ) 3049-1-B12 B4343-B12 C5244-11-B12 B4040-B12 1

6 Shaft (Steel) C5339-E22 C5358-E22 C5352-E22 C5346-E22 1

7 Casing Ring (BRZ) A5042-2-C9 A5050-C9 A5048-C9 A5052-4-C9 2

* 7 Casing Ring (BRZ) A5042-4-C9 A5050-1-C9 A5048-1-C9 A5052-1-C9 2

* 8 Impeller Ring (BRZ) C5053-1-C9 A5060-C9 A5059-C9 A5062-C9 2

13 Packing *Q27-61-M2 *Q27-87-M2 *Q27-63-M2 Q27-62-M2 *1 / 2

14 Shaft Sleeve (416 SS) B4000-3-J2 B5364-3-J2 B4205-3-J2 B4100-6-J2 2

16 Inboard Bearing (Steel) Q10-36-E4 052935 M-6142 625-00719 1

17 Stuffi ng Box Gland (BRZ) A5197-B12 A5201-2-B12 A5199-B12 A5198-B5 2

18 Outboard Bearing (Steel) Q10-36-E4 052935 M-6142 625-00719 1

20 Shaft Sleeve Nut (BRZ) A5338-C9 A5360-C9 A5354-C9 A5348-C9 2

29 Seal Cage / Lantern Ring (Tefl on) A6074-V2 A5362-V2 A5356-V2 A5350-V2 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5359-1-A2 B5353-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-84-J8 Q21-37-J8 Q21-22-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5359-A2 B5353-A2 B5347-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-2-L14 H1043-7-L14 H1043-5-L14 H1043-4-L14 2

40 Liquid Defl ector (Rubber) H1936-15-K2 H1936-5-K2 H1936-16-K2 H1936-9-K2 2

41 Inboard Bearing Cap (Iron) B4298-A2 B4211-A2 B5375-A2 B4103-A2 1

43 Outboard Bearing Cap (Iron) B4298-A2 B4211-A2 B5375-A2 B4103-A2 1

63 Stuffi ng Box Bushing (18-8 SS) A7192-J10 A8696-J2 A7804-J2 A6759-A2 2

72 Thrust Collar (Steel) A5340-E4 A5363-E4 A5357-E4 A5351-E4 1

73 Casing Gasket (Cellulose) C7542-2-L13 C6687-L13 C8718-L13 C7505-L13 1

73A Casing Gasket (Cellulose) 3491-1-L13 C6688-L13 C8719-L13 C7506-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-55-E4 Q27-57-E4 Q27-50-E4 Q27-56-E4 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

193

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series with Stuffi ng Box 8L1 8L2A 8L2B 8L3 10L2A Qty.

1 Casing - 125# (Iron) N/A N/A N/A N/A C4785-11-3-A2 1

1 Casing - 125# (Iron) C8325-A2 C6585-10-2-A2 *C6585-10-2-A2 C4521-A2 N/A 1

1 Casing - 250# (Iron) N/A **C6585-10-A2 N/A N/A C4785-11-2-A2 1

1 Casing - 250# (Iron) C8325-1-A2 C6585-10-3-A2 N/A C4521-11-A2 N/A 1

1 Casing - 250# (Ductile Iron) N/A **C6585-10-A12 N/A N/A C4785-11-2-A12 1

1 Casing - 250# (Ductile Iron) C8325-1-A12 C6585-10-3-A12 C6585A-10-3-A12 C4521-11-A12 N/A 1

2 Impeller (BRZ) 4173-1-B12 C8141-C9 C8141-B12 B4487-B12 C6357-B12 1

2 Impeller (BRZ) N/A **B4366-B12 N/A N/A N/A 1

6 Shaft (Steel) B5788-E22 C5358-E22 C5358-E22 C5352-E22 C5719-E22 1

7 Casing Ring (BRZ) A5049-C9 A8142-C9 A8142-C9 A5046-C9 A5049-C9 2

* 7 Casing Ring (BRZ) N/A A5050-1-C9 N/A N/A N/A 2

* 8 Impeller Ring (BRZ) A5084-C9 A8189-C9 A8189-C9 A5057-C9 A5084-C9 2

* 8 Impeller Ring (BRZ) N/A A5060-C9 N/A N/A N/A 2

13 Packing *Q27-67-M2 *Q27-87-M2 *Q27-87-M2 *Q27-63-M2 *Q27-66-M2 *1 / 2

14 Shaft Sleeve (416 SS) B5789-4-J2 B5364-3-J2 B5364-3-J2 B4205-3-J2 B5170-3-J2 2

16 Inboard Bearing M-4342 052935 052935 M-6142 073599 1

17 Stuffi ng Box Gland (BRZ) A5202-B12 A5201-2-B12 A5201-2-B12 A5199-B12 A5201-B12 2

18 Outboard Bearing (Steel) Q10-108-E4 052935 052935 M-6142 073599 1

20 Shaft Sleeve Nut (BRZ) A5798-C9 A5360-C9 A5360-C9 A5354-C9 A5718-C9 2

29 Seal Cage / Lantern Ring

(Tefl on) A8378-V2 A5362-V2 A5362-V2 A5356-V2 A5167-V2 2

31 Inboard Bearing Housing (Iron) B4773-1-A2 B5359-1-A2 B5359-1-A2 B5353-1-A2 B4348-1-A2 1

32 Impeller Key (303 SS) Q21-48-J8 Q21-37-J8 Q21-37-J8 Q21-22-J8 Q21-52-J8 1

33 Outboard Bearing Housing (Iron) B4772-1-A2 B5359-A2 B5359-A2 B5353-A2 B4347-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-9-L14 H1043-7-L14 H1043-7-L14 H1043-5-L14 H1043-7-L14 2

40 Liquid Defl ector (Rubber) H1936-14-K2 H1936-5-K2 H1936-5-K2 H1936-16-K2 H1936-5-K2 2

41 Inboard Bearing Cap (Iron) B5790-A2 B4211-A2 B4211-A2 B5375-A2 B4349-A2 1

43 Outboard Bearing Cap (Iron) B5790-A2 B4211-A2 B4211-A2 B5375-A2 B4349-A2 1

63 Stuffi ng Box Bushing (18-8 SS) A8698-J10 A8696-J2 A8696-J2 A7804-J2 A8697-J10 2

72 Thrust Collar (Steel) N/A A5363-E4 A5363-E4 A5357-E4 A5720-E4 1

73 Casing Gasket (Cellulose) B8326-L13 B7390-L13 B7390-L13 C5700-L13 4217-6-L13 1

73A Casing Gasket (Cellulose) B8327-L13 B7391-L13 B7391-L13 C5700-L13 4217-7-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring N/A N/A N/A N/A N/A 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

194

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series with Stuffi ng Box 10L3A 10L3B 12L2A 12L2B 12L2C Qty.

1 Casing - 125# (Iron) C8319-A2 C8319-A2 C6473-10-1-A2 C6473-10-1-A2 N/A 1

1 Casing - 250# (Iron) C8319-1-A2 N/A C6473-10-A2 N/A N/A 1

1 Casing - 250# (Ductile Iron) C8319-1-A12 C8319-1-A12 C6473-10-A12 C6473-10-A12 N/A 1

2 Impeller (BRZ) C8530-B12 B4066-B12 C6634-B12 C8531-B12 N/A 1

6 Shaft (Steel) C5358-E22 C5358-E22 B5788-E22 B5788-E22 N/A 1

* 7 Casing Ring (BRZ) A5051-C9 A5051-C9 A6497-C9 A6497-C9 N/A 2

* 8 Impeller Ring (BRZ) A5083-C9 A5082-C9 A6496-C9 A6496-C9 N/A 2

13 Packing *Q27-87-M2 *Q27-87-M2 *Q27-67-M2 *Q27-67-M2 N/A *1 / 2

14 Shaft Sleeve (416 SS) B5364-3-J2 B5364-3-J2 B5789-4-J2 B5789-4-J2 N/A 2

16 Inboard Bearing 052935 052935 M-4342 M-4342 N/A 1

17 Stuffi ng Box Gland (BRZ) A5201-2-B12 A5201-2-B12 A5202-B12 A5202-B12 N/A 2

18 Outboard Bearing (Steel) 052935 052935 Q10-108-E4 Q10-108-E4 N/A 1

20 Shaft Sleeve Nut (BRZ) A5360-C9 A5360-C9 A5798-C9 A5798-C9 N/A 2

29 Seal Cage / Lantern Ring

(Tefl on) A5362-V2 A5362-V2 A8378-V2 A8378-V2 N/A 2

31 Inboard Bearing Housing (Iron) B5359-1-A2 B5359-1-A2 B4773-1-A2 B4773-1-A2 N/A 1

32 Impeller Key (303 SS) Q21-37-J8 Q21-37-J8 Q21-48-J8 Q21-48-J8 N/A 1

33 Outboard Bearing Housing (Iron) B5359-A2 B5359-A2 B4772-1-A2 B4772-1-A2 N/A 1

38 Shaft Sleeve Gasket (Lexide) H1043-7-L14 H1043-7-L14 H1043-9-L14 H1043-9-L14 N/A 2

40 Liquid Defl ector (Rubber) H1936-5-K2 H1936-5-K2 H1936-14-K2 H1936-14-K2 N/A 2

41 Inboard Bearing Cap (Iron) B4211-A2 B4211-A2 B5790-A2 B5790-A2 N/A 1

43 Outboard Bearing Cap (Iron) B4211-A2 B4211-A2 B5790-A2 B5790-A2 N/A 1

63 Stuffi ng Box Bushing (416 SS) A8696-J2 A8696-J2 A8698-J10 A8698-J10 N/A 2

72 Thrust Collar (Steel) A5363-E4 A5363-E4 N/A N/A N/A 1

73 Casing Gasket (Cellulose) B8320-1-L13 B8320-1-L13 B6474-L13 B6474-L13 N/A 1

73A Casing Gasket (Cellulose) B8321-3-L13 B8321-3-L13 B6475-L13 B6475-L13 N/A 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 N/A 1

192 Retaining Ring 030650 030650 030650 030650 N/A 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

195

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal - No Sleeves 2L4A 2L4B 2L5 2L6 3L4 Qty.

1 Casing - 125# (Iron) C5207-1-A2 C5207-1-A2 C5306-A2 C5317-11-A2 C5293-A2 1

1 Casing - 250# (Iron) N/A N/A N/A N/A C5293-10-A2 1

1 Casing - 250# (Ductile Iron) C5207-11-A12 C5207-11-A12 C5306-10-A12 C5317-12-A12 C5293-10-A12 1

2 Impeller (BRZ) C5223-10-B12 C5223-10-B12 N/A N/A N/A 1

2 Impeller (BRZ) C5223-1-B12 N/A C329465P01-B12 C5318-B12 C5294-B12 1

6 Shaft (416 SS) C6699-1-J2 C6699-1-J2 C6699-1-J2 C6699-1-J2 C6703-J2 1

7 Casing Ring (BRZ) A5047-2-C9 A5047-2-C9 A5045-5-C9 A5045-5-C9 A5045-5-C9 2

* 7 Casing Ring (BRZ) A5047-1-C9 A5047-1-C9 A5045-4-C9 A5045-4-C9 A5045-4-C9 2

* 8 Impeller Ring (BRZ) A5058-C9 A5058-C9 A5056-C9 A5056-C9 A5056-C9 2

16 Inboard Bearing (Steel) Q10-36-E4 Q10-36-E4 Q10-36-E4 Q10-36-E4 625-00719 1

17A Seal Cap (Iron) A6700-A2 A6700-A2 A6700-A2 A6700-A2 A6704-A2 2

18 Outboard Bearing (Steel) Q10-36-E4 Q10-36-E4 Q10-36-E4 Q10-36-E4 625-00719 1

24A Shaft Collar (Iron) A6702-A2 A6702-A2 A6702-J2 A6702-J2 A6705-J2-1 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5337-1-A2 B5337-1-A2 B5337-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-5-J8 Q21-5-J8 Q21-5-J8 Q21-5-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5337-A2 B5337-A2 B5337-A2 B5347-A2 1

40 Liquid Defl ector (Rubber) H1936-2-K2 H1936-2-K2 H1936-2-K2 H1936-2-K2 H1936-16-K2 2

41 Inboard Bearing Cap (Iron) B4298-3-A2 B4298-3-A2 B4298-3-A2 B4298-3-A2 B4103-2-A2 1

43 Outboard Bearing Cap (Iron) B4298-3-A2 B4298-3-A2 B4298-3-A2 B4298-3-A2 B4103-2-A2 1

68 Seal Collar (BRZ) A5157-C9 A5157-C9 A5157-C9 A5157-C9 A5095-C9 2

72 Thrust Collar (Steel) N/A N/A N/A N/A A5351-E4 1

73 Casing Gasket (Cellulose) B5237-1-L13 B5237-1-L13 B5308-L13 B5319-1-L13 B5295-L13 1

73A Casing Gasket (Cellulose) B5238-1-L13 B5238-1-L13 B5309-L13 B5320-L13 B5296-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 2

192 Retaining Ring (Steel) Q27-55-E4 Q27-55-E4 Q27-55-E4 Q27-55-E4 Q27-56-E4 2

- Seal Gasket (Cellulose) A6499-L13 A6499-L13 A6499-L13 A6499-L13 A6500-1-L13 2

65 & 80 Mechanical Seal - Standard Q26-243-Y35 Q26-243-Y35 Q26-243-Y34 Q26-243-Y34 Q26-178-Y34 2

65 & 80 Mechanical Seal - Hot Water Q26-243-Y6 Q26-243-Y6 Q26-243-Y6 Q26-243-Y6 Q26-217-Y6 2

65 & 80 Mechanical Seal - Balance Q26-346-Y4 N/A Q26-346-Y4 Q26-346-Y4 Q26-303-Y34 2

65 & 80 Mechanical Seal - Tung. Carb. Q26-243-Y10 Q26-243-Y10 Q26-243-Y10 Q26-243-Y10 Q26-303-Y10 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

196

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal - No Sleeves 3L5 3L6 4L1A 4L1B 4L1C 4L2 Qty.

1 Casing - 125# (Iron) C5321-11-A2 C5617-A2 C6626-A2 C6626-A2 C6626-A2 C6663-A2 1

1 Casing - 250# (Iron) C5321-12-A2 C5617-10-A2 C6626-A10-A2 N/A N/A C6663-10-A2 1

1 Casing - 250# (Ductile Iron) C5321-12-A12 C5617-10-A12 C6626-10-A12 C6626-10-A12 C6626-10-A12 C6663-10-A12 1

2 Impeller (BRZ) C5322-B12 C5618-B12 C6813-B12 N/A C6813-10-B12 C7665-B12 1

* 2 Impeller (BRZ) N/A N/A N/A C5322-B12 N/A N/A

6 Shaft (416 SS) C6703-J2 C6699-1-J2 C6703-J2 C6703-J2 C6703-J2 C6699-1-J2 1

7 Casing Ring (BRZ) A5045-5-C9 A5045-5-C9 A5052-4-C9 N/A A5052-4-C9 A5044-3-C9 2

* 7 Casing Ring (BRZ) A5045-4-C9 A5045-4-C9 A5052-1-C9 A5052-4-C9 A5052-1-C9 A5044-1-C9 2

* 8 Impeller Ring (BRZ) A5056-C9 A5056-C9 A5062-C9 A5847-C9 A5062-C9 A5055-C9 2

16 Inboard Bearing (Steel) 625-00719 Q10-36-E4 625-00719 625-00719 625-00719 Q10-36-E4 1

17A Seal Cap (Iron) A6704-A2 A6700-A2 A6704-A2 A6704-A2 A6704-A2 A6700-A2 2

18 Outboard Bearing (Steel) 625-00719 Q10-36-E4 625-00719 625-00719 625-00719 Q10-36-E4 1

24A Shaft Collar (416 SS) A6705-J2 A6702-J2 A6705-J2 A6705-J2 A6705-J2 A6702-J2 2

31 Inboard Bearing Housing

(Iron) B5347-1-A2 B5337-1-A2 B5347-1-A2 B5347-1-A2 B5347-1-A2 B5337-1-A2 1

32 Impeller Key (303 SS) Q21-23-J8 Q21-84-J8 Q21-23-J8 Q21-23-J8 Q21-23-J8 Q21-84-J8 1

33 Outboard Bearing Housing

(Iron) B5347-A2 B5337-A2 B5347-A2 B5347-A2 B5347-A2 B5337-A2 1

40 Liquid Defl ector (Rubber) H1936-16-K2 H1936-2-K2 H1936-16-K2 H1936-16-K2 H1936-16-K2 H1936-2-K2 2

41 Inboard Bearing Cap (Iron) B4103-2-A2 B4298-3-A2 B4103-2-A2 B4103-2-A2 B4103-2-A2 B4298-3-A2 1

43 Outboard Bearing Cap (Iron) B4103-2-A2 B4298-3-A2 B4103-2-A2 B4103-2-A2 B4103-2-A2 B4298-3-A2 1

68 Seal Collar (BRZ) A5095-C9 A5157-C9 A5095-C9 A5095-C9 A5095-C9 A5157-C9 2

72 Thrust Collar (Steel) A5351-E4 A5340-E4 A5351-E4 A5351-E4 A5351-E4 N/A 1

73 Casing Gasket (Cellulose) C7484-L13 B5627-L13 C6632-L13 C6632-L13 C6632-L13 C6668-L13 1

73A Casing Gasket (Cellulose) C7485-L13 B5628-L13 C6633-L13 C6633-L13 C6633-L13 C6669-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-56-E4 Q27-55-E4 Q27-56-E4 Q27-56-E4 Q27-56-E4 Q27-55-E4 2

- Seal Gasket (Cellulose) A6500-1-L13 A6499-L13 A6500-1-L13 A6500-1-L13 A6500-1-L13 A6499-L13 2

65 & 80 Mechanical Seal - Standard Q26-178-Y35 Q26-243-Y35 Q26-178-Y35 Q26-178-Y35 Q26-178-Y35 Q26-243-Y35 2

65 & 80 Mechanical Seal - Hot Water Q26-178-Y6 Q26-243-Y6 Q26-178-Y6 Q26-178-Y6 Q26-178-Y6 Q26-243-Y6 2

* = Double Wear Ring Construction

2/15

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

197

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal - No Sleeves 4L3 4L4 5L1 5L2 Qty.

1 Casing - 125# (Iron) C3997-A2 C5299-10-A2 C6638-A2 C6523-A2 1

1 Casing - 250# (Iron) N/A C5299-11-A2 C6638-10-A2 C6523-10-A2 1

1 Casing - 250# (Ductile Iron) C3997-10-A12 C5299-11-A12 C6638-10-A12 C6523-10-A12 1

2 Impeller (BRZ) B3999-B12 C5300-B12 3369-1-B12 C6535-10-B12 1

6 Shaft (416 SS) C6699-1-J2 C6707-J2 C6707-J2 C6703-J2 1

7 Casing Ring (BRZ) A5045-5-C9 A5044-3-C9 A5048-C9 A5052-4-C9 2

* 7 Casing Ring (BRZ) A5045-4-C9 A5044-1-C9 A5048-1-C9 A5052-1-C9 2

* 8 Impeller Ring (BRZ) A5056-C9 A5055-C9 A5059-C9 A5062-C9 2

16 Inboard Bearing (Steel) Q10-36-E4 M-6142 M-6142 625-00719 1

17A Seal Cap (Iron) A6700-A2 A6708-A2 A6708-A2 A6704-A2 2

18 Outboard Bearing (Steel) Q10-36-E4 M-6142 M-6142 625-00719 1

24A Shaft Collar (416 SS) A6702-J2 A6710-J2 A6710-J2 A6705-J2 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5353-1-A2 B5353-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-5-J8 Q21-22-J8 Q21-22-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5353-A2 B5353-A2 B5347-A2 1

40 Liquid Defl ector (Rubber) H1936-2-K2 H1936-4-K2 H1936-4-K2 H1936-16-K2 2

41 Inboard Bearing Cap (Iron) B4298-3-A2 B5375-3-A2 B5375-3-A2 B4103-2-A2 1

43 Outboard Bearing Cap (Iron) B4298-3-A2 B5375-3-A2 B5375-3-A2 B4103-2-A2 1

68 Seal Collar (BRZ) A5157-C9 A5978-C9 A5978-C9 A5095-C9 2

72 Thrust Collar (Steel) N/A A5357-E4 A5357-E4 A5351-E4 1

73 Casing Gasket (Cellulose) 3488-1-L13 B5301-L13 C7576-L13 C6537-L13 1

73A Casing Gasket (Cellulose) 3488-2-L13 B5302-L13 C7577-L13 C6538-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-55-E4 Q27-50-E4 Q27-50-E4 Q27-56-E4 2

- Seal Gasket (Cellulose) A6499-L13 A6501-L13 A6501-L13 A6500-1-L13 2

68 & 80 Mechanical Seal - Standard Q26-243-Y35 Q26-240-Y35 Q26-240-Y35 Q26-178-Y35 2

68 & 80 Mechanical Seal - Hot Water Q26-243-Y6 Q26-240-Y6 Q26-240-Y6 Q26-178-Y6 2

* = Double Wear Ring Construction

11/16

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

198

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal - No Sleeves 5L3 6L1 6L2 6L3 Qty.

1 Casing - 125# (Iron) C4015-12-A2 C6677-A2 C8703-A2 C4054-11-A2 1

1 Casing - 250# (Iron) C4015-13-A2 C6677-10-A2 A8703-10-A2 C4054-12-A2 1

1 Casing - 250# (Ductile Iron) C4015-13-A12 C6677-10-A12 C8703-10-A12 C4054-12-A12 1

2 Impeller (BRZ) 3049-1-B12 B4343-B12 C5244-11-B12 B4040-B12 1

6 Shaft (416 SS) C6699-1-J2 C6714-J2 C6707-J2 C6703-J2 1

7 Casing Ring (BRZ) A5042-2-C9 A5050-C9 A5048-C9 A5052-4-C9 2

* 7 Casing Ring (BRZ) A5042-4-C9 A5050-1-C9 A5048-1-C9 A5052-1-C9 2

* 8 Impeller Ring (BRZ) C5053-1-C9 A5060-C9 A5059-C9 A5062-C9 2

16 Inboard Bearing (Steel) Q10-36-E4 052935 M-6142 625-00719 1

17A Seal Cap (Iron) A6700-A2 A6724-1-A2 A6708-A2 A6704-A2 2

18 Outboard Bearing (Steel) Q10-36-E4 052935 M-6142 625-00719 1

24A Shaft Collar (416 SS) A6702-J2 A6726-J2 A6710-J2 A6705-J2 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5359-1-A2 B5353-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-5-J8 Q21-37-J8 Q21-22-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5359-A2 B5353-A2 B5347-A2 1

40 Liquid Defl ector (Rubber) H1936-2-K2 H1936-6-K2 H1936-4-K2 H1936-16-K2 2

41 Inboard Bearing Cap (Iron) B4298-3-A2 B4211-1-A2 B5375-3-A2 B4103-2-A2 1

43 Outboard Bearing Cap (Iron) B4298-3-A2 B4211-1-A2 B5375-3-A2 B4103-2-A2 1

68 Seal Collar (BRZ) A5157-C9 A5147-C9 A5978-C9 A5095-C9 2

72 Thrust Collar (Steel) N/A A5363-E4 A5357-E4 A5351-E4 1

73 Casing Gasket (Cellulose) C7542-2-L13 C6687-L13 C8718-L13 C7505-L13 1

73A Casing Gasket (Cellulose) 3491-1-L13 C6688-L13 C8719-L13 C7506-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-55-E4 Q27-57-E4 Q27-50-E4 Q27-56-E4 2

- Seal Gasket (Cellulose) A6499-L13 A5371-L13 A6501-L13 A6500-1-L13 2

65 & 80 Mechanical Seal - Standard Q26-243-Y35 Q26-180-Y35 Q26-240-Y35 Q26-178-Y35 2

65 & 80 Mechanical Seal - Hot Water Q26-243-Y6 Q26-180-Y6 Q26-240-Y6 Q26-178-Y6 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

199

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal - No Sleeves 8L1 8L2A 8L2B 8L3 10L2A Qty.

1 Casing - 125# (Iron) N/A **C6586-10-1-A2 **C6586-10-1-A2 N/A C4785-11-3-A2 1

1 Casing - 125# (Iron) C8325-A2 C6585-10-2-A2 C6585-10-2-A2 C4521-A2 N/A 1

1 Casing - 250# (Iron) N/A **C6585-10-A2 **C6585-10-A2 N/A C4785-11-2-A2 1

1 Casing - 250# (Iron) C8325-1-A2 C6585-10-3-A2 C6585-10-3-A2 C4521-11-A2 N/A 1

1 Casing - 250# (Ductile Iron) N/A **C6585-10-A12 **C6585-10-A12 N/A C4785-11-2-A12 1

1 Casing - 250# (Ductile Iron) C8325-1-A12 C6585-10-3-A12 C6585-10-3-A12 C4521-11-A12 N/A 1

2 Impeller (BRZ) 4173-1-B12 **B4366-B12 C8141-C9 B4487-B12 C6357-B12 1

6 Shaft (416 SS) C6730-J2 C6714-J2 C6714-J2 C6707-J2 C6727-J2 1

7 Casing Ring (BRZ) A5049-C9 A5050-1-C9 A8142-C9 A5046-C9 A5049-C9 2

* 8 Impeller Ring (BRZ) A5084-C9 A5060-C9 A8189-C9 A5057-C9 A5084-C9 2

16 Inboard Bearing M-4342 052935 052935 M-6142 073599 1

17A Seal Cap (Iron) A6735-A2 A6724-1-A2 A6724-1-A2 A6708-A2 A6724-A2 2

18 Outboard Bearing (Steel) Q10-108-E4 052935 052935 M-6142 073599 1

24A Shaft Collar (416 SS) A6736-J2 A6726-J2 A6726-J2 A6710-J2 A6726-J2 2

31 Inboard Bearing Housing (Iron) B4773-1-A2 B5359-1-A2 B5359-1-A2 B5353-1-A2 B4348-1-A2 1

32 Impeller Key (303 SS) Q21-48-J8 Q21-37-J8 Q21-37-J8 Q21-22-J8 Q21-52-J8 1

33 Outboard Bearing Housing (Iron) B4772-1-A2 B5359-A2 B5359-A2 B5353-A2 B4347-A2 1

40 Liquid Defl ector (Rubber) H1936-8-K2 H1936-6-K2 H1936-6-K2 H1936-4-K2 H1936-6-K2 2

41 Inboard Bearing Cap (Iron) B5790-2-A2 B4211-1-A2 B4211-1-A2 B5375-3-A2 B4349-1-A2 1

43 Outboard Bearing Cap (Iron) B5790-2-A2 B4211-1-A2 B4211-1-A2 B5375-3-A2 B4349-1-A2 1

68 Seal Collar (BRZ) A5370-C9 A5147-C9 A5147-C9 A5978-C9 A5147-C9 2

72 Thrust Collar (Steel) N/A A5363-E4 A5363-E4 A5357-E4 A5720-E4 1

73 Casing Gasket (Cellulose) B8326-L13 B7390-L13 B7390-L13 C5700-L13 4217-6-L13 1

73A Casing Gasket (Cellulose) B8327-L13 B7391-L13 B7391-L13 C5700-L13 4217-7-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-73-E4 Q27-57-E4 Q27-57-E4 Q27-50-E4 Q27-73-E4 2

- Seal Gasket (Cellulose) A8384-L13 A5371-L13 A5371-L13 A6501-L13 A7578-L13 2

65 & 80 Mechanical Seal - Standard Q26-181-Y35 Q26-180-Y35 Q26-180-Y35 Q26-240-Y35 Q26-180-Y35 2

65 & 80 Mechanical Seal - Hot Water Q26-181-Y6 Q26-180-Y6 Q26-180-Y6 Q26-240-Y6 Q26-180-Y6 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

200

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal - No Sleeves 10L3A 10L3B 12L2A 12L2B 12L2C Qty.

1 Casing - 125# (Iron) C8319-A2 C8319-A2 C6473-10-1-A2 C6473-10-1-A2 C6473-10-1-A2 1

1 Casing - 250# (Iron) N/A N/A N/A N/A N/A 1

1 Casing - 250# (Ductile Iron) C8319-1-A12 C8319-1-A12 C6473-10-A12 C6473-10-A12 C6473-10-A12 1

2 Impeller (BRZ) B4066-B12 B4066-B12 C6634-B12 C8531-B12 C8531-1-B12 1

2 Impeller (BRZ) C8530-B12 N/A N/A N/A N/A 1

6 Shaft (416 SS) C6714-J2 C6714-J2 C6730-J2 C6730-J2 C6730-2-J2 1

* 7 Casing Ring (BRZ) A5051-C9 A5051-C9 A6497-C9 A6497-C9 A6497-C9 2

* 8 Impeller Ring (BRZ) A5082-C9 A5082-C9 A6496-C9 A6496-C9 A6496-C9 2

* 8 Impeller Ring (BRZ) A5083-C9 N/A N/A N/A N/A 2

16 Inboard Bearing 052935 052935 M-4342 M-4342 M-4342 1

17A Seal Cap (Iron) A6724-1-A2 A6724-1-A2 A6735-A2 A6735-A2 A6735-3-A2 2

18 Outboard Bearing (Steel) 052935 052935 Q10-108-E4 Q10-108-E4 Q10-108-E4 1

24A Shaft Collar (416 SS) A6726-J2 A6726-J2 A6736-J2 A6736-J2 A6736-1-J2 2

31 Inboard Bearing Housing (Iron) B5359-1-A2 B5359-1-A2 B4773-1-A2 B4773-1-A2 B4773-1-A2 1

32 Impeller Key (303 SS) Q21-37-J8 Q21-37-J8 Q21-48-J8 Q21-48-J8 Q21-48-J8 1

33 Outboard Bearing Housing (Iron) B5359-A2 B5359-A2 B4772-1-A2 B4772-1-A2 B4772-1-A2 1

40 Liquid Defl ector (Rubber) H1936-6-K2 H1936-6-K2 H1936-8-K2 H1936-8-K2 H1936-17-K2 2

41 Inboard Bearing Cap (Iron) B4211-1-A2 B4211-1-A2 B5790-2-A2 B5790-2-A2 B5790-4-A2 1

43 Outboard Bearing Cap (Iron) B4211-1-A2 B4211-1-A2 B5790-2-A2 B5790-2-A2 B5790-4-A2 1

68 Seal Collar (BRZ) A5147-C9 A5147-C9 A5370-C9 A5370-C9 A5370-1-C9 2

72 Thrust Collar (Steel) A5363-E4 A5363-E4 N/A N/A N/A 1

73 Casing Gasket (Cellulose) B8320-1-L13 B8320-1-L13 B6474-L13 B6474-L13 B6474-L13 1

73A Casing Gasket (Cellulose) B8321-3-L13 B8321-3-L13 B6475-L13 B6475-L13 B6475-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-57-E4 030650 Q27-73-E4 029863 029863 2

- Seal Gasket (Cellulose) A5371-L13 A5371-L13 A8384-L13 A8384-L13 A8384-L13 2

65 & 80 Mechanical Seal - Standard Q26-180-Y35 Q26-180-Y35 Q26-181-Y35 Q26-181-Y35 Q26-408-Y35 2

65 & 80 Mechanical Seal - Hot Water Q26-180-Y6 Q26-180-Y6 Q26-181-Y6 Q26-181-Y6 Q26-408-Y6 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

201

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal and Sleeves 2L4A 2L4B 2L5 2L6 3L4 Qty.

1 Casing - 125# (Iron) C5207-1-A2 C5207-1-A2 C5306-A2 C5317-11-A2 C5293-A2 1

1 Casing - 250# (Iron) N/A N/A N/A N/A N/A 1

1 Casing - 250# (Ductile Iron) C5207-11-A12 C5207-11-A12 C5306-10-A12 C5317-12-A12 C5293-10-A12 1

2 Impeller (BRZ) C5223-1-B12 C5223-10-B12 C329465P01-B12 C5318-B12 C5294-B12 1

6 Shaft (Steel) C5339-E22 C5339-E22 C5339-E22 C5339-E22 C5346-E22 1

7 Casing Ring (BRZ) A5047-2-C9 A5047-2-C9 A5045-5-C9 A5045-5-C9 A5045-5-C9 2

* 7 Casing Ring (BRZ) A5047-1-C9 A5047-1-C9 A5045-4-C9 A5045-4-C9 A5045-4-C9 2

* 8 Impeller Ring (BRZ) A5058-C9 A5058-C9 A5056-C9 A5056-C9 A5056-C9 2

14 Shaft Sleeve (BRZ) B4000-C9 B4000-C9 B4000-C9 B4000-C9 B4100-C9 2

16 Inboard Bearing (Steel) Q10-36-E4 Q10-36-E4 Q10-36-E4 Q10-36-E4 625-00719 1

17A Seal Cap (Iron) A6700-2-A2 A6700-2-A2 A6700-2-A2 A6700-2-A2 A6704-5-A2 2

18 Outboard Bearing (Steel) Q10-36-E4 Q10-36-E4 Q10-36-E4 Q10-36-E4 625-00719 1

20 Shaft Sleeve Nut (BRZ) A5338-C9 A5338-C9 A5338-C9 A5338-C9 A5348-C9 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5337-1-A2 B5337-1-A2 B5337-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-84-J8 Q21-84-J8 Q21-84-J8 Q21-84-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5337-A2 B5337-A2 B5337-A2 B5347-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-2-L14 H1043-2-L14 H1043-2-L14 H1043-2-L14 H1043-4-L14 2

40 Liquid Defl ector (Rubber) H1936-15-K2 H1936-15-K2 H1936-15-K2 H1936-15-K2 H1936-9-K2 2

41 Inboard Bearing Cap (Iron) B4298-A2 B4298-A2 B4298-A2 B4298-A2 B4103-A2 1

43 Outboard Bearing Cap (Iron) B4298-A2 B4298-A2 B4298-A2 B4298-A2 B4103-A2 1

65 & 80 Mechanical Seal - Standard Q26-178-Y35 Q26-178-Y35 Q26-178-Y35 Q26-178-Y35 Q26-217-Y35 2

65 & 80 Mechanical Seal - Hot Water Q26-178-Y6 Q26-178-Y6 Q26-178-Y6 Q26-178-Y6 Q26-217-Y6 2

68 Seal Collar (BRZ) A5095-C9 A5095-C9 A5095-C9 A5095-C9 A5153-C9 2

72 Thrust Collar (Steel) A5340-E4 A5340-E4 A5340-E4 A5340-E4 A5351-E4 1

- Seal Gasket (Cellulose) A6499-L13 A6499-L13 A6499-L13 A6499-L13 A6500-1-L13 2

73 Casing Gasket (Cellulose) B5237-1-L13 B5237-1-L13 B5308-L13 B5319-1-L13 B5295-L13 1

73A Casing Gasket (Cellulose) B5238-1-L13 B5238-1-L13 B5309-L13 B5320-L13 B5296-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-55-E4 Q27-55-E4 Q27-55-E4 Q27-55-E4 Q27-56-E4 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

202

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal and Sleeves 3L5 3L6 4L1A 4L1B 4L1C 4L2 Qty.

1 Casing - 125# (Iron) C5321-11-A2 C5617-A2 C6626-A2 C6626-A2 C6626-A2 C6663-A2 1

1 Casing - 250# (Iron) C5321-12-A2 C5617-10-A2 C6626-A10-A2 N/A N/A C6663-10-A2 1

1 Casing - 250# (Ductile Iron) C5321-12-A12 C5617-10-A12 C6626-10-A12 C6626-10-A12 C6626-10-A12 C6663-10-A12 1

2 Impeller (BRZ) C5322-B12 C5618-B12 C6813-B12 C5322-B12 C6813-10-B12 C7665-B12 1

6 Shaft (Steel) C5346-E22 C5339-E22 C5346-E22 C5346-E22 C5346-E22 C5339-E22 1

7 Casing Ring (BRZ) N/A N/A A5052-4-C9 N/A A5052-4-C9 N/A 2

* 7 Casing Ring (BRZ) A5045-5-C9 A5045-5-C9 A5052-1-C9 A5052-4-C9 A5052-1-C9 A5044-3-C9 2

* 8 Impeller Ring (BRZ) A5045-4-C9 A5045-4-C9 A5062-C9 A5847-C9 A5062-C9 A5044-1-C9 2

14 Shaft Sleeve (BRZ) B4100-C9 B4000-C9 B4100-C9 B4100-C9 B4100-C9 B4000-C9 2

16 Inboard Bearing (Steel) 625-00719 Q10-36-E4 625-00719 625-00719 625-00719 Q10-36-E4 1

17A Seal Cap (Iron) A6704-5-A2 A6700-2-A2 A6704-5-A2 A6704-5-A2 A6704-5-A2 A6700-2-A2 2

18 Outboard Bearing (Steel) 625-00719 Q10-36-E4 625-00719 625-00719 625-00719 Q10-36-E4 1

20 Shaft Sleeve Nut (BRZ) A5348-C9 A5338-C9 A5348-C9 A5348-C9 A5348-C9 A5338-C9 2

31 Inboard Bearing Housing

(Iron) B5347-1-A2 B5337-1-A2 B5347-1-A2 B5347-1-A2 B5347-1-A2 B5337-1-A2 1

32 Impeller Key (303 SS) Q21-23-J8 Q21-84-J8 Q21-23-J8 Q21-23-J8 Q21-23-J8 Q21-84-J8 1

33 Outboard Bearing Housing

(Iron) B5347-A2 B5337-A2 B5347-A2 B5347-A2 B5347-A2 B5337-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-4-L14 H1043-2-L14 H1043-4-L14 H1043-4-L14 H1043-4-L14 H1043-2-L14 2

40 Liquid Defl ector (Rubber) H1936-9-K2 H1936-15-K2 H1936-9-K2 H1936-9-K2 H1936-9-K2 H1936-15-K2 2

41 Inboard Bearing Cap (Iron) B4103-A2 B4298-A2 B4103-A2 B4103-A2 B4103-A2 B4298-A2 1

43 Outboard Bearing Cap (Iron) B4103-A2 B4298-A2 B4103-A2 B4103-A2 B4103-A2 B4298-A2 1

65 & 80 Mechanical Seal - Standard Q26-217-Y35 Q26-178-Y35 Q26-217-Y35 Q26-217-Y35 Q26-217-Y35 Q26-178-Y35 2

65 & 80 Mechanical Seal - Hot Water Q26-217-Y6 Q26-178-Y6 Q26-217-Y6 Q26-217-Y6 Q26-217-Y6 Q26-178-Y6 2

68 Seal Collar (BRZ) A5153-C9 A5095-C9 A5153-C9 A5153-C9 A5153-C9 A5095-C9 2

72 Thrust Collar (Steel) A5351-E4 A5340-E4 A5351-E4 A5351-E4 A5351-E4 A5340-E4 1

- Seal Gasket (Cellulose) A6500-1-L13 A6499-L13 A6500-1-L13 A6500-1-L13 A6500-1-L13 A6499-L13 2

73 Casing Gasket (Cellulose) C7484-L13 B5627-L13 C6632-L13 C6632-L13 C6632-L13 C6668-L13 1

73A Casing Gasket (Cellulose) C7485-L13 B5628-L13 C6633-L13 C6633-L13 C6633-L13 C6669-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-56-E4 Q27-55-E4 Q27-56-E4 Q27-56-E4 Q27-56-E4 Q27-56-E4 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

203

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal and Sleeves 4L3 4L4 5L1 5L2 Qty.

1 Casing - 125# (Iron) C3997-B12 C5299-10-A2 C6638-A2 C6523-A2 1

1 Casing - 250# (Iron) N/A C5299-11-A2 C6638-10-A2 C6523-10-A2 1

1 Casing - 250# (Ductile Iron) C3997-10-A12 C5299-11-A12 C6638-10-A12 C6523-10-A12 1

2 Impeller (BRZ) B3999-B12 C5300-B12 3369-1-B12 C6535-10-B12 1

6 Shaft (Steel) C5339-E22 C5352-E22 C5352-E22 C5346-E22 1

7 Casing Ring (BRZ) A5045-5-C9 A5044-3-C9 A5048-C9 A5052-4-C9 2

* 7 Casing Ring (BRZ) A5045-4-C9 A5044-1-C9 A5048-1-C9 A5052-1-C9 2

* 8 Impeller Ring (BRZ) A5056-C9 A5055-C9 A5059-C9 A5062-C9 2

14 Shaft Sleeve (BRZ) B4000-C9 B4205-C9 B4205-C9 B4100-C9 2

16 Inboard Bearing (Steel) Q10-36-E4 M-6142 M-6142 625-00719 1

17A Seal Cap (Iron) A6700-2-A2 A6708-2-A2 A6708-2-A2 A6704-5-A2 2

18 Outboard Bearing (Steel) Q10-36-E4 M-6142 M-6142 625-00719 1

20 Shaft Sleeve Nut (BRZ) A5338-C9 A5354-C9 A5354-C9 A5348-C9 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5353-1-A2 B5353-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-5-J8 Q21-22-J8 Q21-22-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5353-A2 B5353-A2 B5347-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-2-L14 H1043-5-L14 H1043-5-L14 H1043-4-L14 2

40 Liquid Defl ector (Rubber) H1936-15-K2 H1936-16-K2 H1936-16-K2 H1936-9-K2 2

41 Inboard Bearing Cap (Iron) B4298-A2 B5375-A2 B5375-A2 B4103-A2 1

43 Outboard Bearing Cap (Iron) B4298-A2 B5375-A2 B5375-A2 B4103-A2 1

65 & 80 Mechanical Seal - Standard Q26-178-Y35 Q26-180-Y35 Q26-180-Y35 Q26-217-Y35 2

65 & 80 Mechanical Seal - Hot Water Q26-178-Y6 Q26-180-Y6 Q26-180-Y6 Q26-217-Y6 2

68 Seal Collar (BRZ) A5095-C9 A5147-C9 A5147-C9 A5153-C9 2

72 Thrust Collar (Steel) A5340-E4 A5357-E4 A5357-E4 A5351-E4 1

- Seal Gasket (Cellulose) A6499-L13 A6501-L13 A6501-L13 A6500-1-L13 2

73 Casing Gasket (Cellulose) 3488-1-L13 B5301-L13 C7576-L13 C6537-L13 1

73A Casing Gasket (Cellulose) 3488-2-L13 B5302-L13 C7577-L13 C6538-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-55-E4 Q27-50-E4 Q27-50-E4 Q27-56-E4 2

* = Double Wear Ring Construction

11/16

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

204

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal and Sleeves 5L3 6L1 6L2 6L3 Qty.

1 Casing - 125# (Iron) C4015-12-A2 C6677-A2 C8703-A2 C4054-11-A2 1

1 Casing - 250# (Iron) C4015-13-A2 C6677-10-A2 A8703-10-A2 C4054-12-A2 1

1 Casing - 250# (Ductile Iron) C4015-13-A12 C6677-10-A12 C8703-10-A12 C4054-12-A12 1

2 Impeller (BRZ) 3049-1-B12 B4343-B12 C5244-11-B12 B4040-B12 1

6 Shaft (Steel) C5339-E22 C5358-E22 C5352-E22 C5346-E22 1

7 Casing Ring (BRZ) A5042-2-C9 A5050-C9 A5048-C9 A5052-4-C9 2

* 7 Casing Ring (BRZ) A5042-4-C9 A5050-1-C9 A5048-1-C9 A5052-1-C9 2

* 8 Impeller Ring (BRZ) C5053-1-C9 A5060-C9 A5059-C9 A5062-C9 2

14 Shaft Sleeve (BRZ) B4000-C9 B5364-C9 B4205-C9 B4100-C9 2

16 Inboard Bearing (Steel) Q10-36-E4 052935 M-6142 625-00719 1

17A Seal Cap (Iron) A6700-2-A2 A5369-A2 A6708-2-A2 A6704-5-A2 2

18 Outboard Bearing (Steel) Q10-36-E4 052935 M-6142 625-00719 1

20 Shaft Sleeve Nut (BRZ) A5338-C9 A5360-C9 A5354-C9 A5348-C9 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5359-1-A2 B5353-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-84-J8 Q21-37-J8 Q21-22-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5359-A2 B5353-A2 B5347-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-2-L14 H1043-7-L14 H1043-5-L14 H1043-4-L14 2

40 Liquid Defl ector (Rubber) H1936-15-K2 H1936-5-K2 H1936-16-K2 H1936-9-K2 2

41 Inboard Bearing Cap (Iron) B4298-A2 B4211-A2 B5375-A2 B4103-A2 1

43 Outboard Bearing Cap (Iron) B4298-A2 B4211-A2 B5375-A2 B4103-A2 1

65 & 80 Mechanical Seal - Standard Q26-178-Y35 Q26-181-Y35 Q26-180-Y35 Q26-217-Y35 2

65 & 80 Mechanical Seal - Hot Water Q26-178-Y6 Q26-181-Y6 Q26-180-Y6 Q26-217-Y6 2

68 Seal Collar (BRZ) A5095-C9 A5370-C9 A5147-C9 A5153-C9 2

72 Thrust Collar (Steel) A5340-E4 A5363-E4 A5357-E4 A5351-E4 1

- Seal Gasket (Cellulose) A6499-L13 A5371-L13 A6501-L13 A6500-1-L13 2

73 Casing Gasket (Cellulose) C7542-2-L13 C6687-L13 C8718-L13 C7505-L13 1

73A Casing Gasket (Cellulose) 3491-1-L13 C6688-L13 C8719-L13 C7506-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-55-E4 Q27-57-E4 Q27-50-E4 Q27-56-E4 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

205

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal and Sleeves 8L1 8L2A 8L2B 8L3 10L2A Qty.

1 Casing - 125# (Iron) C8325-A2 C6585-10-1-A2 C6585-10-2-A2 C4521-A2 C4785-11-3-A2 1

1 Casing - 250# (Iron) N/A N/A N/A N/A N/A 1

1 Casing - 250# (Ductile Iron) C8325-1-A12 C6585A-10-A12 C6585-10-3-A12 C4521-11-A12 C4785-11-2-A12 1

2 Impeller (BRZ) 4173-1-B12 B4366-B12 C8141-C9 B4487-B12 C6357-B12 1

6 Shaft (Steel) B5788-E22 C5358-E22 C5358-E22 C5352-E22 C5719-E22 1

7 Casing Ring (BRZ) A5049-C9 A5050-1-C9 A8142-C9 A5046-C9 A5049-C9 2

* 8 Impeller Ring (BRZ) A5084-C9 A5060-C9 A8189-C9 A5057-C9 A5084-C9 2

14 Shaft Sleeve (BRZ) B5789-C9 B5364-C9 B5364-C9 B4205-C9 B5170-C9 2

16 Inboard Bearing M-4342 052935 052935 M-6142 073599 1

17A Seal Cap (Iron) A6735-2-A2 A5369-A2 A5369-A2 A6708-2-A2 A5799-A2 2

18 Outboard Bearing (Steel) Q10-108-E4 052935 052935 M-6142 073599 1

20 Shaft Sleeve Nut (BRZ) A5798-C9 A5360-C9 A5360-C9 A5354-C9 A5718-C9 2

31 Inboard Bearing Housing (Iron) B4773-1-A2 B5359-1-A2 B5359-1-A2 B5353-1-A2 B4348-1-A2 1

32 Impeller Key (303 SS) Q21-48-J8 Q21-37-J8 Q21-37-J8 Q21-22-J8 Q21-52-J8 1

33 Outboard Bearing Housing (Iron) B4772-1-A2 B5359-A2 B5359-A2 B5353-A2 B4347-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-9-L14 H1043-7-L14 H1043-7-L14 H1043-5-L14 H1043-7-L14 2

40 Liquid Defl ector (Rubber) H1936-14-K2 H1936-5-K2 H1936-5-K2 H1936-16-K2 H1936-5-K2 2

41 Inboard Bearing Cap (Iron) B5790-A2 B4211-A2 B4211-A2 B5375-A2 B4349-A2 1

43 Outboard Bearing Cap (Iron) B5790-A2 B4211-A2 B4211-A2 B5375-A2 B4349-A2 1

65 & 80 Mechanical Seal - Standard Q26-183-Y35 Q26-181-Y35 Q26-181-Y35 Q26-180-Y35 Q26-182-Y35 2

65 & 80 Mechanical Seal - Hot Water Q26-183-Y6 Q26-181-Y6 Q26-181-Y6 Q26-180-Y6 Q26-182-Y6 2

68 Seal Collar (BRZ) A5151-C9 A5370-C9 A5370-C9 A5147-C9 A5173-C9 2

72 Thrust Collar (Steel) A5340-E4 A5363-E4 A5363-E4 A5357-E4 A5720-E4 1

- Seal Gasket (Cellulose) A8384-L13 A5371-L13 A5371-L13 A6501-L13 A7578-L13 2

73 Casing Gasket (Cellulose) B8326-L13 B7390-L13 121351 C5700-L13 4217-6-L13 1

73A Casing Gasket (Cellulose) B8327-L13 B7391-L13 121352 C5701-L13 4217-7-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-73-E4 Q27-57-E4 030650 Q27-50-E4 Q27-73-E4 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

206

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Mechanical Seal and Sleeves 10L3A 10L3B 12L2A 12L2B 12L2C Qty.

1 Casing - 125# (Iron) C8319-A2 C8319-A2 C6473-10-1-A2 C6473-10-1-A2 N/A 1

1 Casing - 250# (Iron) N/A N/A N/A N/A N/A 1

1 Casing - 250# (Ductile Iron) C8319-1-A12 C8319-1-A12 C6473-10-A12 C6473-10-A12 N/A 1

2 Impeller (BRZ) C8530-B12 B4066-B12 C6634-B12 C8531-B12 N/A 1

2 Impeller (BRZ) N/A N/A C8531-B12 N/A N/A 1

6 Shaft (Steel) C5358-E22 C5358-E22 B5788-E22 B5788-E22 N/A 1

* 7 Casing Ring (BRZ) N/A N/A A6497-C9 N/A N/A 2

* 7 Casing Ring (BRZ) A5051-C9 A5051-C9 A6497-C9 A6497-C9 N/A 2

* 8 Impeller Ring (BRZ) A5083-C9 A5082-C9 A6496-C9 A6496-C9 N/A 2

* 8 Impeller Ring (BRZ) N/A N/A A6496-C9 N/A N/A 2

14 Shaft Sleeve (BRZ) B5364-C9 B5364-C9 B5789-C9 B5789-C9 N/A 2

16 Inboard Bearing 052935 052935 M-4342 M-4342 N/A 2

17A Seal Cap (Iron) A5369-A2 A5369-A2 A6735-2-A2 A6735-2-A2 N/A 1

18 Outboard Bearing (Steel) 052935 052935 Q10-108-E4 Q10-108-E4 N/A 1

20 Shaft Sleeve Nut (BRZ) A5360-C9 A5360-C9 A5798-C9 A5798-C9 N/A 2

31 Inboard Bearing Housing (Iron) B5359-1-A2 B5359-1-A2 B4773-1-A2 B4773-1-A2 N/A 1

32 Impeller Key (303 SS) Q21-37-J8 Q21-37-J8 Q21-48-J8 Q21-48-J8 N/A 1

33 Outboard Bearing Housing (Iron) B5359-A2 B5359-A2 B4772-1-A2 B4772-1-A2 N/A 1

38 Shaft Sleeve Gasket (Lexide) H1043-7-L14 H1043-7-L14 H1043-9-L14 H1043-9-L14 N/A 2

40 Liquid Defl ector (Rubber) H1936-5-K2 H1936-5-K2 H1936-14-K2 H1936-8-K2 N/A 2

41 Inboard Bearing Cap (Iron) B4211-A2 B4211-A2 B5790-A2 B5790-A2 N/A 1

43 Outboard Bearing Cap (Iron) B4211-A2 B4211-A2 B5790-A2 B5790-A2 N/A 1

65 & 80 Mechanical Seal - Standard Q26-181-Y35 Q26-181-Y35 Q26-183-Y35 Q26-183-Y35 N/A 2

65 & 80 Mechanical Seal - Hot Water Q26-181-Y6 Q26-181-Y6 Q26-183-Y6 Q26-183-Y6 N/A 2

68 Seal Collar (BRZ) A5370-C9 A5370-C9 A5151-C9 A5151-C9 N/A 2

72 Thrust Collar (Steel) A5363-E4 A5363-E4 N/A N/A N/A 1

- Seal Gasket (Cellulose) A5371-L13 A5371-L13 A8384-L13 A8384-L13 N/A 2

73 Casing Gasket (Cellulose) B8320-1-L13 B8320-1-L13 B6474-L13 B6474-L13 N/A 1

73A Casing Gasket (Cellulose) B8321-3-L13 B8321-3-L13 B6475-L13 B6475-L13 N/A 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 N/A 1

192 Retaining Ring (Steel) Q27-57-E4 030650 Q27-73-E4 029863 N/A 2

* = Double Wear Ring Construction

6/14

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

207

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Balanced Mechanical Seal 2L4A 2L4B 2L5 2L6 3L4 Qty.

1 Casing - 125# (Iron) C5207-1-A2 C5207-1-A2 C5306-A2 C5317-11-A2 C5293-A2 1

1 Casing - 250# (Iron) C5207-11-A2 N/A C5306-10-A2 C5317-12-A2 C5293-10-A2 1

1 Casing - 250# (Ductile Iron) C5207-11-A12 C5207-11-A12 C5306-10-A12 C5317-12-A12 C5293-10-A12 1

2 Impeller (BRZ) C5223-1-B12 C5223-10-B12 C329465P01-B12 C5318-B12 C5294-B12 1

6 Shaft (416 SS) C6699-1-J2 C6699-1-J2 C6699-1-J2 C6699-1-J2 C6703-J2 1

7 Casing Ring (BRZ) A5047-2-C9 A5047-2-C9 A5045-5-C9 A5045-5-C9 A5045-5-C9 2

* 7 Casing Ring (BRZ) A5047-1-C9 A5047-1-C9 A5045-4-C9 A5045-4-C9 A5045-4-C9 2

* 8 Impeller Ring (BRZ) A5058-C9 A5058-C9 A5056-C9 A5056-C9 A5056-C9 2

16 Inboard Bearing (Steel) Q10-36-E4 Q10-36-E4 Q10-36-E4 Q10-36-E4 625-00719 1

17A Seal Cap (Iron) A5310-1-A2 A5310-1-A2 A5310-1-A2 A5310-1-A2 A5311-4-A2 2

18 Outboard Bearing (Steel) Q10-36-E4 Q10-36-E4 Q10-36-E4 Q10-36-E4 625-00719 1

24A Shaft Collar (416 SS) A6702-J2 A6702-J2 A6702-J2 A6702-J2 A5351-E4 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5337-1-A2 B5337-1-A2 B5337-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-84-J8 Q21-25-J8 Q21-84-J8 Q21-84-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5337-A2 B5337-A2 B5337-A2 B5347-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-2-L14 N/A H1043-2-L14 H1043-2-L14 H1043-4-L14 2

40 Liquid Defl ector (Rubber) H1936-2-K2 H1936-2-K2 H1936-2-K2 H1936-2-K2 H1936-16-K2 2

41 Inboard Bearing Cap (Iron) B4298-3-A2 B4298-3-A2 B4298-3-A2 B4298-3-A2 B4103-2-A2 1

43 Outboard Bearing Cap (Iron) B4298-3-A2 B4298-3-A2 B4298-3-A2 B4298-3-A2 B4103-2-A2 1

68 Sleeve / Collar (BRZ) A7340-C9 A7340-C9 A7340-C9 A7340-C9 A7357-C9 2

72 Thrust Collar (Steel) A5340-E4 N/A A5340-E4 A5340-E4 A5351-E4 1

73 Casing Gasket (Cellulose) B5237-1-L13 B5237-1-L13 B5308-L13 B5319-1-L13 B5295-L13 1

73A Casing Gasket (Cellulose) B5238-1-L13 B5238-1-L13 B5309-L13 B5320-L13 B5296-L13 1

127 Seal Piping Q30-6-V6 Q30-6-C6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-55-E4 Q27-55-E4 Q27-55-E4 Q27-55-E4 Q27-56-E4 2

- Seal Gasket (Cellulose) A7150-L13 A7150-L13 A7150-L13 A7150-L13 A7723-L13 2

65 & 80 Mechanical Seal - Balanced Q26-303-Y34 Q26-303-Y34 Q26-303-Y34 Q26-303-Y34 Q26-304-Y34 2

65 & 80 Mechanical Seal - Tung. Carb. Q26-303-Y10 Q26-303-Y10 Q26-303-Y10 Q26-303-Y10 Q26-304-Y10 2

* = Double Wear Ring Construction

2/15

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

208

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Balanced Mechanical Seal 3L5 3L6 4L1A 4L1B 4L1C 4L2 Qty.

1 Casing - 125# (Iron) C5321-11-A2 C5617-A2 C6626-A2 C6626-A2 C6626-A2 C6663-A2 1

1 Casing - 250# (Iron) C5321-12-A2 C5617-10-A2 C6626-A10-A2 N/A N/A C6663-10-A2 1

1 Casing - 250# (Ductile Iron) C5321-12-A12 C5617-10-A12 C6626-10-A12 C6626-10-A12 C6626-10-A12 C6663-10-A12 1

2 Impeller (BRZ) C5322-B12 C5618-B12 C6813-B12 C5322-B12 C6813-10-B12 C7665-B12 1

6 Shaft (416 SS) C6703-J2 C6699-1-J2 C6703-J2 C6703-J2 C6703-J2 C6699-1-J2 1

7 Casing Ring (BRZ) A5045-5-C9 A5045-5-C9 A5052-4-C9 A5052-4-C9 A5052-4-C9 A5044-3-C9 2

* 7 Casing Ring (BRZ) A5045-4-C9 A5045-4-C9 A5052-1-C9 N/A A5052-1-C9 A5044-1-C9 2

* 8 Impeller Ring (BRZ) A5056-C9 A5056-C9 A5062-C9 A5847-C9 A5847-C9 A5055-C9 2

16 Inboard Bearing (Steel) 625-00719 Q10-36-E4 625-00719 625-00719 625-00719 Q10-36-E4 1

17A Seal Cap (Iron) A5311-4-A2 A5310-1-A2 A5311-4-A2 A5311-4-A2 A5311-4-A2 A5310-1-A2 2

18 Outboard Bearing (Steel) 625-00719 Q10-36-E4 625-00719 625-00719 625-00719 Q10-36-E4 1

24A Shaft Collar (416 SS) A6705-J2 A6702-J2 A6705-J2 A6705-J2 A6705-J2 A6702-J2 2

31 Inboard Bearing Housing (Iron) B5347-1-A2 B5337-1-A2 B5347-1-A2 B5347-1-A2 B5347-1-A2 B5337-1-A2 1

32 Impeller Key (303 SS) Q21-23-J8 Q21-84-J8 Q21-23-J8 Q21-23-J8 Q21-23-J8 Q21-84-J8 1

33 Outboard Bearing Housing (Iron) B5347-A2 B5337-A2 B5347-A2 B5347-A2 B5347-A2 B5337-A2 1

40 Liquid Defl ector (Rubber) H1936-16-K2 H1936-2-K2 H1936-16-K2 H1936-16-K2 H1936-16-K2 H1936-2-K2 2

41 Inboard Bearing Cap (Iron) B4103-2-A2 B4298-3-A2 B4103-2-A2 B4103-2-A2 B4103-2-A2 B4298-3-A2 1

43 Outboard Bearing Cap (Iron) B4103-2-A2 B4298-3-A2 B4103-2-A2 B4103-2-A2 B4103-2-A2 B4298-3-A2 1

68 Sleeve / Collar (BRZ) A7357-C9 A7340-C9 A7357-C9 A7357-C9 A7357-C9 A7340-C9 2

72 Thrust Collar (Steel) A5351-E4 A5340-E4 A5351-E4 A5351-E4 A5351-E4 A5340-E4 1

73 Casing Gasket (Cellulose) C7484-L13 B5627-L13 C6632-L13 C6632-L13 C6632-L13 C6668-L13 1

73A Casing Gasket (Cellulose) C7485-L13 B5628-L13 C6633-L13 C6633-L13 C6633-L13 C6669-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-C6 Q30-6-C6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-56-E4 Q27-55-E4 Q27-56-E4 Q27-56-E4 Q27-56-E4 Q27-56-E4 2

- Seal Gasket (Cellulose) A7723-L13 A7150-L13 A7723-L13 A7723-L13 A7723-L13 A7150-L13 2

65 & 80 Mechanical Seal - 1B Q26-304-Y35 Q26-303-Y34 Q26-304-Y34 Q26-304-Y34 Q26-304-Y34 Q26-303-Y34 2

65 & 80 Mechanical Seal - 1B Tung. Carb. Q26-304-Y10 Q26-303-Y10 Q26-304-Y10 Q26-304-Y10 Q26-304-Y10 Q26-303-Y10 2

* = Double Wear Ring Construction

2/15

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

209

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Balanced Mechanical Seal 4L3 4L4 5L1 5L2 Qty.

1 Casing - 125# (Iron) C3997-A2 C5299-10-A2 C6638-A2 C6523-A2 1

1 Casing - 250# (Iron) C3997-10-A2 C5299-11-A2 C6638-10-A2 C6523-10-A2 1

1 Casing - 250# (Ductile Iron) C3997-10-A12 C5299-11-A12 C6638-10-A12 C6523-10-A12 1

2 Impeller (BRZ) B3999-B12 C5300-B12 3369-1-B12 C6535-10-B12 1

6 Shaft (416 SS) C6699-1-J2 C6707-J2 C6707-J2 C6703-J2 1

7 Casing Ring (BRZ) A5045-5-C9 A5044-3-C9 A5048-C9 A5052-4-C9 2

* 7 Casing Ring (BRZ) A5045-4-C9 A5044-1-C9 A5048-1-C9 A5052-1-C9 2

* 8 Impeller Ring (BRZ) A5056-C9 A5055-C9 A5059-C9 A5062-C9 2

16 Inboard Bearing (Steel) Q10-36-E4 M-6142 M-6142 625-00719 1

17A Seal Cap (Iron) A5310-1-A2 A5325-3-A2 A5325-3-A2 A5311-4-A2 2

18 Outboard Bearing (Steel) Q10-36-E4 M-6142 M-6142 625-00719 1

24A Shaft Collar (416 SS) A6702-J2 A6710-J2 A6710-J2 A6705-J2 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5353-1-A2 B5353-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-5-J8 Q21-22-J8 Q21-22-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5353-A2 B5353-A2 B5347-A2 1

40 Liquid Defl ector (Rubber) H1936-2-K2 H1936-4-K2 H1936-4-K2 H1936-16-K2 2

41 Inboard Bearing Cap (Iron) B4298-3-A2 B5375-3-A2 B5375-3-A2 B4103-2-A2 1

43 Outboard Bearing Cap (Iron) B4298-3-A2 B5375-3-A2 B5375-3-A2 B4103-2-A2 1

68 Sleeve / Collar (BRZ) A7340-C9 A7358-C9 A7358-C9 A7357-C9 2

72 Thrust Collar (Steel) N/A A5357-E4 A5357-E4 A5351-E4 1

73 Casing Gasket (Cellulose) 3488-1-L13 B5301-L13 C7576-L13 C6537-L13 1

73A Casing Gasket (Cellulose) 3488-2-L13 B5302-L13 C7577-L13 C6538-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-55-E4 Q27-50-E4 Q27-50-E4 Q27-56-E4 2

- Seal Gasket (Cellulose) A7150-L13 A6298-L13 A6298-L13 A7723-L13 2

65 & 80 Mechanical Seal - 1B Q26-303-Y34 Q26-305-Y34 Q26-305-Y34 Q26-304-Y34 2

65 & 80 Mechanical Seal - 1B Tung. Carb. Q26-303-Y10 Q26-305-Y10 Q26-305-Y10 Q26-304-Y10 2

* = Double Wear Ring Construction

11/16

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

210

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Balanced Mechanical Seal 5L3 6L1 6L2 6L3 Qty.

1 Casing - 125# (Iron) C4015-12-A2 C6677-A2 C8703-A2 C4054-11-A2 1

1 Casing - 250# (Iron) C4015-13-A2 C6677-10-A2 A8703-10-A2 C4054-12-A2 1

1 Casing - 250# (Ductile Iron) C4015-13-A12 C6677-10-A12 C8703-10-A12 C4054-12-A12 1

2 Impeller (BRZ) 3049-1-B12 B4343-B12 C5244-11-B12 B4040-B12 1

6 Shaft (416 SS) C6699-1-J2 C6714-J2 C6707-J2 C6703-J2 1

7 Casing Ring (BRZ) A5042-2-C9 A5050-C9 A5048-C9 A5052-4-C9 2

* 7 Casing Ring (BRZ) A5042-4-C9 A5050-1-C9 A5048-1-C9 A5052-1-C9 2

* 8 Impeller Ring (BRZ) C5053-1-C9 A5060-C9 A5059-C9 A5062-C9 2

16 Inboard Bearing (Steel) Q10-36-E4 052935 M-6142 625-00719 1

17A Seal Cap (Iron) A5310-1-A2 A5369-3-A2 A5325-3-A2 A5311-4-A2 2

18 Outboard Bearing (Steel) Q10-36-E4 052935 M-6142 625-00719 1

24A Shaft Collar (416 SS) A6702-J2 A6726-J2 A6710-J2 A6705-J2 2

31 Inboard Bearing Housing (Iron) B5337-1-A2 B5359-1-A2 B5353-1-A2 B5347-1-A2 1

32 Impeller Key (303 SS) Q21-84-J8 Q21-37-J8 Q21-22-J8 Q21-23-J8 1

33 Outboard Bearing Housing (Iron) B5337-A2 B5359-A2 B5353-A2 B5347-A2 1

38 Shaft Sleeve Gasket (Lexide) H1043-2-L14 H1043-7-L14 H1043-5-L14 H1043-4-L14 2

40 Liquid Defl ector (Rubber) H1936-2-K2 H1936-6-K2 H1936-4-K2 H1936-16-K2 2

41 Inboard Bearing Cap (Iron) B4298-3-A2 B4211-1-A2 B5375-3-A2 B4103-2-A2 1

43 Outboard Bearing Cap (Iron) B4298-3-A2 B4211-1-A2 B5375-3-A2 B4103-2-A2 1

68 Sleeve / Collar (BRZ) A7340-C9 A7360-C9 A7358-C9 A7357-C9 2

72 Thrust Collar (Steel) A5340-E4 A5363-E4 A5357-E4 A5351-E4 1

73 Casing Gasket (Cellulose) C7542-2-L13 C6687-L13 C8718-L13 C7505-L13 1

73A Casing Gasket (Cellulose) 3491-1-L13 C6688-L13 C8719-L13 C7506-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-55-E4 Q27-57-E4 Q27-50-E4 Q27-56-E4 2

- Seal Gasket (Cellulose) A7150-L13 A5371-L13 A6298-L13 A77230L13 2

65 & 80 Mechanical Seal - Balanced Q26-303-Y34 Q26-306-Y34 Q26-305-Y34 Q26-304-Y34 2

65 & 80 Mechanical Seal - Tung. Carb. Q26-303-Y10 Q26-306-Y10 Q26-305-Y10 Q26-304-Y10 2

* = Double Wear Ring Construction

2/15

SECTION

PAGE

DATE

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

Repair Parts

211

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Balanced Mechanical Seal 8L1 8L2A 8L2B 8L3 10L2A Qty.

1 Casing - 125# (Iron) C8325-A2 C6585-10-1-A2 C6585-10-2-A2 C4521-A2 C4785-11-3-A2 1

1 Casing - 250# (Iron) N/A N/A N/A C4521-11-A2 N/A 1

1 Casing - 250# (Ductile Iron) C8325-1-A12 C6585A-10-A12 C6585-10-3-A12 C4521-11-A12 C4785-11-2-A12 1

2 Impeller (BRZ) 4173-1-B12 **B4366-B12 C8141-B12 B4487-B12 C6357-B12 1

6 Shaft (416 SS) C6730-J2 C6714-J2 C6714-J2 C6707-J2 C6727-J2 1

7 Casing Ring (BRZ) A5049-C9 A5050-1-C9 A8142-C9 A5046-C9 A5049-C9 2

* 8 Impeller Ring (BRZ) A5084-C9 A5060-C9 A8189-C9 A5057-C9 A5084-C9 2

16 Inboard Bearing M-4342 052935 052935 M-6142 073599 1

17A Seal Cap (Iron) A6735-1-A2 A5369-3-A2 A5369-3-A2 A5325-3-A2 A5799-1-A2 2

18 Outboard Bearing (Steel) Q10-108-E4 052935 052935 M-6142 073599 1

24A Shaft Collar (416 SS) A6736-J2 A6726-J2 A6726-J2 A6710-J2 A6726-J2 2

31 Inboard Bearing Housing (Iron) B4773-1-A2 B5359-1-A2 B5359-1-A2 B5353-1-A2 B4348-1-A2 1

32 Impeller Key (303 SS) Q21-48-J8 Q21-37-J8 Q21-37-J8 Q21-22-J8 Q21-52-J8 1

33 Outboard Bearing Housing (Iron) B4772-1-A2 B5359-A2 B5359-A2 B5353-A2 B4347-A2 1

40 Liquid Defl ector (Rubber) H1936-8-K2 H1936-6-K2 H1936-6-K2 H1936-4-K2 H1936-6-K2 2

41 Inboard Bearing Cap (Iron) B5790-2-A2 B4211-1-A2 B4211-1-A2 B5375-3-A2 B4349-1-A2 1

43 Outboard Bearing Cap (Iron) B5790-2-A2 B4211-1-A2 B4211-1-A2 B5375-3-A2 B4349-1-A2 1

68 Sleeve / Collar (BRZ) A7923-C9 A7360-C9 A7360-C9 A7358-C9 A7360-C9 2

72 Thrust Collar (Steel) N/A A5363-E4 A5363-E4 A5357-E4 A5720-E4 1

73 Casing Gasket (Cellulose) B8326-L13 B7390-L13 121351 C5700-L13 4217-6-L13 1

73A Casing Gasket (Cellulose) B8327-L13 B7391-L13 121352 C5700-L13 4217-7-L13 1

127 Seal Piping Q30-6-V6 Q30-6-V6 Q30-6-C6 Q30-6-V6 Q30-6-V6 1

192 Retaining Ring (Steel) Q27-73-E4 Q27-57-E4 030650 Q27-50-E4 Q27-73-E4 2

- Seal Gasket (Cellulose) A8384-L13 A5371-L13 A5371-L13 A6298-L13 A5371-L13 2

65 & 80 Mechanical Seal - Balanced Q26-340-Y34 Q26-306-Y34 Q26-306-Y34 Q26-305-Y34 Q26-306-Y34 2

65 & 80 Mechanical Seal - Tung. Carb. Q26-340-Y10 Q26-306-Y10 Q26-306-Y10 Q26-305-Y10 Q26-306-Y10 2

* = Double Wear Ring Construction

2/15

SECTION

PAGE

DATE

Repair Parts

USA: (937) 778-8947 • Canada: (905) 457-6223 • International: (937) 615-3598

A Crane Co. Company

212

RP

www.cranepumps.com

Parts List

Bulletin Repair Parts - 1200

1200 Series

with Balanced Mechanical Seal 10L3A 10L2B 12L2A 12L2B 12L2C Qty.

1 Casing - 125# (Iron) C8319-A2 N/A C6473-10-1-A2 C6473-10-1-A2 N/A 1

1 Casing - 250# (Iron) N/A N/A N/A N/A N/A 1

1 Casing - 250# (Ductile Iron) C8319-1-A12 N/A C6473-10-A12 C6473-10-A12 N/A 1

2 Impeller (BRZ) C8530-B12 N/A C6634-B12 C8531-B12 N/A 1

6 Shaft (416 SS) C6714-J2 N/A C6730-J2 C6730-J2 N/A 1

* 7 Casing Ring (BRZ) A5051-C9 N/A A6497-C9 A6497-C9 N/A 2

* 8 Impeller Ring (BRZ) A5083-C9 N/A A6496-C9 A6496-C9 N/A 2

16 Inboard Bearing 052935 N/A M-4342 M-4342 N/A 1

17A Seal Cap (Iron) A5369-3-A2 N/A A6735-1-A2 A6735-1-A2 N/A 2

18 Outboard Bearing (Steel) 052935 N/A Q10-108-E4 Q10-108-E4 N/A 1

24A Shaft Collar (416 SS) A6726-J2 N/A A6736-J2 A6736-J2 N/A 2

31 Inboard Bearing Housing (Iron) B5359-1-A2 N/A B4773-1-A2 B4773-1-A2 N/A 1

32 Impeller Key (303 SS) Q21-37-J8 N/A Q21-48-J8 Q21-48-J8 N/A 1

33 Outboard Bearing Housing (Iron) B5359-A2 N/A B4772-1-A2 B4772-1-A2 N/A 1

40 Liquid Defl ector (Rubber) H1936-6-K2 N/A H1936-8-K2 H1936-8-K2 N/A 2

41 Inboard Bearing Cap (Iron) B4211-1-A2 N/A B5790-2-A2 B5790-2-A2 N/A 1

43 Outboard Bearing Cap (Iron) B4211-1-A2 N/A B5790-2-A2 B5790-2-A2 N/A 1

68 Sleeve / Collar (BRZ) A7360-C9 N/A A7923-C9 A7923-C9 N/A 2

72 Thrust Collar (Steel) A5363-E4 N/A N/A N/A N/A 1

73 Casing Gasket (Cellulose) B8320-1-L13 N/A B6474-L13 B6474-L13 N/A 1

73A Casing Gasket (Cellulose) B8321-3-L13 N/A B6475-L13 B6475-L13 N/A 1

127 Seal Piping Q30-6-V6 N/A Q30-6-V6 Q30-6-C6 N/A 1

192 Retaining Ring (Steel) Q27-57-E4 N/A Q27-73-E4 029863 N/A 2

- Seal Gasket (Cellulose) A5371-L13 N/A A8384-L13 A8384-L13 N/A 2

65 & 80 Mechanical Seal - Balanced Q26-306-Y34 N/A Q26-340-Y34 Q26-340-Y34 N/A 2

65 & 80 Mechanical Seal - Tung. Carb. Q26-306-Y10 N/A Q26-340-Y10 Q26-340-Y10 N/A 2

* = Double Wear Ring Construction

6/14
