The Most Trusted Name in Pumps and Meters

FR2400G* Technical Specifications

Tuthill CorporaƟon

8825 Aviaon Drive

Fort Wayne, IN 46809

(800) 634‐2695

www.tuthill.com

Motor

Power - AC 115, 230, 115/230 VAC N/A

HZ 50, 60, 50/60 N/A

Power - DC 12, 24, 12/24 24

HP (horsepower) rating 1/4 HP

Power cord length (feet) 18'

Power cord gauge (AWG) 12 AWG

DC Power cord connectors NONE

Amps (FLA) 10

RPM 2600

Duty cycle 30 min.

Thermal protection switch Yes

Circuit protection fuse NONE

Certification UL, cUL Motor, ATEX, CE**,

ANZEx

FR2400G Series

*2400G Series pumps models:

FR2404G, FR2410G, FR2411G,

FR2405GE, FR2411GELFR2411GELA,

FR2410GE, FR2410GEA

** “E” models are CE Certified for use in Europe.

*** Specification will vary with specific model chosen.

Pump

Type- rotary, diaphragm, gear, vane Rotary Vane

GPM in supplied configuration Up to 15

GPM open flow - no hose or nozzle Up to 18.5

By-pass pressure rating (psi) - Max 16 psi

Dry vac (in Hg) 5

Head- Max (Ft.) 37

Anti-siphon valve None

Inlet - Size / Thread 1” NPT 1” BSPT*

Outlet – Size / Thread 3/4” NPT 3/4” BSPP*

Mount 2” Bung NPT 2” BSPT*

Material -pump housing Cast Iron

Material- wetted material BUNA-N

Rotor material Powdered Iron

Rotor vane material Sintered Bronze

Compatible fluids Diesel, gasoline, BioDiesel up

to B20, E15, Kerosene

Strainer Mesh Size (microns) 20 x 20

Warranty 2 Years

Accessories

Suction pipe material N/A

Suction pipe length- extended/not

extended None

Nozzle- size N/A***

Nozzle- manual / automatic N/A***

Hose liquid materials compatibility Oil, Gasoline, Diesel***

Hose diameter 3/4”***

Hose length N/A***

Hose static wire (Y/N) N/A***

Logistics

UPC 0-89404-17578-1***

Length 15.5”

Width 10”

Height 6.5”

Kit Description Parts

KIT120BD BioDiesel Kit O-ring seal, bypass valve poppet,

bypass cap seal, inlet seal

KIT120RG Rotor & Vane Kit

Rotor cover, rotor, vanes, rotor

key, O-ring seal, attaching

hardware

KIT120JC Junction Cover Kit Junction cover, seal

KIT120SL Seal Kit O-ring, shaft seals, retainer clip

KIT120BV By-Pass Service

Kit

Screen, bypass valve, valve

spring, bypass cap. O-ring seal

KIT120NB Nozzle Boot Kit Nozzle boot, attaching hardware

KIT120BG Inlet Flange Kit Inlet flange (bung), attaching

hardware, inlet seal, screen

KIT120SG Inlet Gasket and

Screen

Gasket for inlet (bung) and

screen

KIT120SW Switch Lever Kit Switch lever, mounting hardware

0.0

2.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

0.0 2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0

PRESSURE (PSI)

FLOW RATE (GPM)

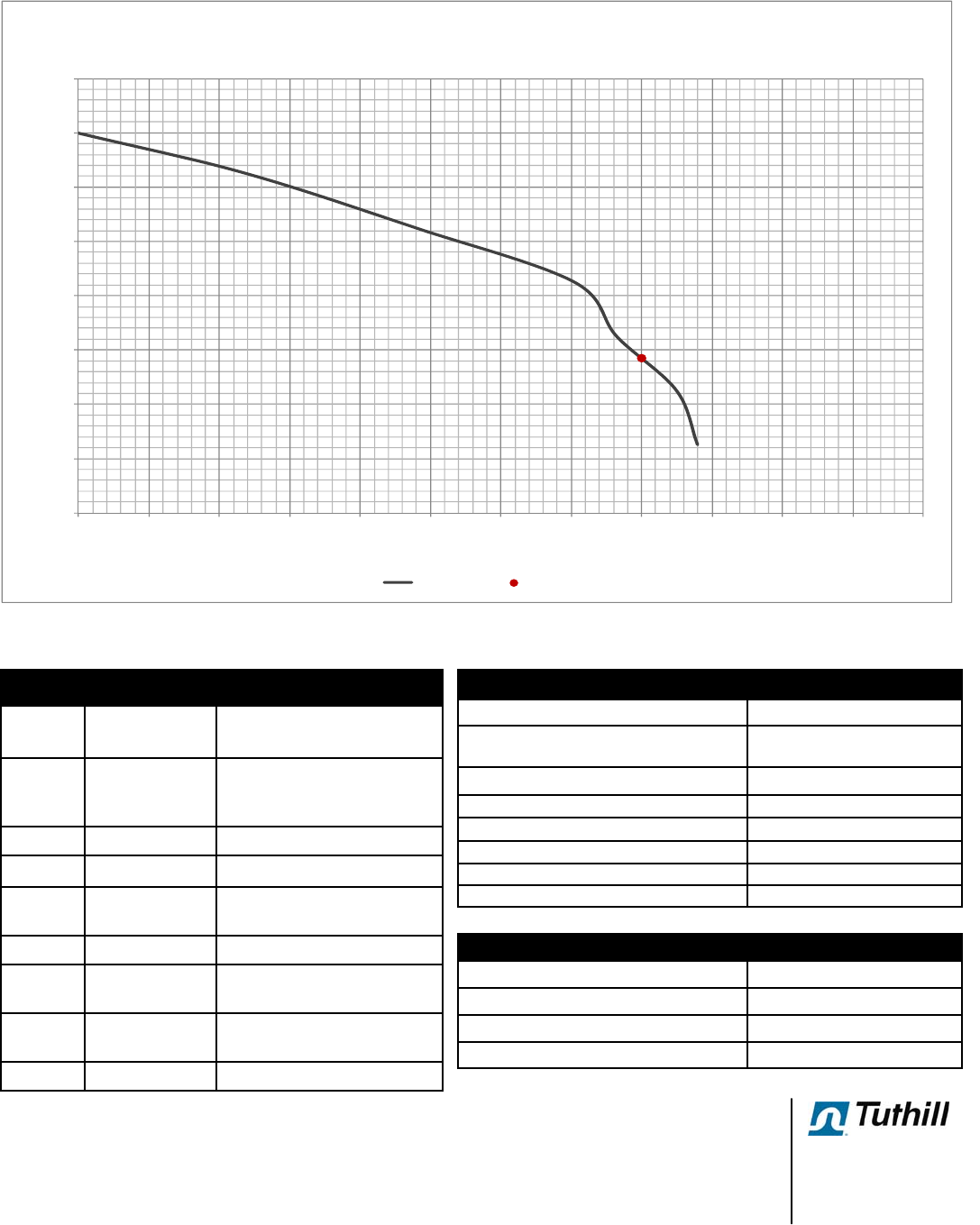

2400 SERIES

PERFORMANCECURVE

2400 SERIES FR2404

Performance Data
