Complete grinder package
systems are factory
assembled for quicker, easier
installation at the jobsite.
Zoeller’s Z-Rail® Technology with powder
coated, ductile iron elbows and brackets
provides longer life and reliability.
Dual-rail system offers added support and
stability while raising and lowering pumps
compared to single-rail systems.
A wide variety of basin
diameters and depths are
stocked to accommodate almost
any job.
Cover choices include solid
fiberglass and either steel or
aluminum hatches.
Don’t see what you need? Custom systems with Z-Rail
®
Technology are available.
Contact our experts at zcotechnical@zoeller.com

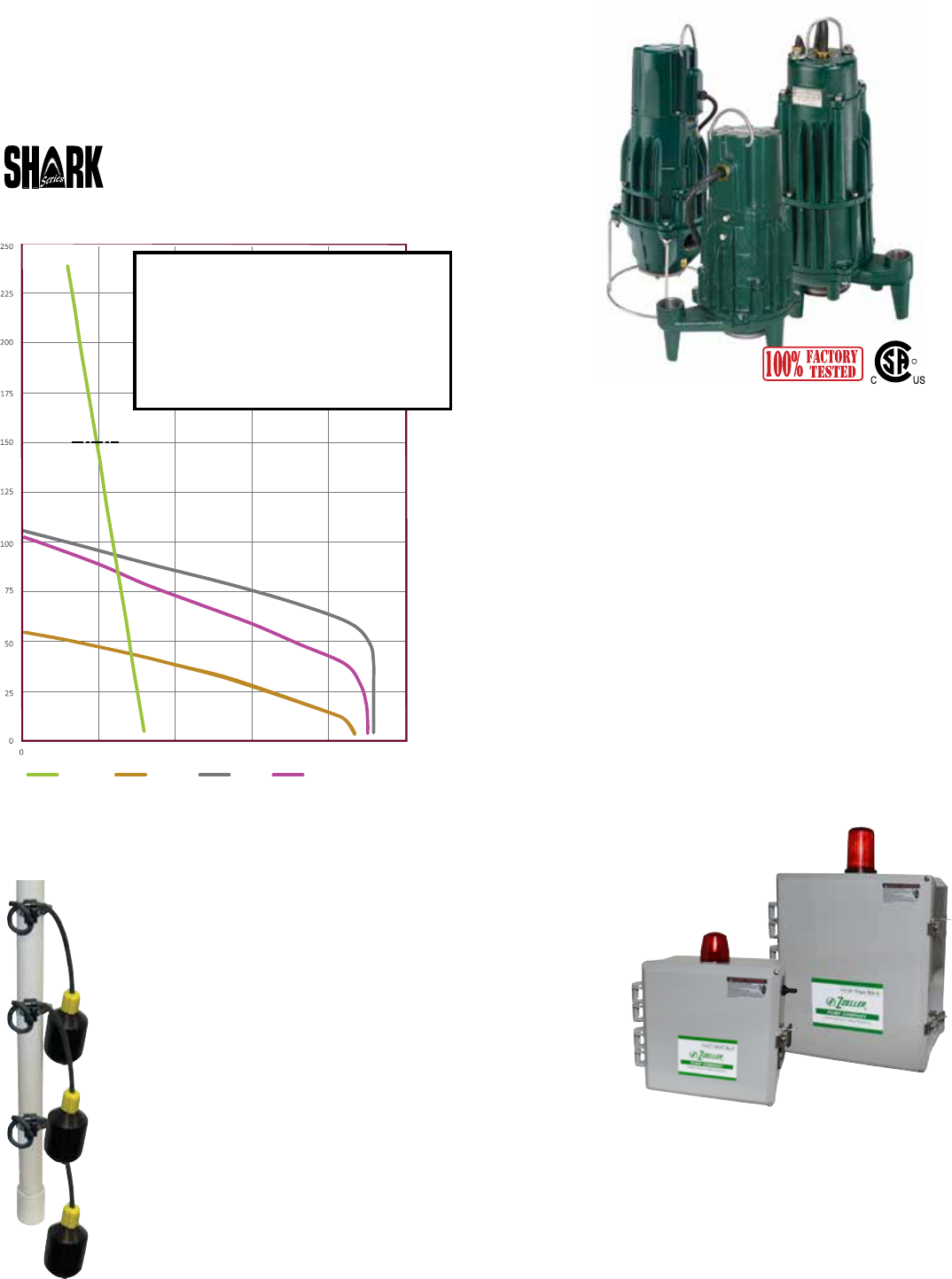

GPM
FT
810 / 815 818 820 840
810
815
5040302010
• Shark® Grinder Pumps 1.0 - 2.0 HP
• Durable, Class 30, cast iron construction
• Corrosion-resistant, powder coated epoxy finish
• Oil-filled, hermetically-sealed motor with thermal
overload protection and integral cooling fins
• Upper and lower bearings provide smooth
operation and durability in the harshest
environments
• 440C stainless steel cutter and disc hardened to
Rockwell C50-60 for long lasting dependability
• Zoeller Tri-Slice® cutter technology
• Non-clogging vortex impellers on centrifugal units
for reliability
• Stainless steel lifting handle, screws, and bolts
• Panel: Zoeller will make sure the panel you receive is exactly what you
need for the pump you have selected. We have you covered. Features
include:
• Simplex and duplex
• NEMA 4X watertight enclosure
• Green pump run pilot light for each pump
• High water alarm (audible and visual)
• Red alarm beacon
• Auxiliary dry contact
• Magnetic starter for each pump
• Alternating feature for duplex systems
• Numbered terminal strip for connecting pumps and variable level float switches
• 840 panel standard with start components and auto-reversing feature
• Float Tree: Factory mounted in the basin. The required float switches are pre-set at
elevations suitable for most installations and rarely require adjustment. The tree is pre-
mounted on a support bracket for ease and convenience during float maintenance.
Models
810, 815
Models
818, 820
Model
840
TM
Prefabricated Lift Stations With Z-Rail® Technology
QLS SerieS
Grinder Pumps
Built With The Contractor In Mind
®
GRINDER PUMPS
Model 810: 1.0 HP progressing cavity
Model 815: 2.0 HP progressing cavity
Model 818: 1.0 HP centrifugal
Model 820: 2.0 HP centrifugal
Model 840: 2.0 HP reversing grinder
R
© Copyright 2017 Zoeller® Co. All rights reserved.
QLS SeriesTM systems are prefabricated including
all piping and rail system components.
• Z-Rail® System: Both the disconnect portion
and the upper guide rail supports are made
of domestic epoxy powder coated ductile
iron, providing superior strength. Dual guide
rails add stability, ensuring that the pump
will not spin on the rail during installation or
removal.
• Basin: Zoeller Company stocks many different
basin and cover options to fit a multitude of
wastewater collection projects. Basin sizes
from 24” x 48” to 48” x 120” meet most
application needs. Customized packages
available.
• Basin Cover: Solid fiberglass, aluminum hatch,
and steel hatch covers are stocked for QLS
Series™ packages.
• Three Way Ball Valve: The QLS SeriesTM
systems utilize a 3-way ball valve in duplex
configurations. The valve is positioned so that
the service providers can easily isolate pumps
without entering the basin.
• Pipe Seal Hub: A 4” pipe seal is provided as a
convenient field-installed inlet hub.
• AFD: QLS SeriesTM basins come with an
anti-floatation collar to resist bouyancy in high
groundwater locations.
• Flex-Boot Discharge Connection: A flexible,
stable discharge seal remains watertight
despite external pressures due to pipe settling.
• Schedule 80 PVC Piping: Schedule 80 PVC
discharge piping provides greater support and
dependability with its thicker walls and higher
pressure rating.
What Sets QLS SerieSTM
Lift Stations
With Z-Rail® Technology Apart?

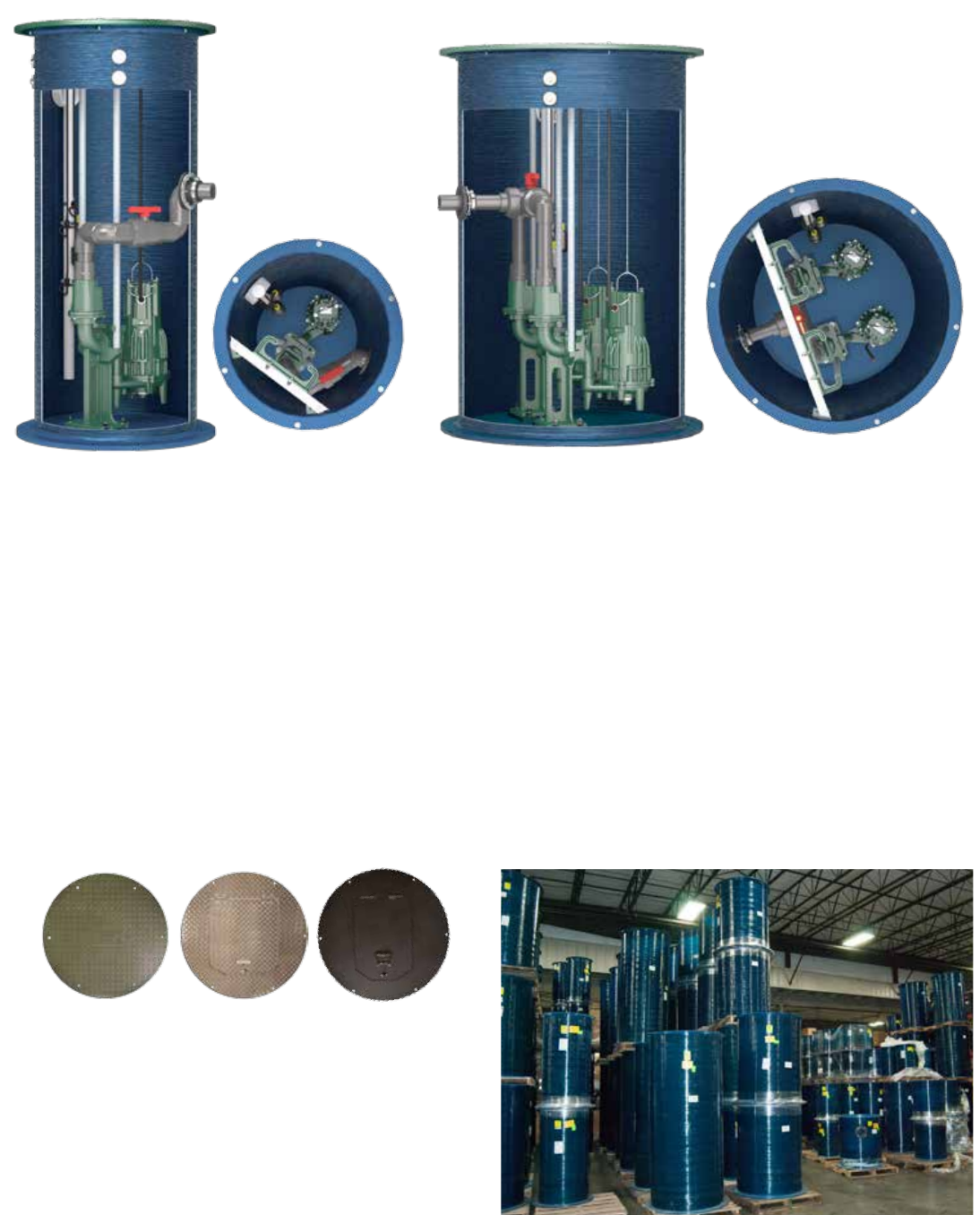

Simplex System Duplex System
Fiberglass Aluminum Hatch Steel Hatch
