SECTION: 2.50.090

FM0526

0713

Supersedes

1211

© Copyright 2013 Zoeller® Co. All rights reserved.

COMPARE THESE FEATURES

• Float is constructed of durable PVC/polypropylene encasing

variable level switch

• Standard mechanical variable level control switches are rated

for 115/230V, 5 Amps

• Low current mechanical variable level control switches are

rated for 125 VAC/30 VDC, 0.1 Amps

• 18/2 Type SJOW CPE cord standard

• Cords are available in 15-25-35-50 foot lengths

• Temperature rating of 140°F (60°C)

• Approximately 1.5" liquid level differential in switching action

Variable Level Control Switch is normally open when hanging

vertically above liquid level. Switch closes when it reaches a few

degrees above the horizontal position.

APPLICATIONS

• Switch for simplex or duplex pump control and high level

alarm on electrical alternating control panel systems for

dewatering, efuent and sewage applications.

• Switch for A-Pak

• High level alarm switch

ADJUSTABLE WEIGHT: (P/N 10-0689) provides an accurate

pivot point for suspended oat switches.

• Gripper teeth on clip and weight channel securely lock oat

cable into place.

• Cable weight can be adjusted without the use of tools.

HOUSING: 1lb 12oz. (0.8 kg) 2.8" x 3.3" (7.1 cm x 8.4 cm)

Impact-resistant & non-corrodible, PVC housing for liquids up to 140° F (60° C)

CLIP: injection-molded acetal plastic

WIRE/CABLE ACCOMODATED: SJOW, SJTW, 18/2, 18/3, 16/3, 14/2, 14/3

SHIP WEIGHT: 2 lbs. (32 oz)

VARIABLE LEVEL

CONTROL SWITCHES

R

R

L

U

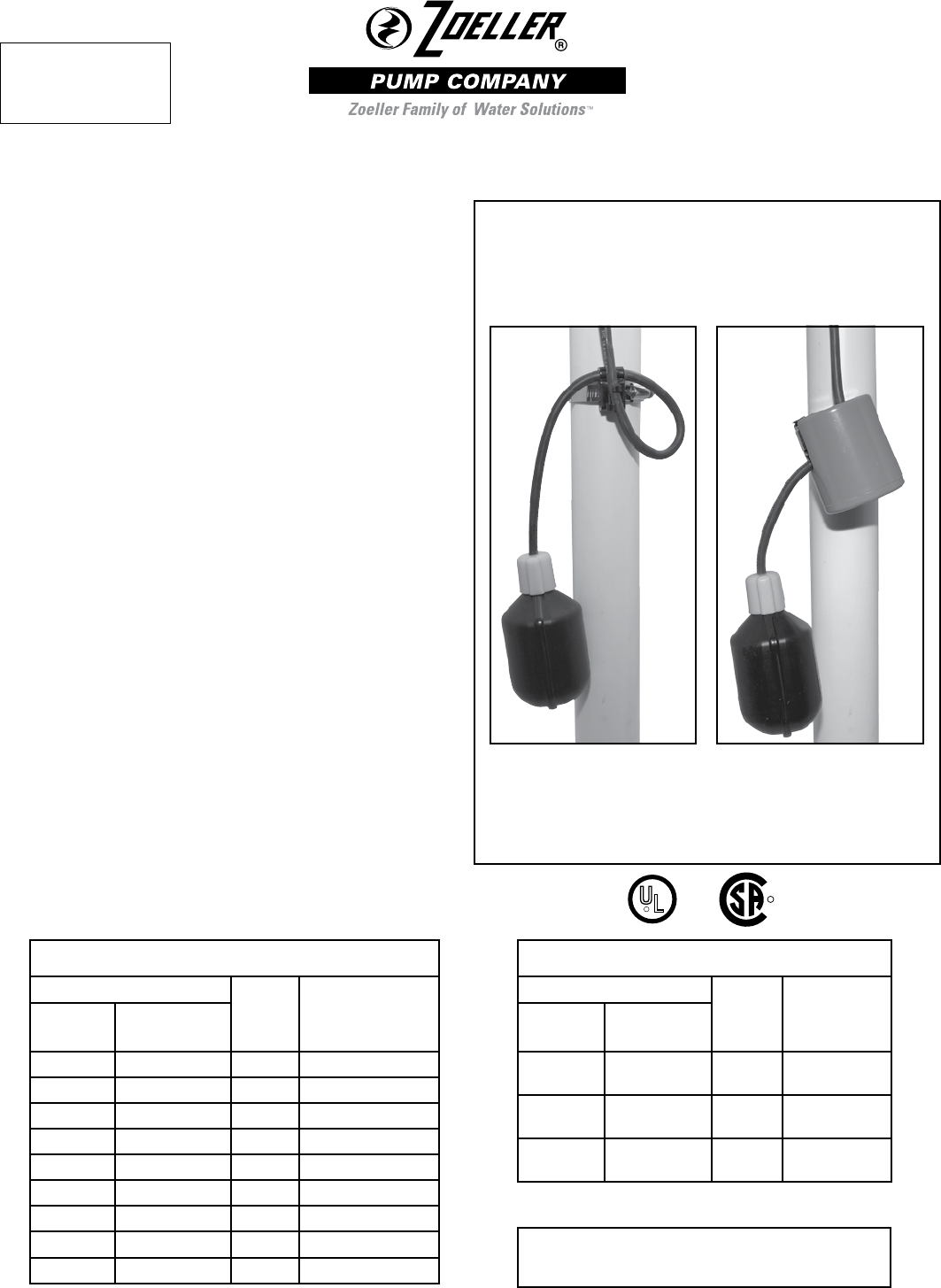

May not be exactly as pictured. See back for application drawings.

FLOAT SWITCHES

Mechanical Cord

Length

Mounting

Method

Standard

P/N*

Low Current

P/N**

10-0743 10-2060 15 Clamp

10-0744 10-2061 20 Clamp

10-1877 10-2062 25 Clamp

10-1878 10-2063 35 Clamp

10-1879 10-2064 50 Clamp

10-1880 10-2065 15 Adjustable Weight

10-1881 10-2066 25 Adjustable Weight

10-1882 10-2067 35 Adjustable Weight

10-1883 10-2068 50 Adjustable Weight

FLOAT SWITCH TREES

Mechanical Cord

Length

Mounting

Method

Standard

P/N*

Intrinsically

Safe P/N**

10-1456 10-1456 --- Tree Only

10-1886 10-2069 15 (3) 15' Floats

& Tree

10-1887 10-2070 15 (4) 15' Floats

& Tree

* Do not use with intrinsically safe control systems.

** For use with intrinsically safe control systems only.

CLAMP TYPE ADJUSTABLE WEIGHT TYPE

Product information presented

here reects conditions at time

of publication. Consult factory

regarding discrepancies or

inconsistencies.

MAIL TO: P.O. BOX 16347 • Louisville, KY 40256-0347

SHIP TO: 3649 Cane Run Road • Louisville, KY 40211-1961

(502) 778-2731 • 1 (800) 928-PUMP • FAX (502) 774-3624

visit our web site:

www.zoeller.com

®

Your Peace of Mind is Our Top Priority

®

ZOELLER

ALARM

ZOELLER

PUMP "ON"

PUMP "OFF"

FIBERGLASS

OR POLYETHYLENE

BASIN

"ON" LEVEL

VARIABLE LEVEL

CONTROL SWITCH

LEVEL

LEVEL

4" (102 mm)

OF GRAVEL

ALARM

ZOELLER

TO POWER SUPPLY

UNICHECK

TEST

SILENCE

ALARM

POWER ON

TO POWER SUPPLY

DO NOT PLUG "A-PAK ALARM SYSTEM

INTO THE SAME CIRCUIT AS THE PUMP.

NOTE:

GATE VALVE

FLOAT SUPPORT FABRICATED

FROM PVC OR S.S. PIPE

2" NPT OR 3" NPT

DISCHARGE PIPE

ALARM LEVEL

(BOTH PUMPS ACTIVATED)

ON LEVEL

ZOELLER VARIABLE LEVEL

CONTROL SWITCH

OFF LEVEL

ZOELLER NONAUTOMATIC

SEWAGE PUMP

BASIN

INLET HUB

100 mm (4")

OF GRAVEL

5 mm (3/16”)

VENT HOLE

TOGGLE SWITCHES

INDICATOR LAMPS

CONTROL PANEL

ELECTRICAL ALTERNATOR

ALARM LIGHT

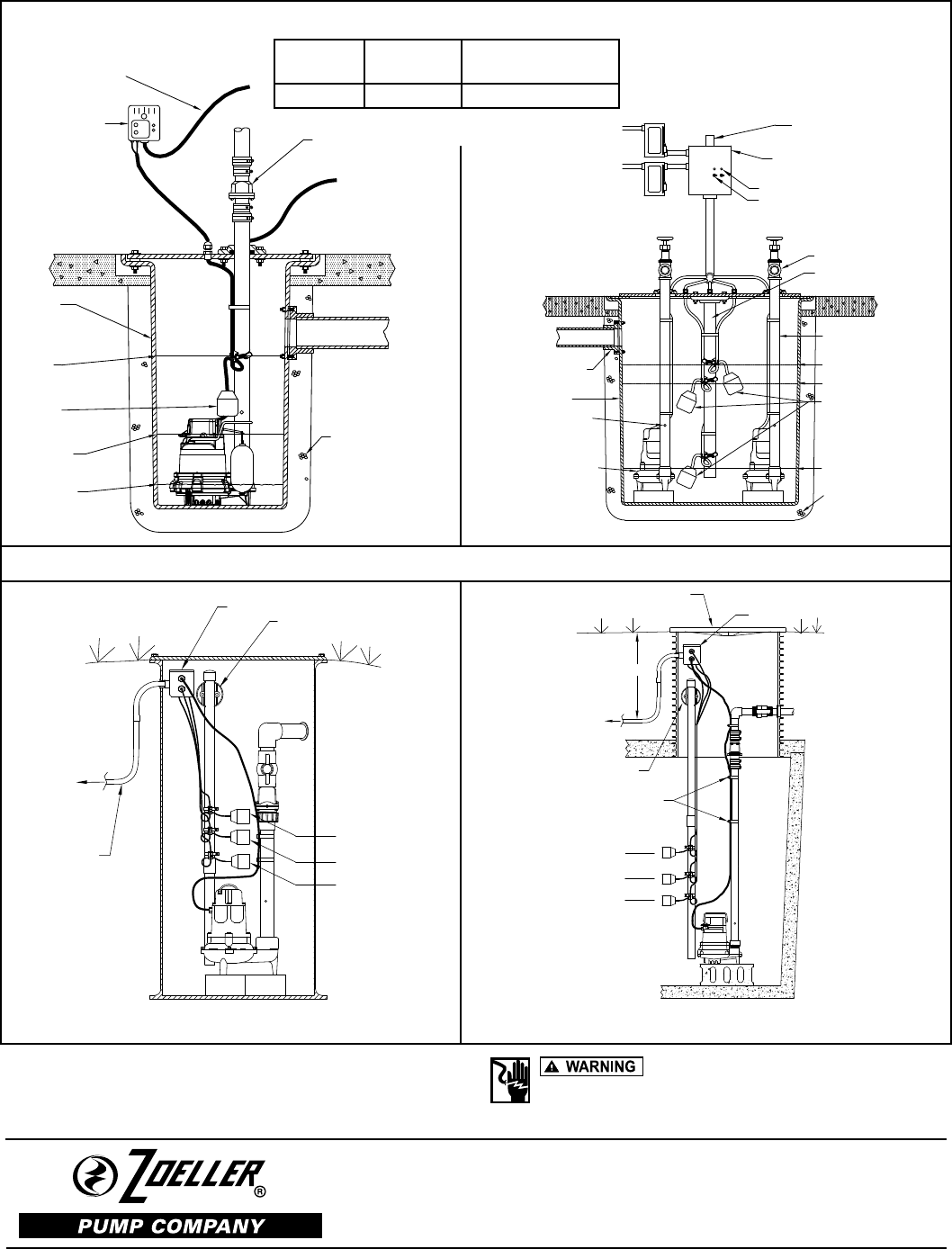

TYPICAL APPLICATIONS

For information on additional Zoeller products refer to catalog on

Electrical Alternator, FM0486; Single Phase Simplex Control/Alarm

Systems, FM0732; and Simplex Controller, FM0731.

© Copyright 2013 Zoeller® Co. All rights reserved.

SIMPLEX SYSTEM DUPLEX ELECTRICAL

ALTERNATING SYSTEM

All electrical systems must be installed by

a qualied licensed electrician according to the National

Electrical Code.

SK2233A SK2233B

SK484

SK2376

FLOAT TREE ASSEMBLIES

TO

POWER

SOURCE

OFF

PREWIRED

ON

ALARM

OUTDOOR BASIN

CONDUIT

FLOAT TREE

J-BOX

ASSEMBLY

ALARM

DOSING TANK

OFF

ON

18” MIN.

(46 cm)

ACCESS RISER AND

TO

CONTROL

PANEL

SECURE CORDS

FROM HANGUPS

J-BOX

FLOAT TREE

SECURE LID

ASSEMBLY

Switch for A-Pak, High Level Alarm Switch.

Voltage A-Pak Variable Level

Control Switch

115V 10-1494 10-0743
