Open the PDF directly: View PDF .
Page Count: 46

GET REAL

GET

service

PARTS

catalog

HYDRONIC SPECIALTIES

ENGINEERED SPECIALTIES

CIRCULATORS &

CENTRIFUGAL PUMPS

CENTRIFUGAL PUMP

ACCESSORIES

Bell & Gossett®

Parts List HS-300C-PL

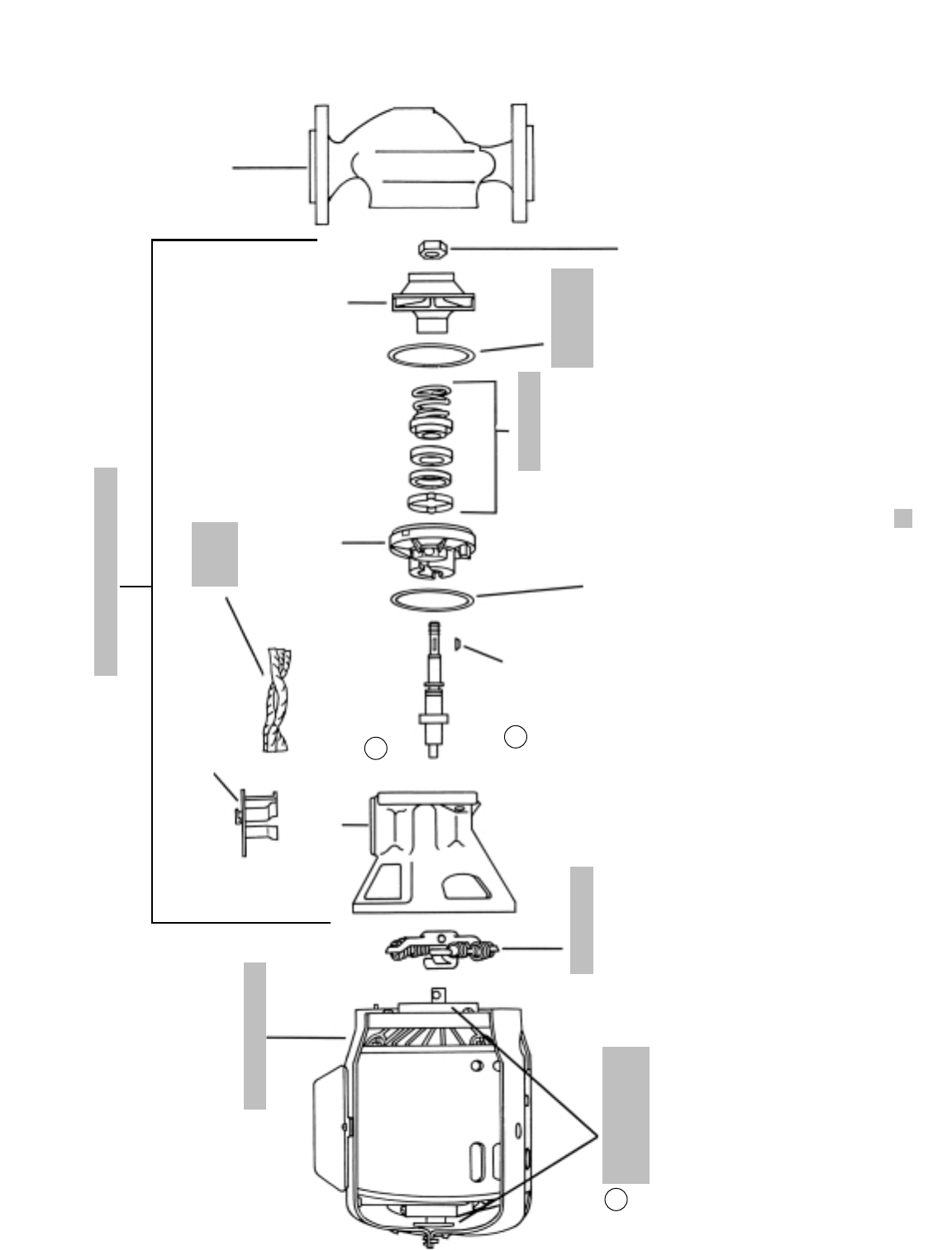

CIRCULATOR REPLACEMENT PARTS HS-300C-PL

BEARING ASSEMBLY

OIL WELL

COVER

IMPELLER*



FRONT

BEARING**

BEARING

BRACKET



SHAFT

& SLEEVE

FRONT

BEARING

GASKET



IMPELLER

KEY 



IMPELLER

NUT

PUMP

BODY



POWER PACK

COUPLER

OIL

WICK

SEAL KIT

BODY

GASKET

Circulator

Exploded View

For Series 100, Series HV, 2",

PR, 21/2", LD-3 &HD-3 Models

*Impeller not always included in Bearing Assembly.

**Shown rotated 90º.

– Factory recommended spare parts.



RING MOTOR

MOUNT SET

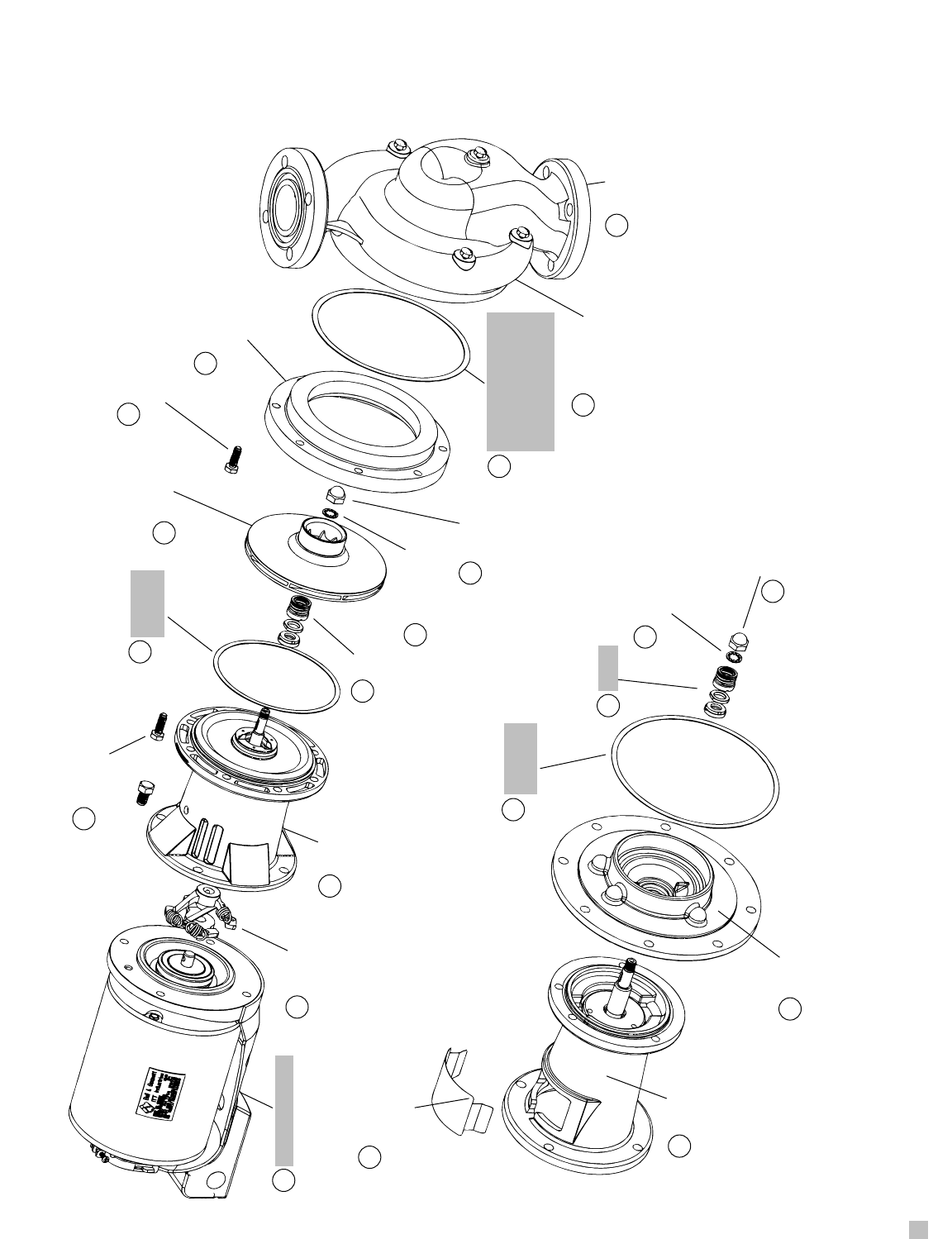

CIRCULATOR OR CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

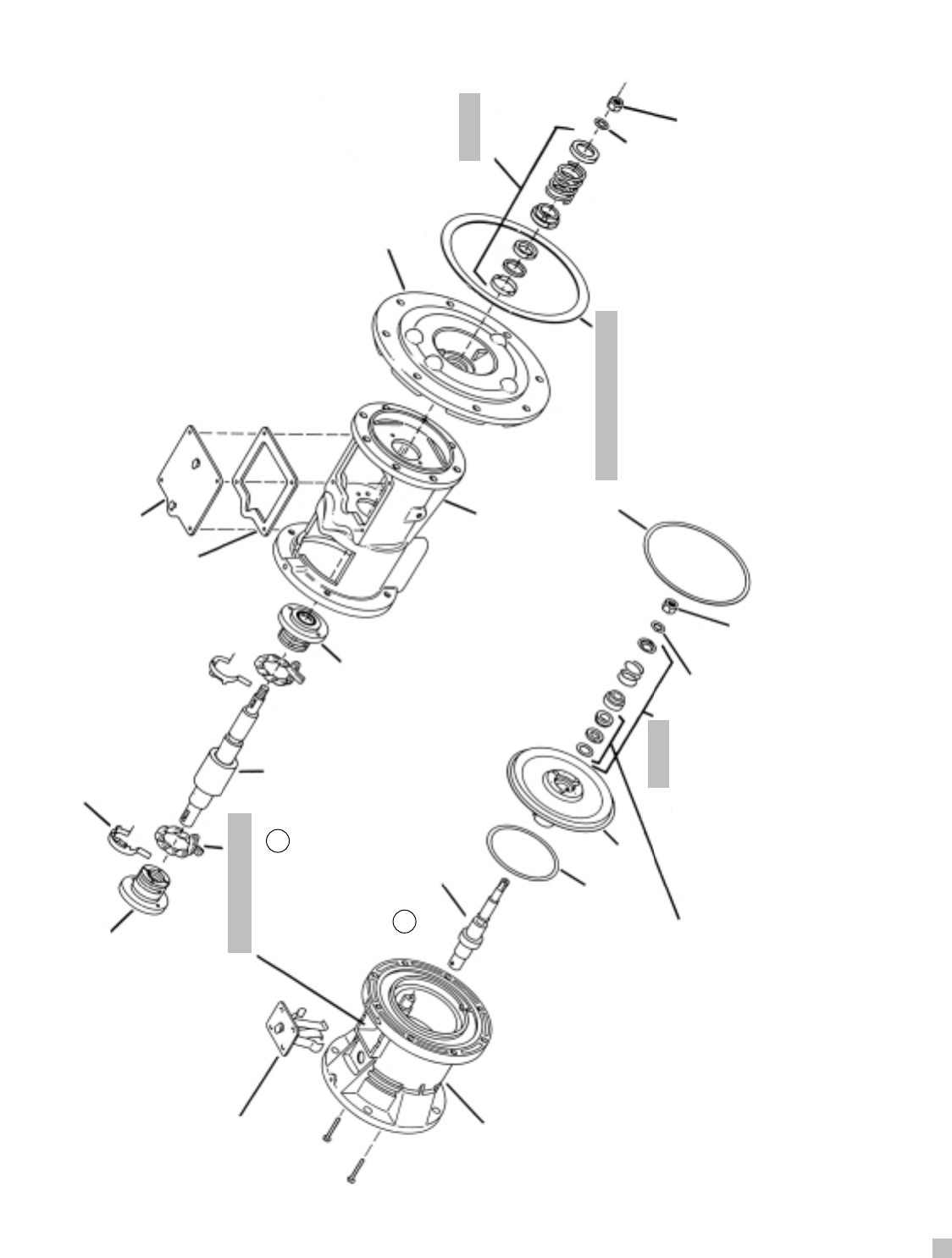

Series 60 Maintenance Free Pump

Exploded View

POWER PACK COUPLER

BEARING

ASSEMBLY

(SMALL)

VOLUTE

CAPSCREW (8)

VOLUTE

GASKET

SEAL

IMPELLER

WASHER

IMPELLER

NUT

ADAPTER RING

CAPSCREW (8)

(Sizes 11/2x11/2x61/4

and 2x2x61/4 only)

ADAPTER RING

(Sizes 11/2x11/2x61/4

and 2x2x61/4 only)

VOLUTE

DRAIN PLUG (5)

ADAPTER RING

GASKET

(Size 11/2x11/2x61/4

and 2x2x61/4 only)

VOLUTE

GASKET

IMPELLER

WASHER

IMPELLER

NUT

BEARING

ASSEMBLY

(LARGE)

SEAL

COVER

PLATE

COUPLER

COVER

– Factory recommended spare parts.





IMPELLER

IMPELLER

NUT

POWER

PACK



VOLUTE

CAPSCREW (8)



COUPLER



VOLUTE



IMPELLER

WASHER

VOLUTE

DRAIN PLUG (5)

SEAL

BODY

GASKET



CIRCULATOR OR CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

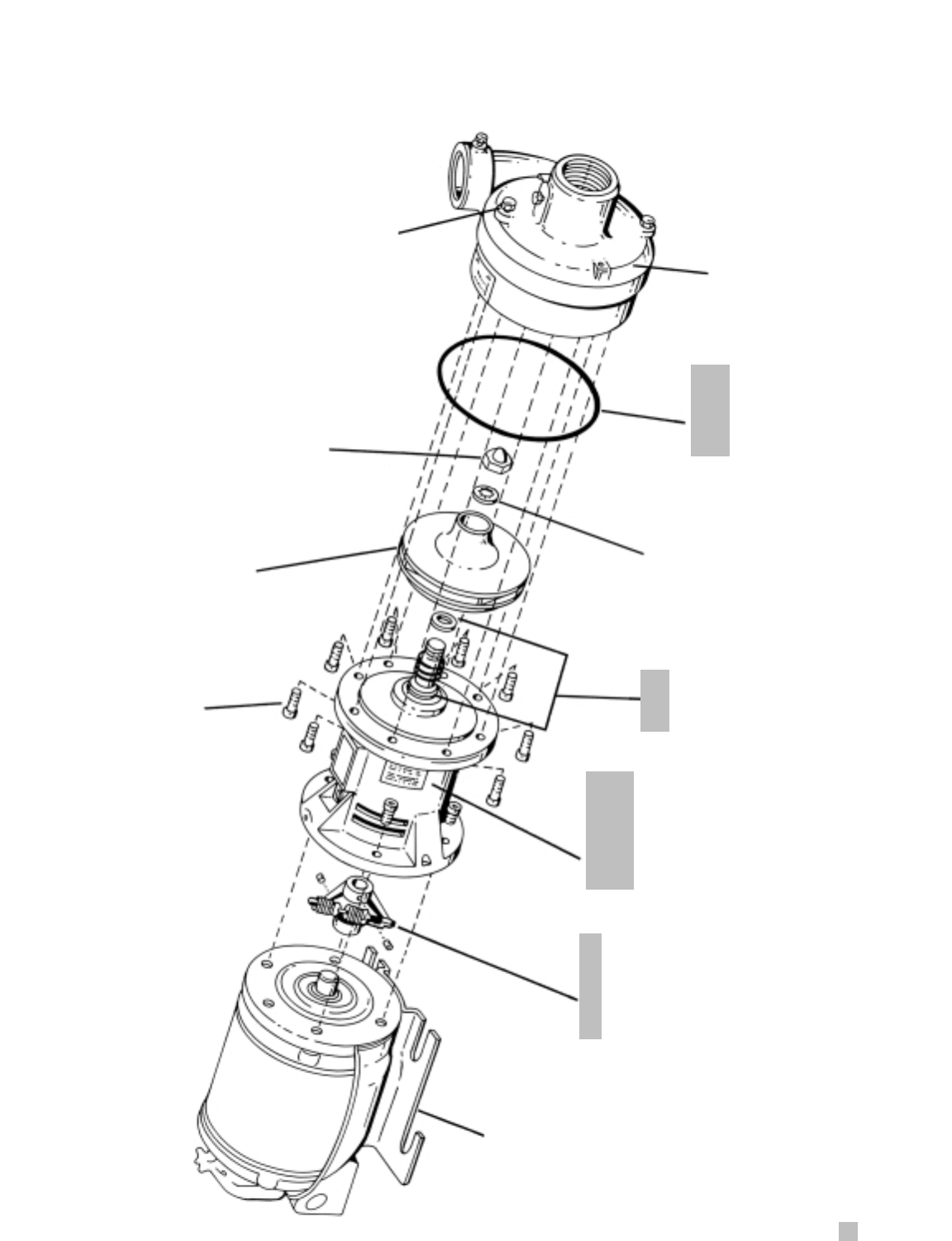

Series PD & Series 60 – Sleeve Bearing Pumps

Exploded View

– Factory recommended spare parts.

BEARING

ASSEMBLY

COUPLER BEARING

ASSEMBLY

SEAL

BODY

GASKET

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL





IMPELLER

IMPELLER

NUT

POWER

PACK





VOLUTE

CAPSCREW (8)





VOLUTE



IMPELLER

WASHER

VOLUTE

DRAIN PLUG (4)





– Factory recommended spare parts.

Series 1522 Pump

Exploded View

SEAL

OIL WICK (2)





IMPELLER

NUT

IMPELLER

WASHER

FRONT

BEARING



BEARING

BRACKET



OIL WELL

COVER





IMPELLER

WASHER



SHAFT

& SLEEVE

SEAL





BEARING

BRACKET



IMPELLER

NUT



FRONT

BEARING

GASKET

OIL WELL

GASKET

BODY GASKET

COVER

PLATE



OIL WELL

COVER

REAR BEARING







FRONT

BEARING

OIL WICK

RETAINER (2)



SHAFT

& SLEEVE

PD 35 & 37,

SERIES 60 “AA”

& SERIES 1522

PD 38, 39 & 40

SERIES 60 “A”

& SERIES 60 21/2 F

INTEGRAL WITH BRACKET ON

MODELS MANUFACTURED FROM

JUNE 1957 TO JUNE 1961. (FA DATE CODE.)

USE SEAL ONLY, PART NUMBER 118680.

CIRCULATOR OR CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

Series PD, Series 60 – Sleeve Bearing &

Series 1522 Bearing Assemblies

Exploded View

– Factory recommended spare parts. NOTE: Use liquid sealant in place of bearing

gaskets on PD38, PD39 & PD40 pumps.





CIRCULATOR OR CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

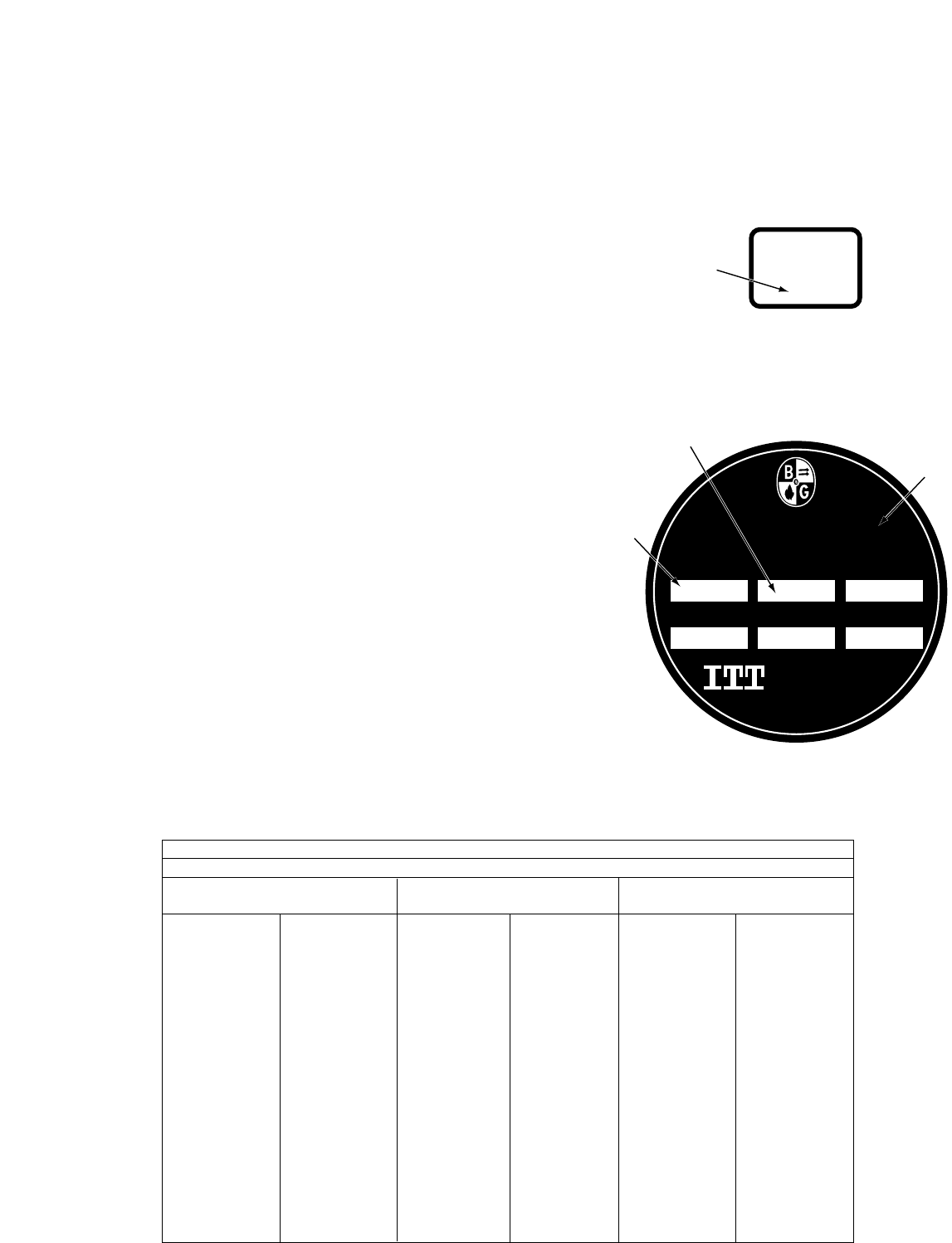

How to Select Parts for Circulators &

Pumps on Pages 9-15

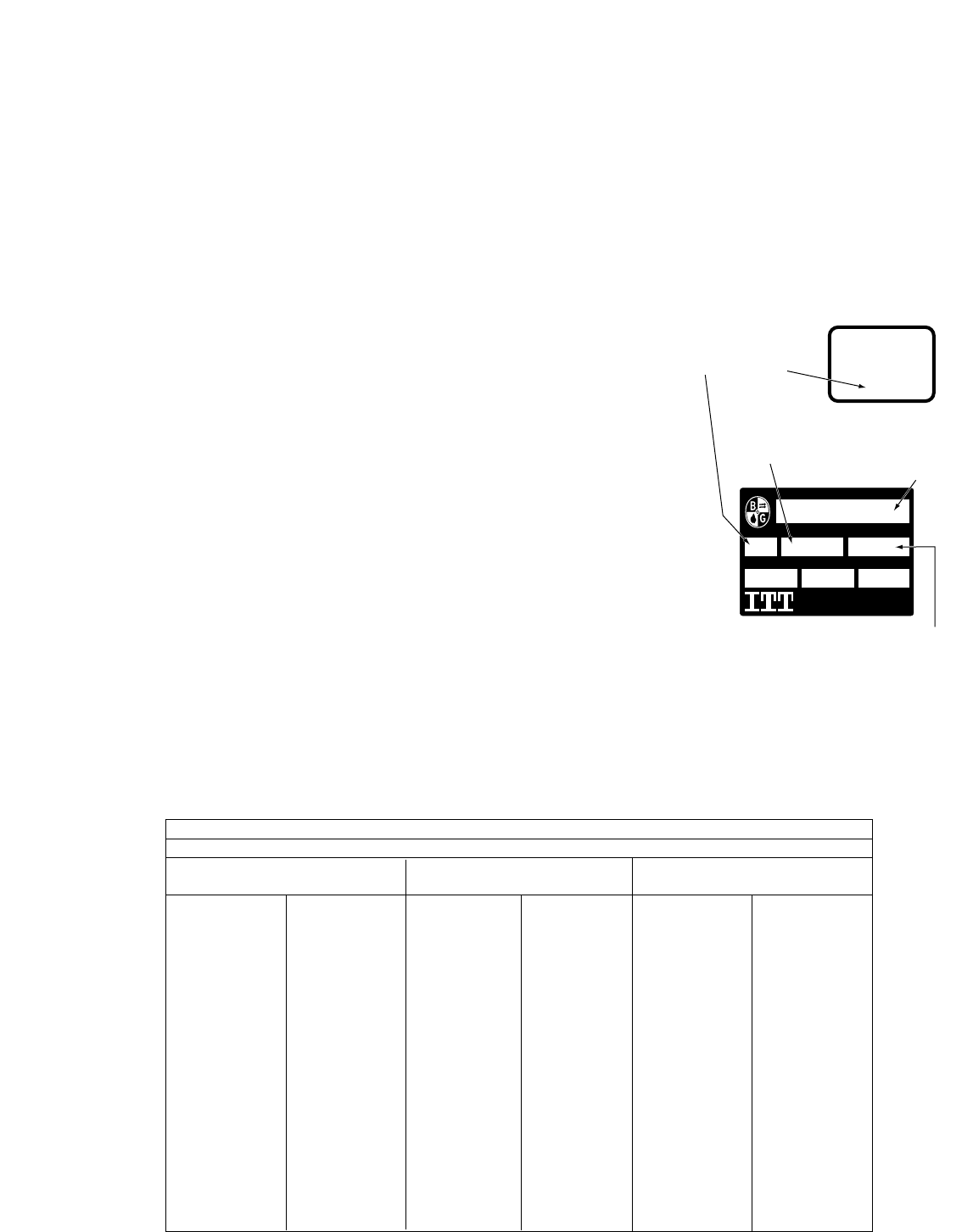

The pump nameplate identifies the pump by the series and the six digit part number as

shown in the example below.

The nameplate above identifies the pump as a Series HV, part number 102210. The date

code shows the date of manufacture as October, 1990 as explained in the chart below. The

nameplate identifies the booster pump for future reference. DO NOT REMOVE THE NAME-

PLATE. It is important when ordering replacement parts to furnish complete nameplate data.

To ensure the correct parts will be selected, follow the procedure below:

1. Determine from the nameplate the pump series, pump construction (if applicable) and the

six digit part number.

2. Determine the date the unit was manufactured. See chart below.

3. Refer to the index for the page number of the parts breakdown for the specific booster

pump series.

4. Find the proper column in the parts breakdown for the pump involved. Be sure to use the

date codes on top of each column where applicable.

5. Select part numbers using the applicable drawings on pages 3, 5 & 7 for identification.

6. When ordering a replacement motor or motor components, always furnish complete

motor nameplate data.

SERIES HV K09

102210

MAX LIQUID TEMP. 225°F.

LUBRICATE AT INSTALLATION OR START OF

EACH HEATING SEASON. FOR CONTINUOUS

SERVICE LUBRICATE EVERY 3 MONTHS WITH

SAE #20 OIL. DO NOT OVER-OIL.

PUMP BEARINGS USE APPROX. 1 OZ.

MOTOR BEARINGS USE APPROX.

12 DROPS EA.

LISTED

96 HO

CSA ENCL 2

BELL & GOSSETT BOOSTER

Bell & Gossett

Morton Grove, IL, U.S.A.

Date Code

Part Number

Pump Series

DATE OF MANUFACTURE CODE

The date code is made up of two or three characters depending upon the year.

1946-1960 1961-82 1983-

The number denotes the month. The last Two characters. First letter is month. Three characters. The letter denotes

character is a letter and denotes the year. Second letter is year. the month. The numbers denote the year.

1January G 1946 A January A 1961 A January 78 1987

2 February H 1947 B February B 1962 B February 88 1988

3 March J 1948 C March C 1963 C March 98 1989

4 April K 1949 D April D 1964 D April 09 1990

5 May L 1950 E May E 1965 E May 19 1991

6 June M 1951 F June F 1966 F June 29 1992

7 July N 1952 G July G 1967 G July 39 1993

8 August P 1953 H August H 1968 H August 49 1994

9 September R 1954 J September J 1969 J September 59 1995

10 October T 1955 K October K 1970 K October 69 1996

11 November U 1956 L November L 1971 L November 79 1997

12 December V 1957 M December M 1972 M December 89 1998

W 1958 N 1973 99 1999

X 1959 P 1974 00 2000

Y 1960 R 1975 10 2001

T 1976 20 2002

U 1977 30 2003

V 1978 40 2004

W 1979 50 2005

X 1980 60 2006

Y 1981 70 2007

Z 1982 80 2008

90 2009

CAST IRON MODELS BRONZE MODELS

(PART NUMBER) (PART NUMBER)

PL-30 PL-36 PL-45 PL-50 PL-55 PL-75 PL-130/2 PL-130/3 PL-30B PL-36B PL-45B PL-50B PL-55B PL-75B PL-130B/2 PL-130B/3

DESCRIPTION (1BL012) (1BL001) (1BL002) (1BL016) (1BL032) (1BL034) (1BL063) (1BL070) (1BL013) (1BL003) (1BL004) (1BL017) (1BL068) (1BL035) (1BL065) (1BL072)

Seal Kit 189144 189577 189144 189174 189144 189577 189144 189174

Body Gasket P15691 P83025 P13691 P15691 P83025 P15691

Impeller 189170 189171 189169 189172 189169 189173 189170 189171 189169 189172 189169 189173

Fastener Package* P64910 P64940 P83031 P65031 P09540 P64910 P64940 P83031 P65031 P09540

Flange Gasket Set 118368 118373 118368 118378 118129 118368 118373 118368 118378 118129

Flanges

CAST IRON BRONZE

Flange (3/4") P00739 NONE P00739 NONE P00789 NONE P00789 NONE

Flange (1") P00792 P00802 P00792 NONE P00836 P00804 P00836 NONE

Flange (11/4") P03250 P03300 P03250 NONE P00837 P06660 P00837 NONE

Flange (11/2") P03430 P03410 P03430 NONE P00779 P06690 P00779 NONE

Flange (2") NONE F14200 NONE NONE F54200 NONE

Flange (21/2") NONE NONE P03560 NONE NONE P06750

Flange (3") NONE NONE F74000 NONE NONE F74800

CIRCULATOR REPLACEMENT PARTS HS-300C-PL

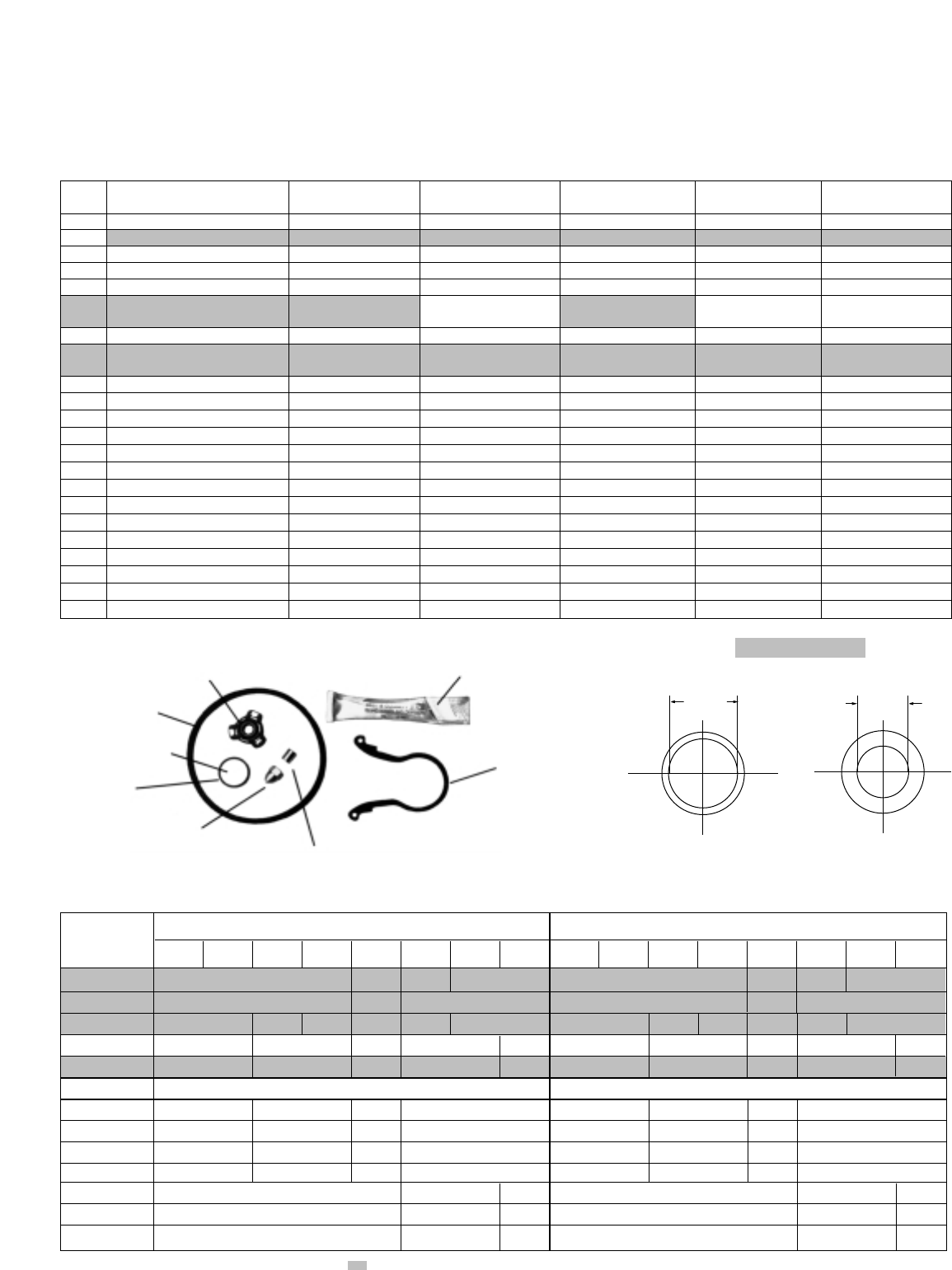

PARTS FOR LITTLE RED & SERIES PL CIRCULATORS

SERIES PL

RING GASKETS

OIL TUBE

ASSEMBLY

TOOL

IMPELLER TUBE

IMPELLER

NUT



SEAT

CUP

CERAMIC

INSERT

BODY

GASKET



SEAL &

CUSHION ASSEMBLY

REPAIR KIT

15/16 ID



LITTLE RED

– Factory recommended spare part.*Includes flange gaskets. N/A - Not Available

ITEM MODEL MODEL MODEL MODEL MODEL

NO. DESCRIPTION LR-20BF LR-20B LR-12 & LR-12BF LR-12B LR-15B

Body N/A N/A N/A N/A N/A

Impeller P15627 P15627 P15629 P15629 P15627

Capacitor 115V N/A N/A M15784 M15784 M15784

Capacitor 110V N/A N/A N/A N/A N/A

Capacitor 220V N/A N/A M15784 M15784 M15788

Flange Gasket Set-Ring

Type 113/16" ID (2 Req’d) 118368 N/A 118368 N/A N/A

Fastener Pack For Above* P64910 N/A P64910 N/A N/A

Flange Gasket – Ring Type

15/16" ID (2 Req’d) P15692 P15692 P15692 P15692 P15692

Fastener Pack for Above* P15696 P15696 P15696 P15696 P15696

Flange (3/4") P00739 P00789 P00739 P00789 P00789

Flange (1") P00792 P00836 P00792 P00836 P00836

Flange (11/4") P03250 P00837 P03250 P00837 P00837

Flange (11/2") P03430 P00779 P03430 P00779 P00779

24 Seal Repair Kit Consisting of: N/A N/A N/A N/A N/A

25 Seal & Cushion Assembly N/A N/A N/A N/A N/A

26 Seat Cup P15683 P15683 P15683 P15683 P15683

27 Ceramic Insert P70712 P70712 P70712 P70712 P70712

9 Impeller Nut P15697 P15697 P15697 P15697 P15697

28 Impeller Tube P15698 P15698 P15698 P15698 P15698

29 Oil Tube P15775 P15775 P15775 P15775 P15775

2 Body Gasket P15691 P15691 P15691 P15691 P15691

30 Assembly Tool P15210 P15210 P15210 P15210 P15210

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

How to Select Parts for Maintenance

Free Series 60, Pages 17-23

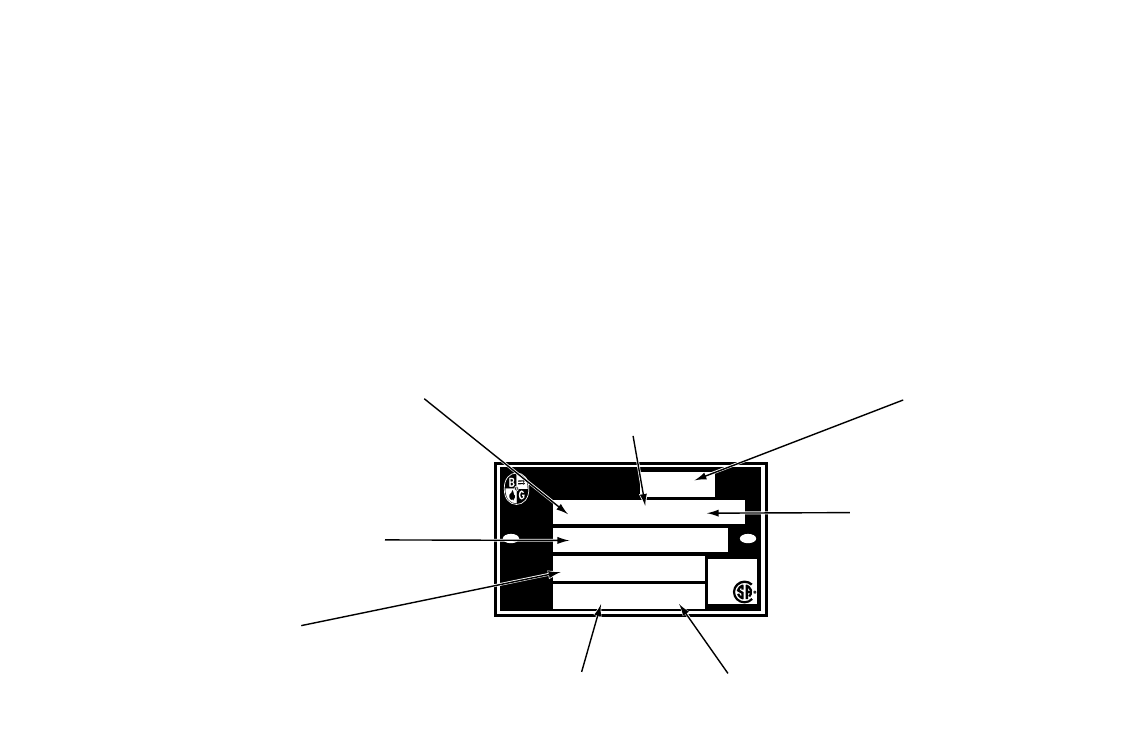

The pump nameplate identifies the pump by model number, pump construction and

impeller diameter as shown below.

The BTO nameplate above identifies the pump as a Series 60, size 11/4x51/4in bronze

fitted (BF) construction. The impeller diameter is 41/4" and is capable of pumping 30

GPM at 15 FT. The motor horsepower is 1/4, the RPM is 1750. The serial number specifi-

cally identifies the unit for future reference. DO NOT REMOVE THE NAMEPLATE. It is

important when ordering replacement parts to furnish complete nameplate data.

Following the procedure below will result in proper parts selection.

1. Determine from the nameplate the model number, pump construction and impeller

diameter.

2. Refer to the index for the page number of the parts breakdown for the specific

model pump.

3. Find the proper column in the parts breakdown for the pump construction involved.

4. Select part numbers using the numbered drawings on page 4 for identification.

BELL & GOSSETT PUMP

SIZE

PUMP

CAP.

MOTOR

CAP.

SERIAL

NO.

11/4x51/4 BF 41/4

30 GPM 15 FT

1/4HP 1750RPM

1598200 K99

CSA

ENCL

Pump Size

Capacity &

Head

Motor

Horsepower

Pump Construction Pump Series

Impeller

Diameter

Serial Number Date Manufactured

(October, 1999)

Pump Size

BELL & GOSSETT PUMP

SIZE

PUMP

CAP.

MOTOR

CAP.

SERIAL

NO.

604S

172707 CSA

ENCL

Pump Model

Number

Part Number

Date Manufactured

(October, 1999)

11/4x51/4 K99

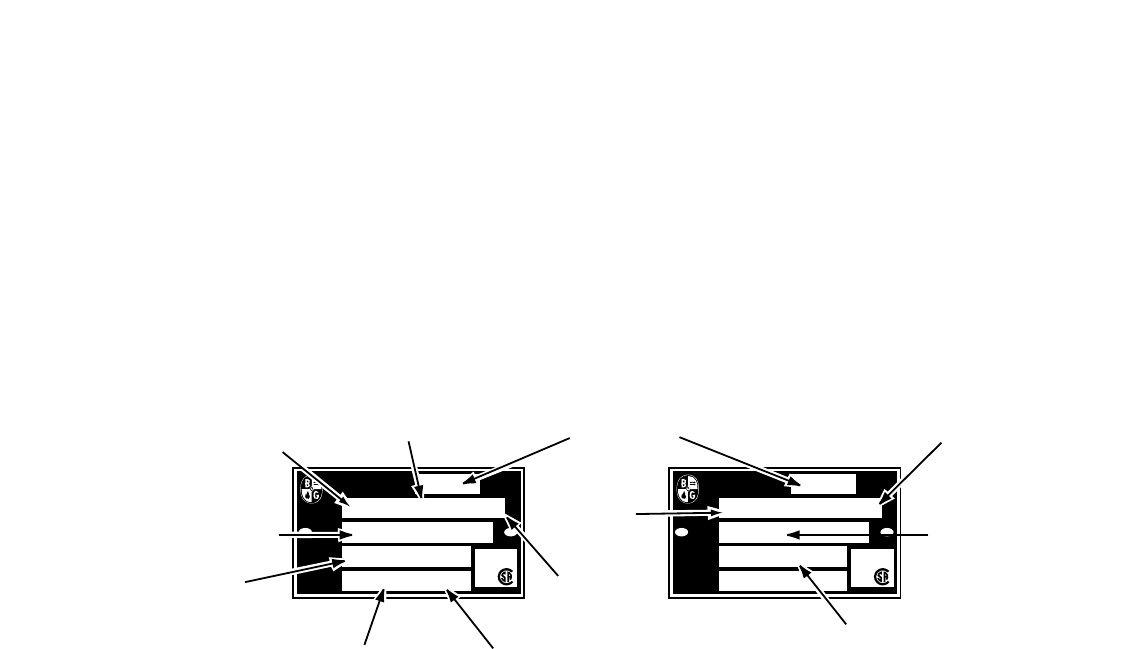

NAMEPLATE FOR

BUILT-TO-ORDER PUMPS

NAMEPLATE FOR

STOCK PUMPS

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

How to Select Parts for Series 60 &

1522 Pumps on Pages 25-34

The pump nameplate identifies the pump by model number, pump construction and

impeller diameter as shown below.

The nameplate above identifies the pump as a Series 60, size 11/4AA in bronze-fitted (BF)

construction. The impeller diameter is 43/8" and is capable of pumping 21 GPM at 14 FT.

The motor horsepower is 1/4, the RPM is 1750. The serial number specifically identifies

the unit for future reference. DO NOT REMOVE THE NAMEPLATE. It is important when

ordering replacement parts to furnish complete nameplate data.

Following the procedure below will result in proper parts selection.

1. Determine from the nameplate the model number, pump construction and impeller

diameter.

2. Refer to the index for the page number of the parts breakdown for the specific model

pump.

3. Find the proper column in the parts breakdown for the pump construction involved.

4. Select part numbers using the numbered drawings on pages 5, 6 & 7 for identification.

BELL & GOSSETT PUMP

SIZE

PUMP

CAP.

MOTOR

CAP.

SERIAL

NO.

11/4 AA 43/8 BF

1/4HP 1750RPM

21 GPM 14 FT

1598200 A19

CSA

ENCL

Impeller

Diameter Pump Series

Pump Model Number

Pump Construction

Date Manufactured (January, 1991)

(See complete date code list on

page 8.)

Serial Number

Motor

Horsepower

Capacity & Head

CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

SEAL SELECTION CHART

Obs. – Obsolete pump models.

EPT – Ethyl Propylene Terpolymer (not oil resistant).

– Factory recommended spare parts.

SEAL SEAL ONLY NO. ELASTOMER SEAL BODY SEAT INSERT

KIT* NO. (LESS SEAT INSERT) FOR PUMP MODEL(S) MATERIAL CONSTRUCTION MATERIAL

118681 118680 Series 100, HV, 2", PR, LD-3, HD-3, Buna-N Brass Ceramic

(KIT #7) PD-35, PD-37, Series 60 “AA”, 1522,

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. HV,

Obs. 2", MF 60 with 51/4" and 61/4" impellers

185222 –Series 100, HV, 2", PR, LD-3, HD-3, EPT Steel Tungsten

(KIT #13) PD-35, PD-37, Series 60 “AA”, 1522, Carbide

Obs. 1", Obs. 11/4", Obs. 11/2",

Obs. HV, Obs. 2"

185223 –PD-38, PD-40, Series 60”A”, Series 60 EPT Steel Tungsten

(KIT #14) 21/2F, Obs. PD-39, MF 60 with 7" impellers Carbide

185224 –PD-38, PD-40, Series 60 “A", EPT Steel Tungsten

(KIT #15) Series 60 21/2F, Obs. PD-39 Carbide

185227 –PD-38, PD-40, Series 60 “A”, Teflon Stainless Steel Ceramic

(KIT #18) Series 60 21/2F, Obs. PD-39

185230 118682 Series 100, HV, 2", PR, LD-3, HD-3, EPT Brass Tungsten

(KIT #12) PD-35, PD-37, Series 60 “AA”, 1522, Carbide

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. HV,

Obs. 2", MF 60 with 51/4" and 61/4" impellers

186433 –PD-38, PD-40, Series 60 “A”, Buna-N Steel Ceramic

(KIT #5) Series 60 21/2F, Obs. PD-39

186499 –PD-38, PD-40, Series 60 “A”, Series 60 Buna-N Brass Ceramic

(KIT #2) 21/2F, Obs. PD-39, MF 60 with 7" impellers

186681 –Series 100, HV, 2", PR, LD-3, HD-3, Buna-N Steel Ceramic

(KIT #6) PD-35, PD-37, Series 60 “AA”, 1522,

Obs. 1", Obs. 11/4", Obs. 11/2",

Obs. HV, Obs. 2"

186875 P59861 Series 100, HV, 2", PR, LD-3, HD-3, Viton Stainless Steel Ceramic

PD-35, PD-37, Series 60 “AA”, 1522,

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. HV,

Obs. 2", MF 60 with 51/4" and 61/4" impellers

189144 –PL-30, PL-30B, PL-36, PL-36B, PL-45, EPT Brass SiC

PL-45B, PL-50, PL-50B, PL-75, PL-75B

189174 –PL-130/2, PL130B/2, PL-130/3, PL-130B/3 EPT Brass SiC

189577 –PL-55, PL-55B EPT Brass SiC

HYDRONIC SPECIALTIES & ENGINEERED SPECIALTIES REPLACEMENT PARTS HS-300C-PL

Bell & Gossett

Morton Grove, IL, U.S.A.

REDUCING VALVE

K09 110190 B-38

125 PSI 225°F 12 lbs

PART NO.

MAX. PRESS.

MODEL NO.

MAX. TEMP. SET AT

WARRANTY VOID

IF THIS LABEL IS

REMOVED

K09

Date Code

Product

Model No.

Part Number

The nameplate on any unit in the Hydronic Specialties or Engineered Hydronic

Product line identifies the specific unit by product type, model number and six

digit part number as shown in the example right.

The nameplate below right identifies the product as a reducing valve, model

number B-38 with a part-number of 110190. The valve was manufactured in

October, 1990. If the date code is not imprinted in the nameplate, a label

displaying the date of manufacture identical to the example, above right, can

be found on the product. Although all nameplates in the Hydronic Specialties

and Engineered Hydronic Product lines are not alike, all will display the product

type, part number and model number. DO NOT REMOVE THE NAMEPLATE

OR THE LABEL. They identify the unit for future reference. It is important

when ordering replacement parts to furnish complete nameplate data.

To insure the correct parts will be selected, follow the procedure below:

1. Determine from the nameplate the product type, model number and six digit

part number.

2. Determine the date the unit was manufactured. See chart below.

3. Refer to the index for the page number of the parts breakdown for the

specific product type.

4. Find the proper column in the parts breakdown for the model number

involved.

5. Select part numbers using the exploded views for parts identification.

How to Select Parts for Hydronic

Specialties or Engineered Specialties

DATE OF MANUFACTURE CODE

The date code is made up of two or three characters depending upon the year.

1946-1960 1961-82 1983-

The number denotes the month. The last Two characters. First letter is month. Three characters. The letter denotes

character is a letter and denotes the year. Second letter is year. the month. The numbers denote the year.

1January G 1946 A January A 1961 A January 78 1987

2 February H 1947 B February B 1962 B February 88 1988

3 March J 1948 C March C 1963 C March 98 1989

4 April K 1949 D April D 1964 D April 09 1990

5 May L 1950 E May E 1965 E May 19 1991

6 June M 1951 F June F 1966 F June 29 1992

7 July N 1952 G July G 1967 G July 39 1993

8 August P 1953 H August H 1968 H August 49 1994

9 September R 1954 J September J 1969 J September 59 1995

10 October T 1955 K October K 1970 K October 69 1996

11 November U 1956 L November L 1971 L November 79 1997

12 December V 1957 M December M 1972 M December 89 1998

W 1958 N 1973 99 1999

X 1959 P 1974 00 2000

Y 1960 R 1975 10 2001

T 1976 20 2002

U 1977 30 2003

V 1978 40 2004

W 1979 50 2005

X 1980 60 2006

Y 1981 70 2007

Z 1982 80 2008

90 2009

HYDRONIC SPECIALTIES REPLACEMENT PARTS HS-300C-PL

PARTS FOR FLO-CONTROL VALVES

PACKING NUT

VALVE CAP

RING GASKET



SNAP RING



DISC







HANDLE





RETAINER RING

DYNA

DISC

ASSEMBLY

VALVE STEM

PACKING

STRAIGHT PATTERN

BRONZE STRAIGHT

PATTERN

STRAIGHT ANGLE

PATTERN

ANGLE PATTERN

– Factory recommended spare parts.

NOTE: Consult factory if parts other than those listed above are required.

A-2

A-3

107006 107007

ITEM SA-

SA-1 SA-1

SA-1

SB-

SA-2 S-2

S-3 S-4

NO. DESCRIPTION 107034 107018 107019 107020 107024 107021 107014 107015 107004

10 Dyna Disc Assembly 189168 118117 118094 118095 118864 118095 118096 118096 118118

1 Retainer Ring J92350 F02800 F20800 F20800 J92350 F20800 F22200 F22200 F06800

3 Packing Nut 118056 118056 118056 118056 118056 118056 118056 118056 F16600

4 Packing 118057 118057 118057 118057 118057 118057 118057 118057 F17000

7 Snap Ring F42800 F42800 F42800 F42800 F42800 F42800 F42800 F42800 NONE

9 Ring Gasket F43000 F44400 F47200 F49000 V56936 F49000 F27800 F27800 F19000

Flange Gasket NONE NONE NONE NONE NONE F26200 G82750 G86500 F17400

HYDRONIC SPECIALTIES REPLACEMENT PARTS HS-300C-PL

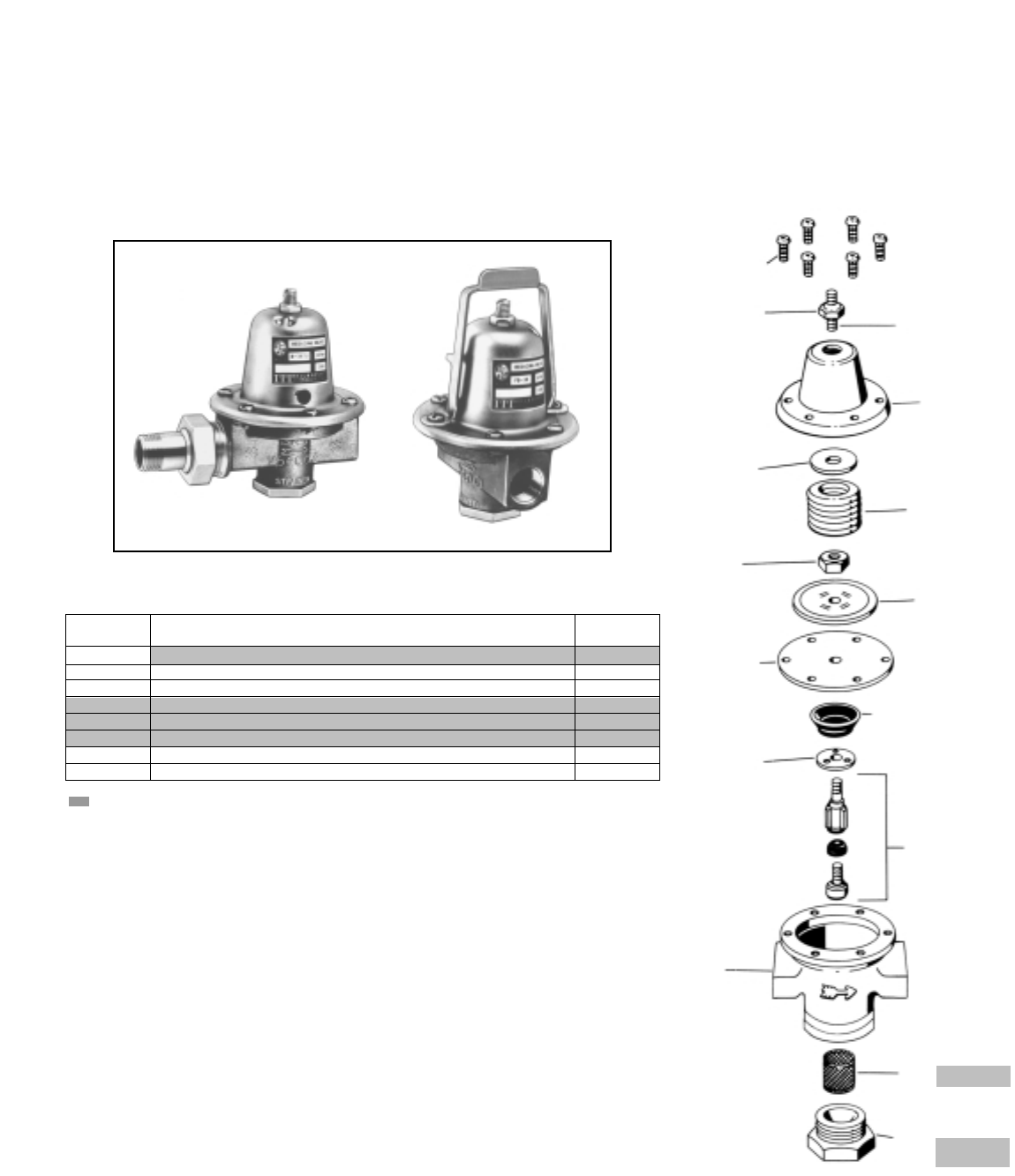

PARTS FOR PRESSURE REDUCING VALVES &

DUAL UNIT VALVES (a)

– Factory recommended spare parts.

(a) Parts are not available for the relief valve of each Dual Unit Valve model.

*Repair Kit includes diaphragm, rubber check valve, valve plate, stem assembly, strainers,

hex nuts and loctite.

**Old style check valve is hexagon-shaped.

***Manufactured May, 1988 (E88 date code) and after.

NOTE: Consult factory if replacement parts other than those listed above are required.

Consult factory if replacement parts are required for old style reducing valves and dual

unit valves with the following model no’s: #6 and #7 (date code D88 and before), #12,

D525, B3, B8, FB3, FB8, F3, F8, #3, #8 and B7.



SPRING CAP



VALVE PLATE



STRAINER

NUT

STRAINER



BODY









HEX JAM NUT



COVER SCREW

HEX NUT

DIAPHRAGM













ADJUSTING

SCREW

BODY COVER

SPRING

SPRING PLATE

RUBBER CHECK

VALVE

STEM

ASSEMBLY

ASSEMBLED REDUCING VALVES

ITEM PART

NO. DESCRIPTION NUMBER

Repair Kit* 118861

5 Diaphragm 118029

14 Rubber Check Valve (Round**) V51658

11 Strainer (B-38, B-38TU, FB-38, FB-38TU, #6***) 118036

11 Strainer (#7***, B7-12) 189160

10 Strainer Nut & O-ring V14609

Tail Piece Assembly (B-38TU, FB-38TU, 8TU, F-8TU) V51747

Tail Piece Gasket V51657

HYDRONIC SPECIALTIES REPLACEMENT PARTS HS-300C-PL

PARTS FOR COMFORT-TROL/

OBSOLETE MODUMATE ZONE VALVES

ITEM NO. DESCRIPTION PART NO.

1Heat Motor Kit 189143

2 Seal & Seat Assembly 189060

– Factory recommended spare parts.

ASSEMBLED MODUMATE VALVE (M-1)

OBSOLETE



COVER



OPERATOR





HEAT MOTOR

ASSEMBLY



GLAND ASSEMBLY

BONNET & RETAINER

ASSEMBLY



HEAT MOTOR

KIT



SEAL & SEAT

ASSEMBLY

ASSEMBLED COMFORT-TROL VALVE

BODY



ITEM NO. DESCRIPTION PART NO.

1Operator 109024

2 Bonnet & Retainer Assembly (6 Pack) 189139

3 Cover V01340

4 Heat Motor Assembly (6 Pack) 189137

5 Gland Assembly (6 Pack) 189138

6 Body (CTS-7524) V01103

HYDRONIC SPECIALTIES REPLACEMENT PARTS HS-300C-PL

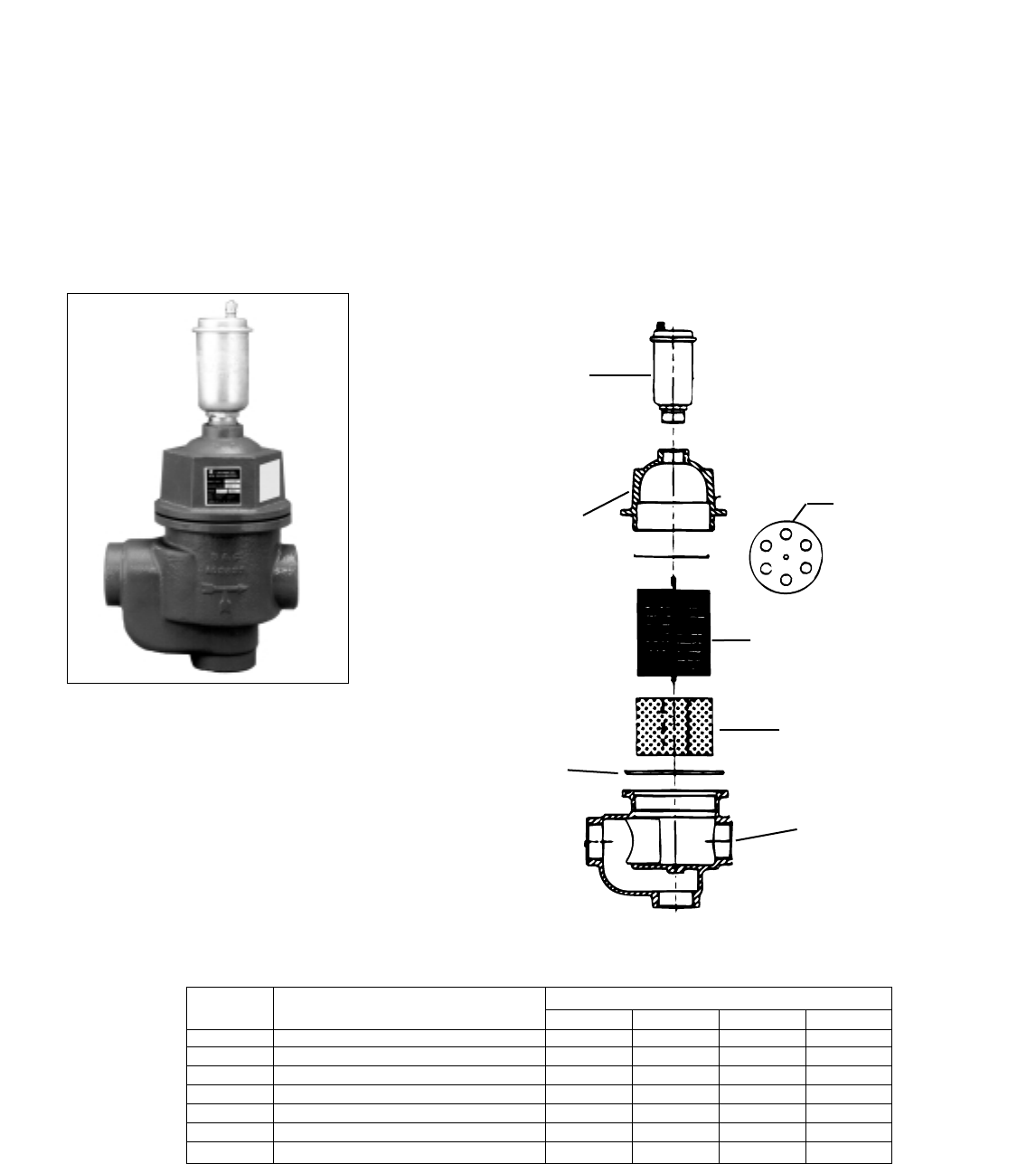

ENHANCED AIR SEPARATORS

AUTOMATIC

AIR VENT

WIRE BRUSH

CAP 



DIFFUSER

BODY

O-RING

BAFFLE



MODEL

ITEM NO. DESCRIPTION EAS-1 EAS-11/4EAS-11/2EAS-2

1Body A03831 A03832 A03715 A03716

2 Diffuser A03837 A03837 A03717 A03717

3 Wire Brush A03836 A03836 A03718 A03718

4 O-Ring A03841 A03841 A03719 A03719

5 Baffle A03835 A03835 A03720 A03720

6 Cap A03834 A03834 A03722 A03722

7 Air Vent A03842 A03842 A03842 A03723

TANK TANK BLADDER

PART NUMBER MODEL NUMBER PART NUMBER

116782 B-35 LA

116783 B-50 LA 189594

116784 B-85 LA

116785 B-100 LA

116786 B-130 LA

116787 B-165 LA 189595

116788 B-200 LA

116789 B-300 LA

116790 B-400 LA

116791 B-500 LA 189596

116792 B-600 LA

HYDRONIC & ENGINEERED SPECIALTIES REPLACEMENT PARTS HS-300C-PL

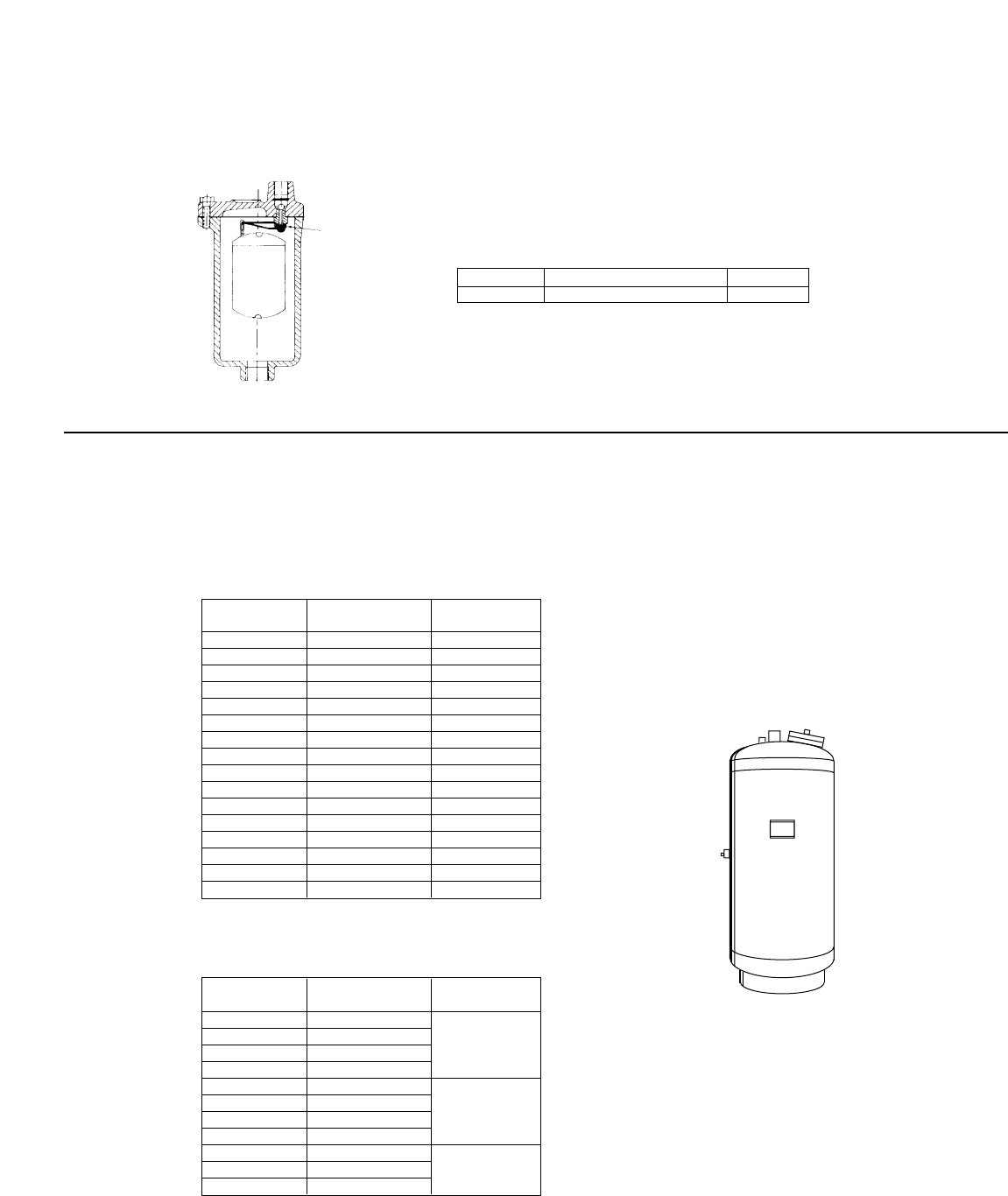

PARTS FOR MODEL 107A HIGH CAPACITY AIR VENT

ITEM NO. DESCRIPTION PART NO.

1Lever, Button & Gasket 118855

MODEL 107A VENT



REPLACEMENT BLADDER PARTS

FOR THE B & B-LA SERIES TANKS

SERIES “B” REPLACEMENT BLADDERS

TANK TANK BLADDER

PART NUMBER MODEL NUMBER PART NUMBER

116550 B-200 189579

116551 B-300 189580

116552 B-400 189581

116553 B-500 189582

116554 B-600 189583

116555 B-800 189584

116556 B-1000 189585

116557 B-1200 189586

116558 B-1400 189587

116559 B-1600 189588

116560 B-2000 189589

116793 B-2500 189590

116794 B-3000 189591

116795 B-3500 189592

116796 B-4000 189593

116819 B-5000 189597

SERIES “B-LA” REPLACEMENT BLADDERS

PARTS FOR THERMOFLO BALANCERS

TB-3/4TB-1

ITEM NO. DESCRIPTION 127001 127002

7Packing 118057 118057

8 Retainer Ring - Brass (2 required) G92000 G92000

Glass Tube Kit Consisting of: 118098 118822

6 Tube Glass G91908 G91910

2 Hanger F69000 F69000

5 Guide Wire F69200 F69200

4 Indicator Disc F62800 NONE

3 Spring F66800 F66200

1 Sealing Ring (4 required) F67200 F67200

– Factory recommended spare parts.

SPRING

TUBE GLASS





HANGER

SEALING RING

INDICATOR

DISC

GUIDE WIRE

ASSEMBLED THERMOFLO BALANCER



SEALING RING



BRASS

RETAINER RING



PACKING

ENGINEERED SPECIALTIES REPLACEMENT PARTS HS-300C-PL

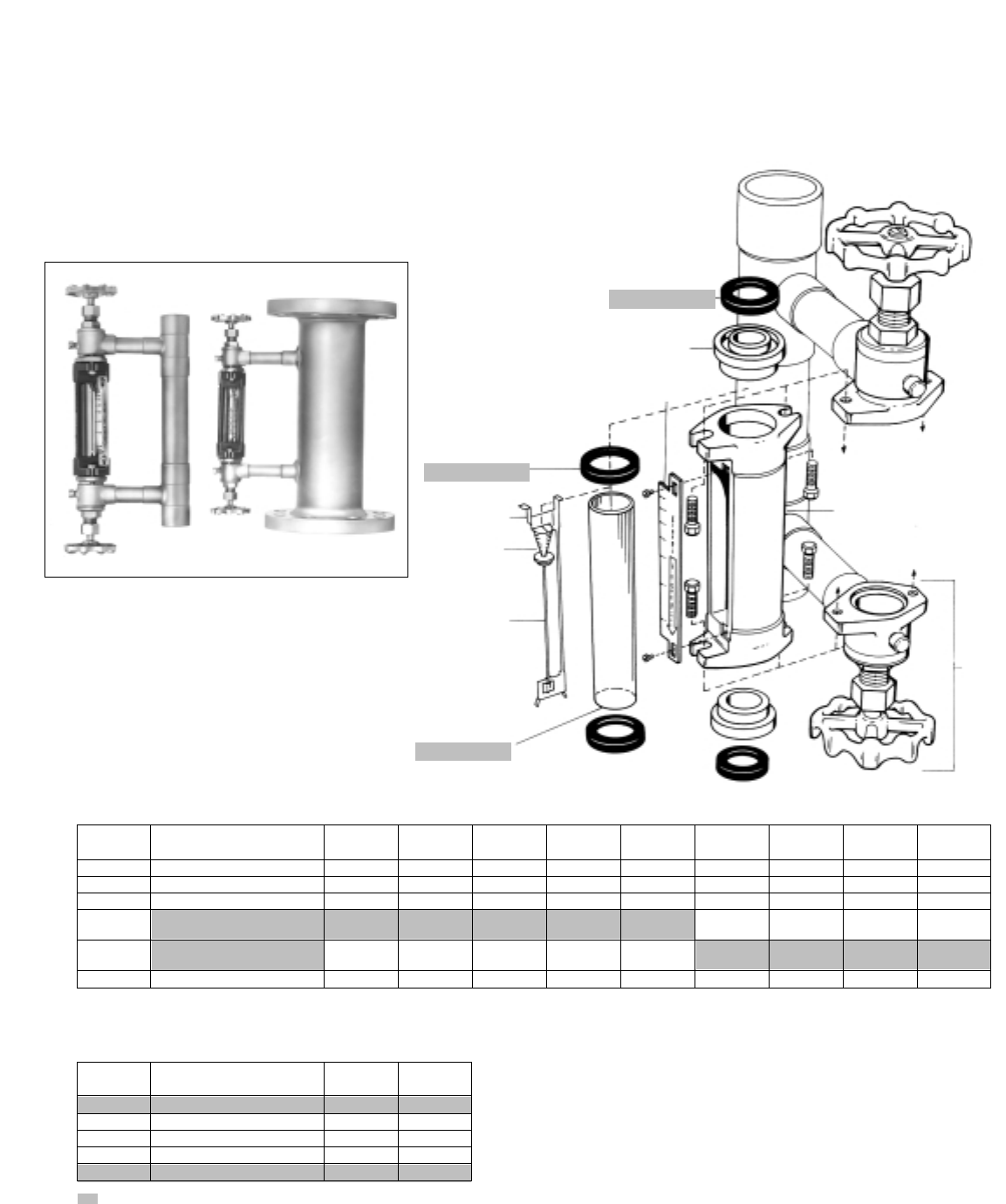

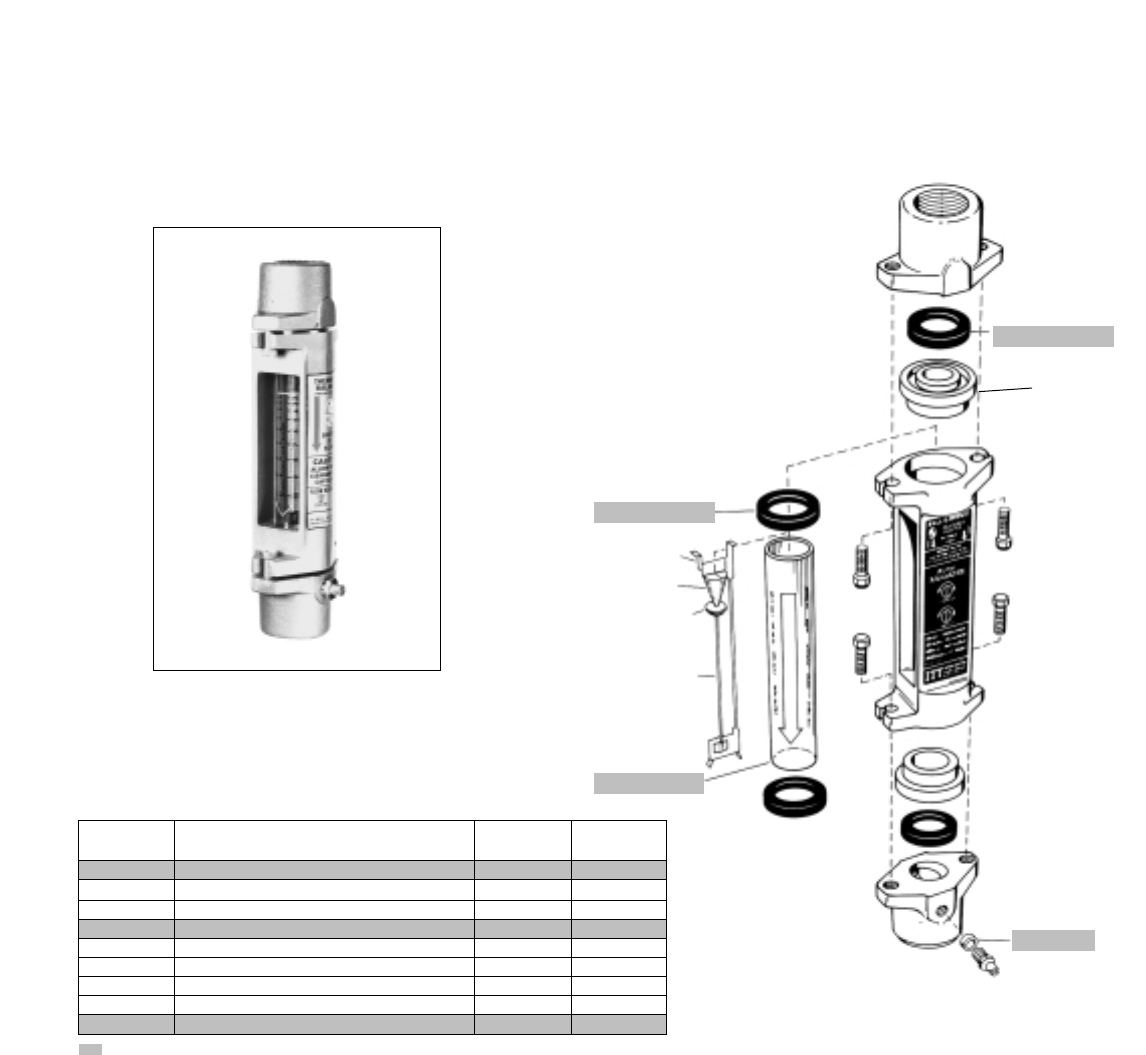

PARTS FOR THERMOFLO INDICATORS

– Factory recommended spare parts.



SPRING



TUBE GLASS







HANGER 

SEALING RING

GUIDE WIRE



BODY



ANGLE

VALVE

RETAINER

RING

SCALE

PLATE



SEALING RING



ASSEMBLED THERMOFLO

INDICATOR

TFI-11/4TFI-11/2TFI-2 TFI-21/2TFI-3 TFI-4 TFI-5 TFI-6 TFI-8

ITEM NO. DESCRIPTION 140001 140002 140003 140004 140005 140006 140007 140008 140009

1Body G92500 ➞➞➞➞➞➞➞➞

3Retainer Ring (2 req’d) G92000 ➞➞➞➞➞➞➞➞

9Angle Valve (2 req’d) G95000 ➞➞➞➞➞➞➞➞

Glass Tube Kit New Style

(Clear) 189111 ➞➞➞➞NONE NONE NONE NONE

Glass Tube Kit Old Style

(Etched) 118820 ➞➞➞➞➞➞➞➞

8Scale Plate G95594 G95595 G95596 G95597 G95598 G95915 G95916 G95917 G95918

CLEAR ETCHED

ITEM NO. DESCRIPTION 189111 118820

4Tube Glass G91900 G91904

7 Hanger F69000 ➞

5Guide Wire F69200 ➞

6Spring F66800 ➞

2Sealing Ring (4 required) F67200 ➞

GLASS TUBE KITS

READOUT VALVE

ENGINEERED SPECIALTIES REPLACEMENT PARTS HS-300C-PL

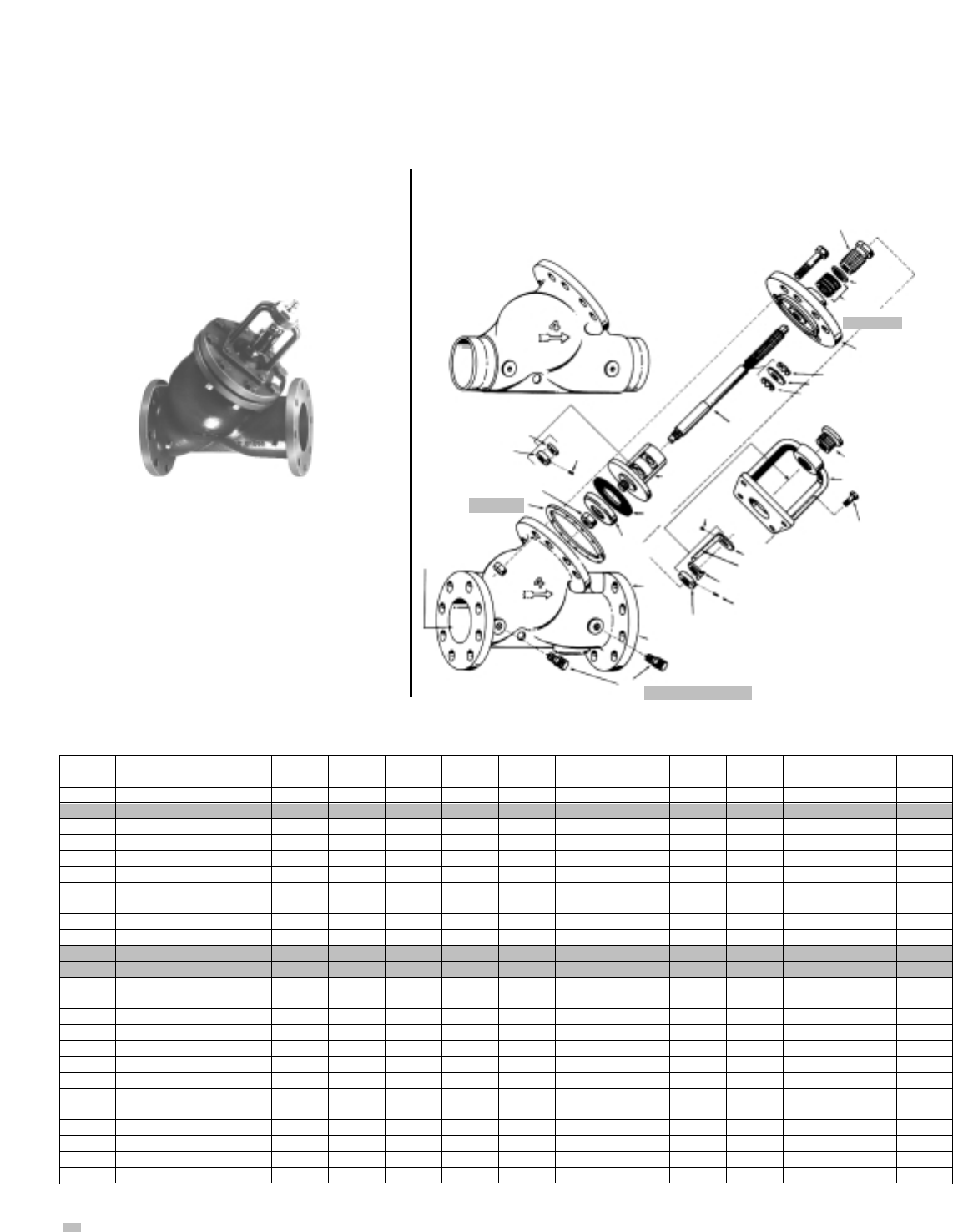

CIRCUIT SETTER BALANCE VALVES

*Exploded view for obsolete Vane Style Valve is not shown. Replacement parts are not available.

– Factory recommended spare parts.







INDICATOR

RING

KNOB

NAME PLATE

BALL STYLE VALVES VANE STYLE VALVE*

SMALL DESIGN BALL STYLE VALVE

1/2" – 1" LARGE DESIGN BALL STYLE VALVE

11/4" – 3"

NAME PLATE

KNOB

INDICATOR STOP





ENGINEERED SPECIALTIES REPLACEMENT PARTS HS-300C-PL

PARTS FOR CIRCUIT SETTERS (CONTINUED)

*Also use Readout Valve model RV-125A, P/N 113100 (50 pairs per package).

**Also use Readout Probe model RP-250B, P/N 113102 (6 pairs per package). 1

†– CB-4 manufactured after March 2001.

– Factory recommended spare parts.

CIRCUIT SETTER ”RF” & CIRCUIT SETTER PLUS

BALL STYLE VALVES (see page 44 for exploded view of current style valves)

Valves Manuf. Valves Manuf. Valves Manuf. Valves Manuf. Valves Manuf.

before July 2000 July 2000 & After July 2000 & After before Jan. 2004 Jan. 2004 & After

(G00 Date Code) (G00 Date Code) (G00 Date Code) (A40 Date Code) (A40 Date Code) All Valves

MODEL NO. PART NO. KNOB INDICATOR STOP READOUT VALVE READOUT PROBE

RF-1/2S 117410 G10105 G10105 -

RF-3/4S 117411 G10105 G10105 -

CB-1/2117414 G95951 G95951 -

CB-1/2S 117412 G95951 G95951 -

CB-3/4117415 G95951 G95951 -

CB-3/4S 117413 G95951 G95951 -

CB-1 117416 G95951 G95951 -

CB-1S 117401 G95951 G95951 -

CB-11/4117103 - G96831 G96839 G97030 (1 Pair)* V58050 (Each) G97032 (1 Pair)**

CB-11/4S 117402 - G96831 G96839 (1/8" NPT) (1/4" NPT)

CB-11/2117104 - G96831 G96839

CB-11/2S 117403 - G96831 G96839

CB-2 117105 - G96831 G96839

CB-2S 117404 - G96831 G96839

CB-21/2117106 - G96831 G96839

CB-21/2F 117116 - G96831 G96839

CB-3 117107 - G96831 G96839

CB-3F 117117 - G96831 G96839

CB-4†117035 - G96831 G96839

GASKET

ENGINEERED SPECIALTIES REPLACEMENT PARTS HS-300C-PL

PARTS FOR CIRCUIT SETTERS (CONTINUED)

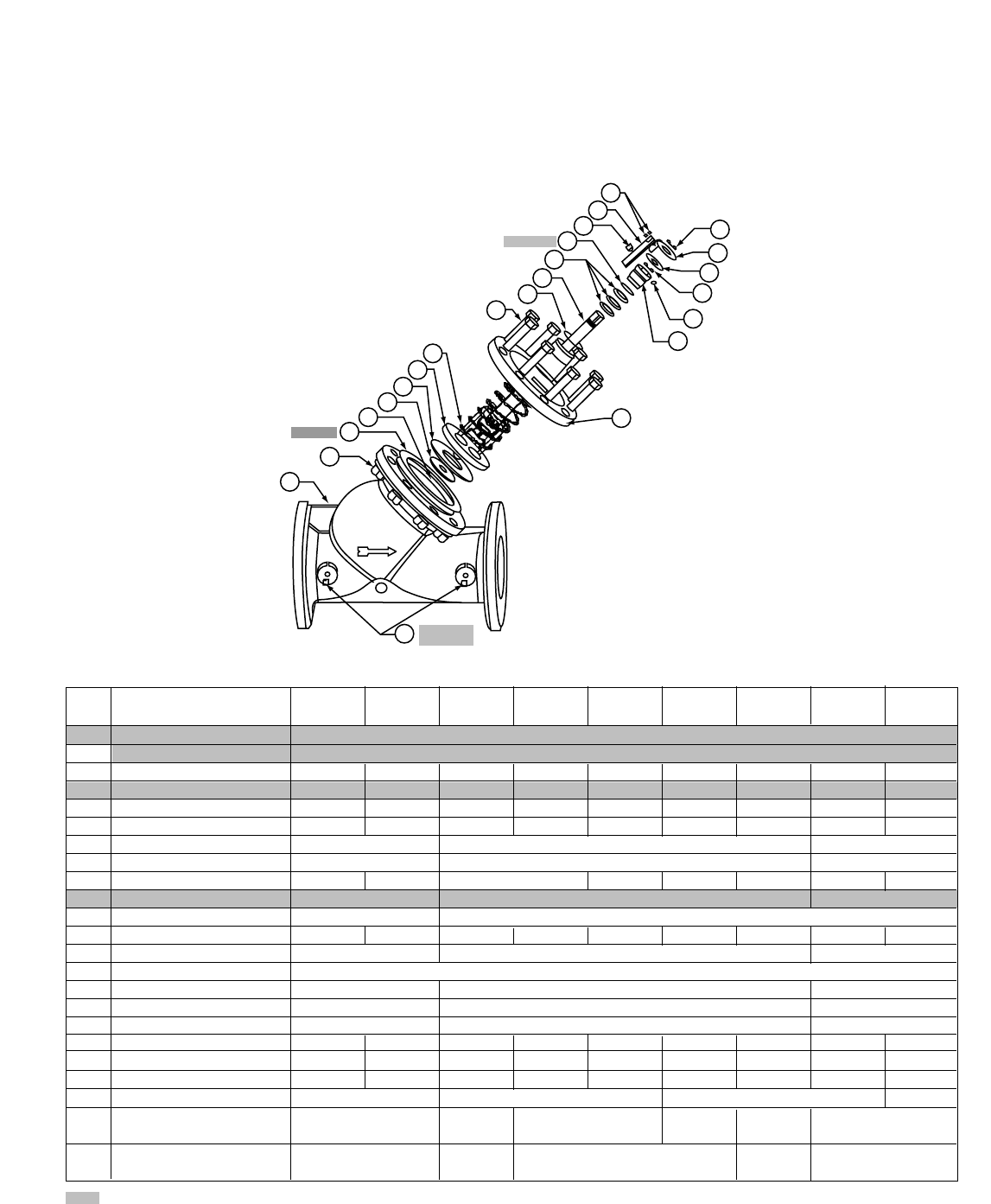

GLOBE STYLE VALVE

PACKING

NUT

NAME PLATE RETAINER



BRASS

WASHER





BONNET





RETAINER RING

INDICATOR RING

RETAINER RING



BUSHING

YOKE

CAPSCREW (4)

CAP

NAMEPLATE



SET SCREW



INDICATOR LOCK

OUTLET







SCREW



BODY



SEAL

RETAINER

SEAL

RING



DISC



STEM

INLET



LOCK

WASHER

TEFLON

WASHER 

SET

SCREW

JAM NUT

PACKING

READOUT VALVE

*Body assembly includes seat ring.

**When replacing the disc, all six disc parts are necessary.

– Factory recommended spare parts.

GLOBE STYLE VALVES

ITEM CB-4F CB-4G CB-5F CB-5G CB-6F CB-6G CB-8F CB-8G CB-10F CB-10G CB-12F CB-12G

NO. DESCRIPTION 117112 117118 117113 117119 117114 117120 117115 117121 117420 117422 117421 117423

11 Body Assembly* V50833 V18802 V50834 V50821 V50835 V50822 V50836 V50823 V50837 V50824 V50838 V50825

9 Gasket V29400 V29400 V32801 V32801 V33001 V33001 V35000 V35000 V36400 V36400 V36401 V36401

8 Bonnet G10001 G10060 G10002 G10061 G10003 G10062 G10004 G10063 V51021 V50986 V50987 V50988

28 Stem G10005 G10005 G10006 G10006 G10007 G10007 G10008 G10008 V50989 V50989 V50990 V50990

12 Disc** G10009 G10009 G10010 G10010 G10011 G10011 G10012 G10012 V50992 V50992 V50993 V50993

15 Seal Ring** V50935 V50935 V50936 V50936 V50937 V50937 V50938 V50938 V50939 V50939 V50940 V50940

16 Seal Retainer G10013 G10013 G10014 G10014 G10015 G10015 G10016 G10016 V50994 V50994 V50995 V50995

17 Jam Nut** J91635 J91635 J91635 J91635 J91635 J91635 J91636 J91636 J91636 J91636 J91636 J91636

5 Packing Nut G10026 G10026 G10026 G10026 G10026 G10026 G10034 G10034 G10034 G10034 V51002 V51002

6 Gland Washer G10032 G10032 G10032 G10032 G10032 G10032 G10040 G10040 G10040 G10040 V51003 V51003

7 Packing (4 req’d) G10033 G10033 G10033 G10033 G10033 G10033 G10041 G10041 G10041 G10041 V51004 V51004

18 Readout Valve (1 set) G97030 G97030 G97030 G97030 G97030 G97030 G97030 G97030 G97030 G97030 G97030 G97030

4 Nameplate G10017 G10064 G10018 G10065 G10019 G10066 G10020 G10067 V50996 V50998 V50997 V50999

2 Nameplate Screw (2 req’d) J92135 J92135 J92135 J92135 J92135 J92135 J92135 J92135 J92135 J92135 J92135 J92135

1 Nameplate Cap G10025 G10025 G10025 G10025 G10025 G10025 G10025 G10025 G10025 G10025 V51005 V51005

21 Retainer Ring J92345 J92345 J92345 J92345 J92345 J92345 J92347 J92347 J92347 J92347 V51008 V51008

23 Retainer Ring J92346 J92346 J92346 J92346 J92346 J92346 J92348 J92348 J92348 J92348 - -

26 Retainer Ring J92349 J92349 J92349 J92349 J92349 J92349 J92349 J92349 J92349 J92349 - -

22 Retainer Ring G10029 G10029 G10029 G10029 G10029 G10029 G10037 G10037 G10037 G10037 - -

27 Bushing G10030 G10030 G10030 G10030 G10030 G10030 G10038 G10038 V51010 V51010 V51011 V51011

24 Indicator Lock G10028 G10028 G10028 G10028 G10028 G10028 G10036 G10036 G10036 G10036 V51012 V51012

14 Lockwasher** G10027 G10027 G10027 G10027 G10027 G10027 G10035 G10035 G10035 G10035 G10035 G10035

13 Teflon Washer** G10031 G10031 G10031 G10031 G10031 G10031 G10039 G10039 G10039 G10039 G10039 G10039

19 Set Screw** J92020 J92020 J92020 J92020 J92020 J92020 J92020 J92020 J92020 J92020 J92020 J91999

29 Yoke G10022 G10022 G10022 G10022 G10024 G10024 G10024 G10024 V51000 V51000 V51000 V51000

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

The nameplate on any unit in the Centrifugal Pump Acces-

sories line identifies the specific unit by product type, model

number and six digit part number as shown in the example

below right.

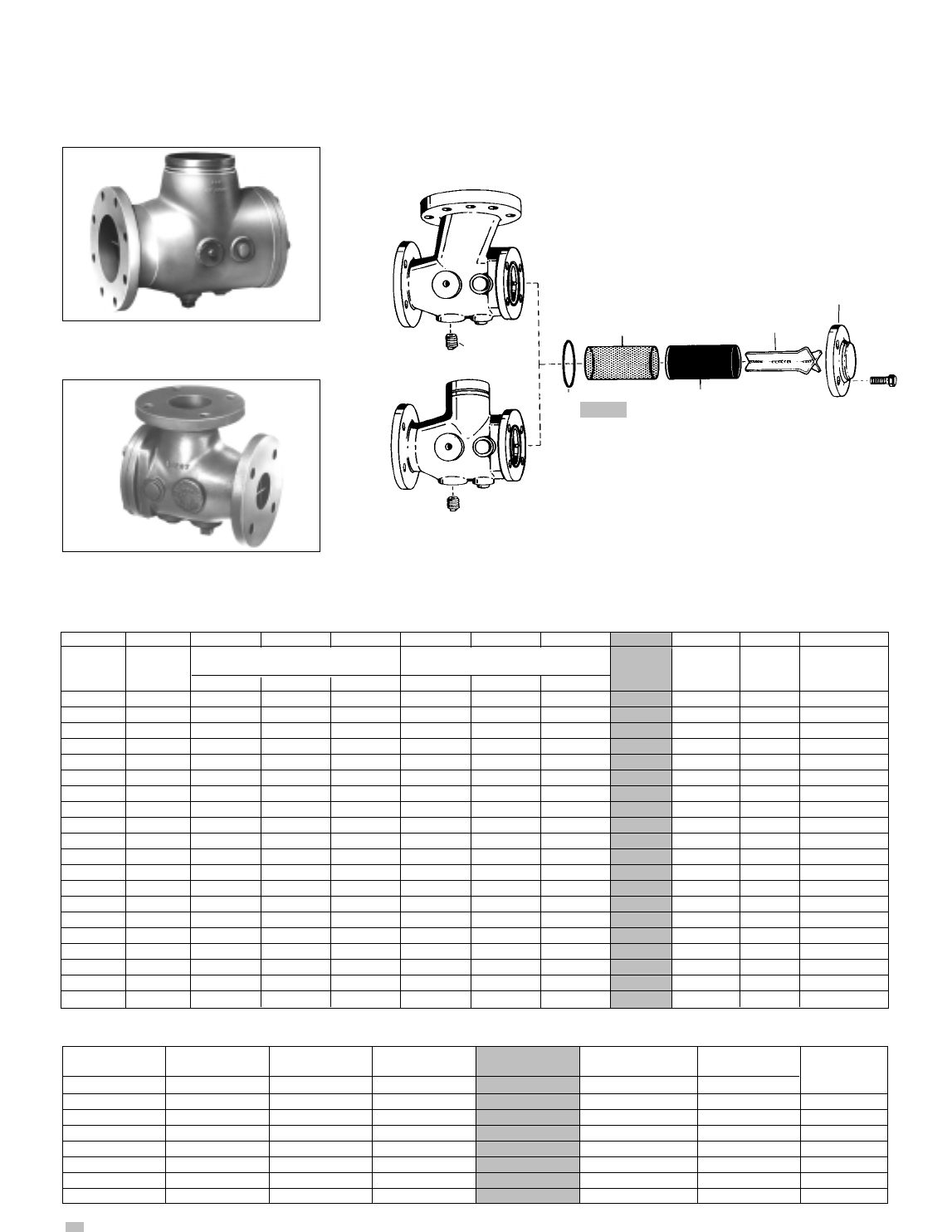

The nameplate identifies the product as a suction diffuser,

model number JH-3 with a part number of 115035. The suc-

tion diffuser was manufactured in August, 1991. If the date

code is not imprinted on the nameplate, a label displaying

the date of manufacture identical to the example above the

right can be found on the product. Although all nameplates

in the Centrifugal Pump Accessories line do not look alike,

all will display the product type, part number and model

number. DO NOT REMOVE THE NAMEPLATE OR THE

LABEL. They identify the unit for future reference. It is

important when ordering replacement parts to furnish com-

plete nameplate data.

To insure the correct parts will be selected, follow the pro-

cedure below:

1. Determine from the nameplate the product type, model

number and six digit part number.

2. Determine the date the unit was manufactured. See chart

below.

3. Refer to the index for the page number of the parts

breakdown for the specific product type.

4. Find the proper column in the parts breakdown for the

model number involved.

5. Select part numbers using the exploded views for parts

identification.

How to Select Parts for

Centrifugal Pump Accessories

Bell & Gossett

Morton Grove, IL, U.S.A.

WARRANTY VOID

IF THIS LABEL IS

REMOVED

H19

BELL & GOSSETT

SUCTION DIFFUSER

PART NO.

MAX. PRESS. MAX. TEMP.

MODEL NO. SERIAL NO.

115035 JH-3

175 P.S.I. 250°F

Part Number

Model No.

Product

Date Code

DATE OF MANUFACTURE CODE

The date code is made up of two or three characters depending upon the year.

1946-1960 1961-82 1983-

The number denotes the month. The last Two characters. First letter is month. Three characters. The letter denotes

character is a letter and denotes the year. Second letter is year. the month. The numbers denote the year.

1January G 1946 A January A 1961 A January 78 1987

2 February H 1947 B February B 1962 B February 88 1988

3 March J 1948 C March C 1963 C March 98 1989

4 April K 1949 D April D 1964 D April 09 1990

5 May L 1950 E May E 1965 E May 19 1991

6 June M 1951 F June F 1966 F June 29 1992

7 July N 1952 G July G 1967 G July 39 1993

8 August P 1953 H August H 1968 H August 49 1994

9 September R 1954 J September J 1969 J September 59 1995

10 October T 1955 K October K 1970 K October 69 1996

11 November U 1956 L November L 1971 L November 79 1997

12 December V 1957 M December M 1972 M December 89 1998

W 1958 N 1973 99 1999

X 1959 P 1974 00 2000

Y 1960 R 1975 10 2001

T 1976 20 2002

U 1977 30 2003

V 1978 40 2004

W 1979 50 2005

X 1980 60 2006

Y 1981 70 2007

Z 1982 80 2008

90 2009

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

*Also use Readout Valve model RV-125A, P/N 113100 (50 pairs per package).

**Also use Readout Probe model RP-250B, P/N 113102 (6 pairs per package).

***Also includes V50687, seal retainer for old style 3DX-11/4.

1– Factory recommended spare parts.

ITEM 3DX-1 3DX-11/43DX-11/2

NO. DESCRIPTION 132072 132159 132074

12 Body V50807 V50808 V50809

11 Readout Valve Set* G97030 G97030 G97030

Readout Probe Set** G97032 G97032 G97032

Disc Kit Consisting of: 118860 118858*** 118859

9 Stem V50767 V50768 V50769

16 Disc V50697 V50698 V50699

15 Seal Ring V50781 V50782 V50783

14 Seal Retainer V50686 V56889 V50688

8 Spring V51077 V51078 V51079

7 Cap V50690 V50693 V50696

13 Ring Gasket F44400 F47200 F49000

6 Packing 118057 118057 118057

5 Packing Nut 118056 118056 118056

17 Data Plate V50855 V50856 V50857

2 Handle Lift Pin F13400 F13400 F13400

1 Handle Retainer Ring F42800 F42800 F42800

10 Stem Snap Ring F02800 F20800 F20800

4 Retainer Ring J92344 J92344 J92344

3 Retainer V50740 V50740 V50740

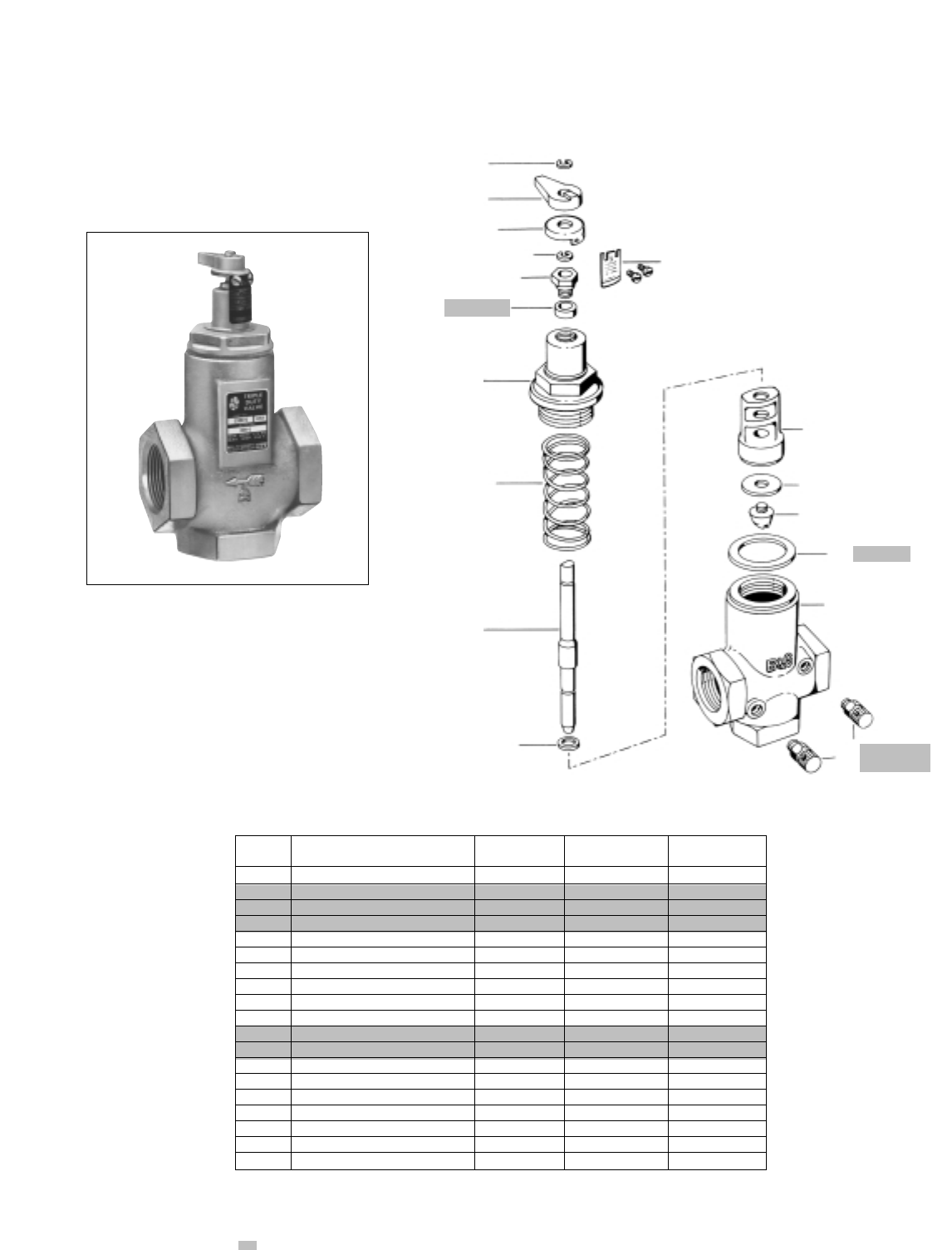

MODEL 3DX

PARTS FOR TRIPLE DUTY VALVES

ASSEMBLED MODEL 3DX

TRIPLE DUTY VALVE

RETAINER







HANDLE

LIFT PIN

RETAINER RING

PACKING NUT

HANDLE

RETAINER RING

CAP

SPRING

STEM

STEM

SNAP RING



BODY



SEAL RETAINER

SEAL RING

DISC

DATA PLATE

PACKING

GASKET

READOUT

VALVE

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

PARTS FOR TRIPLE DUTY VALVES (CONTINUED)

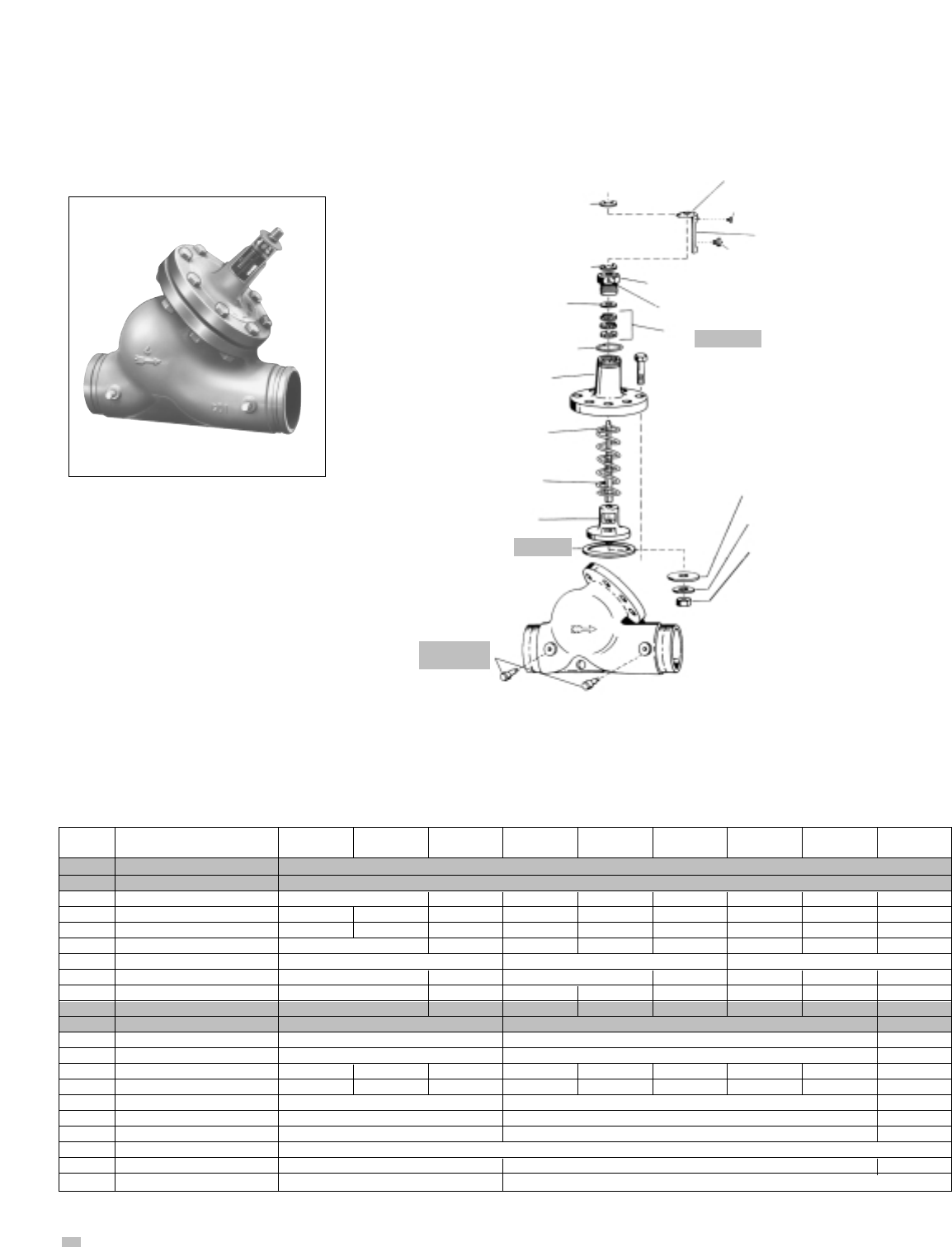

MODELS WITH GROOVED CONNECTIONS

*Disc Assembly for valves 2" through 10" includes disc, seal ring, seal retainer, and retainer nut. Disc Assembly not available for 3DS-12G.

**Disc only.

– Factory recommended spare parts.

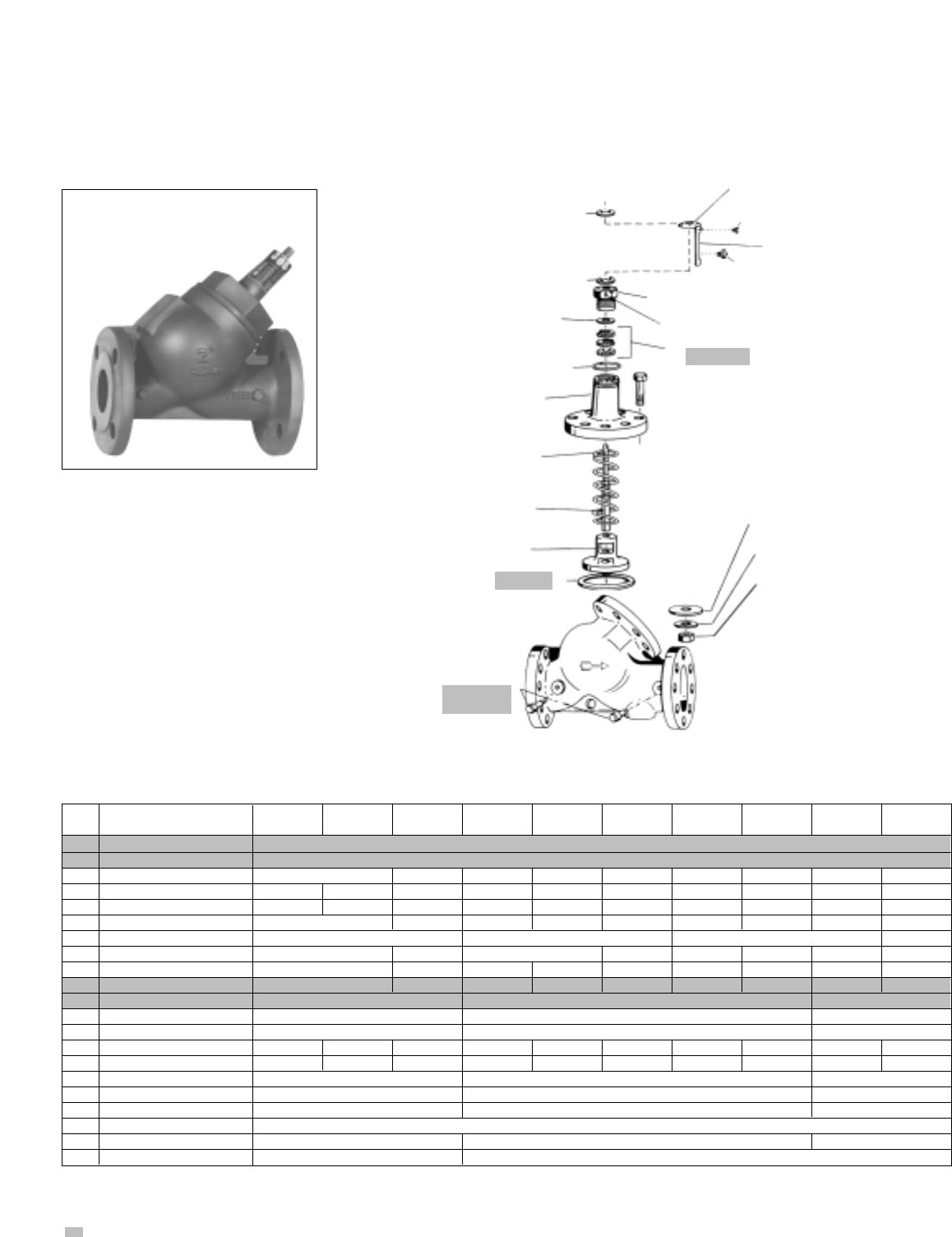

ASSEMBLED TRIPLE

DUTY VALVE

ITEM 3DS-2G 3DS-21/2G 3DS-3G 3DS-4G 3DS-5G 3DS-6G 3DS-8G 3DS-10G 3DS-12G

NO. DESCRIPTION 132150 132151 132152 132153 132154 132155 132156 132157 132158

10 Readout Valve Set G97030 (or Readout Valve model RV-125A, P/N 113100 [50 pairs per package])

Readout Probe Set G97032 (or Readout Probe model RP-250B, P/N 113102 [6 pairs per package])

7 Stem V50922 V50924 V50925 V50926 V50927 V50928 V50929 V50930

8 Disc Assembly* V51756 V51757 V51758 V51759 V51760 V51761 V51762 V51764 V56884**

16 Seal Ring* V50932 V50933 V50934 V50935 V50936 V50937 V50938 V50939 V50940

15 Seal Retainer* V50942 V58164 V50945 V50946 V50947 V50948 V50949 V50950

14 Retainer Nut* J91634 J91635 J91636

6 Spring V50952 V50953 V50954 V50955 V50956 V50957 V50958

5 Bonnet V51811 V51813 V51142 V51815 V51817 V51819 V51821 V51841

9 Gasket F27800 F19000 V29400 V32801 V33001 V35000 V36400 V36401

17 Packing F17000 (1 Piece) V51096 (3 Pieces) V51097 (4)

18 Packing Gland Nut F16600 V51281 V51183

3 Packing Gland Washer NONE V51282 V51184

11 Body V50818 V50819 V50820 V18802 V50821 V50822 V50823 V50824 V50825

20 Nameplate V51823 V51824 V51825 V51826 V51827 V51828 V51829 V51830 V51831

1 Upper Nameplate Retainer V51090 V51091 V51092

2 Lower Nameplate Retainer V51093 V51094 V51095

22 Nameplate Cap V51111 V51114 V51119

21 Nameplate Screw (2 req’d) J92135

4 Indicator Ring V51180 V51181 J94171

19 Memory Button V56879 V56880

READOUT

VALVE

PACKING



BONNET







LOWER NAMEPLATE

RETAINER

INDICATOR RING

UPPER NAMEPLATE

RETAINER





SPRING





STEM

GASKET

STRAIGHT PATTERN BODY

WITH GROOVED CONNECTIONS

FOR MECHANICAL COUPLINGS

NOTE: DISC IS NOT AVAILABLE

SEPARATELY ON 2" THROUGH

10" VALVES. YOU MUST ORDER

THE DISC ASSEMBLY.



DISC



PACKING

GLAND WASHER







SEAL RING

SEAL RETAINER

RETAINER NUT



NAMEPLATE CAP

NAMEPLATE SCREW

NAMEPLATE

MEMORY BUTTON

PACKING GLAND NUT

SET SCREW

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

PARTS FOR TRIPLE DUTY VALVES (CONTINUED)

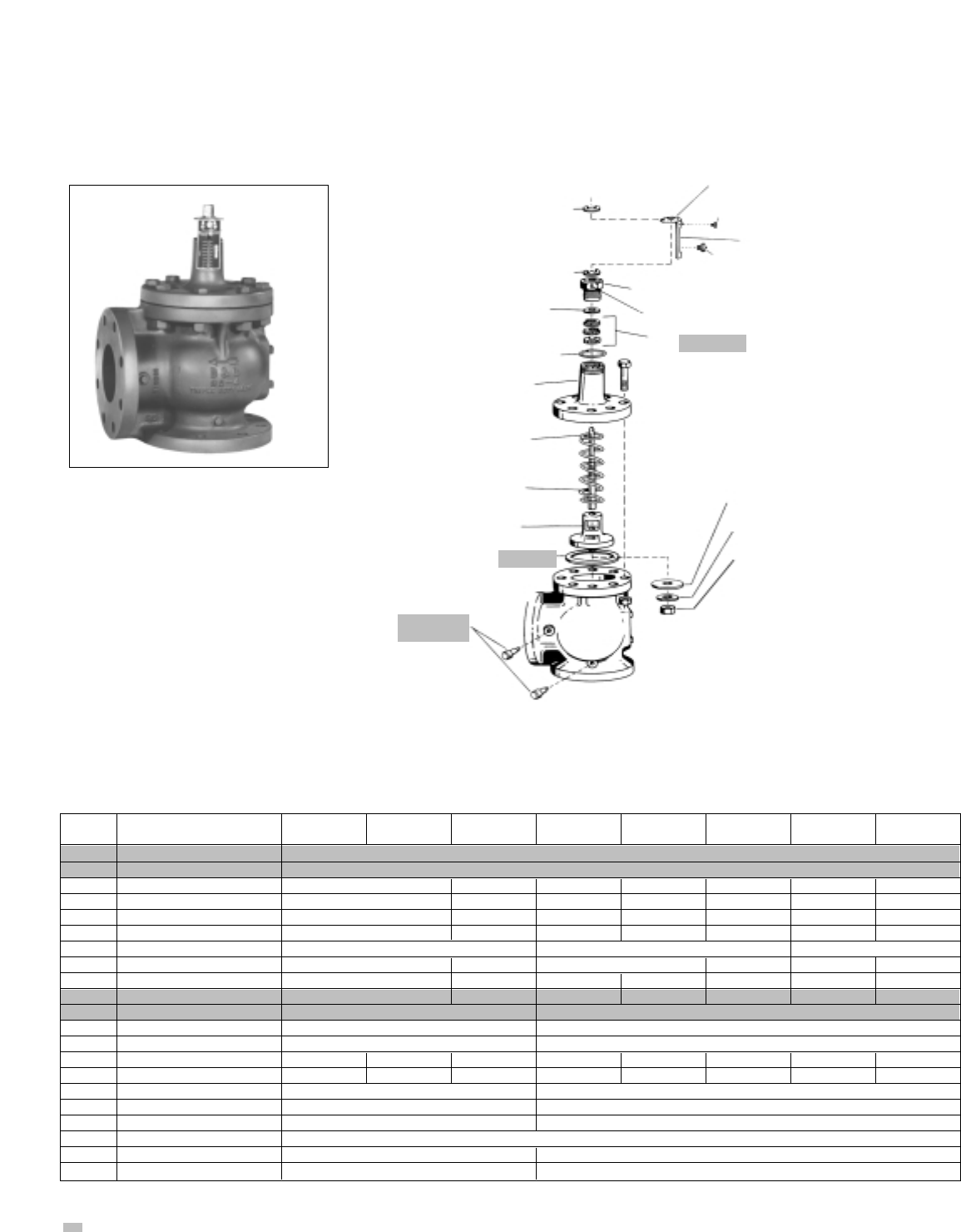

ANGLE PATTERN MODELS

*Disc Assembly includes disc, seal ring, seal retainer, and retainer nut.

1– Factory recommended spare parts.

ASSEMBLED TRIPLE

DUTY VALVE

ITEM 3D-2S 3D-21/2S 3D-3S 3D-4S 3D-5S 3D-6S 3D-8S 3D-10S

NO. DESCRIPTION 132131 132132 132133 132134 132135 132136 132137 132138

10 Readout Valve Set G97030 (or Readout Valve model RV-125A, P/N 113100 [50 pairs per package])

Readout Probe Set G97032 (or Readout Probe model RP-250B, P/N 113102 [6 pairs per package])

7 Stem V50922 V50924 V50925 V50926 V50927 V50928 V50929

8 Disc Assembly* V51756 V51758 V51759 V51760 V51761 V51762 V51763

16 Seal Ring* V50932 V50934 V50935 V50936 V50937 V50938 V50939

15 Seal Retainer* V50942 V58164 V50945 V50946 V50947 V50948 V50949

14 Retainer Nut* J91634 J91635 J91636

6 Spring V50952 V50953 V50954 V50955 V50956 V50957

5 Bonnet V51122 V51126 V51128 V51130 V51132 V51134 V51136

9 Gasket F27800 F19000 V29400 V32801 V33001 V35000 V36400

17 Packing F17000 (1 Piece) V51096 (3 Pieces)

18 Packing Gland Nut F16600 V51281

3 Packing Gland Washer NONE V51282

12 Body V50810 V50811 V50812 V50813 V50814 V50815 V50816 V50817

20 Nameplate V50971 V50972 V50973 V50974 V50975 V50976 V50977 V50978

1 Upper Nameplate Retainer V51090 V51091

2 Lower Nameplate Retainer V51093 V51094

22 Nameplate Cap V51111 V51114

21 Nameplate Screw (2 req’d) J92135

4 Indicator Ring V51180 V51181

19 Memory Button V56879 V56880



BONNET







LOWER NAMEPLATE

RETAINER

INDICATOR RING

UPPER NAMEPLATE

RETAINER





SPRING



STEM

GASKET

ANGLE PATTERN

BODY WITH FLANGED

CONNECTIONS



DISC



PACKING

GLAND WASHER







SEAL RING

SEAL RETAINER

RETAINER NUT



NAMEPLATE CAP

NAMEPLATE SCREW

NAMEPLATE

MEMORY BUTTON

PACKING GLAND NUT

SET SCREW

PACKING

READOUT

VALVE

NOTE: DISC IS NOT AVAILABLE

SEPARATELY. YOU MUST

ORDER THE DISC ASSEMBLY.



CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

PARTS FOR TRIPLE DUTY VALVES (CONTINUED)

ITEM 3DS-2S 3DS-21/2S 3DS-3S 3DS-4S 3DS-5S 3DS-6S 3DS-8S 3DS-10S 3DS-12S 3DS-14S

NO. DESCRIPTION 132121 132122 132123 132124 132125 132126 132127 132128 132129 132120

10 Readout Valve Set G97030 (or Readout Valve model RV-125A, P/N 113100 [50 pairs per package])

Readout Probe Set G97032 (or Readout Probe model RP-250B, P/N 113102 [6 pairs per package])

7 Stem V50922 V50924 V50925 V50926 V50927 V50928 V50929 V50930 V50778

8 Disc Assembly* V51756 V51757 V51758 V51759 V51760 V51761 V51762 V51763 V50920** V50754**

16 Seal Ring* V50932 V50933 V50934 V50935 V50936 V50937 V50938 V50939 V50940 V50793

15 Seal Retainer* V50942 V58164 V50945 V50946 V50947 V50948 V50949 V50950 V50750

14 Retainer Nut* J91634 J91635 J91636 J91637

6 Spring V50952 V50953 V50954 V50955 V50956 V50957 V50958 V51083

5 Bonnet V51122 V51126 V51128 V51130 V51132 V51134 V51136 V51138 V51140

9 Gasket F27800 F19000 V29400 V32801 V33001 V35000 V36400 V36401 V36402

17 Packing F17000 (1 Piece) V51096 (3 Pieces) V51097 (4 Pieces)

18 Packing Gland Nut F16600 V51281 V51183

3 Packing Gland Washer NONE V51282 V51184

13 Body V50830 V50831 V50832 V50833 V50834 V50835 V50836 V50837 V50838 V50839

20 Nameplate V50961 V50962 V50963 V50964 V50965 V50966 V50967 V50968 V50969 V50896

1 Upper Nameplate Retainer V51090 V51091 V51092

2 Lower Nameplate Retainer V51093 V51094 V51095

22 Nameplate Cap V51111 V51114 V51119

21 Nameplate Screw (2 req’d) J92135

4 Indicator Ring V51180 V51181 J94171

19 Memory Button V56879 V56880

STRAIGHT PATTERN MODELS

*Disc Assembly for valves 2" through 10" includes disc, seal ring, seal retainer, and retainer nut. Disc Assembly not available for 3DS-12S and 3DS-14S.

**Disc only.

1– Factory recommended spare parts.

ASSEMBLED TRIPLE

DUTY VALVE



BONNET







LOWER NAMEPLATE

RETAINER

INDICATOR RING

UPPER NAMEPLATE

RETAINER





SPRING



STEM

GASKET

STRAIGHT PATTERN BODY

WITH FLANGED CONNECTIONS



DISC



PACKING

GLAND WASHER







SEAL RING

SEAL RETAINER

RETAINER NUT



NAMEPLATE CAP

NAMEPLATE SCREW

NAMEPLATE

MEMORY BUTTON

PACKING GLAND NUT

SET SCREW

PACKING

NOTE: DISC IS NOT AVAILABLE

SEPARATELY ON 2" THROUGH

10" VALVES. YOU MUST ORDER

THE DISC ASSEMBLY.



READOUT

VALVE

BODY ASSEMBLY

HEX NUT

GASKET

RETAINER NUT

SEAL RETAINER

SEAL RING

DISC

SPRING

CAPSCREW

INDICATOR RING

STEM

PACKING

MEMORY BUTTON

NAMEPLATE

NAMEPLATE SCREW

BONNET

PACKING

GLAND NUT

SET SCREW

LOWER NAMEPLATE

RETAINER

NAMEPLATE WASHER

NAMEPLATE CAP

UPPER NAMEPLATE

RETAINER

READOUT

VALVES

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

PARTS FOR TRIPLE DUTY VALVES – REDUCED PORT

– Factory recommended spare part.

* Disc Assembly for 3" through 12" valves includes disc, seal ring, seal retainer and retainer nut. Disc Assembly not available for 3DS-14B

and 3DS-16B.

**Disc only.

NOTE: DISC IS NOT AVAILABLE

SEPARATELY ON 3" THROUGH

12" VALVES. YOU MUST ORDER

THE DISC ASSEMBLY.

ITEM

3DS-3B 3DS-4B 3DS-5B 3DS-6B 3DS-8B 3DS-10B 3DS-12B 3DS-14B 3DS-16B

NO. DESCRIPTION 132160 132161 132162 132163 132164 132165 132166 132167 132168

10 Readout Valve Set G97030 (or Readout Valve model RV-125A, P/N 113100 [50 pairs per package])

Readout Probe Set G97032 (or Readout Probe model RP-250B, P/N 113102 [6 pairs per package])

13 Body V51958 V51961 V51964 V51967 V51970 V51973 V51976 V51979 V51982

9 Gasket F27800 F19000 V29400 V32801 V33001 V35000 V36400 V36401 V36402

5 Bonnet V51122 V51126 V51128 V51130 V51132 V51134 V51136 V51138 V51140

7 Stem V50922 V50924 V50925 V50926 V50927 V50928 V50929 V50930 V50778

18 Packing Gland Nut F16600 V51281 V51183

3 Packing Gland Washer NONE V51282 V51184

6 Spring V50952 V50953 V50954 V50955 V50956 V50957 V50958 V51083

17 Packing F17000 V51096 ( 3 pieces) V51097 (4 pieces)

19 Memory Button V56879 V56880

20 Nameplate V57089 V57090 V57091 V57092 V57093 V57094 V57095 V57096 V57097

22 Nameplate Cap V51111 V51114 V51119

21 Nameplate Screw (2 req’d) J92135

1 Upper Nameplate Retainer V51090 V51091 V51092

2 Lower Nameplate Retainer V51093 V51094 V51095

4 Indicator Ring V51180 V51181 J94171

8 Disc Assembly* V51757 V51758 V51759 V51760 V51761 V51762 V51763 V50920** V50754**

16 Seal Ring* V50933 V50934 V50935 V50936 V50937 V50938 V50939 V50940 V50793

15 Seal Retainer* V50942 V58164 V50945 V50946 V50947 V50948 V50949 V50950 V50750

14 Retainer Nut* J91634 J91635 J91636 J91637

24 Capscrew NONE J92017 M06690 DJ0157 M06720 DJ0157

(8 req’d) (8 req’d) (8 req’d) (10 req’d) (12 req’d)

25 Hex Nut NONE T33740 T35840 T39830 T35840

(8 req’d) (8 req’d) (10 req’d) (12 req’d)

CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

PARTS FOR SUCTION DIFFUSERS

SUCTION DIFFUSER

W/ GROOVED CONNECTIONS

ASSEMBLED SUCTION

DIFFUSER

BODY WITH

FLANGED

CONNECTION



DRAIN

PLUG

BODY WITH GROOVED

CONNECTIONS FOR

MECHANICAL COUPLINGS



STRAINER

START-UP STRAINER

(REMOVED FROM DIFFUSER

AFTER INITIAL CIRCULATION

AND CLEANING OF THE

SYSTEM)

BAFFLE

(FLOW

STRAIGHTENING

VANES

COVERPLATE

O-RING

START-UP

ITEM NO. 2 3 5 1 4 STRAINER

MODEL NO. PART NO. BAFFLE STRAINER O-RING COVERPLATE DRAIN PLUG PART NO.

SDG-21/2115040 A07029 A91288 J94141 A07016 M06420 A91268

SDG-3 115041 A07030 A91282 J94130 A07018 M06420 A91262

SDG-4 115042 A07031 A91283 J94131 A07020 M06420 A91263

SDG-5 115043 A07032 A91284 J94142 A07022 M06420 A91264

SDG-6 115044 A07033 A91285 J94143 A07024 M06420 A91265

SDG-8 115045 A07034 A91286 J94144 A07026 M06420 A91266

SDG-10 115046 A07035 A91287 J94145 A07028 M06420 A91267

ITEM NO. 23 23514

“X” MODELS WITH STEEL “Z” MODELS WITH STAINLESS START-UP

COMPONENTS STEEL COMPONENTS COVER- DRAIN STRAINER

SIZE MODEL PART NO. BAFFLE STRAINER PART NO. BAFFLE STRAINER O-RING PLATE PLUG PART NO.

2x11/2BA-3 115019 A91554 A91270 115060 A91563 A91280 J94140 A91242 M06420 A91260

2x2 BB-3 115036 A91555 A91271 115050 A91564 A91281 J94141 A91244 M06420 A91261

21/2x2 CB-3 115037 A91555 A91271 115051 A91564 A91281 J94141 A91244 M06420 A91261

21/2x21/2CC-3 115038 A91556 A91278 115052 A07029 A91288 J94141 A91244 M06420 A91268

3x11/2DA-3 115021 A91555 A91271 115061 A91564 A91281 J94141 A91244 M06420 A91261

3x2 DB-3 115022 A91555 A91271 115062 A91564 A91281 J94141 A91244 M06420 A91261

3x21/2DC-3 115039 A91556 A91278 115053 A07029 A91288 J94141 A91244 M06420 A91268

3x3 DD-3 115024 A91557 A91272 115063 A07030 A91282 J94130 A91246 M06420 A91262

4x21/2EC-3 115075 A91556 A91278 115076 A07029 A91288 J94141 A91244 M06420 A91268

4x3 ED-3 115025 A91557 A91272 115064 A07030 A91282 J94130 A91246 M06420 A91262

4x4 EE-3 115026 A91558 A91273 115065 A07031 A91283 J94131 A91248 M06420 A91263

5x4 FE-3 115027 A91558 A91273 115066 A07031 A91283 J94131 A91248 M06420 A91263

5x5 FF-3 115029 A91559 A91274 115068 A07032 A91284 J94142 A91250 M06420 A91264

6x4 GE-3 115028 A91558 A91273 115067 A07031 A91283 J94131 A91248 M06420 A91263

6x5 GF-3 115030 A91559 A91274 115069 A07032 A91284 J94142 A91250 M06420 A91264

6x6 GG-3 115031 A91560 A91275 115070 A07033 A91285 J94143 A91252 M06420 A91265

8x6 HG-3 115032 A91560 A91275 115071 A07033 A91285 J94143 A91252 M06420 A91265

8x8 HH-3 115033 A91561 A91276 115072 A07034 A91286 J94144 A91254 M06420 A91266

10x8 JH-3 115035 A91561 A91276 115074 A07034 A91286 J94144 A91254 M06420 A91266

10x10 JJ-3 115034 A91562 A91277 115073 A07035 A91287 J94145 A91256 M06420 A91267

MODELS WITH NPT OR FLANGED CONNECTIONS

MODELS WITH GROOVED CONNECTIONS

– Factory recommended spare parts.

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

111031 PR, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV 1/6HP, 1PH, 115V

111033 PR, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV 1/6HP, 1PH, 230V

111034 Series 100 1/12HP, 1PH, 115V

111035 Series 100 1/12HP, 1PH, 230V

111039 Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV 1/6HP, 3PH, 208-230/460V

111040 21/2", LD-3 1/4HP, 1PH, 115V

111041 21/2", LD-3 1/4HP, 1PH, 230V

111042 HD-3 1/3HP, 1PH, 115/230V

111044 PD-35S, 60-13S, 60-B13S, 60-15S, 60 1AA, 60 11/4"AA, 60 11/2"AA, 60 2AA, 1/2HP, 1PH, 115/230V

60 11/2"A, 60 2A Obs. 60-3S, Obs. 60-5S

111046 PD-35T, 60-13T, 60-B13T, 60-15T, 60 1AA, 60 11/4AA, 60 11/2"AA, 60 2AA, 1/2HP, 3PH, 208-230/460V

60 11/2A, 60 2A, Obs. 60-3T, Obs. 60-5T

111047 PD-37S, 60-14S, 60-B14S, 60-16S, 60 11/2AA, 60 2AA, 60 11/2A, 60 2A, 3/4HP, 1PH, 115/230V

Obs. 60-4S, Obs. 60-6S, Obs. 60-8S

111049 PD-37T, 60-14T, 60-B14T, 60-16T, 60 11/2AA, 60 2AA, 60 11/2A, 60 2A, 3/4HP, 3PH, 208-230/460V

Obs. 60-4T, Obs. 60-6T

111061 HV, 2", Obs. 11/2", Obs. HV 1/6HP, 1PH, 115V

169035 60-10S, 60-11S, 60B-11S, 60 1AA, 60 11/4AA, 60 11/2AA, 60 2AA, 1/4HP, 1PH, 115V

Obs. 60-1S

169036 60-10S, 60-11S, 60B-11S, 60 1AA, 60 11/4AA, 60 11/2AA, 60 2AA 1/4HP, 1PH, 230V

169037 60-11T, 60 1AA, 60 11/4AA, 60 11/2AA, 60 2AA, Obs. 60-1T 1/4HP, 3PH, 208-230/460V

169038 60 1AA, 60 11/4AA, 60 11/2AA, 60 2AA, Obs. 60-2S 1/3HP, 1PH, 115/230V

169039 60 1AA, 60 11/4AA, 60 11/2AA, 60 2AA, Obs. 60-2T 1/3HP, 3PH, 208-230/460V

169040 1522 1S, 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/4HP, 1PH, 115V

169041 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/4HP, 1PH, 230V

169042 1522 1T, 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/4HP, 3PH, 208-230/460V

169043 1522 2S, 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/3HP, 1PH, 115/230V

169044 Obs. 1522 14S, Obs. 1522 3/4AAB 1/3HP, 1PH, 115/230V, 3450 RPM

169045 1522 2T, 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/3HP, 3PH, 208-230/460V

169046 Obs. 1522 14T, Obs. 1522 3/4AAB 1/3HP, 3PH, 208-230/460V, 3450 RPM

169047 1522 3S, 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/2HP, 1PH, 115/230V

169048 Obs. 1522 5S, Obs. 1522 3/4AAB, Obs. 1522 1AAB 1/2HP, 1PH, 115/230V, 3450 RPM

169049 1522 3T, 1522 3/4AAB, 1522 1AAB, 1522 11/4AAB, 1522 11/2AAB 1/2HP, 3PH, 208-230/460V

169050 Obs. 1522 5T, Obs. 1522 3/4AAB, Obs. 1522 1AAB 1/2HP, 3PH, 208-230/460V, 3450 RPM

169051 1522 4S, 1522 11/4AAB, 1522 11/2AAB 3/4HP, 1PH, 115/230V

169052 Obs. 1522 6S, Obs. 1522 7S, Obs. 1522 3/4AAB, Obs. 1522 1AAB, 3/4HP, 1PH, 115/230, 3450 RPM

Obs. 1522 11/4AAB

169053 1522 4T, 1522 11/4AAB, 1522 11/2AAB 3/4HP, 3PH, 208-230/460V

169054 Obs. 1522 6T, Obs. 1522 7T, Obs. 3/4AAB, Obs. 1522 1AAB, 3/4HP, 3PH, 208-230/460V, 3450 RPM

Obs. 1522 11/4AAB

169055 Obs. 1522 8S, Obs. 1522 12S, Obs. 1522 3/4AAB, Obs. 1522 1AAB, 1HP, 1PH, 115/230V, 3450 RPM

Obs. 1522 11/4AAB, Obs. 1522 11/2AAB

169056 Obs. 1522 8T, Obs. 1522 12T, Obs. 1522 3/4AAB, Obs. 1522 1AAB, 1HP, 3PH, 208-230/460V, 3450 RPM

Obs. 1522 11/4AAB, Obs. 1522 11/2AAB

169057 Obs. 1522 9S, Obs. 1522 16S, Obs. 1522 17S, Obs. 1522 3/4AAB, 11/2HP, 1PH, 230V,3450 RPM

Obs. 1522 1AAB, Obs. 1522 11/4AAB, Obs. 1522 11/2AAB

169058 Obs. 1522 9T, Obs. 1522 16T, Obs. 1522 17T, Obs. 1522 3/4AAB, 11/2HP, 3PH, 208-230/460V, 3450 RPM

Obs. 1522 1AAB, Obs. 1522 11/4AAB, Obs. 1522 11/2AAB

169060 Obs. 1522 11T, Obs. 1522 15T, Obs. 1522 3/4AAB, Obs. 1522 1AAB, 2HP, 3PH, 208-230/460V, 3450 RPM

Obs. 60 11/4AAB, Obs. 1522 11/2AAB

169221 60 21/2F 3HP, 3PH, 208-230/460V, 145TC Frame

169222 60 21/2F 3HP, 3PH, 200V, 182TC Frame

169223 60 21/2F 3HP, 3PH, 208-230/460V, 182TC Frame

169224 MF 60 1 x 51/4, MF 60 11/4x 51/4, MF 60 11/2x 51/41/4HP, 1PH, 115/208-230V, 1725 RPM

169225 MF 60 1 x 51/4, MF 60 11/4x 51/41/4HP, 3PH, 208-230/460V, 1725 RPM

169226 MF 60 with 51/4" impellers 1/3HP, 1PH, 115/208-230V, 1725 RPM

169227 MF 60 with 51/4" impellers 1/3HP, 3PH, 208-230/460V, 1725 RPM

169228 MF 60 with 51/4" & 61/4"impellers 1/2HP, 1PH, 115/208-230V, 1725 RPM

169229 MF 60 with 51/4" & 61/4"impellers 1/2HP, 3PH, 208-230/460V, 1725 RPM

*All motors are 1725 RPM unless otherwise specified.

CF – contact factory for where used.

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

“WHERE USED” LIST

POWER PACK & MOTORS

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

169230 All MF 60 3/4HP, 1PH, 115/208-230V, 1725 RPM

169231 All MF 60 3/4HP, 3PH, 208-230/460V, 1725 RPM

169232 All MF 60 except 1 x 51/4, 11/4x 51/4, PD-38, PD-39 1HP, 1PH, 115/208-230V, 1725 RPM

169233 All MF 60 except 1 x 51/4, 11/4x 51/4, PD-38, PD-39 1HP, 3PH, 208-230/460V, 1725 RPM

169234 MF 60 11/2x 7, MF 60 2 x 7 3HP, 3PH, 208-230/460V, 1725 RPM

169236 All MF 60 except 1 x 51/4, 11/4x 51/4, PD-40 11/2HP, 1PH, 115/208-230V, 1725 RPM

169237 All MF 60 except 1 x 51/4, 11/4x 51/4, PD-40 11/2HP, 3PH, 115/208-230V, 1725 RPM

169238 MF 60 11/2x 7, MF 60 2 x 7 2HP, 3PH, 208-230/460V, 1725 RPM

118223 Series 100, HV, 2", PR, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

118228 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, 60 “A”, 1522

118848 PD-38, Obs. PD-39 , Series 60, MF 60

118473 PD-35, PD-37, 60 “AA”, 1522, MF 60 with 51/4" and 61/4" impellers 1/2" x 1/2", spring type

118635 PD-35, PD-37, 60 “AA”, 1522 5/8" x 1/2", 3 piece type

118705 Series 100, HV, 2", PR, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. HV, Obs. 2" Cast Iron, 1/2" x 1/2", spring type

118708 PD-35, PD-37, 60 “AA”3/4" x 5/8", spring type

118709 PD-35, PD-37, 60 “AA”, 1522 5/8" x 1/2", spring type

118723 21/2", LD-3, HD-3, Obs. HLD-3, Obs. HHD-3 1/2" x 1/2", spring type

118732 Obs. HV, Obs. 2", Obs. PR, Obs. 1", Obs. 11/4", Obs. 11/2" Reversing duty

185329 MF 60 with 51/4" & 61/4" impellers

185330 MF 60

185331 MF 60 with 7" impellers

186003 PD-40, 60 “A”, 60 21/2F, MF 60 with 7" impellers 5/8" Shaft Dia

186004 PD-38, Obs. PD-39, 60 “A”, MF 60 with 7" impellers 5/8" Shaft Dia

186410 PD-38, PD-40, Obs. PD-39, 60 “A”5/8" x 1/2", spring type

189110 Series 100, HV, 2", PR, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. HV, Obs. 2" Stamped Steel, 1/2" x 1/2", spring type

P58598 MF 60 with 51/4" & 61/4" impellers 1/2" x 7/8", 3 piece

P62190 HV, 2", PR, Obs. 1", Obs. 11/4", Obs. 11/2" Explosion Proof, 1/2" x 1/2", 3 piece

P62320 60 “AA”Explosion Proof, 7/8" x 1/2", 3 piece

P75421 MF 60 with 51/4" & 61/4" impellers 1/2" x 5/8", 3 piece

P75422 MF 60 with 51/4" & 61/4" impellers 1/2" x 7/8", 3 piece

P77234 PD-35, PD-37, 60 “AA” 1522 Explosion Proof, 1/2" x 1/2",

3 piece type

P77237 60 “A”Explosion Proof, 1/2" x 5/8",

3 piece type

P77279 60-22T, 60 21/2F Explosion Proof, 7/8" x 5/8",

3 piece type

P77281 60 21/2F, MF 60 with 7" impellers Explosion Proof, 11/8" x 5/8",

3 piece type

118474 PD-35, PD-37, 60 “AA”, 60 “A”, 1522 1/3-3/4HP power packs only

118706 Series 100, HV, 2", PR Includes Cast Iron coupler

118707 HV, PR, 2", Obs. 11/4", Obs. 11/2"

118724 21/2", LD-3, HD-3

118844 Series 100 Cast Iron models only

185260 PD-38, PD-40, Obs. PD-39, 60 “A” Bronze Fitted models only

185261 PD-38, PD-40, Obs. PD-39, 60 “A” All Iron models only

185262 PD-38, PD-40, Obs. PD-39, 60 “A” Bronze models only

185264 60 21/2F Bronze Fitted models only

185265 60 21/2F Bronze models only

185332 MF 60 with 51/4" & 61/4" impellers Copper Shaft Sleeve, Buna-N seal

185333 MF 60 with 7" impellers, PD-38, PD-40 Copper Shaft Sleeve, Buna-N seal

185334 MF 60 with 7" impellers, PD-38, PD-40 Copper Shaft Sleeve, Buna-N seal

185355 MF 60 with 51/4" & 61/4" impellers Copper Shaft Sleeve, EPT seal

185356 MF 60 with 51/4" & 61/4" impellers Copper Shaft Sleeve, Viton seal

185357 MF 60 with 51/4" & 61/4" impellers Stn. Stl. Shaft Sleeve, Buna-N seal

185358 MF 60 with 51/4" & 61/4" impellers Stn. Stl. Shaft Sleeve, EPT seal

185359 MF 60 with 51/4" & 61/4" impellers Stn. Stl. Shaft Sleeve, Viton seal

185360 MF 60 with 7" impellers BF Const., Copper Shaft Sleeve,

EPT seal

185361 MF 60 with 7" impellers BF Const., Copper Shaft Sleeve,

Viton seal

185362 MF 60 with 7" impellers BF Const., Stn. Stl. Shaft Sleeve,

Buna-N seal

COUPLERS

“WHERE USED” LIST (CONTINUED)

CF – contact factory for where used.

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

COUPLER

& RING

MOUNT

SETS

BEARING ASSEMBLIES

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

MOTOR

MOUNTS

SETS

POWER PACK &

MOTORS

(CONTINUED)

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

185363 MF 60 with 7" impellers BF Const., Stn. Stl. Shaft Sleeve,

EPT seal

185364 MF 60 with 7" impellers BF Const., Stn. Stl. Shaft Sleeve,

Viton seal

185365 MF 60 with 7" impellers AB Const., Copper Shaft Sleeve,

EPT seal

185366 MF 60 with 7" impellers AB Const., Copper Shaft Sleeve,

Viton seal

185367 MF 60 with 7" impellers AB Const., Stn. Stl. Shaft Sleeve,

Buna-N seal

185368 MF 60 with 7" impellers AB Const., Stn. Stl. Shaft Sleeve,

EPT seal

185369 MF 60 with 7" impellers AB Const., Stn. Stl. Shaft Sleeve,

Viton seal

186863 PD-35, PD-37, 60 “AA”, 1522 Bronze Fitted or All Bronze models

186865 PD-35, PD-37, 60 “AA”, 1522 All Iron models only

189034 Series 100 Bronze models only

189105 PR, 21/2", LD-3, HD-3 Cast Iron or Bronze models

189134 Series 100 Cast Iron models only,

includes NFI impeller

189161 Series 100 Bronze models only,

includes NFI Impeller

189162 Obs. 1", Obs. 11/4", Obs. 11/2" Cast Iron or Bronze models

189163 Obs. 11/2", Obs. 2", Obs. HV Cast Iron models with Bronze impellers

189165 HV, 2", Obs 11/2" Cast Iron or Bronze models

189166 HV, 2" Cast Iron or Bronze models,

includes NFI Impeller

P10316 1522 BFE models only, includes EPT seal

P04080 Series 100

P04890 HV, 2", Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

P05800 PR, 21/2", LD-3, HD-3

P15691 Obs. LR-20BF, Obs. LR-15B, Obs. LR-20B, Obs. LR-12BF, Obs. LR-12B,

All Series PL Models except PL-55 and PL-55B

P57410 PD-35, PD-37, 60 “AA”, 1522, MF 60 with 51/4" & 61/4" impellers

P57700 PD-38, PD-40, Obs. PD-39, 60 “A”, MF 60 with 7" impellers

P57701 60 21/2F

P83025 PL-55 and PL-55B

P57282 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

P77106 Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

P77119 Series 100

P77139 HV, 2", Obs. 11/2", Obs. HV

P77177 PR, 21/2", LD-3, HD-3

P77179 PD-35, PD-37, 60 “AA”, 1522

P77198 Obs. 1522 Stainless Steel models only

P09421 Obs. 1522 models only Stainless Steel

P57242 60 21/2F BF Construction

P57244 60 21/2F AB Construction

P57246 PD-38, PD-40, Obs. PD-39, 60 “A”

P57248 PD-38, PD-40, Obs. PD-39, 60 “A”AB Construction

118395 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, 1522,

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

P04883 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F 2 required

185241 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

189071 Series 100

P77087 PR, 21/2", LD-3, HD-3

P77215 PD-35, PD-37, 60 “AA”, 1522 All Iron models only

P77216 PD-35, PD-37, 60 “AA”, 1522

P77217 Obs. 1522 Stainless Steel models only

P77308 HV, 2", Obs. 1", Obs. 11/4", Obs. 11/2"

P77309 Obs. 2", Obs. HV Cast Iron models

P77309 Obs. 11/2", Obs. 2", Obs. HV Bronze models only

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

“WHERE USED” LIST (CONTINUED)

COVER-

PLATES

WICK

SETS

FRONT BEARINGS BEARING

BRACKETS BODY GASKETS BEARING ASSEMBLIES (CONTINUED)

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

118697 PD-35, PD-37, Obs. 60 “AA”, Obs. 1522 For Obs. Replacement

Bearing Assembly Models:

118478, 118479, 118480

185240 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

118680 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, Seal less seat insert

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV, MF 60 with

51/4" x 61/4" impellers

118681 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”,

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV , MF 60 with

51/4" x 61/4" impellers

118682 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, Seal less seat insert

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

185222 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, 1522, EPT Elastomer

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

185223 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F, MF 60 with 7" impellers EPT Elastomer

185224 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F EPT Elastomer

185227 All PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F Teflon Elastomer

185230 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, EPT Elastomer

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV, MF 60 with

51/4" x 61/4" impellers

186433 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

186499 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F, MF 60 with 7" impellers

186681 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”,

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

186875 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, Viton Elastomer

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV, MF 60 with

51/4" x 61/4" impellers

189144 PL-30, PL-36, PL-45, PL-50, PL-75

189174 PL-130

189577 PL-55

P59861 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, Seal less seat insert

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

118469 PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

189035 Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, 1522,

Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

P08725 PD-38, PD-40, Obs. PD-39, 60 “A” All Iron models only

P81960 PD-35, PD-37, 60 “AA”, 1522 All Iron models only

118339 Series 100 Cast Iron

118413 Series 100 Bronze

118449 PD-35, PD-37, MF 60 3 x 51/4Cast Iron

118637 PR Cast Iron

118644 21/2", LD-3, HD-3 Cast Iron

186074 1522 3/4AAB Cast Iron

186075 1522 1AAB Cast Iron

186081 1522 11/4AAB Cast Iron

186087 1522 11/2AAB Cast Iron

186333 1522 3/4AAB Bronze

186334 1522 11/2AAB Bronze

186384 60 1AA Cast Iron

186385 60 1AA Bronze

186386 60 11/4AA, MF 60 1 x 51/4, MF 60 11/4x 51/4Cast Iron

186389 60 11/2A, MF 60 11/2x 51/4, MF 60 2 x 51/4Cast Iron

186390 60 11/2A, MF 60 11/2x 7 Bronze

186392 60 2AA, MF 60 2 x 51/4Cast Iron

186671 MF 60 11/2x 61/4AB Construction

186672 MF 60 2 x 61/4AB Construction

186931 60 11/4AA, MF 60 1 x 51/4, MF 60 11/4x 51/4AB Construction

186932 60 11/2AA, MF 60 11/2x 51/4AB Construction

186933 60 2AA, MF 60 2 x 51/4AB Construction

186934 60 11/2A, MF 60 11/2x 7 AB Construction

186935 MF 60 11/2x 61/4BF Construction

186936 MF 60 2 x 61/4BF Construction

186937 60 2A, MF 60 2 x 7 BF Construction

186938 60 2A, MF 60 2 x 7 AB Construction

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

“WHERE USED” LIST (CONTINUED)

PUMP BODIES & VOLUTES

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

SEAL KITS

SHAFTS &

SLEEVES

REAR

BEARINGS

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

189124 HV Cast Iron

189125 HV Bronze

189126 2" Cast Iron

189127 2" Bronze

P00240 PR Bronze

P07610 21/2", LD-3, HD-3 Bronze

P08440 PD-38, PD-40, Obs. PD-39 Bronze

P08460 PD-38, PD-40, Obs. PD-39 Cast Iron

P09290 PD-35, PD-37, MF 60 3 x 51/4Bronze

P41160 Obs. 1522 1AAB Bronze

P41300 Obs. 1522 11/4AAB Bronze

P57232 Series 60 21/2F BF Construction

P57234 Series 60 21/2F AB Construction

P00660 Obs. 1522 Stainless Steel models only, 8 required

P01850 60 “AA”, 1522, MF 60 with 51/4" impeller All Bronze models only, 8 required

P03470 HV, 2", PR, 21/2", LD-3, HD-3, 60 21/2F, Obs. 1", Obs. 11/4", 60 21/2F Bronze Fitted only, 12 required

Obs. 11/2", Obs. HV, Obs. 2" all other circulators, 4 required

P10620 PD-35, PD-37, 60 “AA”, 1522, MF 60 with 51/4" and 61/4" impellers For all Cast Iron and All Iron models

P40020 Series 100, PD-38, PD-40, Obs. PD-39, MF 60 with 7" impeller, For all Series 100 models, 4 required.

60 “A”For all Bronze Fitted or All Iron PD,

60 “A” or 1522 models, 8 required

P52310 60 “A”, MF 60 with 7" impeller All Bronze models only

S04180 60 21/2F All Bronze models only

P39020 60 “AA”, 60 “A”, 1522, All MF 60 All Cast Iron or All Iron models,

5 required for Series 60,

4 required for 1522

P39030 Obs. 1522 Stainless Steel models only, 4 required

P39040 60 21/2F Bronze Fitted models only, 5 required

P39470 60 “AA”, 60 “A”, 1522, All MF 60 All Bronze models only, 5 required for

Series 60, 4 required for 1522

P39480 60 21/2F All Bronze models only, 5 required

118431 Series 100 Brass – 23/4" Diameter

118434 Obs. 1" Brass – 31/16" Diameter

118435 Obs. 11/4", Obs. 11/2" Brass – 35/16" Diameter

118436 Obs. HV, Obs. 2", Obs. 11/4", Obs. 11/2" Brass – 33/8" Diameter

118439 HD-3 Brass – 41/4" Diameter

118440 21/2", LD-3 Brass – 37/8" Diameter

118452 PD-40, Obs. PD-39 Cast Iron – 6" Diameter

118453 PD-40, Obs. PD-39 Brass – 6" Diameter

118612 PR Brass – 41/4" Diameter

118626 PD-37, Obs. 60-14S, Obs. 60-14T, Obs. 60-B14S, Obs. 60-B14T, Brass – 51/4" Diameter

Obs. 60-4S, Obs. 60-4T, 1522 4S, 1522 4T

118627 PD-35 Brass – 43/4" Diameter

118629 PD-37 Steel – 51/4" Diameter

118630 PD-35 Steel – 43/4" Diameter

118665 Obs. 1" Steel – 31/2" Diameter

118666 Obs. 11/4", Obs. 11/2" Steel – 35/16" Diameter

118668 Obs. HV, Obs. 2" Steel – 33/8" Diameter

118675 HD-3 Steel – 41/4" Diameter

118676 21/2", LD-3 Steel – 37/8" Diameter

118830 PR Steel – 41/4" Diameter

186359 Obs. 60-10S, Obs. 60-1S, Obs. 60-1T, Obs. 60-2S, Obs. 60-2T, 1522 1S, Bronze – 51/4" Diameter

1522 1T, 1522 2S, 1522 2T, Obs. 1522 15T

186360 Obs. 60-11S, Obs. 60-11T, Obs. 60-B11S, Obs. 1522 9S, Obs. 1522 9T Bronze – 53/16" Diameter

186361 Obs. 1522 12S, Obs. 1522 12T Bronze – 411/16" Diameter

186362 Obs. 1522 7S, Obs. 1522 7T Bronze – 43/8" Diameter

186363 Obs. 1522 5S, Obs. 1522 5T Bronze – 4" Diameter

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

“WHERE USED” LIST (CONTINUED)

IMPELLERS

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

BODY OR VOLUTE

CAPSCREWS

VOLUTE DRAIN

PLUGS

PUMP BODIES & VOLUTES

(CONTINUED)

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

186364 Obs. 1522 14S, Obs. 1522 14T Bronze – 37/16" Diameter

186366 Obs. 1522 6S, Obs. 1522 6T Bronze – 37/8" Diameter

186368 Obs. 60-13S, Obs. 60-13T, Obs. 60-B13S, Obs. 60-B13T, Obs. 60-3S, Bronze – 51/4" Diameter

Obs. 60-3T, 1522 3S, 1522 3T

186370 Obs. 1522 16S, Obs. 1522 16T Bronze – 41/8" Diameter

186371 Obs. 1522 8S, Obs. 1522 8T Bronze – 35/8" Diameter

186373 Obs. 1522 11T Bronze – 315/16" Diameter

186375 Obs. 1522 17S, Obs. 1522 17T Bronze – 311/16" Diameter

189128 HV, 2" NFI – 33/8" Diameter

189132 Series 100 NFI – 23/4" Diameter

189169 PL-50, PL-50B, PL-75, PL-75B NFI – 2" Diameter

189170 PL-30, PL-30B, PL-36, PL-36B NFI – 31/16" Diameter

189171 PL-45, PL-45B NFI – 23/4" Diameter

189172 PL-55, PL-55B

189173 PL-130, PL-130B

P07792 HV, 2" Bronze – 33/8" Diameter

P08690 PD-38 Bronze – 53/4" Diameter

P08709 PD-38 Cast Iron – 53/4" Diameter

P15627 Obs. LR-20BF, Obs. LR-15B, Obs. LR-20B NFI – 21/4" Diameter

P15629 Obs. LR-12BF, Obs. LR-12B NFI – 21/2" Diameter

P56550 60 1AA, 60 11/4AA, 1522 3/4AAB, 1522 1AAB Bronze – 51/4" Diameter

P56740 60 11/2AA, 1522 11/4AAB Bronze – 51/4" Diameter

P56810 1522 11/2AAB, 60 2AA Bronze – 51/4" Diameter

P57440 MF 60 11/2x 7, 60-618T Bronze – 7" Diameter

P57445 Obs. 60-17S, Obs. 60-17T, 60 11/2A, Obs. 60-6S, Obs. 60-6T, Bronze – 7" Diameter

Obs. 60-7S, Obs. 60-7T

P57446 Obs. 60-16S, Obs. 60-16T Bronze – 63/8" Diameter

P57447 Obs. 60-15S, Obs. 15T, Obs. 60-5S, Obs. 60-5T Bronze – 53/4" Diameter

P57450 Obs. 60-21T, 60 2A, Obs. 60-10T Bronze – 63/4" Diameter

P57451 Obs. 60-20S, Obs. 60-20T, Obs. 60-9S, Obs. 60-9T Bronze – 61/8" Diameter

P57452 Obs. 60-19S, Obs. 60-19T, Obs. 60-8S, Obs. 60-8T Bronze – 55/8" Diameter

P57460 60-617S, 60-617T Bronze – 61/2" Diameter

P57500 60 11/2A Cast Iron– 7" Diameter

P57580 MF 60 2 x 7, 60-620T Bronze – 7" Diameter

P57583 60 21/2F Bronze – 8" Diameter

P57584 Obs. 60-22T Bronze – 73/4" Diameter

P58536 MF 60 2 x 51/4and 3 x 51/4, 60-627S, 60-627T, 60-B627S, 60-B627T

P58538 MF 60 11/2x 51/4, 60-609S, 60-609T, 60-B609S, 60-B609T

P58541 MF 60 1 x 51/4and 11/4 x 51/4, 60-603S, 60-603T, 60-B603S, 60-B603T,

60-606S, 60-606T, 60-B606S, 60-B606T

P58562 MF 60 2 x 61/4, 60-616S, 60-616T

P58564 MF 60 11/2x 61/4, 60-614S, 60-614T, 60-B614S, 60-B614T

P58661 60-621S, 60-621T, 60-B621S, 60-B621T

P58662 60-622S, 60-622T Bronze – 51/2" Diameter

P58663 60-623S, 60-623T Bronze – 6" Diameter

P58664 60-624S, 60-624T

P58665 60-625S, 60-625T Bronze – 61/8" Diameter

P60350 60 1AA, 60 11/4AA, 1522 3/4AAB, 1522 1AAB Steel – 51/4" Diameter

P61010 60 11/2AA, 1522 11/4AAB Steel – 51/4" Diameter

P61550 60 2AA, 1522 11/2AAB Steel – 51/4" Diameter

P82137 60-619T Bronze – 61/2" Diameter

P82877 60-602S, 60-602T, 60-B602S, 60-B602T, 60-605S, 60-605T, 60-B605S, Bronze – 53/4" Diameter

60-B605T

P82878 60-601S, 60-601T, 60-B601S, 60-B601T, 60-604S, 60-604T, 60-B604S, Bronze – 43/8" Diameter

60-B604T

P82880 60-608S, 60-608T, 60-B608S, 60-B608T Bronze – 415/16" Diameter

P82881 60-607S, 60-607T, 60-B607S, 60-B607T Bronze – 43/8" Diameter

P82882 60-611S, 60-611T, 60-B611S, 60-B611T Bronze – 43/4" Diameter

P82883 60-610S, 60-610T, 60-B610S, 60-B610T Bronze – 41/8" Diameter

P82884 60-613S, 60-613T

P82885 60-615S, 60-615T, 60-B615S, 60-B615T

P83023 60-626S, 60-626T, 60-B626S, 60-B626T

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

CF – contact factory for where used.

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

“WHERE USED” LIST (CONTINUED)

IMPELLERS (CONTINUED)

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

A24600 PD-38, PD-40, Obs. PD-39 Steel – 3"

A40000 PD-38, PD-40, Obs. PD-39 Brass – 3"

F14200 2", Obs. 2", 60 2AA, 60 2A, PL-75, PL-130, MF 60 2" Steel – 2"

F54200 2", Obs. 2", 60-B14S, 60-B14T, 60 2AA, 60 2A, PL-75B, PL-130B, MF 60 2" Bronze – 2"

F74000 LD-3, HD-3, PD-35, PD-37, PL-130, MF 60 3 x 51/4Steel – 3"

F74800 LD-3, HD-3, PD-35, PD-37, PL-130B, MF 60 3 x 51/4Brass – 3"

P00739 PL-30, PL-36, PL-55, Obs. LR-250BF, Obs. LR-12, Obs. LR-12BF, Steel – 3/4"

Series 100, PR

P00779 PL-30B, PL-36B, Series 100, LR, PR, PL-55B Brass – 11/2"

P00789 PL-30B, PL-36B, PL-55B, LR, Series 100, PR Brass – 3/4"

P00792 PL-30, PL-36, Series 100, Obs. LR, PR, 60 1AA, PL-55 Steel – 1"

P00802 PL-45, PL-50, HV, Obs. HV Steel – 1"

P00804 PL-45B, PL-50B, HV, Obs. 1", Obs. HV Brass – 1"

P00836 LR-20B, LR-12B, LR-15B, PL-30B, PL-36B, Series 100, PR, PL-55B Brass – 1"

P00837 LR-20B, LR-12B, LR-15B, PL-30B, PL-36B, Series 100, PR, PL-55B Brass – 11/4"

P01510 MF 60 1 x 51/4, 60 1"AA

P03250 PL-30, PL-36, PL-55, Series 100, Obs. LR, PR, Obs. 11/4", 60 11/4AA, Steel – 11/4"

MF60 11/4x 51/4

P03300 PL-45, PL-50, HV, Obs. HV Steel – 11/4"

P03410 PL-45, PL-50, HV, Obs. 11/2", Obs. HV, 60 11/2AA, 60 11/2A, MF 60 11/2" Steel – 11/2"

P03430 PL-30, PL-36, Series 100, Obs. LR, PR, PL-55 Steel – 11/2"

P03560 21/2", PL-130 Steel – 21/2"

P06660 PL-45B, PL-50B, HV, Obs. 11/4", Obs. HV Brass – 11/4"

P06690 PL-45B, PL-50B, HV, Obs. 11/2", Obs. HV, 60 11/2AA, 60 11/2A, MF 60 11/2" Brass – 11/2"

P06750 21/2", PL-130B Brass – 21/2"

118060 Obs. HV, Obs. 11/4"

118062 Obs. 11/2"

118065 Obs. 2"

118129 21/2", LD-3, HD-3, PD-35, PD-37, PD-38, PD-40, Obs. PD-39, MF 60

3 x 51/4, PL-130

118351 Obs. Series 100, Obs. 1"

118368 Obs. LR, PL-30, PL-36, Series 100, PR, 60 1AA, 60 11/4AA, PL-55,

Obs. 11/4", MF 60 1 x 51/4, MF 60 11/4x 51/4

118373 PL-45, PL-50, HV, Obs. 11/2", Obs. HV, 60 11/2AA, 60 11/2A, MF 60 11/2"

118378 2", 60 2AA, 60 2A, MF 60 2", PL-75, PL-130

P15692 Obs. LR Not a set, 2 required

F91600 Obs. 2"

P09540 PD-38, PD-40, Obs. PD-39, PL-130

P15696 Obs. LR

P64230 Obs. 1"

P64900 60 1AA, 60 11/4AA

P64910 Obs. LR, PL-30, PL-36, Series 100, 60 1AA, 60 11/4AA, Obs. 11/4",

MF 60 1 x 51/4and 11/4x 51/4

P64930 60 11/2AA, 60 11/2A Obs. 11/2", Obs. HV, MF 60 11/2" Series 60 All Bronze models only

P64940 PL-45, PL-50, HV, 60 11/2AA, 60 11/2A, Obs. HV, Obs. 11/2", MF 60 11/2" Series 60 Bronze Fitted and

All Iron models only

P65030 2", 60 2AA, 60 2A, MF 60 2" Series 60 Bronze Fitted and

All Iron models only

P65031 PL-75, PL-130, 2", MF 60 2", 60 2AA, 60 2A

P65128 PR

P65130 21/2", LD-3, HD-3, PD-35, PD-37, MF 60 3 x 51/4Does not include flange gaskets

P83031 PL-55, PL-55B

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

CF – contact factory for where used.

NOTE: Obs. = Obsolete Pump Model, MF = Maintenance Free

“WHERE USED” LIST (CONTINUED)

FLANGESFLANGE GASKET SETSFASTENER PACKS

CIRCULATOR & CENTRIFUGAL PUMP REPLACEMENT PARTS HS-300C-PL

NOTE: Obs. = Obsolete Pump Model

CATEGORY PART NO. PART DESCRIPTION WHERE USED NOTES/SPECIFICATION

H32400 Coupler Key PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

J91702 Impeller Nut Obs. HV Cast Iron models only

M15784 Capacitor Obs. LR 220V

M15788 Capacitor Obs. LR-15B 220V

P00651 Impeller Nut Obs. 1522 Stainless Steel models

P04650 Impeller Lockwasher 60 AA, 1522

P04660 Impeller Washer Obs. 1522, MF 60 51/4" and 61/4"

P04670 Impeller Nut PD-35, PD-37, 60 AA, 1522 AI Construction

P04940 Impeller Key Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37,

60 “AA”, 1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2",

Obs. HV, MF 60 51/4" and 61/4"

P04945 Impeller Key Obs. 1522 Stainless Steel models only

P08480 Impeller Nut PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F, MF 60 7" All Bronze model only

P11150 Impeller Washer 60 21/2F, PD-38, PD-40, Obs. PD-39, 60 A

P11220 Impeller Washer PD-38, PD-40, Obs. PD-39, MF 60 7", 60 A, 60 21/2F AB Construction

P12422 Oil Wick Retainer PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

P15210 Assembly Tool Obs. LR

P15683 Seat Cup Obs. LR

P15697 Impeller Nut Obs. LR

P15698 Impeller Tube Obs. LR

P15775 Oil Tube Obs. LR

P44200 Impeller Nut Series 100, HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37,

60 “AA”, 1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2",

Obs. HV, MF 60 51/4" and 61/4"

P45910 Impeller Nut PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F Cast Iron Models Only

P49358 Impeller Key 60 “A”, 21/2F, PD-38, PD-40, Obs. PD-39, MF 60 7"

P51190 Flat head Capscrew Obs. 1522

P57000 Impeller Gasket Series 100, HV, 2”, PR, 21/2”, LD-3, HD-3, PD-35, PD-37,

60 “AA”, 1522, Obs. 11/2", Obs. 2", Obs. HV, Obs. 1",

Obs. 11/4"

P57300 Oil Well Gasket PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

P57302 Oil Well Cover PD-38, PD-40, Obs. PD-39, 60 “A”, 60 21/2F

P70712 Ceramic Insert Obs. LR

P80815 Front Bearing Gasket Series 100

P80816 Front Bearing Gasket HV, 2", Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV, PR,

21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”, 1522

P81238 Oil Well Cover Series 100

P81239 Oil Well Cover HV, 2", PR, 21/2", LD-3, HD-3, PD-35, PD-37, 60 “AA”,

1522, Obs. 1", Obs. 11/4", Obs. 11/2", Obs. 2", Obs. HV

“WHERE USED” LIST (CONTINUED)

MISCELLANEOUS PUMP PARTS

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

A03720 EAS-11/2, EAS-2

A03835 EAS-1, EAS-11/4

A07029 SDG-21/2, CC-3Z, DC-3Z, EC-3Z Stainless Steel

A07030 SDG-3, DD-3Z, ED-3Z Stainless Steel

A07031 SDG-4, EE-3Z, FE-3Z, GE-3Z Stainless Steel

A07032 SDG-5, FF-3Z, GF-3Z Stainless Steel

A07033 SDG-6, GG-3Z, HG-3Z Stainless Steel

A07034 SDG-8, HH-3Z, JH-3Z Stainless Steel

A07035 SDG-10, JJ-3Z Stainless Steel

A91554 Obs. DB, BA-3X Steel

A91555 BB-3X, CB-3X, DA-3X, DB-3X Steel

A91556 CC-3X, DC-3X, EC-3X Steel

A91557 DD-3X, ED-3X Steel

A91558 EE-3X, FE-3X, GE-3X Steel

A91559 FF-3X, GF-3X Steel

A91560 GG-3X, HG-3X Steel

A91561 HH-3X, JH-3X Steel

A91562 JJ-3X Steel

A91563 Obs. DB, BA-3Z Stainless Steel

A91564 BB-3Z, CB-3Z, DA-3Z, DB-3Z Stainless Steel

189579 B-200

189580 B-300

189581 B-400

189582 B-500

189583 B-600

189584 B-800

189585 B-1000

189586 B-1200

189587 B-1400

189588 B-1600

189589 B-2000

189590 B-2500

189591 B-3000

189592 B-3500

189593 B-4000

189594 B-35 LA, B-50 LA, B-85 LA, B-100 LA

189595 B-130 LA, B-165 LA, B-200 LA, B-300 LA

189596 B-400 LA, B-500 LA, B-600 LA

189597 B-5000

A03715 EAS-1

A03716 EAS-11/4

A03831 EAS-11/2

A03832 EAS-2

G92500 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6, TFI-8

V01103 CTS-7524

V18802 CB-4G, 3DS-4G

V50807 3DX-1

V50808 3DX-11/4

V50809 3DX-11/2

V50810 3D-2S

V50811 3D-21/2S

V50812 3D-3S

V50813 3D-4S

V50814 3D-5S

V50815 3D-6S

V50816 3D-8S

V50817 3D-10S

V50818 3DS-2G

V50819 3DS-21/2G

V50820 3DS-3G

V50821 CB-5G, 3DS-5G

V50822 CB-6G, 3DS-6G

V50823 CB-8G, 3DS-8G

V50824 CB-10G, 3DS-10G

V50825 CB-12G, 3DS-10G

V50830 3DS-2S

V50831 3DS-21/2S

V50832 3DS-3S

V50833 CB-4F, 3DS-4S

V50834 CB-5F, 3DS-5S

“WHERE USED” LIST

BAFFLESBLADDERSBODIES

NOTE: Obs. = Obsolete Model

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

V50835 CB-6F, 3DS-6S

V50836 CB-8F, 3DS-8S

V50837 CB-10F, 3DS-10S

V50838 CB-12F, 3DS-12S

V50839 3DS-14S

V51958 3DS-3B

V51961 3DS-4B

V51964 3DS-5B

V51967 3DS-6B

V51970 3DS-8B

V51973 3DS-10B

V51976 3DS-12B

V51979 3DS-14B

V51982 3DS-16B

G10001 CB-4F

G10002 CB-5F

G10003 CB-6F

G10004 CB-8F

G10060 CB-4G

G10061 CB-5G

G10062 CB-6G

G10063 CB-8G

V50986 CB-10G

V50987 CB-12F

V50988 CB-12G

V51021 CB-10F

V51122 3D-2S, 2DS-2S, 3D-21/2, 3DS-21/2S, 3DS-2S, 3DS-3B

V51126 3D-3S, 3DS-3S, 3DS-4B

V51128 3D-4S, 3DS-4S, 3DS-5B

V51130 3D-5S, 3DS-5S, 3DS-6B

V51132 3D-6S, 3DS-6S, 3DS-8B

V51134 3D-8S, 3DS-8S, 3DS-10B

V51136 3D-10S, 3DS-10S, 3DS-12B

V51138 3DS-12S, 3DS-14B

V51140 3DS-14S, 3DS-16B

V51142 3DS-4G

V51811 3DS-2G, 2DS-21/2G

V51813 3DS-3G

V51815 3DS-5G

V51817 3DS-6G

V51819 3DS-8G

V51821 3DS-10G

V51841 3DS-12G

G10030 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10038 CB-8F, CB-8G

V51010 CB-10F, CB-10G

V51011 CB-12F, CB-12G

A03722 EAS-11/2, EAS-2

A03834 EAS-1, EAS-11/4

V50690 3DX-1

V50693 3DX-11/4

V50696 3DX-11/2

A07016 SDG-21/2

A07018 SDG-3

A07020 SDG-4

A07022 SDG-5

A07024 SDG-6

A07026 SDG-8

A07028 SDG-10

A91242 BA-3X, BA-3Z

A91244 BB-3X, BB-3Z, CB-3X, CB-3Z, CC-3X, CC-3Z, DA-3X, DA-3Z,

DB-3X, DB-3Z, DC-3X, DC-3Z

A91246 DD-3X, DD-3Z, ED-3X, ED-3Z

A91248 EE-3X, EE-3Z, FE-3X, FE-3Z, GE-3X, GE-3Z

A91250 FF-3X, FF-3Z, GF-3X, GF-3Z

A91252 GG-3X, GG-3Z, HG-3X, HG-3Z

A91254 HH-3X, HH-3Z, JH-3X, JH-3Z

A91256 JJ-3X, JJ-3Z

COVERPLATES

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

“WHERE USED” LIST (CONTINUED)

BONNETS

BUSH-

INGS

CAPS BODIES

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

V50855 3DX-1

V50856 3DX-11/4

V50857 3DX-11/2

G10009 CB-4F, CB-4G

G10010 CB-5F, CB-5G

G10011 CB-6F, CB-6G

G10012 CB-8F, CB-8G

V50697 3DX-1

V50698 3DX-11/4

V50699 3DX-11/2

V50754 3DS-14S, 3DS-16B

V50920 3DS-12S, 3DS-14B

V50992 CB-10F, CB-10G

V50993 CB-12F, CB-12G

V56884 3DS-12G

V51756 3DS-2G, 3D-2S, 3D-21/2S, 3DS-2S

V51757 3DS-21/2G, 3DS-21/2S, 3DS-3B

V51758 3DS-3G, 3D-3S, 3DS-3S, 3DS-4B

V51759 3DS-4G, 3D-4S, 3DS-4S, 3DS-5B

V51760 3DS-5G, 3D-5S, 3DS-5S, 3DS-6B

V51761 3DS-6G, 3D-6S, 3DS-6S, 3DS-8B

V51762 3DS-8G, 3D-8S, 3DS-8S, 3DS-10B

V51763 3D-10S, 3DS-10S, 3DS-12B

V51764 3DS-10G

118858 3DX-11/4

118859 3DX-11/2

118860 3DX-1

118094 SA-11/4

118095 SA-11/2, SA-2

118096 A-21/2, S-21/2, A-3, S-3

118117 SA-1

118118 S-4

118864 SB-3/4

189168 SA-3/4

F17400 S-4

F26200 SA-2

G82750 A-21/2, S-21/2

G86500 A-3, S-3

F19000 S-4, 3D-3S, 3DS-3G, 3DS-3S, 3DS-4B

F27800 A-21/2, S-21/2, A-3, S-3, 3D-2S, 3DS-2G, 3DS-2S,

3D-21/2S, 3DS-21/2G, 3DS-21/2S, 3DS-3B

F43000 SA-3/4, Obs. SA-3/4, Obs. SB-3/4

F44400 SA-1, 3DX-1

F47200 SA-11/4, 3DX-11/4, SA-11/2, SA-2

F49000 SA-11/2, SA-2, 3DX-11/2

V29400 CB-4F, CB-4G, 3D-4, 3DS-4G, 3DS-4S, 3DS-5B

V32801 3D-5S, 3DS-5G, 3DS-5S, CB-5F, CB-5G, 3DS-6B

V33001 CB-6F, CB-6G, 3D-6S, 3DS-6G, 3DS-6S, 3DS-8B

V35000 CB-8F, CB-8G, 3D-8S, 3DS-8G, 3DS-8S, 3DS-10B

V36400 CB-10F, CB-10G, 3D-10S, 3DS-10G, 3DS-10S, 3DS-12B

V36401 CB-12F, CB-12G, 3DS-12G, 3DS-12S, 3DS-14B

V36402 3DS-14S, 3DS-16B

V56936 SB-3/4

DYNA DISC

ASSEMBLIES

“WHERE USED” LIST (CONTINUED)

DISCS

DISC

ASSEMBLIES

FLANGE

GASKETS

DISC

KITS

GASKETS

NOTE: Obs. = Obsolete Model

DATA

PLATES

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

G10032 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10040 CB-8F, CB-8G, CB-10F, CB-10G

V51003 CB-12F, CB-12G

118098 TB-3/4

118820 TFI-4, TFI-5, TFI-6, TFI-8

118822 TB-1

189111 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3

F13400 SA-3/4, SA-1, SA-11/4, SA-11/2, SB-3/4, SA-2, A-21/2, S-21/2, A-3, S-3,

Obs. SA-3/4, Obs. SB-3/4, 3DX-1, 3DX-11/4, 3DX-11/2

F17800 S-4

G10028 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G Indicator Lock

G10036 CB-8F, CB-8G, CB-10F, CB-10G Indicator Lock

G96839 CB-11/4, CB-11/4S, CB-11/2, CB-11/2S, CB-2, CB-2S, CB-21/2, CB-21/2F, Indicator Stop

CB-3, CB-3F, CB-4

V51012 CB-12F, CB-12G Indicator Lock

J94171 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

V51180 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S, 3D-3S,

3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

V51181 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B, 3DS-10B, 3DS-12B

G10105 RF-1/2S, RF-3/4S

G95951 CB-1/2, CB-1/2S, CB-3/4, CB-3/4S, CB-1, CB-1S

G96831 CB-11/4, CB-11/4S, CB-11/2, CB-11/2S, CB-2,

CB-2S, CB-21/2, CB-21/2F, CB-3, CB-3F, CB-4

G10027 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10035 CB-8F, CB-8G, CB-10F, CB-10G, CB-12F, CB-12G

V51093 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S, 3D-3S,

3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

V51094 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B. 3DS-10B, 3DS-12B

V51095 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

G10017 CB-4F

G10018 CB-5F

G10019 CB-6F

G10020 CB-8F

G10064 CB-4G

G10065 CB-5G

G10066 CB-6G

G10067 CB-8G

V50896 3DS-14S

V50961 3DS-2S

V50962 3DS-21/2S

V50963 3DS-3S

V50964 3DS-4S

V50965 3DS-5S

V50966 3DS-6S

V50967 3DS-8S

V50968 3DS-10S

V50969 3DS-12S

V50971 3D-2S

V50972 3D-21/2S

V50973 3D-3S

“WHERE USED” LIST (CONTINUED)

GLAND

WASH-

ERS

GLASS-

TUBE

KITS

HAN-

DLES

INDICATOR

LOCKS OR

INDICATOR

STOPS

INDICATOR

RINGS

KNOBS

LOCK-

WASH-

ERS

LOWER

NAMEPLATE

RETAINERS

NAMEPLATES

NOTE: Obs. = Obsolete Model

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

V50974 3D-4S

V50975 3D-5S

V50976 3D-6S

V50977 3D-8S

V50978 3D-10S

V50996 CB-10F

V50997 CB-12F

V50998 CB-10G

V50999 CB-12G

V51823 3DS-2G

V51824 3DS-21/2G

V51825 3DS-3G

V51826 3DS-4G

V51827 3DS-5G

V51828 3DS-6G

V51829 3DS-8G

V51830 3DS-10G

V51831 3DS-12G

V57089 3DS-3B

V57090 3DS-4B

V57091 3DS-5B

V57092 3DS-6B

V57093 3DS-8B

V57094 3DS-10B

V57095 3DS-12B

V57096 3DS-14B

V57097 3DS-16B

G10025 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G, CB-8F, CB-8G,

CB-10F, CB-10G

V51005 CB-12F, CB-12G

V51111 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S, 3D-3S,

3DS-3G, 3DS-3S. 3DS-3B, 3DS-4B

V51114 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B, 3DS-10B. 3DS-12B

V51119 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

A03719 EAS-11/2, EAS-2

A03841 EAS-1, EAS-11/4

J94130 SDG-3, DD-3X, DD-3Z, ED-3X, ED-3Z

J94131 SDG-4, EE-3X, EE-3Z, FE-3X, FE-3Z, GE-3X, GE-3Z

J94140 BA-3X, BA-3Z

J94141 SDG-21/2, BB-3X, BB-3Z, CB-3X, CB-3Z, CC-3X, CC-3Z,

DA-3X, DA-3Z, DB-3X, DB-3Z, DC-3X, DC-3Z, EC-3X, EC-3Z

J94142 SDG-5, FF-3X, FF-3Z, GF-3X, GF-3Z

J94143 SDG-6, GG-3X, GG-3Z, HG-3X, HG-3Z

J94144 SDG-8, HH-3X, HH-3Z, JH-3X, JH-3Z

J94145 SDG-10, JJ-3X, JJ-3Z

F17000 S-4, 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G,

3DS-21/2S, 3D-3S, 3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

G10033 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10041 CB-8F, CB-8G, CB-10F, CB-10G

V51004 CB-12F, CB-12G

V51096 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B, 3DS-10B, 3DS-12B

V51097 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

118057 SA-3/4, SA-1, SA-11/4, SA-11/2, SB-3/4, SA-2, A-21/2, S-21/2, A-3, S-3,

Obs. SA-3/4, Obs. SB-3/4, TB-3/4, TB-1, 3DX-1, 3DX-11/4, 3DX-11/2

F16600 S-4, 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S,

3D-3S, 3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

G10026 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10034 CB-8F, CB-8G, CB-10F, CB-10G

V51002 CB-12F, CB-12G

V51183 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

V51281 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B, 3DS-10B, 3DS-12B

118056 SA-3/4, SA-1, SA-11/4, SA-11/2, SB-3/4, SA-2, A-21/2, S-21/2, A-3, S-3,

Obs. SA-3/4, Obs. SB-3/4, 3DX-1, 3DX-11/4, 3DX-11/2

“WHERE USED” LIST (CONTINUED)

NAMEPLATES (CONTINUED)NAMEPLATE CAPSO-RINGSPACKING

PACKING GLAND NUTS

NOTE: Obs. = Obsolete Model

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

G10032 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10040 CB-8F, CB-8G, CB-10F, CB-10G

V51003 CB-12F, CB-12G

V51184 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

V51282 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S, 3DS-5B,

3DS-6B, 3DS-8B, 3DS-10B, 3DS-12B

J91634 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S, 3D-3S,

3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

J91635 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G, 3DS-4G, 3DS-5G,

3DS-6G, 3DS-6S, 3DS-5S, 3DS-4S, 3D-4S, 3D-5S, 3D-6S, 3DS-5B,

3DS-6B, 3DS-8B

J91636 CB-8F, CB-8G, CB-10F, CB-10G, CB-12F, CB-12G, 3D-8S, 3DS-8G,

3DS-8S, 3D-10S, 3DS-10G, 3DS-10S, 3DS-12G, 3DS-12S, 3DS-10B,

3DS-12B, 3DS-14B

J91637 3DS-14S, 3DS-16B

F02800 SA-1, Obs. SA-3/4, Obs. SB-3/4, 3DX-1

F06800 S-4

F20800 SA-11/4, SA-11/2, SA-2, 3DX-11/4, 3DX-11/2

F22200 A-21/2, S-21/2, A-3, S-3

G92000 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6, TFI-8,

TB-3/4, TB-1

G10029 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10037 CB-8F, CB-8G, CB-10F, CB-10G

J92344 3DX-1, 3DX-11/4, 3DX-11/2

J92345 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

J92346 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

J92347 CB-8F, CB-8G, CB-10F, CB-10G

J92348 CB-8F, CB-8G, CB-10F, CB-10G

J92349 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G, CB-8F, CB-8G,

CB-10F, CB-10G

J92350 SA-3/4, SB-3/4

V51008 CB-12F, CB-12G

G95594 TFI-11/4

G95595 TFI-11/2

G95596 TFI-2

G95597 TFI-21/2

G95598 TFI-3

G95915 TFI-4

G95916 TFI-5

G95917 TFI-6

G95918 TFI-8

G10013 CB-4F, CB-4G

G10014 CB-5F, CB-5G

G10015 CB-6F, CB-6G

G10016 CB-8F, CB-8G

V50686 3DX-1

V50687 Obs. 3DX-11/4

V50688 3DX-11/2

V50750 3DS-14S, 3DS-16B

V50942 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S,

3D-3S, 3DS-3G, 3DS-3S, 3DS-3B

V50945 3D-4S, 3DS-4G, 3DS-4S, 3DS-5B

V50946 3D-5S, 3DS-5G, 3DS-5S, 3DS-6B

V50947 3D-6S, 3DS-6G, 3DS-6S, 3DS-8B

V50948 3D-8S, 3DS-8G, 3DS-8S, 3DS-10B

V50949 3D-10S, 3DS-10G, 3DS-10S, 3DS-12B

V50950 3DS-12G, 3DS-12S, 3DS-14B

V50994 CB-10F, CB-10G

V50995 CB-12F, CB-12G

V56889 3DX-11/4

V58164 3DS-3G, 3D-3S, 3DS-3S, 3DS-4B

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

“WHERE USED” LIST (CONTINUED)

PACKING GLAND

WASHERS

RETAINER OR

JAM NUTS

RETAINER RINGSSCALE PLATESSEAL RETAINERS

NOTE: Obs. = Obsolete Model

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

V50781 3DX-1

V50782 3DX-11/4

V50783 3DX-11/2

V50793 3DS-14S, 3DS-16B

V50932 3D-2, 3DS-2G, 3DS-2S, 3D-21/2S

V50933 3DS-21/2G, 3DS-21/2S, 3DS-3B

V50934 3D-3, 3DS-3G, 3DS-3S , 3DS-4B

V50935 CB-4F, CB-4G, 3D-4, 3DS-4G, 3DS-4S, 3DS-15B

V50936 CB-5F, CB-5G, 3D-5S, 3DS-5G, 3DS-5S, 3DS-6B

V50937 CB-6F, CB-6G, 3D-6S, 3DS-6G, 3DS-6S, 3DS-8B

V50938 CB-8F, CB-8G, 3D-8S, 3DS-8G, 3DS-8S, 3DS-10B

V50939 CB-10F, CB-10G, 3D-10S, 3DS-10G, 3DS-10S, 3DS-12B

V50940 CB-12F, CB-12G, 3DS-12G, 3DS-12S, 3DS-14B

J91999 CB-12G

J92020 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G, CB-8F, CB-8G, CB-10F,

CB-10G, CB-12F

F66200 TB-1

F66800 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6,

TFI-8, TB-3/4

V50952 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2, 3DS-21/2G, 3DS-21/2S, 3DS-3B

V50953 3D-3S, 3DS-3G, 3DS-3S, 3DS-4B

V50954 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3DS-5B, 3DS-6B

V50955 3D-6S, 3DS-6G, 3DS-6S, 3DS-8B

V50956 3D-8S, 3DS-8G, 3DS-8S, 3DS-10B

V50957 3D-10S, 3DS-10G, 3DS-10S, 3DS-12B

V50958 3DS-12G, 3DS-12S, 3DS-14B

V51077 3DX-1

V51078 3DX-11/4

V51079 3DX-11/2

V51083 3DS-14S, 3DS-16B

A91260 BA-3X, BA-3Z

A91261 BB-3X. BB-3Z, CB-3X, CB-3Z, DA-3X, DA-3Z, DB-3X, DB-3Z

A91262 DD-3X, DD-3Z, ED-3X, ED-3Z, SDG-3

A91263 EE-3X, EE-3Z, FE-3X, FE-3Z, GE-3X, GE-3Z. SDG-4

A91264 FF-3X, FF-3Z, GF-3X, GF-3Z, SDG-5

A91265 GG-3X, GG-3Z, HG-3X, HG-3Z, SDG-6

A91266 HH-3X, HH-3Z, JH-3X, JH-3Z, SDG-8

A91267 JJ-3X, JJ-3Z, SDG-10

A91268 CC-3X, CC-3Z, DC-3X, DC-3Z, EC-3X, EC-3Z, SDG-21/2

G10005 CB-4F, CB-4G

G10006 CB-5F, CB-5G

G10007 CB-6F, CB-6G

G10008 CB-8F, CB-8G

V50767 3DX-1

V50768 3DX-11/4

V50769 3DX-11/2

V50778 3DS-14S, 3DS-16B

V50922 3D-2S, 3DS-2G,3DS-2S, 3D-21/2, 3DS-21/2S, 3DS-21/2G, 3DS-3B

V50924 3D-3S, 3DS-3G, 3DS-3S, 3DS-4B

V50925 3D-4S, 3DS-4G, 3DS-4S, 3DS-5B

V50926 3D-5S, 3DS-5G, 3DS-5S, 3DS-6B

V50927 3D-6S, 3DS-6G, 3DS-6S, 3DS-8B

V50928 3D-8S, 3DS-8G, 3DS-8S, 3DS-10B

V50929 3D-10S, 3DS-10G, 3DS-10S, 3DS-12B

V50930 3DS-12G, 3DS-12S, 3DS-14B

V50989 CB-10F, CB-10G

V50990 CB-12F, CB-12G

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

“WHERE USED” LIST (CONTINUED)

SET

SCREWS

SPRINGS

START-UP

STRAINERS

STEMS

NOTE: Obs. = Obsolete Model

SEAL RINGS

CATEGORY PART NO. WHERE USED NOTES/SPECIFICATION

A91270 Obs. BZ-3, Obs. BA-3, BA-3X Steel

A91271 BB-3X, CB-3X, DA-3X, DB-3X Steel

A91272 DD-3X, ED-3X Steel

A91273 EE-3X, FE-3X, GE-3X Steel

A91274 FF-3X, GF-3X Steel

A91275 GG-3X, HG-3X Steel

A91276 HH-3X, JH-3X Steel

A91277 JJ-3X Steel

A91278 CC-3X, DC-3X, EC-3X Steel

A91280 Obs. BZ-3, Obs. BA-3Z, BA-3Z Stainless Steel

A91281 BB-3Z, CB-3Z, DA-3Z, DB-3Z Stainless Steel

A91282 Obs. DC-3, DD-3Z, ED-3Z, SDG-3 Stainless Steel

A91283 EE-3Z, FE-3Z, GE-3Z, SDG-4 Stainless Steel

A91284 SDG-5, FF-3Z, GF-3Z Stainless Steel

A91285 GG-3Z, HG-3Z, SDG-6 Stainless Steel

A91286 HH-3Z, JH-3Z, SDG-8 Stainless Steel

A91287 JJ-3Z, SDG-10 Stainless Steel

A91288 CC-3Z, DC-3Z, SDG-21/2, EC-3Z Stainless Steel

118036 B-38, B-38TU, F-3, F-8, F-3TU, F-8TU, FB-38, FB-38TU, 6, 8, 8TU

189160 B7-12, 7

G10031 CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G

G10039 CB-8F, CB-8G, CB-10F, CB-10G, CB-12F, CB-12G

G91900 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3 Clear glass

G91904 TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6, TFI-8 Etched glass

G91908 TB-3/4

G91910 TB-1

V51090 3D-2S, 3DS-2G, 3DS-2S, 3D-21/2S, 3DS-21/2G, 3DS-21/2S,

3D-3S, 3DS-3G, 3DS-3S, 3DS-3B, 3DS-4B

V51091 3D-4S, 3DS-4G, 3DS-4S, 3D-5S, 3DS-5G, 3DS-5S, 3D-6S, 3DS-6G,

3DS-6S, 3D-8S, 3DS-8G, 3DS-8S, 3D-10S, 3DS-10G, 3DS-10S,

3DS-5B, 3DS-6B, 3DS-8B, 3DS-10B, 3DS-12B

V51092 3DS-12G, 3DS-12S, 3DS-14S, 3DS-14B, 3DS-16B

CATEGORY PART NO. PART DESCRIPTION WHERE USED NOTES/SPECIFICATION)

109024 Operator CT-24, CTS-7524, CTF-10024

113100 Readout Valve Sets All Circuit Setter Models & All Triple Duty Valve Models 50 pairs per package

113102 Readout Probe Sets All Circuit Setter Models & All Triple Duty Valve Models 6 pairs per package

118029 Diaphragm All Pressure Reducing Valve & Dual Unit Valve Models

118855 Lever, Button & Gasket 107A

118861 PRV Repair Kit All Pressure Reducing Valve & Dual Unit Valve Models

189137 Heat Motor Assembly CT-24, CTS-7524, CTF-10024 6 per package

189138 Gland Assembly CT-24, CTS-7524, CTF-10024 6 per package

189139 Bonnet & Retainer CT-24, CTS-7524, CTF-10024 6 per package

Assembly

189143 Heat Motor Kit Obs. M-1

A03717 Diffuser EAS-11/2, EAS-2

A03718 Wire Brush EAS-11/2, EAS-2

A03723 Air Vent EAS-2

A03836 Diffuser EAS-1, EAS-11/4

A03837 Wire Brush EAS-1, EAS-11/4

A03842 Air Vent EAS-1, EAS-11/4, EAS-11/2

F42800 Snap Ring SA-3/4, SA-1, SA-11/4, SA-11/2, SB-3/4, SA-2, A-21/2, S-21/2,

A-3, S-3, Obs. SA-3/4, Obs. SB-3/4, 3DX-1, 3DX-11/4, 3DX-11/2

F62800 Indicator Disc TB-3/4

F67200 Sealing Ring TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6,

TFI-8, TB-3/4, TB-1 4 required

F69000 Hanger TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6,

TFI-8, TB-3/4, TB-1

F69200 Guide Wire TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5, TFI-6,

TFI-8, TB-3/4, TB-1

G95000 Angle Valve TFI-11/4, TFI-11/2, TFI-2, TFI-21/2, TFI-3, TFI-4, TFI-5,

TFI-6, TFI-8 2 required

G97030 Readout Valve Set All Circuit Setter Models & All Triple Duty Valve Models

G97032 Readout Probe Set All Circuit Setter Models & All Triple Duty Valve Models

J92135 Nameplate Screw CB-4F, CB-4G, CB-5F, CB-5G, CB-6F, CB-6G, CB-8F,

CB-8G, CB-10F, CB-10G, CB-12F, CB-12G, All Triple Duty 2 required

Valve Models except 3DX-1, 3DX-11/4& 3DX-11/2

V01340 Cover CT-24, CTS-7524, CTF-10024

V14609 Strainer Nut All Pressure Reducing Valve & Dual Unit Valve Models

V50740 Retainer 3DX-1, 3DX-11/4, 3DX-11/2

V51657 Tail Piece Gasket B-38TU, F-3TU, F-8TU, FB-38TU, 8TU

V51658 Rubber Check Valve All Pressure Reducing Valve & Dual Unit Valve Models Round

HYDRONIC SPECIALTIES, ENGINEERED SPECIALTIES & CENTRIFUGAL PUMP ACCESSORIES REPLACEMENT PARTS HS-300C-PL

TUBE

GLASS

UPPER

NAMEPLATE

RETAINERS

MISCELLANEOUS VALVE PARTS

“WHERE USED” LIST (CONTINUED)

STRAINER &

GASKET KITS

TEFLON

WASHERS

NOTE: Obs. = Obsolete Model

STRAINERS

ITT

8200 N. Austin Avenue

Morton Grove, IL 60053

Phone: (847) 966-3700

Fax: (847) 966-9052

www.bellgossett.com

ITT CORPORATION

PRINTED IN U.S.A. 11-07

THE ITT ENGINEERED BLOCKS SYMBOL AND

ENGINEERED FOR LIFE ARE REGISTERED

TRADEMARKS OF ITT CORPORATION

BELL & GOSSETT PRODUCTS

Stocked … Sold … Serviced EVERYWHERE!

FOR MORE DETAILS CALL YOUR LOCAL BELL & GOSSETT REPRESENTATIVE

ALABAMA

Mangham & Associates, Inc.

Irondale (Birmingham)

Phone: 205/956-2362

ALASKA

Columbia Hydronics Co.

Anchorage

Phone: 907/563-3327

Phone: 907/563-3337

ARIZONA

J & B Sales Company

Phoenix

Phone: 602/258-1545

ARKANSAS

Johnson & Scott, Inc.

Little Rock

Phone: 501/803-9520

Hydronic Technology Inc.

Shreveport, LA

Phone: 318/797-1500

Boone & Boone Sales Co., Inc.

Tulsa, OK

Phone: 918/664-9756

CALIFORNIA

California Hydronics Corp.

Hayward (San Francisco)

Phone: 510/293-1993

Rocklin (Sacramento)

Phone: 510/293-1993

San Jose

Phone: 408/295-5874

Dawson Co.

Altadena (Los Angeles)

Phone: 626/797-9710

San Diego

Phone: 858/541-7867

COLORADO

McNevin Company

Aurora (Denver)

Phone: 303/322-0165

CONNECTICUT

F.I.A., Inc.

Middleton

Phone: 781-938-8900

Woburn (Boston) MA

Phone: 781/938-8900

DELAWARE

R. D. Bitzer Co., Inc.

Bensalem, PA

Phone: 215/604-6600

Cummins-Wagner Co., Inc.

Annapolis Junction, MD

Phone: 800/966-1277

301/490-9007

FLORIDA

George A. Israel Jr., Inc.

Jacksonville

Phone: 904/355-7867

Miami

Phone: 305/592-5343

Orlando

Phone: 407/423-5078

Tampa

Phone: 813/839-2161

79 Holly Circle

Tequesta, FL 33469

Phone: 561/248-3556

GEORGIA

James M. Pleasants Co., Inc.

Duluth

Phone: 678/507-1091

Norcross

Phone: 800/522-1861

678/507-1091

George A. Israel Jr., Inc.

Jacksonville, FL

Phone: 904/355-7867

HAWAII

CBC Inc.

Kailua

Phone: 808/263-8838

IDAHO

Gritton & Associates, Inc.

Salt Lake City, UT

Phone: 801/486-0767

Columbia Hydronics Co.

Boise

Phone: 208/345-2744

ILLINOIS

Bornquist, Inc.

Chicago

Phone: 773/774-2800

Blackmore & Glunt, Inc.

Maryland Hghts. (St. Louis) MO

Phone: 314/878-4313

Sandberg Co., Inc.

East Moline

Phone: 309/796-2371

Hydronic & Steam Equip. Co., Inc.

Indianapolis, IN

Phone: 800/669-4926

317/577-8326

INDIANA

Hydronic & Steam Equip. Co., Inc.

Indianapolis

Phone: 800/669-4926

Phone: 317/577-8326

Evansville

Phone: 800/473-2753

Phone: 812/473-0330

Ft. Wayne

Phone: 260/489-5785

South Bend

Phone: 800/932-6490

Phone: 574/234-6005

Bornquist, Inc.

Chicago, IL

Phone: 773/774-2800

Blackmore & Glunt, Inc.

Cincinnati, OH

Phone: 513/489-5225

IOWA

Products, Inc.

Des Moines

Phone: 515/288-5738

Sandberg Co., Inc.

East Moline, IL

Phone: 309/796-2371

Verne Simmonds Co.

Omaha, NE

Phone: 402/592-3131

KANSAS

Blackmore & Glunt, Inc.

Lenexa (Kansas City)

Phone: 913/469-5715

KENTUCKY

Blackmore & Glunt, Inc.

Cincinnati, OH

Phone: 513/489-5225

Hydronic & Steam Equip. Co., Inc.

Evansville, IN

Phone: 800/473-2753

812/473-0330

Johnson & Scott, Inc.

Nashville, TN

Phone: 615/254-5454

LOUISIANA

Hydronic Technology Inc.

New Orleans

Phone: 800/365-6746

Phone: 504/827-1163

Shreveport

Phone: 800/673-5737

Phone: 318/797-1500

MAINE

F.I.A., Inc.

Woburn (Boston) MA

Phone: 781/938-8900

MARYLAND

Cummins-Wagner Co., Inc.

Annapolis Junction

Phone: 800/966-1277

Phone: 301/490-9007

Thermoflo Equipment Co., Inc.

Pittsburgh, PA

Phone: 412/366-2012

MASSACHUSETTS

F.I.A., Inc.

Woburn (Boston)

Phone: 781/938-8900

MICHIGAN

R. L. Deppmann Co.

Southfield (Detroit)

Phone: 248/354-3710

Grand Rapids

Phone: 616/656-0821

Bridgeport

Phone: 989/652-3049

Hydro-Flo Products, Inc.

Brookfield (Milwaukee), WI

Phone: 262/781-2810

MINNESOTA

Mulcahy Company

Eagan

Phone: 651/686-8580

MISSISSIPPI

Hydronic Technology Inc.

New Orleans, LA

Phone: 800/365-6746

Phone: 504/827-1163

Johnson & Scott, Inc.

Little Rock, AR

Phone: 501/803-9520

MISSOURI

Blackmore & Glunt, Inc.

Lenexa (Kansas City) KS

Phone: 913/469-5715

Maryland Hgts. (St. Louis)

Phone: 314/878-4313

MONTANA

Columbia Hydronics Co.

Spokane, WA

Phone: 509/242-1118

NEBRASKA

Verne Simmonds Co.

Omaha

Phone: 402/592-3131

NEVADA

California Hydronics Corp.

Rocklin, CA (Northwest NV)

Phone: 510/293-1993

Gritton & Associates, Inc.

Salt Lake City, UT

Phone: 801/486-0767

NEW HAMPSHIRE

F.I.A., Inc.

Woburn (Boston) MA

Phone: 781/938-8900

NEW JERSEY

Wallace-Eannace Assoc., Inc.

Franklin Lakes

Phone: 201/891-9550

R. D. Bitzer Co., Inc.

Bensalem, PA

Phone: 215/604-6600

NEW MEXICO

Boyd Engineering Co., Inc.

Albuquerque

Phone: 505/275-1250

NEW YORK

Wallace-Eannace Assoc., Inc.

Plainview (NYC)

Phone: 516/454-9300

Frank P. Langley Co., Inc.

E. Rochester

Phone: 585/248-5010

Amherst (Buffalo)

Phone: 716/691-7575

Johnson City

Phone: 607/766-9950

Albany

Phone: 518/459-1060

Syracuse Thermal Products, Inc.

East Syracuse

Phone: 315/437-7321

NORTH CAROLINA

James M. Pleasants Co., Inc.

Greensboro

Phone: 800/365-9010

Phone: 336/378-9911

Charlotte

Phone: 704/545-0145

Raleigh

Phone: 919/845-1960

Wilmington

Phone: 910/794-5447

NORTH DAKOTA

Mulcahy Company.

Eagan, MN

Phone: 651/686-8580

OHIO

Blackmore & Glunt, Inc.

Cincinnati

Phone: 513/489-5225

R. L. Deppmann Co.

Richfield

Phone: 330/468-1102

OHIO (Cont’d.)

Steffens-Shultz, Inc.

Columbus

Phone: 614/274-5515

Dayton, Ohio

Phone: 937/454-4980

Thermoflo Equipment Co., Inc.

Pittsburgh, PA

Phone: 412/366-2012

OKLAHOMA

Boone & Boone Sales Co., Inc.

Oklahoma City

Phone: 405/525-7475

Tulsa

Phone: 918/664-9756

OREGON

Columbia Hydronics Co.

Vancouver, WA

Phone:360/883-2600

PENNSYLVANIA

R. D. Bitzer Co., Inc.

Bensalem

Phone: 215/604-6600

Thermoflo Equipment Co., Inc.

Pittsburgh

Phone: 412/366-2012

Frank P. Langley Co., Inc.

Amherst (Buffalo) NY

Phone: 716/691-7575

RHODE ISLAND

F.I.A., Inc.

Woburn (Boston) MA

Phone: 781/938-8900

SOUTH CAROLINA

James M. Pleasants Co., Inc.

Greensboro, NC

Phone: 800/365-9010

Phone: 336/378-9911

Columbia

Phone: 803/798-1405

Greenville

Phone: 864/232-0200

SOUTH DAKOTA

Mulcahy Company

Eagan, MN

Phone: 651/686-8580

Verne Simmonds Co.

Omaha, NE

Phone: 402/592-3131

TENNESSEE

Johnson & Scott, Inc.

Nashville

Phone: 615/254-5454

Cordova (Memphis)

Phone: 901/388-2919

James M. Pleasants Co., Inc.

Greensboro, NC

Phone: 800/365-9010

336/378-9911

Knoxville

Phone: 865/584-5054

TEXAS

Boyd Engineering Co., Inc.

Albuquerque, NM

Phone: 505/275-1250

Oslin Nation Co.

Dallas

Phone: 214/631-5650

Ft. Worth

Phone: 817/590-2500

TEXAS (Cont’d.)

Oslin Nation Co. (Cont’d)

Houston

Phone: 713/699-3500

San Antonio

Phone: 800/243-7756

Phone: 210/342-5544

UTAH

Gritton & Associates, Inc.

Salt Lake City

Phone: 801/486-0767

VERMONT

F.I.A., Inc.

Woburn (Boston) MA

Phone: 781/938-8900

VIRGINIA

TLA, Inc.

Richmond

Phone: 804/321-4444

Virginia Beach

Phone: 757/497-3567

Cummins-Wagner Co., Inc.

Annapolis Junction, MD

Phone: 800/966-1277

301/490-9007

WASHINGTON

Columbia Hydronics Co.

Renton

Phone: 425/271-5870

Spokane

Phone: 509/242-1118

Vancouver

Phone:360/883-2600

WASHINGTON, DC

Cummins-Wagner Co., Inc.

Annapolis Junction, MD

Phone: 800/966-1277

301/490-9007

WEST VIRGINIA

Blackmore & Glunt, Inc.

Cincinnati, OH

Phone: 513/489-5225

TLA, Inc.

Richmond, VA

Phone: 804/321-4444

Thermoflo Equipment Co., Inc.

Pittsburgh, PA

Phone: 412/366-2012

WISCONSIN

Hydro-Flo Products, Inc.

Brookfield (Milwaukee)

Phone: 262/781-2810

Mulcahy Company

Eagan, MN

Phone: 651/686-8580

WYOMING

Gritton & Associates, Inc.

Salt Lake City, UT

Phone: 801/486-0767

J. E. McNevin Co.

Aurora (Denver), CO

Phone: 303/322-0165

INTERNATIONAL:

Visit our website or contact

our office at the address

shown below.

HS 300C PL 71887 1 B&G Service Parts

78557 1 B&G Replacement Parts 78557_1_B&G Replacement Parts

78576 1 B&G Replacement Parts 78576_1_B&G Replacement Parts

79323 1 B & G Replacement Parts 79323_1_B & G Replacement Parts

78556 1 B&G Replacement Parts 78556_1_B&G Replacement Parts

79353 1 B & G Replacement Parts 79353_1_B & G Replacement Parts

Navigation menu

Versions of this User Manual:

Views

Navigation
