Not for
Reproduction
Illustrated Parts List
Portable Generator
This generator is rated in accocrdance with CSA (Canadian Standards Association)
standard C22.2 No. 100-94 (motor and generators).
Questions? Help is just a moment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Portable Generator Helpline
Llame: Línea Directa del Generador portátil - 1-800-732-2989 M-F 8-5 CST
Revision A
Manual Part No. 313536
Rev. Date:10/27/2011
Mf
g
. No. Descri
p
tion / Descri
p
ción
Model
/
Modelo
030469-0 6,000 Watt Briggs & Stratton
Not for
Reproduction
Not for
Reproduction

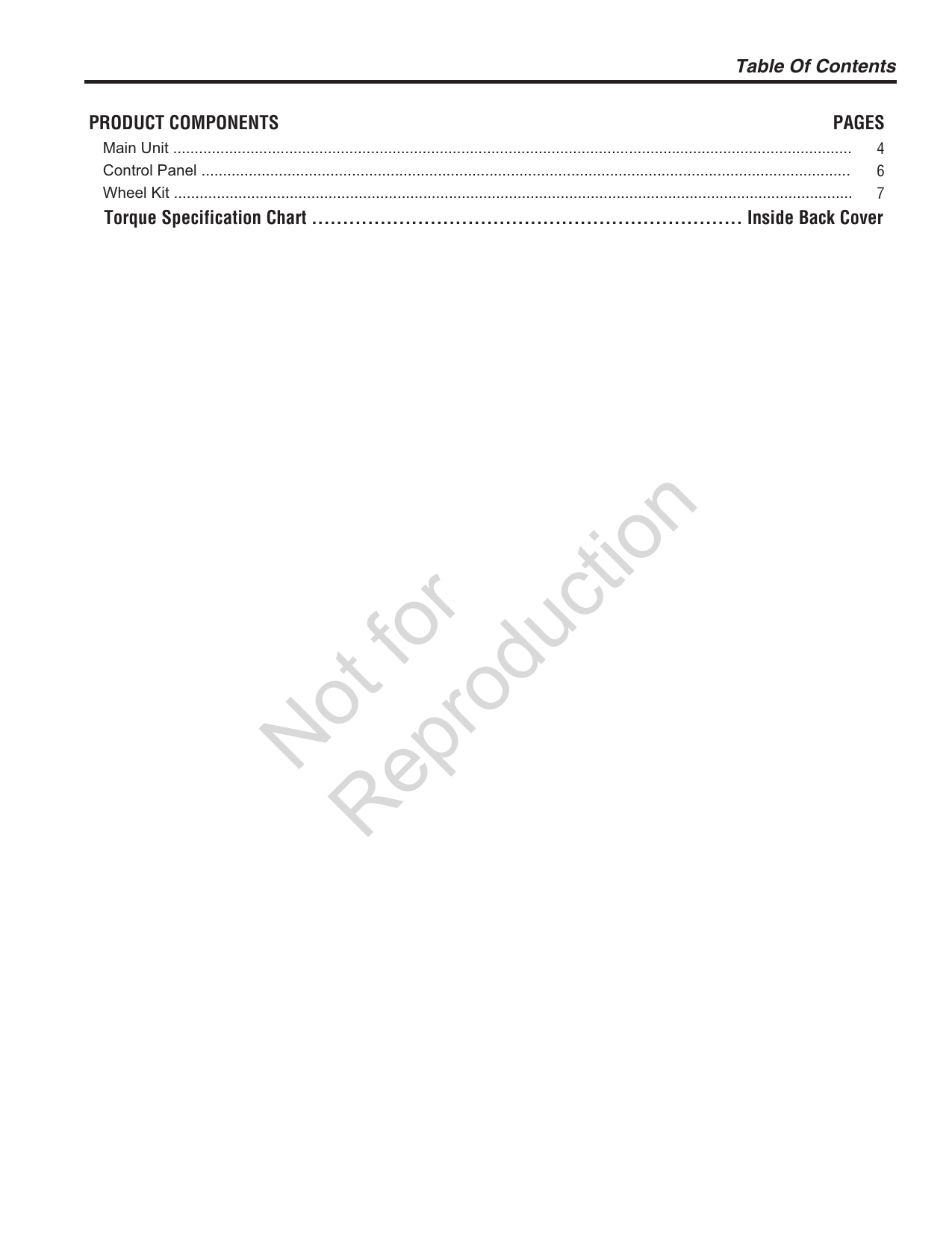

Table Of Content
s
Torque Specification Chart ..................................................................... Inside Back Cover
PRODUCT COMPONENTS PAGES
Main Unit .............................................................................................................................................................. 4
Control Panel ....................................................................................................................................................... 6
Wheel Kit .............................................................................................................................................................. 7
Not for
Reproduction

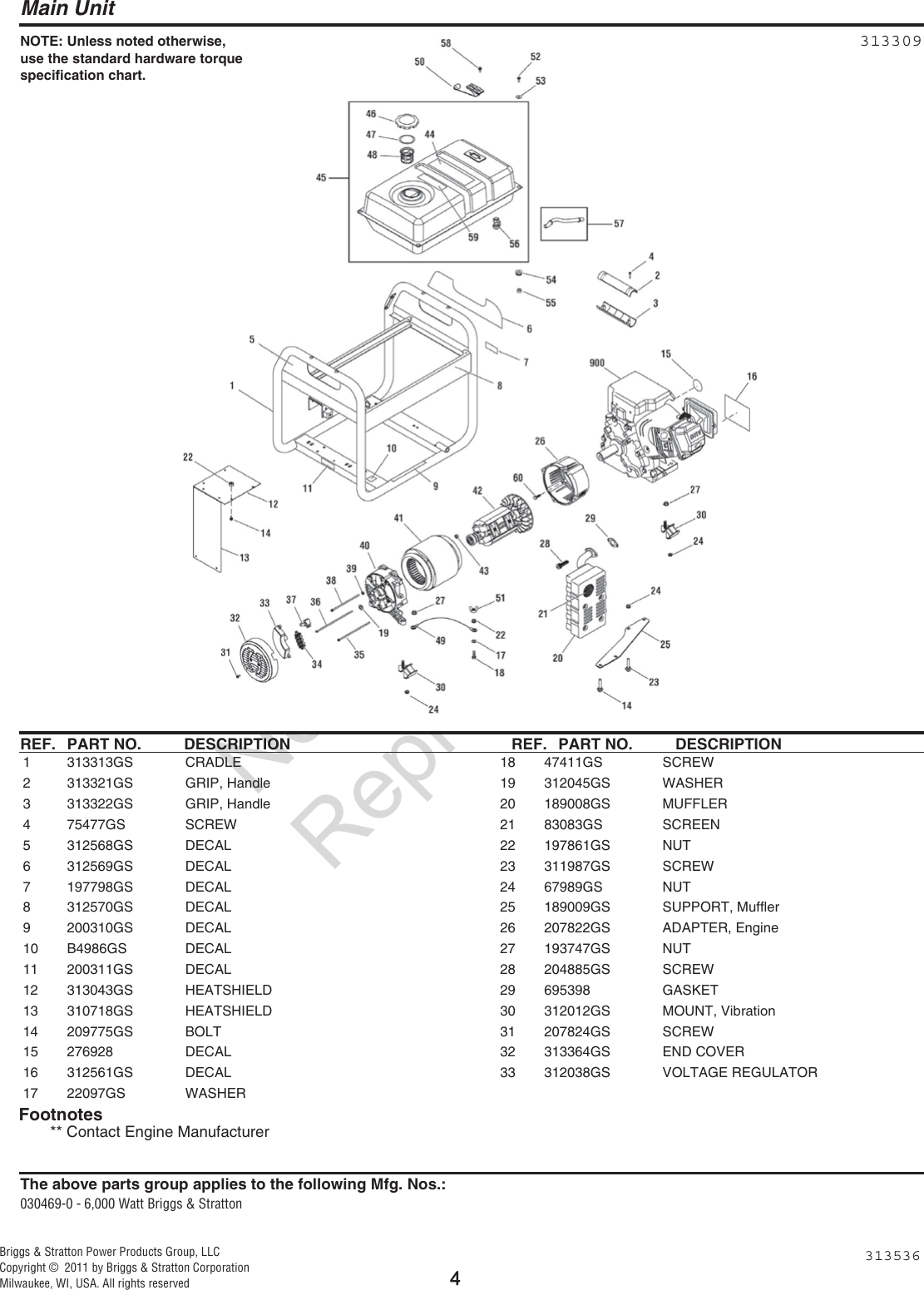

Main Unit
313309
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
PART NO. DESCRIPTIONREF.
Footnotes
PART NO. DESCRIPTIONREF.
CRADLE 1 313313GS
GRIP, Handle 2 313321GS
GRIP, Handle 3 313322GS
SCREW 4 75477GS
DECAL 5 312568GS
DECAL 6 312569GS
DECAL 7 197798GS
DECAL 8 312570GS
DECAL 9 200310GS
DECAL 10 B4986GS
DECAL 11 200311GS
HEATSHIELD 12 313043GS
HEATSHIELD 13 310718GS
BOLT 14 209775GS
DECAL 15 276928
DECAL 16 312561GS
WASHER 17 22097GS
SCREW 18 47411GS
WASHER 19 312045GS
MUFFLER 20 189008GS
SCREEN 21 83083GS
NUT 22 197861GS
SCREW 23 311987GS
NUT 24 67989GS
SUPPORT, Muffler 25 189009GS
ADAPTER, Engine 26 207822GS
NUT 27 193747GS
SCREW 28 204885GS
GASKET 29 695398
MOUNT, Vibration 30 312012GS
SCREW 31 207824GS
END COVER 32 313364GS
VOLTAGE REGULATOR 33 312038GS
** Contact Engine Manufacturer
4
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
313536
030469-0 - 6,000 Watt Bri
gg
s & Stratton
Not for
Reproduction

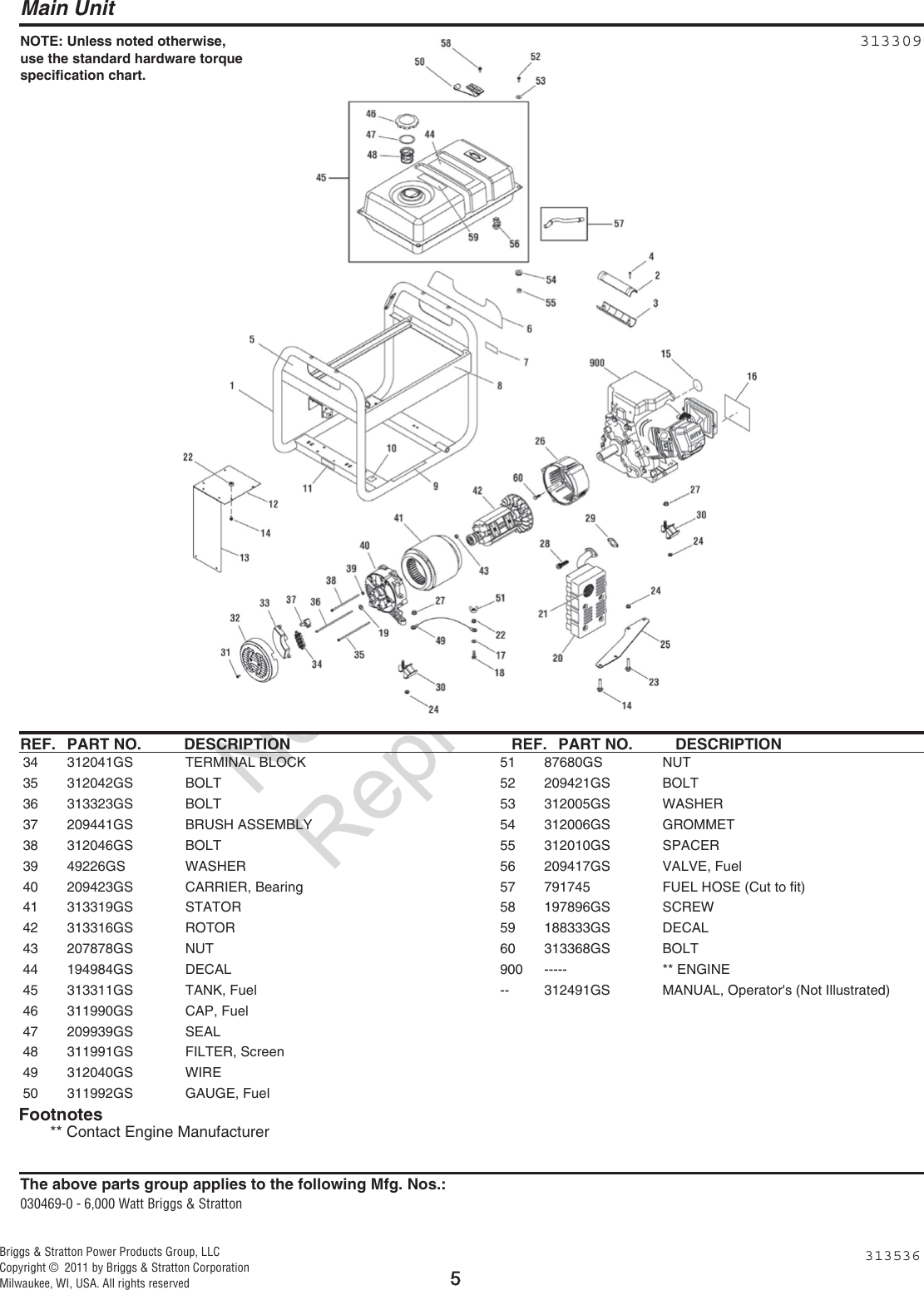

Main Unit
313309
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
PART NO. DESCRIPTIONREF.
Footnotes
PART NO. DESCRIPTIONREF.
TERMINAL BLOCK 34 312041GS
BOLT 35 312042GS
BOLT 36 313323GS
BRUSH ASSEMBLY 37 209441GS
BOLT 38 312046GS
WASHER 39 49226GS
CARRIER, Bearing 40 209423GS
STATOR 41 313319GS
ROTOR 42 313316GS
NUT 43 207878GS
DECAL 44 194984GS
TANK, Fuel 45 313311GS
CAP, Fuel 46 311990GS
SEAL 47 209939GS
FILTER, Screen 48 311991GS
WIRE 49 312040GS
GAUGE, Fuel 50 311992GS
NUT 51 87680GS
BOLT 52 209421GS
WASHER 53 312005GS
GROMMET 54 312006GS
SPACER 55 312010GS
VALVE, Fuel 56 209417GS
FUEL HOSE (Cut to fit) 57 791745
SCREW 58 197896GS
DECAL 59 188333GS
BOLT 60 313368GS
** ENGINE 900 -----
MANUAL, Operator's (Not Illustrated) -- 312491GS
** Contact Engine Manufacturer
5
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
313536
030469-0 - 6,000 Watt Bri
gg
s & Stratton
Not for
Reproduction

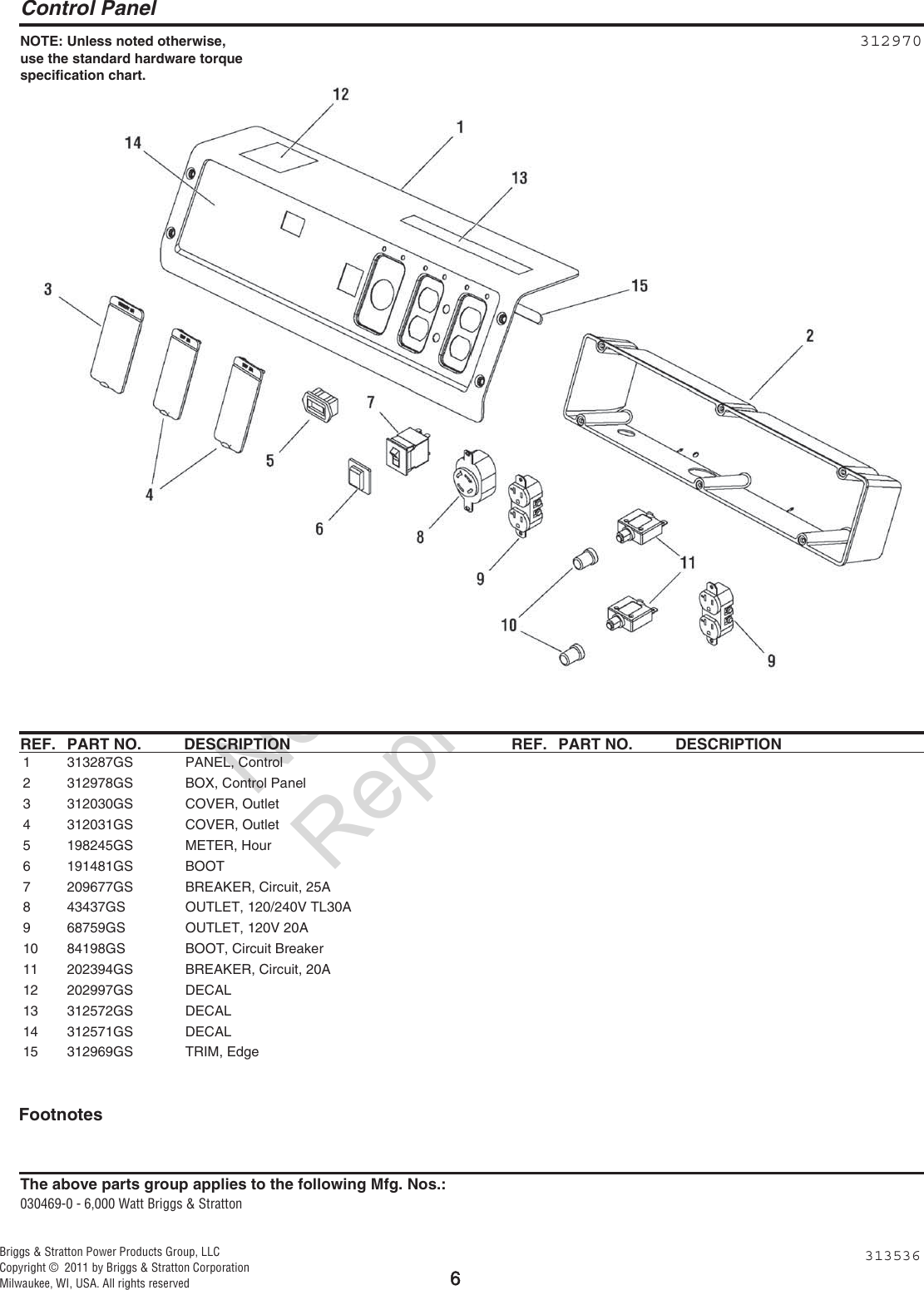

Control Panel
312970
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
PART NO. DESCRIPTIONREF.
Footnotes
PART NO. DESCRIPTIONREF.
PANEL, Control 1 313287GS
BOX, Control Panel 2 312978GS
COVER, Outlet 3 312030GS
COVER, Outlet 4 312031GS
METER, Hour 5 198245GS
BOOT 6 191481GS
BREAKER, Circuit, 25A 7 209677GS
OUTLET, 120/240V TL30A 8 43437GS
OUTLET, 120V 20A 9 68759GS
BOOT, Circuit Breaker 10 84198GS
BREAKER, Circuit, 20A 11 202394GS
DECAL 12 202997GS
DECAL 13 312572GS
DECAL 14 312571GS
TRIM, Edge 15 312969GS
6
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
313536
030469-0 - 6,000 Watt Bri
gg
s & Stratton
Not for
Reproduction
Wheel Kit
312967
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
PART NO. DESCRIPTIONREF.
Footnotes
PART NO. DESCRIPTIONREF.
HANDLE 1 312973GS
GRIP, Handle 2 313284GS
GRIP, Handle 3 313283GS
SCREW 4 75477GS
BOLT 5 312974GS
WASHER 6 187104GS
NUT 7 49820GS
BOLT 8 207825GS
KNOB 9 312016GS
SPRING 10 312015GS
PIN 11 312017GS
MOUNT, Vibration 12 192310GS
NUT 13 52857GS
BOLT 14 42568GS
SUPPORT, Leg 15 312968GS
WASHER 16 46526GS
NUT 17 209413GS
WASHER 18 209419GS
HUBCAP 19 316418GS
WHEEL 20 209322GS
PIN, Hair, .0915 x 1-7/8 21 5025210YP
AXLE 22 312972GS
7
The above parts group applies to the following Mfg. Nos.:
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2011
313536
030469-0 - 6,000 Watt Bri
gg
s & Stratton
Not for
Reproduction
Not for
Reproduction
Not for
Reproduction
Not for
Reproduction
in/lbs
ft/lbs
3
Torque Specification Chart
FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)
Property
Class
Class 8.8 Class 10.9 Class 12.9
Size Of
Hardware Nm. Nm. Nm. Nm.
M3
1.28
2.90
5.75
9.9
16.5
24
48
83
132
200
275
390
530
375
995
1350
1830
2360
3050
13.44 1.80
4.10
8.10
14
23
34
67
117
185
285
390
550
745
960
1400
1900
2580
3310
4290
19.2 22.92
2.15
M4
30.72 43.44 52.56
4.95
M5
60.96
5.97 7.15
16.5
9.7
M6 7.3 10.3 12.1
M7 12.1 16.9 19.9 27
M8 17.7 25 29 40
M10 35 50 59 81
M12 61 86.2 103 140
M14 101 136 162 220
M16 147 210 250 340
M18 202 287 346 470
M20 290 405 486 660
M22 390 559 656 890
M24 497 708 840 1140
M27 733 1032 1239 1680
M30 995 1401 1681 2280
M33 1349 1902 2278 3090
M36 1740 2441
3798
2935 3980
M39 2249 3163
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of
in/lbs
ft/lbs
in/lbs
ft/lbs
in/lbs
ft/lbs
in/lbs in/lbs
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
19
2.1
30
3.4
41
4.6
8-36
20
2.3
31
3.5
43
4.9
10-24
27
3.1
43
4.9
60
6.8
10-32
31
3.5
49
5.5
68
7.7
1/4-20
66
7.6 810.9 12 16.3
1/4-28
76
8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 29 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
Hex Head Capscrew
Hex Nut
Lockwasher
Washer
Carriage Bolt
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Hardware Identification & Torque Specifications
Common Hardware Types
No
Marks
The guides and ruler furnished below are designed to
help you select the appropriate hardware.
8.8 10.9 12.9
Class 5.6
5.6
5150
13.44 1.28
5.88
26.4 2.50
44.64 4.3
5.2
7.1
7.7
10.5
15
21
988
1340
759
1030
590
800
435
590
320
435
217
295
169
230
126
171
89
121
64
88
42
58
26
36
.56
Thread
Diameter (mm)
Screw, 1/2- 16 x 2
Body
Diameter
Diameter
Inside
Diameter (in)
Nut, 1/2-16
0
1/4 3/4
1/2
21
1/4 3/4
1/2 1/4 3/4
1/2 1/4 3/4
1/2
4
90 10070 80
50 60
30 40
01020
Thread
Diameter (mm)
Nut, M8 Screw, M8- 1.25 x 25
Distance between
threads (mm)
Body
Length (in)
Body
Length (mm)
3/8” Bolt or Nut
Wrench—9/16”
5/16” Bolt or Nut
Wrench—1/2”
1/4” Bolt or Nut
Wrench—7/16”
1/2” Bolt or Nut
Wrench—3/4”
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
in/lbs
Threads
per inch
Threads
per inch
Body Length
Body
When a washer or nut is identified as 1/2” (M8), this is
the
Nominal size
, meaning the
inside diameter
is 1/2 inch
(8mm metric thread diameter); if a second number is present
it represents the
threads per inch
(distance between threads).
When bolt or capscrew is identified as 1/2 - 16 x 2” (M8 - 1.25 x 50 ),
this means the
Nominal size
, or body diameter is 1/2 inch (8mm
metric thread diameter), the second number,16, represents the
threads per inch, (1.25 thread diameter).
The final number is the
body length of the bolt or screw, 2 inches (50mm).
Standard Hardware Sizing
M6 Bolt or Nut
Wrench—10mm
M8 Bolt or Nut
Wrench—13mm
M10 Bolt or Nut
Wrench—17mm
M12 Bolt or Nut
Wrench—19mm
M14 Bolt or Nut
Wrench—22 mm
Wrench & Fastener Size Guide
Not for
Reproduction
