89381 4 Berkeley B55566 Repair Parts I

: Pump 89381 4 Berkeley B55566 Repair Parts I 89381_4_Berkeley B55566 Repair Parts I pdf

Open the PDF directly: View PDF PDF.
Page Count: 1

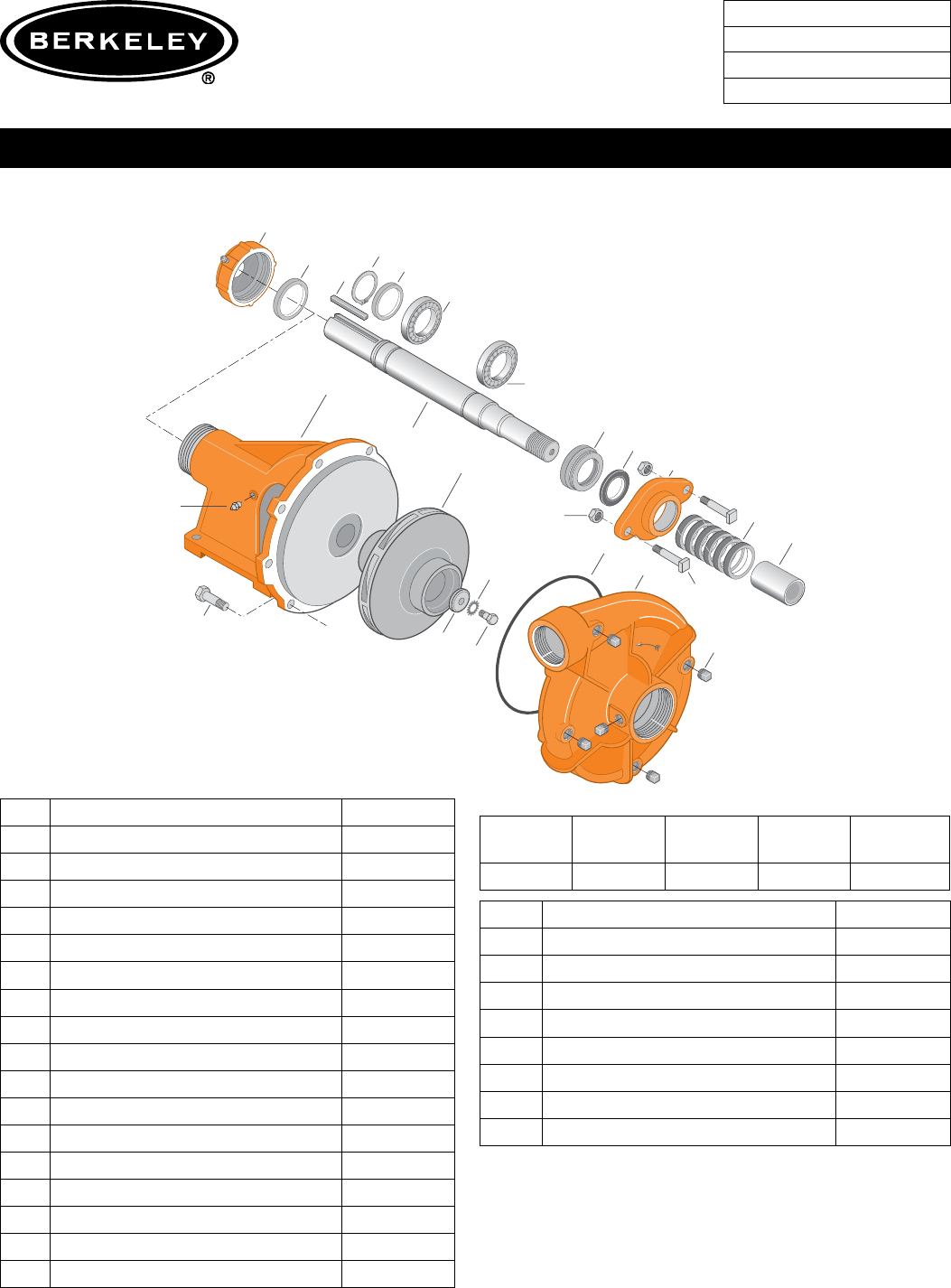

Type ‘‘B’’ Single Stage
Centrifugal Pump
Bearing Frame Mount
H 553
H 553
T
r
u
a
r
c
2023 1210
16
35
40
802 13
14
17
800B
19
800A
2
6
1
73
805A
69
26
18
37
816
809
32
810
811
72
Cast Iron Impeller B2Zrl
Threaded Case (NPT) Packing Construction
Item Part Description Part Number
1Case, Volute See Table I
2 Impeller See Table I
6 Shaft (Not sold separately) See Note 2
13 Ring, Packing (Set of 6) S08281
14 Sleeve, Shaft S05127L
16 Bearing, Ball S13270
17 Gland, Packing (See Note 1) S04948
18 Bearing, Ball S13269
19 Frame H00553
26 Screw, Impeller 3/8-16x1” S23566
32 Key, 1/4x2-1/8” S24255
35 Inner Bearing Cap S19033
37 Outer Bearing Cap Assembly* S19914
40 Slinger, Water S12260
69 Washer, Impeller S06314
72 Ring, Thrust S29218
73 O-Ring (See Note 3) M14943
* Includes grease fitting and set screw.
Item Part Description Part Number
800A Capscrew, Hex 3/8-16x1” (8 Req.) S26825
800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762
802 Nut, Hex 3/8-16 (2 Req.) S23343
805A Washer, Lock S23036
809 Spacer, Ring S05822
810 Plug, Pipe 1/4 NPT (5 Req.) S23715
811 Fitting, Grease M11141
816 Ring, Retaining (1 Req.) S23010
Table I
B/M No. Rotation Volute
Case
Impeller Impeller
Diameter
B55566 CW L01026 M06940 9.00”
NOTE 1: A two piece (split) stainless steel packing gland is
available for replacement, order part number B80701.
NOTE 2: Shaft Replacement Kit available for this model.
Berkeley part number B82183. Pump Shaft sold in shaft
replacement kit only.
NOTE 3: If pump was built with gasket, use S05126. Do Not
substitute o-ring for gasket.
Section FM
Page 30.1
Date February 1, 2012
Supersedes 7/1/2011
