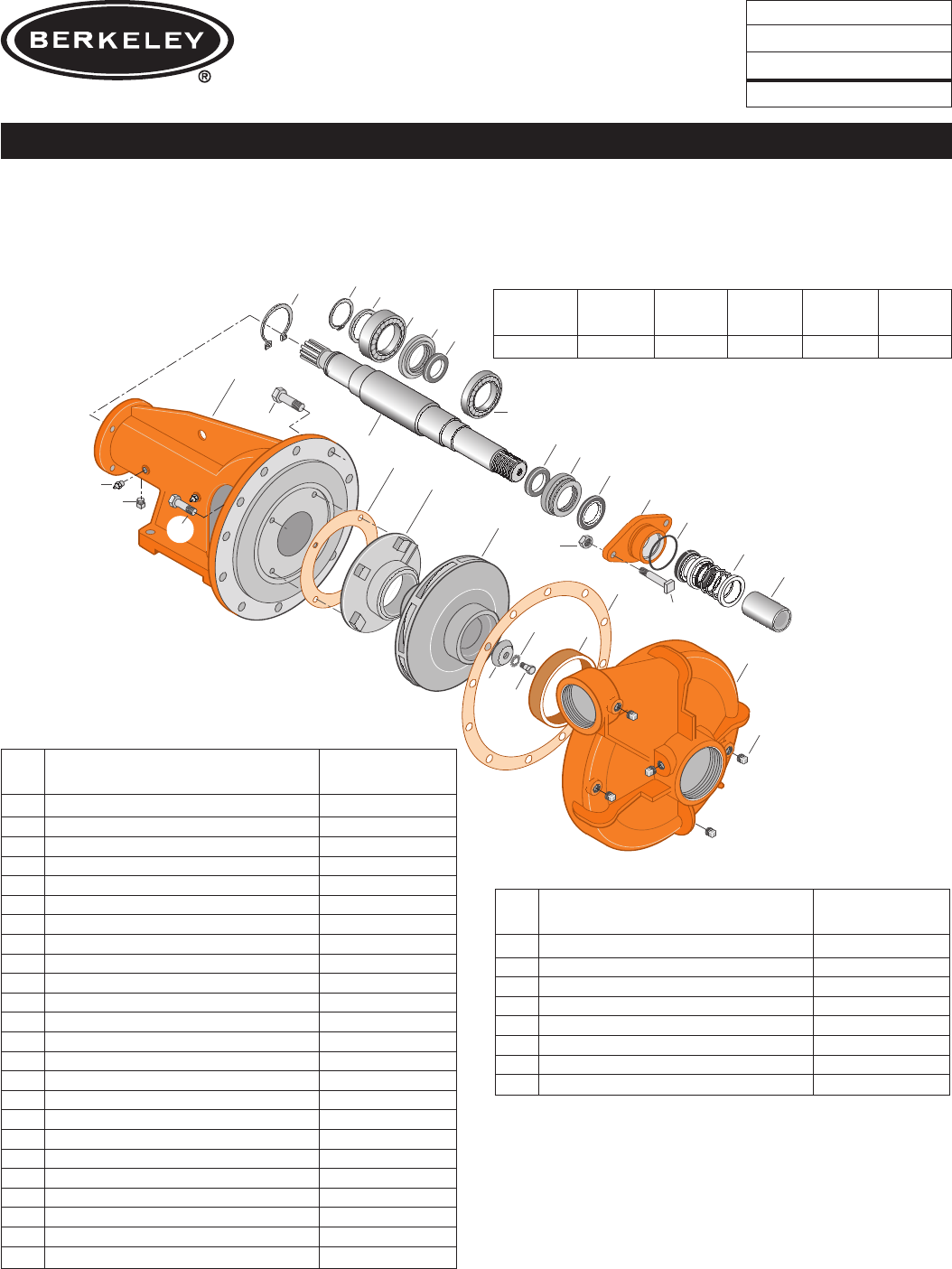

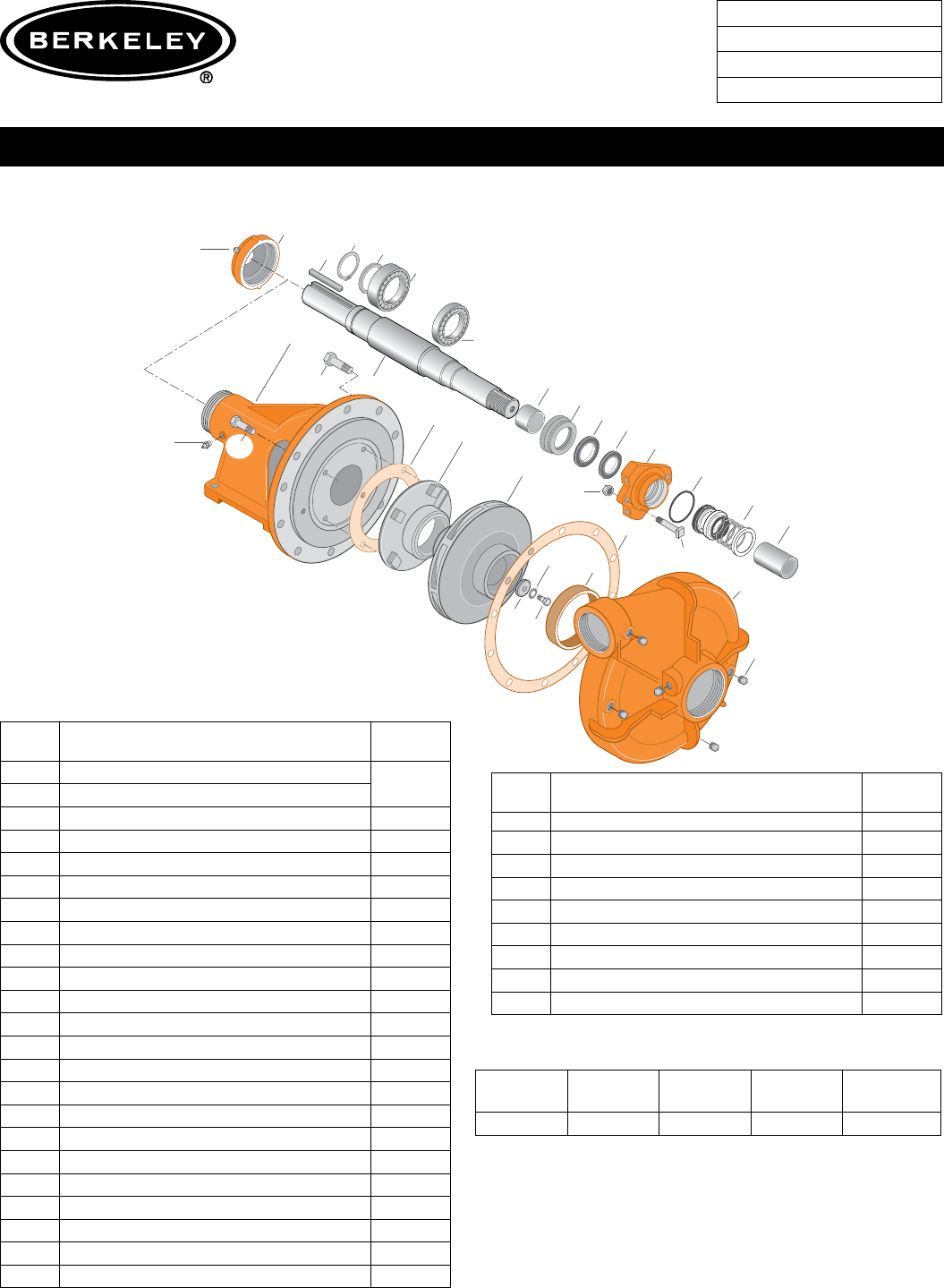

TYPE ‘‘B’’ SINGLE STAGE
CENTRIFUGAL PUMP
Bearing Frame Mount
Section FM
Page 160.1
Date January 1, 2004
Supersedes 12/1/95
CAST IRON IMPELLER B3JRMBM
Threaded Case (NPT) Packing Construction
Form No. S4855BK
Item
No. Part Description Part Number
1Case, Volute See Table I
2Impeller See Table I
6Shaft (Not sold separately) See Note 1
7Ring, Wearing S04176
13 Ring, Packing (Set of 4) S13436
14 Sleeve, Shaft S05974
16 Bearing, Ball S15604
17 Gland, Packing B82472
18 Bearing, Ball S13396
19 Frame H01599
26 Screw, Impeller 1/2-13x1-1/2” S23623
29 Ring, Lantern S18993
32 Key, 1/2x4” S24214
35 Inner Bearing Cap S05928
37 Outer Bearing Cap Assembly* S35277
40 Slinger, Water S10964
63 Bushing, Throat S18992
69 Washer, Impeller S06319
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
115 Ring, Balance M05115
Item
No. Part Description Part Number
800A Capscrew, Hex 5/8x11x1-1/2”(12 Req.) S26999
800B Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794
800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826
802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347
805A Washer, Lock S23038
810 Plug, Pipe 1/2 NPT (6 Req.) S23717
811 Fitting, Grease (2 Req.) S23670
816 Ring, Retaining S23016
1. Shaft Replacement Kit available for this model.
Berkeley part number B07596 for CW, B07597 for
CCW.
Pump Shaft sold in shaft replacement kit only.
* Includes grease fitting.
TABLE I
Volute Impeller
B/M No. Rotation Case Impeller Diameter
B52363 CW H01863 L03038 13.50”
B52364 CCW H01892 L03115 13.50”
T
r
u
a
r
c
800A
2054 1095
821
822
823
19
6
73B
115
2
16
40
35
802
37
32
816 72
18
1
810
73A
89
11
119
14
800B
69
26
7
805A
800C
811
TYPE ‘‘B’’ SINGLE STAGE
CENTRIFUGAL PUMP
Bearing Frame Mount
Section FM
Page 160.2
Date January 1, 2004
Supersedes 12/1/95
CAST IRON IMPELLER B3JRMBMS
Threaded Case (NPT) Mechanical Seal Construction
Form No. S4855BK
Item
No. Part Description Part Number
1Case, Volute See Table I
2Impeller See Table I
6Shaft (Not sold separately) See Note 1
7Ring, Wearing S04176
11 Retainer, Mechanical Shaft Seal S11452
14 Sleeve, Shaft S05974
16 Bearing, Ball S15604
18 Bearing, Ball S13396
19 Frame H01838
26 Screw, Impeller 1/2-13x1-1/2” S23623
32 Key, 1/2x4” S24214
35 Inner Bearing Cap S05928
37 Outer Bearing Cap Assembly* S35277
40 Slinger, Water S10964
69 Washer, Impeller S06319
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
89 Seal, Mechanical Shaft S32693
115 Ring, Balance M05073
119 O-Ring S26471
800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999
Item
No. Part Description Part Number
800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792
800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826
802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347
805A Washer, Lock S23038
810 Plug, Pipe 1/2 NPT (6 Req.) S23717
811 Fitting, Grease S23670
816 Ring, Retaining S23016
821 Elbow, Comp. Fitting (2 Req.) S24128
822 Tubing, Copper S20677
823 Bushing, Pipe S24544
1. Shaft Replacement Kit available for this model.
Berkeley part number B07596 for CW, B07597 for
CCW.
Pump Shaft sold in shaft replacement kit only.
* Includes grease fitting.
TABLE I
Volute Impeller
B/M No. Rotation Case Impeller Diameter
B66924 CW H01863 L03038 13.50”
B61999 CCW H01892 L03115 13.50”
800A
2170 1295
19
6
73B
115
2
37
51A
51B
16
40
35
802B
816
817 72
18
1
810A
73A
89
11
119
14
800B
800C
810B
811
69
26
7
805A
TYPE ‘‘B’’ SINGLE STAGE
CENTRIFUGAL PUMP
Bearing Frame Mount
Section FM
Page 160.2M
Date January 1, 2004
Supersedes Dec. 1, 1995
CAST IRON IMPELLER B3JRMBMS
Threaded Case (NPT) Mechanical Seal Construction
Item
No. Part Description Part Number
1 Case, Volute See Table I
2 Impeller See Table I
6Shaft (See Note 1) See Table I
7 Ring, Wearing S04176
11 Retainer, Mechanical Shaft Seal S11452
14 Sleeve, Shaft S05974
16 Bearing, Ball S15604
18 Bearing, Ball M10184
19 Frame H05103
26 Screw, Impeller 1/2-13x1-1/2” S23623
35 Inner Bearing Cap M10200
37 Outer Bearing Cap M10209
40 Slinger, Water S10964
51A Seal, Oil M10210
51B Seal, Oil S14765
69 Washer, Impeller S19275
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
89 Seal, Mechanical Shaft S32693
115 Ring, Balance M05073
119 O-Ring S26471
800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999
800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792
Item
No. Part Description Part Number
800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826
802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347
805A Washer, Lock S23038
810A Plug, Pipe 1/2 NPT (4 Req.) S23717
810B Plug, Pipe 1/4 NPT S23715
811 Fitting, Grease (2 Req.) S23670
816 Ring, Retaining S23016
817 Ring, Retaining S23025
TABLE I
Volute Shaft Impeller
B/M No. Rotation Case No. Impeller Diameter
B73403 CW H01863 H05105 L03038 13.50”
1. Shaft Replacement Kit is not available for this
model. Order Replacement Shaft and associated
components from above listing.

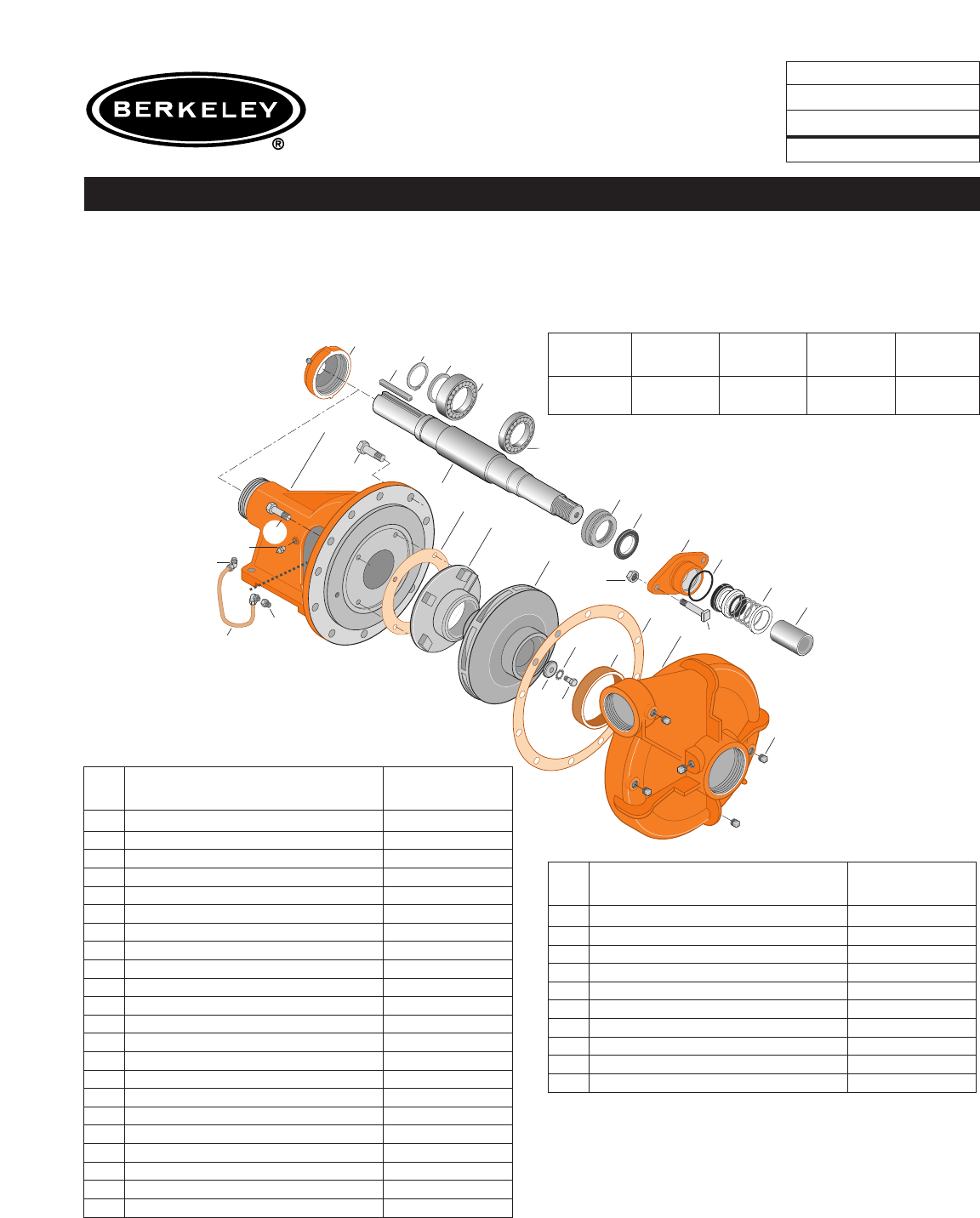

Type ‘‘B’’ Single Stage
Centrifugal Pump
Bearing Frame Mount
Cast Iron Impeller B3JrmBms
Threaded Case (NPT), Dry Run Mechanical Shaft Seal Construction
Ref. Part Description
Part
Number
1Case, Volute See
Table 1
2 Impeller
6 Shaft
See Note 1
7Ring, Wearing S04176
11 Retainer, Mechanical Shaft Seal, Dry Run M14959
11A Dry Run Gland Lip Seal M12337
14 Sleeve, Shaft S05974L
14A Sleeve, Shaft M14971
16 Bearing, Ball S15604
18 Bearing, Ball S13396
19 Frame M14963
26 Screw, Impeller 1/2-13x1-1/2” S23623
32 Key, 1/2x4” S24214
35 Inner Bearing Cap S05928
37 Outer Bearing Cap Assembly* S35277
40 Slinger, Water S10964
69 Washer, Impeller S06319
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
89 Seal, Mechanical Shaft S32693
115 Ring, Balance M06646
119 O-Ring M14972
Ref. Part Description
Part
Number
800A Capscrew, Hex 5/8-11x1-1/2” (10 Rqd.) S26999
800A Capscrew, Hex 5/8-11x1-3/4” (2 Rqd. top ctr.) S27001
800C Capscrew, Hex 3/8-16x1” (4 Rqd.) S28626
800D Bolt, Sq. Head 1/2-13x2-1/4” (2 Rqd.) S23792
802 Nut, Hex 1/2-13x7/16” (2 Rqd.) S23347
805 Washer, Lock S23038
810 Plug, Pipe 1/2 NPT (6 Req.) S23717
811 Fitting, Grease (2 Rqd.) S23670
816 Ring, Retaining S23016
*Includes grease fitting
Section FM
Page 160.3
Date December 1, 2011
New
NOTE 1: Shaft Replacement Kit is available for this model.
Berkeley part number B07596. Pump shaft sold in replacement
kit only. Refer to Supplement “C” for shaft kit components.
NOTE 2: Refer to Supplement “F” for dry run tank repair parts.
Dry run lubrication system requires one gallon of food grade
hydraulic oil (FGHO), viscosity 150 SSU at 100 °F. Oil not
supplied, purchase locally.
Table I
B/M No. Rotation Volute Case Impeller Impeller
Diameter
B66924D CW H01863 L03038 13.50”
T
r
u
a
r
c
800A
6455 0911
19
6
73B
115
2
16
40
35
37
32
816
72
18
1
810
73A
89
119
14
800D
69
26
7
805A
800C
811
811
802
11
11A
14A
