T
r
u
a
r
c
800A
801
802A
2060 1095
811
19
37
32
6
73B
115
2
1
810
73A
816 72
18
16
40
802B
35
17
800B 29
14
63
13
See Supplement B
69
26
7
805A

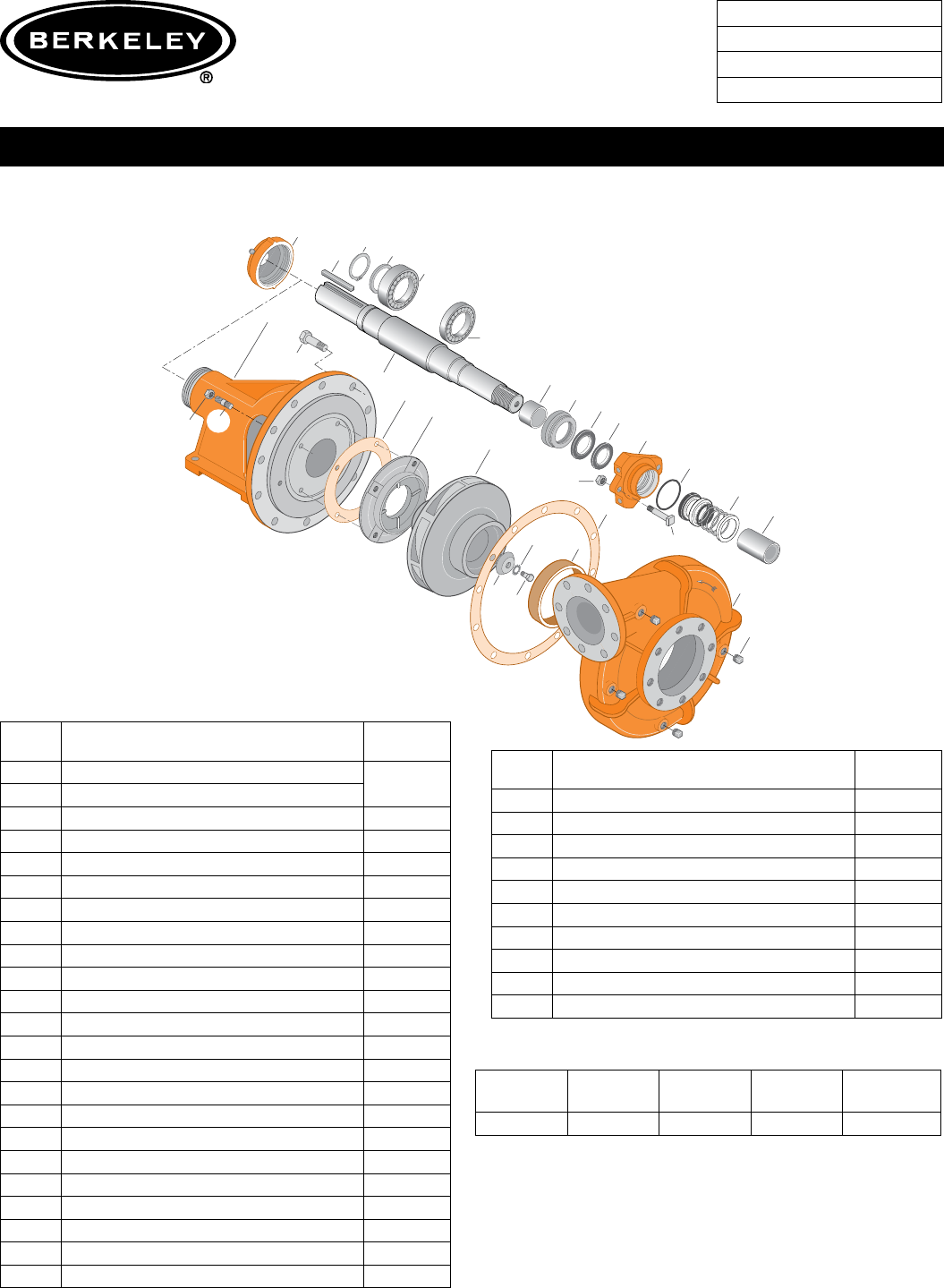

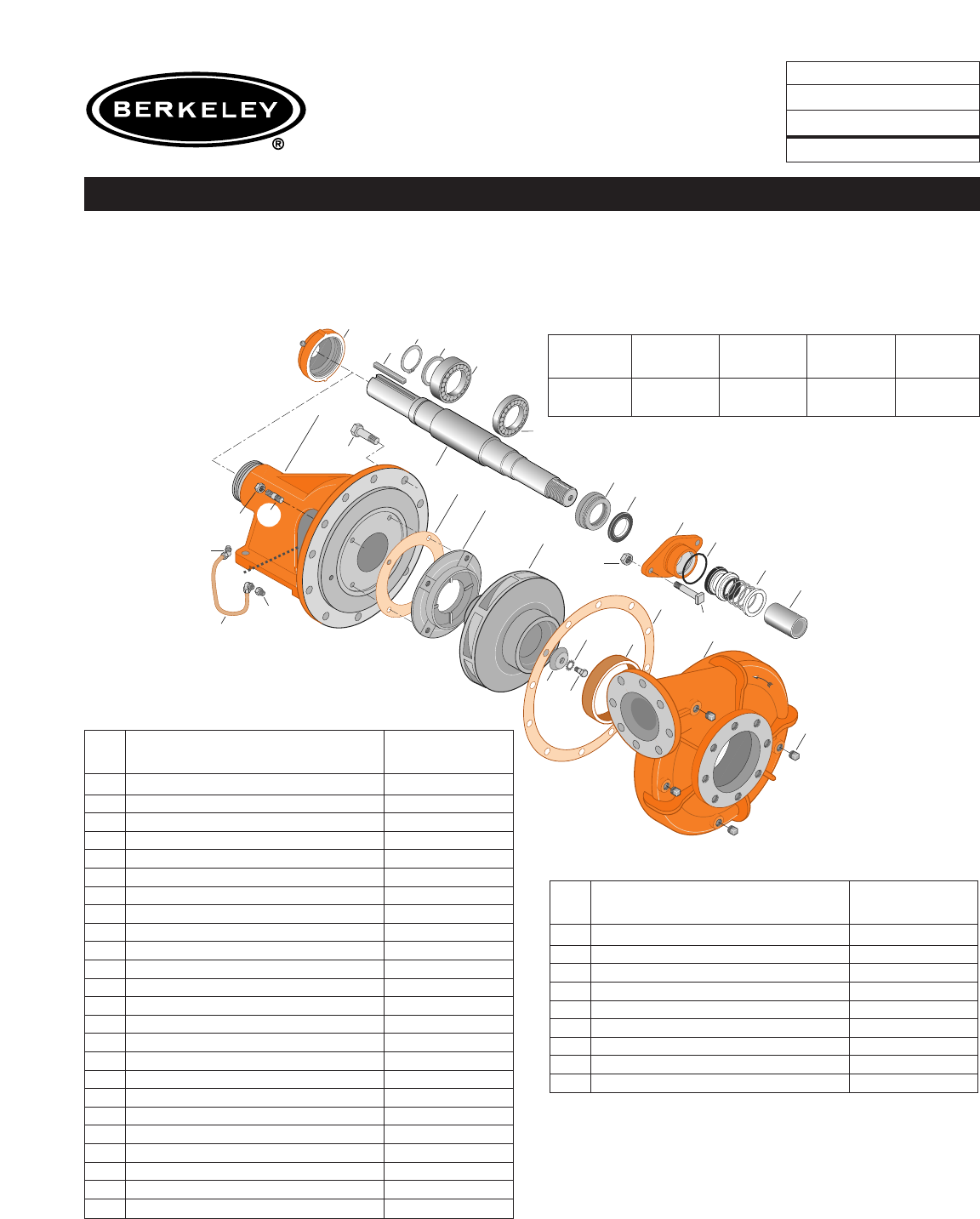

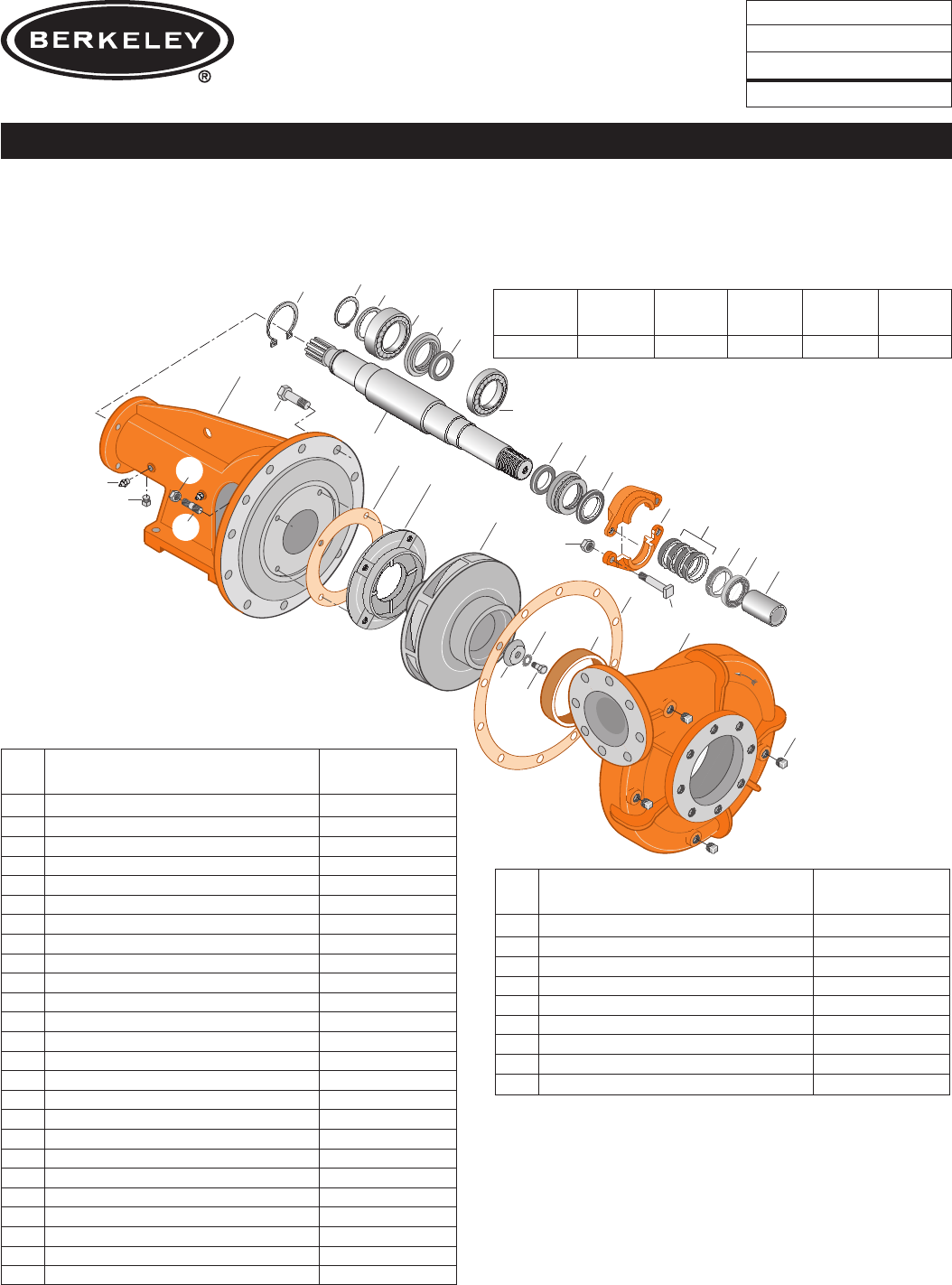

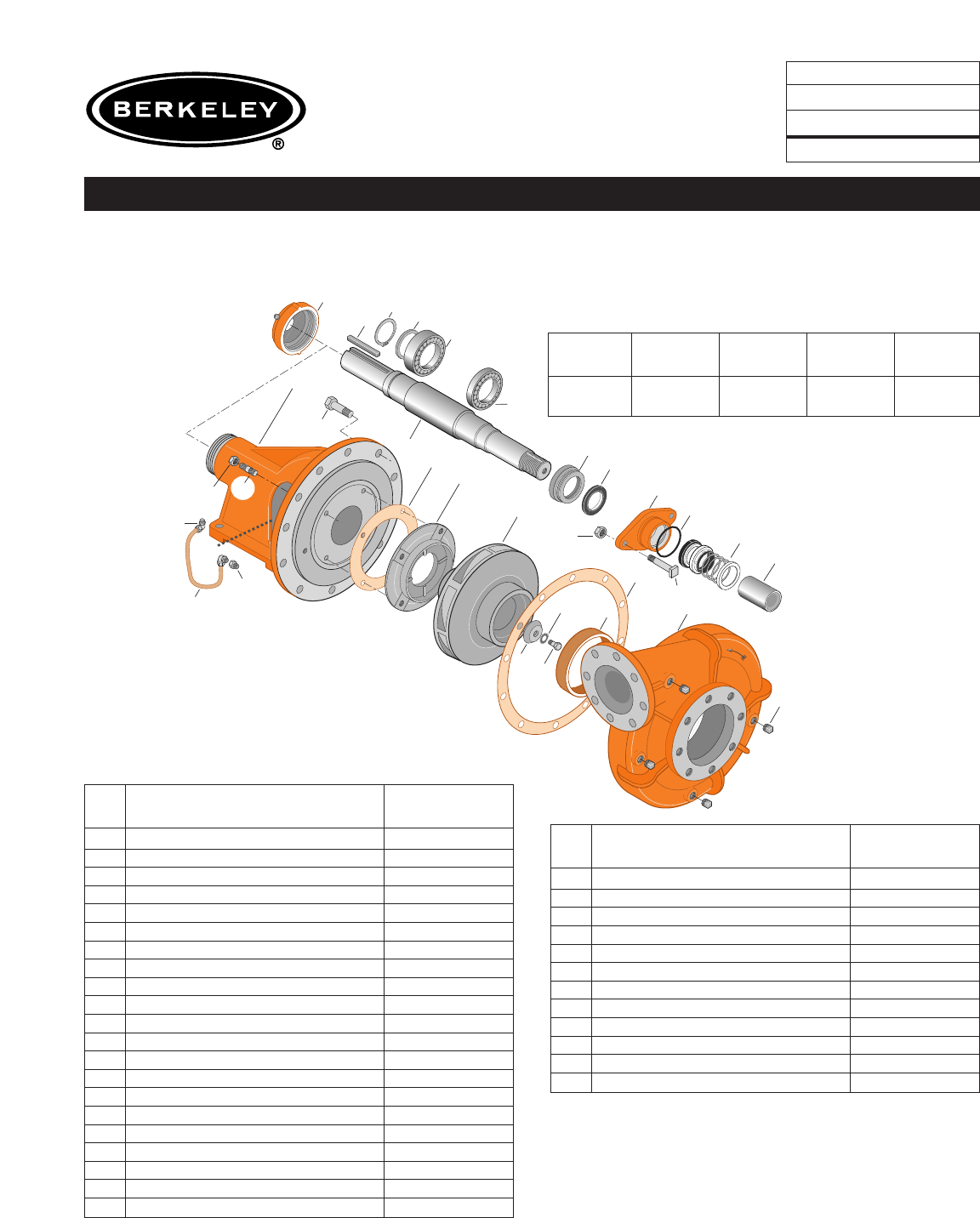

TYPE ‘‘B’’ SINGLE STAGE
CENTRIFUGAL PUMP
Bearing Frame Mount
Section FM
Page 190.1
Date January 1, 2004
Supersedes 12/1/95
CAST IRON IMPELLER B4JRMBH
Flanged Case Packing Construction
Form No. S4855BK
Item
No. Part Description Part Number
1Case, Volute See Table I
2Impeller See Table I
6Shaft (Not sold separately) See Note 1
7Ring, Wearing S02894
13 Ring, Packing (Set of 4) S13436
14 Sleeve, Shaft S05974
16 Bearing, Ball S15604
17 Gland, Packing B82472
18 Bearing, Ball S13396
19 Frame H01599
26 Screw, Impeller 1/2-13x1-1/2” S23623
29 Ring, Lantern S18993
32 Key, 1/26x4” S24214
35 Inner Bearing Cap S05928
37 Outer Bearing Cap Assembly* S35277
40 Slinger, Water S10964
63 Bushing, Throat S18992
69 Washer, Impeller S19275
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
115 Ring, Balance S12315
Item
No. Part Description Part Number
800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999
800B Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794
801 Stud, 3/8-16x1-3/8” (4 Req.) S09942
802A Nut, Hex 3/8-16 (4 Req.) S23103
802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347
805A Washer, Lock S23038
810 Plug, Pipe 1/2 NPT (4 Req.) S23717
811 Fitting, Grease (2 Req.) S23670
816 Ring, Retaining S23016
1. Shaft Replacement Kit available for this model.
Berkeley part number B07596 for CW, B07597 for
CCW.
Pump Shaft sold in shaft replacement kit only.
* Includes grease fitting.
TABLE I
Volute Impeller
B/M No. Rotation Case Impeller Diameter
B62321 CW H03843 L05976 13.50”
B62323 CCW H03848 L05974 13.50”
T
r
u
a
r
c
T
r
u
a
r
c
800A
5538 1206
19
6
73B
115
2
37
51A
51B
16
40
35
802B
816
817 72
18
1
810A
73A
69
26
7
805A
801
810B
802A
811
17
800B
14
63
13A
13
(See Supplement B)
TYPE ‘‘B’’ SINGLE STAGE
CENTRIFUGAL PUMP
Bearing Frame Mount
Section FM
Page 190.1M
Date December 19, 2006
New
CAST IRON IMPELLER B4JRMBH
Flanged Case Packing Construction
Item
No. Part Description Part Number
1 Case, Volute See Table I
2 Impeller See Table I
6Shaft (See Note 1) See Table I
7 Ring, Wearing S02894
13 Ring, Packing (4 Req.) M14761
13A Ring, Packing Metallic (1 Req.) S13434
14 Sleeve, Shaft S05974
16 Bearing, Ball S15604
17 Gland, Packing B82472
18 Bearing, Ball M10184
19 Frame M14766
26 Screw, Impeller 1/2-13x1-1/2” S23623
35 Inner Bearing Cap M10200
37 Outer Bearing Cap M10209
40 Slinger, Water S10964
51A Seal, Oil M10210
51B Seal, Oil S14765
63 Bushing, Throat S18992
69 Washer, Impeller M14217
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
115 Ring, Balance S12315
800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999
800B Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794
Item
No. Part Description Part Number
801 Stud, 3/8-16x1-1/4” (4 Req.) S23994
802A Nut, Hex 3/8-16 (4 Req.) S23103
802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347
805A Washer, Lock S23038
810A Plug, Pipe 1/2 NPT (4 Req.) S23717
810B Plug, Pipe 1/4 NPT S23715
811 Fitting, Grease (2 Req.) S23670
816 Ring, Retaining S23016
817 Ring, Retaining S23025
TABLE I
Volute Shaft Impeller
B/M No. Rotation Case No. Impeller Diameter
B85479 CW H03843 H05105 L05976 13.50”
1. Shaft Replacement Kit is not available for this
model. Order Replacement Shaft and associated
components from above listing.
T
r
u
a
r
c
800A
2061 1095
19
6
73B
115
2
18
40
35
802B
37
32
816 72
18
1
810
73A
89
11
119
14
800B
69
26
7
805
801
802A
821
822
823
TYPE ‘‘B’’ SINGLE STAGE
CENTRIFUGAL PUMP
Bearing Frame Mount
Section FM
Page 190.2
Date January 1, 2004
Supersedes 12/1/95
CAST IRON IMPELLER B4JRMBHS
Flanged Case Mechanical Seal Construction
Form No. S4855BK
Item
No. Part Description Part Number
1Case, Volute See Table I
2Impeller See Table I
6Shaft (Not sold separately) See Note 1
7Ring, Wearing S02894
11 Retainer, Mechanical Shaft Seal S11452
14 Sleeve, Shaft S05974
16 Bearing, Ball S15604
18 Bearing, Ball S13396
19 Frame H01838
26 Screw, Impeller 1/2-13x1” S23619
32 Key, 1/2x4” S24214
35 Inner Bearing Cap S05928
37 Outer Bearing Cap Assembly* S35277
40 Slinger, Water S10964
69 Washer, Impeller S19275
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
89 Seal, Mechanical Shaft S32693
115 Ring, Balance S13591
119 O-Ring S26471
Item
No. Part Description Part Number
800A Capscrew, Hex 5/8-11x1-1/2” (12 Req.) S26999
800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792
801 Stud, 3/8-16x1-1/2” (4 Req.) S23995
802A Nut, Hex 3/8-16” (4 Req.) S23103
802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347
805A Washer, Lock S23038
810 Plug, Pipe 1/2 NPT (4 Req.) S23717
811 Fitting, Grease S23670
816 Ring, Retaining S23016
821 Elbow, Comp. Fitting (2 Req.) S24128
822 Tubing, Copper S20677
823 Bushing, Pipe S24544
1. Shaft Replacement Kit available for this model.
Berkeley part number B07596 for CW, B07597 for
CCW.
Pump Shaft sold in shaft replacement kit only.
* Includes grease fitting.
TABLE I
Volute Impeller
B/M No. Rotation Case Impeller Diameter
B61050 CW H03843 L05976 13.50”
B66923 CCW H03848 L05974 13.50”
800A
2062 1095
19
6
73B
115
2
37
51A
51B
16
40
35
802B
816
817 72
18
1
810A
73A
89
11
119
14
800B
69
26
7
805A
801
810B
802A
811
TYPE ‘‘B’’ SINGLE STAGE
CENTRIFUGAL PUMP
Bearing Frame Mount
Section FM
Page 190.2M
Date January 1, 2004
Supersedes Dec. 1, 1995
CAST IRON IMPELLER B4JRMBHS
Flanged Case Mechanical Seal Construction
Item
No. Part Description Part Number
1 Case, Volute See Table I
2 Impeller See Table I
6Shaft (See Note 1) See Table I
7 Ring, Wearing S02894
11 Retainer, Mechanical Shaft Seal S11452
14 Sleeve, Shaft S05974
16 Bearing, Ball S15604
18 Bearing, Ball M10184
19 Frame H05103
26 Screw, Impeller 1/2-13x1-1/2” S23623
35 Inner Bearing Cap M10200
37 Outer Bearing Cap M10209
40 Slinger, Water S10964
51A Seal, Oil M10210
51B Seal, Oil S14765
69 Washer, Impeller S19275
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
89 Seal, Mechanical Shaft S32693
115 Ring, Balance S13591
119 O-Ring S26471
800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999
800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792
Item
No. Part Description Part Number
801 Stud, 3/8-16x1-1/2” (4 Req.) S23995
802A Nut, Hex 3/8-16 (4 Req.) S23103
802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347
805A Washer, Lock S23038
810A Plug, Pipe 1/2 NPT (4 Req.) S23717
810B Plug, Pipe 1/4 NPT S23715
811 Fitting, Grease (2 Req.) S23670
816 Ring, Retaining S23016
817 Ring, Retaining S23025
TABLE I
Volute Shaft Impeller
B/M No. Rotation Case No. Impeller Diameter
B69743 CW H03843 H05105 L05976 13.50”
1. Shaft Replacement Kit is not available for this
model. Order Replacement Shaft and associated
components from above listing.

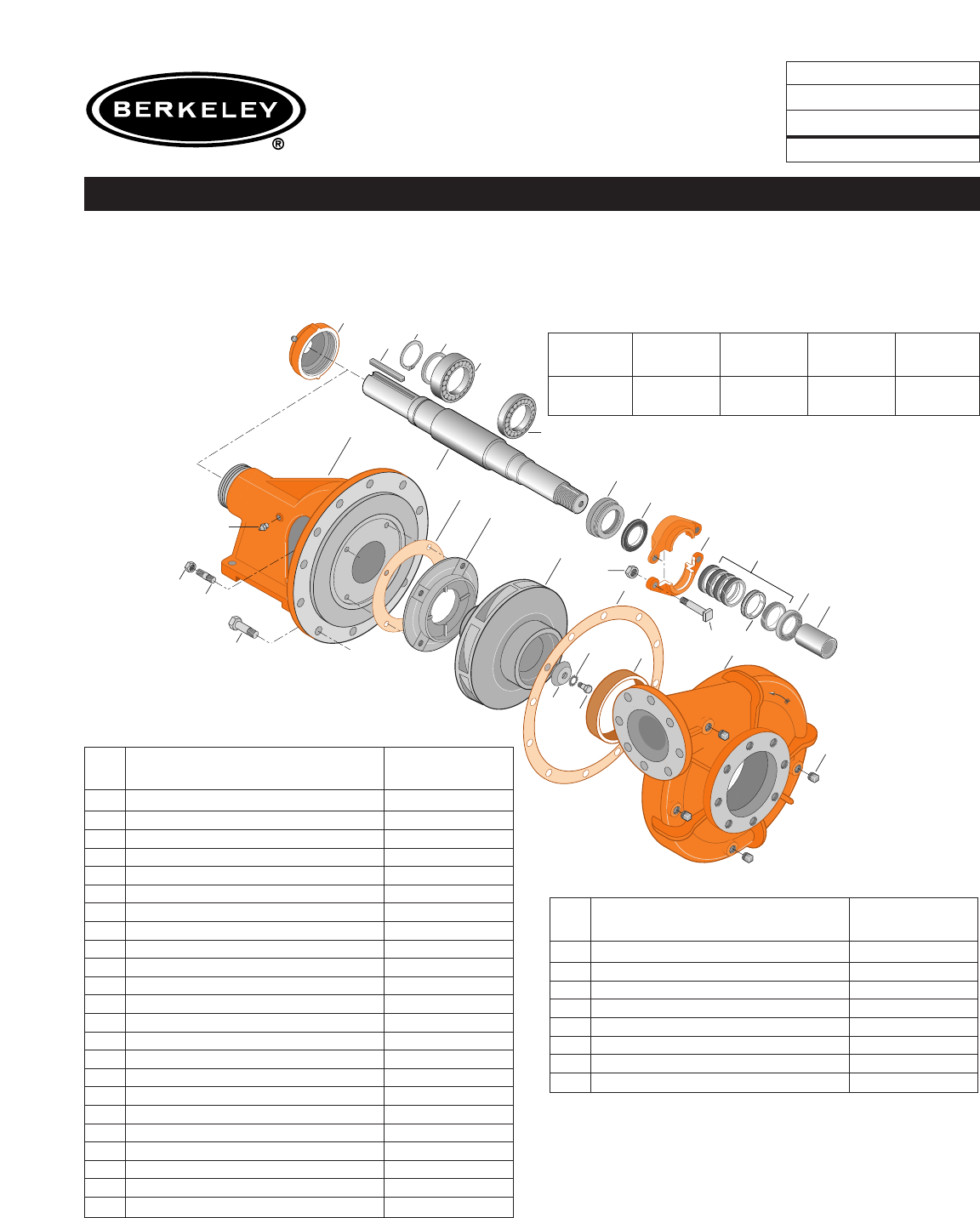

Type ‘‘B’’ Single Stage
Centrifugal Pump
Bearing Frame Mount
Cast Iron Impeller B4JrmBHs
Flanged Case, Dry Run Mechanical Shaft Seal Construction
Ref. Part Description
Part
Number
1Case, Volute See Table 1
2 Impeller
6 Shaft See Note 1
7Ring, Wearing S02894
11 Retainer, Mechanical Shaft Seal, Dry Run M14959
11A Dry Run Gland Lip Seal M12337
14 Sleeve, Shaft S05974L
14A Sleeve, Shaft M14971
16 Bearing, Ball S15604
18 Bearing, Ball S13396
19 Frame M14963
26 Screw, Impeller 1/2-13x1-1/4” S23619
32 Key, 1/2x4” S24214
35 Inner Bearing Cap S05928
37 Outer Bearing Cap Assembly* S35277
40 Slinger, Water S10964
69 Washer, Impeller M14217
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
89 Seal, Mechanical Shaft S32693
115 Ring, Balance S13591
119 O-Ring M14972
Ref. Part Description
Part
Number
800A Capscrew, Hex 5/8-11x1-1/2” (10 Rqd.) S26999
800A
Capscrew, Hex 5/8-11x1-3/4” (2 Rqd. top ctr.)
S27001
800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Rqd.) S23792
801 Stud, 3/8-16" x 1-1/2" (4 Rqd.) S28626
802A Nut, Hex 3/8-16” (4 Rqd.) S23103
802B Nut, Hex 1/2-13x7/16” (2 Rqd.) S23347
805 Washer, Lock S23038
810 Plug, Pipe 1/2 NPT (4 Rqd.) S23717
811 Fitting, Grease S23670
816 Ring, Retaining S23016
*Includes grease fitting
Section FM
Page 190.3
Date December 1, 2011
New
NOTE 1: Shaft Replacement Kit is available for this model.
Berkeley part number B07596. Pump shaft sold in replacement
kit only. Refer to Supplement “C” for shaft kit components.
NOTE 2: Refer to Supplement “F” for dry run tank repair parts.
Dry run lubrication system requires one gallon of food grade
hydraulic oil (FGHO), viscosity 150 SSU at 100 °F. Oil not
supplied, purchase locally.
Table I
B/M No. Rotation Volute Case Impeller Impeller
Diameter
B61050D CW H03843 L05976 13.50”
T
r
u
a
r
c
800A
6456 0911
19
6
73B
115
2
18
40
35
802B
37
32
816
72
18
1
810
73A
89
119
14
800B
69
26
7
805
801
802A
11
11A
14A
T
r
u
a
r
c
800A
801
802A
2060 1095
811
19
37
32
6
73B
115
2
1
810
73A
816 72
18
16
40
802B
35
17
800B 29
14
63
13
See Supplement B
69
26
7
805A
TYPE ‘‘B’’ SINGLE STAGE
CENTRIFUGAL PUMP
Bearing Frame Mount
Section FM
Page 200.1
Date January 1, 2004
Supersedes 12/1/95
CAST IRON IMPELLER B4JRMBHH
Flanged Case Packing Construction
Form No. S4855BK
Item
No. Part Description Part Number
1Case, Volute See Table I
2Impeller See Table I
6Shaft (Not sold separately) See Note 1
7Ring, Wearing M03870
13 Ring, Packing (Set of 4) S13436
14 Sleeve, Shaft S05974
16 Bearing, Ball S15604
17 Gland, Packing B82472
18 Bearing, Ball S13396
19 Frame H01599
26 Screw, Impeller 1/2-13x1-1/4” S23621
29 Ring, Lantern S18993
32 Key, 1/2x4” S24214
35 Inner Bearing Cap S05928
37 Outer Bearing Cap Assembly* S35277
40 Slinger, Water S10964
63 Bushing, Throat S18992
69 Washer, Impeller S19275
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
115 Ring, Balance S12315
800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999
Item
No. Part Description Part Number
800B Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794
801 Stud, 3/8-16x1-3/8” (4 Req.) S09942
802A Nut, Hex 3/8-16 (4 Req.) S23103
802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347
805A Washer, Lock S23038
810 Plug, Pipe 1/2 NPT (4 Req.) S23717
811 Fitting, Grease S23670
816 Ring, Retaining S23016
1. Shaft Replacement Kit available for this model.
Berkeley part number B07596 for CW, B07597 for
CCW.
Pump Shaft sold in shaft replacement kit only.
* Includes grease fitting.
TABLE I
Volute Impeller
B/M No. Rotation Case Impeller Diameter
B62328 CW H03951 L05347 13.50”
B62329 CCW H04004 L05369 13.50”
T
r
u
a
r
c
800A
2061 1095
19
6
73B
115
2
18
40
35
802B
37
32
816 72
18
1
810
73A
89
11
119
14
800B
69
26
7
805
801
802A
821
822
823
TYPE ‘‘B’’ SINGLE STAGE
CENTRIFUGAL PUMP
Bearing Frame Mount
Section FM
Page 200.2
Date January 1, 2004
Supersedes 12/1/95
CAST IRON IMPELLER B4JRMBHHS
Flanged Case Mechanical Seal Construction
Form No. S4855BK
Item
No. Part Description Part Number
1Case, Volute See Table I
2Impeller See Table I
6Shaft (Not sold separately) See Note 1
7Ring, Wearing M03870
11 Retainer, Mechanical Shaft Seal S11452
14 Sleeve, Shaft S05974
16 Bearing, Ball S15604
18 Bearing, Ball S13396
19 Frame H01838
26 Screw, Impeller 1/2-13x1-1/4” S23621
32 Key, 1/2x4” S24214
35 Inner Bearing Cap S05928
37 Outer Bearing Cap Assembly* S35277
40 Slinger, Water S10964
69 Washer, Impeller S19275
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
89 Seal, Mechanical Shaft S32693
115 Ring, Balance S19521
119 O-Ring S26471
800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999
800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792
801 Stud, 3/8-16x1-1/2” (4 Req.) S23995
Item
No. Part Description Part Number
802A Nut, Hex 3/8-16 (4 Req.) S23103
802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347
805A Washer, Lock S23038
810 Plug, Pipe 1/2 NPT (4 Req.) S23717
811 Fitting, Grease S23670
816 Ring, Retaining S23016
821 Elbow, Comp. Fitting (2 Req.) S24128
822 Tubing, Copper S20677
823 Bushing, Pipe S24544
1. Shaft Replacement Kit available for this model.
Berkeley part number B07596 for CW, B07597 for
CCW.
Pump Shaft sold in shaft replacement kit only.
* Includes grease fitting.
TABLE I
Volute Impeller
B/M No. Rotation Case Impeller Diameter
B61657 CW H03951 L05347 13.50”
B66921 CCW H04004 L05369 13.50”
Type ‘‘B’’ Single Stage
Centrifugal Pump
Bearing Frame Mount
Cast Iron Impeller B4JrmBHHs
Flanged Case, Dry Run Mechanical Shaft Seal Construction
Ref. Part Description
Part
Number
1Case, Volute See
Table 1
2 Impeller
6 Shaft See Note 1
7Ring, Wearing M03870
11 Retainer, Mechanical Shaft Seal, Dry Run M14959
11A Dry Run Gland Lip Seal M12337
14 Sleeve, Shaft S05974L
14A Sleeve, Shaft M14971
16 Bearing, Ball S15604
18 Bearing, Ball S13396
19 Frame M14963
26 Screw, Impeller 1/2-13x1-1/4” S23621
32 Key, 1/2x4” S24214
35 Inner Bearing Cap S05928
37 Outer Bearing Cap Assembly* S35277
40 Slinger, Water S10964
69 Washer, Impeller M14217
72 Ring, Thrust S06519
73A Gasket, Volute S06271
73B Gasket, Balance Ring S09943
89 Seal, Mechanical Shaft S32693
115 Ring, Balance S19521
119 O-Ring M14972
Ref. Part Description
Part
Number
800A Capscrew, Hex 5/8-11x1-1/2” (10 Rqd.) S26999
800A
Capscrew, Hex 5/8-11x1-3/4” (2 Rqd. top ctr.)
S23701
800B
Bolt, Sq. Head 1/2-13x2-1/4” (2 Rqd.)
S23792
801 Stud, 3/8-16" x 1-1/2" (4 Rqd.) S23994
802A Nut, Hex 3/8-16” (4 Rqd.) S23103
802B Nut, Hex 1/2-13x7/16” (2 Rqd.) S23347
805 Washer, Lock S23038
810 Plug, Pipe 1/2 NPT (4 Rqd.) S23717
811 Fitting, Grease S23670
816 Ring, Retaining S23016
*Includes grease fitting
Section FM
Page 200.3
Date December 1, 2011
New
NOTE 1: Shaft Replacement Kit is available for this model.
Berkeley part number B07596. Pump shaft sold in replacement
kit only. Refer to Supplement “C” for shaft kit components.
NOTE 2: Refer to Supplement “F” for dry run tank repair parts.
Dry run lubrication system requires one gallon of food grade
hydraulic oil (FGHO), viscosity 150 SSU at 100 °F. Oil not
supplied, purchase locally.
Table I
B/M No. Rotation Volute Case Impeller Impeller
Diameter
B61657D CW H05391 L05347 13.50”
T
r
u
a
r
c
800A
6456 0911
19
6
73B
115
2
18
40
35
802B
37
32
816
72
18
1
810
73A
89
119
14
800B
69
26
7
805
801
802A
11
11A
14A

Navigation menu
