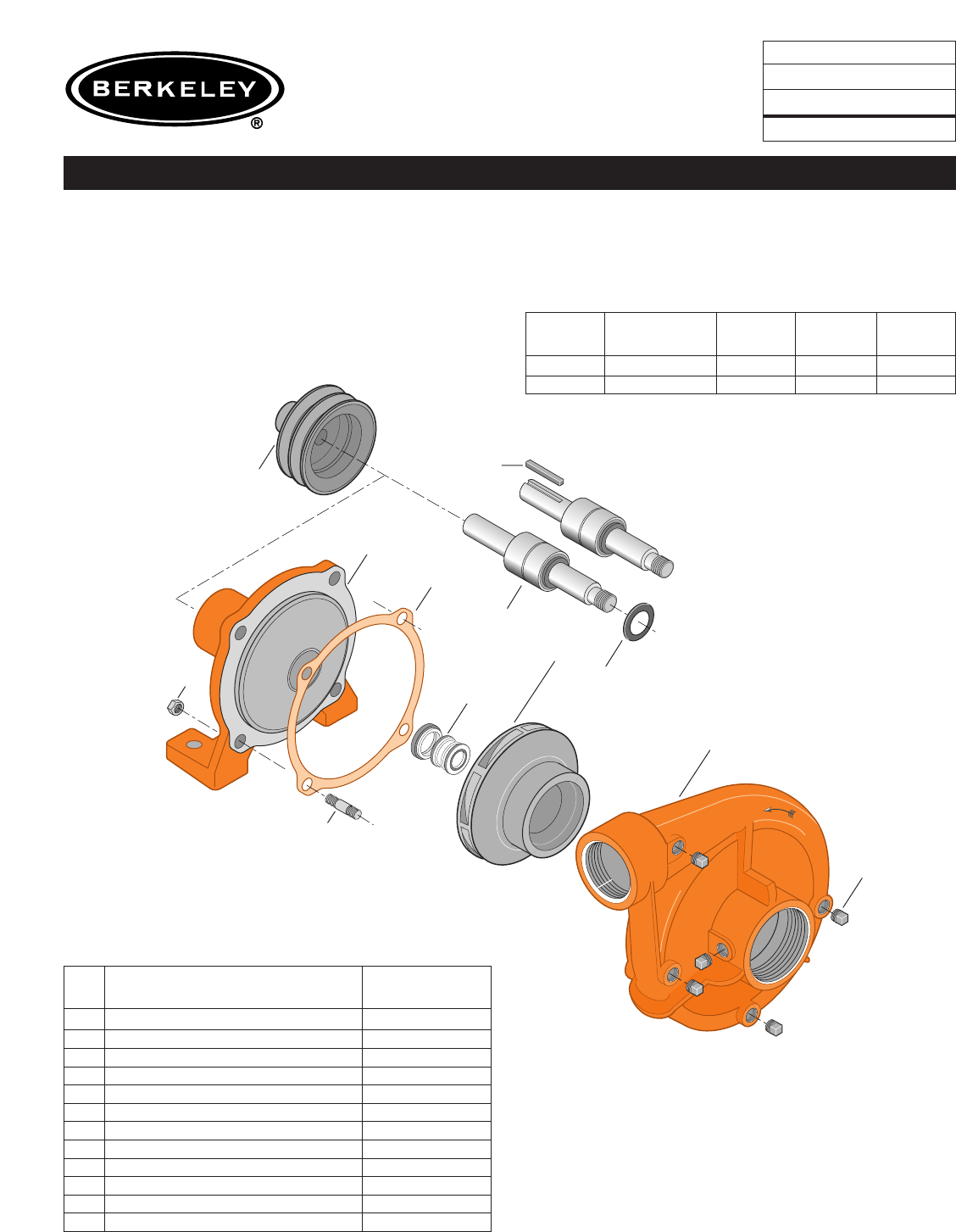

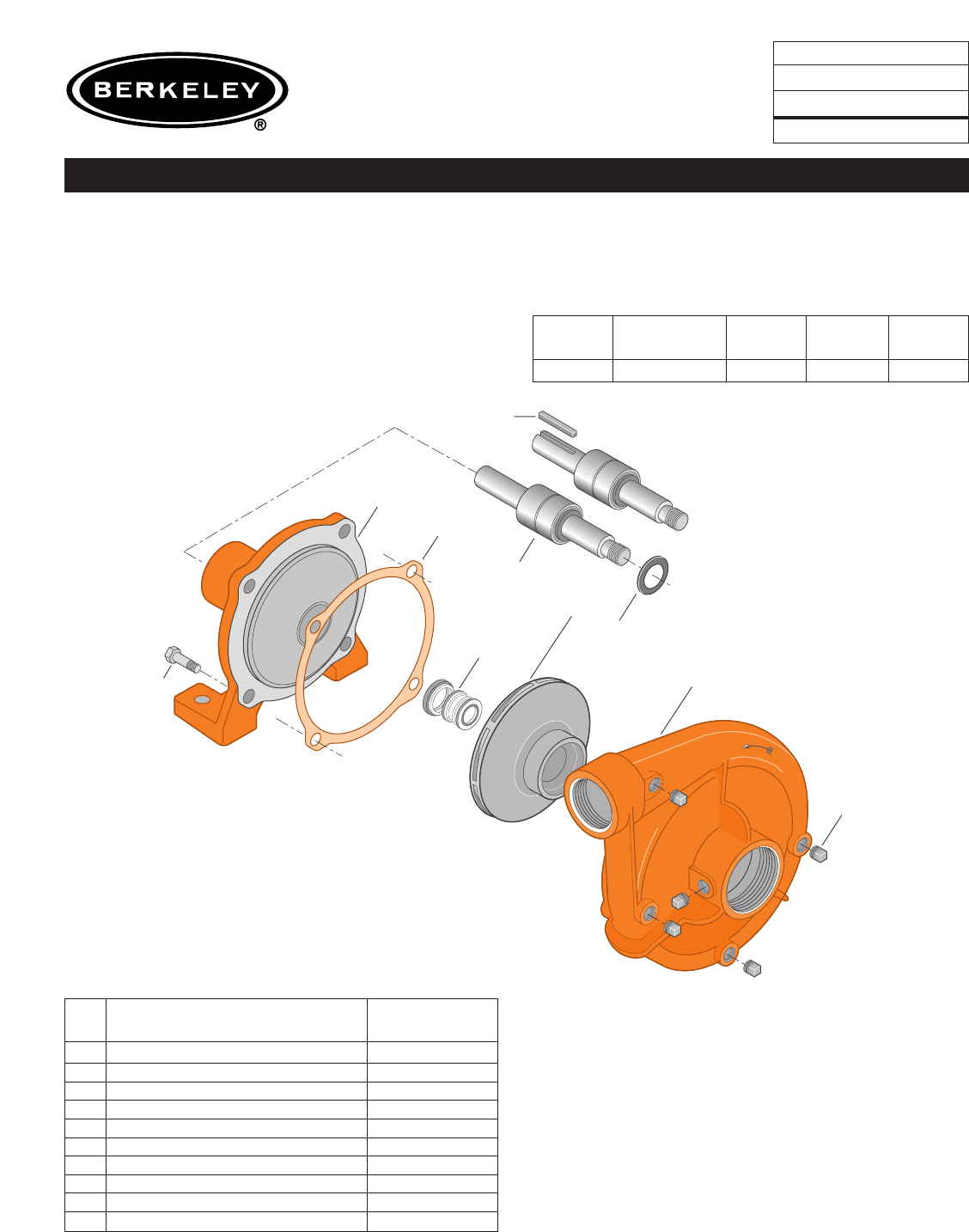

19

32

832

73

6

89 2

810

1

Belt

Drive

Coupling

Drive

800

2500 0596

40

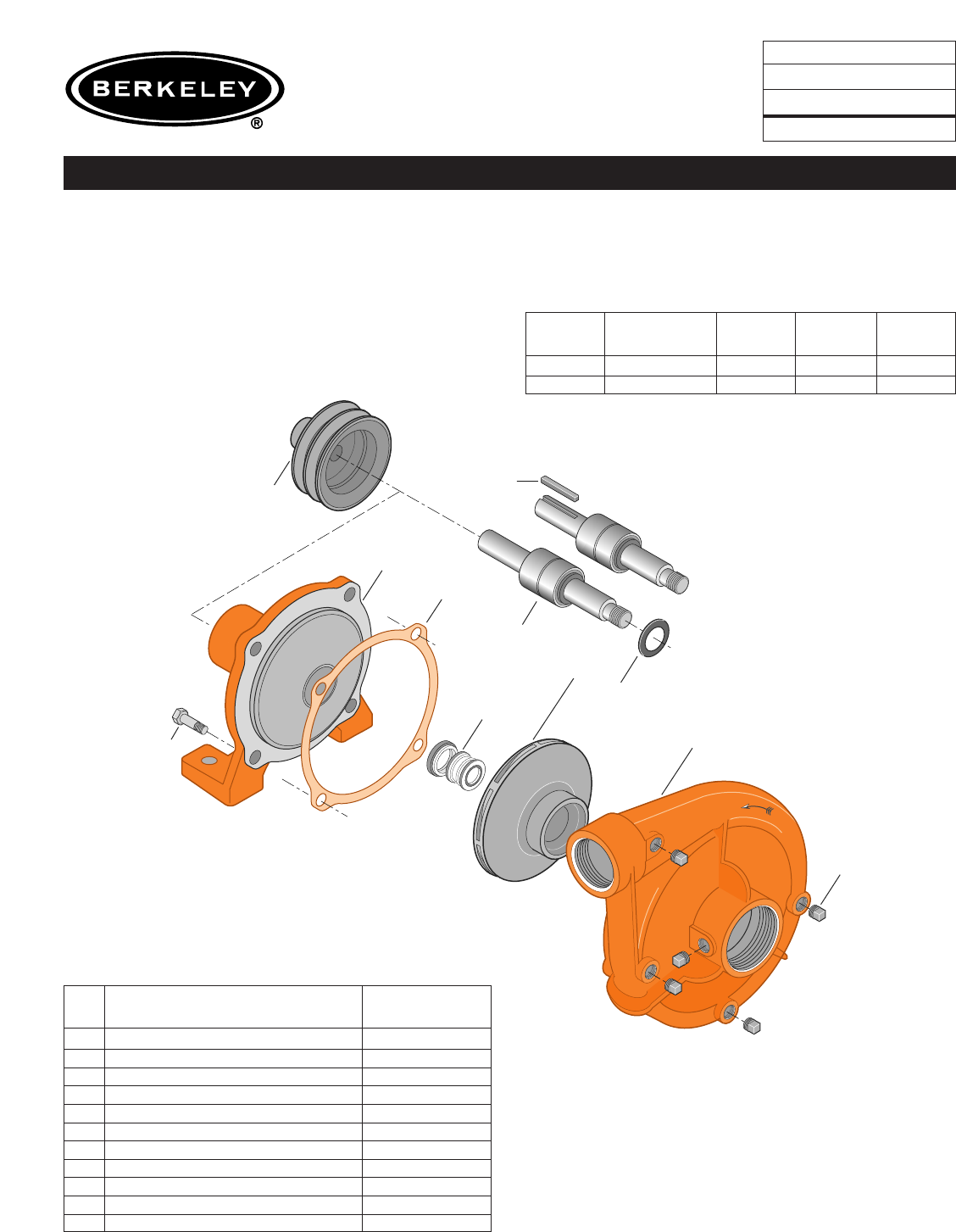

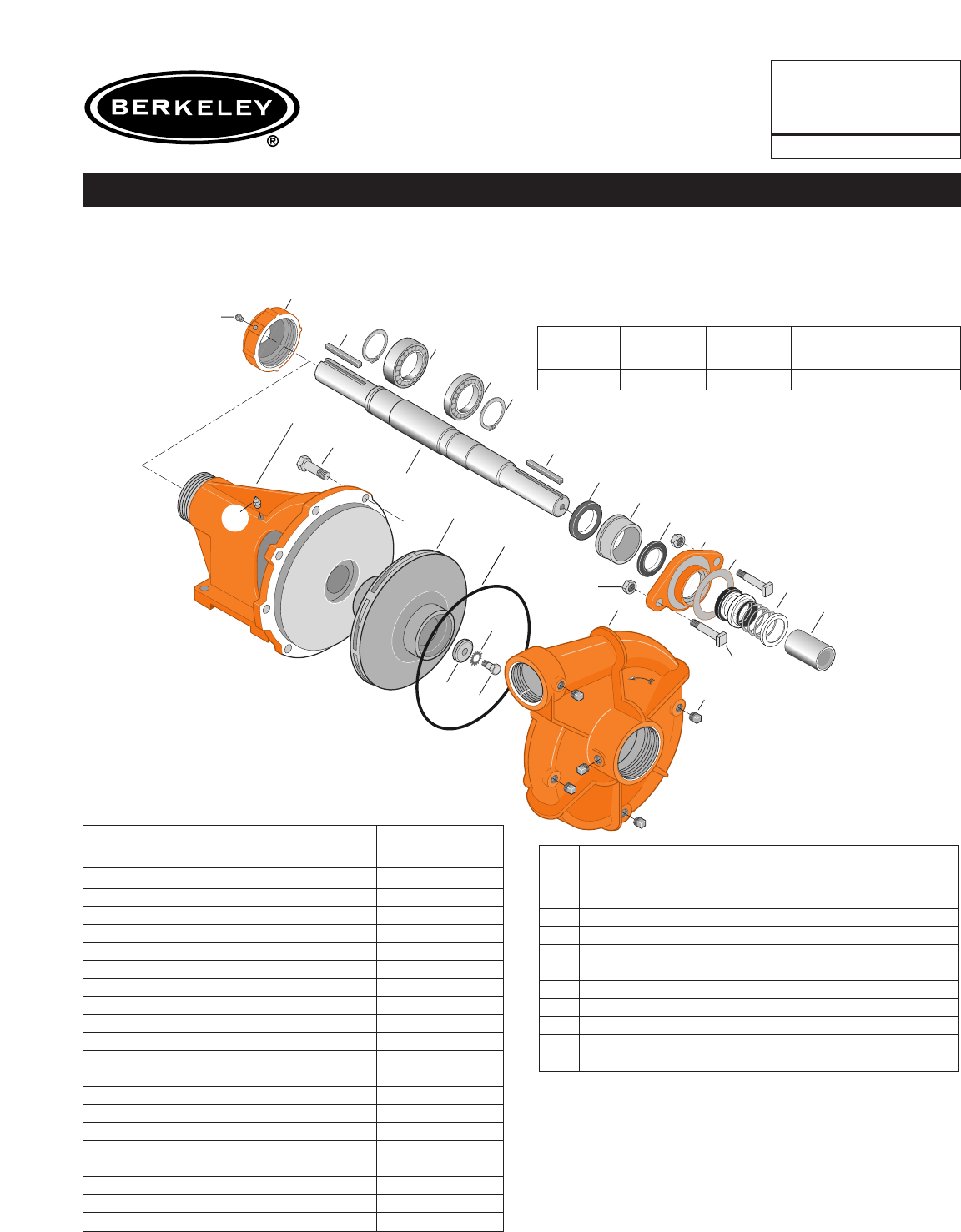

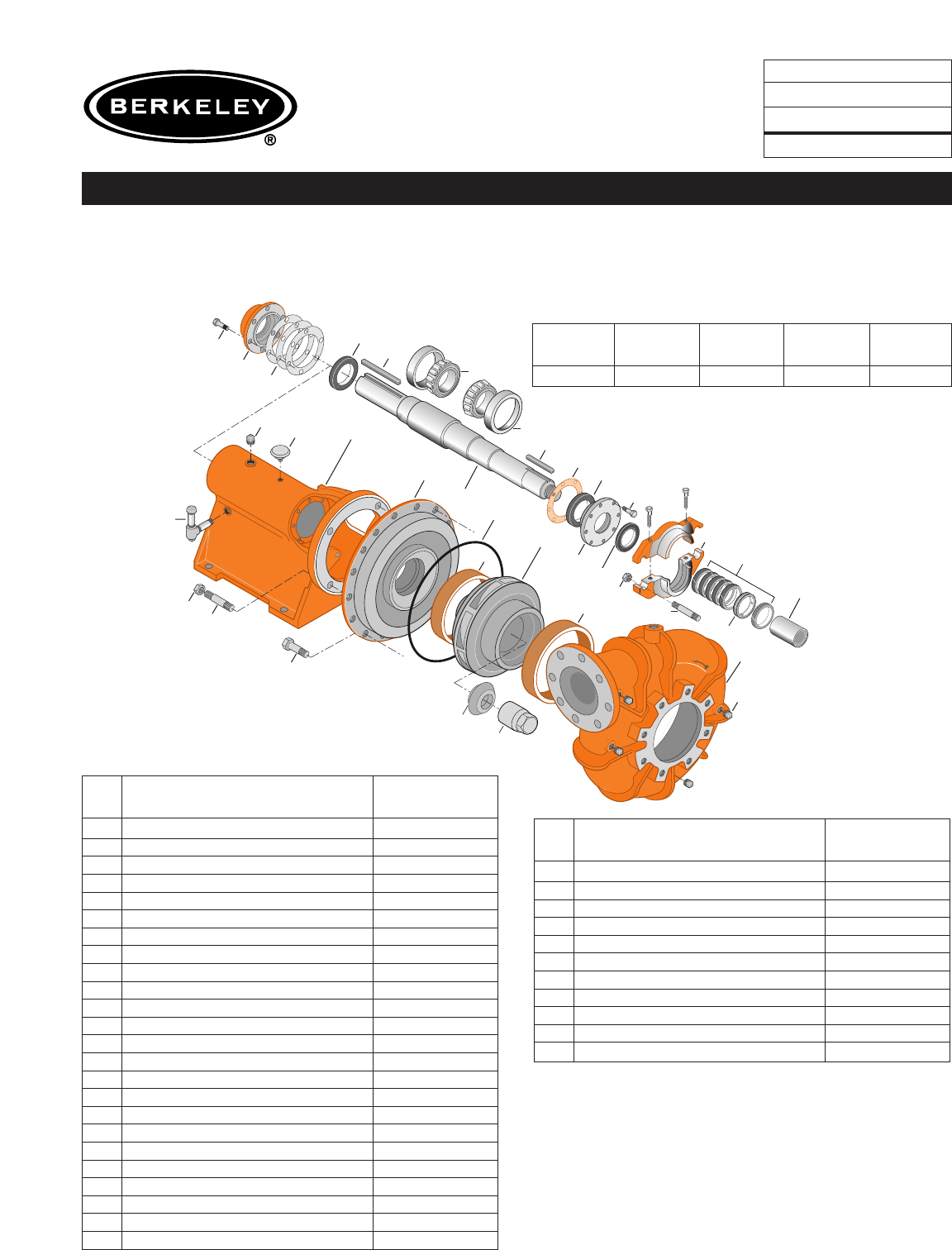

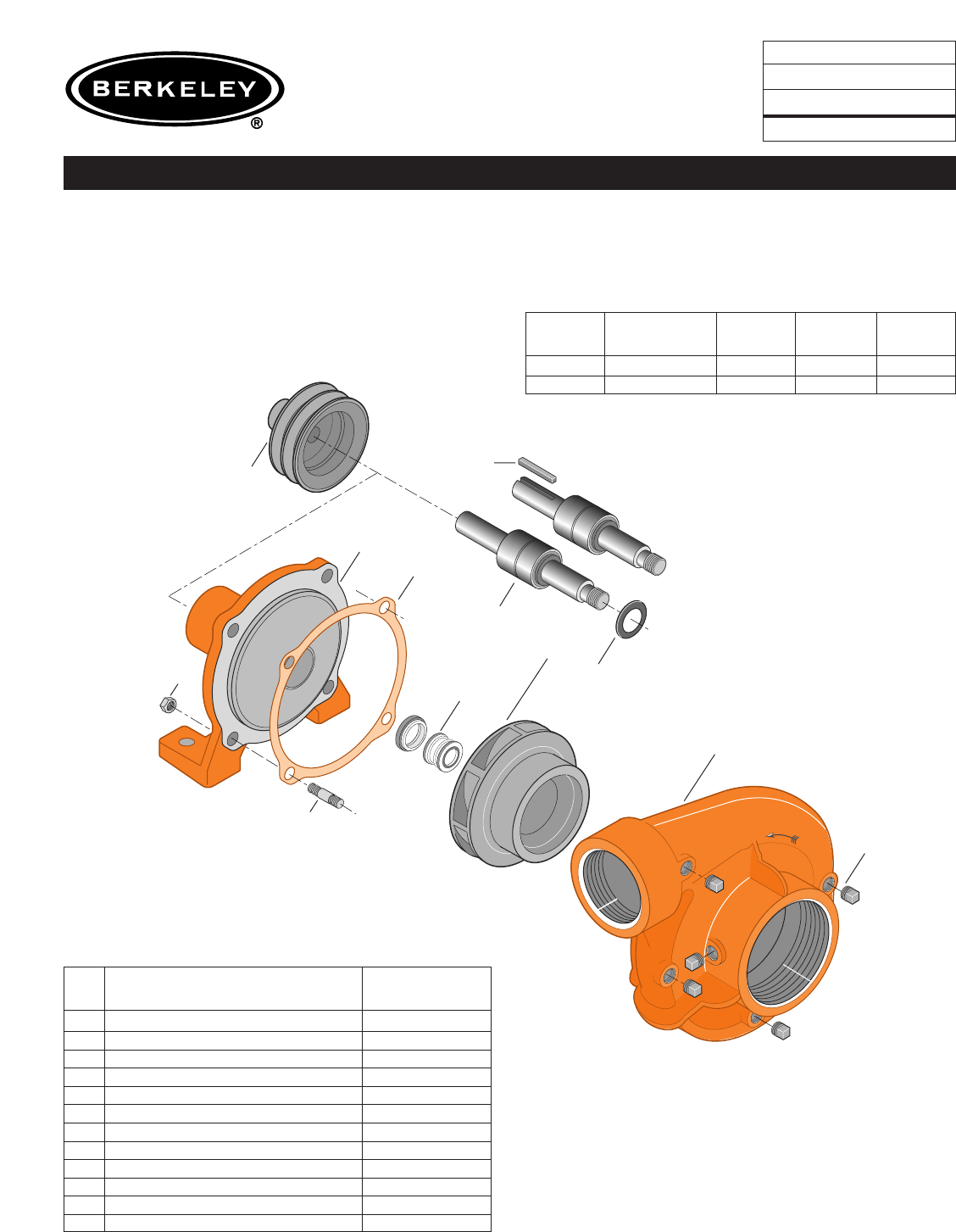

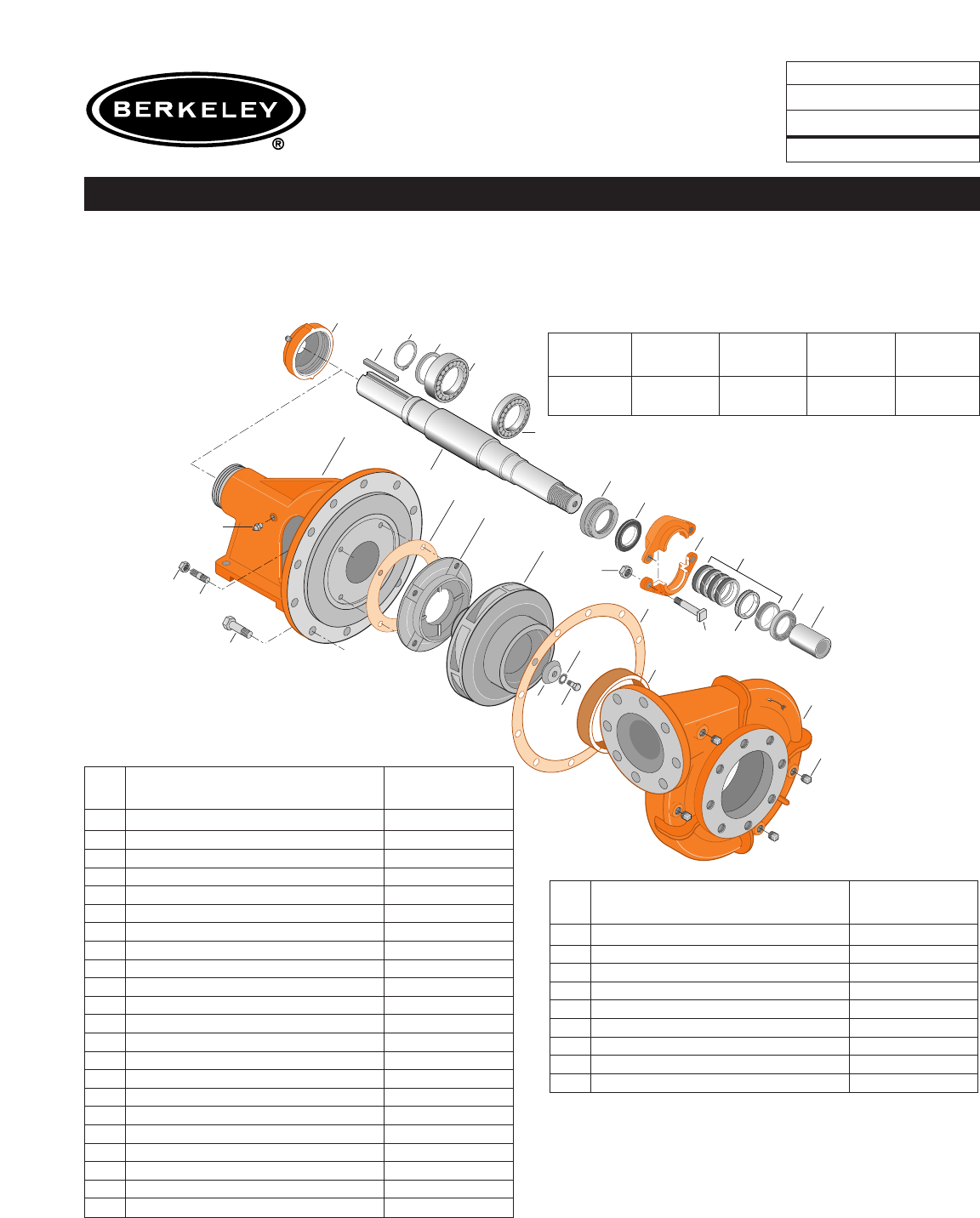

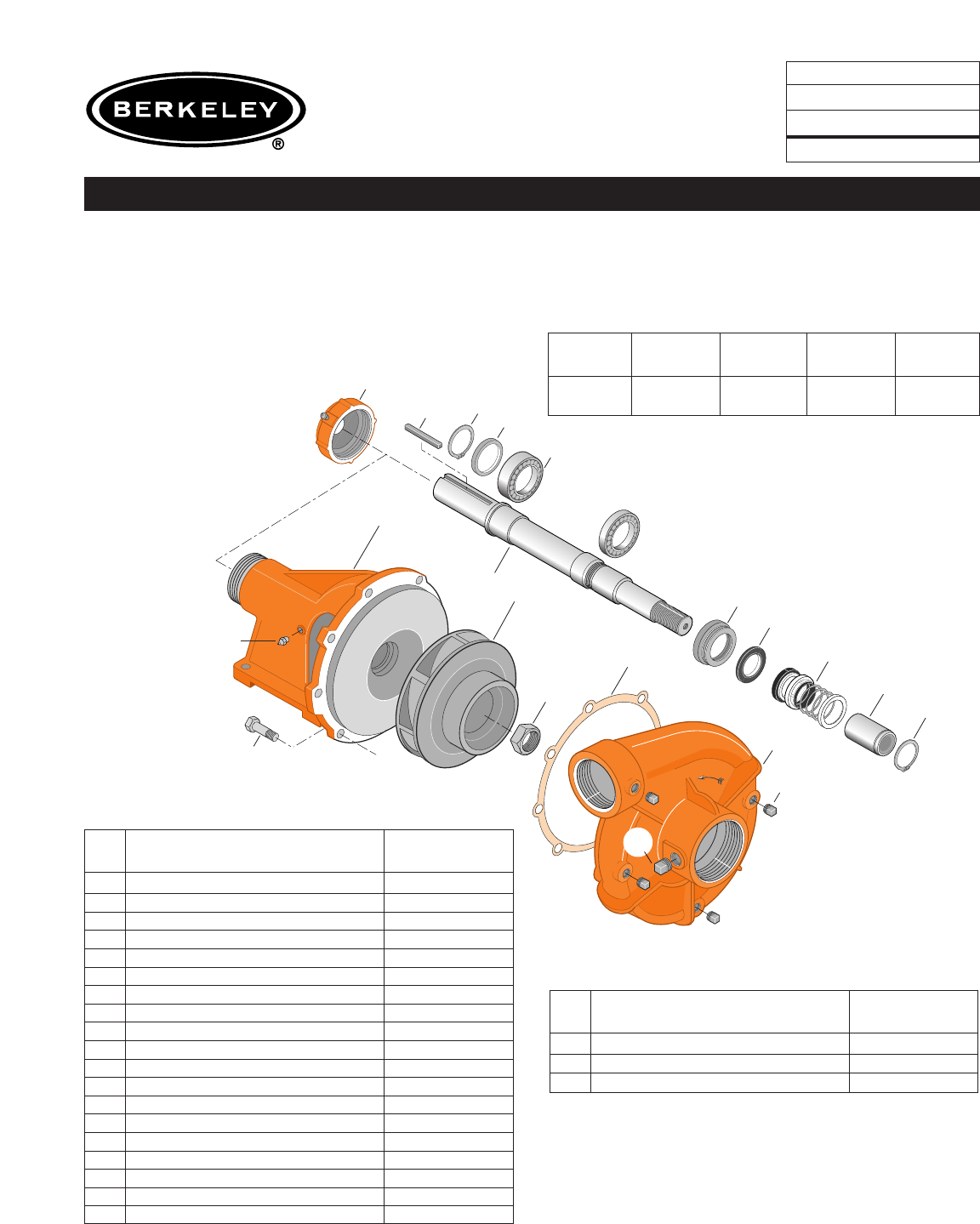

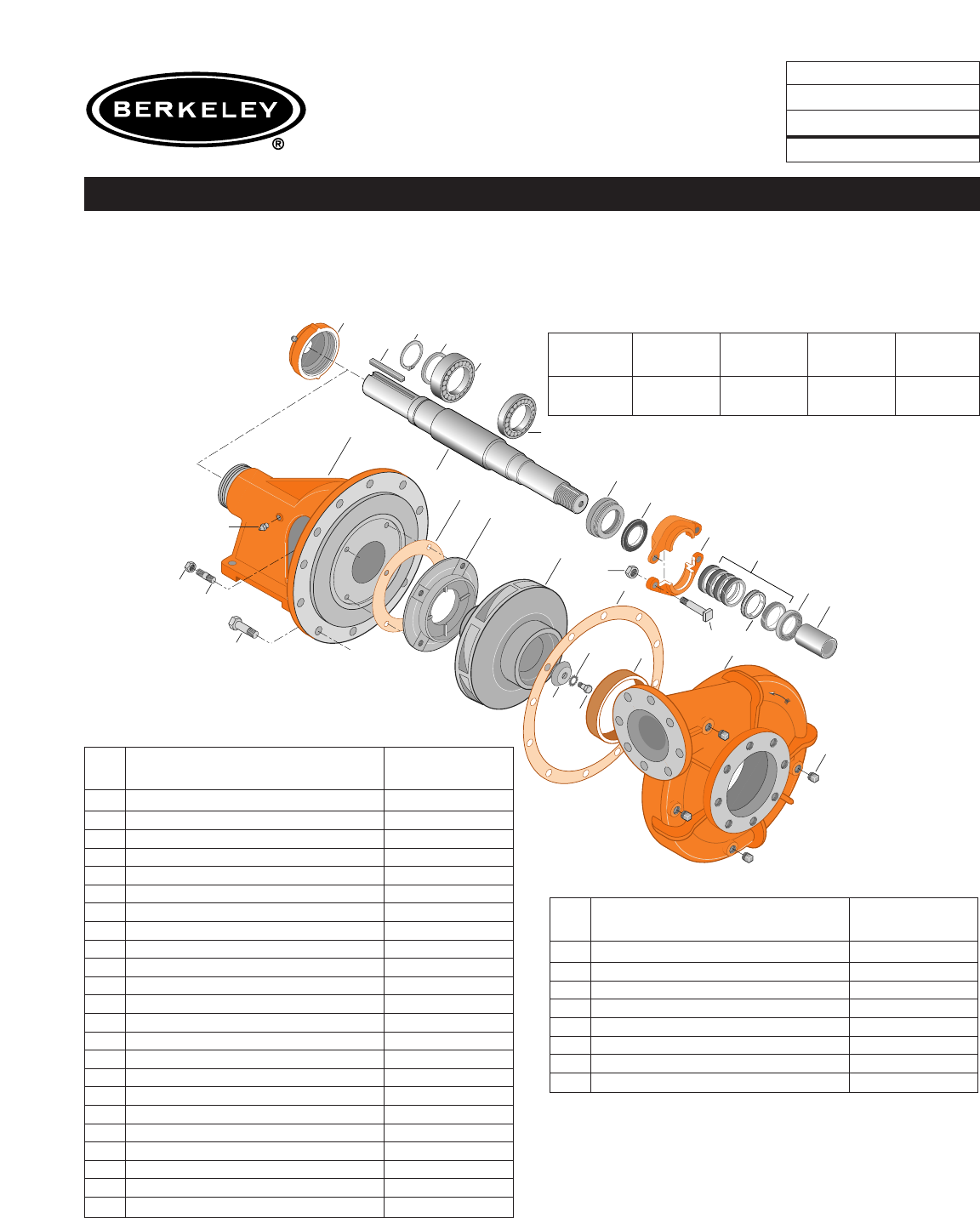

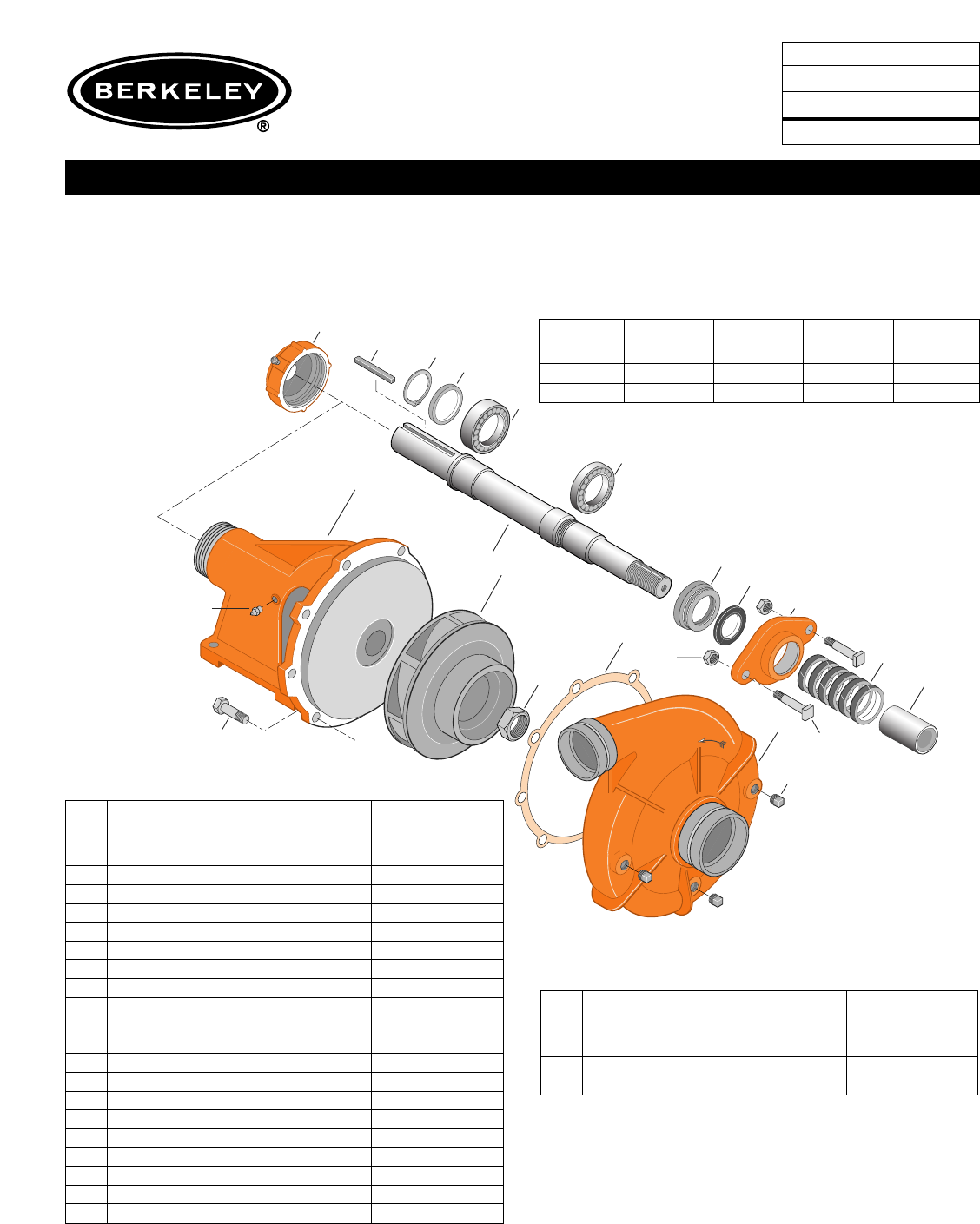

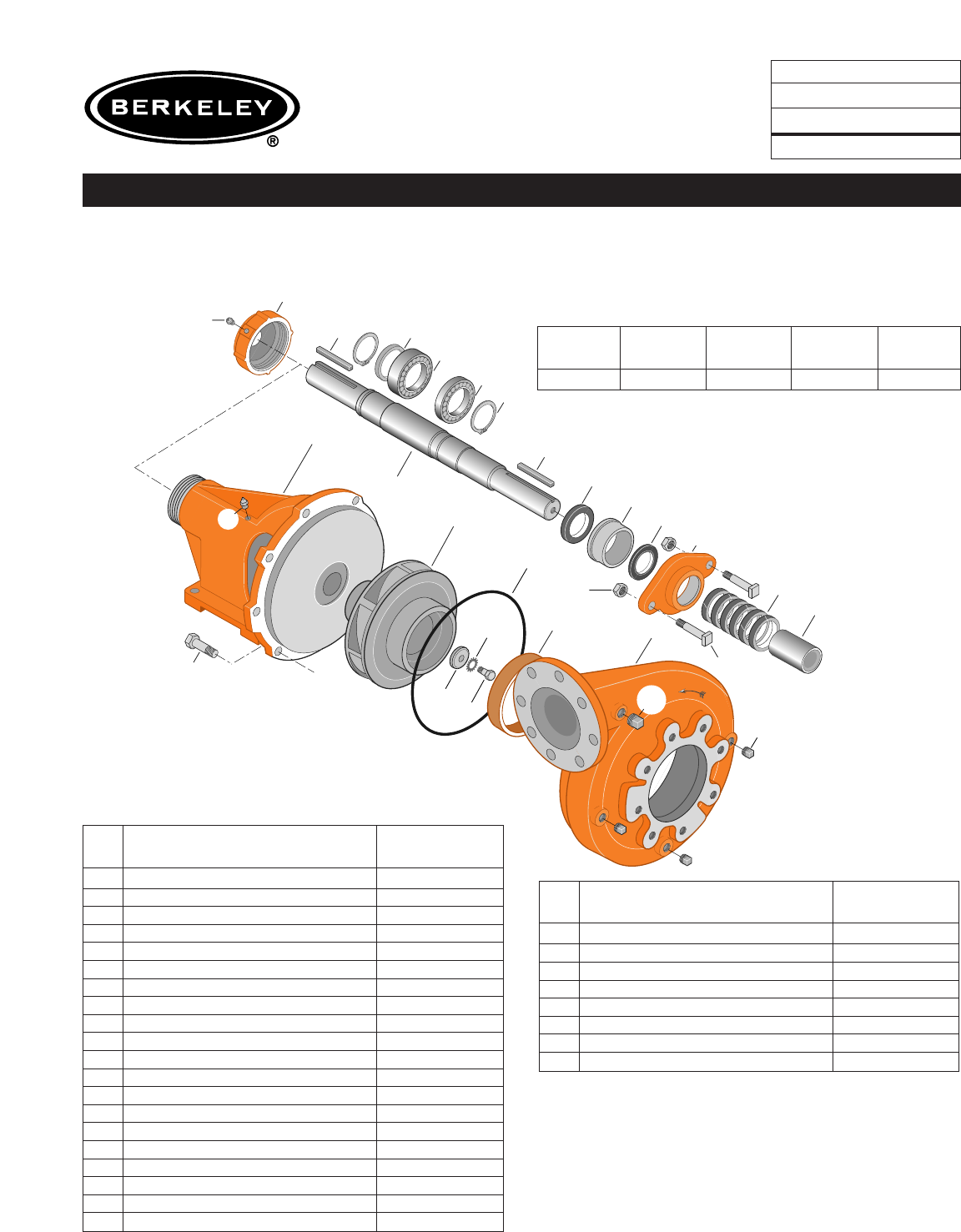

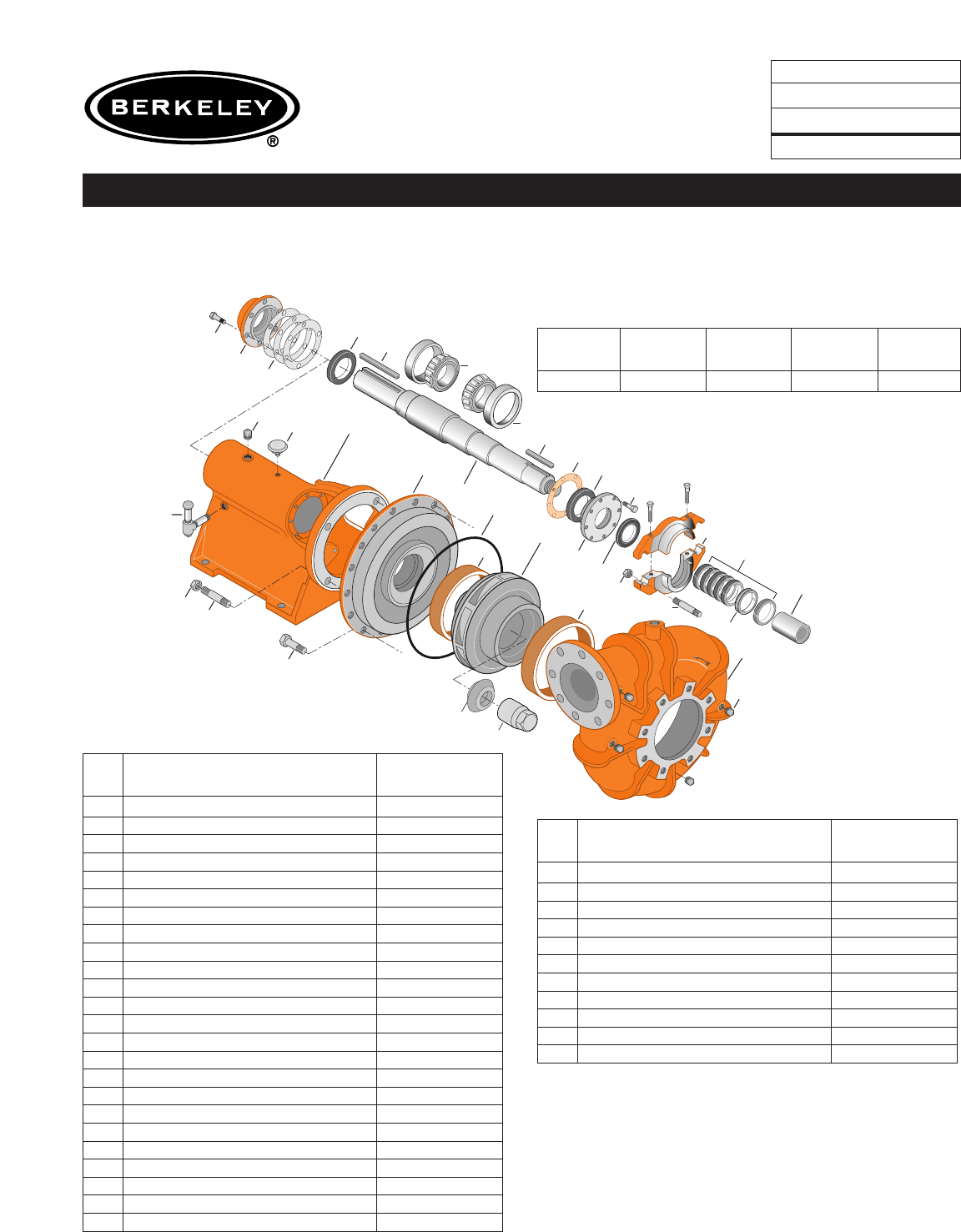

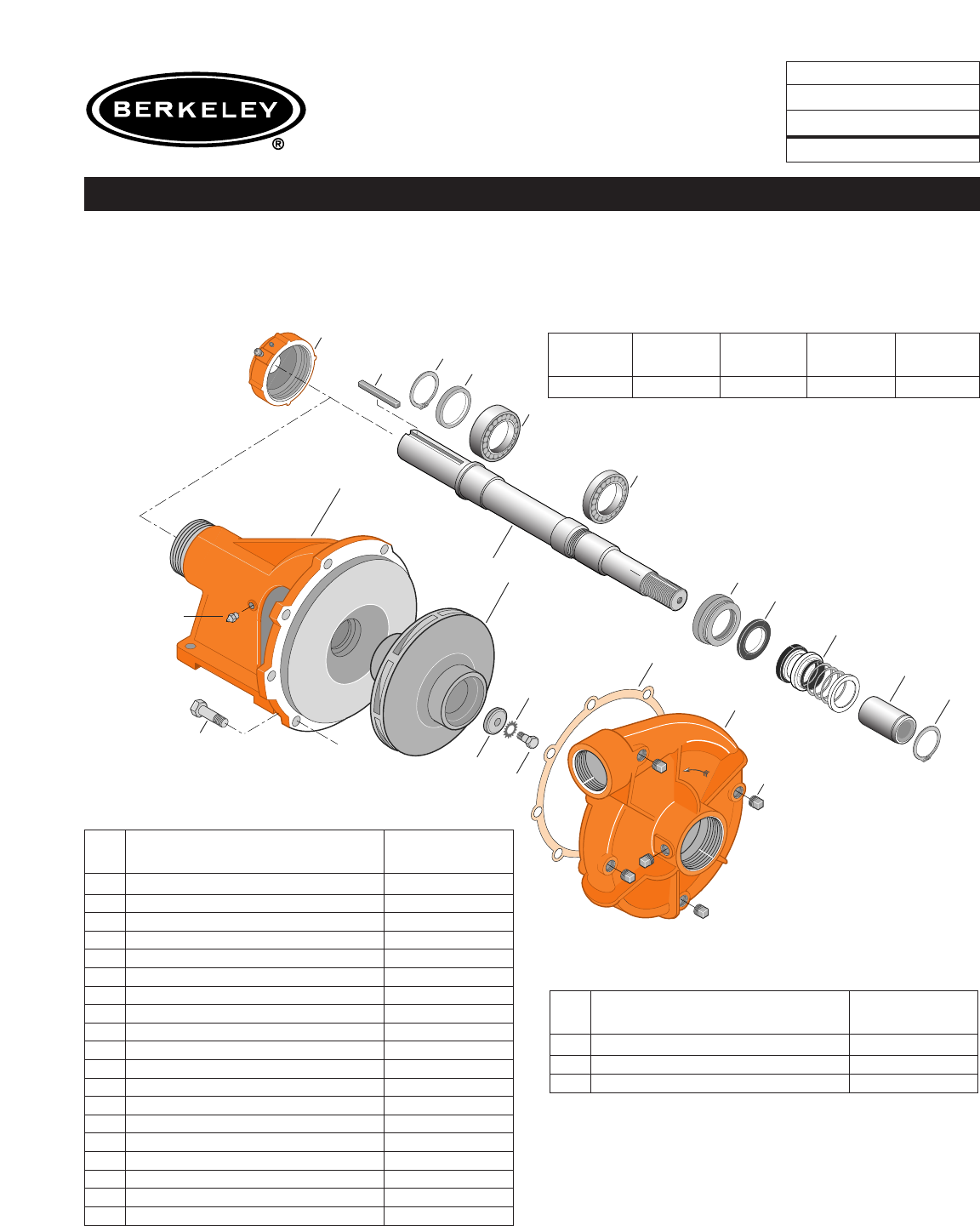

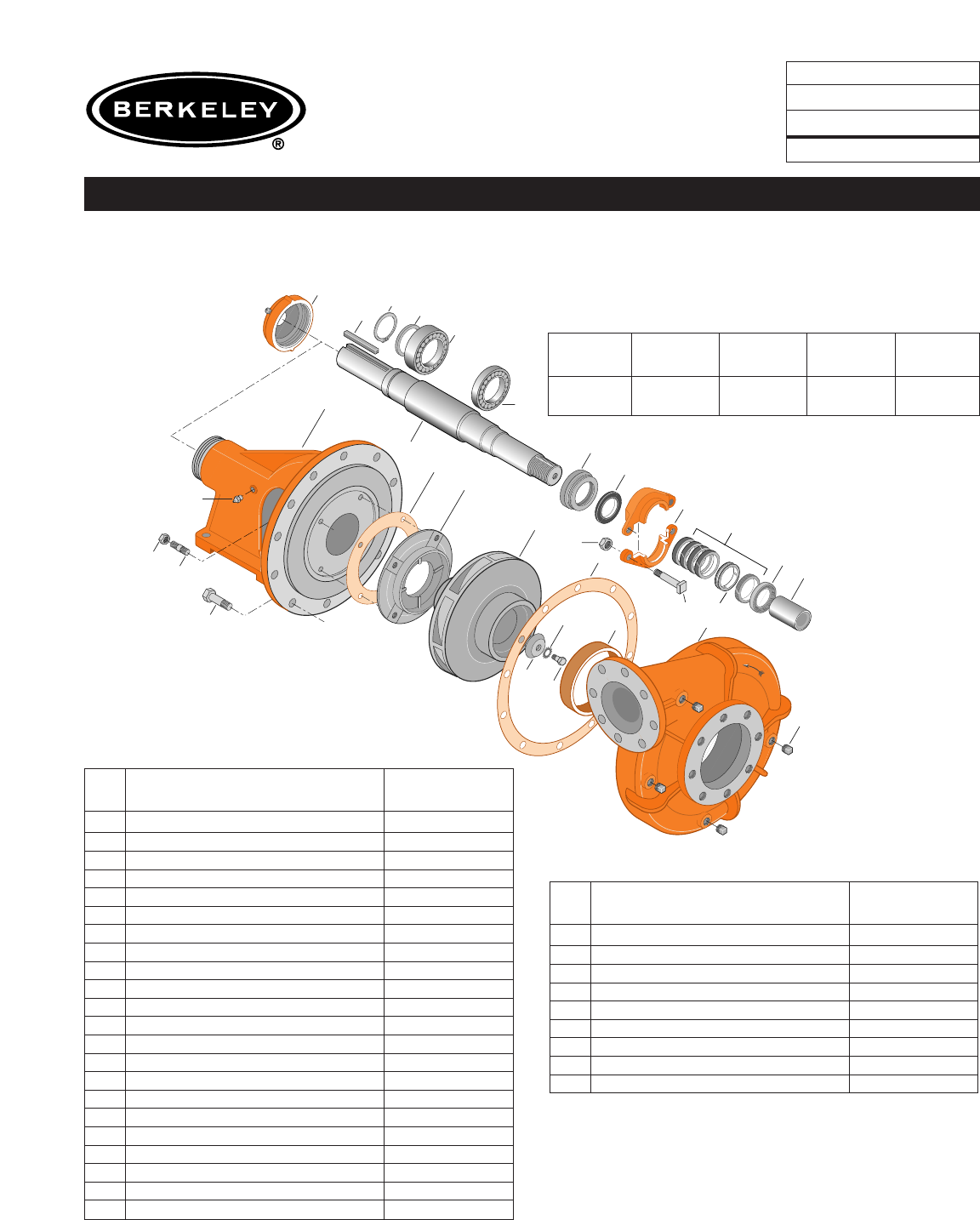

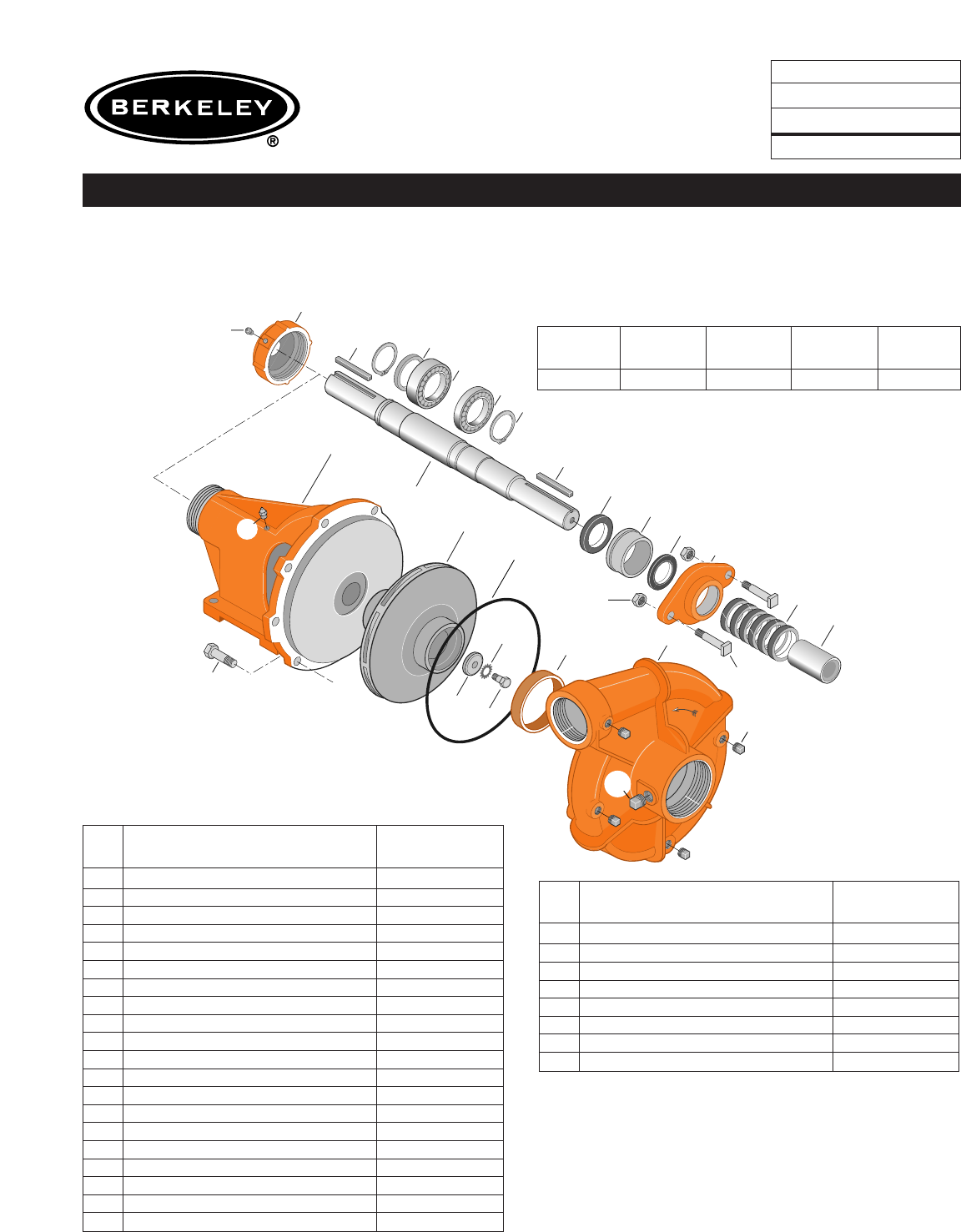

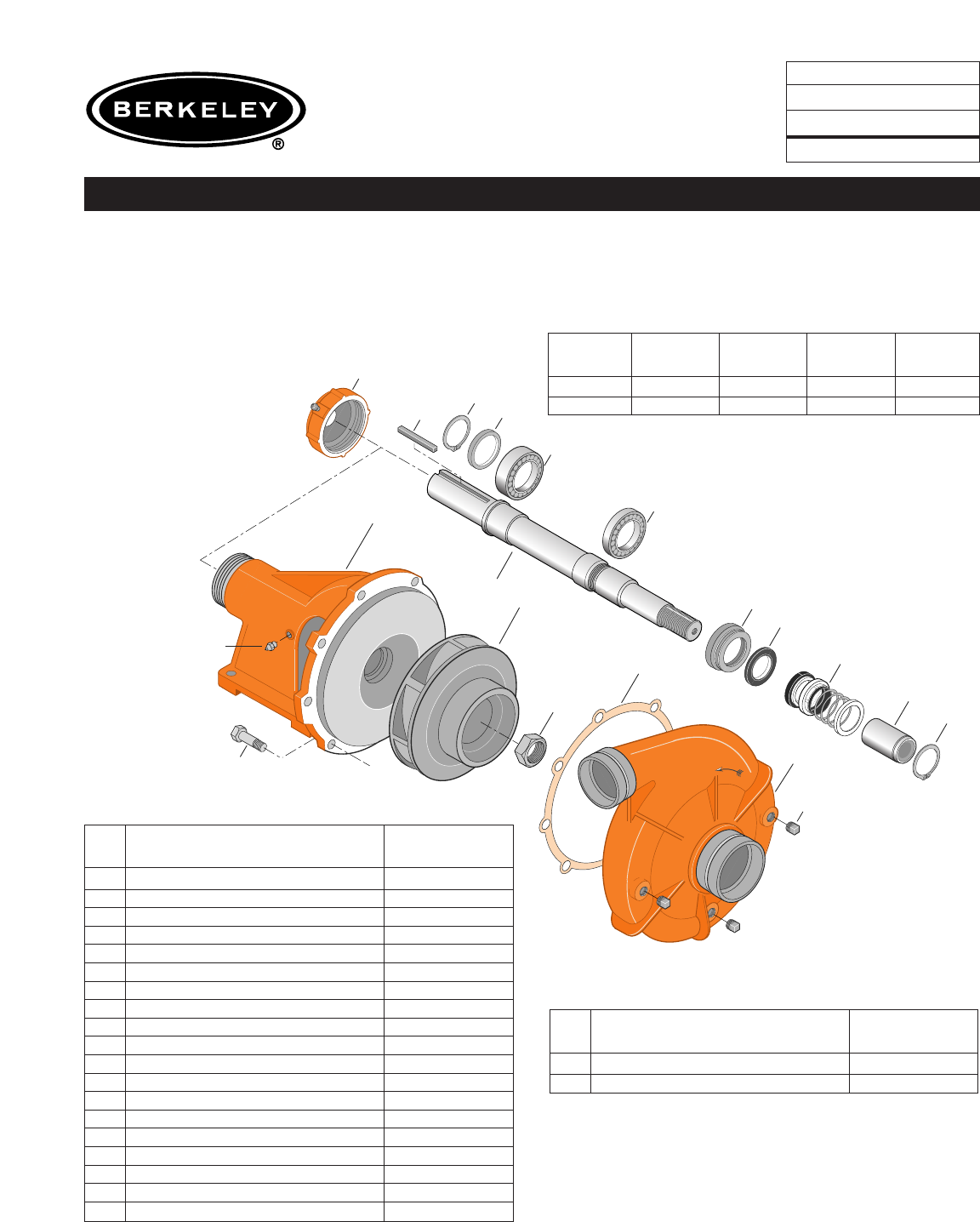

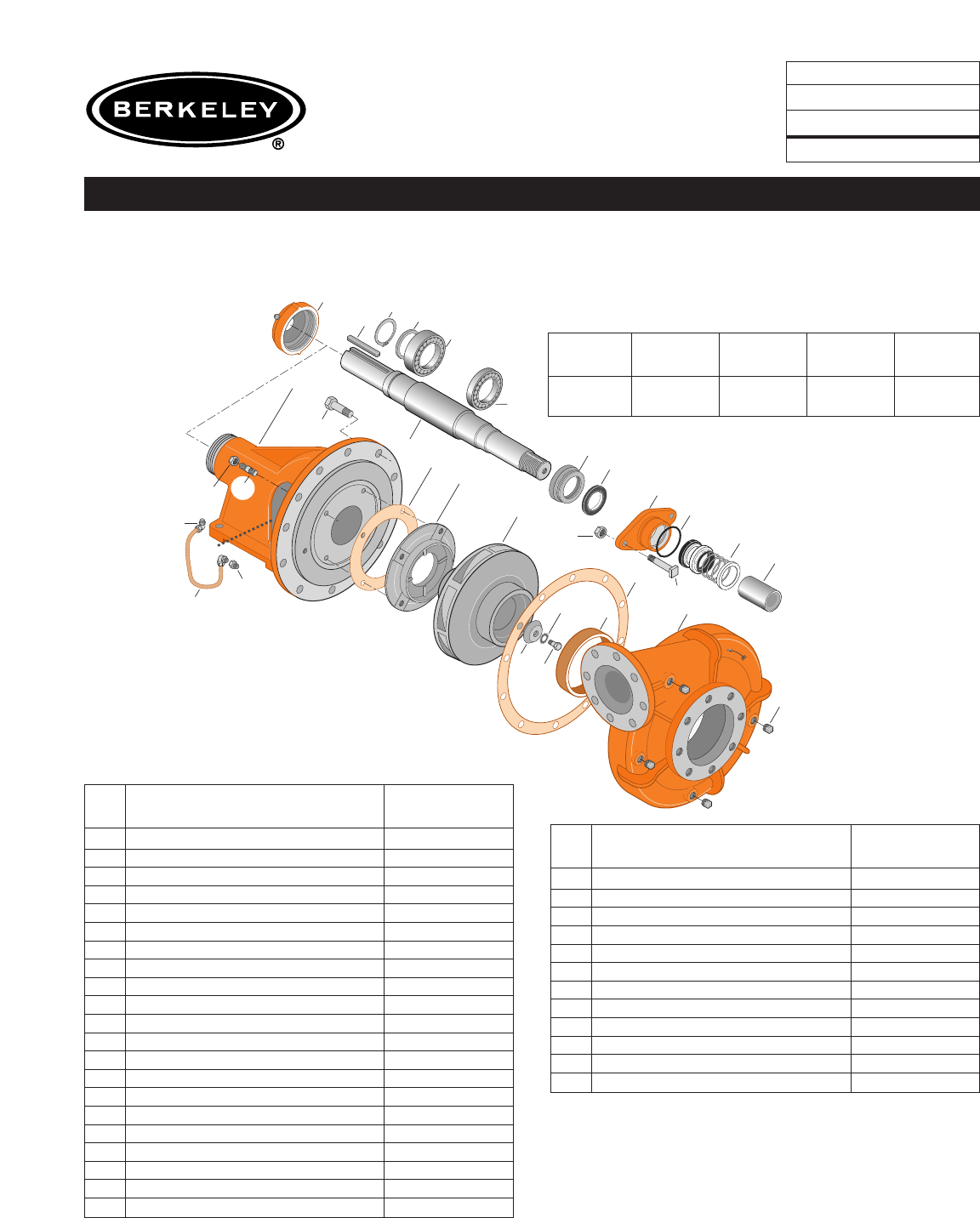

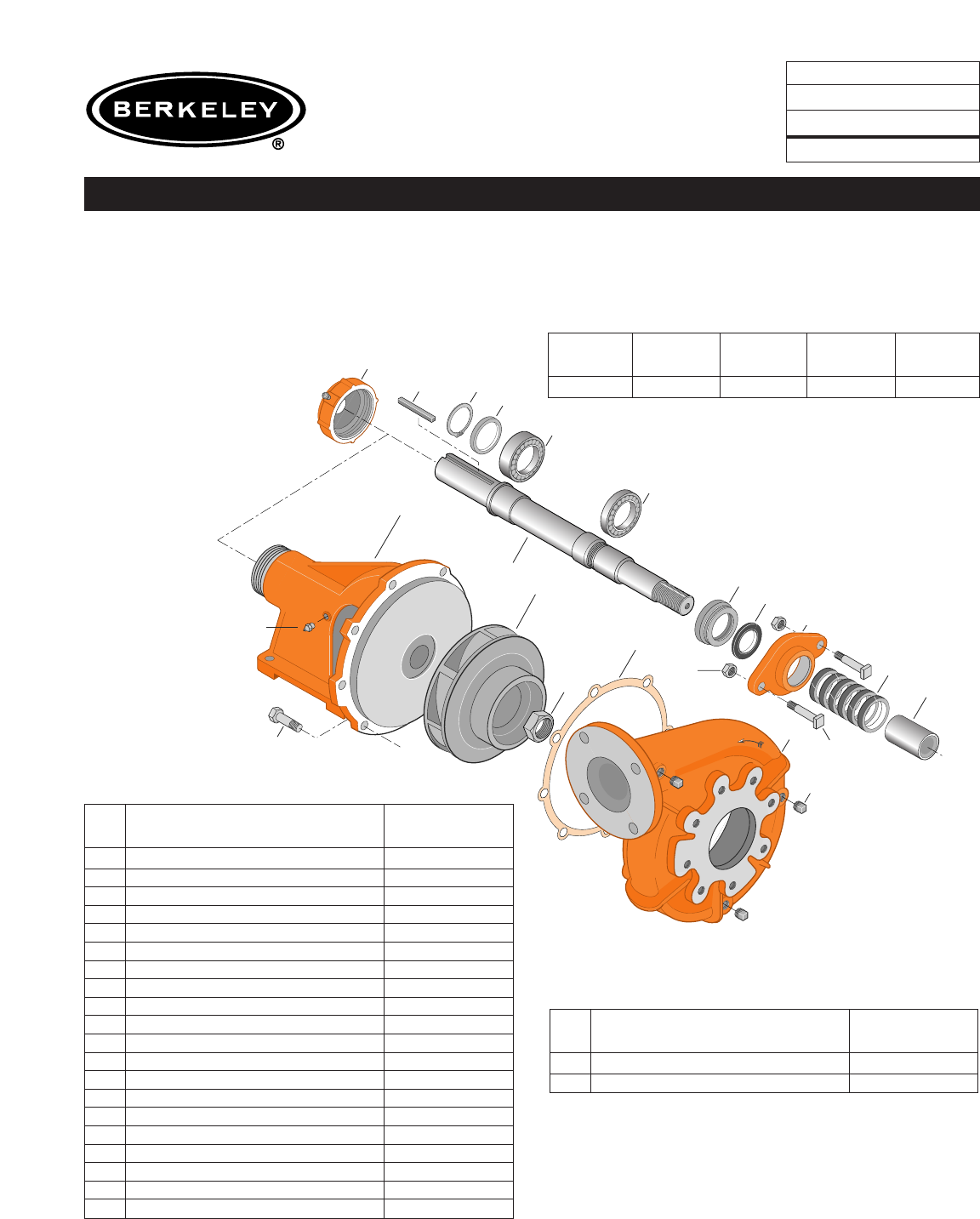

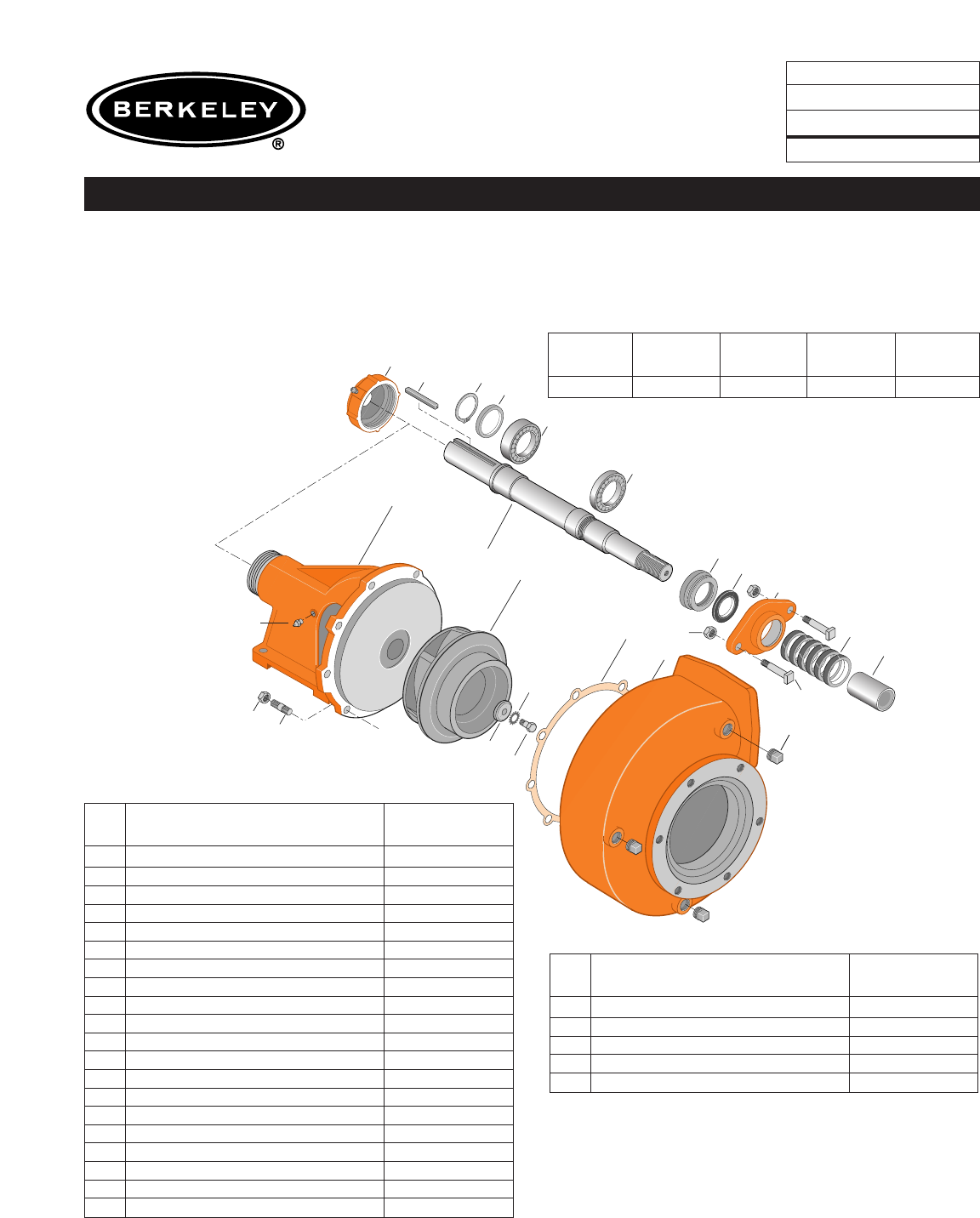

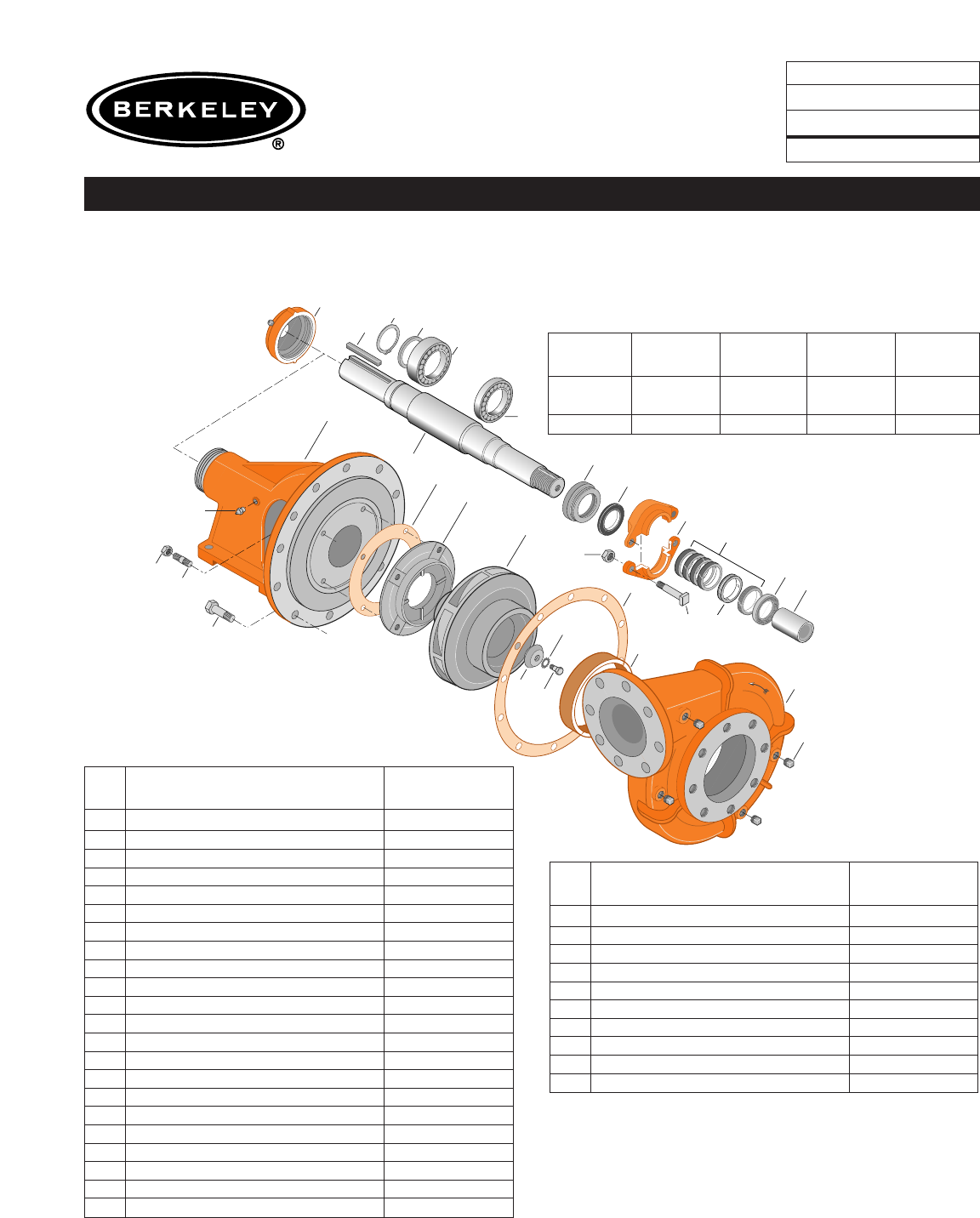

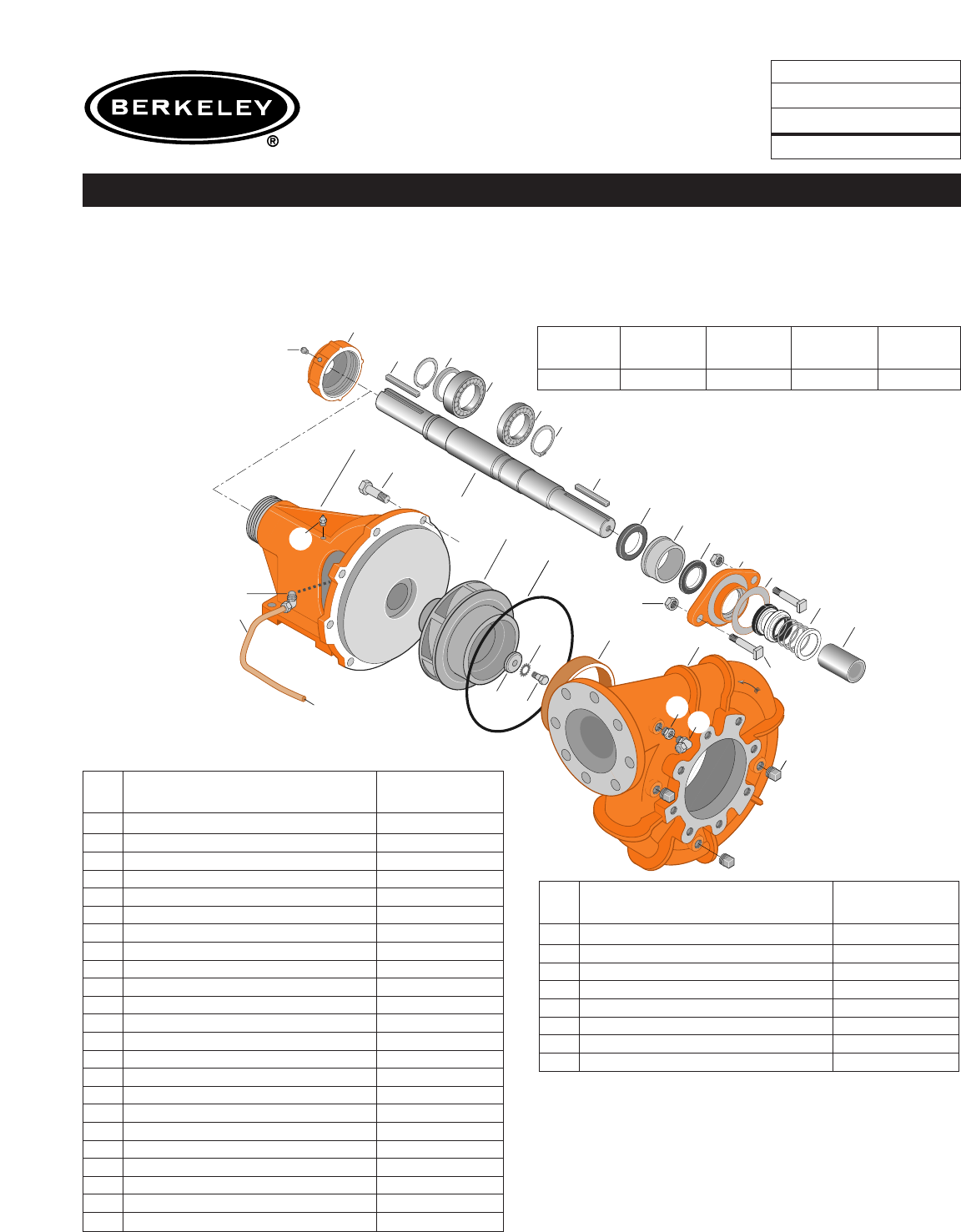

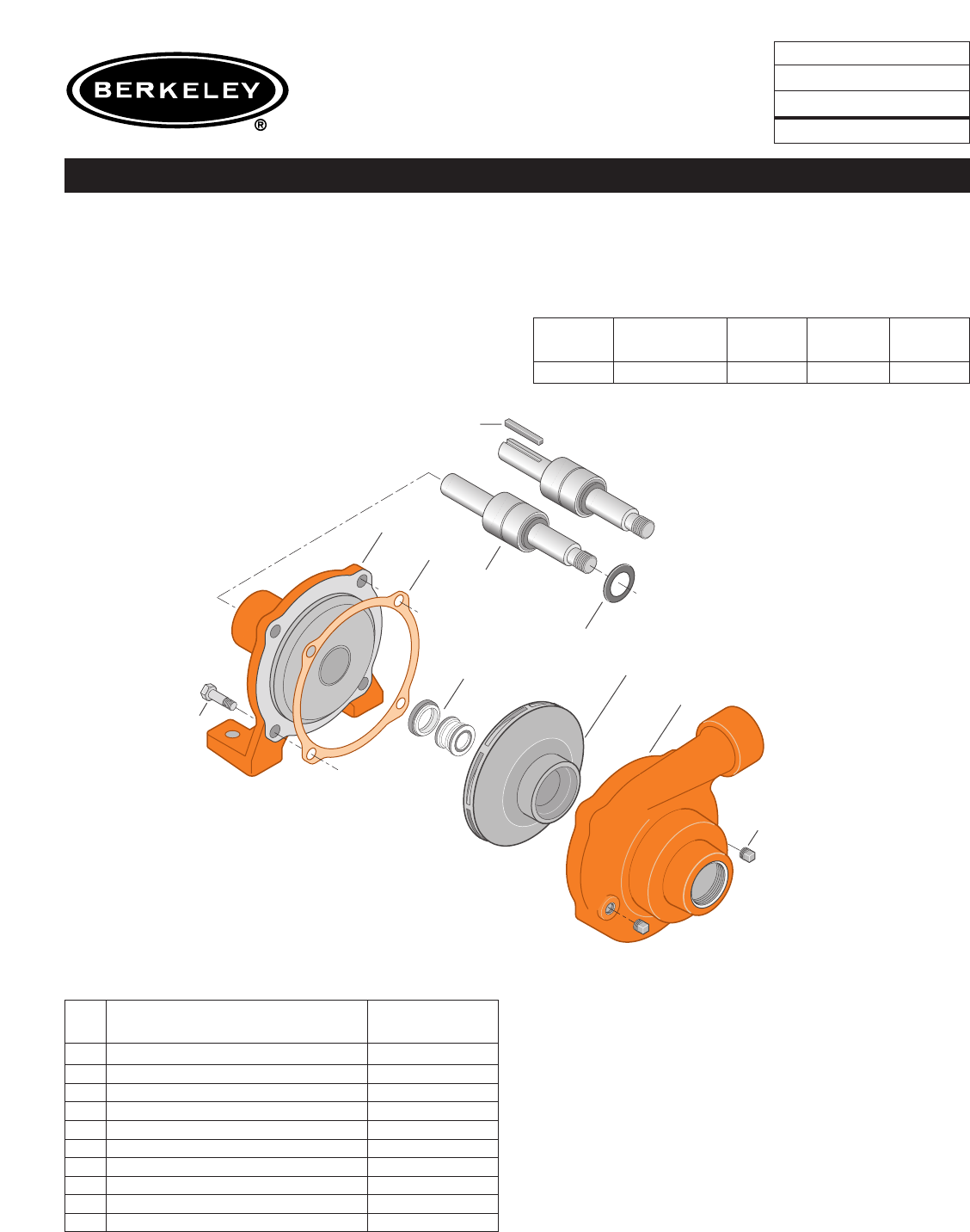

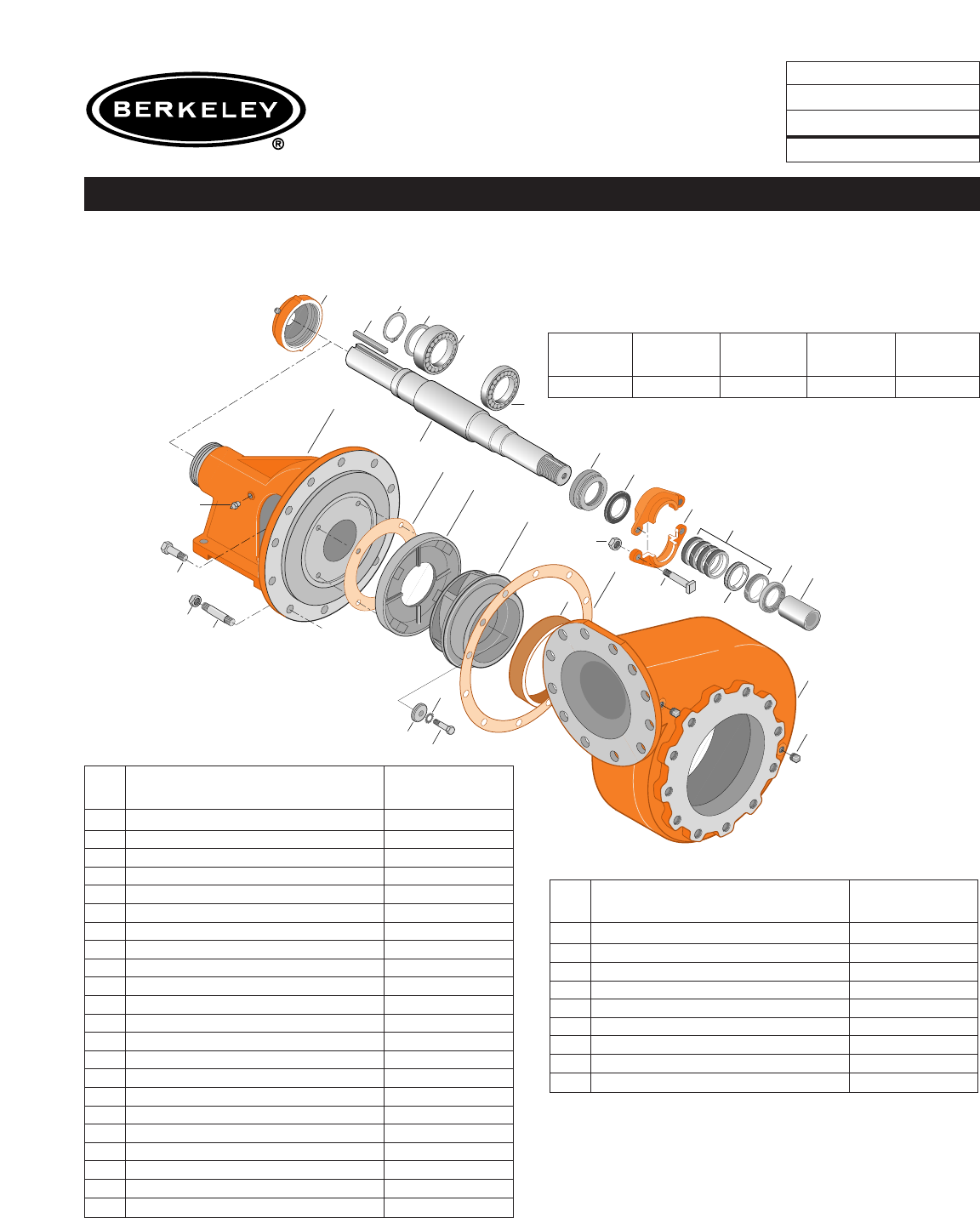

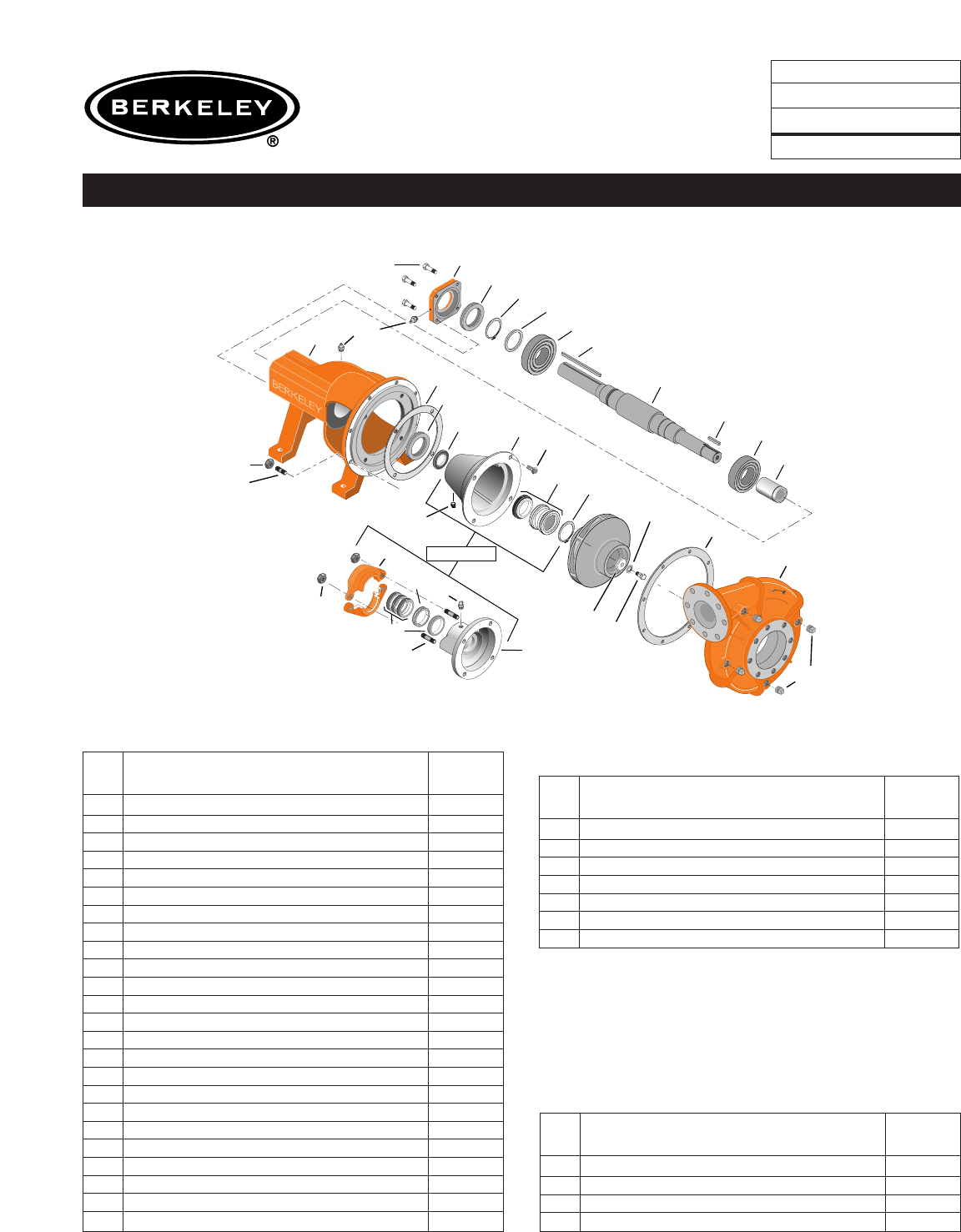

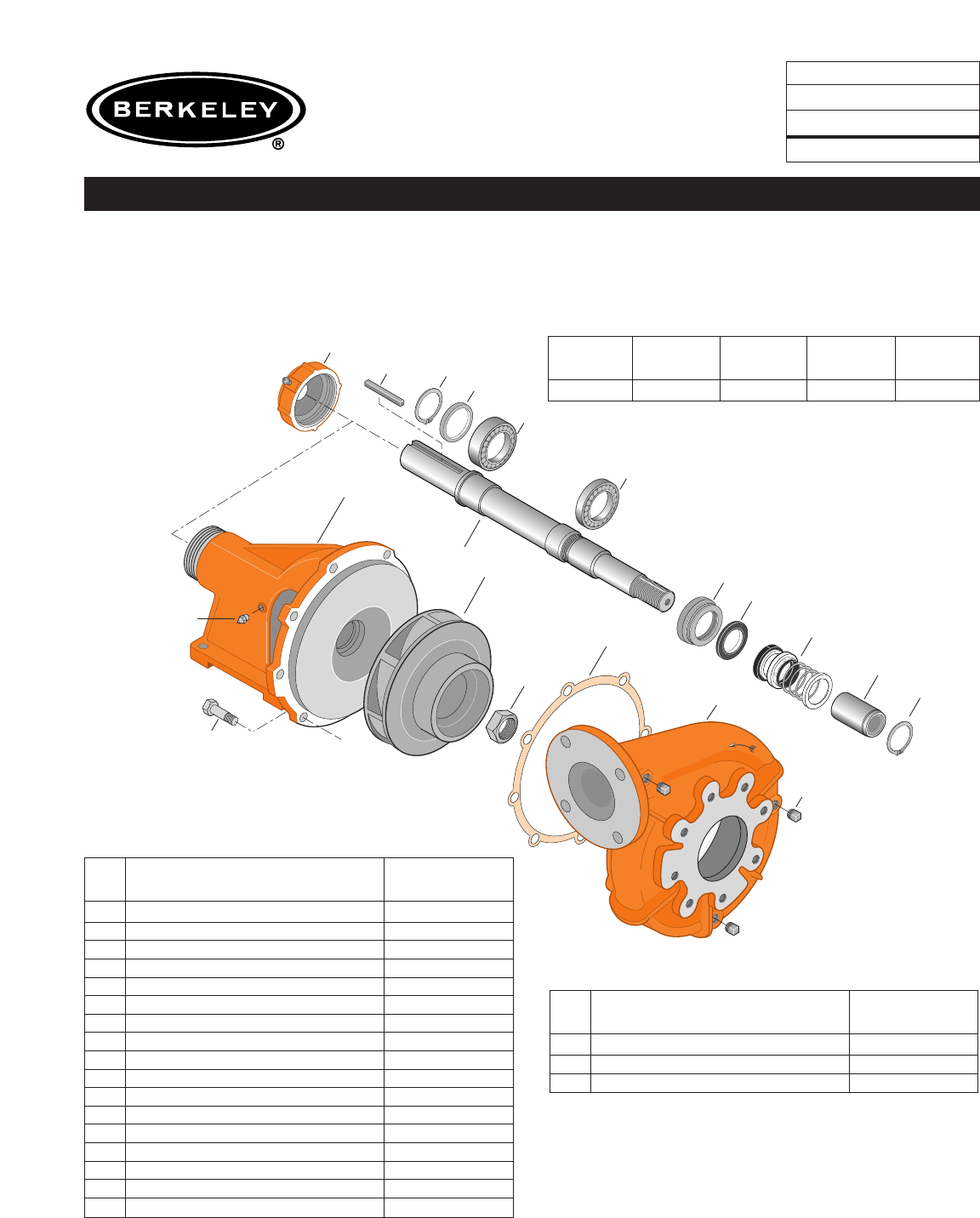

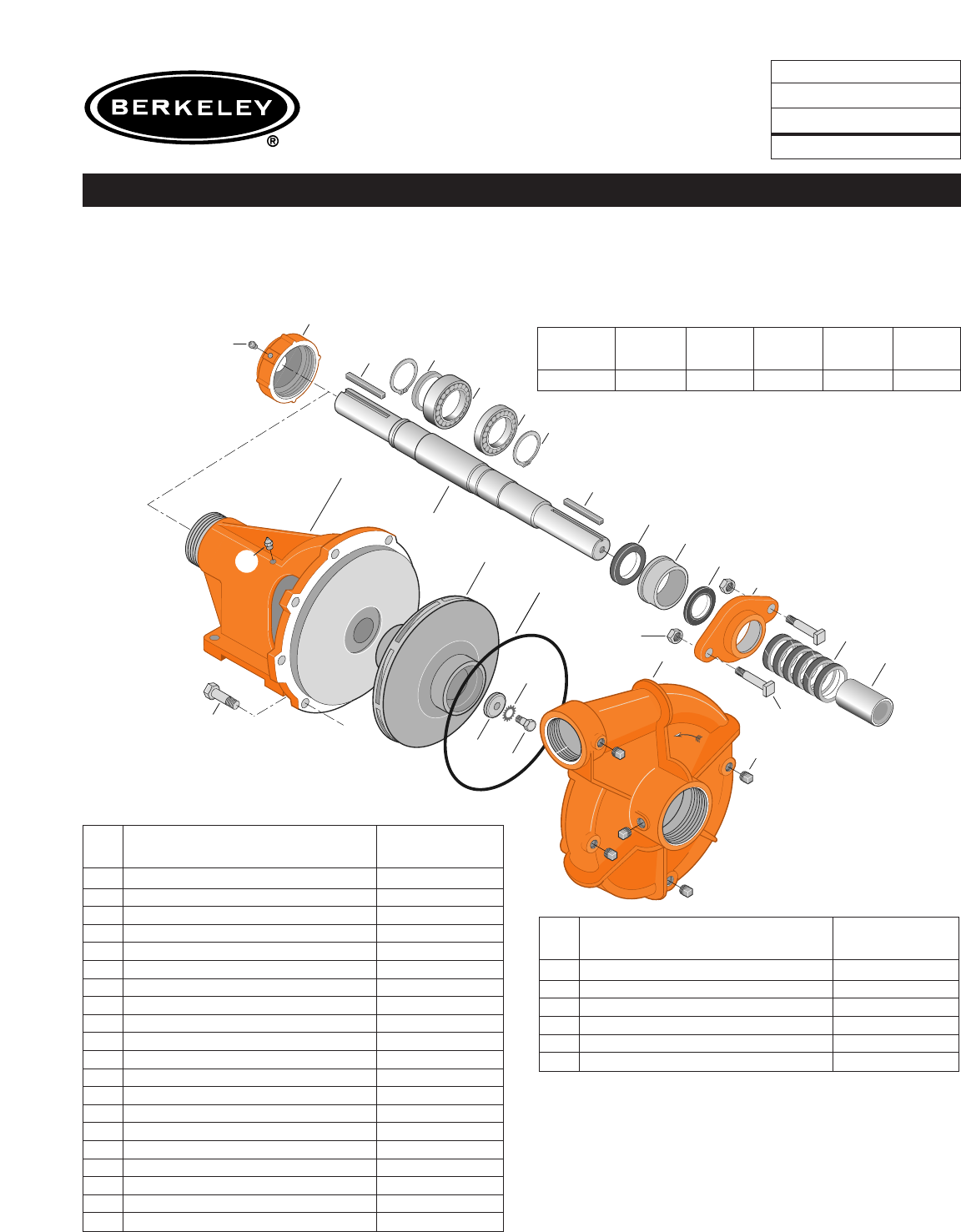

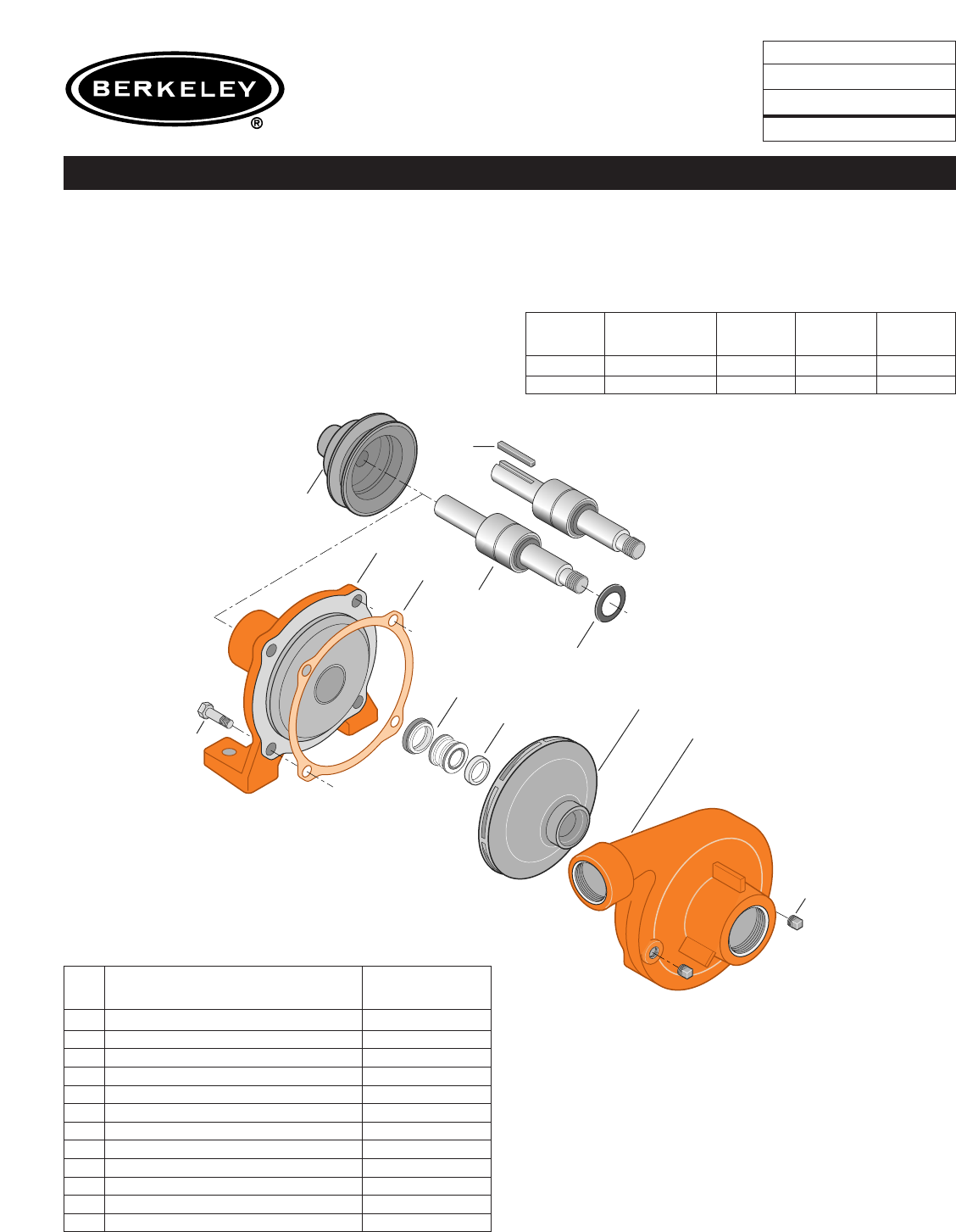

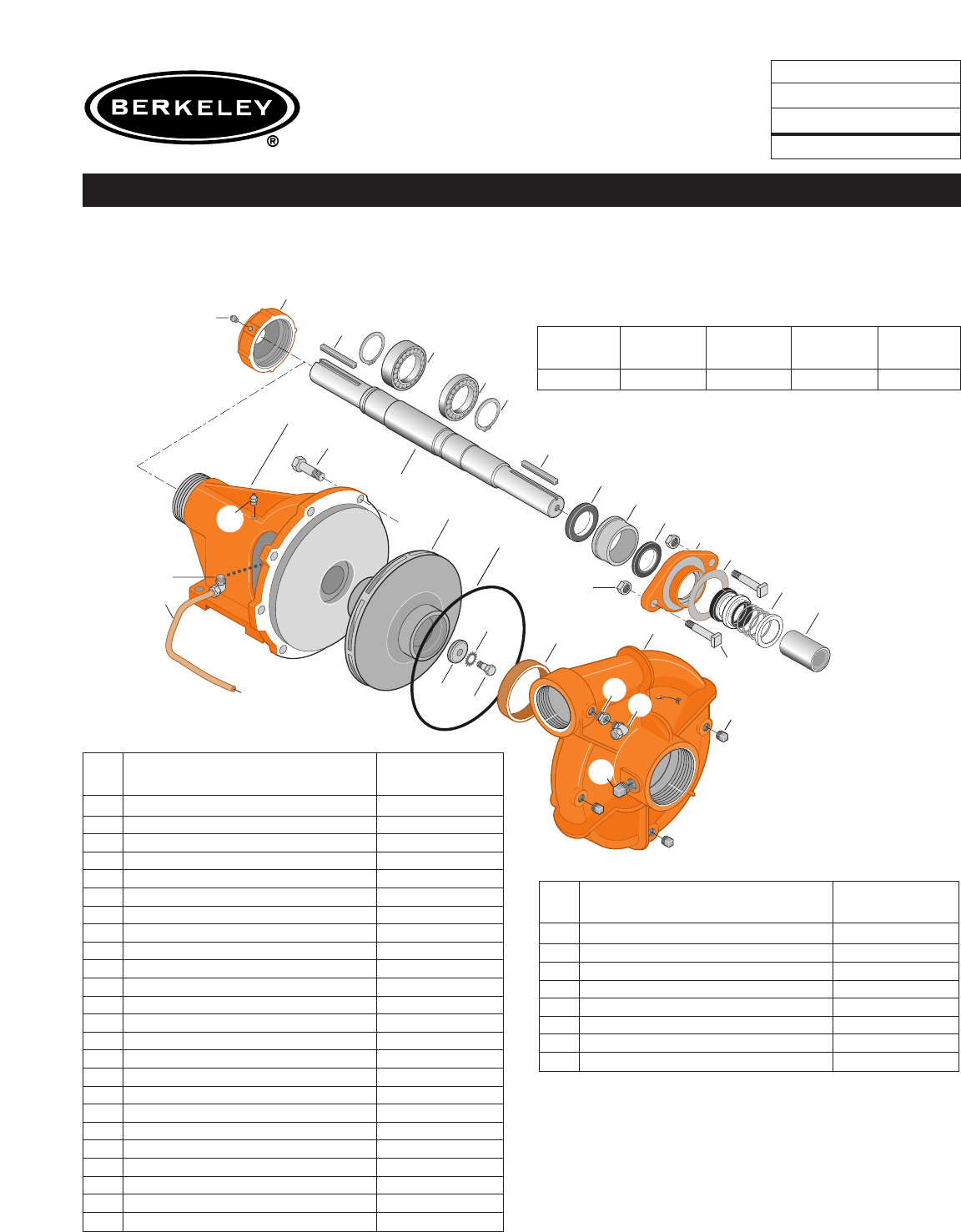

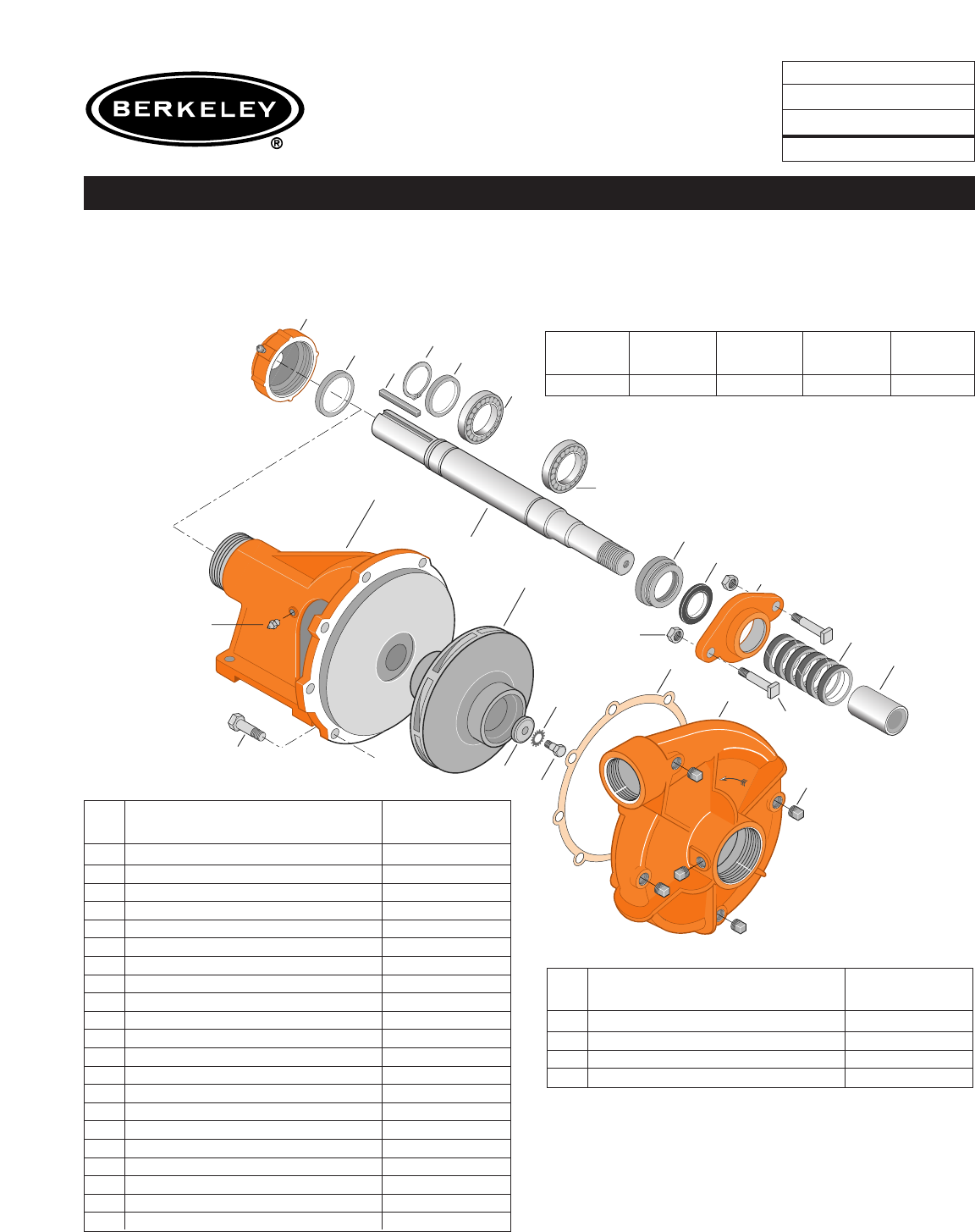

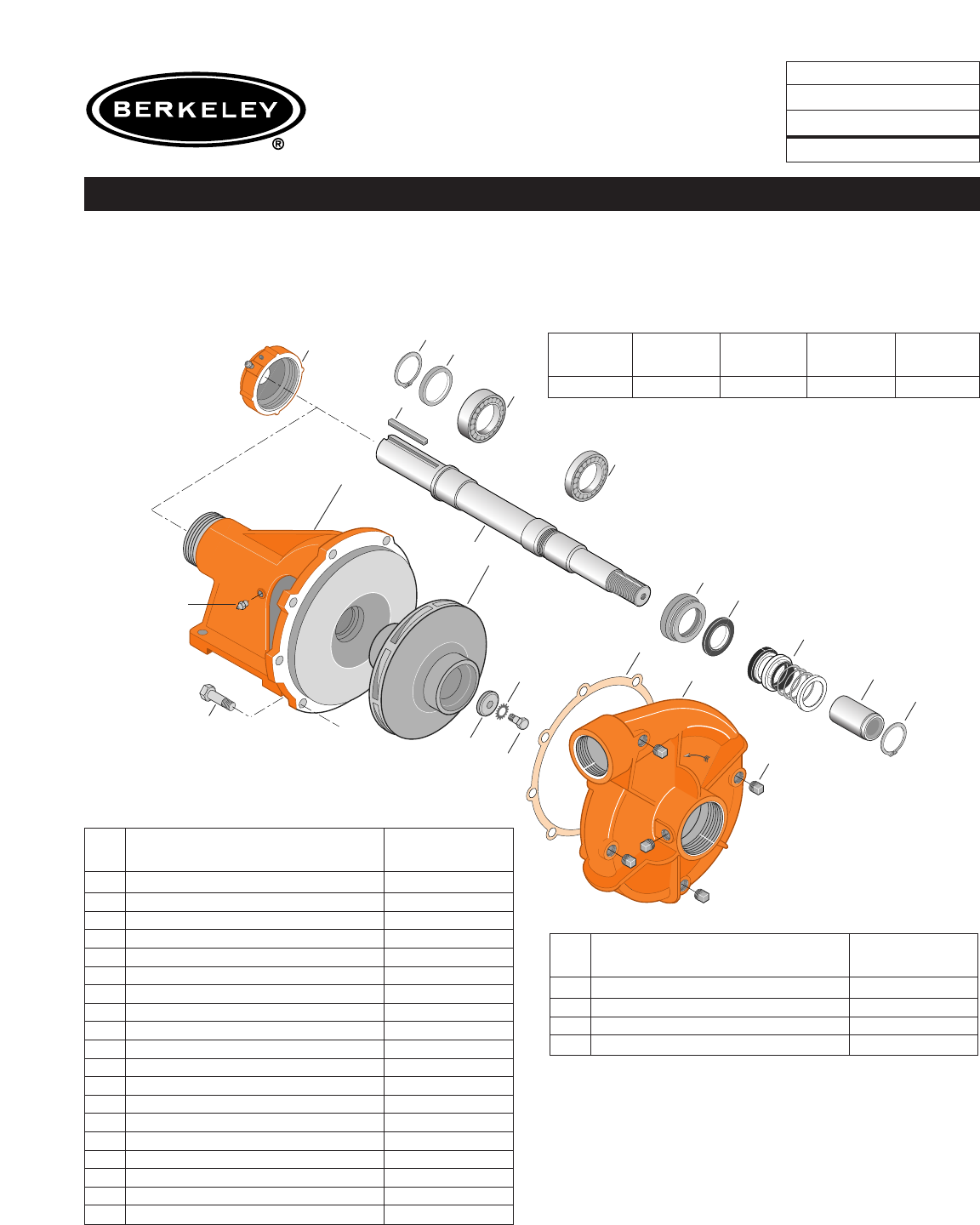

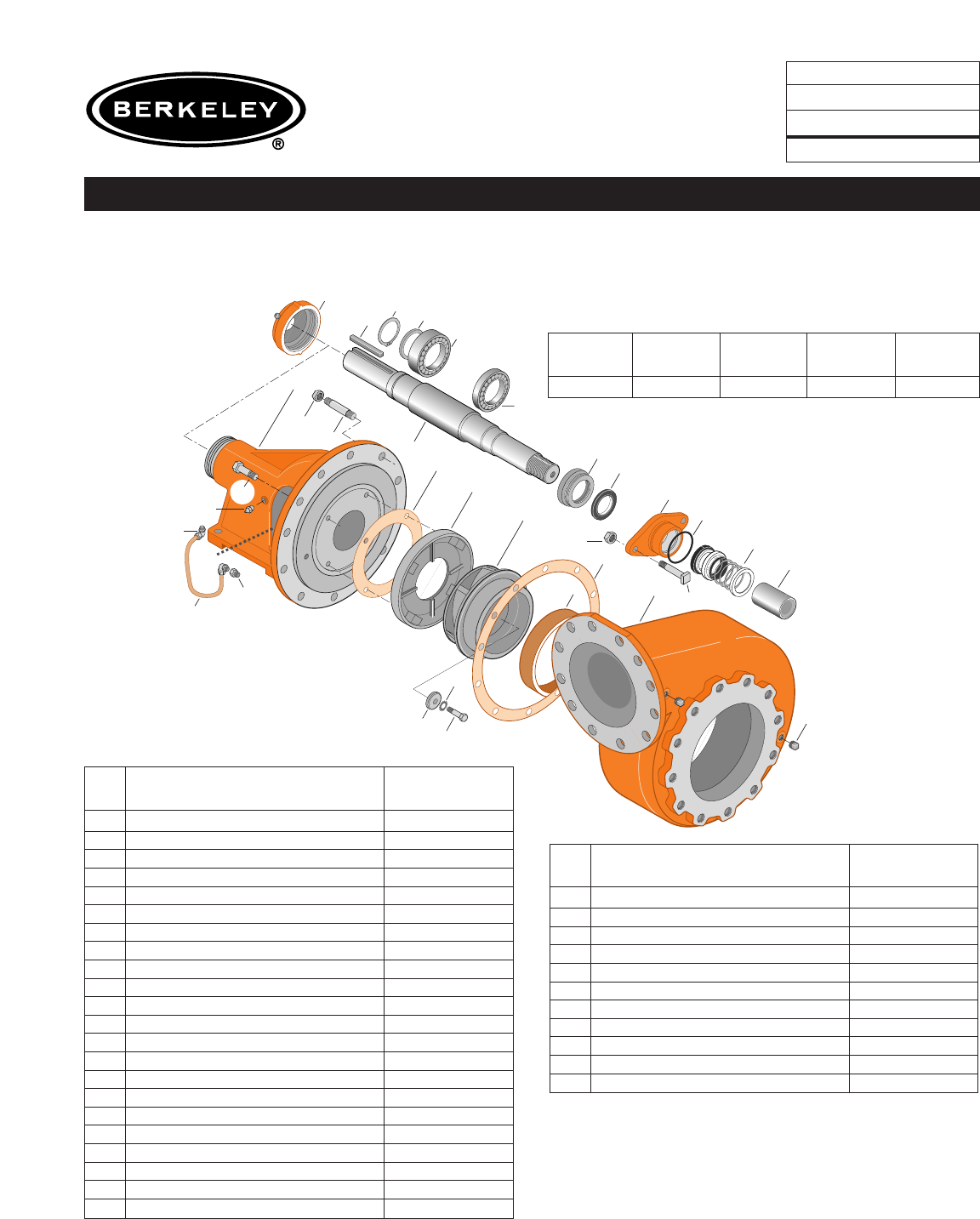

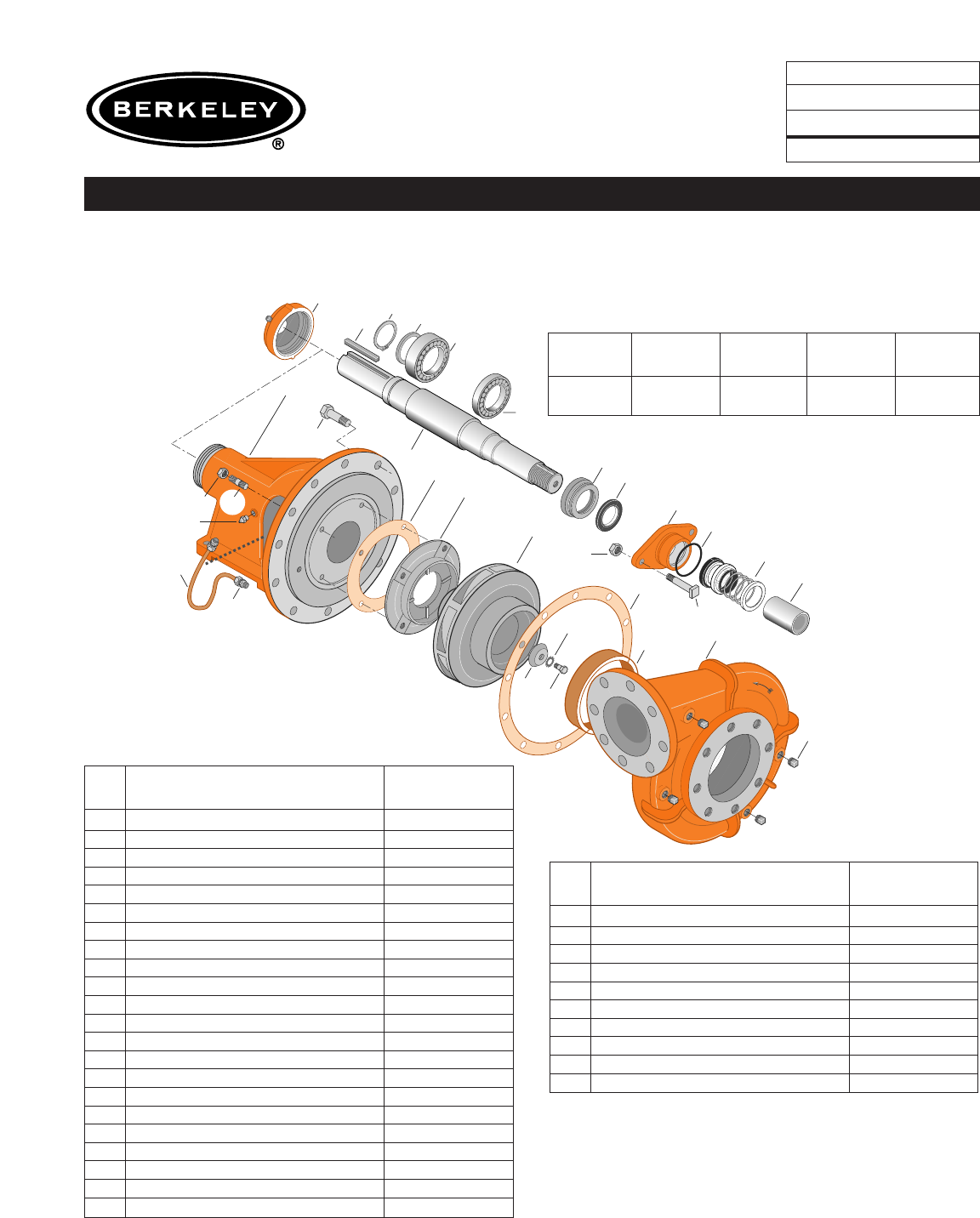

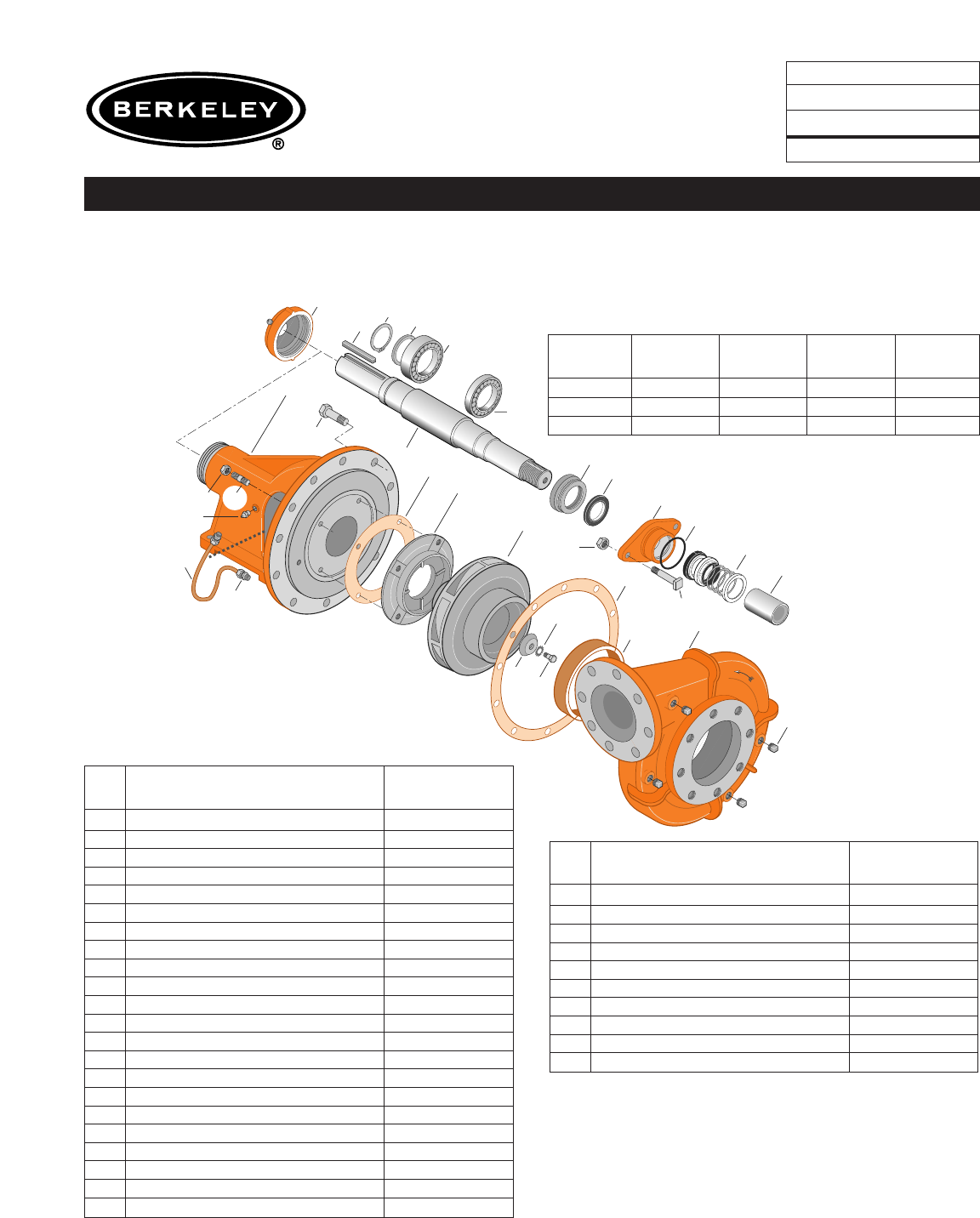

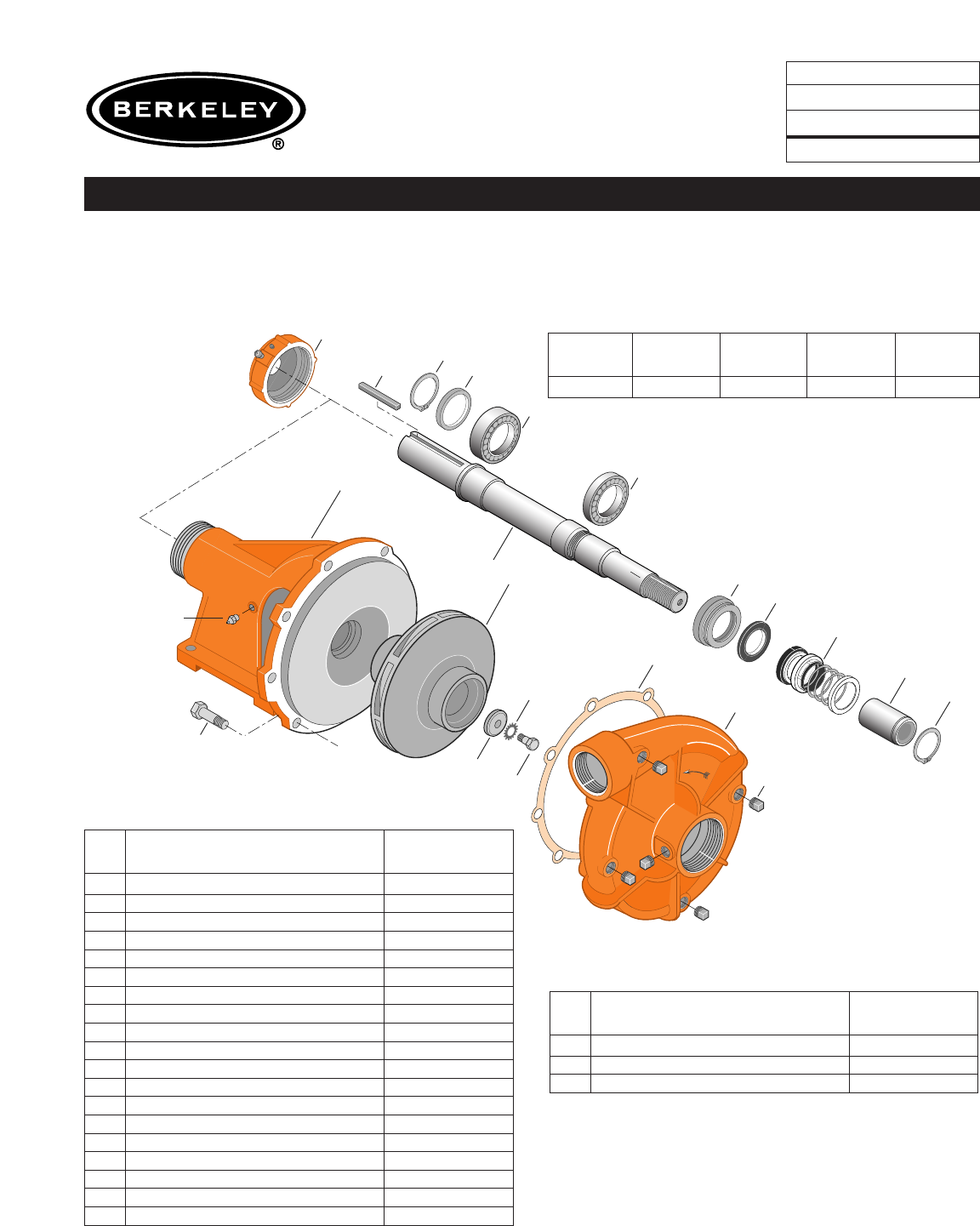

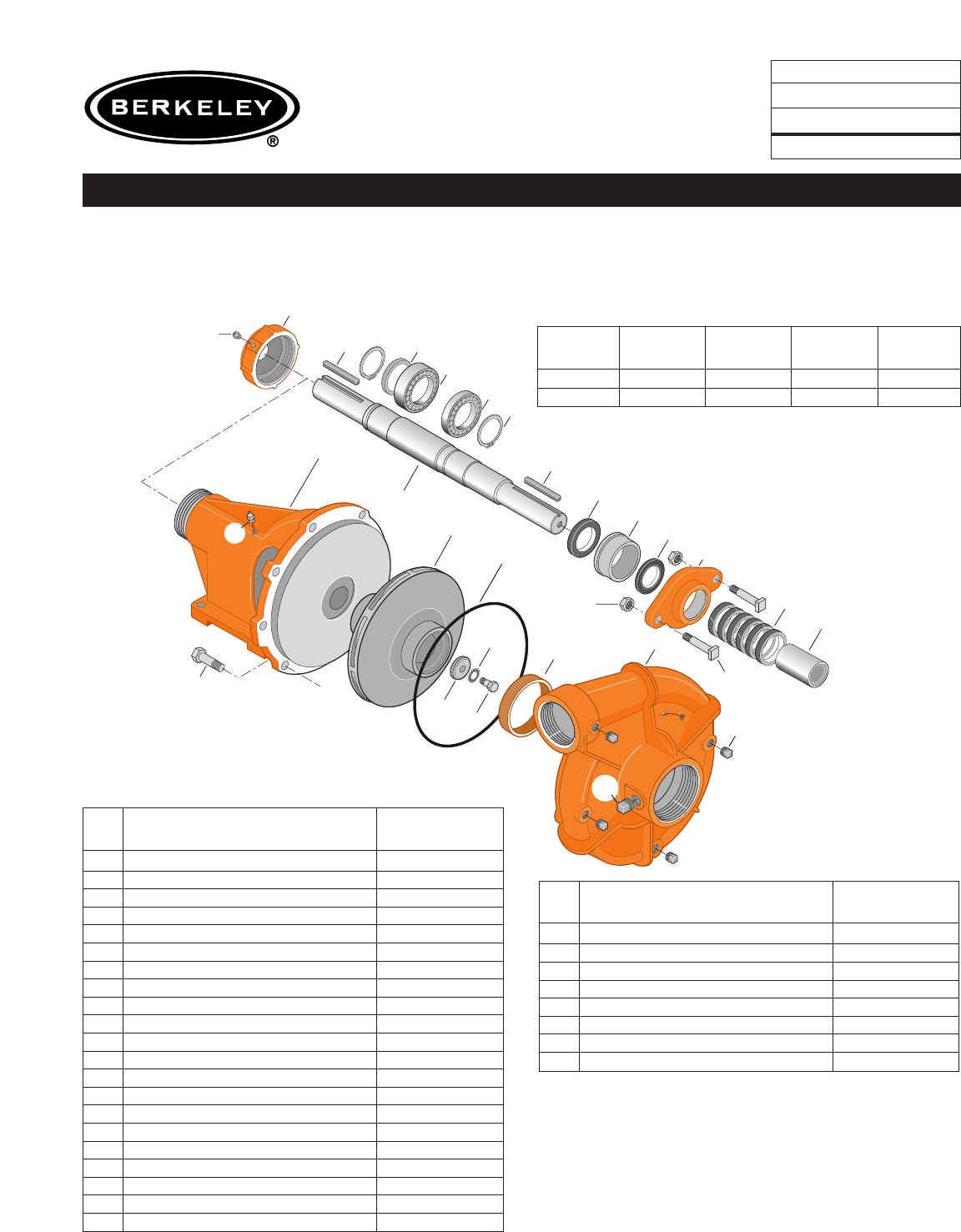

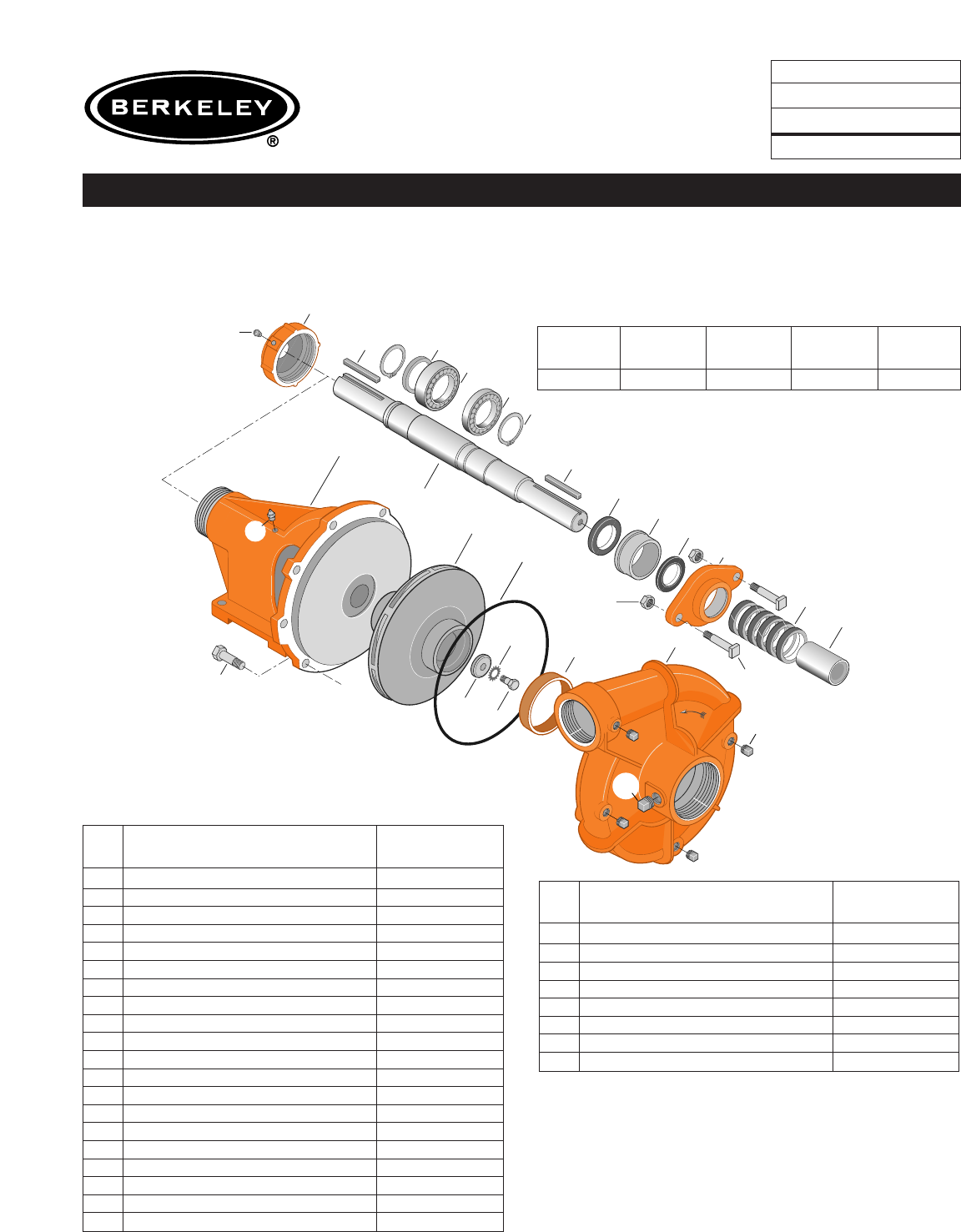

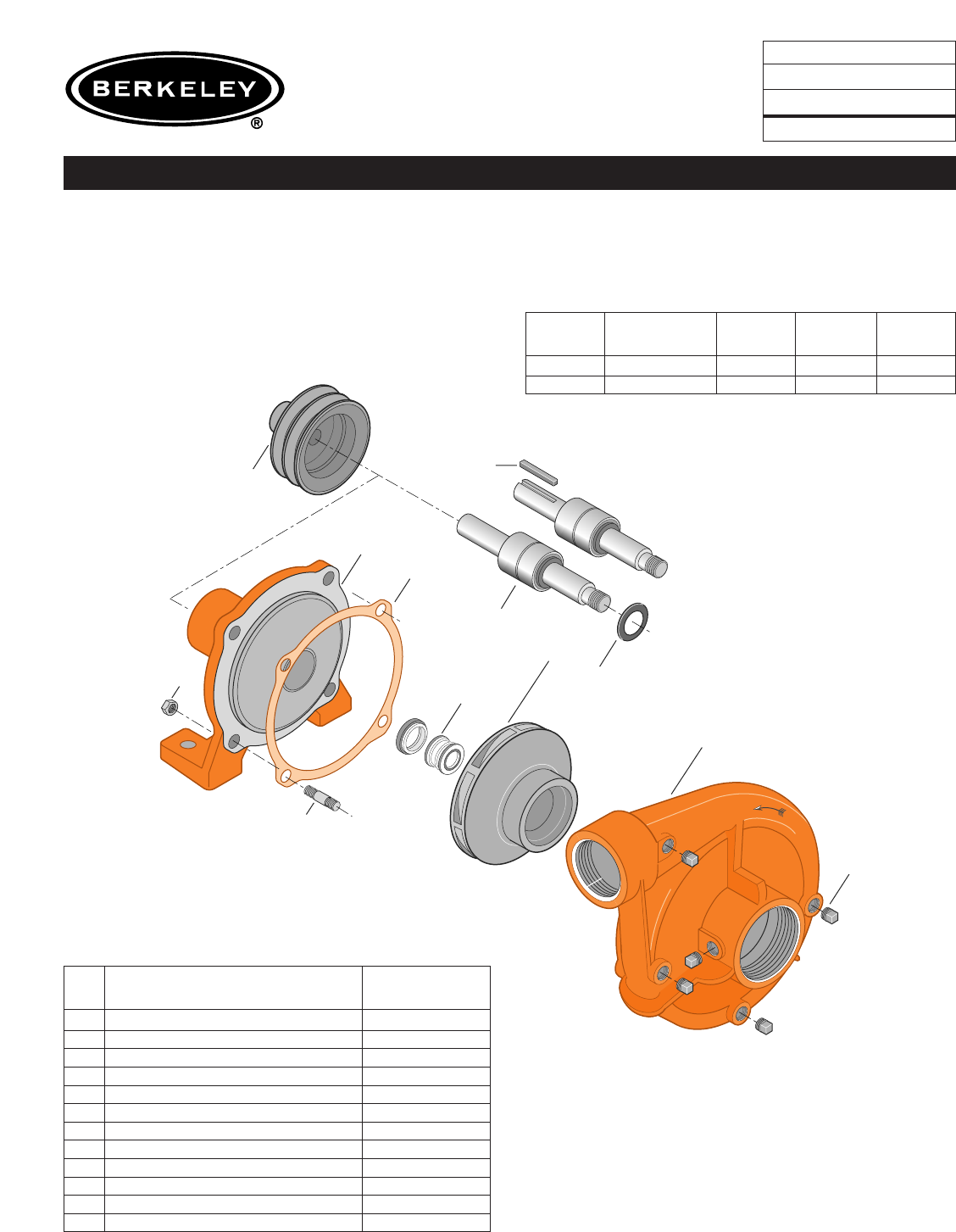

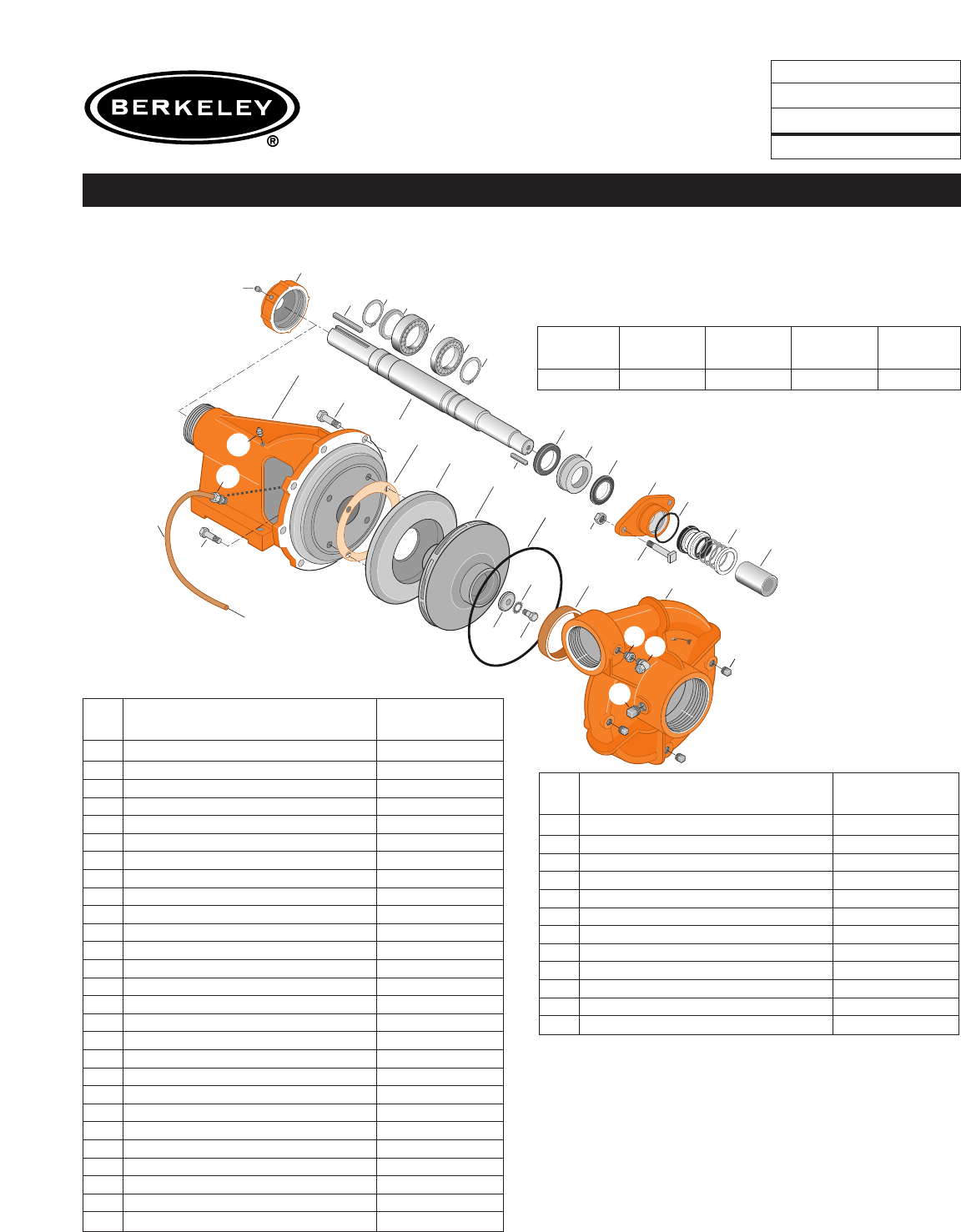

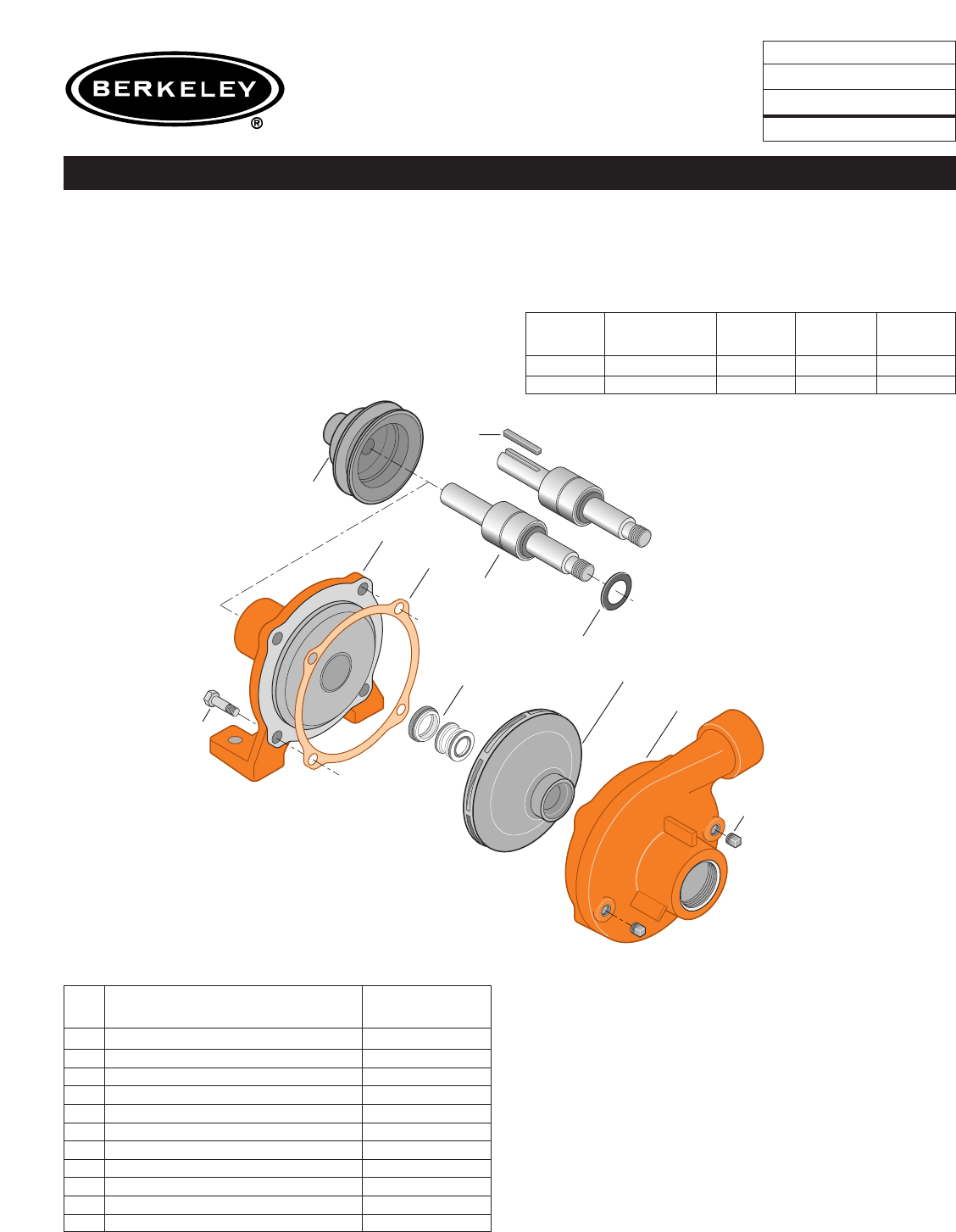

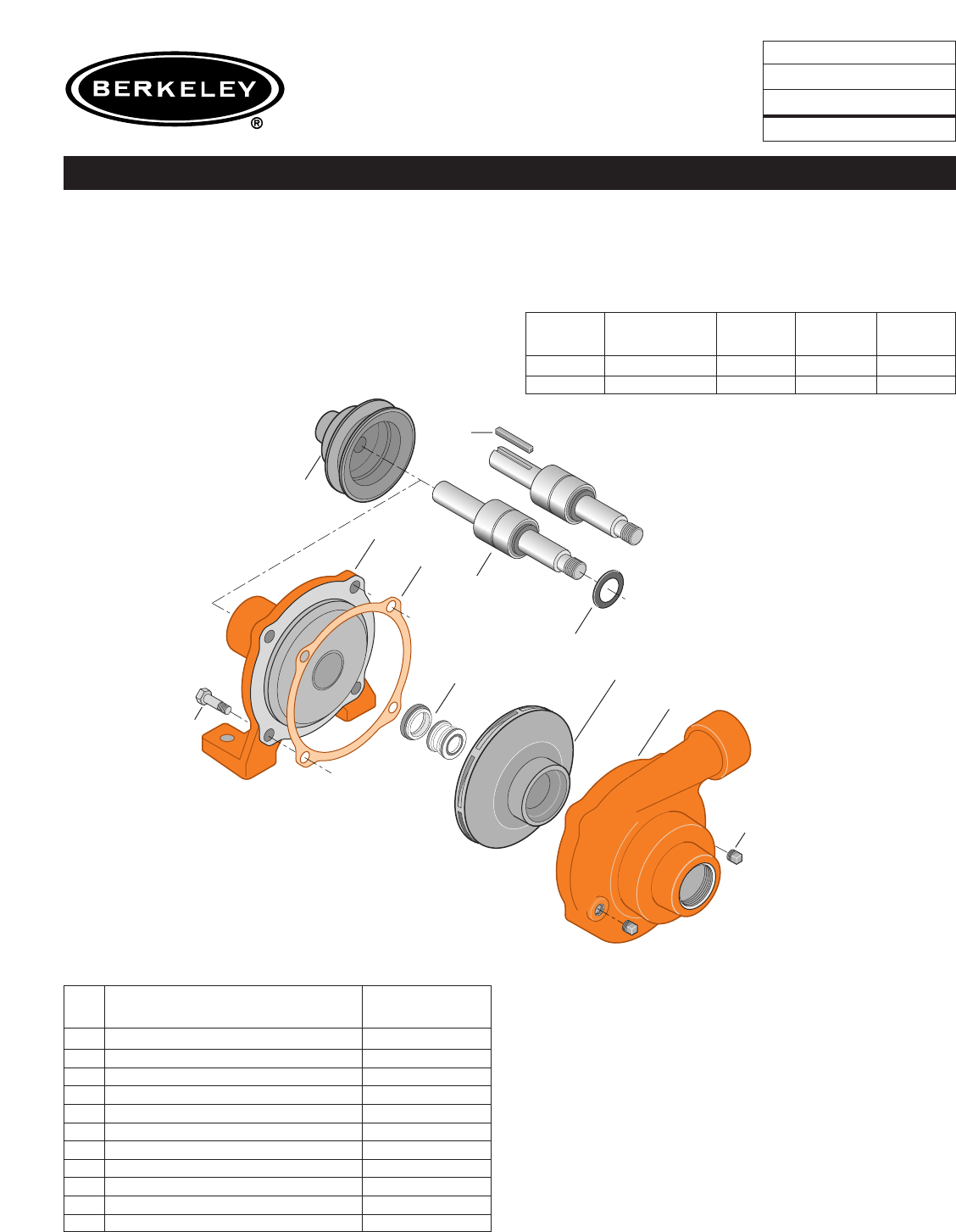

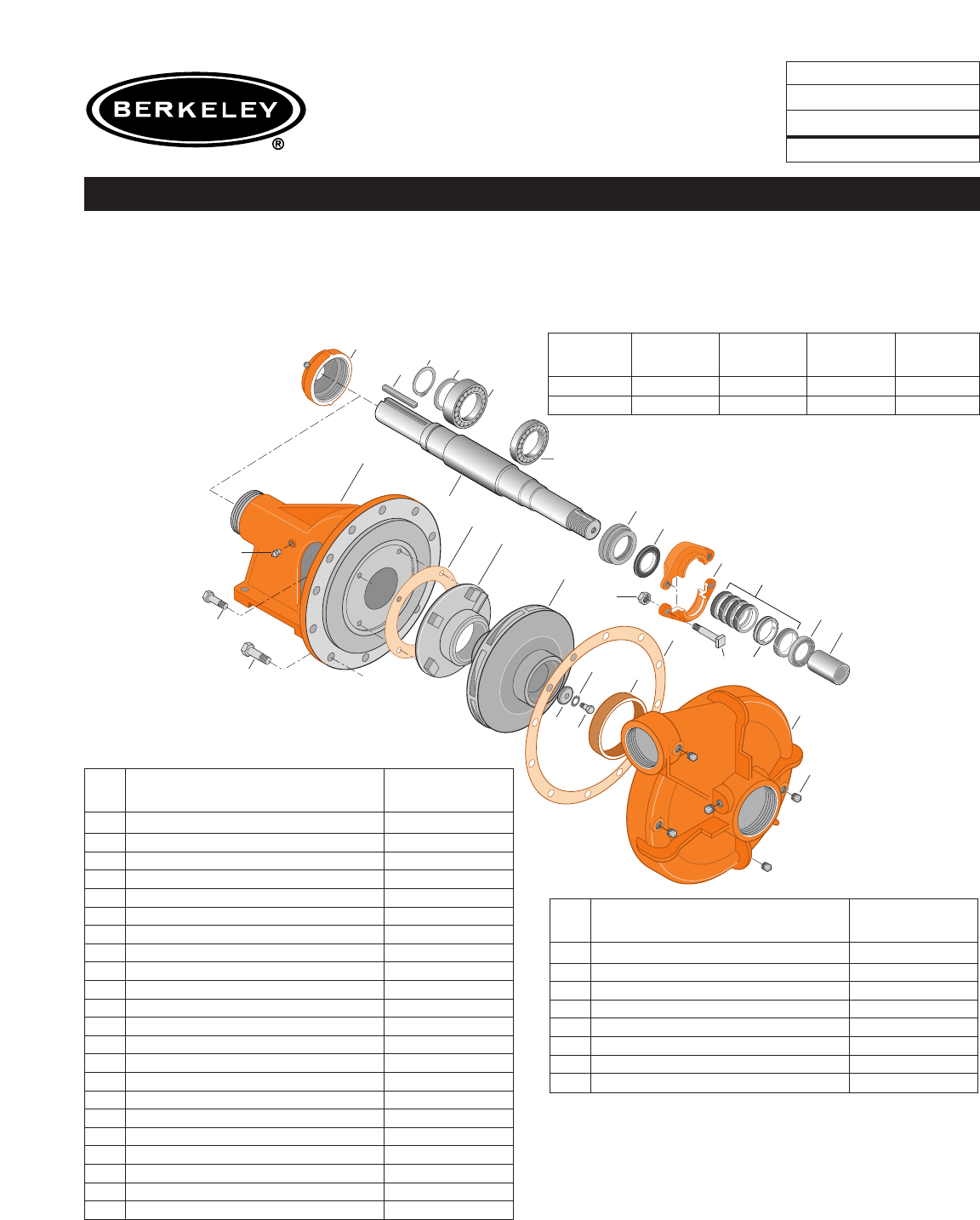

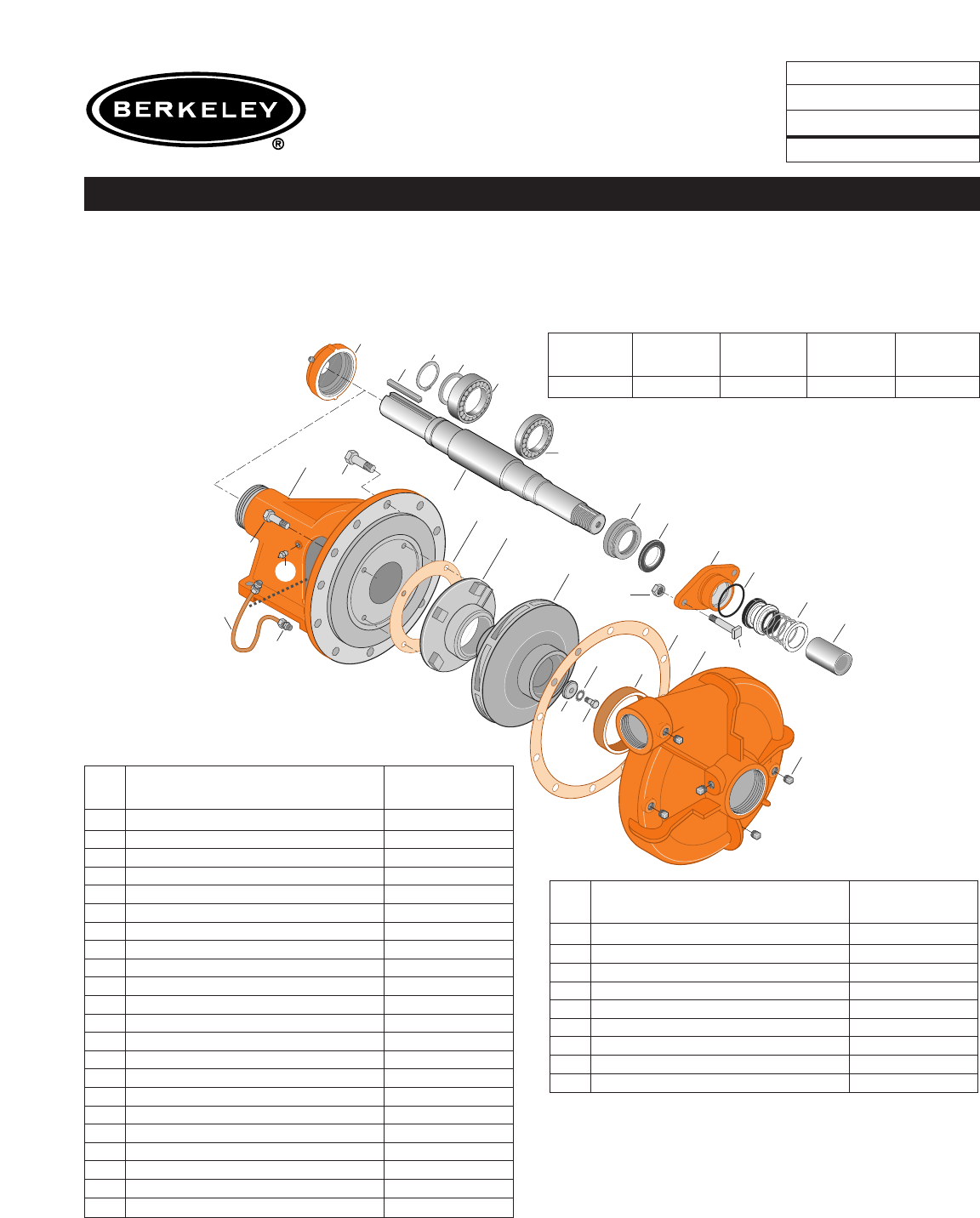

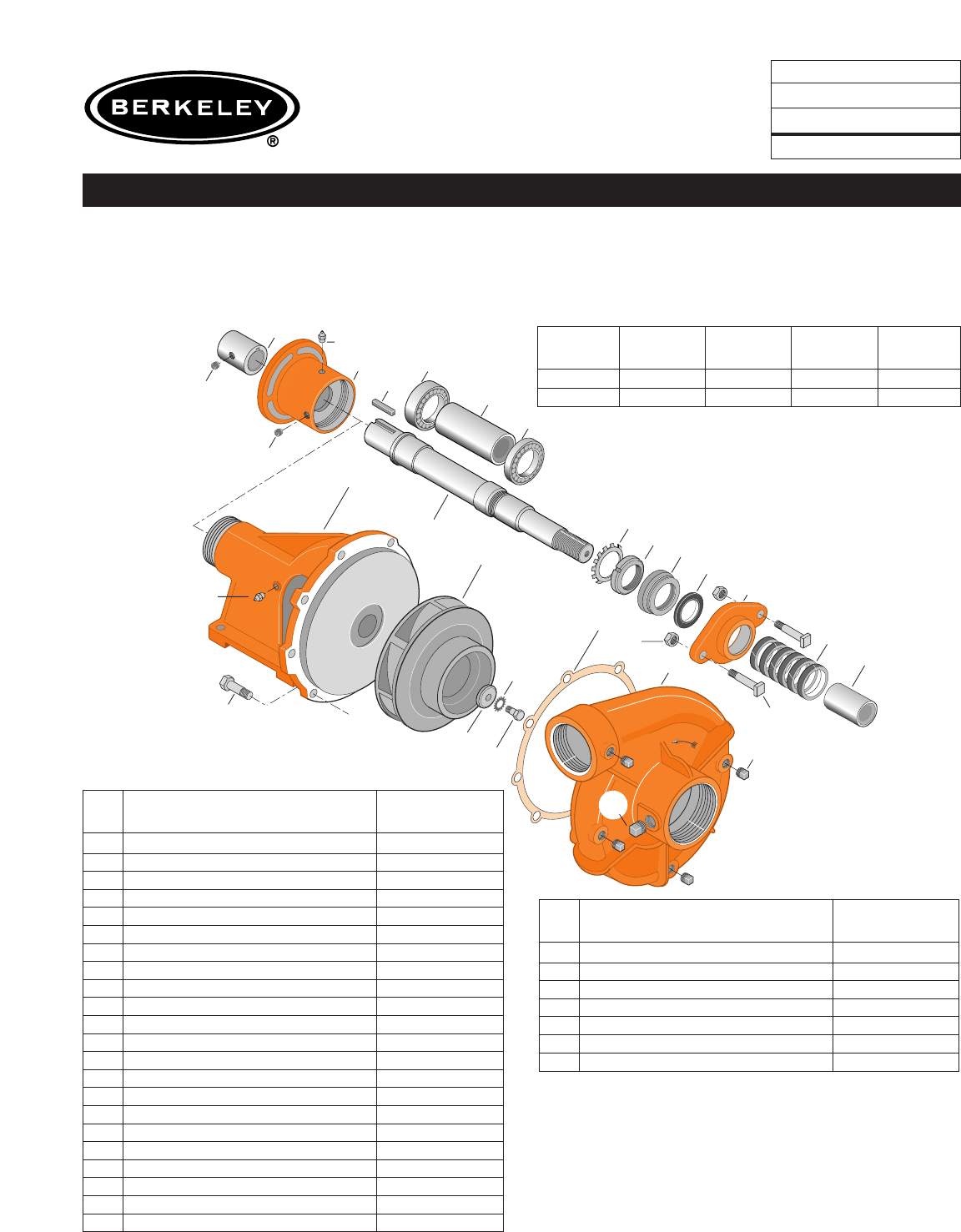

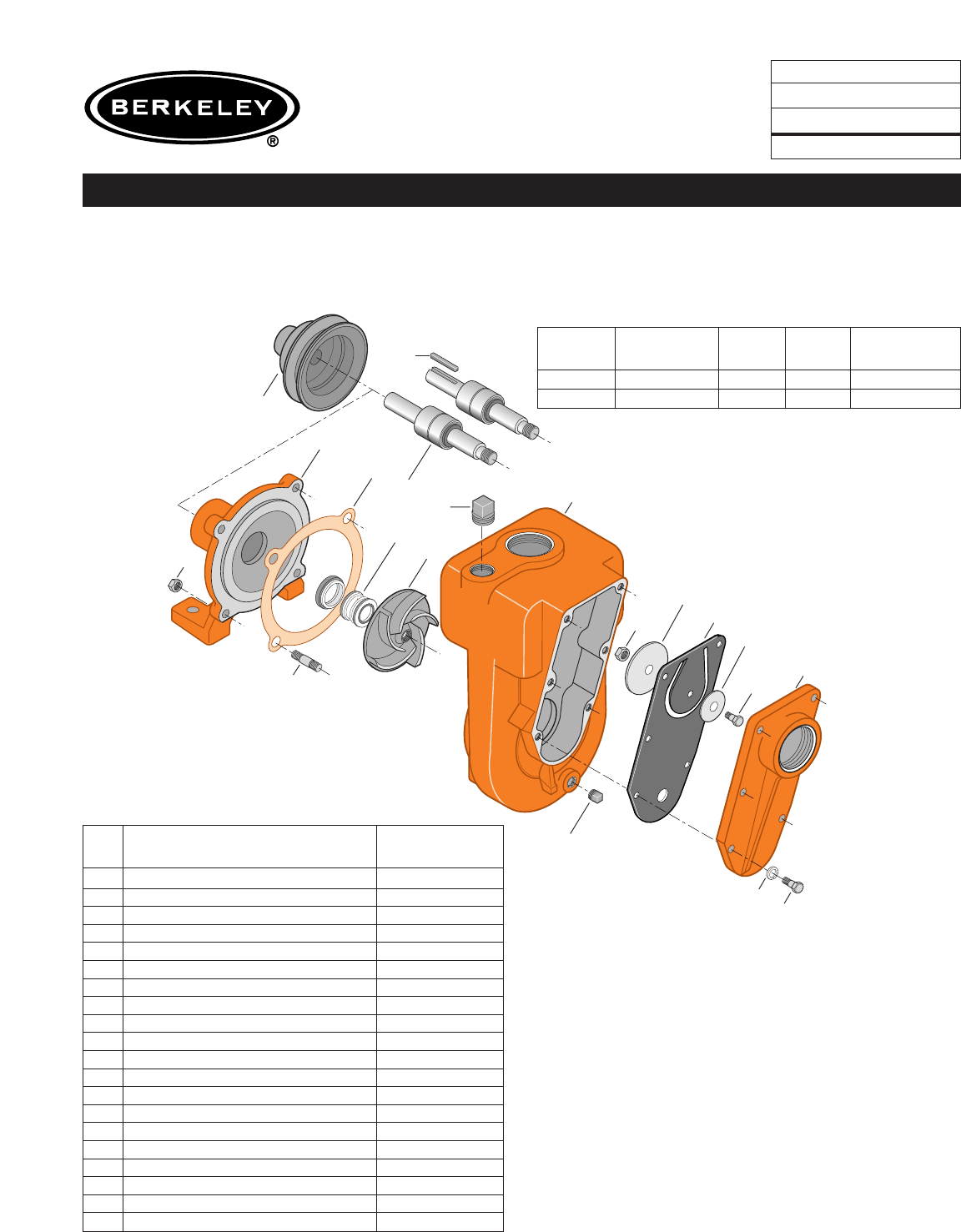

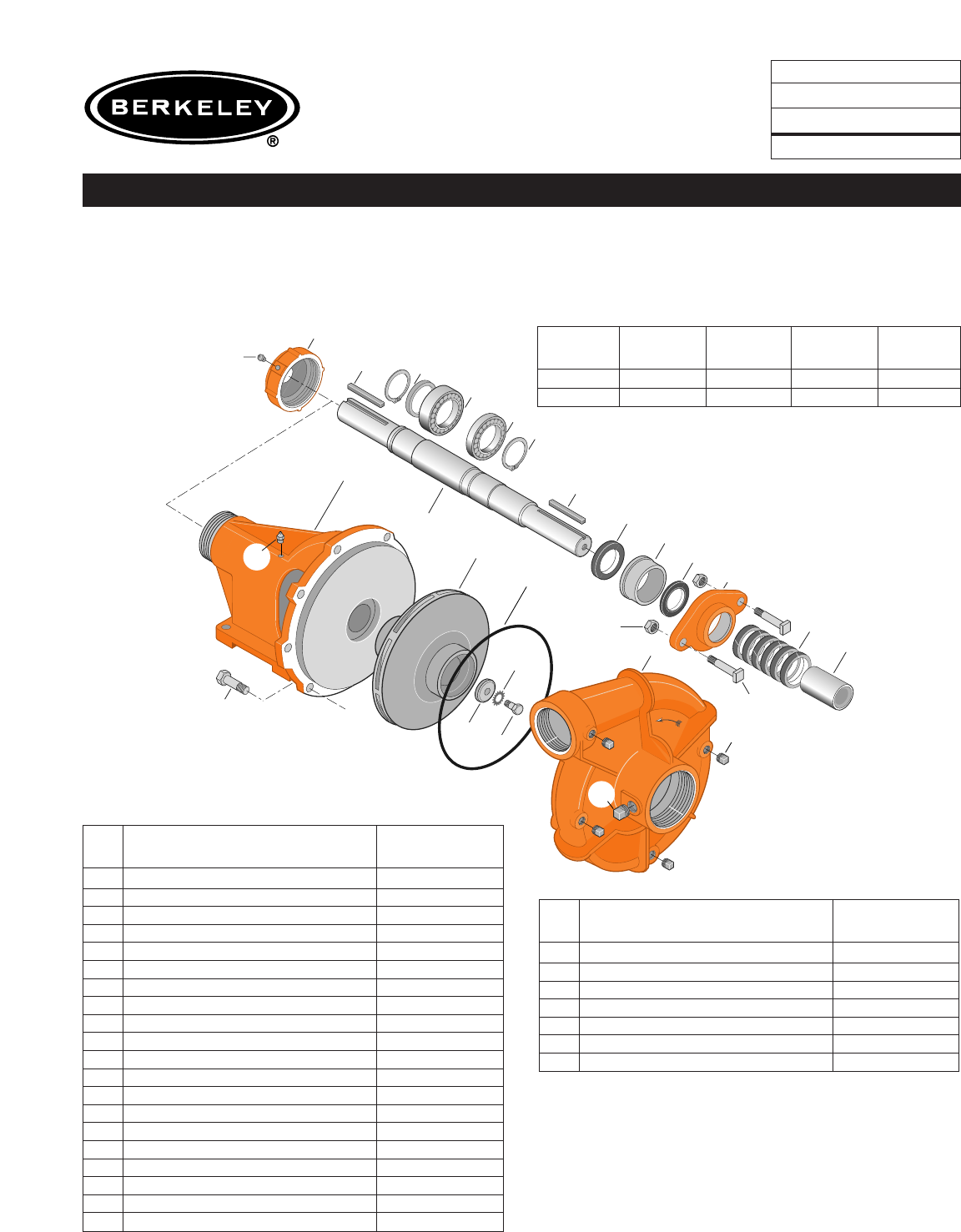

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Belt/Coupling Drive

Section B/C

Page 10.1

Date January 1, 2004

Supersedes 6/1/96

CAST IRON IMPELLER B1MRS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute L01131

2Impeller See Table I

6Shaft Assembly See Table I

19 Frame M01856

40 Slinger, Water S05222

32 Key, 3/16 x 1” S24151

73 Gasket, Case S05141

89 Seal, Mechanical Shaft S05645

800 Capscrew, 3/8-16x3/4” (4 Req.) S26824

810 Pipe Plug, 1/8” NPT (2 Req.) S23714

832 Sheave S05270

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B56413 Coupling - CCW S30819 S05266 4.50”

B01838 Belt - CCW S08164 S05266 4.50”

19

32

73

6

89 2

810

1

Belt

Drive

Coupling

Drive

800

2500A 0596

40

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Belt/Coupling Drive

Section B/C

Page 10.2

Date January 1, 2004

Supersedes/New

BRONZE IMPELLER B1MRS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute L01131

2Impeller See Table I

6Shaft Assembly See Table I

19 Frame M01856

40 Slinger, Water S05222

32 Key, 3/16 x 1” S24151

73 Gasket, Case S05141

89 Seal, Mechanical Shaft S05645

800 Capscrew, 3/8-16x3/4” (4 Req.) S26824

810 Pipe Plug, 1/8” NPT (2 Req.) S23714

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B76019 Coupling - CCW S30819 M11261 4.50”

19

32

832

73

6

89 2

810

1

Belt

Drive

Coupling

Drive

800

2501 0596

40

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Belt/Coupling Drive

Section B/C

Page 20.1

Date January 1, 2004

Supersedes 6/1/96

CAST IRON IMPELLER B1XRS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute M01842

2Impeller See Table I

6Shaft Assembly See Table I

19 Frame M01856

32 Key, 3/16 x 1” S24151

40 Slinger, Water S05222

73 Gasket, Case S05141

89 Seal, Mechanical Shaft S05645

800 Capscrew, 3/8-16x3/4” (4 Req.) S26824

810 Pipe Plug, 1/8” NPT (2 Req.) S23714

832 Sheave S05270

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B56414 Coupling - CCW S30819 M01868 5.31”

B01784 Belt - CCW S08164 M01868 5.31”

19

32

832

73

6

89

67

2

810

1

Belt

Drive

Coupling

Drive

800

2502 0596

40

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Belt/Coupling Drive

Section B/C

Page 30.1

Date January 1, 2004

Supersedes 6/1/96

CAST IRON IMPELLER B1XRMS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute M06154

2Impeller See Table I

6Shaft Assembly See Table I

19 Frame M01856

32 Key, 3/16 x 1” S24151

40 Slinger, Water S05222

67 Spacer, Impeller S17323

73 Gasket, Case S05141

89 Seal, Mechanical Shaft S05645

800 Capscrew, 3/8-16x3/4” (4 Req.) S26824

810 Pipe Plug, 1/8” NPT (2 Req.) S23714

832 Sheave S05270

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B56415 Coupling - CW S16578 M05909 5.00”

B07005 Belt - CW S06397 M05909 5.00”

19

32

832

73

6

89

67

2

810

1

Belt

Drive

Coupling

Drive

800

2502 0596

40

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Belt/Coupling Drive

Section B/C

Page 30.2

Date January 1, 2004

Supersedes/New

BRONZE IMPELLER B1XRMS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute M06154

2Impeller See Table I

6Shaft Assembly See Table I

19 Frame M01856

32 Key, 3/16 x 1” S24151

40 Slinger, Water S05222

67 Spacer, Impeller S17323

73 Gasket, Case S05141

89 Seal, Mechanical Shaft S05645

800 Capscrew, 3/8-16x3/4” (4 Req.) S26824

810 Pipe Plug, 1/8” NPT (2 Req.) S23714

832 Sheave S05270

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B56415S Coupling - CW S16578 H05539 5.00”

B07005S Belt - CW S06397 H05539 5.00”

2503 0596

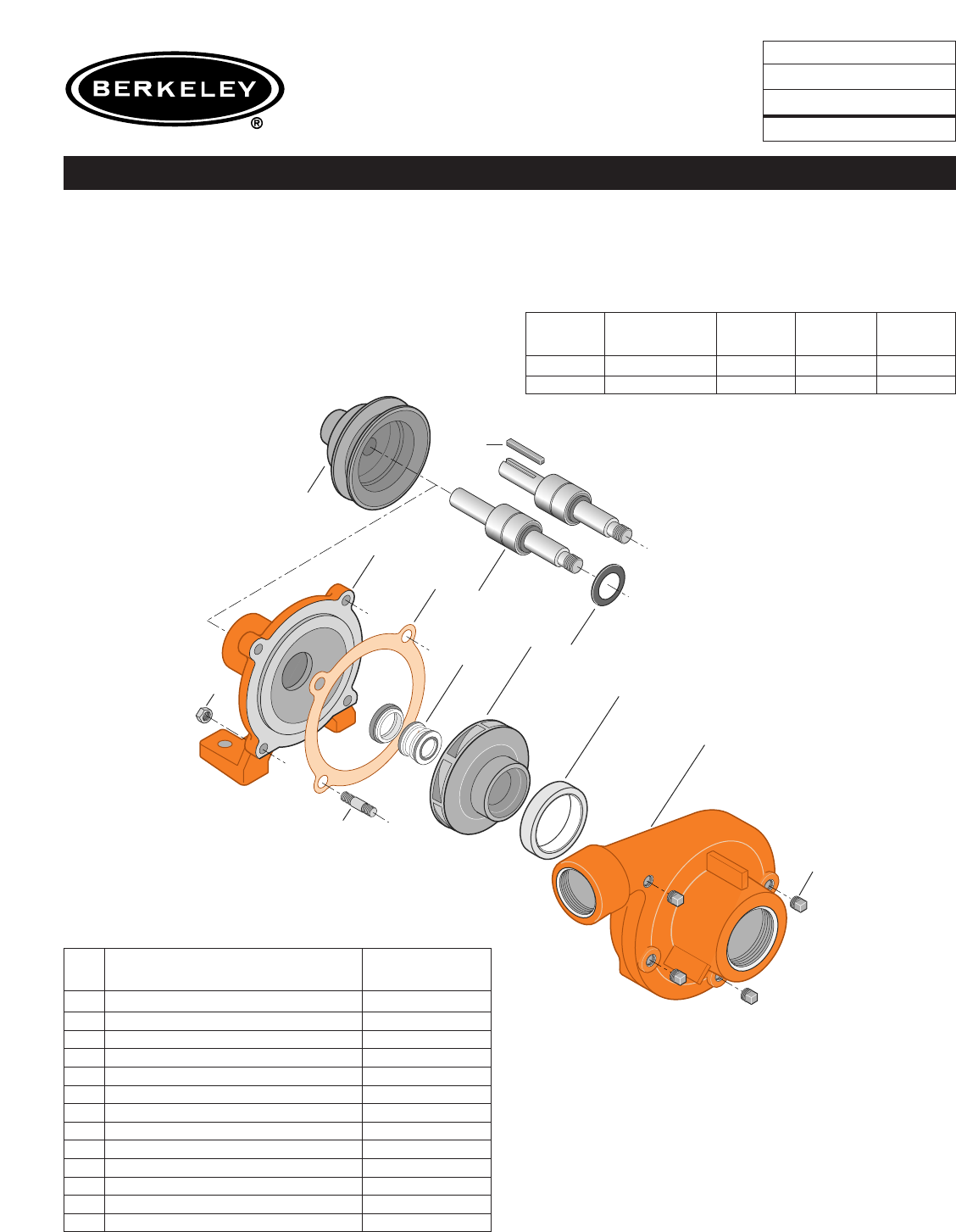

40

19

832

73

89

2

7

1

6

802

801

32

Belt

Drive

Coupling

Drive

810

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Belt/Coupling Drive

Section B/C

Page 40.1

Date January 1, 2004

Supersedes 6/1/96

CAST IRON IMPELLER B1-1/2MRS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute L01043

2Impeller See Table I

6Shaft Assembly See Table I

7Wear Ring S03074

19 Frame M02638

32 Key, 3/16 x 1” S24151

40 Slinger, Water S05222

73 Gasket, Case S04728

89 Seal, Mechanical Shaft S05645

801 Stud, 3/8-16x1-3/4” (4 Req.) S23996

802 Nut, Hex 3/8-16 (4 Req.) S23103

810 Pipe Plug, 1/8” NPT (3 Req.) S23714

832 Sheave S05375

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B56416 Coupling - CW S16578 M01039 4.00”

B02482 Belt - CW S06397 M01039 4.00”

19

32

832

73

6

89

2

1

810

Belt

Drive

Coupling

Drive

800

2504 0596



40

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Belt/Coupling Drive

Section B/C

Page 50.1

Date January 1, 2004

Supersedes 6/1/96

CAST IRON IMPELLER B1-1/2TRLS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute L01018

2Impeller See Table I

6Shaft Assembly See Table I

19 Frame L01530

32 Key, 3/16 x 1” S24151

40 Slinger, Water S21906

73 Gasket, Case S04757

89 Seal, Mechanical Shaft S06405

800 Capscrew, 1/2-13x1” (4 Req.) S26912

810 Pipe Plug, 1/4” NPT (5 Req.) S23715

832 Sheave S06407

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B56417 Coupling - CW S17858 S07368 6.50”

B03539 Belt - CW S06402 S07368 6.50”

19

32

73

6

89

2

1

810

Belt

Drive

Coupling

Drive

800

2504A 0596

40

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Belt/Coupling Drive

Section B/C

Page 50.2

Date January 1, 2004

Supersedes/New

BRONZE IMPELLER B1-1/2TRLS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute L01018

2Impeller See Table I

6Shaft Assembly See Table I

19 Frame L01530

32 Key, 3/16 x 1” S24151

40 Slinger, Water S21906

73 Gasket, Case S04757

89 Seal, Mechanical Shaft S06405

800 Capscrew, 1/2-13x1” (4 Req.) S26912

810 Pipe Plug, 1/4” NPT (5 Req.) S23715

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B74361 Coupling - CW S17858 L08149 6.50”

19

32

832

73

6

89

2

1

810

Belt

Drive

Coupling

Drive

2505 0596

40

802

801

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Belt/Coupling Drive

Section B/C

Page 60.1

Date January 1, 2004

Supersedes 6/1/96

CAST IRON IMPELLER B2TRMS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute L01022

2Impeller See Table I

6Shaft Assembly See Table I

19 Frame L01530

32 Key, 3/16 x 1” S24151

40 Slinger, Water S21906

73 Gasket, Case S04757

89 Seal, Mechanical Shaft S06405

801 Stud, 1/2-16 (4 Req.) S24043

802 Nut, Hex 1/2-13 (4 Req.) S23107

810 Pipe Plug, 1/4” NPT (5 Req.) S23715

832 Sheave S06407

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B56418 Coupling - CW S17858 S07370 6.50”

B03540 Belt - CW S06402 S07370 6.50”

19

32

832

73

6

89

2

1

810

Belt

Drive

Coupling

Drive

2506 0596

40

802

801

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Belt/Coupling Drive

Section B/C

Page 70.1

Date January 1, 2004

Supersedes 6/1/96

CAST IRON IMPELLER B2-1/2TRMS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute L01023

2Impeller See Table I

6Shaft Assembly See Table I

19 Frame L01530

32 Key, 3/16 x 1” S24151

40 Slinger, Water S21906

73 Gasket, Case S04757

89 Seal, Mechanical Shaft S06405

801 Stud, 1/2-13x1-1/2” (4 Req.) S24043

802 Nut, Hex 1/2-13 (4 Req.) S23107

810 Pipe Plug, 1/4” NPT (5 Req.) S23715

832 Sheave S06407

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B56419 Coupling - CW S17858 M02958 6.50”

B03541 Belt - CW S06402 M02958 6.50”

19

32

832

73

6

89

2

1

810

Belt

Drive

Coupling

Drive

2507 0596

40

802

801

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Belt/Coupling Drive

Section B/C

Page 80.1

Date January 1, 2004

Supersedes 6/1/96

CAST IRON IMPELLER B3TRMS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute L01104

2Impeller See Table I

6Shaft Assembly See Table I

19 Frame L01530

32 Key, 3/16 x 1” S24151

40 Slinger, Water S21906

73 Gasket, Case S04757

89 Seal, Mechanical Shaft S06405

801 Stud, 1/2-13 (4 Req.) S24043

802 Nut, Hex 1/2-13 (4 Req.) S23107

810 Pipe Plug, 1/4” NPT (5 Req.) S23715

832 Sheave S06407

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B56420 Coupling - CW S17858 M02961 6.50”

B03542 Belt - CW S06402 M02961 6.50”

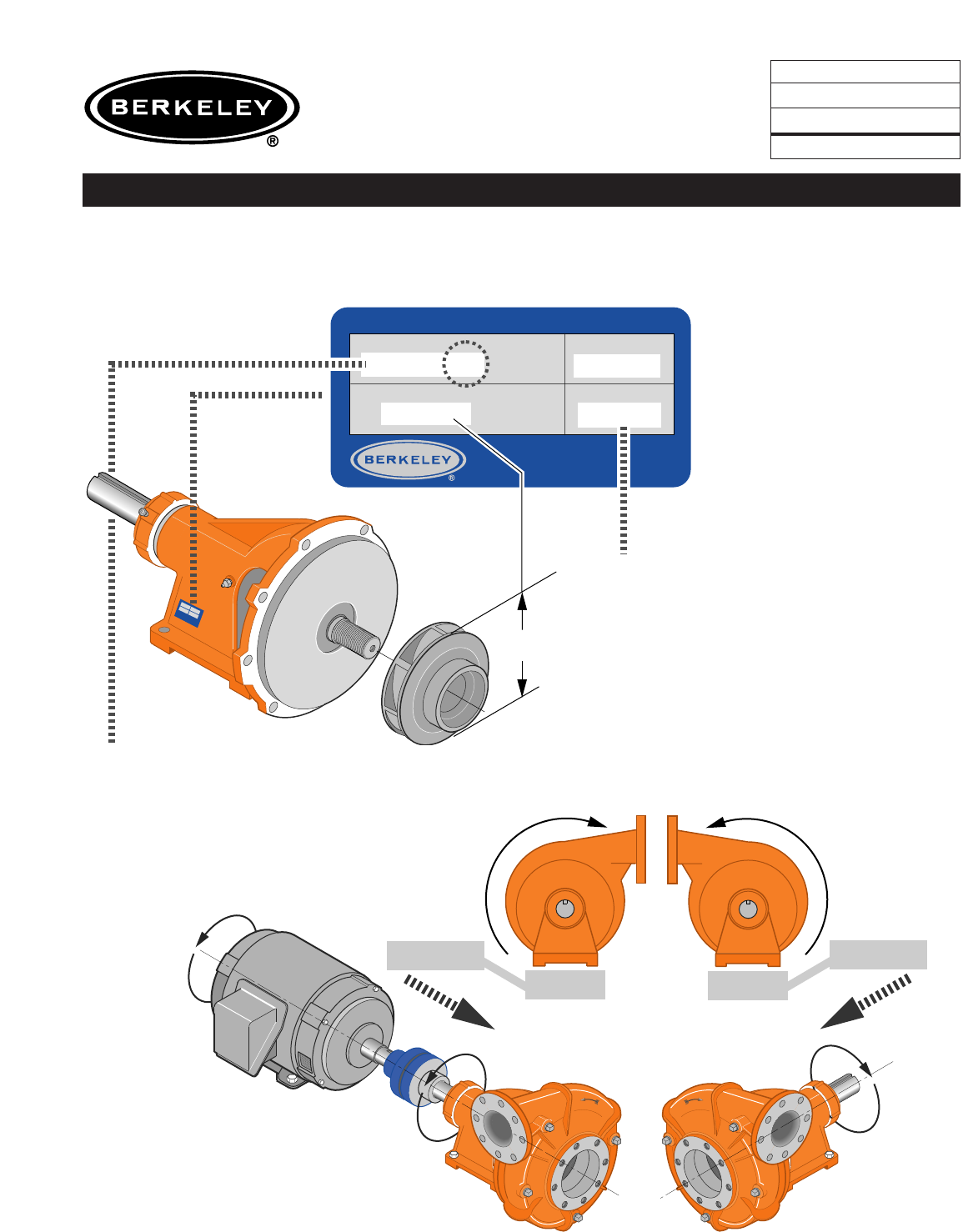

Impeller

Diameter



PUMP ROTATION

MODEL S.N. OR DATE

IMPELLER DIA.

BERKELEY PUMPS

B.M.

B66161

G031495

B3ZRM CW

9.00"

SAMPLE ONLY

H 553

H 553

Viewed from

this direction

Pump with a

Clockwise

Rotation Volute

Pump with a

Counter-Clockwise

Rotation Volute

C

l

o

c

k

w

i

s

e

r

o

t

a

t

i

o

n

H 806

H 806

As viewed

2095 1095

12

6

39

As viewed

12

6

39

C

o

u

n

t

e

r

-

C

l

o

c

k

w

i

s

e

H 806

H 806

Pump operational rotation is sometimes stamped on

the nameplate along with the Model Number and is

indictated as CW or CCW. Refer to illustration to

see how this rotational direction is determined.

Standard rotation for most models is CW.

CW - Clockwise

CCW - Counter-Clockwise

Viewed from

this direction

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Supplement A

Date January 1, 2004

Supersedes 12/1/95

Mechanical Shaft Seal Construction

Packing Construction

ORDERING INFORMATION

Locate the Berkeley nameplate on the pump which is

normally on the motor bracket as shown. Provide all

nameplate data when ordering to be sure of receiving

correct parts. The BM (Bill of Material) number,

also known as the catalog number, is most important

when calling in for repair instructions, or when

ordering replacement parts.

PUMP ROTATION

Pump operational rotation is sometimes stamped on

the nameplate along with the Model Number and is

indicated as CW or CCW. Refer to illustration to

see how this rotational direction is determined.

Standard rotation for most models is CW.

CW – Clockwise

CCW – Counter-Clockwise

Form No. S4855BK

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Supplement B

Date January 1, 2004

Supersedes 12/1/95

Form No. S4855BK

Stationary

Seat

Rotating

Seat

Spring

Spring

Retainer

1189 0794

Packing Ring(s)

1068 0595

Packing Ring(s)

Metallic Ring

Lantern Ring

1069 0595

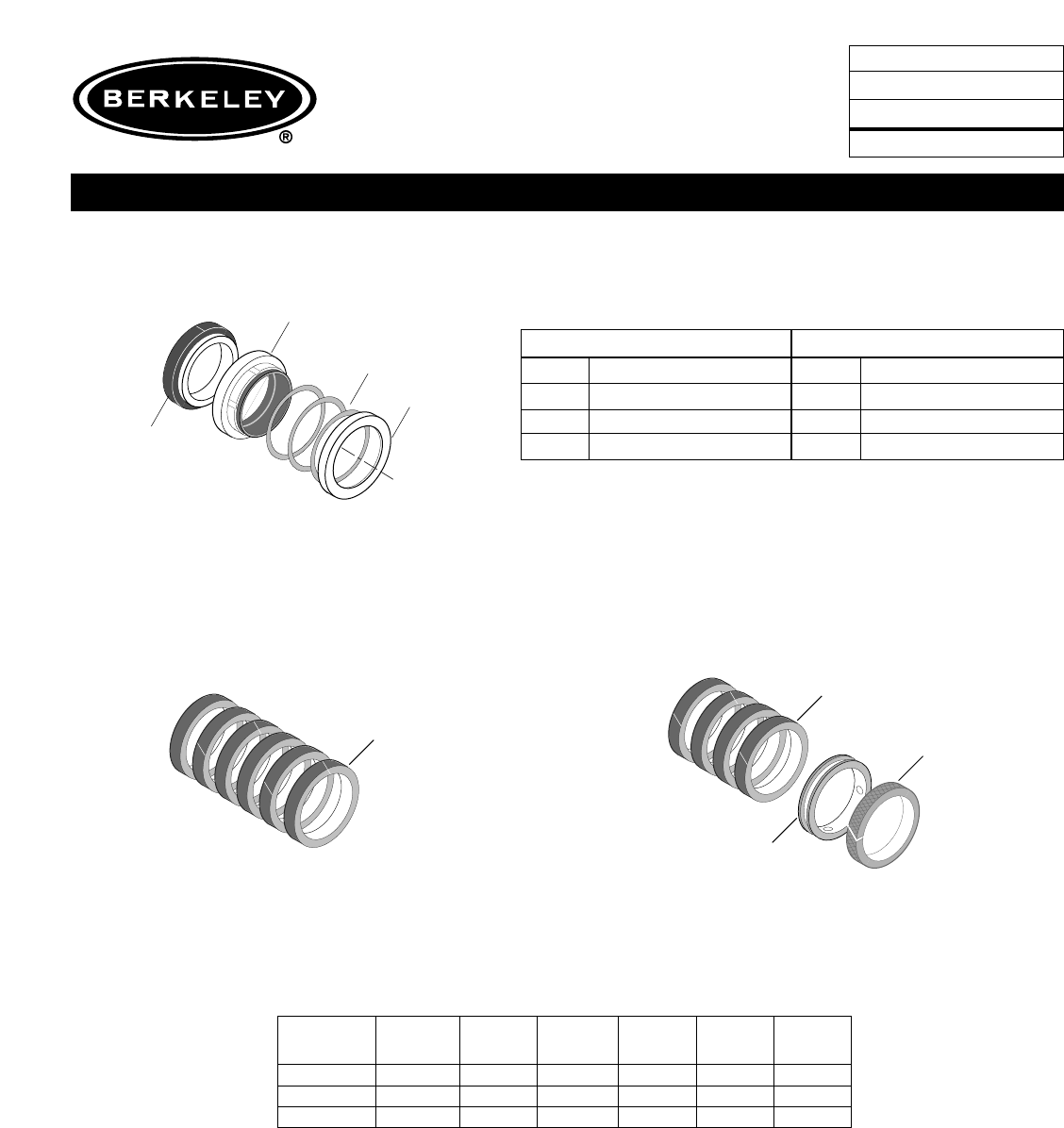

MECHANICAL SEAL CONSTRUCTION

PACKING CONSTRUCTION

NOTE: Part numbers given on repair parts sheets for packing rings reflects

complete set of soft rings required for each model. Some models also require

a hard (metallic) ring that is installed as shown above. Hard ring comes as

part of the set, when required, and is in addition to the soft ring count shown

(set of 5, set of 6, etc.). Metallic part number shown for reference only.

Lantern Ring (item #29) is sold separately.

Typical Mechanical Seal

Typical Packing Set - Soft Rings Only Typical Packing Set With Soft Rings,

Lantern Ring, and Hard (Metallic) Ring

Standard Mechnical Seal/

Shaft Sleeve Combinations

Standard Packing Sets Shown on Repair Parts Sheets

SEAL SLEEVE

P/N Description P/N Description

S32690 1-1/8” Type 21 Short S39242 7/8” I.D. x 1-1/8” O.D.

S32689 1-1/8” Type 21 Long S05127 7/8” I.D. x 1-1/8” O.D.

S32693 1-7/8” Type 21 Long S05974 1-1/2” I.D. x 1-7/8” O.D.

Packing No. of Metallic Ring Ring Cross Shaft

Set P/N Soft Rings Ring I.D. O.D. Section Sleeve

S14022 6 None 1-1/8” 1-5/8” 1/4” S05127

S13436 4 S13434 1-7/8” 2-5/8” 3/8” S05974

S16448 5 S14327 2-3/4” 3-3/4” 1/2” S14329

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Supplement D1

Date January 1, 2004

Supersedes 12/1/95

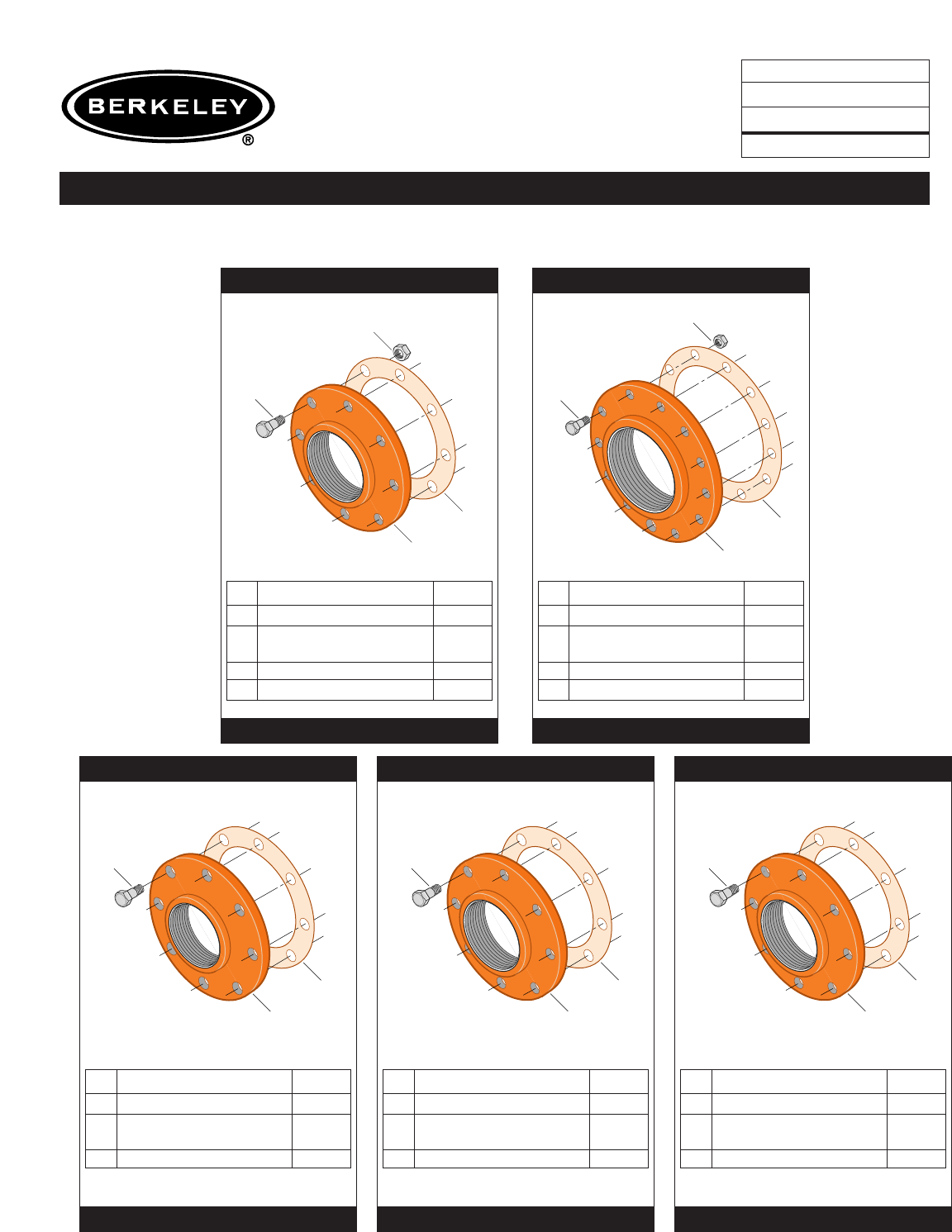

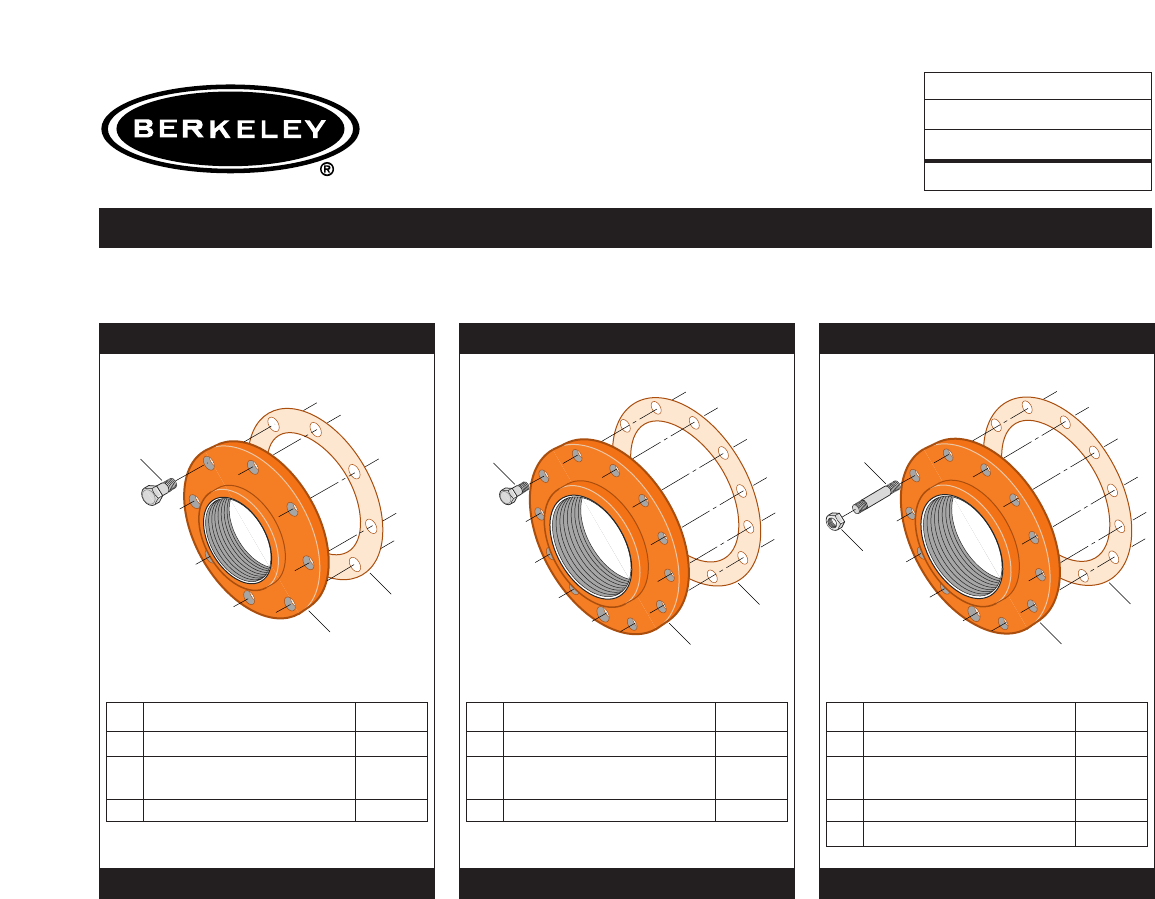

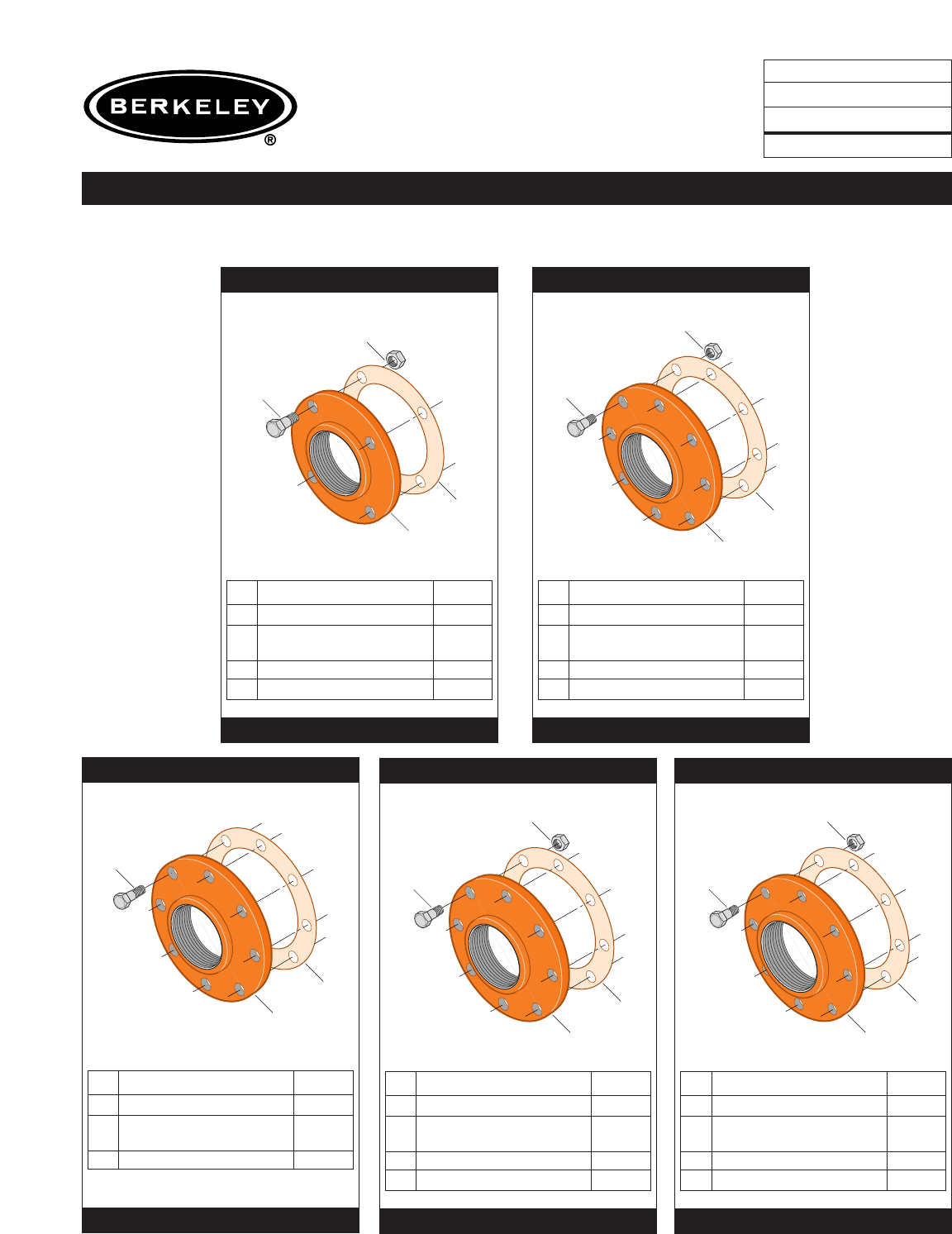

COMPANION FLANGE KITS

Form No. S4855BK

KeyPart Description Part No.

73 Gasket S10364

800 Capscrew, 5/8 - 11 x 2-1/2”

(4 Req.) S27004

802 Nut, Hex 5/8 - 11 (4 Req.) S23109

850 Flange, Companion, 125 lb. S11788

3” NPT x 7-1/2” O.D.

B60129

800

850

73

802

1095 0595

KeyPart Description Part No.

73 Gasket S10366

800 Capscrew, 5/8 - 11 x 2-1/2”

(8 Req.) S27005

802 Nut, Hex 5/8 - 11 (8 Req.) S23109

850 Flange, Companion, 125 lb. S11790

4” NPT x 9” O.D.

B59870

800

850

73

802

1097 0595

KeyPart Description Part No.

73 Gasket S10367

800 Capscrew, 3/4 - 10 x 3”

(8 Req.) S27333

802 Nut, Hex 3/4 - 10 (8 Req.) S23111

850 Flange, Companion, 125 lb. S11791

5” NPT x 10” O.D.

B59871

800

850

73

802

1097 0595

KeyPart Description Part No.

73 Gasket S10368

800 Capscrew, 3/4 - 10 x 3”

(8 Req.) S27333

802 Nut, Hex 3/4 - 10 (8 Req.) S23111

850 Flange, Companion, 125 lb. S11792

6” NPT x 11” O.D.

B59872

800

850

73

802

1098 0595

KeyPart Description Part No.

73 Gasket S10366

800 Capscrew, 5/8 - 11 x 1-5/8”

(8 Req.) S27000

850 Flange, Companion, 125 lb. S11790

4” NPT x 9” O.D.

B74303

800

850

73

1832 0695

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Supplement D2

Date January 1, 2004

Supersedes 12/1/95

COMPANION FLANGE KITS

Form No. S4855BK

KeyPart Description Part No.

73 Gasket S10367

800 Capscrew, 3/4 - 10 x 1-3/4”

(8 Req.) S27327

850 Flange, Companion, 125 lb. S11791

5” NPT x 10” O.D.

B59875

800

850

73

1810 0595

KeyPart Description Part No.

73 Gasket S10367

800 Capscrew, 3/4 - 10 x 2-1/4”

(8 Req.) S27330

850 Flange, Companion, 125 lb. S02178

6” NPT x 10” O.D.

B59876

800

850

73

1811 0595

KeyPart Description Part No.

73 Gasket S10368

800 Capscrew, 3/4 - 10 x 2”

(8 Req.) S27329

850 Flange, Companion, 125 lb. S11792

6” NPT x 11” O.D.

B59877

800

850

73

1811 0595

KeyPart Description Part No.

73 Gasket S10370

800 Capscrew, 7/8 - 9 x 3”

(12 Req.) S23307

802 Nut, Hex 7/8 - 9 (12 Req.) S23113

850 Flange, Companion, 125 lb. S11794

10” NPT x 16” O.D.

B59874

800

850

73

802

1099 0595

KeyPart Description Part No.

73 Gasket S10369

800 Capscrew, 3/4 - 10 x 2-3/4”

(8 Req.) S27332

802 Nut, Hex 3/4 - 10 (8 Req.) S23111

850 Flange, Companion, 125 lb. S11793

8” NPT x 13-1/2” O.D.

B59873

800

850

73

802

1098 0595

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Supplement D3

Date January 1, 2004

Supersedes 12/1/95

COMPANION FLANGE KITS

Form No. S4855BK

KeyPart Description Part No.

73 Gasket S10369

800 Capscrew, 3/4 - 10 x 2”

(8 Req.) S27329

850 Flange, Companion, 125 lb. S11793

8” NPT x 13-1/2” O.D.

B59878

800

850

73

1811 0595

KeyPart Description Part No.

73 Gasket S10370

800 Capscrew, 7/8 - 9 x 2”

(12 Req.) S23303

850 Flange, Companion, 125 lb. S11794

10” NPT x 16” O.D.

B59879

800

850

73

1812 0595

KeyPart Description Part No.

73 Gasket S10371

800 Capscrew, 7/8 - 9 x 3”

(12 Req.) S24095

802 Nut, Hex 7/8 - 9 (12 Req.) S23113

850 Flange, Companion, 125 lb. S11795

12” NPT x 19” O.D.

B59880

801

802

850

73

1813 0595

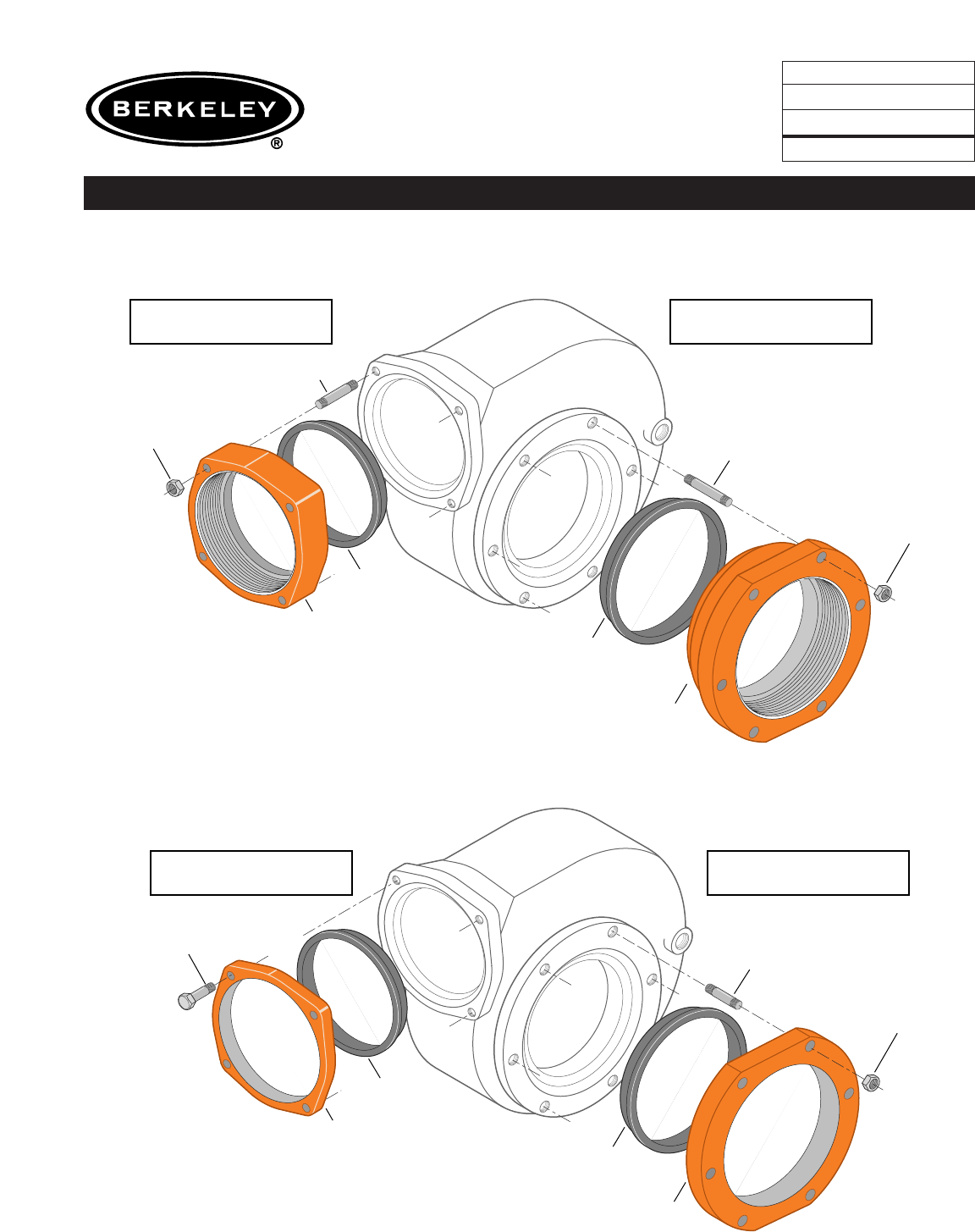

M01527

Compression Flange

M01197

Compression Flange

S23107 (4)

Hex Nut 1/2-13

S23107 (6)

Hex Nut 1/2-13

S24052 (4)

Stud 1/2-13 x 3-3/4"

S24053 (6)

Stud 1/2-13 x 4"

S14955

Gasket

S14956

Gasket

B50711 Discharge Flange Kit

For 6" Standard Pipe

B50710 Suction Flange Kit

For 8" Standard Pipe

2155 1195

2156 1195

M01182

Compression Flange

M01181

Compression Flange

S23107 (6)

Hex Nut 1/2-13

S23239 (4)

Capscrew 1/2-13 x 2-3/4" S24045 (6)

Stud 1/2-13 x 4"

S14955

Gasket

S14956

Gasket

B56340 Discharge Flange Kit

For 6" O.D. Pipe

B56339 Suction Flange Kit

For 8" O.D. Pipe

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Supplement D4

Date January 1, 2004

Supersedes 12/1/95

B6Z Special Flange Kits

Form No. S4855BK

H 553

H 553

T

r

u

a

r

c

2007 0895

16

35

40

802 13

14

17

800B

19

800A

811

2

6

1

73

805A

69

26

18

37

816

809

32

810

72

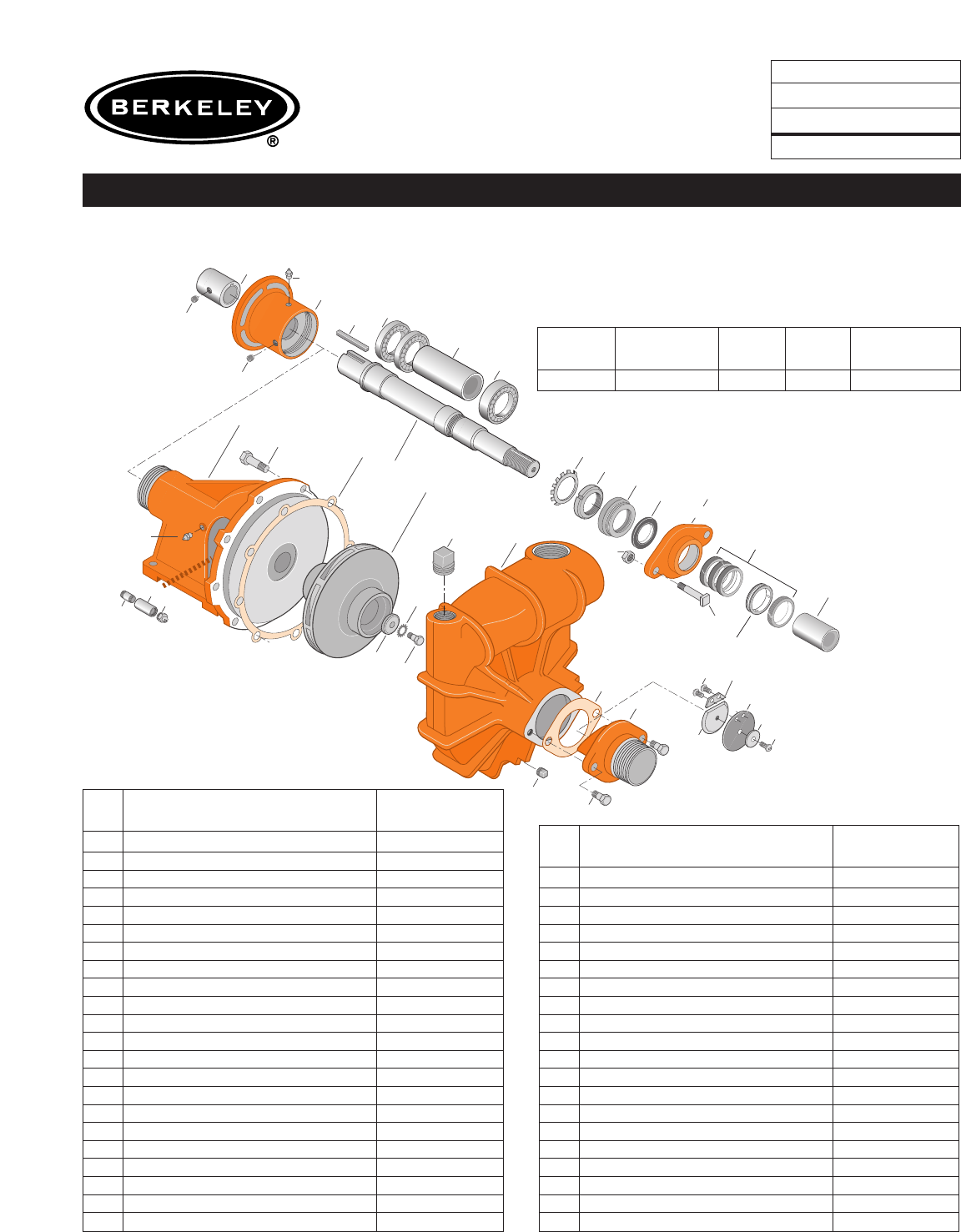

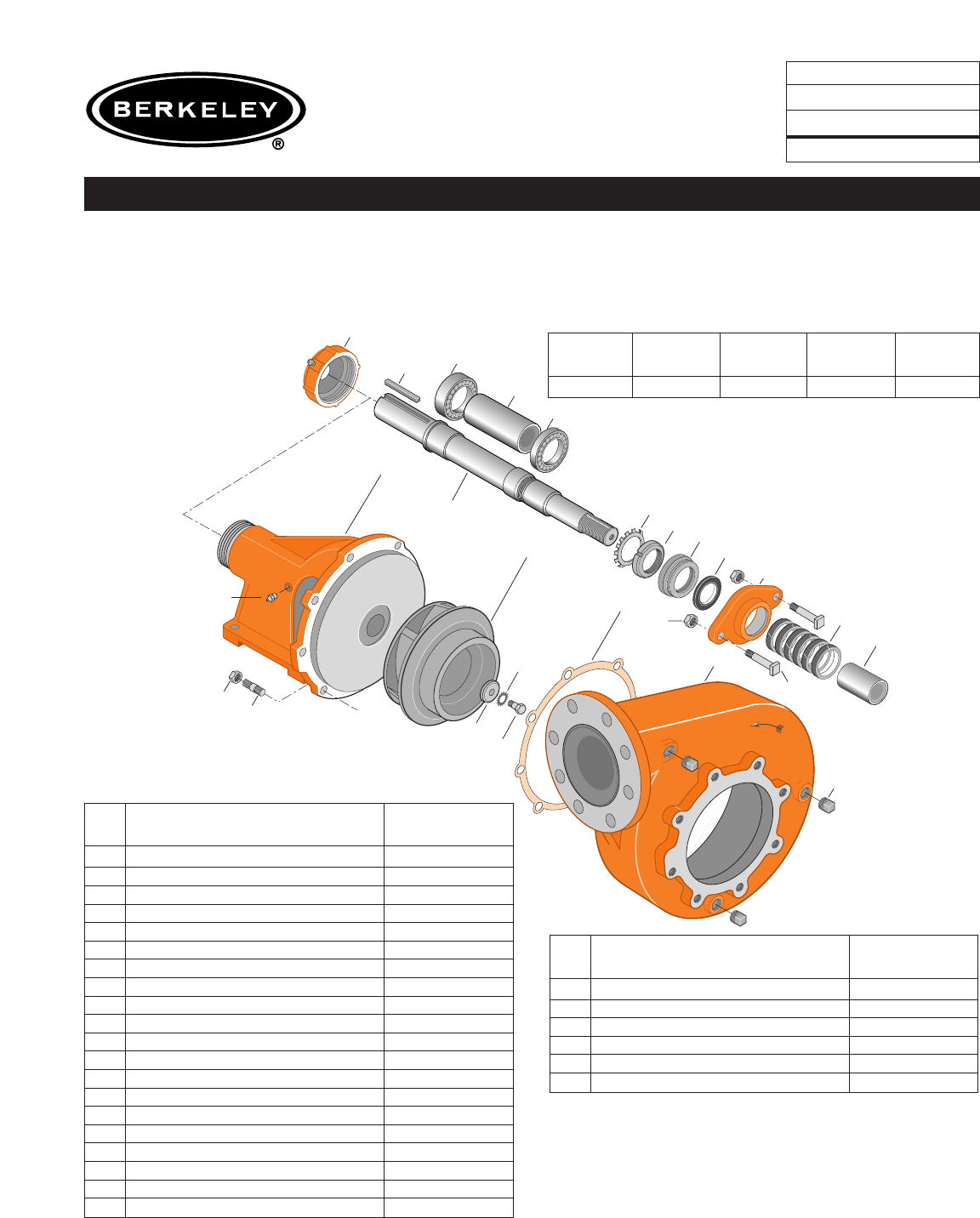

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 10.1

Date January 1, 2004

Supersedes 12/1/95

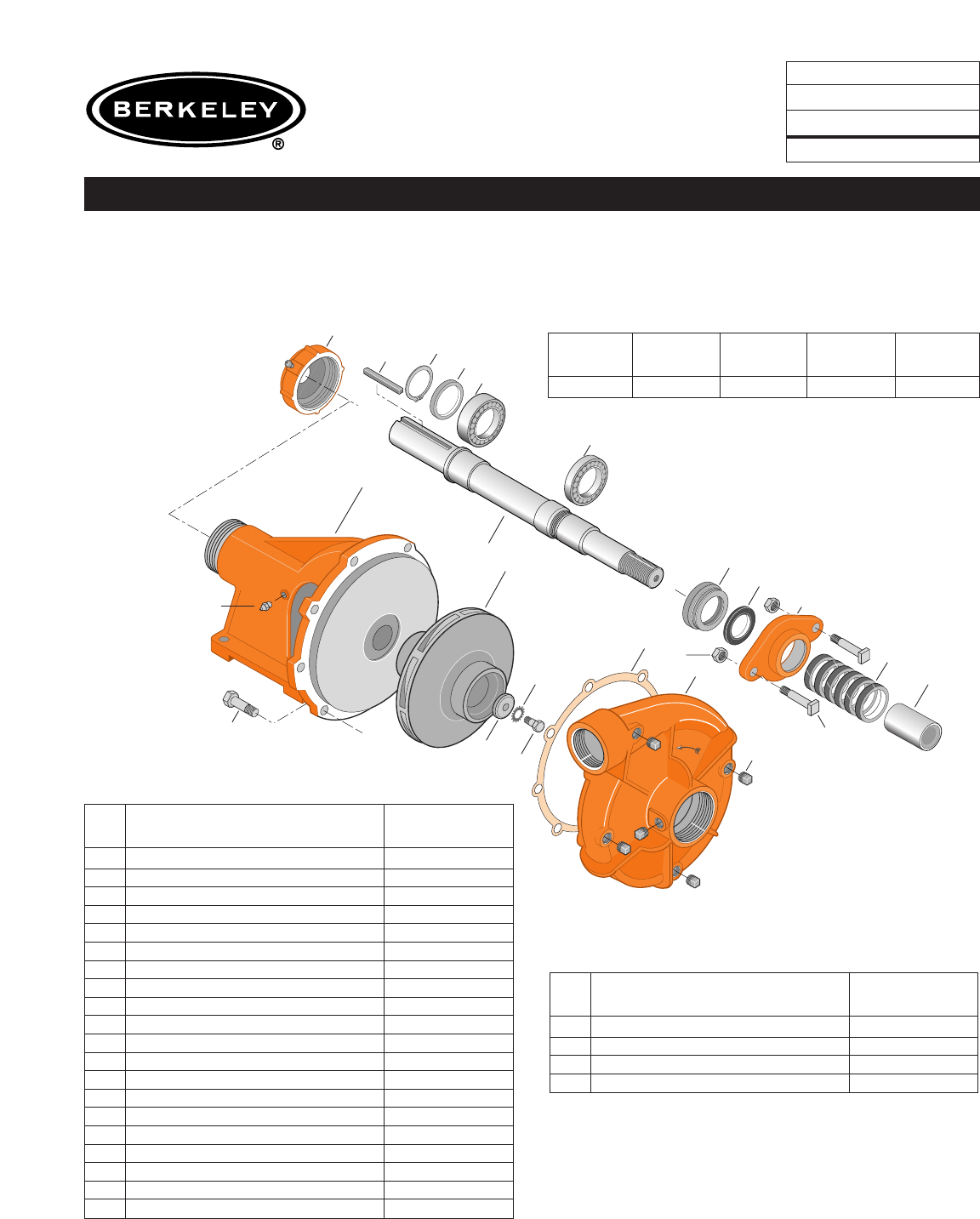

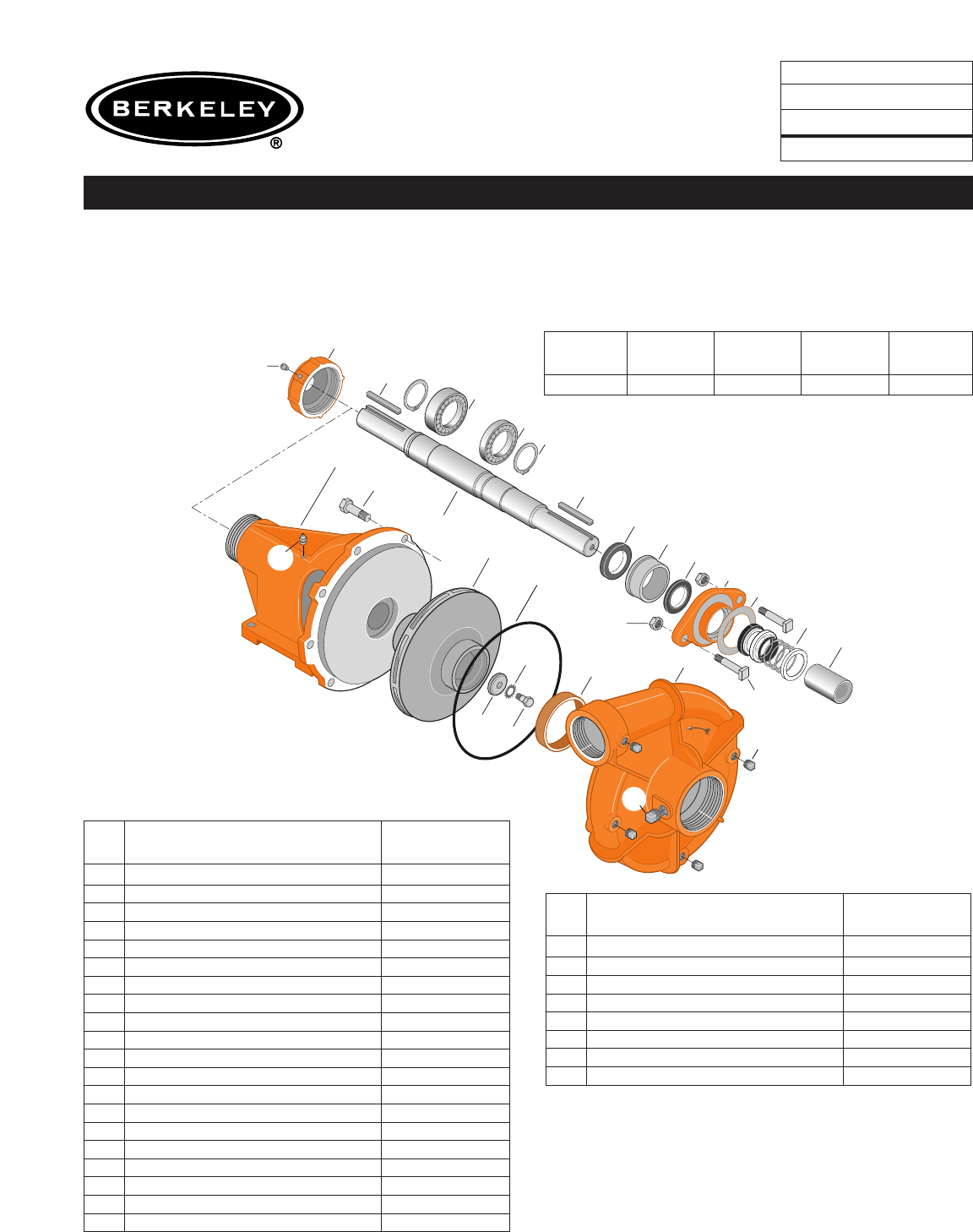

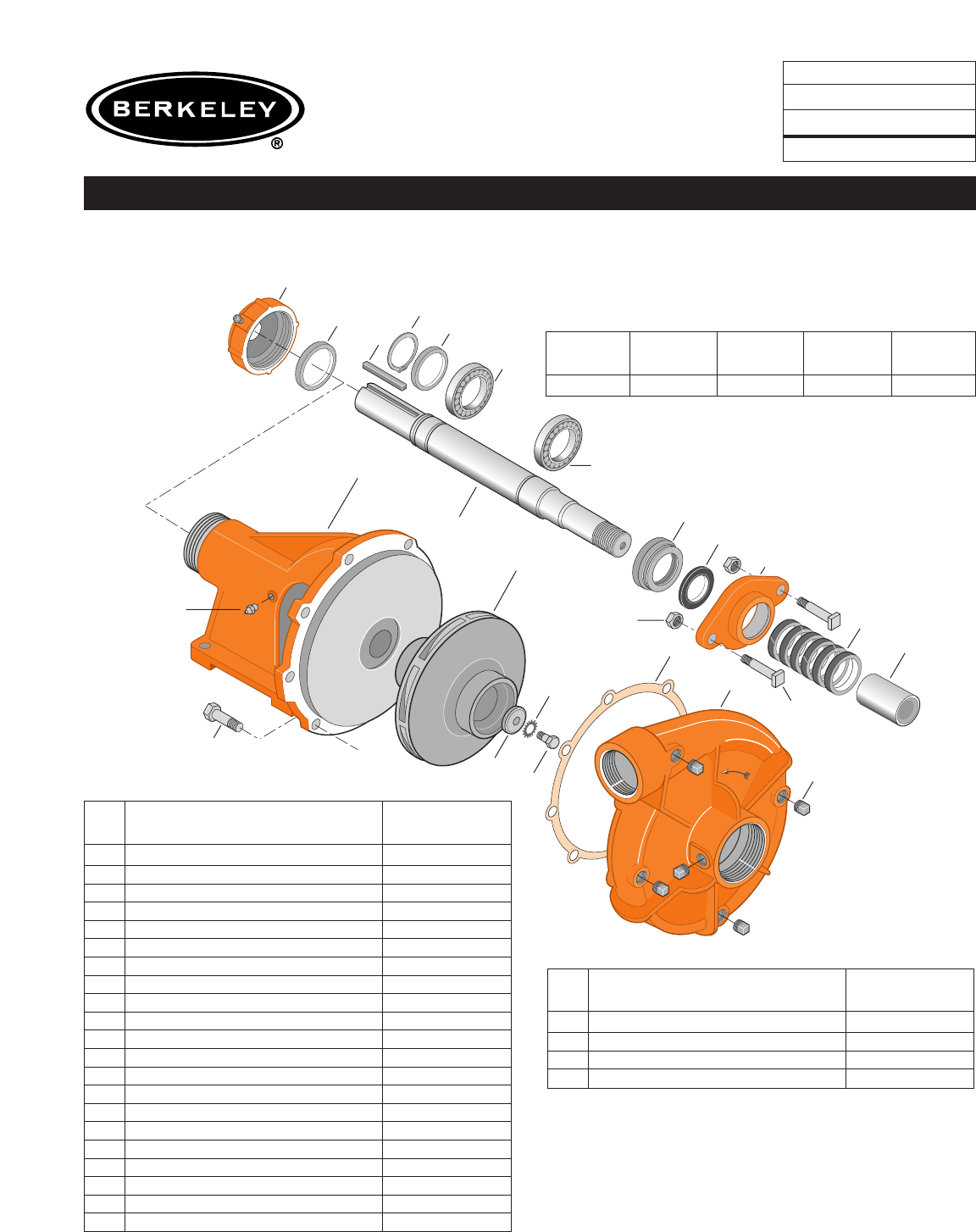

CAST IRON IMPELLER B1-1/2ZRL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13269

19 Frame H00553

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19037

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

800A Capscrew, Hex 3/8-16x1” (8 Req.) S26826

800B Bolt, Machine 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

Item

No. Part Description Part Number

809 Ring, Spacer S05822

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

811 Fitting, Grease S23670

816 Ring, Retaining S23010

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52383 CW L01025 M01828 9.00”

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B82183.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

T

r

u

a

r

c

T

r

u

a

r

c

816

72

2008 0895

40

14

19

800

2

6

1

73

805A

69

26

89

18

16

35

37

816

32

810

811

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 10.2

Date January 1, 2004

Supersedes 12/1/95

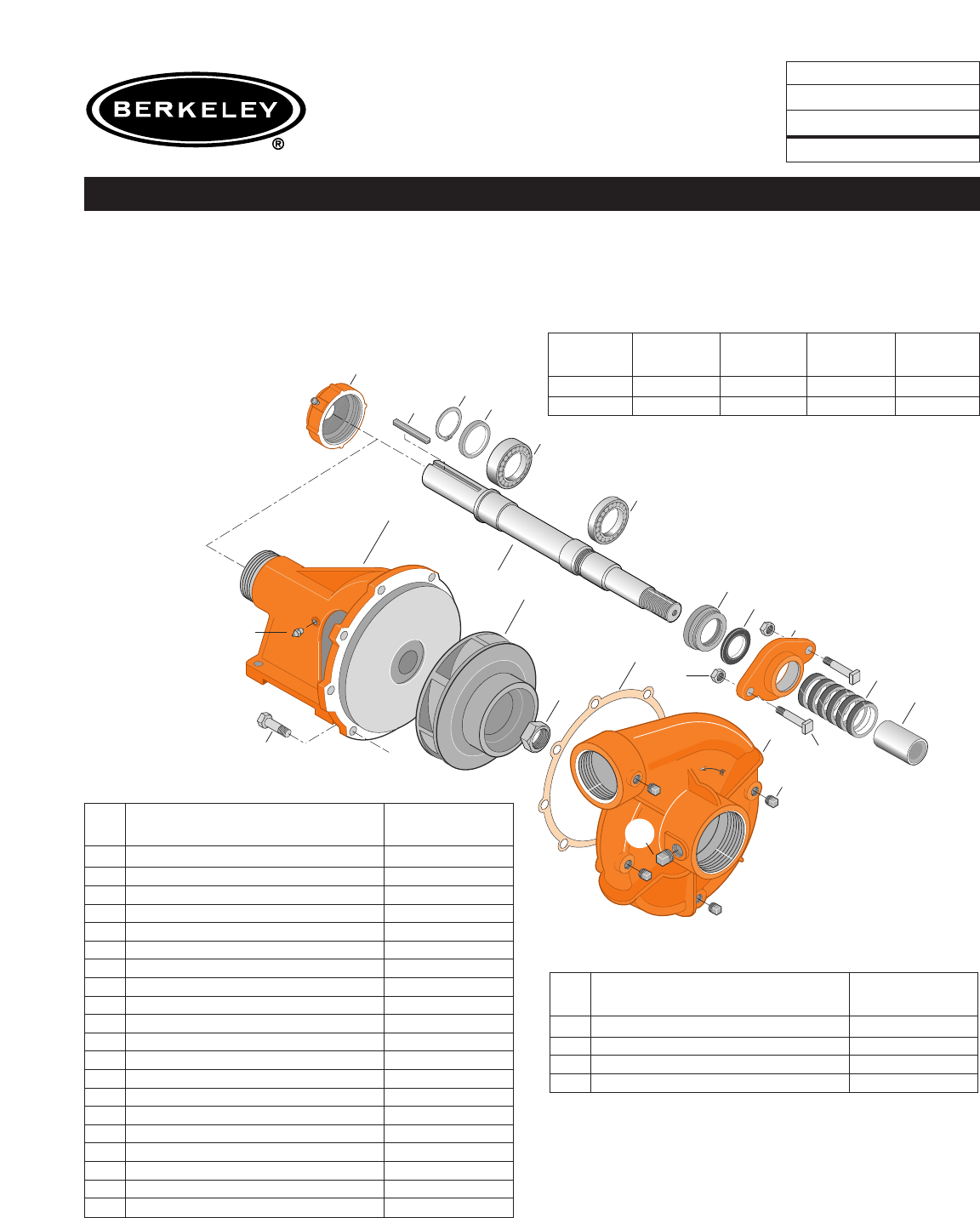

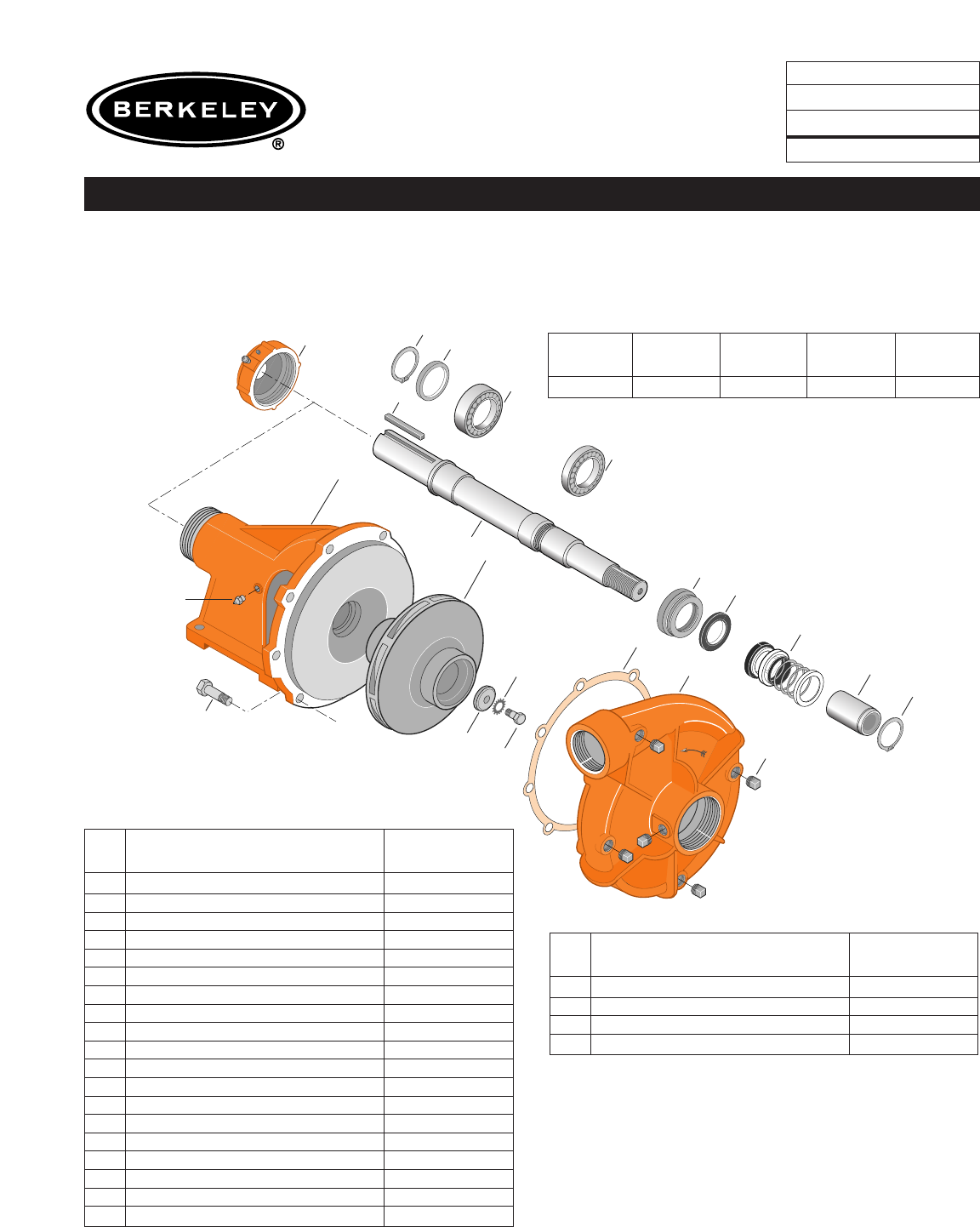

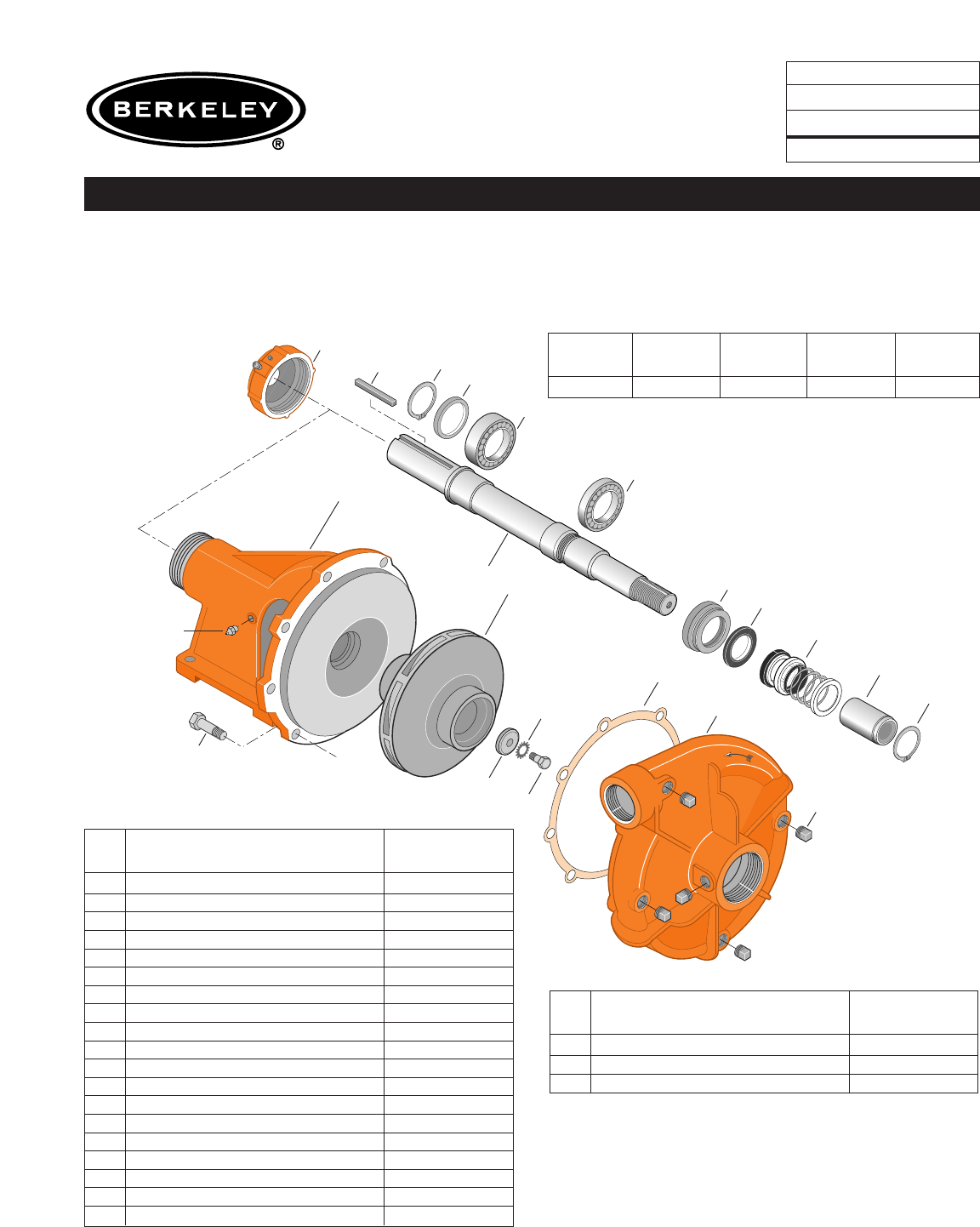

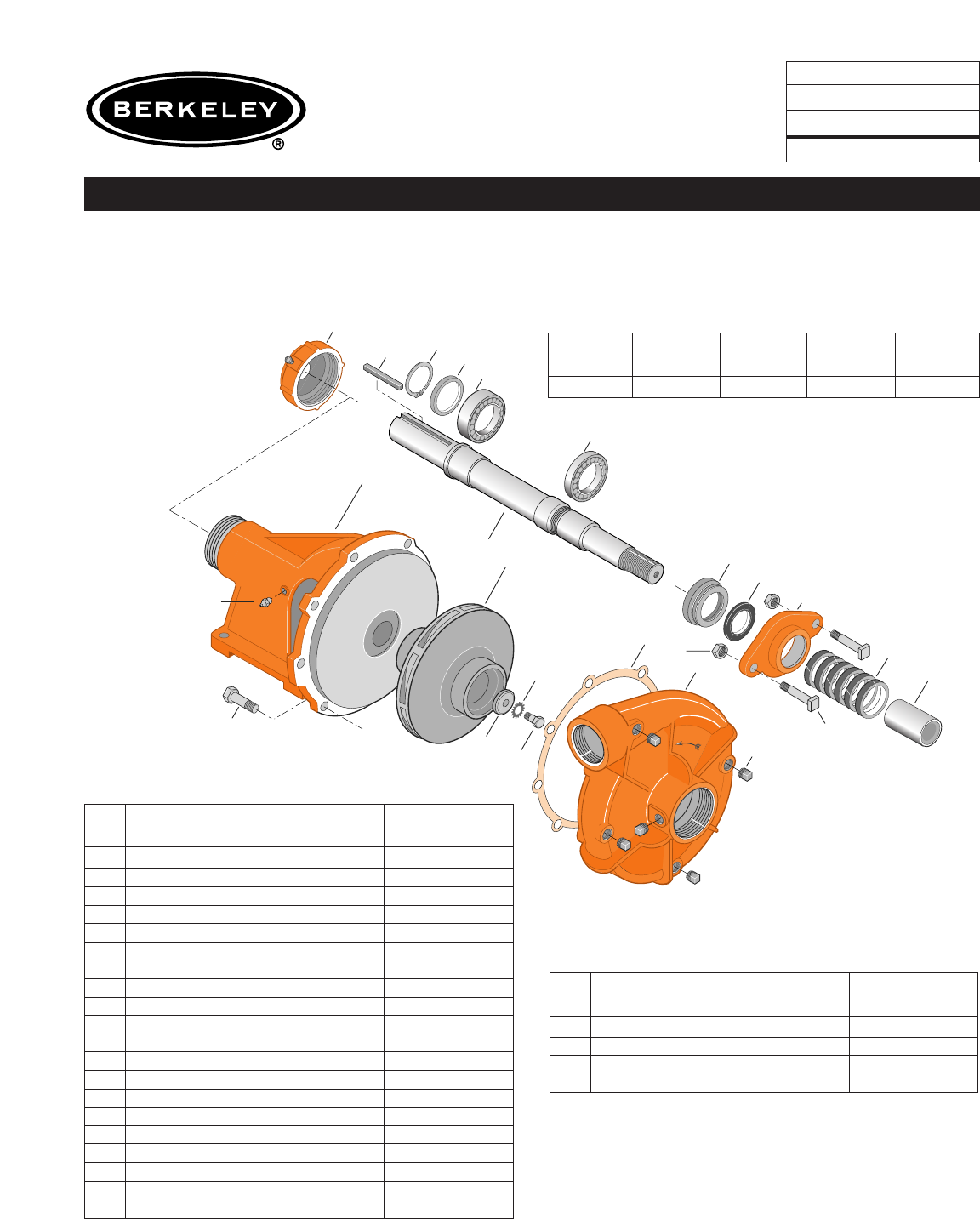

CAST IRON IMPELLER B1-1/2ZRLS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not available separately) See Note 1

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 3/16x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

89 Seal, Mechanical Shaft S32690

800 Capscrew, Hex 3/8-16x1” (8 Req.) S26826

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

Item

No. Part Description Part Number

811 Fitting, Grease (2 Req.) S23670

816 Ring, Retaining S23009

816 Ring, Retaining S23010

1. Shaft Replacement Kit available for this model.

Berkeley part number B75299.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B68454 CW L01025 M01828 9.00”

H 553

H 553

T

r

u

a

r

c

2007 0895

16

35

40

802 13

14

17

800B

19

800A

811

2

6

1

73

805A

69

26

18

37

816

809

32

810

72

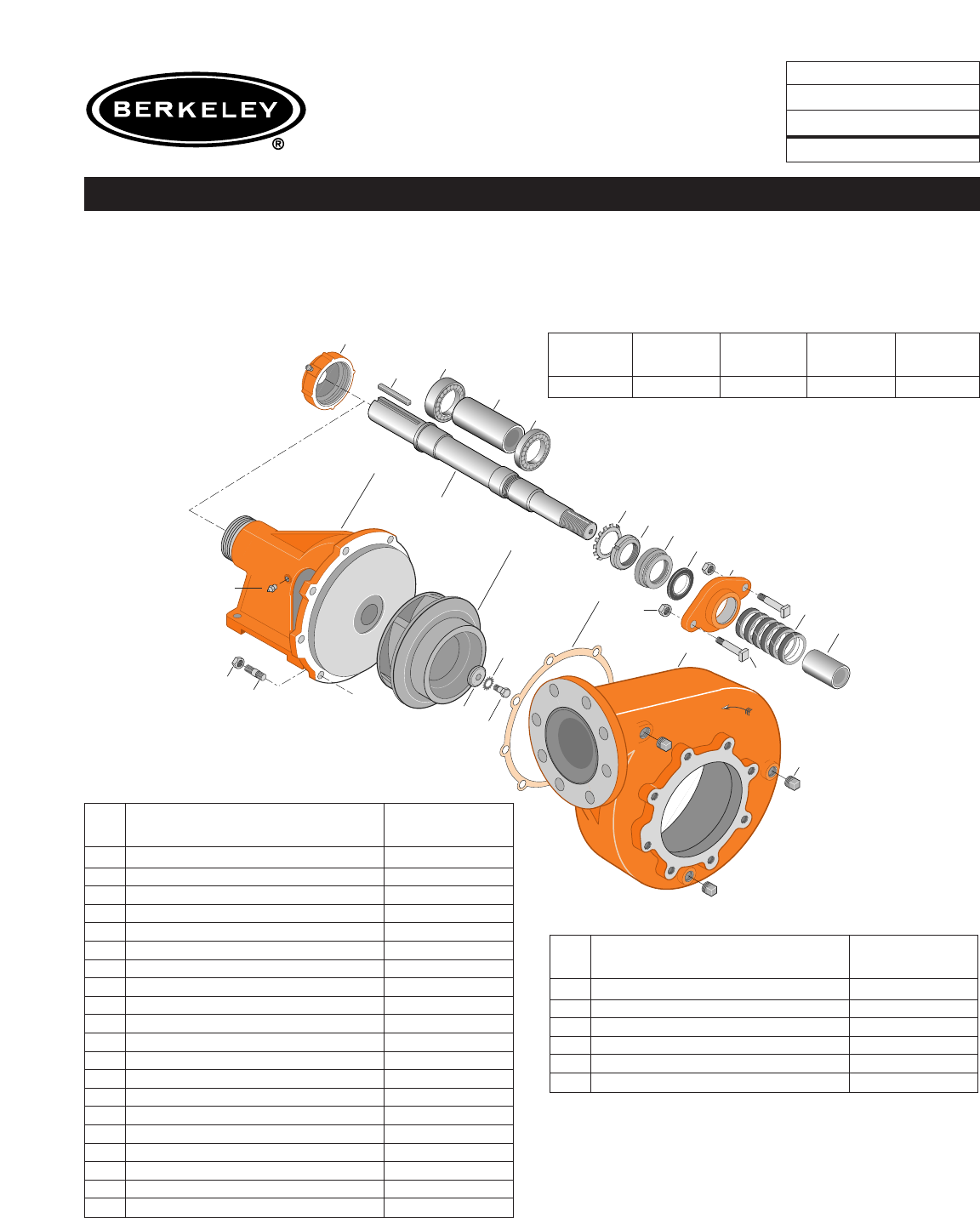

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 10.3

Date January 1, 2004

Supersedes/New

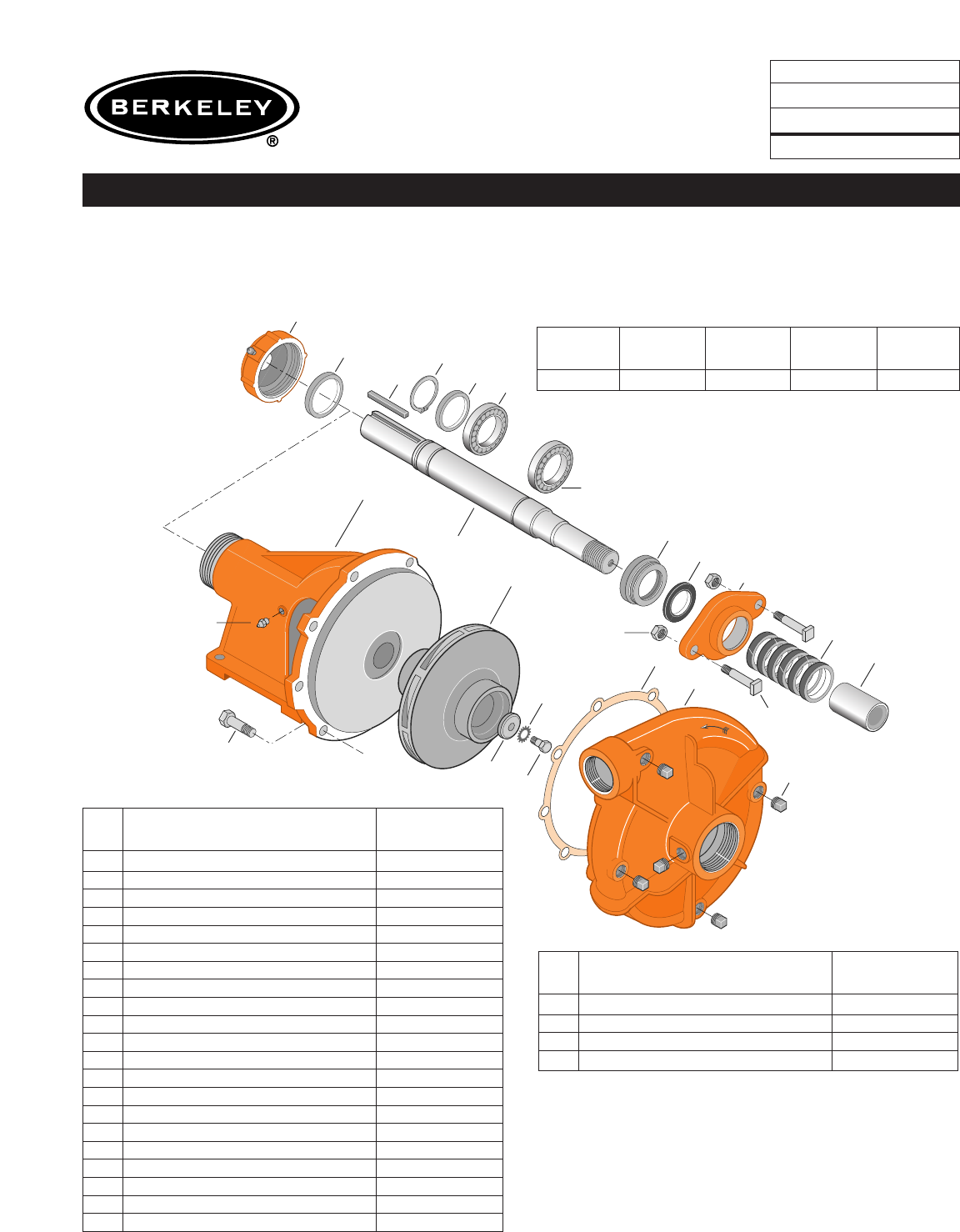

BRONZE IMPELLER B1-1/2ZRL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13269

19 Frame H00553

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19037

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

800A Capscrew, Hex 3/8-16x1” (8 Req.) S26826

800B Bolt, Machine 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

Item

No. Part Description Part Number

809 Ring, Spacer S05822

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

811 Fitting, Grease S23670

816 Ring, Retaining (1 Req.) S23010

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B74963 CW L01025 M11096 9.00”

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B82183.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

T

r

u

a

r

c

T

r

u

a

r

c

2015 0995

16

35

40

802

51

13

14

17

800B

19

800A

2

6

1

805A

69

26

18

37

811

816

72

32A

32B

810

119

811

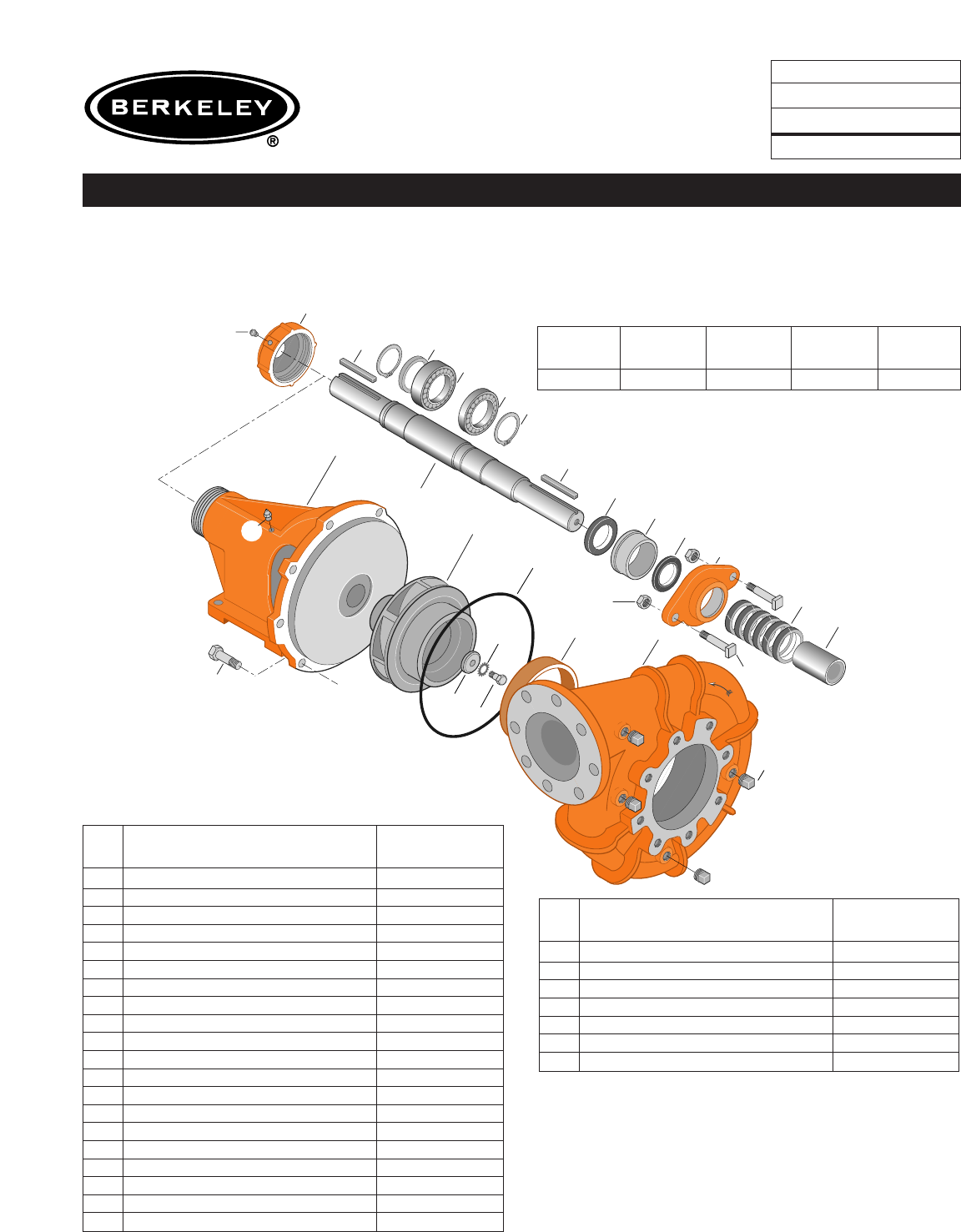

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 20.1

Date December 1, 1995

Supersedes/New

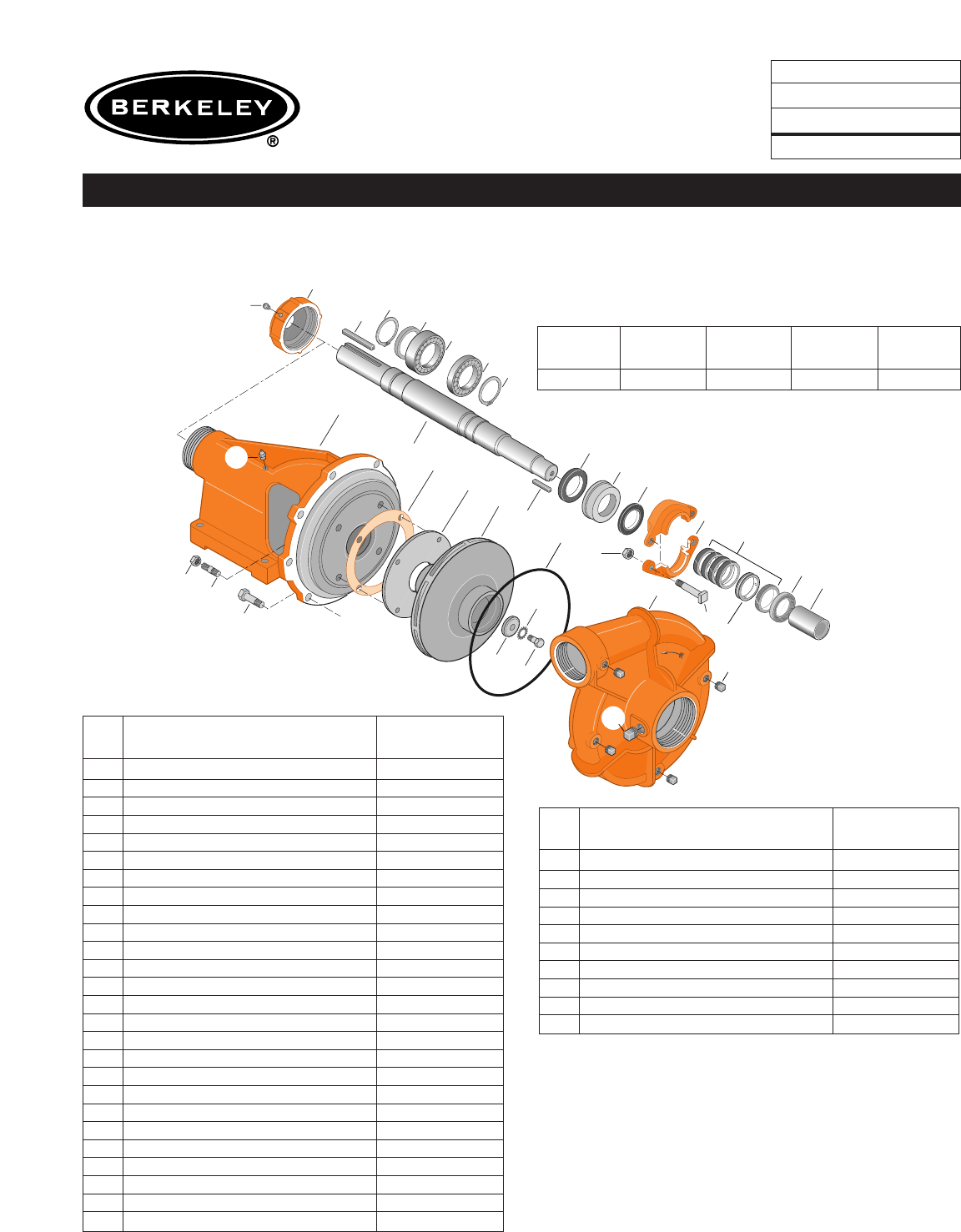

CAST IRON IMPELLER B1-1/2ERL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (See Note 2) See Table I

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S29895

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H02089

26 Screw, Impeller 3/8x16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S29308

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

72 Ring, Thrust S29218

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

Item

No. Part Description Part Number

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining (2 Req.) S23010

TABLE I

Volute Shaft Impeller

B/M No. Rotation Case No. Impeller Diameter

B60654 CW L03093 M06894 L03096 10.44”

1. A two piece (split) bronze packing gland is available

for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B60633.

Refer to Supplement Sheet C1 for breakdown of shaft

kit components.

T

r

u

a

r

c

T

r

u

a

r

c

2018 0995

16

35

40

802

51

89

14

11

73

800B

19

800A

2

6

1

805A

69

26

18

37

811B

816

32A

32B

810

119

811A

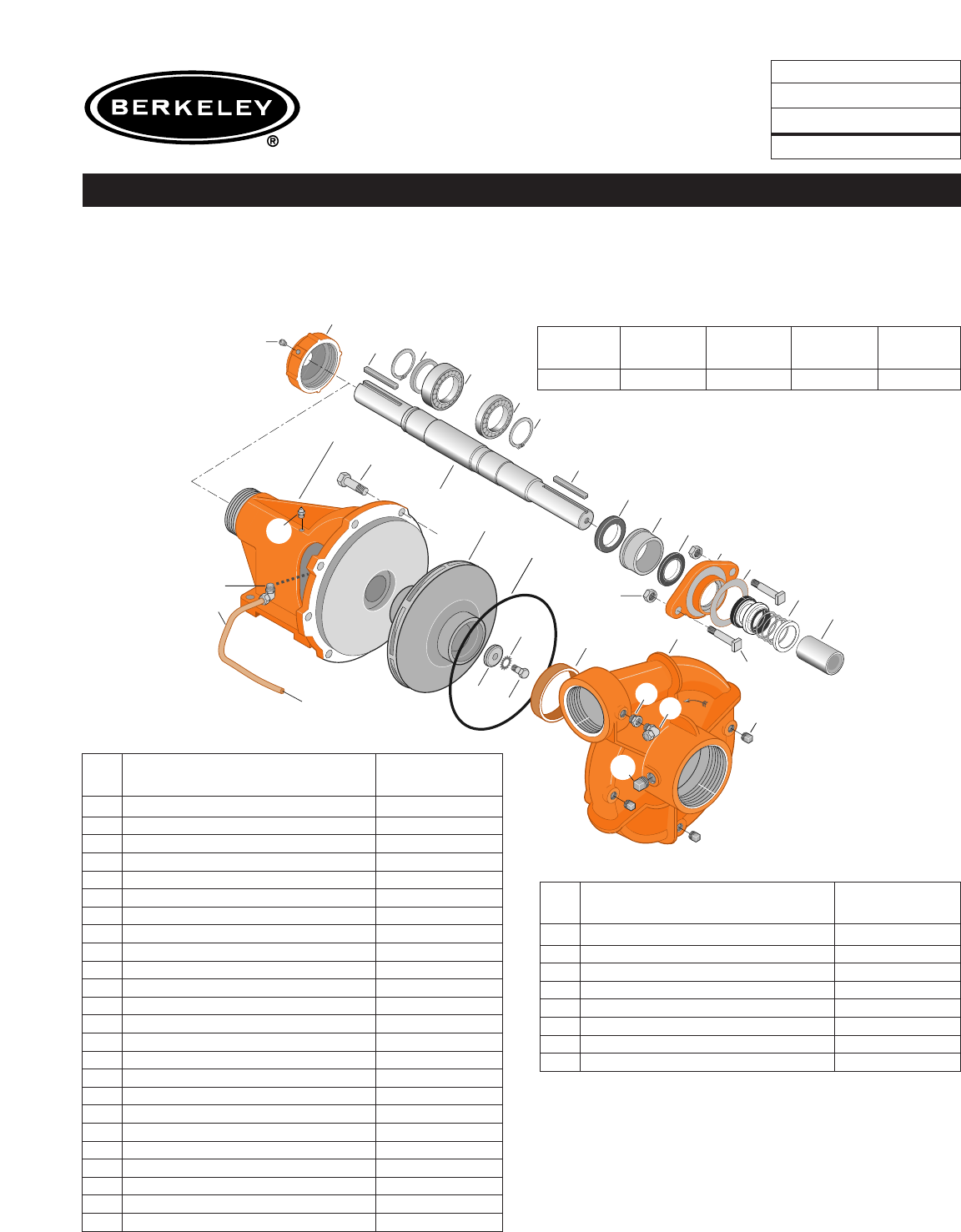

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 20.2

Date January 1, 2004

Supersedes 12/1/95

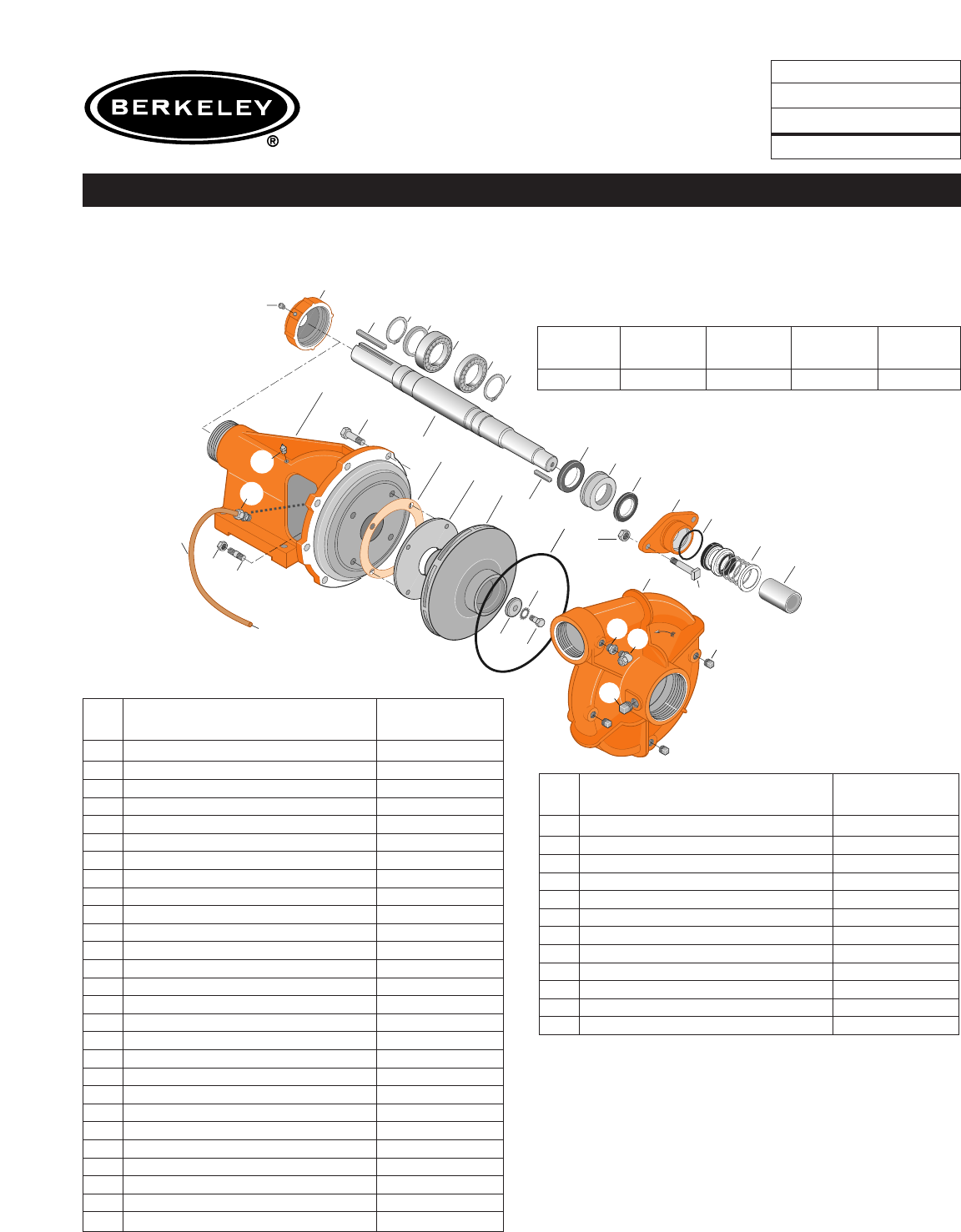

BRONZE IMPELLER B1-1/2ERLS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

11 Retainer, Mechanical Shaft Seal S05993

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H03960

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S13059

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

73 Gasket, Seal Retainer S08911

89 Seal, Mechanical Shaft S32689

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

Item

No. Part Description Part Number

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

811A Fitting, Grease S23670

811B Fitting, Grease (2 Req.) S23700

816 Ring, Retaining (2 Req.) S23010

820A Connector, Compression Fitting S24013

820B Connector, Compression Fitting S24014

822 Tubing, Copper S20677

1. Shaft Replacement Kit available for this model.

Berkeley part number B60633.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B60194S CW L03093 H05468 10.44”

T

r

u

a

r

c

T

r

u

a

r

c

2015 0995

16

35

40

802

51

13

14

17

800B

19

800A

2

6

1

805A

69

26

18

37

811

816

72

32A

32B

810

119

811

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 20.3

Date January 1, 2004

Supersedes 9/1/97

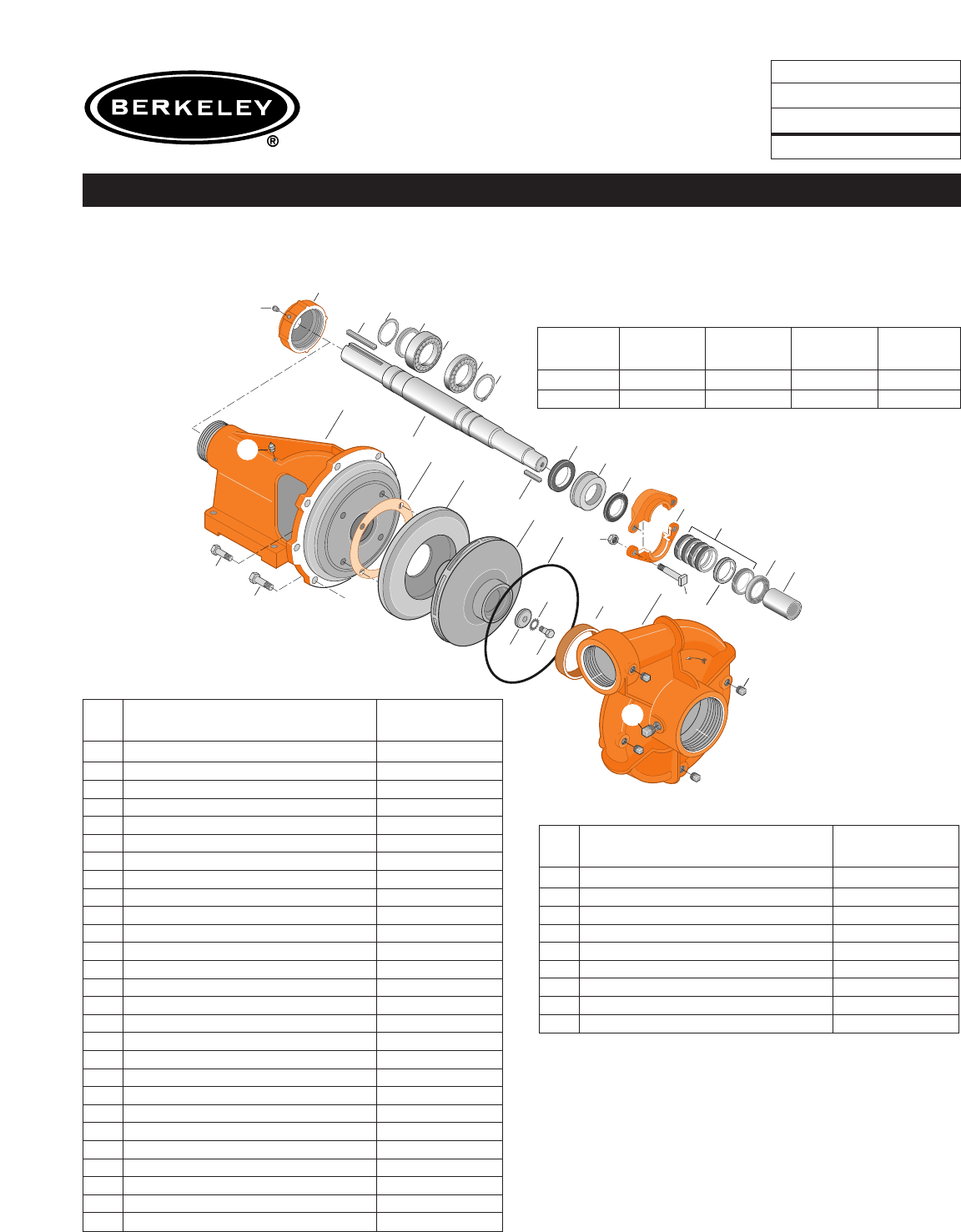

SILICON BRONZE IMPELLER B1-1/2ERL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S29895

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H02089

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S29308

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

72 Ring, Thrust S29218

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

Item

No. Part Description Part Number

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (6 Req.) S23715

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining (2 Req.) S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B60633.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B75017 CW L03093 H05468 10.44”

T

r

u

a

r

c

T

r

u

a

r

c

2018 0995

16

35

40

802

51

89

14

11

73

800B

19

800A

2

6

1

805A

69

26

18

37

811B

816

32A

32B

810

119

811A

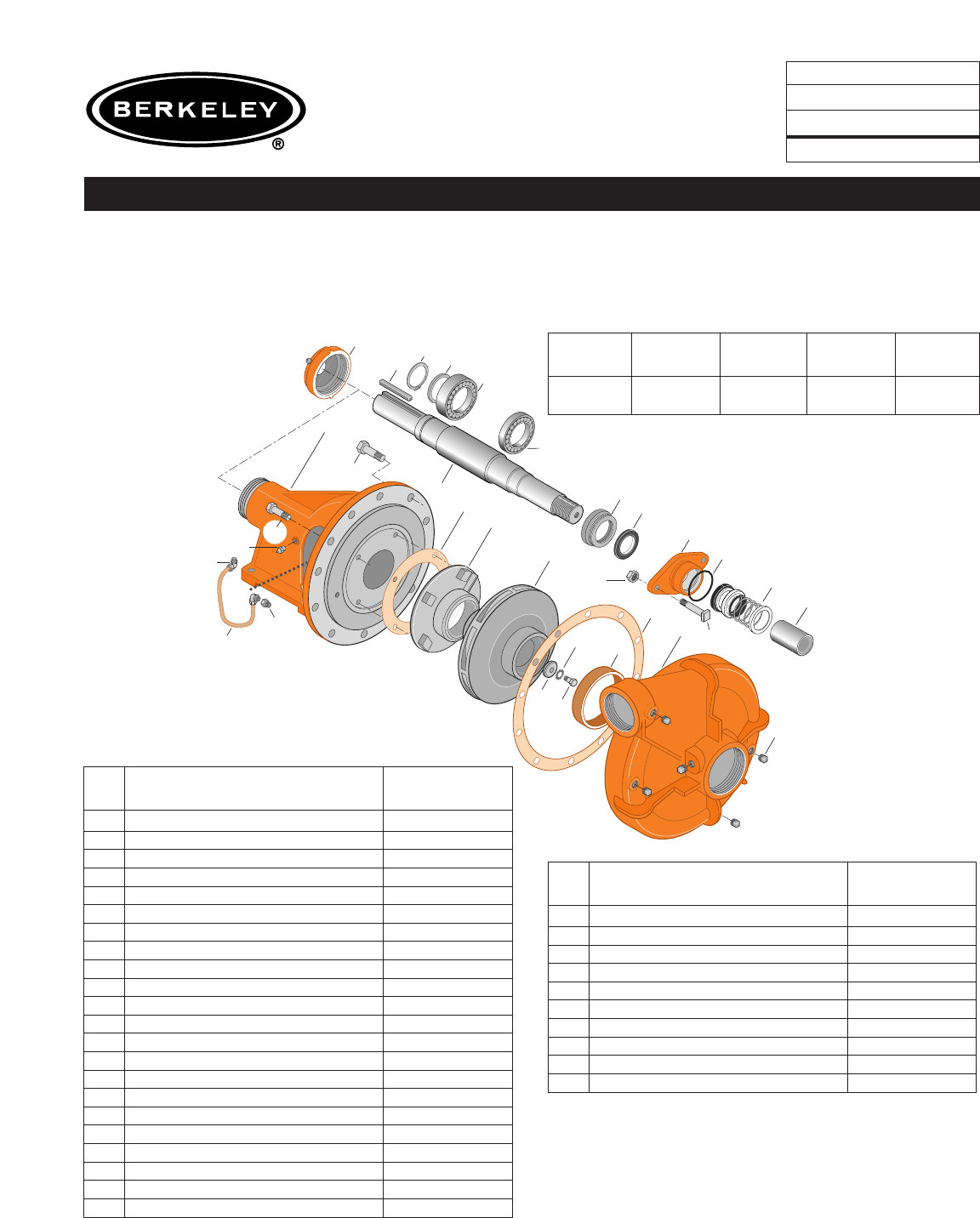

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 20.4

Date January 1, 2004

Supersedes 12/1/95

BRONZE IMPELLER B1-1/2ERLS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

11 Retainer, Mechanical Shaft Seal S05993

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H03960

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S13059

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

73 Gasket, Seal Retainer S08911

89 Seal, Mechanical Shaft S32689

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

Item

No. Part Description Part Number

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

811A Fitting, Grease S23670

811B Fitting, Grease (2 Req.) S23700

816 Ring, Retaining (2 Req.) S23010

820A Connector, Compression Fitting S24013

820B Connector, Compression Fitting S24014

822 Tubing, Copper S20677

1. Shaft Replacement Kit available for this model.

Berkeley part number B60633.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B60194S CW L03093 H05468 10.44”

H 553

H 553

T

r

u

a

r

c

2023 0995

16

35

40

802 13

14

17

800B

19

800A

2

6

1

73

805A

69

26

18

37

816

809

32

810

811

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 30.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2ZRL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13269

19 Frame H00553

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19037

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

800A Capscrew, Hex 3/8-16x1” (8 Req.) S26826

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

Item

No. Part Description Part Number

809 Spacer, Ring S05822

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

811 Fitting, Grease S23670

816 Ring, Retaining (1 Req.) S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B80701.

2. Shaft Replacement Kit available for this model.

Berkeley part number B82183.

Pump Shaft sold in shaft replacement kit only.

• Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52383 CW L01026 M06940 9.00”

T

r

u

a

r

c

2024 0995

40

14

19

800

811

2

6

1

73

805A

69

26

89

18

16

35

37

816

32

810

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 30.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2ZRLS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

89 Seal, Mechanical Shaft S32690

800 Capscrew Hex 3/8-16x7/8” (8 Req.) S26825

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

Item

No. Part Description Part Number

811 Fitting, Grease S23670

816 Ring, Retaining S23009

816 Ring, Retaining S23010

•Plug, Pipe 1/2 NPT S23717

1. Shaft Replacement Kit available for this model.

Berkeley part number B82184.

Pump Shaft sold in shaft replacement kit only.

• Not illustrated.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B68410 CW L01026 M06940 9.00”

H 553

H 553

T

r

u

a

r

c

2023 0995

16

35

40

802 13

14

17

800B

19

800A

2

6

1

73

805A

69

26

18

37

816

809

32

810

811

72

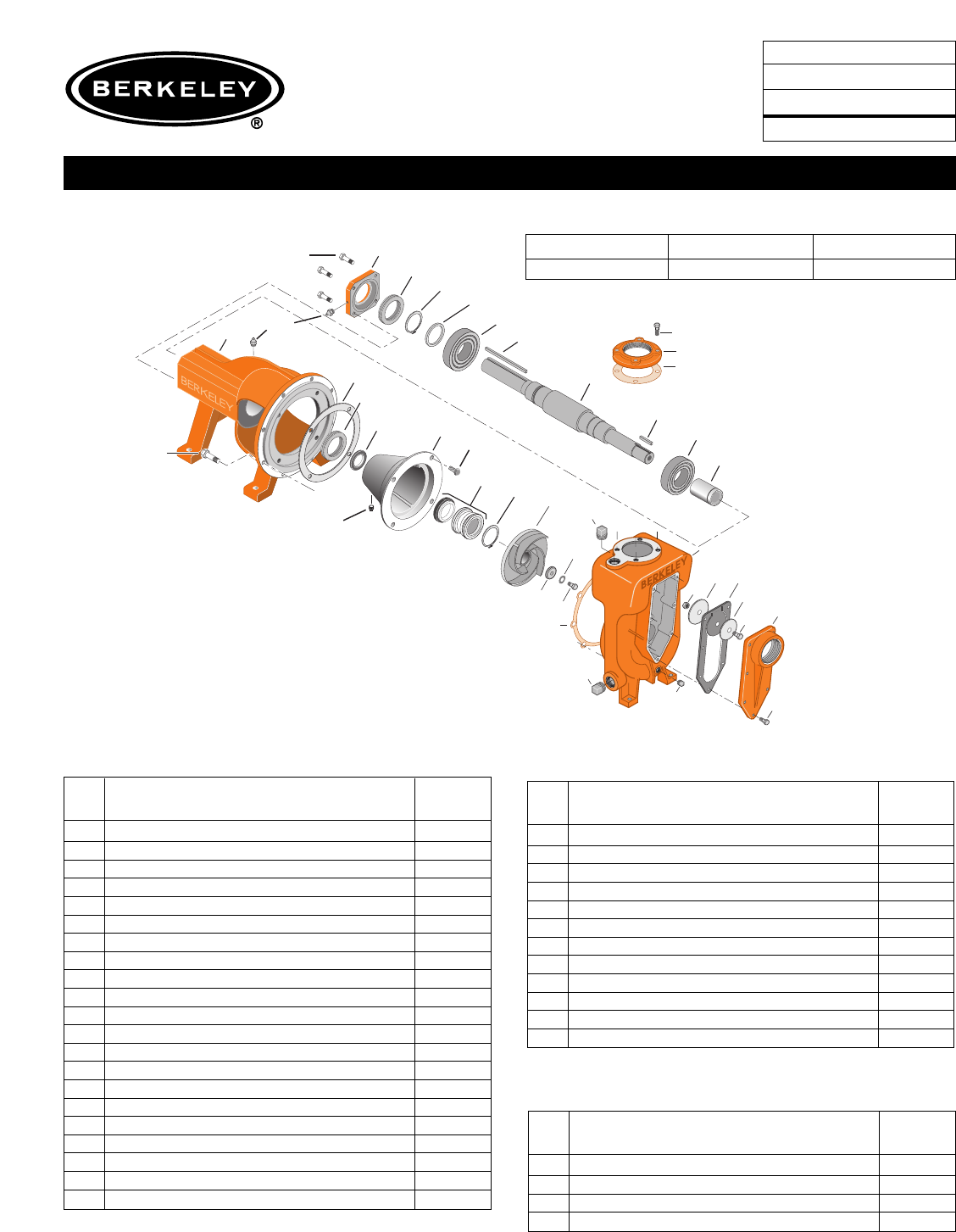

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 40.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2ZRM

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13269

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13270

19 Frame H00553

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19037

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

800A Capscrew, Hex 3/8-16x1” (8 Req.) S26826

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

Item

No. Part Description Part Number

809 Ring, Spacer S05822

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

811 Fitting, Grease S23670

816 Ring, Retaining (1 Req.) S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B82183.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52170 CW L01026 M01802 9.00”

T

r

u

a

r

c

2024 0995

40

14

19

800

811

2

6

1

73

805A

69

26

89

18

16

35

37

816

32

810

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 40.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2ZRMS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

89 Seal, Mechanical Shaft S32690

800 Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

Item

No. Part Description Part Number

811 Fitting, Grease S23670

816 Ring, Retaining S23009

816 Ring, Retaining S23010

•Plug, Pipe 1/2 NPT S23717

1. Shaft Replacement Kit available for this model.

Berkeley part number B80701.

Pump Shaft sold in shaft replacement kit only.

• Not illustrated.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B68411 CW L01026 M01802 9.00”

T

r

u

a

r

c

T

r

u

a

r

c

2025 0995

16

35

40

802

51

13

14

17

800B

19

800A

2

6

1

7

805A

69

26

18

37

811

816

72

32A

32B

810A

119

810B

811

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 50.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2ERLL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

7Ring, Wearing S13548

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S29895

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H02089

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S29308

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

72 Ring, Thrust S29218

119 O-Ring S13760

Item

No. Part Description Part Number

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining (2 Req.) S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B82183.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B60655 CW L03482 L03710 10.00”

T

r

u

a

r

c

T

r

u

a

r

c

2025 0995

16

35

40

802

51

13

14

17

800B

19

800A

2

6

1

7

805A

69

26

18

37

811

816

72

32A

32B

810A

119

810B

811

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 60.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2ERL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

7Ring, Wearing (CW) S02005

7Ring, Wearing (CCW) S13548

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S29895

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H02089

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S29308

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

72 Ring, Thrust S29218

119 O-Ring S13760

Item

No. Part Description Part Number

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining (2 Req.) S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B82183.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B60656 CW L03482 M05217 10.00”

B60657 CCW L04306 M05697 10.00”

T

r

u

a

r

c

T

r

u

a

r

c

2033 0995

16

35

40

802

51

89

14

11

73

800B

19

800A

2

6

1

805A

69

26

7

18

37

811B

816

32A

32B

119

823

821

822

To fitting on

Volute. 810A

810B

821

811A

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 60.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2ERLS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S02005

11 Retainer, Mechanical Shaft Seal S05993

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H03960

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S13059

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

73 Gasket, Seal Retainer S08911

89 Seal, Mechanical Shaft S32689

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 3/8-16x2” (2 Req.) S23760

802 Nut, Hex (2 Req.) S23343

805A Washer, Lock S23036

Item

No. Part Description Part Number

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT (2 Req.) S23717

811A Fitting, Grease S23670

811B Fitting, Grease (2 Req.) S23700

816 Ring, Retaining (2 Req.) S23010

821 Elbow, Comp. Tube (2 Req.) S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24600

1. Shaft Replacement Kit available for this model.

Berkeley part number B82183.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B60892 CW L03482 M05217 10.00”

T

r

u

a

r

c

T

r

u

a

r

c

2025 0995

16

35

40

802

51

13

14

17

800B

19

800A

2

6

1

7

805A

69

26

18

37

811

816

72

32A

32B

810A

119

810B

811

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 70.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2ERH

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

7Ring, Wearing S00806

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S29895

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H02089

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S29308

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

72 Ring, Thrust S29218

119 O-Ring S13760

Item

No. Part Description Part Number

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining (2 Req.) S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B82183.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B60658 CW L03482 M05048 9.94”

T

r

u

a

r

c

T

r

u

a

r

c

2033 0995

16

35

40

802

51

89

14

11

73

800B

19

800A

2

6

1

805A

69

26

7

18

37

811B

816

32A

32B

119

823

821

822

To fitting on

Volute. 810A

810B

821

811A

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 70.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2ERHS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S00806

11 Retainer, Mechanical Shaft Seal S05993

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H03960

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S13059

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

73 Gasket, Seal Retainer S08911

89 Seal, Mechanical Shaft S32689

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

Item

No. Part Description Part Number

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811A Fitting, Grease S23670

811B Fitting, Grease (2 Req.) S23700

816 Ring, Retaining (2 Req.) S23010

821 Elbow, Comp. Tube (2 Req.) S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24600

1. Shaft Replacement Kit available for this model.

Berkeley part number B82183.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B61368 CW L03482 M05048 9.94”

T

r

u

a

r

c

T

r

u

a

r

c

2034 0995

16

35

40

802

51

13

14

17

800B

19

800A

2

6

1

805A

69

26

18

37

811

816

72

32A

32B

810A

119

810B

811

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 80.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2ERHH

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S29895

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H02089

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S29308

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

72 Ring, Thrust S29218

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

Item

No. Part Description Part Number

800B Bolt, Sq Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining (2 Req.) S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B60633.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B55829 CW L03482 M07026 10.44”

B55159 CCW L04306 M06893 10.44”

T

r

u

a

r

c

T

r

u

a

r

c

2033B 0497

16

35

40

802

51

89

14

11

73

800B

19

800A

2

6

1

805A

69

26

7

18

37

811B

816

32A

32B

119

810A

810B

811A

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 80.3

Date January 1, 2004

Supersedes 9/1/97

SILICON BRONZE IMPELLER B2ERHHS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

7Ring, Wearing S02005

11 Retainer, Mechanical Shaft Seal S05993

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H03960

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S13059

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

73 Gasket, Seal Retainer S08911

89 Seal, Mechanical Shaft S32689

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq Head 3/8-16x2” (2 Req.) S23760

Item

No. Part Description Part Number

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811A Fitting, Grease S23670

811B Fitting, Grease S23700

816 Ring, Retaining (2 Req.) S23010

•Plug, Pipe 1/8 NPT (In Bracket) S23714

1. Shaft Replacement Kit available for this model.

Berkeley part number B60633.

Pump Shaft sold in shaft replacement kit only.

• Not illustrated.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B75178 CW L03482 M07026 10.44”

T

r

u

a

r

c

T

r

u

a

r

c

816B

2031 0995

16

40

802B

51

35

17

800B

19

800A

73

115

2

6

802A

801

18

37

811B

816A

72

32A

32B

119

811A

1

805A

69

26 810A

810B

29

14

63

13

See Supplement B

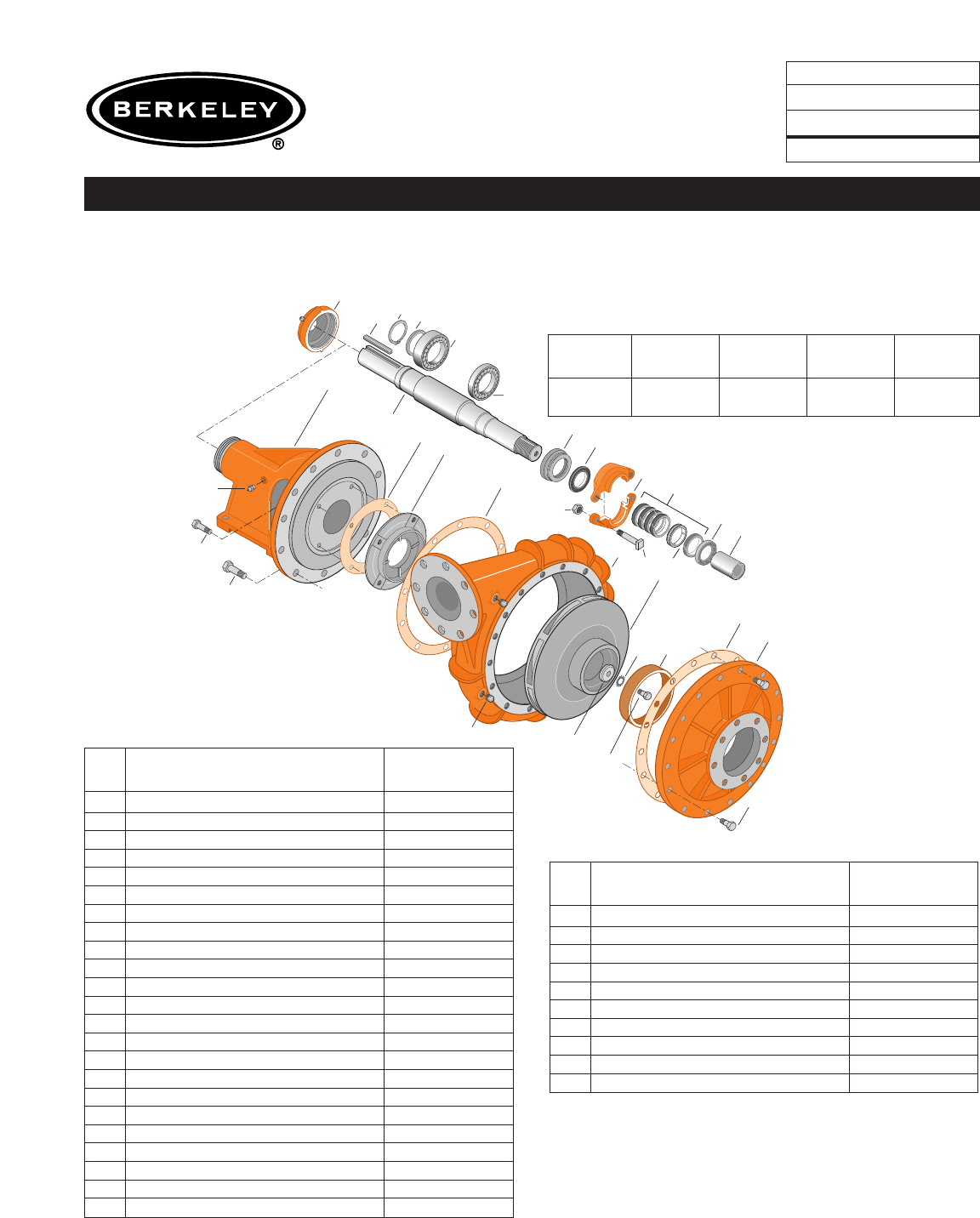

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 90.1

Date January 1, 2004

Supersedes 12/1/95

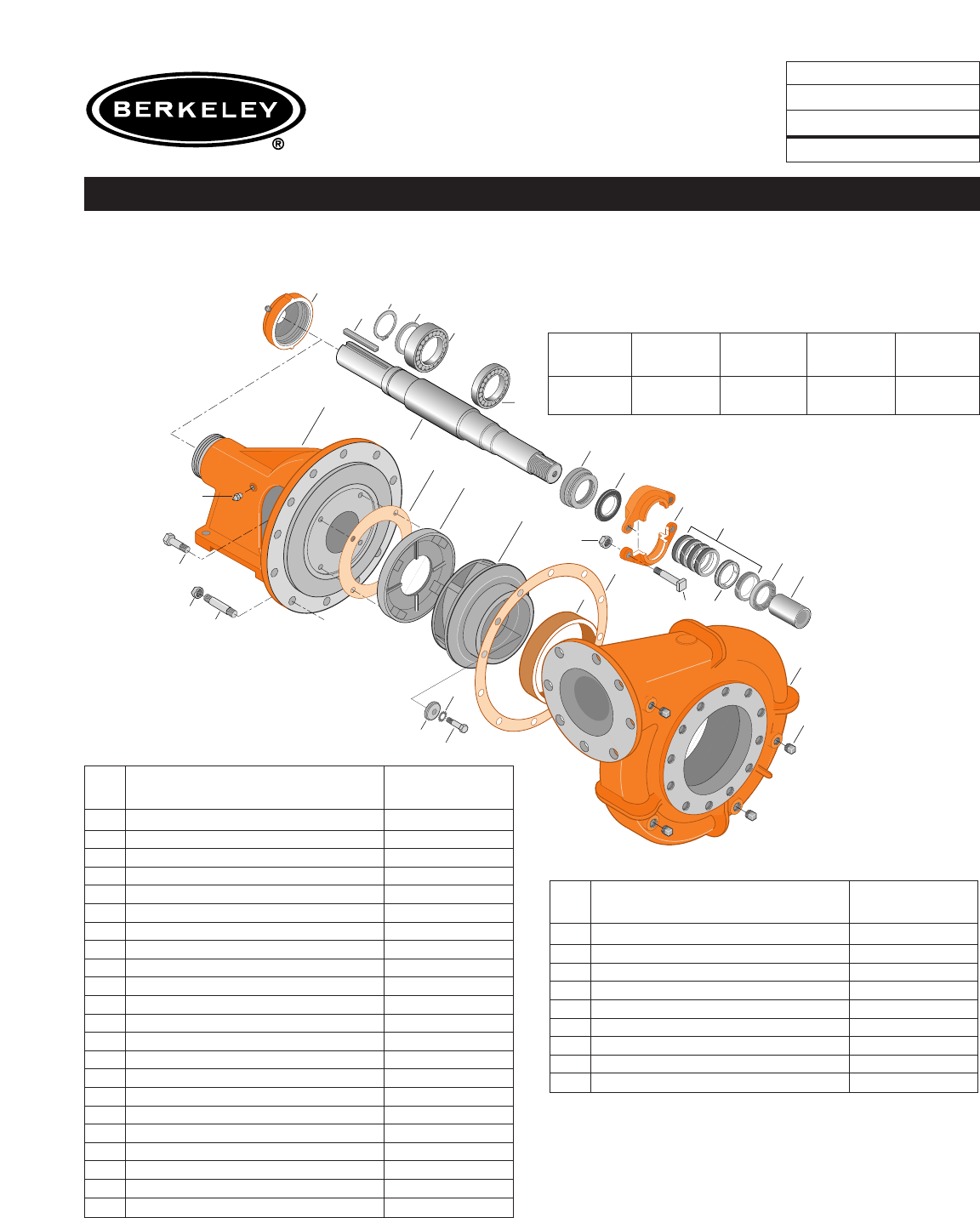

CAST IRON IMPELLER B2ERBH

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S13395

17 Gland, Packing M13599

18 Bearing, Ball S13754

19 Frame H01941

26 Screw, Impeller 1/2-13x1-1/4” S23621

29 Ring, Lantern S18993

32A Key, 1/2x4” S24214

32B Key, 1/4x1-1/2” S24170

35 Inner Bearing Cap S13213

37 Outer Bearing Cap M04551

40 Slinger, Water S10964

51 Seal, Oil S14764

63 Bushing, Throat S14122

69 Washer, Impeller S06319

72 Ring, Thrust S19221

73 Gasket, Balance Ring S09943

115 Ring, Balance S13840

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 1/2-13x2-1/2” (2 Req.) S23793

801 Stud, 3/8-16x1-3/8” (4 Req.) S09942

Item

No. Part Description Part Number

802A Nut, Hex 3/8-16 (4 Req.) S23103

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811A Fitting, Grease S23670

811B Fitting, Grease (3 Req.) S23700

816A Ring, Retaining S23016

816B Ring, Retaining S23017

•Screw, Set (Outer Bearing Cap) S23982

1. Shaft Replacement Kit available for this model.

Berkeley part number B60659.

Pump Shaft sold in shaft replacement kit only.

• Not illustrated.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B54345 CW L03482 M05171 10.38”

T

r

u

a

r

c

T

r

u

a

r

c

89

2032 0995

16

40

802B

51

35

11

19

800A

73

115

2

6

802A

801

18

37

811B

816A

816B

72

32A

32B

119A

119B

811A

820

1

805A

69

26 810A

810B

823

821

14

800B

822

To fitting on

Volute.

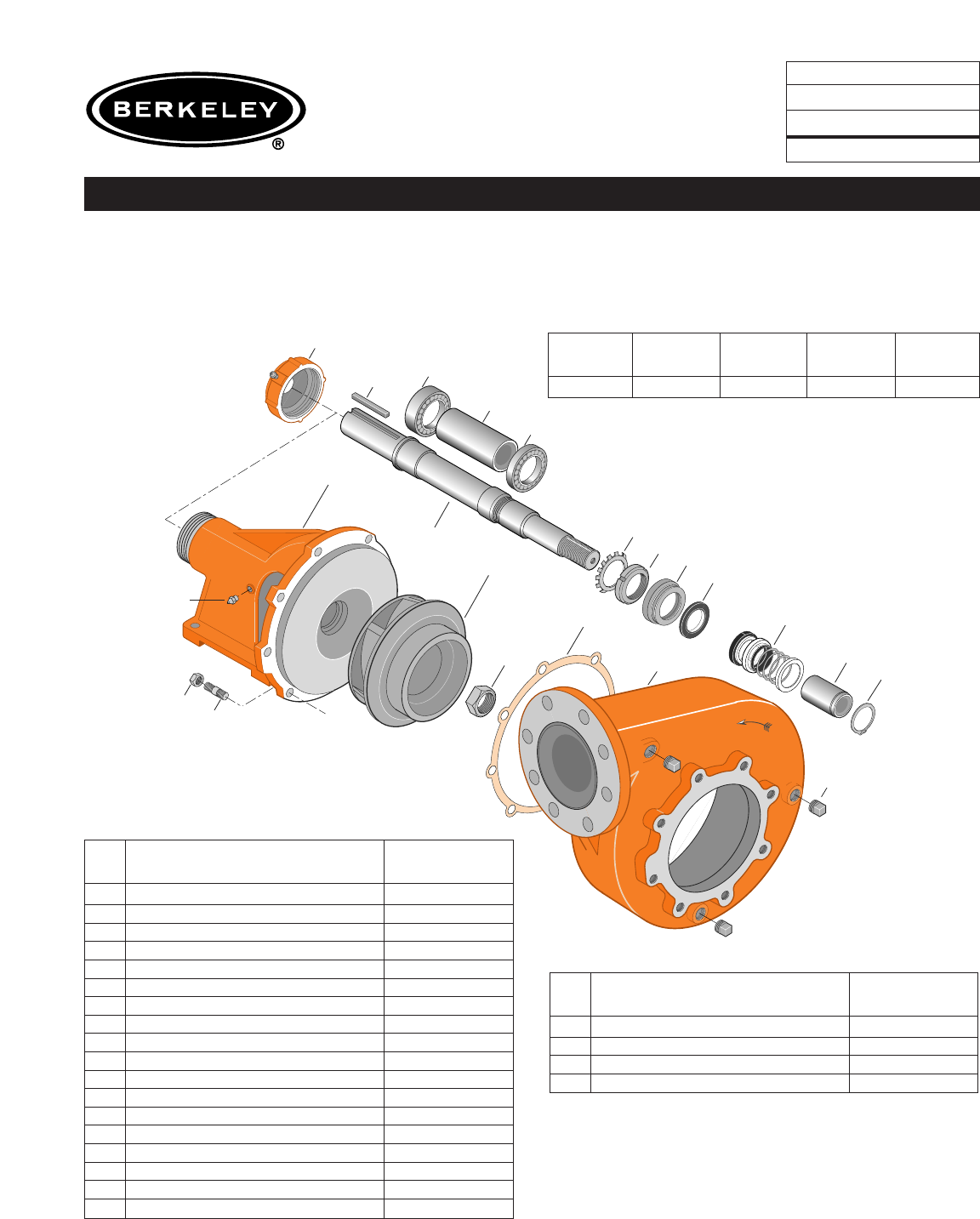

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 90.2

Date January 1, 2004

Supersedes 12/1/95

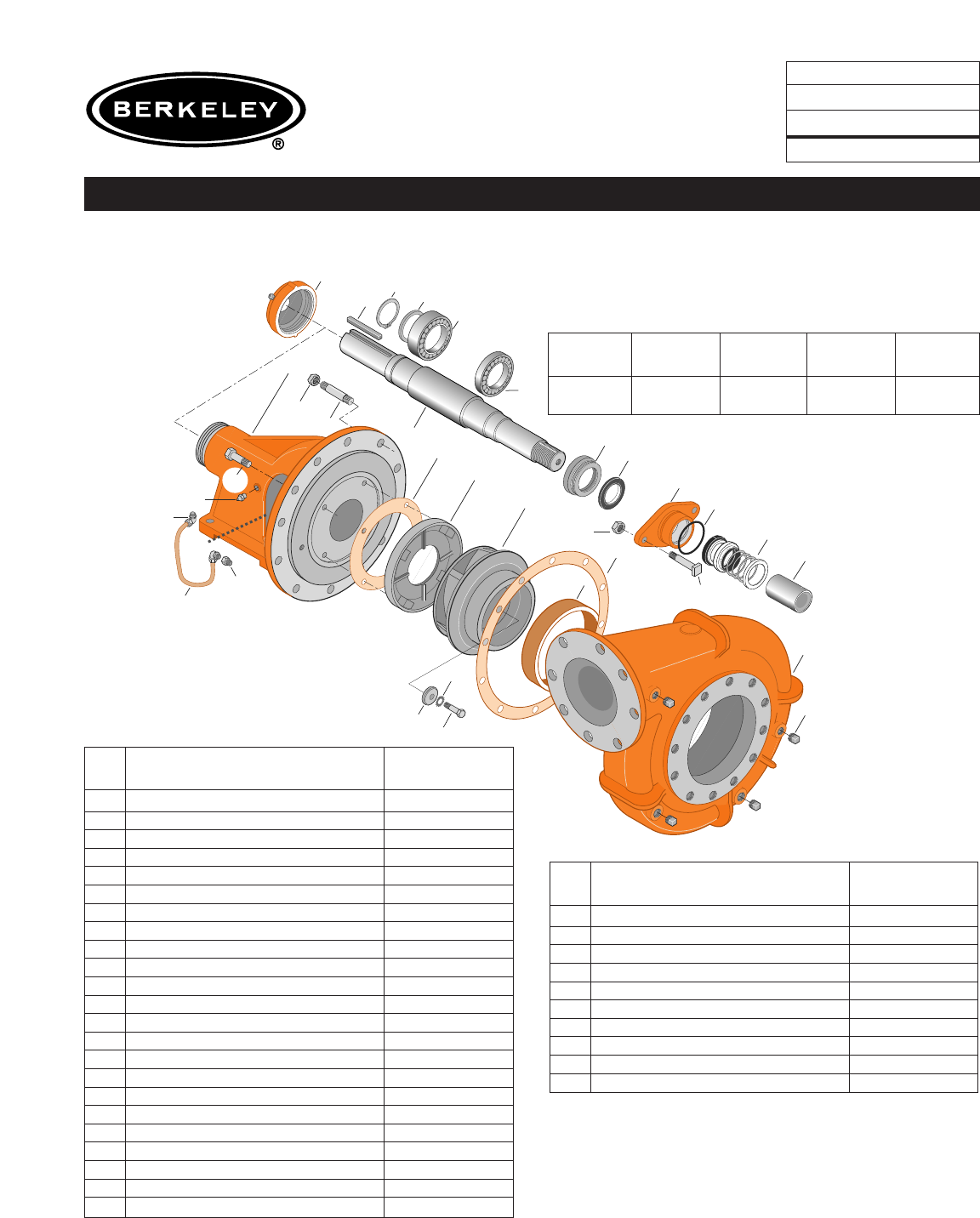

CAST IRON IMPELLER B2ERBHS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S13395

18 Bearing, Ball S13754

19 Frame H05508

26 Screw, Impeller 1/2-13x1-1/4” S23621

32A Key, 1/2x4” S24214

32B Key, 1/4x1-1/2” S24170

35 Inner Bearing Cap S13213

37 Outer Bearing Cap M04551

40 Slinger, Water S10964

51 Seal, Oil S14764

69 Washer, Impeller S06319

72 Ring, Thrust S19221

73 Gasket, Balance Ring S09943

89 Seal, Mechnical Shaft S32693

115 Ring, Balance L07977

119A O-Ring S13760

119B O-Ring S24599

800A Capscrew, Hex 1/2-13x1-1/2” (8 Req.) S26916

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

801 Stud, 3/8-16x1-1/4” (4 Req.) S23994

802A Nut, Hex 3/8-16 (4 Req.) S23103

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

Item

No. Part Description Part Number

805A Washer, Lock S23038

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT (2 Req.) S23717

811A Fitting, Grease S23670

811B Fitting, Grease (2 Req.) S23700

816A Ring, Retaining S23016

816B Ring, Retaining S23017

820 Connector, Comp. Fitting S24013

821 Elbow, Comp. Fitting Tube S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24600

•Screw, Set (Outer Bearing Cap) S23982

1. Shaft Replacement Kit available for this model.

Berkeley part number B60659.

Pump Shaft sold in shaft replacement kit only.

• Not illustrated.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B73020 CW L03482 M05171 10.38”

H 553

H 553

811

2035 0995

35

40

802 13

14

17

800B

19

800A

2

6

1

73

805A

69

26

37

810

18

16

32

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 100.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2-1/2ZRL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H00553

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

800A Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

Item

No. Part Description Part Number

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

811 Fitting, Grease S23670

816 Ring, Retaining S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B82184.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52385 CW L01027 M05831 9.00”

T

r

u

a

r

c

2036 0995

40

14

19

800

811

2

6

1

73

805A

69

26

89

18

16

35

37

816

32

810

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 100.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2-1/2ZRLS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

89 Seal, Mechanical Shaft S32690

800 Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

Item

No. Part Description Part Number

811 Fitting, Grease S23670

816 Ring, Retaining S23009

816 Ring, Retaining S23010

1. Shaft Replacement Kit available for this model.

Berkeley part number B75299.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B68412 CW L01027 M05831 9.00”

H 553

H 553

811

2035 0995

35

40

802 13

14

17

800B

19

800A

2

6

1

73

805A

69

26

37

810

18

16

32

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 100.3

Date January 1, 2004

Supersedes/New

BRONZE IMPELLER B2-1/2ZRL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H00553

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

800A Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

Item

No. Part Description Part Number

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

811 Fitting, Grease S23670

816 Ring, Retaining S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B82184.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B74966 CW L01027 M11095 9.00”

H 553

H 553

811

2035 0995

35

40

802 13

14

17

800B

19

800A

2

6

1

73

805A

69

26

37

810

18

16

32

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 110.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2-1/2ZRM

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H00553

26 Capscrew, Hex 3/8-16x1” S23566

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

800A Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

Item

No. Part Description Part Number

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

811 Fitting, Grease S23670

816 Ring, Retaining S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B82184.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52175 CW L01027 L01097 9.00”

T

r

u

a

r

c

2036 0995

40

14

19

800

811

2

6

1

73

805A

69

26

89

18

16

35

37

816

32

810

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 110.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B2-1/2ZRMS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

89 Seal, Mechanical Shaft S32690

800 Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

805A Washer, Lock S23036

810 Plug, Pipe 1/4 NPT (5 Req.) S23715

Item

No. Part Description Part Number

811 Fitting, Grease S23670

816 Ring, Retaining S23010

816 Ring, Retaining S23009

2. Shaft Replacement Kit available for this model.

Berkeley part number B75299.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B68413 CW L01027 M01097 9.00”

T

r

u

a

r

c

800C

800A

2037 0995

811

19

37

32

6

73B

115

2

1

810

73A

816 72

18

16

40

802

35

17

800B 29

14

63

13

See Supplement B

69

26

7

805A

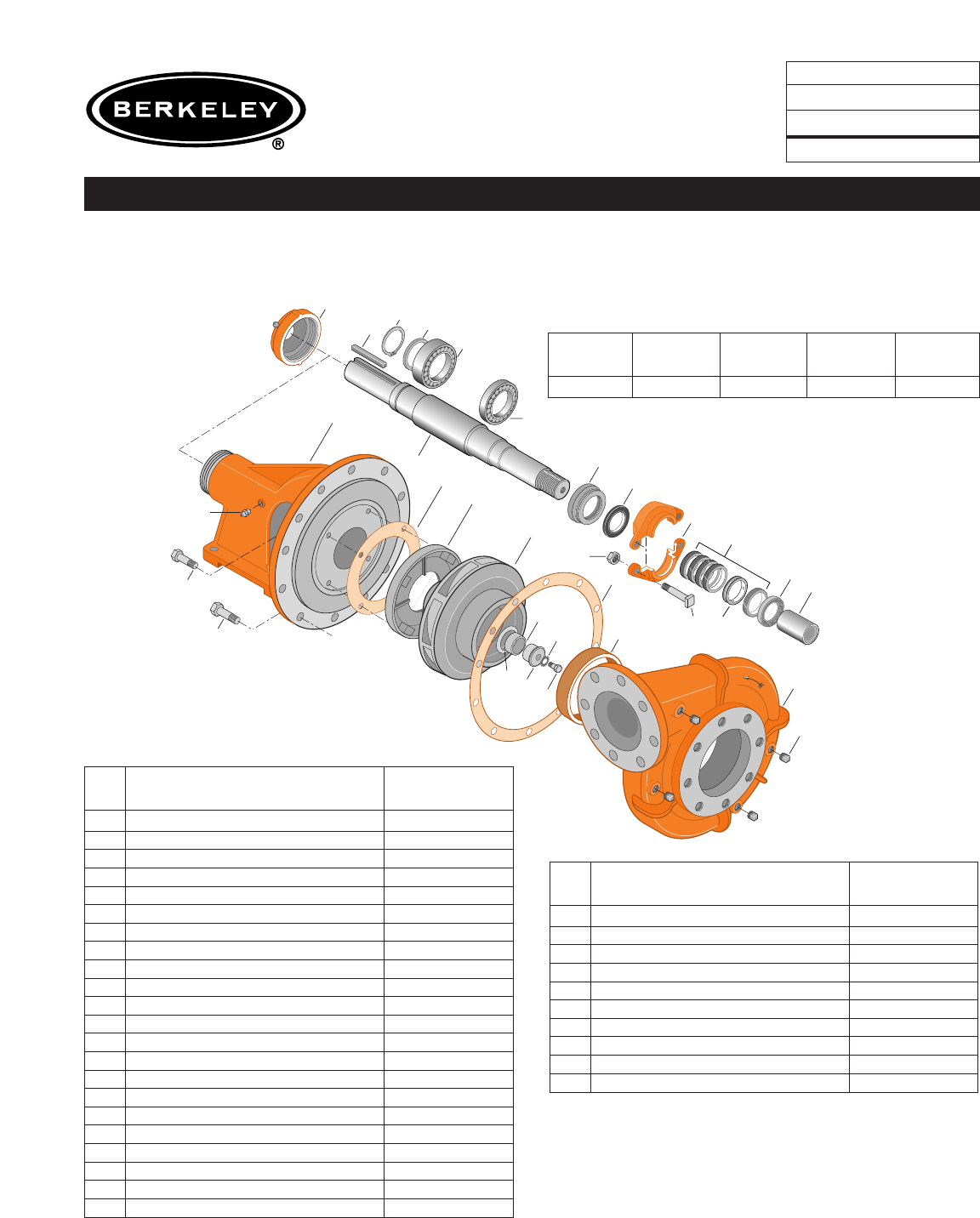

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 120.1

Date January 1, 2004

Supersedes 12/1/95

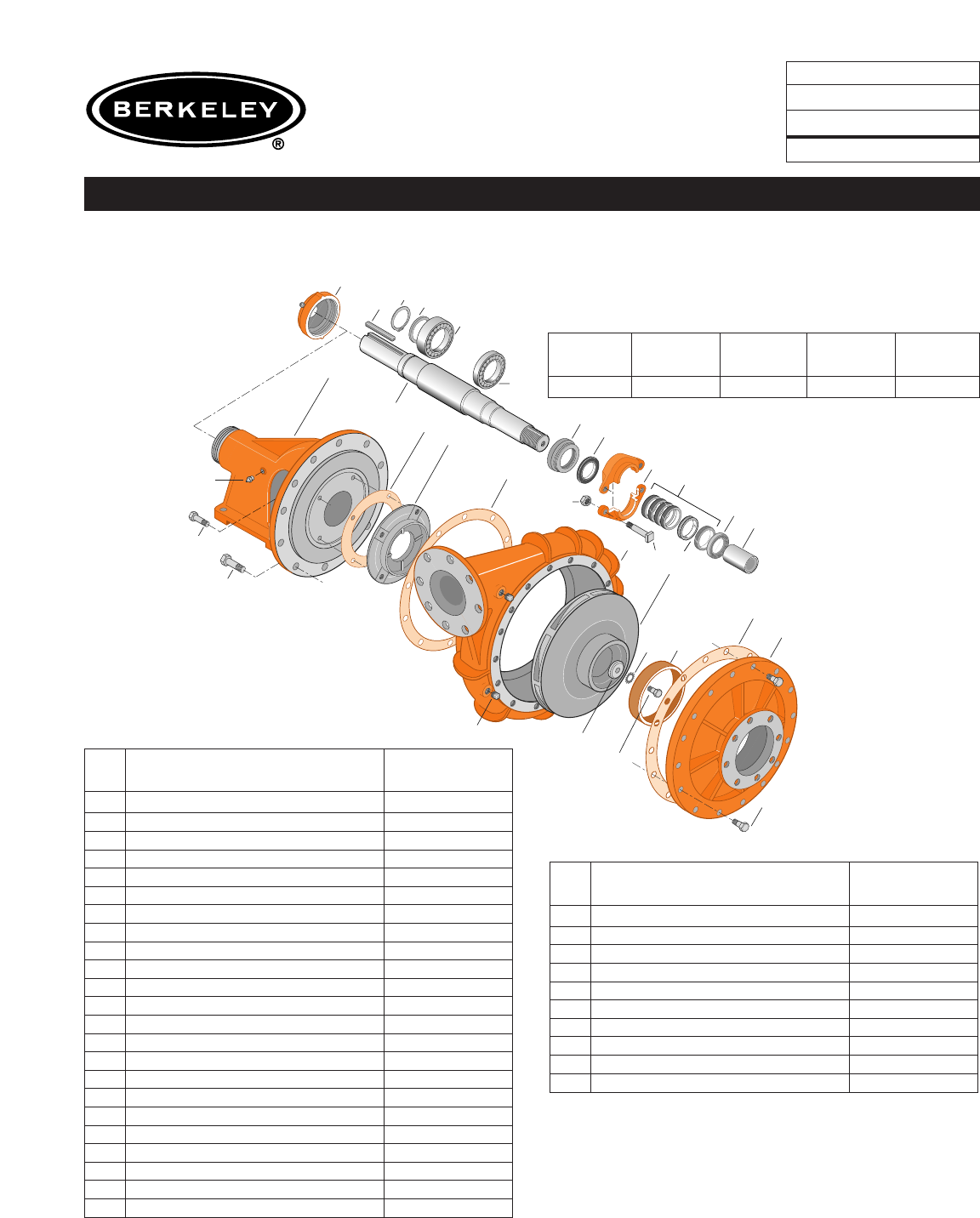

CAST IRON IMPELLER B2-1/2JRMBM

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S04176

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

17 Gland, Packing B82472

18 Bearing, Ball S13396

19 Frame H01599

26 Screw, Impeller 1/2-13x1-1/2” S23623

29 Ring, Lantern S18993

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

63 Bushing, Throat S18992

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

115 Ring, Balance M05115

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

Item

No. Part Description Part Number

800B Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (6 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

•Fitting, Grease (Packing Area) S23702

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596.

Pump Shaft sold in shaft replacement kit only.

• Not illustrated.

*Includes two (2) grease fittings.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52362 CW H01928 L03039 13.50”

T

r

u

a

r

c

800A

2038 0995

19

6

73B

115

2

16

40

35

802

37

32

816 72

18

1

810

73A

89

11

119

14

800B

69

26

7

805A

820

822

800C

811

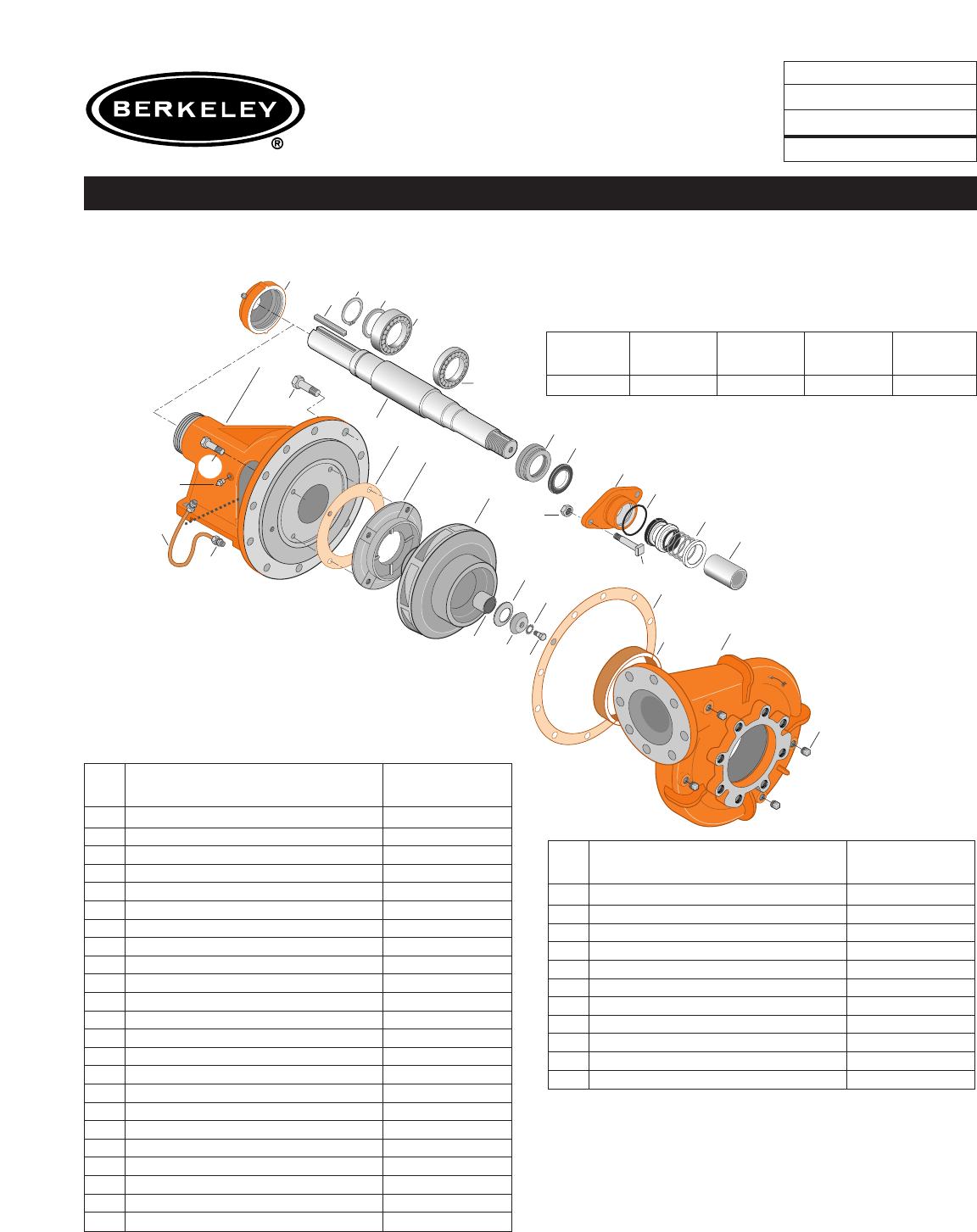

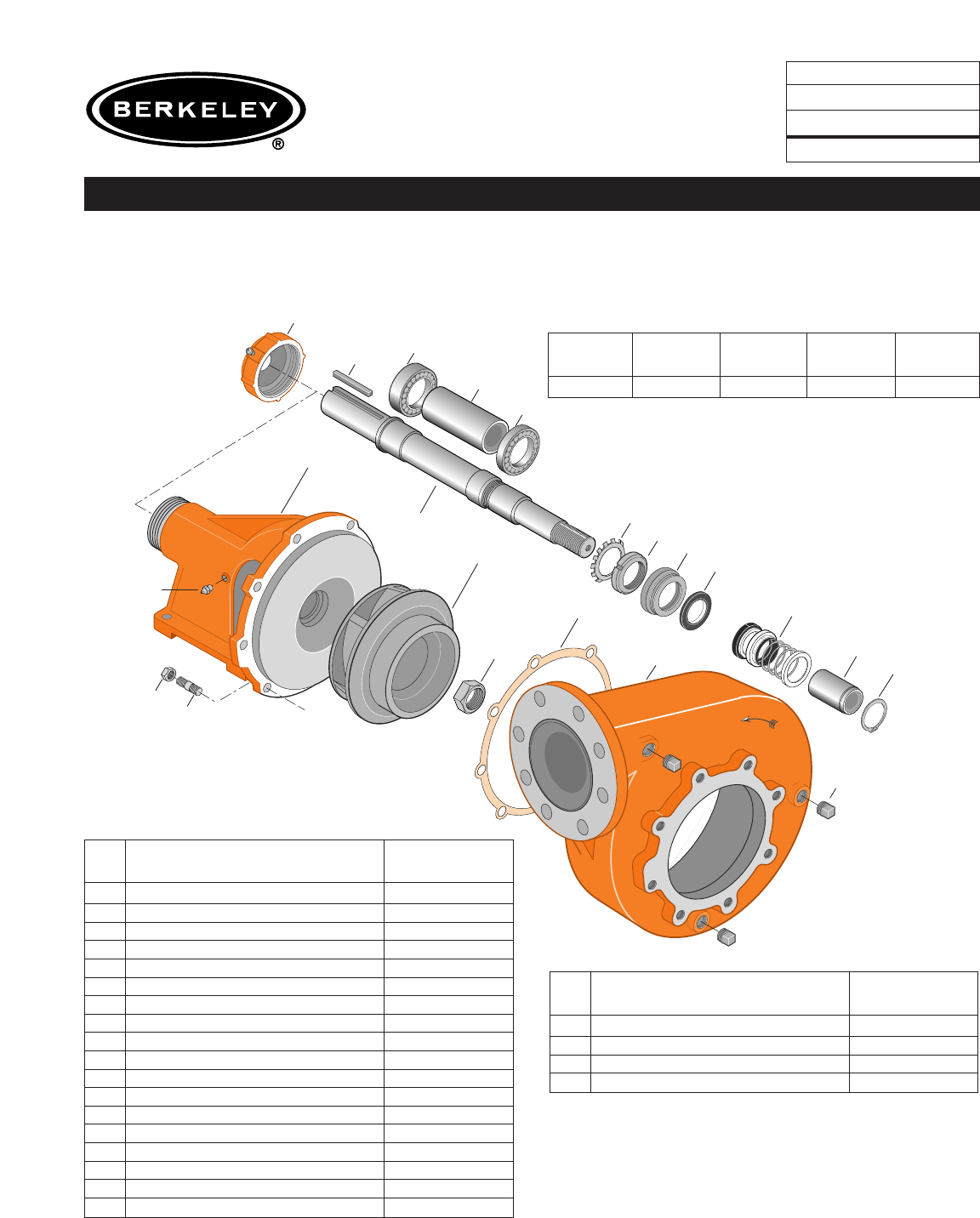

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 120.2

Date January 1, 2004

Supersedes 12/1/95

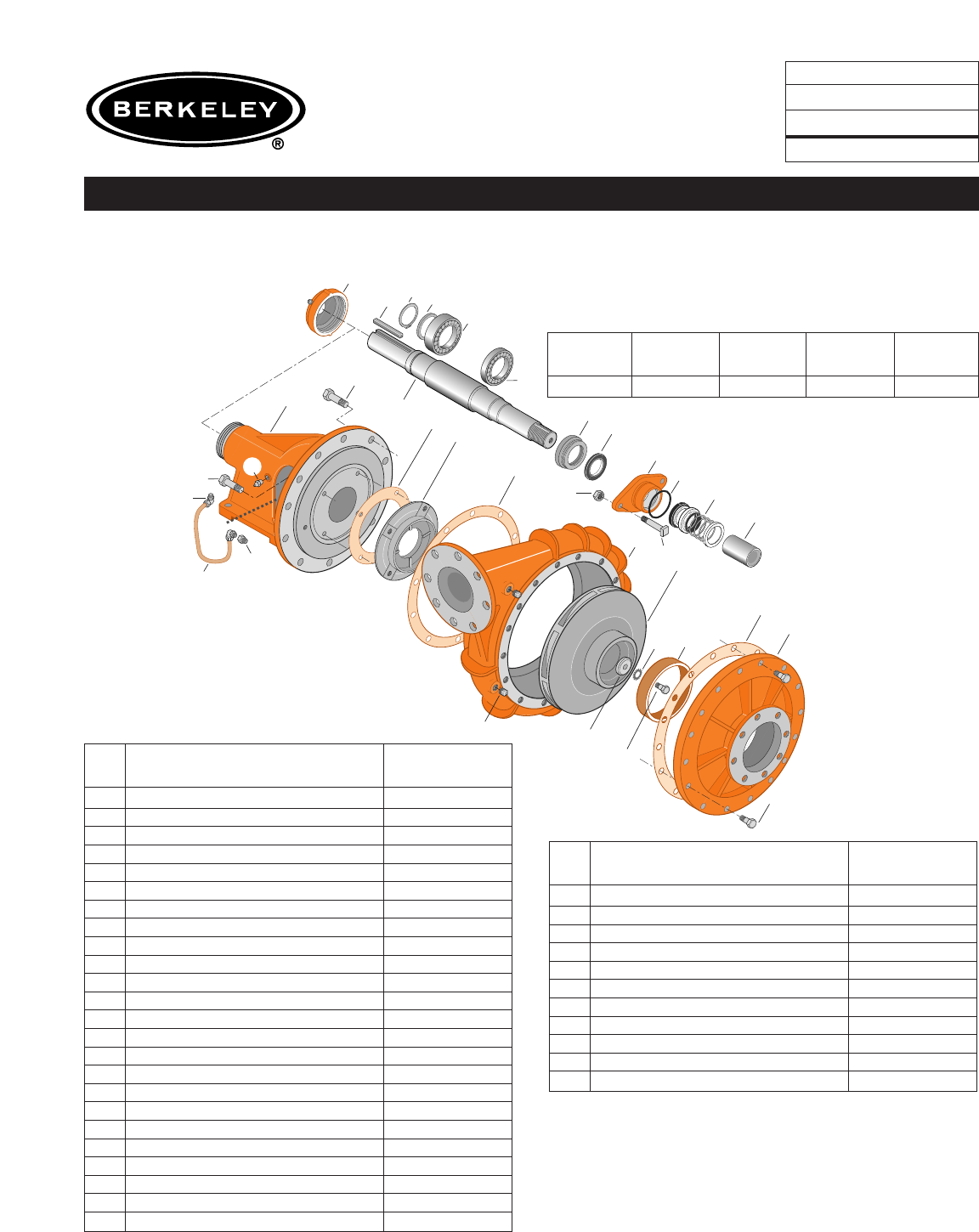

CAST IRON IMPELLER B2-1/2JRMBMS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S04176

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

18 Bearing, Ball S13396

19 Frame H01838

26 Screw, Impeller 1/2-13x1-1/2” S23623

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance M05073

119 O-Ring S26471

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

Item

No. Part Description Part Number

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (6 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

820 Connector, Comp. Fitting (2 Req.) S24013

822 Tubing, Copper S20677

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596.

Pump Shaft sold in shaft replacement kit only.

* Includes two (2) grease fittings.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B66925 CW H01928 L03039 13.50”

H 553

H 553

T

r

u

a

r

c

816

72

2039 0995

35

40

802 13

14

24

17

800B

19

800A

2

6

1

73

37

810

811

18

16

32

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 130.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3ZRM

Victaulic Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H00553

24 Locknut, Impeller (CW) M10220

24 Locknut, Impeller (CCW) U36-189SS

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

72 Ring, Thrust S29218

73 Gasket, Volute S05126

800A Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

Item

No. Part Description Part Number

810 Plug, Pipe 1/4 NPT (3 Req.) S23715

811 Fitting, Grease S23670

816 Ring, Retaining S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B80698 for CW, B80696 for

CCW.

Pump Shaft sold in shaft replacement kit only.

*Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B66899 CW H04040 M02153 9.00”

B66895 CCW H04041 M02181 9.00”

89

T

r

u

a

r

c

2040 0995

35

40

24

19

800

2

6

1

73

37

810

18

16

32

14

816

811

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 130.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3ZRMS

Victaulic Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

24 Locknut, Impeller (CW) M10220

24 Locknut, Impeller (CCW) U36-189SS

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

72 Ring, Thrust S29218

73 Gasket, Volute S05126

89 Seal, Mechanical Shaft S32690

800 Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

810 Plug, Pipe 1/4 NPT (3 Req.) S23715

811 Fitting, Grease S23670

Item

No. Part Description Part Number

816 Ring, Retaining S23009

816 Ring, Retaining S23010

1. Shaft Replacement Kit available for this model.

Berkeley part number B80699 for CW, B80697 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B68417 CW H04040 M02153 9.00”

B68416 CCW H04041 M02181 9.00”

H 553

H 553

1997 0995

35

40

802 13

14

24

17

800B

19

800A

2

6

1

73

37

810A

18

16

32

810B

811

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 130.3

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3ZRM

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H00553

24 Locknut, Impeller (CW) M10220

24 Locknut, Impeller (CCW) U36-189SS

32 Key, 1/4x2-1/8” S24255

40 Slinger, Water S12260

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

72 Ring, Thrust S29218

73 Gasket, Volute S05126

800A Capscrew, Hex 3/8-16x1” (8 Req.) S26826

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

Item

No. Part Description Part Number

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B80698 for CW, B80696 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B66161 CW H00689 M02153 9.00”

B66168 CCW H00698 H02181 9.00”

T

r

u

a

r

c

1998 0995

35

40

24

19

800

2

6

1

73

37

810A

18

32

14

816

810B

811

89

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 130.4

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3ZRMS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

24 Locknut, Impeller (CW) M10220

24 Locknut, Impeller (CCW) U36-189SS

32 Key, 1/4x2-1/8” S24255

40 Slinger, Water S12260

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

72 Ring, Thrust S29218

73 Gasket, Volute S05126

89 Seal, Mechanical Shaft S32690

800 Capscrew, Hex 3/8-16x1” (8 Req.) S26826

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

Item

No. Part Description Part Number

811 Fitting, Grease S23670

816 Ring, Retaining S23009

816 Ring, Retaining S23010

1. Shaft Replacement Kit available for this model.

Berkeley part number B80699 for CW, B80697 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B68414 CW H00689 M02153 9.00”

B68415 CCW H00698 M02181 9.00”

H 553

H 553

2000 0995

35

40

802 13

14

17

800B

19

800A

2

6

1

73

800D

800C

810A

805B

805A

69

26

18

70

78

16

22

32

71

810B

811

811

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 130.5

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3ZRM

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H00553

22 Locknut M10221

26 Screw, Impeller 3/8-16x1” S23566

32 Key, 1/4x1” S24168

35 Inner Bearing Cap S19033

40 Slinger, Water S12260

69 Washer, Impeller S06314

70 Coupling, Shaft S30636

71 Bracket L05720

73 Gasket, Volute S05126

78 Sleeve, Spacer S08980

800A Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

800C Screw, Set S23964

Item

No. Part Description Part Number

800D Screw, Set (2 Req.) S23965

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

805B Washer, Bearing Lock S16181

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811 Fitting, Grease (3 Req.) S23670

1. A two piece (split) bronze packing gland is available

for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B62436 for CW, B62452 for

CCW.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B59539 CW H00689 M02153 9.00”

B59538 CCW H00698 M02181 9.00”

H 553

H 553

2045 0995

35

40

802 13

14

24

17

800B

19

800A

2

6

1

73

37

810

18

16

32

811

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 130.6

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3ZRM

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H00553

24 Locknut, Impeller M10220

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

72 Ring, Thrust S29218

73 Gasket, Volute S05126

800A Capscrew, Hex 3/8-16x1” (8 Req.) S26826

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

810 Plug, Pipe 1/4 NPT (3 Req.) S23715

Item

No. Part Description Part Number

811 Fitting, Grease S23670

816 Ring, Retaining S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B80698.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B70278 CW H05130 M02153 9.00”

89

T

r

u

a

r

c

2046 0995

35

40

24

19

800

2

6

1

73

37

810

18

16

32

14

816

811

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 130.7

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3ZRMS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

24 Locknut, Impeller M10220

32 Key, 1/4x21-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

72 Ring, Thrust S29218

73 Gasket, Volute S05126

89 Seal, Mechanical Shaft S32690

800 Capscrew, Hex 3/8-16x1” (8 Req.) S26826

810 Plug, Pipe 1/4 NPT (3 Req.) S23715

Item

No. Part Description Part Number

811 Fitting, Grease S23670

816 Ring, Retaining S23009

816 Ring, Retaining S23010

1. Shaft Replacement Kit available for this model.

Berkeley part number B80699.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B70280 CW H05130 M02153 9.00”

89

T

r

u

a

r

c

2046 0995

35

40

24

19

800

2

6

1

73

37

810

18

16

32

14

816

811

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 130.7.1

Date January 1, 2004

Supersedes/New

BRONZE IMPELLER B3ZRMS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

24 Locknut, Impeller M10220

32 Key, 1/4x21-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

72 Ring, Thrust S29218

73 Gasket, Volute S05126

89 Seal, Mechanical Shaft S32690

800 Capscrew, Hex 3/8-16x1” (8 Req.) S26826

810 Plug, Pipe 1/4 NPT (3 Req.) S23715

Item

No. Part Description Part Number

811 Fitting, Grease S23670

816 Ring, Retaining S23009

816 Ring, Retaining S23010

1. Shaft Replacement Kit available for this model.

Berkeley part number B80699.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B77324 CW H05130 M11753 9.00”

4246 0902

Interchangeable

51

51

811A

37

19

816B

816A

72

16

18

6

32A

32B

14

73B

40 115A

800A

89

73A

1

69

805

800B

800A

17

13

811B

801B

29

115B

800A

802B

810A

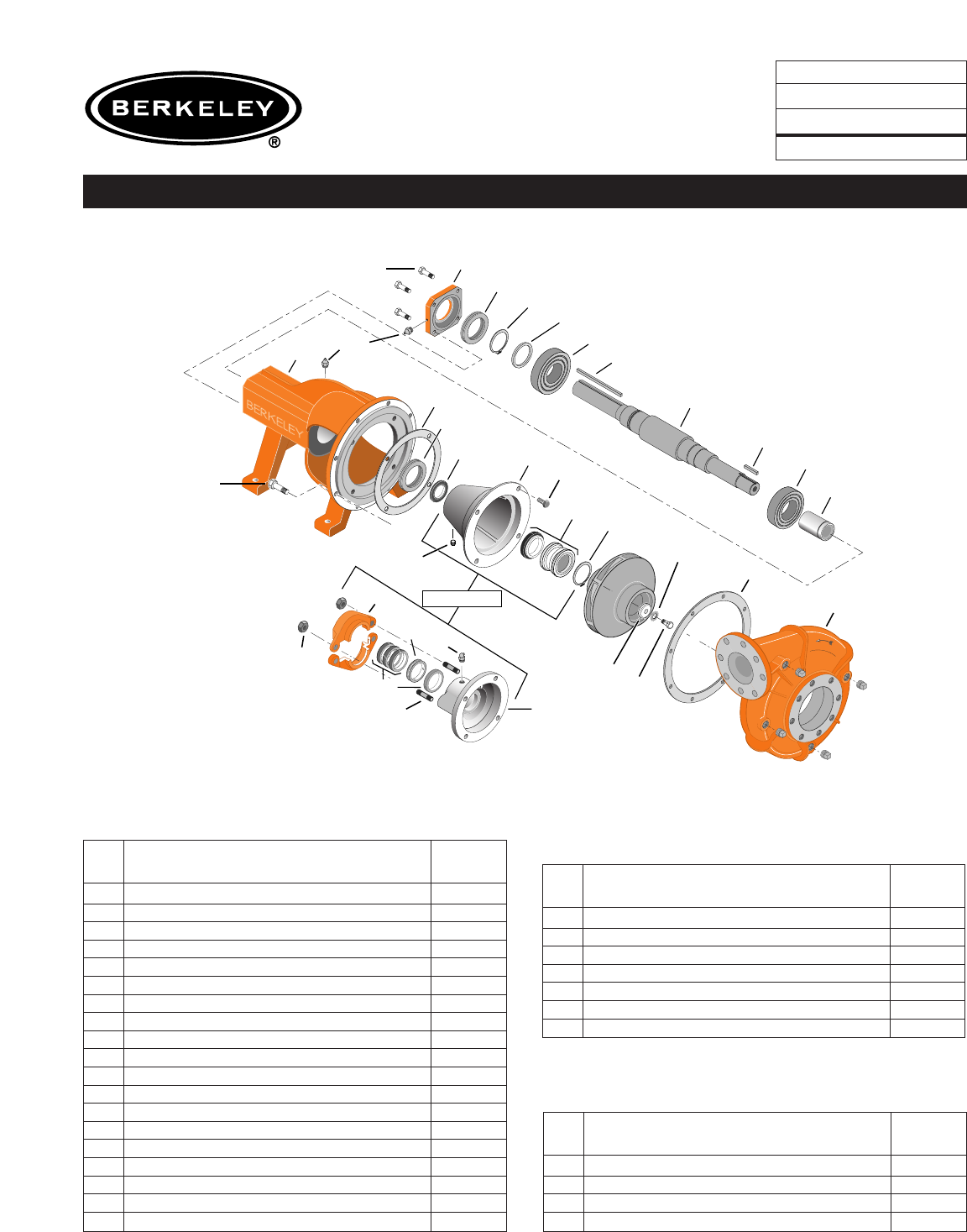

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 130.8

Date January 1, 2004

Supersedes 7/1/02

B3ZRM(S)

Form No. S4855BK

Item Part

No. Part Description Number

6Shaft M12338

14 1-3/8 ID x 1-3/4 OD Shaft Sleeve M12422

16 Single Row Ball Bearing S13395

18 Ball Bearing S13397

19 Bracket M12332

32A Shaft Key, 1/4” Sq. x 2-1/4” Lg. - Impeller S23677

32B Shaft Key, 3/8” Sq. x 2-1/4” Lg. S23941

37 Bearing Cap M12335

40 Water Slinger S10964

51 Grease Seal (2 Req.) M12337

69 Lock Washer S06319

72 Thrust Ring S06519

73A Volute Gasket S05126

73B Balance Ring Gasket S09943

800A 3/8-16 x 1” Lg. Hex Hd Capscrew (16 Req.) S26826

800B 1/2-13 X 1” Lg Hex Hd. Capscrew S23619

805 Lock Washer S23038

811A Grease Fitting (2 Req.) S23700

816B External Retaining Ring S23016

B3ZR Common Parts Groups Repair Parts List

Refer to following page for model specific repair parts listing.

Item Part

No. Part Description Number

89 1-3/4” Mechanical Shaft Seal S32015

115A Mechanical Seal Housing M12333

810A 1/8” NPT Sq. Hd. Pipe Plug S23714

816A External Retaining Ring S16767

Seal Components

Item Part

No. Part Description Number

13 Packing Ring Set S13435

17 Split Packing Gland Set B82470

29 Lantern Ring S19200

115B Packing Housing M12334

801B 3/8-16NC x 2-1/2” Lg Stud (2 Req.) S04438

802B 3/8-16 Hex Nut (2 Req.) S23343

811B 1/8 MPT x 90° Grease Fitting S23702

Packing Components

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 130.9

Date January 1, 2004

Supersedes 7/1/02

B3ZRM(S)

Form No. S4855BK

B3ZRM(S) Series

Pump Catalog Pipe Impeller Replacement

Series Number Rotation Style Volute Plugs Impeller Material Shaft

B80302 CW 4” NPT Suction 4-S23715 M02911 Cast Iron B81663

B80307 CW H00689

1-S23717 H05479 Bronze B81663

B80303 CCW 3” NPT Discharge H00698 M12462 Cast Iron B81663

B3ZRM B80301 CW Suction Flange 4x9” M02911 Cast Iron B81663

Packing B74303 Discharge H00689 4-S23715

Construction B80306 CW Flange 3x7-1/2” 1-S23717 H05479 Bronze B81663

B60129

B80304 CW 4” NPT Victaulic H04040 M02911 Cast Iron B81663

B80305 CCW H04041 3-S23715 M12462 Cast Iron B81663

B80308 CW 3” NPT Victaulic H04040 H05479 Bronze B81663

B80310 CW 4” NPT Suction 4-S23715 M02911 Cast Iron B81663

B80315 CW H00689

1-S23717 H05479 Bronze B81663

B80311 CCW 3” NPT Discharge H00698 M12462 Cast Iron B81663

B3ZRMS B80309 CW Suction Flange 4x9” M02911 Cast Iron B81663

Mechanical B74303 Discharge H00689 4-S23715

Seal B80314 CW Flange 3x7-1/2” 1-S23717 H05479 Bronze B81663

B60129

B80312 CW 4” NPT Victaulic H04040 M02911 Cast Iron B81663

B80313 CCW H04041 3-S23715 M12462 Cast Iron B81663

B80316 CW 3” NPT Victaulic H04040 H05479 Bronze B81663

T

r

u

a

r

c

T

r

u

a

r

c

816B

2047 0995

16

40

802

51

35

17

800B

19

800A

73

115

2

6

800C

18

37

811B

816A

72

32A

32B

119

811A

729

14

63

13

See Supplement B

805A

69

26

1

810A

810B

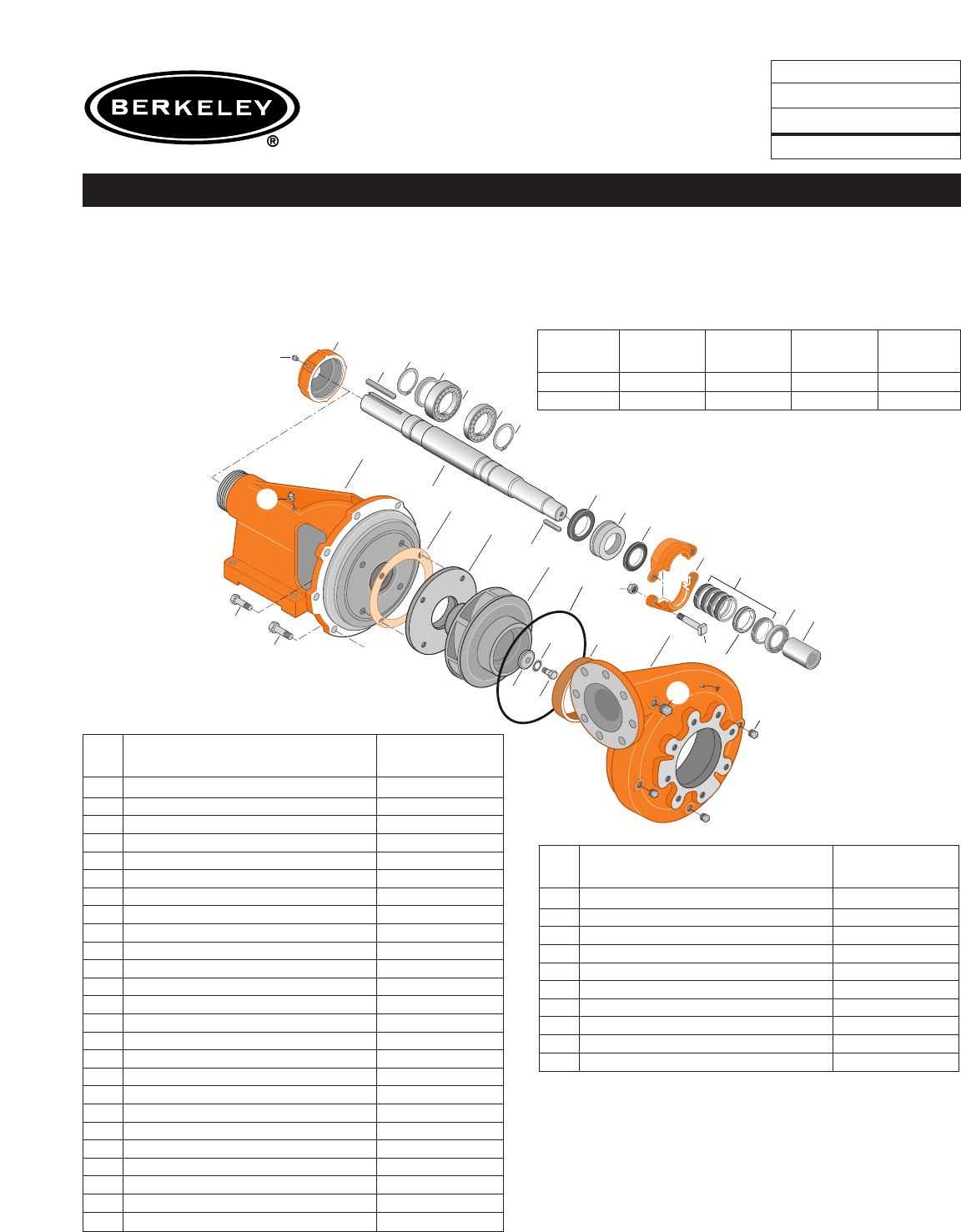

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 140.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3ERBL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S06860

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S13395

17 Gland, Packing B82472

18 Bearing, Ball S13754

19 Frame H01941

26 Screw, Impeller 1/2-13x1-1/2” S23623

29 Ring, Lantern S18993

32A Key, 1/2x4” S24214

32B Key, 1/4-1-1/2” S23505

35 Inner Bearing Cap S13213

37 Outer Bearing Cap M04551

40 Slinger, Water S10964

51 Seal, Oil S14764

63 Bushing, Throat S14122

69 Washer, Impeller S18117

72 Ring, Thrust S19221

73 Gasket, Balance Ring S09943

115 Ring, Balance L03648

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 1/2-13x2-1/2” (2 Req.) S23793

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

Item

No. Part Description Part Number

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811A Fitting, Grease S23670

811B Fitting, Grease (3 Req.) S23700

816A Ring, Retaining S23016

816B Ring, Retaining S23017

•Screw, Set S23982

1. Shaft Replacement Kit available for this model.

Berkeley part number B60659.

Pump Shaft sold in shaft replacement kit only.

• Not illustrated (Outer Bearing Cap)

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B58063 CW H02087 M07318 10.44”

B58064 CCW H02703 M07319 10.44”

T

r

u

a

r

c

T

r

u

a

r

c

89

2048 0995

16

40

802

51

35

11

19

800A

800C

73

115

2

6

18

37

811B

816A

816B

72

32A

32B

119A

119B

811A

820

1

7

810A

823

821

14

800B

822

To fitting on

Volute Case

805A

69

26

810B

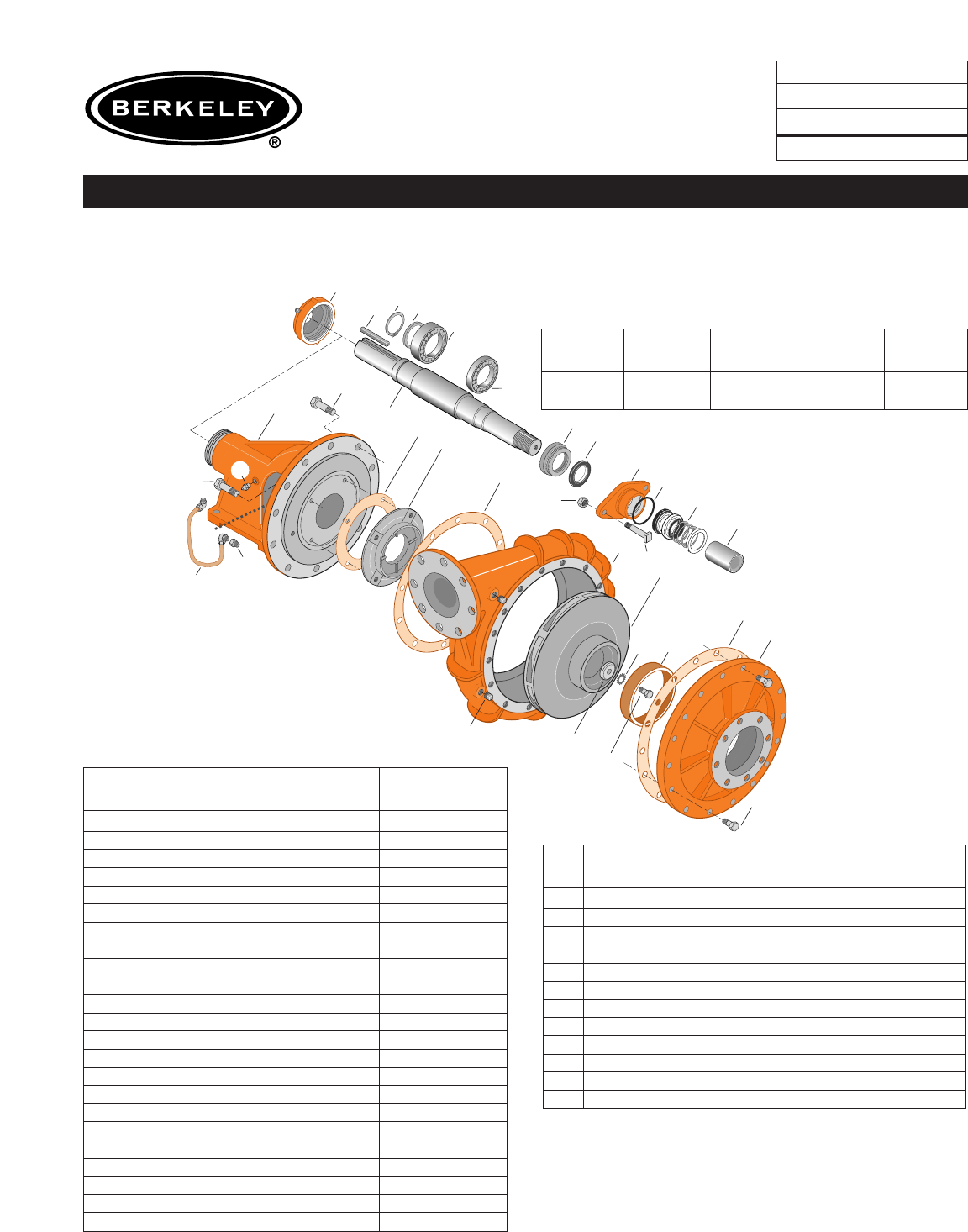

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 140.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3ERBLS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing M10838

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S13395

18 Bearing, Ball S13754

19 Frame H05508

26 Screw, Impeller 1/2-13x1-1/2” S23623

32A Key, 1/2x4” S24214

32B Key, 1/4x1-1/2” S24170

35 Inner Bearing Cap S13213

37 Outer Bearing Cap M04551

40 Slinger, Water S10964

51 Seal, Oil S14764

69 Washer, Impeller S18117

72 Ring, Thrust S19221

73 Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance L03648

119A O-Ring S13760

119B O-Ring S24599

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

Item

No. Part Description Part Number

805A Washer, Lock S23038

810A Plug, Pipe 1/4 NPT (3 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811A Fitting, Grease S23670

811B Fitting, Grease (2 Req.) S23700

816A Ring, Retaining S23016

816B Ring, Retaining S23017

820 Connector, Comp. Fitting S24013

821 Elbow, Comp. Fitting S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24600

•Screw, Set S23982

1. Shaft Replacement Kit available for this model.

Berkeley part number B60659.

Pump Shaft sold in shaft replacement kit only.

•Not illustrated (Outer Bearing Cap).

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B73019 CW H02087 M07318 10.44”

B73022 CCW H02703 M07319 10.44”

T

r

u

a

r

c

T

r

u

a

r

c

89

2048 0995

16

40

802

51

35

11

19

800A

800C

73

115

2

6

18

37

811B

816A

816B

72

32A

32B

119A

119B

811A

820

1

7

810A

823

821

14

800B

822

To fitting on

Volute Case

805A

69

26

810B

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 140.3

Date January 1, 2004

Supersedes/New

BRONZE IMPELLER B3ERBLS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing M10838

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S13395

18 Bearing, Ball S13754

19 Frame H05508

26 Screw, Impeller 1/2-13x1-1/2” S23623

32A Key, 1/2x4” S24214

32B Key, 1/4x1-1/2” S24170

35 Inner Bearing Cap S13213

37 Outer Bearing Cap M04551

40 Slinger, Water S10964

51 Seal, Oil S14764

69 Washer, Impeller S18117

72 Ring, Thrust S19221

73 Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance L03648

119A O-Ring S13760

119B O-Ring S24599

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

Item

No. Part Description Part Number

805A Washer, Lock S23038

810A Plug, Pipe 1/4 NPT (3 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811A Fitting, Grease S23670

811B Fitting, Grease (2 Req.) S23700

816A Ring, Retaining S23016

816B Ring, Retaining S23017

820 Connector, Comp. Fitting S24013

821 Elbow, Comp. Fitting S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24600

•Screw, Set S23982

1. Shaft Replacement Kit available for this model.

Berkeley part number B60659.

Pump Shaft sold in shaft replacement kit only.

•Not illustrated (Outer Bearing Cap).

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B77321 CW H02087 M06675 10.44”

T

r

u

a

r

c

T

r

u

a

r

c

2049 0995

16

35

40

802

51

13

14

17

800B

19

800A

2

6

1

7

805A

69

26

18

37

811

816

72

32A

32B

810A

119

811

810B

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 150.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3ERM

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

7Ring, Wearing S13045

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S29895

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H02089

26 Screw, Impeller 3/8-16x1-1/4” S23568

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S29308

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

72 Ring, Thrust S29218

119 O-Ring S13760

Item

No. Part Description Part Number

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810A Plug, Pipe 1/4 NPT (4 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining (2 Req.) S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B60633.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B55210 CW H02087 M06903 10.44”

T

r

u

a

r

c

T

r

u

a

r

c

810A

810B

2050 0995

16

35

40

802

51

89

14

11

73

800B

19

800A

2

6

1

805A

69

26

7

18

37

811

816

72

32A

32B

119

823

821

822

To fitting on

Volute Case

821

811

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 150.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3ERMS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S13045

11 Retainer, Mechanical Shaft Seal S05993

14 Sleeve, Shaft S05127

16 Bearing, Ball S29895

18 Bearing, Ball S13271

19 Frame H03960

26 Screw, Impeller 3/8-16x1-1/4” S23568

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S29308

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Seal Retainer S08911

89 Seal, Mechanical Shaft Seal S32689

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 3/8-16x1-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

Item

No. Part Description Part Number

805A Washer, Lock S23036

810A Plug, Pipe 1/4 NPT (5 Req.) S23715

810B Plug, Pipe 1/2 NPT S23717

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining (2 Req.) S23010

821 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24600

1. Shaft Replacement Kit available for this model.

Berkeley part number B60633.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B61799 CW H02087 M06903 10.44”

T

r

u

a

r

c

800C

800A

2052 0995

811

19

37

32

6

73B

115

2

1

810

73A

816 72

18

16

40

35

802

17

800B 29

14

63

13

See Supplement B

69

26

7

805A

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 160.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3JRMBM

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S04176

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

17 Gland, Packing B82472

18 Bearing, Ball S13396

19 Frame H01599

26 Screw, Impeller 1/2-13x1-1/2” S23623

29 Ring, Lantern S18993

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

63 Bushing, Throat S18992

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

115 Ring, Balance M05115

Item

No. Part Description Part Number

800A Capscrew, Hex 5/8x11x1-1/2”(12 Req.) S26999

800B Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (6 Req.) S23717

811 Fitting, Grease (2 Req.) S23670

816 Ring, Retaining S23016

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52363 CW H01863 L03038 13.50”

B52364 CCW H01892 L03115 13.50”

T

r

u

a

r

c

800A

2054 1095

821

822

823

19

6

73B

115

2

16

40

35

802

37

32

816 72

18

1

810

73A

89

11

119

14

800B

69

26

7

805A

800C

811

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 160.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B3JRMBMS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S04176

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

18 Bearing, Ball S13396

19 Frame H01838

26 Screw, Impeller 1/2-13x1-1/2” S23623

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance M05073

119 O-Ring S26471

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

Item

No. Part Description Part Number

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (6 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

821 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24544

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B66924 CW H01863 L03038 13.50”

B61999 CCW H01892 L03115 13.50”

T

r

u

a

r

c

T

r

u

a

r

c

810B

2055 1095

16

35

40

802

51

13

14

17

800B

19

800A

2

6

1

7

18

37

811

816

72

32A

32B

810A

119

811

805A

26

69

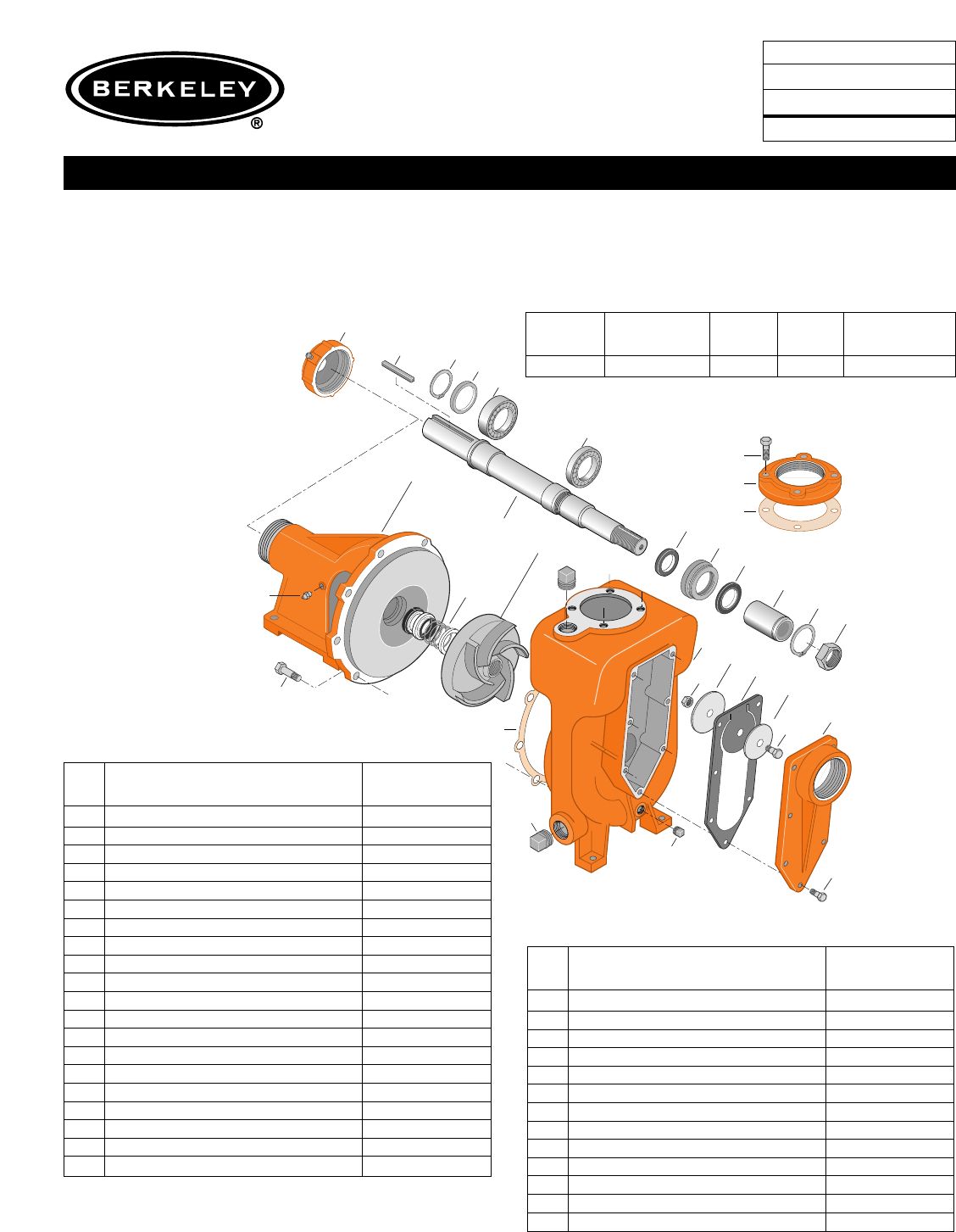

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 170.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B4ERM

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

7Ring, Wearing S13061

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S29895

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H02089

26 Screw, Impeller 3/8-16x1-1/4” S23568

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S29308

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

72 Ring, Thrust S29218

119 O-Ring S13760

Item

No. Part Description Part Number

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16” (2 Req.) S23343

805A Washer, Lock S23036

810A Plug, Pipe 1/4 NPT (3 Req.) S23715

810B Plug, Pipe 1/2 NPT (2 Req.) S23717

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining (2 Req.) S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B60633.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B55211 CW H01939 M06902 10.44”

T

r

u

a

r

c

T

r

u

a

r

c

810B

816B

2058 1095

16

40

802

51

35

17

800B

19

800A

73

115

2

6

800C

18

37

811B

816A

72

32A

32B

119

811A

7

29

14

63

13

See Supplement B

1

810A

805A

69

26

TYPE ‘‘B’’ SINGLE STAGE

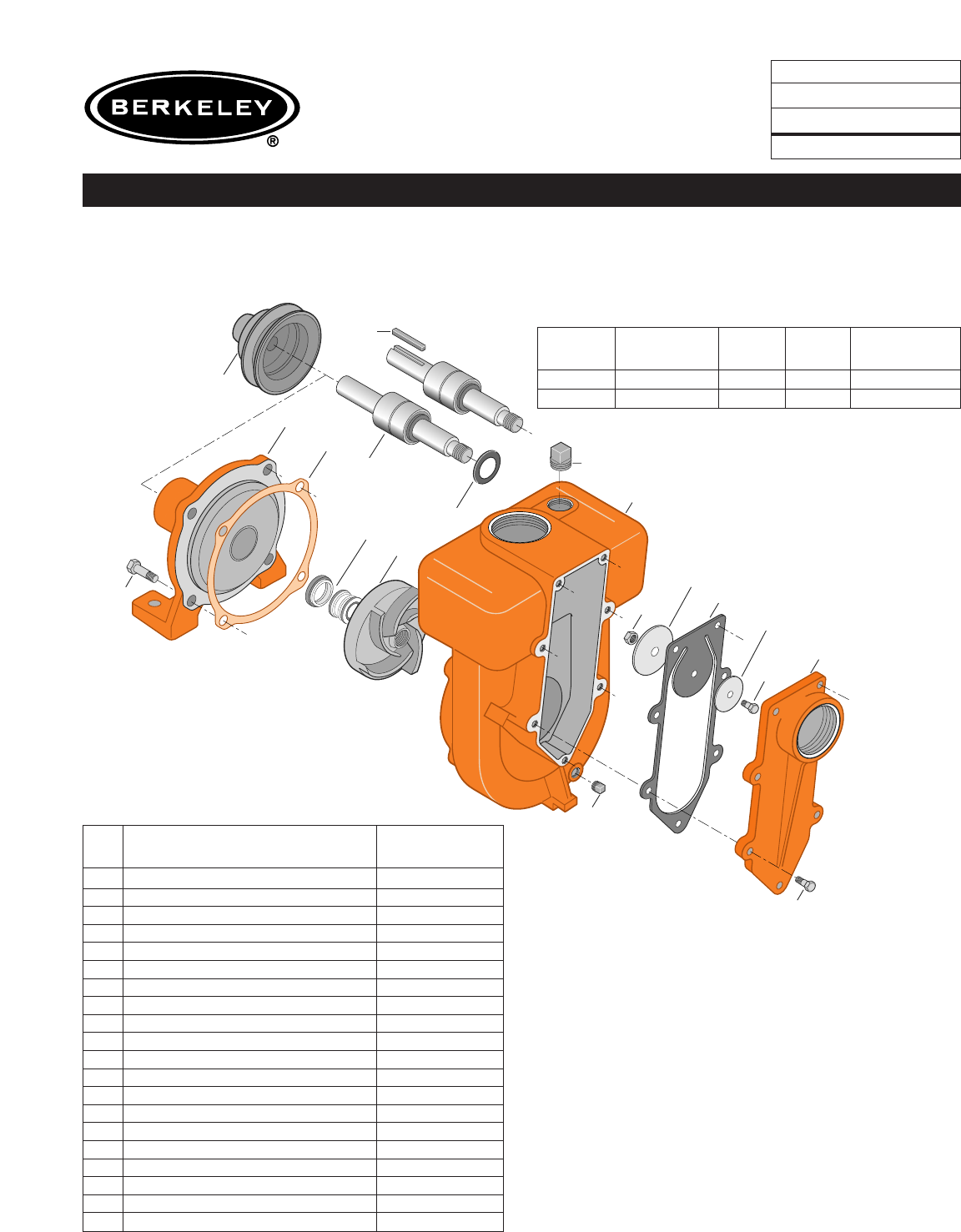

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 180.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B4ERBM

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S32745

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S13395

17 Gland, Packing B82472

18 Bearing, Ball S13754

19 Frame H01941

26 Screw, Impeller 1/2-13x1-1/2” S23623

29 Ring, Lantern S18993

32A Key, 1/2x4” S24214

32B Key, 1/4x1-1/2” S24170

35 Inner Bearing Cap S13213

37 Outer Bearing Cap M04551

40 Slinger, Water S10964

51 Seal, Oil S14764

63 Bushing, Throat S14122

69 Washer, Impeller S18117

72 Ring, Thrust S19221

73 Gasket, Balance Ring S09943

115 Ring, Balance L03649

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

Item

No. Part Description Part Number

800B Bolt, Sq. Head 1/2-13x2-1/2” (2 Req.) S23793

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810A Plug, Pipe 1/4 NPT (3 Req.) S23715

810B Plug, Pipe 1/2 NPT (2 Req.) S23717

811A Fitting, Grease S23670

811B Fitting, Grease (3 Req.) S23700

816A Ring, Retaining S23016

816B Ring, Retaining S23017

1. Shaft Replacement Kit available for this model.

Berkeley part number B60659.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B58811 CW H01939 L06015 10.44”

B58810 CCW H01940 L06020 10.44”

T

r

u

a

r

c

T

r

u

a

r

c

89

810B

2059 1095

16

40

802

51

35

11

19

800A

800C

73

115

2

6

18

37

811B

816A

816B

72

32A

32B

119A

119B

811A

820

1

7

810A

823

821

14

800B

822

To fitting on

Volute Case

805A

69

26

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 180.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B4ERBMS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S32745

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S13395

18 Bearing, Ball S13754

19 Frame H05508

26 Screw, Impeller 1/2-13x1-1/2” S23623

32A Key, 1/2x4” S24214

32B Key, 1/4x1-1/2” S24170

35 Inner Bearing Cap S13213

37 Outer Bearing Cap M04551

40 Slinger, Water S10964

51 Seal, Oil S14764

69 Washer, Impeller S18117

72 Ring, Thrust S19221

73 Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance L03649

119A O-Ring S13760

119B O-Ring S24599

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

Item

No. Part Description Part Number

810A Plug, Pipe 1/4 NPT (3 Req.) S23715

810B Plug, Pipe 1/2 NPT (2 Req.) S23717

811A Fitting, Grease S23670

811B Fitting, Grease (2 Req.) S23700

816A Ring, Retaining S23016

816B Ring, Retaining S23017

820 Connector, Comp. Fitting S24013

821 Elbow, Comp. Tube Fitting S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24600

•Screw, Set S23982

1. Shaft Replacement Kit available for this model.

Berkeley part number B60659.

Pump Shaft sold in shaft replacement kit only.

• Not illustrated.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B73023 CW H01939 L06015 10.44”

B73027 CCW H01940 L06020 10.44”

T

r

u

a

r

c

800A

801

802A

2060 1095

811

19

37

32

6

73B

115

2

1

810

73A

816 72

18

16

40

802B

35

17

800B 29

14

63

13

See Supplement B

69

26

7

805A

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 190.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B4JRMBH

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S02894

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

17 Gland, Packing B82472

18 Bearing, Ball S13396

19 Frame H01599

26 Screw, Impeller 1/2-13x1-1/2” S23623

29 Ring, Lantern S18993

32 Key, 1/26x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

63 Bushing, Throat S18992

69 Washer, Impeller S19275

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

115 Ring, Balance S12315

Item

No. Part Description Part Number

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

800B Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794

801 Stud, 3/8-16x1-3/8” (4 Req.) S09942

802A Nut, Hex 3/8-16 (4 Req.) S23103

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease (2 Req.) S23670

816 Ring, Retaining S23016

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B62321 CW H03843 L05976 13.50”

B62323 CCW H03848 L05974 13.50”

T

r

u

a

r

c

800A

2061 1095

19

6

73B

115

2

18

40

35

802B

37

32

816 72

18

1

810

73A

89

11

119

14

800B

69

26

7

805

801

802A

821

822

823

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 190.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B4JRMBHS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S02894

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

18 Bearing, Ball S13396

19 Frame H01838

26 Screw, Impeller 1/2-13x1” S23619

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

69 Washer, Impeller S19275

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance S13591

119 O-Ring S26471

Item

No. Part Description Part Number

800A Capscrew, Hex 5/8-11x1-1/2” (12 Req.) S26999

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

801 Stud, 3/8-16x1-1/2” (4 Req.) S23995

802A Nut, Hex 3/8-16” (4 Req.) S23103

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

821 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24544

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B61050 CW H03843 L05976 13.50”

B66923 CCW H03848 L05974 13.50”

T

r

u

a

r

c

800A

801

802A

2060 1095

811

19

37

32

6

73B

115

2

1

810

73A

816 72

18

16

40

802B

35

17

800B 29

14

63

13

See Supplement B

69

26

7

805A

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 200.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B4JRMBHH

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing M03870

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

17 Gland, Packing B82472

18 Bearing, Ball S13396

19 Frame H01599

26 Screw, Impeller 1/2-13x1-1/4” S23621

29 Ring, Lantern S18993

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

63 Bushing, Throat S18992

69 Washer, Impeller S19275

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

115 Ring, Balance S12315

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

Item

No. Part Description Part Number

800B Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794

801 Stud, 3/8-16x1-3/8” (4 Req.) S09942

802A Nut, Hex 3/8-16 (4 Req.) S23103

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B62328 CW H03951 L05347 13.50”

B62329 CCW H04004 L05369 13.50”

T

r

u

a

r

c

800A

2061 1095

19

6

73B

115

2

18

40

35

802B

37

32

816 72

18

1

810

73A

89

11

119

14

800B

69

26

7

805

801

802A

821

822

823

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 200.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B4JRMBHHS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing M03870

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

18 Bearing, Ball S13396

19 Frame H01838

26 Screw, Impeller 1/2-13x1-1/4” S23621

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

69 Washer, Impeller S19275

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance S19521

119 O-Ring S26471

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

801 Stud, 3/8-16x1-1/2” (4 Req.) S23995

Item

No. Part Description Part Number

802A Nut, Hex 3/8-16 (4 Req.) S23103

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

821 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24544

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B61657 CW H03951 L05347 13.50”

B66921 CCW H04004 L05369 13.50”

T

r

u

a

r

c

800B

800C 2073 1095

811

19

37

32

6

73C

115

2

1

800A

73B

816 72

18

16

73A

40

802

35

17

800D 29

14

63

13

See Supplement B

9

69

26

7

805A

810

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 210.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B4EYRMBM

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S15718

9Cover, Suction L01541

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

17 Gland, Packing B82472

18 Bearing, Ball S13396

19 Frame H01599

26 Screw, Impeller 1/2-13-1-1/4” S23621

29 Ring, Lantern S18993

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

63 Bushing, Throat S18992

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Suction Cover S06401

73B Gasket, Volute S06271

73C Gasket, Balance Ring S09943

Item

No. Part Description Part Number

115 Ring, Balance S12304

800A Capscrew, Hex 5/8-11x1-3/4”(16 Req.) S27001

800B Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

800D Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

2. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52370 CW L01536 L02409 17.88”

B52371 CCW L01538 L02410 17.88”

T

r

u

a

r

c

800C

800B

2074 1095

19

37

32

6

73C

115

2

1

800A

73B

816 72

18

16

73A

40

35

9

69

26

7

805A

810

802 89

119

11

14

800D

811

821

822

823

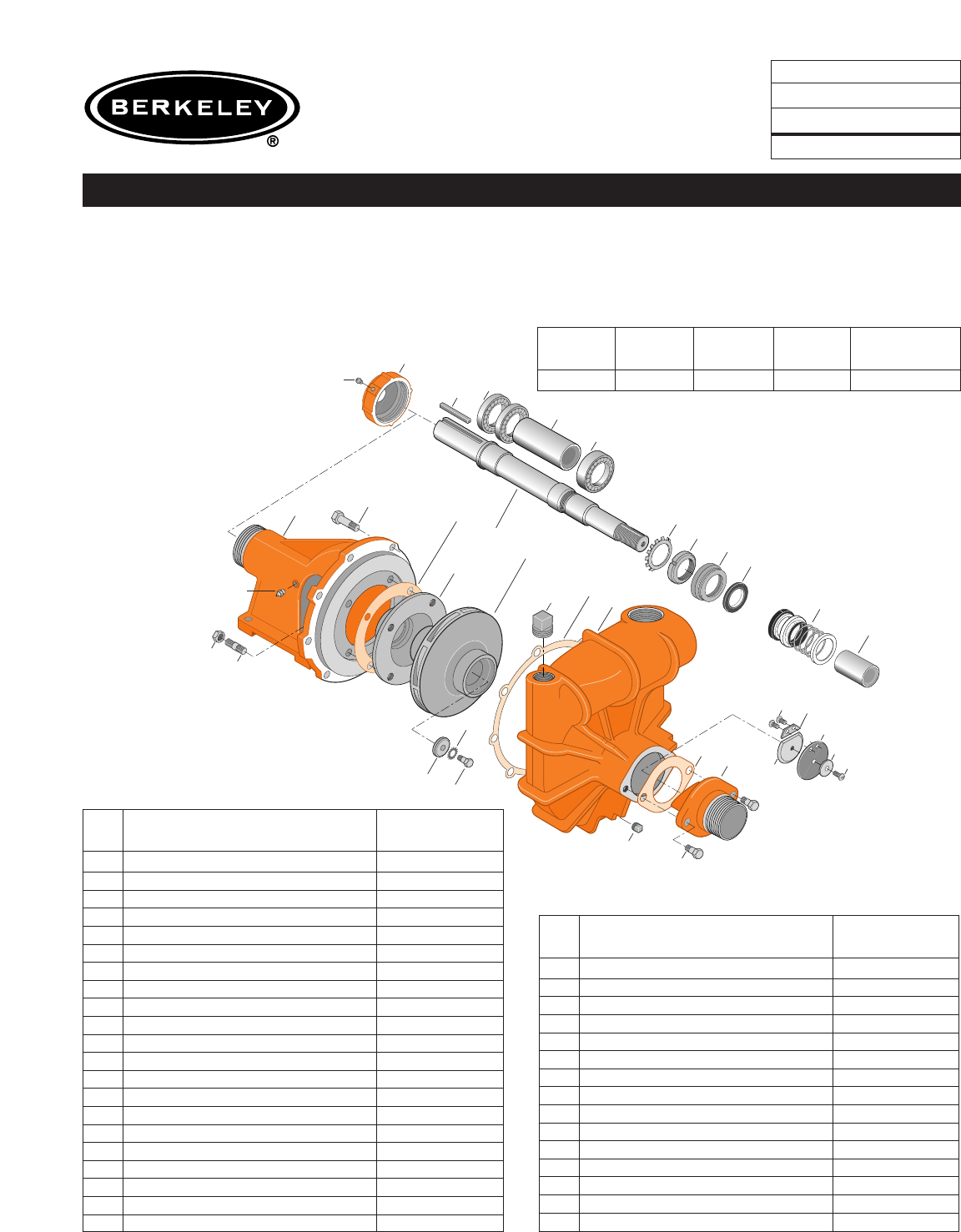

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 210.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B4EYRMBMS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S15718

9Cover, Suction L01541

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

18 Bearing, Ball S13396

19 Frame H01838

26 Screw, Impeller 1/2-13x1” S23619

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Suction Cover S06401

73B Gasket, Volute S06271

73C Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance S13590

119 O-Ring S26471

Item

No. Part Description Part Number

800A Capscrew, Hex 5/8-11x1-3/4”(16 Req.) S27001

800B Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

800D Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

821 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24544

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B61542 CW L01536 L02409 17.88”

B66922 CCW L01538 L02410 17.88”

T

r

u

a

r

c

800B

800C 2073 1095

811

19

37

32

6

73C

115

2

1

800A

73B

816 72

18

16

73A

40

802

35

17

800D 29

14

63

13

See Supplement B

9

69

26

7

805A

810

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 220.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B4EYRMBH

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S15718

9Cover, Suction L01541

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

17 Gland, Packing B82472

18 Bearing, Ball S13396

19 Frame H01599

26 Screw, Impeller 1/2-13x1-1/2” S23621

29 Ring, Lantern S18993

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

63 Bushing, Throat S18992

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Suction Cover S06401

73B Gasket, Volute S06271

73C Gasket, Balance Ring S09943

Item

No. Part Description Part Number

115 Ring, Balance S12304

800A Capscrew, Hex 5/8-11x1-3/4”(16 Req.) S27001

800B Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

800D Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52372 CW L01536 L02634 17.88”

T

r

u

a

r

c

800C

800B

2074A 1095

19

37

32

6

73C

115

2

1

800A

73B

816 72

18

16

73A

40

35

9

69

26

7

805A

810

802 89

119

11

14

800D

811

821

822

823

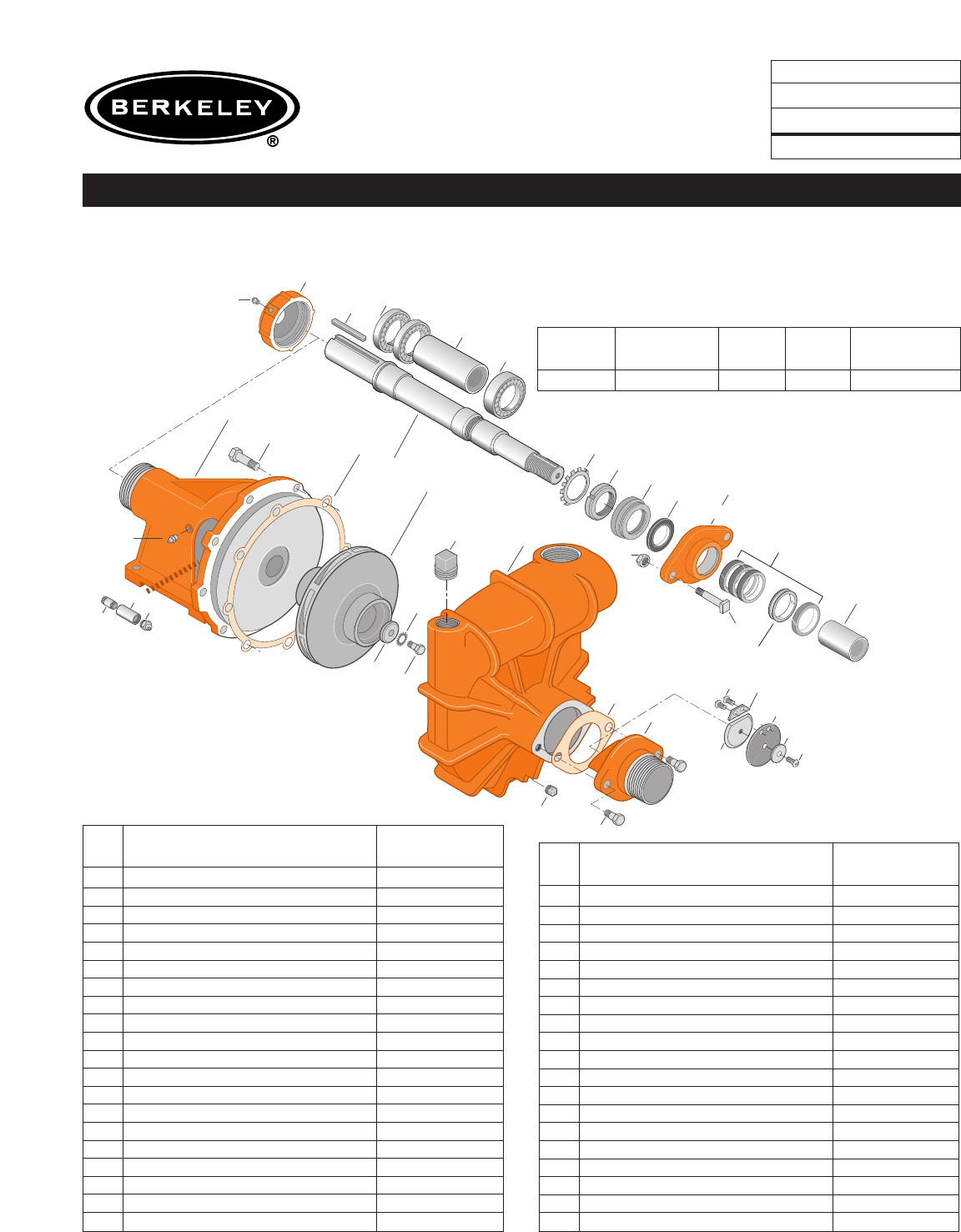

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 220.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B4EYRMBHS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S15718

9Cover, Suction L01541

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

18 Bearing, Ball S13396

19 Frame H01838

26 Screw, Impeller 1/2-13x1-1/4” S23621

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Suction Cover S06401

73B Gasket, Volute S06271

73C Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft Seal S32693

115 Ring, Balance S13590

119 O-Ring S26471

800A Capscrew, Hex 5/8-11x1-3/4”(16 Req.) S27001

Item

No. Part Description Part Number

800B Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

800C Capscrew, Hex 3/8-16x1” (4 Req.) S26826

800D Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

802 Nut, Hex 1/2-13x7/16” S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

821 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24544

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B62252 CW L01536 L02634 17.88”

T

r

u

a

r

c

T

r

u

a

r

c

2075 1095

16

35

40

802

51

13

14

17

800B

19

800A

2

6

1

7

18

37

811

816

72

32A

32B

810

119

811

805A

26

69

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 230.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B5ERH

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

7Ring, Wearing S15630

13 Ring, Packing S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S29895

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H02089

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S29308

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

72 Ring, Thrust S29218

119 O-Ring S13760

Item

No. Part Description Part Number

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B60633.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B66929 CW H02692 L06709 10.44”

T

r

u

a

r

c

T

r

u

a

r

c

2076 1095

16

35

40

802

51

89

14

11

73

800B

19

800A

2

6

1

805A

69

26

18

37

811

816

72

32A

7

32B

119

821

822

To fitting on

Volute

810

811

823

821

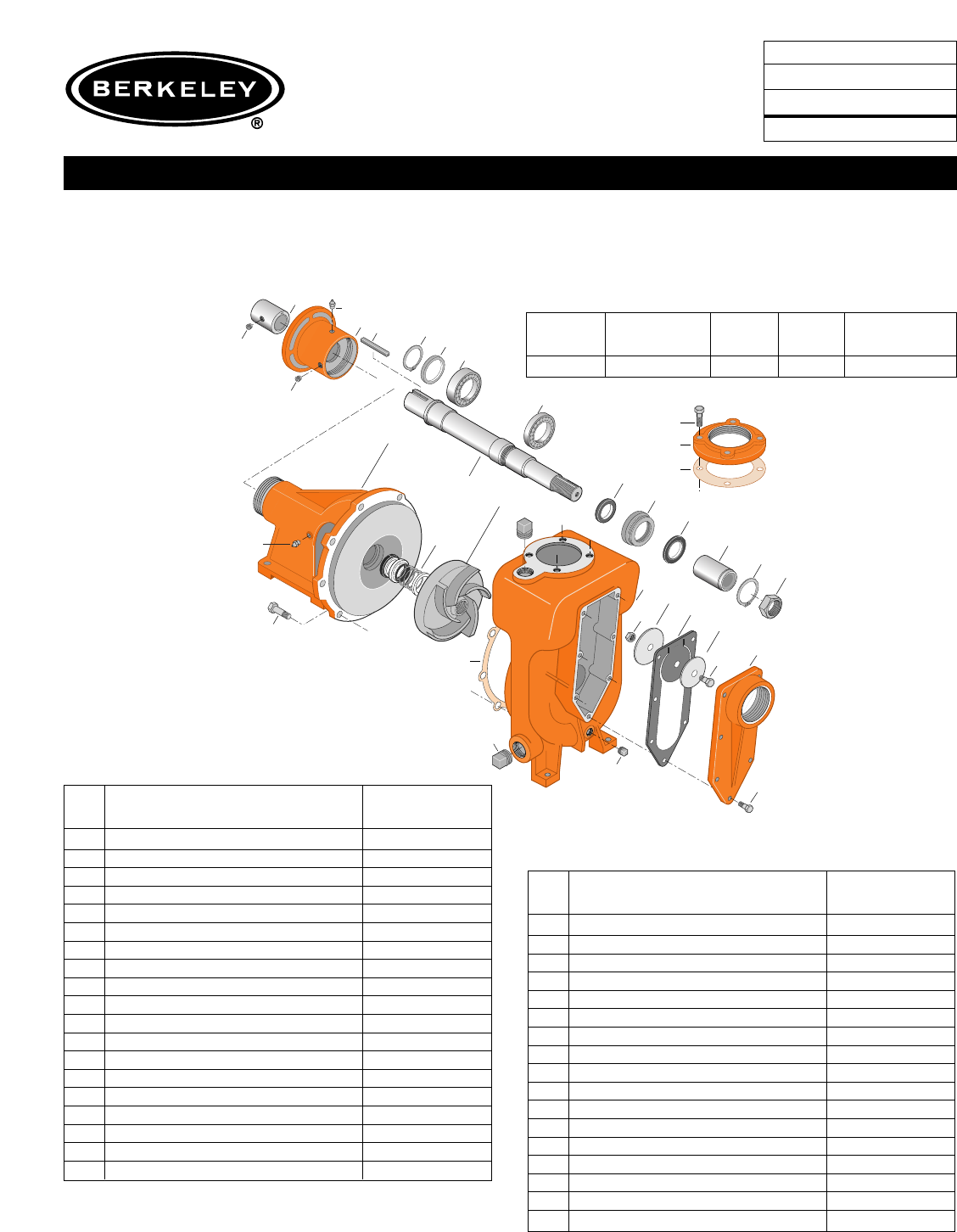

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 230.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B5ERHS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S15630

11 Retainer, Mechanical Shaft Seal S05993

14 Sleeve, Shaft S05127

16 Bearing, Ball S29895

18 Bearing, Ball S13271

19 Frame H03960

26 Screw, Impeller 3/8-16x1” S23566

32A Key, 1/4x2-1/8” S24255

32B Key, 3/16x1-1/2” S23500

35 Inner Bearing Cap S13214

37 Outer Bearing Cap S29308

40 Slinger, Water M09685

51 Seal, Oil S14763

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Seal Retainer S08911

89 Seal, Mechanical Shaft S32689

119 O-Ring S13760

800A Capscrew, Hex 1/2-13x1-1/4” (8 Req.) S26914

800B Bolt, Sq. Head 3/8-16x1-3/4” (2 Req.) S23759

Item

No. Part Description Part Number

802 Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining (2 Req.) S23010

821 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24605

1. Shaft Replacement Kit available for this model.

Berkeley part number B60633.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B66928 CW H02692 L06709 10.44”

H 553

H 553

2077 1095

35

40

802B 13

14

17

800

19

2

6

1

73

37

810

805B

18

78

16

22

32

811

805A

26

69

802A

801

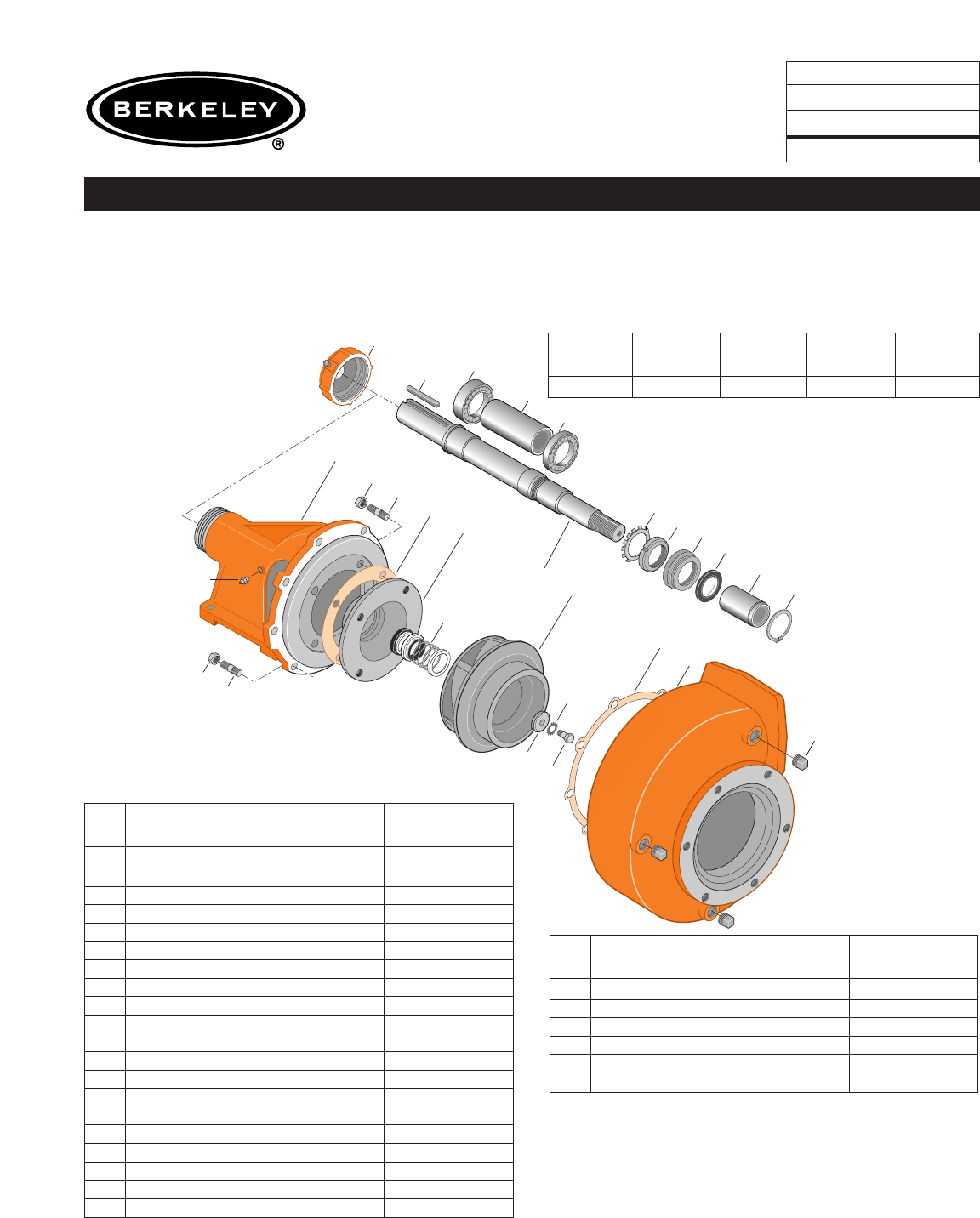

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 240.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6ZRL

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H00553

22 Locknut M10221

26 Screw, Impeller 3/8-16x2-1/4” S23575

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

73 Gasket, Volute S05126

78 Sleeve, Spacer S08980

800 Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

801 Stud, 3/8-16x1-1/4” (8 Req.) S23994

Item

No. Part Description Part Number

802A Nut, Hex 3/8-16 (8 Req.) S23103

802B Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

805B Washer, Bearing Lock S16181

810 Plug, Pipe 1/2 NPT (3 Req.) S23717

811 Fitting, Grease S23670

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B07480.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B69504 CW H05065 M04272 8” x 9”

T

r

u

a

r

c

2078 1095

35

40

24

19

2

6

1

73

37

810

805B

18

78

16

22

32

14

816

811

802

801

89

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 240.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6ZRLS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6 Shaft L07262

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

22 Locknut M10221

24 Locknut, Impeller M10220

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

73 Gasket, Volute S05126

78 Sleeve, Spacer S08980

89 Seal, Mechanical Shaft S32690

801 Stud, 3/8-16x1-1/2” (8 Req.) S23995

802 Nut, Hex 3/8-16 (8 Req.) S23103

Item

No. Part Description Part Number

805B Washer, Bearing Lock S16181

810 Plug, Pipe 1/2 NPT (3 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23009

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B69760 CW H05065 L07263 8” x 9”

H 553

H 553

2079 1095

35

40

802B 13

14

17

800

19

2

6

1

73

37

810

18

16

32

811

805A

26

69

802A

801

T

r

u

a

r

c

816

72

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 250.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6ZRM

Special Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H00553

26 Screw, Impeller 3/8-16-2-1/4” S23575

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

72 Ring, Thrust S29218

73 Gasket, Volute S05126

800 Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23672

801 Stud, 3/8-16x1-1/4” (8 Req.) S23994

802A Nut, Hex 3/8-16 (8 Req.) S23103

Item

No. Part Description Part Number

802B Nut, Hex 3/8-16 (2 Req.) S23343

805B Washer, Bearing Lock S16181

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23010

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B80695.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B66167 CW H01115 L02186 7.75”

H 553

H 553

T

r

u

a

r

c

14

816

2081 1095

35

40

19

2

6

1

89

73A

73B

11

37

810

805B

18

78

16

22

32

811

805A

26

69

802

801

802

801

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 250.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6ZRMS

Special Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft M12402

11 Retainer, Mechanical Shaft Seal M06063

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H03837

22 Locknut M10221

26 Screw, Impeller 3/8-16x2-1/4” S23575

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

73A Gasket, Volute S05126

73B Gasket, Seal Retainer S16800

78 Sleeve, Spacer S08980

89 Seal, Mechanical Shaft S32690

801 Stud, 3/8-16x1-1/4” (12 Req.) S23994

Item

No. Part Description Part Number

802 Nut, Hex 3/8-16 (12 Req.) S23103

805A Washer, Lock S23036

805B Washer, Bearing Lock S16181

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23009

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B63821 CW H01115 L02186 7.75”

H 553

H 553

2077 1095

35

40

802B 13

14

17

800

19

2

6

1

73

37

810

805B

18

78

16

22

32

811

805A

26

69

802A

801

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 260.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6ZRH

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 2

13 Ring, Packing (Set of 6) S14022

14 Sleeve, Shaft S05127

16 Bearing, Ball S13270

17 Gland, Packing (See Note 1) S04948

18 Bearing, Ball S13271

19 Frame H00553

22 Locknut M10221

26 Screw, Impeller 3/8-16x1-3/4” S23572

32 Key, 1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

69 Washer, Impeller S06314

73 Gasket, Volute S05126

78 Sleeve, Spacer S08980

800 Bolt, Sq. Head 3/8-16x2-1/2” (2 Req.) S23762

801 Stud, 3/8-16x1-1/4” (8 Req.) S23994

Item

No. Part Description Part Number

802A Nut, Hex 3/8-16 (8 Req.) S23103

802B Nut, Hex 3/8-16 (2 Req.) S23343

805A Washer, Lock S23036

805B Washer, Bearing Lock S16181

810 Plug, Pipe 1/2 NPT (3 Req.) S23717

811 Fitting, Grease S23670

1. A two piece (split) stainless steel packing gland is

available for replacement, order part number B82468.

2. Shaft Replacement Kit available for this model.

Berkeley part number B07480.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B69501 CW H05065 M04186 8” x 9”

T

r

u

a

r

c

2078 1095

35

40

24

19

2

6

1

73

37

810

805B

18

78

16

22

32

14

816

811

802

801

89

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 260.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6ZRHS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6 Shaft L07262

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

22 Locknut M10221

24 Locknut, Impeller M10220

32 Key,1/4x2-1/8” S24255

35 Inner Bearing Cap S19033

37 Outer Bearing Cap Assembly* S19914

40 Slinger, Water S12260

73 Gasket, Volute S05126

78 Sleeve, Spacer S08980

89 Seal, Mechanical Shaft S32690

801 Stud, 3/8-16x1-1/2” (8 Req.) S23995

802 Nut, Hex 3/8-16 (8 Req.) S23103

Item

No. Part Description Part Number

805B Washer, Bearing Lock S16181

810 Plug, Pipe 1/2 NPT (3 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23009

* Includes grease fitting and set screw.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B69500 CW H05065 M04186 8” x 9”

4247 0902

Interchangeable

51

51

811A

37

19

816B

816A

72

16

18

6

32A

32B

14

73B

40 115A

800A

89

73A

1

810B

69

805

800B

802A

801A

17

13

811B

801B

29

115B

800A

802B

810A

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 265.1

Date January 1, 2004

Supersedes 7/1/02

CAST IRON IMPELLER B6ZRH(S), B6ZRL(S)

Form No. S4855BK

Item Part

No. Part Description Number

1Volute Case, CW Flanged H05065

6Shaft M12338

14 1-3/8” ID x 1-3/4” OD Shaft Sleeve M12422

16 Single Row Ball Bearing S13395

18 Ball Bearing S13397

19 Bracket M12332

32A Shaft Key, 1/4” Sq. x 2-1/4” Lg. - Impeller S23677

32B Shaft Key, 3/8” Sq. x 2-1/4” Lg. S23941

37 Bearing Cap M12335

40 Water Slinger S10964

51 Grease Seal (2 Req.) M12337

69 Lock Washer S06319

72 Thrust Ring S06519

73A Volute Gasket S05126

73B Balance Ring Gasket S09943

800A 3/8-16 x 1” Lg. Hex Hd Capscrew (8 Req.) S26826

800B Impeller Capscrew B6ZRL(S) S23619

800B Impeller Capscrew B6ZRH(S) S23631

801A 3/8-16 x 1-1/2” Lg. Stud (8 Req.) S23995

802A 3/8-16 Hex Nut (8 Req.) S23103

805 Impeller Lock Washer S23083

810B 1/2” NPT Square Hd. Pipe Plug (3 Req.) S23717

811A Grease Fitting (2 Req.) S23700

816B External Retaining Ring S23016

B6ZR Common Parts Groups Repair Parts List

Refer to following page for model specific repair parts listing.

Item Part

No. Part Description Number

89 1-3/4” Mechanical Shaft Seal S32015

115A Mechanical Seal Housing M12333

810A 1/8” NPT Sq. Hd. Pipe Plug S23714

816A External Retaining Ring S16767

Seal Components

Item Part

No. Part Description Number

13 Packing Ring Set S13435

17 Split Packing Gland Set B82470

29 Lantern Ring S19200

115B Packing Housing M12334

801B 3/8-16NC x 2-1/2” Lg Stud (2 Req.) S04438

802B 3/8-16 Hex Nut (2 Req.) S23343

811B 1/8 MPT x 90° Grease Fitting S23702

Packing Components

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 265.2

Date January 1, 2004

Supersedes 7/1/02

CAST IRON IMPELLER B6ZRH(S), B6ZRL(S)

Form No. S4855BK

B6ZR Series 1-1/2” x 10T, SAE 4 & 5

Pump Catalog Impeller Replacement

Series Number Rotation Style Impeller Material Shaft Kit

B6ZRL B80431 CW Suction Flange 8” x 13-1/2”

B6ZRLS B80432 CW B59878 M04348

Cast Iron B81663

B6ZRH B80433 CW Discharge Flange 6” x 11” M04349

B6ZRHS B80434 CW B59872

T

r

u

a

r

c

800A

801

802A

2083 1095

811

19

37

32

6

73B

115

2

1

810

73A

816 72

18

16

40

802B

35

17

800B 29

14

63

13

See Supplement B

69

26

7

805A

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 270.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6JRMBL

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S01234

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

17 Gland, Packing B82472

18 Bearing, Ball S13396

19 Frame H01599

26 Screw, Impeller 1/2-13x1-1/2” S23623

29 Ring, Lantern S18993

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

63 Bushing, Throat S18992

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

115 Ring, Balance S12315

Item

No. Part Description Part Number

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

800B Bolt, Sq. Head 1/2-31x2-3/4” (2 Req.) S23794

801 Stud, 3/8-16x1-3/8” (4 Req.) S09942

802A Nut, Hex 3/8-16 (4 Req.) S23103

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

2. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52375 CW H00870 L02416 13.50”

B52376 CCW H00871 L02417 13.50”

T

r

u

a

r

c

800A

2084 1095

820

822

19

6

73B

115

2

16

40

35

802B

37

32

816 72

18

1

810

73A

89

11

119

14

800B

69

26

7

805A

801

802A

811

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 270.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6JRMBLS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S01234

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

18 Bearing, Ball S13396

19 Frame H01838

26 Screw, Impeller 1/2-13x2” S23627

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

69 Washer, Impeller S19275

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance S13591

119 O-Ring S26471

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

Item

No. Part Description Part Number

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

801 Stud, 3/8-16x1-3/8” (4 Req.) S09942

802A Nut, Hex 3/8-16 (4 Req.) S23103

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

820 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

2. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B66919 CW H00870 L02416 13.50”

B66918 CCW H00871 L02417 13.50”

T

r

u

a

r

c

800A

801

802A

2083 1095

811

19

37

32

6

73B

115

2

1

810

73A

816 72

18

16

40

802B

35

17

800B 29

14

63

13

See Supplement B

69

26

7

805A

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 280.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6JRMBM

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S01234

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

17 Gland, Packing B82472

18 Bearing, Ball S13396

19 Frame H01599

26 Screw, Impeller 1/2-13x2” S23627

29 Ring, Lantern S18993

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

63 Bushing, Throat S18992

69 Washer, Impeller S19275

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

115 Ring, Balance S12315

Item

No. Part Description Part Number

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

800B Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794

801 Stud, 3/8-16x1-1/4” - CW (4 Req.) S23994

801 Stud, 3/8-16x1-3/8” - CCW (4 Req.) S09942

802A Nut, Hex 3/8-16 (4 Req.) S23103

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B56774 CW H00870 L05818 13.50”

B80368 CW M12070 L05818 13.50”

B56775 CCW H00871 L05819 13.50”

T

r

u

a

r

c

800A

2084 1095

820

822

19

6

73B

115

2

16

40

35

802B

37

32

816 72

18

1

810

73A

89

11

119

14

800B

69

26

7

805A

801

802A

811

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 280.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6JRMBMS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S01234

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

18 Bearing, Ball S13396

19 Frame H01838

26 Screw, Impeller 1/2-13x2” S23627

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

69 Washer, Impeller S19275

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance S13591

119 O-Ring S26471

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

Item

No. Part Description Part Number

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

801 Stud, 3/8-16x1-3/8” (4 Req.) S09942

802A Nut, Hex 3/8-16 (4 Req.) S23103

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

820 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B60163 CW H00870 L05818 13.50”

B80367 CW M12070 L05818 13.50”

B66920 CCW H00871 L05819 13.50”

T

r

u

a

r

c

800A

800B 2086 1095

811

19

37

32

6

73B

115

2

1

810

73A

816 72

18

16

40

802

35

17

800C 29

14

63

13

See Supplement B

7

805A

825

26

24

69

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 290.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6JRMBH

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S04879

13 Ring, Packing S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

17 Gland, Packing B82472

18 Bearing, Ball S13396

19 Frame H01599

24 Locknut, Impeller S30387

26 Screw, Impeller 1/2-13x2-1/2” S23629

29 Ring, Lantern S18993

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

63 Bushing, Throat S18992

69 Washer, Impeller S19864

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

Item

No. Part Description Part Number

115 Ring, Balance M06113

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

800B Capscrew, Hex 3/8-16x1” (4 Req.) S26826

800C Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794

802 Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

825 Sleeve, Impeller Nut S30388

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B58238 CW H02874 L05913 13.50”

T

r

u

a

r

c

800A

820

822

19

6

73B

115

2

16

40

35

802B

37

32

816 72

18

1

810

73A

89

11

119

14A

800B

69B

69A

14B

26

7

805A

800C

811

4480 0104

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 290.2

Date January 1, 2004

Supersedes/New

CAST IRON IMPELLER B6JRMBHS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S04879

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

18 Bearing, Ball S13396

19 Frame H01838

26 Screw, Impeller 1/2-13x2-1/2” S23629

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

69 Washer, Impeller S30387

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance M11150

119 O-Ring S26471

800A Capscrew, Hex 5/8-11x1-1/2”(12 Req.) S26999

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

Item

No. Part Description Part Number

801 Capscrew, Hex 3/8-16x1” (4 Req.) S26826

802A Nut, Hex 3/8-16 (4 Req.) S23103

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

820 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

?? Washer, Deflector S19864

825 Sleeve, Impeller Nut S30388

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B75059 CCW H02874 L05913 13.50”

800A

810B

840

830

6

19

800B

32A

844

809

51A

51B

14

40

802B

37

32B

73

35

7

7

810A

1

801A

802A

143 119

800C

801B

17

2

29

13

See Supplement B

69

24

845

2091 1095

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 300.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6EXRBL

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S04879

13 Ring, Packing (Set of 5) S16448

14 Sleeve, Shaft S14329

17 Gland, Packing M05311

19 Frame H00171

24 Locknut, Impeller S07829

29 Ring, Lantern S14330

32A Key, 5/8x5” S24235

32B Key, 1/2x2” S26545

35 Inner Bearing Cap S14331

37 Outer Bearing Cap S02617

40 Slinger, Water M09684

51A Seal, Oil S14705

51B Seal, Oil S14704

69 Washer, Impeller S18720

73 Gasket, Bearing Cap S01911

119 O-Ring S14444

143 Indicator, Oil Level S12673

800A Capscrew, Hex 5/8-11x1-1/2”(16 Req.) S26999

800B Capscrew, Hex 1/2-13x1-1/4” (6 Req.) S26914

800C Capscrew, Hex 3/8-16x1” (8 Req.) S26826

Item

No. Part Description Part Number

801A Stud, 3/4-10x2-3/4” (4 Req.) S24080

801B Stud, 1/2-13x3-3/4” (2 Req.) S08305

802A Nut, Hex 3/4x10 (4 Req.) S23111

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

809 Shim, Bearing (Set of 3) S14706

810A Plug, Pipe 1/2 NPT (5 Req.) S23717

810B Plug, Pipe 3/4 NPT S23719

830 Cover, Case H02375

840 Filter, Air S02671

844 Cone, Roller Bearing (2 Req.) S36078

845 Cup, Roller Bearing (2 Req.) S36077

1. Shaft Replacement Kit available for this model.

Berkeley part number B75202.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B53962 CW H02366 L05217 15.50”

800A

810B

840

830

6

19

800B

32A

844

809

51A

51B

14

40

802B

37

32B

73

35

7

7

810A

1

801A

802A

143 119

800C

801B

17

2

29

13

See Supplement B

69

24

845

2091 1095

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 310.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B6EXRBH

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing (2 Req.) S04879

13 Ring, Packing (Set of 5) S16448

14 Sleeve, Shaft S14329

17 Gland, Packing M05311

19 Frame H00171

24 Locknut, Impeller S07829

29 Ring, Lantern S14330

32A Key, 5/8-5” S24235

32B Key, 1/2x2” S26545

35 Inner Bearing Cap S14331

37 Outer Bearing Cap S02617

40 Slinger, Water M09684

51A Seal, Oil S14705

51B Seal, Oil S14704

69 Washer, Impeller S18720

73 Gasket, Bearing Cap S01911

119 O-Ring S14444

143 Indicator, Oil Level S12673

800A Capscrew, Hex 5/8-11x1-1/2”(16 Req.) S26999

800B Capscrew, Hex 1/2-13x1-1/4” (6 Req.) S26914

800C Capscrew, Hex 3/8-16x1” (8 Req.) S26826

Item

No. Part Description Part Number

801A Stud, 3/4-10x2-3/4” (4 Req.) S24080

801B Stud, 1/2-13x3-3/4” (2 Req.) S08305

802A Nut, Hex 3/4-10 (4 Req.) S23111

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

809 Shim, Bearing (Set of 3) S14706

810A Plug, Pipe 1/2 NPT (5 Req.) S23717

810B Plug, Pipe 3/4 NPT S23719

830 Cover, Case H02375

840 Filter, Air S02671

844 Cone, Roller Bearing (2 Req.) S36078

845 Cup, Roller Bearing (2 Req.) S36077

1. Shaft Replacement Kit available for this model.

Berkeley part number B75202.

Pump Shaft sold in shaft replacement kit only.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B56755 CW H02366 L05800 15.50”

T

r

u

a

r

c

800A 2087 1095

811

19

37

32

6

73B

115

2

1

810

73A

816 72

18

16

40

802B

35

17

800B 29

14

63

13

See Supplement B

7

805A

26

69

802A

801

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 320.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B8GRMBM

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S05973

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

17 Gland, Packing B82472

18 Bearing, Ball S13396

19 Frame H01599

26 Screw, Impeller 1/2-13x3” S23631

29 Ring, Lantern S18993

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

63 Bushing, Throat S18992

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

115 Ring, Balance S12335

Item

No. Part Description Part Number

800A Capscrew, Hex 3/8-16x1” (4 Req.) S26826

800B Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794

801 Stud, 5/8-11x2-1/4” (12 Req.) S24061

802A Nut, Hex 5/8-11 (12 Req.) S23109

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (5 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52379 CW H00811 M03799 12.12”

B52380 CCW H02706 L04519 12.12”

T

r

u

a

r

c

801

802A

2088 1095

19

6

73B

115

2

16

40

35

802B

37

32

816 72

18

1

810

73A

89

11

119

14

800B

7

800A

805A

26

69

811

821

822

823

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 320.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B8GRMBMS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing S05973

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

18 Bearing, Ball S13396

19 Frame H01838

26 Screw, Impeller 1/2-13x3” S23631

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance S13592

119 O-Ring S26471

800A Capscrew, Hex 3/8-16x1” (4 Req.) S26826

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

Item

No. Part Description Part Number

801 Stud, 5/8-11x2-1/4” (12 Req.) S24061

802A Nut, Hex 5/8-11 (12 Req.) S23109

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (5 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

821 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24544

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596 for CW, B07597 for

CCW.

Pump Shaft sold in shaft replacement kit only.

• Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B66915 CW H00811 M03799 12.12”

B66916 CCW H02706 L04519 12.12”

T

r

u

a

r

c

800A 2089 1095

811

19

37

32

6

73B

115

2

1

810

73A

816 72

18

16

40

802B

35

17

800B

29

14

63

13

See Supplement B

7

805A

26

69

802A

801

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 330.1

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B10GRMBM

Flanged Case Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing M00999

13 Ring, Packing (Set of 4) S13436

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

17 Gland, Packing B82472

18 Bearing, Ball S13396

19 Frame H01599

26 Screw, Impeller 1/2-13x2-1/2” S23629

29 Ring, Lantern S18993

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

63 Bushing, Throat S18992

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

115 Ring, Balance S12335

Item

No. Part Description Part Number

800A Capscrew, Hex 3/8-16x1” (4 Req.) S26826

800B Bolt, Sq. Head 1/2-13x2-3/4” (2 Req.) S23794

801 Stud, 5/8-11x2-1/4” (12 Req.) S24061

802A Nut, Hex 5/8-11 (12 Req.) S23109

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (4 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B52381 CW H02389 L04063 12.12”

T

r

u

a

r

c

801

802A

2090 1095

19

6

73B

115

2

16

40

35

802B

37

32

816 72

18

1

810

73A

89

11

119

14

800B

7

800A

805A

26

69

811

821

822

823

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 330.2

Date January 1, 2004

Supersedes 12/1/95

CAST IRON IMPELLER B10GRMBMS

Flanged Case Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft (Not sold separately) See Note 1

7Ring, Wearing M00999

11 Retainer, Mechanical Shaft Seal S11452

14 Sleeve, Shaft S05974

16 Bearing, Ball S15604

18 Bearing, Ball S13396

19 Frame H01838

26 Screw, Impeller 1/2-13x2-1/2” S23629

32 Key, 1/2x4” S24214

35 Inner Bearing Cap S05928

37 Outer Bearing Cap Assembly* S35277

40 Slinger, Water S10964

69 Washer, Impeller S06319

72 Ring, Thrust S06519

73A Gasket, Volute S06271

73B Gasket, Balance Ring S09943

89 Seal, Mechanical Shaft S32693

115 Ring, Balance S13592

119 O-Ring S26471

800A Capscrew, Hex 3/8-16x1” (4 Req.) S26826

Item

No. Part Description Part Number

800B Bolt, Sq. Head 1/2-13x2-1/4” (2 Req.) S23792

801 Stud, 5/8-11x2-1/4” (12 Req.) S24061

802A Nut, Hex 5/8-11 (12 Req.) S23109

802B Nut, Hex 1/2-13x7/16” (2 Req.) S23347

805A Washer, Lock S23038

810 Plug, Pipe 1/2 NPT (5 Req.) S23717

811 Fitting, Grease S23670

816 Ring, Retaining S23016

821 Elbow, Comp. Fitting (2 Req.) S24128

822 Tubing, Copper S20677

823 Bushing, Pipe S24544

1. Shaft Replacement Kit available for this model.

Berkeley part number B07596.

Pump Shaft sold in shaft replacement kit only.

* Includes grease fitting.

TABLE I

Volute Impeller

B/M No. Rotation Case Impeller Diameter

B66917 CW H02389 L04063 12.12”

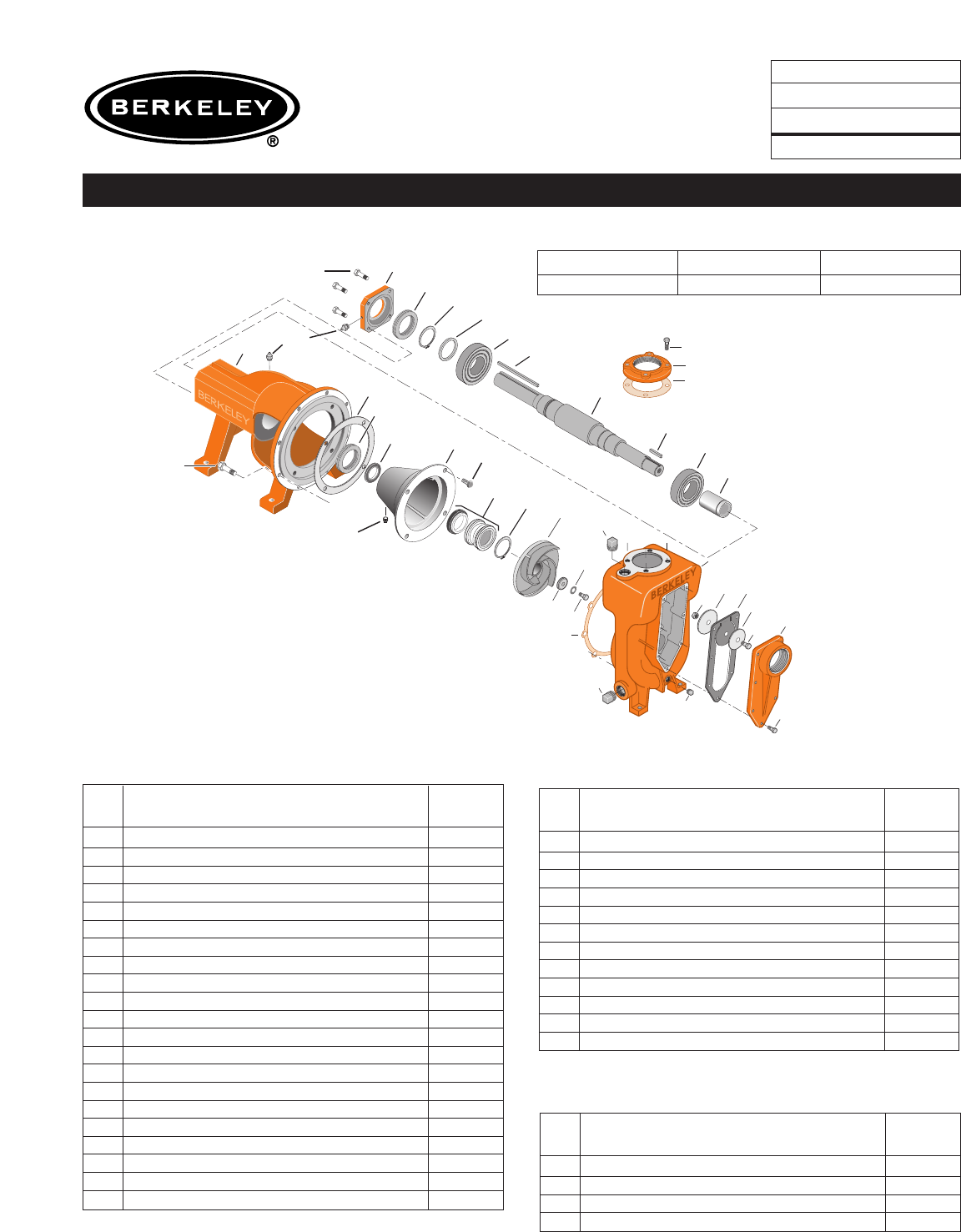

51

51

811A

37

19

816B

816A

72

16

18

6

32A

32B

14

73B

40 115A

800A

89

800A

800A

810C

2

73C

850

800E

800B

805

69

73A

810B

810A 800C

1

9

800D

802

835

804A

804B

810B

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM

Page 340.1

Date January 1, 2004

Supersedes 12/1/02

B4ZRK(S)

Form No. S4855BK

Item Part

No. Part Description Number

1Volute Case H02505

2Impeller M13644

6Shaft–Sold only in Shaft Kit* M12338

9Suction Cover L04108

14 1-3/8 ID x 1-3/4 OD Shaft Sleeve* M12422

16 Single Row Ball Bearing* S13395

18 Ball Bearing* S13397

19 Bracket M12332

32A Shaft Key, 1/4” Sq. x 2-1/4” Lg. - Impeller* S23677

32B Shaft Key, 3/8” Sq. x 2-1/4” Lg.* S23941

37 Bearing Cap M12335

40 Water Slinger* S10964

51 Grease Seal (2 Req.)* M12337

69 Lock Washer S06319

72 Thrust Ring* S06519

73A Volute Gasket S05126

73B Balance Ring Gasket S09943

73C Flange Gasket S10364

800A 3/8-16 x 1-1/8” Lg. Hex Hd Capscrew (16 Req.) S26827

800B 1/2-13 x 1-1/4” Lg. Capscrew S23621

800C 3/8-16 x 1-1/4” Capscrew (7 Req.) S26828

B4ZRK Common Parts Groups Repair Parts List

Refer to following page for model specific repair parts listing.

Item Part

No. Part Description Number

89 1-3/4” Mechanical Shaft Seal S32015

115A Mechanical Seal Housing M12333

810C 1/8” NPT Sq. Hd. Pipe Plug S23714

816A External Retaining Ring* S16767

Seal Components

Item Part

No. Part Description Number

800D 3/8-16 x 3/4” Capscrew S26824

800E 5/8-11 x 1-1/4” Capscrew (4 Req.) S27001

802 Clack Nut, Hex 3/8x16 S23103

804A Clack Weight S14842

804B Clack Weight S15325

805 Lock Washer S23038

810A 1/2” NPT Pipe Plug S23717

810B 1-1/2” NPT Pipe Plug (2 Req.) S23695

811A Grease Fitting (2 Req.) S23700

816B External Retaining Ring* S23016

835 Rubber Clack L04119

850 Blind Flange S15933

B/M No. Shaft Kit Impeller Size

B82375 B81663* 9.12 x 1.00 BA

* Included in Shaft Kit.

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount Self Prime

2134 1195

19

832

73

89

2

61

810B

802A

801

810A

805

800A

800B

9

802B

804B

835

804A

32

Belt

Drive

Coupling

Drive

Section FM-SP

Page 10.1

Date January 1, 2004

Supersedes 2/1/96

CAST IRON IMPELLER B2XRKS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute S14793

2Impeller See Table I

6Shaft Assembly See Table I

9Cover, Suction M05420

19 Frame M02638

32 Key, 3/16x1” (Coupling Drive) S24151

73 Gasket, Volute S04728

89 Seal, Mechanical Shaft S20990

800A Capscrew, Hex 5/6-18x1” (6 Req.) S26783

800B Capscrew, Hex 1/4-20x1/2” S23117

801 Stud, 3/8-16x1-1/4” (4 Req.) S23994

802A Nut, Hex 3/8-16 (4 Req.) S23103

802B Nut, Hex 1/4-20 S23100

804A Weight, Clack 3” O.D. S14673

804B Weight, Clack 1-1/2” O.D. S14676

805 Washer, Lock 5/16 (6 Req.) S23075

810A Plug, Pipe 1/4” NPT S14692

810B Plug, Pipe 1” NPT S14693

832 Sheave (Belt Drive) S05375

835 Gasket, Clack M05424

TABLE I

Drive Shaft Impeller

B/M No. Type Assy. No. Impeller Size

B06310 Belt-CW S06397 S14794 4.59” x .63” BA

B56562 Coupling-CW S16578 S14794 4.59” x .63” BA

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount Self Prime

Grease fitting

assembly

811A

2135 1195

35

40

802

14

17

A two-piece (split) bronze packing

gland is available for replacement,

P/N B82468

800B

19

800A

6

1

73A

73B

9

800E

37

810A

810B

805B

18

78

16

22

32

29

13

2

805A

69

26 800C

800D

804B

835

804A

849

811A

811B

814

813

Clack Assembly

Rotated for clarity

Section FM-SP

Page 20.1

Date January 1, 2004

Supersedes 2/1/96

CAST IRON IMPELLER B2ZRKL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute H01757

2Impeller See Table I

6Shaft See Table I

9Cover, Suction M04194

13 Ring, Packing (Set of 3) S16103

14 Sleeve, Shaft S05127

16 Bearing, Ball S13849

17 Gland, Packing (See Note) S04948

18 Bearing, Ball (2 Req.) S13817

19 Frame H01679

22 Nut, Bearing Lock M10221

26 Screw, Impeller 3/8-16x1” S23566

29 Ring, Lantern S06708

32 Key, 1/4x3” S24176

35 Inner Bearing Cap S19033

37 Outer Bearing Cap M04203

40 Slinger, Water S09694

69 Washer, Impeller S06314

73A Gasket, Case S05126

73B Gasket, Suction Cover S10926

Item

No. Part Description Part Number

78 Sleeve, Spacer S10938

800A Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

800B Bolt, Sq. Head 3/8-16x2” (2 Req.) S23762

800C Screw, Rd. Head #10-32 (2 Req.) S24469

800D Screw, Rd. Head 1/4-20 S24496

800E Capscrew, Hex 3/8-16x1” (2 Req.) S26826

802 Nut, Hex 3/8-16 (2 Req.) S23343

804A Weight, Clack S10150

804B Weight, Clack S04939

805A Washer, External Tooth S23036

805B Washer, Bearing Lock S16181

810A Plug, Pipe 1/4” NPT (3 Req.) S23715

810B Plug, Pipe 1” NPT S23693

811A Fitting, Grease Drive Type (3 Req.) S23670

811B Fitting, Grease S23702

813 Nipple, Pipe 1/8 NPT S24300

814 Coupling, Pipe 1/8 NPT S24261

835 Clack, Rubber S10146

849 Clamp, Clack S10148

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B52346 Coupling-CCW M04202 L02773 9.00”

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount Self Prime

Grease fitting

assembly

800E

800D

70

71

811

811A

2136 1195

35

40

802

14

17

800B

19

800A

6

1

73A

73B

9

800E

810A

810B

805B

18

78

16

22

32

29

13

2

805A

69

26 800C

800D

804B

835

804A

849

811B

814

813

A two-piece (split) bronze packin

g

gland is available for replacement,

P/N B82468

Clack Assembly

Rotated for clarity

Section FM-SP

Page 20.2

Date January 1, 2004

Supersedes 2/1/96

CAST IRON IMPELLER B2ZRKL

Threaded Case (NPT) Packing Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute H01757

2Impeller See Table I

6Shaft See Table I

9Cover, Suction M04194

13 Ring, Packing (Set of 3) S16103

14 Sleeve, Shaft S05127

16 Bearing, Ball S13849

17 Gland, Packing (See Note) S04948

18 Bearing, Ball (2 Req.) S13817

19 Frame H01679

22 Nut, Bearing Lock M10221

26 Screw, Impeller 3/8-16x1” S23566

29 Ring, Lantern S06708

32 Key, 1/4x1” S24168

35 Inner Bearing Cap S19033

40 Slinger, Water S09694

69 Washer, Impeller S06314

70 Coupling, Shaft S30636

71 Bracket, Hydraulic Motor L05720

73A Gasket, Case S05126

73B Gasket, Suction Cover S10926

78 Sleeve, Spacer S10938

Item

No. Part Description Part Number

800A Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

800B Bolt, Sq. Head 3/8-16x2” (2 Req.) S23762

800C Screw, Rd. Head #10-32 (2 Req.) S24469

800D Screw, Rd. Head 1/4-20 S24496

800E Capscrew, Hex 3/8-16x1” (2 Req.) S26826

800F Screw, Set 3/8-16 S23964

800G Screw, Set (2 Req.) S23965

802 Nut, Hex 3/8-16 (2 Req.) S23343

804A Weight, Clack S10150

804B Weight, Clack S04939

805A Washer, External Tooth S23036

805B Washer, Bearing Lock S16181

810A Plug, Pipe 1/4” NPT (3 Req.) S23715

810B Plug, Pipe 1” NPT S23693

811A Fitting, Grease Drive Type (3 Req.) S23670

811B Fitting, Grease S23702

813 Nipple, Pipe 1/8 NPT S24300

814 Coupling, Pipe 1/8 NPT S24261

835 Clack, Rubber S10146

849 Clamp, Clack S10148

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Diameter

B59533 Hydraulic-CCW M10968 L02773 9.00”

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount Self Prime

811

2247 0196

35

40

14

89

19 800A

802

6

1

11

73A

73C

73B 9

800B

801

37

810A

810B

805B

18

78

16

22

32

2

805A

69

26

800C

800D

804B

835

804A

849

811

Clack Assembly

Rotated for clarity

Section FM-SP

Page 20.3

Date January 1, 2004

Supersedes 2/1/96

CAST IRON IMPELLER B2ZRKLS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute See Table I

2Impeller See Table I

6Shaft See Table I

9Cover, Suction M04194

11 Retainer, Mechanical Shaft Seal M06063

14 Sleeve, Shaft S05127

16 Bearing, Ball S13849

18 Bearing, Ball (2 Req.) S13817

19 Frame S16781

22 Nut, Bearing Lock M10221

26 Screw, Impeller 3/8-16-1” S23566

32 Key, 1/4x3” S24176

35 Inner Bearing Cap S19033

37 Outer Bearing Cap M04203

40 Slinger, Water S09694

69 Washer, Impeller S06314

73A Gasket, Case S05126

73B Gasket, Suction Cover S10926

73C Gasket, Seal Retainer S16800

78 Sleeve, Spacer S10938

89 Seal, Mechanical Shaft S32690

Item

No. Part Description Part Number

800A Capscrew, Hex 3/8-16x7/8” (8 Req.) S26825

800B Capscrew, Hex 3/8-16x1” (2 Req.) S26826

800C Screw, Rd. Head #10-32 (2 Req.) S24469

800D Screw, Rd. Head 1/4-20 (2 Req.) S24496

801 Stud, 3/8-16x1-1/4” (4 Req.) S23994

802 Nut, Hex 3/8-16 (4 Req.) S23103

804A Weight, Clack S10150

804B Weight, Clack S04939

805A Washer, Lock S23036

805B Washer, Bearing Lock S16181

810A Plug, Pipe 1/4” NPT (3 Req.) S23715

810B Plug, Pipe 1” NPT S23693

811 Fitting, Grease Drive Type (3 Req.) S23670

835 Clack, Rubber S10146

849 Clamp, Clack S10148

TABLE I

Volute Shaft Impeller

B/M No. Case No. Impeller Diameter

B07172 H01757 M04202 L02773 9.00”

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount Self Prime

2137 1195

19

832

73

89

2

6

1

810B

810A

800B

800C

9

802

804B

835

804A

40

32

Belt

Drive

Coupling

Drive

800A

Section FM-SP

Page 30.1

Date January 1, 2004

Supersedes 2/1/96

CAST IRON IMPELLER B3TRKS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute H03741

2Impeller See Table I

6Shaft Assembly See Table I

9Cover, Suction L05748

19 Frame L01530

32 Key, 3/16x1” (Coupling Drive) S24151

40 Slinger, Water S21906

73 Gasket, Volute (.031 Thick) S04757

73 Gasket, Volute (.051 Thick) S15049

89 Seal, Mechanical Shaft S06405

800A Capscrew, Hex 1/2-13x1” (4 Req.) S26912

800B Capscrew, Hex 3/8-16x1-1/4” (7 Req.) S26828

800C Capscrew, Hex 3/8-16x3/4” S26824

802 Nut, Hex 3/8-16 S23103

804A Weight, Clack 4-1/8” O.D. S15325

804B Weight, Clack 3” O.D. S14843

810A Plug, Pipe 1/4” NPT S23715

810B Plug, Pipe 1-1/4” NPT S23694

832 Sheave (Belt Drive) S06407

835 Gasket, Clack L05749

TABLE I

Drive Shaft Impeller

B/M No. Type Assy. No. Impeller Size

B60771 Belt-CW S06402 M07242 6.59” x .88” BA

B60772 Coupling-CW S17858 M07242 6.59” x .88” BA

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount Self Prime

89

T

r

u

a

r

c

2106 1095

51

19

800A

2

6

1

9

800C

800B

802 835

804A

804B

37

810A

810B

73A

18

16

32

811

73B

850

800D

35

40

24

14

816

T

r

u

a

r

c

816

72

Section FM-SP

Page 40.1

Date January 1, 2004

Supersedes 2/1/96

CAST IRON IMPELLER B4ZRKS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute H02505

2Impeller See Table I

6Shaft (Not available separately) See Note 1

9Cover, Suction L04108

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

24 Nut, Hex Jam M10220

32 Key, 1/4x1” S24168

35 Inner Bearing Cap M10213

37 Outer Bearing Cap* S19914

40 Slinger, Water S12260

51 Seal, Oil M10216

72 Ring, Thrust S29218

73A Gasket, Case S05126

73B Gasket, Blind Flange S10364

89 Seal, Mechanical Shaft S32690

800A Capscrew, Hex 3/8-16x1” (8 Req.) S26826

800B Capscrew, Hex 3/8-16x1-1/4” (7 Req.) S26828

Item

No. Part Description Part Number

800C Capscrew, Hex 3/8-16x3/4” S26824

800D Capscrew, Hex 5/8-11x1-3/4” (4 Req.) S27001

802 Nut, Hex 3/8-16 S23103

804A Weight, Clack S14842

804B Weight, Clack S15325

810A Plug, Pipe 1/2” NPT S23717

810B Plug, Pipe 1-1/2” NPT (2 Req.) S23695

811 Fitting, Grease S23670

816 Ring, Retaining External S23009

816 Ring, Retaining S23010

835 Clack, Rubber L04119

850 Flange, Companion S15933

•Spacer, Impeller S15405

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Size

B69880 Coupling-CW M08590 M08095 9.12”x1.00” BA

Includes grease fitting and set screw.

1. Shaft Replacement Kit available for this model.

Berkeley part number B80699.

Pump Shaft sold in shaft replacement kit only. •Not illustrated.

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount Self Prime

89

T

r

u

a

r

c

800E

800D

70

71

811

2107 1095

51

19

800A

2

6

1

9

800C

800B

802 835

804A

804B

810A

810B

73A

18

16

811

73B

850

800F

35

40

24

14

816

32

T

r

u

a

r

c

816

72

Section FM-SP

Page 40.2

Date January 1, 2004

Supersedes 2/1/96

CAST IRON IMPELLER B4ZRKS

Threaded Case (NPT) Mechanical Seal Construction

Form No. S4855BK

Item

No. Part Description Part Number

1Case, Volute H02505

2Impeller See Table I

6Shaft See Table I

9Cover, Suction L04108

14 Sleeve, Shaft S39242

16 Bearing, Ball S13270

18 Bearing, Ball S13271

19 Frame H04007

24 Nut, Hex Jam M10220

32 Key, 1/4x1” S24168

35 Inner Bearing Cap M10213

40 Slinger, Water S12260

51 Seal, Oil M10216

70 Coupling, Shaft S30636

71 Bracket, Hydraulic Motor L05720

72 Ring, Thrust S29218

73A Gasket, Case S05126

73B Gasket, Blind Flange S10364

89 Seal, Mechanical Shaft S32690

Item

No. Part Description Part Number

800A Capscrew, Hex 3/8-16x1” (8 Req.) S26826

800B Capscrew, Hex 3/8-16x1-1/4” (7 Req.) S26828

800C Capscrew, Hex 3/8-16x3/4” S26824

800D Set Screw, Hex 1/2” S23964

800E Set Screw, Hex 5/8” (2 Req.) S23965

800F Capscrew, Hex 5/8-11x1-3/4” (4 Req.) S27001

802 Nut, Hex 3/8-16 S23103

804A Weight, Clack S14842

804B Weight, Clack S15325

810A Plug, Pipe 1/2” NPT S23717

810B Plug, Pipe 1-1/2” NPT (2 Req.) S23695

811 Fitting, Grease (3 Req.) S23670

816 Ring, Retaining External S23009

816 Ring, Retaining S23010

835 Clack, Rubber L04119

850 Flange, Companion S15933

•Spacer, Impeller S15405

TABLE I

Drive Shaft Impeller

B/M No. Type No. Impeller Size

B69876 Hydraulic-CW L07139 M08095 9.12”x1.00” BA

1. Shaft Replacement Kit available for this model.

Berkeley part number B80703.

Pump Shaft sold in shaft replacement kit only. •Not illustrated.

51

51

811A

37

19

816B

816A

72

16

18

6

32A

32B

14

73B

40 115A

800A

89

800A

800A

810C

2

73C

850

800E

800B

805

69

73A

810B

810A 800C

1

9

800D

802

835

804A

804B

810B

TYPE ‘‘B’’ SINGLE STAGE

CENTRIFUGAL PUMP

Bearing Frame Mount

Section FM/SP

Page 50.1

Date January 1, 2004

Supersedes 12/1/02

B4ZRK(S)

Form No. S4855BK

Item Part

No. Part Description Number

1Volute Case H02505

2Impeller M13644

6Shaft–Sold only in Shaft Kit* M12338

9Suction Cover L04108

14 1-3/8 ID x 1-3/4 OD Shaft Sleeve* M12422

16 Single Row Ball Bearing* S13395

18 Ball Bearing* S13397

19 Bracket M12332

32A Shaft Key, 1/4” Sq. x 2-1/4” Lg. - Impeller* S23677

32B Shaft Key, 3/8” Sq. x 2-1/4” Lg.* S23941

37 Bearing Cap M12335

40 Water Slinger* S10964

51 Grease Seal (2 Req.)* M12337

69 Lock Washer S06319

72 Thrust Ring* S06519

73A Volute Gasket S05126

73B Balance Ring Gasket S09943

73C Flange Gasket S10364

800A 3/8-16 x 1-1/8” Lg. Hex Hd Capscrew (16 Req.) S26827

800B 1/2-13 x 1-1/4” Lg. Capscrew S23621

800C 3/8-16 x 1-1/4” Capscrew (7 Req.) S26828

B4ZRK Common Parts Groups Repair Parts List

Refer to following page for model specific repair parts listing.

Item Part

No. Part Description Number

89 1-3/4” Mechanical Shaft Seal S32015

115A Mechanical Seal Housing M12333

810C 1/8” NPT Sq. Hd. Pipe Plug S23714

816A External Retaining Ring* S16767

Seal Components

Item Part

No. Part Description Number

800D 3/8-16 x 3/4” Capscrew S26824

800E 5/8-11 x 1-1/4” Capscrew (4 Req.) S27001

802 Clack Nut, Hex 3/8x16 S23103

804A Clack Weight S14842

804B Clack Weight S15325

805 Lock Washer S23038

810A 1/2” NPT Pipe Plug S23717

810B 1-1/2” NPT Pipe Plug (2 Req.) S23695

811A Grease Fitting (2 Req.) S23700

816B External Retaining Ring* S23016

835 Rubber Clack L04119

850 Blind Flange S15933

B/M No. Shaft Kit Impeller Size

B82375 B81663* 9.12 x 1.00 BA

* Included in Shaft Kit.
