Data subject to change without notice.
WEG Motor
Catalog
USA100 - 07 - 10 Effective July 1010
Motors I Automation I Energy I Transmission & Distribution I Coatings
www.weg.net
A-2 Data subject to change without notice.
FRACTIONAL
HP
GENERAL
PURPOSE
NEMA PREMIUM
EFFICIENCY
CRUSHER®
DUTY
IEC
TRU-METRIC™
DEFINITE
PURPOSE
PUMP
MOTORS
EXPLOSION
PROOF
Data subject to change without notice.
Lower total operational costs
A product that can operate most of its designed lifetime
consuming the minimum possible energy, with high
levels of reliability, generating the maximum value to the
user – this is what is behind W22 new concept.
Inverter Duty applications
The exclusive WISE insulation system used on the W22 increases windings dielectric
resistance, thus allowing VFD operation up to 575V without requiring further modification
resulting in flexibility and extended motor lifetime.
* Voltages above 575 V, please contact our nearest sales office.

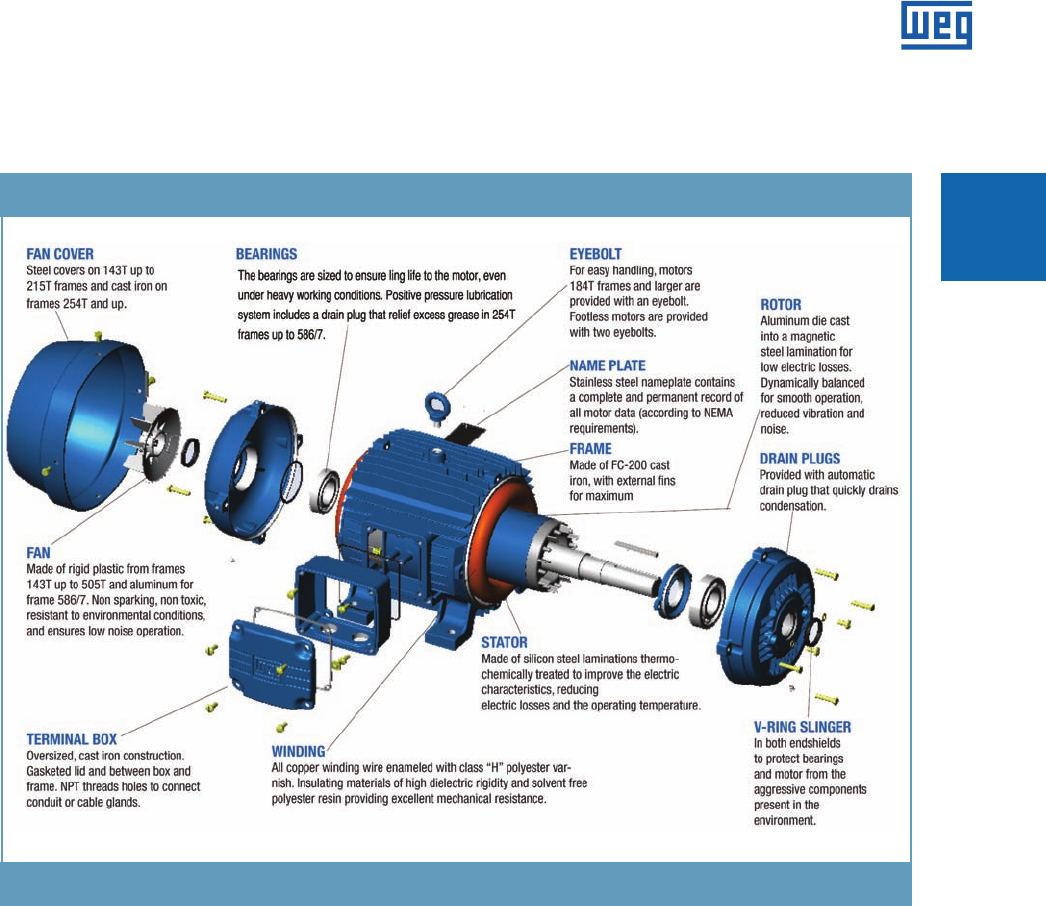

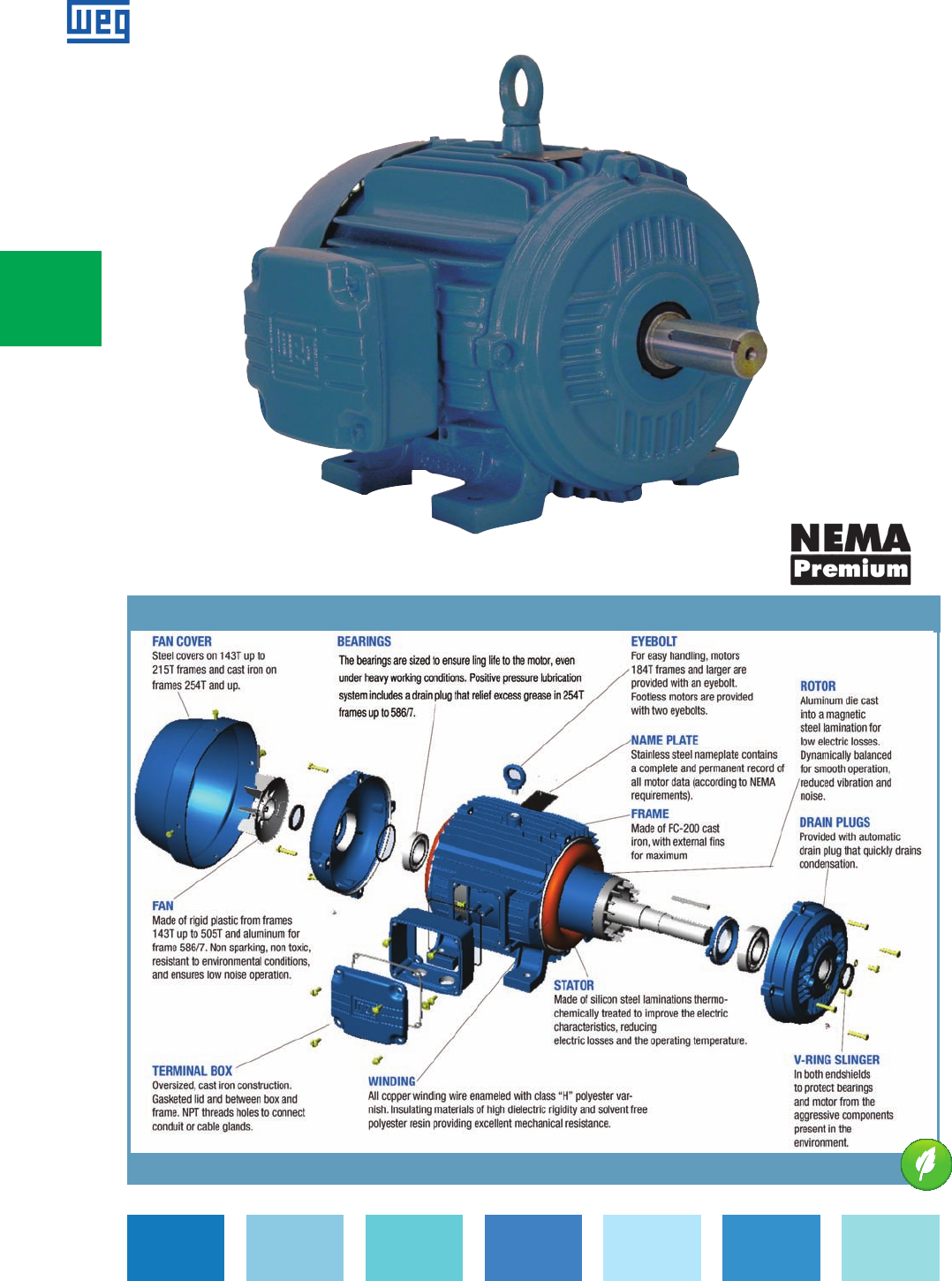

Built to last
W22 motors are built using high quality cast iron from WEG‘s own foundries,
assuring maximum durability and high performance in aggressive conditions. The
new fan cover design provides great impact resistance. Additionally the endshields
have been designed for a better bearing heat dissipation and structural rigidity.
Range extensions for the future
Available as both NEMA and IEC standards. The W22 line, offering high efficiency
and low lifetime costs, will be the basis for further WEG developments.
Energy saving
Costs of energy correspond to approximately 90% of total operational costs
throughout a motors lifetime. Acquisition, installation and maintenance cost the other
10%. W22 new industrial motor platform will be available with NEMA Premium®
efficiencies, guaranteeing energy savings and reduced payback time.
WEG Electric Corp.
6655 Sugarloaf Parkway
Duluth, GA 30097
Phone: 1-800-ASK-4WEG (275-4934)
web: www.weg.net/us
©2009 WEG Electric Corp.
READY
TO
ORDER
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-3
Data subject to change without notice. Data subject to change without notice.
FRACTIONAL
HP
GENERAL
PURPOSE
NEMA PREMIUM
EFFICIENCY
CRUSHER®
DUTY
IEC
TRU-METRIC™
DEFINITE
PURPOSE
PUMP
MOTORS
MAQUINAS
LARGE MOTORS
ADD-ON™
MODIFICATIONS
MOTOR
MECHANICAL DATA
MOTOR
ELECTRICAL DATA
EXPLOSION
PROOF
Motors I Automation I Energy I Transmission & Distribution I Coatings
www.weg.net
A-4 Data subject to change without notice.
FRACTIONAL
HP
GENERAL
PURPOSE
NEMA PREMIUM
EFFICIENCY
CRUSHER®
DUTY
IEC
TRU-METRIC™
DEFINITE
PURPOSE
PUMP
MOTORS
MAQUINAS
LARGE MOTORS
ADD-ON™
MODIFICATIONS
MOTOR
TECHNICAL DATA
MOTOR
ELECTRICAL DATA
EXPLOSION
PROOF
Data subject to change without notice.
TABLE OF CONTENTS
IEC TRUMETRIC™ MOTORS
ALUMINUM & CAST IRON FRAMES
CRUSHER DUTY MOTORS

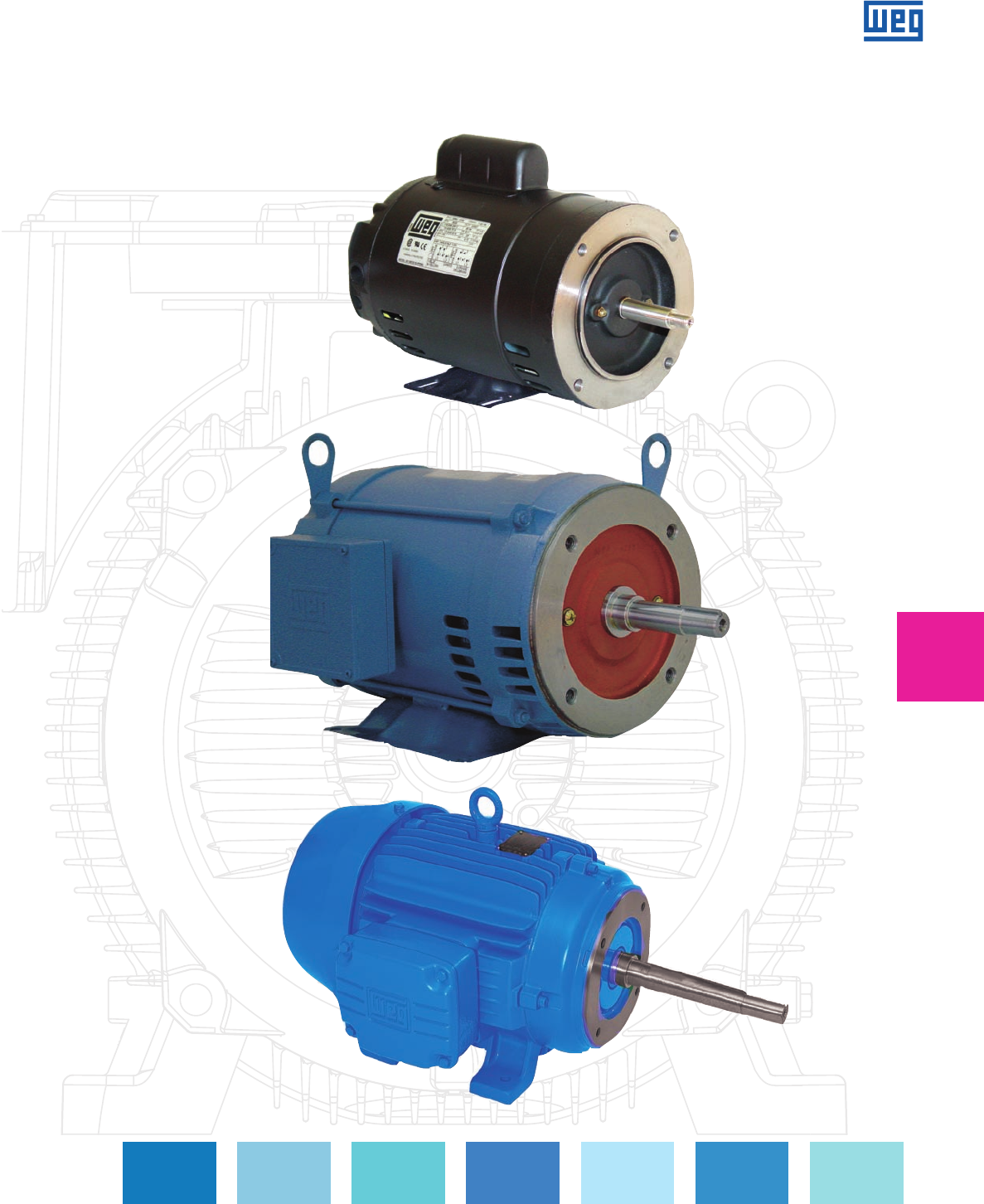

PUMP MOTORS
NEMA PREMIUM EFFICIENCY
GENERAL PURPOSE MOTORS
JET PUMP MOTORS – NEMA 56 MOTORS
SINGLE-PHASE
Threaded – With Base – ODP . . . . . . . . . . . . . . . . . A-80
Threaded – Less Base – ODP . . . . . . . . . . . . . . . . . A-81
Keyed – C-Face Less Base – ODP. . . . . . . . . . . . . . . A-81
Threaded – with base – TEFC . . . . . . . . . . . . . . . . . A-81
Threaded – Less Base – TEFC . . . . . . . . . . . . . . . . A-82
Keyed – C-Face With Base – TEFC . . . . . . . . . . . . . . A-82
Keyed – C-Face Less Base – TEFC . . . . . . . . . . . . . . A-82
THREE-PHASE
Threaded – With Base – ODP . . . . . . . . . . . . . . . . . A-83
Threaded – Less Base – ODP . . . . . . . . . . . . . . . . . A-84
Keyed – C-Face Less Base – ODP. . . . . . . . . . . . . . . A-84
Threaded – With Base – TEFC. . . . . . . . . . . . . . . . . A-84
Threaded – Less Base – TEFC . . . . . . . . . . . . . . . . A-85
Keyed – C-Face Less Base – TEFC . . . . . . . . . . . . . . A-85
CLOSE COUPLE PUMP – INTEGRALS MOTORS
SINGLE-PHASE
“JM” Type – TEFC – Standard Efficiency . . . . . . . . . . . A-87
“JP” Type – TEFC – Standard Efficiency . . . . . . . . . . . A-87
THREE-PHASE – ODP – STANDARD EFFICIENCY
“JM” Type – ODP – Standard Efficiency. . . . . . . . . . . A-89
“JP” Type – ODP – Standard Efficiency . . . . . . . . . . . A-90
“JM” Type – ODP – Standard Efficiency – Vertical Motors . . A-91
“JP” Type – ODP – Standard Efficiency – Vertical Motors . . . A-91
THREE-PHASE – ODP – HIGH – EFFICIENCY
“JM” Type – ODP – High Efficiency . . . . . . . . . . . . . . A-93
“JP” Type – ODP – High Efficiency . . . . . . . . . . . . . A-94
“JM” Type – ODP – High Efficiency – Vertical Motors . . . . A-95
“JP” Type – ODP – High Efficiency – .Vertical Motors . . . . . A-95
THREE-PHASE – ODP – NEMA PREMIUM EFFICIENCY
“JM” Type – ODP – NEMA Premium . . . . . . . . . . . . .A-97
“JP” Type – ODP – NEMA Premium . . . . . . . . . . . . . A-98
THREE-PHASE – TEFC – STANDARD EFFICIENCY
“JM” Type – TEFC – Standard Efficiency . . . . . . . . . . A-100
“JP” Type – TEFC – Standard Efficiency . . . . . . A-101–A-102
THREE-PHASE – TEFC – HIGH EFFICIENCY
“JM” Type – TEFC – High Efficiency . . . . . . . . . . . . A-104
“JP” Type – TEFC – High Efficiency . . . . . . . . . . . . A-105
THREE-PHASE – TEFC – NEMA PREMIUM EFFICIENCY
“JM” Type – TEFC – NEMA Premium. . . . . . . . . . . . A-107
“JP” Type – TEFC – NEMA Premium . . . . . . . . . . . . A-108
P-BASE MOTORS – TEFC – THREE-PHASE
Standard Efficiency . . . . . . . . . . . . . . . . . A-110–A-111
High Efficiency . . . . . . . . . . . . . . . . . . . A-111–A-112
OIL WELL PUMPING – ODP & TEFC – THREE-PHASE
High Slip – NEMA Design ‘D’ – ODP. . . . . . . . . . . . . A-114
High Slip – NEMA Design ‘D’ – TEFC . . . . . . . . . . . . A-114
POOL & SPA MOTORS – ODP – SINGLE-PHASE
C-Face – ODP – Start Capacitor. . . . . . . . . . . . . . . A-117
Square Flange – ODP – Start Capacitor . . . . . . . . . . . A-117

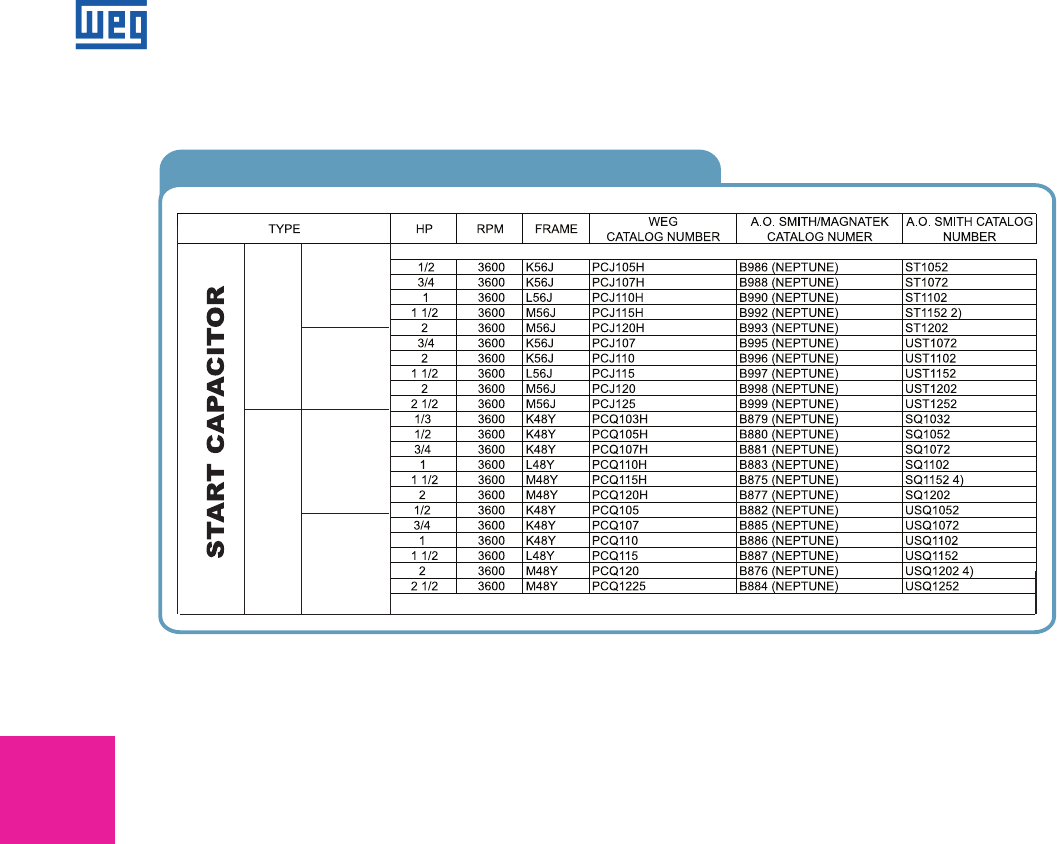

Cross Reference . . . . . . . . . . . . . . . . . . . . . . A-118
FRACTIONAL HP
GENERAL PURPOSE MOTORS
HIGH EFFICIENCY
GENERAL PURPOSE MOTORS
SINGLE-PHASE MOTORS
NEMA 48 & 56 ODP – Rigid Base . . . . . . . . . . . . . . . A-15
NEMA 48& 56 ODP – Resilient Base. . . . . . . . . . . . . . A-15
NEMA 56 TEFC – Rigid Base . . . . . . . . . . . . . . . . . A-16
NEMA 56 TEFC with manual overload protection . . . . . . . A-16
SINGLE-PHASE MOTORS – C-FACE
NEMA 48 & 56 ODP – Rigid Base . . . . . . . . . . . . . . . A-18
NEMA 48& 56 ODP – Footless. . . . . . . . . . . . . . . . . A-18
NEMA 56 TEFC – Rigid Base . . . . . . . . . . . . . . . . . A-19
NEMA 56 TEFC – Footless. . . . . . . . . . . . . . . . . . . A-19
THREE-PHASE MOTOR
NEMA 56 Frames – ODP – Rigid Base. . . . . . . . . . . . . A-21
NEMA 56 Frames – TEFC – Rigid Base . . . . . . . . . . . . A-21
THREE-PHASE MOTORS – C-FACE
NEMA 56 Frames – ODP – Rigid Base. . . . . . . . . . . . . A-23
NEMA 56 Frames – ODP – Footless . . . . . . . . . . . . . . A-23
NEMA 56 Frames – TEFC – Rigid Base . . . . . . . . . . . . A-24
NEMA 56 Frames – TEFC – Footless . . . . . . . . . . . . . A-24
THREE-PHASE MOTORS
TEFC – Foot Mount . . . . . . . . . . . . . . . . . . A-31–A-35
TEFC – C-Flange – Foot Mount . . . . . . . . . . . . A-36–A-37
TEFC – C-Flange – Footless. . . . . . . . . . . . . . . . . A-38
ODP – Foot Mount . . . . . . . . . . . . . . . . . . A-40–A-43
ODP – C-Flange – Foot-Mount . . . . . . . . . . . . . . . . A-43
ODP - Foot-Mount . . . . . . . . . . . . . . . . . . . . . . A-45
TEFC - Foot-Mount . . . . . . . . . . . . . . . . . . . . . . A-46
THREE-PHASE MOTORS
TEFC - Foot-Mount . . . . . . . . . . . . . . . . . . A-50–A-53
TEFC C-Flange . . . . . . . . . . . . . . . . . . . . . . A-53-54
ODP - Foot-Mount. . . . . . . . . . . . . . . . . . . A-56–A-58
HIGH EFFICIENCY
Three-Phase – Foot Mount . . . . . . . . . . . . . . A-60–A-62
Three-Phase – C-Flange – Foot Mount. . . . . . . . . . . . . A-63
Three-Phase – C-flange – Footless . . . . . . . . . . . . . . A-63
NEMA PREMIUM EFFICIENCY
Three-Phase – Foot Mount . . . . . . . . . . . . . . A-65–A-67
Three-Phase – C-Flange – Foot Mount. . . . . . . . . . . . . A-67
Three-Phase – C-flange – Footless. . . . . . . . . . . . . . A-67
Horizontal . . . . . . . . . . . . . . . . . . . . . . . A-71–A-72
TEFC - Foot-Mount . . . . . . . . . . . . . . . . . . A-75–A-78
SINGLE-PHASE
GENERAL PURPOSE MOTORS
EXPLOSION PROOF MOTORS
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-5
Data subject to change without notice. Data subject to change without notice.
FRACTIONAL
HP
GENERAL
PURPOSE
NEMA PREMIUM
EFFICIENCY
CRUSHER®
DUTY
IEC
TRU-METRIC™
DEFINITE
PURPOSE
PUMP
MOTORS
MAQUINAS
LARGE MOTORS
ADD-ON™
MODIFICATIONS
MOTOR
MECHANICAL DATA
MOTOR
ELECTRICAL DATA
EXPLOSION
PROOF
TABLE OF CONTENTS
ADD-ON™ Modification Program,
Special Features & Spare Parts
Bearings ............................................................................. A-152
Cooling .................................................................................A-152
Degree of Protection .............................................................A-153
Electrical Special Features ....................................................A-153
Flanges Installed ...................................................................A-154
Flange Kits ................................................................A-154–A-158
Drip Cover Kits ......................................................................A-159
Painting Plans .......................................................................A-159
Painting Plans Description ................................................... A-159
Shaft.....................................................................................A-160
Terminal Box ........................................................................A-160
Testing ................................................................................ A-160
Motor Bases
Style A ........................................................................A-161
Style B ........................................................................A-161
Style C ........................................................................A-162
Slide rails (pair) ...........................................................A-162
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
Definite Purpose Motors
BRAKE MOTORS – TEFC
Three-Phase – Standard Efficiency ...................................... A-121
Three-Phase – High Efficiency .............................................. A-122
COMPRESSOR DUTY MOTORS – ODP (IP21)
Single-Phase – Rigid Base .................................................... A-123
FARM DUTY MOTORS – TEFC (IP44)
Rigid Base ........................................................................... A-124
POULTRY FAN MOTORS – TEAO (IP44)
SINGLE PHASE
Resilient Base ...................................................................... A-125
Rigid Base ........................................................................... A-125
AUGER DRIVE – TEFC – SINGLE-PHASE
Less Base ............................................................................. A-126
IEEE 841 – TEFC (IP55) – THREE-PHASE
NEMA Premium ........................................................ A-128–A-129
STAINLESS STEEL MOTORS – SHARK™
THREE-PHASE
C-Face with Feet – Rigid Base .................................. A-130–A-131
Round Body Footless ............................................................ A-131
SAW ARBOR MOTORS – TEFC – THREE-PHASE
Single and Double Shaft End ................................................. A-133
COOLING TOWER MOTORS – THREE-PHASE
NEMA Premium Efficiency Foot Mount TEFC ............. A-136–A-137
NEMA Premium Efficiency. Foot Mount TEAO ........................ A-137
High Efficiency – TEFC –Double speed
(1 & 2 Windings) ...................................................... A-138–A-139
COMMERCIAL HVAC MOTORS
Resilient Base - Single Phase - ODP .................................... A-140
Resilient Base - Three Phase - ODP ..................................... A-141
Resilient Base - Single Phase - TEAO ...................................A-141
Rigid Base - Single Phase - TEAO ........................................ A-141
Evaporative Cooler - Single Phase - ODP .............................. A-141
PAD MOUNTED MOTORS – THREE PHASE
High Efficiency – Three Phase ............................................... A-143
NEMA Premium Efficiency ..................................................... A-144
VECTOR DUTY MOTORS – THREE PHASE
TENV Foot Mount - “C” Flange .............................................. A-145
Encoder ................................................................................ A-146
Stub Shaft 5/8” Diameter ...................................................... A-146
Feedback Cable Assembly w/ MS Connector ......................... A-146
Motor/Stub Shaft/Encoder Configuration ............................... A-146
ELECTRICAL DATA
General Purpose Motors – NEMA 48 & 56 ODP – Single Phase .............................. B-2
General Purpose Motors – NEMA 56 TEFC – Single Phase ..................................... B-2
General Purpose Motors – NEMA 56 ODP – Three Phase ....................................... B-4
General Purpose Motors – NEMA 56 TEFC – Three Phase ...................................... B-4
Rolled Steel High Efficiency – General Purpose Motors .......................................... B-5
Rolled Steel NEMA Premium Efficiency – General Purpose Motors ........................ B-5
W21 High Efficiency – General Purpose Motors ..............................................B-6–B-7
High Efficiency – General Purpose Motors - ODP ............................................B-8–B-9
Explosion Proof Motors – High Efficiency – Three Phase ..............................B-9–B-10
Explosion Proof Motors – NEMA Premium Efficiency – Three Phase ...................B-11
General Purpose Motors – Nema “T” ODP – Single Phase ..................................B-13
General Purpose Motors – Nema “T” TEFC – Single Phase .................................B-13
W21 NEMA Premium Efficiency – General Purpose Motors NEMA “T” – TEFC –
Three Phase..................................................................................................B-14–B-15
NEMA Premium – General Purpose Motors – NEMA “T” ODP – Three Phase ......B-16
Crusher Duty Motors – TEFC – Three Phase .........................................................B-17
IEC Tru-Metric Motors ..................................................................................B-18–B-23
Brake Motors – Standard Efficiency – TEFC ..........................................................B-24
Brake Motors – High Efficiency – TEFC .................................................................B-25
Compressor Duty – NEMA 48 & 56 – ODP ............................................................ B-26
Farm Duty Motors – TEFC – Rigid Base ................................................................. B-26
Auger Drive Motor – NEMA 56 – TEFC...................................................................B-26
Poultry Fan Motors – TEAO – Single Phase ...........................................................B-28
IEEE841 – NEMA Premium Efficiency – TEFC .............................................B-29–B-30
Jet Pump Motors – NEMA 56 – ODP – Single Phase.............................................B-31
Jet Pump Motors – NEMA 56 – TEFC – Single Phase ...........................................B-31
Jet Pump Motors – NEMA 56 – ODP – Three Phase .............................................B-31
Jet Pump Motors – NEMA 56 – TEFC – Three Phase ............................................B-31
Close Coupled Pump Motors – “JM/JP” Type – TEFC Single phase .....................B-32
Close Coupled Pump Motors – “JM/JP” Type ODP –
Standard Efficiency – Three Phase .......................................................................................B-32
Close Coupled Pump Motors – “JM/JP” Type TEFC –
Standard Efficiency – Three Phase .......................................................................................B-33
P-Base – TEFC – Standard Efficiency .................................................................... B-34
P-Base – TEFC – High Efficiency ...........................................................................B-35
Oil Well Pump – High Slip – NEMA Design “D” – ODP .......................................... B-36
Oil Well Pump – High Slip – NEMA Design “D” TEFC ............................................B-36
Pool and Spa Motors – ODP ...................................................................................B-37
Saw Arbor Motors – TEFC – Three Phase .............................................................. B-37
Shark Motors .......................................................................................................... B-38
Vector Duty Motors ................................................................................................B-38
Commercial HVAC Motors – Resilient Base ODP – Single Phase ..........................B-39
Commercial HVAC Motors – Resilient Base ODP – Three Phase ........................... B-39
Commercial HVAC Motors – Evaporative Cooler ODP – Single Phase ...................B-39
W22 – NEMA Premium ...............................................................................B-40–B-41
W22 – High Efficiency ................................................................................B-42–B-43
www.weg.net
A-6 Data subject to change without notice.
FRACTIONAL
HP
GENERAL
PURPOSE
NEMA PREMIUM
EFFICIENCY
CRUSHER®
DUTY
IEC
TRU-METRIC™
DEFINITE
PURPOSE
PUMP
MOTORS
EXPLOSION
PROOF
Data subject to change without notice.
MAQUINAS
LARGE MOTORS
ADD-ON™
MODIFICATIONS
MOTOR
TECHNICAL DATA
MOTOR
ELECTRICAL DATA
TABLE OF CONTENTS
MECHANICAL DATA
TRADEMARK NOTICE
The following are Trademarks of WEG Electric Motors:
Tru Metric™ • Shark™
Shark™ Drive • ADD-ON™
NOTES SYMBOL KEY
: Reduced Frame
: Resilient Base
: Split-Phase Motor
: Product may not be available from stock
: Roller Bearing
: Round Body
: Compressor Duty
: Aluminum Frame with removable feet
: Totally Enclosed Non-Ventilated
Disclaimer: WEG Electric Corp. has made
every effort in order to include updated and
accurate information in this catalog. All
information is subject to updates, changes or
corrections at anytime without prior notice.
General Purpose Motors – NEMA 48 & 56 – ODP ...................................... B-45
General Purpose – NEMA 56 – ODP – Resilient Base ................................ B-46
General Purpose – NEMA 56 – TEFC ......................................................... B-46
W21 General Purpose Motors – TEFC ....................................................... B-47
Rolled Steel General Purpose Motors – TEFC .................................B-48–B-49
W21 General Purpose Motors – TEFC - C-Flange ..................................... B-50
W21 General Purpose Motors – TEFC - D-Flange ..................................... B-51
General Purpose Motors – ODP – Frame 182T–215T ................................ B-52
General Purpose Motors – ODP – Frame 254T-449T ................................. B-53
General Purpose Motors – ODP – C-Flange ............................................... B-54
General Purpose Motors – ODP - D-Flange .............................................. B-55
Explosion Proof Motors – TEFC – Three Phase ................................B-56–B-57
General Purpose Single Phase Motors – ODP – NEMA “T” ........................B-58
General Purpose Single Phase Motors – TEFC – NEMA “T” .......................B-58
Farm Duty Motors – TEFC – Cast Iron ....................................................... B-58
Crusher Duty Motors – TEFC – Three Phase .....................................B-59-B-61
Tru-Metric Frame – TEFC – Three Phase – Aluminum Frame .......... B-62–B-64
Tru-Metric Frame – TEFC – Three Phase – Cast Iron Frame ............ B-65–B-68
Brake Motors – TEFC – Three Phase ............................................... B-69–B-71
Compressor Duty Motors – ODP ................................................................ B-72
Poultry Fan Motors – TEAO – Single Phase ............................................... B-73
Auger Drive Motors – TEFC ....................................................................... B-74
Farm Duty Motors – TEFC – Rolled Steel .....................................................B-74
IEEE841 Motors – TEFC – NEMA Premium Efficiency .........................B-75-B-77
Jet Pump Motors – NEMA 56 – ODP – Single Phase ................................. B-78
Jet Pump Motors – NEMA 56 – ODP – Three Phase .................................. B-79
Jet Pump Motors – NEMA 56 – TEFC ........................................................ B-80
Close Coupled Pump Motors – JM/JP Type – ODP .............................B-81-B-82
Close Coupled Pump Motors – JM/JP Type – TEFC ............................B-83-B-85
P-Base Motors – TEFC – Three Phase ........................................................ B-86
Oil Well Pumping Motors – ODP – Three Phase ................................. B-87-B-88
Oil Well Pumping Motors – TEFC – Three Phase ......................................... B-89
Pool and Spa Motors .................................................................................. B-90
Shark Motors ............................................................................................. B-91
Saw Arbor Motors – TEFC – Three Phase ................................................... B-92
Commercial HVAC Motors – ODP – Single Phase – Resilient Base .............. B-93
Evaporative Cooler Motors – ODP – Single Phase ....................................... B-93
Vector Duty Motors ................................................................................................B-94
Cooling Tower Motors ................................................................................ B-95
W22 - TEFC ..................................................................................... B-96–B-97
c
U
: Energy Efficiency (Pool and Spa)
: Automatic Thermal Overload
: Z-Frame; Bigger shaft diameter and bearings
: W-frame (Please see dimensions at the end of this catalog)
: Double Winding
: F3 Mount
: 1.0 Service Factor
: NEMA T Rolled Steel
: Energy Efficiency Motors
MEDIUM VOLTAGE MOTORS
WEG Large Machines ................................................................................................ C2-C3
Medium Voltage TEFC Standard Ratings ....................................................................... C-5
Medium Voltage TEFC Electrical Data ............................................................................ C-6
Medium Voltage TEFC Mechanical Data ........................................................................ C-7
LARGE MOTORS
MAQUINAS New
MV
Section
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934)
Data subject to change without notice.
MAQUINAS
LARGE MOTORS
ADD-ON™
MODIFICATIONS
MOTOR
MECHANICAL DATA
MOTOR
ELECTRICAL DATA
Data subject to change without notice.
TABLE OF CONTENTS
Estimated Annual Savings From Specifying NEMA Premium Motors
Horsepower Full-Load Motor Efficiency (%) Annual Savings from Using a NEMA Premium Motor
Energy-Efficient Motor NEMA Premium Efficiency Motor Annual Energy Savings, kWh Savings Per Year
10 89.5 91.7 1,200 $60
25 92.4 93.6 1,553 $78
50 93.0 94.5 3,820 $191
100 94.5 95.4 4,470 $223
200 95.0 96.2 11,755 $588
Savings are based on the purchase of an 1,800 rpm, totally enclosed fan-cooled motor with 8,000 hours per year of operation, 75% of load, and an electrical rate of $0.05/kWh. Source: NEMA
Motors I Automation I Energy I Transmission & Distribution I Coatings
www.weg.net
A-8 Data subject to change without notice.
FRACTIONAL
HP
GENERAL
PURPOSE
NEMA PREMIUM
EFFICIENCY
CRUSHER®
DUTY
IEC
TRU-METRIC™
DEFINITE
PURPOSE
PUMP
MOTORS
MAQUINAS
LARGE MOTORS
ADD-ON™
MODIFICATIONS
MOTOR
TECHNICAL DATA
MOTOR
ELECTRICAL DATA
EXPLOSION
PROOF
Data subject to change without notice.
WEG QUALITY LOW VOLTAGE MOTOR FEATURES
THE EXTRAS THAT REALLY COUNT
FC 200 CAST IRON:
STATOR CASTING FRAME:
TERMINAL BOX:
SHAFT MATERIAL:
BEARING:
GREASE:
DESIGN TEMP. RISE:
WINDING IMPREGNATION:
WINDING INSULATION:
DEGREE OF PROTECTION
TEFC (IP55):
SERVICE FACTOR:
PAINTING:
HARDWARE:
FLEXIBILITY:
AREA CLASSIFICATION:
BALANCING:
STARTING:
TORQUES:
This is Explosion Proof quality cast iron (higher density), thus stronger with more efficiency and lower vibration levels.
Uni-body construction - Greater strength and no “Hot Spots”
Oversize Cast Iron Terminal Box on most lines fitted with O-Ring rubber sealing gaskets and filled with resistant
sponge-like material to seal the lead path through the frame and Rotatable by 90º turns.
4140 High Tensile Steel on Frame 404T and up (4, 6 and viI pole).
1045 Carbon Steel on frames 143T to 365T
316 Stainless Steel on Jet Pump motors (TEFC and ODP)
Best Quality Bearings (SKF, NSK)
Enlarged grease cavities and double strength bearings retainer caps.
All frames ESSO/EXXON POLYREX EM - blue color and is a polyurea based grease
(achieved a lubrication life of more than 700 hours at 177ºC (350ºF)). Other special greases available upon request.
80ºC (Class “B”) temperature rise
Class “H” Resin for all motors.
Resin continuous flow (trickle) on all windings-364T and up.
Class F (155ºC) Insulation System Tropicalized windings
IP55 (Severe Duty) (Water projected by a nozzle against the enclosure from any direction shall have no harmful effect)
V-ring Seals (prevents water and dust entering the motor around the shaft)
Tachonite Labryinth Seals on TEFC (Also available)
Drain Plugs (to remove excess water that results from condensation) – Gasketed conduit box
1.25 on NEMA TEFC motors 1HP to 100HP and 1.15 on 125HP and up
Internal/External parts painted with anti-corrosive alkidic resin base paint
All hardware components are zinc plated
F1 and F2 mounting (mechanically reversible)
Horizontal or Vertical mount - Circlips on opposite drive end - frames 324T and up
Class I, Division 2, Group C and D listed on nameplate
Designed for intermittent hazardous environments (except explosion proof)
Rotating parts dynamically balanced
According to IEC 34.14 (more stringent than NEMA standards)
Wye Delta starting to reduce inrush current standard for frames 254T and above in most lines.
Locked Rotor and Breakdown Torques that exceed Design C for almost ALL ratings
(NEMA Design C requires significantly higher LRT and BDT than NEMA Design B, the standard for most all other
manufacturers)
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-9
Data subject to change without notice. Data subject to change without notice.
FRACTIONAL
HP
GENERAL
PURPOSE
NEMA PREMIUM
EFFICIENCY
CRUSHER®
DUTY
IEC
TRU-METRIC™
DEFINITE
PURPOSE
PUMP
MOTORS
MAQUINAS
LARGE MOTORS
ADD-ON™
MODIFICATIONS
MOTOR
MECHANICAL DATA
MOTOR
ELECTRICAL DATA
EXPLOSION
PROOF
WARRANTY POLICY
Limited Warranty:
WEG Electric Corp. is proud of all of our product lines. WEG and its employees are committed to our customers and users to
provide the best designed and manufactured motors, drives and controls. WEG provides a limited warranty on our products
against defects in materials and workmanship for a specific period from the date of purchase. If a motor’s date code is within
its stated warranty period (18 month, 36 month, etc.), no proof of purchase is required. Otherwise, a copy of the invoice is
necessary to show the date of purchase.
Warranty Period:
• ThestandardwarrantyforWEGproductsis18monthsfromtheinvoicedate.
• ForW21NEMAPremiumEfciencymotorsthewarrantyis36monthsfromtheinvoicedate.
• ForIEEE841motors,thewarrantyis60monthsfromtheinvoicedate.
• Custommotorsarewarrantedfor24monthsfromthedatecode,unlessotherwiseagreed.
No Fault Warranty:
WEG offers a “No Fault Warranty” on Shark line motors and all motors up to and including 215-frame size motors. “No Fault
Warranty” is offered one time, per end user, per application. “No Fault Warranty” claims will require the nameplate off the
motor, brief description of failure and a copy of the WEG invoice. (For Shark motor claims, include the terminal box cover, a
brief description of the failure and a copy of the WEG invoice). If there is more than one failure, please contact the Warranty
Department for review. No EASA report is required for “No Fault Warranty Claims”.
Standard Warranty Procedures:
For motors above 215-frame size the following procedure applies. Correspondence may be provided via e-mail, fax, or regular
mail. Motor is to be inspected by a WEG Authorized Service Center, or if none available, an EASA-affiliated service shop. For
motors above 50 HP, pictures are required. Provide a copy of the original WEG sales invoice. If a warranty is granted, the motor
nameplate will need to be removed from the motor and mailed to WEG Warranty Department.
Authorized Service Centers:
WEG has service centers around the world to meet the needs of our customers. Information regarding the nearest service
center can be found on our web site at www.wegelectric.com or by calling 1-800-ASK-4WEG (1-800-275-4934). Any warranty
repair by a service shop must be pre-approved by WEG.
Warranty Service:
If a WEG product requires warranty service due to defective materials or workmanship, WEG will, at its option, either repair or
replace the defective product. Warranty is applied to products that have been, at all times, properly maintained and operated
or used under the normal operating conditions for which the product was designed. WEG is not responsible for any expenses
incurred in installation, removal from service, transportation (freight) or consequential expenses.
Limitation of Warranty:
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF QUALITY AND PERFORMANCE,
WRITTEN, ORAL OR IMPLIED, AND ALL OTHER WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE OR ARISING FROM COURSE OF DEALING OR USAGE OF TRADE ARE HEREBY
DISCLAIMED BY WEG. THE FOREGOING OBLIGATION TO REPAIR OR REPLACE WEG PRODUCTS OR PARTS SHALL BE THE SOLE
AND EXCLUSIVE REMEDY OF THE PURCHASER, ITS CUSTOMERS, OR USERS OF THE PRODUCTS OR PARTS.
Proper Storage of Motors:
When motors are not immediately installed, they should be stored in their normal upright position in a dry even temperature
place, free of dust, gases and corrosive atmosphere. Inactive motors tend to expel grease from between the bearing surfaces,
thereby removing the protective film that impedes metal-to-metal contact. At least once per month shafts should be rotated
in accordance with WEG installation and maintenance manual. Motors stored for a period exceeding one year should have the
bearings re-lubricated in accordance with WEG motor installation and maintenance manual.
Contact WEG Warranty:
Toll Free: 800-839-2529 Email: warranty@weg.net
www.weg.net
A-10 Data subject to change without notice.
FRACTIONAL
HP
GENERAL
PURPOSE
NEMA PREMIUM
EFFICIENCY
CRUSHER®
DUTY
IEC
TRU-METRIC™
DEFINITE
PURPOSE
PUMP
MOTORS
MAQUINAS
LARGE MOTORS
ADD-ON™
MODIFICATIONS
MOTOR
TECHNICAL DATA
MOTOR
ELECTRICAL DATA
EXPLOSION
PROOF
Data subject to change without notice.
Originally, EPAct covered motors were defined as follows:
•GeneralPurpose(NEMAandIEC)  •1to200HP   •3600,1800and1200RPM
•NEMA-TFrame    •NEMADesignAorB  •60Hz-230and460Volts
•ExplosionProof    •Continuousdutyrated  •Three-phase
•Foot-mounted    •Squirrelcageinduction
•BallorRollerBearings   •Thermallyprotected
Finding this definition too loose, the Department of Energy provided in June 20, 1997 a guidance to electric motor
manufacturers in order to help them to identify what motors are considered “general purpose, definite purpose or special
purpose”. The DOE classified the motors into these categories:
Category I – General purpose as defined by EPAct and applicable from October 24, 1997.
Category 2 – Definite purpose that can be used in most general purpose applications.
Category III, 4 and V – Motors not covered by EPAct (definite and special purpose motors).
•250HPandup(aboveEPAct)    •Two-speedmotors
•900RPMandlower     •Brakemotors
•NEMADesignCorD     •Inverterdutymotors
•DCmotors      •Single-phasemotors
•Close-coupledJM,JPandP-Basemotors   •Fractionalhorsepowermotors
If you are unsure whether your motor application is covered by EPAct, please contact WEG for clarification.
•AllWEGHighEfciencymotorsmeetEPActlevels.
•WEG’sNEMAPremiumEfciencylineexceedsEPActlevels.
•StandardefciencymotorsarestillavailableonacustombasisforinstallationoutsidetheUnitedStates.
Standard Efficiency motors covered by EPAct cannot be sold for application within the United States. These motors,
however, can be purchased for export.
Important Facts About WEG Motors
& the Energy Policy Act-EPAct
The Department of Energy’s Energy Policy Act (EPAct 92) became effective October 24, 1997. The purpose
is conservation, since electric motors represent a major portion of electrical energy consumption. Also,
the adoption of energy efficiency motors is expected to reduce the need for new power plants.
MOTORS COVERED BY EPAct 92
MOTORS NOT COVERED BY EPAct 92
WEG POLICY
MOTORS FOR EXPORT
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-11
Data subject to change without notice. Data subject to change without notice.
FRACTIONAL
HP
GENERAL
PURPOSE
NEMA PREMIUM
EFFICIENCY
CRUSHER®
DUTY
IEC
TRU-METRIC™
DEFINITE
PURPOSE
PUMP
MOTORS
MAQUINAS
LARGE MOTORS
ADD-ON™
MODIFICATIONS
MOTOR
MECHANICAL DATA
MOTOR
ELECTRICAL DATA
EXPLOSION
PROOF
Our Returns Policy
Important Facts About WEG Motors
& the Energy Policy Act-EPAct
PHASE: Single-phase, Three-phase...
MOTOR LINE: Explosion Proof, DAHLANDER...
DEGREE OF PROTECTION: IP21, IP55...
ENCLOSURE: ODP, TEFC...
FREQUENCY: 60Hz, 50 Hz...
VOLTAGE: 208-230/460V, 460V...
INSULATION CLASS: ‘F’, ‘B’...
SERVICE FACTOR: 1.25, 1.15...
AMBIENT TEMPERATURE: 104
BEARINGS: Ball, Roller...
MOUNTING:
F1 (terminal box position when
facing the shaft) F2...
WEG CATALOG NUMBER:
00536EP3E184T
(WEG Reference)
OUTPUT: 7.5 HP, 5.5kW
RPM: 3600 rpm or 1800 RPM...
FRAME: 184T
SPECIAL ENVIRONMENT OR OPERATING
CONDITIONS: High Ambient Temperature...
SPECIAL ELECTRICAL OR MECHANICAL FEATURES...
ADDITIONAL FEATURES...
FRACTIONAL HP
GENERAL PURPOSE
MOTORS
INTEGRAL HP
GENERAL PURPOSE
MOTORS
NEMA PREMIUM
MOTORS
CRUSHER DUTY®
PRODUCTS
TRU-METRIC™
IEC MOTORS
DEFINITE PURPOSE
MOTORS
MODIFICATIONS
& ACCESSORIES
DRIVES
& SOFT STARTERS
MOTOR CONTROLS
ADDITIONAL
INFORMATION
HOW TO ORDER WEG MOTORS
A complete and clearly specified purchase order will avoid inconvenience and save valuable time in order processing. Please
include the following in your purchase order:
Quantity WEG catalog number or a complete description of the motor as described below:
then the fee will be reduced to 10%.
If the returned products are deemed not to be in unused, undamaged
condition, or in original packaging, then additional fees will be applied
( up to and including full price of item).
Returns on any modified products will not be allowed.
Any products that are ordered as specials (with features that would
not allow them to be stocked items) cannot be returned.”
Our Return Policy
“WEG products that are purchased from our stocking warehouses
must be returned within 90 days, freight to be paid by customer.
Returned products must be unused, and in undamaged original
packaging.
If products are ordered incorrectly by the customer and need to be
returned to stock, then a 20% re-stocking charge will be applied. If
an order of equal or greater amount is placed at the time of the return,
www.weg.net
A-12 Data subject to change without notice.
FRACTIONAL
HP
GENERAL
PURPOSE
NEMA PREMIUM
EFFICIENCY
CRUSHER®
DUTY
IEC
TRU-METRIC™
DEFINITE
PURPOSE
PUMP
MOTORS
MAQUINAS
LARGE MOTORS
ADD-ON™
MODIFICATIONS
MOTOR
TECHNICAL DATA
MOTOR
ELECTRICAL DATA
EXPLOSION
PROOF
Data subject to change without notice.
WEG model numbers contains up to 15 characters, distributed as follows:
HP1 - .12 - .16 - .25 - .33 - .50 - .75 - 001 - 00151 - 002 - 003 - 004 - 00451 - 005 - 007 - 010 - 015 -
020 - 025 - 030 - 040 - 050 - 075 - 100 - 125 - 150 - 200 - 250 - 300 - 400 - 450 - 500 ...
RPM - 36: 3600rpm 18: 1800rpm 12: 1200rpm 09: 900rpm
30: 3000rpm 15: 1500rpm 10: 1000rpm 07: 750rpm
Model - Three Characters:
X X X
ENCLOSURE EFFICIENCY PHASE
E - Totally Enclosed S - Standard Efficiency 1 - 1 Phase
S - Sever duty IEEE 841 P - High Efficiency 3 - 3 Phase
O - Open drip proof T - NEMA Premium
X - eXplosion proof
Application + Frame -
For Definite Purpose lines, two pre-selected
letters must be used after voltage code:
1) Roller bearings are recommended for all belt driven applications
100HP and above.
1 For IEC Metric motors, the output will be given in kW:
.12 - .18 - .25 - .37 - .55 - .75 - 001 - 0015 - 002 - 003 - 004 - 0045 - 005 -
007 - 009 - 011 - 015 - 018 - 022 - 030 - 037 - 045 - 055 - 075 - 090 - 110 -
130 - 150 - 185 - 200 - 220 - 250 - 300 - 315 ...
2 0015 (1.5HP) is the rating that will have four digits for output
Identification and only one for RPM.
0045 (4.5kW) is the rating that will have four digits for output
identification and only one for RPM.
Frame
The frame number must be included as long as the
number of remaining characters allow.
Example: 143T, 143TC, 405T, 405TS, 184JP.
XXX XX XXX X X X X X X
(HP) (rpm) (Model) (Volts) (Application + Frame)
Ordering
V - 200 / 400V
X - Other Voltage
* Suitable for PWS on 254T and larger on low voltage connection.
AD -
AL -
BM -
CD -
CT -
DP -
FD -
HS -
IB -
IE -
IP -
JP -
KD -
OL -
OT -
OW -
PF -
R-
RB -
RB -
RS -
SA -
SP -
SS -
VD -
Auger Drive
ALuminum Frame
Brake Motors
Compressor Duty
Cooling Tower
Double Pole (2 Speed)
Farm Duty
Hollow Shaft
Inverter Duty (TEBC)
IEEE 841 (Severe Duty IEEE 841)
Irrigation Pumping
Jet Pump
Crusher-Duty
Manual OverLoad Protection
Oil Well Pumping - Triple Rated
Oil Well Pumping
Poultry Fan
(Before the frame size): Round Body
Roller Bearings (Integrals)
Resilient Base (Fractionals)
Rolled Steel Frame
Saw Arbor
Split Phase
Stainless Steel
Vector Duty (TEBC or TENV)
Data subject to change without notice. Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-13
Data subject to change without notice. Data subject to change without notice.
FRACTIONAL
HP
Fractional HP General Purpose
Ordering
ENDSHIELDS
Aluminum or Cast Iron Material
with special aerodynamic design
to promote maximum cooling
efficiency. The cast iron and
the polished bearing housings
provide for the ultimate bearing
life.
CENTRIFUGAL SWITCH
The Centrifugal Switch has
special helicoidal steel springs,
commanded by counter-weights,
assembled on a rigid base. The
Platinum point with a surplus-
spring eliminates oscillations and
avoids sparks and consequent
erosion of contacts.
CAPACITOR STARTING (SINGLE-PHASE)
To provide maximum torque.
FRAME
Made of cold laminated steel
plate, with an anti-corrosive
treatment.
STATOR
Composed of highest quality
silicone steel laminations.
WINDING
Made of varnished copper
wire, the stator slots are
Class “B” (130ºC) insulation,
with high dielectric rigidity,
and an excellent mechanical
resistance. Phase to phase
insulation is standard for all
three-phase motors.
OVERSIZED
SHIELDED
BEARINGS
Lubricated for
the life of the
bearing, and
sized to provide
maximum load
capacity and
bearing life.
ROTOR
Composed of magnetic laminations with low
electrical losses. Pure alloy aluminum bars,
form the cage, and are cast under pressure
into one piece.
INTERNAL FAN
Nylon, produces a large
volume of air at a minimum
noise level.
www.weg.net
A-14 Data subject to change without notice.
FRACTIONAL
HP
Data subject to change without notice.
SINGLE PHASE
These motors have a wide range of
applications. Because of their high start-
ing torque, they are particularly well-suit-
ed for heavy starting loads.
ODP TEFC
HIGHLIGHTS
High
starting
torque
Fractional HP
General Purpose
•Pumps
•AirConditioningequipment
•FarmEquipment
•Conveyors
•Businessmachines
•Gearreducers
•Compressors
•Tools
•Fansandblowers
•Packagingequipment
APPLICATIONS
•Single-phase,2,4or6pole,60Hz
•Voltage:115/208-230V
•Squirrelcagerotor
•Startcapacitor
•NEMAdimensions
•Class‘B’insulation(130ºC)
•Highstartingtorque
•BallBearings
•Opendripproof(ODP-IP21)
•Totallyenclosedfancooled(TEFC-IP55)
•Color:RAL7022(DarkGray)
•ContinuousDuty(S1),40ºCambient
•V-ringslingersonbothendshields
(for TEFC only)
•Designedtooperateinanyposition
(for TEFC only)
•Reversable
STANDARD FEATURES
•Class‘F’insulation
•Flangemount
•Specialvoltages
•Speciallydimensionedshaft
•Secondshaftend
•Stainlesssteelshaft
•Footless
•Othermountingcongurations
•ManualorAutomaticthermaloverload
protection
OPTIONAL FEATURES
APPROVED BY
LR 38324
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-15
Data subject to change without notice. Data subject to change without notice.
FRACTIONAL
HP
WITH AUTOMATIC OVERLOAD PROTECTION
RESILIENT BASE
RIGID BASE
FRACTIONAL HP – GENERAL PURPOSE MOTORS
ODP – NEMA 48 & 56 FRAMES – SINGLE-PHASE MOTORS
U = Split-Phase Motor
• ELECTRICAL FEATURES ON PAGE B-2.
• MECHANICAL FEATURES ON PAGE B-46.
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight
Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension Voltage Notes
1/8 1800 48 .1218OS1BB48 201 F1B 17 1.40 1.60 9.409 115/208-230V
1/6
3600 48 .1636OS1BB48 216 F1B 17 1.35 1.60 9.409 115/208-230V
1800 48 .1618OS1BB48 208 F1B 17 1.35 1.90 9.409 115/208-230V
1800 48 .1618OS1BSPB48 224 F1B 19 1.35 1.90 9.409 115/208- 230V U
3600 48 .2536OS1BB48 220 F1B 19 1.35 1.90 9.409 115/208-230V
1/4
3600 56 .2536OS1B56 220 F1B 19 1.35 1.90 9.764 115/208-230V
1800 48 .2518OS1BB48 209 F1B 19 1.35 2.40 9.409 115/208-230V
1800 48 .2518OS1BSPB48 240 F1B 20 1.35 2.40 9.409 115/208-230V U
1800 56 .2518OS1B56 209 F1B 19 1.35 2.40 9.764 115/208-230V
1/3
3600 48 .3336OS1BC48 222 F1B 22 1.35 2.60 10.197 115/208-230V
3600 56 .3336OS1BC56 222 F1B 22 1.35 2.60 10.551 115/208-230V
1800 48 .3318OS1BC48 237 F1B 22 1.35 3.00 10.197 115/208-230V
1800 48 .3318OS1BSPC48 258 F1B 22 1.35 3.00 10.197 115/208-230V U
1800 56 .3318OS1BC56 237 F1B 22 1.35 3.00 10.551 115/208-230V
1/2
3600 48 .5036OS1BC48 237 F1B 24 1.25 3.40 10.197 115/208-230V
3600 56 .5036OS1BC56 242 F1B 24 1.25 3.40 10.551 115/208-230V
1800 48 .5018OS1BC48 273 F1B 24 1.25 3.90 10.197 115/208-230V
1800 48 .5018OS1BSPC48 279 F1B 24 1.25 3.90 10.197 115/208-230V U
1800 56 .5018OS1BC56 264 F1B 24 1.25 3.90 10.551 115/208-230V
3/4 3600 56 .7536OS1BB56 274 F1B 32 1.25 5.50 11.102 115/208-230V
1800 56 .7518OS1BD56 328 F1B 36 1.25 5.50 12.283 115/208-230V
13600 56 00136OS1BD56 296 F1B 36 1.25 7.00 12.283 115/208-230V
1800 56 00118OS1BD56 355 F1B 39 1.15 7.00 12.283 115/208-230V
1 1/2 3600 56 00156OS1BD56 333 F1B 40 1.15 9.00 12.283 115/208-230V
1800 56 00158OS1BF56 438 F1B 51 1.15 10.5 13.464 115/208-230V
23600 56 00236OS1BF56 409 F1B 48 1.15 11.0 13.464 115/208-230V
1800 56 00218OS1BG56 522 F1B 55 1.00 13.0 13.858 115/208-230V
3 3600 56 00336OS1BG56 475 F1B 53 1.15 15.0 13.858 115/208-230V
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight
Lbs.
Service
Factor
FL
Amps
230V
“C” Dimen-
sion Voltage Notes
1/3 1800 56 .3318OS1BRBOC56 288 F1B 22 1.15 3.00 10.551 115/208-230V U
1/2 1800 56 .5018OS1BRBOC56 316 F1B 24 1.15 3.90 10.551 115/208-230V U
3/4 1800 56 .7518OS1BRBOD56 379 F1B 36 1.15 5.50 12.283 115/208-230V
1 1800 56 00118OS1BRBOD56 408 F1B 39 1.15 7.00 12.283 115/208-230V
1 1/2 3600 56 00156OS1BRBOD56 386 F1B 40 1.15 9.00 12.283 115/208-230V
1800 56 00158OS1BRBOD56 491 F1B 51 1.15 10.5 13.464 115/208-230V
•Single-phase,2,4or6pole,60Hz
•Voltage:115/208-230V
•Squirrelcagerotor
•Startcapacitor
•NEMAdimensions
•Class‘B’insulation(130ºC)
•Highstartingtorque
•BallBearings
•Opendripproof(ODP-IP21)
•Totallyenclosedfancooled(TEFC-IP55)
•Color:RAL7022(DarkGray)
•ContinuousDuty(S1),40ºCambient
•V-ringslingersonbothendshields
(for TEFC only)
•Designedtooperateinanyposition
(for TEFC only)
•Reversable
• ELECTRICAL FEATURES ON PAGE B-2.
• MECHANICAL FEATURES ON PAGE B-45.
www.weg.net
A-16 Data subject to change without notice.
FRACTIONAL
HP
Data subject to change without notice.
WITH MANUAL OVERLOAD PROTECTION
FRACTIONAL HP – GENERAL PURPOSE MOTORS
TEFC – NEMA 56 FRAMES – SINGLE-PHASE MOTORS
• ELECTRICAL FEATURES ON PAGE B-2.
• MECHANICAL FEATURES ON PAGE B-46.
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight
Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension Voltage Notes
1/4 3600 56 .2536ES1BB56 257 F1 31 1.15 2.50 11.496 115/208-230V
1800 56 .2518ES1BB56 267 F1 33 1.15 2.30 11.496 115/208-230V
1/3 3600 56 .3336ES1BB56 267 F1 36 1.15 2.80 11.496 115/208-230V
1800 56 .3318ES1BB56 283 F1 36 1.15 3.00 11.496 115/208-230V
1/2
3600 56 .5036ES1BB56 284 F1 40 1.15 3.80 11.496 115/208-230V
1800 56 .5018ES1BB56 312 F1 41 1.15 3.85 11.496 115/208-230V
1200 56 .5012ES1BD56 512 F1 41 1.15 4.90 12.677 115/208-230V
3/4
3600 56 .7536ES1BB56 297 F1 41 1.15 5.30 11.496 115/208-230V
1800 56 .7518ES1BB56 348 F1 46 1.15 5.60 11.496 115/208-230V
1200 56H .7512ES1BF56 648 F1 58 1.15 5.20 13.858 115/208-230V
13600 56 00136ES1BD56 376 F1 46 1.15 6.30 12.677 115/208-230V
1800 56 00118ES1BD56 401 F1 52 1.15 7.00 12.677 115/208-230V
1 1/2 3600 56 00156ES1BD56 432 F1 56 1.15 8.50 12.677 115/208-230V
1800 56H 00158ES1BF56 456 F1 58 1.15 9.00 13.858 115/208-230V
2 3600 56H 00236ES1BF56 561 F1 65 1.15 10.5 13.858 115/208-230V
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight
Lbs.
Service
Factor
FL
Amps
230V
“C” Dimen-
sion Voltage Notes
1/2 3600 56 .5036ES1BOLB56 316 F1 40 1.15 3.80 11.496 115/208-230V
3/4 3600 56 .7536ES1BOLB56 329 F1 41 1.15 5.30 11.496 115/208-230V
1 3600 56 00136ES1BOLD56 408 F1 46 1.15 6.30 12.677 115/208-230V
1 1/2 3600 56 00156ES1BOLD56 463 F1 56 1.15 8.50 12.677 115/208-230V
2 3600 56H 00236ES1BOLF56 592 F1 65 1.15 10.5 13.858 115/208-230V
RIGID BASE
• ELECTRICAL FEATURES ON PAGE B2.
• MECHANICAL FEATURES ON PAGE B-46.
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-17
Data subject to change without notice. Data subject to change without notice.
FRACTIONAL
HP
FRACTIONAL HP – GENERAL PURPOSE MOTORS
TEFC – NEMA 56 FRAMES – SINGLE-PHASE MOTORS
•Pumps
•AirConditioningequipment
•FarmEquipment
•Conveyors
•Businessmachines
•Gearreducers
•Compressors
•Tools
•Fansandblowers
•Packagingequipment
•Single-phase,2,4or6pole,60Hz
•Voltage:115/208-230V
•Squirrelcagerotor
•Startcapacitor
•NEMAdimensions
•Class‘B’insulation(130ºC)
•Highstartingtorque
•BallBearings
•Opendripproof(ODP-IP21)
•Totallyenclosedfancooled(TEFC-IP55)
•Color:RAL7022(DarkGray)
•ContinuousDuty(S1),40ºCambient
•V-ringslingersonbothendshields
(for TEFC only)
•Designedtooperateinanyposition
(for TEFC only)
•FC-149ange
•Class‘F’insulation
•Flangemount
•Specialvoltages
•Speciallydimensionedshaft
•Secondshaftend
•Stainlesssteelshaft
•Footless
•Othermountingcongurations
•ManualorAutomaticthermal
overload protection
•FC-95ange
SINGLE PHASE - C-FACE
These motors have a wide range of
applications. Because of their high starting
torque, they are particularly well-suited for
heavy starting loads. They are fitted with a
C-Face as well as mounting feet for flexible
mounting situations.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
ODPTEFC
APPROVED BY
LR 38324
Fractional HP
General Purpose
HIGHLIGHTS
High
starting
torque
E 104590
APPROVED BY
www.weg.net
A-18 Data subject to change without notice.
FRACTIONAL
HP
Data subject to change without notice.
C-FACE – RIGID BASE
C-FACE – FOOTLESS
FRACTIONAL HP – GENERAL PURPOSE MOTORS
ODP – NEMA 48 & 56 FRAMES – SINGLE-PHASE MOTORS
U = Split-Phase Motor
• ELECTRICAL FEATURES ON PAGE B-2.
• MECHANICAL FEATURES ON PAGE B-45.
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension Voltage Notes
1/8 3600 48C .1236OS1BB48C 226 F1B 17 1.40 1.60 9.409 115/208-230V
1800 48C .1218OS1BB48C 222 F1B 17 1.40 1.60 9.409 115/208-230V
1/6
3600 48C .1636OS1BB48C 237 F1B 17 1.35 1.60 9.409 115/208-230V
1800 48C .1618OS1BB48C 231 F1B 17 1.35 1.90 9.409 115/208-230V
1800 48C .1618OS1BSPB48C 247 F1B 19 1.35 1.90 9.409 115/208-230V U
1/4
3600 48C .2536OS1BB48C 241 F1B 19 1.35 1.90 9.409 115/208-230V
3600 56C .2536OS1B56C 241 F1B 19 1.35 1.90 9.764 115/208-230V
1800 48C .2518OS1BB48C 233 F1B 19 1.35 2.40 9.409 115/208-230V
1800 48C .2518OS1BSPB48C 263 F1B 20 1.35 2.40 9.409 115/208-230V U
1800 56C .2518OS1B56C 233 F1B 19 1.35 2.40 9.764 115/208-230V
1/3
3600 48C .3336OS1BC48C 244 F1B 22 1.35 2.60 10.197 115/208-230V
3600 56C .3336OS1BC56C 244 F1B 22 1.35 2.60 10.551 115/208-230V
1800 48C .3318OS1BC48C 258 F1B 22 1.35 3.00 10.197 115/208-230V
1800 48C .3318OS1BSPC48C 282 F1B 22 1.35 3.00 10.197 115/208-230V U
1800 56C .3318OS1BC56C 258 F1B 22 1.35 3.00 10.551 115/208-230V
1/2
3600 48C .5036OS1BC48C 258 F1B 24 1.25 3.40 10.197 115/208-230V
3600 56C .5036OS1BC56C 266 F1B 24 1.25 3.40 10.551 115/208-230V
1800 48C .5018OS1BC48C 296 F1B 24 1.25 3.90 10.197 115/208-230V
1800 48C .5018OS1BSPC48C 300 F1B 24 1.25 3.90 10.197 115/208-230V U
1800 56C .5018OS1BC56C 286 F1B 24 1.25 3.90 10.551 115/208-230V
3/4 3600 56C .7536OS1BB56C 297 F1B 32 1.25 5.50 11.102 115/208-230V
1800 56C .7518OS1BD56C 349 F1B 36 1.25 5.50 12.283 115/208-230V
13600 56C 00136OS1BD56C 317 F1B 36 1.25 7.00 12.283 115/208-230V
1800 56C 00118OS1BD56C 378 F1B 39 1.15 7.00 12.283 115/208-230V
1 1/2 3600 56C 00156OS1BD56C 355 F1B 40 1.15 9.00 12.283 115/208-230V
1800 56HC 00158OS1BF56C 461 F1B 51 1.15 10.5 13.464 115/208-230V
23600 56HC 00236OS1BF56C 432 F1B 48 1.15 11.0 13.464 115/208-230V
1800 56HC 00218OS1BG56C 544 F1B 55 1.00 13.0 13.858 115/208-230V
3 3600 56HC 00336OS1BG56C 496 F1B 53 1.15 15.0 13.858 230V
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension Voltage Notes
1/3 3600 56C .3336OS1BC56CFL 244 F1B 22 1.35 2.60 10.551 115/208-230V
1800 56C .3318OS1BC56CFL 258 F1B 22 1.35 3.00 10.551 115/208-230V
1/2 3600 56C .5036OS1BC56CFL 266 F1B 24 1.25 3.40 10.551 115/208-230V
1800 56C .5018OS1BC56CFL 286 F1B 24 1.25 3.90 10.551 115/208-230V
3/4 3600 56C .7536OS1BB56CFL 297 F1B 32 1.25 5.50 11.102 115/208-230V
1800 56C .7518OS1BD56CFL 349 F1B 36 1.25 5.50 12.283 115/208-230V
13600 56C 00136OS1BD56CFL 317 F1B 36 1.25 7.00 12.283 115/208-230V
1800 56C 00118OS1BD56CFL 378 F1B 39 1.15 7.00 12.283 115/208-230V
1 1/2 3600 56C 00156OS1BD56CFL 355 F1B 40 1.15 9.00 12.283 115/208-230V
1800 56C 00158OS1BF56CFL 461 F1B 51 1.15 10.5 13.464 115/208-230V
23600 56C 00236OS1BF56CFL 432 F1B 48 1.15 11.5 13.464 115/208-230V
1800 56C 00218OS1BG56CFL 544 F1B 55 1.00 13.0 13.858 115/208-230V
3 3600 56C 00336OS1BG56CFL 496 F1B 53 1.15 15.0 13.858 208-230V
• ELECTRICAL FEATURES ON PAGE B-2.
• MECHANICAL FEATURES ON PAGE B-45.
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-19
Data subject to change without notice. Data subject to change without notice.
FRACTIONAL
HP
FRACTIONAL HP – GENERAL PURPOSE MOTORS
ODP – NEMA 48 & 56 FRAMES – SINGLE-PHASE MOTORS
C-FACE – RIGID BASE
C-FACE – FOOTLESS
NOTE: These motors are fitted with a C-Face only for mounting. They are Round Body frames with no mounting feet.
FRACTIONAL HP – GENERAL PURPOSE MOTORS
TEFC – NEMA 56 FRAMES – SINGLE-PHASE MOTORS
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension Voltage Notes
1/4 3600 56C .2536ES1BB56C 280 F1 31 1.15 2.50 11.496 115/208-230V
1800 56C .2518ES1BB56C 288 F1 33 1.15 2.30 11.496 115/208-230V
1/3 3600 56C .3336ES1BB56C 288 F1 36 1.15 2.80 11.496 115/208-230V
1800 56C .3318ES1BB56C 304 F1 36 1.15 3.00 11.496 115/208-230V
1/2
3600 56C .5036ES1BB56C 313 F1 40 1.15 3.80 11.496 115/208-230V
1800 56C .5018ES1BB56C 333 F1 41 1.15 3.85 11.496 115/208-230V
1200 56C .5012ES1BD56C 535 F1 44 1.15 4.90 11.496 115/208-230V
3/4
3600 56C .7536ES1BB56C 353 F1 41 1.15 5.30 11.496 115/208-230V
1800 56C .7518ES1BB56C 370 F1 46 1.15 5.60 11.496 115/208-230V
1200 56HC .7512ES1BF56C 669 F1 56 1.15 5.20 13.858 115/208-230V
13600 56C 00136ES1BD56C 378 F1 46 1.15 6.30 12.677 115/208-230V
1800 56C 00118ES1BD56C 424 F1 52 1.15 7.00 12.677 115/208-230V
1 1/2 3600 56C 00156ES1BD56C 454 F1 56 1.15 8.50 12.677 115/208-230V
1800 56HC 00158ES1BF56C 478 F1 58 1.15 9.00 13.858 115/208-230V
2 3600 56HC 00236ES1BF56C 537 F1 65 1.15 10.5 13.858 115/208-230V
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension Voltage Notes
1/3 3600 56C .3336ES1BB56CFL 288 F1 36 1.15 2.80 11.496 115/208-230V
1800 56C .3318ES1BB56CFL 304 F1 36 1.15 3.00 11.496 115/208-230V
1/2
3600 56C .5036ES1BB56CFL 313 F1 40 1.15 3.80 11.496 115/208-230V
1800 56C .5018ES1BB56CFL 333 F1 41 1.15 3.85 11.496 115/208-230V
1200 56C .5012ES1BD56CFL 535 F1 44 1.15 4.90 12.677 115/208-230V
3/4
3600 56C .7536ES1BB56CFL 353 F1 41 1.15 5.30 11.496 115/208-230V
1800 56C .7518ES1BB56CFL 370 F1 46 1.15 5.60 11.496 115/208-230V
1200 56C .7512ES1BF56CFL 669 F1 56 1.15 5.20 13.858 115/208-230V
13600 56C 00136ES1BD56CFL 378 F1 46 1.15 6.30 12.677 115/208-230V
1800 56C 00118ES1BD56CFL 424 F1 52 1.15 7.00 12.677 115/208-230V
1 1/2 3600 56C 00156ES1BD56CFL 454 F1 56 1.15 8.50 12.677 115/208-230V
1800 56C 00158ES1BF56CFL 478 F1 58 1.15 9.00 13.858 115/208-230V
2 3600 56C 00236ES1BF56CFL 537 F1 65 1.15 10.5 13.858 115/208-230V
• ELECTRICAL FEATURES ON PAGE B-2.
• MECHANICAL FEATURES ON PAGE B-46.
• ELECTRICAL FEATURES ON PAGE B2.
• MECHANICAL FEATURES ON PAGE B-46.
www.weg.net
A-20 Data subject to change without notice.
FRACTIONAL
HP
Data subject to change without notice.
THREE PHASE
FOOT MOUNT
These motors have a wide range of applications. Because
of their high starting torque, they are particularly well-
suited for heavy starting loads. These motors utilize phase
insulation materials and the TEFC motors are suitable for
use with a VFD.
•Pumps
•AirConditioningequipment
•FarmEquipment
•Conveyors
•Businessmachines
•Gearreducers
•Compressors
•Tools
•Fansandblowers
•Packagingequipment
APPLICATIONS
•Three-phase,2,4or6pole,60Hz
•Squirrelcagerotor
•NEMAdimensions
•Highstartingtorque
•ServiceFactor1.15orbetter
•Ballbearings
•Color:RAL7022(DarkGray)
•Class‘B’insulation(ODP)
•Class‘F’insulation(TEFC)
•Continuousduty,40ºCambient
•V-ringslingerinbothendshields
•Designedtooperateinanyposition
•ClassI,Div2.GroupsA,B,C,D&T3
(TEFC only)
•DualRated(60/50Hz)
•5:1CT/1000:1VTforTEFConly
STANDARD FEATURES
•Class‘F’insulation
•Flangemount
•Specialvoltages
•Speciallydimensionedshaft
•Secondshaftend
•Stainlesssteelshaft
•Footless
•Othermountingcongurations
•Thermalprotection
OPTIONAL FEATURES
ODP TEFC
APPROVED BY
LR 38324
Fractional HP
General Purpose
HIGHLIGHTS
High
starting
torque
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-21
Data subject to change without notice. Data subject to change without notice.
FRACTIONAL
HP
•Three-phase,2,4or6pole,60Hz
•Squirrelcagerotor
•NEMAdimensions
•Highstartingtorque
•ServiceFactor1.15orbetter
•Ballbearings
•Color:RAL7022(DarkGray)
•Class‘B’insulation(ODP)
•Class‘F’insulation(TEFC)
•Continuousduty,40ºCambient
•V-ringslingerinbothendshields
•Designedtooperateinanyposition
•ClassI,Div2.GroupsA,B,C,D&T3
(TEFC only)
•DualRated(60/50Hz)
•5:1CT/1000:1VTforTEFConly
ODP – RIGID BASE
TEFC – RIGID BASE
FRACTIONAL HP – GENERAL PURPOSE MOTORS
NEMA 56 FRAMES – THREE-PHASE MOTORS
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight
Lbs.
Service
Factor
FL
Amps
460V
“C”
Dimension Voltage Notes
1/4
3600 56 .2536OS3EA56 201 F1B 20 1.35 0.60 58.0 10.315 208-230/460V
1800 56 .2518OS3EA56 204 F1B 21 1.35 0.57 62.0 10.315 208-230/460V
1200 56 .2512OS3EA56 254 F1B 21 1.35 0.80 56.0 10.315 208-230/460V
1/3
3600 56 .3336OS3EA56 208 F1B 21 1.35 0.80 59.0 10.315 208-230/460V
1800 56 .3318OS3EA56 221 F1B 22 1.35 0.70 65.0 10.315 208-230/460V
1200 56 .3312OS3EA56 292 F1B 26 1.35 1.00 60.0 10.315 208-230/460V
1/2
3600 56 .5036OS3EA56 221 F1B 23 1.25 1.05 61.0 10.315 208-230/460V
1800 56 .5018OS3EA56 253 F1B 24 1.25 1.00 67.0 10.315 208-230/460V
1200 56 .5012OS3EB56 304 F1B 31 1.25 2.30 63.5 11.103 208-230/460V
3/4
3600 56 .7536OS3EB56 259 F1B 24 1.25 1.35 66.0 11.103 208-230/460V
1800 56 .7518OS3EB56 282 F1B 26 1.25 1.40 69.0 11.103 208-230/460V
1200 56 .7512OS3ED56 332 F1B 37 1.15 1.50 66.5 12.284 208-230/460V
1
3600 56 00136OS3EB56 300 F1B 26 1.25 1.65 69.0 11.103 208-230/460V
1800 56 00118OS3EB56 299 F1B 29 1.15 1.75 71.0 11.103 208-230/460V
1200 56 00112OS3EF56 394 F1B 42 1.15 1.80 70.1 13.465 208-230/460V
1 1/2 3600 56 00156OS3ED56 320 F1B 31 1.15 2.37 71.2 12.284 208-230/460V
1800 56 00158OS3ED56 305 F1B 34 1.15 2.50 75.0 12.284 208-230/460V
23600 56 00236OS3ED56 365 F1B 34 1.15 2.85 75.0 12.284 208-230/460V
1800 56H 00218OS3EF56 324 F1B 36 1.15 3.10 75.0 13.465 208-230/460V
3 3600 56H 00336OS3EF56 405 F1B 39 1.15 4.05 77.0 13.465 208-230/460V
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight
Lbs.
Service
Factor
FL
Amps
460V
“C”
Dimension Voltage Notes
1/4 3600 56 .2536ES3EB56 237 F1 31 1.15 0.47 65.4 11.496 208-230/460V
1800 56 .2518ES3EB56 249 F1 31 1.15 0.59 64.1 11.496 208-230/460V
1/3 3600 56 .3336ES3EB56 249 F1 33 1.15 0.61 73.0 11.496 208-230/460V
1800 56 .3318ES3EB56 253 F1 33 1.15 0.58 72.0 11.496 208-230/460V
1/2
3600 56 .5036ES3EB56 258 F1 36 1.15 0.81 77.0 11.496 208-230/460V
1800 56 .5018ES3EB56 287 F1 34 1.15 0.85 74.0 11.496 208-230/460V
1200 56 .5012ES3EB56 417 F1 36 1.15 1.27 71.0 11.496 208-230/460V
3/4
3600 56 .7536ES3EB56 287 F1 40 1.15 1.09 79.0 11.496 208-230/460V
1800 56 .7518ES3EB56 311 F1 40 1.15 1.11 77.0 11.496 208-230/460V
1200 56 .7512ES3ED56 427 F1 40 1.15 1.60 75.2 12.677 208-230/460V
1
3600 56 00136ES3EB56 338 F1 44 1.15 1.44 81.0 11.496 208-230/460V
1800 56 00118ES3ED56 321 F1 46 1.15 1.47 80.0 12.677 208-230/460V
1200 56 00112ES3EF56 432 F1 46 1.15 1.92 76.7 12.677 208-230/460V
1 1/2 3600 56 00156ES3EB56 370 F1 48 1.15 1.97 82.5 11.496 208-230/460V
1800 56 00158ES3ED56 362 F1 52 1.15 2.11 81.0 12.677 208-230/460V
23600 56 00236ES3ED56 414 F1 58 1.15 2.67 84.0 12.677 208-230/460V
1800 56H 00218ES3EF56 392 F1 61 1.15 2.84 82.0 13.858 208-230/460V
3 3600 56H 00336ES3EF56 484 F1 67 1.15 3.80 84.5 13.858 208-230/460V
• ELECTRICAL FEATURES ON PAGE B-4.
• MECHANICAL FEATURES ON PAGE B-45.
• ELECTRICAL FEATURES ON PAGE B-4.
• MECHANICAL FEATURES ON PAGE B-46.
www.weg.net
A-22 Data subject to change without notice.
FRACTIONAL
HP
Data subject to change without notice.
THREE PHASE
C-FACE
These motors have a wide range of applications.
Because of their high starting torque, they are
particularly well-suited for heavy starting loads. These
motors utilize phase insulation materials and the TEFC
motors are suitable for use with a VFD.
ODP TEFC
Fractional HP
General Purpose
HIGHLIGHTS
High
starting
torque
•Pumps
•AirConditioningequipment
•FarmEquipment
•Conveyors
•Businessmachines
•Gearreducers
•Compressors
•Tools
•Fansandblowers
•Packagingequipment
•Threephase,2,4or6pole,60Hz
•Squirrelcagerotor
•NEMAdimensions
•Highstartingtorque
•ServiceFactor1.15orbetter
•Ballbearings
•Color:RAL7022(DarkGray)
•Class‘B’insulation(ODP)
•Class‘F’insulation(TEFC)
•Continuousduty,40ºCambient
•V-ringslingerinbothendshields
•Designedtooperateinanyposition
•ClassI,Div2,GroupsA,B,C,D&T3(TEFConly)
•DualRated(60/50Hz)
•FC-149ange
•Class‘F’insulation
•Flangemount
•Specialvoltages
•Speciallydimensionedshaft
•Secondshaftend
•Stainlesssteelshaft
•Footless
•Othermountingcongurations
•FC-95ange
APPROVED BY
LR 38324
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-23
Data subject to change without notice. Data subject to change without notice.
FRACTIONAL
HP
C-FACE – RIGID BASE
C-FACE – FOOTLESS
FRACTIONAL HP – GENERAL PURPOSE MOTORS
ODP – NEMA 56 FRAMES – THREE-PHASE MOTORS
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight
Lbs.
Service
Factor
FL
Amps
460V
“C”
Dimension Voltage Notes
1/4
3600 56C .2536OS3EA56C 222 F1B 20 1.35 0.60 58.0 10.315 208-230/460V
1800 56C .2518OS3EA56C 225 F1B 21 1.35 0.57 62.0 10.315 208-230/460V
1200 56C .2512OS3EA56C 275 F1B 23 1.35 0.80 56.0 10.315 208-230/460V
1/3
3600 56C .3336OS3EA56C 231 F1B 21 1.35 0.80 59.0 10.315 208-230/460V
1800 56C .3318OS3EA56C 242 F1B 22 1.35 0.70 65.0 10.315 208-230/460V
1200 56C .3312OS3EA56C 315 F1B 26 1.35 1.00 60.0 10.315 208-230/460V
1/2
3600 56C .5036OS3EA56C 242 F1B 23 1.25 1.05 61.0 10.315 208-230/460V
1800 56C .5018OS3EA56C 274 F1B 24 1.25 1.00 67.0 10.315 208-230/460V
1200 56C .5012OS3EB56C 328 F1B 31 1.25 1.30 63.5 11.103 208-230/460V
3/4
3600 56C .7536OS3EB56C 283 F1B 24 1.25 1.35 66.0 11.103 208-230/460V
1800 56C .7518OS3EB56C 303 F1B 26 1.25 1.40 69.0 11.103 208-230/460V
1200 56C .7512OS3ED56C 354 F1B 37 1.15 1.50 66.5 12.284 208-230/460V
1
3600 56C 00136OS3EB56C 321 F1B 26 1.25 1.65 69.0 11.103 208-230/460V
1800 56C 00118OS3EB56C 320 F1B 29 1.15 1.75 71.0 11.103 208-230/460V
1200 56C 00112OS3EF56C 416 F1B 42 1.15 1.80 70.1 13.465 208-230/460V
1 1/2 3600 56C 00156OS3ED56C 344 F1B 31 1.15 2.37 71.2 12.284 208-230/460V
1800 56C 00158OS3ED56C 329 F1B 34 1.15 2.50 75.0 12.284 208-230/460V
23600 56C 00236OS3ED56C 355 F1B 34 1.15 2.85 75.0 12.284 208-230/460V
1800 56HC 00218OS3EF56C 346 F1B 36 1.15 3.10 75.0 13.465 208-230/460V
3 3600 56HC 00336OS3EF56C 379 F1B 39 1.15 4.05 77.0 13.465 208-230/460V
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym
Approx.
Shipping
Weight
Lbs.
Service
Factor
FL
Amps
460V
“C”
Dimension Voltage Notes
1/3 3600 56C .3336OS3EA56CFL 231 F1B 21 1.35 0.80 59.0 10.315 208-230/460V
1800 56C .3318OS3EA56CFL 242 F1B 22 1.35 0.70 65.0 10.315 208-230/460V
1/2
3600 56C .5036OS3EA56CFL 242 F1B 23 1.25 1.05 61.0 10.315 208-230/460V
1800 56C .5018OS3EA56CFL 274 F1B 24 1.25 1.00 67.0 10.315 208-230/460V
1200 56C .5012OS3EB56CFL 328 F1B 29 1.25 1.30 63.5 11.103 208-230/460V
3/4
3600 56C .7536OS3EB56CFL 283 F1B 24 1.25 1.35 66.0 11.103 208-230/460V
1800 56C .7518OS3EB56CFL 303 F1B 26 1.25 1.40 69.0 11.103 208-230/460V
1200 56C .7512OS3EB56CFL 354 F1B 31 1.15 1.50 66.5 11.103 208-230/460V
13600 56C 00136OS3EB56CFL 301 F1B 26 1.25 1.65 69.0 11.103 208-230/460V
1800 56C 00118OS3EB56CFL 320 F1B 29 1.15 1.75 71.0 11.103 208-230/460V
1 1/2 3600 56C 00156OS3ED56CFL 344 F1B 31 1.15 2.37 71.2 12.284 208-230/460V
1800 56C 00158OS3ED56CFL 329 F1B 34 1.15 2.50 75.0 12.284 208-230/460V
2 3600 56C 00236OS3ED56CFL 355 F1B 34 1.15 2.85 75.0 12.284 208-230/460V
3 3600 56C 00336OS3EF56CFL 379 F1B 39 1.15 4.05 77.0 13.465 208-230/460V
Note: These motors are fitted with a C-Face only for mounting. They are Round Body frames with no mounting feet.
• ELECTRICAL FEATURES ON PAGE B-4.
• MECHANICAL FEATURES ON PAGE B-45.
• ELECTRICAL FEATURES ON PAGE B-4.
• MECHANICAL FEATURES ON PAGE B-45.
www.weg.net
A-24 Data subject to change without notice.
FRACTIONAL
HP
FRACTIONAL HP – GENERAL PURPOSE MOTORS
TEFC – NEMA 56 FRAMES – THREE-PHASE MOTORS
C-FACE – RIGID BASE
C-FACE – FOOTLESS
HP RPM NEMA
Frame Catalog Number List Price Mult.
Sym
Approx.
Shipping
Weight
Lbs.
Service
Factor
FL
Amps
460V
“C”
Dimension Voltage Notes
1/4 3600 56C .2536ES3EB56C 258 F1 31 1.15 0.47 65.4 11.496 208-230/460V
1800 56C .2518ES3EB56C 270 F1 31 1.15 0.59 64.1 11.496 208-230/460V
1/3 3600 56C .3336ES3EB56C 270 F1 33 1.15 0.61 73.0 11.496 208-230/460V
1800 56C .3318ES3EB56C 274 F1 33 1.15 0.58 72.0 11.496 208-230/460V
1/2
3600 56C .5036ES3EB56C 282 F1 36 1.15 0.81 77.0 11.496 208-230/460V
1800 56C .5018ES3EB56C 311 F1 34 1.15 0.85 74.0 11.496 208-230/460V
1200 56C .5012ES3EB56C 440 F1 36 1.15 1.27 71.0 11.496 208-230/460V
3/4
3600 56C .7536ES3EB56C 311 F1 40 1.15 1.09 79.0 11.496 208-230/460V
1800 56C .7518ES3EB56C 332 F1 40 1.15 1.11 77.0 11.496 208-230/460V
1200 56C .7512ES3ED56C 449 F1 40 1.15 1.60 75.2 11.496 208-230/460V
1
3600 56C 00136ES3EB56C 361 F1 44 1.15 1.44 81.0 11.496 208-230/460V
1800 56C 00118ES3ED56C 345 F1 46 1.15 1.47 80.0 12.677 208-230/460V
1200 56C 00112ES3EF56C 454 F1 46 1.15 1.92 76.7 12.677 208-230/460V
1 1/2 3600 56C 00156ES3EB56C 392 F1 48 1.15 1.97 82.5 11.496 208-230/460V
1800 56C 00158ES3ED56C 384 F1 52 1.15 2.11 81.0 12.677 208-230/460V
23600 56C 00236ES3ED56C 437 F1 58 1.15 2.67 84.0 12.677 208-230/460V
1800 56HC 00218ES3EF56C 414 F1 61 1.15 2.84 82.0 13.858 208-230/460V
3 3600 56HC 00336ES3EF56C 507 F1 67 1.15 3.80 84.5 13.858 208-230/460V
HP RPM NEMA
Frame Catalog Number List Price Mult.
Sym
Approx.
Shipping
Weight
Lbs.
Service
Factor
FL
Amps
460V
“C”
Dimension Voltage Notes
1/3 3600 56C .3336ES3EB56CFL 270 F1 33 1.15 0.61 73.0 11.496 208-230/460V
1800 56C .3318ES3EB56CFL 274 F1 33 1.15 0.58 72.0 11.496 208-230/460V
1/2
3600 56C .5036ES3EB56CFL 282 F1 36 1.15 0.81 77.0 11.496 208-230/460V
1800 56C .5018ES3EB56CFL 311 F1 34 1.15 0.85 74.0 11.496 208-230/460V
1200 56C .5012ES3EB56CFL 440 F1 36 1.15 1.27 71.0 11.496 208-230/460V
3/4
3600 56C .7536ES3EB56CFL 311 F1 40 1.15 1.09 79.0 11.496 208-230/460V
1800 56C .7518ES3EB56CFL 332 F1 40 1.15 1.11 77.0 11.496 208-230/460V
1200 56C .7512ES3ED56CFL 449 F1 40 1.15 1.60 75.2 12.677 208-230/460V
1
3600 56C 00136ES3EB56CFL 361 F1 44 1.15 1.44 81.0 11.496 208-230/460V
1800 56C 00118ES3ED56CFL 345 F1 46 1.15 1.47 80.0 12.677 208-230/460V
1200 56C 00112ES3EF56CFL 454 F1 46 1.15 1.92 76.7 13.858 208-230/460V
1 1/2 3600 56C 00156ES3EB56CFL 392 F1 48 1.15 1.97 82.5 11.496 208-230/460V
1800 56C 00158ES3ED56CFL 384 F1 52 1.15 2.11 81.0 12.677 208-230/460V
23600 56C 00236ES3ED56CFL 437 F1 58 1.15 2.67 84.0 12.677 208-230/460V
1800 56C 00218ES3EF56CFL 414 F1 61 1.15 2.84 82.0 13.858 208-230/460V
3 3600 56C 00336ES3EF56CFL 507 F1 67 1.15 3.80 84.5 13.858 208-230/460V
• ELECTRICAL FEATURES ON PAGE B-4.
• MECHANICAL FEATURES ON PAGE B-46.
• ELECTRICAL FEATURES ON PAGE B-4.
• MECHANICAL FEATURES ON PAGE B-46.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-25
Data subject to change without notice. Data subject to change without notice.
GENERAL
PURPOSE
W21 HIGH EFFICIENCY
GENERAL PURPOSE MOTORS
www.weg.net
A-26 Data subject to change without notice.
GENERAL
PURPOSE
Data subject to change without notice.
ROLLED STEEL LINE – GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
FAN COVER
Made of steel, the fan cover offers
superior mechanical rigidity,
corrosion resistance and extended
lifetime.
FAN
WEG has designed fans and fan
covers to produce one of the quietest
electric motors in the market. Fans
are fully efficient cooling ensuring
low motor temperature rise, this
minimizes winding losses, thus
increasing motor efficiency.
WEG uses the Finite Element
Analysis (FEA) software on its motor
parts (endshield, frames, T-boxes).
FEA is used to detect irregularities
and thermal simulations of
mechanical components. This
system provides a unified product
development environment offering a
tight integration across a wide range
of design processes ranging from
geometry modeling and CAD editing,
meshing and pre-processing,
advanced analysis (structural,
thermal, electromagnetics, etc.) and
robust design optimization.
BEARINGS
WEG motors are fitted with the
highest quality bearings selected
among the best manufacturers in
the world and designed to ensure
long life to the motor even under
heavy working conditions
STATOR
Composed of highest quality steel
laminations.
ROTOR
Composed of magnetic laminations
with low electrical losses. Pure alloy
aluminum bars form the cage and
are cast under pressure into one
piece.
FRAME
Made of cold laminated steel plate
with an anti-corrosive treatment.
WINDING
The wire are supplied with patented
WISE (WEG Insulation System
Evolution), which allows three times
longer motor lifetime designed to
work in environments with excess
moisture and are suitable for Variable
Frequency Drive application.
DRAIN PLUGS
Provided with plastic drain plug
allowing drainage of condensed
water.
SHAFT
WEG uses SAE/AISI 1040/45 steel
as standard, which provides high
mechanical resistance, preventing
flexing under load and minimizes
fatigue which extends lifetime
performance. Specially designed
to withstand torques caused during
motor acceleration and deceleration
(brake). Size is larger than standard
motor and upon special design,
shaft can have second end.
ENDSHIELDS
Made of cast iron, provided
with external fins for better heat
dissipation, thus increasing bearing
life.
SEALS
WEG motors are fitted with V-ring
seals (Oil seals and Lip seals
as optional) to provide the best
possible protection in dusty and high
moisture environments.
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-27
Data subject to change without notice. Data subject to change without notice.
GENERAL
PURPOSE
W21 HIGH EFFICIENCY
GENERAL PURPOSE
ROLLED STEEL LINE – GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
www.weg.net
A-28 Data subject to change without notice.
GENERAL
PURPOSE
Data subject to change without notice.
TEFC – THREE PHASE
FOOT & FLANGE MOUNT
WEG’s W21™ Severe Duty High Efficiency motors are designed to meet or exceed all
EPAct requirements for energy efficiency as defined by the DOE. The efficiency values
are certified according to the DOE’s regulations (Certificate of Compliance number CC029A).
W21™ motors meet the most demanding severe duty application requirements. These TEFC
motors are all cast iron construction, with enclosures rated IP55 to handle wet and dirty environments.
They are painted with WEG’s own special system, using synthetic enamel alkyd resin paints, which exceed the ASTM B117
standard for salt spray test. The W21™ line is rated for 1.25 Service Factor up to 100HP. This line is rated for dual frequency and
dual voltage (with reduced service factor) up to 60 HP. The entire line is certified Inverter Rated for use with a VFD. This rating
meets or exceeds NEMA MG 1 Part 31 NEMA Specifications.
General Purpose
W21 High Efficiency
Available in
Frames 143T to 586/7
• Efciency Certication number CC029A according to
US Department of Energy Regulations
• Three-phase, 2, 4, 6 and 8 pole, 60Hz
• Voltage: 208-230/460V, 200V, 460V or 575V
• 50/60Hz rated up to 60HP (Same HP for both
frequencies) (For 75HP and up please contact your
sales office)
• Totally Enclosed Fan Cooled - TEFC (IP55)
• Squirrel cage rotor / Aluminum die cast
• V-ring slingers on both endshields (586/7 frame
equipped with labyrinth taconite seal as standard)
• Ball bearings are supplied as standard (RB part
numbers supplied with roller bearings)
• 1045 Carbon Steel Shaft for frames up to 365T.
• 4140 steel shaft for motors 404T and above.
(3600 RPM motors supplied with 1045)
• NEMA dimensions
• Class ‘F’ insulation for all frames
• Class ‘H’ impregnation resin
• Temperature rise: Class ‘B’ (80ºC)
STANDARD FEATURES – Cast Iron
• NEMA ratings design ‘B’
• Most ratings meet Design C Torque*
• Service Factor: 1.25 up to 100HP
1.15 from 125 HP and up
• Continuous duty (S1)
• F1 mounted T-Box (F2 mounted
capable)
• Stainless steel nameplate AISI 316
with laser etching
• Paint: Synthetic enamel alkyd resin
base (exceeds ASTM B117 salt spray
test)
• Color: RAL 5009- Blue (2, 4 and 6
pole) paint plan 201A
• Automatic drain plugs - pressure
compensated
• Regreasable bearings, positive pres-
sure lubrication system (frames 254T
and up)
• Gasketed conduit box
• Meets NEMA MG Part 31 for use with
VFD at 12:1 constant torque speed
range. Speed range can be extended
with optional Blower Kit
• Class 1, Div 2, Groups A, B, C & D, T3
For standard features (Frame 56), see page A-17.
* Design B torque rating on nameplate can be re-plated for Design C for 15-200Hp 1800
and 1200 rpm. All motors are tested according to IEEE 112 std. - method ‘B’ or C390 CSA .
Energy efficiency motors verified by UL in addition to the DOE.
APPROVED BY
LR 38324
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-29
Data subject to change without notice. Data subject to change without notice.
GENERAL
PURPOSE
• Pumps
• Fans
• Crushers
• Conveyors
• Machine tools
• Milling applications
• Centrifugal machines
• Presses
• Elevators
• Looms
• Grinders
• Woodworking
• Cooling
• Packaging equipment
• Other Severe Duty applications
APPLICATIONS
• Special voltages
• Specially designed shaft
• Space heaters (standard
on 586/7 frames)
• Labyrinth taconite seal available
for all ratings
• Thermistors, Thermostats
or RTD’s (PT100)
• Additional terminal box
• Drip cover (canopy) for shaft
down applications
• Cable glands
• ‘C’ and ‘D’ anges for all ratings
• Roller bearings on drive end
available for all frames
• Special epoxy painting
OPTIONAL FEATURES
Available in
Frames 143T to 586/7
For standard/optional features
for Frame 56 see page A-17
General Purpose
W21 High Efficiency
STANDARD FEATURES – Cast Iron
W22
Transitioning
to*
* Valid for 900rpm motors or ratings above 200HP (any rpm). For W22 add the sufx
“–W22” to the motor model. For C-dimension, please check page B-96-97
www.weg.net
A-30 Data subject to change without notice.
GENERAL
PURPOSE
Data subject to change without notice.
W21 HIGH EFFICIENCY
GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
APPLICATIONS STANDARD
FEATURES
• Pumps
• Compressors
• Fans
• Machine Tools
• Other General Purpose
OPTIONAL
FEATURES
• Voltage: 575V and others
• Degree of Protection: IP56
• Lip seal, Oil seal
• Class “H” insulation
* More options available upon request
• Frames (143/5T up to 254/6T)
• Voltages: 208-230/460V
• Degree of Protection: IP55
• V’ring seal
• Ball bearings (ZZ up to 256T)
• Plastic fan
• Class “F” insulation
• Service factor: 1.15
• Color: Munsell N1 (Black)
• 1-20 Hp
• Meets NEMA MG 1 Part 31 for use with
VFD 2:1 CT and 10:1 VT
General Purpose
Rolled Steel Line
TEFC - High Efficiency
HIGHLIGHTS
• Lighter weight
• Meets or exceeds
EPACT requirements
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-31
Data subject to change without notice. Data subject to change without notice.
GENERAL
PURPOSE
W22
Transitioning
to*
EPACT CC# CC029A
FOOT MOUNT
• ELECTRICAL FEATURES ON PAGE B-4, B-5, B-6, & B-7.
• MECHANICAL FEATURES ON PAGE B-46...B-49
W21 HIGH EFFICIENCY
GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
HP RPM NEMA
FRAME Catalog Number List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
1/4 3600 56 .2536ES3EB56 237 F1 27 0.47 65.4 11.496 208-230/460V
1800 56 .2518ES3EB56 249 F1 28 0.59 64.1 11.496 208-230/460V
1/3 3600 56 .3336ES3EB56 249 F1 29 0.61 73.0 11.496 208-230/460V
1800 56 .3318ES3EB56 253 F1 30 0.58 72.0 11.496 208-230/460V
1/2
3600 56 .5036ES3EB56 258 F1 31 0.81 77.0 11.496 208-230/460V
1800 56 .5018ES3EB56 287 F1 32 0.85 74.0 11.496 208-230/460V
1200 56 .5012ES3EB56 417 F1 36 1.27 71.0 11.496 208-230/460V
3/4
3600 56 .7536ES3EB56 287 F1 33 1.09 79.0 11.496 208-230/460V
1800 56 .7518ES3EB56 311 F1 35 1.11 77.0 11.496 208-230/460V
1200 56 .7512ES3ED56 427 F1 43 1.60 75.2 12.677 208-230/460V
1
3600 56 00136ES3EB56 338 F1 37 1.44 81.0 11.496 208-230/460V
1800 56 00118ES3ED56 321 F1 39 1.47 80.0 12.677 208-230/460V
1800 143T 00118EP3ERS143T 358 RS 39 1.47 82.5 14.095 208-230/460V RS
1800 143T 00118EP3E143T 411 W1 47 1.49 82.5 12.250 208-230/460V
1800 143T 00118EP3H143T 411 W1 47 1.49 82.5 12.250 575V
1200 56 00112ES3EF56 432 F1 45 1.92 76.7 12.677 208-230/460V
1200 145T 00112EP3ERS145T 440 RS 45 1.70 80.0 14.095 208-230/460V RS
1200 145T 00112EP3E145T 505 W1 47 1.70 80.0 13.234 208-230/460V
1200 145T 00112EP3H145T 505 W1 47 1.70 80.0 13.234 575V
900 182T 00109EP3E182T 799 W1 95 2.31 74.0 14.860 208-230/460V
1.5
3600 56 00156ES3EB56 370 F1 40 1.97 82.5 11.496 208-230/460V
3600 143T 00156EP3ERS143T 375 RS 40 1.99 82.5 14.095 208-230/460V RS
3600 143T 00156EP3E143T 431 W1 45 1.99 82.5 12.250 208-230/460V
1800 56 00158ES3ED56 362 F1 43 2.11 81.0 12.677 208-230/460V
1800 145T 00158EP3ERS145T 363 RS 43 2.05 84.0 14.095 208-230/460V RS
1800 145T 00158EP3E145T 417 W1 54 2.05 84.0 13.234 208-230/460V
1800 145T 00158EP3H145T 417 W1 54 2.05 84.0 13.234 575V
1200 182T 00152EP3ERS182T 547 RS 74 2.37 85.5 16.404 208-230/460V RS
1200 182T 00152EP3E182T 628 W1 77 2.38 85.5 14.860 208-230/460V
1200 182T 00152EP3H182T 628 W1 77 2.38 85.5 14.860 575V
900 184T 00159EP3E184T 983 W1 110 2.71 77.0 15.860 208-230/460V
2
3600 56 00236ES3ED56 414 F1 44 2.67 84.0 12.677 208-230/460V
3600 145T 00236EP3ERS145T 428 RS 44 2.60 84.0 14.095 208-230/460V RS
3600 145T 00236EP3E145T 491 W1 47 2.60 84.0 13.234 208-230/460V
3600 145T 00236EP3H145T 491 W1 47 2.60 84.0 13.234 575V
1800 56 00218ES3EF56 392 F1 50 2.84 82.0 13.858 208-230/460V
1800 145T 00218EP3ERS145T 405 RS 50 2.70 84.0 14.095 208-230/460V RS
1800 145T 00218EP3E145T 465 W1 56 2.70 84.0 13.234 208-230/460V
1800 145T 00218EP3H145T 465 W1 56 2.70 84.0 13.234 575V
1200 184T 00212EP3ERS184T 595 RS 91 3.20 86.5 16.404 208-230/460V RS
1200 184T 00212EP3E184T 683 W1 88 3.20 86.5 15.860 208-230/460V
1200 184T 00212EP3H184T 683 W1 88 3.20 86.5 15.860 575V
900 213T 00209EP3E213T 1,480 W1 141 3.46 82.5 18.021 208-230/460V
* Valid for 900rpm motors or ratings above 200HP (any rpm). For W22 add the sufx
“–W22” to the motor model. For C-dimension, please check page B-96-97
www.weg.net
A-32 Data subject to change without notice.
GENERAL
PURPOSE
Data subject to change without notice.
EPACT CC# CC029A
FOOT MOUNT
W21 HIGH EFFICIENCY
GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
• ELECTRICAL FEATURES ON PAGE B-4, B-5, B-6, & B-7.
• MECHANICAL FEATURES ON PAGE B-46...B-49
HP RPM NEMA
FRAME Catalog Number List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
3
3600 56 00336ES3EF56 484 F1 49 3.80 84.5 13.858 208-230/460V
3600 W182/4T 00336EP3ERS182T 513 RS 61 3.67 85.5 17.719 208-230/460V RS
3600 W182T 00336EP3E182T 589 W1 106 3.59 85.5 15.630 208-230/460V
3600 W182T 00336EP3H182T 589 W1 106 3.59 85.5 15.630 575V
1800 W182/4T 00318EP3ERS182T 459 RS 59 4.15 87.5 17.719 208-230/460V RS
1800 W182T 00318EP3E182T 527 W1 97 3.90 87.5 15.630 208-230/460V
1800 W182T 00318EP3H182T 527 W1 97 3.90 87.5 15.630 575V
1200 213T 00312EP3ERS213T 776 RS 104 4.26 87.5 20.257 208-230/460V RS
1200 213T 00312EP3E213T 891 W1 123 4.15 87.5 18.021 208-230/460V
1200 213T 00312EP3H213T 891 W1 123 4.15 87.5 18.021 575V
900 215T 00309EP3E215T 1,609 W1 159 4.33 84.0 19.517 208-230/460V
5
3600 W182/4T 00536EP3ERS184T 627 RS 64 6.10 87.5 17.719 208-230/460V RS
3600 W184T 00536EP3E184T 720 W1 114 5.90 87.5 15.630 208-230/460V
3600 W184T 00536EP3H184T 720 W1 114 5.90 87.5 15.630 575V
1800 W182/4T 00518EP3ERS184T 543 RS 68 6.90 87.5 17.719 208-230/460V RS
1800 W184T 00518EP3E184T 624 W1 102 6.48 87.5 15.630 208-230/460V
1800 W184T 00518EP3H184T 624 W1 102 6.48 87.5 15.630 575V
1200 215T 00512EP3ERS215T 997 RS 145 7.08 87.5 20.257 208-230/460V RS
1200 215T 00512EP3E215T 1,144 W1 175 6.80 87.5 19.517 208-230/460V
1200 215T 00512EP3H215T 1,144 W1 175 6.80 87.5 19.517 575V
900 254T 00509EP3E254T 2,703 W1 232 7.99 85.5 23.213 208-230/460V
7.5
3600 213T 00736EP3ERS213T 856 RS 112 9.00 88.5 20.257 208-230/460V RS
3600 213T 00736EP3E213T 983 W1 150 8.66 88.5 18.021 208-230/460V
3600 213T 00736EP3H213T 983 W1 150 8.66 88.5 18.021 575V
1800 213T 00718EP3ERS213T 719 RS 120 9.64 89.5 20.257 208-230/460V RS
1800 213T 00718EP3E213T 826 W1 150 9.53 89.5 18.021 208-230/460V
1800 213T 00718EP3H213T 826 W1 150 9.53 89.5 18.021 575V
1200 254T 00712EP3ERS254T 1,436 RS 190 9.53 89.5 22.956 208-230/460V RS
1200 254T 00712EP3E254T 1,649 W1 262 9.53 89.5 23.213 208-230/460V
1200 254T 00712EP3H254T 1,649 W1 262 9.53 89.5 23.213 575V
900 256T 00709EP3E256T 2,856 W1 276 11.2 86.5 24.945 208-230/460V
10
3600 215T 01036EP3ERS215T 997 RS 136 11.8 89.5 20.257 208-230/460V RS
3600 215T 01036EP3E215T 1,144 W1 150 11.7 89.5 19.517 208-230/460V
3600 215T 01036EP3H215T 1,144 W1 150 11.7 89.5 19.517 575V
1800 215T 01018EP3ERS215T 856 RS 134 12.8 89.5 20.257 208-230/460V RS
1800 215T 01018EP3E215T 983 W1 165 12.8 90.2 19.517 208-230/460V
1800 215T 01018EP3H215T 983 W1 165 12.8 90.2 19.517 575V
1200 256T 01012EP3ERS256T 1,653 RS 206 13.4 89.5 22.956 208-230/460V RS
1200 256T 01012EP3E256T 1,897 W1 304 13.4 89.5 24.945 208-230/460V
1200 256T 01012EP3H256T 1,897 W1 304 13.4 89.5 24.945 575V
900 284T 01009EP3E284T 3,786 W1 373 13.6 88.5 26.433 208-230/460V
* Valid for 900rpm motors or ratings above 200HP (any rpm). For W22 add the sufx
“–W22” to the motor model. For C-dimension, please check page B-96-97
W22
Transitioning
to*
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-33
Data subject to change without notice. Data subject to change without notice.
GENERAL
PURPOSE
W21 HIGH EFFICIENCY – GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
EPACT CC# CC029A
FOOT MOUNT
• ELECTRICAL FEATURES ON PAGE B-5, B-6, B-7.
• MECHANICAL FEATURES ON PAGE B-47...B-61.
EPACT CC# CC029A
W21 HIGH EFFICIENCY
GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
HP RPM NEMA
FRAME Catalog Number List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
15
3600 W254/6T 01536EP3ERS254T 1,428 RS 162 17.0 90.2 21.500 208-230/460V RS
3600 254T 01536EP3E254T 1,639 W1 280 17.0 90.2 23.213 208-230/460V
3600 254T 01536EP3H254T 1,639 W1 280 17.0 90.2 23.213 575V
1800 W254/6T 01518EP3ERS254T 1,302 RS 178 18.5 91.0 21.500 208-230/460V RS
1800 254T 01518EP3E254T 1,495 W1 266 17.9 91.0 21.500 208-230/460V
1800 254T 01518EP3H254T 1,495 W1 266 17.9 91.0 21.500 575V
1200 284T 01512EP3E284T 2,626 W1 346 17.3 91.0 21.500 208-230/460V
1200 284T 01512EP3H284T 2,626 W1 346 17.3 91.0 21.500 575V
900 286T 01509EP3E286T 4,291 W1 423 19.0 88.5 21.500 208-230/460V
20
3600 W254/6T 02036EP3ERS256T 1,730 RS 167 23.6 90.2 22.956 208-230/460V RS
3600 256T 02036EP3E256T 1,985 W1 313 23.3 90.2 21.500 208-230/460V
3600 256T 02036EP3H256T 1,985 W1 313 23.3 90.2 21.500 575V
1800 W254/6T 02018EP3ERS256T 1,598 RS 182 24.4 91.0 24.925 208-230/460V RS
1800 256T 02018EP3E256T 1,834 W1 313 24.4 91.0 24.945 208-230/460V
1800 256T 02018EP3H256T 1,834 W1 313 24.4 91.0 24.945 575V
1200 286T 02012EP3E286T 3,301 W1 470 23.5 91.0 27.929 208-230/460V
1200 286T 02012EP3H286T 3,301 W1 470 23.5 91.0 27.929 575V
900 324T 02009EP3E324T 5,277 W1 537 28.0 89.5 29.620 208-230/460V u
25
3600 284TS 02536EP3E284TS 2,368 W1 353 29.0 91.0 25.061 208-230/460V
3600 284TS 02536EP3H284TS 2,368 W1 353 29.0 91.0 25.061 575V
1800 284TS 02518EP3E284TS 2,195 W1 437 29.6 92.4 25.061 208-230/460V
1800 284T 02518EP3E284T 2,195 W1 437 29.6 92.4 26.433 208-230/460V
1800 284T 02518EP3H284T 2,195 W1 437 29.6 92.4 26.433 575V
1200 324T 02512EP3E324T 3,989 W1 572 29.8 91.7 29.620 208-230/460V
1200 324T 02512EP3H324T 3,989 W1 572 29.8 91.7 29.620 575V
900 326T 02509EP3E326T 5,924 W1 616 35.5 89.5 31.116 208-230/460V u
30
3600 286TS 03036EP3E286TS 2,819 W1 404 33.8 91.0 26.557 208-230/460V
3600 286TS 03036EP3H286TS 2,819 W1 404 33.8 91.0 26.557 575V
1800 286TS 03018EP3E286TS 2,686 W1 481 34.4 92.4 26.557 208-230/460V
1800 286T 03018EP3E286T 2,686 W1 481 34.4 92.4 27.929 208-230/460V
1800 286T 03018EP3H286T 2,686 W1 481 34.4 92.4 27.929 575V
1200 326T 03012EP3E326T 4,394 W1 625 35.4 91.7 31.116 208-230/460V
1200 326T 03012EP3H326T 4,394 W1 625 35.4 91.7 31.116 575V
900 364T 03009EP3E364T 8,446 W1 926 38.4 91.0 33.709 208-230/460V u
40
3600 324TS 04036EP3E324TS 3,937 W1 561 46.1 91.7 28.120 208-230/460V
3600 324TS 04036EP3H324TS 3,937 W1 561 46.1 91.7 28.120 575V
1800 324TS 04018EP3E324TS 3,665 W1 587 47.6 93.0 28.120 208-230/460V
1800 324T 04018EP3E324T 3,665 W1 587 47.6 93.0 29.620 208-230/460V
1800 324T 04018EP3H324T 3,665 W1 587 47.6 93.0 29.620 575V
1200 364T 04012EP3E364T 5,935 W1 992 47.1 93.0 33.709 208-230/460V
1200 364T 04012EP3H364T 5,935 W1 992 47.1 93.0 33.709 575V
900 365T 04009EP3E365T 9,973 W1 998 52.4 91.0 33.709 208-230/460V u
* Valid for 900rpm motors or ratings above 200HP (any rpm). For W22 add the sufx
“–W22” to the motor model. For C-dimension, please check page B-96-97
W22
Transitioning
to*
www.weg.net
A-34 Data subject to change without notice.
GENERAL
PURPOSE
Data subject to change without notice.
EPACT CC# CC029A
EPACT CC# CC029A
FOOT MOUNT
W21 HIGH EFFICIENCY – GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREEPHASE
• ELECTRICAL FEATURES ON PAGE B-6, B-7.• MECHANICAL FEATURES ON PAGE B-47.
HP RPM NEMA
FRAME Catalog Number List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
50
3600 326TS 05036EP3E326TS 4,196 W1 594 56.5 92.4 29.616 208-230/460V
1800 326TS 05018EP3E326TS 4,087 W1 640 57.8 93.6 29.616 208-230/460V
1800 326T 05018EP3E326T 4,087 W1 640 57.8 93.6 31.116 208-230/460V
1800 326T 05018EP3H326T 4,087 W1 640 57.8 93.6 31.116 575V
1200 365T 05012EP3E365T 7,171 W1 992 58.1 93.0 33.709 208-230/460V
900 404T 05009EP3E404T 11,339 W1 1,227 64.9 91.7 38.077 208-230/460V u
60
3600 364TS 06036EP3E364TS 6,428 W1 917 69.0 93.0 31.583 208-230/460V
1800 364TS 06018EP3E364TS 6,282 W1 963 67.0 93.6 31.583 208-230/460V
1800 364T 06018EP3E364T 6,282 W1 963 67.0 93.6 33.709 208-230/460V
1800 364T 06018EP3H364T 6,282 W1 963 67.0 93.6 33.709 575V
1200 404T 06012EP3E404T 9,024 W1 1,222 70.1 93.6 38.077 208-230/460V
900 405T 06009EP3E405T 12,908 W1 1,373 77.0 91.7 38.077 208-230/460V u
75
3600 365TS 07536EP3E365TS 7,815 W1 1,025 82.5 93.0 31.583 208-230/460V
1800 365TS 07518EP3E365TS 7,508 W1 1,010 82.4 94.1 31.583 208-230/460V
1800 365T 07518EP3E365T 7,508 W1 1,010 82.4 94.1 33.709 208-230/460V
1800 365T 07518EP3G365T 7,508 W1 1,010 82.4 94.1 33.709 460V
1800 365T 07518EP3H365T 7,508 W1 1,010 82.4 94.1 33.709 575V
1200 405T 07512EP3E405T 10,048 W1 1,291 86.8 93.6 38.077 208-230/460V
900 444T 07509EP3E444T 16,918 W1 1,558 90.5 93.0 43.773 208-230/460V u
100
3600 405TS 10036EP3E405TS 9,502 W1 1,361 113 93.6 35.077 208-230/460V
3600 405TS 10036EP3G405TS 9,502 W1 1,361 113 93.6 35.077 460V
1800 405TS 10018EP3E405TS 9,547 W1 1,273 115 94.5 35.077 208-230/460V
1800 405TS 10018EP3G405TS 9,547 W1 1,273 115 94.5 35.077 460V
1800 405T 10018EP3E405T 9,547 W1 1,273 115 94.5 38.077 208-230/460V
1800 405T 10018EP3ERB405T 9,547 W1 1,273 115 94.5 38.077 208-230/460V £
1800 405T 10018EP3G405T 9,547 W1 1,273 115 94.5 38.077 460V
1800 405T 10018EP3GRB405T 9,547 W1 1,273 115 94.5 38.077 460V £
1800 405T 10018EP3H405T 9,547 W1 1,273 115 94.5 38.077 575V
1200 444T 10012EP3E444T 13,027 W1 1,720 121 94.1 43.776 208-230/460V
1200 444T 10012EP3G444T 13,027 W1 1,720 121 94.1 43.776 460V
1200 444T 10012EP3GRB444T 13,027 W1 1,720 121 94.1 43.776 460V £
900 445T 10009EP3G445T 21,909 W1 1,811 123 93.0 43.776 460V u
125
3600 444TS 12536EP3G444TS 12,791 W1 1,801 131 94.5 40.026 460V
1800 444TS 12518EP3G444TS 12,678 W1 1,647 138 94.5 40.026 460V
1800 444T 12518EP3G444T 12,678 W1 1,647 138 94.5 43.776 460V
1800 444T 12518EP3GRB444T 12,678 W1 1,647 138 94.5 43.776 460V £
1200 445T 12512EP3G445T 15,429 W1 2,050 141 94.1 43.776 460V
1200 445T 12512EP3GRB445T 15,429 W1 2,050 141 94.1 43.776 460V £
900 504 12509EP3G504 25,246 W1 2,146 148 93.6 43.776 460V u
150
3600 445TS 15036EP3G445TS 15,903 W1 1,865 160 94.5 40.026 460V
1800 445TS 15018EP3G445TS 14,952 W1 1,841 168 95.0 40.026 460V
1800 445T 15018EP3G445T 14,952 W1 1,841 168 95.0 43.776 460V
1800 445T 15018EP3GRB445T 14,952 W1 1,841 168 95.0 43.776 460V £
1200 447T 15012EP3G447T 18,105 W1 2,167 171 95.0 47.299 460V
1200 447T 15012EP3GRB447T 18,105 W1 2,167 171 95.0 47.299 460V £
1200 504 15012EP3G504 16,458 W1 2,167 171 95.0 49.449 460V
900 505 15009EP3G505 28,688 W1 2,387 178 93.6 49.449 460V u
* Valid for 900rpm motors or ratings above 200HP (any rpm). For W22 add the sufx
“–W22” to the motor model. For C-dimension, please check page B-96-97
W22
Transitioning
to*
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-35
Data subject to change without notice. Data subject to change without notice.
GENERAL
PURPOSE
EPACT CC# CC029A
FOOT MOUNT
W21 HIGH EFFICIENCY – GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
• ELECTRICAL FEATURES ON PAGE B-7.
• MECHANICAL FEATURES ON PAGE B-47.
HP RPM NEMA
FRAME Catalog Number List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
200
3600 447TS 20036EP3G447TS 19,635 W1 2,072 223 95.0 43.549 460V
1800 445T 20018EP3G445T 18,506 W1 2,117 230 95.0 43.776 460V
1800 445T 20018EP3GRB445T 18,506 W1 2,117 230 95.0 43.776 460V £
1800 447T 20018EP3G447T 18,506 W1 2,194 230 95.0 47.299 460V
1800 447T 20018EP3GRB447T 18,506 W1 2,194 230 95.0 47.299 460V £
1800 504 20018EP3G504 18,506 W1 2,194 230 95.0 49.449 460V
1800 504 20018EP3GRB504 18,506 W1 2,194 230 95.0 49.449 460V £
1200 447T 20012EP3G447T 22,410 W1 2,467 236 95.0 47.299 460V
1200 447T 20012EP3GRB447T 22,410 W1 2,467 236 95.0 47.299 460V £
1200 505 20012EP3G505 22,410 W1 2,467 236 95.0 49.449 460V
900 449T 20009EP3G449T 43,236 W1 4,005 263 94.5 49.449 460V u
250
3600 447TS 25036EP3G447TS 21,318 W1 2,266 268 95.4 43.549 460V
3600 449TS 25036EP3G449TS-W22 24,878 W1 2459 270 95.4 52.940 460V W22
1800 447T 25018EP3G447T 23,435 W1 2,513 283 95.4 47.299 460V
1800 447T 25018EP3GRB447T 23,435 W1 2,513 283 95.4 47.299 460V £
1800 449T 25018EP3G449T-W22 25,315 W1 2,333 283 95.4 56.690 460V W22
1800 505 25018EP3G505 23,435 W1 2,513 283 95.4 49.449 460V
1800 449T 25018EP3GRB449T-W22 25,315 W1 2,333 283 95.4 56.690 460V £W22
1800 505 25018EP3GRB505 23,435 W1 2,513 283 95.4 49.449 460V £
1200 449T 25012EP3G449T 35,744 W1 3,126 298 95.0 54.976 460V
1200 586/7 25012EP3G586/7 38,854 W1 4,002 305 95.0 59.421 460V
900 586/7 25009EP3G586/7 49,462 W1 4,457 318 95.0 59.421 460V u 1
300
3600 449TS 30036EP3G449TS 33,348 W1 2,778 320 95.8 51.226 460V
3600 586/7S 30036EP3G586/7S 37,896 W1 3,374 325 95.4 48.845 460V
1800 449T 30018EP3G449T 29,765 W1 2,816 333 95.4 54.976 460V
1800 586/7 30018EP3G586/7 32,352 W1 3,837 329 95.4 59.421 460V
1800 449T 30018EP3GRB449T-W22 29,765 W1 2,525 337 95.4 56.690 460V £W22
1800 586/7 30018EP3GRB586/7 32,352 W1 3,837 329 95.4 59.421 460v £
1200 449T 30012EP3G449T 36,229 W1 3,358 364 95.0 54.976 460V
1200 586/7 30012EP3G586/7 39,379 W1 4,487 355 95.0 59.421 460V
350
3600 449TS 35036EP3G449TS 36,622 W1 3,328 379 95.8 54.976 460V 1
3600 586/7S 35036EP3G586/7S 40,692 W1 3,605 384 95.4 48.845 460V
1800 449T 35018EP3G449T 36,337 W1 3,333 394 95.4 54.976 460V 1
1800 586/7 35018EP3G586/7 39,072 W1 4,300 398 95.4 59.421 460V
1800 449T 35018EP3GRB449T-W22 36,337 W1 2,794 396 95.8 56.690 460V £W22
1800 586/7 35018EP3GRB586/7 39,072 W1 4,300 398 95.4 59.421 460V £
1200 586/7 35012EP3G586/7 45,881 W1 4,719 428 95.4 59.421 460V
400
1800 586/7 40018EP3G586/7 42,828 W1 4,686 459 95.4 59.421 460V
1800 586/7 450018EP3GRB586/7 42,828 W1 4,686 459 95.40 59.421 460V £
1200 586/7 40012EP3G586/7 46,828 W1 4,961 481 95.40 59.421 460V
450
1800 586/7 45018EP3G586/7 44,663 W1 5,204 505 95.40 59.421 460V u
1800 586/7 45018EP3GRB586/7 44,663 W1 5,204 505 95.40 59.421 460V u£
1200 586/7 45012EP3G586/7 48,977 W1 5,248 543 95.40 59.421 460V u 1
500 1800 586/7 50018EP3G586/7 47,129 W1 5,424 564 95.80 59.421 460V 1
1800 586/7 50018EP3GRB586/7 47,129 W1 5,424 564 95.80 59.421 460V £ 1
* Valid for 900rpm motors or ratings above 200HP (any rpm). For W22 add the sufx
“–W22” to the motor model. For C-dimension, please check page B-96-97
W22
Transitioning
to*
www.weg.net
A-36 Data subject to change without notice.
GENERAL
PURPOSE
Data subject to change without notice.
W21 HIGH EFFICIENCY – GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
EPACT CC# CC029A
‘C’ FLANGE – FOOT MOUNT
• ELECTRICAL FEATURES ON PAGE B-4, B-5, & B-6.
• MECHANICAL FEATURES ON PAGE B-46...B-49.
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460V
FL.
Eff.
%
“C”
Dimension
(in.)
Voltage NOTES
1/4 3600 56C .2536ES3EB56C 258 F1 27 0.47 65.4 11.496 208-230/460V
1800 56C .2518ES3EB56C 270 F1 28 0.59 64.1 11.496 208-230/460V
1/3 3600 56C .3336ES3EB56C 270 F1 29 0.61 73.0 11.496 208-230/460V
1800 56C .3318ES3EB56C 274 F1 30 0.58 72.0 11.496 208-230/460V
1/2
3600 56C .5036ES3EB56C 282 F1 31 0.81 77.0 11.496 208-230/460V
1800 56C .5018ES3EB56C 311 F1 32 0.85 74.0 11.496 208-230/460V
1200 56C .5012ES3EB56C 440 F1 36 1.27 71.0 11.496 208-230/460V
3/4
3600 56C .7536ES3EB56C 311 F1 33 1.09 79.0 11.496 208-230/460V
1800 56C .7518ES3EB56C 332 F1 35 1.11 77.0 11.496 208-230/460V
1200 56C .7512ES3ED56C 449 F1 43 1.60 75.2 11.496 208-230/460V
1
3600 56C 00136ES3EB56C 361 F1 37 1.44 81.0 11.496 208-230/460V
1800 56C 00118ES3ED56C 345 F1 39 1.47 80.0 12.677 208-230/460V
1800 143TC 00118EP3ERS143TC 383 RS 39 1.47 80.0 14.095 208-230/460V RS
1800 143TC 00118EP3E143TC 440 W1 47 1.49 82.5 12.250 208-230/460V
1200 56C 00112ES3EF56C 454 F1 45 1.92 76.7 12.677 208-230/460V
1200 145TC 00112EP3ERS145TC 465 RS 45 1.70 80.0 14.095 208-230/460V RS
1200 145TC 00112EP3E145TC 534 W1 47 1.70 80.0 13.234 208-230/460V
1.5
3600 56C 00156ES3EB56C 392 F1 40 1.97 82.5 11.496 208-230/460V
3600 143TC 00156EP3ERS143TC 399 RS 40 1.99 82.5 14.095 208-230/460V RS
3600 143TC 00156EP3E143TC 458 W1 45 1.99 82.5 12.250 208-230/460V
1800 56C 00158ES3ED56C 384 F1 43 2.11 81.0 12.677 208-230/460V
1800 145TC 00158EP3ERS145TC 388 RS 43 2.05 81.0 14.095 208-230/460V RS
1800 145TC 00158EP3E145TC 445 W1 54 2.05 84.0 13.234 208-230/460V
1200 182TC 00152EP3ERS182TC 580 RS 74 2.37 85.5 16.404 208-230/460V RS
1200 182TC 00152EP3E182TC 666 W1 77 2.38 85.5 14.860 208-230/460V
2
3600 56C 00236ES3ED56C 437 F1 44 2.67 84.0 12.677 208-230/460V
3600 145TC 00236EP3ERS145TC 451 RS 44 2.60 84.0 14.095 208-230/460V RS
3600 145TC 00236EP3E145TC 518 W1 47 2.60 84.0 13.234 208-230/460V
1800 56C 00218ES3EF56C 414 F1 50 2.84 82.0 13.858 208-230/460V
1800 145TC 00218EP3ERS145TC 428 RS 50 2.70 82.0 14.095 208-230/460V RS
1800 145TC 00218EP3E145TC 492 W1 56 2.70 84.0 13.234 208-230/460V
1200 184TC 00212EP3ERS184TC 628 RS 91 3.20 86.5 16.404 208-230/460V RS
1200 184TC 00212EP3E184TC 721 W1 88 3.20 86.5 15.860 208-230/460V
3
3600 56C 00336ES3EF56C 507 F1 49 3.80 84.5 13.858 208-230/460V
3600 W182/4TC 00336EP3ERS182TC 546 RS 61 3.67 85.5 17.719 208-230/460V RS
3600 W182TC 00336EP3E182TC 627 W1 106 3.59 85.5 15.630 208-230/460V
1800 W182/4TC 00318EP3ERS182TC 492 RS 59 4.15 87.5 17.719 208-230/460V RS
1800 W182TC 00318EP3E182TC 565 W1 97 3.90 87.5 15.630 208-230/460V
1200 213TC 00312EP3ERS213TC 822 RS 104 4.26 87.5 20.257 208-230/460V RS
1200 213TC 00312EP3E213TC 943 W1 123 4.15 87.5 18.021 208-230/460V
5
3600 W182/4TC 00536EP3ERS184TC 660 RS 64 6.10 87.5 17.719 208-230/460V RS
3600 W184TC 00536EP3E184TC 758 W1 114 5.90 87.5 15.630 208-230/460V
1800 W182/4TC 00518EP3ERS184TC 577 RS 68 6.90 87.5 17.719 208-230/460V RS
1800 W184TC 00518EP3E184TC 662 W1 102 6.48 87.5 15.630 208-230/460V
1200 215TC 00512EP3ERS215TC 1,041 RS 145 7.08 87.5 20.257 208-230/460V RS
1200 215TC 00512EP3E215TC 1,195 W1 175 6.80 87.5 19.517 208-230/460V
7.5
3600 213TC 00736EP3ERS213TC 901 RS 112 9.00 88.5 20.257 208-230/460V RS
3600 213TC 00736EP3E213TC 1,034 W1 150 8.66 88.5 18.021 208-230/460V
1800 213TC 00718EP3ERS213TC 764 RS 120 9.64 89.5 20.257 208-230/460V RS
1800 213TC 00718EP3E213TC 877 W1 150 9.53 89.5 18.021 208-230/460V
1200 254TC 00712EP3ERS254TC 1,497 RS 190 9.53 89.5 22.956 208-230/460V RS
1200 254TC 00712EP3E254TC 1,718 W1 262 9.53 89.5 23.213 208-230/460V
* Valid for 900rpm motors or ratings above 200HP (any rpm). For W22 add the sufx
“–W22” to the motor model. For C-dimension, please check page B-96-97
W22
Transitioning
to*
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-37
Data subject to change without notice. Data subject to change without notice.
GENERAL
PURPOSE
W21 HIGH EFFICIENCY – GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
EPACT CC# CC029A
‘C’ FLANGE – FOOT MOUNT
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460V
FL.
Eff.
%
“C”
Dimension
(in.)
Voltage NOTES
10
3600 215TC 01036EP3ERS215TC 1,041 RS 136 11.8 89.5 20.257 208-230/460V RS
3600 215TC 01036EP3E215TC 1,195 W1 150 11.7 89.5 19.517 208-230/460V
1800 215TC 01018EP3ERS215TC 901 RS 134 12.8 89.5 20.257 208-230/460V RS
1800 215TC 01018EP3E215TC 1,034 W1 165 12.8 90.2 19.517 208-230/460V
1200 256TC 01012EP3ERS256TC 1,713 RS 206 13.4 89.5 22.956 208-230/460V RS
1200 256TC 01012EP3E256TC 1,966 W1 304 13.4 89.5 24.945 208-230/460V
15
3600 W254TC 01536EP3ERS254TC 1,488 RS 162 17.0 90.2 21.500 208-230/460V RS
3600 254TC 01536EP3E254TC 1,707 W1 280 17.0 90.2 23.213 208-230/460V
1800 W254TC 01518EP3ERS254TC 1,362 RS 178 18.5 91.0 21.500 208-230/460V RS
1800 254TC 01518EP3E254TC 1,564 W1 266 17.9 91.0 21.500 208-230/460V
20
3600 W256TC 02036EP3ERS256TC 1,790 RS 167 23.3 90.2 22.956 208-230/460V RS
3600 256TC 02036EP3E256TC 2,054 W1 313 23.3 90.2 21.500 208-230/460V
1800 W256TC 02018EP3ERS256TC 1,658 RS 182 24.4 91.0 24.925 208-230/460V RS
1800 256TC 02018EP3E256TC 1,903 W1 313 24.4 91.0 24.945 208-230/460V
25
3600 284TSC 02536EP3E284TSC 2,466 W1 353 29.0 91.0 25.061 208-230/460V
1800 284TSC 02518EP3E284TSC 2,294 W1 437 29.6 92.4 25.061 208-230/460V
1800 284TC 02518EP3E284TC 2,294 W1 437 29.6 92.4 26.433 208-230/460V
30
3600 286TSC 03036EP3E286TSC 2,917 W1 404 33.8 91.0 26.557 208-230/460V
1800 286TSC 03018EP3E286TSC 2,785 W1 481 34.4 92.4 26.557 208-230/460V
1800 286TC 03018EP3E286TC 2,785 W1 481 34.4 92.4 27.929 208-230/460V
40 1800 324TSC 04018EP3E324TSC 3,786 W1 587 47.6 93.0 28.120 208-230/460V
1800 324TC 04018EP3E324TC 3,786 W1 587 47.6 93.0 29.620 208-230/460V
50 1800 326TSC 05018EP3E326TSC 4,208 W1 640 57.8 93.6 29.616 208-230/460V
1800 326TC 05018EP3E326TC 4,208 W1 640 57.8 93.6 31.116 208-230/460V
60 1800 364TSC 06018EP3E364TSC 6,725 W1 963 67.0 93.6 31.583 208-230/460V
1800 364TC 06018EP3E364TC 6,725 W1 963 67.0 93.6 33.709 208-230/460V
75
1800 365TSC 07518EP3E365TSC 7,951 W1 1010 82.4 94.1 31.583 208-230/460V
1800 365TC 07518EP3E365TC 7,951 W1 1010 82.4 94.1 33.709 208-230/460V
1800 365TC 07518EP3G365TC 7,951 W1 1010 82.4 94.1 33.709 460V
100
1800 405TSC 10018EP3E405TSC 10,037 W1 1273 115 94.5 35.077 208-230/460V
1800 405TSC 10018EP3G405TSC 10,037 W1 1273 115 94.5 35.077 460V
1800 405TC 10018EP3E405TC 10,037 W1 1273 115 94.5 38.077 208-230/460V
1800 405TC 10018EP3G405TC 10,037 W1 1273 115 94.5 38.077 460V
125 1800 444TC 12518EP3G444TC 14,148 W1 1647 138 94.5 43.776 460V u
150 1800 445TC 15018EP3G445TC 15,727 W1 1841 168 95.0 43.776 460V u
200 1800 447TC 20018EP3G447TC 19,716 W1 2194 230 95.0 47.299 460V u
1800 504C 20018EP3G504C 19,939 W1 2194 230 95.0 49.449 460V u
250 1800 447TC 25018EP3G447TC 24,645 W1 2513 238 95.4 47.299 460V u
1800 449TC 25018EP3G449TC-W22 26,065 W1 2333 283 95.4 56.690 460V uW22
1800 505C 25018EP3G505C 24,866 W1 2513 238 95.4 49.449 460V u
300 1800 449TC 30018EP3G449TC-W22 30,515 W1 2525 337 95.4 56.690 460V uW22
1800 586/7C 30018EP3G586/7C 35,597 W1 3837 329 95.4 59.421 460V u
350 1800 449TC 35018EP3G449TC-W22 37,087 W1 2794 396 95.8 56.690 460V uW22
1800 586/7C 35018EP3G586/7C 42,317 W1 4300 398 95.4 59.421 460V u
400 1800 586/7C 40018EP3G586/7C 46,073 W1 4686 459 95.4 59.421 460V u
450 1800 586/7C 45018EP3G586/7C 47,909 W1 5204 505 95.4 59.421 460V u
500 1800 586/7C 50018EP3G586/7C 50,374 W1 5424 564 95.8 59.421 460V u 1
* Valid for 900rpm motors or ratings above 200HP (any rpm). For W22 add the sufx
“–W22” to the motor model. For C-dimension, please check page B-96-97
• ELECTRICAL FEATURES ON PAGE B-5, & B-6.
• MECHANICAL FEATURES ON PAGE B-47...B-49.
W22
Transitioning
to*
www.weg.net
A-38 Data subject to change without notice.
GENERAL
PURPOSE
Data subject to change without notice.
W21 HIGH EFFICIENCY – GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
‘C’ FLANGE – FOOTLESS
EPACT CC# CC029A
Note: Motors supplied with Drip Cover as a standard feature (T-Frames Only).
• ELECTRICAL FEATURES ON PAGE B-4, B-5, & B-6. • MECHANICAL FEATURES ON PAGE B-46...B-49.
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460V
FL.
Eff.
%
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56C .3336ES3EB56CFL 270 F1 33 0.61 73.0 11.496 208-230/460V l
1800 56C .3318ES3EB56CFL 274 F1 33 0.58 72.0 11.496 208-230/460V l
1/2
3600 56C .5036ES3EB56CFL 282 F1 36 0.81 77.0 11.496 208-230/460V l
1800 56C .5018ES3EB56CFL 311 F1 34 0.85 74.0 11.496 208-230/460V l
1200 56C .5012ES3EB56CFL 440 F1 36 1.27 71.0 11.496 208-230/460V l
3/4
3600 56C .7536ES3EB56CFL 311 F1 40 1.09 79.0 11.496 208-230/460V l
1800 56C .7518ES3EB56CFL 332 F1 40 1.11 77.0 11.496 208-230/460V l
1200 56C .7512ES3ED56CFL 449 F1 40 1.60 75.2 11.496 208-230/460V l
1
3600 56C 00136ES3EB56CFL 361 F1 44 1.44 81.0 11.496 208-230/460V l
1800 56C 00118ES3ED56CFL 345 F1 46 1.47 80.0 12.677 208-230/460V l
1800 143TC 00118EP3ERSR143TC 403 RS 39 1.47 82.5 14.095 208-230/460V RS
1800 143TC 00118EP3ER143TC 440 W1 47 1.49 82.5 12.250 208-230/460V l
1200 56C 00112ES3EF56CFL 454 F1 46 1.92 76.7 12.677 208-230/460V l
1200 145TC 00112EP3ERSR145TC 489 RS 45 1.70 80.0 14.095 208-230/460V RS
1200 145TC 00112EP3ER145TC 534 W1 47 1.70 80.0 13.234 208-230/460V l
1.5
3600 56C 00156ES3EB56CFL 392 F1 48 1.97 82.5 11.496 208-230/460V l
3600 143TC 00156EP3ERSR143TC 420 RS 40 1.99 82.5 14.095 208-230/460V RS
3600 143TC 00156EP3ER143TC 458 W1 45 1.99 82.5 12.250 208-230/460V l
1800 56C 00158ES3ED56CFL 384 F1 52 2.11 81.0 12.677 208-230/460V l
1800 145TC 00158EP3ERSR145TC 408 RS 43 2.05 84.0 14.095 208-230/460V RS
1800 145TC 00158EP3ER145TC 445 W1 54 2.05 84.0 13.234 208-230/460V l
1200 182TC 00152EP3ERSR182TC 611 RS 74 2.37 85.5 16.404 208-230/460V RS
1200 182TC 00152EP3ER182TC 666 W1 77 2.38 85.5 14.860 208-230/460V l
2
3600 56C 00236ES3ED56CFL 437 F1 58 2.67 84.0 12.677 208-230/460V l
3600 145TC 00236EP3ERSR145TC 475 RS 44 2.60 84.0 14.095 208-230/460V RS
3600 145TC 00236EP3ER145TC 518 W1 47 2.60 84.0 13.234 208-230/460V l
1800 56C 00218ES3EF56CFL 414 F1 61 2.84 82.0 13.858 208-230/460V l
1800 145TC 00218EP3ERSR145TC 451 RS 50 2.70 84.0 14.095 208-230/460V RS
1800 145TC 00218EP3ER145TC 492 W1 56 2.70 84.0 13.234 208-230/460V l
1200 184TC 00212EP3ERSR184TC 661 RS 91 3.20 86.5 16.404 208-230/460V RS
1200 184TC 00212EP3ER184TC 721 W1 88 3.20 86.5 15.860 208-230/460V l
3
3600 56C 00336ES3EF56CFL 507 F1 67 3.80 84.5 13.858 208-230/460V l
3600 W182/4TC 00336EP3ERSR182TC 575 RS 61 3.67 85.5 17.719 208-230/460V RS
3600 182TC 00336EP3ER182TC 627 W1 106 3.59 85.5 14.860 208-230/460V l
1800 W182/4TC 00318EP3ERSR182TC 518 RS 59 4.15 87.5 17.719 208-230/460V RS
1800 182TC 00318EP3ER182TC 565 W1 97 3.90 87.5 14.860 208-230/460V l
1200 213TC 00312EP3ERSR213TC 865 RS 104 4.26 87.5 20.257 208-230/460V RS
1200 213TC 00312EP3ER213TC 943 W1 123 4.15 87.5 18.021 208-230/460V l
5
3600 W182/4TC 00536EP3ERSR184TC 695 RS 64 6.10 87.5 17.719 208-230/460V RS
3600 184TC 00536EP3ER184TC 758 W1 114 5.90 87.5 15.860 208-230/460V l
1800 W182/4TC 00518EP3ERSR184TC 607 RS 68 6.90 87.5 17.719 208-230/460V RS
1800 184TC 00518EP3ER184TC 662 W1 102 6.48 87.5 15.860 208-230/460V l
1200 215TC 00512EP3ERSR215TC 1,096 RS 145 7.08 87.5 20.257 208-230/460V RS
1200 215TC 00512EP3ER215TC 1,195 W1 175 6.80 87.5 19.517 208-230/460V l
7.5
3600 213TC 00736EP3ERSR213TC 948 RS 112 9.00 88.5 20.257 208-230/460V RS
3600 213TC 00736EP3ER213TC 1,034 W1 150 8.66 88.5 18.021 208-230/460V l
1800 213TC 00718EP3ERSR213TC 804 RS 120 9.64 89.5 20.257 208-230/460V RS
1800 213TC 00718EP3ER213TC 877 W1 150 9.53 89.5 18.021 208-230/460V l
10
3600 215TC 01036EP3ERSR215TC 1,096 RS 136 11.8 89.5 20.257 208-230/460V RS
3600 215TC 01036EP3ER215TC 1,195 W1 150 11.7 89.5 19.517 208-230/460V l
1800 215TC 01018EP3ERSR215TC 948 RS 134 12.8 89.5 20.257 208-230/460V RS
1800 215TC 01018EP3ER215TC 1,034 W1 165 12.8 90.2 19.517 208-230/460V l
15
3600 W254TC 01536EP3ERSR254TC 1,566 RS 162 17.0 90.2 21.500 208-230/460V RS
3600 254TC 01536EP3ER254TC 1,707 W1 280 17.0 90.2 23.213 208-230/460V l
1800 W254TC 01518EP3ERSR254TC 1,434 RS 178 18.5 91.0 21.500 208-230/460V RS
1800 254TC 01518EP3ER254TC 1,564 W1 266 17.9 91.0 23.213 208-230/460V l
20
3600 W256TC 02036EP3ERSR256TC 1,884 RS 167 23.3 90.2 22.956 208-230/460V RS
3600 256TC 02036EP3ER256TC 2,054 W1 313 23.3 90.2 24.945 208-230/460V l
1800 W256TC 02018EP3ERSR256TC 1,745 RS 182 24.4 91.0 24.925 208-230/460V RS
1800 256TC 02018EP3ER256TC 1,903 W1 313 24.4 91.0 24.945 208-230/460V l
25 3600 284TSC 02536EP3ER284TSC 2,466 W1 353 29.0 91.0 25.061 208-230/460V l
1800 284TC 02518EP3ER284TC 2,294 W1 437 29.6 92.4 26.433 208-230/460V l
30 3600 286TSC 03036EP3ER286TSC 2,917 W1 404 33.8 91.0 26.557 208-230/460V l
1800 286TC 03018EP3ER286TC 2,785 W1 481 34.4 92.4 27.929 208-230/460V l
40 1800 324TC 04018EP3ER324TC 3,786 W1 587 47.6 93.0 29.620 208-230/460V l
50 1800 326TC 05018EP3ER326TC 4,208 W1 640 57.8 93.6 31.116 208-230/460V l
* Valid for 900rpm motors or ratings above 200HP (any rpm). For W22 add the sufx
“–W22” to the motor model. For C-dimension, please check page B-96-97
W22
Transitioning
to*
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-39
Data subject to change without notice. Data subject to change without notice.
GENERAL
PURPOSE
ODP – THREE PHASE FOOT MOUNT &
FLANGE MOUNT
High Efficiency motors are designed to meet or exceed all EPAct requirements for energy
efficiency as defined by the DOE. The efficiency values are certified according to the
DOE’s regulations (Certificate of Compliance number CC029A). These Open Drip Proof
(ODP) motors are designed for environments where dirt and moisture are minimal and
provide maximum ventilation and heat dissipation. Design B torque and high efficiency
design from 143T through 444/5T frames.
• Pumps
• Fans
• Kneader and mixer
machines
•
Cutter and sawing
machines
• Pressing machines
• Industrial equipment
• Conveyors
• Blowers
• Compressors
• Machinery
• Cranes
• Packaging Equipment
APPLICATIONS
• Efciency Certication number CC029A according
to US Department of Energy Regulations
• Three-phase, 2, 4, 6 and 8 pole, 60Hz
•
Voltage: 208-230/460V, 200V, 460V or 575V
• 50/60Hz rated up to 250 HP (50Hz at 1.0
Service Factor)
• For 50Hz at 1.15 SF a higher HP should be
selected
• Open Drip Proof (ODP)
• NEMA dimensions
• NEMA design ‘B’ ratings
• Service Factor : 1.15
• Class ‘F’ insulation for 143T & above
Class ‘B’ insulation for 56 Frame
• Class ‘H’ impregnation resin
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
•
Ball bearings are supplied as standard
• Variable torque speed range is 10:1
•
1045 Carbon Steel Shaft for frames up to 365T.
• 4140 steel shaft for motors 404T and above.
(3600 RPM motors supplied with 1045)
• F1 mount (also available anged motors)
• Paint: Enamel alkyd resin base RAL 5009 blue 2,
4 and 6 pole
• NPT threaded terminal box
• Meets NEMA MG 1 Part 31 for use with VFD -
4:1 constant torque speed range.
• Special voltages
• Specially designed shaft
•
Thermistor, Thermostats or RTD’s (PT100)
• Additional terminal box
• Cable glands
•
‘C’ anges for all ratings
• D Flanges are available for frames 254T and
higher
• Roller bearings on drive end available for all
frames
• Special epoxy painting
OPTIONAL FEATURES
STANDARD FEATURES
(Frame 143T and up)
SPECIFIC FEATURES
For Frames 143/5T only
• Welded steel plate frames (welded feet)
•
Cast iron endshields xed with through bolt
construction
• ZZ bearing (double shielded)
• Degree of protection: IP21
182/4T and 213/5T frames only
• Aluminum endshields and terminal box
• Cooling system with nned rotor
• ZZ Bearing (double shielded)
• Degree of protection : IP21
For Frames 254/6T and up
• Cast iron frames
• Cast iron endshields and terminal box
• Cooling system with nned rotor
•
Regreasable bearings positive pressure
lubrification system (frame 254T and up)
• Degree of protection: IP23
• Field converterable to F2
* Please refer to page A-17 for standard features (frame 56).
* Design B torque rating on nameplate can be re-plated for Design C. All motors are tested according to IEEE 112 std.
- method ‘B’ or C390 CSA . Energy efficiency motors verified by UL in addition to the DOE.
Cast Iron Model
General Purpose
Three-Phase EPACT CC# CC029A
APPROVED BY
LR 38324
HIGHLIGHTS
• Maximum ventilation
and heat dissipation
• Meets or exceeds
EPACT requirements
E 104590
APPROVED BY
W21 HIGH EFFICIENCY – GENERAL PURPOSE MOTORS
TEFC – HIGH EFFICIENCY – THREE-PHASE
www.weg.net
A-40 Data subject to change without notice.
GENERAL
PURPOSE
Data subject to change without notice.
56 – 215T
Rolled Steel Frame
FOOT MOUNT
GENERAL PURPOSE MOTORS
ODP – THREE-PHASE MOTORS
EPACT CC# CC029A
• ELECTRICAL FEATURES ON PAGE B-4, B-9, B-9.
• MECHANICAL FEATURES ON PAGE B-45, B-52.
= F3 MOUNT
HP RPM NEMA
Frame
Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1/4
3600 56 .2536OS3EA56 201 F1B 20 0.60 58.0 10.315 208-230/460V
1800 56 .2518OS3EA56 204 F1B 21 0.57 62.0 10.315 208-230/460V
1200 56 .2512OS3EA56 254 F1B 21 0.80 56.0 10.315 208-230/460V
1/3
3600 56 .3336OS3EA56 208 F1B 21 0.80 59.0 10.315 208-230/460V
1800 56 .3318OS3EA56 221 F1B 22 0.70 65.0 10.315 208-230/460V
1200 56 .3312OS3EA56 292 F1B 26 1.00 60.0 10.315 208-230/460V
1/2
3600 56 .5036OS3EA56 221 F1B 23 1.05 61.0 10.315 208-230/460V
1800 56 .5018OS3EA56 253 F1B 24 1.00 67.0 10.315 208-230/460V
1200 56 .5012OS3EB56 304 F1B 31 2.30 63.5 11.103 208-230/460V
3/4
3600 56 .7536OS3EB56 259 F1B 24 1.35 66.0 11.103 208-230/460V
1800 56 .7518OS3EB56 282 F1B 26 1.40 69.0 11.103 208-230/460V
1200 56 .7512OS3ED56 332 F1B 37 1.50 66.5 12.284 208-230/460V
1
3600 56 00136OS3EB56 300 F1B 26 1.65 69.0 11.103 208-230/460V
1800 56 00118OS3EB56 299 F1B 29 1.75 71.0 11.103 208-230/460V
1800 143T 00118OP3E143T 341 W1B 36 1.41 82.5 12.086 208-230/460V
1800 143T 00118OP3E143TF3 341 W1B 36 1.41 82.5 12.086 208-230/460V
1800 143T 00118OP3H143T 341 W1B 36 1.13 82.5 12.086 575V
1200 56 00112OS3EF56 394 F1B 42 1.80 70.1 13.465 208-230/460V
1200 145T 00112OP3E145T 423 W1B 40 1.73 80.0 12.086 208-230/460V
1.5
3600 56 00156OS3ED56 320 F1B 31 2.37 71.2 12.284 208-230/460V
3600 143T 00156OP3E143T 361 W1B 32 1.95 82.5 12.086 208-230/460V
3600 143T 00156OP3H143T 361 W1B 32 1.56 82.5 12.086 575V
1800 56 00158OS3ED56 305 F1B 34 2.50 75.0 12.284 208-230/460V
1800 145T 00158OP3E145T 374 W1B 40 1.98 84.0 12.086 208-230/460V
1800 145T 00158OP3E145TF3 374 W1B 40 1.98 84.0 12.086 208-230/460V
1800 145T 00158OP3H145T 374 W1B 40 1.58 84.0 12.086 575V
1200 182T 00152OP3E182T 511 W1B 53 2.28 84.0 13.504 208-230/460V
2
3600 56 00236OS3ED56 365 F1B 34 2.85 75.0 12.284 208-230/460V
3600 145T 00236OP3E145T 405 W1B 43 2.52 84.0 12.086 208-230/460V
3600 145T 00236OP3H145T 405 W1B 43 2.02 84.0 12.086 575V
1800 56 00218OS3EF56 324 F1B 36 3.10 75.0 13.465 208-230/460V
1800 145T 00218OP3E145T 409 W1B 43 2.87 84.0 12.086 208-230/460V
1800 145T 00218OP3E145TF3 409 W1B 43 2.87 84.0 12.086 208-230/460V
1800 145T 00218OP3H145T 409 W1B 43 2.30 84.0 12.086 575V
1200 184T 00212OP3E184T 519 W1B 69 2.98 85.5 14.291 208-230/460V
3
3600 56 00336OS3EF56 405 F1B 39 4.05 77.0 13.465 208-230/460V
3600 145T 00336OP3E145T 450 W1B 49 3.65 84.0 12.086 208-230/460V
3600 145T 00336OP3H145T 450 W1B 49 2.92 84.0 12.086 575V
1800 182T 00318OP3E182T 416 W1B 56 3.94 86.5 13.504 208-230/460V
1800 182T 00318OP3E182TF3 416 W1B 56 3.94 86.5 13.504 208-230/460V
1800 182T 00318OP3H182T 416 W1B 56 3.15 86.5 13.504 575V
1200 213T 00312OP3E213T 674 W1B 79 4.56 86.5 17.165 208-230/460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-41
Data subject to change without notice. Data subject to change without notice.
GENERAL
PURPOSE
GENERAL PURPOSE MOTORS
ODP THREE-PHASE MOTORS
254T–445T
Cast Iron Frame
FOOT MOUNT
EPACT CC# CC029A
• ELECTRICAL FEATURES ON PAGE B-8, B-9.
• MECHANICAL FEATURES ON PAGE B-52, B-53.
= F3 MOUNT
5
3600 182T 00536OP3E182T 540 W1B 57 6.17 85.5 13.504 208-230/460V
3600 182T 00536OP3H182T 540 W1B 57 4.94 85.5 13.504 575V
1800 184T 00518OP3E184T 521 W1B 69 6.39 87.5 14.291 208-230/460V
1800 184T 00518OP3E184TF3 521 W1B 69 6.39 87.5 14.291 208-230/460V
1800 184T 00518OP3H184T 521 W1B 69 5.11 87.5 14.291 575V
1200 215T 00512OP3E215T 919 W1B 109 7.27 87.5 17.165 208-230/460V
7.5
3600 184T 00736OP3E184T 696 W1B 69 8.97 87.5 13.511 208-230/460V
3600 184T 00736OP3H184T 696 W1B 69 7.18 87.5 13.511 575V
1800 213T 00718OP3E213T 736 W1B 85 9.40 88.5 17.165 208-230/460V
1800 213T 00718OP3E213TF3 736 W1B 85 9.40 88.5 17.165 208-230/460V
1800 213T 00718OP3H213T 736 W1B 85 7.52 88.5 17.165 575V
1200 254T 00712OP3E254T 1,276 W1B 258 9.63 88.5 20.669 208-230/460V
10
3600 213T 01036OP3E213T 901 W1B 108 11.8 88.5 17.165 208-230/460V
3600 213T 01036OP3H213T 901 W1B 108 9.4 88.5 17.165 575V
1800 215T 01018OP3E215T 899 W1B 109 12.7 89.5 17.165 208-230/460V
1800 215T 01018OP3E215TF3 899 W1B 109 12.7 89.5 17.165 208-230/460V
1800 215T 01018OP3H215T 899 W1B 109 10.2 89.5 17.165 575V
1200 256T 01012OP3E256T 1,493 W1B 277 12.9 90.2 22.401 208-230/460V
15
3600 215T 01536OP3E215T 1,232 W1B 139 17.1 89.5 17.165 208-230/460V
1800 254T 01518OP3E254T 1,231 W1B 247 18.7 91.0 20.669 208-230/460V
1800 254T 01518OP3E254TF3 1,231 W1B 247 18.7 91.0 20.669 208-230/460V
1200 284T 01512OP3E284T 2,097 W1B 393 17.6 90.2 23.386 208-230/460V
20
3600 254T 02036OP3E254T 1,469 W1B 205 24.6 90.2 20.669 208-230/460V
1800 256T 02018OP3E256T 1,526 W1B 277 25.2 91.0 22.401 208-230/460V
1800 256T 02018OP3E256TF3 1,526 W1B 277 25.2 91.0 22.401 208-230/460V
1200 286T 02012OP3E286T 2,571 W1B 428 24.1 91.0 24.882 208-230/460V
25
3600 256T 02536OP3E256T 1,783 W1B 251 29.3 91.0 22.401 208-230/460V
1800 284TS 02518OP3V284TS 1,799 W1B 311 34.6 91.7 23.386 200/400V
1800 284TS 02518OP3E284TS 1,799 W1B 311 30.1 91.7 22.000 208-230/460V
1800 284T 02518OP3E284T 1,799 W1B 311 30.1 91.7 23.386 208-230/460V
1800 284T 02518OP3E284TF3 1,799 W1B 311 30.1 91.7 23.386 208-230/460V
1200 324T 02512OP3E324T 2,982 W1B 495 30.9 91.7 26.181 208-230/460V
30
3600 284TS 03036OP3V284TS 2,033 W1B 373 39.1 92.4 22.000 200/400V
3600 284TS 03036OP3E284TS 2,033 W1B 373 34.0 92.4 22.000 208-230/460V
1800 286TS 03018OP3V286TS 2,108 W1B 397 40.9 92.4 24.882 200/400V
1800 286TS 03018OP3E286TS 2,108 W1B 397 35.6 92.4 23.504 208-230/460V
1800 286T 03018OP3E286T 2,108 W1B 397 35.6 92.4 24.882 208-230/460V
1800 286T 03018OP3E286TF3 2,108 W1B 397 35.6 92.4 24.882 208-230/460V
1200 326T 03012OP3E326T 3,297 W1B 605 36.9 92.4 27.667 208-230/460V
40
3600 286TS 04036OP3V286TS 2,757 W1B 457 51.5 92.4 23.504 200/400V
3600 286TS 04036OP3E286TS 2,757 W1B 457 44.8 92.4 23.504 208-230/460V
1800 324TS 04018OP3V324TS 2,652 W1B 495 55.4 93.0 26.181 200/400V
1800 324TS 04018OP3E324TS 2,652 W1B 495 48.2 93.0 24.685 208-230/460V
1800 324T 04018OP3E324T 2,652 W1B 495 48.2 93.0 26.181 208-230/460V
1200 364T 04012OP3E364T 4,698 W1B 838 48.2 93.0 29.764 208-230/460V
HP RPM NEMA
Frame
Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
GENERAL PURPOSE MOTORS
ODP – THREE-PHASE MOTORS
EPACT CC# CC029A
www.weg.net
A-42 Data subject to change without notice.
GENERAL
PURPOSE
Data subject to change without notice.
GENERAL PURPOSE MOTORS
ODP THREE-PHASE MOTORS
FOOT MOUNT
EPACT CC# CC029A
254T–445T
Cast Iron Frame
• ELECTRICAL FEATURES ON PAGE B-9.
• MECHANICAL FEATURES ON PAGE B-53.
50
3600 324TS 05036OP3V324TS 3,184 W1B 523 64.9 93.6 24.685 200/400V
3600 324TS 05036OP3E324TS 3,184 W1B 523 56.4 93.6 24.685 208-230/460V
1800 326TS 05018OP3V326TS 3,015 W1B 583 69.2 93.0 27.667 200/400V
1800 326TS 05018OP3E326TS 3,015 W1B 583 60.2 93.0 26.181 208-230/460V
1800 326TS 05018OP3G326TS 3,015 W1B 583 60.2 93.0 26.181 460V
1800 326T 05018OP3E326T 3,015 W1B 583 60.2 93.0 27.667 208-230/460V
1800 326T 05018OP3G326T 3,015 W1B 583 60.2 93.0 27.667 460V
1200 365T 05012OP3E365T 5,417 W1B 935 59.4 93.0 29.764 208-230/460V
60
3600 326TS 06036OP3V326TS 4,008 W1B 609 81.2 93.0 26.181 200/400V
3600 326TS 06036OP3E326TS 4,008 W1B 609 70.6 93.0 26.181 208-230/460V
1800 364TS 06018OP3V364TS 3,703 W1B 743 80.7 93.6 27.638 200/400V
1800 364TS 06018OP3E364TS 3,703 W1B 743 70.2 93.6 27.638 208-230/460V
1800 364TS 06018OP3G364TS 3,703 W1B 743 70.2 93.6 27.638 460V
1800 364T 06018OP3E364T 3,703 W1B 743 70.2 93.6 29.764 208-230/460V
1800 364T 06018OP3G364T 3,703 W1B 743 70.2 93.6 29.764 460V
1200 404T 06012OP3E404T 6,463 W1B 1037 71.0 93.6 34.133 208-230/460V
75
3600 364TS 07536OP3V364TS 5,074 W1B 805 92.7 94.1 27.638 200/400V
3600 364TS 07536OP3E364TS 5,074 W1B 805 80.6 94.1 27.638 208-230/460V
3600 364TS 07536OP3G364TS 5,074 W1B 805 80.6 94.1 27.638 460V
1800 365TS 07518OP3V365TS 4,715 W1B 935 98.1 94.1 27.638 200/400V
1800 365TS 07518OP3E365TS 4,715 W1B 935 85.3 94.1 27.638 208-230/460V
1800 365TS 07518OP3G365TS 4,715 W1B 935 85.3 94.1 27.638 460V
1800 365T 07518OP3E365T 4,715 W1B 935 85.3 94.1 29.764 208-230/460V
1800 365T 07518OP3G365T 4,715 W1B 935 85.3 94.1 29.764 460V
1200 405T 07512OP3E405T 7,224 W1B 1207 87.8 93.6 34.133 208-230/460V
100
3600 365TS 10036OP3V365TS 6,152 W1B 935 127 94.1 27.638 200/400V
3600 365TS 10036OP3E365TS 6,152 W1B 935 110 94.1 27.638 208-230/460V
3600 365TS 10036OP3G365TS 6,152 W1B 935 110 94.1 27.638 460V
1800 404TS 10018OP3V404TS 6,065 W1B 1037 132 94.1 31.141 200/400V
1800 404TS 10018OP3E404TS 6,065 W1B 1037 115 94.1 31.141 208-230/460V
1800 404TS 10018OP3G404TS 6,065 W1B 1037 115 94.1 31.141 460V
1800 404T 10018OP3E404T 6,065 W1B 1037 115 94.1 34.133 208-230/460V
1800 404T 10018OP3G404T 6,065 W1B 1037 115 94.1 34.133 460V
1200 444T 10012OP3E444T 10,305 W1B 1662 125 94.1 39.803 208-230/460V
1200 444T 10012OP3G444T 10,305 W1B 1662 125 94.1 39.803 460V
125
3600 404TS 12536OP3G404TS 7,762 W1B 1086 132 94.1 31.141 460V
1800 405TS 12518OP3G405TS 6,651 W1B 1207 137 94.5 31.141 460V
1800 405T 12518OP3G405T 6,651 W1B 1207 137 94.5 34.133 460V
1200 445T 12512OP3G445T 10,836 W1B 1916 150 94.1 39.803 460V
150
3600 405TS 15036OP3G405TS 10,042 W1B 1401 159 94.5 31.141 460V
1800 444TS 15018OP3G444TS 8,891 W1B 1411 165 95.0 36.062 460V
1800 444T 15018OP3G444T 8,891 W1B 1411 165 95.0 39.803 460V
1200 445T 15012OP3G445T 11,538 W1B 2183 183 94.5 39.803 460V
200
3600 444TS 20036OP3G444TS 12,782 W1B 1713 217 94.5 36.062 460V
1800 445TS 20018OP3G445TS 10,837 W1B 1916 220 95.0 36.062 460V
1800 445T 20018OP3G445T 10,837 W1B 1916 220 95.0 39.803 460V
HP RPM NEMA
Frame
Catalog
Number List Price Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-43
Data subject to change without notice. Data subject to change without notice.
GENERAL
PURPOSE
FOOT MOUNT
GENERAL PURPOSE MOTORS
ODP THREE-PHASE MOTORS
EPACT CC# CC029A
FOOT MOUNT - ‘C’ FLANGE
HP RPM NEMA
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
Service
Factor
FL
Amps
460V
“C”
Dimension Voltage NOTES
60 1800 364TC 06018OP3E364TC 4,095 W1B 743 70.2 93.6 29.764 208-230/460V u
75 3600 364TSC 07536OP3E364TSC 5,467 W1B 805 80.6 94.1 27.638 208-230/460V u
1800 365TC 07518OP3E365TC 5,109 W1B 935 85.3 94.1 29.764 208-230/460V u
100 1800 404TC 10018OP3E404TC 6,510 W1B 1037 115 94.1 34.133 208-230/460V u
125 1800 405TC 12518OP3G405TC 7,141 W1B 1207 137 94.5 34.133 460V u
150 1800 444TC 15018OP3G444TC 9,450 W1B 1411 165 95.0 39.803 460V u
200 1800 445TC 20018OP3G445TC 11,397 W1B 1916 220 95.0 39.803 460V u
250 1800 445TC 25018OP3G445TC 13,917 W1B 2183 270 95.4 39.803 460V u
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
250
3600 445TS 25036OP3G445TS 15,654 W1B 1982 266 95.0 36.062 460V
1800 445TS 25018OP3G445TS 13,358 W1B 2183 270 95.4 36.062 460V
1800 445T 25018OP3G445T 13,358 W1B 2183 270 95.4 39.803 460V
300
3600 445TS 30036OP3G445TS 19,556 W1B 2183 316 95.0 36.062 460V
1800 447/9T 30018OP3G447/9T 19,168 W1B 2145 325 95.4 48.317 460V
1200 447/9T 30012OP3G447/9T 26,188 W1B 2796 357 95.4 48.317 460V
350 3600 447/9TS 35036OP3G447/9TS 22,346 W1B 1969 377 95.0 44.567 460V
1800 447/9T 35018OP3G447/9T 22,807 W1B 2465 384 95.4 48.317 460V
400 3600 447/9TS 40036OP3G447/9TS 24,140 W1B 2046 434 95.4 44.567 460V
1800 447/9T 40018OP3G447/9T 25,570 W1B 2686 443 95.4 48.317 460V
450 3600 447/9TS 45036OP3G447/9TS 26,055 W1B 2223 470 95.8 44.567 460V
500 3600 447/9TS 50036OP3G447/9TS 27,711 W1B 2289 539 95.8 44.567 460V
600 3600 447/9TS 60036OP3G447/9TS 28,951 W1B 2421 633 95.8 44.567 460V
• ELECTRICAL FEATURES ON PAGE B-9.
• MECHANICAL FEATURES ON PAGE B-53.
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-9.
• MECHANICAL FEATURES ON PAGE B-54.
= Product may not be available from stock
EPACT CC# CC029A
www.weg.net
A-44 Data subject to change without notice.
GENERAL
PURPOSE
Data subject to change without notice.
GENERAL
PURPOSE
Note: Motors are tested according to IEEE 112 std. – method ‘B’ or C390 CSA
APPROVED BY
LR 38324
STANDARD FEATURES
(Frame 48 & 56)
• Steel frame
• Single-phase, 2, 4 or 6 pole, 60Hz
• Voltage: 115/208-230V
• Squirrel cage rotor
• Start capacitor
• NEMA dimensions
• Class ‘B’ insulation (130ºC)
• High starting torque
• Ball Bearings
• Open drip proof (ODP - IP21)
• Totally enclosed fan cooled (TEFC - IP55)
• Color: RAL 7022 (Dark Gray)
Only for TEFC
(IP55) motors:
• Continuous Duty (S1), 40ºC ambient
• V-ring slingers on both endshields
• Designed to operate in any position
• Pumps
• Fans
• Conveyors
• Blowers
• Air compressors
• Refrigeration equipment
• Industrial equipment
• Milling machines
• Tools
• Farm equipment*
• Aeration equipment
• Other moderate-to-high starting
torque applications.
• Single-phase, 2, 4 and 6 pole, 60Hz
• Squirrel cage rotor / Aluminum die cast
• NEMA dimensions
• Ball bearings
• Insulation Class ‘F’
• High starting torque
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000m)
• 1045 carbon steel shaft
• F1 mounting T-Box
• NPT threaded terminal box
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 7022 – Dark Gray
• Service factor : 1.15
• Service Factor : 1.25 (ODP only)
• 143/5T steel plate frames
• 182T up to 215T cast iron frames
• Automatic drain plugs
• V-ring slingers on both endshields
• Special Voltages and frequency
• Stainless steel shaft
• C and D anges available for all frames
• F2 mount
SINGLE PHASE – FOOT MOUNT
Starting capacitors, cast iron frames, rigid base and
oversized ball bearings to ensure extended motor life
are all standard features. Remember to considered
ambient temperatures and that ODP are suitable
where dirt and moisture are at minimum. TEFC motors
are specifically designed for operating in environments
of dirt, dust and excess moisture.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
ODP TEFC
General Purpose
Single-Phase
HIGHLIGHTS
High
starting
torque
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-45
Data subject to change without notice. Data subject to change without notice.
GENERAL
PURPOSE
GENERAL PURPOSE MOTORS–SINGLE-PHASE
ODP – FOOT MOUNT
= Split-Phase Motor
c = Compressor Duty
CCW = CCW Rotation Only
• ELECTRICAL FEATURES ON PAGE B-2, B-13.
• MECHANICAL FEATURES ON PAGE B-45, B-58.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Service
Factor
FL
Amps
230V
FL
Eff.
%
“C”
Dimension Voltage NOTES
1/8 1800 48 .1218OS1BB48 201 F1 17 1.40 1.60 48.10 9.409 115/208-230V
1/6
3600 48 .1636OS1BB48 216 F1 17 1.35 1.60 49.90 9.409 115/208-230V
1800 48 .1618OS1BB48 208 F1 17 1.35 1.90 50.30 9.409 115/208-230V
1800 48 .1618OS1BSPB48 224 F1 19 1.35 1.90 52.10 9.409 115/208- 230V v
1/4
3600 48 .2536OS1BB48 220 F1 19 1.35 1.90 54.70 9.409 115/208-230V
3600 56 .2536OS1B56 220 F1 19 1.35 1.90 58.00 9.764 115/208-230V
1800 48 .2518OS1BB48 209 F1 19 1.35 2.40 55.90 9.409 115/208-230V
1800 48 .2518OS1BSPB48 240 F1 20 1.35 2.40 59.50 9.409 115/208-230V v
1800 56 .2518OS1B56 209 F1 19 1.35 2.40 62.00 9.764 115/208-230V
1/3
3600 48 .3336OS1BC48 222 F1 22 1.35 2.60 57.60 10.197 115/208-230V
3600 56 .3336OS1BC56 222 F1 22 1.35 2.60 57.60 10.551 115/208-230V
1800 48 .3318OS1BC48 237 F1 22 1.35 3.00 58.20 10.197 115/208-230V
1800 48 .3318OS1BSPC48 258 F1 22 1.35 3.00 60.00 10.197 115/208-230V v
1800 56 .3318OS1BC56 237 F1 22 1.35 3.00 58.20 10.551 115/208-230V
1/2
3600 48 .5036OS1BC48 237 F1 24 1.25 3.40 64.40 10.197 115/208-230V
3600 56 .5036OS1BC56 242 F1 24 1.25 3.40 64.40 10.551 115/208-230V
1800 48 .5018OS1BC48 273 F1 24 1.25 3.90 61.70 10.197 115/208-230V
1800 48 .5018OS1BSPC48 279 F1 24 1.25 3.90 63.50 10.197 115/208-230V v
1800 56 .5018OS1BC56 264 F1 24 1.25 3.90 61.70 10.551 115/208-230V
3/4 3600 56 .7536OS1BB56 274 F1 32 1.25 5.50 67.20 11.102 115/208-230V
1800 56 .7518OS1BD56 328 F1 36 1.25 5.50 66.70 12.283 115/208-230V
13600 56 00136OS1BD56 296 F1 36 1.25 7.00 66.30 12.283 115/208-230V
1800 56 00118OS1BD56 355 F1 39 1.15 7.00 71.40 12.283 115/208-230V
1 1/2 3600 56 00156OS1BD56 333 F1 40 1.15 9.00 70.00 12.283 115/208-230V
1800 56H 00158OS1BF56 438 F1 51 1.15 10.5 71.3 13.464 115/208-230V
23600 56H 00236OS1BF56 409 F1 48 1.15 11.0 77.9 13.464 115/208-230V
1800 56H 00218OS1BG56 522 F1 55 1.15 13.0 71.4 13.858 115/208-230V
3
3600 56H 00336OS1BG56 475 F1 53 1.15 15.00 77.40 13.858 115/208-230V
3600 182T 00336OS1D182T 606 W1 80 1.25 15.00 78.00 14.448 230V
1800 184T 00318OS1D184T 691 W1 99 1.25 17.00 72.00 14.875 230V
5
3600 184T 00536OS1D184T 862 W1 109 1.25 21.00 81.50 14.875 230V
1800 184T 00518OS1C184T 725 W1 109 1.25 21.50 82.50 14.875 208-230V
1800 184T 00518OS1CCD184T 682 W1 109 1.25 21.50 82.50 14.875 208-230V C
7.5
3600 184T 00736OS1C184T 961 W1 130 1.25 30.00 85.00 14.875 230-460V CCW
1800 215T 00718OS1F215T 961 W1 130 1.15 30.60 85.00 19.660 230-460V
1800 215T 00718OS1CCD215T 961 W1 130 1.15 30.60 85.00 19.660 230-460V C/CCW
v
www.weg.net
A-46 Data subject to change without notice.
GENERAL
PURPOSE
TEFC – FOOT MOUNT
GENERAL PURPOSE MOTORS–SINGLE-PHASE
• ELECTRICAL FEATURES ON PAGE B-4, B-13.
• MECHANICAL FEATURES ON PAGE B-46, B-58.
GENERAL
PURPOSE
HP RPM NEMA
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Service
Factor
FL
Amps
230V
FL
Eff.
%
“C”
Dimension Voltage NOTES
1/4 3600 56 .2536ES1BB56 257 F1 31 1.15 2.50 50.00 11.496 115/208-230V
1800 56 .2518ES1BB56 267 F1 33 1.15 2.30 57.70 11.496 115/208-230V
1/3 3600 56 .3336ES1BB56 267 F1 36 1.15 2.80 53.00 11.496 115/208-230V
1800 56 .3318ES1BB56 283 F1 36 1.15 3.00 61.00 11.496 115/208-230V
1/2
3600 56 .5036ES1BB56 284 F1 40 1.15 3.80 58.00 11.496 115/208-230V
1800 56 .5018ES1BB56 312 F1 41 1.15 3.85 66.50 11.496 115/208-230V
1200 56 .5012ES1BD56 512 F1 41 1.15 4.90 71.00 12.677 115/208-230V
3/4
3600 56 .7536ES1BB56 297 F1 41 1.15 5.30 64.00 11.496 115/208-230V
1800 56 .7518ES1BB56 348 F1 46 1.15 5.60 68.50 11.496 115/208-230V
1200 56 .7512ES1BF56 648 F1 58 1.15 5.20 71.00 13.858 115/208-230V
1
3600 56 00136ES1BD56 376 F1 46 1.15 6.30 67.00 12.677 115/208-230V
1800 56 00118ES1BD56 401 F1 52 1.15 7.00 70.30 12.677 115/208-230V
1800 F143T 00118ES1E143T 531 W1 65 1.15 7.00 68.00 14.834 208-230/460V
1.5
3600 56 00156ES1BD56 432 F1 56 1.15 8.50 70.00 12.677 115/208-230V
1800 56 00158ES1BF56 456 F1 58 1.15 9.00 76.50 13.858 115/208-230V
1800 G145T 00158ES1E145T 611 W1 73 1.15 9.00 72.00 15.228 208-230/460V
1200 182T 00152ES1E182T 1,100 W1 135 1.15 7.70 80.00 17.240 208-230/460V
2
3600 56 00236ES1BF56 561 F1 65 1.15 10.5 74.00 13.858 115/208-230V
3600 G145T 00236ES1E145T 640 W1 73 1.15 10.2 75.00 15.228 208-230/460V
1800 G145T 00218ES1E145T 615 W1 75 1.15 10.8 74.00 15.228 208-230/460V
1200 W213T 00212ES1E213T 1,209 W1 184 1.15 10.0 80.00 21.000 208-230/460V
3
3600 G145T 00336ES1E145T 829 W1 79 1.15 13.5 78.80 15.228 208-230/460V
3600 182T 00336ES1E182T 879 W1 109 1.15 13.5 78.80 17.240 208-230/460V
1800 184T 00318ES1E184T 874 W1 133 1.15 14.0 78.00 17.050 208-230/460V
1200 215T 00312ES1E215T 1,327 W1 204 1.15 13.0 82.00 21.000 208-230/460V
5
3600 184T 00536ES1E184T 1,038 W1 133 1.15 21.0 83.00 17.050 208-230/460V
1800 184T 00518ES1E184T 1,064 W1 157 1.15 21.0 79.40 17.050 208-230/460V
1800 215TZ 00518ES1E215TZ 1,181 W1 169 1.15 21.0 79.40 19.567 208-230/460V
1200 215T 00512ES1E215T 1,588 W1 213 1.15 22.0 83.00 19.500 208-230/460V
7.5
3600 213T 00736ES1E213T 1,548 W1 167 1.15 31.0 84.00 21.000 208-230/460V
1800 215T 00718ES1E215T 1,359 W1 199 1.15 34.0 82.00 19.500 208-230/460V
1800 215TZ 00718ES1E215TZ 1,446 W1 199 1.15 34.0 82.00 19.567 208-230/460V
10 3600 215T 01036ES1E215T 1,916 W1 196 1.15 38.2 88.20 19.500 208-230/460V
1800 215T 01018ES1E215T 1,579 W1 223 1.15 40.0 83.00 19.500 208-230/460V
12.5 1800 215T 01218ES1E215T 1,776 W1 234 1.15 48.0 84.0 19.500 208-230/460 AL
AL - Aluminum Fan
Charles Schuh, Drives Product Manager
“ A true solution has to be optimal. Shouldn’t
the total cost of owning your equipment
be as well?”
WEG offers the optimal motor and drive solution for low and medium
voltage applications. For low voltage, the design characteristics of a
WEG motor are loaded into the WEG VFD, CFW09 and CFW11. The
benefits include cooler operation, longer motor life, and less energy –
hence, lower total cost of ownership. For more information on our
current motor and drive packages or to locate a U.S. distributor near
you, call 1-800-ASK-4WEG or visit www.weg.net/us.
Transforming energy into solutions.
©2008 WEG Electric Corp.
Motors | Automation | Energy | Transmission & Distribution | Coatings
NEMA PREMIUM
EFFICIENCY
www.weg.net
A-48 Data subject to change without notice.
NEMA PREMIUM EFFICIENCY
FAN
Made of rigid plastic from frames
143T up to 505T and aluminum for
frame 586/7. Non sparking, non
toxic, resistant to environmental
conditions, and ensures low noise
operation.
BEARINGS
The bearings are sized to ensure
long life to the motor, even under
heavy working conditions. Positive
pressure lubrication system includes
a drain plug that allows the relief of
excess grease on 254T frames up to
586/7.
FAN COVER
Steel covers on 143T up to
215T frames and cast iron on
frames 254T and up
TERMINAL BOX
Oversized, cast iron construction.
Gasketed lid and between box frame.
NPT threads holes to connect conduit
or cable glands
WINDING
All copper winding wire enameled with class “H” polyester
varnish. The winding is insulated on stator slots and
between the coil phase with class “F” insulating materials
of high dielectric rigidity and solvent free polyester resin
excellent mechanical resistance.
STATOR
Made of silicon steel
laminations thermochemically
treated to improve the electric
characteristics, reducing
electric losses and the
operating temperature.
SHAFT
Made of ASTM 1045 carbon steel. It is thermally
treated to minimize internal stress and to resist
bending and fatigue caused by torsion and flexing.
Roller bearing motors use 4140 alloy steel for extra
torsional strength on applications.
V-RING SLINGER
In both endshield
to protect bearings
and motor from
the aggressive
components present
in the environment.
DRAIN PLUG
Provided with
automatic drain plug
that quickly drains
condensation.
ENDSHIELD
Made of cast iron, with external fins for
heat dissipation. They also have polished
bearing housings for longer bearing life.
ROTOR
Aluminum die cast into a magnetic
steel lamination for low electric losses.
Dynamically balanced for smooth
operation, reduced vibration and noice.
FRAME
Made of FC-200 cast iron, with external
fins for maximum cooling effect.
NAMEPLATE
Stainless steel nameplate contains
a complete and permanent record
of all motor data (according of
NEMA requirement).
EYEBOLT
For easy handling, motor 184T
frames and larger are provided
with an eyebolt. Footless motors
are provided with two eyebolts
®
NEMA PREMIUM
EFFICIENCY
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-49
Data subject to change without notice.
Frames 143T to 586/7
NOTE:
* Design B torque rating on nameplate can be re-plated for Design C
for 15-200Hp 1800 and 1200 rpm.
Energy efficiency motors verified by UL in addition to the DOE.
• Chemical plants
• Compressors
• Pulp and paper mills
• Crushers
• Reneries
• Pumps
• Steel mills
• Fans
• Cement mills
• Packaging equipment
• Three-phase, 2, 4, 6 and 8 pole, 60Hz
• Voltage: 208-230/460V, 200V,
460V or 575V
• 50/60Hz rated up to 250HP (Same HP for both
frequencies) (For 300HP and up please contact
your sales office)
• Totally Enclosed Fan Cooled – TEFC (IP55)
• Squirrel cage rotor / Aluminum die cast
• V-ring slingers on both endshields
(586/7 frame equipped with labyrinth taconite
seal as standard)
• Ball bearings are supplied as standard (RB part
numbers supplied with roller bearings)
• 1045 Carbon Steel Shaft for frames up to 365T.
• 4140 steel shaft for motors 404T and above.
(3600 RPM motors supplied with 1045)
• NEMA dimensions
• Class ‘F’ insulation for all frames
• Class ‘H’ impregnation resin
• Temperature rise: Class ‘B’ (80ºC)
• NEMA Design ‘B’*
• Most ratings meet Design C Torque
• Special voltages
• Specially designed shaft
• Space heaters
(standard on 586/7 frames)
• Thermistor, Thermostats or RTD’s (PT100)
• Additional terminal box
• Drip cover (canopy) for shaft down
applications
• Cable glands
• ‘C’ and ‘D’ anges for all ratings
• Roller bearings on drive end available for all
frames
• Labyrinth taconite seal available on all ratings
APPROVED BY
LR 38324
TEFC – THREE PHASE – FOOT MOUNT
TEFC motors are built according to NEMA specifications and designed for operation in moist
or dusty atmospheric conditions without affecting their useful life. Premium Efficiency WEG
motors are tested according to IEEE 112 std., method ‘B’ and their efciency values are
certified by UL Labs (CSA C390). Motors will meet Design B torques, maintaining exceedingly
high breakdown and locked rotor torque while providing the highest rated efficiency levels.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
NEMA Premium Efficiency
General Purpose
• Service factor: 1.25 up to 100HP
1.15 from 125HP and up
• Continuous duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000m)
• NPT threaded terminal box
• F1 mount
• Stainless steel nameplate AISI 316 with
laser etching
• Color: RAL 6002 (Green)
• Automatic drain plugs
- pressure compensated
• Regreasable bearings positive pressure
lubrication system (frames 254T and up)
• Gasketed conduit box
• Meets NEMA MG 1 Part 31 for use
with VFD - 20:1 constant torque speed
range. Speed range can be extended with
optional Blower kit.
• Class 1, Div 2, Groups A, B, C & D, T3
• 284T and above with drilled and tapped
NDE shaft end for encoder installation
STANDARD FEATURES
HIGHLIGHTS
• Meets NEMA Premium
Efficiency levels
•High starting torque
• FC-200 reinforced cast
iron/severe duty
E 104590
APPROVED BY
NEMA PREMIUM
EFFICIENCY
www.weg.net
A-50 Data subject to change without notice.
FOOT MOUNT
NEMA PREMIUM EFFICIENCY – GENERAL PURPOSE MOTORS
THREE-PHASE – TEFC MEETS CEE ENERGY SPECIFICATION
• ELECTRICAL FEATURES ON PAGE B-5, B-14.
• MECHANICAL FEATURES ON PAGE B-47...B-49.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1
1800 143T 00118ET3ERS143T 459 RSP 36 1.45 85.5 14.095 208-230/460V RS
1800 143T 00118ET3E143T 527 N1 54 1.43 85.5 12.250 208-230/460V
1800 143T 00118ET3H143T 527 N1 54 1.43 85.5 12.250 575V
1200 145T 00112ET3E145T 608 N1 56 1.73 82.5 13.234 208-230/460V
1200 145T 00112ET3H145T 608 N1 56 1.73 82.5 13.234 575V
900 182T 00109ET3E182T 1,043 N1 104 2.30 78.5 14.860 208-230/460V u
1.5
3600 143T 00156ET3ERS143T 473 RSP 38 1.95 84.0 14.095 208-230/460V RS
3600 143T 00156ET3E143T 543 N1 45 1.98 84.0 12.250 208-230/460V
3600 143T 00156ET3H143T 544 N1 45 1.98 84.0 12.250 575V
1800 145T 00158ET3ERS145T 480 RSP 39 2.25 86.5 14.095 208-230/460V RS
1800 145T 00158ET3E145T 551 N1 56 2.00 86.5 13.234 208-230/460V
1800 145T 00158ET3H145T 551 N1 56 2.00 86.5 13.234 575V
1200 182T 00152ET3ERS182T 656 RSP 74 2.39 87.5 16.404 208-230/460V RS
1200 182T 00152ET3E182T 754 N1 79 2.39 87.5 14.860 208-230/460V
1200 182T 00152ET3H182T 754 N1 79 2.39 87.5 14.860 575V
900 184T 00159ET3E184T 1,207 N1 120 2.70 82.5 15.860 208-230/460V u
2
3600 145T 00236ET3ERS145T 514 RSP 42 2.50 85.5 14.095 208-230/460V RS
3600 145T 00236ET3E145T 591 N1 52 2.65 85.5 13.234 208-230/460V
3600 145T 00236ET3H145T 591 N1 52 2.65 85.5 13.234 575V
1800 145T 00218ET3ERS145T 533 RSP 46 2.85 86.5 14.095 208-230/460V RS
1800 145T 00218ET3E145T 612 N1 58 2.63 86.5 13.234 208-230/460V
1800 145T 00218ET3H145T 612 N1 58 2.63 86.5 13.234 575V
1200 184T 00212ET3ERS184T 713 RSP 91 3.22 88.5 16.404 208-230/460V RS
1200 184T 00212ET3E184T 819 N1 97 3.23 88.5 15.860 208-230/460V
1200 184T 00212ET3H184T 819 N1 97 3.23 88.5 15.860 575V
900 213T 00209ET3E213T 1,848 N1 154 3.44 85.5 18.021 208-230/460V u
3
3600 182T 00336ET3ERS182T 665 RSP 80 3.68 87.5 16.404 208-230/460V RS
3600 182T 00336ET3E182T 763 N1 99 3.68 87.5 14.860 208-230/460V
3600 182T 00336ET3H182T 764 N1 99 3.68 87.5 14.860 575V
1800 182T 00318ET3ERS182T 577 RSP 74 3.91 89.5 16.404 208-230/460V RS
1800 182T 00318ET3E182T 663 N1 99 3.90 89.5 14.860 208-230/460V
1800 182T 00318ET3H182T 663 N1 99 3.90 89.5 14.860 575V
1200 213T 00312ET3ERS213T 983 RSP 122 4.41 89.5 20.257 208-230/460V RS
1200 213T 00312ET3E213T 1,129 N1 134 4.41 89.5 18.021 208-230/460V
1200 213T 00312ET3H213T 1,129 N1 134 4.41 89.5 18.021 575V
900 215T 00309ET3E215T 2,115 N1 166 4.33 84.0 19.517 208-230/460V u
5
3600 184T 00536ET3ERS184T 760 RSP 93 5.96 89.5 16.404 208-230/460V RS
3600 184T 00536ET3E184T 873 N1 114 5.76 89.5 15.860 208-230/460V
3600 184T 00536ET3H184T 872 N1 114 5.76 89.5 15.860 575V
1800 184T 00518ET3ERS184T 672 RSP 92 6.40 89.5 16.404 208-230/460V RS
1800 184T 00518ET3E184T 772 N1 108 6.40 89.5 15.860 208-230/460V
1800 184T 00518ET3H184T 772 N1 108 6.40 89.5 15.860 575V
1200 215T 00512ET3ERS215T 1,160 RSP 146 6.83 89.5 20.257 208-230/460V RS
1200 215T 00512ET3E215T 1,332 N1 175 6.83 89.5 19.517 208-230/460V
1200 215T 00512ET3H215T 1,332 N1 175 6.83 89.5 19.517 575V
900 254T 00509ET3E254T 3,301 N1 244 8.00 86.6 23.213 208-230/460V u
7.5
3600 213T 00736ET3ERS213T 980 RSP 125 8.63 91.0 20.257 208-230/460V RS
3600 213T 00736ET3E213T 1,125 N1 134 8.63 91.0 18.021 208-230/460V
3600 213T 00736ET3H213T 1,125 N1 134 8.63 91.0 18.021 575V
1800 213T 00718ET3ERS213T 948 RSP 139 9.29 91.7 20.257 208-230/460V RS
1800 213T 00718ET3E213T 1,089 N1 165 9.29 91.7 18.021 208-230/460V
1800 213T 00718ET3H213T 1,089 N1 165 9.29 91.7 18.021 575V
1200 254T 00712ET3ERS254T 1,799 RSP 237 9.73 91.0 24.925 208-230/460V RS
1200 254T 00712ET3E254T 2,065 N1 282 9.73 91.0 23.213 208-230/460V
1200 254T 00712ET3H254T 2,065 N1 282 9.73 91.0 23.213 575V
900 256T 00709ET3E256T 3,658 N1 302 11.7 86.9 24.945 208-230/460V u
®
* Available as W22 by adding “–W22” sufx to the motor model.
For C-dimension, please check page B-96-97
W22
Transitioning
to*
NEMA PREMIUM
EFFICIENCY
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-51
Data subject to change without notice.
FOOT MOUNT
NEMA PREMIUM EFFICIENCY – GENERAL PURPOSE MOTORS
THREE-PHASE – TEFC MEETS CEE ENERGY SPECIFICATION
• ELECTRICAL FEATURES ON PAGE B-5, B-14, B-15. • MECHANICAL FEATURES ON PAGE B-47...49.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
10
3600 215T 01036ET3ERS215T 1,160 RSP 158 11.5 91.7 20.257 208-230/460V RS
3600 215T 01036ET3E215T 1,332 N1 173 11.5 91.7 19.517 208-230/460V
3600 215T 01036ET3H215T 1,332 N1 173 11.5 91.7 19.517 575V
1800 215T 01018ET3ERS215T 1,110 RSP 153 12.7 91.7 20.257 208-230/460V RS
1800 215T 01018ET3E215T 1,273 N1 172 12.6 91.7 19.517 208-230/460V
1800 215T 01018ET3H215T 1,273 N1 172 12.6 91.7 19.517 575V
1200 256T 01012ET3ERS256T 2,088 RSP 260 13.3 91.0 24.925 208-230/460V RS
1200 256T 01012ET3E256T 2,396 N1 316 13.3 91.0 24.945 208-230/460V
1200 256T 01012ET3H256T 2,396 N1 316 13.3 91.0 24.945 575V
900 284T 01009ET3E284T 4,634 N1 413 13.6 91.0 26.433 208-230/460V u
15
3600 254T 01536ET3ERS254T 1,589 RSP 214 16.9 91.7 22.956 208-230/460V RS
3600 254T 01536ET3E254T 1,824 N1 280 16.9 91.7 23.213 208-230/460V
3600 254T 01536ET3H254T 1,824 N1 280 16.9 91.7 23.213 575V
1800 254T 01518ET3ERS254T 1,610 RSP 238 18.0 92.4 24.925 208-230/460V RS
1800 254T 01518ET3E254T 1,848 N1 291 18.0 92.4 23.213 208-230/460V
1800 254T 01518ET3H254T 1,848 N1 291 18.0 92.4 23.213 575V
1200 284T 01512ET3E284T 3,291 N1 360 17.3 91.7 26.433 208-230/460V
1200 284T 01512ET3H284T 3,291 N1 360 17.3 91.7 26.433 575V
900 286T 01509ET3E286T 5,368 N1 463 19.0 91.0 27.929 208-230/460V u
20
3600 256T 02036ET3ERS256T 2,076 RSP 237 22.9 92.4 24.925 208-230/460V RS
3600 256T 02036ET3E256T 2,382 N1 313 22.9 92.4 24.945 208-230/460V
3600 256T 02036ET3H256T 2,383 N1 313 22.9 92.4 24.945 575V
1800 256T 02018ET3ERS256T 1,918 RSP 259 24.4 93.0 24.925 208-230/460V RS
1800 256T 02018ET3E256T 2,201 N1 324 24.4 93.0 24.945 208-230/460V
1800 256T 02018ET3H256T 2,201 N1 324 24.4 93.0 24.945 575V
1200 286T 02012ET3E286T 3,962 N1 503 24.1 91.7 27.929 208-230/460V
1200 286T 02012ET3H286T 3,962 N1 503 24.1 91.7 27.929 575V
900 324T 02009ET3E324T 6,339 N1 557 27.5 92.4 29.620 208-230/460V u
25
3600 284TS 02536ET3E284TS 2,998 N1 353 28.4 93.0 25.061 208-230/460V
3600 284TS 02536ET3H284TS 2,999 N1 353 28.4 93.0 25.061 575V
1800 284T 02518ET3E284T 2,743 N1 481 29.5 93.6 26.433 208-230/460V
1800 284T 02518ET3H284T 2,743 N1 481 29.5 93.6 26.433 575V
1200 324T 02512ET3E324T 4,737 N1 605 30.5 93.0 29.620 208-230/460V
1200 324T 02512ET3H324T 4,737 N1 605 30.5 93.0 29.620 575V
900 326T 02509ET3E326T 7,315 N1 632 35.4 92.4 31.116 208-230/460V u
30
3600 286TS 03036ET3E286TS 3,561 N1 428 33.4 93.0 26.557 208-230/460V
3600 286TS 03036ET3H286TS 3,561 N1 428 33.4 93.0 26.557 575V
1800 286T 03018ET3E286T 3,223 N1 525 35.1 93.6 27.929 208-230/460V
1800 286T 03018ET3H286T 3,223 N1 525 35.1 93.6 27.929 575V
1200 326T 03012ET3E326T 5,273 N1 673 35.8 93.0 31.116 208-230/460V
1200 326T 03012ET3H326T 5,273 N1 673 35.8 93.0 31.116 575V
900 364T 03009ET3E364T 11,215 N1 992 38.5 93.0 33.709 208-230/460V u
40
3600 324TS 04036ET3E324TS 4,725 N1 561 45.8 93.6 28.120 208-230/460V
3600 324TS 04036ET3H324TS 4,724 N1 561 45.8 93.6 28.120 575V
1800 324T 04018ET3E324T 4,178 N1 640 48.3 94.1 29.620 208-230/460V
1800 324T 04018ET3H324T 4,178 N1 640 48.3 94.1 29.620 575V
1200 364T 04012ET3E364T 7,284 N1 1076 47.1 94.1 33.709 208-230/460V
1200 364T 04012ET3H364T 7,284 N1 1076 47.1 94.1 33.709 575V
900 365T 04009ET3E365T 12,194 N1 1063 52.3 93.6 33.709 208-230/460V u
50
3600 326TS 05036ET3E326TS 5,316 N1 607 55.5 94.1 29.616 208-230/460V
1800 326T 05018ET3E326T 5,100 N1 662 60.6 94.5 31.116 208-230/460V
1800 326T 05018ET3H326T 5,100 N1 662 60.6 94.5 31.116 575V
1200 365T 05012ET3E365T 8,518 N1 1127 58.0 94.1 33.709 208-230/460V
900 404T 05009ET3E404T 17,648 N1 1295 68.0 93.6 38.077 208-230/460V u
®
60
3600 364TS 06036ET3E364TS 7,552 N1 992 68.3 94.1 31.583 208-230/460V
1800 364T 06018ET3E364T 7,389 N1 1036 68.4 95.0 33.709 208-230/460V
1800 364T 06018ET3G364T 7,389 N1 1036 68.4 95.0 33.709 460V
1800 364T 06018ET3H364T 7,389 N1 1036 68.4 95.0 33.709 575V
1200 404T 06012ET3E404T 10,497 N1 1346 70.4 94.5 38.077 208-230/460V
900 405T 06009ET3E405T 20,443 N1 1463 76.9 93.0 38.077 208-230/460V u
* Available as W22 by adding “–W22” sufx to the motor model.
For C-dimension, please check page B-96-97
W22
Transitioning
to*
NEMA PREMIUM
EFFICIENCY
www.weg.net
A-52 Data subject to change without notice.
FOOT MOUNT
NEMA PREMIUM EFFICIENCY – GENERAL PURPOSE MOTORS
THREE-PHASE – TEFC MEETS CEE ENERGY SPECIFICATION
• ELECTRICAL FEATURES ON PAGE B-15. • MECHANICAL FEATURES ON PAGE B-47.
®
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
75
3600 365TS 07536ET3E365TS 9,091 N1 1025 82.6 95.0 31.583 208-230/460V
3600 365TS 07536ET3G365TS 9,091 N1 1025 82.6 95.0 31.583 460V
1800 365T 07518ET3E365T 8,705 N1 1047 82.3 95.4 33.709 208-230/460V
1800 365T 07518ET3G365T 8,705 N1 1047 82.3 95.4 33.709 460V
1800 365T 07518ET3H365T 8,705 N1 1047 82.3 95.4 33.709 575V
1200 405T 07512ET3E405T 12,058 N1 1478 87.0 94.5 38.077 208-230/460V
900 444T 07509ET3E444T 23,334 N1 1660 90.0 93.6 43.776 208-230/460V u
100
3600 405TS 10036ET3E405TS 12,002 N1 1361 111 95.0 35.077 208-230/460V
3600 405TS 10036ET3G405TS 12,002 N1 1361 111 95.0 35.077 460V
1800 405T 10018ET3E405T 11,689 N1 1302 112 95.4 38.077 208-230/460V
1800 405T 10018ET3G405T 11,689 N1 1302 112 95.4 38.077 460V
1800 405T 10018ET3H405T 11,689 N1 1302 112 95.4 38.077 575V
1200 444T 10012ET3E444T 15,631 N1 2006 121 95.0 43.776 208-230/460V
1200 444T 10012ET3G444T 15,631 N1 2006 121 95.0 43.776 460V
900 445T 10009ET3G445T 26,988 N1 1900 122 94.1 43.776 460V u
125
3600 444TS 12536ET3G444TS 15,350 N1 1794 133 95.0 40.026 460V
1800 444T 12518ET3G444T 14,748 N1 1841 138 95.4 43.776 460V
1200 445T 12512ET3G445T 17,947 N1 2082 145 95.0 43.776 460V
900 447T 12509ET3G447T 31,797 N1 2242 146 94.5 47.299 460V u
150
3600 445TS 15036ET3G445TS 18,882 N1 1865 161 95.4 40.026 460V
1800 445T 15018ET3G445T 17,420 N1 1940 170 95.8 43.776 460V
1200 447T 15012ET3G447T 20,639 N1 2738 174 95.8 47.299 460V
1200 504 15012ET3G504 20,639 N1 2738 174 95.8 49.449 460V u
900 447T 15009ET3G447T 36,091 N1 2471 179 94.5 47.299 460V u
900 449T 15009ET3G449T-W22 30,677 N1 2342 185 94.5 56.690 460V uW22
200
3600 447TS 20036ET3G447TS 23,562 N1 2072 221 95.8 43.549 460V
3600 504S 20036ET3G504S 23,561 N1 2072 221 95.8 43.569 460V u
1800 447T 20018ET3G447T 21,098 N1 2216 230 96.2 47.299 460V
1800 504 20018ET3G504 21,098 N1 2216 230 96.2 49.449 460V u
1200 447T 20012ET3G447T 25,133 N1 2467 234 95.8 47.299 460V
1200 449T 20012ET3G449T-W22 25,255 N1 2397 237 95.8 56.690 460V W22
1200 505 20012ET3G505 25,133 N1 2467 234 95.8 49.449 460V u
1200 449T 20012ET3GRB449T-W22 25,255 N1 2397 237 95.8 56.690 460V uW22
900 586/7 20009ET3G586/7 58,706 N1 4212 261 95.0 59.421 460V u
900 449T 20009ET3G449T-W22 49,899 N1 2659 254 95.0 56.690 460V uW22
250
3600 447TS 25036ET3G447TS 29,846 N1 2266 269 95.8 43.549 460V
3600 449TS 25036ET3G449TS-W22 33,173 N1 2459 266 95.8 52.940 460V W22
3600 505S 25036ET3G505S 29,845 N1 2266 269 95.8 43.569 460V u
1800 447T 25018ET3G447T 26,716 N1 2414 284 96.2 47.299 460V
1800 449T 25018ET3G449T-W22 26,803 N1 2379 281 96.2 56.690 460V W22
1800 505 25018ET3G505 26,716 N1 2414 284 96.2 49.449 460V u
1800 449T 25018ET3GRB449T-W22 26,803 N1 2379 281 96.2 56.690 460V W22
1200 449T 25012ET3G449T-W22 35,555 N1 2688 292 95.8 56.690 460V W22
1200 586/7 25012ET3G586/7 39,631 N1 4002 303 95.8 59.421 460V
1200 449T 25012ET3GRB449T-W22 35,555 N1 2688 292 95.8 56.690 460V W22
900 L449T 25009ET3G449T-W22 56,168 N1 3700 308 95.4 57.780 460V uW22
900 586/7 25009ET3G586/7 66,079 N1 4639 316 95.4 59.421 460V u
300
3600 449TS 30036ET3G449TS-W22 38,269 N1 2695 320 95.8 52.940 460V W22
3600 586/7S 30036ET3G586/7S 45,001 N1 3374 328 95.8 48.845 460V
1800 449T 30018ET3G449T-W22 31,384 N1 2531 330 96.2 56.690 460V W22
1800 586/7 30018ET3G586/7 36,881 N1 3837 338 96.2 59.421 460V
1800 449T 30018ET3GRB449T-W22 31,384 N1 2531 330 96.2 56.690 460V W22
1200 449T 30012ET3G449T-W22 38,437 N1 2763 347 95.8 56.690 460V W22
1200 586/7 30012ET3G586/7 44,301 N1 4487 351 95.8 59.421 460V
1200 449T 30012ET3GRB449T-W22 38,437 N1 2763 347 95.8 56.690 460V W22
900 L449T 30009ET3G449T-W22 70,362 N1 3854 371 95.4 57.780 460V uW22
900 586/7 30009ET3G586/7 82,778 N1 4873 376 95.4 59.421 460V u
* Available as W22 by adding “–W22” sufx to the motor model.
For C-dimension, please check page B-96-97
W22
Transitioning
to*
NEMA PREMIUM
EFFICIENCY
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-53
Data subject to change without notice.
FOOT MOUNT
NEMA PREMIUM EFFICIENCY – GENERAL PURPOSE MOTORS
THREE-PHASE – TEFC (IP55) MEETS CEE ENERGY SPECIFICATION
®
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
350
3600 449TS 35036ET3G449TS-W22 46,117 N1 2851 377 96.2 52.940 460V W22
3600 586/7S 35036ET3G586/7S 54,255 N1 3605 388 95.8 48.845 460V
1800 449T 35018ET3G449T-W22 36,517 N1 2825 394 96.2 56.690 460V W22
1800 586/7 35018ET3G586/7 42,197 N1 4300 399 96.2 59.421 460V
1200 L449T 35012ET3G449T-W22 55,190 N1 3724 404 96.2 57.780 460V W22
1200 586/7 35012ET3G586/7 51,108 N1 4723 426 95.8 59.421 460V
900 586/7 35009ET3G586/7 86,909 N1 5028 439 95.4 59.421 460V u
400
1800 L449T 40018ET3G449T-W22 43,805 N1 3435 455 96.2 57.780 460V W22
1800 586/7 40018ET3G586/7 48,823 N1 4686 460 96.2 59.421 460V
1200 L449T 40012ET3G449T-W22 52,307 N1 3832 477 96.2 57.780 460V W22
1200 586/7 40012ET3G586/7 56,201 N1 4961 491 95.8 59.421 460V
450
1800 L449T 45018ET3G449T-W22 48,010 N1 3546 501 96.2 57.780 460V uW22
1800 586/7 45018ET3G586/7 50,916 N1 5204 506 96.2 59.421 460V u
1200 586/7 45012ET3G586/7 62,251 N1 5248 540 95.8 59.421 460V u
500 1800 L449T 50018ET3G449T-W22 50,594 N1 3612 561 96.2 57.780 460V W22
1800 586/7 50018ET3G586/7 53,727 N1 5424 568 96.2 59.421 460V
• ELECTRICAL FEATURES ON PAGE B-15. • MECHANICAL FEATURES ON PAGE B-47...B-50.
‘C’ FLANGE - FOOT MOUNT
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1
1800 143TC 00118ET3ERS143TC 484 RSP 36 1.45 85.5 14.095 208-230/460V RS
1800 143TC 00118ET3E143TC 555 N1 54 1.43 85.5 12.250 208-230/460V
1200 145TC 00112ET3E145TC 636 N1 56 1.73 82.5 13.234 208-230/460V
1.5
3600 143TC 00156ET3ERS143TC 497 RSP 38 1.95 84.0 14.095 208-230/460V RS
3600 143TC 00156ET3E143TC 571 N1 45 1.98 84.0 12.250 208-230/460V
1800 145TC 00158ET3ERS145TC 504 RSP 39 2.25 86.5 14.095 208-230/460V RS
1800 145TC 00158ET3E145TC 579 N1 56 2.00 86.5 13.234 208-230/460V
1200 182TC 00152ET3ERS182TC 690 RSP 74 2.39 87.5 16.404 208-230/460V RS
1200 182TC 00152ET3E182TC 792 N1 79 2.39 87.5 14.860 208-230/460V
2
3600 145TC 00236ET3ERS145TC 539 RSP 42 2.50 85.5 14.095 208-230/460V RS
3600 145TC 00236ET3E145TC 619 N1 52 2.65 85.5 13.234 208-230/460V
1800 145TC 00218ET3ERS145TC 558 RSP 46 2.85 86.5 14.095 208-230/460V RS
1800 145TC 00218ET3E145TC 640 N1 58 2.63 86.5 13.234 208-230/460V
1200 184TC 00212ET3ERS184TC 747 RSP 91 3.22 88.5 16.404 208-230/460V RS
1200 184TC 00212ET3E184TC 857 N1 97 3.23 88.5 15.860 208-230/460V
3
3600 182TC 00336ET3ERS182TC 698 RSP 80 3.68 87.5 16.404 208-230/460V RS
3600 182TC 00336ET3E182TC 802 N1 99 3.68 87.5 14.860 208-230/460V
1800 182TC 00318ET3ERS182TC 610 RSP 74 3.91 89.5 16.404 208-230/460V RS
1800 182TC 00318ET3E182TC 700 N1 99 3.90 89.5 14.860 208-230/460V
1200 213TC 00312ET3ERS213TC 1,028 RSP 122 4.41 89.5 20.257 208-230/460V RS
1200 213TC 00312ET3E213TC 1,180 N1 134 4.41 89.5 18.021 208-230/460V
5
3600 184TC 00536ET3ERS184TC 793 RSP 93 5.96 89.5 16.404 208-230/460V RS
3600 184TC 00536ET3E184TC 911 N1 114 5.76 89.5 15.860 208-230/460V
1800 184TC 00518ET3ERS184TC 706 RSP 92 6.40 89.5 16.404 208-230/460V RS
1800 184TC 00518ET3E184TC 810 N1 108 6.40 89.5 15.860 208-230/460V
1200 215TC 00512ET3ERS215TC 1,206 RSP 146 6.83 89.5 20.257 208-230/460V RS
1200 215TC 00512ET3E215TC 1,384 N1 175 6.83 89.5 19.517 208-230/460V
* Available as W22 by adding “–W22” sufx to the motor model.
For C-dimension, please check page B-96-97
W22
Transitioning
to*
NEMA PREMIUM
EFFICIENCY
www.weg.net
A-54 Data subject to change without notice.
‘C’ FLANGE - FOOT MOUNT
NEMA PREMIUM EFFICIENCY – GENERAL PURPOSE MOTORS
THREE-PHASE – TEFC MEETS CEE ENERGY SPECIFICATION
• ELECTRICAL FEATURES ON PAGE B-5, B-14, B-15. • MECHANICAL FEATURES ON PAGE B-47...B-50.
®
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
7.5
3600 213TC 00736ET3ERS213TC 1,025 RSP 125 8.63 91.0 20.257 208-230/460V RS
3600 213TC 00736ET3E213TC 1,177 N1 134 8.63 91.0 18.021 208-230/460V
1800 213TC 00718ET3ERS213TC 994 RSP 139 9.29 91.7 20.257 208-230/460V RS
1800 213TC 00718ET3E213TC 1,141 N1 165 9.29 91.7 18.021 208-230/460V
1200 254TC 00712ET3ERS254TC 1,859 RSP 237 9.73 91.0 24.925 208-230/460V RS
1200 254TC 00712ET3E254TC 2,134 N1 282 9.73 91.0 23.213 208-230/460V
10
3600 215TC 01036ET3ERS215TC 1,205 RSP 158 11.5 91.7 20.257 208-230/460V RS
3600 215TC 01036ET3E215TC 1,383 N1 173 11.5 91.7 19.517 208-230/460V
1800 215TC 01018ET3ERS215TC 1,154 RSP 153 12.7 91.7 20.257 208-230/460V RS
1800 215TC 01018ET3E215TC 1,325 N1 172 12.6 91.7 19.517 208-230/460V
1200 256TC 01012ET3ERS256TC 2,148 RSP 260 13.3 91.0 24.925 208-230/460V RS
1200 256TC 01012ET3E256TC 2,465 N1 316 13.3 91.0 24.945 208-230/460V
15
3600 254TC 01536ET3ERS254TC 1,649 RSP 214 16.9 91.7 22.956 208-230/460V RS
3600 254TC 01536ET3E254TC 1,893 N1 280 16.9 91.7 23.213 208-230/460V
1800 254TC 01518ET3ERS254TC 1,670 RSP 238 18.0 92.4 24.925 208-230/460V RS
1800 254TC 01518ET3E254TC 1,917 N1 291 18.0 92.4 23.213 208-230/460V
1200 284TC 01512ET3E284TC 3,388 N1 360 17.3 91.7 26.433 208-230/460V u
20
3600 256TC 02036ET3ERS256TC 2,136 RSP 237 22.9 92.4 24.925 208-230/460V RS
3600 256TC 02036ET3E256TC 2,451 N1 313 22.9 92.4 24.945 208-230/460V
1800 256TC 02018ET3ERS256TC 1,978 RSP 259 24.4 93.0 24.925 208-230/460V RS
1800 256TC 02018ET3E256TC 2,270 N1 324 24.4 93.0 24.945 208-230/460V
1200 286TC 02012ET3E286TC 4,060 N1 503 24.1 91.7 27.929 208-230/460V u
25 3600 284TSC 02536ET3E284TSC 3,096 N1 353 28.4 93.0 25.061 208-230/460V
1800 284TC 02518ET3E284TC 2,840 N1 481 29.5 93.6 26.433 208-230/460V
30 3600 286TSC 03036ET3E286TSC 3,659 N1 428 33.4 93.0 26.557 208-230/460V
1800 286TC 03018ET3E286TC 3,321 N1 525 35.1 93.6 27.929 208-230/460V
40 3600 324TSC 04036ET3E324TSC 4,845 N1 561 45.8 93.6 28.120 208-230/460V u
1800 324TC 04018ET3E324TC 4,300 N1 640 48.3 94.1 29.620 208-230/460V
50 3600 326TSC 05036ET3E326TSC 5,437 N1 607 55.5 94.1 29.616 208-230/460V u
1800 326TC 05018ET3E326TC 5,221 N1 662 60.6 94.5 31.116 208-230/460V
60 3600 364TSC 06036ET3E364TSC 7,994 N1 992 68.3 94.1 31.583 208-230/460V u
1800 364TC 06018ET3E364TC 7,831 N1 1036 68.4 95.0 33.709 208-230/460V
75 3600 365TSC 07536ET3E365TSC 9,533 N1 1025 82.6 95.0 31.583 208-230/460V u
1800 365TC 07518ET3E365TC 9,148 N1 1047 82.3 95.4 33.709 208-230/460V
100 3600 405TSC 10036ET3E405TSC 12,492 N1 1361 111 95.0 35.077 208-230/460V u
1800 405TC 10018ET3E405TC 12,179 N1 1302 112 95.4 38.077 208-230/460V
C-FLANGE - FOOTLESS
HP RPM NEMA
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
1 1800 143TC 00118ET3ER143TC-W22 572 N1 54 1.39 85.5 12.250 208-230/460V
1.5 1800 145TC 00158ET3ER145TC-W22 596 N1 56 1.97 86.5 13.234 208-230/460V
2 1800 145TC 00218ET3ER145TC-W22 659 N1 58 2.61 86.5 13.234 208-230/460V
33600 182TC 00336ET3ER182TC-W22 826 N1 99 3.62 86.5 14.860 208-230/460V
1800 182TC 00318ET3ER182TC-W22 721 N1 99 3.88 89.5 14.860 208-230/460V
53600 184TC 00536ET3ER184TC-W22 938 N1 114 5.91 88.5 15.860 208-230/460V
1800 184TC 00518ET3ER184TC-W22 834 N1 108 6.45 89.5 15.860 208-230/460V
7.5 1800 213TC 00718ET3ER213TC-W22 1,175 N1 165 9.00 91.7 18.021 208-230/460V
10 1800 215TC 01018ET3ER215TC-W22 1,366 N1 172 12.4 91.7 19.517 208-230/460V
15 1800 254TC 01518ET3ER254TC-W22 1,975 N1 291 18.0 92.4 23.213 208-230/460V
20 1800 256TC 02018ET3ER256TC-W22 2,338 N1 324 24.1 93.0 24.945 208-230/460V
25 1800 284TC 02518ET3ER284TC-W22 2,925 N1 481 29.5 93.6 26.433 208-230/460V
30 1800 286TC 03018ET3ER286TC-W22 3,421 N1 525 35.1 93.6 27.929 208-230/460V
40 1800 324TC 04018ET3ER324TC-W22 4,429 N1 640 48.2 94.1 29.620 208-230/460V
50 1800 326TC 05018ET3ER326TC-W22 5,378 N1 662 59.2 94.5 31.116 208-230/460V
* Available as W22 by adding “–W22” sufx to the motor model.
For C-dimension, please check page B-96-97
W22
Transitioning
to*
NEMA PREMIUM
EFFICIENCY
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-55
Data subject to change without notice.
FRAME – SPECIFIC FEATURES
FOR FRAME 143T/5T ONLY
• Welded steel plate frames (welded feet)
• Cast iron endshields with through bolt
construction
• ‘ZZ’ bearings (double shielded)
• Degree of protection: IP21
FOR 182/4T AND 213/5T FRAMES
ONLY
• Aluminum endshields and terminal box
• Cooling system with nned rotor
• ZZ Bearings (double shielded)
• Degree of protection : IP21
FOR FRAMES 254/6T UP TO 444/5T
• Cast iron frames
• Cast iron endshields and terminal box
• Cooling system with nned rotor
• Steel shaft 4140 for 404T & up
• Regreasable bearings positive pressure
lubrication system (frame 254T and up )
• Degree of protection: IP23
• Field convertable to F2
APPROVED BY
LR 38324
• Pumps
• Fans
• Kneader and mixer machines
• Cutter and sawing machines
• Pressing machines
• Industrial equipment
• Conveyors
• Blowers
• Compressors
• Machinery
• Cranes
• Packaging equipment
• Three-phase, 2 and 4 pole, 60Hz
• Voltage: 208-230/460V, 200V, 460V or 575V
• Open Drip Proof (ODP)
• NEMA dimensions
• NEMA Design ‘B’
• Service factor: 1.15 (1.00 for 500HP)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Ball bearings are supplied as standard
• 1045 Carbon Steel Shaft for frames up to 365T
• 4140 steel shaft for motors 404T and above
(3600 RPM motors supplied with 1045)
• Class ‘F’ insulation for all frames
• Class ‘H’ impregnation resin
• F1 mount (also available anged motors)
• Paint: Synthetic enamel alkyd resin base
• Color: RAL 5009 – Blue
• Stainless steel nameplate - laser etched (frames
254/6T and up)0
• Meets NEMA MG 1 Part 31 for use with VFD -
4:1 constant torque and 10:1 Variable Torque
speed range.
• 50/60Hz rated up to 250 HP (50Hz at 1.0
Service Factor)
ODP – THREE PHASE – FOOT MOUNT
WEG Premium Efficiency motors Open Drip Proof (ODP) motors are designed for
environments where dirt and moisture are minimal. Design B torque and high efficiency
design from 143T through 444/5T frames. These motors are specifically designed to
provide maximum ventilation and heat dissipation. ‘C’ and ‘D’ ange available.
APPLICATIONS STANDARD FEATURES
HIGHLIGHTS
• Maximum ventilation
and heat dissipation
• Meets or exceeds
NEMA premium
efficiency level
NEMA Premium Efficiency
General Purpose
• For 50Hz at 1.15 SF a higher HP should
be selected
• Cable glands
• Special voltages
• Cast iron NEMA ‘C’ ange available for
all frames or ‘D’ ange (‘D’ ange only for
frames 254T and up)
• Specially designed shaft
• Second shaft end
• Thermistors, Thermostats or RTD’s (PT100)
• Roller Bearings
OPTIONAL FEATURES
E 104590
APPROVED BY
®
NEMA PREMIUM
EFFICIENCY
www.weg.net
A-56 Data subject to change without notice.
NEMA PREMIUM EFFICIENCY
GENERAL PURPOSE MOTORS – ODP – THREE-PHASE
FOOT MOUNT
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-8, B-9.
• MECHANICAL FEATURES ON PAGE B-52, B-53.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1
1800 143T 00118OT3E143T 390 N1B 36 1.45 85.5 12.086 208-230/460V
1800 143T 00118OT3H143T 390 N1B 36 1.16 85.5 12.086 575V u
1800 143T 00118OT3E143TF3 390 N1B 36 1.45 85.5 12.086 208-230/460V ’
1200 145T 00112OT3E145T 446 N1B 39 1.63 82.5 12.086 208-230/460V
1.5
3600 143T 00156OT3E143T 442 N1B 34 1.90 85.5 12.086 208-230/460V
3600 143T 00156OT3H143T 442 N1B 34 1.52 85.5 12.086 575V u
1800 145T 00158OT3E145T 449 N1B 43 2.20 86.5 12.086 208-230/460V
1800 145T 00158OT3E145TF3 449 N1B 43 2.20 86.5 12.086 208-230/460V ’
1800 145T 00158OT3H145T 449 N1B 43 1.76 86.5 12.086 575V u
1200 182T 00152OT3E182T 588 N1B 49 2.31 86.5 13.504 208-230/460V
2
3600 145T 00236OT3E145T 487 N1B 43 2.50 86.5 12.086 208-230/460V
3600 145T 00236OT3H145T 487 N1B 43 2.00 86.5 12.086 575V u
1800 145T 00218OT3E145T 492 N1B 43 2.90 86.5 12.086 208-230/460V
1800 145T 00218OT3E145TF3 492 N1B 43 2.90 86.5 12.086 208-230/460V ’
1800 145T 00218OT3H145T 492 N1B 43 2.32 86.5 12.086 575V u
1200 184T 00212OT3E184T 597 N1B 66 3.03 87.5 14.291 208-230/460V
3
3600 145T 00336OT3E145T 545 N1B 49 3.50 87.5 12.086 208-230/460V
3600 145T 00336OT3H145T 545 N1B 49 2.80 87.5 12.086 575V u
1800 182T 00318OT3E182T 524 N1B 55 4.06 89.5 13.504 208-230/460V
1800 182T 00318OT3E182TF3 524 N1B 55 4.06 89.5 13.504 208-230/460V ’
1800 182T 00318OT3H182T 524 N1B 55 3.25 89.5 13.504 575V u
1200 213T 00312OT3E213T 775 N1B 73 4.27 88.5 17.165 208-230/460V
5
3600 182T 00536OT3E182T 651 N1B 57 6.17 88.5 13.504 208-230/460V
3600 182T 00536OT3H182T 651 N1B 57 4.94 88.5 13.504 575V
1800 184T 00518OT3E184T 630 N1B 71 6.41 89.5 14.291 208-230/460V
1800 184T 00518OT3E184TF3 630 N1B 71 6.41 89.5 14.291 208-230/460V ’
1800 184T 00518OT3H184T 630 N1B 71 5.13 89.5 14.291 575V u
1200 215T 00512OT3E215T 1,057 N1B 105 6.92 89.5 17.165 208-230/460V
7.5
3600 184T 00736OT3E184T 920 N1B 69 8.97 88.5 13.511 208-230/460V
3600 184T 00736OT3H184T 920 N1B 69 7.18 88.5 13.511 575V u
1800 213T 00718OT3E213T 910 N1B 90 9.03 91.0 17.165 208-230/460V
1800 213T 00718OT3E213TF3 910 N1B 90 9.03 91.0 17.165 208-230/460V ’
1800 213T 00718OT3H213T 910 N1B 90 7.22 91.0 17.165 575V u
1200 254T 00712OT3E254T 1,467 N1B 255 9.69 90.2 20.669 208-230/460V
10
3600 213T 01036OT3E213T 1,081 N1B 134 11.9 91.0 17.165 208-230/460V
3600 213T 01036OT3H213T 1,081 N1B 134 9.5 91.0 17.165 575V u
1800 215T 01018OT3E215T 1,102 N1B 112 12.2 91.7 17.165 208-230/460V
1800 215T 01018OT3E215TF3 1,102 N1B 112 12.2 91.7 17.165 208-230/460V ’
1800 215T 01018OT3H215T 1,102 N1B 112 9.8 91.7 17.165 575V u
1200 256T 01012OT3E256T 1,717 N1B 276 13.0 91.7 22.401 208-230/460V
= F3 Mount
®
qwertyuiop[]\\\
asdfghjkl;’
zxcvbnm,./
NEMA PREMIUM
EFFICIENCY
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-57
Data subject to change without notice.
FOOT MOUNT
= Product may not be available from stock
NEMA PREMIUM EFFICIENCY
GENERAL PURPOSE MOTORS – ODP – THREE-PHASE
• ELECTRICAL FEATURES ON PAGE B-8, B-9.
• MECHANICAL FEATURES ON PAGE B-52, B-53.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
15
3600 215T 01536OT3E215T 1,492 N1B 139 17.4 91.0 17.165 208-230/460V
3600 215T 01536OT3H215T 1,492 N1B 139 13.9 91.0 17.165 575V u
1800 254T 01518OT3E254T 1,477 N1B 247 18.6 93.0 20.669 208-230/460V
1800 254T 01518OT3E254TF3 1,477 N1B 247 18.6 93.0 20.669 208-230/460V ’
1800 254T 01518OT3H254T 1,477 N1B 247 14.9 93.0 20.669 575V u
1200 284T 01512OT3E284T 2,412 N1B 400 17.7 91.7 23.386 208-230/460V
20
3600 254T 02036OT3E254T 1,760 N1B 205 24.6 91.0 20.669 208-230/460V
3600 254T 02036OT3H254T 1,760 N1B 205 19.7 91.0 20.669 575V u
1800 256T 02018OT3E256T 1,832 N1B 291 25.0 93.0 22.401 208-230/460V
1800 256T 02018OT3E256TF3 1,832 N1B 291 25.0 93.0 22.401 208-230/460V ’
1800 256T 02018OT3H256T 1,832 N1B 291 20.0 93.0 22.401 575V u
1200 286T 02012OT3E286T 3,034 N1B 437 24.0 92.4 24.882 208-230/460V
25
3600 256T 02536OT3E256T 2,139 N1B 269 29.8 91.7 22.401 208-230/460V
3600 256T 02536OT3H256T 2,139 N1B 269 23.8 91.7 22.401 575V u
1800 284TS 02518OT3E284TS 2,160 N1B 382 29.9 93.6 22.000 208-230/460V
1800 284T 02518OT3E284T 2,160 N1B 382 29.9 93.6 23.386 208-230/460V
1800 284T 02518OT3E284TF3 2,160 N1B 382 29.9 93.6 23.386 208-230/460V ’
1800 284T 02518OT3H284T 2,160 N1B 382 23.9 93.6 23.386 575V u
1200 324T 02512OT3E324T 3,519 N1B 509 30.4 93.0 26.181 208-230/460V
30
3600 284TS 03036OT3E284TS 2,487 N1B 373 35.2 92.4 22.000 208-230/460V
3600 284TS 03036OT3H284TS 2,487 N1B 373 28.2 92.4 22.000 575V u
1800 286TS 03018OT3E286TS 2,530 N1B 459 35.4 94.1 23.504 208-230/460V
1800 286T 03018OT3E286T 2,530 N1B 459 35.4 94.1 24.882 208-230/460V
1800 286T 03018OT3E286TF3 2,530 N1B 459 35.4 94.1 24.882 208-230/460V ’
1800 286T 03018OT3H286T 2,530 N1B 459 28.3 94.1 24.882 575V u
1200 326T 03012OT3E326T 3,890 N1B 630 36.0 93.6 27.667 208-230/460V
40
3600 286TS 04036OT3E286TS 3,308 N1B 457 47.1 93.0 23.504 208-230/460V
3600 286TS 04036OT3H286TS 3,308 N1B 457 37.7 93.0 23.504 575V u
1800 324TS 04018OT3E324TS 3,095 N1B 574 48.2 94.1 24.685 208-230/460V
1800 324T 04018OT3E324T 3,095 N1B 574 48.2 94.1 26.181 208-230/460V
1800 324T 04018OT3H324T 3,095 N1B 574 38.6 94.1 26.181 575V u
1200 364T 04012OT3E364T 5,544 N1B 813 48.2 94.1 29.764 208-230/460V
50
3600 324TS 05036OT3E324TS 3,820 N1B 541 59.1 93.6 24.685 208-230/460V
3600 324TS 05036OT3H324TS 3,820 N1B 541 47.3 93.6 24.685 575V u
1800 326TS 05018OT3E326TS 3,788 N1B 618 61.4 94.5 26.181 208-230/460V
1800 326T 05018OT3E326T 3,788 N1B 618 61.4 94.5 27.667 208-230/460V
1800 326T 05018OT3H326T 3,788 N1B 618 49.1 94.5 27.667 575V u
1200 365T 05012OT3E365T 6,392 N1B 948 60.2 94.1 29.764 208-230/460V
60
3600 326TS 06036OT3E326TS 4,581 N1B 627 71.0 93.6 26.181 208-230/460V
3600 326TS 06036OT3H326TS 4,581 N1B 627 56.8 93.6 26.181 575V u
1800 364TS 06018OT3E364TS 4,443 N1B 935 69.9 95.0 27.638 208-230/460V
1800 364T 06018OT3E364T 4,443 N1B 935 69.9 95.0 29.764 208-230/460V
1800 364T 06018OT3H364T 4,443 N1B 935 55.9 95.0 29.764 575V u
1200 404T 06012OT3E404T 7,562 N1B 1007 71.2 94.5 34.133 208-230/460V
= F3 Mount
®
NEMA PREMIUM
EFFICIENCY
www.weg.net
A-58 Data subject to change without notice.
FOOT MOUNT
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-8, B-9.
• MECHANICAL FEATURES ON PAGE B-52, B-53.
NEMA PREMIUM EFFICIENCY
GENERAL PURPOSE MOTORS – ODP – THREE-PHASE
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
75
3600 364TS 07536OT3E364TS 5,799 N1B 805 81.5 94.1 27.638 208-230/460V
3600 364TS 07536OT3H364TS 5,799 N1B 805 65.2 94.1 27.638 575V u
1800 365TS 07518OT3E365TS 5,658 N1B 935 85.5 95.0 27.638 208-230/460V
1800 365T 07518OT3E365T 5,658 N1B 935 85.5 95.0 29.764 208-230/460V
1800 365T 07518OT3H365T 5,658 N1B 935 68.4 95.0 29.764 575V u
1200 405T 07512OT3E405T 8,358 N1B 1188 85.9 94.5 34.133 208-230/460V
100
3600 365TS 10036OT3E365TS 6,644 N1B 935 111 94.5 27.638 208-230/460V
3600 365TS 10036OT3G365TS 6,644 N1B 935 111 94.5 27.638 460V
1800 404TS 10018OT3E404TS 7,141 N1B 1207 115 95.4 31.141 208-230/460V
1800 404TS 10018OT3G404TS 7,141 N1B 1207 115 95.4 31.141 460V
1800 404T 10018OT3E404T 7,141 N1B 1207 115 95.4 34.133 208-230/460V
1800 404T 10018OT3G404T 7,141 N1B 1207 115 95.4 34.133 460V
1200 444T 10012OT3E444T 11,863 N1B 1635 125 95.0 39.803 208-230/460V
125
3600 404TS 12536OT3E404TS 8,826 N1B 1401 136 94.5 31.141 208-230/460V u
3600 404TS 12536OT3G404TS 8,826 N1B 1401 136 94.5 31.141 460V
1800 405TS 12518OT3E405TS 7,981 N1B 1207 142 95.4 31.141 208-230/460V u
1800 405TS 12518OT3G405TS 7,981 N1B 1207 142 95.4 31.141 460V
1800 405T 12518OT3E405T 7,981 N1B 1207 142 95.4 34.133 208-230/460V u
1800 405T 12518OT3G405T 7,981 N1B 1207 142 95.4 34.133 460V
1200 445T 12512OT3G445T 12,753 N1B 1914 158 95.0 39.803 460V
150
3600 405TS 15036OT3G405TS 11,416 N1B 1141 161 94.5 31.141 460V
1800 444TS 15018OT3G444TS 10,668 N1B 1609 166 95.8 36.062 460V
1800 444T 15018OT3G444T 10,668 N1B 1609 166 95.8 39.803 460V
1200 445T 15012OT3G445T 13,615 N1B 2208 183 95.4 39.803 460V
200
3600 444TS 20036OT3G444TS 14,504 N1B 1713 223 95.0 36.062 460V
1800 445TS 20018OT3G445TS 13,004 N1B 1916 223 95.8 36.062 460V
1800 445T 20018OT3G445T 13,004 N1B 1916 223 95.8 39.803 460V
1200 447/9T 20012OT3G447/9T 23,380 N1B 2426 241 95.4 47.299 460V
250
3600 445TS 25036OT3G445TS 18,983 N1B 1982 272 95.0 36.062 460V
1800 445TS 25018OT3G445TS 15,513 N1B 2183 275 95.8 36.062 460V
1800 445T 25018OT3G445T 15,513 N1B 2183 275 95.8 39.803 460V
1200 447/9T 25012OT3G447/9T 27,249 N1B 2669 300 95.4 47.299 460V
300
3600 445TS 30036OT3G445TS 22,294 N1B 2183 322 95.4 36.062 460V
1800 447/9T 30018OT3G447/9T 24,878 N1B 2195 324 95.8 48.317 460V
1200 447/9T 30012OT3G447/9T 29,853 N1B 2695 357 95.4 48.317 460V
350 3600 447/9TS 35036OT3G447/9TS 25,055 N1B 1998 384 95.4 44.567 460V
1800 447/9T 35018OT3G447/9T 25,174 N1B 2415 383 95.8 48.317 460V
400 3600 447/9TS 40036OT3G447/9TS 26,678 N1B 1998 442 95.8 44.567 460V
1800 447/9T 40018OT3G447/9T 28,311 N1B 2686 442 95.8 48.317 460V
450 3600 447/9TS 45036OT3G447/9TS 28,239 N1B 2223 478 96.2 44.567 460V
500 3600 447/9TS 50036OT3G447/9TS 31,476 N1B 2289 536 96.2 44.567 460V
550 3600 447/9TS 55036OT3G447/9TS 32,629 N1B 2421 580 96.2 44.567 460V
600 3600 447/9TS 60036OT3G447/9TS 32,994 N1B 2509 638 96.2 44.567 460V
®
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-59
Data subject to change without notice. Data subject to change without notice.
EXPLOSION
PROOF
• Petroleum and gasoline
• Flour / feed mills
• Grain elevators
• Fans
• Pumps
• Blowers
• Material handling equipment
• Other applications requiring motors UL
or CSA listed for hazardous locations.
• Efciency Certication number CC029A
according to US Department of Energy
Regulations
• Three-phase, 60Hz
• Voltage: 208-230/460, 460 or 575V
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled – TEFC (IP55)
• Ball bearings are supplied as standard
• Cast iron frame
• Class ‘F’ insulation
• Temperature rise: Class ‘B’ (80ºC)
• Service factor: 1.15
• Inverter Duty as per CSA Standard (LR50962)
• NEMA dimensions
• NEMA ratings design ‘B’
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000 m) max
• 1045 Carbon Steel Shaft for
frames up to 365T
• 4140 steel shaft for motors 404T and above.
(3600 RPM motors supplied with 1045)
• Class ‘F’ insulation for all frames
• Class ‘H’ impregnation resin
• F1 mount
• Stainless steel nameplate
• Paint: Synthetic Enamel alkyd resin base
(exceeds ASTM B117 salt spray test)
• Color: RAL 5009 – Blue (2, 4, 6 and 8 pole)
• NPT threaded terminal box
• Non-sparking fan
• Thermostats
• Greasing tting from 364/5T up to 586/7
• Special Voltages and frequency
• Stainless steel shaft
• C (not available 586/7T) and D anges
• F2 mount
• Maximum ambient temperature to 55ºC
(under inquiry)
Note: Motors are tested according to IEEE 112 std. –
method ‘B’ or C390 CSA
• Design B torque rating on nameplate can be re-plated
for design C for 15-200Hp 1800 and 1200 rpm
Energy efciency motors veried by UL in addition to
the DOE.
CSA AND UL APPROVED
CSA approved – File LR 50962
Class I, Division I, groups C and D
Class 2, Division I, groups F and G
UL approved – File E 87848
Temperature code T4
Frame 143T up to 326T
Class I, Division I, groups C and D
Frame 364T up to 586/7
Temperature code T3C
Class I, Division I, groups C and D
ALSO ENERGY
VERIFIED
CSA C390-93(+)
THREE PHASE
FOOT MOUNT & FLANGE MOUNT
WEG Explosion Proof motors are suitable for applications requiring UL or CSA
certication for hazardous locations. Thermally protected with thermostats,
all motors manufactured are submitted to hydrostatic as well as other routine
testing at the factory to ensure compliance to the required specications. WEG
High Efciency Explosion Proof motors are specically designed to meet or
exceed all EPAct requirements for energy efciency.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
Explosion Proof
Motors
HIGHLIGHTS
• Meets or exceeds
EPACT requirements
• UL/CSA certied
APPROVED BY
LR 50962
E 104590
APPROVED BY
E87848
www.weg.net
A-60 Data subject to change without notice.
EXPLOSION
PROOF
Data subject to change without notice.
EXPLOSION PROOF MOTORS
TEFC – HIGH EFFICIENCY
FOOT MOUNT
EPACT CC# CC029A
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-10.
• MECHANICAL FEATURES ON PAGE B-56, B-57.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1
1800 143T 00118XP3E143T 703 X1 71 1.49 82.5 12.760 208-230/460V
1800 143T 00118XP3H143T 703 X1 71 1.49 82.5 12.760 575V
1200 145T 00112XP3E145T 760 X1 67 1.70 80.0 13.752 208-230/460V
1200 145T 00112XP3H145T 760 X1 67 1.36 80.0 13.752 575V u
900 182T 00109XP3E182T 1,512 X1 132 2.24 72.5 14.862 208-230/460V
1.5
3600 143T 00156XP3E143T 727 X1 69 1.99 82.5 12.760 208-230/460V
3600 143T 00156XP3H143T 727 X1 69 1.6 82.5 12.760 575V u
1800 145T 00158XP3E145T 729 X1 78 2.05 84.0 13.752 208-230/460V
1800 145T 00158XP3H145T 729 X1 78 1.64 84.0 13.752 575V
1200 182T 00152XP3E182T 920 X1 128 2.38 85.5 14.862 208-230/460V
1200 182T 00152XP3H182T 920 X1 128 1.90 85.5 14.862 575V u
900 184T 00159XP3E184T 1,548 X1 137 2.81 74.5 15.862 208-230/460V
2
3600 145T 00236XP3E145T 741 X1 71 2.60 84.0 13.752 208-230/460V
3600 145T 00236XP3H145T 741 X1 71 2.08 84.0 13.752 575V u
1800 145T 00218XP3E145T 756 X1 80 2.70 84.0 13.752 208-230/460V
1800 145T 00218XP3H145T 756 X1 80 2.16 84.0 13.752 575V
1200 184T 00212XP3E184T 966 X1 132 3.20 86.5 15.862 208-230/460V
1200 184T 00212XP3H184T 966 X1 132 2.56 86.5 15.862 575V u
900 213T 00209XP3E213T 1,953 X1 174 3.40 78.0 17.952 208-230/460V
3
3600 182T 00336XP3E182T 920 X1 135 3.59 85.5 14.862 208-230/460V
3600 182T 00336XP3H182T 920 X1 135 2.87 85.5 14.862 575V u
1800 182T 00318XP3E182T 960 X1 132 3.90 87.5 14.862 208-230/460V
1800 182T 00318XP3H182T 960 X1 132 3.12 87.5 14.862 575V
1200 213T 00312XP3E213T 1,414 X1 167 4.15 87.5 17.952 208-230/460V
1200 213T 00312XP3H213T 1,414 X1 167 3.32 87.5 17.952 575V u
900 215T 00309XP3E215T 2,134 X1 198 4.67 80.0 19.450 208-230/460V
5
3600 184T 00536XP3E184T 1,035 X1 126 5.90 87.5 15.862 208-230/460V
3600 184T 00536XP3H184T 1,035 X1 126 4.72 87.5 15.862 575V u
1800 184T 00518XP3E184T 986 X1 137 6.48 87.5 15.862 208-230/460V
1800 184T 00518XP3H184T 986 X1 137 5.18 87.5 15.862 575V
1200 215T 00512XP3E215T 1,439 X1 175 6.80 87.5 19.450 208-230/460V
1200 215T 00512XP3H215T 1,439 X1 175 5.44 87.5 19.450 575V u
900 254T 00509XP3E254T 3,237 X1 324 7.85 84.5 23.175 208-230/460V
7.5
3600 213T 00736XP3E213T 1,397 X1 200 8.66 88.5 17.952 208-230/460V
3600 213T 00736XP3H213T 1,397 X1 200 6.93 88.5 17.952 575V u
1800 213T 00718XP3E213T 1,439 X1 196 9.53 89.5 17.952 208-230/460V
1800 213T 00718XP3H213T 1,439 X1 196 7.62 89.5 17.952 575V
1200 254T 00712XP3E254T 1,983 X1 313 9.53 89.5 23.175 208-230/460V
1200 254T 00712XP3H254T 1,983 X1 313 7.62 89.5 23.175 575V u
900 256T 00709XP3E256T 3,675 X1 348 11.3 86.0 24.923 208-230/460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-61
Data subject to change without notice. Data subject to change without notice.
EXPLOSION
PROOF
FOOT MOUNT
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-9, B-10.
• MECHANICAL FEATURES ON PAGE B-56, B-57.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
10
3600 215T 01036XP3E215T 1,466 X1 196 11.7 89.5 19.450 208-230/460V
3600 215T 01036XP3H215T 1,466 X1 196 9.4 89.5 19.450 575V u
1800 215T 01018XP3E215T 1,542 X1 211 12.8 90.2 19.450 208-230/460V
1800 215T 01018XP3H215T 1,542 X1 211 10.2 90.2 19.450 575V
1200 256T 01012XP3E256T 2,296 X1 329 13.4 89.5 24.923 208-230/460V
1200 256T 01012XP3H256T 2,296 X1 329 10.7 89.5 24.923 575V
900 284T 01009XP3E284T 4,631 X1 470 13.2 87.4 26.407 208-230/460V
15
3600 254T 01536XP3E254T 1,922 X1 310 21.3 90.2 23.175 208-230/460V u
3600 254T 01536XP3H254T 1,922 X1 310 17.0 90.2 23.175 575V u
1800 254T 01518XP3E254T 2,008 X1 319 17.9 91.0 23.175 208-230/460V
1800 254T 01518XP3H254T 2,008 X1 319 14.3 91.0 23.175 575V
1200 284T 01512XP3E284T 3,230 X1 346 17.3 91.0 26.407 208-230/460V
1200 284T 01512XP3H284T 3,230 X1 346 13.8 91.0 26.407 575V u
900 286T 01509XP3E286T 5,677 X1 481 18.8 88.5 27.905 208-230/460V
20
3600 256T 02036XP3E256T 2,514 X1 366 23.3 90.2 24.923 208-230/460V u
3600 256T 02036XP3H256T 2,514 X1 366 18.6 90.2 24.923 575V u
1800 256T 02018XP3E256T 2,453 X1 352 24.4 91.0 24.923 208-230/460V
1800 256T 02018XP3H256T 2,453 X1 352 19.5 91.0 24.923 575V
1200 286T 02012XP3E286T 3,703 X1 470 23.5 91.0 27.905 208-230/460V
1200 286T 02012XP3H286T 3,703 X1 470 18.8 91.0 27.905 575V u
900 324T 02009XP3E324T 6,984 X1 574 29.6 88.5 29.602 208-230/460V
25
3600 284TS 02536XP3E284TS 3,308 X1 419 29.0 91.0 25.033 208-230/460V u
3600 284TS 02536XP3H284TS 3,308 X1 419 23.2 91.0 25.033 575V u
1800 284T 02518XP3E284T 3,110 X1 503 29.6 92.4 26.407 208-230/460V
1800 284T 02518XP3H284T 3,110 X1 503 23.7 92.4 26.407 575V u
1200 324T 02512XP3E324T 4,456 X1 572 29.8 91.7 29.602 208-230/460V
1200 324T 02512XP3H324T 4,456 X1 572 23.8 91.7 29.602 575V u
900 326T 02509XP3E326T 8,513 X1 640 35.3 89.0 31.106 208-230/460V
30
3600 286TS 03036XP3E286TS 3,374 X1 472 33.8 91.0 26.531 208-230/460V u
1800 286T 03018XP3E286T 3,545 X1 547 34.4 92.4 27.905 208-230/460V
1800 286T 03018XP3H286T 3,545 X1 547 27.5 92.4 27.905 575V
1200 326T 03012XP3E326T 5,163 X1 625 35.4 91.7 31.106 208-230/460V
900 364T 03009XP3E364T 11,677 X1 1025 36.9 90.2 33.701 208-230/460V u
40
3600 324TS 04036XP3E324TS 4,652 X1 618 46.1 91.7 28.102 208-230/460V u
3600 324TS 04036XP3H324TS 4,652 X1 618 36.9 91.7 28.102 575V u
1800 324T 04018XP3E324T 4,461 X1 623 47.6 93.0 29.602 208-230/460V
1800 324T 04018XP3H324T 4,461 X1 623 38.1 93.0 29.602 575V
1200 364T 04012XP3E364T 8,617 X1 992 47.1 93.0 33.701 208-230/460V
1200 364T 04012XP3H364T 8,617 X1 992 37.7 93.0 33.701 575V u
900 365T 04009XP3E365T 12,326 X1 1085 49.1 90.2 33.701 208-230/460V u
50
3600 326TS 05036XP3E326TS 5,195 X1 656 56.5 92.4 29.606 208-230/460V u
3600 326TS 05036XP3H326TS 5,195 X1 656 45.2 92.4 29.606 575V u
1800 326T 05018XP3E326T 5,245 X1 720 57.8 93.6 31.106 208-230/460V
1800 326T 05018XP3H326T 5,245 X1 720 46.2 93.6 31.106 575V
1200 365T 05012XP3E365T 8,921 X1 992 58.1 93.0 33.701 208-230/460V
900 404T 05009XP3E404T 14,420 X1 1308 61.5 91.0 38.074 208-230/460V u
EXPLOSION PROOF MOTORS
TEFC – HIGH EFFICIENCY
EPACT CC# CC029A
EXPLOSION PROOF MOTORS
TEFC – HIGH EFFICIENCY
EPACT CC# CC029A
www.weg.net
A-62 Data subject to change without notice.
EXPLOSION
PROOF
Data subject to change without notice.
www.weg.net
A-62 Data subject to change without notice.
EXPLOSION PROOF MOTORS
TEFC – HIGH EFFICIENCY
FOOT MOUNT
EPACT CC# CC029A
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-9, B-10.
• MECHANICAL FEATURES ON PAGE B-56, B-57.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
60
3600 364TS 06036XP3E364TS 8,373 X1 1014 69.0 93.0 31.575 208-230/460V u
1800 364T 06018XP3E364T 8,770 X1 1060 67.0 93.6 33.701 208-230/460V
1200 404T 06012XP3E404T 11,089 X1 1222 70.1 93.6 38.074 208-230/460V
900 405T 06009XP3E405T 16,985 X1 1368 75.5 91.0 38.074 208-230/460V u
75
3600 365TS 07536XP3E365TS 9,472 X1 1156 82.5 93.0 31.575 208-230/460V u
1800 365T 07518XP3E365T 9,333 X1 1347 82.4 94.1 33.701 208-230/460V
1200 405T 07512XP3E405T 11,530 X1 1291 86.8 93.6 38.074 208-230/460V
900 444T 07509XP3E444T 21,094 X1 1863 92.5 92.0 43.797 208-230/460V u
100
3600 405TS 10036XP3E405TS 10,291 X1 1456 113 93.6 35.074 208-230/460V u
3600 405TS 10036XP3G405TS 10,291 X1 1456 113 93.6 35.074 460V u
1800 405T 10018XP3E405T 11,603 X1 1390 115 94.5 38.074 208-230/460V
1800 405T 10018XP3G405T 11,603 X1 1390 115 94.5 38.074 460V
1200 444T 10012XP3E444T 17,528 X1 1720 121 94.1 43.797 208-230/460V
1200 444T 10012XP3G444T 17,528 X1 1720 121 94.1 43.797 460V
900 445T 10009XP3E445T 25,321 X1 2028 133 92.0 43.797 208-230/460V u
900 445T 10009XP3G445T 25,321 X1 2028 133 92.0 43.797 460V u
125
3600 444TS 12536XP3G444TS 17,394 X1 1951 131 94.5 40.047 460V u
1800 444T 12518XP3E444T 16,827 X1 1797 138 94.5 43.797 208-230/460V
1800 444T 12518XP3G444T 16,827 X1 1797 138 94.5 43.797 460V
1200 445T 12512XP3G445T 18,165 X1 2050 141 94.1 43.797 460V
900 504 12509XP3G504 28,717 X1 2443 155 92.5 49.445 460V u
150
3600 445TS 15036XP3G445TS 17,956 X1 1991 160 94.5 40.047 460V u
1800 445T 15018XP3E445T 18,182 X1 2006 168 95.0 43.797 208-230/460V
1800 445T 15018XP3G445T 18,182 X1 2006 168 95.0 43.797 460V
1200 504 15012XP3G504 25,276 X1 2167 171 95.0 49.445 460V u
900 505 15009XP3G505 31,289 X1 2694 189 92.5 49.445 460V u
200
3600 504S 20036XP3G504S 24,538 X1 2227 223 95.0 47.193 460V u
1800 504 20018XP3G504 22,948 X1 2385 230 95.0 49.445 460V u
1200 505 20012XP3G505 26,250 X1 2467 236 95.0 49.445 460V u
900 586/7 20009XP3G586/7 47,701 X1 4035 256 94.5 61.389 460V u
250
3600 505S 25036XP3G505S 25,936 X1 2573 268 95.4 47.193 460V u
1800 505 25018XP3G505 27,388 X1 2740 283 95.4 49.445 460V u
1200 586/7 25012XP3G586/7 46,557 X1 4002 305 95.0 61.389 460V u
900 586/7 25009XP3G586/7 50,701 X1 4344 313 93.9 61.389 460V u
300
3600 586/7S 30036XP3G586/7S 46,692 X1 3638 325 95.4 54.514 460V u
1800 586/7 30018XP3G586/7 40,772 X1 4322 329 95.4 61.389 460V u
1200 586/7 30012XP3G586/7 50,565 X1 4487 355 95.0 61.389 460V u
350 3600 586/7S 35036XP3G586/7S 54,890 X1 3859 384 95.4 54.514 460V u
1800 586/7 35018XP3G586/7 44,351 X1 4344 398 95.4 61.389 460V u
400 1800 586/7 40018XP3G586/7 50,913 X1 4719 459 95.4 61.389 460V u
450 1800 586/7 45018XP3G586/7 54,334 X1 5248 505 95.4 61.389 460V u
500 1800 586/7 50018XP3G586/7 58,405 X1 5469 564 95.8 61.389 460V u
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-63
Data subject to change without notice. Data subject to change without notice.
EXPLOSION
PROOF
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-63
Data subject to change without notice.
‘C’ FLANGE – FOOT MOUNT
‘C’ FLANGE – FootLEss
= Round Body
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-9, B-10.
• MECHANICAL FEATURES ON PAGE B-56, B-57.
• ELECTRICAL FEATURES ON PAGE B-9, B-10.
• MECHANICAL FEATURES ON PAGE B-56, B-57.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
11800 143TC 00118XP3E143TC 764 X1 71 1.49 82.5 12.760 208-230/460V
1200 145TC 00112XP3E145TC 820 X1 67 1.70 80.0 13.752 208-230/460V
1.5
3600 143TC 00156XP3E143TC 787 X1 69 1.99 82.5 12.760 208-230/460V
1800 145TC 00158XP3E145TC 790 X1 78 2.05 84.0 13.752 208-230/460V
1200 182TC 00152XP3E182TC 989 X1 128 2.38 85.5 14.862 208-230/460V
2
3600 145TC 00236XP3E145TC 802 X1 71 2.60 84.0 13.752 208-230/460V
1800 145TC 00218XP3E145TC 802 X1 80 2.70 84.0 13.752 208-230/460V
1200 184TC 00212XP3E184TC 1,035 X1 132 3.20 86.5 15.862 208-230/460V
3
3600 182TC 00336XP3E182TC 989 X1 135 3.59 85.5 14.862 208-230/460V
1800 182TC 00318XP3E182TC 1,030 X1 132 3.90 87.5 14.862 208-230/460V
1200 213T 00312XP3E213TC 1,490 X1 167 4.15 87.5 17.952 208-230/460V
5 1800 184TC 00518XP3E184TC 1,056 X1 137 6.48 87.5 15.862 208-230/460V
7.5 1800 213TC 00718XP3E213TC 1,515 X1 196 9.53 89.5 17.952 208-230/460V
10 1800 215TC 01018XP3E215TC 1,618 X1 211 12.8 90.2 19.450 208-230/460V
15 1800 254TC 01518XP3E254TC 2,111 X1 319 17.9 91.0 23.175 208-230/460V
20 1800 256TC 02018XP3E256TC 2,556 X1 352 24.4 91.0 24.923 208-230/460V
25 1800 284TC 02518XP3E284TC 3,257 X1 503 29.6 92.4 26.407 208-230/460V
30 1800 286TC 03018XP3E286TC 3,692 X1 547 34.4 92.4 27.905 208-230/460V
40 1800 324TC 04018XP3E324TC 4,643 X1 623 47.6 93.0 29.602 208-230/460V
50 1800 326TC 05018XP3E326TC 5,425 X1 720 57.8 93.6 31.106 208-230/460V
60 1800 364TC 06018XP3E364TC 9,435 X1 1060 67.0 93.6 33.701 208-230/460V
75 1800 365TC 07518XP3E365TC 9,998 X1 1347 82.4 94.1 33.701 208-230/460V
100 1800 405TC 10018XP3E405TC 12,338 X1 1390 115 94.5 38.074 208-230/460V
These models are tted with a C-Flange but still have a foot mount design for maximum mounting exibility
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143TC 00118XP3ER143TC 764 X1 71 1.49 82.5 12.750 208-230/460V l
1.5 1800 145TC 00158XP3ER145TC 790 X1 78 2.05 84.0 13.752 208-230/460V l
2 1800 145TC 00218XP3ER145TC 802 X1 80 2.70 84.0 13.752 208-230/460V l
3 1800 182TC 00318XP3ER182TC 1,030 X1 132 3.90 87.5 14.862 208-230/460V l
5 1800 184TC 00518XP3ER184TC 1,056 X1 137 6.48 87.5 15.862 208-230/460V l
7.5 1800 213TC 00718XP3ER213TC 1,515 X1 196 9.53 89.5 17.952 208-230/460V l
10 1800 215TC 01018XP3ER215TC 1,618 X1 211 12.80 90.2 19.450 208-230/460V l
15 1800 254TC 01518XP3ER254TC 2,111 X1 319 17.90 91.0 23.175 208-230/460V l
20 1800 256TC 02018XP3ER256TC 2,556 X1 352 24.40 91.0 24.923 208-230/460V l
25 1800 284TC 02518XP3ER284TC 3,257 X1 503 29.60 92.4 26.407 208-230/460V l u
30 1800 286TC 03018XP3ER286TC 3,692 X1 547 34.40 92.4 27.905 208-230/460V l u
40 1800 324TC 04018XP3ER324TC 4,643 X1 623 47.60 93.0 29.602 208-230/460V l u
50 1800 326TC 05018XP3ER326TC 5,425 X1 720 57.80 93.6 31.106 208-230/460V l u
These models are Round Body design with no feet cast into the housing. They are design to mount C-Flange only
Data subject to change without notice.
EXPLOSION PROOF MOTORS
TEFC – HIGH EFFICIENCY
EXPLOSION PROOF MOTORS
TEFC – HIGH EFFICIENCY
EPACT CC# CC029A
www.weg.net
A-64 Data subject to change without notice.
EXPLOSION
PROOF
Data subject to change without notice.
www.weg.net
A-64 Data subject to change without notice.
• Petroleum and gasoline
• Flour / feed mills
• Grain elevators
• Fans
• Pumps
• Blowers
• Material handling equipment
• Other applications requiring motors UL
or CSA listed for hazardous locations.
• Three-phase, 60Hz
• Voltage: 208-230/460, 460 or 575V
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled – TEFC (IP54)
• Ball bearings are supplied as standard
• Cast iron frame
• Class ‘F’ insulation
• Temperature rise: Class ‘B’ (80ºC)
• Service factor: 1.15
• Inverter Duty as per CSA Standard (LR50962)
• NEMA dimensions
• NEMA ratings design ‘B’
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000 m) max
• 1045 Carbon Steel Shaft for
frames up to 365T
• 4140 steel shaft for motors 404T and above.
(3600 RPM motors supplied with 1045)
• Class ‘F’ insulation for all frames
• Class ‘H’ impregnation resin
• F1 mount
• Stainless steel nameplate
• Paint: Synthetic Enamel alkyd resin base (exceeds
ASTM B117 salt spray test)
• Color: RAL 5009 – Blue (2, 4, 6 and 8 pole)
• NPT threaded terminal box
• Non-sparking fan
• Thermostats
• Greasing tting from 364/5T up to 586/7
• Special Voltages and frequency
• Stainless steel shaft
• C (not available 586/7T) and D anges
• F2 mount
• Maximum ambient temperature to 55ºC
(under inquiry)
Note: Motors are tested according to IEEE 112 std. – method ‘B’ or C390 CSA
Energy efciency motors veried by UL in addition to the DOE.
APPROVED BY
LR 50962
CSA AND UL APPROVED
CSA approved – File LR 50962
Class I, Division I, groups C and D
Class 2, Division I, groups F and G
UL approved – File E 87848
Temperature code T4
Frame 143T up to 326T
Class I, Division I, groups C and D
Class 2, Division I, groups F and G
Frame 364T up to 586/7
Temperature code T3C
Class I, Division I, groups C and D
Class 2, Division I, groups F and G *
* For group G, Service Factor 1.0
ALSO ENERGY
VERIFIED
CSA C390-93(+)
NEMA PREMIUM EFFIECIENCY
THREE-PHASE - TEFC (IP54)
WEG Explosion Proof motors are suitable for applications requiring UL or CSA cer-
tication for hazardous locations. Thermally protected with thermostats, all motors
manufactured are submitted to hydrostatic as well as other routine testing at the
factory to ensure compliance to the required specications. WEG High Efciency
Explosion Proof motors are specically designed to meet or exceed all EPAct
requirements for energy efciency.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
Explosion Proof
Motors
HIGHLIGHTS
• Meets NEMA Premium
Efciency levels
• UL/CSA certied
E 104590
APPROVED BY
E87848
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-65
Data subject to change without notice. Data subject to change without notice.
EXPLOSION
PROOF
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-65
Data subject to change without notice.
EXPLOSION PROOF MOTORS
THrEE-PHasE - TEFC (IP54)
FOOT MOUNT
NEMA PREMIUM EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-11.
• MECHANICAL FEATURES ON PAGE B-56, B-57.
HP RPM
NEMA
FRAME
NEMA
Frame
Catalog Number
Catalog
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
at High
Voltage
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
1
1800 143T 00118XT3E143T 901 X1 70 1.43 85.5 12.760 208-230/460
1800 143T 00118XT3H143T 901 X1 70 1.14 85.5 12.760 575
900 182T 00109XT3E182T 1,974 X1 120 2.30 78.5 14.862 208-230/460
1.5
3600 143T 00156XT3E143T 916 X1 70 2.05 84.0 12.760 208-230/460
3600 143T 00156XT3H143T 916 X1 70 1.64 84.0 12.760 575 10
1800 145T 00158XT3E145T 963 X1 79 2.05 86.5 13.752 208-230/460
1800 145T 00158XT3H145T 963 X1 79 1.64 86.5 13.752 575
1200 182T 00152XT3E182T 1,105 X1 126 2.32 87.5 14.862 208-230/460
1200 182T 00152XT3H182T 1,105 X1 126 1.86 87.5 14.862 575 10
900 184T 00159XT3E184T 1,901 X1 136 2.70 82.5 15.862 208-230/460
2
3600 145T 00236XT3E145T 892 X1 74 2.69 85.5 13.752 208-230/460
3600 145T 00236XT3H145T 892 X1 74 2.15 85.5 13.752 575 10
1800 145T 00218XT3E145T 995 X1 63 2.72 86.5 13.752 208-230/460
1800 145T 00218XT3H145T 995 X1 63 2.18 86.5 13.752 575
1200 184T 00212XT3E184T 1,158 X1 137 3.13 88.5 15.862 208-230/460
1200 184T 00212XT3H184T 1,158 X1 137 2.50 88.5 15.862 575 10
900 213T 00209XT3E213T 2,439 X1 173 3.45 84.0 17.952 208-230/460
3
3600 182T 00336XT3E182T 1,192 X1 98 3.80 86.5 14.862 208-230/460
3600 182T 00336XT3H182T 1,192 X1 98 3.04 86.5 14.862 575 10
1800 182T 00318XT3E182T 1,208 X1 123 3.91 89.5 14.862 208-230/460
1800 182T 00318XT3H182T 1,208 X1 123 3.13 89.5 14.862 575
1200 213T 00312XT3E213T 1,792 X1 173 4.41 89.5 17.952 208-230/460
1200 213T 00312XT3H213T 1,792 X1 173 3.53 89.5 17.952 575 10
900 215T 00309XT3E215T 2,805 X1 209 4.44 84.0 19.450 208-230/460
5
3600 184T 00536XT3E184T 1,255 X1 114 6.10 88.5 15.862 208-230/460
3600 184T 00536XT3H184T 1,255 X1 114 4.88 88.5 15.862 575 10
1800 184T 00518XT3E184T 1,220 X1 138 6.57 89.5 15.862 208-230/460
1800 184T 00518XT3H184T 1,220 X1 138 5.26 89.5 15.862 575
1200 215T 00512XT3E215T 1,699 X1 226 6.83 89.5 19.450 208-230/460
1200 215T 00512XT3H215T 1,699 X1 226 5.46 89.5 19.450 575 10
900 254T 00509XT3E254T 3,953 X1 321 7.93 87.5 23.175 208-230/460
7.5
3600 213T 00736XT3E213T 1,646 X1 198 8.97 89.5 17.952 208-230/460
3600 213T 00736XT3H213T 1,646 X1 198 7.18 89.5 17.952 575 10
1800 213T 00718XT3E213T 1,897 X1 160 9.41 91.7 17.952 208-230/460
1800 213T 00718XT3H213T 1,897 X1 160 7.53 91.7 17.952 575
1200 254T 00712XT3E254T 2,483 X1 317 9.73 91.0 23.175 208-230/460
1200 254T 00712XT3H254T 2,483 X1 317 7.78 91.0 23.175 575 10
900 256T 00709XT3E256T 4,707 X1 361 11.6 87.5 24.923 208-230/460
10
3600 215T 01036XT3E215T 1,727 X1 209 12.0 90.2 19.450 208-230/460
3600 215T 01036XT3H215T 1,727 X1 209 9.60 90.2 19.450 575 10
1800 215T 01018XT3E215T 1,997 X1 215 12.7 91.7 19.450 208-230/460
1800 215T 01018XT3H215T 1,997 X1 215 10.2 91.7 19.450 575
1200 256T 01012XT3E256T 2,900 X1 372 13.3 91.0 24.923 208-230/460
1200 256T 01012XT3H256T 2,900 X1 372 10.6 91.0 24.923 575
900 284T 01009XT3E284T 5,668 X1 475 13.3 91.0 26.407 208-230/460
15
3600 254T 01536XT3E254T 2,387 X1 326 16.9 91.7 23.175 208-230/460 10
3600 254T 01536XT3H254T 2,387 X1 326 13.5 91.7 23.175 575 10
1800 254T 01518XT3E254T 2,653 X1 337 18.4 92.4 23.175 208-230/460
1800 254T 01518XT3H254T 2,653 X1 337 14.7 92.4 23.175 575
1200 284T 01512XT3E284T 4,048 X1 471 17.5 91.7 26.407 208-230/460
1200 284T 01512XT3H284T 4,048 X1 471 14.0 91.7 26.407 575 10
900 286T 01509XT3E286T 7,102 X1 515 19.0 91.0 27.905 208-230/460
10 - Might not be available in stock
Data subject to change without notice.
www.weg.net
A-66 Data subject to change without notice.
EXPLOSION
PROOF
Data subject to change without notice.
www.weg.net
A-66 Data subject to change without notice.
For ‘C’ flange models : Add a ‘C’ to the end of the part number. EX. 00518XP3E184TC
EXPLOSION PROOF MOTORS
THrEE-PHasE - TEFC (IP54)
FOOT MOUNT
NEMA PREMIUM EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-11.
• MECHANICAL FEATURES ON PAGE B-56, B-57.
HP RPM
NEMA
FRAME
NEMA
Frame
Catalog Number
Catalog
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
at High
Voltage
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
20
3600 256T 02036XT3E256T 3,083 X1 365 22.9 92.4 24.923 208-230/460 10
3600 256T 02036XT3H256T 3,083 X1 365 18.3 92.4 24.923 575 10
1800 256T 02018XT3E256T 3,008 X1 372 25.0 93.0 24.923 208-230/460
1800 256T 02018XT3H256T 3,008 X1 372 20.0 93.0 24.923 575
1200 286T 02012XT3E286T 4,444 X1 509 24.2 91.7 27.905 208-230/460
1200 286T 02012XT3H286T 4,444 X1 509 19.4 91.7 27.905 575 10
900 324T 02009XT3E324T 8,390 X1 614 27.5 92.4 29.602 208-230/460
25
3600 284TS 02536XT3E284TS 4,188 X1 460 28.4 93.0 25.033 208-230/460 10
3600 284TS 02536XT3H284TS 4,188 X1 460 22.7 93.0 25.033 575 10
1800 284T 02518XT3E284T 3,886 X1 480 29.9 93.6 26.407 208-230/460
1800 284T 02518XT3H284T 3,886 X1 480 23.9 93.6 26.407 575 10
1200 324T 02512XT3E324T 5,375 X1 647 30.4 93.0 29.602 208-230/460
1200 324T 02512XT3H324T 5,375 X1 647 24.3 93.0 29.602 575 10
900 326T 02509XT3E326T 10,512 X1 681 35.4 92.4 31.106 208-230/460
30
3600 286TS 03036XT3E286TS 4,262 X1 537 33.7 93.0 26.531 208-230/460 10
3600 286TS 03036XT3H286TS 4,262 X1 537 27.0 93.0 26.531 575 10
1800 286T 03018XT3E286T 4,296 X1 520 36.0 93.6 27.905 208-230/460
1800 286T 03018XT3H286T 4,296 X1 520 28.8 93.6 27.905 575
1200 326T 03012XT3E326T 6,196 X1 703 36.7 93.0 31.106 208-230/460
1200 326T 03012XT3H326T 6,196 X1 703 29.4 93.0 31.106 575 10
900 364T 03009XT3E364T 15,505 X1 919 38.5 93.0 33.701 208-230/460 10
40
3600 324TS 04036XT3E324TS 5,583 X1 647 45.8 93.6 28.102 208-230/460 10
3600 324TS 04036XT3H324TS 5,583 X1 647 36.6 93.6 28.102 575 10
1800 324T 04018XT3E324T 5,380 X1 658 48.2 94.1 29.602 208-230/460
1800 324T 04018XT3H324T 5,380 X1 658 38.6 94.1 29.602 575
1200 364T 04012XT3E364T 10,576 X1 1,018 47.1 94.1 33.701 208-230/460
1200 364T 04012XT3H364T 10,576 X1 1,018 37.7 94.1 33.701 575 10
900 365T 04009XT3E365T 15,071 X1 1,066 52.2 93.6 33.701 208-230/460 10
50
3600 326TS 05036XT3E326TS 6,582 X1 736 55.5 94.1 29.606 208-230/460 10
3600 326TS 05036XT3H326TS 6,582 X1 736 44.4 94.1 29.606 575 10
1800 326T 05018XT3E326T 6,545 X1 714 60.6 94.5 31.106 208-230/460
1800 326T 05018XT3H326T 6,545 X1 714 48.5 94.5 31.106 575
1200 365T 05012XT3E365T 10,597 X1 1,044 58.1 94.1 33.701 208-230/460
1200 365T 05012XT3H365T 10,597 X1 1,044 46.5 94.1 33.701 575
900 404T 05009XT3E404T 22,443 X1 1,265 68.0 93.6 38.074 208-230/460 10
60
3600 364TS 06036XT3E364TS 9,988 X1 1,025 68.3 94.1 31.575 208-230/460 10
3600 364TS 06036XT3H364TS 9,988 X1 1,025 54.6 94.1 31.575 575 10
1800 364T 06018XT3E364T 10,460 X1 1,022 68.3 95.0 33.701 208-230/460
1800 364T 06018XT3H364T 10,460 X1 1,022 54.6 95.0 33.701 575 10
1200 404T 06012XT3E404T 13,196 X1 1,221 70.4 94.5 38.074 208-230/460
900 405T 06009XT3E405T 26,900 X1 1,287 75.9 93.0 38.074 208-230/460 10
75
3600 365TS 07536XT3E365TS 11,285 X1 1,033 82.4 94.1 31.575 208-230/460 10
3600 365TS 07536XT3H365TS 11,285 X1 1,033 65.9 94.1 31.575 575 10
1800 365T 07518XT3E365T 11,125 X1 945 83.2 95.4 33.701 208-230/460
1800 365T 07518XT3H365T 11,125 X1 945 66.6 95.4 33.701 575 10
1200 405T 07512XT3E405T 13,836 X1 1,265 87.0 94.5 38.074 208-230/460
900 444T 07509XT3E444T 29,094 X1 1,920 92.2 93.6 43.797 208-230/460 10
100
3600 405TS 10036XT3E405TS 12,999 X1 1,214 110 95.0 35.074 208-230/460 10
3600 405TS 10036XT3G405TS 12,999 X1 1,214 110 95.0 35.074 460 10
3600 405TS 10036XT3H405TS 12,999 X1 1,214 88.0 95.0 35.074 575 10
1800 405T 10018XT3E405T 14,206 X1 1,230 113 95.4 38.074 208-230/460
1800 405T 10018XT3G405T 14,206 X1 1,230 113 95.4 38.074 460
1800 405T 10018XT3H405T 14,206 X1 1,230 90.4 95.4 38.074 575 10
1200 444T 10012XT3E444T 21,032 X1 1,904 121 95.0 43.797 208-230/460
1200 444T 10012XT3G444T 21,032 X1 1,904 121 95.0 43.797 460
900 445T 10009XT3E445T 31,191 X1 2,061 125 94.1 43.797 208-230/460
900 445T 10009XT3G445T 31,191 X1 2,061 125 94.1 43.797 460 10
10 - Might not be available in stock
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-67
Data subject to change without notice. Data subject to change without notice.
EXPLOSION
PROOF
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-67
Data subject to change without notice.
EXPLOSION PROOF MOTORS
THrEE-PHasE - TEFC (IP54)
FOOT MOUNT
NEMA PREMIUM EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-11.
• MECHANICAL FEATURES ON PAGE B-56, B-57.
HP RPM NEMA
FRAME
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
at High
Voltage
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
125
3600 444TS 12536XT3G444TS 20,874 X1 1,948 137 95.0 40.047 460 10
1800 444T 12518XT3E444T 19,961 X1 2,034 142 95.4 43.797 208-230/460
1800 444T 12518XT3G444T 19,961 X1 2,034 142 95.4 43.797 460
1200 445T 12512XT3G445T 21,537 X1 2,301 150 95.0 43.797 460
150
3600 445TS 15036XT3G445TS 21,320 X1 1,993 161 95.4 40.047 460 10
1800 445T 15018XT3E445T 21,557 X1 2,103 170 95.8 43.797 208-230/460
1800 445T 15018XT3G445T 21,557 X1 2,103 170 95.8 43.797 460
These models are fitted with a C-Flange but still have a foot mount design for maximum mounting flexibility
‘C’ FLANGE – FOOT MOUNT
HP RPM NEMA
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
1 1800 143TC 00118XT3E143TC 1,054 X1 70 1.43 85.5 12.760 208-230/460V
1.5
3600 143TC 00156XT3E143TC 1,069 X1 70 2.05 84.0 12.760 208-230/460V
1800 145TC 00158XT3E145TC 1,116 X1 79 2.05 86.5 13.752 208-230/460V
1200 182TC 00152XT3E182TC 1,270 X1 126 2.32 87.5 14.862 208-230/460V
2
3600 145TC 00236XT3E145TC 1,045 X1 74 2.69 85.5 13.752 208-230/460V
1800 145TC 00218XT3E145TC 1,148 X1 63 2.72 86.5 13.752 208-230/460V
1200 184TC 00212XT3E184TC 1,323 X1 137 3.13 88.5 15.862 208-230/460V
3
3600 182TC 00336XT3E182TC 1,357 X1 98 3.80 86.5 14.862 208-230/460V
1800 182TC 00318XT3E182TC 1,373 X1 123 3.91 89.5 14.862 208-230/460V
1200 213TC 00312XT3E213TC 1,975 X1 173 4.41 89.5 17.952 208-230/460V
5 1800 184TC 00518XT3E184TC 1,385 X1 138 6.57 89.5 15.862 208-230/460V
7.5 1800 213TC 00718XT3E213TC 2,080 X1 160 9.41 91.7 17.952 208-230/460V
10 1800 215TC 01018XT3E215TC 2,180 X1 215 12.7 91.7 19.450 208-230/460V
15 1800 254TC 01518XT3E254TC 2,976 X1 337 18.4 92.4 23.175 208-230/460V
20 1800 256TC 02018XT3E256TC 3,331 X1 372 25.0 93.0 24.923 208-230/460V
25 1800 284TC 02518XT3E284TC 4,262 X1 480 29.9 93.6 26.407 208-230/460V
30 1800 286TC 03018XT3E286TC 4,672 X1 520 36.0 93.6 27.905 208-230/460V
40 1800 324TC 04018XT3E324TC 5,919 X1 658 48.2 94.1 29.602 208-230/460V
50 1800 326TC 05018XT3E326TC 7,084 X1 714 60.6 94.5 31.106 208-230/460V
60 1800 364TC 06018XT3E364TC 11,116 X1 1,022 68.3 95.0 33.701 208-230/460V
75 1800 365TC 07518XT3E365TC 11,781 X1 945 83.2 95.4 33.701 208-230/460V
100 1800 405TC 10018XT3E405TC 14,993 X1 1,230 113 95.4 38.074 208-230/460V
10 - Might not be available in stock
ROUND BODY - FOOTLESS WITH ‘C’ FLANGE
HP RPM NEMA
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
u
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
1 1800 143TC 00118XT3ER143TC 1,072 X1 71 1.49 82.5 12.750 208-230/460V 14
1.5 1800 145TC 00158XT3ER145TC 1,135 X1 78 2.05 84.0 13.752 208-230/460V 14
2 1800 145TC 00218XT3ER145TC 1,168 X1 80 2.70 84.0 13.752 208-230/460V 14
3 1800 182TC 00318XT3ER182TC 1,397 X1 132 3.90 87.5 14.862 208-230/460V 14
5 1800 184TC 00518XT3ER184TC 1,409 X1 137 6.48 87.5 15.862 208-230/460V 14
7.5 1800 213TC 00718XT3ER213TC 2,118 X1 196 9.53 89.5 17.952 208-230/460V 14
10 1800 215TC 01018XT3ER215TC 2,220 X1 211 12.80 90.2 19.450 208-230/460V 14
15 1800 254TC 01518XT3ER254TC 3,029 X1 319 17.90 91.0 23.175 208-230/460V 14
20 1800 256TC 02018XT3ER256TC 3,391 X1 352 24.40 91.0 24.923 208-230/460V 14
25 1800 284TC 02518XT3ER284TC 4,340 X1 503 29.60 92.4 26.407 208-230/460V 10, 14
30 1800 286TC 03018XT3ER286TC 4,758 X1 547 34.40 92.4 27.905 208-230/460V 10, 14
40 1800 324TC 04018XT3ER324TC 6,027 X1 623 47.60 93.0 29.602 208-230/460V 10, 14
50 1800 326TC 05018XT3ER326TC 7,215 X1 720 57.80 93.6 31.106 208-230/460V 10, 14
These models are Round Body design with no feet cast into the housing. They are design to mount C-Flange only
10 - Might not be available in stock
14 - Round body
Data subject to change without notice.
For ‘C’ flange models : Add a ‘C’ to the end of the part number. EX. 00518XP3E184TC
EXPLOSION PROOF MOTORS
THrEE-PHasE - TEFC (IP54)
NEMA PREMIUM EFFICIENCY
Data subject to change without notice.
Wendell W. Levister, Low Voltage Motors Supervisor:
“ Our Crusher Duty motors & starters conquer
the most demanding applications.”
Crusher Duty from WEG means extra-high-torque and inverter-rated motor
designs through 500 HP with oversized roller bearings and large-diameter
4140 steel shafts. Plus, WEG’s Crusher Duty soft starters through 800 HP
include the TPH Series that surpasses the highest starting torque requirements,
rated 500% for 60 seconds. To learn more or for a U.S. distributor near you,
call 1-800-ASK-4WEG.
Transforming energy into solutions. www.weg.net
©2008 Crusher Duty® is a trademark of WEG Electric Corp.
Motors I Automation I Energy I Transmission & Distribution I Coatings
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-69
Data subject to change without notice. Data subject to change without notice.
CRUSHER®
DUTY
CRUSHER DUTY PRODUCTS
Cast iron fan cover
WEG – THE ORIGINAL AND STILL THE BEST CRUSHER DUTY MOTOR IN THE INDUSTRY
High-efciency, low
drag composite fan for
improved efciency and
cooling
High-strength cast iron
endplates with bearing
retainers. Cast-iron, gasketed terminal box
with NPT treaded holes for total
sealing.
Circlip bearing lock allows
vertical or horizontal
mounting
Oversized bearings
and bearing clips
FC-200 grade cast iron,
UNI-Body construction for
extra strength and heat
dissipation. High strength 4140 steel
shaft, extra-diameter and
extra length on “Z” sufx
models
Special improved
regreasable
bearing system
Labyrinth taconite
seals on “Z” frame
designs to provide the
maximum protection
against aggressive
environments
CRUSHER®
DUTY
www.weg.net
A-70 Data subject to change without notice.
CRUSHER®
DUTY
Data subject to change without notice.
CRUSHER DUTY MOTORS
“a FaMILY OF PrODUCTs”
CRUSHER® DUTY
www.weg.net
A-70 Data subject to change without notice.
APPROVED BY
LR 38324
Note: All motors are tested according to IEEE 112 Std. – Method ‘B’ or C390 CSA.
Energy efficiency motors verified by UL in addition to the DOE.
• Primary, secondary and terciary
crusher
• Jaw crushers
• Roller crushers
• Vertical Shaft Impact crushers
• Gyrathory crushers
• Cage mills
• Cone crushers
• Horizontal Shaft Impact crushers
• Hammermills
• Grizzly feeders
• Also recommended for belt feeders
and belt conveyors
• High torque for maximum performance – highest
break-down torque
• Three-phase, 60Hz
• Voltage: 208-230/460 or 460V
• Totally Enclosed Fan Cooled – TEFC (IP55) water
tight and dust tight enclosure
• Class ‘F’ insulation for all frames
• Class ‘H’ resin insulation system
• Service factor: 1.15 (500Hp 1.00 SF)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Roller bearings standard on all Crusher Duty®
model motors
• F1 mount
• Terminal box rotatable
• Stainless steel nameplate - laser etching
• Versatile starting methods – capable of wye-delta,
across line and part winding (12 leads)
• Paint: synthetic enamel alkyd resin base (exceeds
ASTM B117 salt spray test)
• Color: RAL 7022 – Dark Gray
• Larger diameter shafts for the highest
overhung load ratings in the industry
• Oversized roller bearings for
maximum load capacity
• Labyrinth seal on both ends
FOR THE MOST DEMANDING
ROCK CRUSHER APPLICATIONS
WEG Crusher Duty motors are specically designed to meet the demanding
requirements of the rock crushing industry. FC200 grade cast iron, provides
superior strength and heat dissipation, and 4140 high-strength steel shafts
keep the motor running when others fail. These motors are designed for
vertical or horizontal mounting and have exceptional high starting and
breakdown torque. Compare the standard features of the WEG Crusher Duty
motor to any other and see why these motors are “Crusher Duty” tough!
APPLICATIONS STANDARD FEATURES
“Z” MOTORS
Crusher Duty Motors -
“A Family of Products”
HIGHLIGHTS
• High starting and
breakdown torque
• FC-200 reinformed cast
iron/ Severe Duty
• Partners with TPH
Crusher Duty Soft Starters
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-71
Data subject to change without notice. Data subject to change without notice.
CRUSHER®
DUTY
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-71
Data subject to change without notice.
CRUSHER DUTY MOTORS
“a FaMILY OF PrODUCTs”
CRUSHER DUTY MOTORS – HORIZONTAL
= Roller Bearing
= Z-Frame; Bigger shaft diameter and bearings.
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-17.
• MECHANICAL FEATURES ON PAGE B-59, B-61.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
50 900 404T 05009ES3EKD404T 8,310 K1 1116 61.5 91.0 38.077 208-230/460V £
60 900 405T 06009ES3EKD405T 9,397 K1 1169 75.5 91.0 38.077 208-230/460V £
75 900 444T 07509ES3GKD444T 13,733 K1 1631 92.5 92.0 43.776 460V £
100
1800 405T 10018EP3ERB405T 9,547 W1 1273 115 94.5 38.077 208-230/460V £
1800 405T 10018EP3GRB405T 9,547 W1 1273 115 94.5 38.077 460V £
1200 444T 10012EP3GRB444T 13,027 W1 1720 121 94.1 43.776 460V £
900 445T 10009ES3GKD445T 16,009 K1 1896 133 92.0 43.776 460V £
125
1800 444T 12518EP3GRB444T 12,678 W1 1647 138 94.5 43.776 460V £
1200 445T 12512EP3GRB445T 15,429 W1 2050 141 94.1 43.776 460V £
900 447T 12509ES3GKD447T 19,007 K1 2132 155 92.5 47.299 460V £
150
1800 445T 15018EP3GRB445T 14,952 W1 1841 168 95.0 43.776 460V £
1200 447T 15012EP3GRB447T 18,105 W1 2167 171 95.0 47.299 460V £
900 447T 15009ES3GKD447T 21,191 K1 2337 189 92.5 47.299 460V £
200
1800 445T 20018EP3GRB445T 18,506 W1 2117 230 95.0 43.776 460V £
1800 447T 20018EP3GRB447T 18,506 W1 2194 230 95.0 47.299 460V £
1200 447T 20012EP3GRB447T 22,410 W1 2467 236 95.0 47.299 460V £
1200 505Z 20012EP3GKD505Z 20,945 K1 2517 236 95.0 50.449 460V £
900 449T 20009ES3GKD449 30,910 K1 3706 265 93.5 54.976 460V £
900 449TZ 20009ES3GKD449TZ 30,910 K1 3856 265 95.5 58.370 460V u£
900 586/7 20009ES3GKD586/7 38,314 K1 3925 256 94.5 59.421 460V u£
250
1800 447T 25018ES3GKD447T 19,454 K1 2425 286 94.5 47.299 460V £
1800 447TZ 25018ES3GKD447TZ 19,454 K1 2475 286 94.5 50.424 460V u£
1800 505 25018ES3GKD505 20,173 K1 2425 286 94.5 49.449 460V u£
1800 505Z 25018ES3GKD505Z 20,173 K1 2475 286 94.5 50.449 460V u£
1200 449T 25012ES3GKD449 26,167 K1 3274 307 94.5 54.976 460V £
1200 449TZ 25012ES3GKD449TZ 26,167 K1 3324 307 94.5 58.370 460V u£
1200 586/7 25012ES3GKD586/7 33,070 K1 3660 305 94.0 59.421 460V u£
1200 586/7Z 25012ES3GKD580Z 33,070 K1 3710 305 94.0 64.949 460V £
900 586/7 25009ES3GKD586/7 41,304 K1 4123 313 93.9 59.421 460V £
Data subject to change without notice.
www.weg.net
A-72 Data subject to change without notice.
CRUSHER®
DUTY
CRUSHER® DUTY
www.weg.net
A-72 Data subject to change without notice.
CRUSHER DUTY MOTORS – HORIZONTAL
= Roller Bearing
= Z-Frame; Bigger shaft diameter and bearings.
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-17.
• MECHANICAL FEATURES ON PAGE B-59, B-61.
CRUSHER DUTY MOTORS
“a FaMILY OF PrODUCTs”
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
300
1800 449T 30018ES3GKD449 27,234 K1 3104 354 94.1 54.976 460V £
1800 449TZ 30018ES3GKD449TZ 27,234 K1 3154 354 94.1 58.370 460V u£
1800 586/7 30018ES3GKD586/7 31,557 K1 3372 331 95.0 59.421 460V u£
1800 586/7Z 30018ES3GKD580Z 31,557 K1 3422 331 95.0 64.949 460V £
1200 449T 30012ES3GKD449 34,158 K1 3495 360 94.7 54.976 460V £
1200 449TZ 30012ES3GKD449TZ 34,158 K1 3545 360 94.7 58.370 460V u£
1200 586/7 30012ES3GKD586/7 38,473 K1 3903 361 94.5 59.421 460V £
1200 586/7Z 30012ES3GKD580Z 38,473 K1 3953 361 94.5 64.949 460V £
900 586/7 30009ES3GKD586/7 51,705 K1 4293 367 94.0 59.421 460V £
350
1800 449T 35018ES3GKD449 30,188 K1 3472 404 95.0 54.976 460V £
1800 449TZ 35018ES3GKD449TZ 30,188 K1 3522 404 95.0 58.370 460V u£
1800 586/7 35018ES3GKD586/7 33,863 K1 3760 391 95.0 59.421 460V u£
1800 586/7Z 35018ES3GKD580Z 33,863 K1 3810 391 95.0 64.949 460V £
1200 586/7 35012ES3GKD586/7 42,076 K1 4355 420 94.9 59.421 460V u£
1200 586/7Z 35012ES3GKD580Z 42,076 K1 4405 420 94.9 64.949 460V £
900 586/7 35009ES3GKD586/7 54,381 K1 4686 431 94.7 59.421 460V u£
400
1800 586/7 40018ES3GKD586/7 39,338 K1 4168 451 95.0 59.421 460V u£
1800 586/7Z 40018ES3GKD580Z 39,338 K1 4218 451 95.0 64.949 460V £
1200 586/7 40012ES3GKD586/7 46,197 K1 4498 484 94.9 59.421 460V u£
1200 586/7Z 40012ES3GKD580Z 46,197 K1 4548 484 94.9 64.949 460V £
450
1800 586/7 45018ES3GKD586/7 42,191 K1 4388 496 95.0 59.421 460V u£
1800 586/7Z 45018ES3GKD580Z 42,191 K1 4438 496 95.0 64.949 460V £
1200 586/7 45012ES3GKD586/7 49,958 K1 4620 540 95.0 59.421 460V u£
1200 586/7Z 45012ES3GKD580Z 49,958 K1 4670 540 95.0 64.949 460V £
500
1800 586/7 50018ES3GKD586/7 43,375 K1 4587 555 95.2 59.421 460V u£
1800 586/7Z 50018ES3GKD580Z 43,375 K1 4637 555 95.2 64.949 460V £
1200 586/7Z 50012ES3GKD580Z 53,026 K1 5115 660 95.0 64.949 460V £
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-73
Data subject to change without notice. Data subject to change without notice.
IEC
TRU-METRIC™
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-73
Data subject to change without notice.
INDEX – TRU-METRIC™ IEC MOTORS
SHAFT
Made of ASTM 1045 carbon
steel, it is thermally treaded
to minimize internal stress,
to resist bending and fatigue
caused by torsion and flexing.
ENDSHIELDS
Made of cast iron, with
external fins for heat
dissipation. They also have
polished bearing housings for
longer bearing life.
FRAME
Made of aluminum or FC-200
cast iron, with external fins
for maximum cooling effect.
Removable feet on aluminum
frame.
EYEBOLT
For easy handling, motors in
112 frames and larger are
provided with an eyebolt.
Footless motors are provided
with two eyebolts.
DRAIN PLUGS
Provided with automatic drain
plug that quickly drains
condensation
NAMEPLATE
Dual Frequency (60/50Hz)
stainless steel nameplate
contains a complete and
permanent record of all
motor data.
FAN COVER
Steel covers on 63 up to
132M frames and cast iron
on frames 160M and up.
FAN
Made of rigid plastic from frames 63 up to
315S/M and aluminum for frame 355M/L.
Non sparking, non-toxic, resistant to
environmental conditions, and ensures low
noise operation.
DOUBLE OIL LIP SEALS
In both endshields to protect
bearings and motor from the
aggressive components present in the
environment. Frames 280 and above
provided with V-ring.
ROTOR
Aluminum die cast into a magnetic
steel lamination for low electric losses.
Dynamically balanced for smooth operation,
reduced vibration and noise.
WINDING
All copper winding wire enameled with
class ‘H’ polyester varnish.
TERMINAL BOX
Oversized, cast iron
construction. Gasketed
lid and
between box and frame. NPT
threads holes to connect
conduit or cable glands.
BEARINGS
The bearings are dimensioned to
ensure long life to the motor, even
under heavy working conditions.
The positive pressure lubrication
system includes a drain that
allows the outflow of excess
grease on 160M frames up to
355M/L.
INCLUDES
TERMINAL BLOCKS
www.weg.net
A-74 Data subject to change without notice.
IEC
TRU-METRIC™
Data subject to change without notice.
TRU-METRIC™ FRAME
TEFC
IEC
TRU-METRIC™
www.weg.net
A-74 Data subject to change without notice.
Note: Motors are tested according to IEEE 112
std. - method ‘B’ or C390 CSA.
Energy efficiency motors verified by UL in addi-
tion to the DOE.
APPROVED BY
LR 38324
• Blowers
• Compressors
• Pumps
• Conveyor
• Textiles
• Marine duty
• Efciency Certication number CC029A
according to US Department of Energy
Regulations
• Three-phase, 60/50Hz
• Voltage: 230/460V (60Hz); 380-415V (50Hz)
• Aluminum frames with removable feet
(63 up to 132M)
• Cast iron frames (63 up to 355M/L) with
rigid base
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled TEFC (IP55)
• Oil Seal on both endshields up to 250, V-ring
for 280 and up.
• Class ‘F’ insulation
• Service Factor: 1.15 in 60Hz & 1.0 50Hz
• Constant Torque 4:1 and 10:1 Variable Torque
• Temperature rise: Class ‘B’ (80ºC)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000 m)
• Stainless steel nameplate on both aluminum
and cast iron frames
• Finish painting: Synthetic enamel alkyd resin base
• Color: Dark Grey (RAL 7022)
• Grease relief system in frame 160M and above
• Drilled and tapped shaft
• Automatic drain plug
• Standard mounting: F2 (B3R) Also available in
F1 (B3L) and F0 (B3T)
• Terminal block
• Class 1, Div 2, Groups A, B, C & D, T3
• Flanges
• Class ‘H’ insulation
• Taconite labyrinth seal
• Cable glands
• Space heaters
• Double shaft end
• Thermistor, Thermostats or RTD’s
(PT100)
• Drip cover (canopy) for shaft down
applications
• Special painting plan for hostile
environments
• Roller bearings on drive end
THREE-PHASE – REMOVABLE FEET
AND RIGID BASE
This line is designed and built according to European IEC 34 and IEC 79 Standards.
The enclosure TEFC (IP55) is ideal for indoor and outdoor applications. These
motors are tested according to IEEE 112 std., method ‘B’ and their efciency
values are certied according to EPACT regulations (CC029A).
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
HIGHLIGHTS
•Meets or exceeds EPACT
requirement
• Aluminum frames with
removable feet
• IEC 34 and IEC 79
standards
IEC Motors
Tru-Metric™ Frame - General Purpose Motors
E 104590
APPROVED BY
* Ball bearings. Exception to 355M/L
4, 6 and 8 pole, with roller bearing in
the drive end.
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-75
Data subject to change without notice. Data subject to change without notice.
IEC
TRU-METRIC™
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-75
Data subject to change without notice.
FOOT MOUNT
EPACT CC# CC029A
= Aluminum Frame with removable feet
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-18–B-23.
• MECHANICAL FEATURES ON PAGE B-74–B-80.
TRU-METRIC™ FRAME
TEFC
kW HP RPM
60Hz/50Hz
IEC
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
Voltage
60 Hz/ 50 Hz Notes
0.18 0.25
3600 / 3000 63 .1836EP3EAL63 280 T1 11 0.48 68.0 230/460V // 380-415V AL
3600 / 3000 63 .1836EP3E63 280 T1 18 0.48 68.0 230/460V // 380-415V u
1800 / 1500 63 .1818EP3EAL63 267 T1 13 0.51 69.0 230/460V // 380-415V AL
1800 / 1500 63 .1818EP3E63 267 T1 21 0.51 69.0 230/460V // 380-415V u
1200 / 1000 71 .1812EP3EAL71 338 T1 16 0.77 61.0 230/460V // 380-415V AL
1200 / 1000 71 .1812EP3E71 338 T1 27 0.77 61.0 230/460V // 380-415V u
900 / 750 80 .1809EP3EAL80 540 T1 22 0.80 50.5 230/460V // 380-415V AL
900 / 750 80 .1809EP3E80 540 T1 34 0.80 50.5 230/460V // 380-415V u
0.25 0.33
3600 / 3000 63 .2536EP3EAL63 286 T1 13 0.62 70.0 230/460V // 380-415V AL
3600 / 3000 63 .2536EP3E63 286 T1 18 0.62 70.0 230/460V // 380-415V u
1800 / 1500 71 .2518EP3EAL71 282 T1 16 0.68 73.0 230/460V // 380-415V AL
1800 / 1500 71 .2518EP3E71 282 T1 27 0.68 73.0 230/460V // 380-415V u
1200 / 1000 71 .2512EP3EAL71 363 T1 18 1.00 64.0 230/460V // 380-415V AL
1200 / 1000 71 .2512EP3E71 363 T1 29 1.00 64.0 230/460V // 380-415V u
900 / 750 80 .2509EP3EAL80 583 T1 24 0.87 57.5 230/460V // 380-415V AL
900 / 750 80 .2509EP3E80 583 T1 36 0.87 57.5 230/460V // 380-415V u
0.37 0.5
3600 / 3000 71 .3736EP3EAL71 309 T1 15 0.83 73.0 230/460V // 380-415V AL
3600 / 3000 71 .3736EP3E71 309 T1 25 0.83 73.0 230/460V // 380-415V u
1800 / 1500 71 .3718EP3EAL71 290 T1 16 1.06 73.0 230/460V // 380-415V AL
1800 / 1500 71 .3718EP3E71 290 T1 27 1.06 73.0 230/460V // 380-415V u
1200 / 1000 80 .3712EP3EAL80 378 T1 21 1.07 64.0 230/460V // 380-415V AL
1200 / 1000 80 .3712EP3E80 378 T1 34 1.07 64.0 230/460V // 380-415V u
900 / 750 90S .3709EP3EAL90S 662 T1 36 1.35 61.5 230/460V // 380-415V AL
900 / 750 90S .3709EP3E90S 662 T1 43 1.35 61.5 230/460V // 380-415V u
0.55 0.75
3600 / 3000 71 .5536EP3EAL71 316 T1 18 1.14 76.0 230/460V // 380-415V AL
3600 / 3000 71 .5536EP3E71 316 T1 27 1.14 76.0 230/460V // 380-415V u
1800 / 1500 80 .5518EP3EAL80 333 T1 23 1.25 77.0 230/460V // 380-415V AL
1800 / 1500 80 .5518EP3E80 333 T1 34 1.25 77.0 230/460V // 380-415V u
1200 / 1000 80 .5512EP3EAL80 405 T1 26 1.63 66.0 230/460V // 380-415V AL
1200 / 1000 80 .5512EP3E80 405 T1 38 1.63 66.0 230/460V // 380-415V u
900 / 750 90L .5509EP3EAL90L 696 T1 40 2.12 62.5 230/460V // 380-415V AL
900 / 750 90L .5509EP3E90L 696 T1 49 2.12 62.5 230/460V // 380-415V u
0.75 1
3600 / 3000 80 .7536EP3EAL80 345 T1 23 1.42 79.0 230/460V // 380-415V AL
3600 / 3000 80 .7536EP3E80 345 T1 34 1.42 79.0 230/460V // 380-415V u
1800 / 1500 80 .7518EP3EAL80 339 T1 26 1.51 80.0 230/460V // 380-415V AL
1800 / 1500 80 .7518EP3E80 339 T1 38 1.51 80.0 230/460V // 380-415V u
1200 / 1000 90S .7512EP3EAL90S 452 T1 34 1.71 80.0 230/460V // 380-415V AL
1200 / 1000 90S .7512EP3E90S 452 T1 54 1.71 80.0 230/460V // 380-415V u
900 / 750 100L .7509EP3EAL100L 756 T1 52 2.31 74.0 230/460V // 380-415V AL
900 / 750 100L .7509EP3E100L 756 T1 65 2.31 74.0 230/460V // 380-415V u
Data subject to change without notice.
www.weg.net
A-76 Data subject to change without notice.
IEC
TRU-METRIC™
Data subject to change without notice.
EPACT CC# CC029A
IEC
TRU-METRIC™
www.weg.net
A-76 Data subject to change without notice.
TRU-METRIC™ FRAME
TEFC
EPACT CC# CC029A
= Aluminum Frame with removable feet
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-18–B-23.
• MECHANICAL FEATURES ON PAGE B-74–B-80.
FOOT MOUNT
kW HP RPM
60Hz/50Hz
IEC
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
Voltage
60 Hz/ 50 Hz Notes
1.1 1.5
3600 / 3000 80 00136EP3EAL80 370 T1 25 2.07 82.5 230/460V // 380-415V AL
3600 / 3000 80 00136EP3E80 370 T1 38 2.07 82.5 230/460V // 380-415V u
1800 / 1500 90S 00118EP3EAL90S 409 T1 34 2.16 84.0 230/460V // 380-415V AL
1800 / 1500 90S 00118EP3E90S 409 T1 58 2.16 84.0 230/460V // 380-415V u
1200 / 1000 90L 00112EP3EAL90L 649 T1 43 2.75 78.5 230/460V // 380-415V AL
1200 / 1000 90L 00112EP3E90L 649 T1 54 2.75 78.5 230/460V // 380-415V u
900 / 750 100L 00109EP3EAL100L 767 T1 58 3.26 77.0 230/460V // 380-415V AL
900 / 750 100L 00109EP3E100L 767 T1 69 3.26 77.0 230/460V // 380-415V u
1.5 2
3600 / 3000 90S 00156EP3EAL90S 438 T1 35 2.70 84.0 230/460V // 380-415V AL
3600 / 3000 90S 00156EP3E90S 438 T1 47 2.70 84.0 230/460V // 380-415V u
1800 / 1500 90L 00158EP3EAL90L 456 T1 43 2.99 84.0 230/460V // 380-415V AL
1800 / 1500 90L 00158EP3E90L 456 T1 56 2.99 84.0 230/460V // 380-415V u
1200 / 1000 100L 00152EP3EAL100L 706 T1 69 3.73 81.5 230/460V // 380-415V AL
1200 / 1000 100L 00152EP3E100L 706 T1 76 3.73 81.5 230/460V // 380-415V u
900 / 750 112M 00159EP3EAL112M 870 T1 86 4.08 82.5 230/460V // 380-415V AL
900 / 750 112M 00159EP3E112M 870 T1 108 4.08 82.5 230/460V // 380-415V u
2.2 3
3600 / 3000 90L 00236EP3EAL90L 657 T1 36 4.14 85.5 230/460V // 380-415V AL
3600 / 3000 90L 00236EP3E90L 657 T1 54 4.14 85.5 230/460V // 380-415V u
1800 / 1500 100L 00218EP3EAL100L 548 T1 74 4.44 87.5 230/460V // 380-415V AL
1800 / 1500 100L 00218EP3E100L 548 T1 102 4.44 87.5 230/460V // 380-415V u
1200 / 1000 112M 00212EP3EAL112M 972 T1 108 4.69 86.5 230/460V // 380-415V AL
1200 / 1000 112M 00212EP3E112M 972 T1 124 4.69 86.5 230/460V // 380-415V u
900 / 750 132S 00209EP3EAL132S 1,228 T1 145 4.70 84.0 230/460V // 380-415V AL
900 / 750 132S 00209EP3E132S 1,228 T1 167 4.70 84.0 230/460V // 380-415V u
3 4
3600 / 3000 100L 00336EP3EAL100L 700 T1 58 5.21 84.0 230/460V // 380-415V AL
3600 / 3000 100L 00336EP3E100L 700 T1 76 5.21 84.0 230/460V // 380-415V u
1800 / 1500 100L 00318EP3EAL100L 584 T1 74 5.89 87.5 230/460V // 380-415V AL
1800 / 1500 100L 00318EP3E100L 584 T1 102 5.89 87.5 230/460V // 380-415V u
1200 / 1000 132S 00312EP3AL132S 1,039 T1 155 6.83 87.5 230/460V // 380-415V AL
1200 / 1000 132S 00312EP3132S 1,039 T1 161 6.83 87.5 230/460V // 380-415V u
900 / 750 132M 00309EP3EAL132M 1,400 T1 167 6.40 84.0 230/460V // 380-415V AL
900 / 750 132M 00309EP3E132M 1,400 T1 185 6.40 84.0 230/460V // 380-415V u
4 5.5
3600 / 3000 112M 00436EP3EAL112M 760 T1 80 6.83 87.5 230/460V // 380-415V AL
3600 / 3000 112M 00436EP3E112M 760 T1 110 6.83 87.5 230/460V // 380-415V u
1800 / 1500 112M 00418EP3EAL112M 590 T1 99 7.19 89.5 230/460V // 380-415V AL
1800 / 1500 112M 00418EP3E112M 590 T1 117 7.19 89.5 230/460V // 380-415V u
1200 / 1000 132M 00412EP3EAL132M 1,090 T1 143 8.44 87.5 230/460V // 380-415V AL
1200 / 1000 132M 00412EP3E132M 1,090 T1 163 8.44 87.5 230/460V // 380-415V u
900 / 750 160M 00409EP3E160M 1,693 T1 269 9.63 85.5 230/460V // 380-415V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-77
Data subject to change without notice. Data subject to change without notice.
IEC
TRU-METRIC™
IEC
TRU-METRIC™
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-77
Data subject to change without notice.
FOOT MOUNT
TRU-METRIC™ FRAME
TEFC
EPACT CC# CC029A
= Aluminum Frame with removable feet
= Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-18–B-23.
• MECHANICAL FEATURES ON PAGE B-74–B-80.
kW HP RPM
60Hz/50Hz
IEC
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
Voltage
60 Hz/ 50 Hz Notes
5.5 7.5
3600 / 3000 132S 00536EP3EAL132S 995 T1 123 8.97 88.5 230/460V // 380-415V AL
3600 / 3000 132S 00536EP3E132S 995 T1 150 8.97 88.5 230/460V // 380-415V u
1800 / 1500 132S 00518EP3EAL132S 810 T1 101 9.29 89.5 230/460V // 380-415V AL
1800 / 1500 132S 00518EP3E132S 810 T1 156 9.29 89.5 230/460V // 380-415V u
1200 / 1000 132M 00512EP3EAL132M 1,504 T1 167 11.3 87.5 230/460V // 380-415V AL
1200 / 1000 132M 00512EP3E132M 1,504 T1 187 11.3 87.5 230/460V // 380-415V u
900 / 750 160M 00509EP3E160M 1,951 T1 304 13.5 85.5 230/460V // 380-415V
7.5 10
3600 / 3000 132S 00736EP3EAL132S 1,123 T1 123 12.4 89.5 230/460V // 380-415V AL
3600 / 3000 132S 00736EP3E132S 1,123 T1 163 12.4 89.5 230/460V // 380-415V u
1800 / 1500 132M 00718EP3EAL132M 965 T1 161 12.7 89.5 230/460V // 380-415V AL
1800 / 1500 132M 00718EP3E132M 965 T1 189 12.7 89.5 230/460V // 380-415V u
1200 / 1000 160M 00712EP3E160M 1,960 T1 302 14.2 89.5 230/460V // 380-415V
900 / 750 160L 00709EP3E160L 2,412 T1 346 15.2 88.5 230/460V // 380-415V
11 15
3600 / 3000 160M 01136EP3E160M 1,787 T1 269 18.9 90.2 230/460V // 380-415V
1800 / 1500 160M 01118EP3E160M 1,467 T1 302 20.0 91.0 230/460V // 380-415V
1200 / 1000 160L 01112EP3E160L 2,686 T1 326 21.6 90.2 230/460V // 380-415V
900 / 750 180L 01109EP3E180L 3,505 T1 444 20.3 89.5 230/460V // 380-415V
15 20
3600 / 3000 160 M 01536EP3E160M 2,051 T1 271 25.1 90.2 230/460V // 380-415V
1800 / 1500 160 L 01518EP3E160L 1,800 T1 313 26.9 91.0 230/460V // 380-415V
1200 / 1000 180 L 01512EP3E180L 3,301 T1 499 23.5 92.0 230/460V // 380-415V
900 / 750 200 L 01509EP3E200L 4,485 T1 541 30.9 89.5 230/460V // 380-415V
18.5 25
3600 / 3000 160 L 01836EP3E160L 2,486 T1 313 30.0 91.0 230/460V // 380-415V
1800 / 1500 180 M 01818EP3E180M 2,286 T1 426 31.8 92.4 230/460V // 380-415V
1200 / 1000 200 L 01812EP3E200L 4,153 T1 539 31.7 91.7 230/460V // 380-415V
900 / 750 225 S/M 01809EP3E225S/M 5,270 T1 860 30.9 91.7 230/460V // 380-415V
22 30
3600 / 3000 180 M 02236EP3E180M 2,968 T1 437 35.7 91.0 230/460V // 380-415V
1800 / 1500 180 L 02218EP3E180L 2,741 T1 470 36.9 92.4 230/460V // 380-415V
1200 / 1000 200 L 02212EP3E200L 4,185 T1 607 37.4 92.4 230/460V // 380-415V
900 / 750 225 S/M 02209EP3E225S/M 6,702 T1 915 37.4 92.4 230/460V // 380-415V
30 40
3600 / 3000 200 L 03036EP3E200L 4,145 T1 585 48.5 92.4 230/460V // 380-415V
1800 / 1500 200 L 03018EP3E200L 3,665 T1 574 51.2 93.0 230/460V // 380-415V
1200 / 1000 225 S/M 03012EP3E225S/M 6,744 T1 917 50.6 93.0 230/460V // 380-415V
900 / 750 250 S/M 03009EP3E250S/M 7,909 T1 1125 50.6 93.0 230/460V // 380-415V
37 50
3600 / 3000 200 L 03736EP3E200L 4,664 T1 618 59.1 92.4 230/460V // 380-415V
1800 / 1500 225 S/M 03718EP3E225S/M 5,936 T1 1003 58.1 93.0 230/460V // 380-415V
1200 / 1000 250 S/M 03712EP3E250S/M 8,725 T1 1147 60.9 93.0 230/460V // 380-415V
900 / 750 280 S/M 03709EP3E280S/M 10,492 T1 1565 64.4 92.4 230/460V // 380-415V
45 60
3600 / 3000 225 S/M 04536EP3E225S/M 6,767 T1 959 67.5 93.0 230/460V // 380-415V
1800 / 1500 225 S/M 04518EP3E225S/M 6,282 T1 992 67.8 93.6 230/460V // 380-415V
1200 / 1000 280 S/M 04512EP3E280S/M 9,669 T1 1521 73.2 94.1 460V // 380-415V
900 / 750 280 S/M 04509EP3E280S/M 11,442 T1 1565 80.0 94.1 460V // 380-415V
Data subject to change without notice.
www.weg.net
A-78 Data subject to change without notice.
IEC
TRU-METRIC™
Data subject to change without notice.
IEC
TRU-METRIC™
www.weg.net
A-78 Data subject to change without notice.
FOOT MOUNT
TRU-METRIC™ FRAME
TEFC
EPACT CC# CC029A
= Roller Bearing
• ELECTRICAL FEATURES ON PAGE B-18–B-23.
• MECHANICAL FEATURES ON PAGE B-74–B-80.
kW HP RPM
60Hz/50Hz
IEC
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
Voltage
60 Hz/ 50 Hz Notes
55 75
3600 / 3000 250 S/M 05536EP3E250S/M 8,373 T1 1235 81.6 93.0 230/460V // 380-415V
1800 / 1500 250 S/M 05518EP3E250S/M 7,617 T1 1147 83.4 94.1 230/460V // 380-415V
1200 / 1000 280 S/M 05512EP3E280S/M 11,053 T1 1620 89.1 94.5 460V // 380-415V
900 / 750 315 S/M 05509EP3E315S/M 13,731 T1 1808 93.7 94.5 460V // 380-415V
75 100
3600 / 3000 280 S/M 07536EP3E280S/M 10,601 T1 1863 116 93.6 460V // 380-415V
3600 / 3000 280 S/M 07536EP3G280S/M 10,601 T1 1863 116 93.6 460V // 380-415V
1800 / 1500 280 S/M 07518EP3E280S/M 10,500 T1 1631 114 94.5 460V // 380-415V
1800 / 1500 280 S/M 07518EP3G280S/M 10,500 T1 1631 114 94.5 460V // 380-415V
1200 / 1000 315 S/M 07512EP3E315S/M 14,007 T1 1797 117 95.0 460V // 380-415V
1200 / 1000 315 S/M 07512EP3G315S/M 14,007 T1 1797 117 95.0 460V // 380-415V
900 / 750 315 S/M 07509EP3E315S/M 16,649 T1 2205 133 93.0 460V // 380-415V
900 / 750 315 S/M 07509EP3G315S/M 16,649 T1 2205 133 93.0 460V // 380-415V
90 125
3600 / 3000 280 S/M 09036EP3G280S/M 14,212 T1 1808 136 94.5 460V // 380-415V
1800 / 1500 280 S/M 09018EP3G280S/M 12,937 T1 1929 137 94.5 460V // 380-415V
1200 / 1000 315 S/M 09012EP3G315S/M 16,531 T1 1984 140 95.0 460V // 380-415V
900 / 750 315 S/M 09009EP3G315S/M 19,007 T1 2315 148 95.4 460V // 380-415V
110 150
3600 / 3000 315 S/M 11036EP3G315S/M 17,865 T1 2028 166 94.5 460V // 380-415V
1800 / 1500 280 S/M 11018EP3G280S/M 14,516 T1 2028 167 95.0 460V // 380-415V
1200 / 1000 315 S/M 11012EP3G315S/M 18,105 T1 2359 182 95.0 460V // 380-415V
900 / 750 355 M/L 11009EP3G355M/L 24,920 T1 3462 191 94.1 460V // 380-415V
132 175
3600 / 3000 315 S/M 13236EP3G315S/M 19,703 T1 2183 197 94.5 460V // 380-415V
1800 / 1500 315 S/M 13218EP3G315S/M 16,772 T1 2392 205 95.0 460V // 380-415V
1200 / 1000 355 M/L 13212EP3G355M/L 24,315 T1 3411 221 95.0 460V // 380-415V
900 / 750 355 M/L 13209EP3G355M/L 30,078 T1 3583 229 94.1 460V // 380-415V
150 200
3600 / 3000 315 S/M 15036EP3G315S/M 22,312 T1 2381 220 95.0 460V // 380-415V
1800 / 1500 315 S/M 15018EP3G315S/M 18,506 T1 2403 233 95.0 460V // 380-415V
1200 / 1000 355 M/L 15012EP3G355M/L 28,480 T1 3705 248 95.0 460V // 380-415V
900 / 750 355 M/L 15009EP3G355M/L 38,314 T1 3903 257 94.1 460V // 380-415V
185 250
3600 / 3000 315 S/M 18536EP3G315S/M 23,687 T1 2381 277 95.4 460V // 380-415V
1800 / 1500 315 S/M 18518EP3G315S/M 23,435 T1 2414 294 95.0 460V // 380-415V
1200 / 1000 355 M/L 18512EP3G355M/L 38,854 T1 3925 306 95.0 460V // 380-415V
900 / 750 355 M/L 18509EP3G355M/L 41,203 T1 4542 315 94.5 460V // 380-415V
220 300
3600 / 3000 355 M/L 22036EP3G355M/L 39,475 T1 4035 318 95.4 460V // 380-415V
1800 / 1500 355 M/L 22018EP3G355M/L 32,352 T1 3969 333 95.4 460V // 380-415V
1200 / 1000 355 M/L 22012EP3G355M/L 41,020 T1 4355 368 95.0 460V // 380-415V
900 / 750 355 M/L 22009EP3G355M/L 51,705 T1 4653 370 94.5 460V // 380-415V
260 350
3600 / 3000 355 M/L 26036EP3G355M/L 45,212 T1 4146 372 95.4 460V // 380-415V
1800 / 1500 355 M/L 26018EP3G355M/L 39,072 T1 3440 393 95.4 460V // 380-415V
1200 / 1000 355 M/L 26012EP3G355M/L 47,322 T1 4410 429 95.0 460V // 380-415V
300 400 1800 / 1500 355 M/L 30018EP3G355M/L 42,828 T1 4300 449 95.4 460V // 380-415V £
1200 / 1000 355 M/L 30012EP3G355M/L 53,832 T1 4476 483 95.0 460V // 380-415V £
330 450 1200 / 1000 355 M/L 33012EP3G355M/L 57,640 T1 4587 545 95.0 460V // 380-415V £
AL = Aluminium frame - with removable feet
CI = Cast Iron frame - fixed or standard base
Data subject to change without notice. Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-79
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-79
Data subject to change without notice.
PUMP MOTORS
PUMP
MOTORS
Data subject to change without notice.
www.weg.net
A-80 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-80 Data subject to change without notice.
All motors are tested according to IEEE 12 Std. – Method ‘B’ or C390 CSA.
THREADED – WITH BASE – ODP
SINGLE-PHASE
• ELECTRICAL FEATURES ON PAGE B-31.
• MECHANICAL FEATURES ON PAGE B-78.
• Commercial and Industrial pumps
• Residential pumps
(Jacuzzis, pools, hot tubs)
• Jet Pump motor system
• Hydraulic pumps
• Single-phase, 2 pole, 60Hz
• Voltage: 115/208-230V
• Squirrel cage rotor
• Start capacitor
• Sealed ball bearings (drive end)
• Fan cooled (internally)
• Service factor according to NEMA
standard MG 1-18.329
• Insulation class ‘B’ (130ºC)
• Automatic Thermal Overload (ATO)
• Continuous duty (S1), 40ºC ambient
• Standard: NEMA-MG 1-18.326
• Stainless steel shaft end
• Color: Munsell N1 (Black)
• Counter Clock-wise, viewed from
shaft end
• 4 pole
• Class “F” insulation
• Special voltages
• Drip cover
• Rotation: CW (viewed from
shaft end)
• Other mounting congurations
SINGLE PHASE
These versatile motors have the torque and durability for the
toughest commercial applications, yet are also economical
choices for residential applications. The motors are available
with or without base and in Form J or C configurations.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
ODP
Pump Motors
Jet Pump
HIGHLIGHTS
• Single and two-speed
available
• Space Heaters
• Muliple endbell drains
• External and Internal
Epoxy Paint
• External Slinger
(Umbrella Seal)
APPROVED BY
LR 38324
= Automatic Thermal Overload
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56J .3336OS1BJP56J 254 P1B 21 1.75 3.50 10.732 115/208-230V §
1/2 3600 56J .5036OS1BJP56J 258 P1B 24 1.60 4.70 11.126 115/208-230V §
3/4 3600 56J .7536OS1BJP56J 296 P1B 32 1.50 5.70 11.913 115/208-230V §
1 3600 56J 00136OS1BJP56J 334 P1B 36 1.40 6.10 12.031 115/208-230V §
1 1/2 3600 56J 00156OS1BJP56J 382 P1B 40 1.30 8.50 13.212 115/208-230V §
2 3600 56HJ 00236OS1BJP56J 438 P1B 48 1.20 10.8 14.000 115/208-230V §
3 3600 56HJ 00336OS1DJP56J 499 P1B 53 1.15 13.8 14.787 230V §
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-81
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-81
Data subject to change without notice.
THREADED – LESS BASE – ODP
SINGLE-PHASE
KEYED – ‘C’ FACE LESS BASE – ODP
SINGLE-PHASE
THREADED – WITH BASE – TEFC
SINGLE-PHASE
JET PUMP MOTORS
= Automatic Thermal Overload
• ELECTRICAL FEATURES ON PAGE B-31. • MECHANICAL FEATURES ON PAGE B-78.
• ELECTRICAL FEATURES ON PAGE B-31. • MECHANICAL FEATURES ON PAGE B-80.
• ELECTRICAL FEATURES ON PAGE B-31. • MECHANICAL FEATURES ON PAGE B-78.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56C .3336OS1BJPR56C 237 P1A 21 1.75 3.50 10.232 115/208-230V §
1/2 3600 56C .5036OS1BJPR56C 255 P1A 24 1.60 4.70 10.826 115/208-230V §
3/4 3600 56C .7536OS1BJPR56C 297 P1A 32 1.50 5.70 11.413 115/208-230V §
1 3600 56C 00136OS1BJPR56C 317 P1A 36 1.40 6.10 11.531 115/208-230V §
1 1/2 3600 56C 00156OS1BJPR56C 338 P1A 40 1.30 8.50 12.712 115/208-230V §
2 3600 56HC 00236OS1BJPR56C 424 P1A 48 1.20 10.8 13.500 115/208-230V §
3 3600 56HC 00336OS1DJPR56C 482 P1A 53 1.15 13.8 14.287 230V §
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56J .3336ES1BJP56J 282 P1B 36 1.15 2.80 11.996 115/208-230V §
1/2 3600 56J .5036ES1BJP56J 300 P1B 40 1.15 3.80 11.996 115/208-230V §
3/4 3600 56J .7536ES1BJP56J 330 P1B 41 1.15 5.30 11.996 115/208-230V §
1 3600 56J 00136ES1BJP56J 374 P1B 46 1.15 6.30 13.150 115/208-230V §
1 1/2 3600 56J 00156ES1BJP56J 425 P1B 56 1.15 8.50 13.150 115/208-230V §
2 3600 56HJ 00236ES1BJP56J 486 P1B 65 1.15 10.5 14.330 115/208-230V §
3 3600 56HJ 00336ES1DJP56J 557 P1B 78 1.00 13.5 14.724 230V §
Data subject to change without notice.
www.weg.net
A-82 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-82 Data subject to change without notice.
THREADED – LESS BASE – TEFC
SINGLE-PHASE
KEYED – ‘C’ FACE WITH BASE – TEFC
SINGLE-PHASE
KEYED – ‘C’ FACE LESS BASE – TEFC
SINGLE-PHASE
JET PUMP MOTORS
= Automatic Thermal Overload
• ELECTRICAL FEATURES ON PAGE B-31. • MECHANICAL FEATURES ON PAGE B-80.
• ELECTRICAL FEATURES ON PAGE B-31. • MECHANICAL FEATURES ON PAGE B-80.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56J .3336ES1BJPR56J 296 P1B 36 1.15 2.80 11.996 115/208-230V §
1/2 3600 56J .5036ES1BJPR56J 305 P1B 40 1.15 3.80 11.996 115/208-230V §
3/4 3600 56J .7536ES1BJPR56J 336 P1B 41 1.15 5.30 11.996 115/208-230V §
1 3600 56J 00136ES1BJPR56J 386 P1B 46 1.15 6.30 13.150 115/208-230V §
1 1/2 3600 56J 00156ES1BJPR56J 438 P1B 56 1.15 8.50 13.150 115/208-230V §
2 3600 56HJ 00236ES1BJPR56J 498 P1B 65 1.15 10.5 14.330 115/208-230V §
3 3600 56HJ 00336ES1DJPR56J 573 P1B 78 1.00 13.5 14.724 230V §
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56C .3336ES1BJP56C 263 P1A 36 1.15 2.80 11.496 115/208-230V §
1/2 3600 56C .5036ES1BJP56C 284 P1A 40 1.15 3.80 11.496 115/208-230V §
3/4 3600 56C .7536ES1BJP56C 320 P1A 41 1.15 5.30 11.496 115/208-230V §
1 3600 56C 00136ES1BJP56C 344 P1A 46 1.15 6.30 12.677 115/208-230V §
1 1/2 3600 56C 00156ES1BJP56C 412 P1A 56 1.15 8.50 12.677 115/208-230V §
2 3600 56HC 00236ES1BJP56C 487 P1A 65 1.15 10.5 13.858 115/208-230V §
3 3600 56HC 00336ES1DJP56C* 548 P1A 78 1.00 13.5 14.252 230V §
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56C .3336ES1BJPR56C 282 P1A 36 1.15 2.80 11.496 115/208-230V §
1/2 3600 56C .5036ES1BJPR56C 299 P1A 40 1.15 3.80 11.496 115/208-230V §
3/4 3600 56C .7536ES1BJPR56C 341 P1A 41 1.15 5.30 11.496 115/208-230V §
1 3600 56C 00136ES1BJPR56C 357 P1A 46 1.15 6.30 12.677 115/208-230V §
1 1/2 3600 56C 00156ES1BJPR56C 432 P1A 56 1.15 8.50 12.677 115/208-230V §
2 3600 56HC 00236ES1BJPR56C 494 P1A 65 1.15 10.5 13.858 115/208-230V §
3 3600 56HC 00336ES1DJPR56C* 555 P1A 78 1.00 13.5 14.252 230V §
• ELECTRICAL FEATURES ON PAGE B-31. • MECHANICAL FEATURES ON PAGE B-80.
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-83
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-83
Data subject to change without notice.
THREADED – WITH BASE – ODP
THREE PHASE
All motors are tested according to IEEE 112 std.
- method “B” or C390 CSA.
• ELECTRICAL FEATURES ON PAGE B-31.
• MECHANICAL FEATURES ON PAGE B-79.
• Commercial and Industrial pumps
• Residential pumps
(Jacuzzis, pools, hot tubs)
• Jet pump motor system
• Hydraulic pumps
• Three-phase, 2 pole, 60Hz
• Voltage: 208-230/460V
• Squirrel cage rotor
• Ball bearings
• Fan cooled (internally)
• Service factor according to NEMA
standard MG 1-18.329
• Insulation Class ‘B’ – ODP
• Insulation Class ‘F’ – TEFC
• Standard: NEMA-MG 1-18.326
• Rotation: Reversible
• Stainless steel shaft end
• Threaded center hole
• Color: Munsell N1 (Black)
• 4 Pole
• Class ‘F’ insulation
• Special voltages
• Drip cover
• Automatic Overload Protection
• Other mounting congurations
THREE PHASE
These versatile motors have the torque and durability
for the toughest commercial applications, yet are
also economical choices for residential applications.
The motors are available with or without base and in
Form J or C configurations.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
ODP TEFC
Pump Motors
Jet Pump
HIGHLIGHTS
• Specially dimensioned
shaft
• Second shaft end
• Stainless steel shaft
• Footless
• Other mounting
configuration
• Manual or Automatic
thermal overload
protection
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56J .3336OS3EJP56J 224 P1B 23 1.75 0.75 59.0 10.985 208-230/460V
1/2 3600 56J .5036OS3EJP56J 236 P1B 24 1.60 1.05 61.0 10.985 208-230/460V
3/4 3600 56J .7536OS3EJP56J 271 P1B 26 1.50 1.35 66.0 11.733 208-230/460V
1 3600 56J 00136OS3EJP56J 286 P1B 29 1.40 1.65 69.0 11.733 208-230/460V
1 1/2 3600 56J 00156OS3EJP56J 296 P1B 34 1.30 2.37 71.2 12.993 208-230/460V
2 3600 56J 00236OS3EJP56J 316 P1B 39 1.20 2.85 75.0 12.993 208-230/460V
3 3600 56HJ 00336OS3EJP56J 339 P1B 45 1.15 4.05 77.0 14.174 208-230/460V
APPROVED BY
LR 38324
E 104590
APPROVED BY
Data subject to change without notice.
www.weg.net
A-84 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-84 Data subject to change without notice.
JET PUMP MOTORS
THREADED – LESS BASE – ODP
THREE PHASE
KEYED – C-FACE LESS BASE – ODP
THREE PHASE
THREADED – WITH BASE – TEFC
THREE PHASE
• ELECTRICAL FEATURES ON PAGE B-31.
• MECHANICAL FEATURES ON PAGE B-79.
• ELECTRICAL FEATURES ON PAGE B-31.
• MECHANICAL FEATURES ON PAGE B-80.
• ELECTRICAL FEATURES ON PAGE B-31.
• MECHANICAL FEATURES ON PAGE B-80.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56J .3336OS3EJPR56J 229 P1B 23 1.75 0.75 10.985 208-230/460V
1/2 3600 56J .5036OS3EJPR56J 241 P1B 24 1.60 1.05 10.985 208-230/460V
3/4 3600 56J .7536OS3EJPR56J 278 P1B 26 1.50 1.35 11.733 208-230/460V
1 3600 56J 00136OS3EJPR56J 287 P1B 29 1.40 1.65 11.733 208-230/460V
1 1/2 3600 56J 00156OS3EJPR56J 305 P1B 34 1.30 2.37 12.993 208-230/460V
2 3600 56J 00236OS3EJPR56J 321 P1B 39 1.20 2.85 12.993 208-230/460V
3 3600 56HJ 00336OS3EJPR56J 350 P1B 45 1.15 4.05 14.174 208-230/460V
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56C .3336OS3EJPR56C 220 P1A 23 1.75 0.75 10.315 208-230/460V
1/2 3600 56C .5036OS3EJPR56C 224 P1A 24 1.60 1.05 10.315 208-230/460V
3/4 3600 56C .7536OS3EJPR56C 257 P1A 26 1.50 1.35 11.103 208-230/460V
1 3600 56C 00136OS3EJPR56C 274 P1A 29 1.40 1.65 11.103 208-230/460V
1 1/2 3600 56C 00156OS3EJPR56C 290 P1A 34 1.30 2.37 12.284 208-230/460V
2 3600 56C 00236OS3EJPR56C 311 P1A 39 1.20 2.85 12.284 208-230/460V
3 3600 56HC 00336OS3EJPR56C 332 P1A 45 1.15 4.05 13.645 208-230/460V
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56J .3336ES3EJP56J 259 P1B 33 1.15 0.62 11.996 208-230/460V
1/2 3600 56J .5036ES3EJP56J 267 P1B 36 1.15 0.81 11.996 208-230/460V
3/4 3600 56J .7536ES3EJP56J 301 P1B 40 1.15 1.09 11.996 208-230/460V
1 3600 56J 00136ES3EJP56J 344 P1B 44 1.15 1.44 11.996 208-230/460V
1 1/2 3600 56J 00156ES3EJP56J 374 P1B 48 1.15 1.97 11.996 208-230/460V
2 3600 56J 00236ES3EJP56J 421 P1B 58 1.15 2.67 13.150 208-230/460V
3 3600 56HJ 00336ES3EJP56J 489 P1B 67 1.00 3.80 14.330 208-230/460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-85
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-85
Data subject to change without notice.
JET PUMP MOTORS
THREADED – LESS BASE – TEFC
THREE PHASE
KEYED – ‘C’ FACE LESS BASE – TEFC
THREE PHASE
• ELECTRICAL FEATURES ON PAGE B-31.
• MECHANICAL FEATURES ON PAGE B-80.
• ELECTRICAL FEATURES ON PAGE B-31.
• MECHANICAL FEATURES ON PAGE B-80.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56J .3336ES3EJPR56J 268 P1B 33 1.15 0.62 11.996 208-230/460V
1/2 3600 56J .5036ES3EJPR56J 282 P1B 36 1.15 0.81 11.996 208-230/460V
3/4 3600 56J .7536ES3EJPR56J 319 P1B 40 1.15 1.09 11.996 208-230/460V
1 3600 56J 00136ES3EJPR56J 346 P1B 44 1.15 1.44 11.996 208-230/460V
1 1/2 3600 56J 00156ES3EJPR56J 378 P1B 48 1.15 1.97 11.996 208-230/460V
2 3600 56J 00236ES3EJPR56J 430 P1B 58 1.15 2.67 13.150 208-230/460V
3 3600 56HJ 00336ES3EJPR56J 503 P1B 67 1.00 3.80 14.330 208-230/460V
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 56C .3336ES3EJPR56C 257 P1A 33 1.15 0.62 11.496 208-230/460V
1/2 3600 56C .5036ES3EJPR56C 270 P1A 36 1.15 0.81 11.496 208-230/460V
3/4 3600 56C .7536ES3EJPR56C 293 P1A 40 1.15 1.09 11.496 208-230/460V
1 1/2 3600 56C 00156ES3EJPR56C 371 P1A 48 1.15 1.97 11.496 208-230/460V
2 3600 56C 00236ES3EJPR56C 401 P1A 58 1.15 2.67 12.677 208-230/460V
3 3600 56HC 00336ES3EJPR56C 480 P1A 67 1.00 3.80 13.858 208-230/460V
Data subject to change without notice.
www.weg.net
A-86 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-86 Data subject to change without notice.
• Pumps
• Single-phase, 2 and 4 pole 60Hz
• Voltage: 208-230/460V
• Cast iron frame
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled
- TEFC (IP55)
• Ball bearings
• NEMA dimensions
• Class ‘F’ insulation
• Service Factor: 1.15
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000 m)
• 1045 carbon steel shaft
• F1 mount
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 7022 (Dark Gray)
• NPT threaded terminal box
• Automatic drain plugs
• Special voltages
• Specially designed shaft
• Second shaft end
• Thermistors or thermostats
• Drip cover (canopy) for shaft
down applications
• Stainless steel shaft
• Flange mount
All motors are tested according to IEEE 112 Std. – Method ‘B’ or C390 CSA.
APPROVED BY
LR 50.962-9/13/14
TEFC – SINGLE PHASE
WEG single-phase totally enclosed motors
are specifically designed for operating
in environments of dirt, dust and excess
moisture. Starting capacitors, all cast iron
frames, rigid bases, reversible shaft rotation
and oversized ball bearings are all standard
features. NEMA-T, NEMA 48 & 56 AND IEC
METRIC FRAMES ARE ALSO AVAILABLE. JPJM
Pump Motors
Close Coupled
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
HIGHLIGHTS
• Cast Iron Flange
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-87
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-87
Data subject to change without notice.
CLOSE COUPLED PUMP MOTORS
“JM” TYPE – TEFC – SINGLE PHASE
“JP” TYPE – TEFC – SINGLE PHASE
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
0.5 3600 143JM .5036ES1E143JM 668 P1 26 1.70 71.3 15.458 208-230/460V
13600 143JM 00136ES1E143JM 682 P1 33 2.90 74.5 15.458 208-230/460V
1800 143JM 00118ES1E143JM 687 P1 37 2.85 69.8 15.458 208-230/460V
1.5 3600 143JM 00156ES1E143JM 729 P1 37 3.60 81.3 15.458 208-230/460V
1800 145JM 00158ES1E145JM 754 P1 49 3.50 76.8 16.458 208-230/460V
23600 145JM 00236ES1E145JM 770 P1 45 4.45 86.2 16.458 208-230/460V
1800 145JM 00218ES1E145JM 814 P1 54 4.50 79.6 16.458 208-230/460V
3
3600 145JM 00336ES1E145JM 1,076 P1 52 6.50 80.0 16.458 208-230/460V
3600 145JM 00336ES1C145JM 1,076 P1 52 6.50 80.0 16.458 208-230V
1800 184JM 00318ES1E184JM 1,182 P1 131 7.25 77.2 17.368 208-230/460V
5
3600 184JM 00536ES1E184JM 1,457 P1 115 10.5 83.0 17.368 208-230/460V
3600 184JM 00536ES1C184JM 1,457 P1 115 10.5 83.0 17.368 208-230V
1800 184JM 00518ES1E184JM 1,430 P1 153 10.5 79.4 17.368 208-230/460V
7.5
3600 213JM 00736ES1E213JM 1,641 P1 139 16.0 84.0 18.904 208-230/460V
3600 213JM 00736ES1C213JM 1,641 P1 139 16.0 84.0 18.904 208-230V
1800 215JM 00718ES1E215JM 1,762 P1 168 17.0 82.0 20.400 208-230/460V
10
3600 215JM 01036ES1E215JM 2,172 P1 172 19.5 86.3 20.400 208-230/460V
3600 215JM 01036ES1C215JM 2,172 P1 172 19.5 86.3 20.400 208-230V
1800 215JM 01018ES1E215JM 2,057 P1 179 20.0 83.0 20.400 208-230/460V
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
0.5 3600 143JP .5036ES1E143JP 668 P1 26 1.70 71.3 18.519 208-230/460V
1 1800 143JP 00118ES1E143JP 687 P1 37 2.85 69.8 18.519 208-230/460V
1.5 3600 143JP 00156ES1E143JP 729 P1 37 3.60 81.3 18.519 208-230/460V
1800 145JP 00158ES1E145JP 754 P1 49 3.50 76.8 19.519 208-230/460V
23600 145JP 00236ES1E145JP 770 P1 45 4.45 86.2 19.519 208-230/460V
1800 145JP 00218ES1E145JP 814 P1 54 4.50 79.6 19.519 208-230/460V
33600 145JP 00336ES1E145JP 1,076 P1 52 6.50 80.0 19.519 208-230/460V
1800 184JP 00318ES1E184JP 1,182 P1 131 7.25 77.2 20.429 208-230/460V
53600 184JP 00536ES1E184JP 1,457 P1 115 10.5 83.0 20.429 208-230/460V
1800 184JP 00518ES1E184JP 1,430 P1 153 10.5 79.4 20.429 208-230/460V
7.5 3600 213JP 00736ES1E213JP 1,641 P1 139 16.0 84.0 22.776 208-230/460V
1800 215JP 00718ES1E215JP 1,762 P1 168 17.0 82.0 24.272 208-230/460V
10 3600 215JP 01036ES1E215JP 2,172 P1 172 19.5 86.3 24.272 208-230/460V
1800 215JP 01018ES1E215JP 2,057 P1 179 20.0 83.0 24.272 208-230/460V
• ELECTRICAL FEATURES ON PAGE B-32.
• MECHANICAL FEATURES ON PAGE B-83.
• ELECTRICAL FEATURES ON PAGE B-32.
• MECHANICAL FEATURES ON PAGE B-83.
Data subject to change without notice.
www.weg.net
A-88 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-88 Data subject to change without notice.
ALL MOTORS ARE TESTED ACCORDING TO IEEE 112 STD. -
METHOD ‘B’ OR C390 CSA
FRAME – SPECIFIC FEATURES
FOR FRAME 143/5JM/JP, ONLY
• Welded steel plate frames
(welded feet)
• Cast iron endsheilds xed with through
bolt construction
• ‘ZZ’ bearings (double shielded)
• Degree of protection: IP21
FOR FRAME 182JM up to 215JM
• Welded steel plate frames
(welded feet)
• Aluminum endshields and Terminal box
• Cooling system with nned rotor
• Cast iron endshields xed with through bolt
construction
• “ZZ” bearings (double shielded)
• Degree of protection: IP21
FOR FRAME 254JM UP TO 445JM
• Cast iron frames
• Cast iron endshields and terminal box
• Cooling system with nned rotor
• Regreasable bearings positive pressure
lubrication system (frame 254T and up)
• Degree of protection: IP23
LR 38324
Specially developed line for industrial
and commercial pumping applications.
• Water pumping
• Process
• Transfer and circulating pumps
• Single-phase, 2, 4 or 6 pole, 60Hz
• Voltage: 115/208-230V
• Squirrel cage rotor
• Start capacitor
• NEMA dimensions
• Class ‘B’ insulation (130ºC)
• High starting torque
• Ball Bearings
• Open drip proof (ODP - IP21)
• Totally enclosed fan cooled (TEFC - IP55)
• Color: RAL 7022 (Dark Gray)
• Continuous Duty (S1), 40ºC ambient
• V-ring slingers on both endshields
(for TEFC only)
• Designed to operate in any position
(for TEFC only)
• Cable glands
• Special Voltages
• Cast iron NEMA C-ange or
D-flange (D-flange only for
frames 254T and up)
• Special designed shaft
• Second shaft end
• Thermistors, Thermostats or
RTD’s (PT100)
• Roller bearing on drive end
• IEC metric frames (on request)
for frame 254T up to 445T
• Stainless steel shaft
• Class H insulation
• Design C
• 575V
ODP – THREE PHASE
WEG offers both JM and JP standardized
types of ODP close coupled pump line of
motors. Remember that ODP are suitable
where dirt and moisture are at a minimum.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
JPJM
Pump Motors
Close Coupled - Standard Efficiency
HIGHLIGHTS
• VFD Capable
• Cast Iron Flange
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-89
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-89
Data subject to change without notice.
“JM” TYPE – ODP – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-32.
• MECHANICAL FEATURES ON PAGE B-81, B-82.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimen-
sion
(in.)
Voltage NOTES
1 1800 143JM 00118OS3E143JM 379 P1C 36 1.52 78.5 14.055 208-230/460V
1.5 3600 143JM 00156OS3E143JM 400 P1C 32 2.07 78.5 14.055 208-230/460V
1800 145JM 00158OS3E145JM 414 P1C 41 2.19 77.0 14.055 208-230/460V
23600 145JM 00236OS3E145JM 432 P1C 43 2.71 80.0 14.055 208-230/460V
1800 145JM 00218OS3E145JM 433 P1C 43 2.72 82.5 14.055 208-230/460V
33600 145JM 00336OS3E145JM 482 P1C 49 3.92 80.0 14.055 208-230/460V
1800 182JM 00318OS3E182JM 507 P1C 56 3.94 82.5 14.527 208-230/460V
53600 182JM 00536OS3E182JM 628 P1C 57 6.15 85.5 14.527 208-230/460V
1800 184JM 00518OS3E184JM 652 P1C 69 6.50 84.0 15.315 208-230/460V
7.5
3600 184JM 00736OS3E184JM 785 P1C 69 8.85 86.5 15.315 208-230/460V
1800 213JM 00718OS3E213JM 886 P1C 85 9.75 87.5 17.323 208-230/460V
10 3600 213JM 01036OS3E213JM 1,007 P1C 108 12.1 87.5 17.323 208-230/460V
1800 215JM 01018OS3E215JM 1,078 P1C 109 12.5 86.5 17.323 208-230/460V
15 3600 215JM 01536OS3E215JM 1,264 P1C 139 18.0 85.5 17.323 208-230/460V
1800 254JM 01518OS3E254JM 1,513 P1C 194 20.0 87.5 22.169 208-230/460V
20 3600 254JM 02036OS3E254JM 1,571 P1C 213 25.5 86.8 22.169 208-230/460V
1800 256JM 02018OS3E256JM 1,825 P1C 258 26.3 88.5 23.902 208-230/460V
25 3600 256JM 02536OS3E256JM 1,941 P1C 262 30.2 88.5 23.902 208-230/460V
1800 284JM 02518OS3E284JM 2,209 P1C 300 30.3 90.2 24.261 208-230/460V
30 3600 284JM 03036OS3E284JM 2,365 P1C 300 37.2 89.5 24.261 208-230/460V
1800 286JM 03018OS3E286JM 2,549 P1C 346 36.3 89.5 25.754 208-230/460V
40 3600 286JM 04036OS3E286JM 2,822 P1C 388 47.5 90.2 25.754 208-230/460V
1800 324JM 04018OS3E324JM 2,824 P1C 424 52.0 90.2 26.431 208-230/460V
50 3600 324JM 05036OS3E324JM 3,610 P1C 471 57.0 92.4 26.431 208-230/460V
1800 326JM 05018OS3E326JM 3,553 P1C 515 64.0 91.0 27.927 208-230/460V
60 3600 326JM 06036OS3E326JM 4,208 P1C 552 69.5 92.4 27.927 208-230/460V
1800 364JM 06018OS3E364JM 4,549 P1C 705 73.4 91.6 29.139 208-230/460V
75
3600 364JM 07536OS3E364JM 5,390 P1C 681 84.0 93.0 29.139 208-230/460V
1800 365JM 07518OS3E365JM 5,185 P1C 749 88.6 91.7 29.139 208-230/460V
100 3600 365JM 10036OS3E365JM 6,368 P1C 727 112 93.0 29.139 208-230/460V
Data subject to change without notice.
www.weg.net
A-90 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-90 Data subject to change without notice.
“JP” TYPE – ODP – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-32.
• MECHANICAL FEATURES ON PAGE B-81, B-82.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143JP 00118OS3E143JP 379 P1C 36 1.52 78.5 17.126 208-230/460V
1.5 3600 143JP 00156OS3E143JP 400 P1C 32 2.07 78.5 17.126 208-230/460V
1800 145JP 00158OS3E145JP 414 P1C 41 2.19 77.0 17.126 208-230/460V
23600 145JP 00236OS3E145JP 432 P1C 43 2.71 80.0 17.126 208-230/460V
1800 145JP 00218OS3E145JP 433 P1C 43 2.72 82.5 17.126 208-230/460V
33600 145JP 00336OS3E145JP 482 P1C 49 3.92 80.0 17.126 208-230/460V
1800 182JP 00318OS3E182JP 507 P1C 56 3.94 82.5 20.236 208-230/460V
53600 182JP 00536OS3E182JP 628 P1C 57 6.15 85.5 20.236 208-230/460V
1800 184JP 00518OS3E184JP 652 P1C 69 6.5 84.0 21.023 208-230/460V
7.5 3600 184JP 00736OS3E184JP 785 P1C 69 8.85 86.5 21.023 208-230/460V
1800 213JP 00718OS3E213JP 886 P1C 85 9.75 87.5 21.240 208-230/460V
10 3600 213JP 01036OS3E213JP 1,007 P1C 108 12.1 87.5 21.240 208-230/460V
1800 215JP 01018OS3E215JP 1,078 P1C 109 12.5 86.5 21.240 208-230/460V
15 3600 215JP 01536OS3E215JP 1,264 P1C 139 18.0 85.5 21.240 208-230/460V
1800 254JP 01518OS3E254JP 1,513 P1C 194 20.0 87.5 25.049 208-230/460V
20 3600 254JP 02036OS3E254JP 1,571 P1C 213 25.5 86.8 25.049 208-230/460V
1800 256JP 02018OS3E256JP 1,825 P1C 258 26.3 88.5 26.782 208-230/460V
25 3600 256JP 02536OS3E256JP 1,941 P1C 262 30.2 88.5 26.782 208-230/460V
1800 284JP 02518OS3E284JP 2,209 P1C 300 30.3 90.2 27.141 208-230/460V
30 3600 284JP 03036OS3E284JP 2,365 P1C 300 37.2 89.5 27.141 208-230/460V
1800 286JP 03018OS3E286JP 2,549 P1C 346 36.3 89.5 28.634 208-230/460V
40 3600 286JP 04036OS3E286JP 2,822 P1C 388 47.5 90.2 28.634 208-230/460V
1800 324JP 04018OS3E324JP 2,810 P1C 424 52.0 90.2 29.311 208-230/460V
50 3600 324JP 05036OS3E324JP 3,610 P1C 471 57.0 92.4 29.311 208-230/460V
1800 326JP 05018OS3E326JP 3,553 P1C 515 64.0 91.0 30.807 208-230/460V
60 3600 326JP 06036OS3E326JP 4,208 P1C 552 69.5 92.4 30.807 208-230/460V
1800 364JP 06018OS3E364JP 4,549 P1C 705 73.4 91.6 32.019 208-230/460V
75 3600 364JP 07536OS3E364JP 5,390 P1C 681 84.0 93.0 32.019 208-230/460V
1800 365JP 07518OS3E365JP 5,185 P1C 749 88.6 91.7 32.019 208-230/460V
100 1800 404JP 10018OS3E404JP 6,468 P1C 828 121 92.4 35.263 208-230/460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-91
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-91
Data subject to change without notice.
“JM” TYPE – ODP – VERTICAL MOTORS
“JP” TYPE – ODP – VERTICAL MOTORS
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-32.
• MECHANICAL FEATURES ON PAGE B-81, B-82.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143JMV 00118OS3E143JMV 454 P1 36 1.52 78.5 15.196 208-230/460V
1.5 1800 145JMV 00158OS3E145JMV 486 P1 41 2.19 77.0 15.196 208-230/460V
2 1800 145JMV 00218OS3E145JMV 505 P1 43 2.72 82.5 15.196 208-230/460V
3 1800 182JMV 00318OS3E182JMV 637 P1 56 3.94 82.5 15.904 208-230/460V
53600 182JMV 00536OS3E182JMV 758 P1 57 6.15 85.5 15.904 208-230/460V
1800 184JMV 00518OS3E184JMV 783 P1 69 6.50 84.0 16.692 208-230/460V
7.5 3600 184JMV 00736OS3E184JMV 915 P1 69 8.85 86.5 16.692 208-230/460V
1800 213JMV 00718OS3E213JMV 1,051 P1 85 9.75 87.5 18.700 208-230/460V
10 3600 213JMV 01036OS3E213JMV 1,172 P1 108 12.1 87.5 18.700 208-230/460V
1800 215JMV 01018OS3E215JMV 1,243 P1 109 12.5 86.5 18.700 208-230/460V
15 3600 215JMV 01536OS3E215JMV 1,428 P1 139 18.0 85.5 18.700 208-230/460V
20 3600 254JMV 02036OS3E254JMV 1,835 P1 213 25.5 86.8 23.507 208-230/460V
25 3600 256JMV 02536OS3E256JMV 2,205 P1 262 30.2 88.5 23.902 208-230/460V
40 3600 286JMV 04036OS3E286JMV 3,156 P1 388 47.5 90.2 27.368 208-230/460V
50 3600 324JMV 05036OS3E324JMV 4,032 P1 471 57.0 92.4 29.147 208-230/460V
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1.5 3600 143JPV 00156OS3E143JPV 486 P1 32 2.07 78.5 17.126 208-230/460V
2 3600 145JPV 00236OS3E145JPV 518 P1 43 2.71 80.0 17.126 208-230/460V
3 3600 145JPV 00336OS3E145JPV 613 P1 49 3.92 80.0 17.126 208-230/460V
5 3600 182JPV 00536OS3E182JPV 783 P1 57 6.15 85.5 20.236 208-230/460V
7.5 3600 184JPV 00736OS3E184JPV 915 P1 69 8.85 86.5 22.400 208-230/460V
10 3600 213JPV 01036OS3E213JPV 1,172 P1 108 12.1 87.5 22.617 208-230/460V
15 3600 215JPV 01536OS3E215JPV 1,428 P1 139 18.0 85.5 22.617 208-230/460V
20 3600 254JPV 02036OS3E254JPV 1,835 P1 213 25.5 86.8 26.387 208-230/460V
25 3600 256JPV 02536OS3E256JPV 2,205 P1 262 30.2 88.5 26.782 208-230/460V
30 3600 284JPV 03036OS3E284JPV 2,699 P1 300 37.2 89.5 28.755 208-230/460V
40 3600 286JPV 04036OS3E286JPV 3,156 P1 388 47.5 90.2 30.248 208-230/460V
50 3600 324JPV 05036OS3E324JPV 4,032 P1 471 57.0 92.4 29.311 208-230/460V
Data subject to change without notice.
• ELECTRICAL FEATURES ON PAGE B-32.
• MECHANICAL FEATURES ON PAGE B-81, B-82.
www.weg.net
A-92 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-92 Data subject to change without notice.
HIGHLIGHTS
FRAME – SPECIFIC FEATURES
FOR FRAME 143/5JM/JP, ONLY
• Welded steel plate frames
(welded feet)
• Cast iron endsheilds xed with through bolt
construction
• ‘ZZ’ bearings (double shielded)
• Degree of protection: IP21
FOR FRAME 182JM up to 215JM
• Welded steel plate frames (welded feet)
• Aluminum endshields and Terminal box
• Cooling system with nned rotor
• Cast iron endshields xed with through
bolt construction
• “ZZ” bearings (double shielded)
• Degree of protection: IP21
FOR FRAME 254JM UP TO 445JM
• Cast iron frames
• Cast iron endshields and terminal box
• Cooling system with nned rotor
• Regreasable bearings system
(frame 254JM and up)
• Degree of protection: IP23
LR 38324
Specially developed line for industrial
and commercial pumping applications.
• Water pumping
• Process
• Transfer and circulating pumps
• 3 phase, 2, 4 and 6 pole, 60Hz
• Votage: 208-230/460V, 460V
• Squirrel cage rotor / Aluminum die cast
• Open drip proof design
• NEMA dimensions
• Service factor: 1.15
• Class ‘F’ insulation
• Temperature rise: Class ‘B’ (80ºC)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• 1045 carbon steel shaft
• F1 mount (with cast iron ‘C’ Flange)
• Paint: Enamel alkyd resin base
• Color: RAL 5009 (Blue)
• NPT threaded holes in T-Box
• Stainless steel nameplate
• Cable glands
• Special Voltages
• Cast iron NEMA C-ange or
D-flange (D-flange only for
frames 254T and up)
• Special designed shaft
• Second shaft end
• Thermistors, Thermostats or
RTD’s (PT100)
• Roller bearing on drive end
• IEC metric frames (on request)
for frame 254T up to 445T
• Stainless steel shaft
• Class H insulation
• Design C
• 575V
ODP – THREE PHASE
WEG offers both JM and JP standardized
types of ODP close coupled pump line of
motors. Remember that ODP are suitable
where dirt and moisture are at a minimum.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
JPJM
• VFD Capable
• Cast Iron Flange
Pump Motors
Close Coupled - High Efficiency
ALL MOTORS ARE TESTED ACCORDING TO
IEEE 112 STD. - METHOD ‘B’ OR C390 CSA
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-93
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-93
Data subject to change without notice.
“JM” TYPE – ODP – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
HIGH EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-8, B-9.
• MECHANICAL FEATURES ON PAGE B-81, B-82.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143JM 00118OP3E143JM 437 P1C 36 1.41 82.5 14.055 208-230/460V
1.5 3600 143JM 00156OP3E143JM 453 P1C 32 1.95 82.5 14.055 208-230/460V
1800 145JM 00158OP3E145JM 478 P1C 40 1.98 84.0 14.055 208-230/460V
23600 145JM 00236OP3E145JM 498 P1C 43 2.52 84.0 14.055 208-230/460V
1800 145JM 00218OP3E145JM 524 P1C 43 2.87 84.0 14.055 208-230/460V
33600 145JM 00336OP3E145JM 565 P1C 49 3.65 84.0 14.055 208-230/460V
1800 182JM 00318OP3E182JM 557 P1C 56 3.94 86.5 14.527 208-230/460V
53600 182JM 00536OP3E182JM 669 P1C 57 6.17 86.5 14.527 208-230/460V
1800 184JM 00518OP3E184JM 740 P1C 69 6.39 87.5 15.315 208-230/460V
7.5 3600 184JM 00736OP3E184JM 862 P1C 69 8.97 87.5 15.315 208-230/460V
1800 213JM 00718OP3E213JM 945 P1C 85 9.40 88.5 17.323 208-230/460V
10 3600 213JM 01036OP3E213JM 1,109 P1C 108 11.8 88.5 17.323 208-230/460V
1800 215JM 01018OP3E215JM 1,161 P1C 109 12.7 89.5 17.323 208-230/460V
15 3600 215JM 01536OP3E215JM 1,447 P1C 139 17.1 89.5 17.323 208-230/460V
1800 254JM 01518OP3E254JM 1,749 P1C 247 18.7 91.0 22.169 208-230/460V
20 3600 254JM 02036OP3E254JM 1,816 P1C 205 24.6 90.2 22.169 208-230/460V
1800 256JM 02018OP3E256JM 2,107 P1C 277 25.2 91.0 23.902 208-230/460V
25 3600 256JM 02536OP3E256JM 2,242 P1C 251 29.3 91.0 23.902 208-230/460V
1800 284JM 02518OP3E284JM 2,551 P1C 311 30.1 91.7 24.261 208-230/460V
30 3600 284JM 03036OP3E284JM 2,731 P1C 373 34.0 92.4 24.261 208-230/460V
1800 286JM 03018OP3E286JM 2,946 P1C 397 35.6 92.4 25.754 208-230/460V
40 3600 286JM 04036OP3E286JM 3,260 P1C 457 44.8 92.4 25.754 208-230/460V
1800 324JM 04018OP3E324JM 3,354 P1C 495 48.2 93.0 26.431 208-230/460V
50 3600 324JM 05036OP3E324JM 3,971 P1C 523 56.4 93.6 26.431 208-230/460V
1800 326JM 05018OP3E326JM 4,104 P1C 583 60.2 93.0 27.927 208-230/460V
60
3600 326JM 06036OP3E326JM 4,859 P1C 609 70.6 93.0 27.927 208-230/460V
3600 326JM 06036OP3G326JM 4,859 P1C 609 70.6 93.0 27.927 460V
1800 364JM 06018OP3E364JM 5,254 P1C 743 70.2 93.6 29.139 208-230/460V
1800 364JM 06018OP3G364JM 5,254 P1C 743 70.2 93.6 29.139 460V
75
3600 364JM 07536OP3E364JM 6,226 P1C 805 80.6 94.1 29.139 208-230/460V
3600 364JM 07536OP3G364JM 6,226 P1C 805 80.6 94.1 29.139 460V
1800 365JM 07518OP3E365JM 5,989 P1C 935 85.3 94.1 29.139 208-230/460V
1800 365JM 07518OP3G365JM 5,989 P1C 935 85.3 94.1 29.139 460V
100 3600 365JM 10036OP3E365JM 7,005 P1C 935 110 94.1 29.139 208-230/460V
3600 365JM 10036OP3G365JM 7,005 P1C 935 110 94.1 29.139 460V
Data subject to change without notice.
www.weg.net
A-94 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-94 Data subject to change without notice.
“JP” TYPE – ODP – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
ODP – HIGH EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-8, B-9.
• MECHANICAL FEATURES ON PAGE B-81, B-82.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143JP 00118OP3E143JP 437 P1C 36 1.41 82.5 17.126 208-230/460V
1.5 3600 143JP 00156OP3E143JP 453 P1C 32 1.95 82.5 17.126 208-230/460V
1800 145JP 00158OP3E145JP 478 P1C 40 1.98 84.0 17.126 208-230/460V
23600 145JP 00236OP3E145JP 498 P1C 43 2.52 84.0 17.126 208-230/460V
1800 145JP 00218OP3E145JP 524 P1C 43 2.87 84.0 17.126 208-230/460V
33600 145JP 00336OP3E145JP 565 P1C 49 3.65 84.0 17.126 208-230/460V
1800 182JP 00318OP3E182JP 557 P1C 56 3.94 86.5 20.236 208-230/460V
53600 182JP 00536OP3E182JP 669 P1C 57 6.17 86.5 20.236 208-230/460V
1800 184JP 00518OP3E184JP 739 P1C 69 6.39 87.5 21.023 208-230/460V
7.5 3600 184JP 00736OP3E184JP 862 P1C 69 8.97 87.5 21.023 208-230/460V
1800 213JP 00718OP3E213JP 946 P1C 85 9.40 88.5 21.240 208-230/460V
10 3600 213JP 01036OP3E213JP 1,109 P1C 108 11.8 88.5 21.240 208-230/460V
1800 215JP 01018OP3E215JP 1,163 P1C 109 12.7 89.5 21.240 208-230/460V
15 3600 215JP 01536OP3E215JP 1,447 P1C 139 17.1 89.5 21.240 208-230/460V
1800 254JP 01518OP3E254JP 1,749 P1C 247 18.7 91.0 25.049 208-230/460V
20 3600 254JP 02036OP3E254JP 1,815 P1C 205 24.6 90.2 25.049 208-230/460V
1800 256JP 02018OP3E256JP 2,107 P1C 277 25.2 91.0 26.782 208-230/460V
25 3600 256JP 02536OP3E256JP 2,243 P1C 251 29.3 91.0 26.782 208-230/460V
1800 284JP 02518OP3E284JP 2,550 P1C 311 30.1 91.7 27.141 208-230/460V
30 3600 284JP 03036OP3E284JP 2,731 P1C 373 34.0 92.4 27.141 208-230/460V
1800 286JP 03018OP3E286JP 2,945 P1C 397 35.6 92.4 28.634 208-230/460V
40 3600 286JP 04036OP3E286JP 3,260 P1C 457 44.8 92.4 28.634 208-230/460V
1800 324JP 04018OP3E324JP 3,354 P1C 495 48.2 93.0 29.311 208-230/460V
50
3600 324JP 05036OP3E324JP 3,971 P1C 523 56.4 93.6 29.311 208-230/460V
3600 324JP 05036OP3G324JP 3,971 P1C 523 56.4 93.6 29.311 460V
1800 326JP 05018OP3E326JP 4,105 P1C 583 60.2 93.0 30.807 208-230/460V
60
3600 326JP 06036OP3E326JP 4,859 P1C 609 70.6 93.0 30.807 208-230/460V
3600 326JP 06036OP3G326JP 4,859 P1C 609 70.6 93.0 30.807 460V
1800 364JP 06018OP3E364JP 5,254 P1C 743 70.2 93.6 32.019 208-230/460V
1800 364JP 06018OP3G364JP 5,254 P1C 743 70.2 93.6 32.019 460V
75
3600 364JP 07536OP3E364JP 6,226 P1C 805 80.6 94.1 32.019 208-230/460V
3600 364JP 07536OP3G364JP 6,226 P1C 805 80.6 94.1 32.019 460V
1800 365JP 07518OP3E365JP 5,989 P1C 935 85.3 94.1 32.019 208-230/460V
1800 365JP 07518OP3G365JP 5,989 P1C 935 85.3 94.1 32.019 460V
100
3600 365JP 10036OP3E365JP 7,005 P1C 935 110.0 94.1 32.019 208-230/460V
3600 365JP 10036OP3G365JP 7,005 P1C 935 110 94.1 32.019 460V
1800 404JP 10018OP3E404JP 7,469 P1C 1037 115 94.1 35.263 208-230/460V
1800 404JP 10018OP3G404JP 7,469 P1C 1037 115 94.1 35.263 460V
125 3600 404JP 12536OP3G404JP 9,185 P1C 1086 132 94.1 35.263 460V
1800 405JP 12518OP3G405JP 8,971 P1C 1207 137 94.5 35.263 460V
150 3600 405JP 15036OP3G405JP 12,106 P1C 1401 159 94.5 35.263 460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-95
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-95
Data subject to change without notice.
“JM” TYPE – ODP – VERTICAL MOTORS
CLOSE COUPLED PUMP MOTORS
ODP – HIGH EFFICIENCY
“JP” TYPE – ODP – VERTICAL MOTORS
• ELECTRICAL FEATURES ON PAGE B-8, B-9.
• MECHANICAL FEATURES ON PAGE B-81, B-82.
• ELECTRICAL FEATURES ON PAGE B-8, B-9.
• MECHANICAL FEATURES ON PAGE B-81, B-82.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143JMV 00118OP3E143JMV 513 P1C 36 1.41 82.5 14.756 208-230/460V
1.5 3600 143JMV 00156OP3E143JMV 542 P1C 32 1.95 82.5 14.756 208-230/460V
1800 145JMV 00158OP3E145JMV 554 P1C 40 1.98 84.0 14.756 208-230/460V
23600 145JMV 00236OP3E145JMV 573 P1C 43 2.52 84.0 14.756 208-230/460V
1800 145JMV 00218OP3E145JMV 603 P1C 43 2.87 84.0 14.756 208-230/460V
33600 145JMV 00336OP3E145JMV 657 P1C 49 3.65 84.0 14.756 208-230/460V
1800 182JMV 00318OP3E182JMV 687 P1C 56 3.94 86.5 15.314 208-230/460V
53600 182JMV 00536OP3E182JMV 797 P1C 57 6.17 86.5 15.314 208-230/460V
1800 184JMV 00518OP3E184JMV 875 P1C 69 6.39 87.5 15.314 208-230/460V
7.5 3600 184JMV 00736OP3E184JMV 993 P1C 69 8.97 87.5 15.314 208-230/460V
1800 213JMV 00718OP3E213JMV 1,106 P1C 85 9.40 88.5 18.700 208-230/460V
10 3600 213JMV 01036OP3E213JMV 1,201 P1C 108 11.8 88.5 18.700 208-230/460V
1800 215JMV 01018OP3E215JMV 1,323 P1C 109 12.7 89.5 18.700 208-230/460V
15 3600 215JMV 01536OP3E215JMV 1,617 P1C 139 17.1 89.5 18.700 208-230/460V
20 3600 254JMV 02036OP3E254JMV 2,092 P1C 205 24.6 90.2 22.169 208-230/460V
25 3600 256JMV 02536OP3E256JMV 2,518 P1C 251 29.3 91.0 23.902 208-230/460V
30 3600 284JMV 03036OP3E284JMV 3,082 P1C 373 34.0 92.4 24.261 208-230/460V
40 3600 286JMV 04036OP3E286JMV 3,611 P1C 457 44.8 92.4 25.754 208-230/460V
50 3600 324JMV 05036OP3E324JMV 4,394 P1C 523 56.4 93.6 26.431 208-230/460V
Note: Prices with Drip Cover Included
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1.5 3600 143JPV 00156OP3E143JPV 513 P1C 32 1.95 82.5 17.827 208-230/460V
2 3600 145JPV 00236OP3E145JPV 559 P1C 43 2.52 84.0 17.827 208-230/460V
3 3600 145JPV 00336OP3E145JPV 629 P1C 49 3.65 84.0 17.827 208-230/460V
5 3600 182JPV 00536OP3E182JPV 729 P1C 57 6.17 86.5 22.400 208-230/460V
7.5 3600 184JPV 00736OP3E184JPV 993 P1C 69 9.0 87.5 22.400 208-230/460V
10 3600 213JPV 01036OP3E213JPV 1,273 P1C 108 11.8 88.5 22.617 208-230/460V
15 3600 215JPV 01536OP3E215JPV 1,617 P1C 139 17.1 89.5 22.617 208-230/460V
20 3600 254JPV 02036OP3E254JPV 2,092 P1C 205 24.6 90.2 26.387 208-230/460V
25 3600 256JPV 02536OP3E256JPV 2,518 P1C 251 29.3 91.0 26.782 208-230/460V
30 3600 284JPV 03036OP3E284JPV 3,082 P1C 373 34 92.4 28.755 208-230/460V
40 3600 286JPV 04036OP3E286JPV 3,611 P1C 457 44.8 92.4 30.248 208-230/460V
Note: Prices with Drip Cover Included
Data subject to change without notice.
www.weg.net
A-96 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-96 Data subject to change without notice.
HIGHLIGHTS
FRAME – SPECIFIC FEATURES
FOR FRAME 143/5JM/JP, ONLY
• Welded steel plate frames
(welded feet)
• Cast iron endsheilds xed with through
bolt construction
• ‘ZZ’ bearings (double shielded)
• Degree of protection: IP21
FOR FRAME 182JM up to 215JM
• Welded steel plate frames (welded feet)
• Aluminum endshields and Terminal box
• Cooling system with nned rotor
• Cast iron endshields xed with through
bolt construction
• “ZZ” bearings (double shielded)
• Degree of protection: IP21
FOR FRAME 254JM UP TO 445JM
• Cast iron frames
• Cast iron endshields and terminal box
• Cooling system with nned rotor
• Regreasable bearings system
(frame 254JM and up)
• Degree of protection: IP23
LR 38324
Specially developed line for industrial
and commercial pumping applications.
• Water pumping
• Process
• Transfer and circulating pumps
• 3 phase, 2, 4 and 6 pole, 60Hz
• Votage: 208-230/460V, 460V
• Squirrel cage rotor / Aluminum die cast
• Open drip proof design
• NEMA dimensions
• Service factor: 1.15
• Class ‘F’ insulation
• Temperature rise: Class ‘B’ (80ºC)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• 1045 carbon steel shaft
• F1 mount (with cast iron ‘C’ Flange)
• Paint: Enamel alkyd resin base
• Color: RAL 5009 (Blue)
• NPT threaded holes in T-Box
• Stainless steel nameplate
• Cable glands
• Special Voltages
• Cast iron NEMA C-ange or
D-flange (D-flange only for
frames 254T and up)
• Special designed shaft
• Second shaft end
• Thermistors, Thermostats or
RTD’s (PT100)
• Roller bearing on drive end
• IEC metric frames (on request)
for frame 254T up to 445T
• Stainless steel shaft
• Class H insulation
• Design C
• 575V
ODP – THREE PHASE
WEG offers both JM and JP standardized
types of ODP close coupled pump line of
motors. Remember that ODP are suitable
where dirt and moisture are at a minimum.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
JP
JM
• VFD Capable
• Cast Iron Flange
Pump Motors
Close Coupled - ODP - NEMA PREMIUM
ALL MOTORS ARE TESTED ACCORDING TO
IEEE 112 STD. - METHOD ‘B’ OR C390 CSA
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-97
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-97
Data subject to change without notice.
“JM” TYPE – ODP – THREE-PHASE - NEMA PREMIUM
HP RPM NEMA
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
at High
Voltage
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
11800 143JM 00118OT3E143JM 486 P1C 37 1.45 85.5 14.055 208-230/460
1200 145JM 00112OT3E145JM 550 P1C 37 1.63 82.5 14.055 208-230/460
1.5
3600 143JM 00156OT3E143JM 534 P1C 40 1.90 85.5 14.055 208-230/460
1800 145JM 00158OT3E145JM 553 P1C 44 2.20 86.5 14.055 208-230/460
1200 182JM 00152OT3E182JM 769 P1C 44 2.31 86.5 14.527 208-230/460
2
3600 145JM 00236OT3E145JM 580 P1C 42 2.50 86.5 14.055 208-230/460
1800 145JM 00218OT3E145JM 607 P1C 44 2.90 86.5 14.055 208-230/460
1200 184JM 00212OT3E184JM 816 P1C 60 3.03 87.5 15.315 208-230/460
3
3600 145JM 00336OT3E145JM 660 P1C 46 3.50 86.5 14.843 208-230/460
1800 182JM 00318OT3E182JM 665 P1C 46 4.06 89.5 14.527 208-230/460
1200 213JM 00312OT3E213JM 1,105 P1C 66 4.27 88.5 17.323 208-230/460
5
3600 182JM 00536OT3E182JM 780 P1C 48 6.17 88.5 14.527 208-230/460
1800 184JM 00518OT3E184JM 849 P1C 62 6.41 89.5 15.315 208-230/460
1200 215JM 00512OT3E215JM 1,319 P1C 96 6.92 89.5 17.323 208-230/460
7.5
3600 184JM 00736OT3E184JM 1,086 P1C 60 8.97 88.5 15.315 208-230/460
1800 213JM 00718OT3E213JM 1,119 P1C 77 9.03 91.0 17.323 208-230/460
1200 254JM 00712OT3E254JM 1,985 P1C 231 9.69 90.2 22.169 208-230/460
10
3600 213JM 01036OT3E213JM 1,289 P1C 121 11.9 90.2 17.323 208-230/460
1800 215JM 01018OT3E215JM 1,364 P1C 99 12.2 91.7 17.323 208-230/460
1200 256JM 01012OT3E256JM 2,298 P1C 251 13.0 91.7 23.902 208-230/460
15
3600 215JM 01536OT3E215JM 1,707 P1C 126 17.4 91.0 17.323 208-230/460
1800 254JM 01518OT3E254JM 1,995 P1C 254 18.6 93.0 22.169 208-230/460
1200 284JM 01512OT3E284JM 3,164 P1C 364 17.7 91.7 24.261 208-230/460
20
3600 254JM 02036OT3E254JM 2,107 P1C 179 24.6 91.0 22.169 208-230/460
1800 256JM 02018OT3E256JM 2,413 P1C 295 25.0 93.0 23.902 208-230/460
1200 286JM 02012OT3E286JM 3,872 P1C 397 24.0 92.4 25.754 208-230/460
25
3600 256JM 02536OT3E256JM 2,598 P1C 243 29.8 91.7 23.902 208-230/460
1800 284JM 02518OT3E284JM 2,912 P1C 342 29.9 93.6 24.261 208-230/460
1200 324JM 02512OT3E324JM 4,306 P1C 463 30.4 93.0 26.431 208-230/460
30
3600 284JM 03036OT3E284JM 3,185 P1C 333 35.2 92.4 24.261 208-230/460
1800 286JM 03018OT3E286JM 3,368 P1C 419 35.4 94.1 25.754 208-230/460
1200 326JM 03012OT3E326JM 4,741 P1C 573 36.0 93.6 27.927 208-230/460
40
3600 286JM 04036OT3E286JM 3,811 P1C 417 47.1 93.0 25.754 208-230/460
1800 324JM 04018OT3E324JM 3,797 P1C 507 48.2 94.1 26.431 208-230/460
1200 364JM 04012OT3E364JM 6,696 P1C 739 48.2 94.1 29.139 208-230/460
50
3600 324JM 05036OT3E324JM 4,607 P1C 496 59.1 93.6 26.431 208-230/460
3600 324JM 05036OT3G324JM 4,607 P1C 496 59.1 93.6 26.431 460
1800 326JM 05018OT3E326JM 4,877 P1C 573 61.4 94.5 27.927 208-230/460
1200 365JM 05012OT3E365JM 7,666 P1C 862 60.2 94.1 29.139 208-230/460
60
3600 326JM 06036OT3E326JM 5,432 P1C 582 71.0 93.6 27.927 208-230/460
1800 364JM 06018OT3E364JM 5,994 P1C 825 69.9 95.0 29.139 208-230/460
1800 364JM 06018OT3G364JM 5,994 P1C 825 69.9 95.0 29.139 460
75
3600 364JM 07536OT3E364JM 6,951 P1C 694 81.5 94.1 29.139 208-230/460
3600 364JM 07536OT3G364JM 6,951 P1C 694 81.5 94.1 29.139 460
1800 365JM 07518OT3E365JM 6,932 P1C 825 85.5 95.0 29.139 208-230/460
1800 365JM 07518OT3G365JM 6,932 P1C 825 85.5 95.0 29.139 460
100 3600 365JM 10036OT3E365JM 8,683 P1C 825 111 94.5 29.139 208-230/460
3600 365JM 10036OT3G365JM 8,683 P1C 825 111 94.5 29.139 460
CLOSE COUPLED PUMP MOTORS
ODP – NEMA PREMIUM
• ELECTRICAL FEATURES ON PAGE B-16.
• MECHANICAL FEATURES ON PAGE B-81, B-82.
Data subject to change without notice.
www.weg.net
A-98 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-98 Data subject to change without notice.
“JP” TYPE – ODP – THREE-PHASE - NEMA PREMIUM
HP RPM NEMA
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
11800 143JP 00118OT3E143JP 486 P1C 37 1.45 85.5 17.126 208-230/460
1200 145JP 00112OT3E145JP 550 P1C 37 1.63 82.5 17.126 208-230/460
1.5
3600 143JP 00156OT3E143JP 534 P1C 40 1.90 85.5 17.126 208-230/460
1800 145JP 00158OT3E145JP 553 P1C 44 2.20 86.5 17.126 208-230/460
1200 182JP 00152OT3E182JP 729 P1C 44 2.31 86.5 20.236 208-230/460
2
3600 145JP 00236OT3E145JP 580 P1C 42 2.50 86.5 17.126 208-230/460
1800 145JP 00218OT3E145JP 607 P1C 44 2.90 86.5 17.126 208-230/460
1200 184JP 00212OT3E184JP 863 P1C 60 3.03 87.5 21.023 208-230/460
3
3600 145JP 00336OT3E145JP 660 P1C 46 3.50 86.5 17.913 208-230/460
1800 182JP 00318OT3E182JP 665 P1C 46 4.06 89.5 20.236 208-230/460
1200 213JP 00312OT3E213JP 1,095 P1C 66 4.27 88.5 21.240 208-230/460
5
3600 182JP 00536OT3E182JP 792 P1C 48 6.17 88.5 20.236 208-230/460
1800 184JP 00518OT3E184JP 848 P1C 62 6.41 89.5 21.023 208-230/460
1200 215JP 00512OT3E215JP 1,321 P1C 96 6.92 89.5 21.240 208-230/460
7.5
3600 184JP 00736OT3E184JP 1,086 P1C 60 8.97 88.5 21.023 208-230/460
1800 213JP 00718OT3E213JP 1,120 P1C 77 9.03 91.0 21.240 208-230/461
1200 254JP 00712OT3E254JP 2,113 P1C 231 9.69 90.2 25.049 208-230/462
10
3600 213JP 01036OT3E213JP 1,289 P1C 121 11.9 90.2 21.240 208-230/463
1800 215JP 01018OT3E215JP 1,366 P1C 99 12.2 91.7 21.240 208-230/464
1200 256JP 01012OT3E256JP 2,298 P1C 251 13.0 91.7 26.782 208-230/465
15
3600 215JP 01536OT3E215JP 1,707 P1C 126 17.4 91.0 21.240 208-230/466
1800 254JP 01518OT3E254JP 1,995 P1C 254 18.6 93.0 25.049 208-230/460
1200 284JP 01512OT3E284JP 3,163 P1C 364 17.7 91.7 27.141 208-230/460
20
3600 254JP 02036OT3E254JP 2,106 P1C 179 24.6 91.0 25.049 208-230/460
1800 256JP 02018OT3E256JP 2,413 P1C 295 25.0 93.0 26.782 208-230/460
1200 286JP 02012OT3E286JP 3,871 P1C 397 24.0 92.4 28.634 208-230/460
25
3600 256JP 02536OT3E256JP 2,599 P1C 243 29.8 91.7 26.782 208-230/460
1800 284JP 02518OT3E284JP 2,911 P1C 342 29.9 93.6 27.141 208-230/460
1200 324JP 02512OT3E324JP 4,306 P1C 463 30.4 93.0 29.311 208-230/460
30
3600 284JP 03036OT3E284JP 3,185 P1C 333 35.2 92.4 27.141 208-230/460
1800 286JP 03018OT3E286JP 3,367 P1C 419 35.4 94.1 28.634 208-230/461
1200 326JP 03012OT3E326JP 4,980 P1C 573 36.0 93.6 30.807 208-230/462
40
3600 286JP 04036OT3E286JP 3,811 P1C 417 47.1 93.0 28.634 208-230/463
1800 324JP 04018OT3E324JP 3,797 P1C 507 48.2 94.1 29.311 208-230/464
1200 364JP 04012OT3E364JP 7,444 P1C 739 48.2 94.1 32.019 208-230/460
50
3600 324JP 05036OT3E324JP 4,607 P1C 496 59.1 93.6 29.311 208-230/460
3600 324JP 05036OT3G324JP 4,607 P1C 496 59.1 93.6 29.311 460
1800 326JP 05018OT3E326JP 4,878 P1C 573 61.4 94.5 30.807 208-230/460
1200 365JP 05012OT3E365JP 7,666 P1C 862 60.2 94.1 32.019 208-230/460
60
3600 326JP 06036OT3E326JP 5,432 P1C 582 71.0 93.6 30.807 208-230/460
1800 364JP 06018OT3E364JP 5,994 P1C 825 69.9 95.0 32.019 208-230/460
1800 364JP 06018OT3G364JP 5,994 P1C 825 69.9 95.0 32.019 460
1200 404JP 06012OT3E404JP 9,462 P1C 915 71.2 94.5 35.263 208-230/460
75
3600 364JP 07536OT3E364JP 7,699 P1C 694 81.5 94.1 32.019 208-230/460
3600 364JP 07536OT3G364JP 7,699 P1C 694 81.5 94.1 32.019 460
1800 365JP 07518OT3E365JP 6,932 P1C 825 85.5 95.0 32.019 208-230/460
1800 365JP 07518OT3G365JP 6,932 P1C 825 85.5 95.0 32.019 460
1200 405JP 07512OT3E405JP 9,762 P1C 1,080 85.9 94.5 35.263 208-230/460
100
3600 365JP 10036OT3E365JP 8,544 P1C 825 111 94.5 32.019 208-230/460
3600 365JP 10036OT3G365JP 8,544 P1C 825 111 94.5 32.019 460
1800 404JP 10018OT3E404JP 8,545 P1C 1,052 115 95.4 35.263 208-230/460
1800 404JP 10018OT3G404JP 8,545 P1C 1,052 115 95.4 35.263 460
CLOSE COUPLED PUMP MOTORS
ODP – NEMA PREMIUM
• ELECTRICAL FEATURES ON PAGE B-16.
• MECHANICAL FEATURES ON PAGE B-81, B-82.
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-99
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-99
Data subject to change without notice.
APPLICATIONS
Specially developed line for
industrial and commercial pumping
applications.
• Water pumping
• Process
• Transfer and circulating pumps
STANDARD FEATURES
• 3 phase, 2, 4, 6 and 8 pole, 60Hz
• Voltage: 208-230/460, 460V
• 2:1 Constant torque
10:1 Variable torque
• Cast iron frames
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled
- TEFC (IP55)
• V-ring slingers on both endshields
• Ball bearings
• Service Factor: 1.15
• Class ‘F’ insulation
• Temperature rise: Class ‘B’ (80ºC)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000m)
• 1045 carbon steel shaft
• F1 mount
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 7022 (Dark Gray)
• NPT threaded terminal box
• Automatic drain plugs
• Regreasable bearings system (frames
254JM/JP frames and up)
• Cable glands
• Special voltages
• Specially designed shaft
• Space heaters
• Second shaft end
• Thermistor, Thermostats or RTD’s
(PT100)
• Additional terminal box
• Stainless steel shaft
• 575V
WEG also can provide IEC metric frame, cast iron,
TEFC. Please ask for specific catalog.
All motors are tested according to IEEE 112 std. -
method ‘B’ or C390 CSA.
APPROVED BY
LR 50.962-9/13/14
TEFC – THREE PHASE
WEG offers both JM and JP standardized
types of close-coupled pump line of
motors. Totally enclosed enclosures permit
these motors to operate in moist or dusty
atmospheres. JP
JM
OPTIONAL
FEATURES
Pump Motors
Close Coupled - Standard Efficiency
E 104590
APPROVED BY
HIGHLIGHTS
• VFD Capable
• Cast Iron Flange
Data subject to change without notice.
www.weg.net
A-100 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
PUMP
MOTORS
www.weg.net
A-100 Data subject to change without notice.
= Reduced Frame = Product may not be available from stock
“JM” TYPE – TEFC– THREE-PHASE
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-33. • MECHANICAL FEATURES ON PAGE B-84, B-85.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143JM 00118ES3E143JM 411 P1 40 1.51 78.0 14.304 208-230/460V
1.5 3600 143JM 00156ES3E143JM 434 P1 40 2.04 78.0 14.304 208-230/460V
1800 145JM 00158ES3E145JM 449 P1 40 2.19 79.0 15.304 208-230/460V
23600 145JM 00236ES3E145JM 467 P1 44 2.73 78.5 15.304 208-230/460V
1800 145JM 00218ES3E145JM 470 P1 52 2.93 82.5 15.304 208-230/460V
3
3600 145JM 00336ES3E145JM 533 P1 49 4.04 81.5 15.304 208-230/460V
3600 W182JM 00336ES3E182JM 578 P1 88 4.04 81.5 15.996 208-230/460V
1800 W182JM 00318ES3E182JM 583 P1 73 4.13 81.5 15.996 208-230/460V
5
3600 182JM 00536ES3E182JM 681 P1 93 6.15 84.5 15.996 208-230/460V
3600 W184JM 00536ES3E184JM 810 P1 97 6.15 84.5 17.020 208-230/460V
1800 182JM 00518ES3E182JM 694 P1 106 6.50 85.0 15.996 208-230/460V
1800 W184JM 00518ES3E184JM 756 P1 106 6.50 85.0 17.020 208-230/460V
7.5
3600 184JM 00736ES3E184JM 851 P1 99 9.15 86.7 17.020 208-230/460V
3600 213JM 00736ES3E213JM 935 P1 145 8.95 86.5 18.678 208-230/460V
1800 213JM 00718ES3E213JM 959 P1 152 9.70 87.0 18.678 208-230/460V
10
3600 213JM 01036ES3E213JM 1,093 P1 154 12.2 87.6 18.678 208-230/460V
3600 215JM 01036ES3E215JM 1,114 P1 156 12.2 87.6 20.174 208-230/460V
1800 213JM 01018ES3E213JM 1,094 P1 150 12.8 89.0 18.678 208-230/460V
1800 215JM 01018ES3E215JM 1,170 P1 150 12.8 89.0 20.174 208-230/460V
15
3600 215JM 01536ES3E215JM 1,372 P1 172 17.7 87.8 20.174 208-230/460V
3600 254JM 01536ES3E254JM 1,570 P1 260 18.2 87.5 24.370 208-230/460V
1800 254JM 01518ES3E254JM 1,642 P1 233 18.8 88.5 24.370 208-230/460V
20
3600 254JM 02036ES3E254JM 1,705 P1 255 24.1 89.0 24.370 208-230/460V
3600 256JM 02036ES3E256JM 1,926 P1 269 24.1 89.0 26.102 208-230/460V
1800 256JM 02018ES3E256JM 1,980 P1 277 25.2 90.2 26.102 208-230/460V
25
3600 256JM 02536ES3E256JM 2,105 P1 271 29.5 89.5 26.102 208-230/460V
3600 284JM 02536ES3E284JM 2,378 P1 346 29.7 89.0 27.165 208-230/460V
1800 284JM 02518ES3E284JM 2,456 P1 371 30.2 90.5 27.165 208-230/460V
30
3600 284JM 03036ES3E284JM 2,565 P1 395 35.1 89.5 27.165 208-230/460V
3600 286JM 03036ES3E286JM 2,730 P1 399 35.1 89.5 28.700 208-230/460V
1800 286JM 03018ES3E286JM 2,765 P1 393 36.1 91.0 28.700 208-230/460V
40
3600 286JM 04036ES3E286JM 3,061 P1 404 48.6 90.2 28.700 208-230/460V
3600 324JM 04036ES3E324JM 3,734 P1 515 47.4 90.4 28.149 208-230/460V
1800 324JM 04018ES3E324JM 3,342 P1 506 48.3 91.7 28.149 208-230/460V
50
3600 324JM 05036ES3E324JM 3,917 P1 563 57.0 92.2 28.149 208-230/460V
3600 326JM 05036ES3E326JM 4,348 P1 574 57.0 92.2 29.645 208-230/460V
1800 326JM 05018ES3E326JM 3,878 P1 557 58.5 92.4 29.645 208-230/460V
60
3600 326JM 06036ES3E326JM 4,565 P1 640 70.5 92.0 29.645 208-230/460V
3600 364JM 06036ES3E364JM 5,461 P1 948 68.5 91.7 33.031 208-230/460V
1800 326JM 06018ES3E326JM 4,943 P1 640 72.0 92.5 29.645 208-230/460V
1800 364JM 06018ES3E364JM 6,695 P1 948 70.0 93.0 33.031 208-230/460V
75
3600 364JM 07536ES3E364JM 6,960 P1 1058 83.0 92.4 33.031 208-230/460V
3600 365JM 07536ES3E365JM 8,318 P1 1058 83.0 92.4 33.031 208-230/460V
1800 365JM 07518ES3E365JM 7,076 P1 1025 84.5 93.0 33.031 208-230/460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-101
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-101
Data subject to change without notice.
“JP” TYPE – TEFC – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
= Reduced Frame = Product may not be available from stock
• ELECTRICAL FEATURES ON PAGE B-33. • MECHANICAL FEATURES ON PAGE B-84, B-85.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143JP 00118ES3E143JP 411 P1 40 1.51 78.0 17.365 208-230/460V
1.5
3600 143JP 00156ES3E143JP 434 P1 40 2.04 78.0 17.365 208-230/460V
3600 143JP 00156ES3V143JP 434 P1 40 2.04 78.0 17.365 200/400V
1800 145JP 00158ES3E145JP 449 P1 40 2.19 79.0 18.365 208-230/460V
2
3600 145JP 00236ES3E145JP 467 P1 44 2.73 78.5 18.365 208-230/460V
3600 145JP 00236ES3V145JP 467 P1 44 2.73 78.5 18.365 200/400V
1800 145JP 00218ES3E145JP 470 P1 52 2.93 82.5 18.365 208-230/460V
3
3600 145JP 00336ES3E145JP 522 P1 49 4.04 81.5 18.365 208-230/460V ß
3600 W182JP 00336ES3E182JP 663 P1 88 4.04 81.5 19.057 208-230/460V
3600 182JP 00336ES3V182JP 663 P1 88 4.04 81.5 19.057 200/400V
1800 W182JP 00318ES3E182JP 594 P1 73 4.13 81.5 19.057 208-230/460V
5
3600 182JP 00536ES3E182JP 681 P1 93 6.15 84.5 19.057 208-230/460V ß
3600 W184JP 00536ES3E184JP 810 P1 97 6.15 84.5 20.395 208-230/460V
3600 184JP 00536ES3V184JP 810 P1 97 6.15 84.5 20.395 200/400V
1800 182JP 00518ES3E182JP 708 P1 106 6.50 85.0 19.057 208-230/460V ß
1800 W184JP 00518ES3E184JP 770 P1 106 6.50 85.0 20.395 208-230/460V
7.5
3600 184JP 00736ES3E184JP 851 P1 99 9.15 86.7 20.395 208-230/460V ß
3600 213JP 00736ES3E213JP 1,038 P1 145 8.95 86.5 22.550 208-230/460V
3600 213JP 00736ES3V213JP 1,038 P1 145 8.95 86.5 22.550 200/400V
1800 213JP 00718ES3E213JP 977 P1 152 9.70 87.0 22.550 208-230/460V
10
3600 213JP 01036ES3E213JP 1,093 P1 154 12.2 87.6 22.550 208-230/460V ß
3600 215JP 01036ES3E215JP 1,114 P1 156 12.2 87.6 24.046 208-230/460V
3600 215JP 01036ES3V215JP 1,114 P1 156 12.2 87.6 24.046 200/400V
1800 213JP 01018ES3E213JP 1,043 P1 150 12.8 89.0 22.550 208-230/460V ß
1800 215JP 01018ES3E215JP 1,124 P1 150 12.8 89.0 24.046 208-230/460V
15
3600 215JP 01536ES3E215JP 1,372 P1 172 17.7 87.8 24.046 208-230/460V ß
3600 254JP 01536ES3E254JP 1,598 P1 260 18.2 87.5 26.964 208-230/460V
3600 254JP 01536ES3V254JP 1,598 P1 260 18.2 87.5 26.964 200/400V
1800 254JP 01518ES3E254JP 1,642 P1 233 18.8 88.5 26.964 208-230/460V
20
3600 254JP 02036ES3E254JP 1,705 P1 255 24.1 89.0 26.964 208-230/460V ß
3600 256JP 02036ES3E256JP 1,781 P1 269 24.1 89.0 28.736 208-230/460V
3600 256JP 02036ES3V256JP 1,781 P1 269 24.1 89.0 28.736 200/400V
1800 256JP 02018ES3E256JP 1,980 P1 277 25.2 90.2 28.736 208-230/460V
25
3600 256JP 02536ES3E256JP 2,105 P1 271 29.5 89.5 28.736 208-230/460V ß
3600 284JP 02536ES3E284JP 2,443 P1 346 29.7 89.0 30.079 208-230/460V
3600 284JP 02536ES3V284JP 2,443 P1 346 29.7 89.0 30.079 200/400V
1800 284JP 02518ES3E284JP 2,505 P1 371 30.2 90.5 30.079 208-230/460V
30
3600 284JP 03036ES3E284JP 2,573 P1 395 35.1 89.5 30.079 208-230/460V ß
3600 286JP 03036ES3E286JP 2,716 P1 399 35.1 89.5 31.575 208-230/460V
3600 286JP 03036ES3V286JP 2,716 P1 399 35.1 89.5 31.575 200/400V
1800 286JP 03018ES3E286JP 2,765 P1 393 36.1 91.0 31.575 208-230/460V
40
3600 286JP 04036ES3E286JP 3,243 P1 404 48.6 90.2 31.575 208-230/460V ß
3600 324JP 04036ES3E324JP 3,513 P1 515 47.4 90.4 32.525 208-230/460V
3600 324JP 04036ES3V324JP 3,513 P1 515 47.4 90.4 32.525 200/400V
1800 324JP 04018ES3E324JP 3,513 P1 506 48.3 91.7 32.525 208-230/460V
Data subject to change without notice.
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
www.weg.net
A-102 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-102 Data subject to change without notice.
“JP” TYPE – TEFC – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
STANDARD EFFICIENCY
= Reduced Frame
• ELECTRICAL FEATURES ON PAGE B-33.
• MECHANICAL FEATURES ON PAGE B-84, B-85.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
50
3600 324JP 05036ES3E324JP 3,917 P1 563 57.0 92.2 32.525 208-230/460V ß
3600 326JP 05036ES3E326JP 4,229 P1 574 57.0 92.2 34.021 208-230/460V
3600 326JP 05036ES3V326JP 4,229 P1 574 57.0 92.2 34.021 200/400V
1800 326JP 05018ES3E326JP 4,095 P1 557 58.5 92.4 34.021 208-230/460V
60
3600 326JP 06036ES3E326JP 5,334 P1 640 70.5 92.0 34.021 208-230/460V ß
3600 364JP 06036ES3E364JP 6,025 P1 948 68.5 91.7 35.916 208-230/460V
3600 364JP 06036ES3V364JP 6,025 P1 948 68.5 91.7 35.916 200/400V
1800 326JP 06018ES3E326JP 5,621 P1 640 72.0 92.5 34.021 208-230/460V ß
1800 364JP 06018ES3E364JP 6,829 P1 948 70.0 93.0 35.916 208-230/460V
75
3600 364JP 07536ES3E364JP 7,191 P1 1058 83.0 92.4 35.916 208-230/460V ß
3600 365JP 07536ES3E365JP 8,483 P1 1058 83.0 92.4 35.916 208-230/460V
3600 365JP 07536ES3V365JP 8,483 P1 1058 83.0 92.4 35.916 200/400V
1800 365JP 07518ES3E365JP 7,218 P1 1025 84.5 93.0 35.916 208-230/460V
100
3600 404JP 10036ES3E404JP 8,588 P1 1180 111 93.0 38.911 208-230/460V ß
3600 404JP 10036ES3G404JP 8,588 P1 1180 111 93.0 38.911 460V ß
1800 405JP 10018ES3E405JP 8,589 P1 1302 116 93.2 38.911 208-230/460V
1800 405JP 10018ES3G405JP 8,589 P1 1302 116 93.2 38.911 460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-103
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-103
Data subject to change without notice.
Specially developed line for
industrial and commercial pumping
applications.
• Water pumping
• Process
• Transfer and circulating pumps
• 3 phase, 2, 4, 6 and 8 pole, 60Hz
• Voltage: 208-230/460, 460V
• 12:1 Constant torque
100:1 Variable torque
• Cast iron frames
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled - TEFC
• V-ring slingers on both endshields
• Ball bearings
• Service Factor: 1.25
• Class ‘F’ insulation
• Temperature rise: Class ‘B’ (80ºC)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000m)
• 1045 carbon steel shaft
• F1 mount
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 5009 – Blue
• NPT threaded terminal box
• Automatic drain plugs
• Regreasable bearings system (frames
254JM/JP frames and up)
• Cable glands
• Special voltages
• Specially designed shaft
• Space heaters
• Second shaft end
• Thermistor, Thermostats or RTD’s
(PT100)
• Additional terminal box
• Stainless steel shaft
• 575V
APPROVED BY
LR 50.962-9/13/14
TEFC – THREE PHASE
WEG offers both JM and JP standardized
types of close-coupled pump line of
motors. Totally enclosed enclosures permit
these motors to operate in moist or dusty
atmospheres. JMJP
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
Pump Motors
Close Coupled - High Efficiency
* Design B torque rating on nameplate can be re-plated for Design C for 15-200Hp 1800 and 1200 rpm.
E 104590
APPROVED BY
HIGHLIGHTS
• VFD Capable
• Cast Iron Flange
Data subject to change without notice.
www.weg.net
A-104 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-104 Data subject to change without notice.
“JM” TYPE – TEFC – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
HIGH EFFICIENCY
= Reduced Frame
• ELECTRICAL FEATURES ON PAGE B-6, B-7.
• MECHANICAL FEATURES ON PAGE B-84, B-85.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143JM 00118EP3E143JM 497 P1 47 1.49 82.5 14.304 208-230/460V
1.5 3600 143JM 00156EP3E143JM 527 P1 45 1.99 82.5 14.304 208-230/460V
1800 145JM 00158EP3E145JM 509 P1 54 2.05 84.0 15.304 208-230/460V
23600 145JM 00236EP3E145JM 583 P1 47 2.60 84.0 15.304 208-230/460V
1800 145JM 00218EP3E145JM 560 P1 56 2.70 84.0 15.304 208-230/460V
3
3600 145JM 00336EP3E145JM 647 P1 54 3.71 85.5 15.304 208-230/460V ß
3600 182JM 00336EP3E182JM 744 P1 106 3.59 85.5 15.996 208-230/460V
1800 182JM 00318EP3E182JM 886 P1 97 3.90 87.5 15.996 208-230/460V
53600 184JM 00536EP3E184JM 922 P1 114 5.90 87.5 17.020 208-230/460V
1800 184JM 00518EP3E184JM 993 P1 102 6.48 87.5 17.020 208-230/460V
7.5
3600 184JM 00736EP3E184JM 1,125 P1 128 8.76 88.5 17.020 208-230/460V ß
3600 213JM 00736EP3E213JM 1,277 P1 150 8.66 88.5 18.678 208-230/460V
1800 213JM 00718EP3E213JM 1,256 P1 150 9.53 89.5 18.678 208-230/460V
10 3600 215JM 01036EP3E215JM 1,581 P1 150 11.7 89.5 20.174 208-230/460V
1800 215JM 01018EP3E215JM 1,502 P1 165 12.8 90.2 20.174 208-230/460V
15
3600 215JM 01536EP3E215JM 1,803 P1 174 17.3 90.2 20.174 208-230/460V ß
3600 254JM 01536EP3E254JM 2,029 P1 280 17.0 90.2 24.370 208-230/460V
1800 254JM 01518EP3E254JM 2,256 P1 266 17.9 91.0 24.370 208-230/460V
20
3600 254JM 02036EP3E254JM 2,368 P1 304 23.3 90.2 24.370 208-230/460V ß
3600 256JM 02036EP3E256JM 2,568 P1 313 23.3 90.2 26.102 208-230/460V
1800 256JM 02018EP3E256JM 2,490 P1 313 24.4 91.0 26.102 208-230/460V
25
3600 256JM 02536EP3E256JM 2,803 P1 313 28.4 91.0 26.102 208-230/460V ß
3600 284JM 02536EP3E284JM 2,989 P1 353 29.0 91.0 27.165 208-230/460V
1800 284JM 02518EP3E284JM 3,186 P1 437 29.6 92.4 27.165 208-230/460V u
30
3600 284JM 03036EP3E284JM 3,545 P1 399 33.8 91.0 27.165 208-230/460V ß
3600 286JM 03036EP3E286JM 3,797 P1 404 33.8 91.0 28.700 208-230/460V
1800 286JM 03018EP3E286JM 3,559 P1 481 34.4 92.4 28.700 208-230/460V u
40
3600* 286JM 04036EP3E286JM 4,353 P1 448 46.6 91.7 28.700 208-230/460V ß
3600 324JM 04036EP3E324JM 4,746 P1 561 46.1 91.7 28.149 208-230/460V
1800 324JM 04018EP3E324JM 4,803 P1 587 47.6 93.0 28.149 208-230/460V u
50
3600 324JM 05036EP3E324JM 5,070 P1 565 56.5 92.4 28.149 208-230/460V ß
3600 326JM 05036EP3E326JM 5,502 P1 594 56.5 92.4 29.645 208-230/460V
1800 326JM 05018EP3E326JM 5,500 P1 640 57.8 93.6 29.645 208-230/460V u
60
3600 326JM 06036EP3E326JM 6,598 P1 594 69.0 93.0 29.645 208-230/460V ß
3600 364JM 06036EP3E364JM 7,137 P1 917 69.0 93.0 33.031 208-230/460V
1800 326JM 06018EP3E326JM 7,349 P1 687 72.7 93.6 29.645 208-230/460V uß
1800 364JM 06018EP3E364JM 7,805 P1 963 67.0 93.6 33.031 208-230/460V u
75 3600 364JM 07536EP3E364JM 8,995 P1 1025 82.5 93.0 33.031 208-230/460V ß
1800 365JM 07518EP3E365JM 8,860 P1 1010 82.4 94.1 33.031 208-230/460V u
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-105
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-105
Data subject to change without notice.
“JP” TYPE – TEFC – THREE-PHASE
CLOSE COUPLED PUMP MOTORS
HIGH EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-6, B-7. • MECHANICAL FEATURES ON PAGE B-84, B-85.
= Reduced Frame
= Product may not be available from stock
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143JP 00118EP3E143JP 508 P1 47 1.49 82.5 17.365 208-230/460V
1.5 3600 143JP 00156EP3E143JP 537 P1 45 1.99 82.5 17.365 208-230/460V
1800 145JP 00158EP3E145JP 519 P1 54 2.05 84.0 18.365 208-230/460V
23600 145JP 00236EP3E145JP 594 P1 47 2.60 84.0 18.365 208-230/460V
1800 145JP 00218EP3E145JP 571 P1 56 2.70 84.0 18.365 208-230/460V
3
3600 145JP 00336EP3E145JP 632 P1 54 3.71 85.5 18.365 208-230/460V ß
3600 182JP 00336EP3E182JP 759 P1 106 3.59 85.5 19.057 208-230/460V
1800 182JP 00318EP3E182JP 905 P1 97 3.90 87.5 19.057 208-230/460V
53600 184JP 00536EP3E184JP 941 P1 114 5.90 87.5 20.395 208-230/460V
1800 184JP 00518EP3E184JP 1,013 P1 102 6.48 87.5 20.395 208-230/460V
7.5
3600 184JP 00736EP3E184JP 1,146 P1 128 8.76 88.5 20.395 208-230/460V ß
3600 213JP 00736EP3E213JP 1,303 P1 150 8.66 88.5 22.550 208-230/460V
1800 213JP 00718EP3E213JP 1,280 P1 150 9.53 89.5 22.550 208-230/460V
10 3600 215JP 01036EP3E215JP 1,613 P1 150 11.7 89.5 24.046 208-230/460V
1800 215JP 01018EP3E215JP 1,533 P1 165 12.8 90.2 24.046 208-230/460V
15
3600 215JP 01536EP3E215JP 1,791 P1 174 17.3 90.2 24.046 208-230/460V ß
3600 254JP 01536EP3E254JP 2,069 P1 280 17.0 90.2 26.964 208-230/460V
1800 254JP 01518EP3E254JP 2,300 P1 266 17.9 91.0 26.964 208-230/460V u
20
3600 254JP 02036EP3E254JP 2,451 P1 304 23.3 90.2 26.964 208-230/460V ß
3600 256JP 02036EP3E256JP 2,621 P1 313 23.3 90.2 28.736 208-230/460V
1800 256JP 02018EP3E256JP 2,541 P1 313 24.4 91.0 28.736 208-230/460V u
25
3600 256JP 02536EP3E256JP 2,790 P1 313 28.4 91.0 28.736 208-230/460V ß
3600 284JP 02536EP3E284JP 3,049 P1 353 29.0 91.0 30.079 208-230/460V
1800 284JP 02518EP3E284JP 3,249 P1 437 29.6 92.4 30.079 208-230/460V u
30
3600 284JP 03036EP3E284JP 3,519 P1 399 33.8 91.0 30.079 208-230/460V ß
3600 286JP 03036EP3E286JP 3,872 P1 404 33.8 91.0 31.575 208-230/460V
1800 286JP 03018EP3E286JP 3,630 P1 481 34.4 92.4 31.575 208-230/460V u
40
3600 286JP 04036EP3E286JP 4,545 P1 448 46.6 91.7 31.575 208-230/460V ß
3600 324JP 04036EP3E324JP 4,840 P1 561 46.1 91.7 32.525 208-230/460V
1800 324JP 04018EP3E324JP 4,900 P1 587 47.6 93.0 32.525 208-230/460V u
50
3600 324JP 05036EP3E324JP 4,954 P1 565 56.5 92.4 32.525 208-230/460V ß
3600 326JP 05036EP3E326JP 5,613 P1 594 56.5 92.4 34.021 208-230/460V
1800 326JP 05018EP3E326JP 5,611 P1 640 57.8 93.6 34.021 208-230/460V u
60
3600 326JP 06036EP3E326JP 7,954 P1 594 69.0 93.0 34.021 208-230/460V ß
3600 364JP 06036EP3E364JP 8,412 P1 917 69.0 93.0 35.916 208-230/460V
1800 326JP 06018EP3E326JP 7,176 P1 687 72.7 93.6 34.021 208-230/460V u
1800 364JP 06018EP3E364JP 7,960 P1 963 67.0 93.6 35.916 208-230/460V u
75
3600 364JP 07536EP3E364JP 9,623 P1 1025 82.5 93.0 35.916 208-230/460V ß
3600 365JP 07536EP3E365JP 10,045 P1 1025 82.5 93.0 35.916 208-230/460V
1800 365JP 07518EP3E365JP 9,038 P1 1010 82.4 94.1 35.916 208-230/460V u
100
3600 405JP 10036EP3E405JP 11,449 P1 1361 113 93.6 38.911 208-230/460V
3600 405JP 10036EP3G405JP 11,449 P1 1361 113 93.6 38.911 460V
1800 405JP 10018EP3E405JP 10,269 P1 1273 115 94.5 38.911 208-230/460V u
1800 405JP 10018EP3G405JP 10,269 P1 1273 115 94.5 38.911 460V u
Data subject to change without notice.
www.weg.net
A-106 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-106 Data subject to change without notice.
Specially developed line for
industrial and commercial pumping
applications.
• Water pumping
• Process
• Transfer and circulating pumps
• 3 phase, 2, 4, 6 and 8 pole, 60Hz
• Voltage: 208-230/460, 460V
• 20:1 Constant torque
100:1 Variable torque
• Cast iron frames
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled - TEFC
• V-ring slingers on both endshields
• Ball bearings
• Service Factor: 1.25
• Class ‘F’ insulation
• Temperature rise: Class ‘B’ (80ºC)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000m)
• 1045 carbon steel shaft
• F1 mount
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 5009 – Blue
• NPT threaded terminal box
• Automatic drain plugs
• Regreasable bearings system (frames
254JM/JP frames and up)
• Cable glands
• Special voltages
• Specially designed shaft
• Space heaters
• Second shaft end
• Thermistor, Thermostats or RTD’s
(PT100)
• Additional terminal box
• Stainless steel shaft
• 575V
APPROVED BY
LR 50.962-9/13/14
TEFC – THREE PHASE
WEG offers both JM and JP standardized
types of close-coupled pump line of
motors. Totally enclosed enclosures permit
these motors to operate in moist or dusty
atmospheres.
JM
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
Pump Motors
Close Coupled - NEMA PREMIUM
E 104590
APPROVED BY
HIGHLIGHTS
• VFD Capable
• Cast Iron Flange
JP
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-107
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-107
Data subject to change without notice.
“JM” TYPE – TEFC – THREE-PHASE - NEMA PREMIUM
HP RPM NEMA
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
11800 143JM 00118ET3E143JM 613 P1 51 1.43 85.5 14.304 208-230/460
1200 145JM 00112ET3E145JM 700 P1 53 1.73 82.5 15.304 208-230/460
1.5
3600 143JM 00156ET3E143JM 710 P1 42 1.98 84.0 14.304 208-230/460
1800 145JM 00158ET3E145JM 643 P1 53 2.00 86.5 15.304 208-230/460
1200 182JM 00152ET3E182JM 909 P1 70 2.39 87.5 15.996 208-230/460
2
3600 145JM 00236ET3E145JM 683 P1 49 2.65 85.5 15.304 208-230/460
1800 145JM 00218ET3E145JM 707 P1 55 2.63 86.5 15.304 208-230/460
1200 184JM 00212ET3E184JM 1,021 P1 88 3.23 88.5 17.020 208-230/460
3600 182JM 00336ET3E182JM 918 P1 90 3.68 87.5 15.996 208-230/460
1800 182JM 00318ET3E182JM 1,022 P1 90 3.90 89.5 15.996 208-230/460
1200 213JM 00312ET3E213JM 1,423 P1 121 4.41 89.5 18.678 208-230/460
5
3600 184JM 00536ET3E184JM 1,075 P1 105 5.96 89.5 17.020 208-230/460
1800 184JM 00518ET3E184JM 1,141 P1 99 6.40 89.5 17.020 208-230/460
1200 215JM 00512ET3E215JM 1,769 P1 162 6.83 89.5 20.174 208-230/460
7.5
3600 213JM 00736ET3E213JM 1,419 P1 121 8.63 91.0 18.678 208-230/460
1800 213JM 00718ET3E213JM 1,519 P1 152 9.29 91.7 18.678 208-230/460
1200 254JM 00712ET3E254JM 2,455 P1 256 9.73 91.0 24.370 208-230/460
10
3600 215JM 01036ET3E215JM 1,769 P1 160 11.5 91.7 20.174 208-230/460
1800 215JM 01018ET3E215JM 1,792 P1 159 12.6 91.7 20.174 208-230/460
1200 256JM 01012ET3E256JM 2,979 P1 289 13.3 91.0 26.102 208-230/460
15
3600 215JM 01536ET3E215JM 2,058 P1 171 17.0 91.0 20.174 208-230/460
3600 254JM 01536ET3E254JM 2,214 P1 254 16.9 91.7 24.370 208-230/460
1800 254JM 01518ET3E254JM 2,609 P1 265 18.0 92.4 24.370 208-230/460
1200 284JM 01512ET3E284JM 3,912 P1 320 17.3 91.7 27.165 208-230/460
20
3600 256JM 02036ET3E256JM 2,965 P1 287 22.9 92.4 26.102 208-230/460
1800 256JM 02018ET3E256JM 2,857 P1 298 24.4 93.0 26.102 208-230/460
1200 286JM 02012ET3E286JM 4,940 P1 463 24.1 91.7 28.700 208-230/460
25
3600 284JM 02536ET3E284JM 3,619 P1 313 28.4 93.0 27.165 208-230/460
1800 284JM 02518ET3E284JM 3,734 P1 441 29.5 93.6 27.165 208-230/460
1200 324JM 02512ET3E324JM 5,546 P1 560 30.5 93.0 28.149 208-230/460
30
3600 286JM 03036ET3E286JM 4,539 P1 388 33.4 93.0 28.700 208-230/460
1800 286JM 03018ET3E286JM 4,096 P1 485 35.1 93.6 28.700 208-230/460
1200 326JM 03012ET3E326JM 6,686 P1 628 35.8 93.0 29.645 208-230/460
40
3600 324JM 04036ET3E324JM 5,534 P1 516 45.8 93.6 28.149 208-230/460
1800 324JM 04018ET3E324JM 5,316 P1 595 48.3 94.1 28.149 208-230/460
1200 364JM 04012ET3E364JM 8,807 P1 966 47.1 94.1 33.031 208-230/460
50
3600 326JM 05036ET3E326JM 6,622 P1 562 55.5 94.1 29.645 208-230/460
1800 326JM 05018ET3E326JM 6,513 P1 617 60.6 94.5 29.645 208-230/460
1200 365JM 05012ET3E365JM 10,551 P1 1016 58.0 94.1 33.031 208-230/460
60 3600 364JM 06036ET3E364JM 8,261 P1 882 68.3 94.1 33.031 208-230/460
1800 364JM 06018ET3E364JM 8,912 P1 926 68.4 95.0 33.031 208-230/460
75 3600 365JM 07536ET3E365JM 11,124 P1 915 80.8 95.0 33.031 208-230/460
1800 365JM 07518ET3E365JM 10,057 P1 937 82.3 95.4 33.031 208-230/460
CLOSE COUPLED PUMP MOTORS
NEMA PREMIUM
• ELECTRICAL FEATURES ON PAGE B-14, B-15.
• MECHANICAL FEATURES ON PAGE B-84, B-85.
Data subject to change without notice.
www.weg.net
A-108 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-108 Data subject to change without notice.
“JP” TYPE – TEFC – THREE-PHASE - NEMA PREMIUM
CLOSE COUPLED PUMP MOTORS
NEMA PREMIUM
HP RPM NEMA
Frame
Catalog
Number
List
Price
Mult.
Sym.
Approx.
Shipp.
Weight
Lbs
FL
Amps
460V
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
11800 143JP 00118ET3E143JP 624 P1 51 1.43 85.5 17.365 208-230/460
1200 145JP 00112ET3E145JP 714 P1 53 1.73 82.5 18.365 208-230/460
1.5
3600 143JP 00156ET3E143JP 649 P1 42 1.98 84.0 17.365 208-230/460
1800 145JP 00158ET3E145JP 653 P1 53 2.00 86.5 18.365 208-230/460
1200 182JP 00152ET3E182JP 924 P1 70 2.39 87.5 19.057 208-230/460
2
3600 145JP 00236ET3E145JP 694 P1 49 2.65 85.5 18.365 208-230/460
1800 145JP 00218ET3E145JP 718 P1 55 2.63 86.5 18.365 208-230/460
1200 184JP 00212ET3E184JP 1,040 P1 88 3.23 88.5 20.395 208-230/460
3
3600 182JP 00336ET3E182JP 933 P1 90 3.68 87.5 19.057 208-230/460
1800 182JP 00318ET3E182JP 1,041 P1 90 3.90 89.5 19.057 208-230/460
1200 213JP 00312ET3E213JP 1,449 P1 121 4.41 89.5 22.55 208-230/460
5
3600 184JP 00536ET3E184JP 1,094 P1 105 5.96 89.5 20.395 208-230/460
1800 184JP 00518ET3E184JP 1,161 P1 99 6.40 89.5 20.395 208-230/460
1200 215JP 00512ET3E215JP 1,801 P1 162 6.83 89.5 24.046 208-230/460
7.5
3600 213JP 00736ET3E213JP 1,445 P1 121 8.63 91.0 22.55 208-230/460
1800 213JP 00718ET3E213JP 1,543 P1 152 9.29 91.7 22.55 208-230/460
1200 254JP 00712ET3E254JP 2,495 P1 256 9.73 91.0 26.964 208-230/460
10
3600 215JP 01036ET3E215JP 1,801 P1 160 11.5 91.7 24.046 208-230/460
1800 215JP 01018ET3E215JP 1,823 P1 159 12.6 91.7 24.046 208-230/460
1200 256JP 01012ET3E256JP 3,103 P1 289 13.3 91.0 28.736 208-230/460
15
3600 254JP 01536ET3E254JP 2,629 P1 254 16.9 91.7 26.964 208-230/460
1800 254JP 01518ET3E254JP 2,653 P1 265 18.0 92.4 26.964 208-230/460
1200 284JP 01512ET3E284JP 3,972 P1 320 17.3 91.7 30.079 208-230/460
20
3600 256JP 02036ET3E256JP 3,018 P1 287 22.9 92.4 28.736 208-230/460
1800 256JP 02018ET3E256JP 2,908 P1 298 24.4 93.0 28.736 208-230/460
1200 286JP 02012ET3E286JP 5,015 P1 463 24.1 91.7 31.575 208-230/460
25
3600 284JP 02536ET3E284JP 3,679 P1 313 28.4 93.0 30.079 208-230/460
1800 284JP 02518ET3E284JP 3,797 P1 441 29.5 93.6 30.079 208-230/460
1200 324JP 02512ET3E324JP 5,972 P1 560 30.5 93.0 32.525 208-230/460
30
3600 286JP 03036ET3E286JP 4,614 P1 388 33.4 93.0 31.575 208-230/460
1800 286JP 03018ET3E286JP 4,167 P1 485 35.1 93.6 31.575 208-230/460
1200 326JP 03012ET3E326JP 6,690 P1 628 35.8 93.0 34.021 208-230/460
40
3600 324JP 04036ET3E324JP 5,628 P1 516 45.8 93.6 32.525 208-230/460
1800 324JP 04018ET3E324JP 5,413 P1 595 48.3 94.1 32.525 208-230/460
1200 364JP 04012ET3E364JP 9,268 P1 966 47.1 94.1 35.916 208-230/460
50
3600 326JP 05036ET3E326JP 6,733 P1 562 55.5 94.1 34.021 208-230/460
1800 326JP 05018ET3E326JP 6,624 P1 617 60.6 94.5 34.021 208-230/460
1200 365JP 05012ET3E365JP 10,748 P1 1016 58.0 94.1 35.916 208-230/460
60
3600 364JP 06036ET3E364JP 10,252 P1 882 68.3 94.1 35.916 208-230/460
1800 364JP 06018ET3E364JP 9,619 P1 926 68.4 95.0 35.916 208-230/460
1200 404JP 06012ET3E404JP 12,444 P1 1190 70.4 94.5 38.911 208-230/460
75
3600 365JP 07536ET3E365JP 11,321 P1 915 80.8 95.0 35.916 208-230/460
1800 365JP 07518ET3E365JP 10,235 P1 937 82.3 95.4 35.916 208-230/460
1200 405JP 07512ET3E405JP 14,005 P1 1323 87.0 94.5 38.911 208-230/460
100
3600 405JP 10036ET3E405JP 13,949 P1 1206 110 95.0 38.911 208-230/460
3600 405JP 10036ET3G405JP 13,949 P1 1206 110 95.0 38.911 460
1800 405JP 10018ET3E405JP 12,411 P1 1146 112 95.4 38.911 208-230/460
1800 405JP 10018ET3G405JP 12,411 P1 1146 112 95.4 38.911 460
• ELECTRICAL FEATURES ON PAGE B-14, B-15.
• MECHANICAL FEATURES ON PAGE B-84, B-85.
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-109
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-109
Data subject to change without notice.
NOTE: Motors are tested according to IEEE 112 std. -
method ‘B’ or C390 CSA .
High Efficiency motors are suitable for Inverter Duty.
APPROVED BY
LR 50.962-9/13/14
Normal thrust in-line pump
applications
• Waste water treatment plants
• Petro chemical industries
• Pulp and paper mills
• Agricultural irrigation
• Three-phase, 2, 4 pole, 60Hz
• Voltage: 208-230/460, 460
• HP type: from frames 143HP up to 445HP
• HPH type: frames 284/6HPH and 404/5HPH
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled- TEFC (IP55)
• V-ring slingers on both endshields
• Cast iron frame
• Ball bearings
• Class ‘F’ insulation for all frames
• Service factor for High Efciency:
1.25 up to 100HP
1.15 from 125HP and up
• Service Factor for Standard Efciency: 1.15
• Temperature rise: Class ‘B’ (80ºC)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000 m)
• 1045 carbon steel shaft
• Usual mounting: V1 - footless
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 7022 - Dark Gray
(Standard Efciency)
• Color: RAL 5009 - Blue (High Efciency)
• NPT threaded terminal box
• Automatic drain plugs
• Regreasable bearings system
(frames 254HP and up)
• Drip cover (canopy)
• Class I, Div 2. Groups A, B, C, D & T3
• Cable glands
• Special voltages
• Space heaters
• Thermistor, Thermostats
or RTD’s (PT100)
• Additional terminal box
• Stainless steel shaft
• Design C for High Efciency
and NEMA Premium
Efciency
• Insulation class “H”
• 575V
• 6 & 8 pole, 60Hz
THREE PHASE
HP and HPH types are available. These
motors are suitable for dusty or moist
environments and provide high starting
torque, with efficient performance.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
High EfficiencyStandard Efficiency
Pump Motors
P-Base
HIGHLIGHTS
• Ideal for
applications with
heavy white
thrust loads
E 104590
APPROVED BY
Data subject to change without notice.
www.weg.net
A-110 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-110 Data subject to change without notice.
P-BASE MOTORS
HP & HPH TYPE – TEFC STANDARD EFFICIENCY
= Reduced Frame
• ELECTRICAL FEATURES ON PAGE B-34. • MECHANICAL FEATURES ON PAGE B-86.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143HP 00118ES3E143HP 375 P1F 40 1.51 78.0 13.421 208-230/460V
1.5 3600 143HP 00156ES3E143HP 390 P1F 40 2.04 78.0 13.421 208-230/460V
1800 145HP 00158ES3E145HP 396 P1F 40 2.19 79.0 14.397 208-230/460V
23600 145HP 00236ES3E145HP 405 P1F 44 2.73 78.5 14.397 208-230/460V
1800 145HP 00218ES3E145HP 436 P1F 52 2.93 82.5 14.397 208-230/460V
3
3600 145HP 00336ES3E145HP 548 P1F 49 4.04 81.5 14.397 208-230/460V ß
3600 182HP 00336ES3E182HP 602 P1F 88 4.04 81.5 15.504 208-230/460V
1800 182HP 00318ES3E182HP 606 P1F 73 4.13 81.5 15.504 208-230/460V
5
3600 182HP 00536ES3E182HP 604 P1F 93 6.15 84.5 15.504 208-230/460V ß
3600 184HP 00536ES3E184HP 721 P1F 97 6.15 84.5 16.504 208-230/460V
1800 182HP 00518ES3E182HP 723 P1F 106 6.50 85.0 15.504 208-230/460V ß
1800 184HP 00518ES3E184HP 786 P1F 106 6.50 85.0 16.504 208-230/460V
7.5
3600 184HP 00736ES3E184HP 908 P1F 99 9.15 86.7 16.504 208-230/460V ß
3600 213HP 00736ES3E213HP 972 P1F 145 8.95 86.5 18.630 208-230/460V
1800 213HP 00718ES3E213HP 998 P1F 152 9.70 87.0 18.630 208-230/460V
10
3600 213HP 01036ES3E213HP 1,032 P1F 154 12.2 87.6 18.630 208-230/460V
3600 215HP 01036ES3E215HP 1,044 P1F 156 12.2 87.6 20.126 208-230/460V
1800 213HP 01018ES3E213HP 1,062 P1F 150 12.8 89.0 18.630 208-230/460V
1800 215HP 01018ES3E215HP 1,148 P1F 150 12.8 89.0 20.126 208-230/460V
15
3600 215HP 01536ES3E215HP 1,311 P1F 172 17.7 87.8 20.126 208-230/460V ß
3600 254HP 01536ES3E254HP 1,509 P1F 260 18.2 87.5 23.723 208-230/460V
1800 254HP 01518ES3E254HP 1,669 P1F 233 18.8 88.5 23.723 208-230/460V
20
3600 254HP 02036ES3E254HP 1,643 P1F 255 24.1 89.0 23.723 208-230/460V ß
3600 256HP 02036ES3E256HP 1,796 P1F 269 24.1 89.0 25.455 208-230/460V
1800 256HP 02018ES3E256HP 1,824 P1F 277 25.2 90.2 25.455 208-230/460V
25
3600 256HP 02536ES3E256HP 2,133 P1F 271 29.5 89.5 25.455 208-230/460V ß
3600 284HP 02536ES3E284HP 2,474 P1F 346 29.7 89.0 26.350 208-230/460V
3600 284HPH 02536ES3E284HPH 2,474 P1F 346 29.7 89.0 25.100 208-230/460V
1800 284HP 02518ES3E284HP 2,556 P1F 371 30.2 90.5 26.350 208-230/460V
1800 284HPH 02518ES3E284HPH 2,556 P1F 371 30.2 90.5 28.100 208-230/460V
30
3600 284HP 03036ES3E284HP 2,695 P1F 395 35.1 89.5 26.350 208-230/460V ß
3600 286HP 03036ES3E286HP 2,772 P1F 399 35.1 89.5 27.845 208-230/460V
3600 286HPH 03036ES3E286HPH 2,772 P1F 399 35.1 89.5 29.595 208-230/460V
1800 286HP 03018ES3E286HP 2,730 P1F 393 36.1 91.0 27.845 208-230/460V
1800 286HPH 03018ES3E286HPH 2,730 P1F 393 36.1 91.0 29.595 208-230/460V
40
3600* 286HP 04036ES3E286HP 3,329 P1F 404 48.6 90.2 27.845 208-230/460V ß
3600 324HP 04036ES3E324HP 3,584 P1F 515 47.4 90.4 30.403 208-230/460V
1800 324HP 04018ES3E324HP 3,476 P1F 506 48.3 91.7 30.403 208-230/460V
50
3600 324HP 05036ES3E324HP 3,899 P1F 563 57.0 92.2 30.403 208-230/460V ß
3600 326HP 05036ES3E326HP 4,178 P1F 574 57.0 92.2 31.897 208-230/460V
1800 326HP 05018ES3E326HP 4,035 P1F 557 58.5 92.4 31.897 208-230/460V
60
3600 326HP 06036ES3E326HP 5,533 P1F 640 70.5 92.0 31.897 208-230/460V ß
3600 364HP 06036ES3E364HP 6,147 P1F 948 68.5 91.7 33.684 208-230/460V
1800 326HP 06018ES3E326HP 6,074 P1F 640 72.0 92.5 31.897 208-230/460V ß
1800 364HP 06018ES3E364HP 6,966 P1F 948 70.0 93.0 33.684 208-230/460V
75
3600 364HP 07536ES3E364HP 8,343 P1F 1058 83.0 92.4 33.684 208-230/460V ß
3600 365HP 07536ES3E365HP 8,654 P1F 1058 83.0 92.4 33.684 208-230/460V
1800 365HP 07518ES3E365HP 7,362 P1F 1025 84.5 93.0 33.684 208-230/460V
100
3600 404HP 10036ES3E404HP 8,819 P1F 1180 111 93.0 36.674 208-230/460V ß
1800 405HP 10018ES3E405HP 8,762 P1F 1302 116 93.2 36.674 208-230/460V
1800 405HP 10018ES3G405HP 8,762 P1F 1302 116 93.2 36.674 460V
1800 405HPH 10018ES3E405HPH 8,762 P1F 1302 116 93.2 36.674 208-230/460V
1800 405HPH 10018ES3G405HPH 8,762 P1F 1302 116 93.2 36.674 460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-111
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-111
Data subject to change without notice.
P-BASE MOTORS
HP & HPH TYPE – TEFC – STANDARD EFFICIENCY
HP & HPH TYPE – TEFC – HIGH EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-35.
• MECHANICAL FEATURES ON PAGE B-86.
• ELECTRICAL FEATURES ON PAGE B-34.
• MECHANICAL FEATURES ON PAGE B-59 & B-98.
= Reduced Frame
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
125 3600 444HP 12536ES3G444HP 14,261 P1F 1797 138 93.0 40.012 460V
1800 444HP 12518ES3G444HP 12,450 P1F 1742 141 93.2 40.012 460V
150 3600 445HP 15036ES3G445HP 16,283 P1F 1797 165 93.3 40.012 460V
1800 445HP 15018ES3G445HP 14,162 P1F 1940 170 93.5 40.012 460V
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1 1800 143HP 00118EP3E143HP 503 P1F 47 1.49 82.5 13.421 208-230/460V
1.5 3600 143HP 00156EP3E143HP 546 P1F 45 1.99 82.5 13.421 208-230/460V
1800 145HP 00158EP3E145HP 529 P1F 54 2.05 84.0 14.397 208-230/460V
23600 145HP 00236EP3E145HP 553 P1F 47 2.60 84.0 14.397 208-230/460V
1800 145HP 00218EP3E145HP 583 P1F 56 2.70 84.0 14.397 208-230/460V
3
3600 145HP# 00336EP3E145HP 822 P1F 54 3.71 85.5 14.397 208-230/460V
3600 182HP 00336EP3E182HP 881 P1F 106 3.59 85.5 15.504 208-230/460V
1800 182HP 00318EP3E182HP 879 P1F 97 3.90 87.5 15.504 208-230/460V
53600 184HP 00536EP3E184HP 1,032 P1F 114 5.90 87.5 16.504 208-230/460V
1800 184HP 00518EP3E184HP 995 P1F 102 6.48 87.5 16.504 208-230/460V
7.5
3600 184HP# 00736EP3E184HP 1,268 P1F 128 8.76 88.5 16.504 208-230/460V
3600 213HP 00736EP3E213HP 1,371 P1F 150 8.66 88.5 18.630 208-230/460V
1800 213HP 00718EP3E213HP 1,306 P1F 150 9.53 89.5 18.630 208-230/460V
10 3600 215HP 01036EP3E215HP 1,645 P1F 150 11.7 89.5 20.126 208-230/460V
1800 215HP 01018EP3E215HP 1,563 P1F 165 12.8 90.2 20.126 208-230/460V
15
3600 215HP# 01536EP3E215HP 2,133 P1F 174 17.3 90.2 20.126 208-230/460V
3600 254HP 01536EP3E254HP 2,345 P1F 280 17.0 90.2 23.723 208-230/460V
1800 254HP 01518EP3E254HP 2,346 P1F 266 17.9 91.0 23.723 208-230/460V
20
3600 254HP# 02036EP3E254HP 2,608 P1F 304 23.3 90.2 23.723 208-230/460V
3600 256HP 02036EP3E256HP 2,814 P1F 313 23.3 90.2 25.455 208-230/460V
1800 256HP 02018EP3E256HP 2,591 P1F 313 24.4 91.0 25.455 208-230/460V
25
3600 256HP# 02536EP3E256HP 3,177 P1F 313 28.4 91.0 25.455 208-230/460V
3600 284HP 02536EP3E284HP 3,454 P1F 353 29.0 91.0 26.350 208-230/460V
3600 284HPH 02536EP3E284HPH 3,454 P1F 353 29.0 91.0 28.100 208-230/460V
1800 284HP 02518EP3E284HP 3,451 P1F 437 29.6 92.4 26.350 208-230/460V
1800 284HPH 02518EP3E284HPH 3,451 P1F 437 29.6 92.4 28.100 208-230/460V
Data subject to change without notice.
www.weg.net
A-112 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-112 Data subject to change without notice.
P-BASE MOTORS
HP & HPH TYPE – TEFC
HIGH EFFICIENCY
• ELECTRICAL FEATURES ON PAGE B-34.
• MECHANICAL FEATURES ON PAGE B-86.
= Reduced Frame
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
30
3600 284HP# 03036EP3E284HP 3,848 P1F 399 33.8 91.0 26.350 208-230/460V
3600 286HP 03036EP3E286HP 4,157 P1F 404 33.8 91.0 27.845 208-230/460V
3600 286HPH 03036EP3E286HPH 4,157 P1F 404 33.8 91.0 29.595 208-230/460V
1800 286HP 03018EP3E286HP 3,778 P1F 481 34.4 92.4 27.845 208-230/460V
1800 286HPH 03018EP3E286HPH 3,778 P1F 481 34.4 92.4 29.595 208-230/460V
40
3600 286HP# 04036EP3E286HP 4,914 P1F 448 46.6 91.7 27.845 208-230/460V
3600 324HP 04036EP3E324HP 5,197 P1F 561 46.1 91.7 30.403 208-230/460V
1800 324HP 04018EP3E324HP 4,997 P1F 587 47.6 93.0 30.403 208-230/460V
50
3600* 324HP# 05036EP3E324HP 6,153 P1F 565 56.5 92.4 30.403 208-230/460V
3600 326HP 05036EP3E326HP 6,363 P1F 594 56.5 92.4 31.897 208-230/460V
1800 326HP 05018EP3E326HP 5,723 P1F 640 57.8 93.6 31.897 208-230/460V
60
3600 326HP# 06036EP3E326HP 8,221 P1F 594 69.0 93.0 31.897 208-230/460V
3600 364HP 06036EP3E364HP 9,032 P1F 917 69.0 93.0 33.684 208-230/460V
1800 326HP# 06018EP3E326HP 7,641 P1F 640 71.0 93.6 31.897 208-230/460V
1800 364HP 06018EP3E364HP 8,119 P1F 963 67.0 93.6 33.684 208-230/460V
75 3600 365HP 07536EP3E365HP 10,454 P1F 1025 82.5 93.0 33.684 208-230/460V
1800 365HP 07518EP3E365HP 8,907 P1F 1010 82.4 94.1 33.684 208-230/460V
100
3600 405HP 10036EP3E405HP 12,293 P1F 1361 113 93.6 36.674 208-230/460V
3600 405HP 10036EP3G405HP 12,293 P1F 1361 113 93.6 36.674 460V
3600 405HPH 10036EP3E405HPH 12,293 P1F 1361 113 93.6 36.674 208-230/460V
3600 405HPH 10036EP3G405HPH 12,293 P1F 1361 113 93.6 36.674 460V
1800 405HP 10018EP3E405HP 10,688 P1F 1273 115 94.5 36.674 208-230/460V
1800 405HP 10018EP3G405HP 10,688 P1F 1273 115 94.5 36.674 460V
1800 405HPH 10018EP3E405HPH 10,688 P1F 1273 115 94.5 36.674 208-230/460V
1800 405HPH 10018EP3G405HPH 10,688 P1F 1273 115 94.5 36.674 460V
125 3600 444HP 12536EP3G444HP 17,113 P1F 1801 131 94.5 40.012 460V
1800 444HP 12518EP3G444HP 14,940 P1F 1647 138 94.5 40.012 460V
150 3600 445HP 15036EP3G445HP 19,540 P1F 1865 160 94.5 40.012 460V
1800 445HP 15018EP3G445HP 16,995 P1F 1841 168 95.0 40.012 460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-113
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-113
Data subject to change without notice.
FRAME – SPECIFIC
FEATURES (ODP ONLY)
For Frames 184T and 213/5T only (ODP only)
• Welded steel plate frames (welded feet)
• Aluminum endshields and terminal box
• Cooling system with nned rotor
• ZZ bearing (double shielded)
• Degree of protection: IP21
• Service factor: 1.0
For Frames 254/6T and up (ODP only)
• Cast iron frames
• Cast iron endshields and terminal box
• Cooling system with nned rotor
• Regreasable bearings positive pressure
lubrification system (frame 254T and up)
• Degree of protection: IP23
• Rodent screen
• Service factor: 1.0
ONLY FOR TEFC
(IP55 MOTORS)
• V-ring slingers onboth endshields
• Service factor: 1.15
• Beam Pumps
• Sucker Rod Pumps
• Other applications requiring high starting
torque or high slip
HIGH STARTING and
BREAKDOWN TORQUE -
NEMA DESIGN ‘D’ (5 - 8% SLIP)
• Single and triple rated available
• Three-phase, 60Hz
• Voltage: 208-230/460
• 184T up to 445T cast iron frames
• 6 and 8 pole
• Squirrel cage rotor / Aluminum die cast
• Ball bearings are supplied as standard
(100 HP & above Roller Bearings)
• 1045 Carbon Steel Shaft for frames up to 365T.
4140 steel shaft for motors 404T and above.
• Enclosure: Open Drip Proof (ODP) and Totally
Enclosed Fan Cooled (TEFC)
• Dimensions according to NEMA standard
• Class ‘F’ insulation (‘B’ temperature rise)
• Continuous duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000m)
• F2 mount
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• NPT threaded terminal box
• Plastic drain plugs
• Regreasable bearings system
(frames 254T and up)
• Shaft slingers (V-ring)(TEFC only)
• Rodent screens (ODP only)
• Service factor: 1.00 (ODP only)
• Service factor: 1.15 (TEFC only)
• Color: RAL 9010 (White)
• Roller bearings on frame 404T and up
• Special voltages
• Other mountings
• Specially designed shaft
• Space heaters
• Second shaft end
• Thermistors, Thermostats or RTD’s (PT100)
• Additional terminal box
• Stainless steel shaft
• 575V
THREE PHASE
These special motors have the high slip
and high torque that oil well beam pumping
units demand. WEG oil well pumping motors
are requested on specifications for most
major oil companies around the world as a
result of their long lasting performance, low
purchase and maintenance cost.
APPLICATIONS
OPTIONAL FEATURES
ODPTEFC
Pump Motors
Oil Well Pumping
HIGHLIGHTS
• High
slip and
torque
E 104590
APPROVED BY
Data subject to change without notice.
www.weg.net
A-114 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-114 Data subject to change without notice.
OIL WELL PUMPING MOTORS
HIGH SLIP – NEMA DESIGN ‘D’
ODP WITH SCREENS
HIGH SLIP – NEMA DESIGN ‘D’ – TEFC
• ELECTRICAL FEATURES ON PAGE B-36.
• MECHANICAL FEATURES ON PAGE B-87, B-88.
• ELECTRICAL FEATURES ON PAGE B-36.
• MECHANICAL FEATURES ON PAGE B-87, B-88.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1.5 1200 184T 00152OS2EOW184T 776 P1E 68 2.70 71.0 14.291 208-230/460V
2 1200 184T 00212OS3EOW184T 793 P1E 79 3.20 81.3 14.291 208-230/460V
3 1200 213T 00312OS3EOW213T 866 P1E 101 4.70 80.7 17.165 208-230/460V
5 1200 215T 00512OS3EOW215T 989 P1E 128 7.10 86.5 17.165 208-230/460V
7.5 1200 254T 00712OS3EOW254T 1,434 P1E 280 10.2 79.0 20.669 208-230/460V
10 1200 256T 01012OS3EOW256T 1,796 P1E 416 13.7 80.0 22.401 208-230/460V
15 1200 284T 01512OS3EOW284T 2,441 P1E 438 18.2 86.5 23.386 208-230/460V
20 1200 286T 02012OS3EOW286T 2,603 P1E 600 24.5 86.5 24.882 208-230/460V
25 1200 324T 02512OS3EOW324T 3,247 P1E 613 33.2 87.5 26.181 208-230/460V
30 1200 326T 03012OS3EOW326T 3,848 P1E 745 39.1 87.8 27.667 208-230/460V
40 1200 365T 04012OS3EOW365T 5,277 P1E 970 50.0 89.5 29.764 208-230/460V
50 1200 405T 05012OS3EOW405T 6,834 P1E 1200 61.3 90.2 34.133 208-230/460V
60 1200 405T 06012OS3EOW405T 7,495 P1E 1355 75.0 88.5 34.133 208-230/460V
75 1200 445T 07512OS3EOW445T 12,308 P1E 1476 95.7 90.2 39.803 208-230/460V
100 1200 445T 10012OS3EOW445T 13,078 P1E 2161 127 90.2 39.803 208-230/460V
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
3 1200 215T 00312ES3EOW215T 1,027 P1E 128 5.00 75.7 19.517 208-230/460V
51200 215T 00512ES3EOW215T 1,170 P1E 183 7.40 77.5 19.517 208-230/460V
900 256T 00509ES3EOW256T 2,242 P1E 284 7.25 77.0 24.945 208-230/460V
7.5 1200 254T 00712ES3EOW254T 1,688 P1E 280 9.25 85.6 23.213 208-230/460V
10 1200 256T 01012ES3EOW256T 2,070 P1E 326 12.5 85.6 24.945 208-230/460V
900 286T 01009ES3EOW286T 3,437 P1E 382 13.9 82.5 27.929 208-230/460V
15 1200 284T 01512ES3EOW284T 2,679 P1E 455 18.0 87.1 26.433 208-230/460V
900 324T 01509ES3EOW324T 4,293 P1E 548 19.5 85.5 29.620 208-230/460V
20 1200 286T 02012ES3EOW286T 3,162 P1E 488 24.5 87.3 27.929 208-230/460V
900 326T 02009ES3EOW326T 4,872 P1E 656 26.2 85.5 31.116 208-230/460V
25 1200 324T 02512ES3EOW324T 3,887 P1E 607 30.0 88.9 29.620 208-230/460V
30 1200 326T 03012ES3EOW326T 4,515 P1E 656 35.5 89.4 31.116 208-230/460V
40 1200 365T 04012ES3EOW365T 6,290 P1E 950 52.5 87.5 33.709 208-230/460V
50 1200 404T 05012ES3EOW404T 8,172 P1E 1189 62.0 88.1 38.077 208-230/460V
60 1200 405T 06012ES3EOW405T 9,414 P1E 1500 78.5 89.0 38.077 208-230/460V
75 1200 444T 07512ES3EOW444T 14,976 P1E 1720 90.0 87.0 43.776 208-230/460V
100 1200 445T 10012ES3EOW445T 18,074 P1E 2039 115 88.0 43.776 208-230/460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-115
Data subject to change without notice. Data subject to change without notice.Data subject to change without notice.
OIL WELL PUMPING MOTORS
Great customer service is our trademark at WEG. We service all
global markets so that it feels local from your point of view.
That’s why WEG Technicians are always closer than you might
think. To learn more about our solutions with electric motors,
automation, controls, transformers and generators or for a U.S.
distributor near you, call 1-800-ASK-4WEG.
Transforming energy into solutions. www.weg.net
©2008 WEG Electric Corp.
“ Global presence means:
We are there.
Global service means:
We are there for you.”
www.weg.net
A-116 Data subject to change without notice.
PUMP
MOTORS
Data subject to change without notice.
PUMP
MOTORS
www.weg.net
A-116 Data subject to change without notice.
WEG MOTOR ITEM CODIFICATION FOR POOL AND SPA
(MODEL NUMBERS)
THE WEG MODEL NUMBERS ARE DISTRIBUTED AS FOLLOWS:
X X X XXX X
(Product Line) (Capacitor) (Flange) (HP) (Service Factor)
Blank=Low / H=High
P C Q 105 H
P C J 115
Pool and Spa Pump Motors
Start Capacitor
Square Flange
1/2 HP1
High Service Factor
Pool and Spa Pump Motors
Start Capacitor
C-Flange Threaded
Shaft (Type J)
1 1/2 HP1
HP1 – 1/3HP (103) 1/2HP (105) 3/4HP (107) 1HP (110) 1 1/2HP (115) 2HP (120) 2 1/2HP (125) 3HP (130)
APPROVED BY
LR 50.962-9/13/14
• Pool and Spa • Single-phase, 2 pole, 60Hz
• Voltage: 115/230V or 230V
• Cast Iron C-face or Aluminum
Square Flange
• Open Drip Proof (ODP) IP21
• Dual Compartment up to 2 1/2HP
• 50ºC Ambient
• Class ‘B’ insulation
• CCW (Pump end) - non reversible
• AISI 316 Stainless Steel Shaft
• Automatic overload protection
• Threaded Shaft
• Internal and external grounding
• Terminal box threaded NPT 1/2”
• D.E. sealed ball bearings
• D.E. Endshield sealing - V-ring
• Epoxy Coating
• ‘1081’ Design
SINGLE PHASE
These motors are specially designed for Pool Duty.
Available in High Service Factor and Low Service
Factor with C-Face or Square Flange.
APPLICATIONS STANDARD FEATURES
C-Face Square-Flange
Pump Motors
Pool and Spa Standard Efficiency
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-117
Data subject to change without notice. Data subject to change without notice.
PUMP
MOTORS
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-117
Data subject to change without notice.
POOL AND SPA MOTORS
C-FACE – ODP – START CAPACITOR
SQUARE FLANGE – ODP – START CAPACITOR
= Energy Efficiency
• ELECTRICAL FEATURES ON PAGE B-37. • MECHANICAL FEATURES ON PAGE B-90.
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1/2 3600 K56J PCJ105H 236 P1D 20 1.6 4.50 62.0 14.035 115/230V
3/4 3600 K56J PCJ107H 263 P1D 24 1.5 5.50 69.0 14.035 115/230V
1 3600 L56J PCJ110H 300 P1D 27 1.4 7.20 70.0 14.626 115/230V
1
1/2 3600 M56J PCJ115H 400 P1D 30 1.3 7.20 75.0 15.216 230V ©
2 3600 M56J PCJ120H 486 P1D 32 1.2 8.60 80.0 15.216 230V ©
High Service Factor - Full Rate
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
3/4 3600 K56J PCJ107 236 P1D 20 1.3 5.20 67.0 14.035 115/230V
1 3600 K56J PCJ110 263 P1D 24 1.25 6.30 72.0 14.035 115/230V
1
1/2 3600 L56J PCJ115 300 P1D 27 1.1 8.90 72.0 14.626 115/230V
2 3600 M56J PCJ120 400 P1D 30 1.1 9.20 77.0 15.216 230V ©
2
1/2 3600 M56J PCJ125 486 P1D 32 1.04 10.6 80.0 15.216 230V ©
Low Service Factor - Up Rate
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1/3 3600 K48Y PCQ103H 231 P1D 18 1.95 3.40 54.0 13.032 115/230V
1/2 3600 K48Y PCQ105H 241 P1D 20 1.9 4.50 62.0 13.032 115/230V
3/4 3600 K48Y PCQ107H 275 P1D 24 1.65 5.50 69.0 13.032 115/230V
1 3600 L48Y PCQ110H 320 P1D 27 1.65 7.20 70.0 13.622 115/230V
1
1/2 3600 M48Y PCQ115H 411 P1D 30 1.5 7.20 75.0 14.213 230V ©
2 3600 M48Y PCQ120H 500 P1D 32 1.3 8.60 80.0 14.213 230V ©
High Service Factor - Full Rate
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage NOTES
1/2 3600 K48Y PCQ105 231 P1D 18 1.3 3.80 63.0 13.032 115/230V
3/4 3600 K48Y PCQ107 241 P1D 20 1.3 5.20 67.0 13.032 115/230V
1 3600 K48Y PCQ110 275 P1D 24 1.25 6.30 72.0 13.032 115/230V
1 1/2 3600 L48Y PCQ115 320 P1D 27 1.1 8.90 72.0 13.622 115/230V
2 3600 M48Y PCQ120 411 P1D 30 1.1 9.20 77.0 14.213 230V ©
2 1/2 3600 M48Y PCQ125 500 P1D 32 1.04 10.6 80.0 14.213 230V ©
Data subject to change without notice.
WEG MOTOR ITEM CODIFICATION FOR POOL AND SPA
(MODEL NUMBERS)
HP1 – 1/3HP (103) 1/2HP (105) 3/4HP (107) 1HP (110) 1 1/2HP (115) 2HP (120) 2 1/2HP (125) 3HP (130)
www.weg.net
A-118 Data subject to change without notice.
PUMP
MOTORS
PUMP
MOTORS
www.weg.net
A-118 Data subject to change without notice.
POOL AND SPA MOTORS
SQUARE FLANGE C-FLANGE
(Threaded Shaft)
LOW
SERVICE
FACTOR
HIGH
SERVICE
FACTOR
LOW
SERVICE
FACTOR
HIGH
SERVICE
FACTOR
CROSS REFERENCE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-119
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-119
Data subject to change without notice.
DEFINITE PURPOSE MOTORS
www.weg.net
A-120 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-120 Data subject to change without notice.
• Three-phase, 2, 4, 6, 8, pole, 60Hz
• Voltage: 208-230/460
• 143T up to 286T* cast iron frame
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled - TEFC (IP55)
• V-ring slingers on drive endshield and
Lip Seal on Non drive endshield
• Ball bearings
• NEMA dimensions
• Class ‘F’ insulation
• Temperature rise: Class ‘B’ (80ºC)
• NEMA ratings design ‘B’ (High Efciency)
• Service factor: 1.15 (Standard Efciency)
1.25 (High Efciency)
• Continuous Duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000 m)
• 1045 carbon steel shaft
• F1 mount
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 7022 – Dark Gray (St. Eff)
RAL 5007 – Blue (High Eff)
• NPT threaded terminal box
• Automatic drain plugs
• Slow, medium or rapid braking connectors - 230V
• Manual brake release
Note*: WEG can supply frames 324/6 “on request”, after receiving load information: – Braking torque – Number of stops (braking) per hour.
Shoe-type brake motors are also available on special request, ask WEG for more information.
All motors are tested according to IEEE 112 std. - method ‘B’ or C390 CSA
• Electric brake release
• Oil seal / Lip seal
• Special brake and motor voltages
• Specially designed shaft
• Space heaters
• Thermistor, Thermostats or RTD’s
(PT100)
• Additional terminal box
• Roller bearings on drive end
• Drip cover (canopy) for shaft down
applications
• Stainless steel shaft
• Higher torque brake available
• Design C for High Efciency
• Insulation class ‘H’
Applications requiring quick stops and
positive action at standstill
• Conveyors
• Gear reducers
• Machine tools
• Material handling equipment
APPROVED BY
LR 38324
THREE PHASE
WEG Brake motors consist of an induction motor coupled
to a disc brake, forming an integrated compact and robust
unit. The unit is TEFC, and has the same performance
characteristics of WEG TEFC range of motors. The brake is
of sturdy construction with few moving parts which ensures
long durability with a minimum of maintenance.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
Definite Purpose
Brake Motors
HIGHLIGHTS
• Lenze brake
• FC-200 cast iron/
Severe Duty
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-121
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-121
Data subject to change without notice.
STANDARD EFFICIENCY – THREE-PHASE
BRAKE MOTORS
TEFC
• ELECTRICAL FEATURES ON PAGE B-24.
• MECHANICAL FEATURES ON PAGE B-69...B-71.
Note: From frames 143T up to 286T, motors are supplied with Lenze brakes
HP RPM Frame Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage
Brake
Rating
Ft. Lb
NOTES
1
1800 143T 00118ES3EBM143T 970 B1 45 1.51 78.0 16.344 208-230/460V 12
1200 145T 00112ES3EBM145T 1,023 B1 52 1.81 74.5 16.344 208-230/460V 12
900 182T 00109ES3EBM182T 1,496 B1 97 2.24 72.5 18.917 208-230/460V 24
1.5
3600 143T 00156ES3EBM143T 966 B1 45 2.04 78.0 16.344 208-230/460V 12
1800 145T 00158ES3EBM145T 1,011 B1 45 2.19 79.0 16.344 208-230/460V 12
1200 182T 00152ES3EBM182T 1,381 B1 80 2.64 78.0 18.917 208-230/460V 24
900 184T 00159ES3EBM184T 1,558 B1 99 2.81 74.5 19.917 208-230/460V 24
2
3600 145T 00236ES3EBM145T 983 B1 48 2.73 78.5 16.344 208-230/460V 12
1800 145T 00218ES3EBM145T 1,019 B1 56 2.93 82.5 16.344 208-230/460V 12
1200 184T 00212ES3EBM184T 1,423 B1 99 3.53 78.5 19.917 208-230/460V 24
900 213T 00209ES3EBM213T 1,861 B1 163 3.40 78.0 22.193 208-230/460V 44
3
3600 182T 00336ES3EBM182T 1,352 B1 99 4.04 81.5 18.917 208-230/460V 24
1800 182T 00318ES3EBM182T 1,368 B1 84 4.13 81.5 18.917 208-230/460V 24
1200 213T 00312ES3EBM213T 1,841 B1 136 4.97 81.8 22.193 208-230/460V 44
900 215T 00309ES3EBM215T 2,033 B1 174 4.67 80.0 23.689 208-230/460V 59
5
3600 184T 00536ES3EBM184T 1,457 B1 108 6.15 84.5 19.917 208-230/460V 24
1800 184T 00518ES3EBM184T 1,567 B1 117 6.50 85.0 19.917 208-230/460V 24
1200 215T 00512ES3EBM215T 2,038 B1 167 7.35 84.0 23.689 208-230/460V 59
900 254T 00509ES3EBM254T 3,111 B1 295 7.85 84.5 27.976 208-230/460V 59
7.5
3600 213T 00736ES3EBM213T 1,916 B1 163 8.95 86.5 22.193 208-230/460V 44
1800 213T 00718ES3EBM213T 1,941 B1 170 9.70 87.0 22.193 208-230/460V 44
1200 254T 00712ES3EBM254T 2,919 B1 264 9.60 86.5 27.976 208-230/460V 59
900 256T 00709ES3EBM256T 3,488 B1 339 11.3 86.0 29.945 208-230/460V 111
10
3600 215T 01036ES3EBM215T 2,008 B1 174 12.2 87.6 23.689 208-230/460V 59
1800 215T 01018ES3EBM215T 2,166 B1 175 12.8 89.0 23.689 208-230/460V 59
1200 256T 01012ES3EBM256T 3,230 B1 295 12.8 87.4 29.945 208-230/460V 111
15 3600 254T 01536ES3EBM254T 2,857 B1 286 18.2 87.5 27.976 208-230/460V 59
1800 254T 01518ES3EBM254T 3,181 B1 260 18.8 88.5 27.976 208-230/460V 59
20 3600 256T 02036ES3EBM256T 3,005 B1 295 24.1 89.0 29.945 208-230/460V 111
1800 256T 02018ES3EBM256T 3,300 B1 304 25.2 90.2 29.945 208-230/460V 111
25 1800 284T 02518ES3EBM284T 4,806 B1 313 30.2 90.5 31.814 208-230/460V 87
30 1800 286T 03018ES3EBM286T 4,814 B1 391 36.1 91.0 32.656 208-230/460V 87
Data subject to change without notice.
Note*: WEG can supply frames 324/6 “on request”, after receiving load information: – Braking torque – Number of stops (braking) per hour.
Shoe-type brake motors are also available on special request, ask WEG for more information.
All motors are tested according to IEEE 112 std. - method ‘B’ or C390 CSA
www.weg.net
A-122 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-122 Data subject to change without notice.
HIGH EFFICIENCY – THREE-PHASE
• ELECTRICAL FEATURES ON PAGE B-25.
• MECHANICAL FEATURES ON PAGE B-69...B-71.
HP RPM Frame Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
FL
Amps
460
FL
Eff
%
“C”
Dimension
(in.)
Voltage
Brake
Rating
Ft. Lb
NOTES
1
1800 143T 00118EP3EBM143T 1,378 B1 52 1.49 82.5 16.344 208-230/460V 12
1200 145T 00112EP3EBM145T 1,484 B1 52 1.70 80.0 16.344 208-230/460V 12
900 182T 00109EP3EBM182T 2,350 B1 115 2.31 74.0 18.917 208-230/460V 24
1.5
3600 143T 00156EP3EBM143T 1,389 B1 49 1.99 82.5 16.344 208-230/460V 12
1800 145T 00158EP3EBM145T 1,435 B1 58 2.05 84.0 16.344 208-230/460V 12
1200 182T 00152EP3EBM182T 2,138 B1 88 2.38 85.5 18.917 208-230/460V 24
900 184T 00159EP3EBM184T 2,479 B1 130 2.71 77.0 19.917 208-230/460V 24
2
3600 145T 00236EP3EBM145T 1,401 B1 52 2.60 84.0 16.344 208-230/460V 12
1800 145T 00218EP3EBM145T 1,447 B1 60 2.70 84.0 16.344 208-230/460V 12
1200 184T 00212EP3EBM184T 2,233 B1 99 3.20 86.5 19.917 208-230/460V 24
900 213T 00209EP3EBM213T 2,977 B1 172 3.46 82.5 22.193 208-230/460V 44
3
3600 182T 00336EP3EBM182T 2,116 B1 117 3.59 85.5 18.917 208-230/460V 24
1800 182T 00318EP3EBM182T 1,916 B1 108 3.90 87.5 18 .917 208-230/460V 24
1200 213T 00312EP3EBM213T 2,982 B1 141 4.15 87.5 22.193 208-230/460V 44
900 215T 00309EP3EBM215T 3,234 B1 189 4.33 84.0 23.689 208-230/460V 59
5
3600 184T 00536EP3EBM184T 2,190 B1 125 5.90 87.5 19.917 208-230/460V 24
1800 184T 00518EP3EBM184T 2,143 B1 113 6.48 87.5 19.917 208-230/460V 24
1200 215T 00512EP3EBM215T 3,218 B1 193 6.80 87.5 23.689 208-230/460V 59
900 254T 00509EP3EBM254T 5,043 B1 284 7.99 85.5 27.976 208-230/460V 59
7.5
3600 213T 00736EP3EBM213T 2,860 B1 167 8.66 88.5 22.193 208-230/460V 44
1800 213T 00718EP3EBM213T 2,640 B1 167 9.53 89.5 22.193 208-230/460V 44
1200 254T 00712EP3EBM254T 4,756 B1 288 9.53 89.5 27.976 208-230/460V 59
900 256T 00709EP3EBM256T 5,613 B1 328 11.2 86.5 29.945 208-230/460V 111
10
3600 215T 01036EP3EBM215T 3,304 B1 167 11.7 89.5 23.689 208-230/460V 59
1800 215T 01018EP3EBM215T 3,184 B1 183 12.8 90.2 23.689 208-230/460V 59
1200 256T 01012EP3EBM256T 5,260 B1 331 13.4 89.5 29.945 208-230/460V 111
15 3600 254T 01536EP3EBM254T 4,560 B1 306 17.0 90.2 27.976 208-230/460V 59
1800 254T 01518EP3EBM254T 4,852 B1 293 17.9 91.0 27.976 208-230/460V 59
20 3600 256T 02036EP3EBM256T 5,371 B1 339 23.3 90.2 29.945 208-230/460V 111
1800 256T 02018EP3EBM256T 5,404 B1 339 24.4 91.0 29.945 208-230/460V 111
25 1800 284T 02518EP3EBM284T 6,248 B1 391 29.6 92.4 31.914 208-230/460V 87
30 1800 286T 03018EP3EBM286T 6,259 B1 437 34.4 92.4 32.656 208-230/460V 87
Note: From frames 143T up to 256T, motors are supplied with Lenze brakes.
From frames 284/6T, motors are supplied with WEG brakes.
BRAKE MOTORS
TEFC
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-123
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-123
Data subject to change without notice.
SINGLE PHASE
These high quality motors are designed to meet the high torque requirements of
air compressor loads. Ball bearings designs and manual reset thermal protection
are standard features on all ratings. These heavy duty motors are rolled steel
constructions NEMA 56 frames. Special electrical and mechanical features ensure
reliable service and long motor life.
APPLICATIONS
• Stationary and portable air
compressors
• All kinds of intermittent duty
compressors
RIGID BASE – SINGLE-PHASE
STANDARD FEATURES
• Single-phase, 2 pole, 60Hz
• Voltage: 115/208-230V
• With manual overload protection
• Start capacitor
• Squirrel cage rotor
• Open Drip Proof (ODP)
• Fan cooled (internally)
• Ball bearings
• NEMA dimensions
• High starting torque
• Class “B” insulation (130ºC)
• Reinforced xed base (MIG welding)
• Paint: Munsell N1 (Black)
• Class “F” insulation
• Flange mounted
• Special voltages
• Specially dimensioned shaft
• Second shaft end
• Stainless steel shaft
• Footless
• Automatic Overload Protection
• Other mounting congurations
All motors are tested according to IEEE 112 Std. – Method ‘B’ or C390 CSA.
• ELECTRICAL FEATURES ON PAGE B-26
• MECHANICAL FEATURES ON PAGE B-72.
Definite Purpose
Compressor Duty - ODP
HIGHLIGHTS
• High
starting
torque OPTIONAL FEATURES
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
Service
Factor
FL
AMPS
230V
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1/2 3600 56 .5036OS1BCDC56 224 C1 24 1.00 3.60 10.551 115/208-230V
3/4 3600 56 .7536OS1BCDC56 237 C1 26 1.00 4.50 10.551 115/208-230V
1 3600 56 00136OS1BCDB56 278 C1 29 1.00 7.00 11.102 115/208-230V
1 1/2 3600 56 00156OS1BCDD56 311 C1 38 1.00 9.50 12.283 115/208-230V
2 3600 56 00236OS1BCDD56 372 C1 41 1.00 11.0 12.283 115/208-230V
3 3600 56H 00336OS1BCDF56 432 C1 45 1.00 15.0 13.464 115/208-230V
5 3600 56H 00536OS1CCDG56 458 C1 50 1.00 19.0 13.858 208-230V
3600 56HZ 00536OS1CCDG56HZ 481 C1 51 1.00 19.0 14.234 208-230V CCW
1800 184T 005180S1CCDOL184T 721 C1 109 1.15 21.5 14.870 208-230V *
1800 184T 00518OS1CCD184T 682 C1 109 1.25 21.5 14.870 208-230V U
7.5 1800 215T 00718OS1CCD215T 961 C1 130 1.15 30.6 19.660 208-230V CCWU
U = Not thermally protected
* = May not be available in stock
E 104590
APPROVED BY
Data subject to change without notice.
BRAKE MOTORS
TEFC
www.weg.net
A-124 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-124 Data subject to change without notice.
SINGLE PHASE
The “FARM DUTY” motors are is specially designed for farm duty applications requiring
high starting torque and moderate starting current. Some standard features such as V-ring
slinger in both drive and opposite drive ends, reversible shaft rotation and start capacitors
provide versatility for indoor and outdoor use. The manual overload protection available in
all frames protects against extreme overloads, offering maximum operator safety.
• Pumps
• Fans
• Conveyors
• Poultry equipment
• Air compressors
• Other farm machinery
• Single-phase, 60Hz
• Voltage: 230V or 115/230V
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled - TEFC (IP55)
• V-ring slinger in both endshields
• Terminal box grounding
• Manual overload protection
• Ball bearings
• NEMA dimensions
• Insulation:
• Class ‘B’, up to 143/5T
• Class ‘F’, for frame W182/4T
and up
• Service Factor: 1.15
• Steel plate frames: 56 up to 143/5T
• Cast iron frames: W182/4T up to 215T
• Continuous Duty (S1), 40ºC ambient
• 1045 carbon steel shaft
• F1 mount
• Double shielded ball bearings
• Class “F” insulation
(frames up to 143/5T)
• Class “H” insulation (frames
W182/4T up to 215T)
• Special voltages
• Specially dimensioned shaft
• Second shaft end
• Stainless steel shaft
• Flange mounting
• Paint: Enamel alkyd resin base
• Color: RAL 3002 (Red)
• NPT threaded terminal box
• Drain plugs
• Rigid base
• Start Capacitor
• Start capacitor and run capacitor
for 2HP and up
• High starting torque
Note: Please specify type of overload protection required when ordering.
All motors are tested according to IEEE 112 Std. – Method ‘B’ or C390 CSA.
RIGID BASE – TEFC (IP55) – SINGLE-PHASE
• ELECTRICAL FEATURES ON PAGE B-26.
• MECHANICAL FEATURES ON PAGE B-58 & B-74.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
Definite Purpose
Farm Duty
HIGHLIGHTS
•High starting torque
• TEFC
HP RPM NEMA
Frame
Catalog
Number
List
Price
Multi.
Sym.
Approx.
Shipp.
Weight
Lbs.
Service
Factor
FL
Amps
230V
“C”
Dimension
(in.)
Voltage NOTES
1/3 1800 56 .3318ES1RFDB56 284 R1 23 1.15 3.00 11.496 115/230V u
1/2 1800 56 .5018ES1RFDB56 308 R1 25 1.15 3.70 11.496 115/230V
3/4 1800 56 .7518ES1RFDB56 357 R1 28 1.15 5.50 11.496 115/230V
11800 143T 00118ES1RFD143T 400 R1 35 1.15 7.50 13.674 115/230V
1800 56 00118ES1RFDD56 394 R1 36 1.15 7.50 12.677 115/230V
1 1/2 1800 56 00158ES1RFDF56H 502 R1 51 1.15 9.00 13.858 115/230V
1800 145T 00158ES1RFD145T 504 R1 52 1.15 9.00 15.355 115/230V
2
1800 145T 00218ES1RFD145T 578 R1 54 1.15 11.0 15.355 115/230V
1800 56 00218ES1RFDG56H 529 R1 55 1.15 11.0 14.252 115/230V
1800 W182/4T 00218ES1RFD182T 790 R1 75 1.15 10.0 17.240 115/230V
3 1800 W182/4T 00318ES1DFD184T 915 R1 80 1.15 14.5 17.240 230V
5
1800 184T 00518ES1DFD184T 1,074 R1 157 1.15 21.0 17.050 230V
1800 W213/5T 00518ES1DFD215T 1,205 R1 128 1.15 21.0 21.000 230V
1800 W213/5TZ 00518ES1DFD215Z 1,205 R1 128 1.15 21.0 21.000 230V
7.5 1800 215T 00718ES1DFD215T 1,463 R1 169 1.15 32.0 19.500 230V
1800 215TZ 00718ES1DFD215Z 1,463 R1 169 1.15 32.0 19.500 230V
10 1800 215T 01018ES1DFD215T 1,692 R1 182 1.15 40.0 19.500 230V
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-125
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-125
Data subject to change without notice.
SINGLE PHASE
WEG poultry fan motors are specically designed for agricultural fan
applications. Mounted within the airstream for proper cooling, the totally
enclosed design ensures long life in poultry house and barn exhaust fan
applications.
• Cooling fans
RESILIENT BASE –TEAO
• Single-phase, 4 pole, 60Hz
• Voltage: 115/230, suitable for 208V at 1.0
service factor
• Service Factor according to NEMA Standard
MG 1-18-329
• Totally Enclosed Air Over (TEAO)
• Double shielded ball bearings (ZZ)
• Squirrel cage rotor
• Class ‘B’ insulation (130oC)
• Continuous Duty (S1)
• Automatic Thermal Overload (ATO)
• Rotation: Reversible
• Color: RAL 7022 (Dark Gray)
• Class ‘F’ insulation
• Special voltages
• Specially dimensioned shaft
rigid base – teao
= Resilient Base = Split-phase motors
APPROVED BY
LR 50.962-9/13/14
• ELECTRICAL FEATURES ON PAGE B-26. • MECHANICAL FEATURES ON PAGE B-73.
APPLICATIONS STANDARD FEATURES
Definite Purpose
Poultry Fan
HIGHLIGHTS
•Automatic thermal
overload
• Resillient base
OPTIONAL FEATURES
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
Service
Factor
FL
AMPS
230V
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1/3 1800 48 .3318ES1BRBPFC48 325 G1 23 1.25 2.90 10.748 115/208-230V vU
1/2 1800 56 .5018ES1BRBPFC56 350 G1 27 1.25 4.00 11.102 115/208-230V vU
3/4 1800 56 .7518ES1BRBPFB56 433 G1 33 1.25 5.50 11.125 115/208-230V v
1 1800 56 00118ES1BRBPFD56 469 G1 35 1.15 7.00 12.306 115/208-230V v
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
Service
Factor
FL
AMPS
230V
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1/3 1800 48 .3318ES1BPFC48 311 G2 23 1.25 2.90 10.748 115/208-230V U
1/2 1800 56 .5018ES1BPFC56 336 G2 27 1.25 4.00 11.102 115/208-230V U
3/4 1800 56 .7518ES1BPFB56 414 G2 33 1.25 5.50 11.125 115/208-230V
1 1800 56 00118ES1BPFD56 449 G2 35 1.15 7.00 12.306 115/208-230V
E 104590
APPROVED BY
Data subject to change without notice.
www.weg.net
A-126 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-126 Data subject to change without notice.
SINGLE PHASE
WEG Auger Drive motors are specically designed for Feed-Drive units requiring
a reliable and efcient motor. Provided with mechanical protection of centrifugal
switch (to prevent damage to the motor in case of overspeed,) manual thermal
overload protection and two bolts mounting NEMA “N” ange.
• Auger Drive Systems • Single-phase, 4 pole, 60Hz
• Voltage: 115/230V
• Totally Enclosed Fan Cooled (TEFC)
• Squirrel cage rotor
• Start Capacitor
• V-ring slingers on both endshields
• Dimensions according to NEMA Standard
• Class ‘B’ insulation (130ºC)
• High starting torque
• Double shielded ball bearings
• Manual thermal overload protection
• Two bolts mounting NEMA ‘N’ ange
• Extended Shaft (fan end) with wrench ats
for manual jogging of auger
• Fully gasketed, terminal box and capacitor
cover
• Centrifugal start switch protected from
auger drive overspeed
• Start and run capacitor for 2HP and up
• Color: RAL 3002 (Red)
• Class “F” insulation
• Special voltages
• Specially dimensioned shaft
• Second shaft end
• Stainless steel shaft
• Flange mounting
ALL MOTORS ARE TESTED ACCORDING TO IEEE 112 STD. - METHOD ‘B’ OR C390 CSA
LESS BASE – TEFC
• ELECTRICAL FEATURES ON PAGE B-26.
• MECHANICAL FEATURES ON PAGE B-74.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
Definite Purpose
Auger Drive
HIGHLIGHTS
• Mechnical protection
of centrifugal switch to
prevent damage in
case of overspeed
• Extended shaft with
wrench for manual jogging
• TEFC
APPROVED BY
LR 50.962-9/13/14
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
Service
Factor
FL AMPS
230V
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1/3 1800 56N .3318ES1RADB56N 386 A1 25 1.15 3.00 12.760 115/230V
1/2 1800 56N .5018ES1RADB56N 438 A1 27 1.15 3.85 12.760 115/230V
3/4 1800 56N .7518ES1RADB56N 454 A1 29 1.15 5.65 12.760 115/230V
1 1800 56N 00118ES1RADD56N 567 A1 36 1.15 7.00 13.940 115/230V
1.5 1800 56N 00158ES1RADF56N 953 A1 50 1.15 9.00 15.120 115/230V
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-127
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-127
Data subject to change without notice.
Note: All motors supplied with IEEE841 Test Report.
Energy efficiency motors verified by UL in addition to the DOE.
APPROVED BY
LR 50.962-9/13/14
• Pumping applications
• Pulp and paper mills
• Petrochemical
• Other
• Three-phase, 2, 4 or 6 pole, 60Hz
• Voltage: 460V (3 wire)
• Totally enclosed fan cooled ( TEFC)
• Inpro-Seal
• Degree of protection: IP55 (Bearing
protection meets IP56)
• Vibration: 0.06IPS and less
• Guaranteed foot atness to within 0.005”
• Class ‘F’ insulation
(‘B’ Temperature rise)
• Class ‘H’ resin & magnet wire
• Service Factor:
° 1.25 - up to 100 HP
° 1.15 - from 125HP and up
• 1045 Carbon Steel Shaft for frames up to
365T.
• 4140 steel shaft for motors 404T and above.
(3600 RPM motors supplied with 1045)
• 143T up to 586/7 cast iron frame
• All cast iron reinforced construction: frame,
endshields, terminal box and fan cover
• Stainless steel nameplate
• NEMA Ratings Design ‘B’
• Color: RAL 5009 - Blue
• Regreasable ball bearings
• Class 1, Div 2, Groups A, B, C & D, T3
• Bearing life 50,000 hours L-10
• Paint: Epoxy polyamide enamel
• Epoxy coated interior surfaces
• Non-sparking fan
• Special voltages
• Specially designed shaft
• Space heaters
• Second shaft end
• Thermistor, Thermostats
or RTD’s (PT100)
• Additional terminal box
• Drip cover (canopy) for shaft
down applications
• Cable glands
• Flange mount
• 8 pole
THREE PHASE
These WEG IEEE 841 High Efciency Mill and Chemical
Duty Motors are specially suited for Pulp and Paper Mills,
Petrochemical, Steel Mills and applications requiring
Severe Duty long life motors. WEG’s W21 NEMA Premium
motors meet or exceed all NEMA Premium requirements
for energy efciency.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
Meets IEEE Std 841
2009 Specification
HIGHLIGHTS
• Meet or exceeds NEMA
premium efciency levels
• Inpro-Seal
• Extended bearing life
• Corrosion resistant
expoxy nish
• Non-sparking fan
• Internal expoxy paint
• Vibration: 0.06IPS and less
• Guaranteed foot atness
to within 0.005”
Definite Purpose
IEEE 841 Petrochem
E 104590
APPROVED BY
Data subject to change without notice.
www.weg.net
A-128 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-128 Data subject to change without notice.
FOOT MOUNT
IEEE 841 PETROCHEM
Meets IEEE - 2009 Specification
• ELECTRICAL FEATURES ON PAGE B-29, B-30.
• MECHANICAL FEATURES ON PAGE B-75...B-77.
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL
AMPS
460V
FL
Eff
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
11800 143T 00118ST3QIE143T 922 I1 54 1.43 85.5 12.250 460V
1200 145T 00112ST3QIE145T 1,062 I1 56 1.73 82.5 13.234 460V
1.5
3600 143T 00156ST3QIE143T 981 I1 45 1.98 84.0 12.250 460V
1800 145T 00158ST3QIE145T 981 I1 56 2.00 86.5 13.234 460V
1200 182T 00152ST3QIE182T 1,286 I1 79 2.39 87.5 14.860 460V
2
3600 145T 00236ST3QIE145T 1,023 I1 52 2.65 85.5 13.234 460V
1800 145T 00218ST3QIE145T 1,023 I1 58 2.63 86.5 13.234 460V
1200 184T 00212ST3QIE184T 1,363 I1 97 3.23 88.5 15.860 460V
3
3600 182T 00336ST3QIE182T 1,267 I1 99 3.68 87.5 14.860 460V
1800 182T 00318ST3QIE182T 1,224 I1 99 3.90 89.5 14.860 460V
1200 213T 00312ST3QIE213T 1,537 I1 134 4.41 89.5 18.021 460V
5
3600 184T 00536ST3QIE184T 1,429 I1 114 5.76 89.5 15.860 460V
1800 184T 00518ST3QIE184T 1,371 I1 108 6.40 89.5 15.860 460V
1200 215T 00512ST3QIE215T 1,901 I1 175 6.83 89.5 19.517 460V
7.5
3600 213T 00736ST3QIE213T 1,751 I1 134 8.63 91.0 18.021 460V
1800 213T 00718ST3QIE213T 1,646 I1 165 9.29 91.7 18.021 460V
1200 254T 00712ST3QIE254T 2,544 I1 282 9.73 91.0 23.213 460V
10
3600 215T 01036ST3QIE215T 1,920 I1 173 11.5 91.7 19.517 460V
1800 215T 01018ST3QIE215T 1,760 I1 172 12.6 91.7 19.517 460V
1200 256T 01012ST3QIE256T 2,834 I1 316 13.3 91.0 24.945 460V
15
3600 254T 01536ST3QIE254T 2,428 I1 280 16.9 91.7 23.213 460V
1800 254T 01518ST3QIE254T 2,257 I1 291 18.0 92.4 23.213 460V
1200 284T 01512ST3QIE284T 4,203 I1 360 17.3 91.7 26.433 460V
20
3600 256T 02036ST3QIE256T 2,957 I1 313 22.9 92.4 24.945 460V
1800 256T 02018ST3QIE256T 2,597 I1 324 24.4 93.0 24.945 460V
1200 286T 02012ST3QIE286T 4,773 I1 503 24.1 91.7 27.929 460V
25
3600 284TS 02536ST3QIE284TS 3,368 I1 353 28.4 93.0 25.061 460V
1800 284T 02518ST3QIE284T 2,926 I1 481 29.5 93.6 26.433 460V
1200 324T 02512ST3QIE324T 5,211 I1 605 30.5 93.0 29.620 460V
30
3600 286TS 03036ST3QIE286TS 3,799 I1 428 33.4 93.0 26.557 460V
1800 286T 03018ST3QIE286T 3,509 I1 525 35.1 93.6 27.929 460V
1200 326T 03012ST3QIE326T 5,359 I1 673 35.8 93.0 31.116 460V
40
3600 324TS 04036ST3QIE324TS 5,306 I1 561 45.8 93.6 28.120 460V
1800 324T 04018ST3QIE324T 4,692 I1 640 48.3 94.1 29.620 460V
1200 364T 04012ST3QIE364T 8,636 I1 1076 47.1 94.1 33.709 460V
50
3600 326TS 05036ST3QIE326TS 5,970 I1 607 55.5 94.1 29.616 460V
1800 326T 05018ST3QIE326T 5,233 I1 662 60.6 94.5 31.116 460V
1200 365T 05012ST3QIE365T 9,369 I1 1127 58.0 94.1 33.709 460V
60
3600 364TS 06036ST3QIE364TS 8,665 I1 992 68.3 94.1 31.583 460V
1800 364T 06018ST3QIE364T 8,044 I1 1036 68.4 95.0 33.709 460V
1200 404T 06012ST3QIE404T 11,790 I1 1346 70.4 94.5 38.077 460V
75
3600 365TS 07536ST3QIE365TS 10,210 I1 1025 82.6 95.0 31.583 460V
1800 365T 07518ST3QIE365T 9,289 I1 1047 82.3 95.4 33.709 460V
1200 405T 07512ST3QIE405T 12,866 I1 1478 87.0 94.5 38.077 460V
100
3600 405TS 10036ST3QIE405TS 12,806 I1 1361 111 95.0 35.077 460V
1800 405T 10018ST3QIE405T 12,471 I1 1302 112 95.4 38.077 460V
1200 444T 10012ST3QIE444T 17,933 I1 2006 121 95.0 43.776 460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-129
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-129
Data subject to change without notice.
FOOT MOUNT
IEEE 841 PETROCHEM
Meets IEEE - 2009 Specification
• ELECTRICAL FEATURES ON PAGE B-29, B-30.
• MECHANICAL FEATURES ON PAGE B-75...B-77.
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL
AMPS
460V
FL
Eff
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
125
3600 444TS 12536ST3QIE444TS 18,198 I1 1794 133 95.0 40.026 460V
1800 444T 12518ST3QIE444T 16,564 I1 1841 138 95.4 43.776 460V
1200 445T 12512ST3QIE445T 20,158 I1 2082 145 95.0 43.776 460V
150
3600 445TS 15036ST3QIE445TS 21,433 I1 1865 161 95.4 40.026 460V
1800 445T 15018ST3QIE445T 18,587 I1 1940 170 95.8 43.776 460V
1200 447T 15012ST3QIE447T 23,181 I1 2738 174 94.8 47.299 460V
1200 504 15012ST3QIE504 23,181 I1 2738 174 94.8 49.449 460V
200
3600 447TS 20036ST3QIE447TS 28,568 I1 2072 221 95.8 43.549 460V
1800 447T 20018ST3QIE447T 23,696 I1 2216 230 96.2 47.299 460V
1200 447T 20012ST3QIE447T 26,205 I1 2816 234 95.8 47.299 460V
1200 505 20012ST3QIE505 26,205 I1 2816 234 95.8 49.449 460V
250
3600 447TS 25036ST3QIE447TS 30,330 I1 2266 269 95.8 43.549 460V
3600 505S 25036ST3QIE505S 30,330 I1 2266 269 95.8 43.569 460V
1800 447T 25018ST3QIE447T 30,007 I1 2414 284 96.2 47.299 460V
1800 505 25018ST3QIE505 30,007 I1 2414 284 96.2 49.449 460V
1200 586/7 25012ST3QIE586/7 47,488 I1 4002 303 95.8 59.421 460V
300 1800 586/7 30018ST3QIE586/7 39,540 I1 3837 338 96.2 59.421 460V
1200 586/7 30012ST3QIE586/7 50,135 I1 4487 351 95.8 59.421 460V
350 1800 586/7 35018ST3QIE586/7 47,754 I1 4300 399 96.2 59.421 460V
1200 586/7 35012ST3QIE586/7 57,838 I1 4723 426 95.8 59.421 460V
400 1800 586/7 40018ST3QIE586/7 52,344 I1 4686 460 96.2 59.421 460V
1200 586/7 40012ST3QIE586/7 65,795 I1 4961 491 95.8 59.421 460V
450 1800 586/7 45018ST3QIE586/7 54,588 I1 5204 506 96.2 59.421 460V
HP RPM NEMA
Frame Catalog Number List
Price
Mult.
Sym.
Approx.
Shipp.Weight
Lbs
FL
Amps
460V
FL
Eff.
%
“C”
Dimension
(in.)
Voltage Notes
1 1800 143T 00118ST3QIE143TC 972 I1 54 1.43 85.5 12.250 460V
1.5 1800 145T 00158ST3QIE145TC 1031 I1 56 2.00 86.5 13.234 460V
2 1800 145T 00218ST3QIE145TC 1073 I1 58 2.63 86.5 13.234 460V
3 1800 182T 00318ST3QIE182TC 1289 I1 99 3.90 89.5 14.860 460V
5 1800 184T 00518ST3QIE184TC 1436 I1 108 6.40 89.5 15.860 460V
7.5 1800 213T 00718ST3QIE213TC 1726 I1 165 9.29 91.7 18.021 460V
10 1800 215T 01018ST3QIE215TC 1840 I1 172 12.6 91.7 19.517 460V
15 1800 254T 01518ST3QIE254TC 2377 I1 291 18.0 92.4 23.213 460V
20 1800 256T 02018ST3QIE256TC 2717 I1 324 24.4 93.0 24.945 460V
25 1800 284T 02518ST3QIE284TC 3126 I1 481 29.5 93.6 26.433 460V
30 1800 286T 03018ST3QIE286TC 3709 I1 525 35.1 93.6 27.929 460V
40 1800 324T 04018ST3QIE324TC 4917 I1 640 48.3 94.1 29.620 460V
50 1800 326T 05018ST3QIE326TC 5458 I1 662 60.6 94.5 31.116 460V
These models are tted with a C-Flange but still have a foot mount design for maximum mounting exibility
‘C’ FLANGE – FOOT MOUNT
• ELECTRICAL FEATURES ON PAGE B-29, B-30.
• MECHANICAL FEATURES ON PAGE B-75...B-77.
Data subject to change without notice.
Meets IEEE - 2009 Specification
www.weg.net
A-130 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-130 Data subject to change without notice.
APPLICATIONS
• Washdown application
• Food processing
• Chemical processing
• Pharmaceuticals
• Poultry processing
• Meat processing
• Dairy applications
• Bakeries
• Snack foods
• Bottling
• Corrosive environment
STANDARD FEATURES
• Threaded conduit entry for watertight
connection
• TIG welded brackets + feet
• Rated MGI Part 31 for use with VFD
• Inverter Duty 10:1 VT
• T-Drain plug included
rigid base – c-face with feet – three-phase
• High Quality 304 seamless stainless tube frame
• Premium quality 6200 series bearings
• Inverter duty wire
• VPI with Epoxy coat
• High Efciency design
• Class ‘F’ insulation materials
• 1.15 Service Factor
• Class ‘B’ rise at 1.15 Service Factor
• Thermostats on each phase-auto reset
• Nameplate data laser etched on body of motor
• Double lip seals
• American threads and bolts stainless hardware
• 4 drain plugs in cast stainless endbells
• Drains in both ends
• Bearing retainers
• Conduit box and cover made of cast 304 stainless steel
• Cast 304 stainless steel endbell at both ends
= Totally Enclosed Non-Ventilated
Definite Purpose
Stainless Steel - Shark™
HIGHLIGHTS
• All stainless parts
• Partners with stainless
steel Shark™ Variable
Frequency Drive
• ELECTRICAL FEATURES ON PAGE B-38.
• MECHANICAL FEATURES ON PAGE B-91.
THREE PHASE
For food processing, pharmaceutical and other environments requiring
extreme cleanliness and frequent washdowns, WEG offers a new
design all-stainless steel motor, called the SHARK™. It’s well-known
that nothing stands up to a wet or corrosive environment as well as
stainless steel. That’s why it’s considered the most desirable material for
washdown duty motor frames and other exterior motor surfaces. And the entire line
is certied Inverter Rated for use with a VFD. This rating meets or exceeds MG1 Part 31 NEMA Specications. The
Shark series of Stainless Steel products also includes our new Stainless Steel CFW-09 Drive Control.
APPROVED BY
LR 50.962-9/13/14
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL AMPS
230V
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
0.3 1800 56C .3318EP3ESS56C 550 S1 41 0.60 79.8 11.260 208-230/460V V
0.5
3600 56C .5036EP3ESS56C 569 S1 42 0.84 78.3 11.260 208-230/460V V
1800 56C .5018EP3ESS56C 575 S1 48 0.87 81.2 11.260 208-230/460V V
1200 56C .5012EP3ESS56C 682 S1 63 0.91 79.1 11.260 208-230/460V V
0.75
3600 56C .7536EP3ESS56C 590 S1 47 1.17 81.9 11.260 208-230/460V V
1800 56C .7518EP3ESS56C 616 S1 53 1.25 81.3 11.260 208-230/460V V
1200 56C .7512EP3ESS56C 723 S1 68 1.29 82.9 11.260 208-230/460V V
1
3600 56C 00136EP3ESS56C 649 S1 58 1.48 83.3 11.260 208-230/460V
1800 56C 00118EP3ESS56C 669 S1 60 1.58 82.3 11.260 208-230/460V
1800 56C 00118NP3ESS56C 669 S1 60 1.50 82.3 12.140 208-230/460V V
1800 143TC 00118EP3ESS143TC 714 S1 75 1.50 82.5 11.700 208-230/460V
1800 143TC 00118NP3ESS143TC 714 S1 75 1.50 82.5 12.200 208-230/460V V
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-131
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-131
Data subject to change without notice.
STAINLESS STEEL MOTORS – SHARK™
rigid base – c-face with feet – three-phase
round body footless – three-phase
= Total Enclosed Non-Ventilated = Reduced Frame w = Not available in stock
• ELECTRICAL FEATURES ON PAGE B-38.
• MECHANICAL FEATURES ON PAGE B-91.
• ELECTRICAL FEATURES ON PAGE B-38.
• MECHANICAL FEATURES ON PAGE B-91.
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL AMPS
230V
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1.5
3600 56C 00156EP3ESS56C 764 S1 64 2.05 82.3 11.260 208-230/460V
3600 143TC 00156EP3ESS143TC 777 S1 72 2.00 82.5 12.200 208-230/460V
1800 56C 00158EP3ESS56C 783 S1 65 2.01 82.0 11.670 208-230/460V
1800 145TC 00158EP3ESS145TC 790 S1 70 2.20 84.0 12.200 208-230/460V
2
3600 56C 00236EP3ESS56C 916 S1 73 2.62 83.0 13.230 208-230/460V
3600 145TC 00236EP3ESS145TC 1,005 S1 82 2.70 84.0 12.200 208-230/460V
1800 56C 00218EP3ESS56C 927 S1 78 2.69 85.0 13.230 208-230/460V
1800 145TC 00218EP3ESS145TC 1,016 S1 80 2.80 84.0 13.700 208-230/460V
3
3600 145TC 00336EP3ESS145TC 1,303 S1 90 3.80 84.0 13.700 208-230/460V ß
3600 182TC 00336EP3ESS182TC 1,303 S1 95 3.80 85.5 15.300 208-230/460V
1800 182TC 00318EP3ESS182TC 1,307 S1 102 3.90 87.5 15.300 208-230/460V
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL AMPS
230V
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
0.3 1800 56C .3318EP3ESS56CFL 550 S1 40 0.60 79.8 11.260 208-230/460V V
0.5
3600 56C .5036EP3ESS56CFL 569 S1 42 0.84 78.3 11.260 208-230/460V V
1800 56C .5018EP3ESS56CFL 575 S1 47 0.87 81.2 11.260 208-230/460V V
1200 56C .5012EP3ESS56CFL 682 S1 63 0.91 79.1 11.260 208-230/460V V
0.75
3600 56C .7536EP3ESS56CFL 590 S1 47 1.17 81.9 11.260 208-230/460V V
1800 56C .7518EP3ESS56CFL 616 S1 52 1.25 81.3 11.260 208-230/460V V
1200 56C .7512EP3ESS56CFL 723 S1 64 1.29 82.9 11.260 208-230/460V V
1
3600 56C 00136EP3ESS56CFL 649 S1 58 1.48 83.3 11.260 208-230/460V
1800 56C 00118EP3ESS56CFL 669 S1 60 1.58 82.3 11.260 208-230/460V
1800 56C 00118NP3ESS56CFL 669 S1 60 1.50 82.3 12.140 208-230/460V V
1800 143TC 00118EP3ESS143TCFL 714 S1 75 1.50 82.5 11.700 208-230/460V
1800 143TC 00118NP3ESS143TCFL 714 S1 75 1.50 82.5 12.200 208-230/460V V
1.5
3600 56C 00156EP3ESS56CFL 764 S1 63 2.05 82.3 11.260 208-230/460V
3600 145TC 00156EP3ESS145TCFL 777 S1 72 2.00 82.5 12.200 208-230/460V
1800 56C 00158EP3ESS56CFL 783 S1 64 2.01 82.0 11.670 208-230/460V
1800 145TC 00158EP3ESS145TCFL 790 S1 62 2.20 84.0 12.200 208-230/460V
2
3600 56C 00236EP3ESS56CFL 916 S1 78 2.62 83.0 13.230 208-230/460V
3600 145TC 00236EP3ESS145TCFL 1,005 S1 82 2.70 84.0 12.200 208-230/460V
1800 56C 00218EP3ESS56CFL 927 S1 78 2.69 85.0 13.230 208-230/460V
1800 145TC 00218EP3ESS145TCFL 1,016 S1 80 2.80 84.0 13.700 208-230/460V
3
3600 145TC 00336EP3ESS145TCFL 1,303 S1 90 3.80 84.0 13.700 208-230/460V t
3600 182TC 00336EP3ESS182TCFL 1,303 S1 95 3.80 85.5 15.300 208-230/460V
1800 182TC 00318EP3ESS182TCFL 1,307 S1 102 3.90 87.5 15.300 208-230/460V
Data subject to change without notice.
www.weg.net
A-132 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-132 Data subject to change without notice.
THREE PHASE
Single and double shaft end available, these motors are suitable for a wide range
of applications such as circular saws, pendulum saws, polishing machines and
others. Motors are all cast iron and have service factor 1.0. They can replace
conventional circular saw drive systems
APPLICATIONS
• Circular saws
• Pendulum saws
• Grinding machines
• Polishing machines
STANDARD FEATURES
• Three-phase, 60Hz, 2 and 4 Poles.
• Voltage: 208-230/460 V or 575 V
• 80S-MS up to 90L-MS - IEC metric frames
• Squirrel cage rotor / Aluminum die cast
• Totally Enclosed Fan Cooled - TEFC
(IP54 according to IEC34-5 standard)
• Cast iron frame
• Ball bearings
• Dimensions according to IEC 72
• Class ‘F’ insulation
• Service factor: 1.0
• Continuous duty (S1)
• 104ºF (40ºC) ambient temperature
• Altitude: 3300 ft (1000 m)
• 1045 carbon steel shaft
• F1 mount
• Stainless steel nameplate
• Paint: Enamel alkyd resin base
• Color: RAL 7022 (Dark Gray)
• PG threaded terminal box
• Temperature rise: Class ‘B’ (80º)
OPTIONAL FEATURES
• Special voltages
• Specially dimensioned shaft
• NPT, metric, etc. threaded
holes at terminal box
• Stainless steel shaft
• Double shaft
- IEC metric frame motors
- All cast iron - strong, reliable design & construction
- Single and double shaft end available
- Can advantageously replace conventional circular saw drive systems.
Definite Purpose
Saw Arbor
HIGHLIGHTS
• Reinforced cast
iron frames
• CW and CCW
rotation available
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-133
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-133
Data subject to change without notice.
TEFC – THREE-PHASE
SAW ARBOR MOTORS
• ELECTRICAL FEATURES ON PAGE B-37.
• MECHANICAL FEATURES ON PAGE B-92.
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL AMPS
230V
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
3
3600 80S 00336ES3ESA80SL 969 O1 105 4.80 79.2 18.543 208-230/460V
3600 80S 00336ES3ESA80SR 969 O1 105 4.80 79.2 18.543 208-230/460V
5
3600 80M 00536ES3ESA80ML 1,160 O1 117 7.00 85.0 20.512 208-230/460V
3600 80M 00536ES3ESA80MR 1,160 O1 117 7.00 85.0 20.512 208-230/460V
1800 90L 00518ES3ESA90LL 1,701 O1 158 7.50 84.0 26.457 208-230/460V
1800 90L 00518ES3ESA90LR 1,701 O1 158 7.50 84.0 26.457 208-230/460V
7.5
3600 80L 00736ES3ESA80LL 1,642 O1 141 10.5 87.4 22.480 208-230/460V
3600 80L 00736ES3ESA80LR 1,642 O1 141 10.5 87.4 22.480 208-230/460V
3600 80L 00736ES3HSA80LL 1,642 O1 141 10.5 87.4 22.480 575V
3600 80L 00736ES3HSA80LR 1,642 O1 141 10.5 87.4 22.480 575V
1800 90L 00718ES3ESA90LL 1,855 O1 170 10.1 84.0 26.457 208-230/460V
1800 90L 00718ES3ESA90LR 1,855 O1 170 10.1 84.0 26.457 208-230/460V
10
3600 90L 01036ES3ESA90LL 1,953 O1 170 13.0 83.0 26.457 208-230/460V
3600 90L 01036ES3ESA90LR 1,953 O1 170 13.0 83.0 26.457 208-230/460V
3600 90L 01036ES3HSA90LL 1,953 O1 170 13.0 83.0 26.457 575V
3600 90L 01036ES3HSA90LR 1,953 O1 170 13.0 83.0 26.457 575V
1800 90L 01018ES3ESA90LL 2,176 O1 182 14.4 84.0 26.457 208-230/460V
1800 90L 01018ES3ESA90LR 2,176 O1 182 14.4 84.0 26.457 208-230/460V
Data subject to change without notice.
www.weg.net
A-134 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
www.weg.net
A-134 Data subject to change without notice.
COOLING TOWER – NEMA PREMIUM EFFICIENCY
THREE PHASE – TEFC
Note: Internal Epoxy coating on all internal surfaces for corrosion prevention.
FAN
Made of rigid plastic from
frames 143T up to 505T and
aluminum for frame 586/7. Non
sparking, non toxic, resistant to
environmental conditions, and
ensures low noise operation.
BEARINGS
The bearings are dimensioned to
ensure long life to the motor, even
under heavy working conditions.
Positive pressure lubrication system
includes a drain plug that allows the
outow of excess grease on 254T
frames up to 586/7.
FAN COVER
Steel covers on 143T up to
215T frames and cast iron on
frames 254T and up
TERMINAL BOX
Oversized, cast iron construction.
Gasketed lid and between box frame.
NPT threads holes to connect conduit
or cable glands
WINDING
All copper winding wire enameled with class “H” polyester
varnish. The winding is insulated on stator slots and
between the coil phase with Class “F” insulating materials
of high dielectric rigidity and solvent free polyester resin
excellent mechanical resistance.
STATOR
Made of silicon steel
laminations thermochemically
treated to improve the electric
characteristics, reducing
electric losses and the
operating temperature.
SHAFT
Made of ASTM 1045 carbon steel. It is thermally
treated to minimize internal stress and to resist
bending and fatigue caused by torsion and exing.
Roller bearing motors use 4140 alloy steel for extra
torsional strength on applications.
V-RING SLINGER
In both endshield to protect bearings and
motor from the aggressive components
present in the environment.
DRAIN PLUG
Provided with
automatic drain plug
that quickly drains
condensation.
ENDSHIELD
Made of cast iron, with external ns for
heat dissipation. They also have polished
bearing housings for longer bearing life.
ROTOR
Aluminum die cast into a magnetic
steel lamination for low electric losses.
Dynamically balanced for smooth
operation, reduced vibration and noice.
FRAME
Made of FC-200 cast iron, with external
ns for maximum cooling effect.
NAMEPLATE
Stainless steel nameplate contains
a complete and permanent record
of all motor data (according of
NEMA requirement).
EYEBOLT
For easy handling, motor 184T
frames and larger are provided
with an eyebolt. Footless motors
are provided with two eyebolts
DEFINITE
PURPOSE
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-135
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-135
Data subject to change without notice.
TEFC – THREE PHASE – FOOT MOUNT
WEG’S Cooling Tower - NEMA Premium Efciency motors meet or exceed all NEMA Premium.
These TEFC motors are built according to NEMA specications and designed for operation in
100% humidity and the most corrosive environments. The entire line is certied Inverter
Rated for use with a VFD. They are designed to operate in either horizontal or shaft
up position. As with any other WEG motor, Cooling Tower motors are tested in
accordance with IEEE 112, Method B, and their efciency values are certied by
UL Labs (CSA C390). Cooling Tower motors will meet Design B torques, maintaining
exceedingly high breakdown and locked rotor torque while providing the highest rated
efciency levels.
• Cooling Tower
• Evaporative Condensers
• Chemical plants
• Pulp and paper mills
• Pumps
• Fans
• Packaging equipment
APPLICATIONS
• Three-phase, 4, 6, 4/8 and 6/12 pole, 60Hz,
60/50Hz (Single Speed Only)
• Voltage: 208-230/460V, 200V, 460V or 575V
• Totally Enclosed Fan Cooled – TEFC (IP55) water
tight and dust tight enclosure
• Multiple Endbell Drains for shaft up, down or
horizontal mounting
• Automatic drain plugs on T-Box
• Rubber Lead Separator (isolator) between T-Box
and Frame
• Joint Seal
• Internally and Externally Epoxy painted
• V-ring slingers on both endshields
• External Slinger (Umbrella Seal)
• Double Sealed - 2RS Ball Bearings (up to 326T)
• 1045 Carbon Steel Shaft for frames up to 365T.
• 4140 steel shaft for motors 404T and above.
(3600 RPM motors supplied with 1045)
• NEMA dimensions
• Double Impregnation and Bake
• Class ‘F’ insulation for all frames
• Class ‘H’ resin insulation system
• Temperature rise: Class ‘B’ (80ºC)
• NEMA Design ‘B’*
• Most ratings meet Design C Torque
• Service factor:
STANDARD FEATURES
• Special voltages
• Specially designed shaft
• Thermistor, Thermostats or RTD’s
(PT100)
• Additional terminal box
• Drip cover (canopy) for shaft down
applications
• Cable glands
• ‘C’ and ‘D’ anges for all ratings
• Labyrinth taconite seal available on
all ratings
• Space Heaters
OPTIONAL
FEATURES
Note:
* Design B torque rating on nameplate can be re-plated for Design C for 15 - 200Hp 1800 and 1200 rpm.
All motors are tested according to IEEE 112 Std. - Method ‘B’ or C390 CSA.
Energy efficiency motors verified by UL in addition to the DOE.
HIGHLIGHTS
• Meet or exceeds NEMA
premium efciency levels
• Single and two-speed
available
• Space Heaters
• Multiple endbell drain
• External and Internal
expoxy paint
Definite Purpose
Cooling Tower - NEMA Premium Efficiency
1.25 up to 100HP
1.15 from 125HP & up
• Continuous duty (S1)
• NPT threaded terminal box
• F2 mount
• Stainless steel nameplate AISI 316
with laser etching
• Meets NEMA MG 1 Part 31 for use
with VFD - 1000:1 Variable Torque
speed range.
APPROVED BY
LR 38324
E 104590
APPROVED BY
Data subject to change without notice.
www.weg.net
A-136 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-136 Data subject to change without notice.
COOLING TOWER – NEMA PREMIUM EFFICIENCY
SINGLE SPEED – THREE PHASE – TEFC
FOOT MOUNT - TEFC
Note:
• ELECTRICAL FEATURES ON PAGE B-14, B-15.
• MECHANICAL FEATURES ON PAGE B-95.
• Motors supplied as F2 mount are standard.
For F1 mounting add “-F1” at the end of the part number.
• Check your nearest WEG office for availability of this line.
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL Amps
@ High
Voltage
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1
1800 143T 00118ET3PCT143T 647 L1 54 3.29 85.5 12.250 200V
1800 143T 00118ET3ECT143T 647 L1 54 1.43 85.5 12.250 208-230/460V
1200 145T 00112ET3PCT145T 728 L1 56 3.98 82.5 13.234 200V
1200 145T 00112ET3ECT145T 728 L1 56 1.73 82.5 13.234 208-230/460V
1.5
1800 145T 00158ET3PCT145T 676 L1 56 4.60 86.5 13.234 200V
1800 145T 00158ET3ECT145T 676 L1 56 2.00 86.5 13.234 208-230/460V
1200 182T 00152ET3PCT182T 903 L1 79 5.50 87.5 14.860 200V
1200 182T 00152ET3ECT182T 903 L1 79 2.39 87.5 14.860 208-230/460V
2
1800 145T 00218ET3PCT145T 752 L1 58 6.05 86.5 13.234 200V
1800 145T 00218ET3ECT145T 752 L1 58 2.63 86.5 13.234 208-230/460V
1200 184T 00212ET3PCT184T 981 L1 97 7.43 88.5 15.860 200V
1200 184T 00212ET3ECT184T 981 L1 97 3.23 88.5 15.860 208-230/460V
3
1800 182T 00318ET3PCT182T 781 L1 99 8.97 89.5 14.860 200V
1800 182T 00318ET3ECT182T 781 L1 99 3.90 89.5 14.860 208-230/460V
1200 213T 00312ET3PCT213T 1,329 L1 134 10.1 89.5 18.021 200V
1200 213T 00312ET3ECT213T 1,329 L1 134 4.41 89.5 18.021 208-230/460V
5
1800 184T 00518ET3PCT184T 894 L1 108 14.7 89.5 15.860 200V
1800 184T 00518ET3ECT184T 894 L1 108 6.40 89.5 15.860 208-230/460V
1200 215T 00512ET3PCT215T 1,517 L1 175 15.7 89.5 19.517 200V
1200 215T 00512ET3ECT215T 1,517 L1 175 6.83 89.5 19.517 208-230/460V
7.5
1800 213T 00718ET3PCT213T 1,293 L1 165 21.4 91.7 18.021 200V
1800 213T 00718ET3ECT213T 1,293 L1 165 9.29 91.7 18.021 208-230/460V
1200 254T 00712ET3PCT254T 2,433 L1 282 22.4 91.0 23.213 200V
1200 254T 00712ET3ECT254T 2,433 L1 282 9.73 91.0 23.213 208-230/460V
10
1800 215T 01018ET3PCT215T 1,475 L1 172 29.0 91.7 19.517 200V
1800 215T 01018ET3ECT215T 1,475 L1 172 12.6 91.7 19.517 208-230/460V
1200 256T 01012ET3PCT256T 2,751 L1 316 30.6 91.0 24.945 200V
1200 256T 01012ET3ECT256T 2,751 L1 316 13.3 91.0 24.945 208-230/460V
15
1800 254T 01518ET3PCT254T 2,122 L1 291 41.4 92.4 23.213 200V
1800 254T 01518ET3ECT254T 2,122 L1 291 18.0 92.4 23.213 208-230/460V
1200 284T 01512ET3PCT284T 3,850 L1 360 39.8 91.7 26.433 200V
1200 284T 01512ET3ECT284T 3,850 L1 360 17.3 91.7 26.433 208-230/460V
20
1800 256T 02018ET3PCT256T 2,549 L1 324 56.1 93.0 24.945 200V
1800 256T 02018ET3ECT256T 2,549 L1 324 24.4 93.0 24.945 208-230/460V
1200 286T 02012ET3PCT286T 4,635 L1 503 55.4 91.7 27.929 200V
1200 286T 02012ET3ECT286T 4,635 L1 503 24.1 91.7 27.929 208-230/460V
25
1800 284T 02518ET3PCT284T 3,236 L1 481 67.9 93.6 26.433 200V
1800 284T 02518ET3ECT284T 3,236 L1 481 29.5 93.6 26.433 208-230/460V
1200 324T 02512ET3PCT324T 5,543 L1 605 70.2 93.0 29.620 200V
1200 324T 02512ET3ECT324T 5,543 L1 605 30.5 93.0 29.620 208-230/460V
30
1800 286T 03018ET3PCT286T 3,738 L1 525 80.7 93.6 27.929 200V
1800 286T 03018ET3ECT286T 3,738 L1 525 35.1 93.6 27.929 208-230/460V
1200 326T 03012ET3PCT326T 6,064 L1 673 82.3 93.0 31.116 200V
1200 326T 03012ET3ECT326T 6,064 L1 673 35.8 93.0 31.116 208-230/460V
40
1800 324T 04018ET3PCT324T 4,805 L1 640 111 94.1 29.620 200V
1800 324T 04018ET3ECT324T 4,805 L1 640 48.3 94.1 29.620 208-230/460V
1200 364T 04012ET3PCT364T 8,376 L1 1076 108 94.1 33.709 200V
1200 364T 04012ET3ECT364T 8,376 L1 1076 47.1 94.1 33.709 208-230/460V
50
1800 326T 05018ET3PCT326T 5,865 L1 662 139 94.5 31.116 200V
1800 326T 05018ET3ECT326T 5,865 L1 662 60.6 94.5 31.116 208-230/460V
1200 365T 05012ET3PCT365T 9,625 L1 1127 133 94.1 33.709 200V
1200 365T 05012ET3ECT365T 9,625 L1 1127 58.0 94.1 33.709 208-230/460V
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-137
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
FOOT MOUNT - TEAO
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-137
Data subject to change without notice.
COOLING TOWER – NEMA PREMIUM EFFICIENCY
SINGLE SPEED – THREE PHASE – TEFC
FOOT MOUNT - TEFC
• ELECTRICAL FEATURES ON PAGE B-14, B-15.
• MECHANICAL FEATURES ON PAGE B-95.
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL Amps
@ High
Voltage
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
60
1800 364T 06018ET3PCT364T 8,497 L1 1036 157 95.0 33.709 200V
1800 364T 06018ET3ECT364T 8,497 L1 1036 68.4 95.0 33.709 208-230/460V
1200 404T 06012ET3PCT404T 11,861 L1 1346 162 94.5 38.077 200V
1200 404T 06012ET3ECT404T 11,861 L1 1346 70.4 94.5 38.077 208-230/460V
75
1800 365T 07518ET3PCT365T 9,924 L1 1047 189 95.4 33.709 200V
1800 365T 07518ET3ECT365T 9,924 L1 1047 82.3 95.4 33.709 208-230/460V
1200 405T 07512ET3PCT405T 13,626 L1 1478 200 94.5 38.077 200V
1200 405T 07512ET3ECT405T 13,626 L1 1478 87.0 94.5 38.077 208-230/460V
100
1800 405T 10018ET3PCT405T 13,092 L1 1302 258 95.4 38.077 200V
1800 405T 10018ET3ECT405T 13,092 L1 1302 112 95.4 38.077 208-230/460V
1200 444T 10012ET3PCT444T 17,194 L1 2006 278 95.0 43.776 200V
1200 444T 10012ET3ECT444T 17,194 L1 2006 121 95.0 43.776 208-230/460V
Data subject to change without notice.
HP RPM NEMA
FRAME CATALOG NUMBER LIST PRICE MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL Amps
@ High
Voltage
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1 1800 143T 00118ET3PCTA143T 647.00 L1 54 3.29 85.5 12.148 200V
1.5 1800 145T 00158ET3PCTA145T 676.00 L1 56 4.60 86.5 13.286 200V
21800 145T 00218ET3ECTA145T 752.00 L1 58 2.63 86.5 13.286 208-230/460V
1800 145T 00218ET3PCTA145T 752.00 L1 58 6.05 86.5 13.286 200V
3
1800 182T 00318ET3ECTA182T 781.00 L1 99 3.90 89.5 14.186 208-230/460V
1800 182T 00318ET3HCTA182T 781.00 L1 99 3.12 89.5 14.186 575V
1800 182T 00318ET3PCTA182T 781.00 L1 99 8.97 89.5 14.186 200V
5
1800 184T 00518ET3ECTA184T 894.00 L1 108 6.40 89.5 15.186 208-230/460V
1800 184T 00518ET3HCTA184T 894.00 L1 108 5.12 89.5 15.186 575V
1800 184T 00518ET3PCTA184T 894.00 L1 108 14.72 89.5 15.186 200V
7.5
1800 213T 00718ET3ECTA213T 1,293.00 L1 165 9.29 91.7 17.428 208-230/460V
1800 213T 00718ET3HCTA213T 1,293.00 L1 165 7.43 91.7 17.428 575V
1800 213T 00718ET3PCTA213T 1,293.00 L1 165 21.4 91.7 17.428 200V
10
1800 215T 01018ET3ECTA215T 1,475.00 L1 172 12.6 91.7 18.928 208-230/460V
1800 215T 01018ET3HCTA215T 1,475.00 L1 172 10.1 91.7 18.928 575V
1800 215T 01018ET3PCTA215T 1,475.00 L1 172 29.0 91.7 18.928 200V
15
1800 254T 01518ET3ECTA254T 2,122.00 L1 291 18.0 92.4 22.621 208-230/460V
1800 254T 01518ET3HCTA254T 2,122.00 L1 291 14.4 92.4 22.621 575V
1800 254T 01518ET3PCTA254T 2,122.00 L1 291 41.4 92.4 22.621 200V
20
1800 256T 02018ET3ECTA256T 2,549.00 L1 324 24.4 93.0 24.353 208-230/460V
1800 256T 02018ET3HCTA256T 2,549.00 L1 324 19.5 93.0 24.353 575V
1800 256T 02018ET3PCTA256T 2,549.00 L1 324 56.1 93.0 24.353 200V
25 1800 284T 02518ET3ECTA284T 3,236.00 L1 481 29.5 93.6 25.315 208-230/460V
30 1800 286T 03018ET3ECTA286T 3,738.00 L1 525 35.1 93.6 26.811 208-230/460V
1800 286T 03018ET3PCTA286T 3,738.00 L1 525 80.7 93.6 26.811 200V
40 1800 324T 04018ET3ECTA324T 4,805.00 L1 640 48.3 94.1 28.397 208-230/460V
Note:
• Motors supplied as F2 mount are standard.
For F1 mounting add “-F1” at the end of the part number.
• Check your nearest WEG office for availability of this line.
www.weg.net
A-138 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-138 Data subject to change without notice.
COOLING TOWER – HIGH EFFICIENCY – TEFC
TWO SPEED (1 & 2 WINDINGS)
FOOT MOUNT
= DOUBLE WINDING
• MECHANICAL FEATURES ON PAGE B-95.
• TO OBTAIN ELECTRICAL FEATURES FOR THIS ITEM,
PLEASE CONTACT yOUR SALES REPRESENTATIvE.
HP RPM NEMA
FRAME
CATALOG
NUMBER
LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL Amps
@ High
Voltage
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
2.0 / 0.50 1800 / 900 145T 00289EP3PCT145V 929 H1 56 6.4 82.5 13.234 200V
3.0 / 0.75
1800 / 900 182T 00389EP3PCT182V 1,369 H1 97 9.4 85.5 14.860 200V
1800 / 900 182T 00389EP3QCT182V 1,369 H1 97 4.1 85.5 14.860 460V
5.0 / 1.25
1800 / 900 184T 00589EP3PCT184V 1,471 H1 102 15.4 86.5 15.860 200V
1800 / 900 184T 00589EP3QCT184V 1,471 H1 102 6.7 86.5 15.860 460V
1800 / 900 215T 00589EP3PCT215V2 2,262 H1 148 15.2 86.5 19.517 200V
1800 / 900 215T 00589EP3QCT215V2 2,262 H1 148 6.6 86.5 19.517 460V
7.5 / 1.75
1800 / 900 213T 00789EP3PCT213V 1,672 H1 150 21.2 88.5 18.021 200V
1800 / 900 213T 00789EP3QCT213V 1,672 H1 150 9.2 88.5 18.021 460V
1800 / 900 254T 00789EP3PCT254V2 2,808 H1 240 23.0 86.5 23.213 200V
1800 / 900 254T 00789EP3QCT254V2 2,808 H1 240 10.0 86.5 23.213 460V
10 / 2.5
1800 / 900 215T 01089EP3PCT215V 1,891 H1 165 28.8 88.5 19.517 200V
1800 / 900 215T 01089EP3QCT215V 1,891 H1 165 12.5 88.5 19.517 460V
1800 / 900 256T 01089EP3PCT256V2 3,052 H1 240 29.9 88.5 23.213 200V
1800 / 900 256T 01089EP3QCT256V2 3,052 H1 240 13.0 88.5 23.213 460V
15 / 3.75
1800 / 900 254T 01589EP3PCT254V 2,572 H1 266 43.7 89.5 23.213 200V
1800 / 900 254T 01589EP3QCT254V 2,572 H1 266 19.0 89.5 23.213 460V
1800 / 900 284T 01589EP3PCT284V2 3,878 H1 291 43.0 88.5 24.945 200V
1800 / 900 284T 01589EP3QCT284V2 3,878 H1 291 18.7 88.5 24.945 460V
2
2
2
2
2
2
2
2
Note:
• Motors supplied as F2 mount are standard.
For F1 mounting add “-F1” at the end of the part number.
• Check your nearest WEG office for availability of this line.
2
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-139
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-139
Data subject to change without notice.
FOOT MOUNT
COOLING TOWER – HIGH EFFICIENCY – TEFC
TWO SPEED (1 & 2 WINDINGS)
HP RPM NEMA
FRAME CATALOG NUMBER LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL Amps
@ High
Voltage
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
20 / 5
1800 / 900 256T 02089EP3PCT256V 2,923 H1 313 60.0 90.2 24.945 200V
1800 / 900 256T 02089EP3QCT256V 2,923 H1 313 26.1 90.2 24.945 460V
1800 / 900 286T 02089EP3PCT286V2 4,827 H1 371 57.3 90.2 27.929 200V
1800 / 900 286T 02089EP3QCT286V2 4,827 H1 371 24.9 90.2 27.929 460V
25 / 6.25
1800 / 900 286T 02589EP3PCT286V 4,199 H1 437 72.8 91.7 26.433 200V
1800 / 900 286T 02589EP3QCT286V 4,199 H1 437 31.7 91.7 26.433 460V
1800 / 900 324T 02589EP3PCT324V2 5,826 H1 477 72.9 91.0 27.929 200V
1800 / 900 324T 02589EP3QCT324V2 5,826 H1 477 31.7 91.0 27.929 460V
30 / 7.5
1800 / 900 324T 03089EP3PCT324V 4,725 H1 481 85.4 91.7 29.620 200V
1800 / 900 324T 03089EP3QCT324V 4,725 H1 481 37.1 91.7 29.620 460V
1800 / 900 326T 03089EP3PCT326V2 6,995 H1 545 86.0 91.7 29.620 200V
1800 / 900 326T 03089EP3QCT326V2 6,995 H1 545 37.4 91.7 29.620 460V
40 / 10
1800 / 900 326T 04089EP3PCT326V 5,464 H1 2543 116.0 92.4 31.116 200V
1800 / 900 326T 04089EP3QCT326V 5,464 H1 2543 50.4 92.4 31.116 460V
1800 / 900 364/5T 04089EP3PCT364V2 8,720 H1 640 111.6 91.0 31.116 200V
1800 / 900 364/5T 04089EP3QCT364V2 8,720 H1 640 48.5 91.0 31.116 460V
50 / 12.5
1800 / 900 364/5T 05089EP3PCT364V 7,526 H1 640 136.0 92.4 33.709 200V
1800 / 900 364/5T 05089EP3QCT364V 7,526 H1 640 59.1 92.4 33.709 460V
1800 / 900 364/5T 05089EP3PCT365V2 11,093 H1 1015 134.6 91.7 33.709 200V
1800 / 900 364/5T 05089EP3QCT365V2 11,093 H1 1015 58.5 91.7 33.709 460V
60 / 15
1800 / 900 364/5T 06089EP3PCT365V 11,068 H1 963 162.0 93.0 33.709 200V
1800 / 900 364/5T 06089EP3QCT365V 11,068 H1 963 70.4 93.0 33.709 460V
75 / 18.75
1800 / 900 404/5T 07589EP3PCT404V 14,226 H1 1010 197.0 93.0 38.077 200V
1800 / 900 404/5T 07589EP3QCT404V 14,226 H1 1010 85.7 93.0 38.077 460V
100 / 25
1800 / 900 444/5T 10089EP3PCT444V 16,398 H1 1273 274.0 94.1 43.776 200V
1800 / 900 444/5T 10089EP3QCT444V 16,398 H1 1273 119.1 94.1 43.776 460V
Data subject to change without notice.
2
2
2
2
2
2
2
2
= DOUBLE WINDING
• MECHANICAL FEATURES ON PAGE B-95.
• TO OBTAIN ELECTRICAL FEATURES FOR THIS ITEM,
PLEASE CONTACT yOUR SALES REPRESENTATIvE.
Note:
• Motors supplied as F2 mount are standard.
For F1 mounting add “-F1” at the end of the part number.
• Check your nearest WEG office for availability of this line.
2
www.weg.net
A-140 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-140 Data subject to change without notice.
HP RPM NEMA
FRAME
CATALOG
NUMBER
LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL
AMPS
230V
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1/4 1800 48 .2518OS1BRBOB48 274 F1B 20 1.35 2.65 10.632 115/208-230 3, 12, 15
1/3
1800 48 .3318OS1BRBOC48 284 F1B 23 1.35 3.30 11.417 115/208-230 3, 12, 15
1800 56 .3318OS1BRBOC56 288 F1B 23 1.35 3.30 10.551 115/208-230 3, 12, 15
1800 56 .3318OS1PRBOC56 289 F1B 22 1.35 2.58 11.593 277 3, 12
1/2
1800 48 .5018OS1BRBOC48 311 F1B 24 1.25 4.25 11.417 115/208-230 3, 12, 15
1800 56 .5018OS1BRBOC56 316 F1B 24 1.25 4.25 10.551 115/208-230 3, 12, 15
1800 56 .5018OS1PRBOC56 317 F1B 24 1.25 3.30 11.593 277 3, 12
3/4 1800 56 .7518OS1BRBOD56 379 F1B 36 1.25 5.40 12.283 115/208-230 3, 12
1800 56 .7518OS1PRBOD56 380 F1B 36 1.25 4.80 12.993 277 3, 12
11800 56 00118OS1BRBOD56 408 F1B 39 1.15 7.00 12.283 115/208-230 3, 12
1800 56 00118OS1PRBOD56 409 F1B 36 1.15 5.40 12.993 277 3, 12
1 1/2 3600 56 00156OS1BRBOD56 386 F1B 40 1.15 8.90 12.283 115/208-230 3, 12
1800 56 00158OS1BRBOD56 491 F1B 51 1.15 9.70 13.464 115/208-230 3, 12
RESILIENT BASE SINGLE-PHASE - ODP
APPROVED BY
LR 38324
Definite Purpose
Commercial HVAC Motors
SINGLE PHASE
WEG poultry fan motors are specically designed for agricultural fan
applications. Mounted within the airstream for proper cooling, the totally
enclosed design ensures long life in poultry house and barn exhaust fan
applications.
Designed for air moving applications, mounted within the airstream for proper
cooling offered as ODP or TEAO.
• Single-phase, 4 & 4/6 pole, 60Hz
• Three-phase, 4, pole, 60Hz
• Totally Enclosed Air Over (TEAO) or Open drip
proof (ODP)
• Double shielded ball bearings (ZZ)
• Squirrel cage rotor
• Class ‘B’ insulation (130oC)
• Continuous Duty (S1)
• Automatic Thermal Overload (ATO) for 10
• Rotation: Reversible (except evaporative)
• Resilient base or rigid base (evaporative
cooler motors supplied w/o base)
• Exhaust fan
• Blowers
• Air Conditioning equipment
APPLICATIONS STANDARD FEATURES
HIGHLIGHTS
•Automatic thermal
overload
• Resillient base
OPTIONAL FEATURES
• Class ‘F’ insulation
• Special voltages
• Specially dimensioned shaft
E 104590
APPROVED BY
• ELECTRICAL FEATURES ON PAGE B-39.
• MECHANICAL FEATURES ON PAGE B-73 & B-93.
3 - Automatic Thermal Overload Protector
12 - Reslient Base
15 - Split-Phase motor
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-141
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-141
Data subject to change without notice.
COMMERCIAL HVAC MOTORS
HP RPM NEMA
FRAME
CATALOG
NUMBER
LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL
AMPS
230V
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1/3 1800 56 .3318OS3ERBB56 279 F1B 23 1.35 1.40 11.023 208-230/460 12
1/2 1800 56 .5018OS3ERBB56 310 F1B 24 1.25 1.84 11.023 208-230/460 12
3/4 1800 56 .7518OS3ERBE56 339 F1B 28 1.25 2.70 11.811 208-230/460 12
1 1800 56 00118OS3ERBE56 356 F1B 30 1.15 3.40 11.811 208-230/460 12
1.5 1800 56 00158OS3ERBE56 364 F1B 35 1.15 4.60 12.992 208-230/460 12
1 1/2 3600 56 00156OS1BRBOD56 386 F1B 40 1.15 8.90 12.283 115/208-230 12
RESILIENT BASE THREE-PHASE - ODP
HP RPM NEMA
FRAME
CATALOG
NUMBER
LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL
AMPS
230V
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1/3 1800 48 .3318ES1BPFC48 311 G2 23 1.25 2.90 10.748 115/208-230 3, 15
1/2 1800 56 .5018ES1BPFC56 336 G2 27 1.25 4.00 11.102 115/208-230 3, 15
3/4 1800 56 .7518ES1BPFB56 414 G2 33 1.25 5.50 11.125 115/208-230 3
1 1800 56 00118ES1BPFD56 449 G2 35 1.15 7.00 12.306 115/208-230 3
RIGID BASE SINGLE-PHASE - TEAO
• ELECTRICAL FEATURES ON PAGE B-39.
• MECHANICAL FEATURES ON PAGE B-73 & B-93.
HP RPM NEMA
FRAME
CATALOG
NUMBER
LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
SF
FL
AMPS
115V
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1/3 1800 56 .3318OS1AEC56 156 F1B 19 1.00 6.60 9.528 115 3, 15
1/3-1/9 1800 / 1200 56 .3382OS1AEC56 188 F1B 19 1.00 6.60 / 3.70 9.528 115 3
1/2 1800 56 .5018OS1AEC56 164 F1B 20 1.00 8.20 9.528 115 3, 15
1/2-1/6 1800 / 1200 56 .5082OS1AEC56 199 F1B 20 1.00 8.20/4.60 9.528 115 3
3/4 1800 56 .7518OS1AEC56 201 F1B 24 1.00 10.40 9.528 115 3
3/4-1/4 1800 / 1200 56 .7582OS1AEC56 251 F1B 24 1.00 10.40 / 5.50 9.528 115 3
1-1/3 1800 / 1200 56 00182OS1AEC56 364 F1B 28 1.00 12.10 / 7.10 10.965 115 3
EVAPORATIVE COOLER MOTORS SINGLE-PHASE - ODP
(BASE AND CLAMPS NOT SUPPLIED)
3 - Automatic Thermal Overload Protector
12 - Reslient Base
15 - Split-Phase motor
HP RPM NEMA
FRAME
CATALOG
NUMBER
LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL
AMPS
230V
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1/3 1800 48 .3318ES1BRBPFC48 325 G1 23 1.25 2.90 10.748 115/208-230 3, 12, 15
1/2 1800 56 .5018ES1BRBPFC56 350 G1 27 1.25 4.00 11.102 115/208-230 3, 12, 15
3/4 1800 56 .7518ES1BRBPFB56 433 G1 33 1.25 5.50 11.125 115/208-230 3, 12
1 1800 56 00118ES1BRBPFD56 469 G1 35 1.15 7.00 12.306 115/208-230 3, 12
RESILIENT BASE SINGLE-PHASE - TEAO
Data subject to change without notice.
www.weg.net
A-142 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-142 Data subject to change without notice.
EPACT CC# CC029A
* Design B torque rating on nameplate can be re-plated for Design C for 15 - 200Hp 1800 and 1200 rpm.
All motors are tested according to IEEE 112 std. - method ‘B’ or C390 CSA .
Energy efficiency motors verified by UL in addition to the DOE.
APPROVED BY
LR 38324
• Fans, where the motor is in the airstreams • Efciency Certication number CC029A
according to US Department of Energy
Regulations
• Three-phase, 2, 4 and 6 pole, 60Hz
• Voltage: 208-230/460V
• IP55 - water tight and dust tight enclosure
• Squirrel cage rotor / Aluminum die cast
• V-ring slingers on both endshields
• 1045 Carbon Steel Shaft for frames up to 365T.
• Class ‘F’ insulation for all frames
• Class ‘H’ impregnation resin
• Temperature rise: Class ‘B’ (80ºC)
• NEMA ratings design ‘B’
• Service Factor: 1.25 up to 100HP
• Continuous duty (S1)
• Detached T-Box and Extended Leads
• Two Stainless steel nameplates AISI 316
with laser etching
• Paint: Synthetic enamel alkyd resin base
(exceeds ASTM B117 salt spray test)
• Automatic drain plugs - pressure compensated
• Regreasable bearings, positive pressure
lubrication system (frames 254T and up)
• Meets NEMA MG 1 Part 31 for use with VFD at
1000:1 Variable torque speed range
• Special voltages
• Specially designed shaft
• Thermal Protection
• Additional terminal box
• Special epoxy painting
TEAO – THREE PHASE FOOT & FLANGE MOUNT
WEG’S Pad Mount - The efciency values are certied according to the DOE’s
regulations (Certicate of Compliance number CC029A). These TEAO motors are
all cast iron construction, with enclosures rated IP55. They are provided with
a detached terminal box and extended leads for remote installation. They are
painted with WEG’s own special system, using synthetic enamel alkyd resin
paints, which exceed the ASTM B117 standard for salt spray test. The Pad
Mount line is rated for 1.25 Service Factor up to 100HP. And the entire line is
certied Inverter Rated for use with a VFD. This rating meets or exceeds MG 1
Part 31 NEMA Specications.
APPLICATIONS STANDARD FEATURES
OPTIONAL FEATURES
Definite Purpose
Pad Mount
HIGHLIGHTS
• Detached terminal box
and external leads
• Two stainless steel
nameplates
E 104590
APPROVED BY
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-143
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-143
Data subject to change without notice.
EPACT CC# CC029A
pad mount
• ELECTRICAL FEATURES ON PAGE B-6, B-7.
• TO OBTAIN MECHANICAL FEATURES FOR THIS ITEM,
PLEASE CONTACT yOUR SALES REPRESENTATIvE.
HP RPM NEMA
FRAME
CATALOG
NUMBER
LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL
AMPS
230V
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1
1800 143T 00118EP3EPM143/5Y 465 Y1 43 1.49 82.5 12.250 208-230/460V
1200 145T 00112EP3EPM143/5Y 575 Y1 43 1.70 80.0 13.234 208-230/460V u
1.5
3600 143T 00156EP3EPM143/5Y 486 Y1 41 1.99 82.5 12.250 208-230/460V
1800 145T 00158EP3EPM143/5Y 466 Y1 50 2.05 84.0 13.234 208-230/460V
1200 182T 00152EP3EPM182/4Y 709 Y1 73 2.38 85.5 14.860 208-230/460V u
2
3600 145T 00236EP3EPM143/5Y 549 Y1 43 2.60 84.0 13.234 208-230/460V
1800 145T 00218EP3EPM143/5Y 521 Y1 52 2.70 84.0 13.234 208-230/460V
1200 184T 00212EP3EPM182/4Y 771 Y1 83 3.20 86.5 15.860 208-230/460V u
3
3600 182T 00336EP3EPM182/4Y 653 Y1 101 3.59 85.5 14.860 208-230/460V
1800 182T 00318EP3EPM182/4Y 585 Y1 92 3.90 87.5 14.860 208-230/460V
1200 213T 00312EP3EPM213/5Y 1,006 Y1 118 4.15 87.5 18.021 208-230/460V u
5
3600 184T 00536EP3EPM182/4Y 813 Y1 109 5.90 87.5 15.860 208-230/460V
1800 184T 00518EP3EPM182/4Y 692 Y1 96 6.48 87.5 15.860 208-230/460V
7.5
3600 213T 00736EP3EPM213/5Y 1,090 Y1 144 8.66 88.5 18.021 208-230/460V
1800 213T 00718EP3EPM213/5Y 940 Y1 144 9.53 89.5 18.021 208-230/460V
1200 254T 00712EP3EPM254/6Y 1,861 Y1 256 9.53 89.5 23.213 208-230/460V u
10
3600 215T 01036EP3EPM213/5Y 1,268 Y1 144 11.7 89.5 19.517 208-230/460V
1800 215T 01018EP3EPM213/5Y 1,119 Y1 159 12.8 90.2 19.517 208-230/460V
15
3600 254T 01536EP3EPM254/6Y 1,801 Y1 270 17.0 90.2 23.213 208-230/460V
1800 254T 01518EP3EPM254/6Y 1,658 Y1 256 17.9 91.0 23.213 208-230/460V
20 1800 256T 02018EP3EPM254/6Y 2,035 Y1 303 24.4 91.0 24.945 208-230/460V
25 1800 284T 02518EP3EPM284/6Y 2,458 Y1 423 29.6 92.4 26.433 208-230/460V
30 1800 286T 03018EP3EPM284/6Y 3,008 Y1 467 34.4 92.4 27.929 208-230/460V
40 1800 324T 04018EP3EPM324/6Y 4,069 Y1 573 47.6 93.0 29.620 208-230/460V
50 1800 326T 05018EP3EPM324/6Y 4,536 Y1 624 57.8 93.6 31.116 208-230/460V u
60 1200 404T 06012EP3EPM404/5Y 10,017 Y1 1206 70.1 93.6 38.077 208-230/460V u
Data subject to change without notice.
PAD MOUNT
www.weg.net
A-144 Data subject to change without notice.
DEFINITE
PURPOSE
Data subject to change without notice.
DEFINITE
PURPOSE
www.weg.net
A-144 Data subject to change without notice.
pad mount
• ELECTRICAL FEATURES ON PAGE B-14 & B-15.
• TO OBTAIN MECHANICAL FEATURES FOR THIS ITEM,
PLEASE CONTACT yOUR SALES REPRESENTATIvE.
= Product may not be available from stock
PAD MOUNT – NEMA PREMIUM
THREE PHASE MOTORS
HP RPM NEMA
FRAME
CATALOG
NUMBER
LIST
PRICE
MULT.
SYM.
APPROX.
SHIPP.
WEIGHT
(LBS.)
FL
AMPS
230V
FL
Eff.
%
“C”
DIMENSION
(IN.)
VOLTAGE NOTES
1 1800 143T 00118ET3EPM143/5Y 594 Y1 50 1.43 85.5 12.250 208-230/460V
1.5
3600 143T 00156ET3EPM143/5Y 613 Y1 41 1.98 84.0 12.250 208-230/460V
1800 145T 00158ET3EPM143/5Y 617 Y1 52 2.00 86.5 13.234 208-230/460V
2
3600 145T 00236ET3EPM143/5Y 661 Y1 48 2.65 85.5 13.234 208-230/460V
1800 145T 00218ET3EPM143/5Y 685 Y1 54 2.63 86.5 13.234 208-230/460V
3
3600 182T 00336ET3EPM182/4Y 847 Y1 94 3.68 87.5 14.860 208-230/460V
1800 182T 00318ET3EPM182/4Y 735 Y1 94 3.90 89.5 14.860 208-230/460V
1200 213T 00312ET3EPM213/5Y 1,274 Y1 129 4.41 89.5 18.021 208-230/460V u
5
3600 184T 00536ET3EPM182/4Y 985 Y1 109 5.76 89.5 15.860 208-230/460V
1800 184T 00518ET3EPM182/4Y 855 Y1 102 6.40 89.5 15.860 208-230/460V
7.5
3600 213T 00736ET3EPM213/5Y 1,248 Y1 128 8.63 91.0 18.021 208-230/460V
1800 213T 00718ET3EPM213/5Y 1,240 Y1 159 9.29 91.7 18.021 208-230/460V
10
3600 215T 01036ET3EPM213/5Y 1,477 Y1 167 11.5 91.7 19.517 208-230/460V
1800 215T 01018ET3EPM213/5Y 1,450 Y1 166 12.6 91.7 19.517 208-230/460V
1200 256T 01012ET3EPM254/6Y 2,611 Y1 310 13.3 91.0 24.945 208-230/460V u
15
3600 254T 01536ET3EPM254/6Y 2,005 Y1 270 16.9 91.7 23.213 208-230/460V
1800 254T 01518ET3EPM254/6Y 2,050 Y1 281 18.0 92.4 23.213 208-230/460V
1200 284T 01512ET3EPM284/6Y 3,652 Y1 350 17.3 91.7 26.433 208-230/460V u
20
1800 256T 02018ET3EPM254/6Y 2,441 Y1 314 24.4 93.0 24.945 208-230/460V
1200 286T 02012ET3EPM284/6Y 4,437 Y1 493 24.1 91.7 27.929 208-230/460V u
25
1800 284T 02518ET3EPM284/6Y 3,071 Y1 467 29.5 93.6 26.433 208-230/460V
1200 324T 02512ET3EPM324/6Y 5,353 Y1 591 30.5 93.0 29.620 208-230/460V u
30
1800 286T 03018ET3EPM284/6Y 3,610 Y1 511 35.1 93.6 27.929 208-230/460V
1200 326T 03012ET3EPM324/6Y 5,906 Y1 659 35.8 93.0 31.116 208-230/460V u
40
1800 324T 04018ET3EPM324/6Y 4,638 Y1 626 48.3 94.1 29.620 208-230/460V
1200 364T 04012ET3EPM364/5Y 8,084 Y1 1062 47.1 94.1 33.709 208-230/460V u
50 1800 326T 05018ET3EPM324/6Y 5,661 Y1 646 60.6 94.5 31.116 208-230/460V u
Data subject to change without notice.
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-145
Data subject to change without notice. Data subject to change without notice.
DEFINITE
PURPOSE
Can’t nd what you are looking for? Call 1-800-ASK-4WEG (275-4934) A-145
Data subject to change without notice.
• ELECTRICAL FEATURES ON PAGE B-38.
• MECHNICAL FEATURES ON PAGE B-94.
• ADDITIONAL INFORMATION ON A-146
tenv vector duty
HP RPM MAX
RPM
NEMA
FRAME
CATALOG
NUMBER
LIST
PRICE
MULT.
SYM.
APPROX.
WT.
(LBS)
FL
AMPS
(460V)
“C”
DIM.
(IN)
VOLTAGE
1 1800 2700 143TC 00118ET3EVD143TC 647 D1 49 1.41 11.203 230/460
1.5 1800 2700 145TC 00158ET3EVD145TC 705 D1 55 2.08 12.188 230/460
2 1800 2700 145TC 00218ET3EVD145TC 928 D1 60 2.66 12.188 230/460
3 1800 2700 182TC 00318ET3EVD182TC 1150 D1 97 3.81 12.919 230/460
5 1800 2700 184TC 00518ET3EVD184TC 1373 D1 99 6.88 13.919 230/460
7.5 1800 2700 213TC 00718ET3EVD213TC 1803 D1 168 9.35 16.125 230/460
10 1800 2700 215TC 01018ET3EVD215TC 2157 D1 175 12.74 17.220 230/460
15 1800 2700 254TC 01518ET3EVD254TC 2567 D1 300 20.5 21.021 230/460
TENV – THREE PHASE – FOOT MOUNT
Designed specifically for Inverter Operation, allowing its use in
applications where 1000:1 constant torque turndown ratio is
required.
• Conveyors
• Crane and Hoists
• Extruders
• Metal Processing
• Any that would require
constant torque over a
wide speed range
APPLICATIONS
• Designed to meet NEMA Premium Efficiency
Levels
• Constant torque operation from 0 to base
speed (1000:1) on PWM Vector Drive
• Constant Horsepower operation to 150% base
speed at 40oC ambient
• C-face mount with feet
• Spike Resistant Wire
• Ready for Encoder mount (requires stub shaft)
• With Thermostats (1 per phase)
• Totally Enclosed Non-Ventilated
• V-Ring Seals
• Standard NEMA frame sizes
• Special nameplate data for easy drive setup
• IP55
• All Cast Iron Construction
STANDARD FEATURES
• Different mounting configurations
• Thermistors
• Space heater
• IP56, 65, 66 ratings
• Tropicalized Internal Painting
• Special shaft seals
• Encoder
• Brake
OPTIONAL
FEATURES
HIGHLIGHTS
• Standard NEMA
frame sizes
• IP55
• 1000:1 Constant Torque
Definite Purpose
Vector Duty Motors
Data subject to change without notice.
PAD MOUNT – NEMA PREMIUM
THREE PHASE MOTORS
www.weg.net
A-146 Data subject to change without notice.
DEFINITE
PURPOSE
DEFINITE
PURPOSE
www.weg.net
A-146 Data subject to change without notice.
= Product may not be available from stock
TENV VECTOR DUTY
THREE PHASE MOTORS
encoder*
Catalog
Number Description PPR Magnetic
or Optical Input Voltage Bore
(in)
Connec-
tor
List
Price
Mult.
Sym.
Approx.
Wt.(lbs) NOTES
ECHSD38-D ** HSD38 Dynapar 1024 Optical 5-26V (7272) 5/8 10 Pin 1418 PARTS.I 4
ECHS25A-A HS25A Avtron 1024 Optical 5-28V (7272) 5/8 10 Pin 1423 PARTS.I 2 u
ECHS35A-A HS35A Avtron 1024 Optical 5-28V (7272) 5/8 10 Pin 1590 PARTS.I 3 u
ECHS35M-A HS35M Avtron 1024 Magnetic 5-24V (7272) 5/8 10 Pin 2150 PARTS.I 2 u
* For correct assembly, please select adequate stub shaft
** Provided with Encoder guard
stub shafts 5/8” diameter
Catalog Number Description Dia (in) List Price Mult. Sym. Approx. Wt.
(lbs)
STUBSHAFT-140 Stub shaft for TENV 140T frames 5/8 125 PARTS.I 0.5
STUBSHAFT-180-280 Stub shaft for TENV 180T up to 280T frames 5/8 125 PARTS.I 0.5
motor / stub shaft / encoder configuration
Motor Stub Shaft Encoder Options
00118ET3EVD143TC
STUBSHAFT-140
ECHSD38-D ECHS25A-A
ECHS35A-A ECHS35M-A
00158ET3EVD145TC
00218ET3EVD145TC
00318ET3EVD182TC
STUBSHAFT-180-280
00518ET3EVD184TC
00718ET3EVD213TC
01018ET3EVD215TC
01518ET3EVD254TC
feedback cable assembly with ms connector
Catalog Number Cable Length List Price Mult. Sym. Appr. Wt. (lbs)
ENCCBLMS-10 10 ft 232 PARTS.I 2
ENCCBLMS-20 20 ft 413 PARTS.I 3
ENCCBLMS-30 30 ft 454 PARTS.I 4
ENCCBLMS-50 50 ft 672 PARTS.I 6
