Puro sound Labs BT2200 Bluetooth headphone User Manual Quickstart One Sheet1

PURO Sound Labs, LLC Bluetooth headphone Quickstart One Sheet1

Users Manual

B T 2200 STUDIO GRADEKIDS WIRELESS HEADPHONESQUICK START GUIDECongratulations on your purchase of a Puro Sound Labs children’s wireless headphones. Hearinghealth is a life-long endeavor andwe’re dedicated to buildingproducts that promote Healthy Ears®while delivering incredible sound and value. Thank you for your purchase. Please read the User Manual to get the most out of your new headphones.® WARRANT YPuro Sound Labs, LLC warrants the original owner of this product against manufacturing and material defects under normal use for a period of one (1) year from the date of retail purchase from Puro Sound Labs or a Puro Sound Labs authorized reseller. The warranty does not cover damages resulting from misuse, abuse, water damage, normal wear and tear, or modification. For warranty claims, please visit http://purosound.com/support for instructions.Puro Sound Labs, at its sole discretion will repair or replace the product, or refund the original owner the purchase price.REGIS T R A TIO NTo receive the most up-to-date information about your product, please register at: http://purosound.com/registerF C C STAT E MENTFCC ID: TThis product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. This device may not cause harmful interference and this device must accept any interference received, including interference that may cause undesired operation.If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna• Increase the separation between the equipment or devices• Connect the equipment to an outlet other than the receiver’s• Consult a dealer or an experienced radio/TV technician for assistanceMUSIC US E1. Choose media to playback and adjust the volume to your desired level.2. Place the headphones on your (or your child’s head), the size can be adjusted by pulling the “arms” down or pushing them back into the “headband”3. The Bluetooth button can be used to pause and resume playback of music.4. The Vol+ and Vol- buttons can be pressed or held to adjust volume to the desired level.PHONE US EInitiate calls on your mobile handset. Music playback will be paused for the duration of the call. A short press of the Bluetooth button will end the phone call.For incoming calls, a tone will sound on the Bluetooth headphones. • A short press of the Bluetooth button will answer the call.• A one second press of the Bluetooth button will reject the call. Hold the Bluetooth button until a tone is heard, then release.• A three second press of the Bluetooth button will transfer the call back to the handset. • Another three second press while the phone call is underway will return the call to the headphones.WIRED U S EWired use may be necessary in the following circumstances:• The battery has been depleted.• No Bluetooth connection is available on the source device.• Use of wireless radios is restricted.To use the wired connection, identify the limiter housing. It is a rubber molded bump in the cable labeled “Puro Limiter”. The limiter housing end of the cable must be plugged into the headphones for the limiter to function properly. The other (long) end of the cable can then be connected to the source device.When returning to wireless use, remove the 3.5mm cable. 2ADSG-BT2200

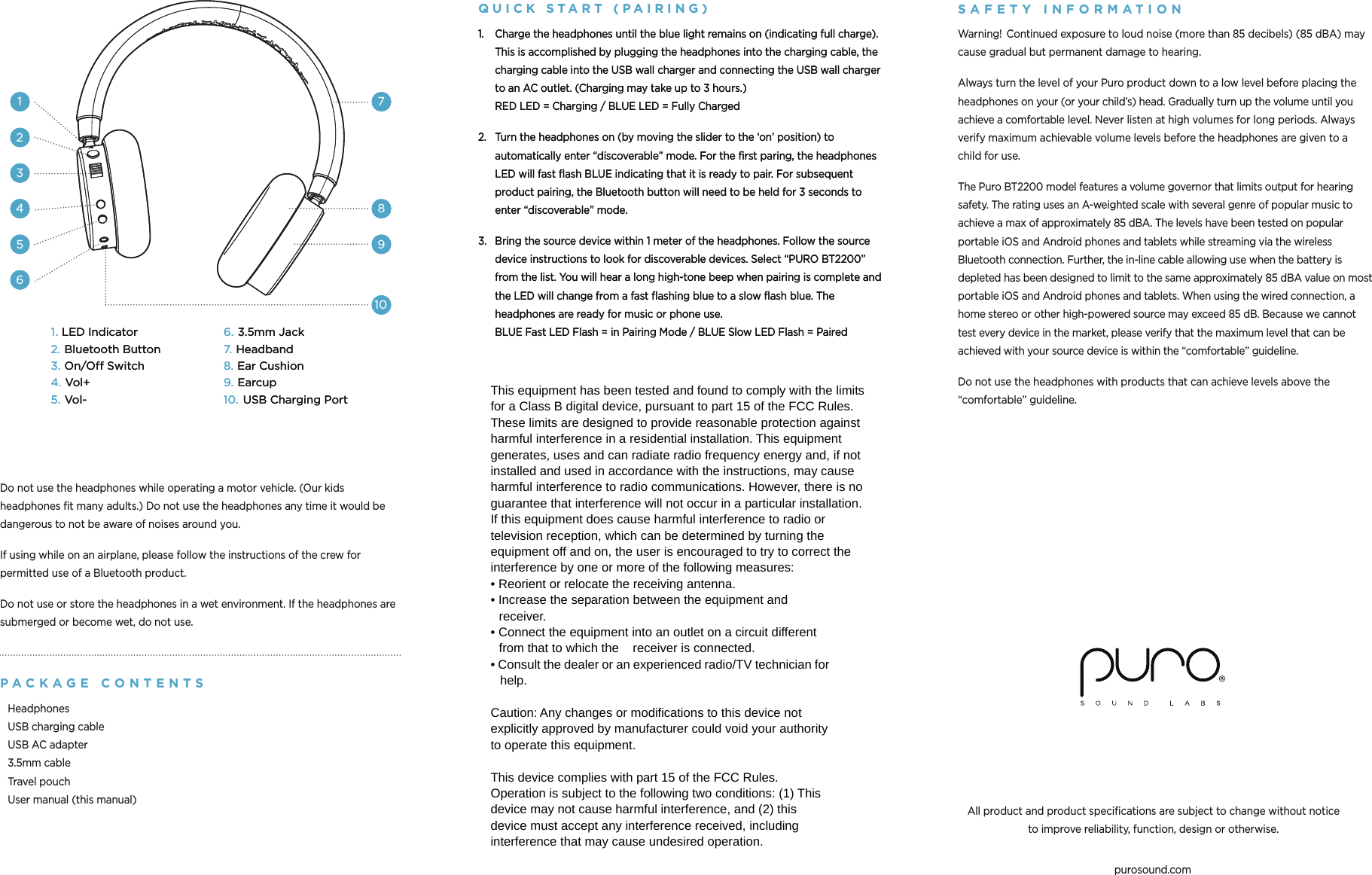

purosound.comAll product and product specifications are subject to change without notice to improve reliability, function, design or otherwise.1. LED Indicator2. Bluetooth Button3. On/Off Switch4. Vol+5. Vol-6. 3.5mm Jack7. Headband8. Ear Cushion9. Earcup10. USB Charging Port162738491051. Charge the headphones until the blue light remains on (indicating full charge). This is accomplished by plugging the headphones into the charging cable, the charging cable into the USB wall charger and connecting the USB wall charger to an AC outlet. (Charging may take up to 3 hours.) RED LED = Charging / BLUE LED = Fully Charged2. Turn the headphones on (by moving the slider to the ‘on’ position) to automatically enter “discoverable” mode. For the first paring, the headphones LED will fast flash BLUE indicating that it is ready to pair. For subsequent product pairing, the Bluetooth button will need to be held for 3 seconds to enter “discoverable” mode.3. Bring the source device within 1 meter of the headphones. Follow the source device instructions to look for discoverable devices. Select “PURO BT2200” from the list. You will hear a long high-tone beep when pairing is complete and the LED will change from a fast flashing blue to a slow flash blue. The headphones are ready for music or phone use. BLUE Fast LED Flash = in Pairing Mode / BLUE Slow LED Flash = Paired1. LED Indicator2. Bluetooth Button3. On/Off Switch4. Vol+5. Vol-6. 3.5mm Jack7. Headband8. Ear Cushion9. Earcup10. USB Charging Port162738491051. Charge the headphones until the blue light remains on (indicating full charge). This is accomplished by plugging the headphones into the charging cable, the charging cable into the USB wall charger and connecting the USB wall charger to an AC outlet. (Charging may take up to 3 hours.) RED LED = Charging / BLUE LED = Fully Charged2. Turn the headphones on (by moving the slider to the ‘on’ position) to automatically enter “discoverable” mode. For the first paring, the headphones LED will fast flash BLUE indicating that it is ready to pair. For subsequent product pairing, the Bluetooth button will need to be held for 3 seconds to enter “discoverable” mode.3. Bring the source device within 1 meter of the headphones. Follow the source device instructions to look for discoverable devices. Select “PURO BT2200” from the list. You will hear a long high-tone beep when pairing is complete and the LED will change from a fast flashing blue to a slow flash blue. The headphones are ready for music or phone use. BLUE Fast LED Flash = in Pairing Mode / BLUE Slow LED Flash = PairedSAFETY INFORM A TIO NWarning! Continued exposure to loud noise (more than 85 decibels) (85 dBA) may cause gradual but permanent damage to hearing.Always turn the level of your Puro product down to a low level before placing the headphones on your (or your child’s) head. Gradually turn up the volume until you achieve a comfortable level. Never listen at high volumes for long periods. Always verify maximum achievable volume levels before the headphones are given to a child for use.The Puro BT2200 model features a volume governor that limits output for hearing safety. The rating uses an A-weighted scale with several genre of popular music to achieve a max of approximately 85 dBA. The levels have been tested on popular portable iOS and Android phones and tablets while streaming via the wireless Bluetooth connection. Further, the in-line cable allowing use when the battery is depleted has been designed to limit to the same approximately 85 dBA value on most portable iOS and Android phones and tablets. When using the wired connection, a home stereo or other high-powered source may exceed 85 dB. Because we cannot test every device in the market, please verify that the maximum level that can be achieved with your source device is within the “comfortable” guideline.Do not use the headphones with products that can achieve levels above the “comfortable” guideline.Do not use the headphones while operating a motor vehicle. (Our kids headphones fit many adults.) Do not use the headphones any time it would be dangerous to not be aware of noises around you.If using while on an airplane, please follow the instructions of the crew for permitted use of a Bluetooth product.Do not use or store the headphones in a wet environment. If the headphones are submerged or become wet, do not use.P A C K A G E CONTENT SHeadphones USB charging cable USB AC adapter 3.5mm cable Travel pouch User manual (this manual)QUICK S T A R T ( PAIRING ) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
