RF101 Functional Specification
Introduction

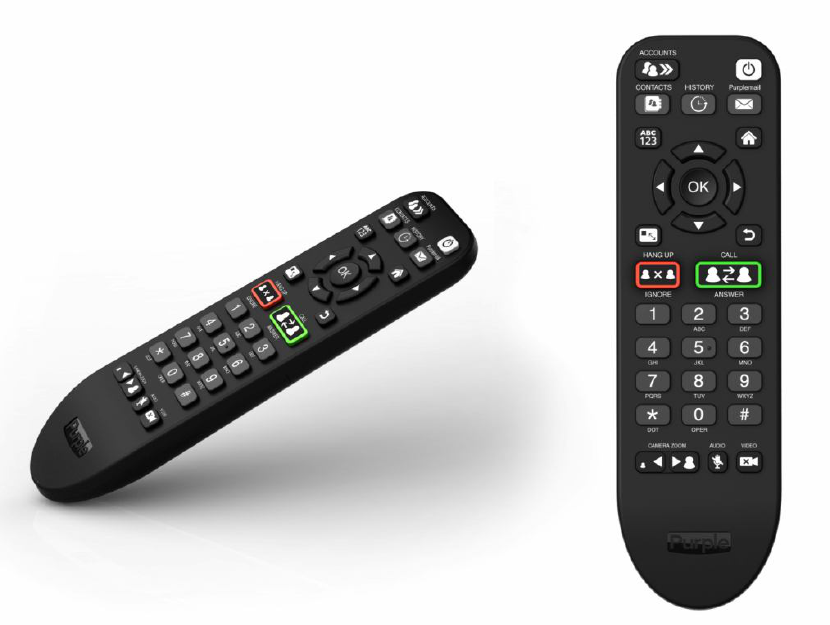

An RF remote control and USB receiver receptacle that is recognized
as an HID device in windows with number 0-9 input,4-way
directional pad with OK button in the middle,#(pound or hash) and
*(asterisk),and the named function buttons assigned system
functionality per the table in the Keys definition.
Product ID
Pic 1. Transmitter’s ID
Product Specification
List 1. Transmitter’s parameter
modulation GFSK
Frequency Range 2.4~2.4835GHz
Transmitted Power 0 dBm
Battery 2 AAA Battery,3V
Working Current <25mA
Standby Current <15uA
Ambient Temperature -40—85℃
RC Dimension 180mm*52mm*24mm
PCB Material & Size FR4 1.2mm 134.5*41mm
Housing Material ABS
List 2. Receiver’s parameter
modulation GFSK
Frequency Range 2.4~2.4835GHz
Transmitted Power 0 dBm
Power Supply USB 5V
Working Current <25mA
Ambient Temperature -40—85℃
PCB Material & Size FR4 0.8mm 24*16mm

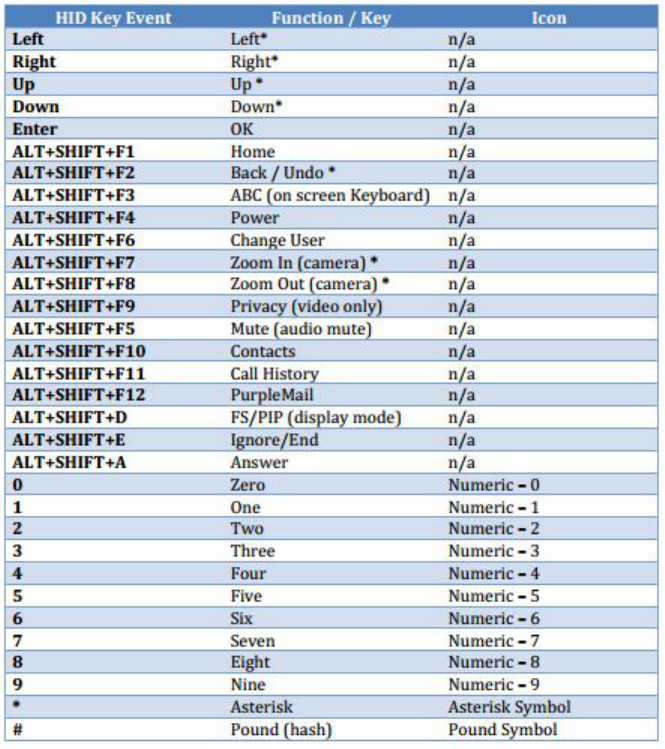

The keys definition:
1. Board Schematics (remote)
Pairing Procedure
Before operating the remote control, user have to pair the target
device with the remote control,the remote should be paired with
the target (USB dongle) as steps below pairing process:
A. First be sure that the device is on,then approach USB dongle
press,hold “1” button and “9” button at the same time for 3
seconds.
B. LED of the remote control will turn on to indicate that it is now
pairing mode. Remote control will search the target
device.Remote control sends pairing request to the device.LED
of remote will blink three times slowly(blink one time each
second) if pairing procedure finish successfully.
