Pycom SIPY1 sipy User Manual

Pycom Ltd sipy

User Manual

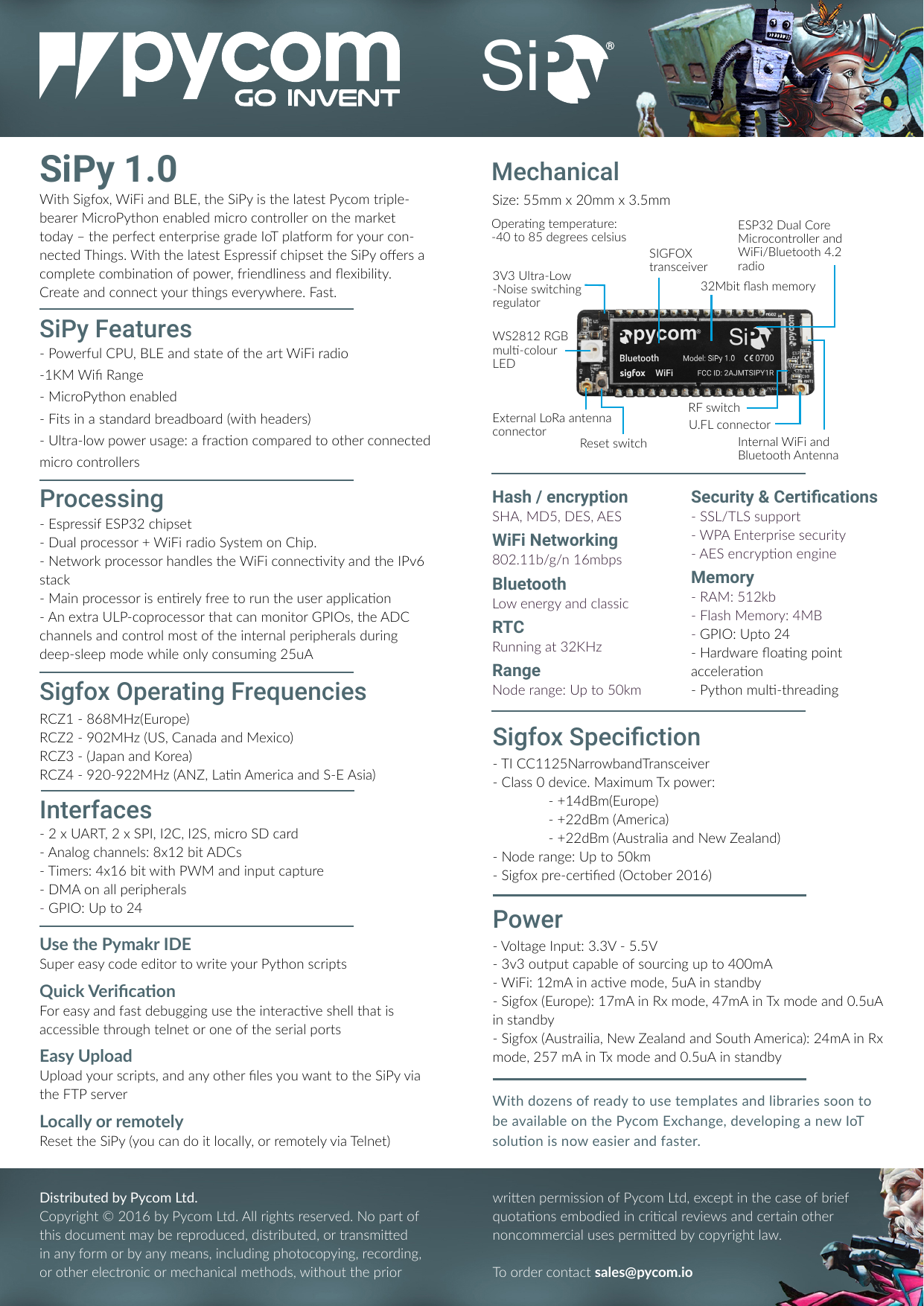

RCZ1 - 868MHz(Europe)RCZ2 - 902MHz (US, Canada and Mexico)RCZ3 - (Japan and Korea)RCZ4 - 920-922MHz (ANZ, Lan America and S-E Asia)SiPy 1.0With Sigfox, WiFi and BLE, the SiPy is the latest Pycom triple- bearer MicroPython enabled micro controller on the market today – the perfect enterprise grade IoT plaorm for your con-nected Things. With the latest Espressif chipset the SiPy oers a complete combinaon of power, friendliness and exibility.Create and connect your things everywhere. Fast.Distributed by Pycom Ltd.Copyright © 2016 by Pycom Ltd. All rights reserved. No part of this document may be reproduced, distributed, or transmied in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior - Espressif ESP32 chipset- Dual processor + WiFi radio System on Chip.- Network processor handles the WiFi connecvity and the IPv6 stack- Main processor is enrely free to run the user applicaon- An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA- Powerful CPU, BLE and state of the art WiFi radio-1KM Wi Range- MicroPython enabled- Fits in a standard breadboard (with headers)- Ultra-low power usage: a fracon compared to other connected micro controllersSiPy FeaturesUse the Pymakr IDESuper easy code editor to write your Python scriptsQuick VericaonFor easy and fast debugging use the interacve shell that is accessible through telnet or one of the serial portsEasy UploadUpload your scripts, and any other les you want to the SiPy via the FTP serverLocally or remotelyReset the SiPy (you can do it locally, or remotely via Telnet)MechanicalProcessing Hash / encryptionSHA, MD5, DES, AESWiFi Networking802.11b/g/n 16mbpsBluetoothLow energy and classicRTCRunning at 32KHzRangeNode range: Up to 50km- 2 x UART, 2 x SPI, I2C, I2S, micro SD card- Analog channels: 8x12 bit ADCs- Timers: 4x16 bit with PWM and input capture- DMA on all peripherals- GPIO: Up to 24- Voltage Input: 3.3V - 5.5V- 3v3 output capable of sourcing up to 400mA- WiFi: 12mA in acve mode, 5uA in standby- Sigfox (Europe): 17mA in Rx mode, 47mA in Tx mode and 0.5uA in standby- Sigfox (Austrailia, New Zealand and South America): 24mA in Rx mode, 257 mA in Tx mode and 0.5uA in standbyInterfacesPowerSize: 55mm x 20mm x 3.5mmSecurity & Certications- SSL/TLS support- WPA Enterprise security- AES encrypon engineMemory- RAM: 512kb- Flash Memory: 4MB- GPIO: Upto 24- Hardware oang point acceleraon- Python mul-threadingwrien permission of Pycom Ltd, except in the case of brief quotaons embodied in crical reviews and certain other noncommercial uses permied by copyright law.To order contact sales@pycom.io- TI CC1125NarrowbandTransceiver- Class 0 device. Maximum Tx power:  - +14dBm(Europe)  - +22dBm (America)  - +22dBm (Australia and New Zealand)- Node range: Up to 50km- Sigfox pre-cered (October 2016)Sigfox Operating FrequenciesSigfox SpecictionExternal LoRa antenna connector Reset switch32Mbit ash memorySIGFOX transceiverU.FL connectorRF switchESP32 Dual Core Microcontroller and WiFi/Bluetooth 4.2 radioInternal WiFi and Bluetooth AntennaWith dozens of ready to use templates and libraries soon to be available on the Pycom Exchange, developing a new IoT soluon is now easier and faster.WS2812 RGB mul-colour LED3V3 Ultra-Low-Noise switching regulatorOperang temperature: -40 to 85 degrees celsiusSi
EU Regulatory ConformanceHereby, Pycom Ltd declares that this device is in compliance with the essenal requirements and other relevant provisions of Direcve 1999/5/ECFederal Communicaon Commission Interference StatementThis device complies with Part 15 of the FCC Rules. Operaon is subject to the following two condions:  (1) This device may not cause harmful interference.  (2) This device must accept any interference received, including interference that may cause undesired operaon.  CAUTION:  Changes or modicaons not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residenal installaon.  This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons.However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.- Increase the separaon between the equipment and receiver.- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.RF Warning StatementTo comply with FCC RF exposure compliance requirements, the antennas used for this transmier must be installed to provide a separaon distance of at least 20 cm from all persons and must notbe co-located or operang in conjuncon with any other antenna or transmier.This device is intended only for OEM integrators under the following condions:1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and2) The transmier module may not be co-located with any other transmier or antenna.As long as 2 condions above are met, further transmier test will not be required.However, the OEM integrator is sll responsible for tesng their end-product for any addional compliance requirements required with this module installed.To ensure compliance with all non-transmier funcons the host manufacturer is responsible for ensuring compliance with the module(s) installed and fully operaonal. For example, if a host was previously authorized as an unintenonal radiator under the Declaraon of Conformity procedure without a transmier cered module and a module is added, the host manufacturer is responsible for ensuring that the aer the module is installed and operaonal the host connues to be compliant with the Part 15B unintenonal radiator requirements. The module is limited to OEM installaon ONLY.The module is limited to installaon in mobile or xed applicaon.We hereby acknowledge our responsibility to provide guidance to the host manufacturer in the event that they require assistance for ensuring compliance with the Part 15 Subpart B requirements.IMPORTANT NOTE: In the event that these condions cannot be met (for example certain laptop conguraons or co-locaon with another transmier), then the FCC authorizaon is no longer considered valid and the FCC ID cannot be used on the nal product. In these circumstances, the OEM integrator will be responsible for reevaluang the end product(including the transmier) and obtaining a separate FCC authorizaon.End Product LabelingThis transmier module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The nal end product must be labeled in a visible area with the following: “Contains FCC ID: 2AJMTSIPY1”. The grantee's FCC ID can be used only when all FCC compliance requirements are met.The following FCC part 15.19 statement has to also be available on the label:This device complies with Part 15 of FCC rules. Operaon is subject to the following two condions:(1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operaon.Manual Informaon to the End UserThe OEM integrator has to be aware not to provide informaon to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module.In the user manual of the end product, the end user has to be informed that the equipment complies with FCC radio-frequency exposure guidelines set forth for an uncontrolled environment.The end user has to also be informed that any changes or modicaons not expressly approved by the manufacturer could void the user's authority to operate this equipment.The end user manual shall include all required regulatory informaon/warning as show in this manual.The maximum operang ambient temperature of the equipment declared by the manufacturer is-20~+85Creceiver category 3

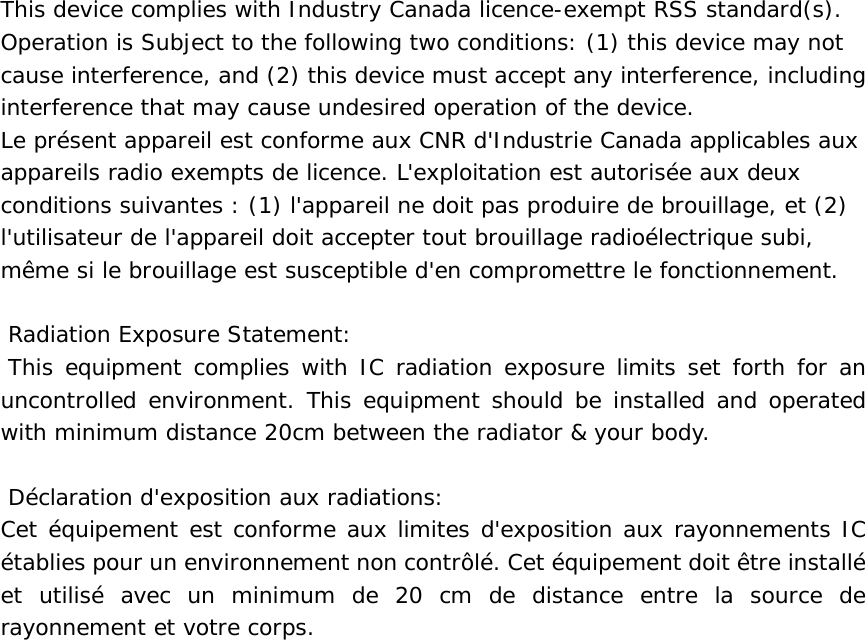

  This device complies with Industry Canada licence-exempt RSS standard(s). Operation is Subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.   Radiation Exposure Statement:  This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.    Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
