Python Perfect Cutter PC1103RF01 Python Perfect Cutter User Manual

Python Perfect Cutter Inc. Python Perfect Cutter

User Manual

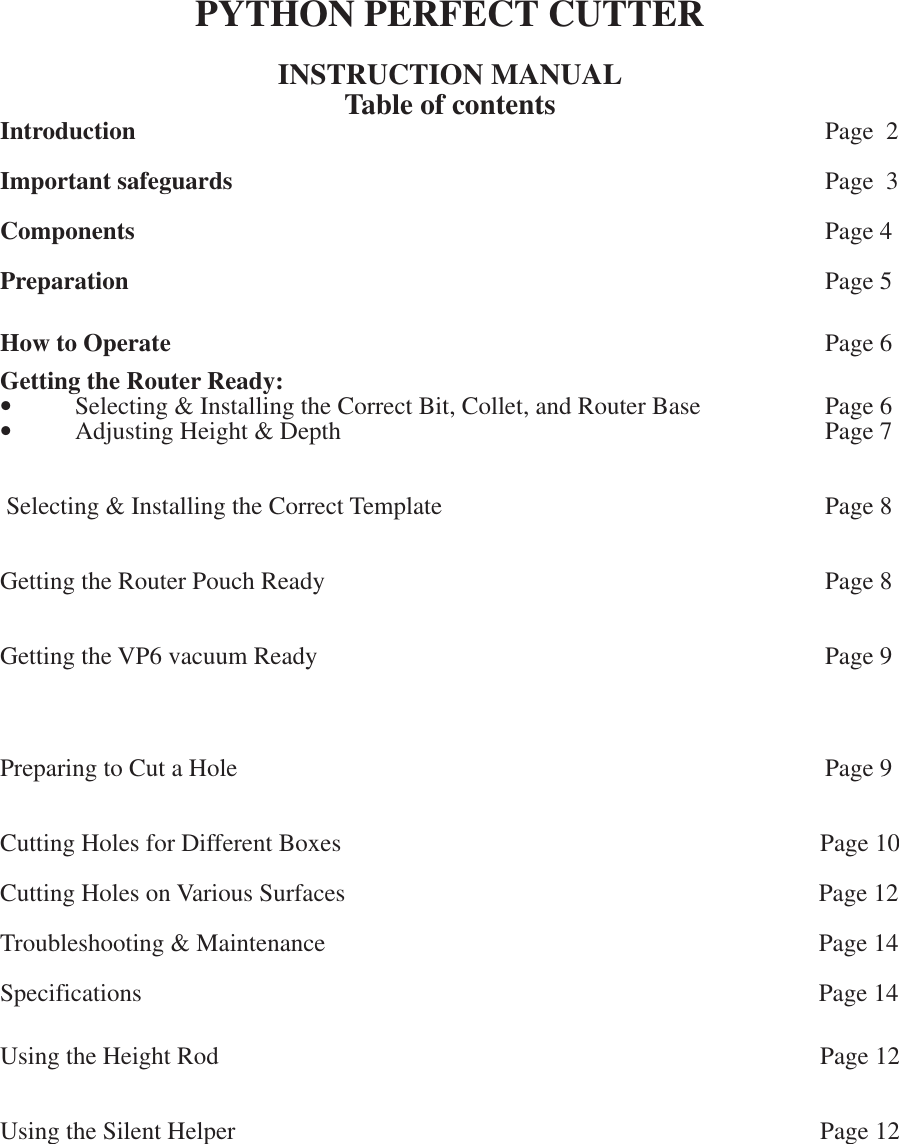

PYTHON PERFECT CUTTERINSTRUCTION MANUALTable of contentsIntroduction Page 2Important safeguards Page 3Components Page 4Preparation Page 5How to Operate Page 6Getting the Router Ready:•Selecting & Installing the Correct Bit, Collet, and Router Base Page 6•Adjusting Height & Depth Page 7 Selecting & Installing the Correct Template Page 8Getting the Router Pouch Ready Page 8Getting the VP6 vacuum Ready Page 9Preparing to Cut a Hole Page 9Cutting Holes for Different Boxes Page 10Cutting Holes on Various Surfaces Page 12Troubleshooting & Maintenance Page 14Specifications Page 14Using the Height Rod Page 12Using the Silent Helper Page 12

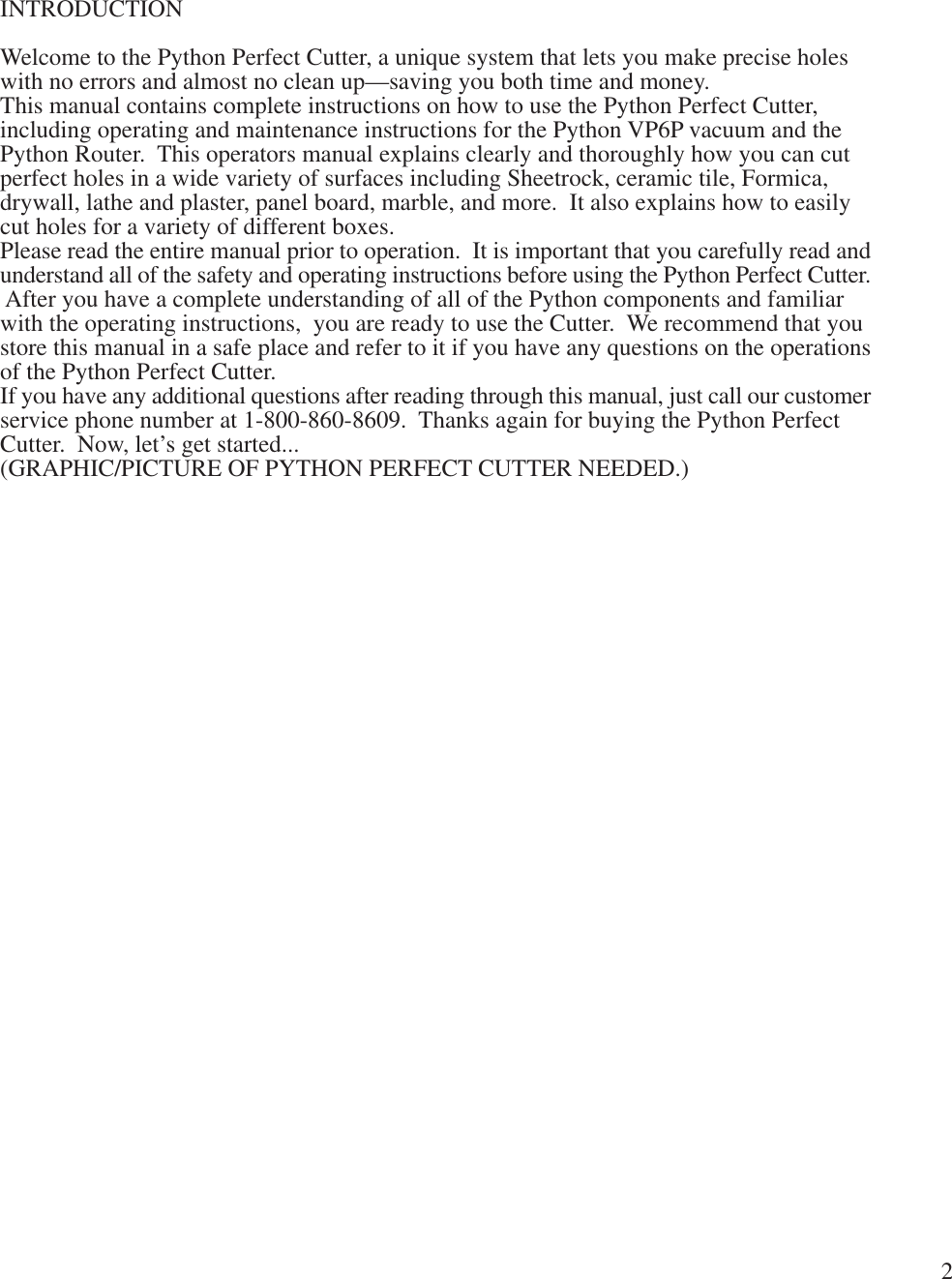

INTRODUCTIONWelcome to the Python Perfect Cutter, a unique system that lets you make precise holeswith no errors and almost no clean up—saving you both time and money.This manual contains complete instructions on how to use the Python Perfect Cutter,including operating and maintenance instructions for the Python VP6P vacuum and thePython Router. This operators manual explains clearly and thoroughly how you can cutperfect holes in a wide variety of surfaces including Sheetrock, ceramic tile, Formica,drywall, lathe and plaster, panel board, marble, and more. It also explains how to easilycut holes for a variety of different boxes.Please read the entire manual prior to operation. It is important that you carefully read andunderstand all of the safety and operating instructions before using the Python Perfect Cutter. After you have a complete understanding of all of the Python components and familiarwith the operating instructions, you are ready to use the Cutter. We recommend that youstore this manual in a safe place and refer to it if you have any questions on the operationsof the Python Perfect Cutter.If you have any additional questions after reading through this manual, just call our customerservice phone number at 1-800-860-8609. Thanks again for buying the Python PerfectCutter. Now, let’s get started...(GRAPHIC/PICTURE OF PYTHON PERFECT CUTTER NEEDED.)2

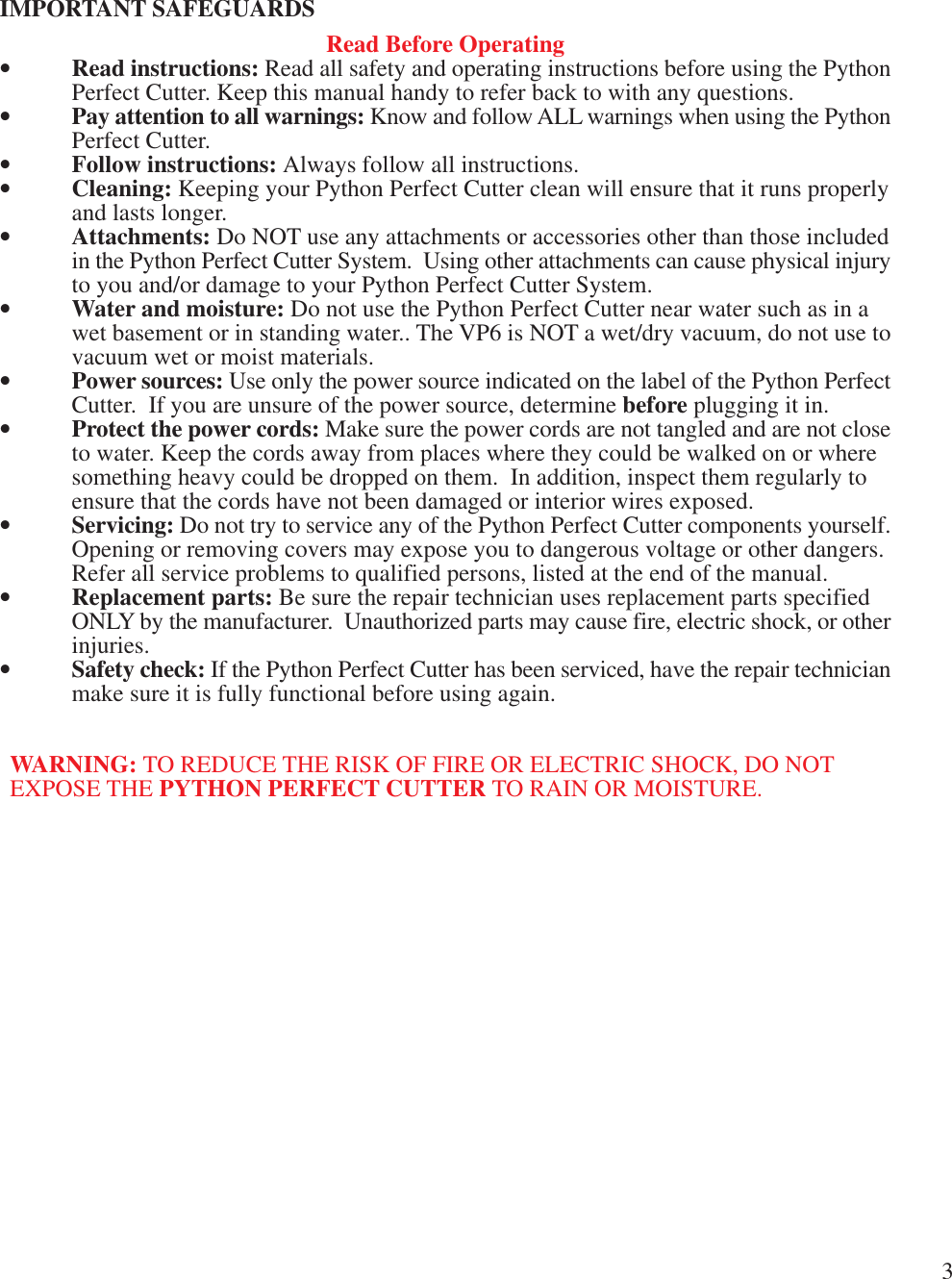

IMPORTANT SAFEGUARDSRead Before Operating•Read instructions: Read all safety and operating instructions before using the PythonPerfect Cutter. Keep this manual handy to refer back to with any questions.•Pay attention to all warnings: Know and follow ALL warnings when using the PythonPerfect Cutter.•Follow instructions: Always follow all instructions.•Cleaning: Keeping your Python Perfect Cutter clean will ensure that it runs properlyand lasts longer.•Attachments: Do NOT use any attachments or accessories other than those includedin the Python Perfect Cutter System. Using other attachments can cause physical injuryto you and/or damage to your Python Perfect Cutter System.•Water and moisture: Do not use the Python Perfect Cutter near water such as in a wet basement or in standing water.. The VP6 is NOT a wet/dry vacuum, do not use tovacuum wet or moist materials.•Power sources: Use only the power source indicated on the label of the Python PerfectCutter. If you are unsure of the power source, determine before plugging it in.•Protect the power cords: Make sure the power cords are not tangled and are not closeto water. Keep the cords away from places where they could be walked on or where something heavy could be dropped on them. In addition, inspect them regularly to ensure that the cords have not been damaged or interior wires exposed.•Servicing: Do not try to service any of the Python Perfect Cutter components yourself.Opening or removing covers may expose you to dangerous voltage or other dangers.Refer all service problems to qualified persons, listed at the end of the manual.•Replacement parts: Be sure the repair technician uses replacement parts specified ONLY by the manufacturer. Unauthorized parts may cause fire, electric shock, or otherinjuries.•Safety check: If the Python Perfect Cutter has been serviced, have the repair technicianmake sure it is fully functional before using again.WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOTEXPOSE THE PYTHON PERFECT CUTTER TO RAIN OR MOISTURE.3

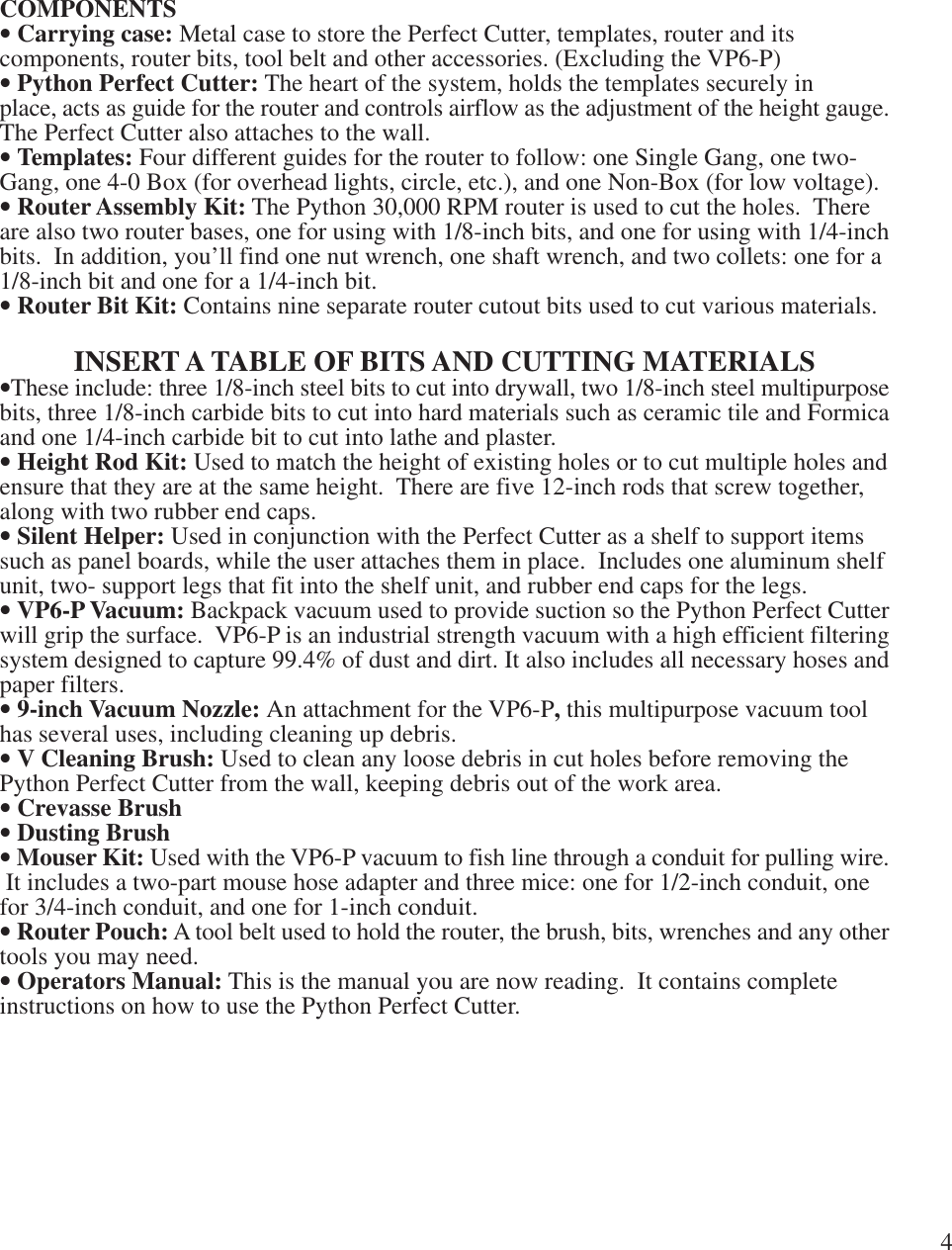

COMPONENTS• Carrying case: Metal case to store the Perfect Cutter, templates, router and its components, router bits, tool belt and other accessories. (Excluding the VP6-P)• Python Perfect Cutter: The heart of the system, holds the templates securely in place, acts as guide for the router and controls airflow as the adjustment of the height gauge.The Perfect Cutter also attaches to the wall.• Templates: Four different guides for the router to follow: one Single Gang, one two-Gang, one 4-0 Box (for overhead lights, circle, etc.), and one Non-Box (for low voltage).• Router Assembly Kit: The Python 30,000 RPM router is used to cut the holes. Thereare also two router bases, one for using with 1/8-inch bits, and one for using with 1/4-inchbits. In addition, you’ll find one nut wrench, one shaft wrench, and two collets: one for a1/8-inch bit and one for a 1/4-inch bit.• Router Bit Kit: Contains nine separate router cutout bits used to cut various materials.INSERT A TABLE OF BITS AND CUTTING MATERIALS•These include: three 1/8-inch steel bits to cut into drywall, two 1/8-inch steel multipurposebits, three 1/8-inch carbide bits to cut into hard materials such as ceramic tile and Formicaand one 1/4-inch carbide bit to cut into lathe and plaster.• Height Rod Kit: Used to match the height of existing holes or to cut multiple holes andensure that they are at the same height. There are five 12-inch rods that screw together,along with two rubber end caps.• Silent Helper: Used in conjunction with the Perfect Cutter as a shelf to support itemssuch as panel boards, while the user attaches them in place. Includes one aluminum shelfunit, two- support legs that fit into the shelf unit, and rubber end caps for the legs.• VP6-P Vacuum: Backpack vacuum used to provide suction so the Python Perfect Cutterwill grip the surface. VP6-P is an industrial strength vacuum with a high efficient filteringsystem designed to capture 99.4% of dust and dirt. It also includes all necessary hoses andpaper filters.• 9-inch Vacuum Nozzle: An attachment for the VP6-P, this multipurpose vacuum toolhas several uses, including cleaning up debris.• V Cleaning Brush: Used to clean any loose debris in cut holes before removing thePython Perfect Cutter from the wall, keeping debris out of the work area.• Crevasse Brush• Dusting Brush• Mouser Kit: Used with the VP6-P vacuum to fish line through a conduit for pulling wire. It includes a two-part mouse hose adapter and three mice: one for 1/2-inch conduit, onefor 3/4-inch conduit, and one for 1-inch conduit.• Router Pouch: A tool belt used to hold the router, the brush, bits, wrenches and any othertools you may need.• Operators Manual: This is the manual you are now reading. It contains completeinstructions on how to use the Python Perfect Cutter.4

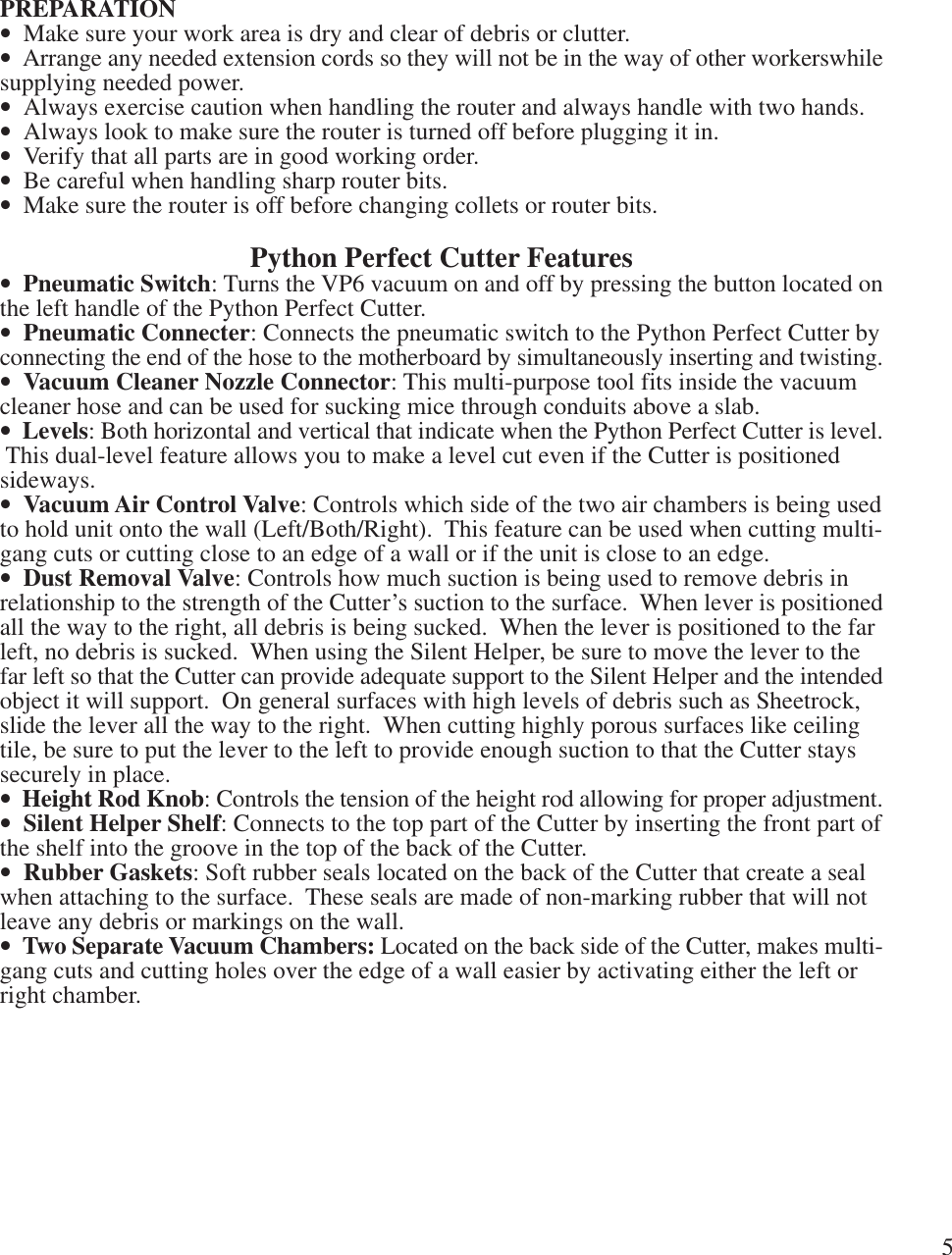

PREPARATION• Make sure your work area is dry and clear of debris or clutter.• Arrange any needed extension cords so they will not be in the way of other workerswhilesupplying needed power.• Always exercise caution when handling the router and always handle with two hands.• Always look to make sure the router is turned off before plugging it in.• Verify that all parts are in good working order.• Be careful when handling sharp router bits.• Make sure the router is off before changing collets or router bits.Python Perfect Cutter Features• Pneumatic Switch: Turns the VP6 vacuum on and off by pressing the button located onthe left handle of the Python Perfect Cutter.• Pneumatic Connecter: Connects the pneumatic switch to the Python Perfect Cutter byconnecting the end of the hose to the motherboard by simultaneously inserting and twisting.• Vacuum Cleaner Nozzle Connector: This multi-purpose tool fits inside the vacuumcleaner hose and can be used for sucking mice through conduits above a slab.• Levels: Both horizontal and vertical that indicate when the Python Perfect Cutter is level. This dual-level feature allows you to make a level cut even if the Cutter is positionedsideways.• Vacuum Air Control Valve: Controls which side of the two air chambers is being usedto hold unit onto the wall (Left/Both/Right). This feature can be used when cutting multi-gang cuts or cutting close to an edge of a wall or if the unit is close to an edge.• Dust Removal Valve: Controls how much suction is being used to remove debris inrelationship to the strength of the Cutter’s suction to the surface. When lever is positionedall the way to the right, all debris is being sucked. When the lever is positioned to the farleft, no debris is sucked. When using the Silent Helper, be sure to move the lever to thefar left so that the Cutter can provide adequate support to the Silent Helper and the intendedobject it will support. On general surfaces with high levels of debris such as Sheetrock,slide the lever all the way to the right. When cutting highly porous surfaces like ceilingtile, be sure to put the lever to the left to provide enough suction to that the Cutter stayssecurely in place.• Height Rod Knob: Controls the tension of the height rod allowing for proper adjustment.• Silent Helper Shelf: Connects to the top part of the Cutter by inserting the front part ofthe shelf into the groove in the top of the back of the Cutter.• Rubber Gaskets: Soft rubber seals located on the back of the Cutter that create a sealwhen attaching to the surface. These seals are made of non-marking rubber that will notleave any debris or markings on the wall.• Two Separate Vacuum Chambers: Located on the back side of the Cutter, makes multi-gang cuts and cutting holes over the edge of a wall easier by activating either the left orright chamber.5

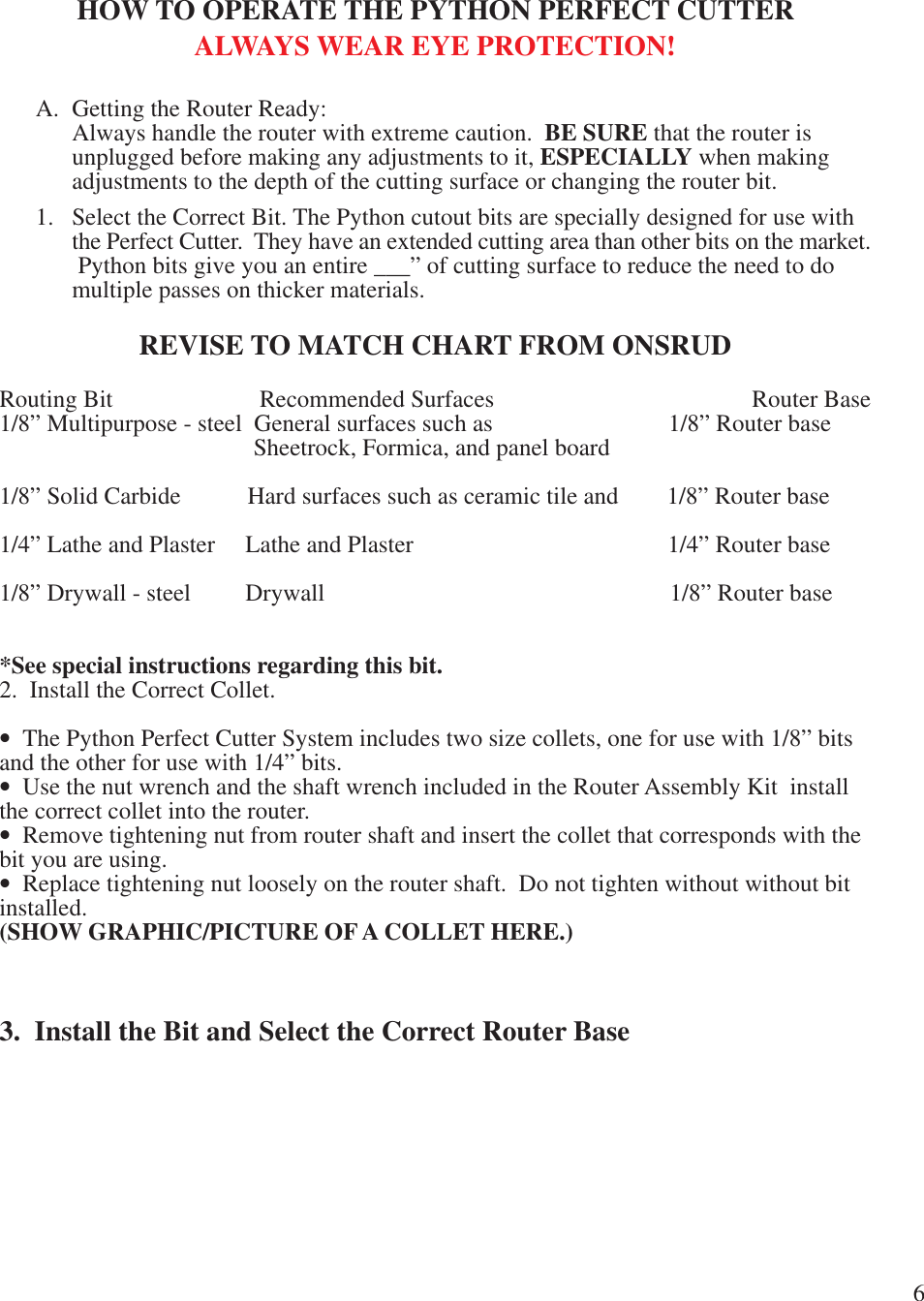

HOW TO OPERATE THE PYTHON PERFECT CUTTERALWAYS WEAR EYE PROTECTION!A. Getting the Router Ready:Always handle the router with extreme caution. BE SURE that the router isunplugged before making any adjustments to it, ESPECIALLY when makingadjustments to the depth of the cutting surface or changing the router bit.1. Select the Correct Bit. The Python cutout bits are specially designed for use withthe Perfect Cutter. They have an extended cutting area than other bits on the market. Python bits give you an entire ___” of cutting surface to reduce the need to domultiple passes on thicker materials.REVISE TO MATCH CHART FROM ONSRUDRouting Bit Recommended Surfaces Router Base1/8” Multipurpose - steel General surfaces such as 1/8” Router base Sheetrock, Formica, and panel board1/8” Solid Carbide Hard surfaces such as ceramic tile and 1/8” Router base1/4” Lathe and Plaster Lathe and Plaster 1/4” Router base1/8” Drywall - steel Drywall 1/8” Router base*See special instructions regarding this bit.2. Install the Correct Collet.• The Python Perfect Cutter System includes two size collets, one for use with 1/8” bitsand the other for use with 1/4” bits.• Use the nut wrench and the shaft wrench included in the Router Assembly Kit installthe correct collet into the router.• Remove tightening nut from router shaft and insert the collet that corresponds with thebit you are using.• Replace tightening nut loosely on the router shaft. Do not tighten without without bitinstalled.(SHOW GRAPHIC/PICTURE OF A COLLET HERE.)3. Install the Bit and Select the Correct Router Base6

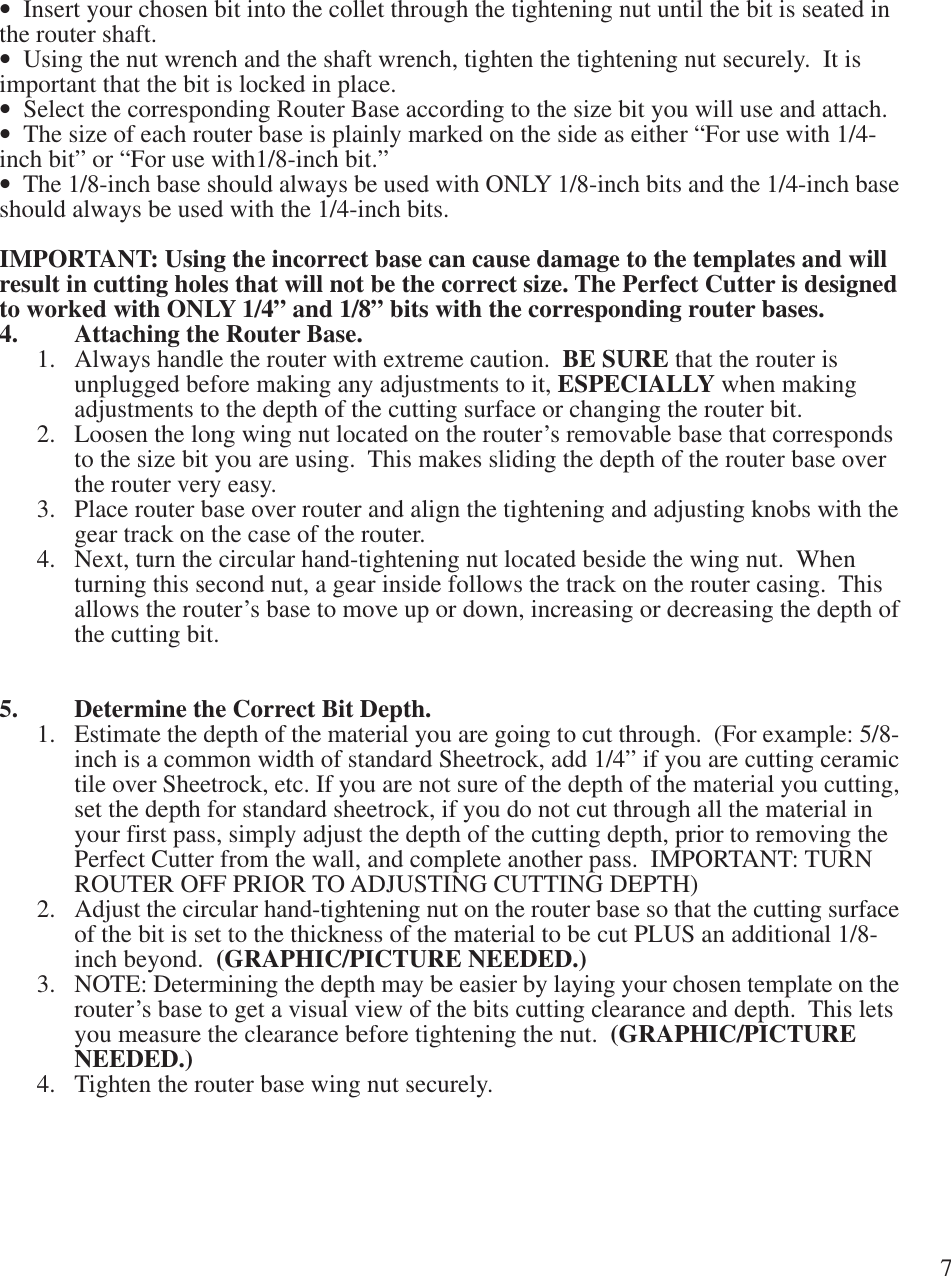

• Insert your chosen bit into the collet through the tightening nut until the bit is seated inthe router shaft.• Using the nut wrench and the shaft wrench, tighten the tightening nut securely. It isimportant that the bit is locked in place.• Select the corresponding Router Base according to the size bit you will use and attach.• The size of each router base is plainly marked on the side as either “For use with 1/4-inch bit” or “For use with1/8-inch bit.”• The 1/8-inch base should always be used with ONLY 1/8-inch bits and the 1/4-inch baseshould always be used with the 1/4-inch bits.IMPORTANT: Using the incorrect base can cause damage to the templates and willresult in cutting holes that will not be the correct size. The Perfect Cutter is designedto worked with ONLY 1/4” and 1/8” bits with the corresponding router bases.4. Attaching the Router Base.1. Always handle the router with extreme caution. BE SURE that the router isunplugged before making any adjustments to it, ESPECIALLY when makingadjustments to the depth of the cutting surface or changing the router bit.2. Loosen the long wing nut located on the router’s removable base that correspondsto the size bit you are using. This makes sliding the depth of the router base overthe router very easy.3. Place router base over router and align the tightening and adjusting knobs with thegear track on the case of the router.4. Next, turn the circular hand-tightening nut located beside the wing nut. Whenturning this second nut, a gear inside follows the track on the router casing. Thisallows the router’s base to move up or down, increasing or decreasing the depth ofthe cutting bit.5. Determine the Correct Bit Depth.1. Estimate the depth of the material you are going to cut through. (For example: 5/8-inch is a common width of standard Sheetrock, add 1/4” if you are cutting ceramictile over Sheetrock, etc. If you are not sure of the depth of the material you cutting,set the depth for standard sheetrock, if you do not cut through all the material inyour first pass, simply adjust the depth of the cutting depth, prior to removing thePerfect Cutter from the wall, and complete another pass. IMPORTANT: TURNROUTER OFF PRIOR TO ADJUSTING CUTTING DEPTH)2. Adjust the circular hand-tightening nut on the router base so that the cutting surfaceof the bit is set to the thickness of the material to be cut PLUS an additional 1/8-inch beyond. (GRAPHIC/PICTURE NEEDED.)3. NOTE: Determining the depth may be easier by laying your chosen template on therouter’s base to get a visual view of the bits cutting clearance and depth. This letsyou measure the clearance before tightening the nut. (GRAPHIC/PICTURENEEDED.)4. Tighten the router base wing nut securely.7

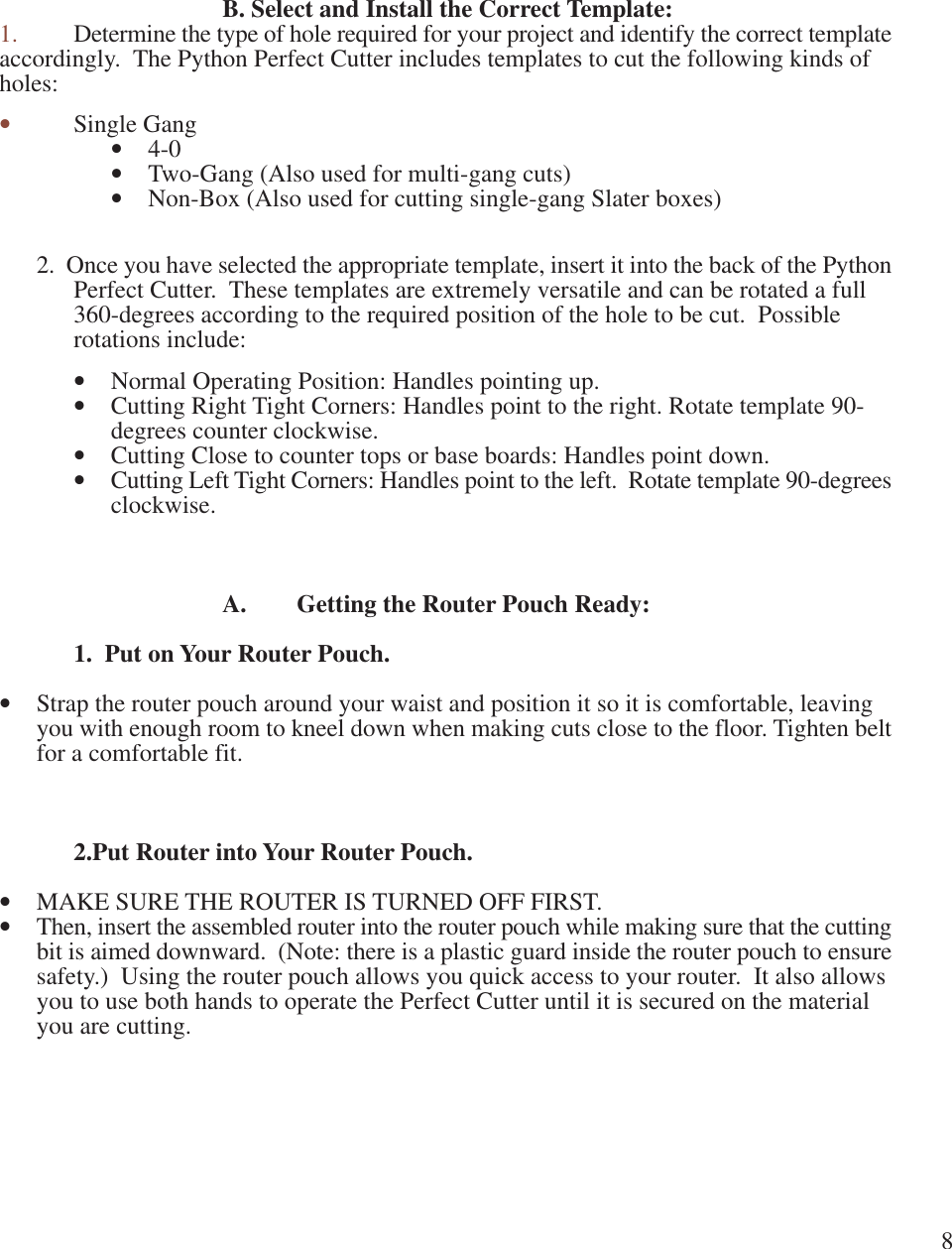

B. Select and Install the Correct Template:1. Determine the type of hole required for your project and identify the correct templateaccordingly. The Python Perfect Cutter includes templates to cut the following kinds ofholes:•Single Gang•4-0•Two-Gang (Also used for multi-gang cuts)•Non-Box (Also used for cutting single-gang Slater boxes)2. Once you have selected the appropriate template, insert it into the back of the PythonPerfect Cutter. These templates are extremely versatile and can be rotated a full360-degrees according to the required position of the hole to be cut. Possiblerotations include:•Normal Operating Position: Handles pointing up.•Cutting Right Tight Corners: Handles point to the right. Rotate template 90-degrees counter clockwise.•Cutting Close to counter tops or base boards: Handles point down.•Cutting Left Tight Corners: Handles point to the left. Rotate template 90-degreesclockwise.A. Getting the Router Pouch Ready:1. Put on Your Router Pouch.•Strap the router pouch around your waist and position it so it is comfortable, leavingyou with enough room to kneel down when making cuts close to the floor. Tighten beltfor a comfortable fit.2.Put Router into Your Router Pouch.•MAKE SURE THE ROUTER IS TURNED OFF FIRST.•Then, insert the assembled router into the router pouch while making sure that the cuttingbit is aimed downward. (Note: there is a plastic guard inside the router pouch to ensuresafety.) Using the router pouch allows you quick access to your router. It also allowsyou to use both hands to operate the Perfect Cutter until it is secured on the materialyou are cutting.8

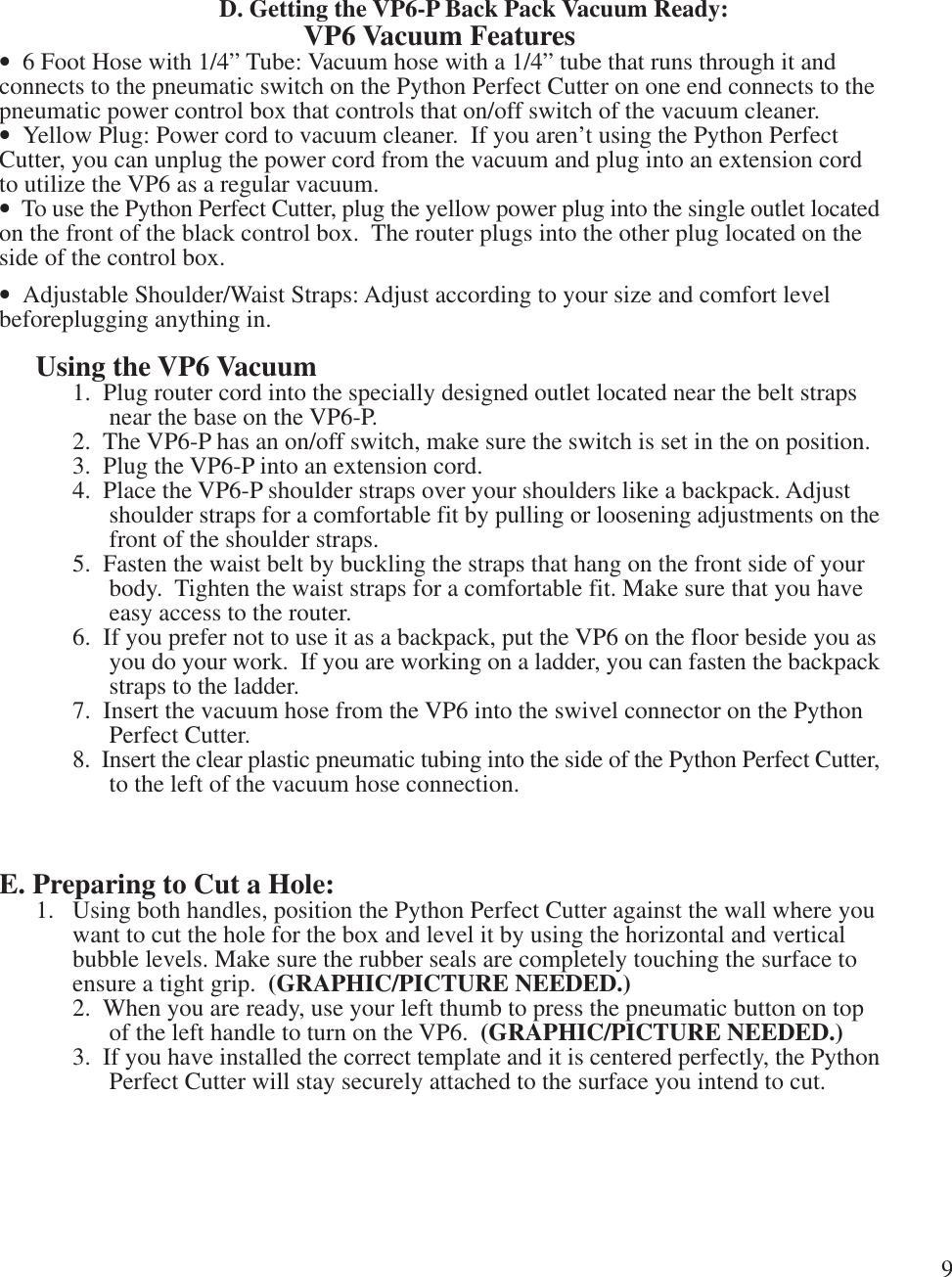

D. Getting the VP6-P Back Pack Vacuum Ready:VP6 Vacuum Features• 6 Foot Hose with 1/4” Tube: Vacuum hose with a 1/4” tube that runs through it andconnects to the pneumatic switch on the Python Perfect Cutter on one end connects to thepneumatic power control box that controls that on/off switch of the vacuum cleaner.• Yellow Plug: Power cord to vacuum cleaner. If you aren’t using the Python PerfectCutter, you can unplug the power cord from the vacuum and plug into an extension cordto utilize the VP6 as a regular vacuum.• To use the Python Perfect Cutter, plug the yellow power plug into the single outlet locatedon the front of the black control box. The router plugs into the other plug located on theside of the control box.• Adjustable Shoulder/Waist Straps: Adjust according to your size and comfort levelbeforeplugging anything in.Using the VP6 Vacuum1. Plug router cord into the specially designed outlet located near the belt strapsnear the base on the VP6-P.2. The VP6-P has an on/off switch, make sure the switch is set in the on position.3. Plug the VP6-P into an extension cord.4. Place the VP6-P shoulder straps over your shoulders like a backpack. Adjustshoulder straps for a comfortable fit by pulling or loosening adjustments on thefront of the shoulder straps.5. Fasten the waist belt by buckling the straps that hang on the front side of yourbody. Tighten the waist straps for a comfortable fit. Make sure that you haveeasy access to the router.6. If you prefer not to use it as a backpack, put the VP6 on the floor beside you asyou do your work. If you are working on a ladder, you can fasten the backpackstraps to the ladder.7. Insert the vacuum hose from the VP6 into the swivel connector on the PythonPerfect Cutter.8. Insert the clear plastic pneumatic tubing into the side of the Python Perfect Cutter,to the left of the vacuum hose connection.E. Preparing to Cut a Hole:1. Using both handles, position the Python Perfect Cutter against the wall where youwant to cut the hole for the box and level it by using the horizontal and verticalbubble levels. Make sure the rubber seals are completely touching the surface toensure a tight grip. (GRAPHIC/PICTURE NEEDED.)2. When you are ready, use your left thumb to press the pneumatic button on topof the left handle to turn on the VP6. (GRAPHIC/PICTURE NEEDED.)3. If you have installed the correct template and it is centered perfectly, the PythonPerfect Cutter will stay securely attached to the surface you intend to cut.9

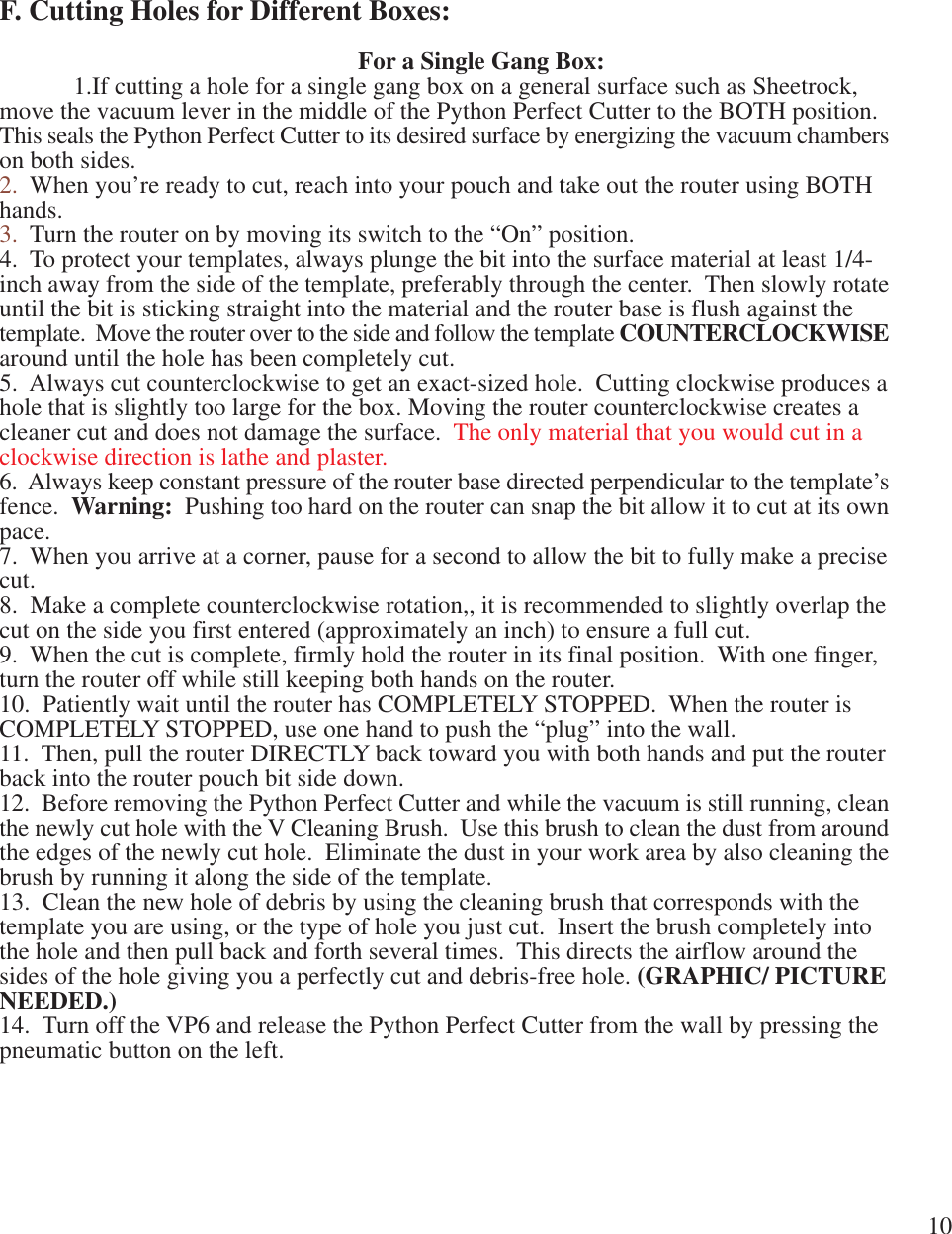

F. Cutting Holes for Different Boxes:For a Single Gang Box:1.If cutting a hole for a single gang box on a general surface such as Sheetrock,move the vacuum lever in the middle of the Python Perfect Cutter to the BOTH position.This seals the Python Perfect Cutter to its desired surface by energizing the vacuum chamberson both sides.2. When you’re ready to cut, reach into your pouch and take out the router using BOTHhands.3. Turn the router on by moving its switch to the “On” position.4. To protect your templates, always plunge the bit into the surface material at least 1/4-inch away from the side of the template, preferably through the center. Then slowly rotateuntil the bit is sticking straight into the material and the router base is flush against thetemplate. Move the router over to the side and follow the template COUNTERCLOCKWISEaround until the hole has been completely cut.5. Always cut counterclockwise to get an exact-sized hole. Cutting clockwise produces ahole that is slightly too large for the box. Moving the router counterclockwise creates acleaner cut and does not damage the surface. The only material that you would cut in aclockwise direction is lathe and plaster.6. Always keep constant pressure of the router base directed perpendicular to the template’sfence. Warning: Pushing too hard on the router can snap the bit allow it to cut at its ownpace.7. When you arrive at a corner, pause for a second to allow the bit to fully make a precisecut.8. Make a complete counterclockwise rotation,, it is recommended to slightly overlap thecut on the side you first entered (approximately an inch) to ensure a full cut.9. When the cut is complete, firmly hold the router in its final position. With one finger,turn the router off while still keeping both hands on the router.10. Patiently wait until the router has COMPLETELY STOPPED. When the router isCOMPLETELY STOPPED, use one hand to push the “plug” into the wall.11. Then, pull the router DIRECTLY back toward you with both hands and put the routerback into the router pouch bit side down.12. Before removing the Python Perfect Cutter and while the vacuum is still running, cleanthe newly cut hole with the V Cleaning Brush. Use this brush to clean the dust from aroundthe edges of the newly cut hole. Eliminate the dust in your work area by also cleaning thebrush by running it along the side of the template.13. Clean the new hole of debris by using the cleaning brush that corresponds with thetemplate you are using, or the type of hole you just cut. Insert the brush completely intothe hole and then pull back and forth several times. This directs the airflow around thesides of the hole giving you a perfectly cut and debris-free hole. (GRAPHIC/ PICTURENEEDED.)14. Turn off the VP6 and release the Python Perfect Cutter from the wall by pressing thepneumatic button on the left.10

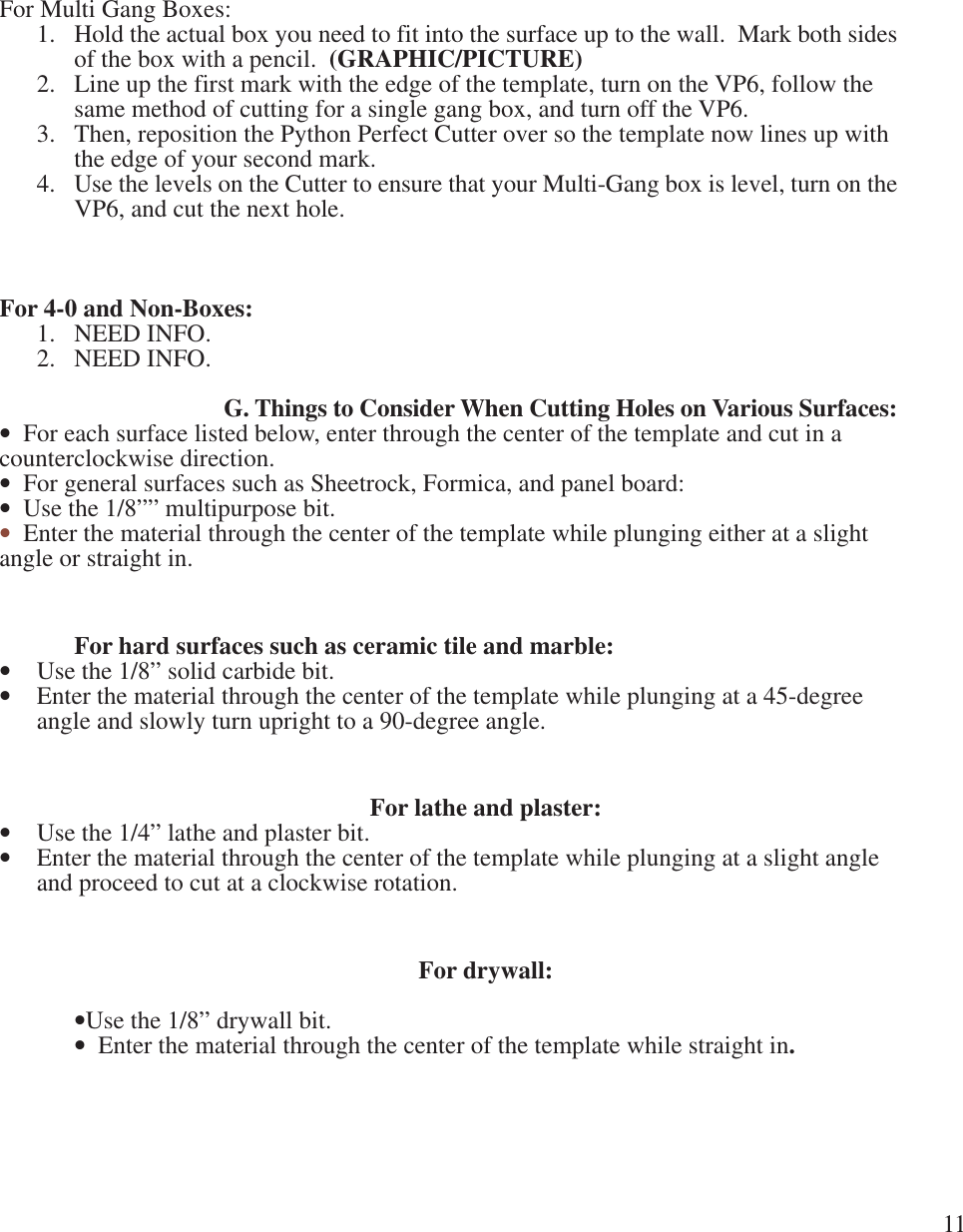

For Multi Gang Boxes:1. Hold the actual box you need to fit into the surface up to the wall. Mark both sidesof the box with a pencil. (GRAPHIC/PICTURE)2. Line up the first mark with the edge of the template, turn on the VP6, follow thesame method of cutting for a single gang box, and turn off the VP6.3. Then, reposition the Python Perfect Cutter over so the template now lines up withthe edge of your second mark.4. Use the levels on the Cutter to ensure that your Multi-Gang box is level, turn on theVP6, and cut the next hole.For 4-0 and Non-Boxes:1. NEED INFO.2. NEED INFO.G. Things to Consider When Cutting Holes on Various Surfaces:• For each surface listed below, enter through the center of the template and cut in acounterclockwise direction.• For general surfaces such as Sheetrock, Formica, and panel board:• Use the 1/8”” multipurpose bit.• Enter the material through the center of the template while plunging either at a slightangle or straight in.For hard surfaces such as ceramic tile and marble:•Use the 1/8” solid carbide bit.•Enter the material through the center of the template while plunging at a 45-degreeangle and slowly turn upright to a 90-degree angle.For lathe and plaster:•Use the 1/4” lathe and plaster bit.•Enter the material through the center of the template while plunging at a slight angleand proceed to cut at a clockwise rotation.For drywall:•Use the 1/8” drywall bit.• Enter the material through the center of the template while straight in.11

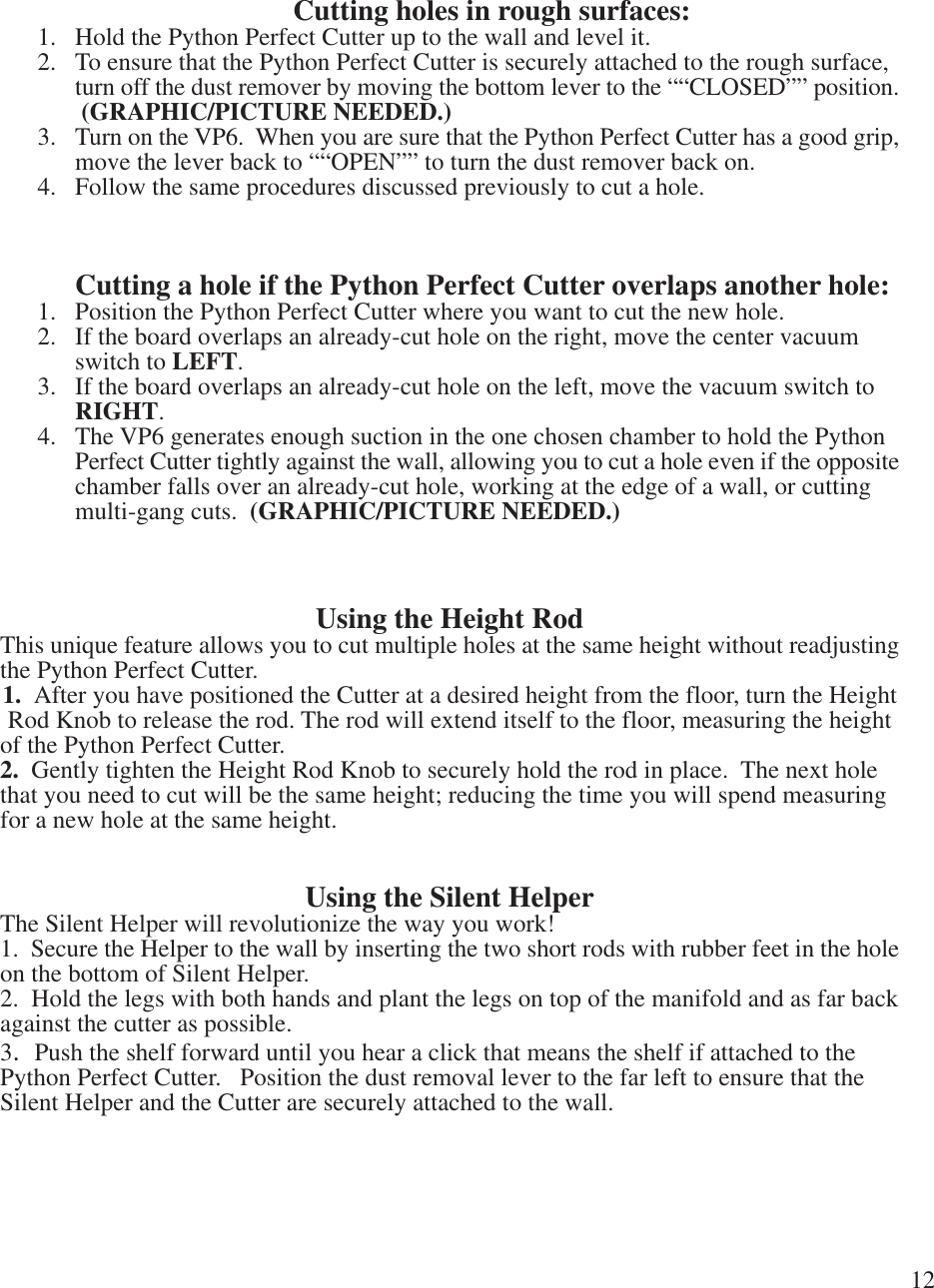

Cutting holes in rough surfaces:1. Hold the Python Perfect Cutter up to the wall and level it.2. To ensure that the Python Perfect Cutter is securely attached to the rough surface,turn off the dust remover by moving the bottom lever to the ““CLOSED”” position. (GRAPHIC/PICTURE NEEDED.)3. Turn on the VP6. When you are sure that the Python Perfect Cutter has a good grip,move the lever back to ““OPEN”” to turn the dust remover back on.4. Follow the same procedures discussed previously to cut a hole.Cutting a hole if the Python Perfect Cutter overlaps another hole:1. Position the Python Perfect Cutter where you want to cut the new hole.2. If the board overlaps an already-cut hole on the right, move the center vacuumswitch to LEFT.3. If the board overlaps an already-cut hole on the left, move the vacuum switch toRIGHT.4. The VP6 generates enough suction in the one chosen chamber to hold the PythonPerfect Cutter tightly against the wall, allowing you to cut a hole even if the oppositechamber falls over an already-cut hole, working at the edge of a wall, or cuttingmulti-gang cuts. (GRAPHIC/PICTURE NEEDED.)Using the Height RodThis unique feature allows you to cut multiple holes at the same height without readjustingthe Python Perfect Cutter.1. After you have positioned the Cutter at a desired height from the floor, turn the HeightRod Knob to release the rod. The rod will extend itself to the floor, measuring the heightof the Python Perfect Cutter.2. Gently tighten the Height Rod Knob to securely hold the rod in place. The next holethat you need to cut will be the same height; reducing the time you will spend measuringfor a new hole at the same height.Using the Silent HelperThe Silent Helper will revolutionize the way you work!1. Secure the Helper to the wall by inserting the two short rods with rubber feet in the holeon the bottom of Silent Helper.2. Hold the legs with both hands and plant the legs on top of the manifold and as far backagainst the cutter as possible.3. Push the shelf forward until you hear a click that means the shelf if attached to thePython Perfect Cutter. Position the dust removal lever to the far left to ensure that theSilent Helper and the Cutter are securely attached to the wall.12

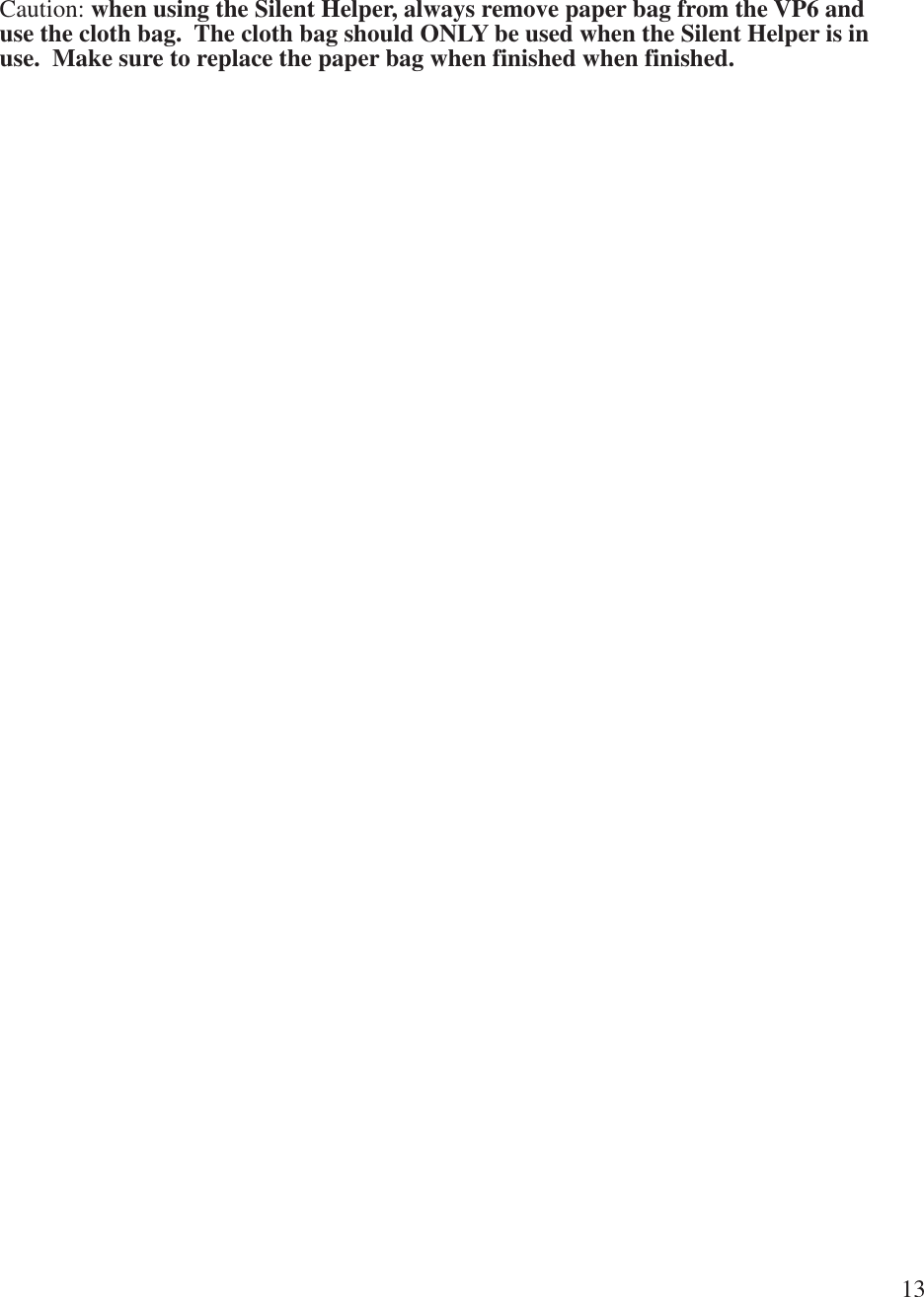

Caution: when using the Silent Helper, always remove paper bag from the VP6 anduse the cloth bag. The cloth bag should ONLY be used when the Silent Helper is inuse. Make sure to replace the paper bag when finished when finished.13

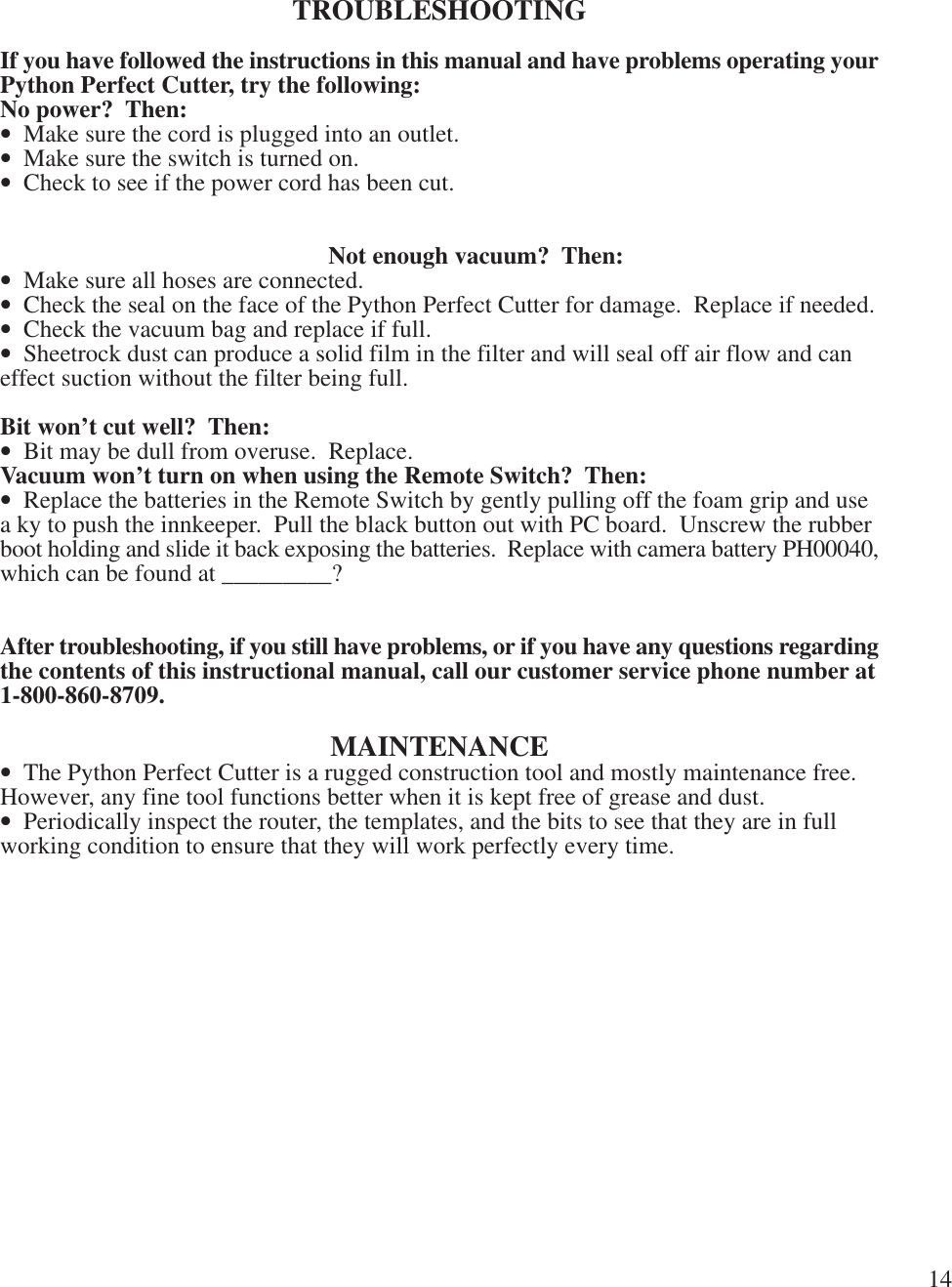

TROUBLESHOOTINGIf you have followed the instructions in this manual and have problems operating yourPython Perfect Cutter, try the following:No power? Then:• Make sure the cord is plugged into an outlet.• Make sure the switch is turned on.• Check to see if the power cord has been cut.Not enough vacuum? Then:• Make sure all hoses are connected.• Check the seal on the face of the Python Perfect Cutter for damage. Replace if needed.• Check the vacuum bag and replace if full.• Sheetrock dust can produce a solid film in the filter and will seal off air flow and caneffect suction without the filter being full.Bit won’t cut well? Then:• Bit may be dull from overuse. Replace.Vacuum won’t turn on when using the Remote Switch? Then:• Replace the batteries in the Remote Switch by gently pulling off the foam grip and usea ky to push the innkeeper. Pull the black button out with PC board. Unscrew the rubberboot holding and slide it back exposing the batteries. Replace with camera battery PH00040,which can be found at _________?After troubleshooting, if you still have problems, or if you have any questions regardingthe contents of this instructional manual, call our customer service phone number at1-800-860-8709.MAINTENANCE• The Python Perfect Cutter is a rugged construction tool and mostly maintenance free.However, any fine tool functions better when it is kept free of grease and dust.• Periodically inspect the router, the templates, and the bits to see that they are in fullworking condition to ensure that they will work perfectly every time.14

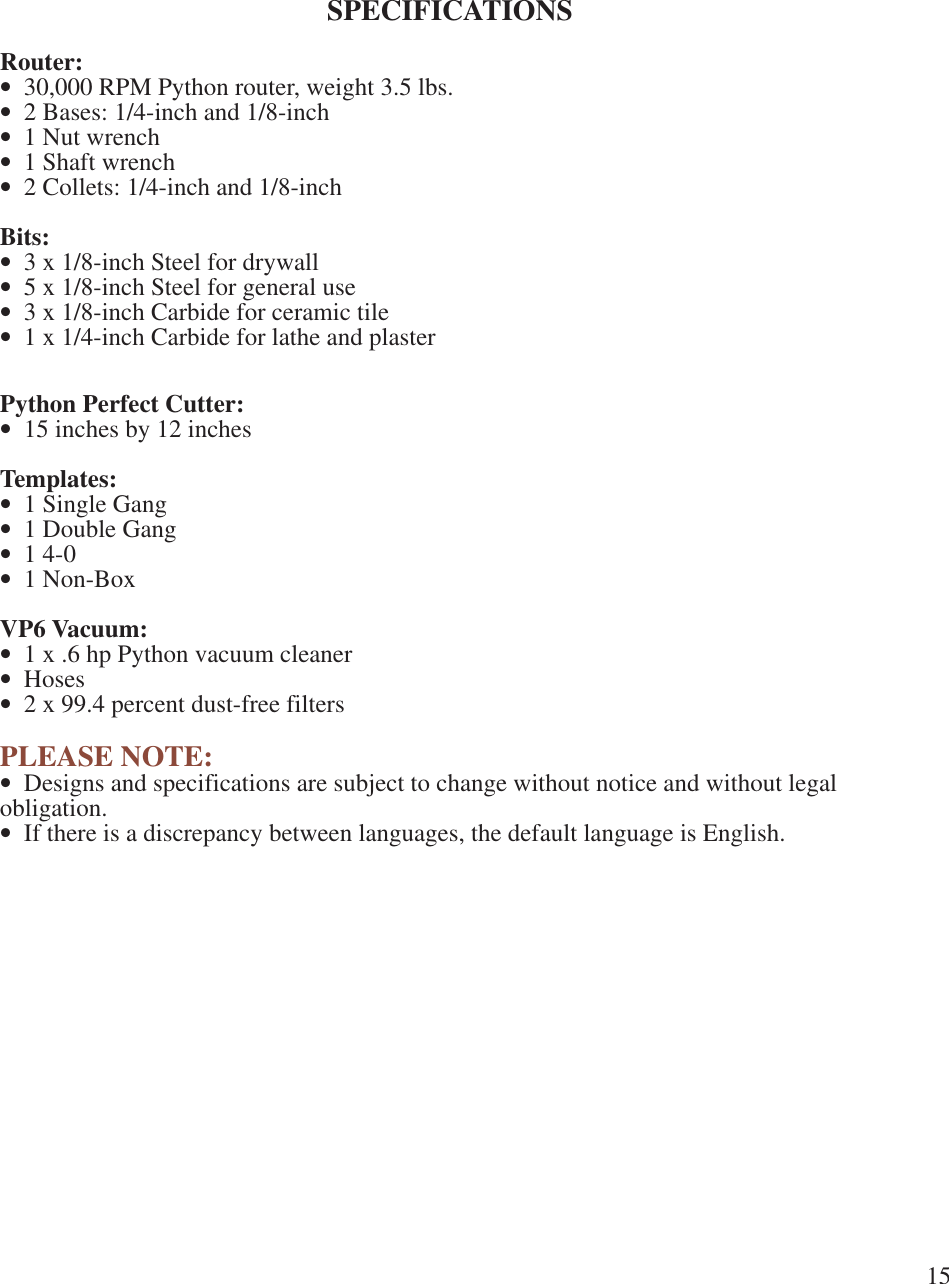

SPECIFICATIONSRouter:• 30,000 RPM Python router, weight 3.5 lbs.• 2 Bases: 1/4-inch and 1/8-inch• 1 Nut wrench• 1 Shaft wrench• 2 Collets: 1/4-inch and 1/8-inchBits:• 3 x 1/8-inch Steel for drywall• 5 x 1/8-inch Steel for general use• 3 x 1/8-inch Carbide for ceramic tile• 1 x 1/4-inch Carbide for lathe and plasterPython Perfect Cutter:• 15 inches by 12 inchesTemplates:• 1 Single Gang• 1 Double Gang• 1 4-0• 1 Non-BoxVP6 Vacuum:• 1 x .6 hp Python vacuum cleaner• Hoses• 2 x 99.4 percent dust-free filtersPLEASE NOTE:• Designs and specifications are subject to change without notice and without legalobligation.• If there is a discrepancy between languages, the default language is English.15

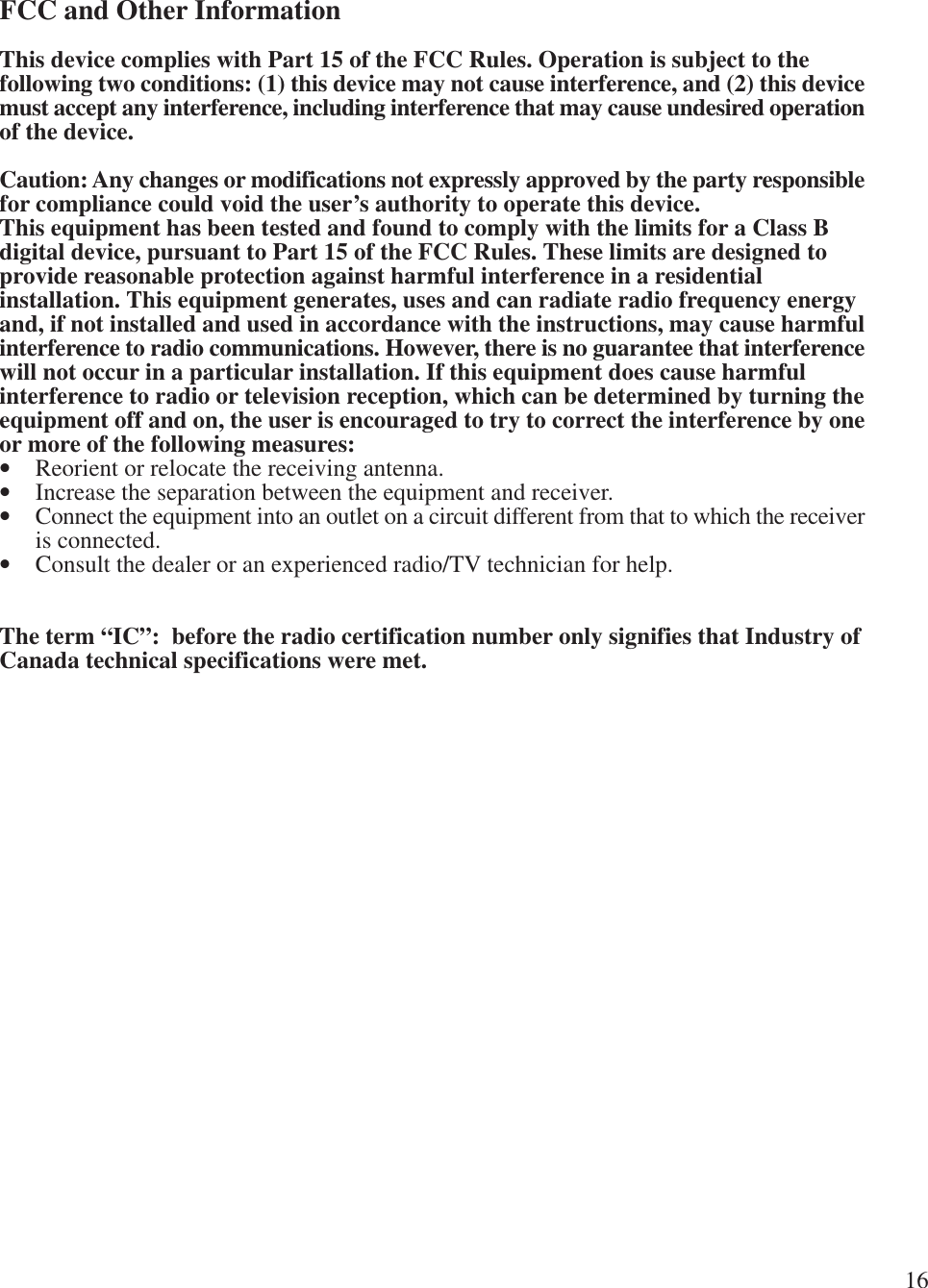

FCC and Other InformationThis device complies with Part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) this device may not cause interference, and (2) this devicemust accept any interference, including interference that may cause undesired operationof the device.Caution: Any changes or modifications not expressly approved by the party responsiblefor compliance could void the user’s authority to operate this device.This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses and can radiate radio frequency energyand, if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by oneor more of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiveris connected.•Consult the dealer or an experienced radio/TV technician for help.The term “IC”: before the radio certification number only signifies that Industry ofCanada technical specifications were met.16
