DVR Technology AnalogHD
Channels 16
Recording Resolution 1080p / 720p / 960H / D1 / 2CIF / CIF
Live Viewing Resolution 1080p / 720p / 1280x1024,
1024x768, 800x600
Live Display FPS 30 FPS per Channel
Hard Drive Supports 1 HDD up to 4TB
Remote Monitoring 128 Simultaneous Users
Compatibility Mac and PC
Connects With Local Cameras
Monitor Connections HDMI, VGA
REMOTE MONITORING
Scan ‘N View Yes
Dual Stream CIF @ 30FPS, D1 @ 15FPS
Simultaneous Users 128 (bandwidth permitting)
QC9116
COMMUNICATION PORTS
Network RJ45 10/100/1000 Mbps
USB 2 USB 2.0
eSATA None
COMPATIBILITY
Browser Support IE, Firefox & Chrome (with IE
plugin)
Mobile Support iPhone, iPad, Android,
Computer Support WinXP, Vista, Win7/8,
Mac OS 10.7/10.8/10.9/10.10
ACCESSORIES
Control USB Mouse, Remote Control
Connectors / Cables HDMI Cable
Mounting Hardware Screws for Hard Drives
Other Quick Start Guide
RECORDING MODES
Recording Modes Manual, Time Schedule, Motion Detection
Backup Methods PC, Flash, USB Hard Drive
Video Compression H.264
Live Display Resolution 1080p, 720p, 1280x1024, 1024x768, 800x600
Live Display FPS 30 FPS
Display Modes 1, 4, 9, 16, Auto Sequence
Languages English, French, Spanish
DVR
RECORDING RESOLUTION OPTIONS
1080p Resolution 1920 x 1080 pixels
720p Resolution 1280 x 720 pixels
960H Resolution 960 x 480 pixels
D1 Resolution 704 x 480 pixels
2CIF Resolution 704 x 240 pixels
CIF Resolution 352 x 240 pixels
Playback Speed 1080p at 15 FPS per channel 240 FPS total
720P at 30 FPS per channel 480 FPS total
960H at 30 FPS per channel 480 FPS total
D1 at 30 FPS per channel 480 FPS total
2CIF at 30 FPS per channel 480 FPS total
CIF at 30 FPS per channel 480 FPS total
Number Channels 16 Simultaneous Local Playback
PLAYBACK ON DVR

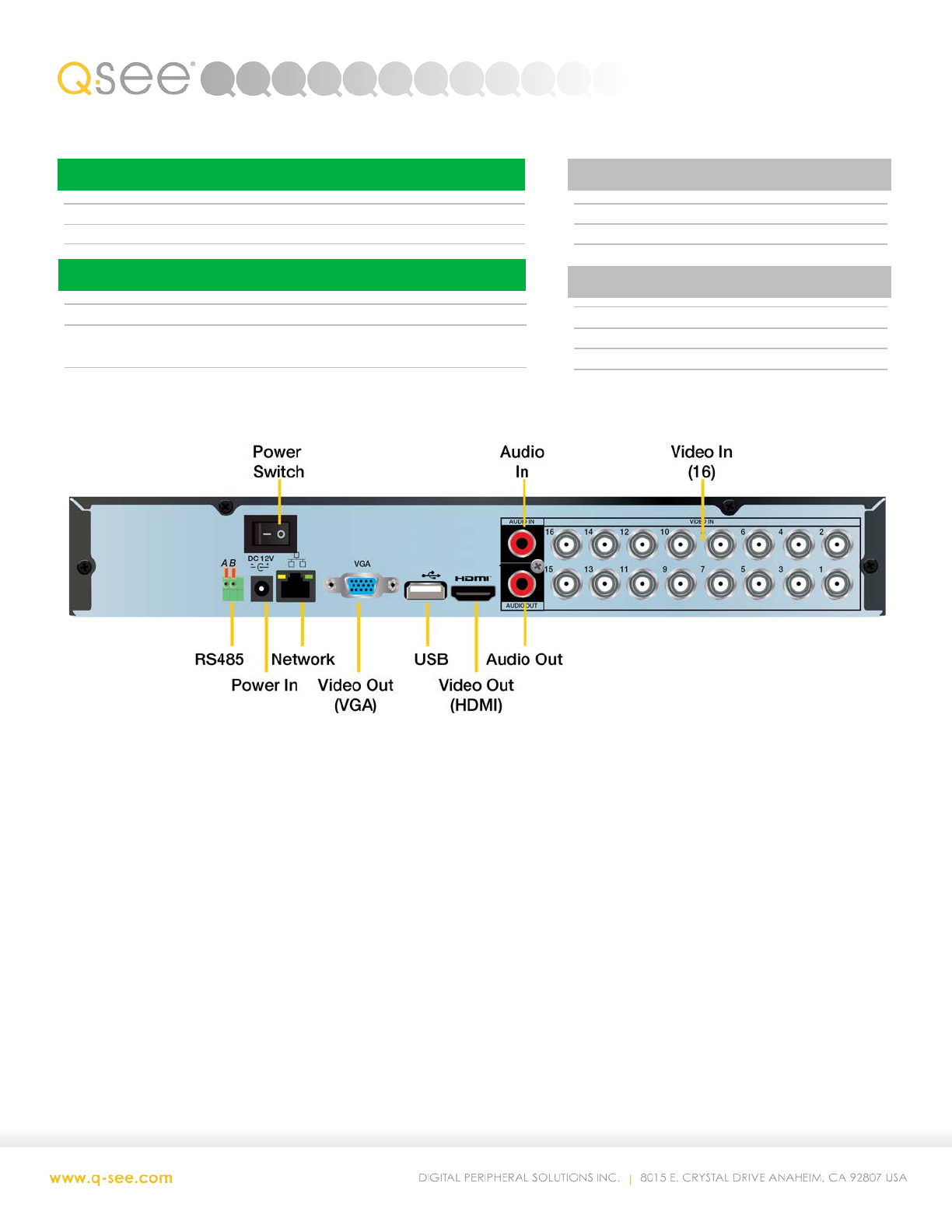

VIDEO, AUDIO & ALARM PORTS
Video in 16 BNC
Video Out HDMI, VGA
Alarm In None
Alarm Out None
Audio In 1 RCA (2-way)
Supports audio on 16 channels
Audio Out 1 RCA
(QT9116 cont’d…)
POWER
Power Supply 12V 2A
Power Consumption 10W (w/o HD)
PHYSICAL
Weight 3.3 lbs
Dimensions 12.75”W X 9.75”D X 1.75”H
Operating Temperature 14°– 131°F
HARD DRIVES
Maximum Size 4TB
Number Supported 1
PTZ
PTZ Support RS485, RG59 cable (Analog HD)
Supported Protocols Pelco D, Pelco P, HD-SD
