REMOTE MONITORING
Scan ‘N View Yes
Dual Stream CIF @ 30FPS, D1 @ 15FPS
Simultaneous Users 128 (bandwidth permitting)

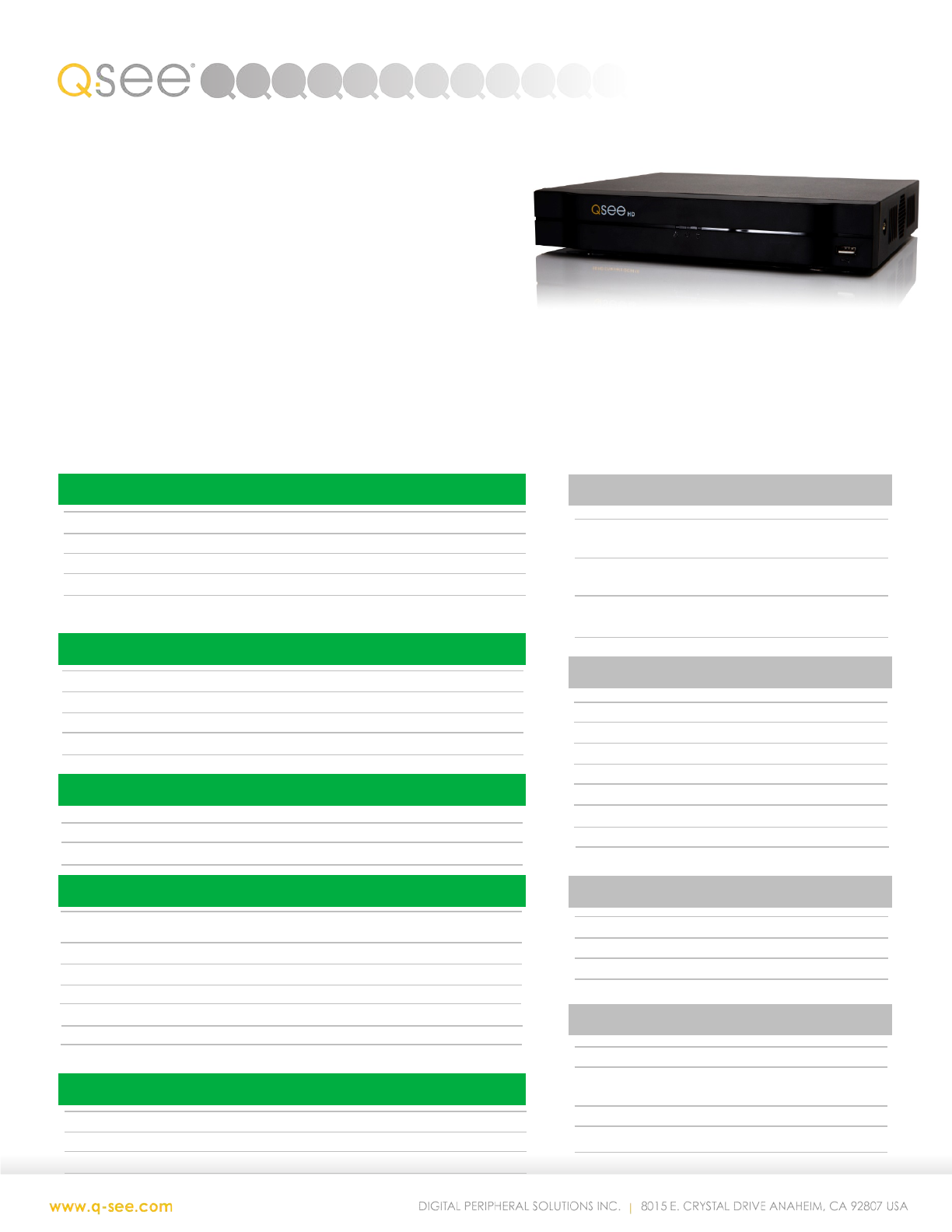

QC9516
DVR Technology Analog HD
Channels 16
Recording Resolution 1080p / 720p / 960H / D1 / CIF
Live Viewing Resolution 1080p / 720p / 1280x1024, 1024x768,
Live Display FPS
Hard Drive
Remote Monitoring
Compatibility
Connects With
Monitor Connections
800x600
30 FPS per Channel
Supports 1 HDD up to 6TB
128 Simultaneous Users
Mac and PC
Local Cameras
HDMI, VGA
COMMUNICATION PORTS
Network RJ45 10/100/1000 Mbps
USB 2 USB 2.0
eSATA None
COMPATIBILITY
Application Support QC View
Mobile Support iPhone, iPad, Android
Computer Support WinXP, Vista, Win7/8/10
Mac OS 10.7+
ACCESSORIES
Control
USB Mouse
Connectors / Cables HDMI Cable, BNC/RCA
Adapter
Mounting Hardware Screws for Hard Drives
Other Quick Start Guide
RECORDING MODES
Recording Modes Manual, Time Schedule, Motion Detection, Alarm
Backup Methods PC, Flash, USB Hard Drive
Playback Speed
720P at 30 FPS per channel 480 FPS total
960H at 30 FPS per channel 480 FPS total
D1 at 30 FPS per channel 480 FPS total
CIF at 30 FPS per channel 480 FPS total
Number Channels 16 Simultaneous Local Playback
PLAYBACK ON DVR
DVR
Video Compression H.264
Live Display Resolution 1080p, 720p, 1280x1024, 1024x768, 800x600
Live Display FPS 30 FPS
Display Modes 1, 4, 8, 9, 16, Auto Sequence
Languages English, French, Spanish
RECORDING RESOLUTION OPTIONS
1080p Resolution 1920 x 1080 pixels
720P Resolution 1280 x 720 pixels
960H Resolution 960 x 480 pixels
D1 Resolution 704 x 480 pixels
VIDEO, AUDIO & ALARM PORTS
Video in 16 BNC
Video Out HDMI, VGA
Alarm In None
Alarm Out None
Audio In 1 RCA (2-way)
Supports audio on 16 channels
Audio Out 1 RCA
1080P at 15 FPS per channel 240 FPS total

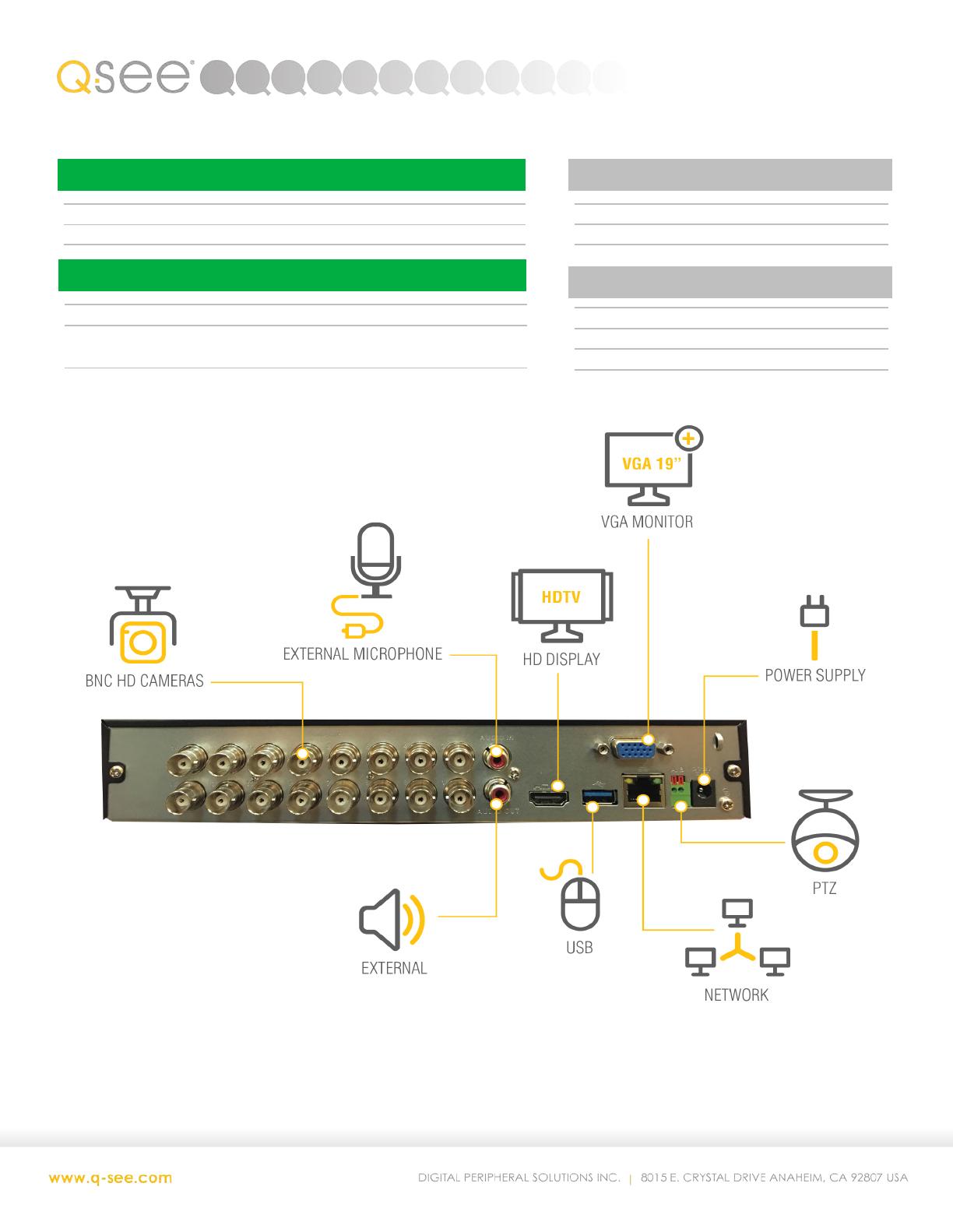

(QC9516 cont’d…)
POWER
Power Supply 12V 2A
Power Consumption 10W (w/o HD)
PHYSICAL
Weight 3.3 lbs
Dimensions 12.75”W X 9.75”D X 1.75”H
Operating Temperature 14°– 131°F
HARD DRIVES
Maximum Size
6TB
Number Supported 1
PTZ
PTZ Support RS485 (Analog), RG59 cable (Analog HD)
Supported Protocols Pelco D, Pelco P, HD-SD
