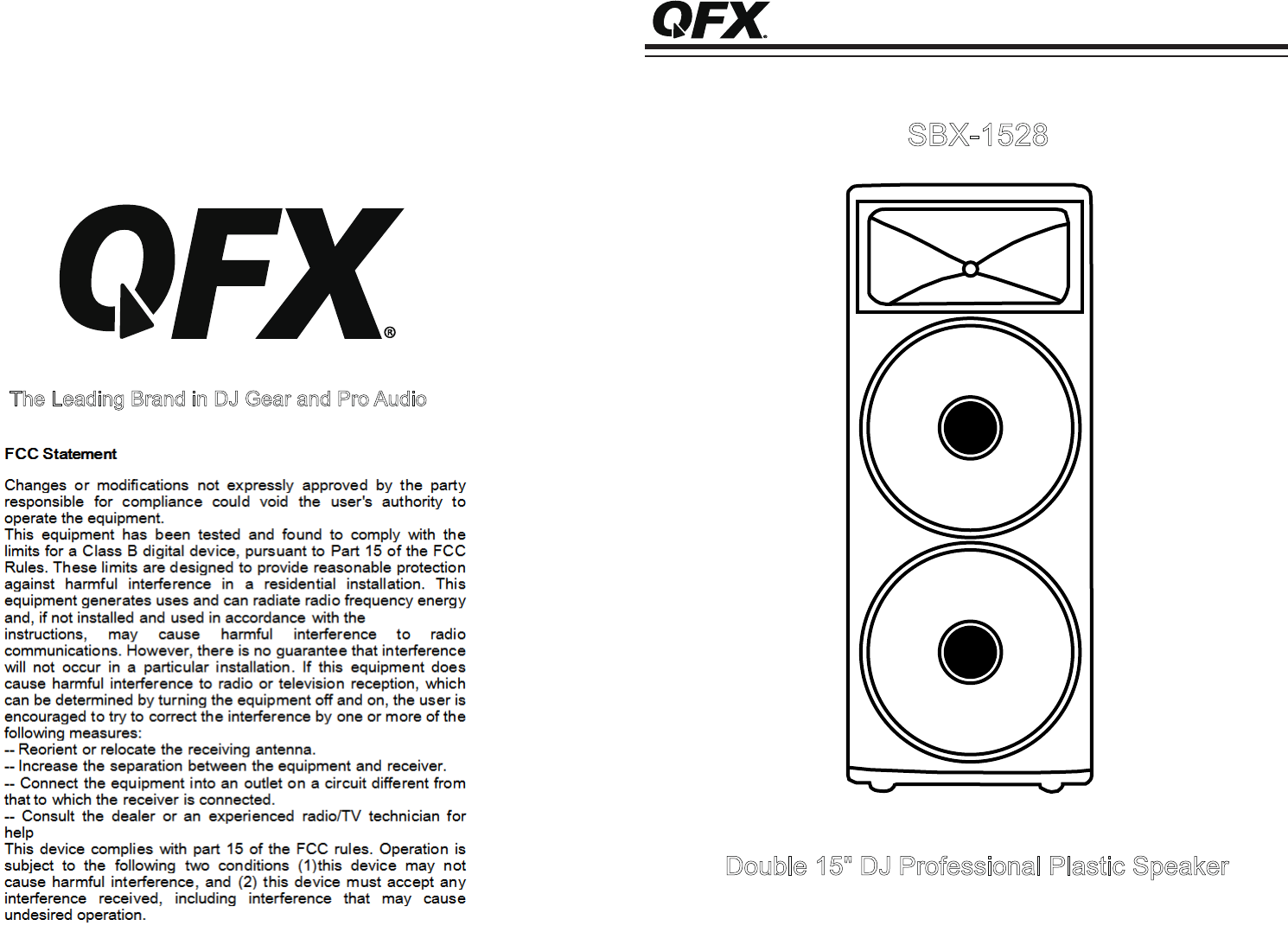

Users Manual
SBX-1528
Double 15" DJ Professional Plastic Speaker
www.qfxusa.com
The Leading Brand in DJ Gear and Pro Audio
SBX-1528
Rear Amplifier Panel
Functions:
1.Double 15inch one channel active speaker
2.Overheated ,shortcircuit and distortion protection.
3.MP3,BLUETOOTH ,USB ,SD ,FM,Remote control
4.Two way Mic socket input
5.One line L&R input ,one line output
6.EQ adjustment/44mm tweeter/60Oz KSV woofer
7.SPK output to connect with the passive speaker
8.Power:300W
9.With colorful LED light
10.Voltage：115V/60Hz~230V/50Hz
Technical specification:：
1.AUX input:-10dB
2.MIC input:-40dB
3.EQ：±12dB,100Hz，330Hz，1KHz，3.3KHz，10KHz
4.Distortion：1KHz≤0.5%
5.Noise：-40dB
6.S/N：80dB
1
24
5
6
7
8
9
3
10

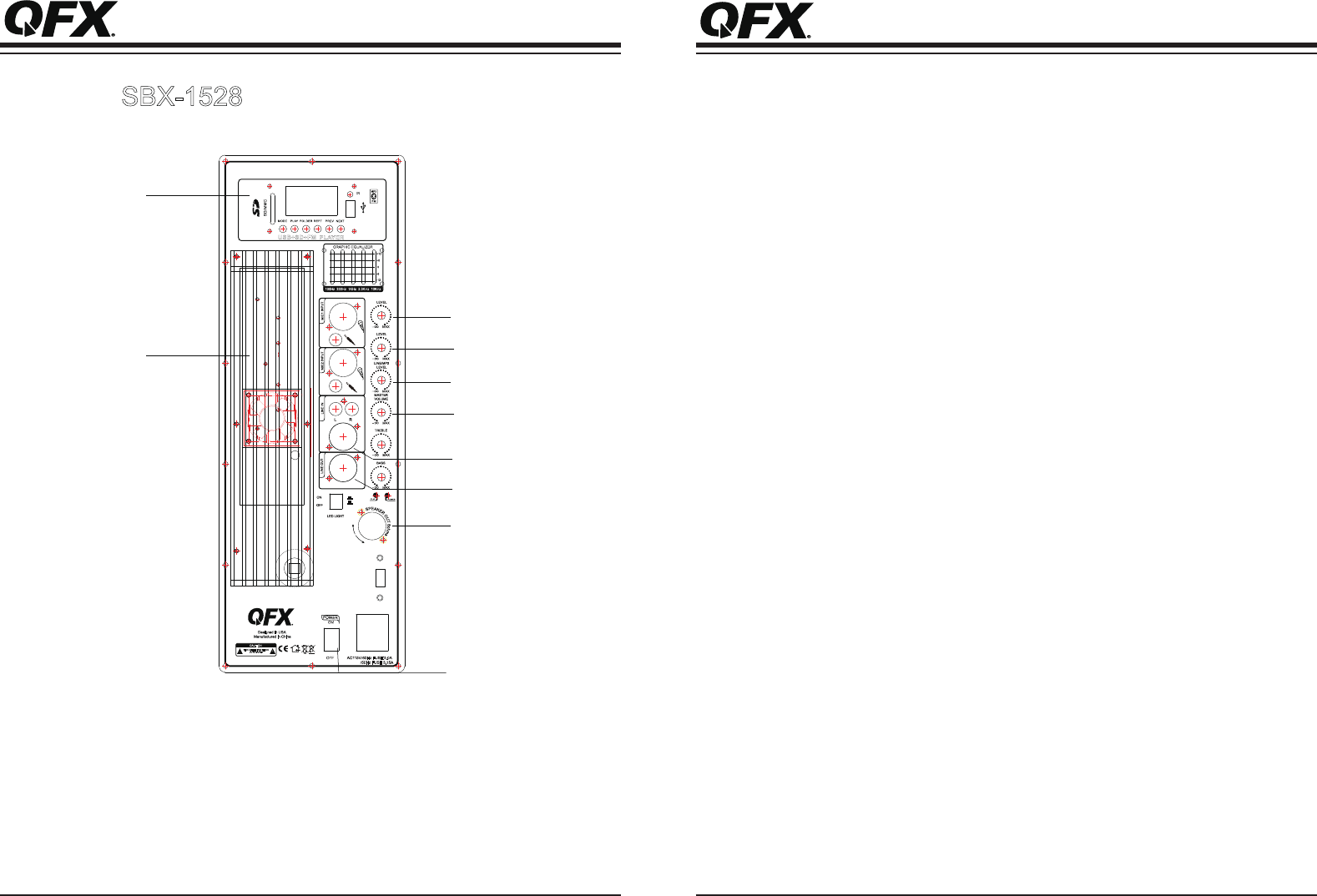

Specification:
1.MP3 player 2.Heat sink
3.MIC 1 input 4.MIC 2 input
5.Line/MP3 volume 6.Master volume
7.Line in 8.Line out
9.It can conneect 8ohm passive speaker 10.Power
