QI SHENGLONG IST QSLHD042B Wireless Gun TV Game User Manual HD 042

SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. Wireless Gun TV Game HD 042

Users Manual

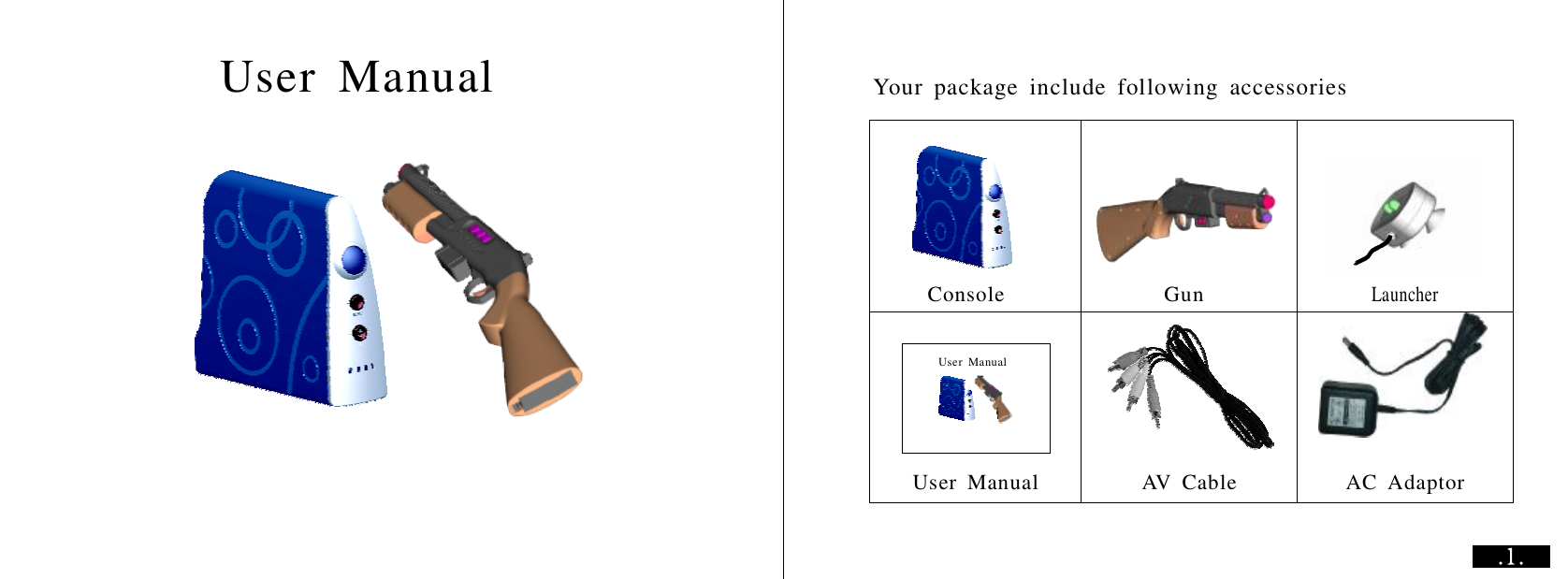

Console GunLauncherAVCable UserManual ACAdaptor UserManual Yourpackageincludefollowingaccessories UserManual

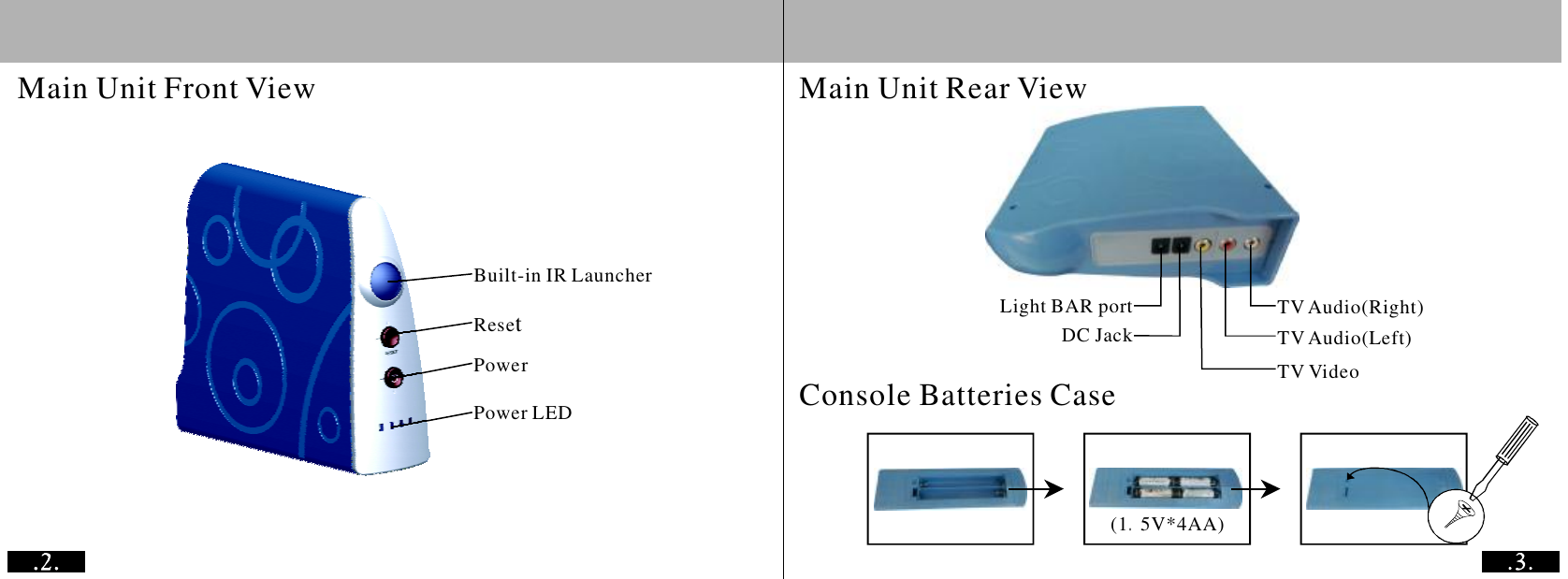

(15V*4AA).Reset Built-in IR LauncherPower Power LEDLight BAR portDC JackConsole Batteries Case TV VideoTV Audio(Left)TV Audio(Right)Main Unit Front View Main Unit Rear View

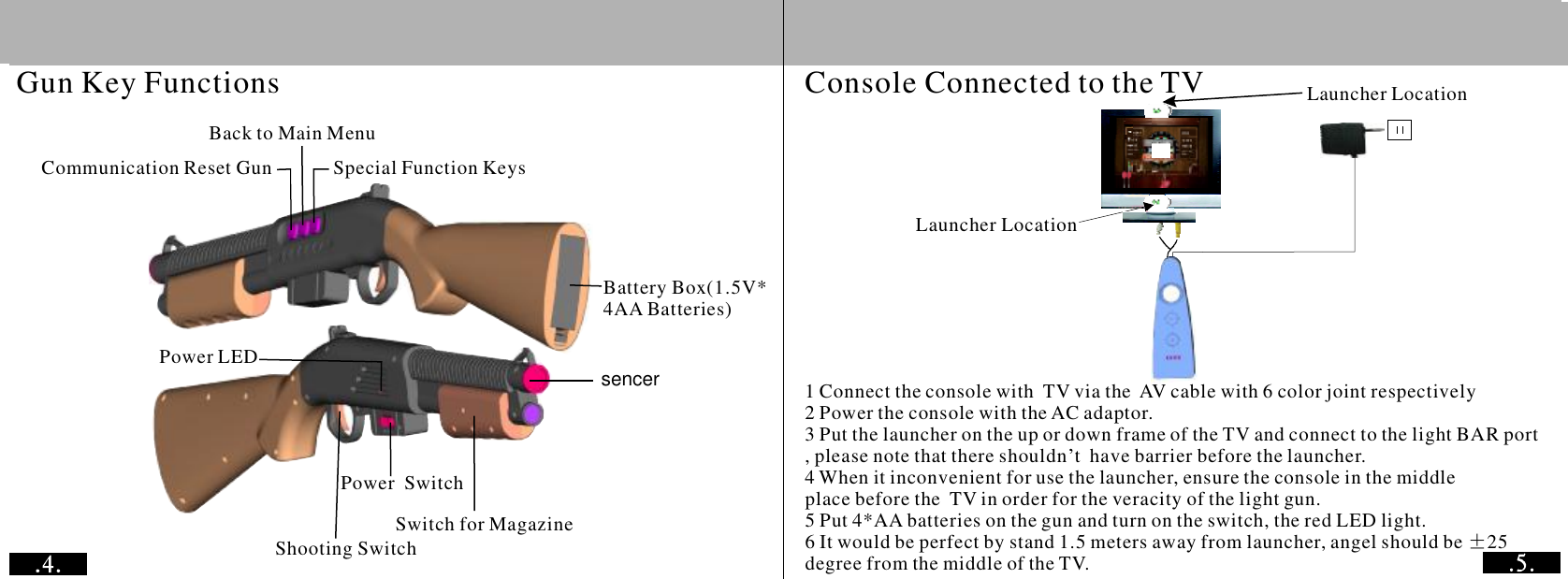

Gun Key FunctionsBack to Main MenuCommunication Reset Gun Special Function KeysBattery Box(1.5V*4AA Batteries)Power LEDShooting SwitchPowerSwitch Switch for MagazineConsole Connected to the TV Launcher LocationLauncher Location1 Connect the console with TV via the AV cable with 6 color joint respectively2 Power the console with the AC adaptor.3 Put the launcher on the up or down frame of the TV and connect to the light BAR port , please note that there shouldn’t have barrier before the launcher.4 When it inconvenient for use the launcher, ensure the console in the middle place before the TV in order for the veracity of the light gun.5 Put 4*AA batteries on the gun and turn on the switch, the red LED light.6 It would be perfect by stand 1.5 meters away from launcher, angel should be 25 degree from the middle of the TV.±sencer

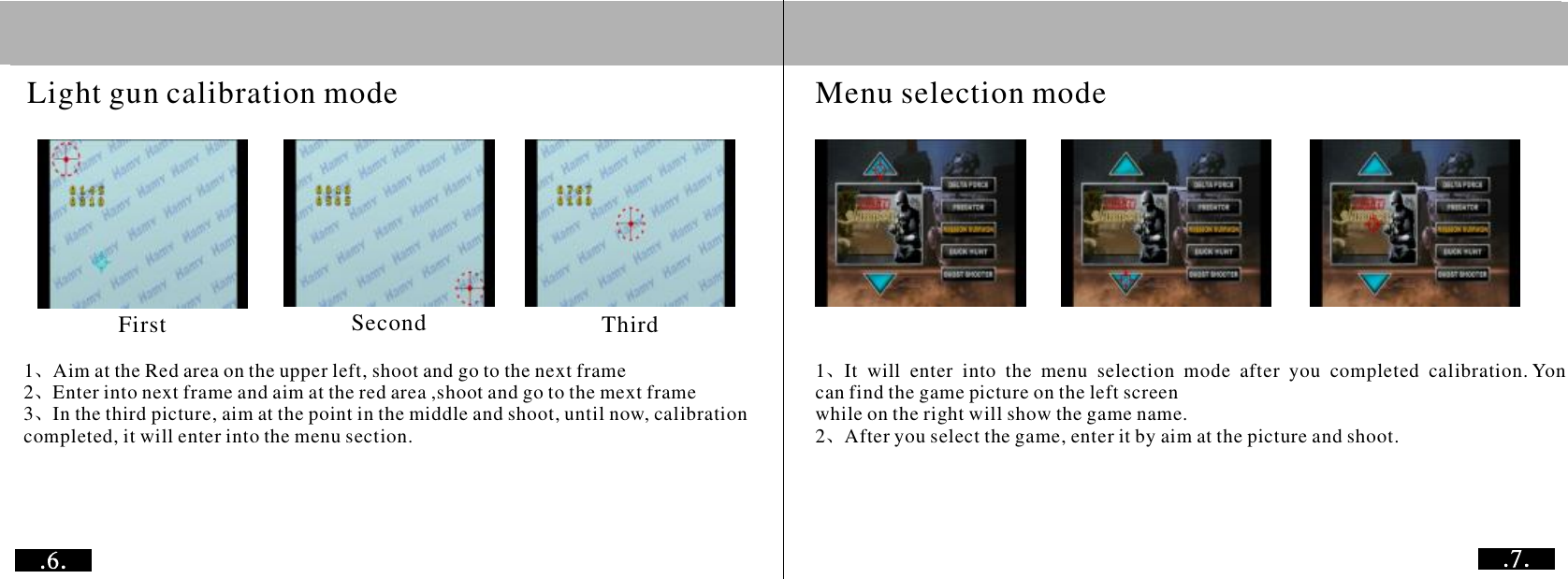

1Aim at the Red area on the upper left, shoot and go to the next frame2Enter into next frame and aim at the red area ,shoot and go to the mext frame3In the third picture, aim at the point in the middle and shoot, until now, calibration completed, it will enter into the menu section. 、、、1Itwillenterintothemenuselectionmodeafteryoucompletedcalibration. Yon can find the game picture on the left screen while on the right will show the game name.2After you select the game, enter it by aim at the picture and shoot.、、 Menu selection modeLight gun calibration modeFirst Second Third

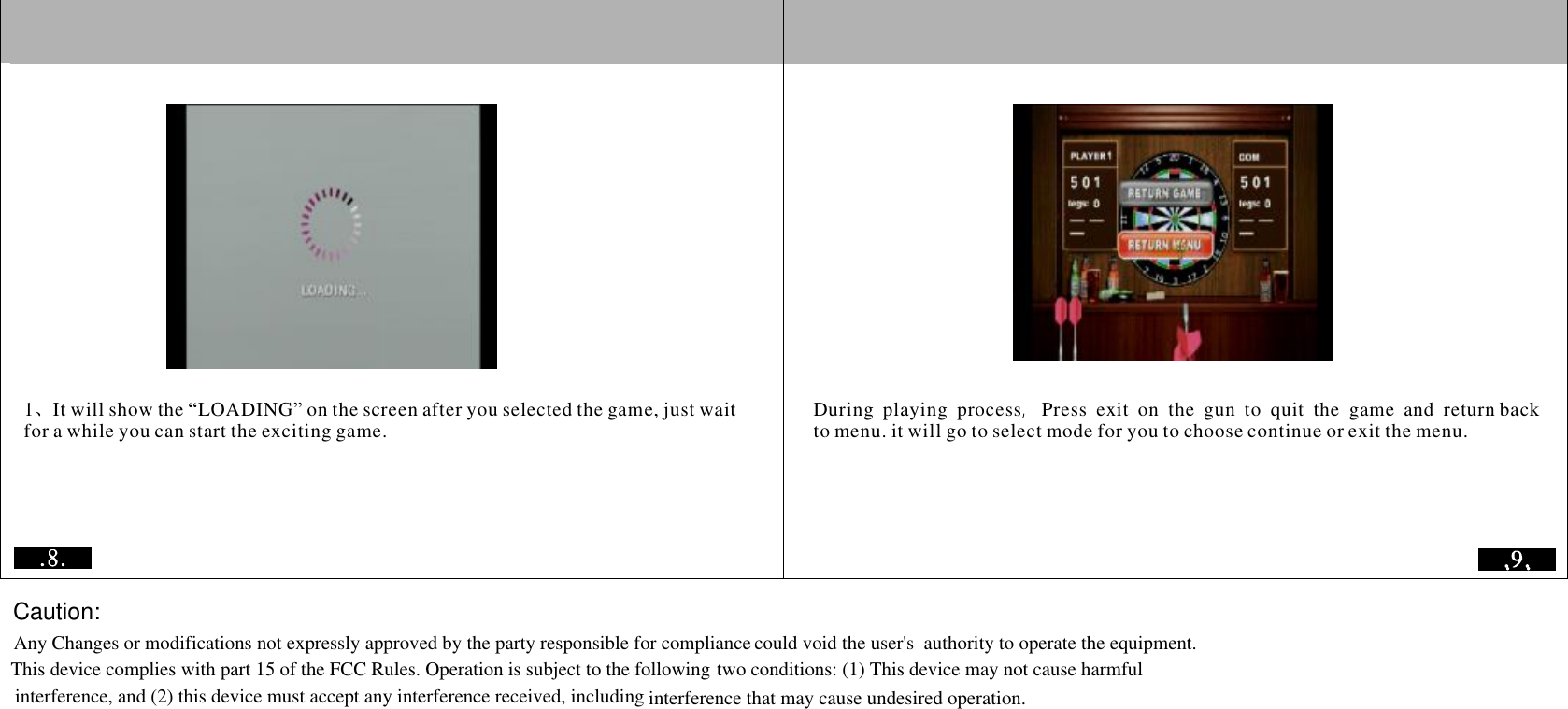

101It will show the “LOADING” on the screen after you selected the game, just wait for a while you can start the exciting game.、DuringplayingprocessPressexitontheguntoquitthegameandreturn back to menu. it will go to select mode for you to choose continue or exit the menu. , Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmfulinterference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Caution:
