QI SHENGLONG IST QSLKMBT04 MINI TOWER BLUETOOTH SPEAKER User Manual
SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. MINI TOWER BLUETOOTH SPEAKER
Manual

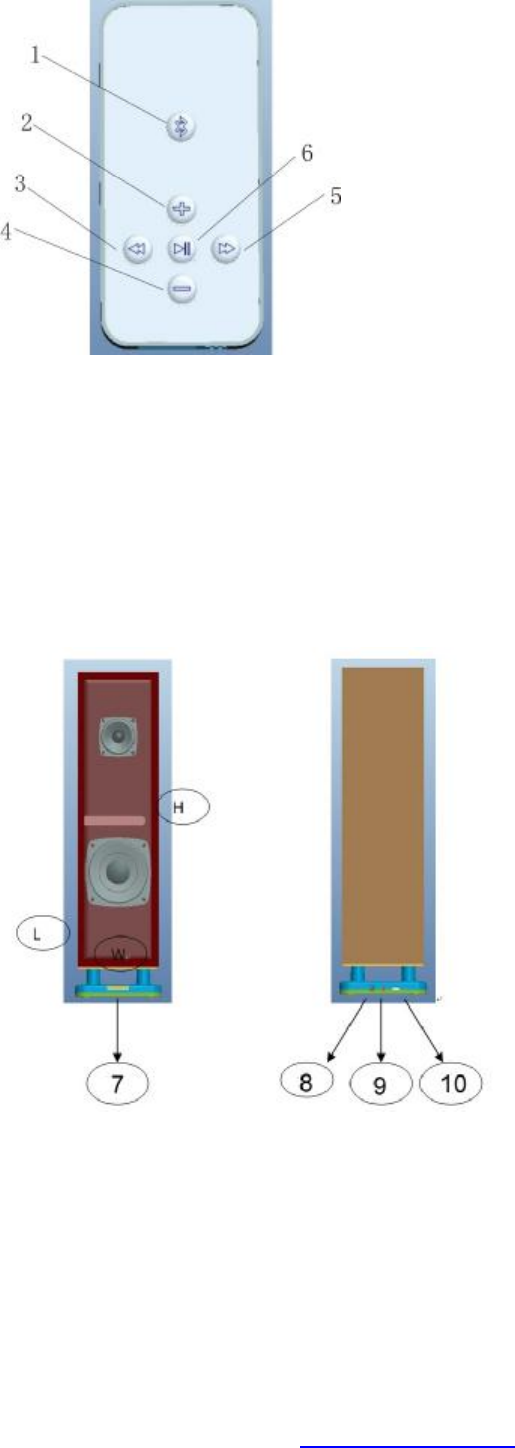

Know your Bluetooth speaker
1. Disconnect Bluetooth
2. Volume+
3. Skip –
4. Volume –
5. Skip +
6. Play/Pause
*****Back of the remote is the battery compartment (Requires 2 x AAA batteries –
NOT INCLUDED)
7. Charging indicator light
8. USB DC 5V
9. On / Off buttonVolume –
10. AUX
PDF created with pdfFactory trial version www.pdffactory.com
Using Bluetooth Speaker
- To turn ON, slide the [POWER ON/OFF] switch to the
ON position, the LED flashes BLUE 6 times quickly then
once every few seconds.
- To turn OFF, slide the [POWER ON/OFF] switch to the
OFF position, the LED illuminates and the speaker will
power OFF.
Product Specifications
- Dimension
Dimension: L=120 W=120 H=432
- Standard Battery: Built in rechargeable 800mAh Lithium
battery
- Charge condition:
Charge time: 3-4 hours
Power input: DC 5V/300mA.
Speaker Specifications
- Diameter: φ90 mm
- Impedance: 4Ω
- Power output: 3W
- Dbspl: 80±3dB 1W/M
Wireless function
- Frequency: 2.402-2.480 GHz
- Receiving sensitivity: -82dBm
- Transmission distance: within 10 meters
Package & accessories
- Bluetooth Speaker
- AUX cable
- DC Power
- Instruction manual
PDF created with pdfFactory trial version www.pdffactory.com
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
FCC Radiation Exposure Statement
This equipment should
be installed and operated with minimum distance 20cm between
the radiator & your body
