QI SHENGLONG IST QSLMA825 Bluetooth Speaker User Manual MA 825
SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD. Bluetooth Speaker MA 825
User Manual
Bluetooth Speaker
Instruction Guide
MODEL NO.: MA-825

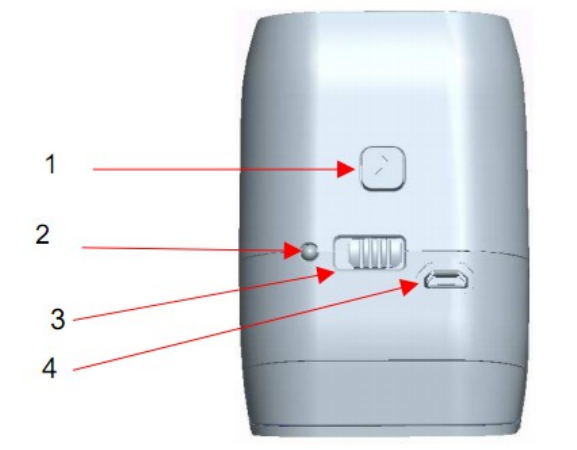

Know your speaker
1、Pause / Play
2、Bluetooth indicator light
3、On / Off Button
4、USB DC 5V
Using Bluetooth Speaker
- To turn ON, slide the [POWER ON/OFF] switch to the ON position, the
LED flashes BLUE 6 times quickly then once every few seconds.
- To turn OFF, slide the [POWER ON/OFF] switch to the OFF position,
the LED illuminates and the speaker will power OFF.
The Reasons why you love it
- Compatible with the Iphone, Ipad or any cell phone has Bluetooth,
enjoy your loved song anytime, anywhere.
- Can control the play mode through the speaker, makes everything
convenient.
- Wireless Bluetooth connection, effective range can reach to 10M,
enjoys music boundless.
- Automatically snooze mode, smart energy conversation.
- USB charge support, easy for operation.
Product Specifications
- Dimension & Weight
Dimension:
Weight:
- Standard Battery: Built in rechargeable 450mAh Lithium battery
- Charge condition:
Charge time: 3-4 hours
Power input: DC 5V/500mA.
Speaker Specifications
- Diameter: φ40 mm
- Impedance: 4Ω
- Power output: 3W
- Dbspl: 80±3dB 1W/M
Wireless function
- Frequency: 2.402-2.480 GHz
- Receiving sensitivity: -82dBm
- Transmission distance: within 10 meters
- Data transmission rate: 3 Mbps
Package & accessories
- Bluetooth Speaker
- USB cable
- Instruction manual
Operating Environment
1. Due to the used enclosure material, the GSM mobile phone shall only
be connected to a USB Interface of version 2.0 or higher. The
connection to so called power USB is prohibited.
2. Do not use the mobile phone in the environment at too high or too low
temperature, never expose the mobile phone under strong sunshine
or too wet environment. The suitable temperature for the phone and
accessories is 0℃-40℃.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications made to this equipment not expressly
approved by SHENZHEN QI SHENGLONG INDUSTRIALIST CO.,LTD.
may void the FCC authorization to operate this equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment.
