QOMO HiteVision QRF600-TR1 Wireless QClick User Manual QRF600

1

User’s Manual

Part 1. QRF600 ARS Overview

The QRF600 Audience Response System (ARS) is an easy-to-use RF response system that obtains

immediate feedback from each participant (up to 400 persons) synchronously. Working completely out of

Power Point, the QClick software is both easy to learn and use. The system is also organized for instructors to

use any no-Power Point formats of document exam files or hardcopy exam paper to start an exam, or with free

mouse and PC keypad functions making it easy to control any formats of showing slice and the system

functions in a far distance.

The QRF600 LCD display and no volatile memory in student and instructor keypads make it possible

automatic RF channel searching. The beauty of RF communication makes it easy for a student to raise a

question by directly communicating to an instructor with one single key press, but not interrupting other

people. At the same time, an instructor can view each student’s exam performances and the exam statistical

data on the remote LCD display without sharing the private student exam info with others. The no volatile

memory in the student remote keypad can hold as much as a whole semester’s homework and exam answers

the form of a histogram and score board after each question is finished in a quiz.

- 1 -

2

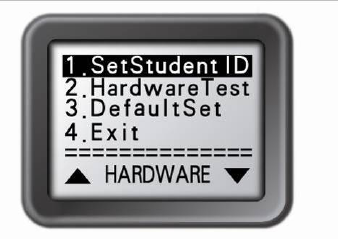

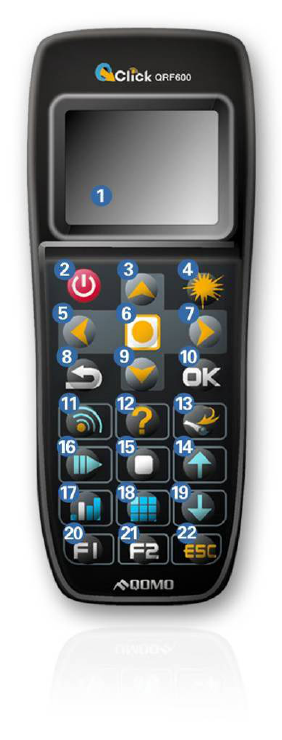

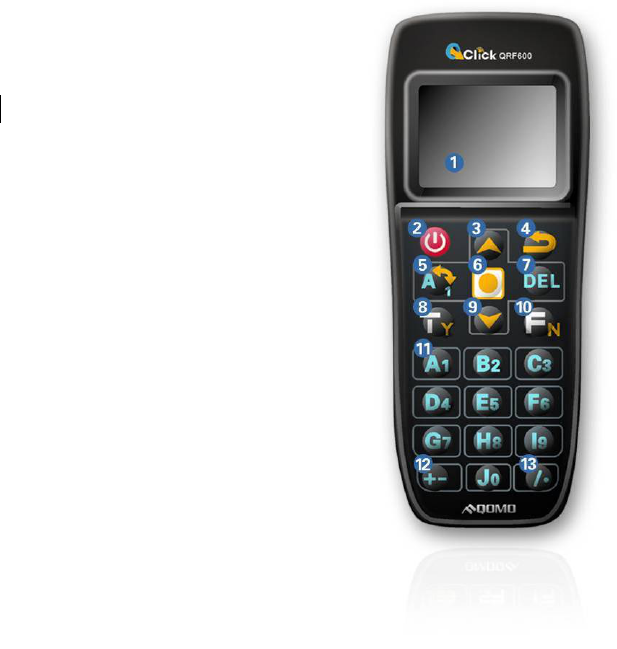

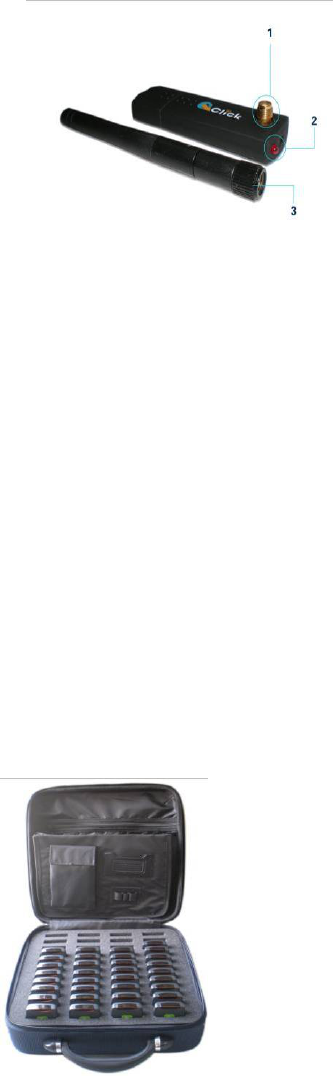

Part 2. Hardware & System Installation Illustration

RF transmission distance: ~200 feet

Battery life: 6 months to 1 year dependent on the usage

3

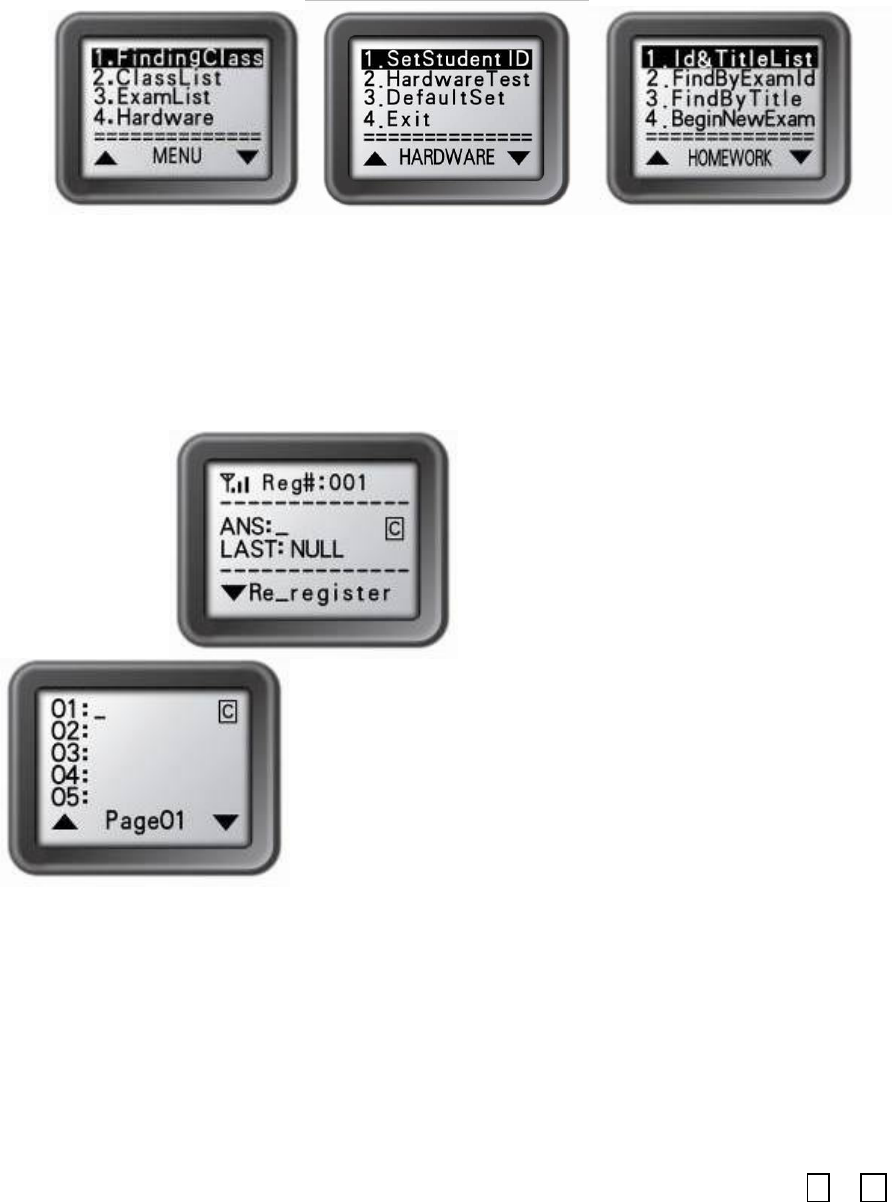

selection menu when a user exits from the answer screen in homework or paper quiz mode (see

1.2.2 section 6).

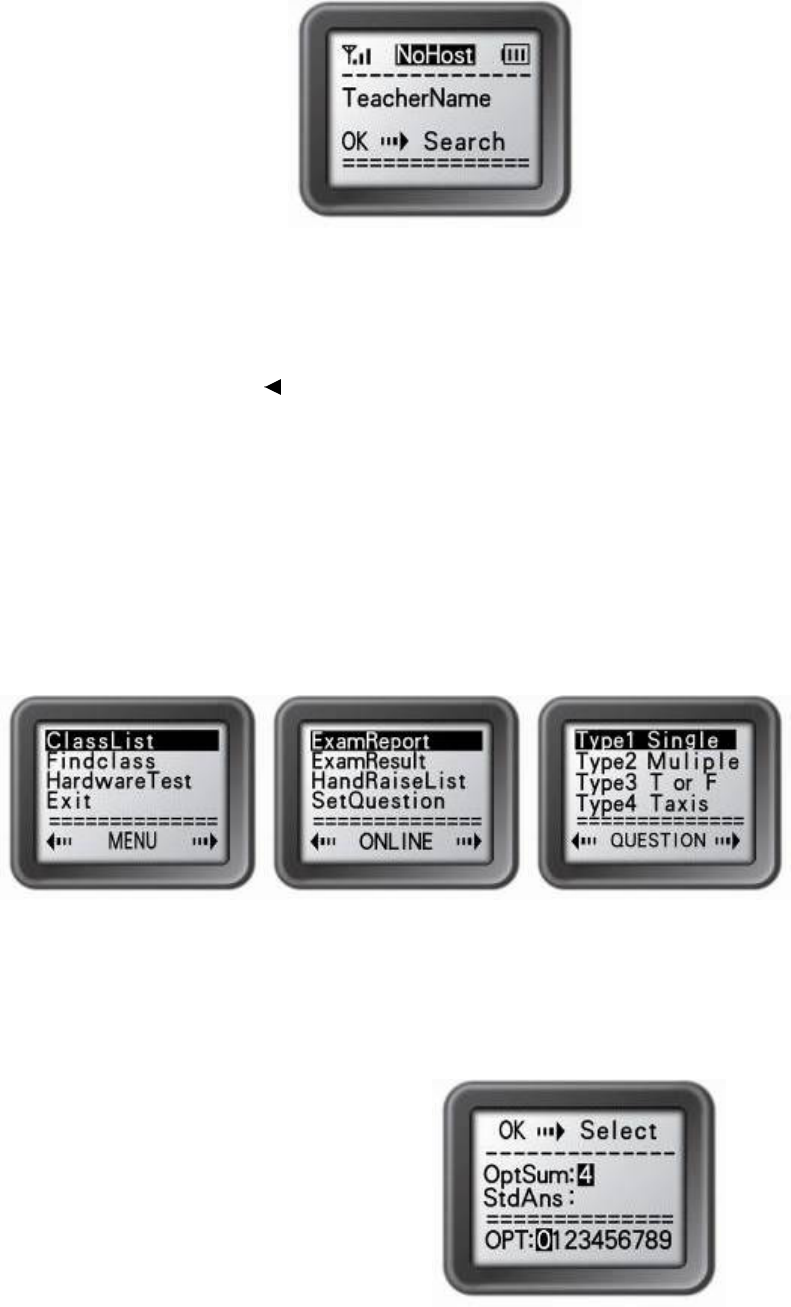

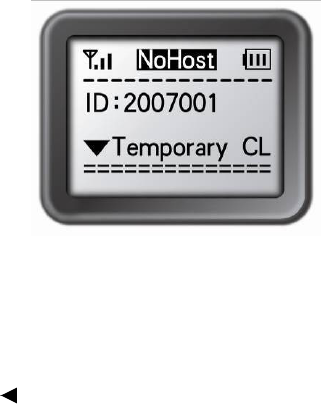

1- NoHost Screen:

The following information is displayed:

1) RF Signal strength is displayed on the upper left corner of LCD.

2) Battery remaining sign is displayed on the upper right corner of LCD.

3) Student ID.

4) The class name registered last time.

The following functions can be performed under this display:

4

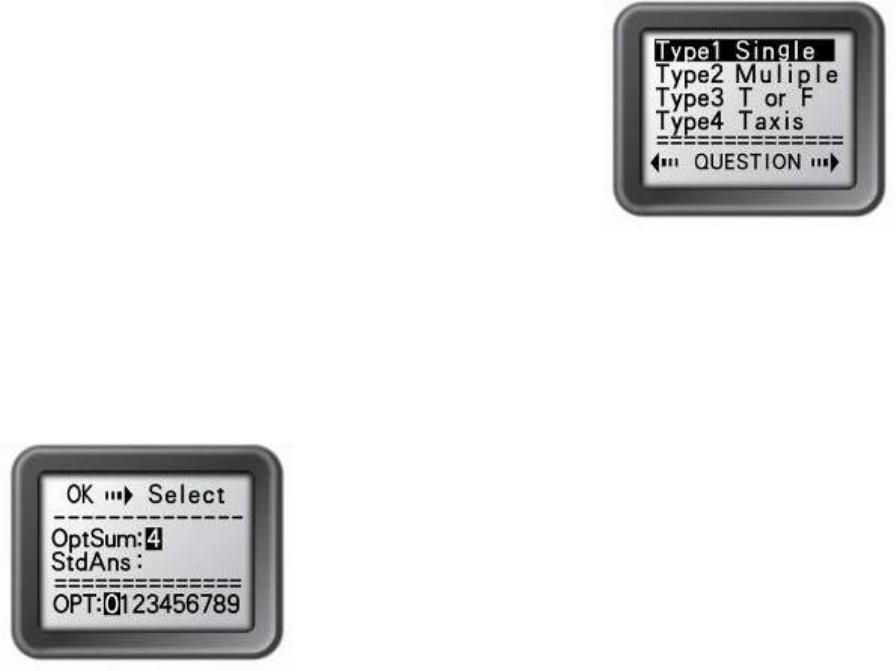

be highlighted. Press “Enter Key” to select the menu item. The shortcut to select a menu

item is by directly pressing “Choice Keys” number corresponding to the submenu items

number shown at front of each item.

3- Input Screens:

The shown cursor prompts a user to input characters or numeric numbers. The user can

of the turned page is automatically saved in the memory.

If the input area is alpha numeric type, at the end of the line, a or sign will

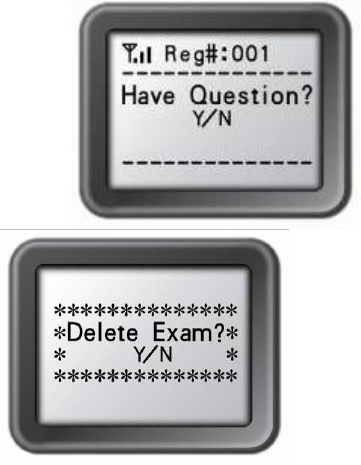

4- Confirmation Screens:

5

operation.

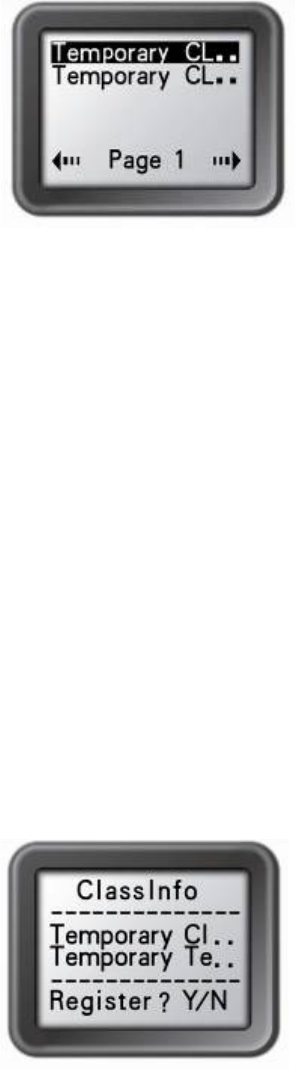

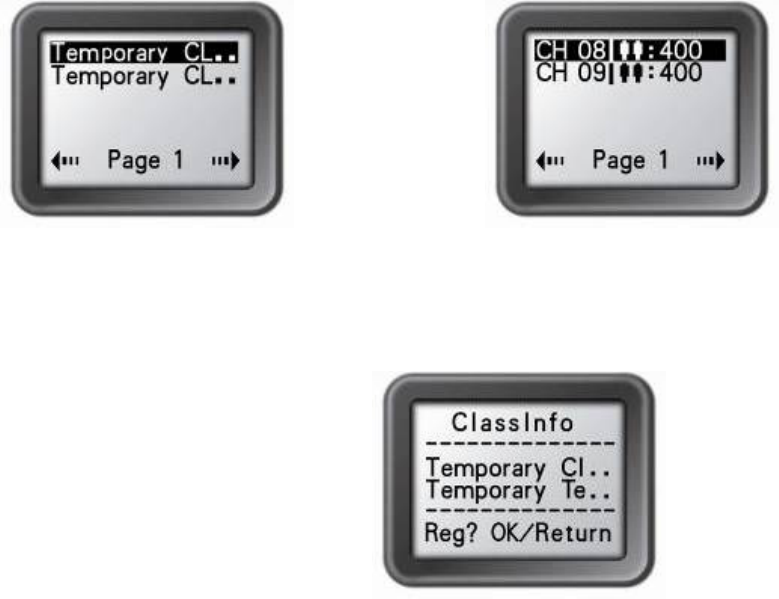

5- Connecting student keypads to a host:

After a keypad connecting to a host, the student can start to take an exam by pressing choice

the exam ID and the exam titles in paper and homework modes, or to raise questions, etc.

6- Functions and Operations:

6

7

1) Normal Exam Screen:

8

9

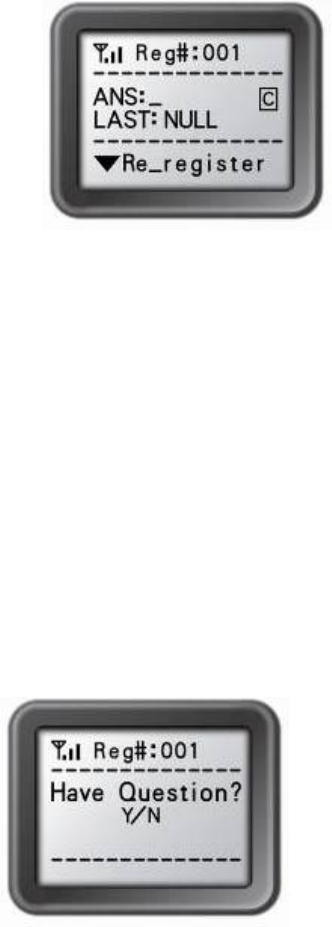

Normal Exam Screen will pop up to allow a student to submit an answer.

After sending the answer, it will return to the Rush Quiz or the Roll Call

Screen.

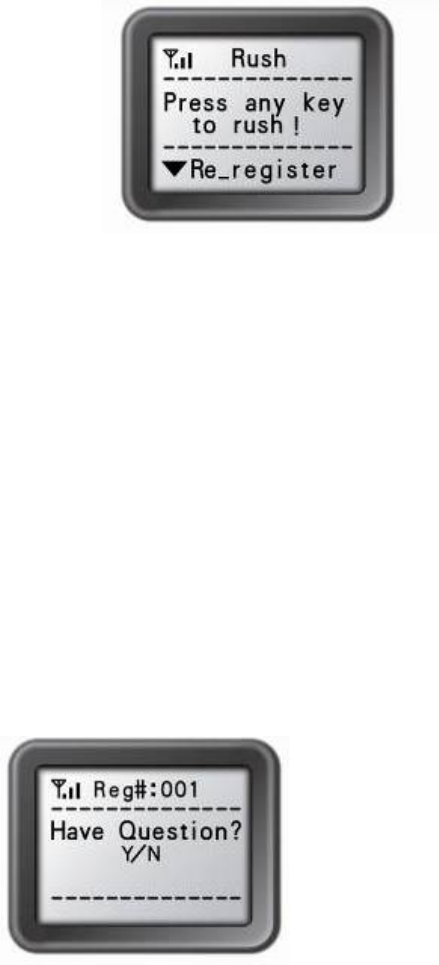

2) Press the “Up Key” to enter into the “Raise a Hand Screen” and then press

marker at the bottom of the main question screen to bring an attention to the

instructor. The names of person who are asking questions can be shown on

The Homework submenu has the following items:

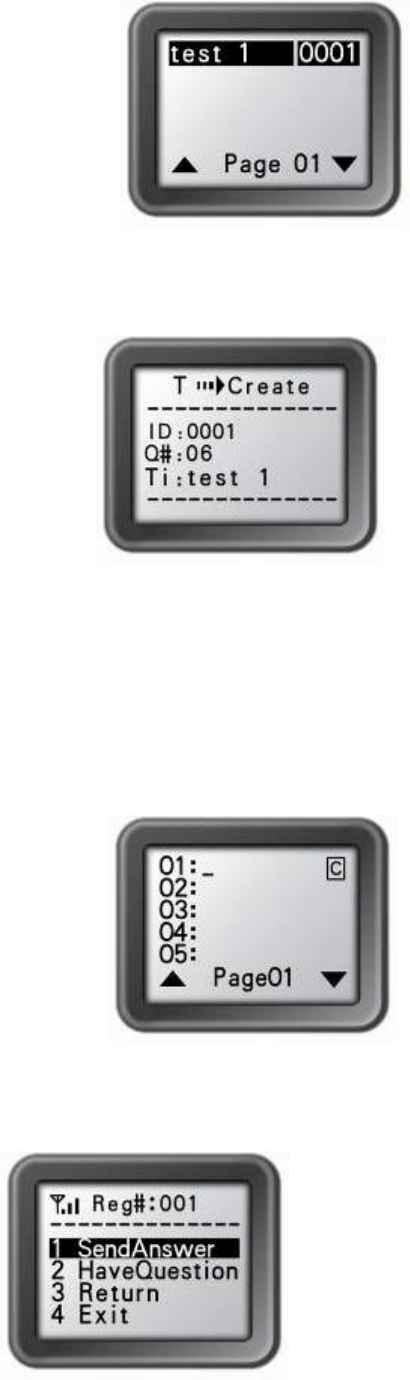

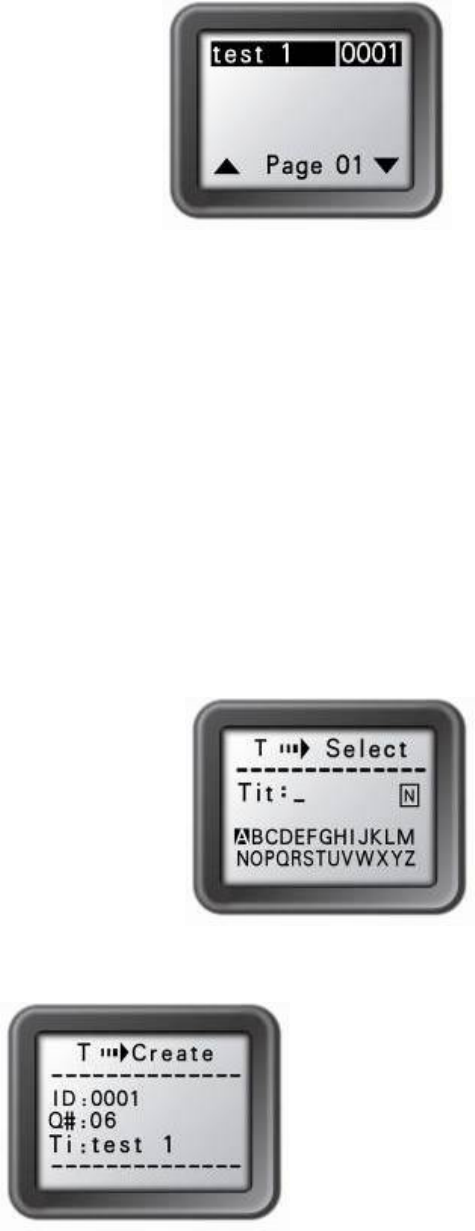

Each line corresponds to one test. Press the “Alpha-Numeric Key” to toggle displays

between test names and test IDs. Use the “Up Key” or “Down Key” to select the

Quiz Screen; Press the “Del Key” to delete the test.

Enter Key or Ok Key to log in.

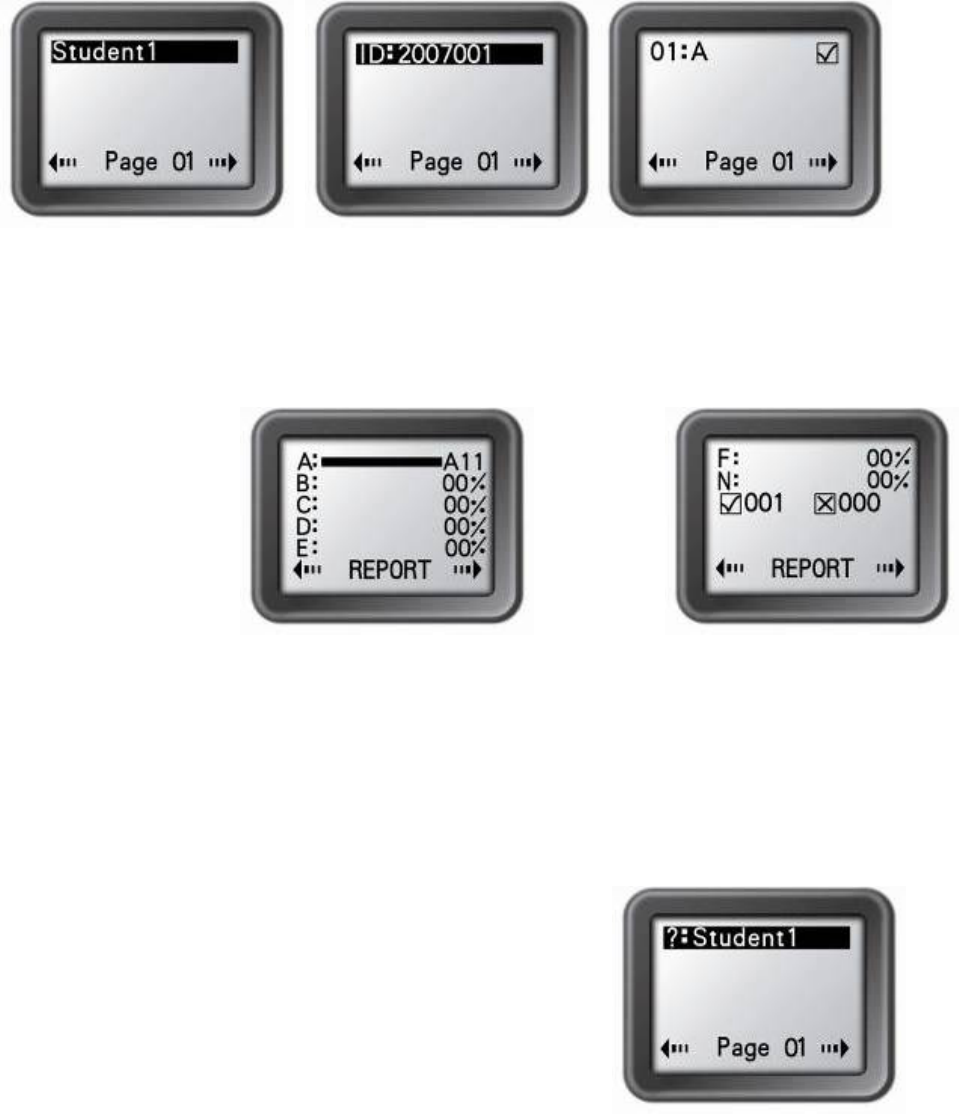

<2> Under the connected screen showing, press the Enter Key to enter to network

“ExamReport”. Find and select a student name and then press the Enter Key to

view the results. Only the current question/answer from the exam will be shown

for the student selected.

Note 1: Under the student list screen showing, press the Ok Key to toggle the

display between the student name and the student ID.

can not wake up keypad by simply pressing any key at this point. The user then needs to

power on the keypad to start it over.

2- Power light (Signal light): when the main receiver is plugged into the USB port of a computer, the

power light will light up red. The flashing red light indicates the main receiver is receiving and

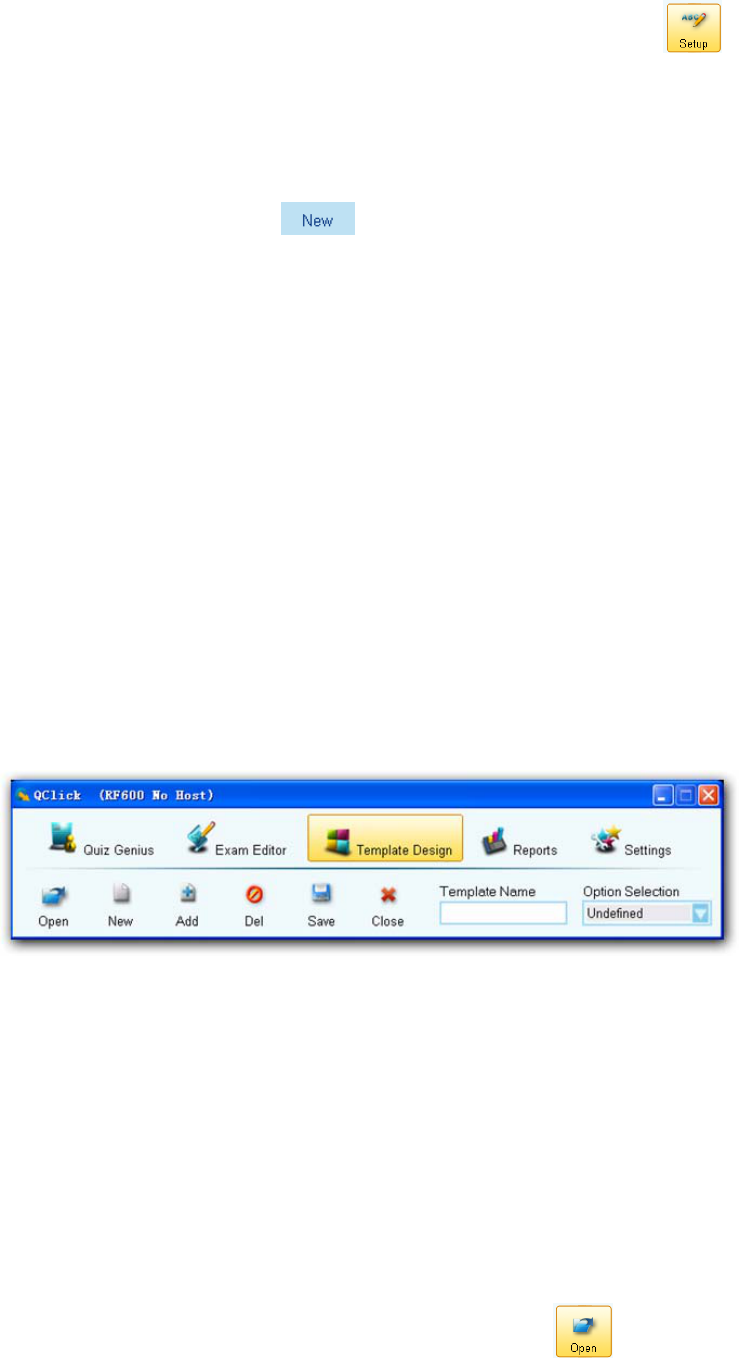

The Template Design is used for designing and editing the user test templates.

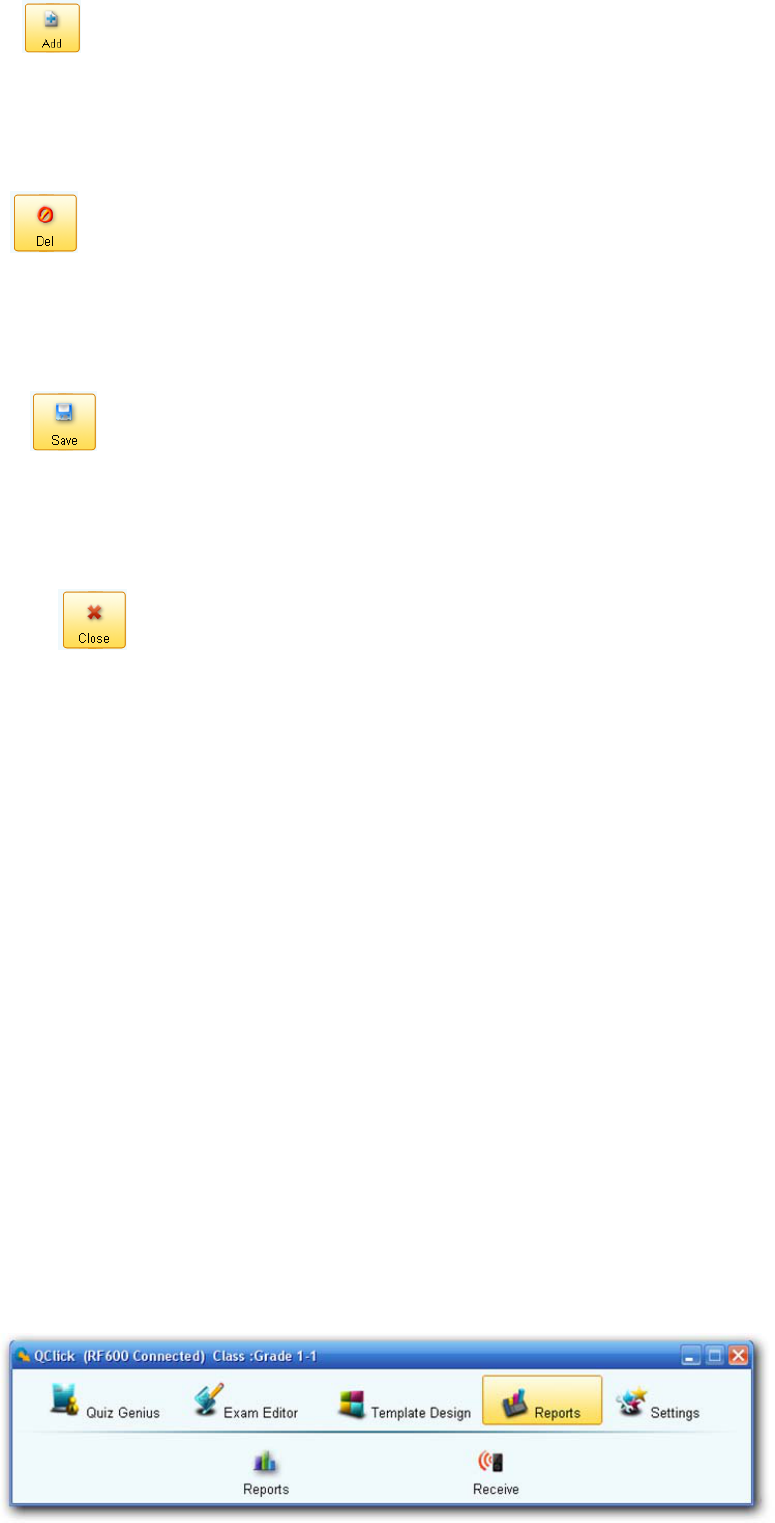

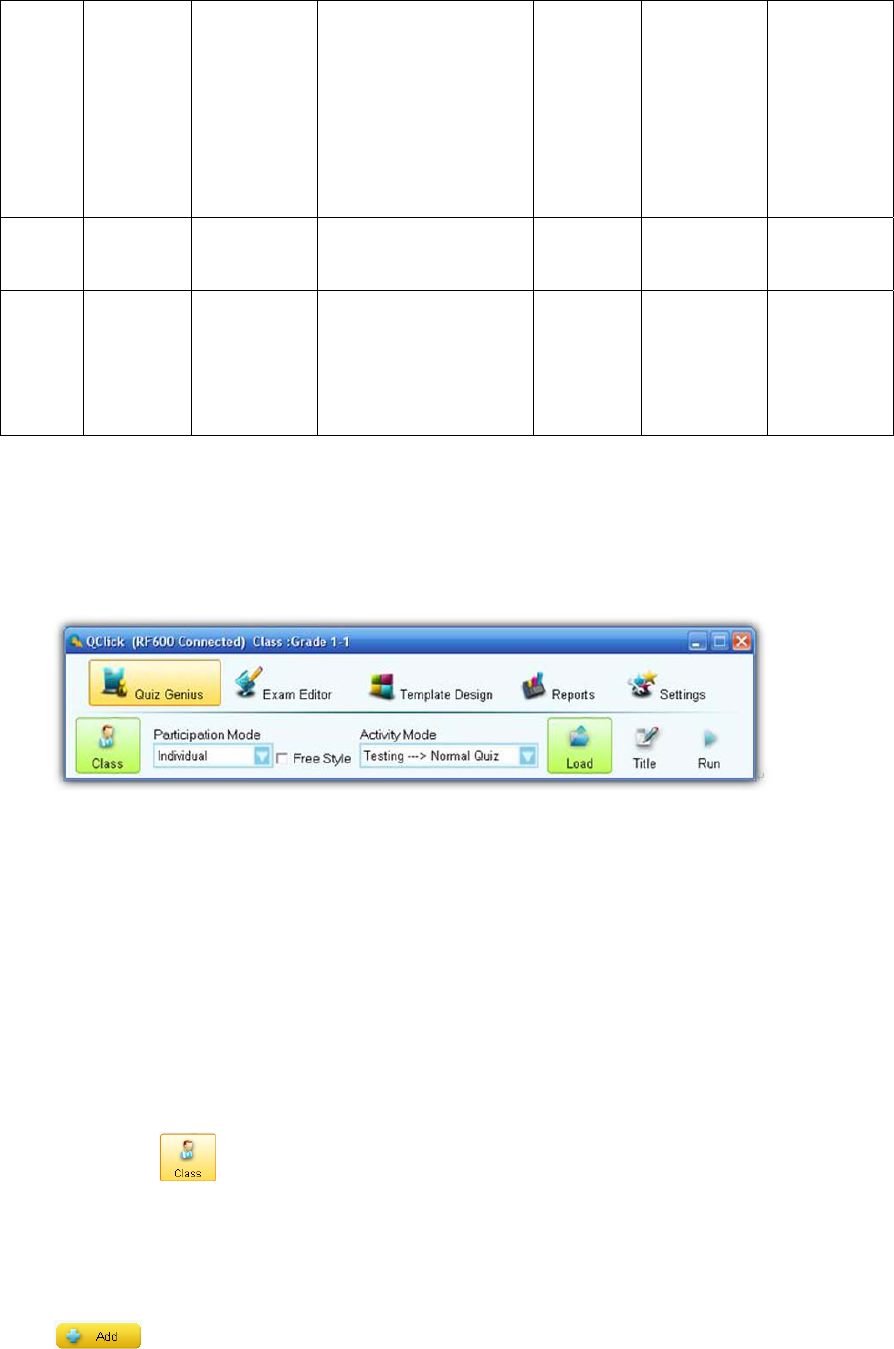

Exam Editor, Template design, Reports, and Settings on the top of screen. The active default Tab is set to

Before conducting a quiz, you should set up a class. If the class information is not available at this time but if

you intend to use the system casually, you may choose some software preset examples for classes, subjects

and teachers. The student roster table always goes with the class selection. The roster includes the student ID

number, name and grouping information. The student profile is embedded under the student record.

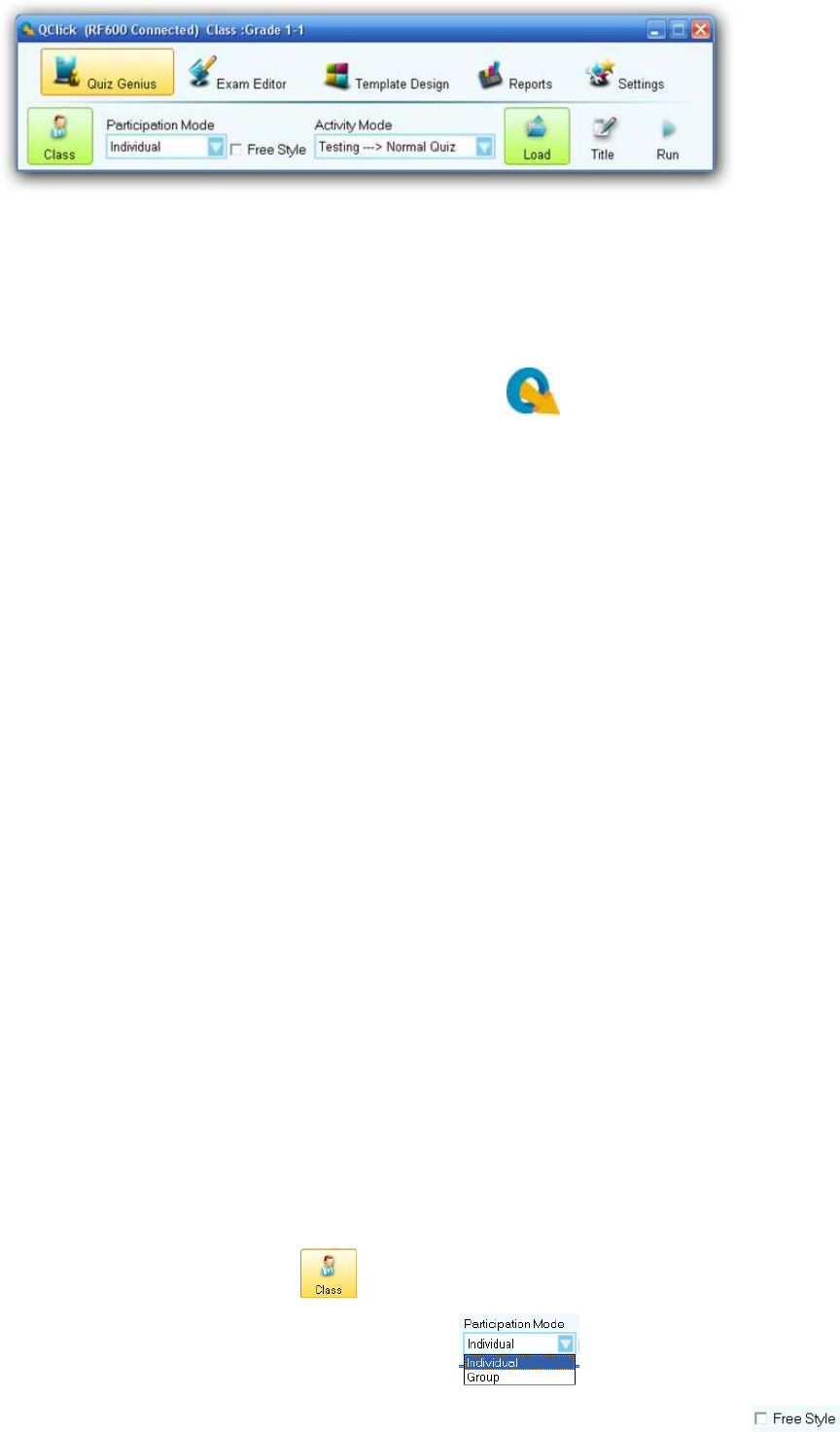

To run a quiz genius, follow these steps:

Set up a class by clicking the Class icon, refer to session 1.1.1 Class for detail set up.

You may change the test ID by clicking the Title icon to set the change or use the system default ID

number; refer to session 1.1.5 Title.

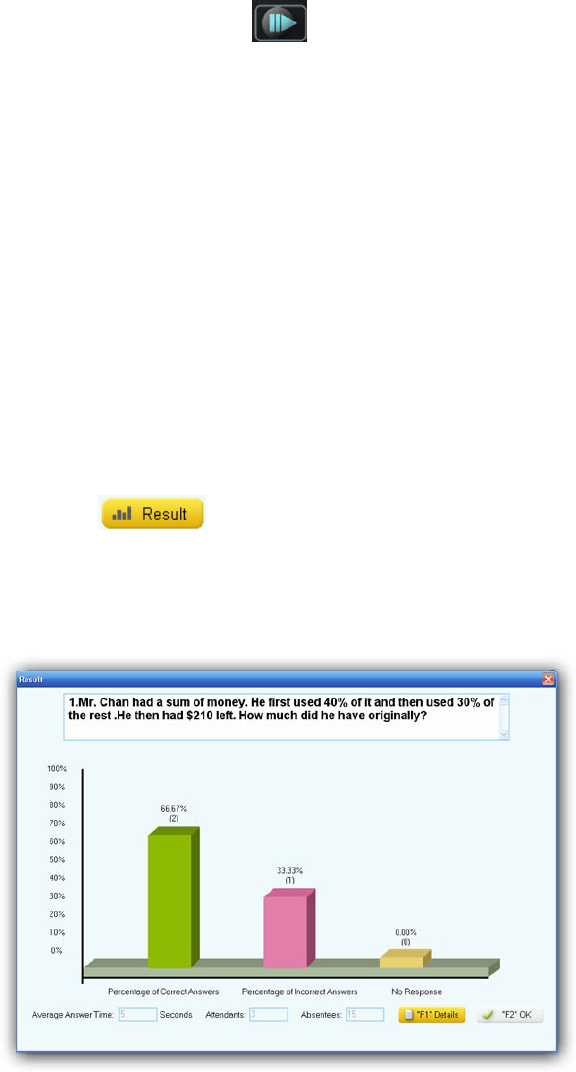

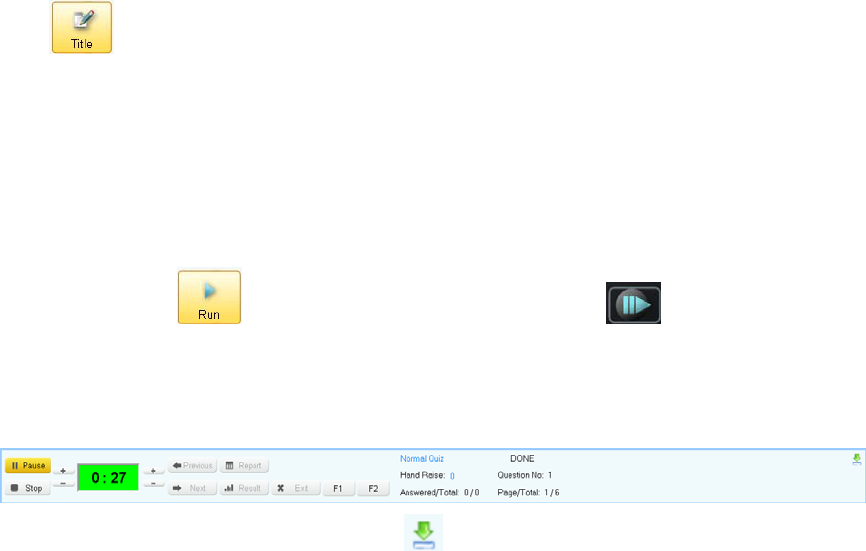

Click the Run icon to start the quiz, refer to session 1.1.6 Run /Start a Quiz.

Depend on the selection, not all these steps are necessary. The following table shows the relationship:

Free

Mode

Loaded

Title & Test ID Need to

Load an

Answer

Sheet

Multiple

Mode,

Survey

ID number can be

changed

No Normal,

ion,

Multiple

Mode,

Survey

Any

exam files

The loaded exam

file name is used as

the title name, the

system default test

ID number can be

changed

changed

No Vote System

PPT file

The loaded vote file

name is used as the

title name, the

system default test

ID number can be

changed

No Roll

Not

needed

Not needed No No No

**If answers are not provided before a test, the answers can be entered after each question test is finished or

can be entered in the QClick report system.

The QClick system uses the class to engage a quiz session. A class must be created or selected prior to any

activities. The class is used by the QClick system to form a group of students. A teacher and a subject are

associated with a class. The students in the class can be grouping. In the class setting, there are many ways to

enter the class info. You can choose to import a student roaster from a spreadsheet or choose to type in

student info in the program. In the same way, the teacher info and subject name can be imported from a

spreadsheet or entered in the QClick system. To create, to select or to modify class info, please follow these

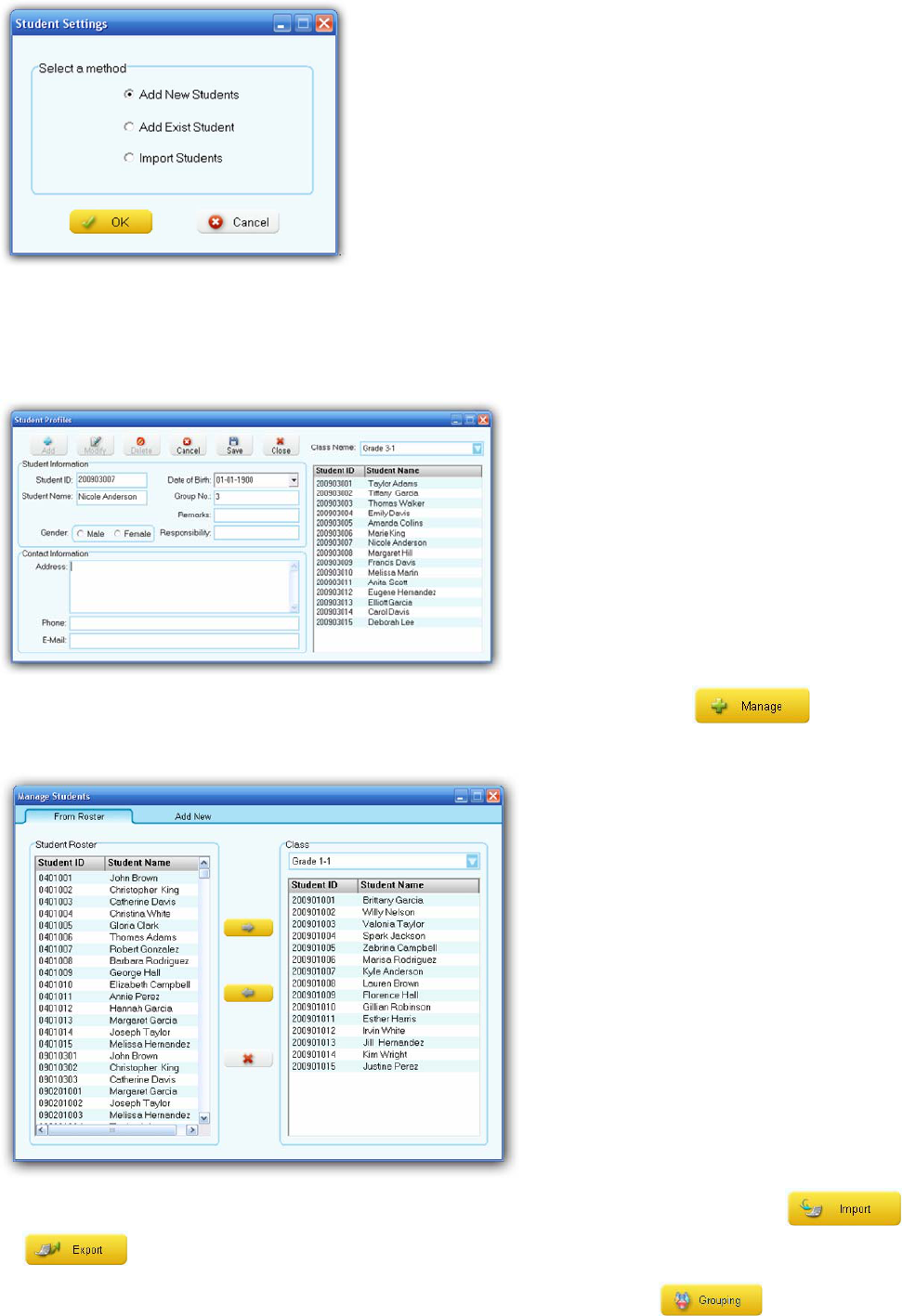

Select one of choices in Student Settings to enter the student info.

You may modify the student info by directly double clicking on the student row in the roster to display the

If you want to add or remove the students to or from the class, click the Manage button to

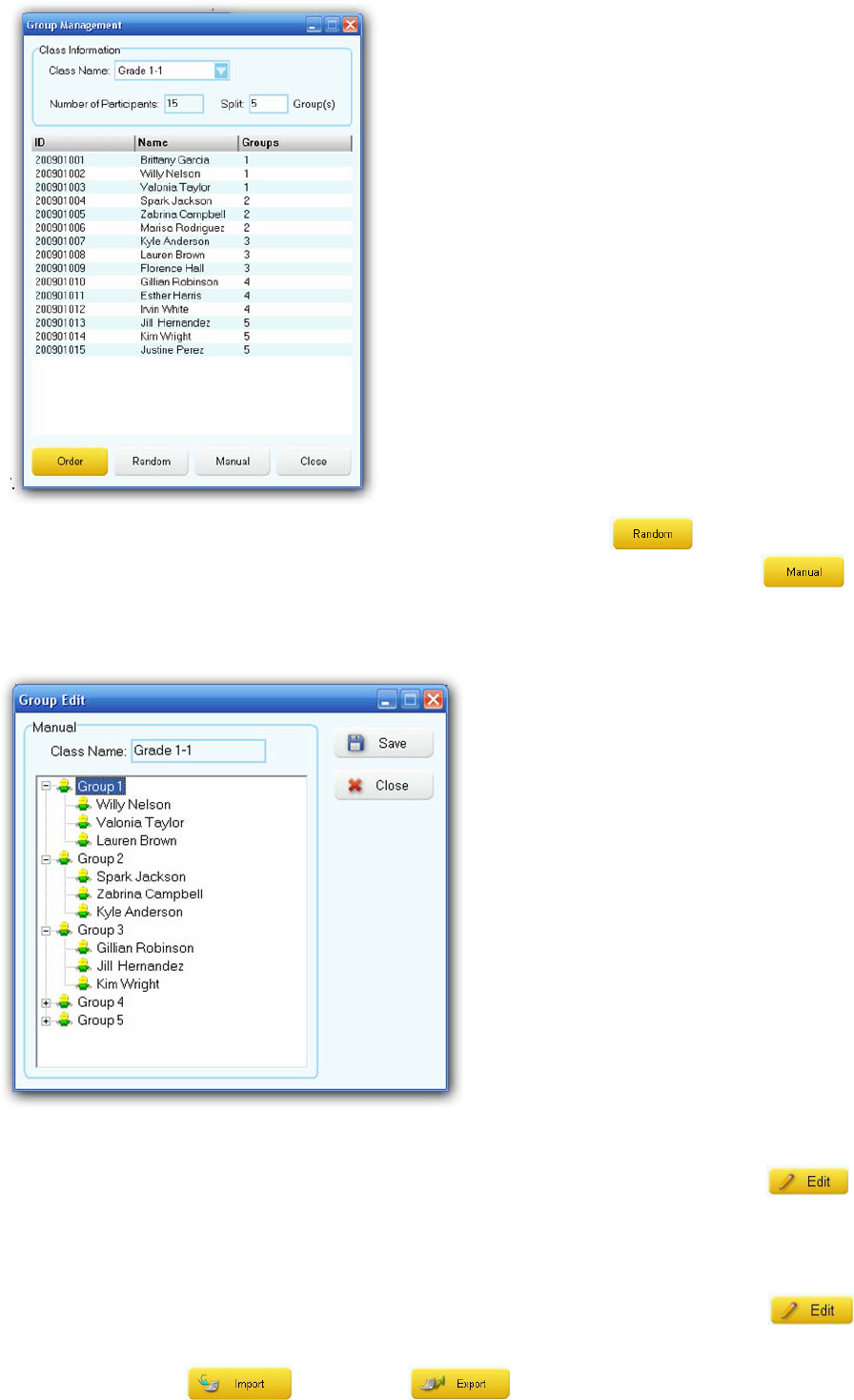

There are two grouping methods, random and manual. Click Random button for the random

grouping, the software will randomly pick up students for the grouping. Click Manual button to

display Group Edit window for the manual grouping. You can simply click and hold the left mouse button

to drag and drop a student from a group to the other group.

You may Add, Delete, or Modify a subject name to the subject list by clicking the Edit button next

to the Subject Name drop-down list.

You may Add, Delete, or Modify a teacher info to the teacher list by clicking the Edit button next

“Rush Quiz” buttons gets the power to answer the question in a given time. If the answer is right, the audience

will get the credit point. If wrong, he or she will get the negative credit point.

eliminated by the system automatically.

session. The loaded quiz file or the answer sheet contains the mode activity information in each question set

up. If you choose the Multiple Mode as your quiz session activity mode, the system automatically selects the

activity mode for the current quiz question based on what activity mode the system reads from the embedded

mode set up for each question in the quiz file or in the answer sheet. If a loaded quiz file or a loaded answer

Elimination as the whole quiz session activity mode, the activity mode you select will overwrite the

session activity mode, but the current question mode is set to Rush Quiz, the system will ignore the Rush

Power Point file with the weight information embedded in the file or could be no Power Point file. If no

responses.

The Vote activity mode is similar to the Survey activity mode. The audience responses contain no correct or

the vote file in Power Point format. No an answer sheet is needed to be loaded to the system prior to starting

many candidates.

The Roll Call mode is used for helping the instructor to roll call the attendances. When you select the Roll

or even from the instructor’s dictation. The correct answers for the questions could be provided after finishing

each question answering or provided after the whole quiz session is completed. The main advantage of Free

restricted to the well preparing material examination before the instructor to start a quiz session, and at the

same time, it does not lose any student quiz performance data.

To use the Free Style control, follow these steps:

3. Click Run button to start the Free Style activity mode.

6. If you want just to use the system white board to draw or write a quiz question, right click on

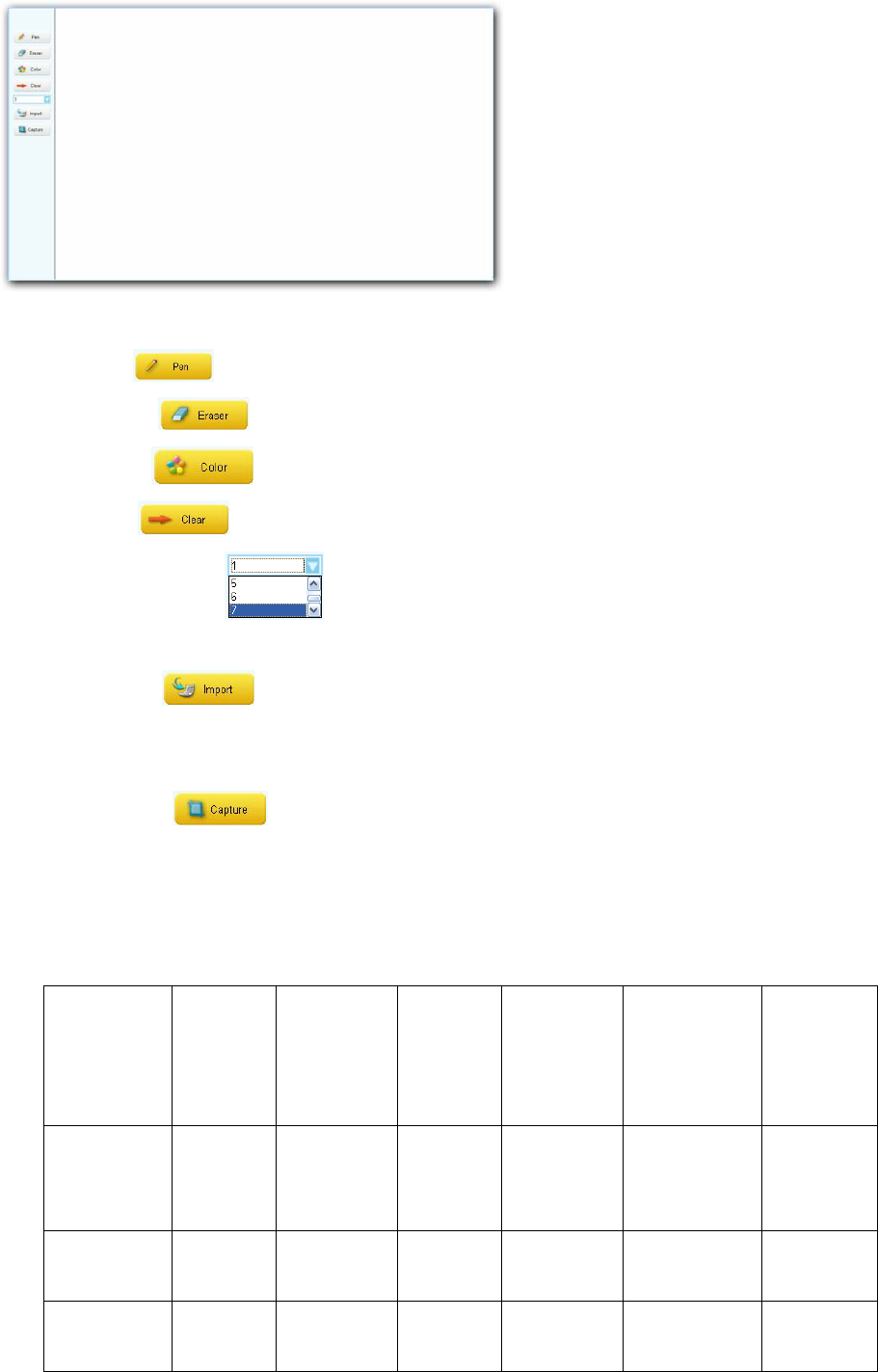

7. The system white board tool contains these controls:

drawing. The bigger number is the thicker.

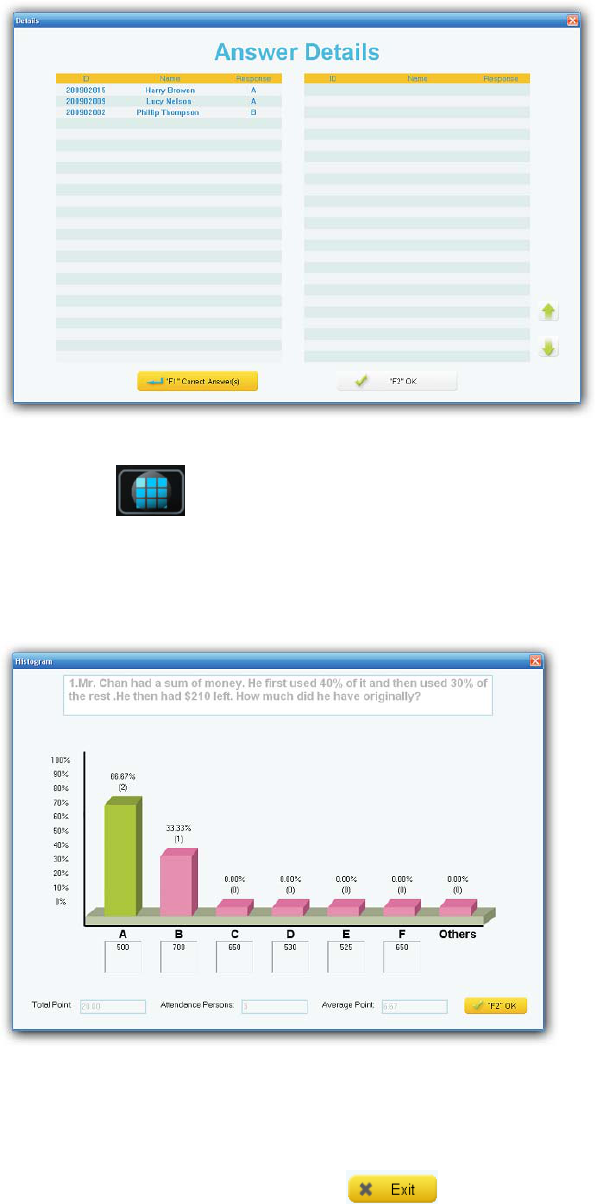

Activity

modes

short text

answer

histogram

available?

Report

√ √ √

The QClick system requires the instructor and student keypad should logon to the system RF network before

starting a quiz session. If students want to attend the quiz or the exam, they need to set up their keypad

student IDs. These ID numbers should be from the class student roster list. When the class is selected, the

instructor and the student can start to logon the system RF network. Please refer to the hardware manual

session about how to use the instructor and students keypad to logon the system RF network. Once students

are logged on to the system RF network, they can keep staying there unless the instructor selects a different

The ID and the name of the student who want to force login will be displayed on the Force Login window.

Then, the instructor can decide to allow the student in or not. To operate the Force Login function, follow

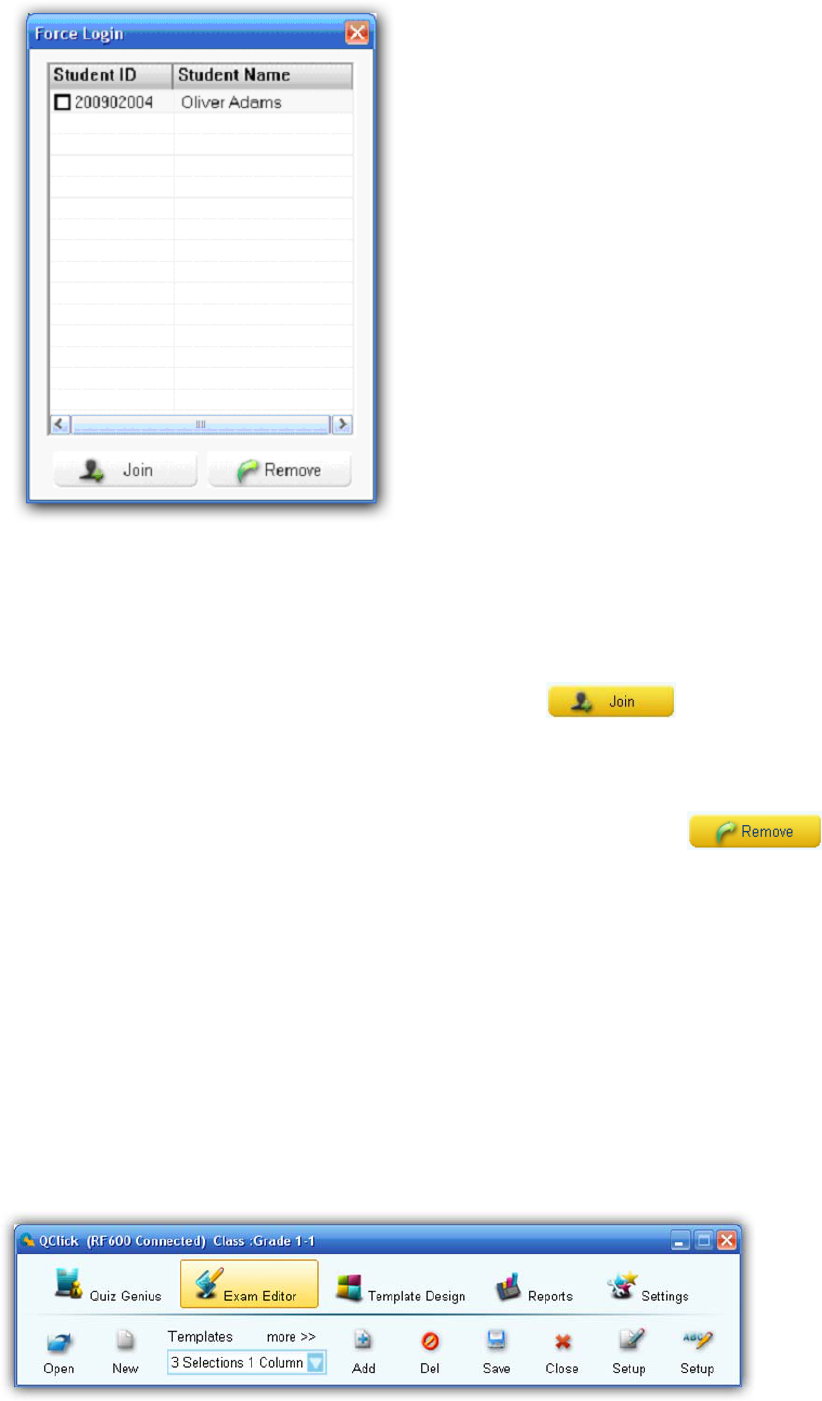

1. Crick the check box on Force Login student list window to select the student.

2. If you allow the student Force Login, click the Join button. The student ID and name

3. If you want to reject the student to Force Login, click the Remove button. The student

use the QClick system to conduct a quiz if you choose to use the Power Point file as the quiz question

QClick Exam Editor is there for you to easily create a Power Point quiz file and to set up the correct

quizzes. The quiz material could be from third party format file, like ExamView, or could be from MS word

To use the Exam Editor, follow these steps:

1. Select Exam Editor Tab window.

2. To edit an existing Power Point file, click Open button; the Open file browser will display to

3. To edit a new Power Point file, click New button; a blank Power Point slide will displays on

4. To add a new slide, select a Templates slide from the Template drop-down list. Then Click the Add

“(Installation Path)\QClick\User\QRF600\Paper Base.”

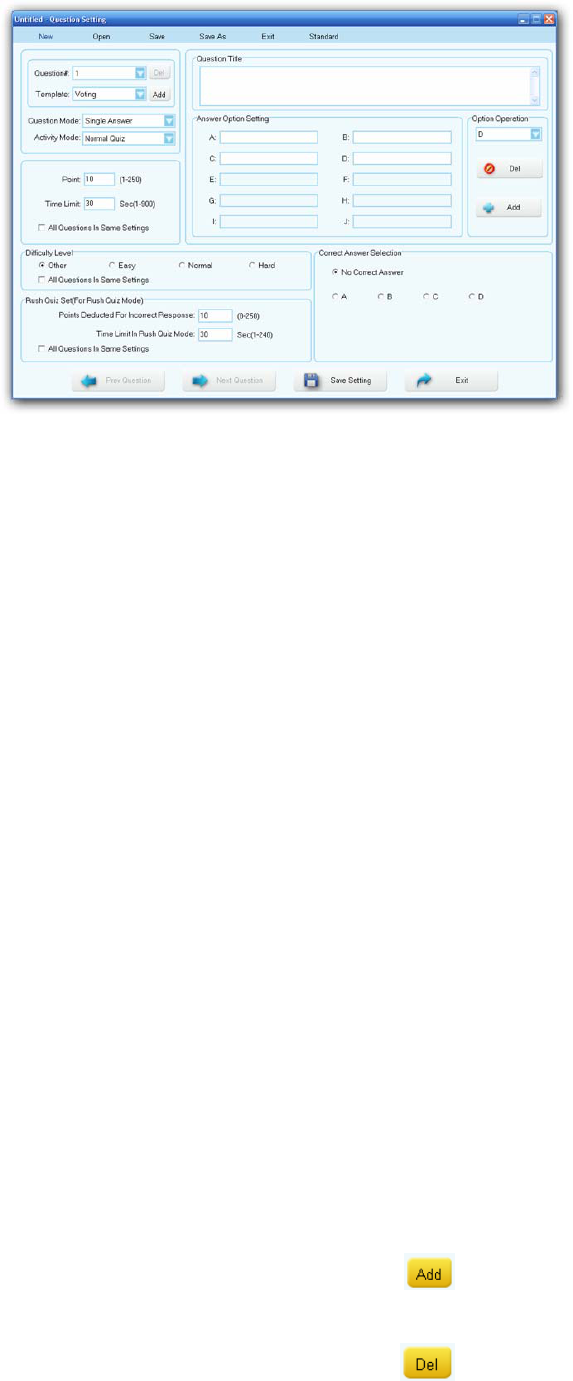

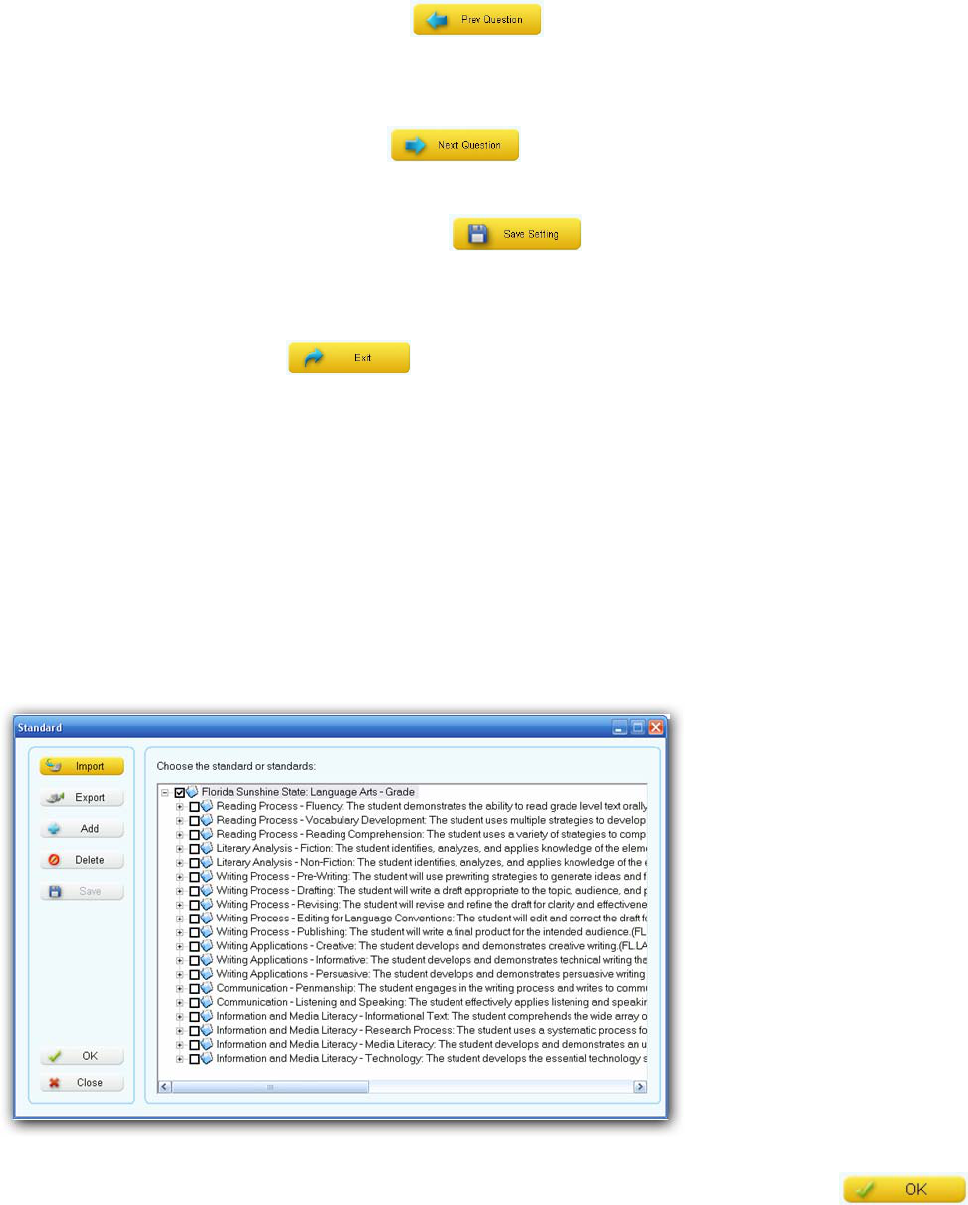

education standard can be set up for a question setting. Click the menu Standard under the Question Setting

The standard hierarchical chart is displayed on the right of the window. Select a standard applied for the

question setting from the chart by clicking the corresponding check box, and then click OK

button. The standard setting will be saved to the question. This state education standard is used in the

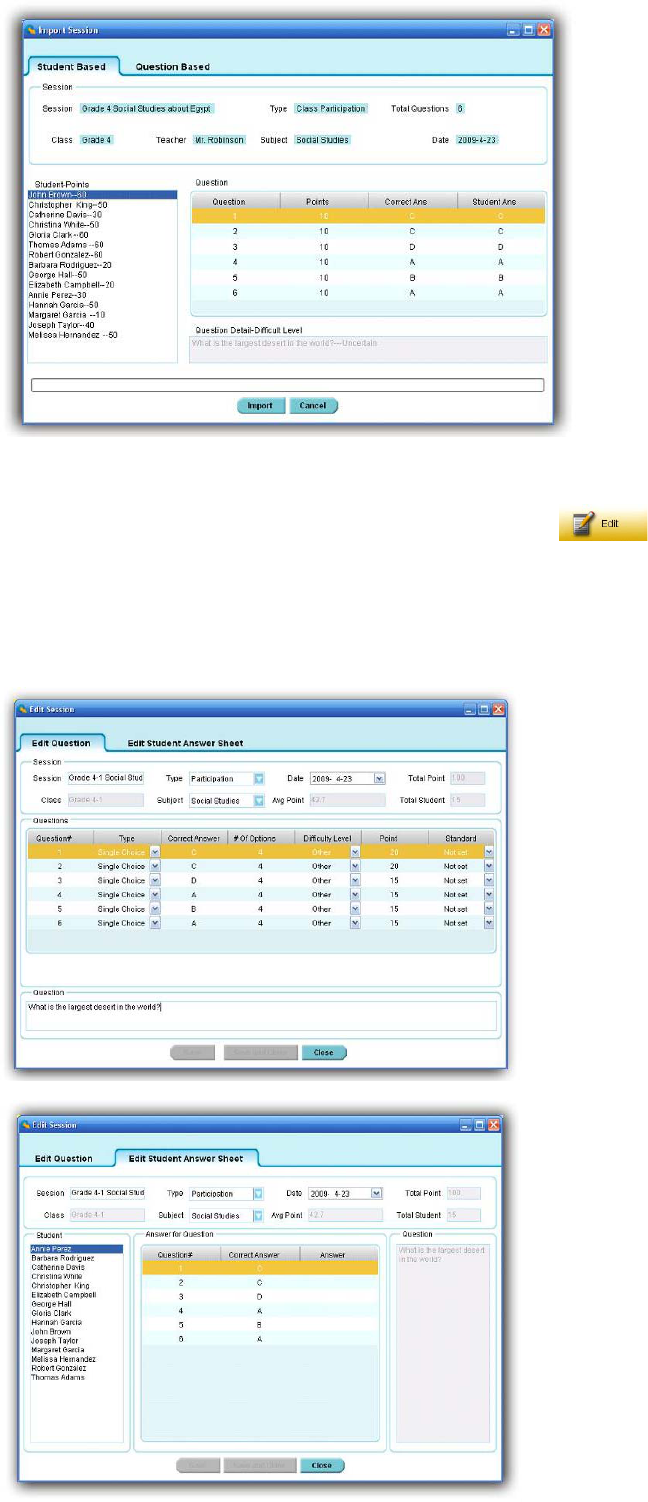

3. Select a question you choose to edit by clicking the question number in the Answer for Question window.

a make-up session but don’t want to keep two separate sessions; one for the regular and one for the make-up

with the same class and the same subject, using the same activity test. This way, you can merge the make-up

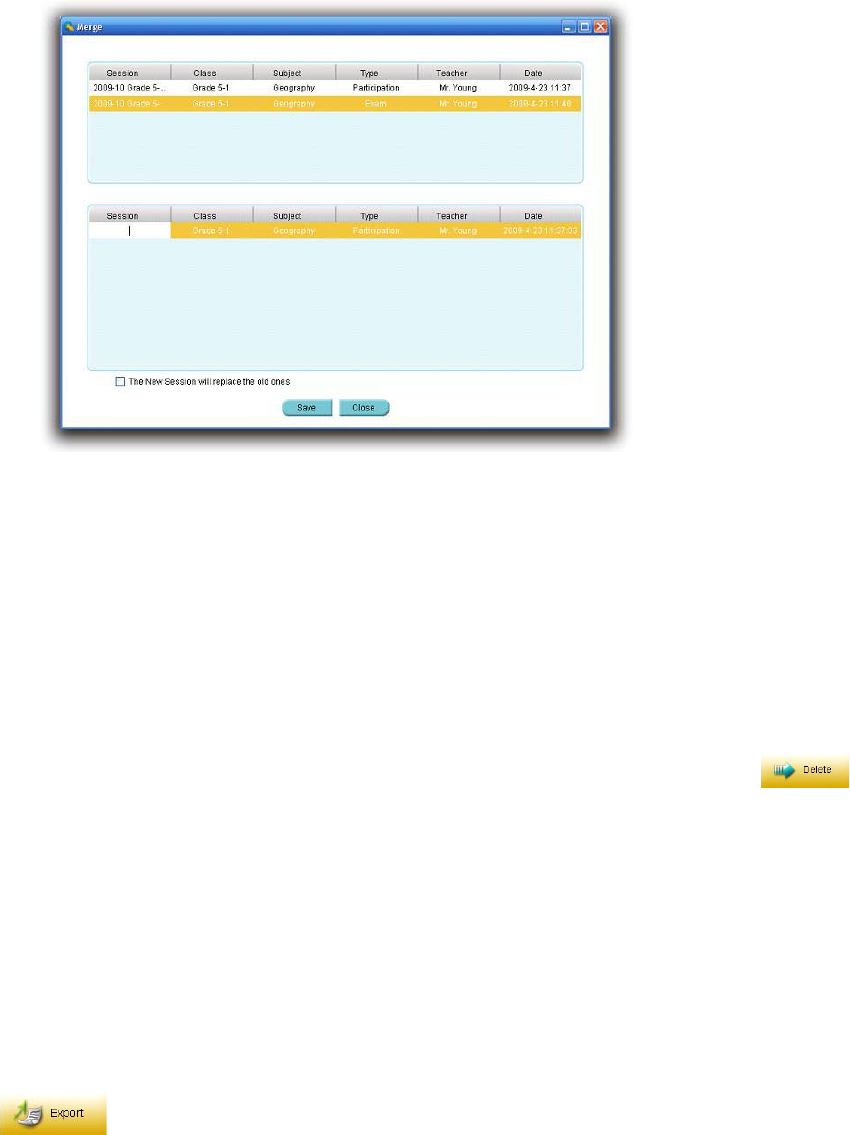

session and regular session together to form a single session. To begin the merge function, follow these steps:

Select one or more sessions you wish to delete and then click the Delete button in the Data

Select a session from the list you wish to export. In the Data Manager groups, click the Export button

2. Click the Export button to begin exporting.

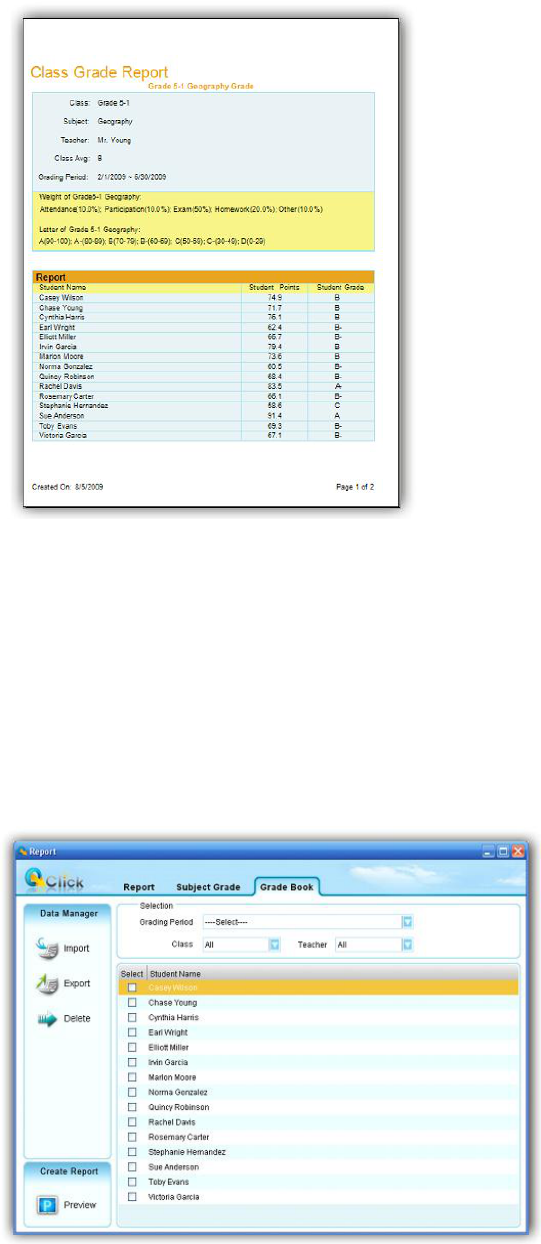

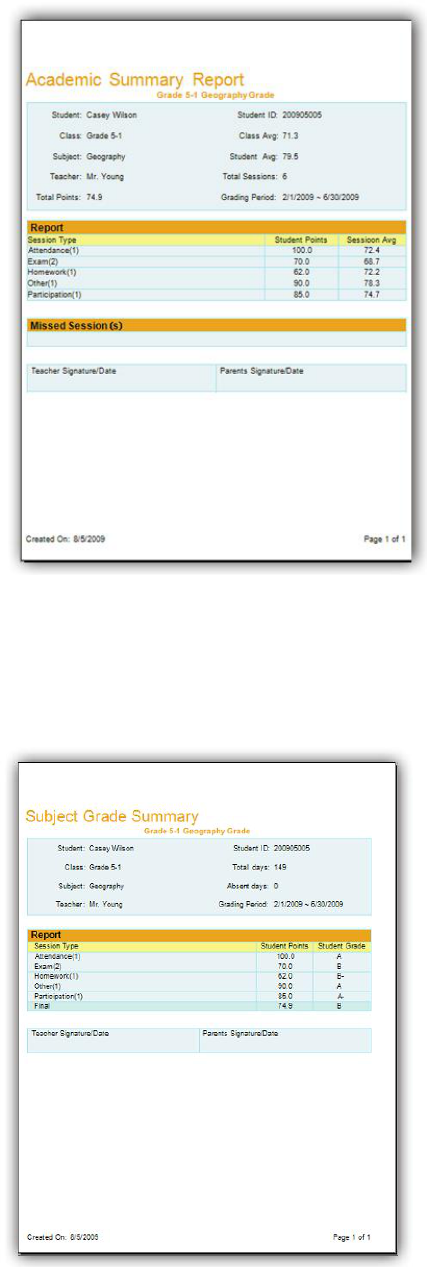

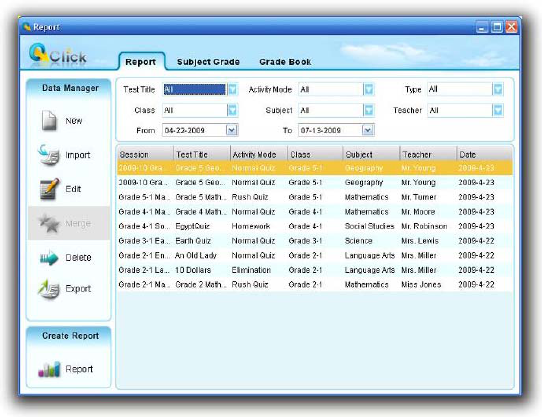

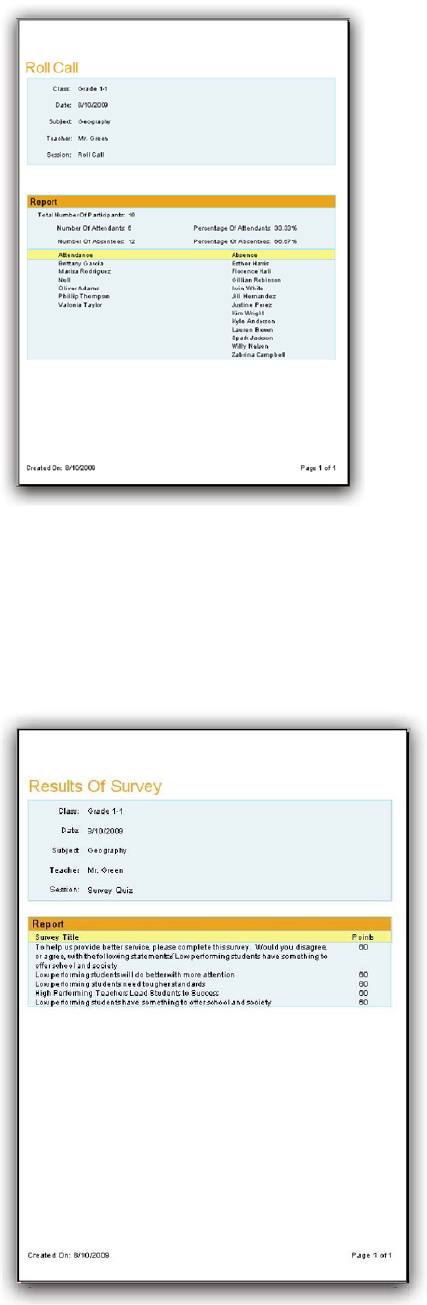

The QClick reporting system generates various category reports using the student class activity performance data.

There are four categories of reports, each report focusing on different areas. These categories are:

All reports include a Report Title which includes:

Total points for student performance in the

STUDENT RESPONSE RESULT

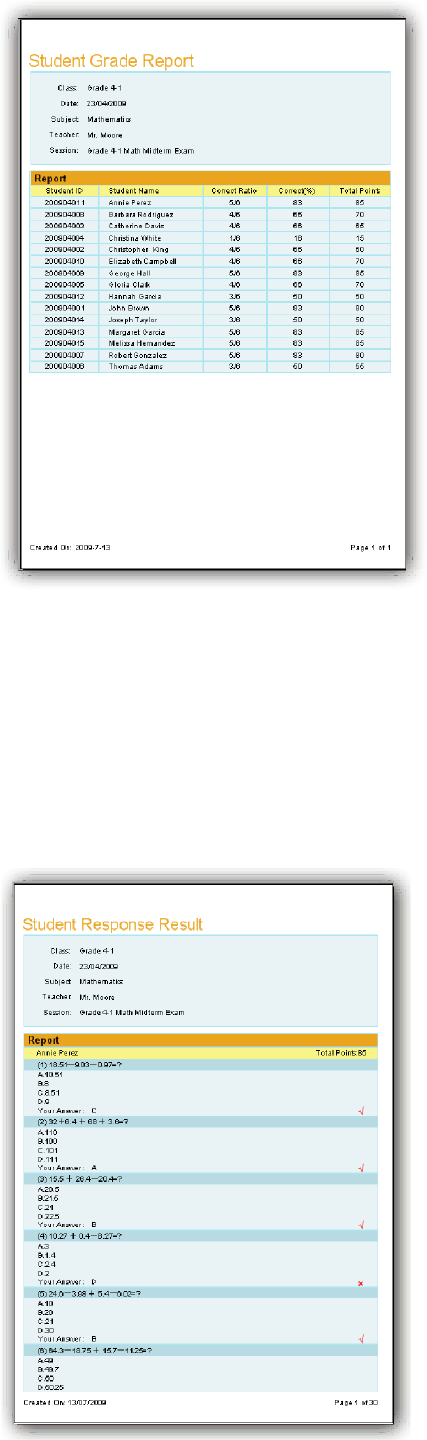

The student response report provides detailed

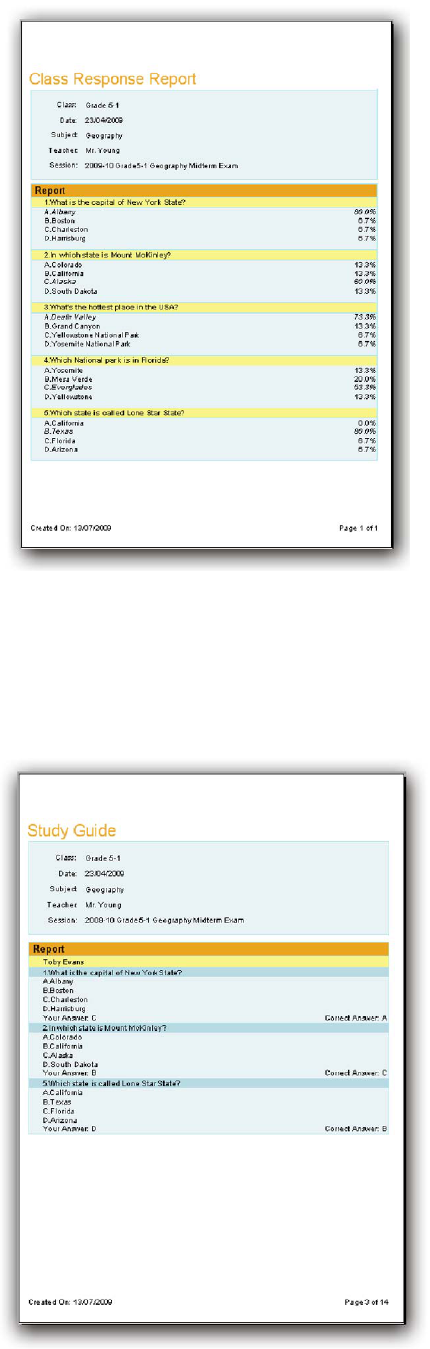

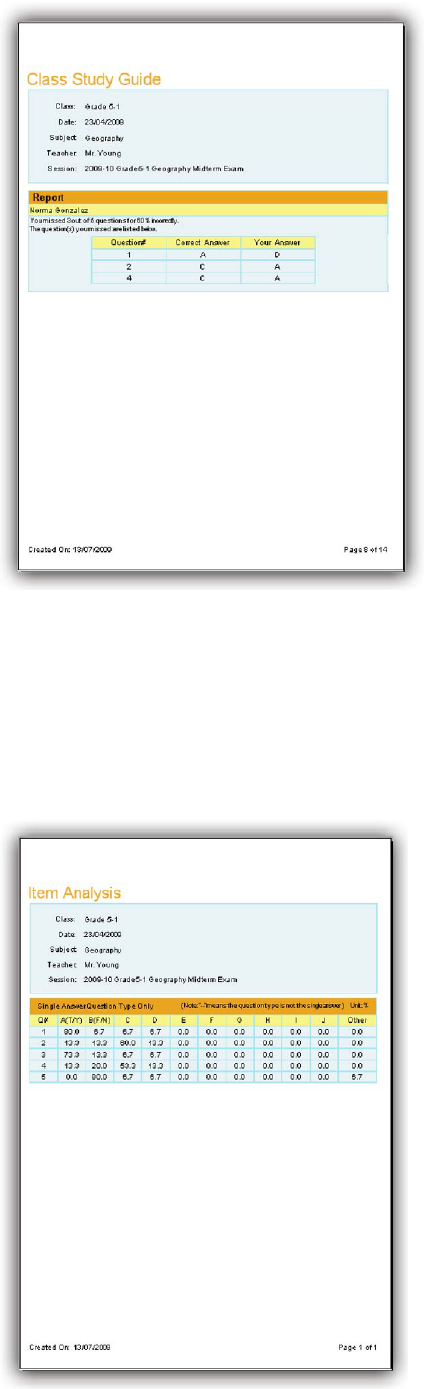

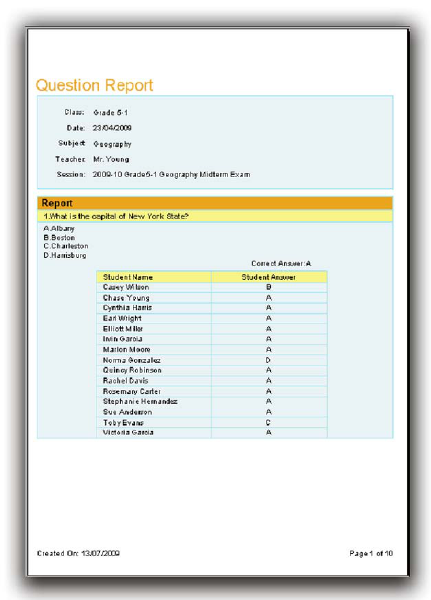

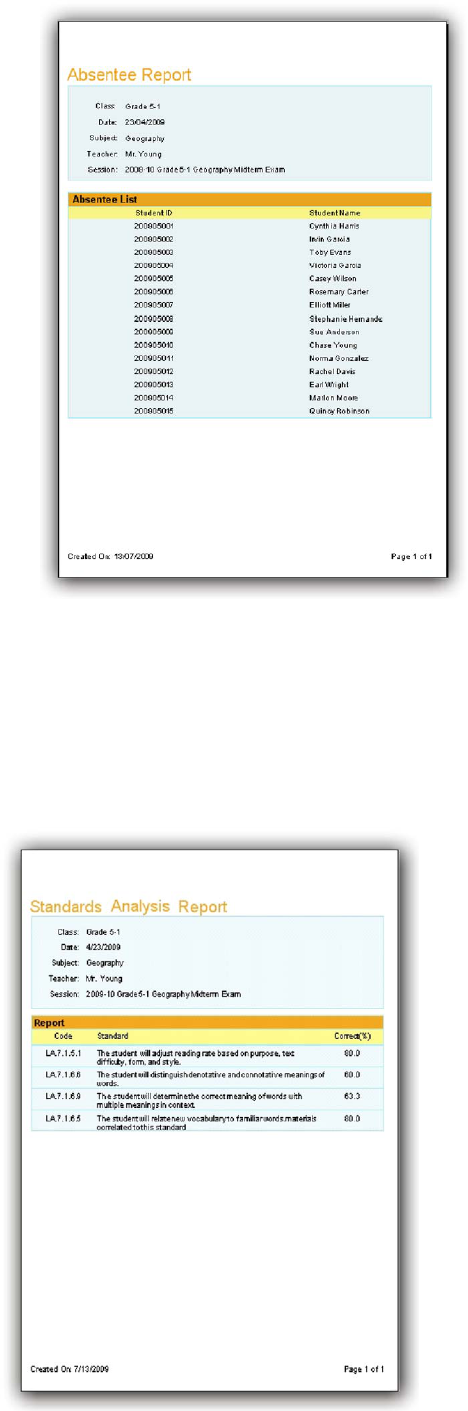

The question report provides a composite analysis of each question. The question report list includes:

The study guide report provides a list of incorrect answers per student providing the instructor the information

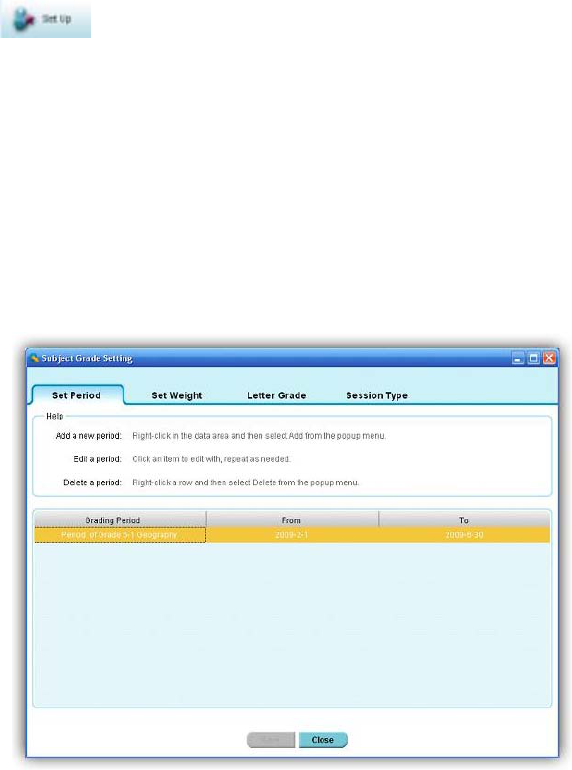

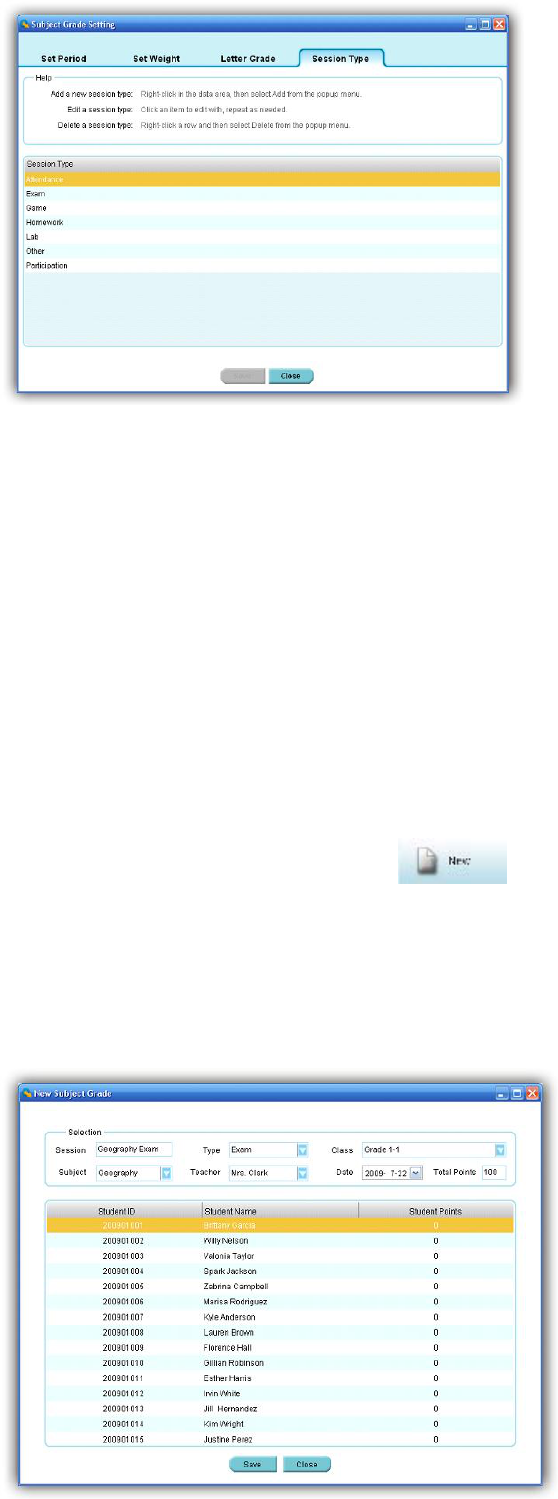

4. To add a new period, right click on the data showing area, then select Add from the pop-up drop-down

6. To edit an existing period, click on the period data you choose to edit. Click the Grading Session if you

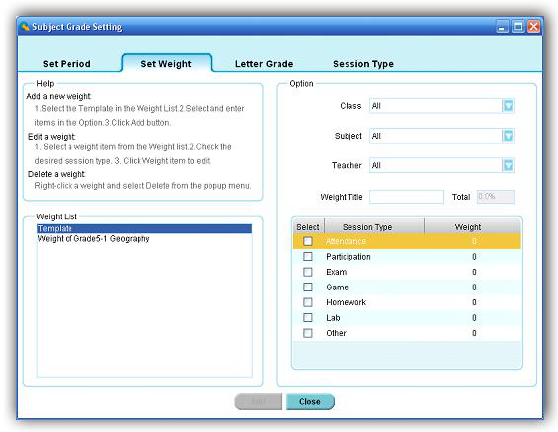

4. To add a new weight setup, click on the system template in Weight List, then select the class name,

5. All the session types set up in the subject grade setup are shown in the weight list. Each session type has

7. To edit a weight setup, click the weight item you wish to edit in the Weight List window. Edit the contents

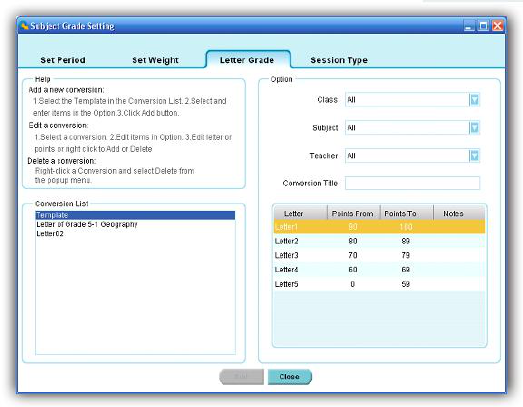

4. To add a new letter grade conversion, click on the system template in Conversion List then select the

4. To add a new session, right click in the session type data and then select Add from the popup, drop-down

5. To edit a session type, click on the session type you wish to edit.

detailed question information as well as the answer and score for each question. The subject grade session

only contains the overall score for the session. To create a new subject grade session, follow these steps:

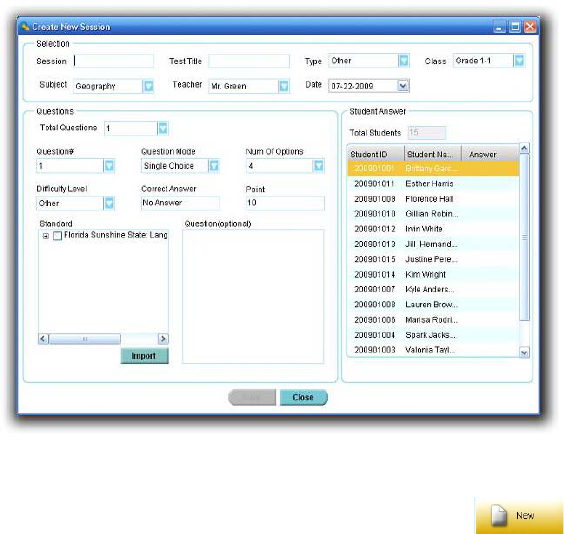

3. Select an associated class name with the session from the Class drop-down list. When a class is selected,

4. Select a type for the new subject grade session from the Type drop-down list.

5. Select an associated subject name and teacher name for the session from the Subject and Teacher

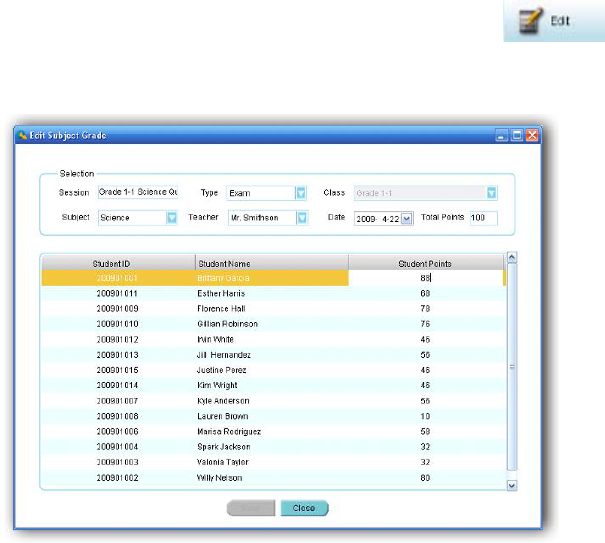

To modify the session information, follow these steps:

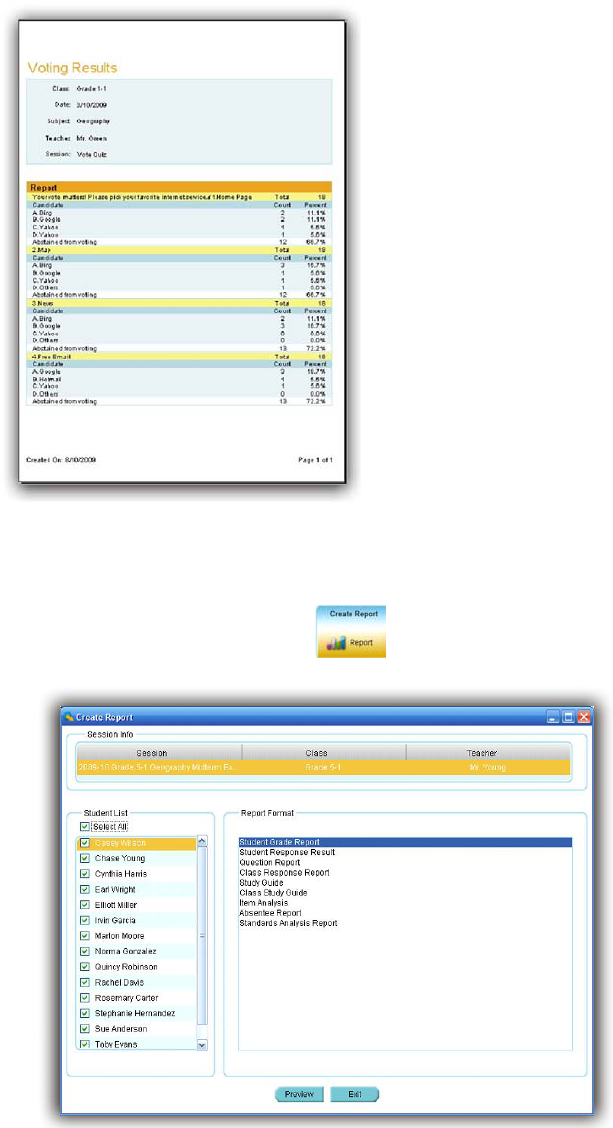

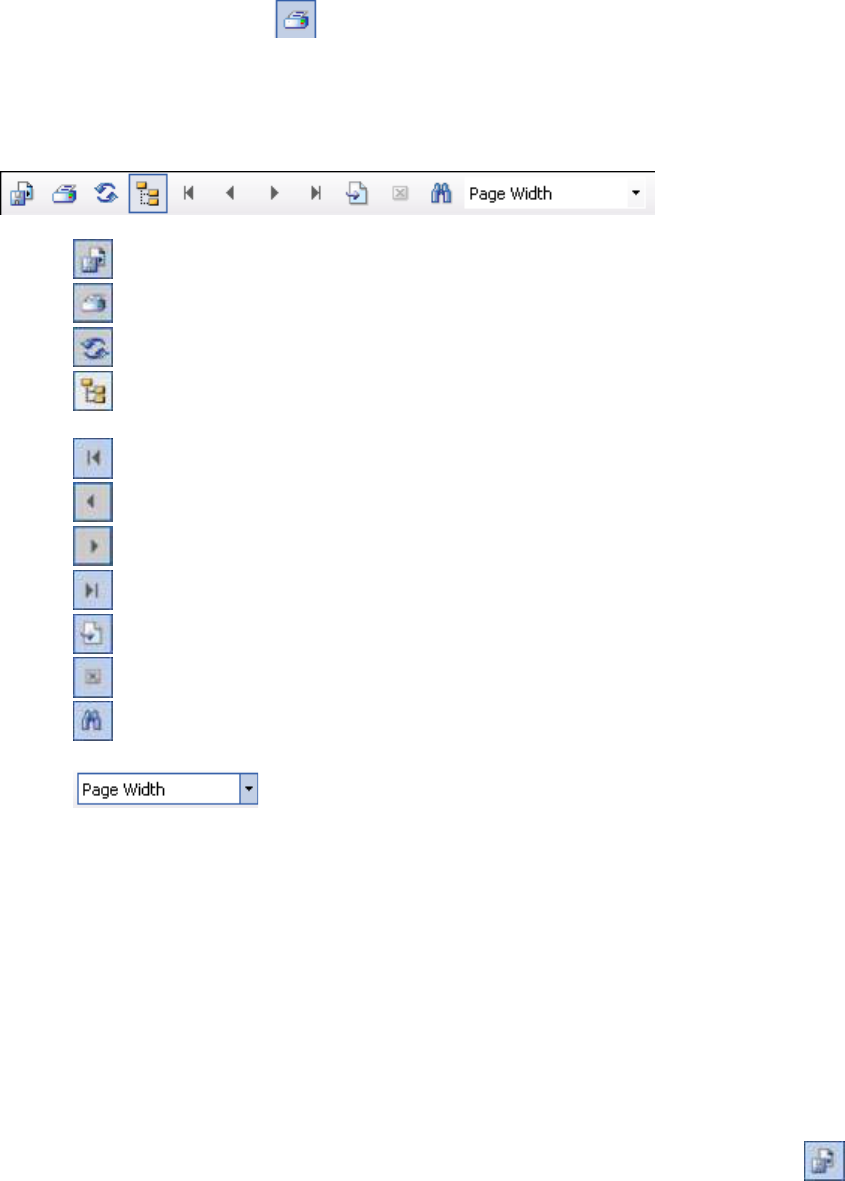

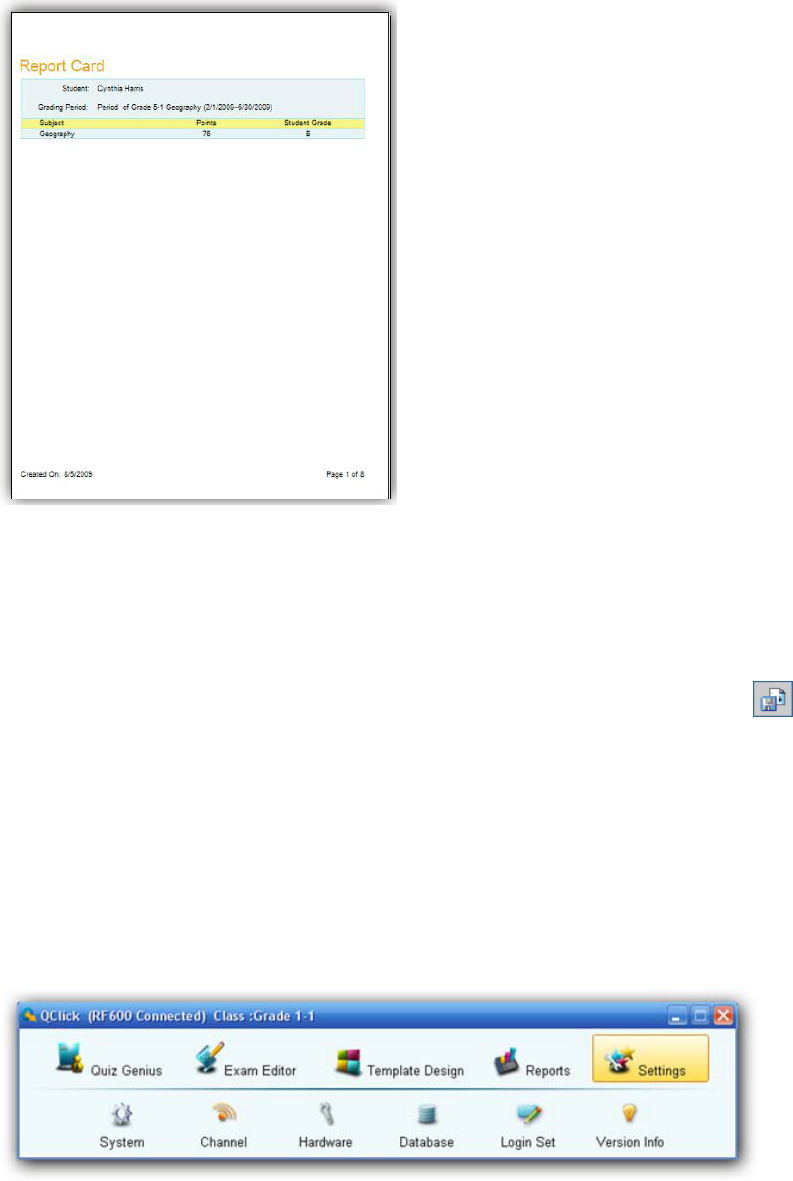

Select one of these four reports and click on the Preview button to preview the Subject Grade Report.

3. Select the student you choose to report by clicking on the student name in the Subject Grade Report list.

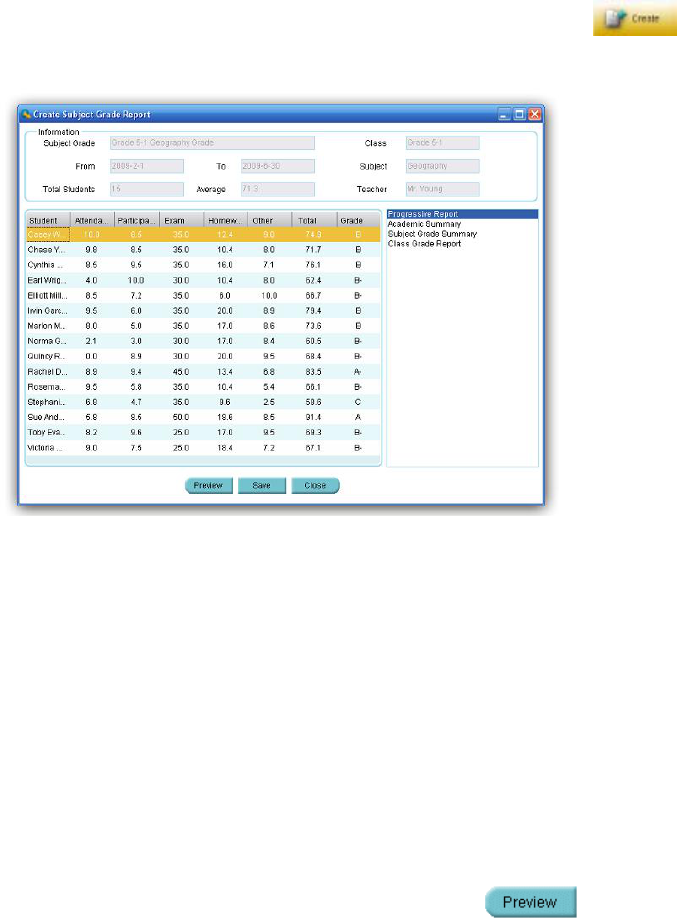

1. Follow the above 10 steps to generate a Subject Grade Report then click the Create button under the

3. Select the student you wish to report by clicking on the student name in the Subject Grade Report list.

Click the Reports tab on the QClick main window then click the Report button. This opens the reports tool.

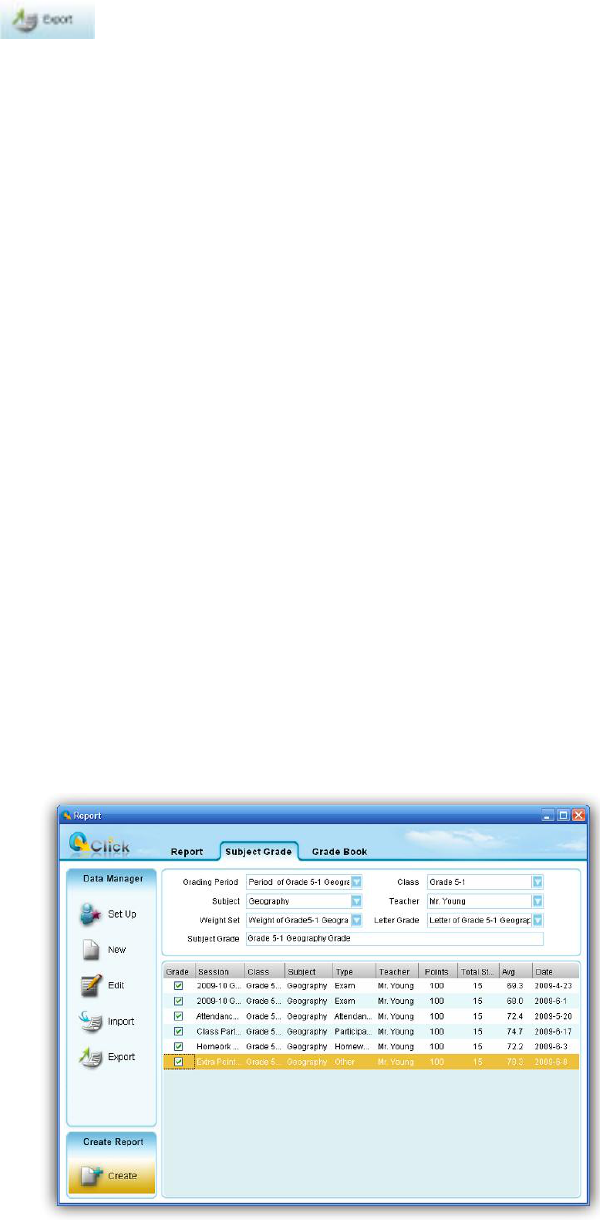

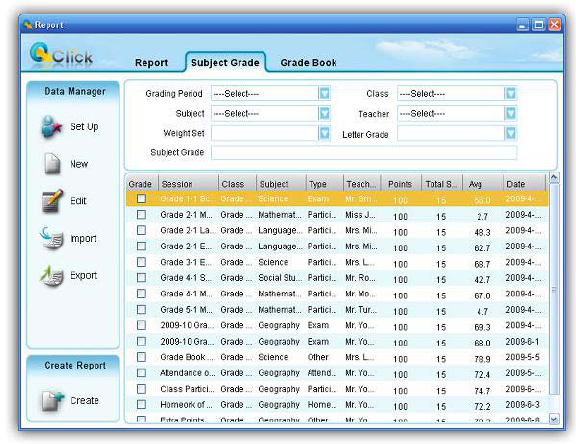

Under the report tool tab, select the Grade Book tab. The QClick Grade Book has two main categories; Data

Data Manager

From the Create Report group click the Preview button to preview a student grade book. A grade book

The class name and the teacher name will help filter the student selection. If you choose to turn off the filter in

stored in a file. The import and export of grade book data is a pairing function allowing you to transfer one or more

subject grade data from one computer into another. The export function allows you to retrieve one or more subject

grade data from the QClick system database in one computer to save it to a dedicated file name and path. The

all subjects regardless of class selection will be exported. After the subject selection, a file browser will open

allowing you to select or enter the file and path you wish to use for the export file. The import and export of

the grade book data is a pairing function allowing you to transfer the grade data for one or more subjects from

one computer into another. The export function allows you to retrieve the subject grade data for one or more

subjects from the QClick system database in one computer, and save it to the file you have chosen. The

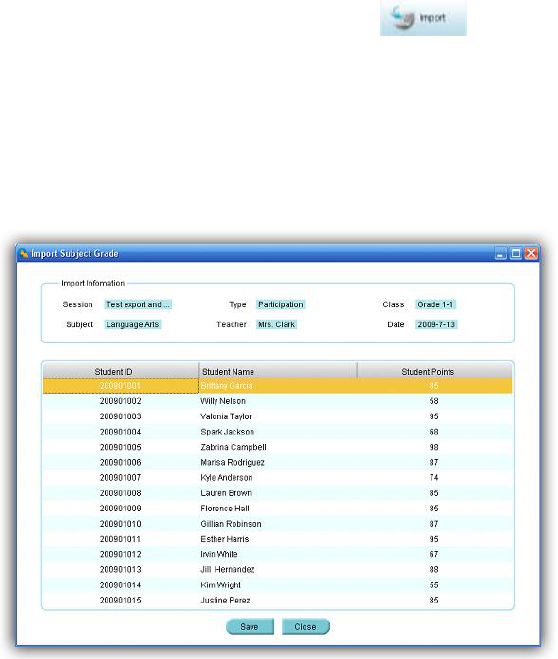

import function allows you to merge the grade data for one or more subjects from the data file into another

computer’s QClick system database. The file takes the extension “.gbd” format. To export a grade book,

follow these steps:

1. Under the report window select the Grade Book window tab.

Select the grading period you wish to delete from the Grading Period drop-down list. In the Data Manager

groups, click the Delete button to open the subject selection dialog window. From the window,

select one or more subjects you want to delete from the grade book. If you select one subject, all grade data

associated with this subject regardless of classes are deleted from the system database. If you select all

subjects, the grade data for all subjects regardless of classes are deleted. To delete a grade book, follow
