QSC >
User Manual
™
Hardware Installation Guide
TSC-7t – Networked, Table-Mounted, 7” Touchscreen Controller
TD-000508-00-B
*TD-000508-00*
TD-
000508-
00-B
2
EXPLANATION OF SYMBOLS
The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result
may be bodily injury or death.
The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions
are not followed, it may result in damage to the equipment that may not be covered under the warranty.
The term “IMPORTANT!” indicates instructions or information that are vital to the successful
completion of the procedure. The term "NOTE" is used to indicate additional useful information.
The intent of the lightning flash with arrowhead symbol in a triangle is to alert the user to the presence
of un-insulated "dangerous" voltage within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to humans.
The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of
important safety, and operating and maintenance instructions in this manual.
IMPORTANT SAFETY
INSTRUCTIONS
EN WARNING!: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO
RAIN OR MOISTURE.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Do not submerge the apparatus in water or liquids.
7 Do not use any aerosol spray, cleaner, disinfectant or fumigant on, near or into the apparatus.
Clean only with a dry cloth.
8 Clean only with a dry cloth.
9 Do not block any ventilation opening. Install in accordance with the manufacturer's
instructions.
10 Keep ventilation opening free of dust or other matter.
11 Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
12 Do not unplug the unit by pulling on the cord, use the plug.
13 Only use attachments/accessories specified by the manufacturer.
14 Unplug this apparatus during lightning storms or when unused for long periods of time.
15 Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
16 Adhere to all applicable, local codes.
17 Consult a licensed, professional engineer when any doubt or questions arise regarding a
physical equipment installation.
3
TD-
000508-
00-B
Maintenance and Repair
WARNING!: Advanced technology, e.g., the use of modern materials and powerful electronics, requires
specially adapted maintenance and repair methods. To avoid a danger of subsequent damage to the
apparatus, injuries to persons and/or the creation of additional safety hazards, all maintenance or repair
work on the apparatus should be performed only by a QSC authorized service station or an authorized
QSC International Distributor. QSC is not responsible for any injury, harm or related damages arising from
any failure of the customer, owner or user of the apparatus to facilitate those repairs.
FCC Statement
This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
E
N
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IC Statement
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body.
Cet équipement est conforme aux limites Canada exposition aux radiations établies pour un incontrôlés
environnement. Cet équipement doit être installé et utilisé avec une distance minimale de 20 centimètres
entre le radiateur et votre corps.
TD-
000508-
00-B
4
RoHS STATEMENT
The QSC TSC-7t is in compliance with European Directive 2011/65/EU – Restriction of Hazardous Substances
(RoHS2).
The QSC TSC-7t is in compliance with “China RoHS” directives. The following chart is provided for product use in
China and its territories:
EN
Warranty
For a copy of the QSC Limited Warranty, visit the QSC website at www.qsc.com
Q-SYS TSC-7t
部件名称
(Part
Name)
有害物质
(Hazardous Substances)
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(vi)
)
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
电路板组件
(PCB
Assemblies)
X
O
O
O
O
O
机壳装配件
(Chassis
Assemblies)
X
O
O
O
O
O
本表格依据 SJ/T 11364 的规定编制。
O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。 X:
表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
（目前由于技术或经济的原因暂时无法实现替代或减量化。）
This table is prepared following the requirement of SJ/T 11364.
O: Indicates that the concentration of the substance in all homogeneous materials of the
part is below the relevant threshold specified in GB/T 26572.
X: Indicates that the concentration of the substance in at least one of all homogeneous
materials of the part is above the relevant threshold specified in GB/T 26572.
(Replacement and reduction of content cannot be achieved currently because of the technical or economic
reason.)
5
TD-
000508-
00-B
Introduction
The Q-SYS TSC-7t series touchscreen controllers provide remote management services for a Q-SYS audio
system. The functionality of the TSC-7t touchscreen controller is defined and configured by the system designer
using Q-SYS Designer. Refer to the Q-SYS Designer on line help for setup and operation. Q-SYS Designer
software can be downloaded from the QSC website (www.qsc.com).
TSC-7t Features
The TSC-7t series products are network enabled, projected-capacitive touchscreen, control panels. The TSC-7t
products are designed to connect to a Q-SYS system via Q-LAN or to an auxiliary network to which the system
Core Processor(s) is connected. The TSC-7t products offer low latency uncompressed audio services via USB,
allowing the TSC-7t products to join a Q-LAN network via standard 10/100/1000 Mbps Ethernet connections.
The TSC-7t products use a color graphics display with a 400 nit anti-glare LCD. The control surface is a capacitive
touch interface that is reliable, bright, and easy to use.
The TSC-7t can be mounted on a table, desk, or other similar horizontal surface.
TSC-7t Front Panel Features
EN
— Figure 1 —
1. Capacitive-touch control surface and LCD viewing area (7" diagonal)
TD-
000508-
00-B
6
RESE
T

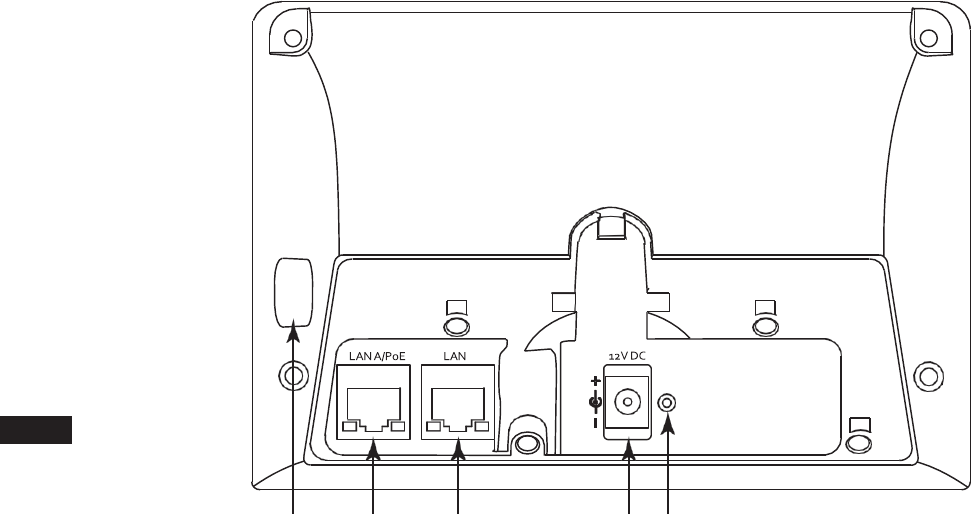

TSC-7t Rear Panel Features
EN
1 2 3 4 5
— Figure
2 —
1. USB 2.0 Micro-AB OTG
interface
2. Q-SYS LAN A with PoE
(RJ45)
3. Q-SYS LAN B
(redundancy) (RJ45)
4. 12V DC AUX Power input (power supply not
included)
5. Unit Reset Button
Touchscreen TSC-7t
Packing List
1. Q-SYS TSC-7t Touchscreen assembly (1)
2. Through-the-table Mounting Pipe (1)
3. Mounting-Pipe Rubber Washer (1)
4. Mounting-Pipe Mounting Nut (1)
5. Hardware Installation Guide (TD-000508) (1)
6. Warranty Statement (TD-000453) (1)
7. USB cable (USB 2.0 Host male to USB
Micro-B male) (1)
7
TD-
000508-
00-B
1
2
3
Installation
The Q-SYS TSC-7t is designed to be mounted on a
table, or desk.
General Requirements
The TSC-7t
• Must have access to the Q-LAN Ethernet.
• Must be mounted with sufficient space for
adequate ventilation.
• Mounting surface Thickness:
• Maximum – 4” (102 mm),
• Minimum – Not specified
Power Source
• PoE (Power over Ethernet – IEEE 802.3af class 3 device) LAN A
only
• 12V DC AUX Power source (not supplied)
◦ 12V DC @ 1A (12W)
◦
Barrel connector:
» Negative contact – 5.5mm +/- 0.2mm
» Positive contact – 2.5mm +/- 0.2mm
» Length - 9.5mm +/- 0.3mm

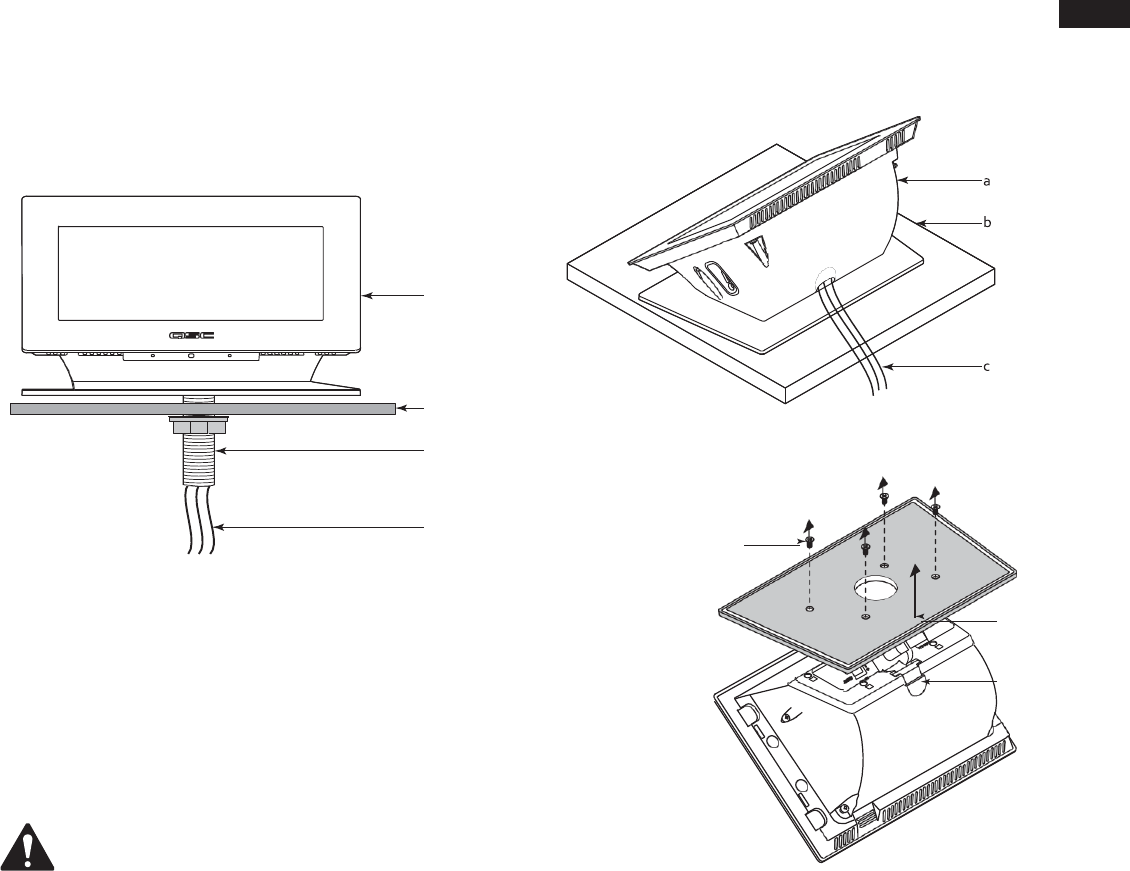

Installation Configuration
Select one of the following:
1. Through the Table Mounting (Figure 3)
a. TSC-7t
2. Free Standing (Figure 4)
a. TSC-7t
b. Mounting Surface (table, desk...) b. Mounting Surface (table, desk...)
E
N
c. Mounting Pipe - 31.6 mm (1.25 in), Nut
and Washer
d. TSC-7t Cables - through the table
c. TSC-7t Cables - over the table
a
b
c
— Figure 4 —
d
— Figure 3 —
Prepare for Installation (both options)
Refer to Figure 5
1. Remove the TSC-7t from the box.
2. Remove 4 screws (1) from the bottom of the assembly. Save for later use.
3. Remove the Base (2).
NOTE: If the Cable Cover (3) falls off during disassembly, be sure
to replace it before re-installing the Base (2).
— Figure 5 —
TD-
000508-
00-B
8
LAN A/PoE LAN
B
12V DC
EN

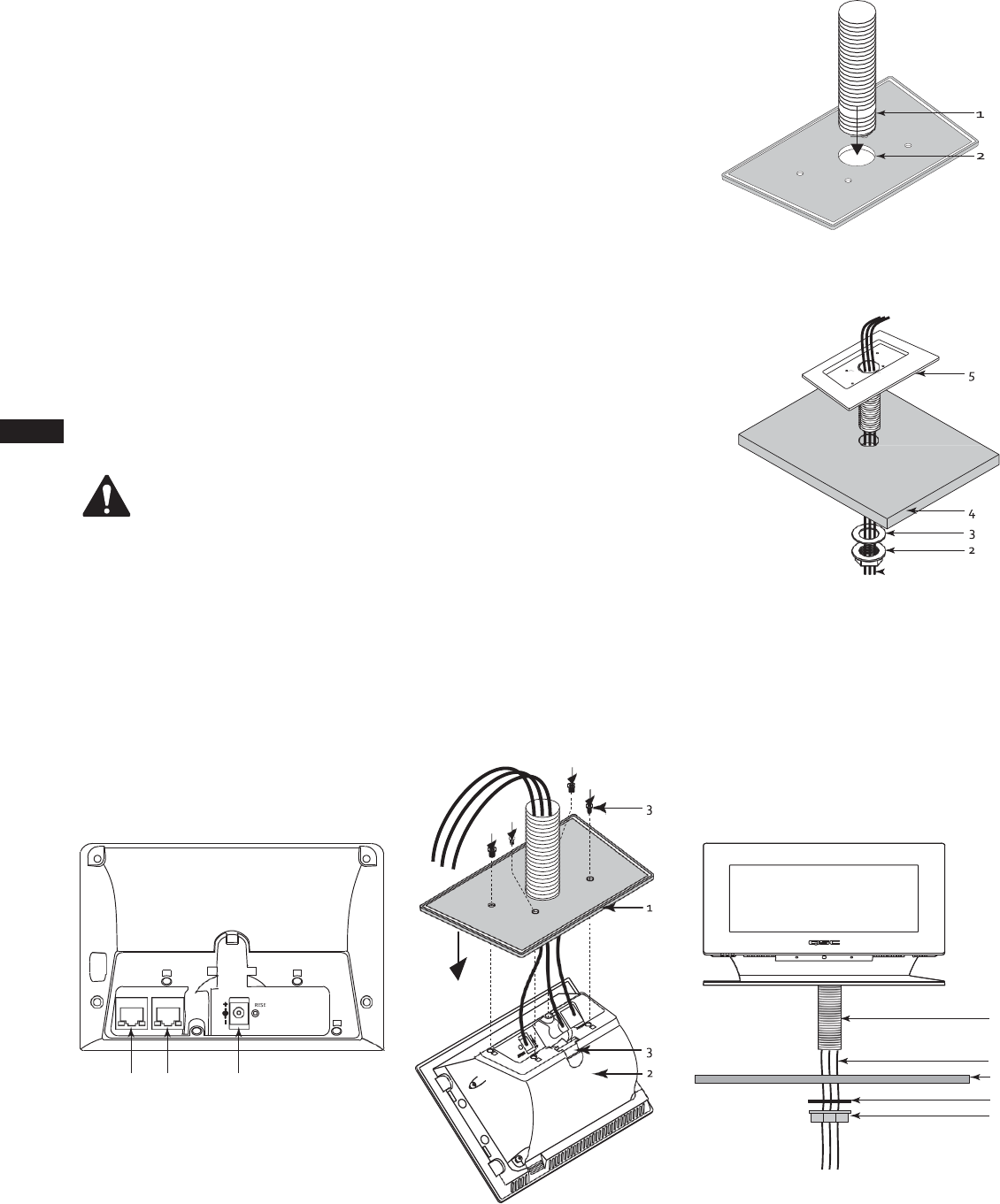

Through-the-Table Mounting
1. Drill a 33.3 mm (1-5/16 inch) hole through the mounting surface in the spot
where you want to mount the TSC-7t.
Refer to Figure 6
2. Screw end with fewer threads on Mounting Pipe (1) into the bottom
side of the Base (2). Refer to Figure 7
3. Run the cables (1) through the Nut (2), Washer (3), mounting surface (4),
and Mounting Pipe/ Base assembly (5)
Refer to Figure 8
4. Connect the cables to the proper connectors in the TSC-7t
a. LAN A/PoE - required for network. (PoE is optional if you use the 12V DC
AUX Power source)
b. LAN B - optional (for redundant network)
c. 12V DC AUX Power input - optional (required if you are
not using PoE) Refer to Figure 9
NOTE: If the Cable Cover (3) fell off during disassembly, be sure to
replace it before re- installing the Base (1).
5. Carefully place the Base (1) onto the TSC-7t body (2). Make sure the cables
are not pinched.
6. Secure the Base to the TSC-7t with the 4 screws (3) removed in “Prepare
for Installation (both options)”.
Refer to Figure 10
7. Feed the cables (1) through the mounting surface (2) along with the Mounting
Pipe (3).
8. Move the Washer (4) onto the Mounting Pipe (3), then thread the Nut (5) onto
the Mounting Pipe.
9. Tighten the Nut (5) as needed.
— Figure 6 —
— Figure 7 —
3
1
a b c
2
4
— Figure 8 — 5
— Figure 10 —
— Figure 9 —
9
TD-
000508-
00-B
LAB A / PoE LAB
B
1

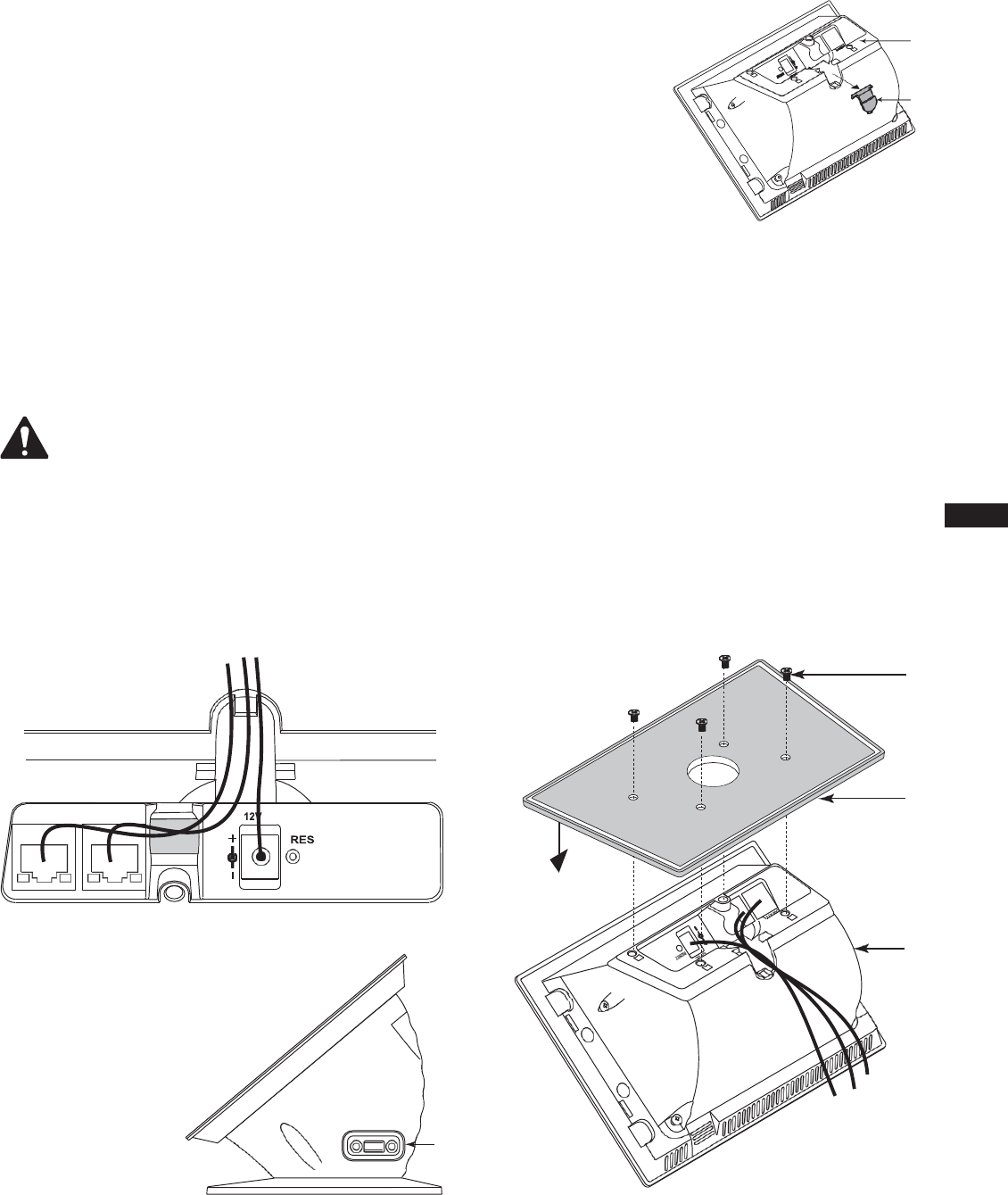

Free-Standing Installation
1. Perform the steps in “Prepare for Installation (both
options)” on page 7. Refer to Figure 11
2. Remove the Cable Cover (2) from the
TSC-7t (1). Refer to Figure 12
3. Connect the cables to the proper connectors in the TSC-7t
a. LAN A/PoE - required for network. (PoE is optional if you use the
12V DC AUX Power)
b. LAN B - optional (for redundant network)
c. 12V DC AUX Power input - optional (required if you are not using
PoE)
4. Carefully route the cables as shown.
— Figure 11 —
NOTE: Some cables may have a protective boot over the RJ45 connector. The boots may not fit into the
TSC-7t cable cavity.
Refer to
Figure 13
E
N
5. Carefully place the Base (1) onto the TSC-7t body (2). Make sure the cables are not pinched.
6. Secure the Base to the TSC-7t with the 4 screws (3) removed in “Prepare for Installation (both options)”.
3
1
USB
Refer to Figure 14
(1)
USB 2.0 Micro-AB
interface
— Figure 12 —
2
— Figure 13 —
— Figure 14 —
1
2
TD-
000508-
00-B
10
198 mm
7.8 in.
127 mm
5.0 in.

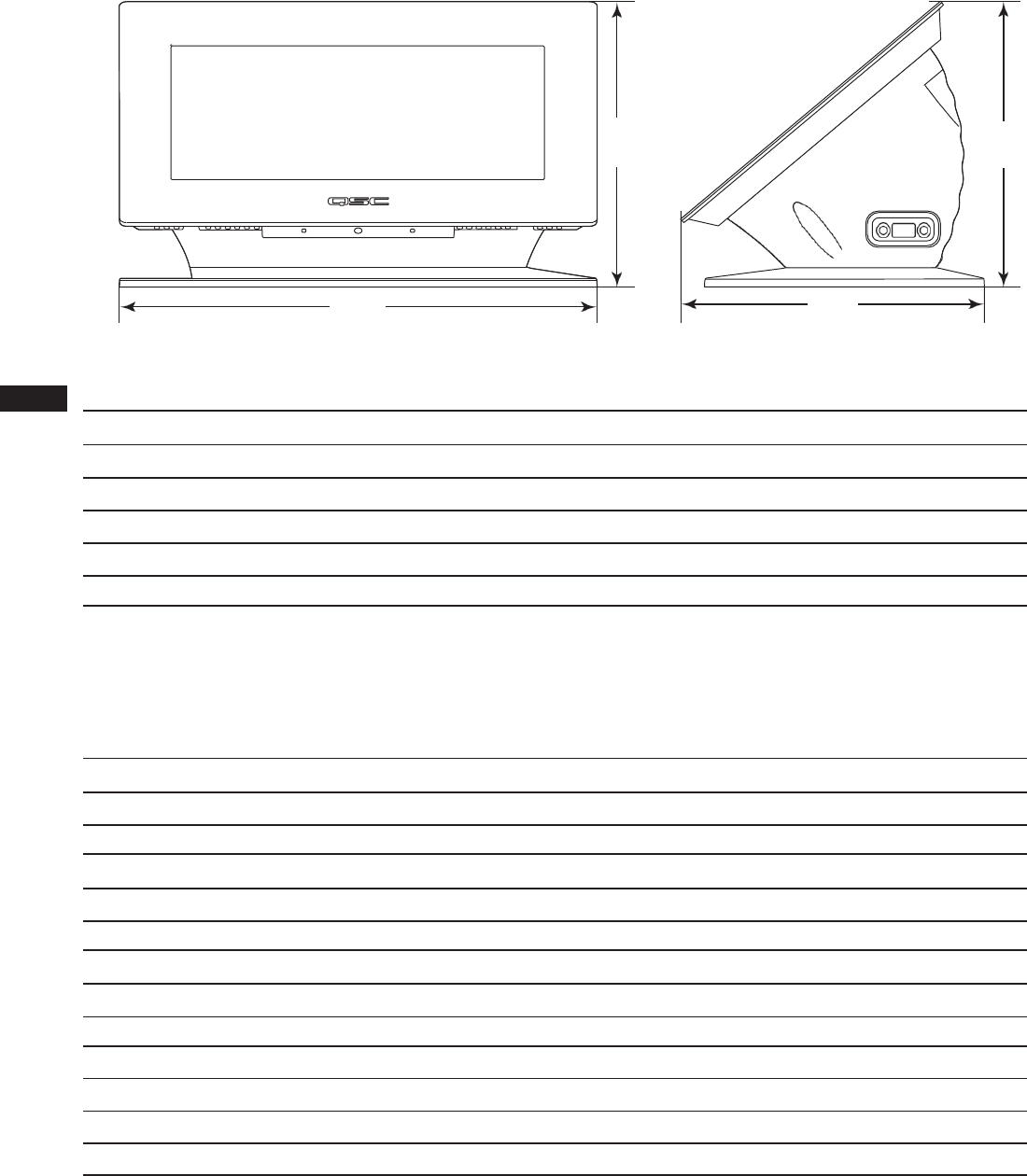

TSC-7t Dimensions
TSC-7t Specifications
EN Display
LCD 7” Projected Capacitive Touch (five coordinate simultaneous touch sensitivity)
Luminance: 400 nits (400 lumen/candela per square meter)
Resolution: 800x400
Rear Panel Control Reset Button (Use a paper clip or similar tool to
reboot the unit) Power
PoE (Power over Ethernet) IEEE 802.3af class 3 device via LAN A
Optional Power Source (not included) 12V DC AUX Power source (not supplied)
12V DC @ 1A (12W)
Barrel connector:
Negative contact – 5.5mm +/-
0.2mm Positive contact –
2.5mm +/- 0.2mm Length -
9.5mm +/- 0.3mm
Wireless connectivity Bluetooth 2.0 & 4.0 + HS
Rear Panel Connectors
RJ45 (x2) LAN A (PoE) and LAN B ports (10/100/1000 Mbps)
Barrel connector: Power inlet Accommodates 12V DC AUX
Power source Side Connector USB 2.0 Micro-AB OTG
Operating temperature range 0C to 50C
Dimensions (HWD) 4.7" x 7.8" x 5.0" (119 mm x 198 mm x 127 mm)
Weight
Net 1.9 lbs. (.86 kg)
Shipping 3.1 lbs. (1.4 kg)
Environmental
BTUs 40 max, 23 typical
Humidity 90% rh, non-condensing
Vibration 20 Grms
119
mm
4.7
in
119
mm
4.7
in
11
TD-
000508-
00-B
Mailing Address:
QSC, LLC
1675 MacArthur
Boulevard
Q-SYS 24/7 Emergency
Support*
Tel: +1-888-252-4836
(U.S./Canada)
Tel: +1-949-791-7722 (non-
U.S.)
Q-Sys™ Customer Support
Costa Mesa, CA 92626-1468 U.S.
Main Number: (714) 754-
6175 World Wide Web:
www.qsc.com
Sales & Marketing:
Voice: (714) 957-7100 or toll free (U.S. only)
(800) 854-4079
FAX: (714) 754-6174
*Q-SYS 24/7 Support is for Emergency assistance with
Q-SYS systems only. 24/7 support guarantees a call
back within 30 min after a message is left. Please
include, Name, Company, Call Back Number and
description of the Q-SYS emergency for prompt call
back. If calling during business hours please use the
standard support numbers above.
Q-SYS Support Email
qsyssupport@qsc.com
E-mail: info@qscaudio.com
Q-SYS™ Customer Support
Application Engineering and Technical
Services Monday - Friday 7 AM to 5 PM
PST (Excludes Holidays) Tel. 800-772-2834
(U.S. only)
Tel. +1 (714) 957-7150
(Immediate email response times not
guaranteed)
QSC
Technical
Services 1675
MacArthur Blvd.
Costa Mesa, CA
92626 U.S. Tel: 800-
772-2834 (U.S. only)
Tel: +1 (714) 957-7150
FAX: +1 (714) 754-6173
E
N
© 2015 QSC, LLC. All rights reserved. QSC, the QSC logo, Q-SYS, the Q-SYS logo, and Q-LAN are trademarks of QSC, LLC in the U.S. and other countries. All
other trademarks are the property of their respective owners.
http://patents.qsc.com.
