USER'S MANUAL

Two way radio

Model name:TG-Q7

Trand name:Quansheng

FCC ID:XBPTG-Q7

Thank you for purchasing this Radio.

We believe this easy-to-use radio will provide stable and reliable

communication for you.

QS Radio incorporates the latest advanced technology.

As a result, we know that you will be pleased with the quality and

features of this product.

FEATURES

PTT & headset

Channel scan

Time-out-timer(TOT)

Low power alarm

Squelch level adjustable

CTCSS/DCS

Busy channel lock

PRECAUTIONS BEFORE USING

Please read the User's Manual before using. It gives you important

information about how to operate the portable radio.

Please put the radio and accessories where the children can

not reach.

Maintenance can only be performed by professional technicians.

Please use the standard battery pack and charger in order not to

destroy the radio.

Please use the standard antenna, in order not to shorten the distance.

Do not expose the radio to sunlight for a long period of time, nor put

it near the heat, nor use it in a high temperature environment.

Do not put it in extreme dust or wet nor on unsteady surfaces.

Keep it dry. (Rain or moisture will erode the electronic board).

Do not transmit when the antenna is not installed.

If you find bad smell or smog, please turn off the radio immediately.

And take the battery off the radio, then contact with QS agent.

SUPPLIED ACCESSORIES

CHARGING NOTES (1)

CHARGING NOTES (2)

ATTACHING/RELEASING BATTERY PACK

INSTALLING ANTENNA/INSTALLING EXTERNAL HEADSET

DIAGRAM

BASIC OPERATION

FUNCTION INSTRUCTION

CTCSS

DCS

SPECIFICATIONS

CONTENTS

08-09

11-13

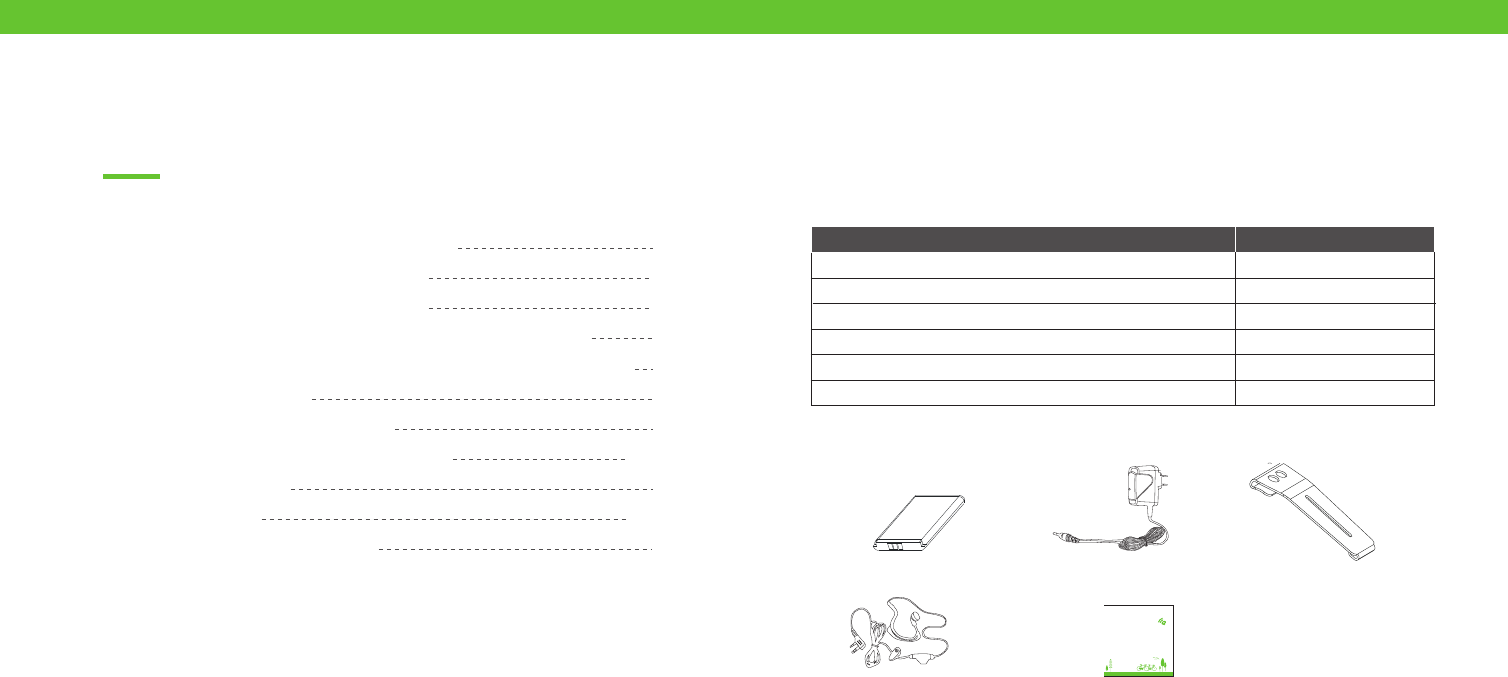

SUPPLIED ACCESSORIES

STANDARD SUPPLIED ACCESSORIES

Carefully unpack the portable radio. We suggest that you check the following

items before you throw away the packing materials.

Li-ion battery pack（3.7V） Belt clip

External headset

Battery charger

1 SUPPLIED ACCESSORIES

Portable radio

Li-ion battery pack(3.7V)

Battery charger

Belt clip

External headset

User's manual

ITEM QTY

User's manual

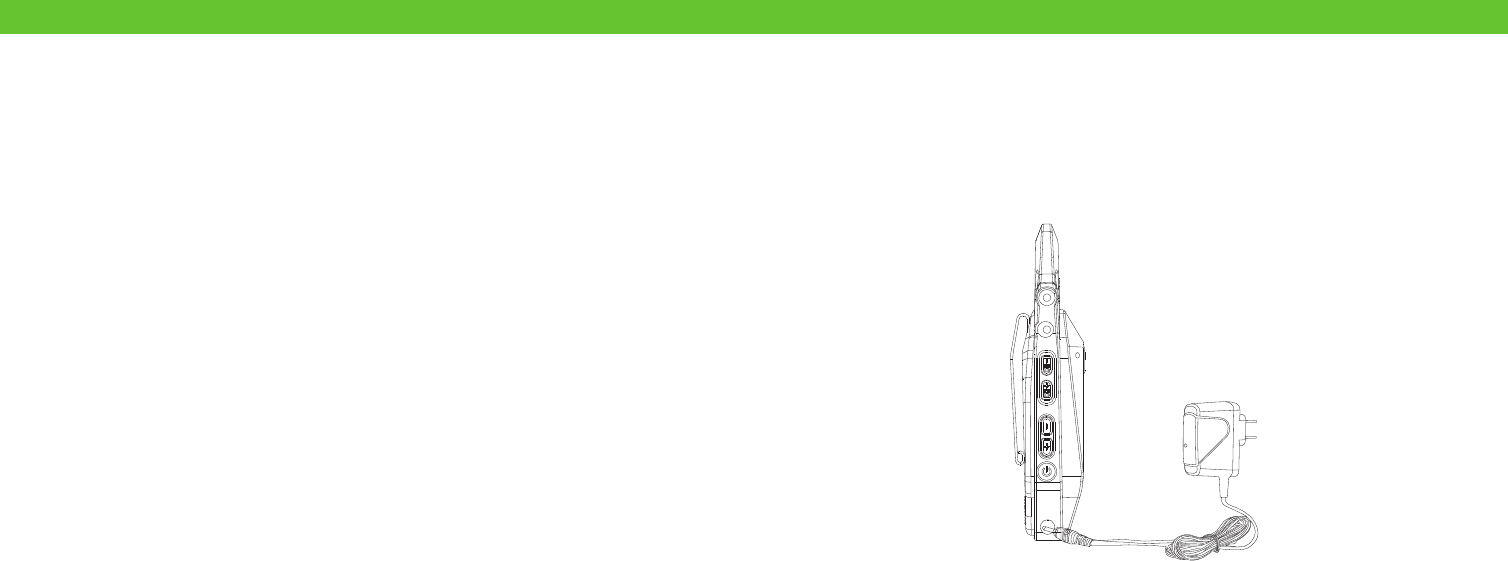

CHARGING NOTES (1)

●

CHARGING NOTES(2)

Insert the input plug into 110V power, supply the indicator turns red; insert

the output plug into the battery jack, the indicator turns orange; when

finishing charging, the indicator turns red again.

CHARGING NOTES（1） 2 3 CHARGING NOTES（2）

Charging the Li-ion battery pack:

Battery packs are not charged when they are shipped. Charge them

before using.

Initially charging the battery pack after purchase or extended storage

(longer than 2 months) will not bring the battery pack to its greatest

capacity，which can be done only after repeated charging and

discharging two or three times.

The average use time of battery pack is 15 hours

After the battery is charged to its highest capacity, and then use it

on the radio. If the radio still shows low power, please change a new

battery pack.

Do not short-circuit the battery terminals or throw the battery into

fire.

Never attempt to remove the casing from the battery pack.

●

When releasing, turn off the radio firstly.

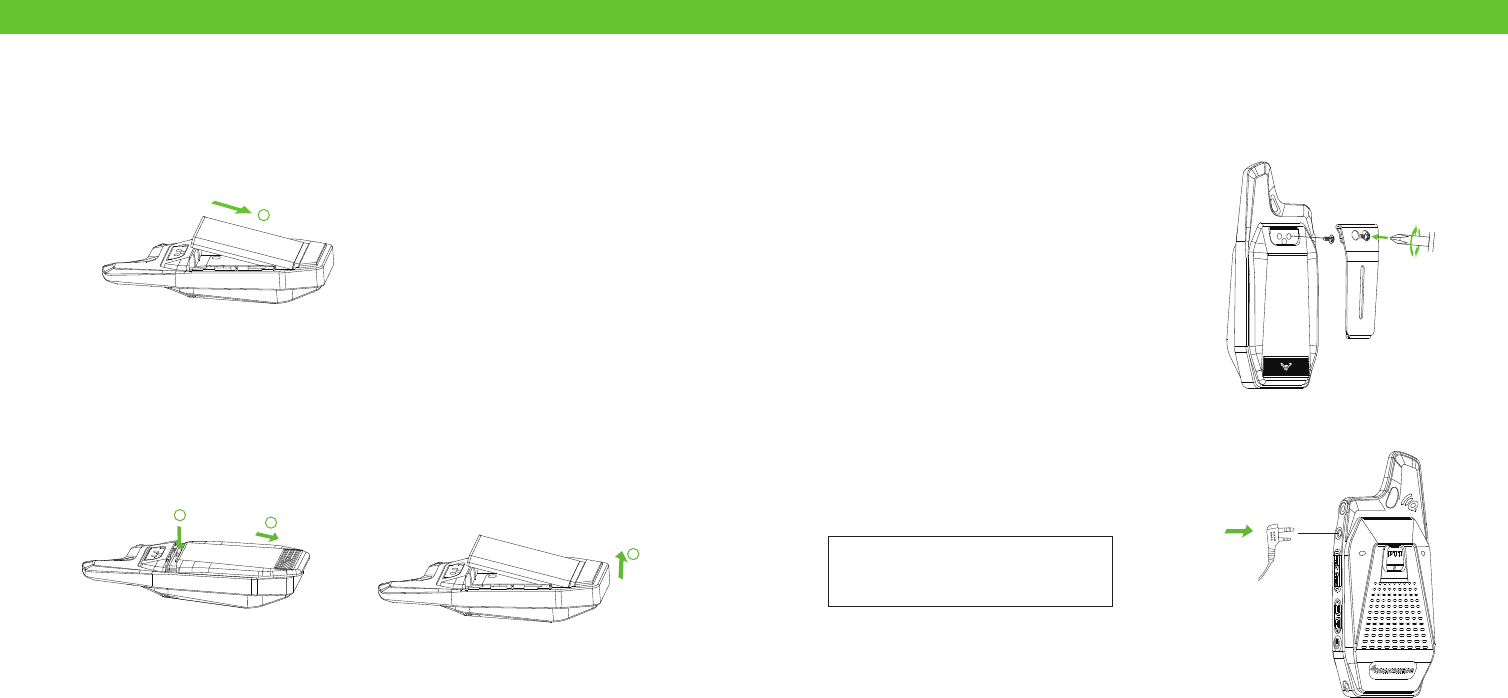

ATTACHING BATTERY PACK

1 Take out the battery cover;

2 Pull "UP" to take out the battery.

When attaching, take out the battery cover from the radio, put the battery

into the radio aligning to the battery slot, then attach the battery cover.

ATTACHING/RELEASING THE BATTERY PACK 4 5 INSTALLING ANTENNA/INSTALLING EXTERNAL HEADSET

●

INSTALLING BELT CLIP

Attach the belt clip to the radio as illustrated on the

right.

●

INSTALLING EXTERNAL HEADSET

Insert the headset plug into the headset jack.

NOTE：Please use the specified

headset to make sure good

communication.

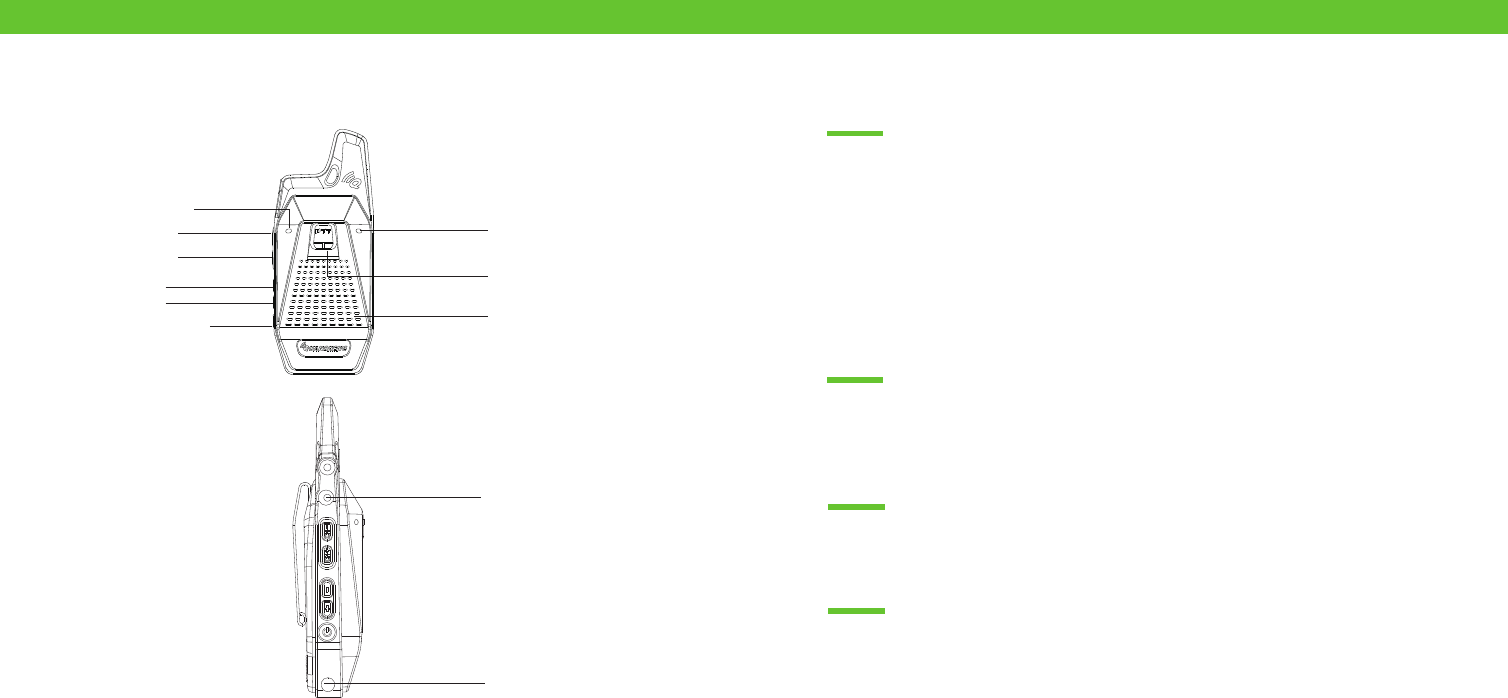

DIAGRAM

DIAGRAM 6 7 BASIC OPERATION

BASIC OPERATION

Power switch

●

Press“Power switch”more than 2 seconds, the power is on. Operate again,

the power is off.

Transmitting

1 Press and hold “PTT” key, then speak into the microphone in normal

speaking tone. Please keep the microphone 2.5cm away from your lips

to make sure good communication with the receiver.

2 Press “PTT ”in the headset, then speak normally to make sure good

communication with the receiver.

3 Release“PTT”key to receive signals.

Channel up(+) /down(-) key

●

Press key “CH+” or “CH-” to choose your desired channel, and there will

be voice prompt of the current channel number.

●

press key “CH+”or“CH-”more than 2s to scan upwardly or downwardly.

Channel+

Microphone

Receiving/Transmitting

indicator light

PTT key

Speaker

Headset jack

Channel-

Volume-

Volume+

Power switch

Charging jack

Volume "+" "-"

●

Press key "+" or "-", the volume is turned up or down, and there will be voice

prompt of the current channel number.

Indicator

●

Transmitting: Red LED Light

●

Standby：Green LED Light glitters every 5 seconds.

●

Receiving：Green LED Light

FUNCTION INSTRUCTION 8 9 FUNCTION INSTRUCTION

FUNCTION INSTRUCTION

Channel Scan

1 Press key "CH+" or "CH-" more than 2s to scan upwardly/downwardly.

2 Set it in the " Scan appending" via programming.

3 Press “PTT” to exit.

Time-Out-Timer (TOT)

To limit the calling time, the radio will stop transmitting, and you will hear the

warning tone if it transmits over the set time.

Low Power Alarm

Audibel tone will remind you when the battery is exhausted.

FUNCTION INSTRUCTION

Squelch Level Adjustable

It helps to minimize interference from undesired weak signals and helps weak

signals to be heard.

CTCSS/DCS

Set up work groups/users with unique CTCSS/DCS to prevent disturbance in

the same frequency.

CTCSS: 50 groups DCS: 208 groups.

Busy Channel Lock

When it is on, it is forbidden to transmit if receiving the signals.

You will hear "Beep" when press “PTT”.

Note: When the scanning radio receives the signal, it stops in

this channel if you press “PTT”; It keeps scanning after

the signal disappear in 5s if you do not press “PTT”.

CTCSS 10 11 DCS

CTCSS DCS

67.0

69.3

71.9

74.4

77.0

79.7

82.5

85.4

88.5

91.5

94.8

97.4

100.0

103.5

107.2

110.9

114.8

118.8

123.0

127.3

131.8

136.5

141.3

146.2

151.4

156.7

159.8

162.2

165.5

167.9

171.3

173.8

177.3

179.9

183.5

186.2

189.9

192.8

196.6

199.5

203.5

206.5

210.7

218.1

225.7

229.1

233.6

241.8

250.3

254.1

D023N

D025N

D026N

D031N

D032N

D036N

D043N

D047N

D051N

D053N

D054N

D065N

D071N

D072N

D073N

D074N

D114N

D115N

D116N

D122N

D125N

D131N

D132N

D134N

D143N

D145N

D152N

D155N

D156N

D162N

D165N

D172N

D174N

D205N

D212N

D223N

D225N

D226N

D243N

D244N

D245N

D246N

D251N

D252N

D255N

D261N

D263N

D265N

D266N

D271N

D274N

D306N

D311N

D315N

D325N

D331N

D332N

D343N

D346N

D351N

D356N

D364N

D365N

D371N

D411N

D412N

D413N

D423N

D431N

D432N

D445N

D446N

DCS 12 13 DCS

保修卡

保修说明:

DCS

D452N

D454N

D455N

D462N

D464N

D465N

D466N

D503N

D506N

D516N

D523N

D526N

D532N

D546N

D565N

D606N

D612N

D624N

100

101

102

103

104

105

106

107

108

D627N

D631N

D632N

D654N

D662N

D664N

D703N

D712N

D723N

D731N

D732N

D734N

D743N

D754N

D023I

D025I

D026I

D031I

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

D032I

D036I

D043I

D047I

D051I

D053I

D054I

D065I

D071I

D072I

D073I

D074I

D114I

D115I

D116I

D122I

D125I

D131I

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

D132I

D134I

D143I

D145I

D152I

D155I

D156I

D162I

D165I

D172I

D174I

D205I

D212I

D223I

D225I

D226I

D243I

D244I

DCS

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

D245I

D246I

D251I

D252I

D255I

D261I

D263I

D265I

D266I

D271I

D274I

D306I

D311I

D315I

D325I

D331I

D332I

D343I

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

D346I

D351I

D356I

D364I

D365I

D371I

D411I

D412I

D413I

D423I

D431I

D432I

D445I

D446I

D452I

D454I

D455I

D462I

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

D464I

D465I

D466I

D503I

D506I

D516I

D523I

D526I

D532I

D546I

D565I

D606I

D612I

D624I

D627I

D631I

D632I

D654I

199

200

201

202

203

204

205

206

207

208

D662I

D664I

D703I

D712I

D723I

D731I

D732I

D734I

D743I

D754I

GENERAL

Frequency range

Rated voltage

Memory channel

Antenna impedance

Working manner

Dimensions

DC3.7V(Rechargeable Li-ion battery)

99Channels

50Ω

Same frequency single operation or different frequency single operation

89mmX46mmX20mm

TRANSMITTER

Output power

Modulation

Maximum frequency deviation

Spurious radiation

Preemphasis character

Emission current

CTCSS/DCS deviation

Modulation sensitivity

Modulation distortion

11KФ F3E

<7.5uW

6dB/Per fold

≤ 1.3A

12mV

≤5%

RECEIVER

Sensitivity

Modulation receiver bandwidth

Audio frequency power

Audio distortion

Blocking

Adjacent channel selectivity

Spurious rejection

-123dBm/-121dBm(12dB SINAD)

5KHz

160mv/32Ω

10%

≥85dB

60dB

70/50dB

≥65dB

All stated specifications are subject to change without notice or obligation.

SPECIFICATIONS

SPECIFICATIONS 14

UHF:400-470MHz

≤2.5KHz

0.375KHz±50Hz

Intermodulation

SAFETYTRAININGINFORMATION

Your   radiogeneratesRFelectromagnetic

energyduringtransmitmode.Thisradioisdesignedforandclassifiedas“OccupationalUse

Only”,meaningitmustbeusedonlyduringthecourseofemploymentbyindividualsaware

ofthehazards,andthewaystominimizesuchhazards.ThisradioisNOTintendedforuseby

the“GeneralPopulation”inanuncontrolledenvironment.

ThisradiohasbeentestedandcomplieswiththeFCCRFexposurelimitsfor“OccupationalUseOnly”.Inaddition,

your  radiocomplieswiththefollowingStandardsandGuidelines

withregardtoRFenergyandelectromagneticenergylevelsandevaluationofsuchlevelsforexposuretohumans:

 FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to

Radio Frequency Electromagnetic Fields.

 American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure

to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.

 American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially

Hazardous Electromagnetic Fields– RF and Microwave.



Theinformationlistedaboveprovidestheuserwiththeinformationneededtomakehimor

herawareofRFexposure,andwhattodotoas‐surethatthisradiooperateswiththeFCCRF

exposurelimitsofthisradio.



ElectromagneticInterference/Compatibility

Duringtransmissions,your       radiogeneratesRFenergythatcan

possiblycauseinterferencewithotherdevicesorsystems.Toavoidsuchinterference,turnofftheradioinareas

wheresignsarepostedtodoso.DONOToperatethetransmitterinareasthataresensitivetoelectromagnetic

radiationsuchashospitals,aircraft,andblastingsites.



Occupational/ControlledUse

Theradiotransmitterisusedinsituationsinwhichpersonsareexposedasconsequenceoftheiremployment

providedthosepersonsarefullyawareofthepotentialforexposureandcanexercisecontrolovertheirexposure.

Attention:

This radio complieswith IEEE and ICNIRP exposure limits for occupational/controlled RF exposure emvironment

at operating duty factors of up to 50% and is authorized by the FCC for occupational use only. An appropriate warning

lable is affixed to all units. In order to comply with RF exposure requirements, a minimum distance of 2.5cm must be

maintained when held-to-face, and body-worn operations are restricted to the approved original acessories (belt clip).

Do not use this device when antenna shows obvious damages

Fujian Nanan Quansheng Electronics Co., Ltd.

QUANSHENG ELECTRONICS TG-Q7 Two Way Radio User Manual TG Q9 20141027

Fujian Nanan Quansheng Electronics Co., Ltd. Two Way Radio TG Q9 20141027

user manual

Navigation menu

Namespaces

Views

Navigation
