Driver Installation

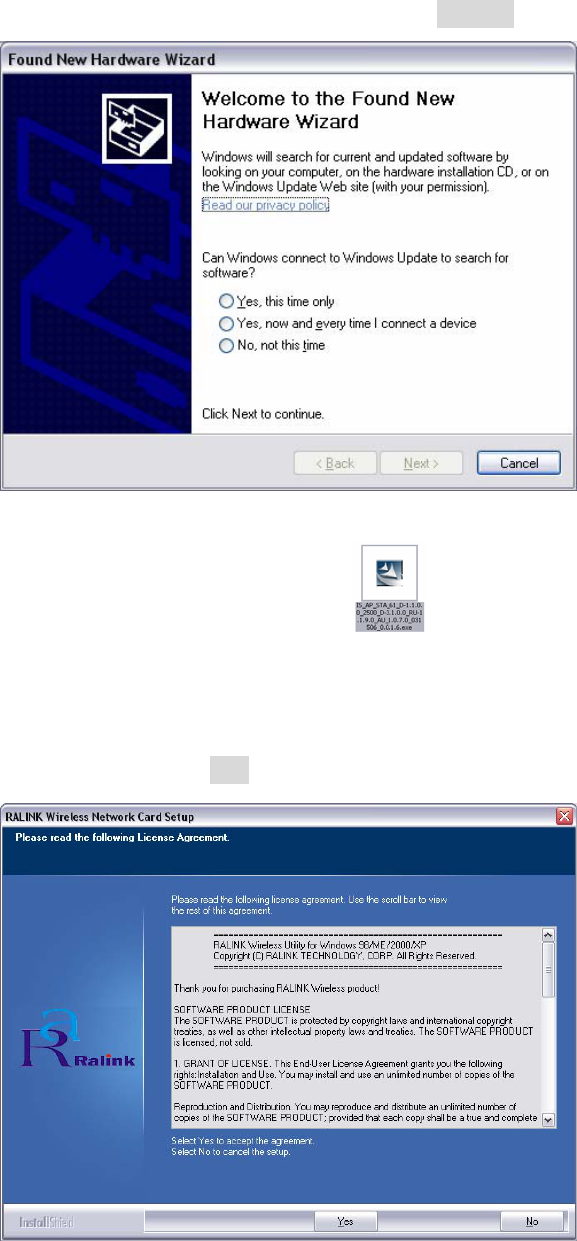

1. After you have installed the Wireless Adapter your computer will display a
Found New Hardware Wizard screen, click Cancel to continue.
2. Go to the directory where the Wireless Adapter Installation stored, then
double-click the Setup Program to begin the installation.
(Exsample: IS_AP_STA_61_D-1.1.0.0_2500_D-3.1.0.0_RU-1.1.9.0_AU_1.0.7.0_031506_0.0.1.6.exe)
3. RALINK Wireless Network Card Setup Wizard will install the driver on
your system. Select Yes to accept the License Agreement.
3

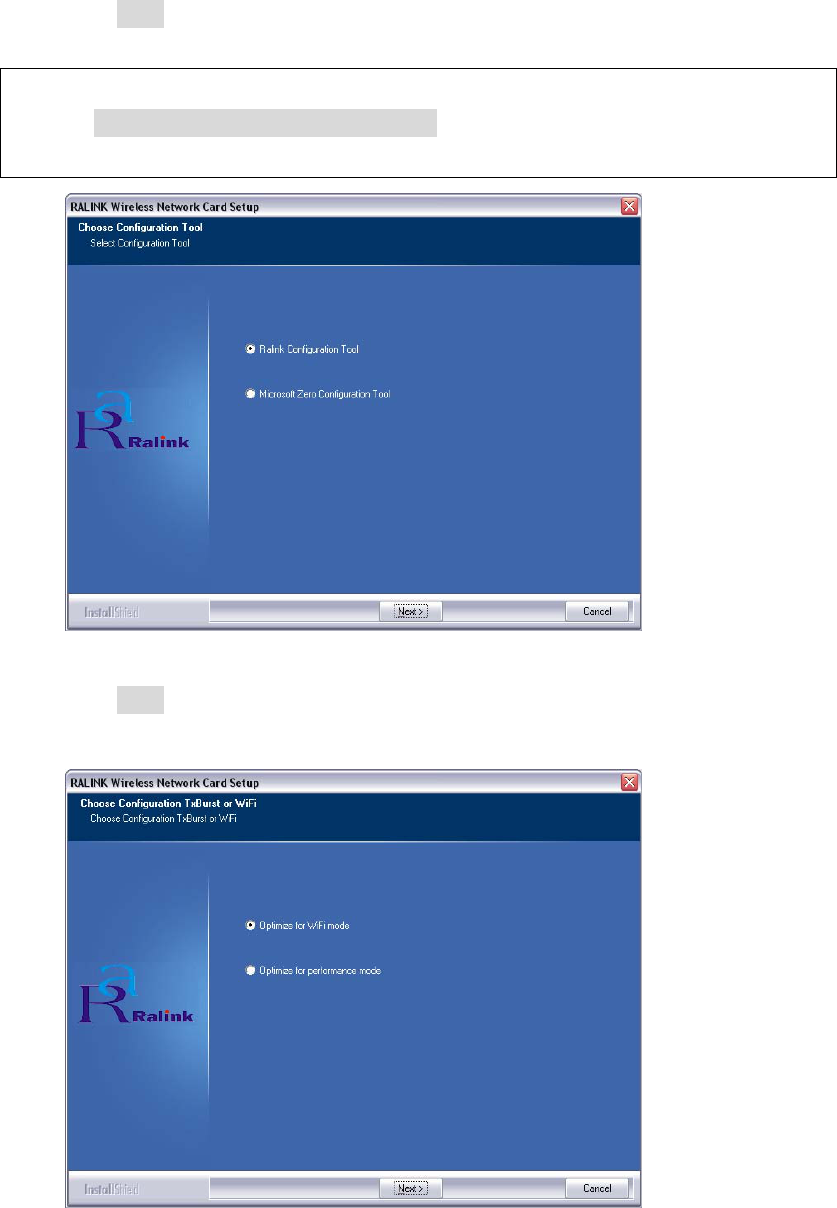

4. Click Next to continue.
Note:
If you have installed the Windows XP Service Pack 2. You can use the
Windows Zero Configuration Tool for Wireless Configuring. Please refer
the Windows XP User’s Guide.
5. Click Next to continue.
4

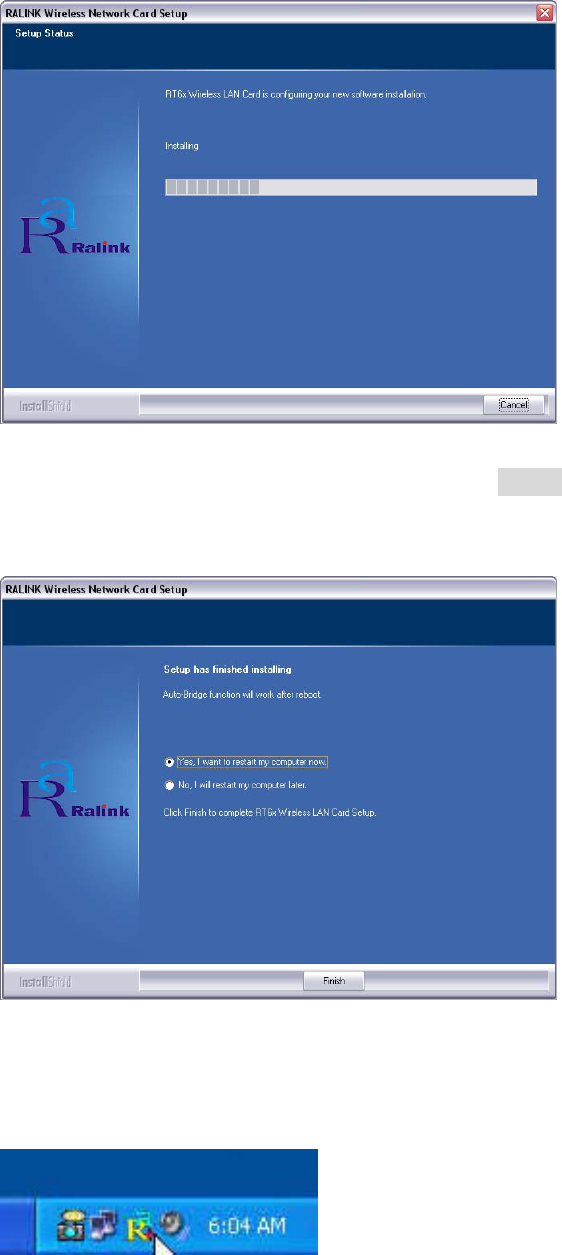

6. RALINK Wireless Network Card is configuring your new software
installation,
7. The installation is now complete. Please click Finish to restart your
computer.
8. When you complete the installation, the utility icon will appear on the
system tray. You could double-click it to configure wireless network
settings
5
Uninstalling the Wireless LAN Card

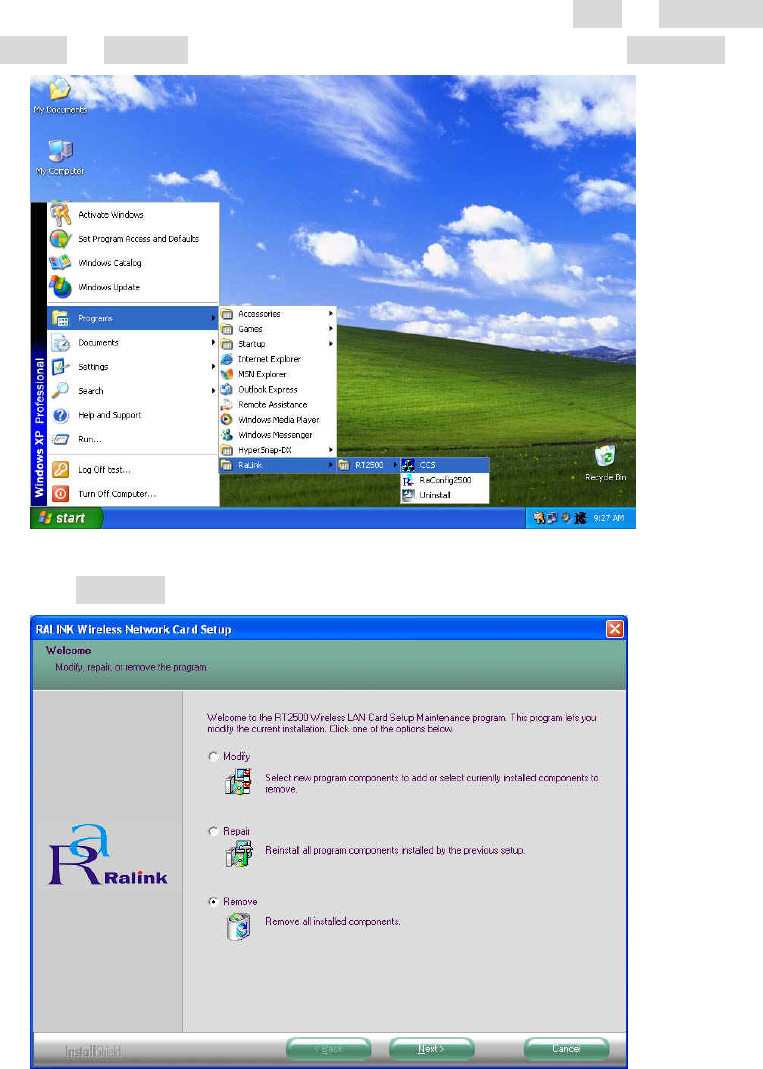

1. For uninstalling the Wireless LAN Card, please go to: Start Æ Programs Æ
Ralink Æ RT2500 under Windows environment. Then click Uninstall.
2. Select Remove to uninstall the Wireless LAN Card.
6

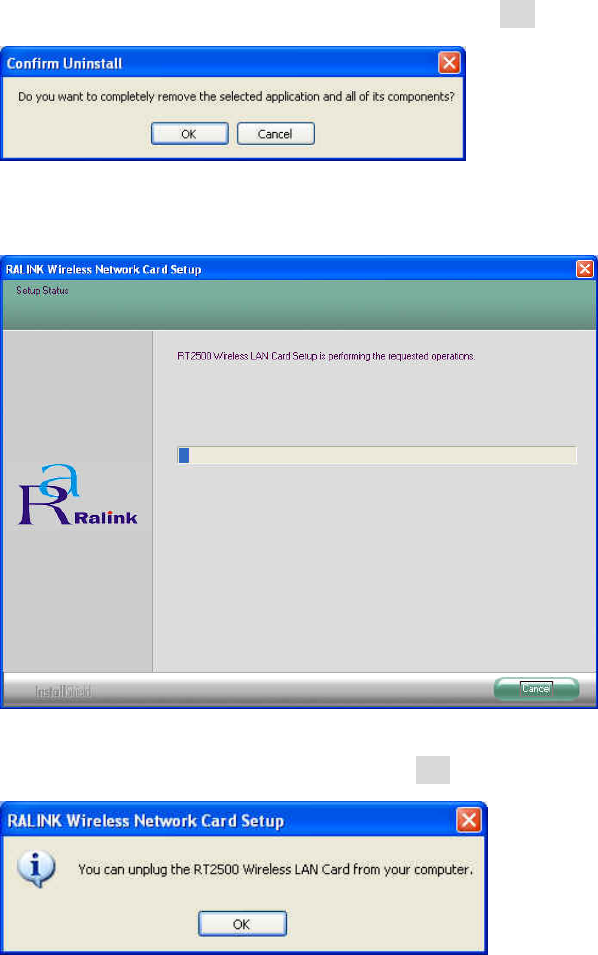

3. The Confirm Uninstall screen will display, click OK to confirm.
4. Wait for removing the utility.
5. After completing the uninstallation, click OK.
7
Configuring the Wireless LAN Card
Double-click the utility icon in your system tray to begin the utility
configuration.

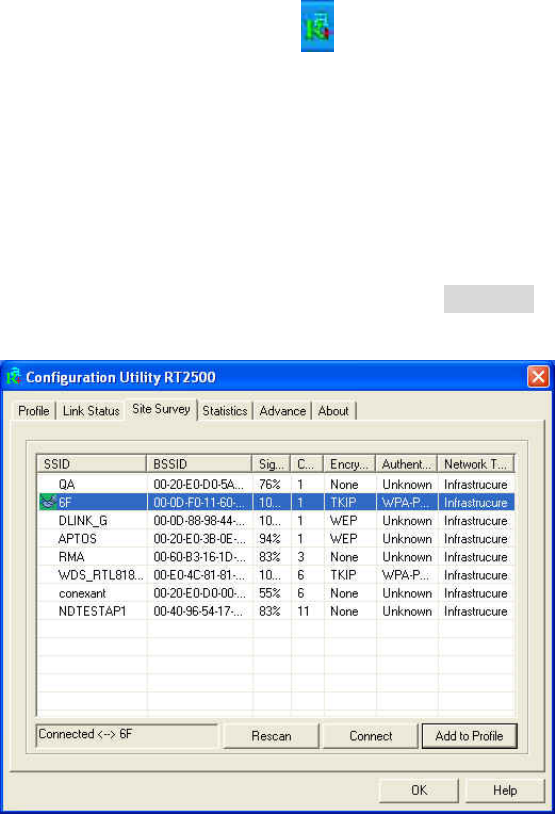

Connecting to an existing network
Select Site Survey Tab, all available Access Points would be listed.
Click on the desired Access Point, and click Connect to connect.
8
Configuration

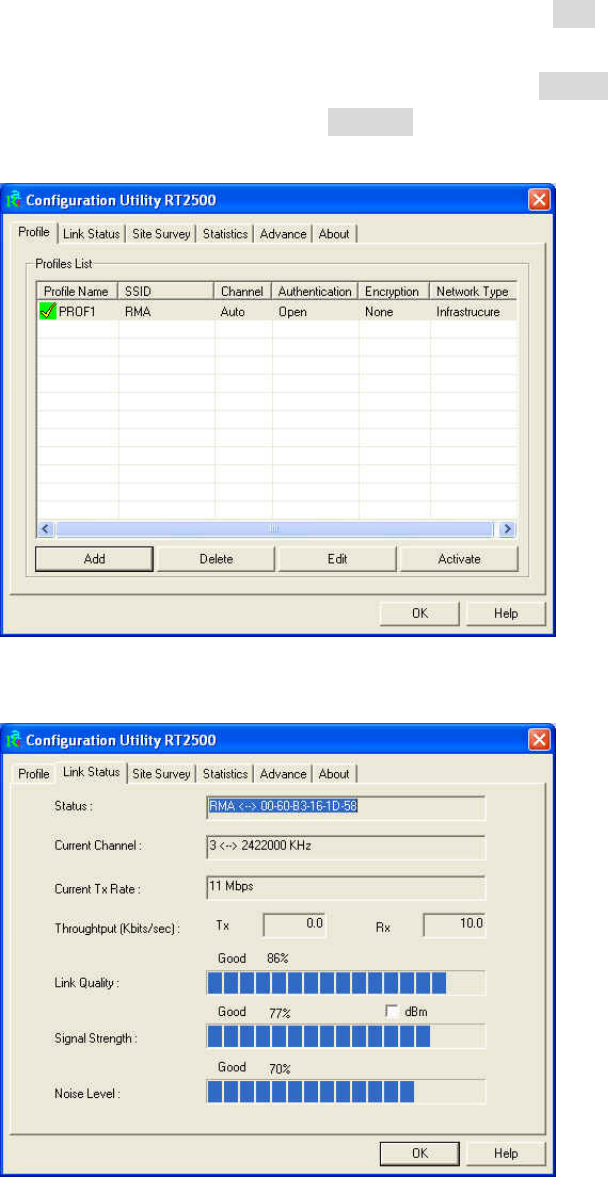

z Profile
The Profile Tab allows you to set values for all parameters by selecting a
previously defined profile. To create a profile, click Add, type a profile
name and set the corresponding parameters. If one of the profiles is no
longer used, you may remove it by clicking the Delete button. After
changing parameters, click the Activate button to take effect. You can
have multiple profiles and modify the profile at any time.
z Link Status
9
Status
The field shows the association status to available Access Point with
SSID<->MAC address of the Access Point.
Current Channel
Shows the channel on which the connection is made.
Current Tx Rate
Shows the highest transmit rate of the current association.
Throughput (Kbits/sec)
This displays the instantaneous wireless Receive and Transmit
throughput in Kbits per second.
Link Quality / Signal Strength
The Link Quality and Signal Strength bar graph is only active when the
node is in Infrastructure Mode. The bar graph displays the quality and
strength of the link between the node and its Access Point.
z Site Survey
Site Survey Tab lists the features of the available Access Points within
range of the Wireless Adapter's signal.
Click on the desired Access Point, and click Connect to connect.
You may click Rescan to refresh the list.
10

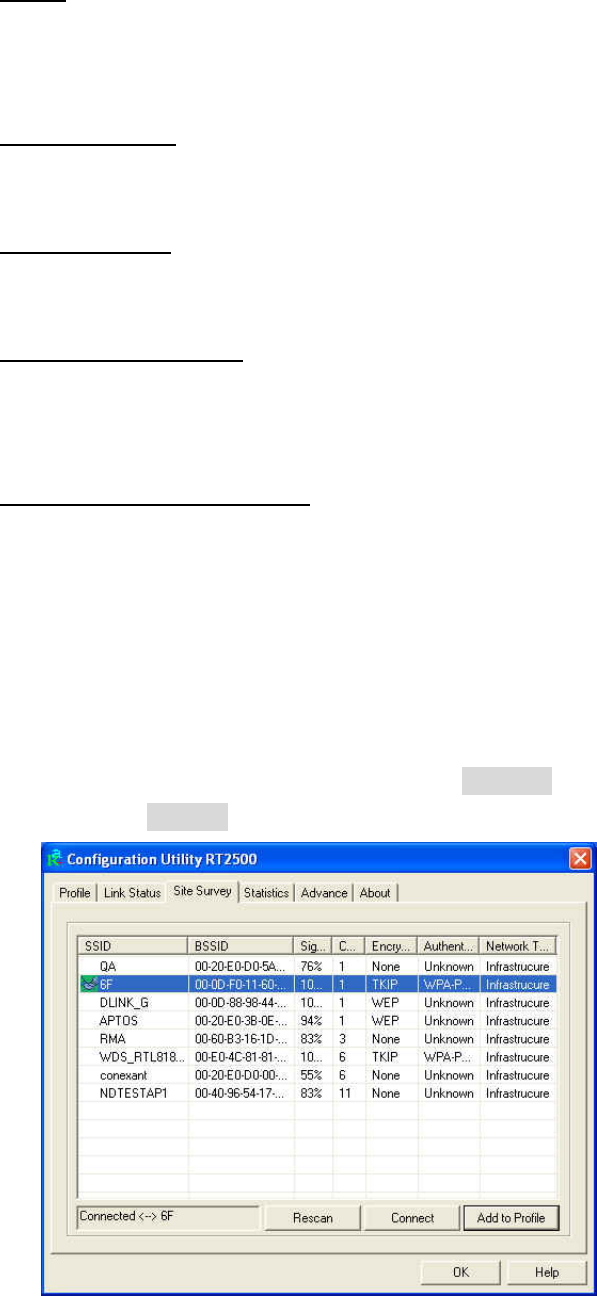

Add to Profile
You may select an Access Point, and click Add to Profile to include it
to Profile List.

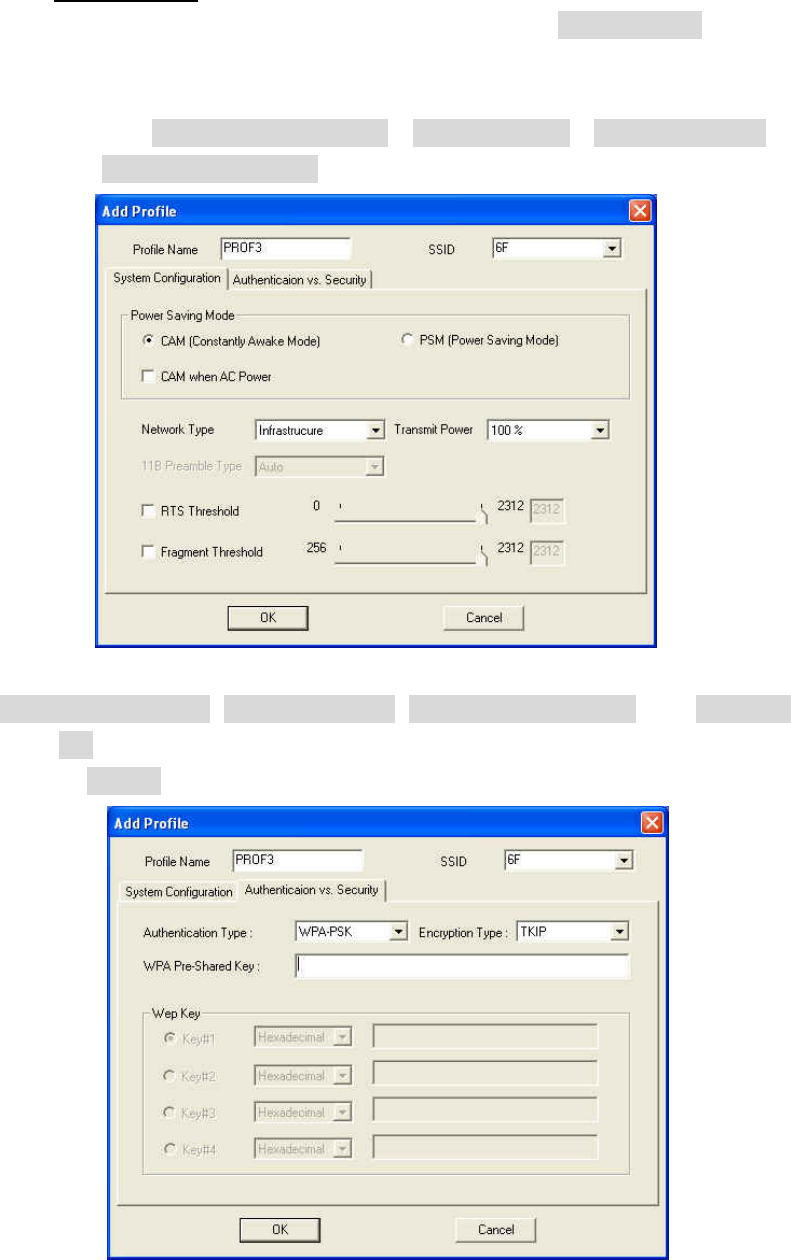

Under Add Profile screen / System Configuration Tab, you may
set Power Saving Mode, Network Type, RTS Threshold, and
Fragment Threshold.
Under Add Profile screen / Authentication vs. Security Tab, you may set
Authentication Type, Encryption Type, WPA Pre-Shared Key, and Wep Key.
Click OK when you have finished the settings.
Or click Cancel to abort your new settings for Add to Profile.
11

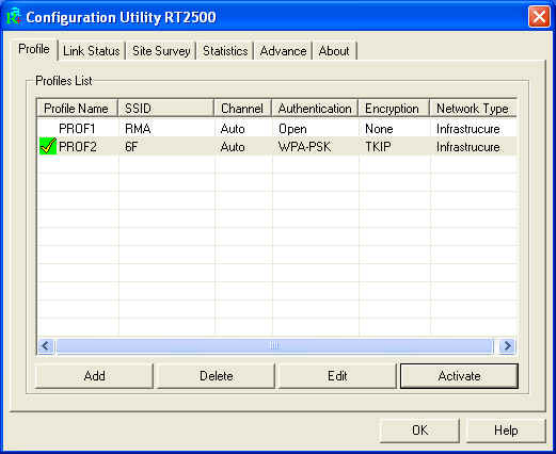

After fishing the Add Profile, Check Profile Tab, you may find the new added
profile in Profile List.
12

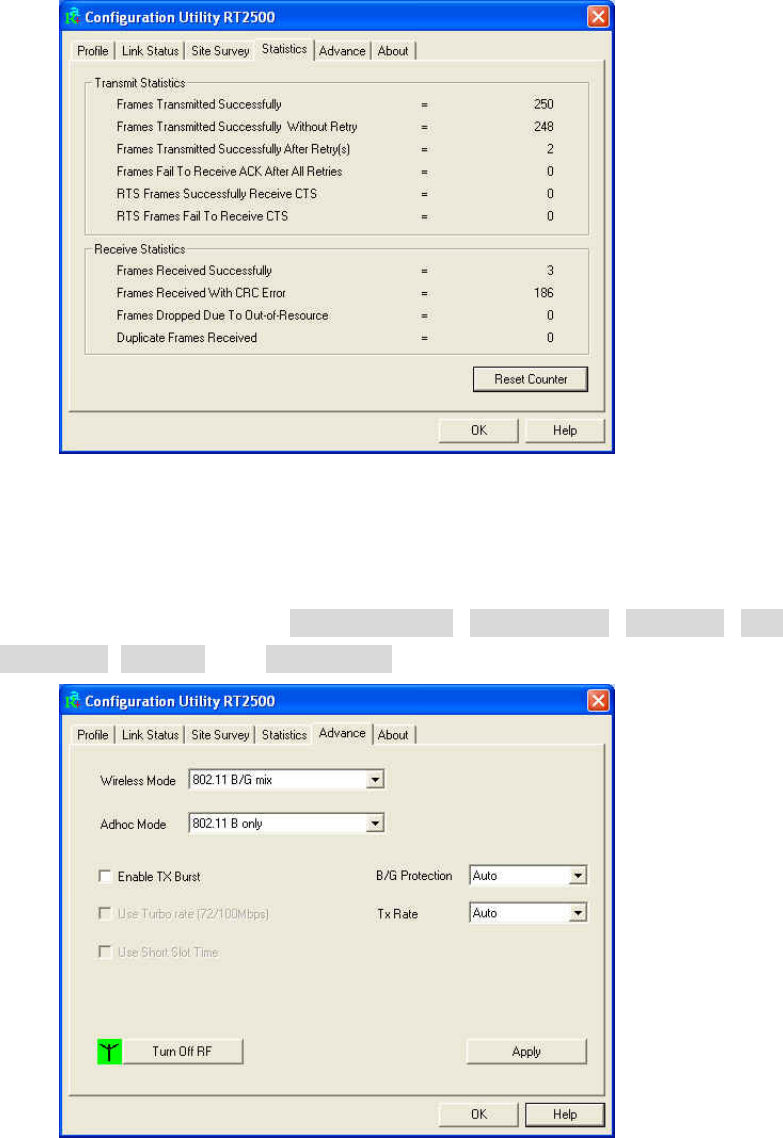

z Statistics
The Statistics Tab provides information about the Transmit and Receive
frames.
z Advance
The Configuration Utility also offers the advanced configuration for user to
set the Wireless Adapter under certain network environment. These
advanced options include Wireless Mode, Adhoc Mode, TX Burst, B/G
Protection, Tx Rate, and Turn Off RF.
13

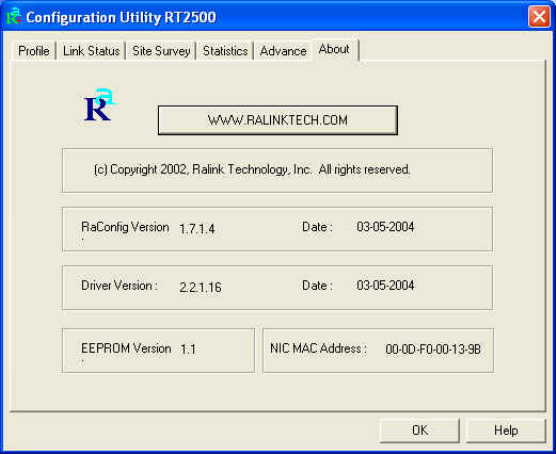

z About
About Tab shows the product version including the detail of Configuration
Utility Version, Driver Version, EEPROM Version, and NIC MAC Address.
14
