Qiaohua QT-12 WIRELESS REMOTE CONTROLLER FOR FOG MACHINE User Manual

SHENZHEN QIAOHUA INDUSTRIES LIMITED WIRELESS REMOTE CONTROLLER FOR FOG MACHINE

User Manual

It is very important to operate this product according to the following instructions. Failure to do
so may render your guarantee void.
Accessories List
The product comes with
1 x Product Body with Power Cable
1 x Wired Control Cable and Box
1 x Wireless Remote Control Transmitter with Battery Installed
1 x User Manual
5. Connect the product with proper power socket.
6. Warm up time is approximately 4 – 5 minutes. When fully heated, the Wired Control Indication
Light will turn on and the Fog Machine will be ready to produce and spray fog.
7. Set the On/Off Switch to on position on the Wired Control Box, nozzle will start spraying fog.
Or you can remote control the Fog Machine to spray fog by the Remote Control Transmitter
according to following sequence:
a. Remove the battery insulation tab carefully. This is to activate the battery. The battery insulation
tab is located at the back cover of the Remote Control Transmitter.
b. Press and hold the Push Button on the Remote Control Transmitter within 10 meters, and the
Wireless Remote Indication Light on the Transmitter will be on at the same time. Then the fog
machine will be spraying.
Please be well noted:
The maximum transmitting distance is 10M in the open air.
If you just press but not hold the Push Button on the remote control transmitter, the fog machine
would just spray very shortly and stop. It is necessary for you to hold the button if you want the
fog machine to spray continuously.
8. Turn off the unit before refilling the fog machine.
9. Unplug the unit when not in use.
10. To refill the tank; turn off the unit, unplug and follow the directions in Step 3.
Keep away from the spray nozzle at least 0.5 meters when the nozzle spraying fog.
Attention! Do not place the product onto wet or uneven surfaces. Accidental falls may cause fire.
The product shall be changed if it has become damaged or thermally deformed. Disconnect this
product from power immediately in case of malfunction. Do not resume use until it’s repaired.
Do not use the Fog Machine or Remote Control Transmitter outdoors. They are not waterproof.
This product is not a toy. Please keep this unit out of reach of children and pets.
Close supervision is necessary when this product is used by invalids, or disabled persons, or near
children.
Use this product only for its intended use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
Keep the power cable away from heated surfaces.
Never drop or insert any object into any opening.
Please unplug the power cable if you want to stop use of this unit for long time.
The external flexible cable of this product cannot be replaced; if the power cable is damaged, the
product shall be destroyed. Never operate this product if it has a damaged cable or plug, if it is
not working properly, if it has been dropped or damaged, or dropped into water.
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household or general waste.
It should be handed over to the applicable collection point for the recycling of electrical and
electronic equipment.
Maintenance and Cleaning
Maintenance and cleaning shall only be done to the product surface. Unplug this product from
the power socket before cleaning.
Do not wet any electric parts of this product. Please use a dry, soft cloth instead of sharp tools for
cleaning.
If you find there is low fog output after many hours of continuous operation or after the machine
has been idle or in storage for a long time, it is advised to empty all Fog Liquid from the machine
and clean the tank. Please unplug the machine from power socket before cleaning.
Replace Battery for the Remote Control Transmitter
If the Remote Control Transmitter does not work at all within the working distance, it is probably
that the battery has been run-out. Please replace the used battery with a new one.
Note: Before replacement, you need to prepare a small cross-headed screw driver and a new battery
with correct specification: 23A 12V
1. Unscrew the 3 screws at the back cover of the Transmitter.
2. Remove the used battery and load the new battery into the Transmitter. Please note the correct
polarity.
3. Fix the 3 screws back to the back cover.
Storage
It is important to keep fluid in the Fog Machine when storing for an extended period of time. This
will keep the seal and the parts lubricated.
1. Remove the tank lid.
2. Pour liquid into the tank.
3. Store on a flat, level surface to prevent liquid from spilling.
Fuse Replacement
If the Fog Machine does not work at all when it is connected to the power socket, then it is probably
that the fuse has been broken.
WARNING: Risk of electric shock and fire. Disconnect from power socket before replacing the fuse.
1. Turn the fuse knob counterclockwise to reveal the fuse.
2. Replace the fuse with the same size and type fuse: 5A, 125V
3. Place fuse in cover and reinstall by turning clockwise. Be sure not to over tighten.
Cautions and Warnings
Please read through this instructions manual before use.
Before use, check the fog machine to see if there is any crack in the product cover, wired control
cable and box, power cable and plug. Make sure there is not any exposed wired. Do not use if any
of the above conditions is found.
The fog machine will become hot during use. After use, please wait for some minutes before
trying to touch it by hand.
123
456
Product Body with Power Cable
Remote Control
Transmitter
User Manual

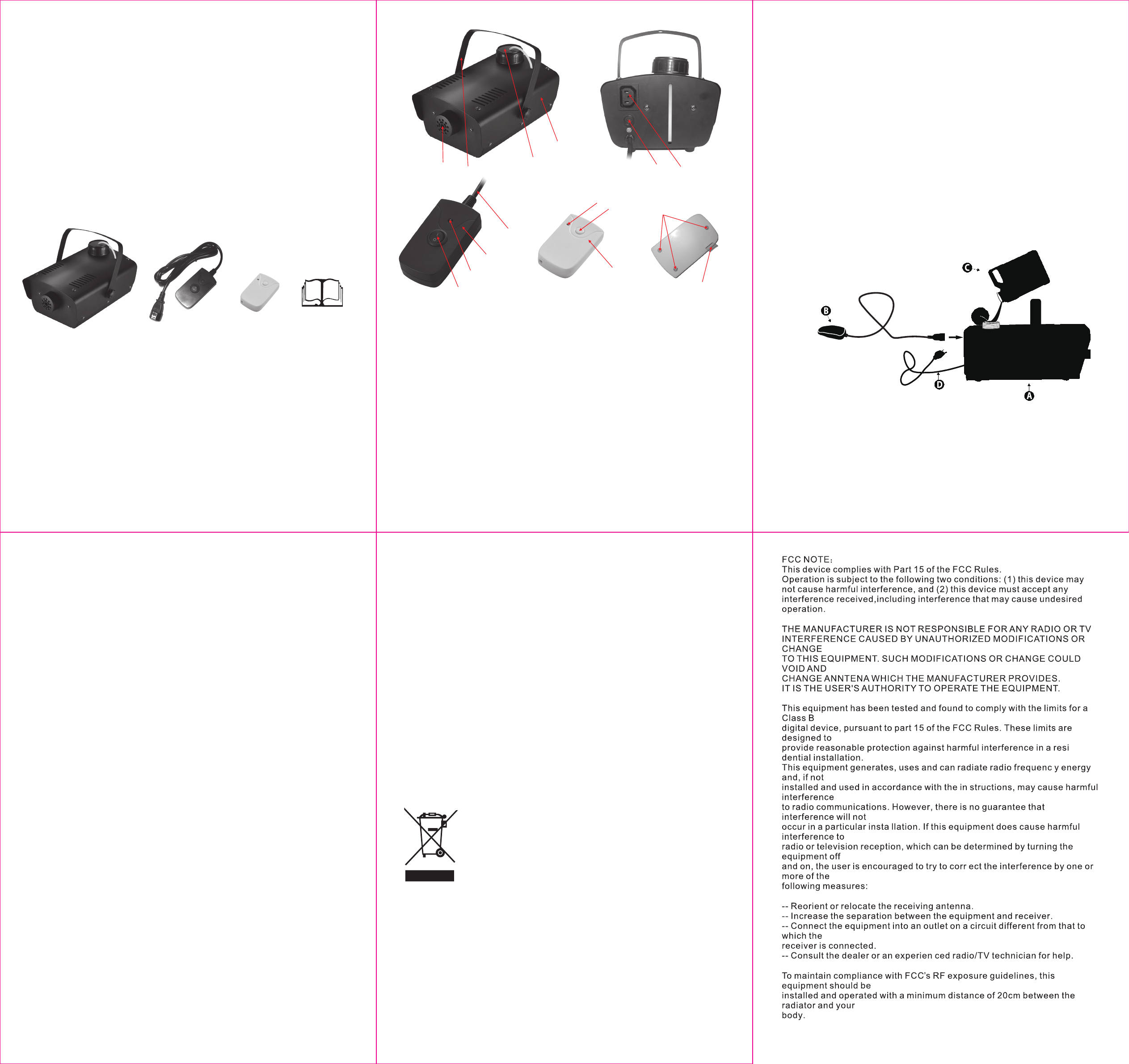

Names for Parts
(A) (B) (E)
(F)
(K)
(C)
(D)
(G)
(H)
(I)
(J)
(M)
(L)
(O)
(N)
(A) Spray Nozzle (B) Handle
(C) Tank Lid
(D) Product Cover (E) Wired Control Cable Interface (F) Fuse Knob
(G) On/Off Switch
(H) Wired Control Indication Light (I) Wired Control Box
(J) Wired Control Cable
(K) Wireless Remote Indication Light
(L) Push Button
(M) Remote Control Transmitter
(N) Screws (O) Battery Insulation Tab
How to Use?
Before using the fog machine, you have to prepare Fog Liquid (not included). Then operate
according to following sequence.
1. Remove all the packages.
2. Carefully put this product onto a clean, flat and solid surface, close to the power socket.
3. Unscrew the lid on the tank by turning counterclockwise and pour the Fog Liquid inside. Do not
spill Fog Liquid onto the product body. Do not overfill. If liquid gets into the Fog Machine, leave it
to be dry completely before plugging in. Do not cut, pinch, or break the tube connected through
the tank lid. Screw the lid clockwise to the tank tightly. Always make sure there is enough Fog
Liquid in the tank before using the Fog Machine.
4. Connect the wired control cable to the Interface at the back of the Fog Machine.
Additional Information
(a) It is normal if there is condensation on the nozzle of the Fog Machine.
(b) A small amount of fog may spray during or after operation.
(c) The Fog Machine will have to reheat after long spray. It will stop operation for a short period in
order to heat up to operating temperature again. While this is happening, fog cannot be
produced. The Wired Control Indication Light will turn on again when the unit is ready to
generate more fog.
(d) All fog machines are apt to clogging due to the consistency of Fog Liquid and the high
temperatures at which it vaporizes.
Model No.: QT-12
400 Watt Fog Machine
USER MANUAL
A: Fog Machine
B: Wired Control Box and Cable
C: Fog Liquid (not included)
D: Power Cable
Wired Control
Cable and Box
Specifications
Power Sources : Input AC120V 60Hz
Power Consumption: 450W
Warm Up Time: 3-5 Minutes
Tank Capacity:300ml
Fog Output: 2,000CFM
Output Distance: 2M
Output Time: 40s
Outline Size: 250x187x202mm
Fuse: 5A, 125V
Remote Control Distance: Maximum 10M in the open air
Remote Control Transmitter Battery: 1×23A 12V
