USER MANUAL
SECURITY SENSOR LIGHT
MODEL NO.: QL-302S
It is very important to operate this product according to the following instructions. Failure
to do so may render your guarantee void.
CONTENTS
●1 x Sensor Light ●6 x Screws ●1x Remote control ●3 x Plastic screw ●1x User
Manual
A B C D E F G
A,Main Light(Front Part) E, LED Light
B, Main Light(Back Part) F, Code matching button
C, Screw G, PIR Sensor area
D, Base
SPECIFICATIONS:
●Wireless Frequency:433.92MHz+100KHz
●Power Voltage: DC 6V
●Auto Shut off(seconds): 15S, 30S, 60S Selectable
●Battery: 4 × D Size 1.5V (Not included)
●PIR Detection Distance: 5-10M
●PIR Sensor Angle: 120°
●Brightness(lumens): 200 lumens
●Light Projecting Angle: 90°
●Range Adjustable Angle: 150°
●Coverage area: 380 sq.ft / 36 sq.meters
●IP Class: IP65
●Working temperature: -20°C(-4°F) to 50°C(122°F)

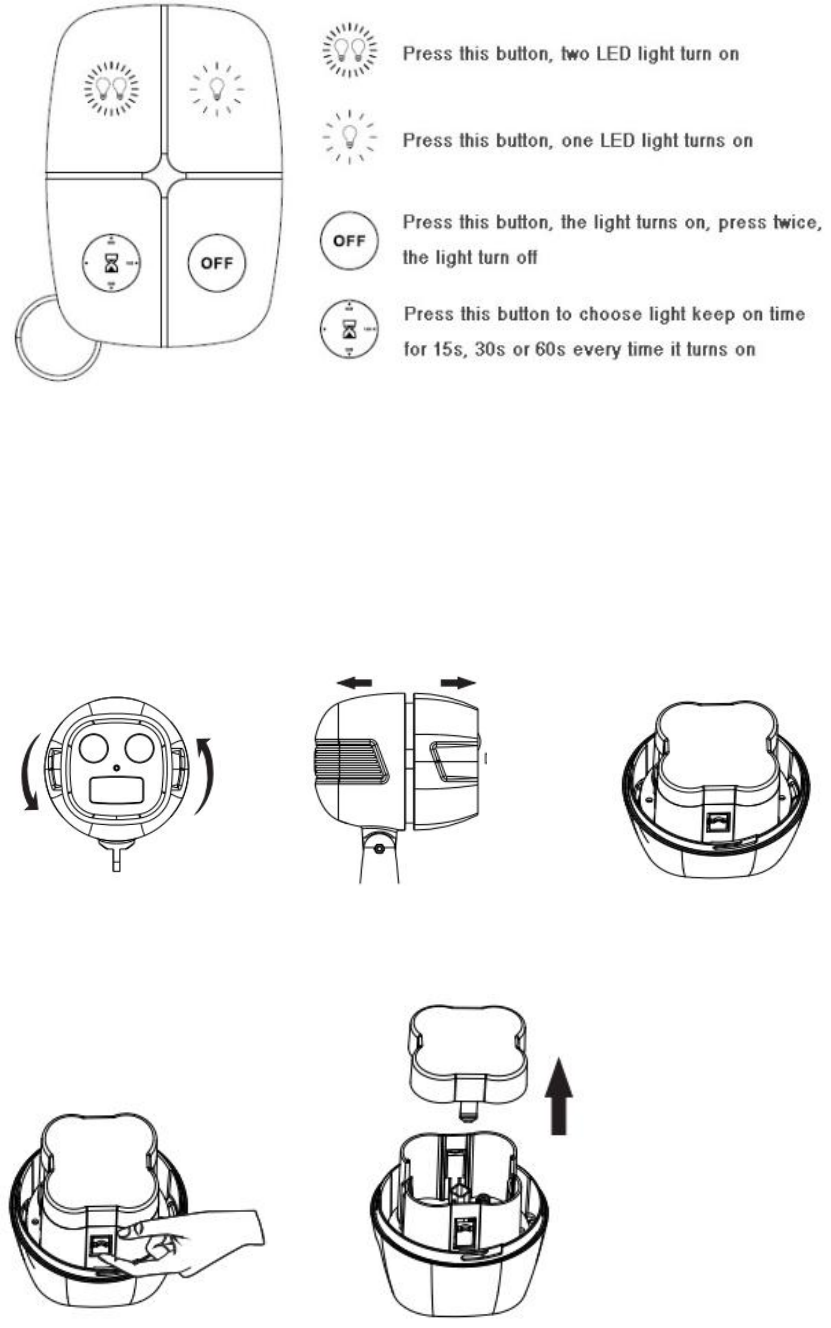

Remote control function
Quick Setup
1. Remove all the components from packaging and saving packaging to store the sensor light
when not in use. Please make sure that there are 1 x Security Sensor Light, 3 x Screws, 3 x
Plastic Plugs, 1x User Manual in the packaging.
2. Install Batteries.
1). Take apart the front and back main light at anti-clockwise direction, pull out of the front part,
and open up the battery cover. (Icon A, B, C,D,E)
A B C
D E

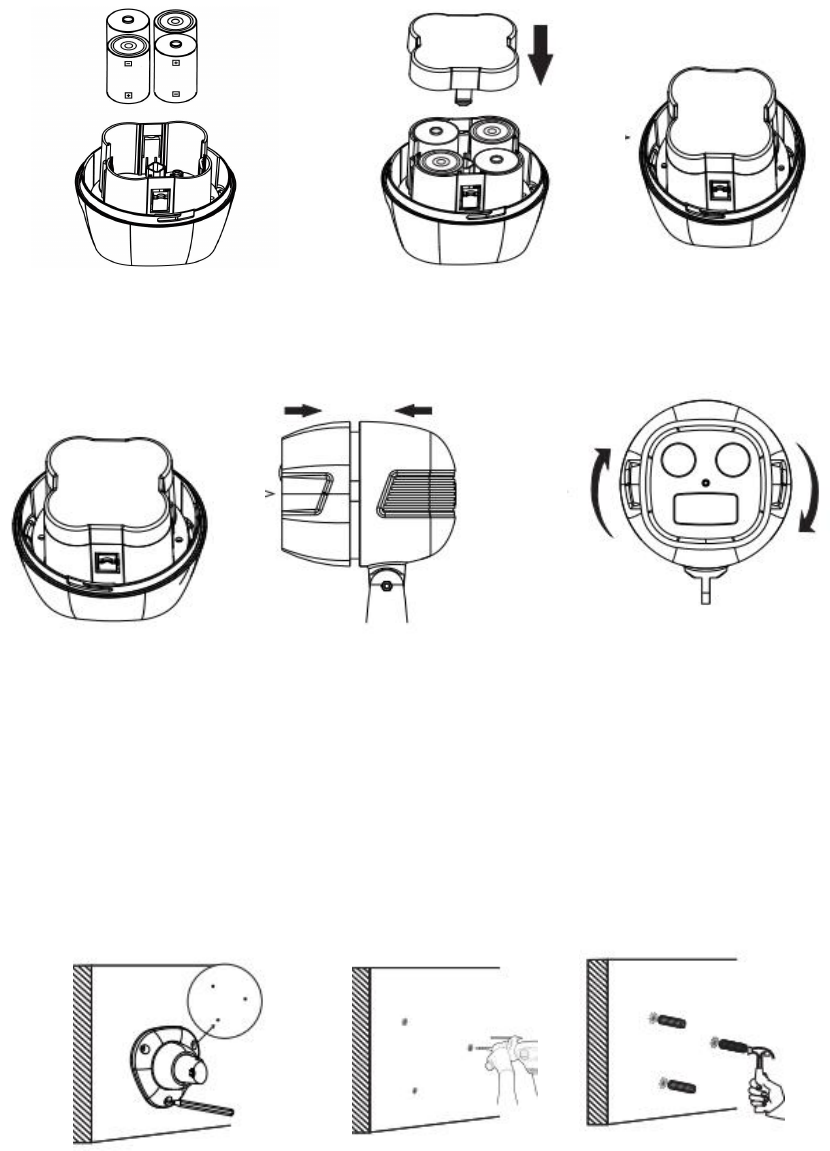

2). Put 4 pcs D size batteries in the jar with the right positive and negative electrode(Pay attention
to the “+”, “-” marks). Lid and fasten the battery cover. (Icon H,I,J)
H I J
3) Put the front part into the back cover, and screw to fasten the light at clockwise direction.(Icon
L,M,N)
L M N
ATTENTION: Please replace new D size batteries when light goes too weak. And do not mix
new and used batteries!
3. Install the Sensor Light(Fix on the wall):
1). Find a location of wall or a place to install. Mark the three screw-holes places by pencil(Icon
O,P). Use electric drill to punch holes (Icon Q). Use a hammer to knock the 3 plastic plugs
into the holes (Icon R).
O P Q
R S T

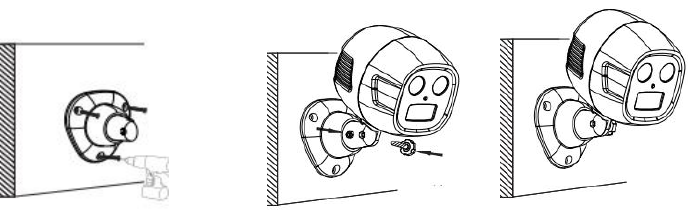

2). Fix the base on the wall by tighten the screws ,take and hold the main part, screw at clockwise
direction and fasten on the base, and finished light installation (Icon S,T)
Note:Pay attention to the Sensor Angle when installing the main unit.
Time Selection
It is preset to be 15s lighting on lasting,
And users can choose 30s or 1 min or 15s lighting on lasting by pressing the time control button.
The 1st time pressing, the PIR Sensor fast flash 2 times, it is set to be 30s.
The 2nd time pressing, the PIR Sensor fast flash 3 times, it is set to be 1 minutes.
The 3rd time pressing, the PIR Sensor fast flash 1 times, it is set to be 15s.
Built-in Light Sensor
The sensor light only work at dark(＜25 Lumen).
Note: The darker the area the light being used in, the brighter the projection. Try to stay
away from areas with bright illuminating lights.
IMPORTANT SAFETY INSTRUCTIONS
1. No recommended for set-up or installation by children.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or
disabled persons.
3. Use this furnishing only for its intended use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
3. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
5. The furnishing has not been evaluated for flammability or cigarette ignition resistance!
6. Do not shake.
7. ONLY ALLOW USE BY RESPONSIBLE PERSONS
This is not a toy. Please put it away from children and babies.
8.This product was designed for indoor and outdoor use.
IMPORTANT
Damages caused by the disregard of this user manual are not subject to warranty. The dealer will
not accept liability for any resulting defects or problems. Keep away from heaters and other
heating sources! Please note that damages caused by manual modifications on the device or
unauthorized operation by unqualified persons are subject to warranty. Keep young children and
amateurs away from the device!
PRECAUTIONS
This holiday projector light should be used at allowed working temperature: -20°C(-4°F) to
50°C(122°F)
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
CAUTION
EYE INJURY HAZARD -- DIRECT AND REFLECTED BEAM
LED LIGHT RADIATION – DO NOT STARE INTO BEAM OR
VIEW DIRECT WITH OPTICAL INSTRUCTIONS!
Maintenance and Cleaning
●Maintenance and cleaning shall only be done to the product surface. Unplug this product from
the power socket before cleaning.
●Do not wet any electric parts of this product. Please use a dry, soft cloth instead of sharp tools
for cleaning.
●When not in use, store neatly in a cool, dry location protected from sunlight.
●Please keep away from heaters and other heating sources.
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household or general waste.
It should be handed over to the applicable collection point for the recycling of electrical and
electronic equipment.
