Qingdao Haier Robot HXS-C3 Smart Sweeping Robot User Manual

Qingdao Haier Robot Co.,LTD Smart Sweeping Robot

User Manual

Thank you for purchasing, wish you have a happy experience.Contents2. Safety Instruction..................... 4-63. Product Formation.................... 7-84. Product Installation.................... 95. Product Usage……………...11-136. Product Maintenance…..........14-172.1 Use Notes2.2 Safety Precautions2.3 About Child Safety 2.4 About Battery2.5 Wireless Device Warning2.6 Usable Scope3.1 Main Body and Accessories3.2 Accessories Introduction4.1 Main Body4.2 Charging Station4.3 Installation of “Huiba” App 5.1 Main Body5.2 Remote Control5.3 Charging Station5.4 Charging Methods6.1 Clean the Main Body6.2 Clean the Dustbin6.3 Clean the Main Brush6.4 Clean the Side Brush6.5 Clean the Front Wheel6.6 Clean the Left Wheel and Right Wheel6.7 Clean the Sensors6.8 Clean the Trailing Bar Assembly6.9 Others 7. General Error ..………………. 188.Technical Parameters………... 19Alarm and Prompt Facility 1.7General Error 2.71. “Huiba”App Operation Guide... 2-3Attachment: …………………... 20-23“Huiba”App Operation Guide- 01- Product website: xshuairobot.comHXS-C3
1. “Huiba”App Operation Guide1.1 *App can read 10 countries language ,including English,German,French,Spanish,Chinese,Russian,Portuguese,Japanese,Hebrew,Italian.*Scan the QR Code below or search “ Huiba ” in App Store or Google Play.IOS Google PlayDownload & Install “ Huiba” AppStep 1. Enter mobile phone No..Step 2. Input passwords after receiving verify code.Step 3. Finish registration.1.2 RegisterHuiba- 02 -Product website: xshuairobot.com
1.3 Add The Robot1. Enter into App "Huiba", click "+" on home page to get into add robot interface, operating based on guiding steps on the App interface.2. If you want to add multiple robots, click"+" in the upper right corner of the contacts, operating based on guiding steps on the App interface. - 03 - Product website: xshuairobot.com
2.2 Safety Precautions2.1 Use NotesPlease observe the following safety precautions before using the product:* Read the User Manual carefully, and use the product according to the* Keep the User Manual carefully for the f instruction.uture reference.* If you want to send the product to others, please send it together with the User Manual.* Any error operation may damage the product or cause serious personnel injury.Please use the original adapter, battery and charging station, otherwiseit will damage XSmart and cause fire because of electric shock and high voltage.Caution2. Safety Instruction- 04 -Product website: xshuairobot.comIf you find that the main body and accessories are damaged, is not allowed to disassemble maintenance or remould the XSmart. Please do not use the XSmart and contact with the after-service department. Do not touch the battery socket and XSmart when your hands are wet,otherwise it will cause electric shock. Do not use the XSmart in the place without guard railing, otherwise it willdamage the XSmart and cause personal injury.Do not bend the power cord overly or place weight on it, otherwise itmay cause power cord damage, fire or electric shock. Do not approach cigarette,lighter,match and other heat objects or combustible materials such as the gasoline to XSmart.Do not put your clothes or any place of your (hair,finger and so on) intothe main brush and wheels, or it will cause personal injury.
* The machine should not be used alone by children.* Forbid the children playing the packing bag, otherwise it will cause smother.2.3 About Child SafetyAttentionPlease turn off the powerswitch if you do not use theXSmart, otherwise it willdamage the battery. OFF/ONThis product is only usedindoor. Water, oil or other liquidshall be prevented fromdamaging the XSmart. If the machine is not used for a long time, please char-ge the battery fully, then take it in shade place, keepthe bottom of cleaner dry. Please clean up the wire in the wire in the floor, or it will hinder the working of the machine.It's better to place chargingstation against the wall andflat ground. Please remove all the fragileobjects.Do not cover the signalwindow of the chargingstation, otherwise XSmartauto-charging will be invalid. 2.4 About Battery1. XSmart will only be used with the original battery.2. Please turn off the power switch before taking out the battery .3. The battery must be taken out before abandoning i t.Please charge the batteryabout 5 hours for first using. Please wipe the cameraa soft cloth when it is blur. Please cut off the power sup-ply plug when non-used for along time. Danger!Electric shock! 45. The battery includes hazardous substance, please put it to recycle site according to original environmental protection regulations.. If the battery is leak, please do not touch the liquid, you should wipe the liquid with dry cloth, and put the battery to recycle bin or maintenance point, do not throw it at random.- 05 - Product website: xshuairobot.com
2.6 Usable Scope2.5 Wireless Device Warning The robot is suitable to the following environment：*Not suitable to be used in the extreme hot or cold environment.*Do not use XSmart in the place without guard railing, otherwiseit will damage XSmart and cause personal injury.*Do not use XSmart in the following environment: wet, inflamm- able, explosive and easily corrosive.*Do not let XSmart clean the flaming cigarette butts, matchesand so on.*Do not let XSmart suck the toner from laser printer and copier,otherwise it will cause fire.*Do not let XSmart suck sharp objects, such as glass sheet, pitonand so on, otherwise it will damage XSmart.Applicable ScopeInapplicable Scope- 06 -Tile CarpetWooden FloorThis device contains transmitter module，FCC ID: 2ALRN-HXS-C3This device complies with Part 15 of the FCC rules . Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.Product website: xshuairobot.com
.3.1 Main Body and Accessories Main BodyBatteryWater Tank MopRemote control suction components Side Brush Clean BrushAdapterCharging Station3. Product FormationUser Manual3.2 Accessories Introduction- 07 -Side Brush Charge JackPower SwitchFront ViewDust Box ButtonCameraOptical WindowSensors WindowMechanical induction barTop CoverProduct website: xshuairobot.comAUTOHOMESPOTZIGZAGVACUUMEDGEOK
Trailing Bar Assembly MopBottom ViewGround Detection SensorsBattery PackRight Wheel Left WheelMiddle Bristle BrushFront WheelCharging Electrodes- 08 -Product website: xshuairobot.com4.Product Installation4.1 Main Body1. If you do not use the machine, please turn off the power switch, or else it will damage the battery. 2. If the machine is not used for a long time, please charge the battery fully, then take it out and put it in shade place, keep the bottom of cleaner dry. 3. The battery should be charged about 5H, if the machine is not used for a long time or the first time. When the battery is used up for 3-4 times, which will make t he battery best efficient.4. You should use the original battery, or else it will cause damage and accident.Caution：Danger! Electric shock.OFF/ON
Danger!Electric shock!- 9 -4.2 Charging Station2.Connect charging station to power socket.3.Do not cover the signal window of the docking sta-tion, otherwise the function of auto-charging will be in-valid.1.Put charging station on the flat floor against the wall and tfel eht no m 5.0 dna m3 fofrom the charging sation inkeep any obstacles awayand right.3.For more information, please refer to Chapter 1, "Huiba App Operation Guide". This App is just apply to smartphone.31.The system version requirements for smartphones are as follows.Android system must be 4.0 or above,IOS system must be 8.0 or above.2.Two options for App downloading:A-Search "Huiba" in App store or Google Play.B-Scan the below QR code.4.3 Installation of “Huiba”App IOS Google PlayHuibaProduct website: xshuairobot.com0.5m0.5m3m
Buttons' InstructionIcon Press this button and release, and then hear "tip", the volume of the machine will increase.Press this button for 10 seconds until you hear the "tip-tip" and rele-ase, the machine will enter the time setting mode, the number of theweek will be flashing, press " " button to increase the number, press" " button to reduce the number; Press " " button to makethe hour decade digits flashing, press " " button to increase the number, press " " button to reduce the number, and so on, time set-up succeed.Press this button and release, and then hear "tip", the volume of the machine will increase.Auto button:Press this button and release, and then hear the "tip", the robot enter the " " shape cleaning mode, and then click again, the machine will pause cleaning. Press this button for 10 seconds until you hear "tip-tip" and then release, wifi indicator flashes, the machine finishes wifi signal firing.Wi-Fi configuration light: When the white light flashes, the machine completes the WiFi signal launch, when the white light is normally bright, the devices addition of the machine is successful.Recharging button：Press this button and then hear "tip", machine in standby mode or operation mode will automatically search for the charging seat, and then click again, the machine will stop searching.Camera light:Normal Light shows that the camera is on.5.1 Main Body5.Product Usage- 10 - Volume Buttons Auto ButtonRecharge Button Camera light Wi-Fi configuration lightHour decadeWeek digit Minute unitHour unit Minute decadeBatteryVOL VOL AUTO HOME+VOL+-VOL-VOL-VOL-HOMEHOMEHOME AUTOAUTOProduct website: xshuairobot.com
4. Turn on the power switch and pr-ess the “+” or “-” to change the vo-lume.2. XSmart will automatically return to its docking station for self-recharging when the battery is low. Connect the App on smart phone, Robot can be controlled to charging. 3. Turn on the power switch and press the “AUTO” button, XSmart will start cleaning. Press it again, XSmart will stop cleaning.VOL VOL AUTO HOME+-VOL VOL AUTO HOME+-Make sure the robot has enough power, turn on the power switch, wait for 25 seconds hear the "tip", the program starts, in standby mode.StandbyAutoCleaningAutoChargingVolumecontrol5. Press the “AUTO” button, Xsmart enter the “ ”shape path of cleaning mode.ZigzagCleaning - 11 - Product website: xshuairobot.comOFF/ON
Product website: xshuairobot.com5.2 Remote Control 1.“POWER” button Under the operating mode,the machine stops cleaning by pressing this button. 2.“OK” buttonA.Under the standby mode,the machine starts advanced zigzag cleaning by pressing this button.B.Under the operating mode,the machine stops cleaning by pressing this button.3.Direction buttonsA.“ ”Up Under the standby mode or operating mode,the machine moves forward by pressing this button.B.“ ”Down Under the standby mode or operating mode,the machine moves backward by pressing this button.C.“ ”Left Under the standby mode or operating mode,the machine rotates to the left by pressing this button.D.“ ”Right Under the standby mode or operating mode,the machine rotates to the right by pressing this button.4.“HOME” button Under the standby mode or operating mode,the machine retunes to charging dock for recharging its battery by pressing this button.5.“AUTO” button Under the standby mode or operating mode,the machine starts zigzag mode by pressing this button.6.“SOPT” button Under the standby mode or operating mode,the machine starts cleaning mightily by pressing this button.7.“ZIGZAG” button Under the standby mode or operating mode,the machine starts zigzag mode by pressing this button.8.“EDGE” button Under the standby mode or operating mode,the machine starts cleaning along the edge by pressing this button.9.“VACUUM” button Under the standby mode or operating mode,the machine starts strong suction power by pressing this button.!Note:1.Please assemble two pieces of batteries before use.2.If the remote control is not in use for a long time,please take out its batteries.- 12 -AUTOHOMESPOTZIGZAGVACUUMEDGEOK14 56 78 923
5.4 Charging Methods5.4.1 Manual Charging：5.3 Charging Station2314Danger!Electric shock.No obstaclehere.NO3412NameCharging indicatorSignal windowCharging electrodesDC socketFunctionWhen the adapter is connected power supply, the red indicator lightis on. When the Xsmart is in charge, the blue light is on.Emitting signal is the unique way to conduct to recharge with charg-ing station, so the signal window should be clean regularly to ensure the sensitivity and accuracy.The charging electrodes should well contact with electrodes, otherwise the charging will fail .Output end jack of adapter.Usage：1.Install the charging station according to the method from page 8, as shown on the top right photo.1. Charge the XSmart with an adapter: Connect the plug between the XSmart and the adapter, then insert the socket.2. Connect the plug between the adapter and charging station, then put the XSmart behind the charging station,put the charging electrodes on the charging station directly, finally connect the power socket .Charging Station Instruction Danger! Danger! Electric shock.- 13 - Product website: xshuairobot.com
5.4.2 Auto charging6.1 Clean the Main Body6.2 Clean the Dust Box6.2.1 Removing Dust Box1. Before cleaning the main body, please turn off the power switch and take out the power plug.2. Please wipe the main body with water and neutral detergent, and make sure the mop is dry, do not put the water into robot.3. Do not wash robot with oil.4. Do not make the water into the speaker hole.1. Lift the cover and remove the dust box1. Rinse the dust box2. Remove the filter 3. Dust out6.2.2 Clean the Dust Box6. Product Maintenance Please clean the XSmart regularly according to the usage. Tips： 1.Auto-charging by smart phone App:Firstly install the app, then open the controlling interface, click the “charge” button and XSmat will find the charging base in the effective scope.2. Auto charging：When the battery power is low during the cleaning, XSmart will emit the sound “tip-tip”, the main brush will also stop working, and XSmart will go back to the charging station automatically.3. Auto-charging:XSmart will return to charging station for charging after press the HOME button. 　　　　Product website: xshuairobot.comtrash canVOL VOL AUTO HOME+-- 14 -
6.2.3 Clean the filter6.2.4 Clean the HEPA6.3 Clean the Main Brush6.3.1 Assemble and Disassemble the Main Brush1.Pat the HEPA 2.Install the HEPA3.Please push the buckle to open the main brush lock,3.As shown on the above photo,push the buckle strongly ,and fill it up.4.Grasp the middle bristle brush and fill it up.trash canPULL- 15 - Product website: xshuairobot.com1.Remove the HEPA2.Use the brush to brush the filterPULL
6.3.2 Clean the Middle Bristle Brush2.Please clean the hair and cloth wrapped around the side brush. 6.4 Clean the Side Brush1.Take out the screw with ascrewdriver on the side brush.2.Take out the side brush,cleanthe hair on the side brush,thenclean the entanglement in the slot.3.Put the side brush in the hole,lock the screw on the side brush.1.Please follow the above pictures illustrate to clean the main brush by clean brush.1. Clean with the clean brush, do not clean with water.(Tips: Please clean the wheels regularly if hair and a strip of cloth twine in the axle of the wheels.)6.6 Clean the Left Wheel and Right Wheel6.5 Clean the Front Wheel1. Clean the front wheel with the clean brush.Product website: xshuairobot.com - 16 -
6.7 Clean the Sensors6.9 OthersPlease take out the battery and store it in shadow and dry places when it is not in use.Please turn off the power when it is not in use.Please wipe the sensor window by drycloth or clean it by brush.6.8 Clean the Trailing Bar AssemblyPlease assemble and disassemble the trailing bar assembly according to the above photo. 6.8 Clean the MopTips: The trailing bar assembly is an accessory that is suitable to the flat floor, please use it according to the house environment.1.Pull the mop from the mop plate,then wash it by water. 2.Put it on the velcro properly and then press it.- 17 - Product website: xshuairobot.comOFF/ON
7.General Error7.1 Alarm and Prompt Facility7.2 General Error1. If the machine stops working, the display will show the error code.2.Please check the display failure prompt, according to the following tips to clear the exception. Faults performanceError Code Solution RemarksObstacles on the sensors window.Obstacles on the sensors window.E1E2Clean the ground detection sensor.Clean the Wall detection sensor.Clean the ground detectionsensors regularly.Clean the wall detectionsensors regularly.Driving wheel off the groundE3E4Place the machine on the ground.Keep the machine on the ground.1.Can not work2.Cannot automatically charge.1.Driving wheel block.2.Hair and a strip of cloth twine in the wheels.2.Hair and a strip of cloth twine in the Side brush.Please check and clean the debris on the driving wheel.Please check the hair and clothwrapped around the side brush.Clean the wheels regularly.E5E61.The Side brush while blocking. Clean the Side brush regularly.Charge the XSmart manually.Connect the battery cable.The battery is not connected.E7Battery replacement.The battery is damaged.E8Check the mechanical induction bar.Mechanical induction bar are stuck.E9Please keep XSmartcharging after workingeverytime. No.1Faults SolutionWalk back all the time234XSmart does not workUnable to auto-rechargeUnable to rechargeProduct website: xshuairobot.com - 18 -1. It is better to avoid robot working in the strong bright environment.2. It is better to avoid robot working in the black carpet.3. Check the ground sensors to see if any dust or dirt covered the sensor window.1. Check whether the power switch is on.2. Check whether XSmart is enough power, if not, please charge the XSmart.1. Check whether the LED indicator of docking station is on.2. Check whether there are obstacles between XSmart and recharging station.3. When the battery power is low, please charge XSmart artificially.1. Check if the battery is installed correctly. If yes,please turn on the powerswitch to see if the display is on.2.If the appearance of the battery is deformed, damaged and so on, please stop using XSmart and call our customer servicer.
8.Technical ParametersMain Body Parameters Accessories ParametersWorking VoltageRated PowerDust Box CapacityVoiceSpecificationCharging Time About 4-5HCleaning TimeWork Temp RangeWork Humidity RangeDC14.8 V 28 W 830mL 71dB340*340*95mm90-120 MVideo & Audio Time About 4-6H-10℃~45℃ 90%RHInput VoltageAdapterAC100-240VOutput Current 1000mAOutput Current 1000mADocking StationInput Voltage DC 24VBattery Li-lonBattery Capacity 2600mAhRemarks: Our company reserves the rights for any technology and design changedue to products product function improvement,and we reserves the right of finalexplanation.- 19 - Product website: xshuairobot.com

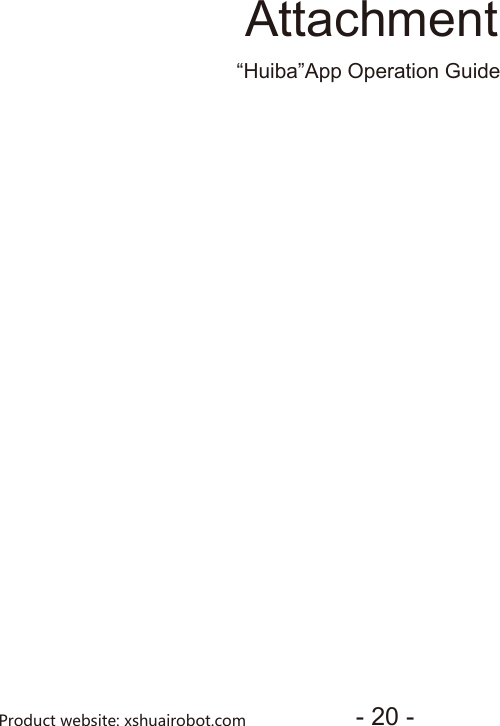

Attachment“Huiba”App Operation Guide - 20 -Product website: xshuairobot.com
- 21 - Product website: xshuairobot.comLogin “ Huiba ” App and click “Robot” icon to enter the main function interface.1.“ Huiba ” App Remote Control XSmartPress direction icons to control XSmart back and forth, left and right.It’s available to adjust the camera angle 45° up or down by sliding screen with finger.Press “AUTO” to the cleaning XSmart according to the “ ”shape path;Press “Clean Mode” to enter a variety of cleaning mode selection: A - “Zigzag-Mode” refers to the cleaning XSmart according to the “ ”shape path;B - “Spot Mode”, XSmart begins to work by spiral within the limited area;C - “Edge Mode”, XSmart begins to work along the wall.Press “Snapshot” to take photos and save to local photo album.Press “Charge” to enter Auto-recharging Mode.Press “Speed” to convert the speed from fast to slow.Press “Mute”, the phone’s microphone is shut down and XSmart will not receive any sound of smart phone. XSmart Remote Control Interface: sliding
- 22 -2、Click XSmart icon and enter into “Details”, click “…” at the top right to enter “Set Robot” interface:3、Click “Manage Robot members”, then click “+” to invite family members to control XSmart. The new family member will receive a request from XSmart Administrator at the top of the contacts (“New Request”), and then click “Agree”, this member will join into the family circle. The administrator also can delete the members by clicking “-”.1、Click “+” icon at the top right corner, two options available: Enter Mobile Phone No. & Add From Contacts. You can select any way to add contacts to be your family members. (P.S. the contacts must have downloaded and registered “Huiba” App already).“ Huiba ” Contacts Interface:2.Add Family Members and Accessories
- 23 - Product website: xshuairobot.comClick the Reservation Cleaning to make an appointment with an cleaning at a certain moment in one day.As the pictures show to select a time , after the scheduled time the cleaning robot will start work.3.Reservation Cleaning
- 24 - Product website: xshuairobot.comWarning:This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or change to this equipment. Such modifications or change could void the user’s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
