Qingdao Intelligent and Precise Electronics MT7601UR ZDGFMT7601U-R User Manual
Qingdao Intelligent&Precise; Electronics Co.,Ltd ZDGFMT7601U-R
User manual
Qingdao Intelligent & Precise Electronics Co., Ltd
ZDGFMT7601U-R
User Manual
Product Name：IEEE 802.11 b/g/n 2.4GHz 1T1R, USB Module
Model ：ZDGFMT7601U-R
1
1. Introduction
Thank you for using the Wi-Fi module product provided by Qingdao Intelligent &Precise Electronics Co., Ltd.
Before use, please read this user manual carefully. Please follow the technical specifications when using the module
in your design and develop activities. Qingdao Intelligent &Precise Electronics Co., Ltd has the right to change the
contents of this manual in accordance with the needs of the technical development.
FCC application:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
MPE Requirements
To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the
antenna of this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended.
Region Selection
Limited by local law regulations, version for North America does not have region selection option.
Label
Host labeling requirement: Contains transmitter module FCC ID: 2AJVQ-MT7601UR”.
2
2．Product Information
2.1 Product Information
ZDGFMT7601U-R Wi-Fi USB module is a wireless signal module device work at 2.4GHz(2.400 ~ 2.4835GHz) .
ZDGFMT7601U-R comply with IEEE 802.11b、802.11 g、802.11 n standard. It supports up to 150Mbps physical
layer transmitting rate. ZDGFMT7601U-R support USB 2.0, which has up to 480Mbps data rate.
ZDGFMT7601U-R is widely used to multi-media device, such as smart TV. Equipped with ZDGFMT7601U-R, a
smart TV could access to Wireless Local Network, which is also called WLAN or Wi-Fi network.
ZDGFMT7601U-R helps multi-media device achieve to send & receive data package in a wireless way.
2.2 Feature
●IEEE standard：IEEE 802.11b/g/n client device without radar detection
●operating Frequency 2.4GHz
●support up to 150Mbps
● 1T1R mode
●Support 20MHz, 40MHz width in 2.4GHz band.
●support USB 2.0 high data rate mode
●support WFA/ WPA/WPA2 /WPS2.0/WAPI security
●RoH
●MAC /baseband/RF： MT7601U
3. Product Specification
3.1 Parameter
WLAN Standard
IEEE802.11b/g/n
Data Interface
USB2.0
Modulation Mode
WIFI:
802.11b:CCK, DQPSK, DBPSK
802.11g:64QAM, 16QAM, QPSK, BPSK
802.11n:64QAM, 16QAM, QPSK, BPSK
Working Frequency
2.4G: 2400-2483.5MHz;
Receiver Sensitivity
11b @ 11Mbps: (Max.) : -84dBm , (Typical) : -87dBm (PER<8%)
11g @ 54Mbps: (Max.) : -69dBm , (Typical) : -77dBm (PER<10%)
11n @ MCS7 (2.4g HT20): (Max.) : -67dBm , (Typical) : -73dBm (PER<10%)
11n @ MCS7 (2.4g HT40): (Max.) : -64dBm , (Typical) : -68dBm (PER<10%)
Working Voltage
5V±10% I/O supply voltage
Antenna Gain
2.0dBi
3
Antenna type
PIFA Antenna
Working Temperature
-10~+70℃
Storage Temperature
-40~+125℃
4. Hardware information
4.1 structure dimension：（Unit:mm）
PCB Material：FR-4，Surface treatment：OSP.
Appearance Dimension（mm）： 33（+/- 0.3）×40（+/- 0.3）
PCB thickness：1.0mm（+/-0.15mm）.
4.2 PIN definition
NO
Description
1
VCC
2
D-
3
D+
4
GND
5
Wake on Wireless
6
RESET

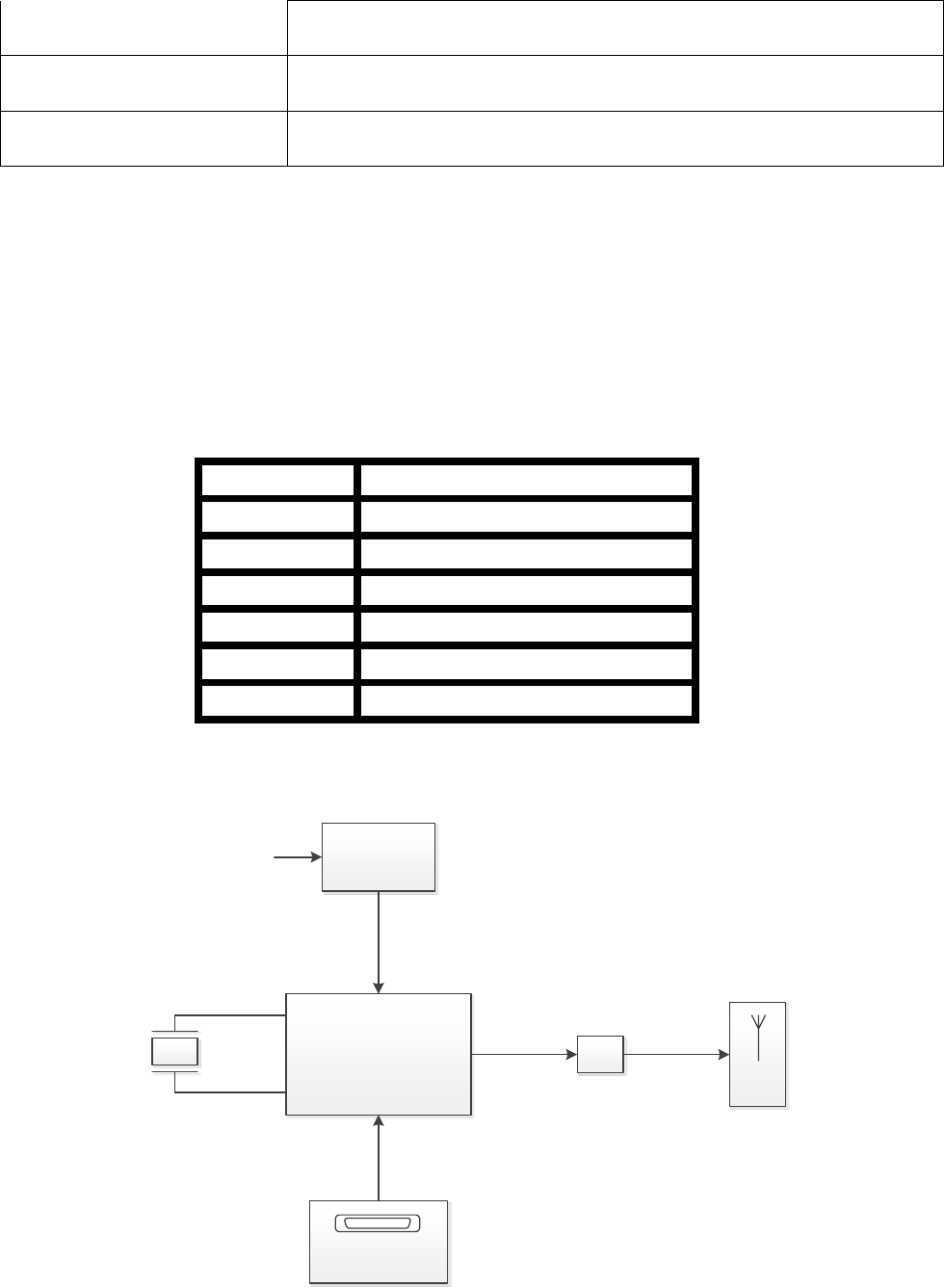

4.3 Block Diagram
USB 2.0
XP1
Connector
DC-DC Converter
SOT23-5
U1
MCU
MT7601U
QFN
U2
5V
3.3V
40MHz
XTAL1
Match
Circuit
Antenna
ANT1
BLOCK DIAGRAM
4
