Qingdao Intelligent and Precise Electronics ZDGF7668AU ZDGFMT7668AU User Manual

Qingdao Intelligent&Precise; Electronics Co.,Ltd ZDGFMT7668AU

User manual_Rev 1

Qingdao Intelligent & Precise Electronics Co., Ltd
ZDGFMT7668AU User Manual
Product Name：IEEE 802.11 a/b/g/n/ac 2.4GHz+5GHz 2T2R, Bluetooth 5.0
USB Module
Model ：ZDGFMT7668AU
1
1. Introduction
Thank you for using the Wi-Fi module product provided by Qingdao Intelligent &Precise Electronics Co., Ltd.
Before use, please read this user manual carefully. Please follow the technical specifications when using the module
in your design and develop activities. Qingdao Intelligent &Precise Electronics Co., Ltd has the right to change the
contents of this manual in accordance with the needs of the technical development.
FCC & IC application:
This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems.
Les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont réservés uniquement pour une utilisation à
l'intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
MPE Requirements
2
To satisfy FCC / IC RF exposure requirements, a separation distance of 20 cm or more should be maintained
between the antenna of this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended.
Les antennes installées doivent être situées de facon à ce que la population ne puisse y être exposée à une distance
de moin de 20 cm. Installer les antennes de facon à ce que le personnel ne puisse approcher à 20 cm ou moins de la
position centrale de l’ antenne.
La FCC des éltats-unis stipule que cet appareil doit être en tout temps éloigné d’au moins 20 cm des personnes
pendant son functionnement.
Region Selection
Limited by local law regulations, version for North America does not have region selection option.
Label
Host labeling requirement: Contains transmitter module FCC ID： 2AJVQ-ZDGF7668AU”.
Host labeling requirement: Contains transmitter module IC： 22470- ZDGF7668AU”.
2．Product Information
2.1 Product Information
ZDGFMT7668AU Wi-Fi USB module is a wireless signal module device work at 2.4GHz(2.400 ~
2.4835GHz)/5GHz (5.150 ~ 5.85GHz) .ZDGFMT7668AU comply with IEEE 802.11a、802.11b、802.11 g、802.11
n and 802.11 ac standard. It support up to 867Mbps physical layer transmitting rate. ZDGFMT7668AU support USB
2.0, which has up to 480Mbps data rate. ZDGFMT7668AU also support Bluetooth specification 2.1+EDR、
Bluetooth 4.2 Low Energy and Bluetooth 5.0.
ZDGFMT7668AU has 2T2R structure，has two onboard PIFI Antenna. It could provide stable wireless link with
high throughput.
ZDGFMT7668AU is a wireless signal module. It could transmit and receive Wi-Fi wireless signal device without
radar detection. It is widely used to multi-media device, such as smart TV. Equipped with ZDGFMT7668AU, a
smart TV could access to Wireless Local Network, which is also called WLAN or WIFI network. ZDGFMT7668AU
helps multi-media device achieve to send & receive data package in a wireless way.
2.2 Feature
●IEEE standard：IEEE 802.11a/b/g/n/ac client device without radar detection
●Bluetooth 5.0
●operating Frequency 2.4GHz/5 GHz
●support up to 867Mbps
● 2T2R mode
●Support 20MHz, 40MHz, 80MHz in 5GHz band , and 20MHz, 40MHz band width in 2.4GHz band.
●support USB 2.0 high data rate mode,10-pin interface
3
●support WFA/ WPA/WPA2 /WPS2.0/WAPI security
●RoH
●MAC /baseband/RF： MT7668AU
3. Product Specification
3.1 Parameter
WLAN Standard
IEEE802.11a/b/g/n/ac
Data Interface
USB2.0
Modulation Mode
WIFI:
802.11b:CCK, DQPSK, DBPSK
802.11a, 802.11g:64QAM, 16QAM, QPSK, BPSK
802.11n:64QAM, 16QAM, QPSK, BPSK
802.11ac:256QAM, 64QAM, 16QAM, QPSK, BPSK
Bluetooth:
GFSK, π/4-DQPSK and 8-DPSK
Working Frequency
2.4G: 2400-2483.5MHz;
5G: 5150-5350 MHz, 5470-5850 MHz .
Receiver Sensitivity
11b @ 11Mbps: (Max.) : -84dBm , (Typical) : -87dBm (PER<8%)
11g @ 54Mbps: (Max.) : -69dBm , (Typical) : -77dBm (PER<10%)
11n @ MCS7 (2.4g HT20): (Max.) : -67dBm , (Typical) : -73dBm (PER<10%)
11n @ MCS7 (2.4g HT40): (Max.) : -64dBm , (Typical) : -68dBm (PER<10%)
11a @ 54Mbps: (5g) : -69dBm , (Typical) : -77dBm (PER<10%)
11n @ MCS7 (5g HT20): (Max.) : -67dBm , (Typical) : -73dBm (PER<10%)
11n @ MCS7 (5g HT40): (Max.) : -64dBm , (Typical) : --69dBm (PER<10%)
11ac @ MCS9 (5g HT80): (Max.) : -51dBm , (Typical) : -58dBm (PER<10%)
Working Voltage
5V±10% I/O supply voltage
Antenna Gain
2.4G :Ant0:2.89dBi (MAX) , Ant1:3.14dBi (MAX)
5G: Ant0:3.17dBi (MAX) , Ant1:3.43dBi (MAX)
Antenna type
Two onboard PIFI antennas
Working Temperature
-10~+70℃
Storage Temperature
-40~+125℃
4. Hardware information
4.1 structure dimension：（Unit:mm）
PCB Material：FR-4，Surface treatment：OSP.
Appearance Dimension（mm）： 70（+/- 0.3）×33（+/- 0.3）
PCB thickness：1.0mm（+/-0.15mm）.
4
Via：Ф4mm（+/-0.15mm）.
Antenna Height：5.5mm（+/-0.15mm）.
4.2 PIN definition
NO
1
2
3
4
5
6、7
8
9
10

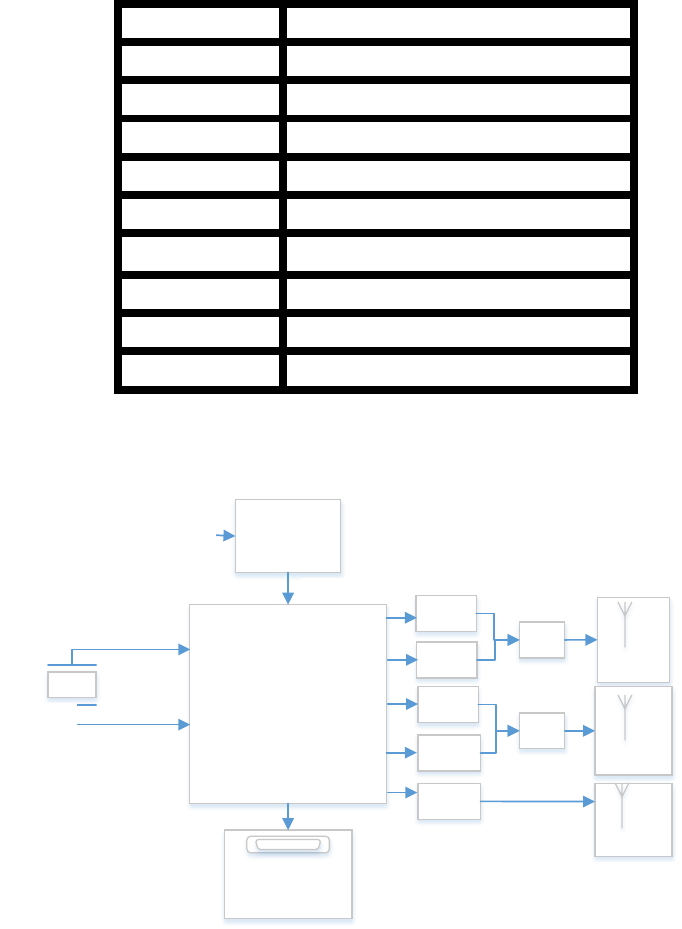

4.3 Block Diagram
USB 2.0
XP1
Connector
DC-DC
Converter
U2
MCU
MT7668AU
U1
5V
3.3V
40MHz
XTAL1
2.4G
TX0/RX0
Antenna
ANT0
Antenna
ANT1
5G
TX0/RX0
IPD
2.4G
TX1/RX1
5G
TX1/RX1
Diple
xer
BT
TX/RX
Antenna
BT-ANT
BLOCK DIAGRAM
5 EU single contact point
Hisense Czech (Manufacture) s.r.o.
U Nové Hospody 1164/4, 301 00 Plzeň ,Czech Republic.
6 Manufacture’s postal address
No.218, Qianwangang Road, Qingdao Economic & Technological Development Zone, Shandong, China
7 Importer’s name & address
Hisense Czech (Manufacture) s.r.o.
5
U Nové Hospody 1164/4, 301 00 Plzeň ,Czech Republic.
