Qisda LBW Interactive Pen User Manual RG INF IN3916 7 0
Qisda Corporation Interactive Pen RG INF IN3916 7 0
Qisda >
User Manual
1
Declaration of Conformity
Manufacturer: InFocus Corporation, 13190 SW 68th Parkway, Portland, Oregon 97223-8368
USA
We declare under our sole responsibility that this projector conforms to the following
directives and norms:
EuP Directive 2005/32/EC
EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC
R&TTE Directive: 1999/5/EC
EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
Safety: IEC 60950-1: 2005 (MOD)
ETSI: EN 300 440, EN 301 489
The receiver portion of this product is a Category III device, as specified in EN 300 440.
Trademarks
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple
Computer, Inc. IBM is a trademark or registered trademark of International Business
Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered
trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered
trademarks of Adobe Systems Incorporated. DLP® and the DLP logo are registered
trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments.
InFocus, In Focus, and INFOCUS (stylized) are either registered trademarks or trademarks of
InFocus Corporation in the United States and other countries.
NOTE: This product is covered electrical and electronic equipment under
the European Union's Waste from Electrical and Electronic Equipment
("WEEE") Directive (2002/96/EC). The WEEE Directive requires that covered
equipment be collected and managed separately from typical household waste
in all EU member states. Please follow the guidance of your local
environmental authority or ask the shop where you purchased the product
for collection or recycling options.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by InFocus Corporation may void authority
to operate the equipment.
Canada
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la
classe B est conforme à la norme NMB-003 du Canada.
Agency Approvals
cTUVus
Other specific Country Approvals may apply. Please see product certification label.
This document applies to regulatory model AA0021.
Input ratings: 100-240Vac, 3.9A, 50-60Hz
InFocus reserves the right to alter product offerings and specifications at any time without
notice.
LiteBoardTM Accessory Wand HW-LBWAND-01
Regulatory Model: LBW
Operating Instructions
For wand charging and operating instructions, please see the Quick Start or Reference Guide for your InFocus
LiteBoard projector. You can download these at www.infocus.com/support
Caution: The lithium battery is only rechargeable, and is not user serviceable or user replaceable.
Caution: Always use the included USB cable and power adapter (or your computer) to charge the wand.
Declaration of Conformity
We declare under our sole responsibility that the LiteBoard wand when used in conjunction with a compat-
ible projector conforms to the following directives and norms: EMC Directive 2004/108/EC, ErP Directive
2009/125/EC, R&TTE Directive: 1999/5/EC, Low Voltage Directive: 2006/95/EC, ETSI: EN 300 440,EN 301 489,
EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, Safety: IEC 60950-1:2005, MOD.
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment that are not expressly approved by InFocus Corp. may void the
user’s authority to operate the equipment.
Warranty
90 day limited warranty from the date of purchase.
Lithium Battery Information
Manufacturer: HiTech
Model: E3BE105K1002
Rating: 3.7V 800mAh
NOTE: This product is covered electrical and electronic
equipment under the European Union's Waste from
Electrical and Electronic Equipment ("WEEE") Directive
(2002/96/EC). The WEEE Directive requires that
covered equipment be collected and managed
separately from typical household waste in all EU
member states. Please follow the guidance of your
local environmental authority or ask the shop where
you purchased the product for collection or recycling
options.
Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
InFocus Corporation
13190 SW 68th Parkway
Suite 200
Portland, OR 97223-8368 USA
www.infocus.com
Package Contents
LiteBoard wand, USB
power adapter, USB
cables, and wand dock.
2
Table of Contents
Introduction 4
Positioning the projector 6
Connecting a computer source 7
USB connection 7
VGA connection 7
Optional computer connections 7
Displaying an image 8
Adjusting the image 9
Connecting a video device 11
Video device connections 11
Composite video connection 11
VGA connection 11
Component video connection 11
LiteBoard™ Wand 12
Charging the Wand’s Battery 12
How to Use the Wand 12
Wand Position and Avoiding Shadows 12
Using More than One Wand 13
Wand Features 13
Buttons and Wand Tip 13
LiteBoard Wand Menu 14
Troubleshooting LiteBoard 14
Shutting down the projector 16
Troubleshooting your setup 16
Using the remote control 24
Using the audio 25
Using the keypad buttons 27
Optimizing computer images 28
Presentation features 28
Optimizing video images 29
Customizing the projector 29
Using the menus 30
Basic Picture menu 31
Advanced Picture menu 32
Setup menu 33
Status and Service menu 36
Maintenance 37
Cleaning the lens 37
Using the security lock 37
Replacing the projection lamp 38
3
Important Operating Considerations for Safety
• Refer to this guide for proper startup and shutdown procedures.
• Follow all warnings and cautions in this manual and on the projector.
• Place the projector in a horizontal position no greater than 15 degrees off
axis.
• Locate the projector at least 4' (1.2m) away from any heating or cooling vents.
• Do not block ventilation openings. Locate the projector in a well-ventilated
area without obstructions to intake or exhaust vents. Do not place the
projector on a tablecloth or other soft covering that may block the vents.
• Do not place the projector in direct sunlight, humid, greasy or dusty places or
in places where the projector may come into contact with smoke or steam.
• Do not touch or block the projector lens with any objects as this can damage
the projector lens. Use the lens cap when the projector is not in use and
during transport. Scratches, gouges and other lens damage are not covered by
the product warranty.
• Do not look directly into the lens while the projector is being used.
• Do not drop the projector.
• Do not spill liquid on the projector. Spilled liquid may damage the projector.
• Use the power cord provided. Connect the power cord to a receptacle with a
protective safety (earth) ground terminal. A surge-protected power strip is
recommended.
• Do not overload wall outlets.
• When disconnecting the power cord, hold the plug, not the cord.
• Wash hands after handling the cables supplied with this product.
• The projector remote control uses batteries. Make sure the batteries’ polarity
(+/-) is aligned correctly. Dispose of used batteries in accordance with local
disposal laws.
• Use an InFocus approved ceiling mount kit for proper fitting, ventilation and
installation. The warranty does not cover any damage caused by use of non-
approved ceiling mount kits or by installing in an improper location.
• When the projector is ceiling mounted, wear protective eyewear to prevent
eye injury before opening lamp door.
• Refer all service to qualified service personnel. Servicing your own projector
can be dangerous to you and will void the warranty.
• Only use replacement parts specified by InFocus. Unauthorized substitutions
may result in fire, electrical shock, or injury, and may void the warranty
• Only genuine InFocus lamps are tested for use in this projector. Use of non
InFocus lamps may cause electrical shock and fire, and may void the projector
warranty.
• Hg – Lamp contains mercury. Manage in accordance with local
disposal laws. See www.lamprecycle.org.
• The projector uses a high-pressure mercury glass lamp. The lamp may fail
prematurely, or it may rupture with a popping sound if jolted, scratched, or
handled while hot. The risk of lamp failure or rupture also increases as the
lamp age increases; please replace the lamp when you see the “Replace Lamp”
message.
• In the unlikely event of a lamp rupture, particles may exit through the
projector vents. Keep people, food, and drinks out of the "keep out" area
under and around the projector, as indicated by the "X" areas below.
Follow these instructions to help ensure image quality and lamp life over the life of
the projector. Failure to follow these instructions may affect the warranty. For
complete details of the warranty, see the Warranty Booklet.
5’/1.5m
8’/2.4m
3’ / 1 m
2’ / 0.6 m
4
Introduction
Your new digital projector is simple to connect, easy to use, and straightforward to
maintain. It is a versatile projector that is flexible enough for business
presentations and home video viewing too. The IN3916 has native XGA 1024x768
resolution. It is compatible with a wide variety of computers and video devices.
Product specifications
To read the latest specifications on your multimedia projector, be sure to visit our
website at www.infocus.com, as specifications are subject to change.
Accessories
The standard accessories that came with your projector are listed in the included
Quick Start Poster/Booklet. Optional accessories can be found on our website at
www.infocus.com or at your retailer or dealer.
Online registration
Register your projector on our website at www.infocus.com/register to
activate your warranty and receive product updates, announcements, and
registration incentives.

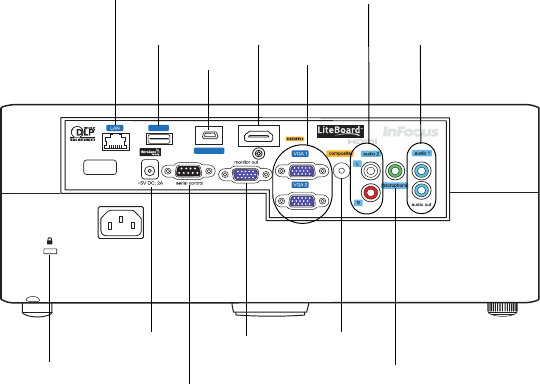

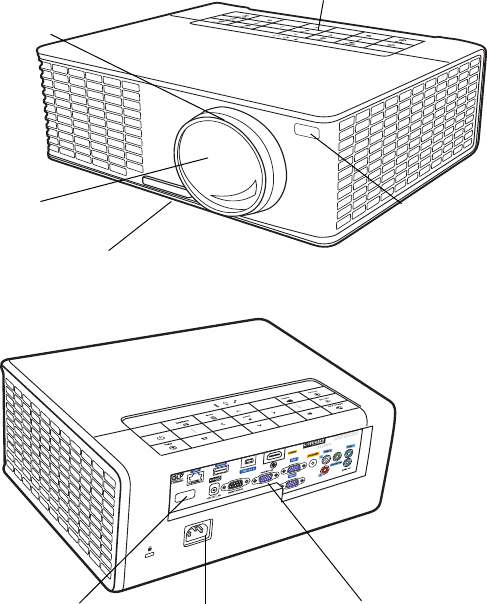

focus (front ring)

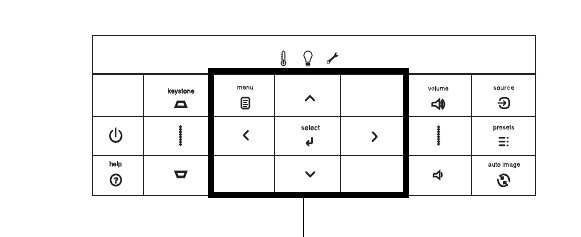

touch keypad
elevator foot
lens remote control
receiver (IR)
connector
panel
remote control
receiver (IR)
power cord
connector
5
Connector panel
The projector provides both computer and video connection options, including:
• VGA computer
• Composite video
•HDMI
• USB mini B connector. This USB connection provides slide advance (and
mouse control when used with an optional remote control only) and
LiteBoard™ Wand control.
• USB A connector
• Monitor out, for VGA pass through to an external monitor.
• Audio input for video and computer.
• Audio L/R for video and computer.
• Audio output to external speakers.
• Microphone, for connecting to a dynamic microphone.
• 5 volt DC output. The coaxial connector accepts a 2.1mm x 5.5mm plug and
provides a constant 5 volt, 2 amp DC output when the projector is on. It is
designed to provide power for an InFocus LiteShow wireless device, which
allows wireless projection. More information can be found on our website at
www.infocus.com or at your retailer or dealer.
USB A
USB mini B
RJ45 port
microphone
computer
composite
video
audio in/out
security lock
audio L/R
monitor
out
serial control
5 volt output
HDMI
USB mini B
USB A
6
Positioning the projector
To determine where to position the projector, consider the size and shape of your
screen, the location of your power outlets, and the distance between the projector
and the rest of your equipment. Here are some general guidelines:
• Position the projector between 30 inches (.75m) and 65 inches (1.65m) from
the screen. To ensure adequate cable access, do not place the projector
within 24 inches (.61m) of a wall or other object.
• If you are installing the projector on the ceiling, we strongly recommend using
InFocus approved ceiling mounts for proper fitting, ventilation and installation.
Refer to the installation guide that comes with the InFocus Ceiling Mount Kit
(p/n SP-CEIL-UNIV) for more information. The warranty does not cover any
damage caused by use of non-approved ceiling mount kits or by installing in an
improper location. To turn the image upside down, see “Ceiling mount” on
page 34. We recommend using an InFocus authorized ceiling mount.
• Position the projector the desired distance from the screen. The distance
from the lens of the projector to the screen and the video format determine
the size of the projected image.

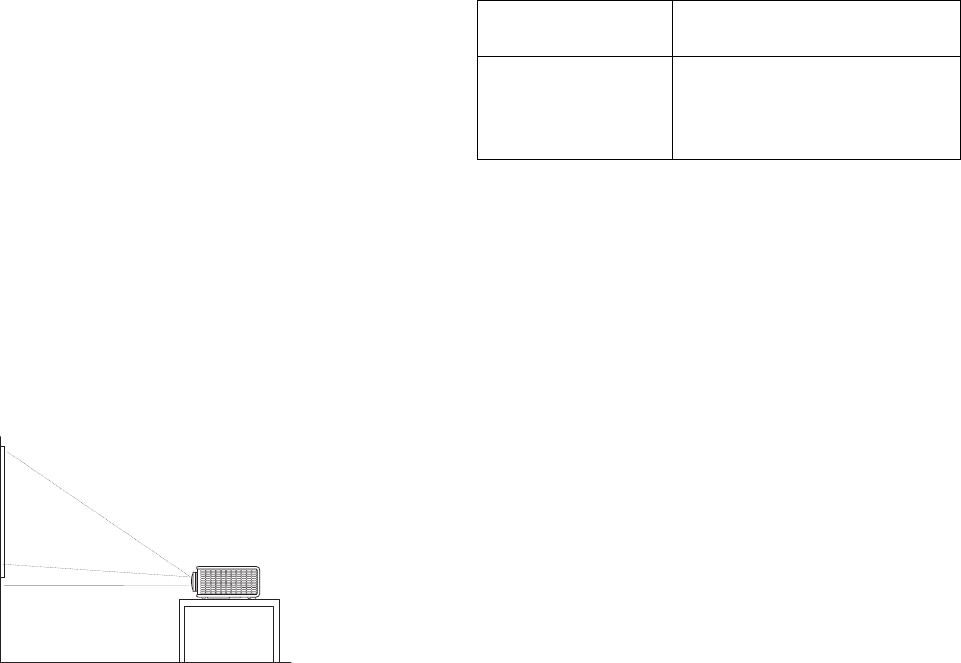

• IN3916 image offset is 107% +/-2%. This means that if you have an image 40
inches (1 meter) tall from a table-mounted projector, the bottom of the image
will be 2.8 inches (.07 meter) above the centerline of the lens.
40 inches
high image
bottom of image
2.8 inches above
center of lens
Projection angle
lens center
Table 1: Distance to the screen for a given screen size
Diagonal Screen
Size (inches/m) Distance to screen (m)
60/1.5 0.74
80/2.0 0.99
90/2.3 1.1
150/3.8 1.85
7

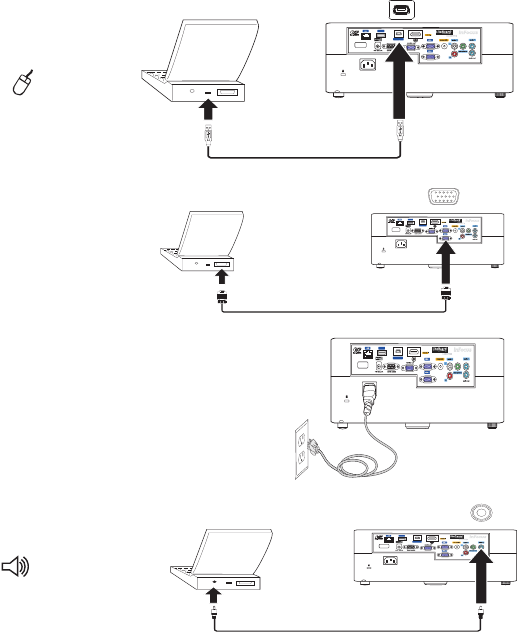

Connecting a computer source
USB connection
If you have a Windows or Macintosh computer, connect a USB cable between your
computer's USB port and the projector's USB mini B connector.
To advance slides in a PowerPoint presentation using the remote control, plug a
USB cable into the USB mouse connector on your computer and the USB mini B
connector on the projector.
VGA connection
Connect one end of the provided computer cable to the VGA 1/VGA 2
connector on the projector and the other to the VGA connector on your
computer. If you are using a desktop computer, you will need to disconnect the
monitor cable from the computer’s video port first.
Connecting power
Connect the black power cord to the Power connector on the rear of the
projector and to your electrical outlet. The Power light on the Status Indicator
Panel (page 16) turns amber.
NOTE: Always use the power cord that shipped with the projector.
Optional computer connections
To get sound from the projector, connect an audio cable (optional cable, not
included) to your computer and to the Audio 1 connector on the projector. You
may also need an adapter.
USBA
USBmini B
MOLEX
MOLEX
connect USB cable
USBA
USBmini B
connect VGA cable
USBA
USB mini B
connect power cord
USBA
USBmini B
connect audio cable
8

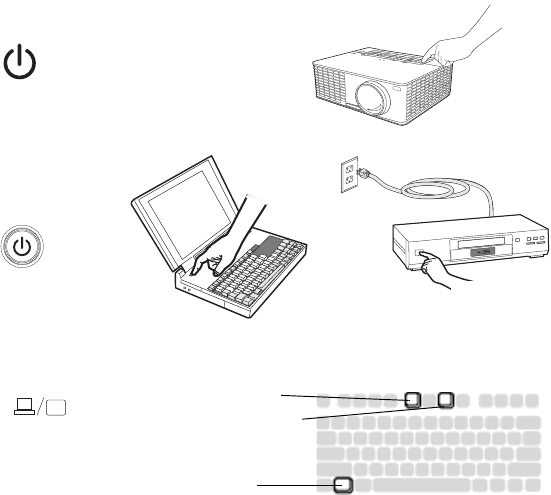

Displaying an image
Touch the Power button.
The Power button blinks green and the fans start to run. When the lamp comes
on, the start up screen displays and the Power button is steady green. It can take
up to a minute for the image to achieve full brightness.
? No start up screen? Get help on page 17.
Turn on your computer or video device.
The image should appear on the projection screen. If it doesn’t, press the Source
button on the projector’s keypad or remote.
If you are using a VGA cable to connect your computer to the projector:
If using a laptop, make sure its external video port is active.
Many laptops do not automatically turn on their external video port when a
projector is connected. Usually a key combination like FN + F8 or CRT/LCD key
turns the external display on and off. Locate a function key labeled CRT/LCD or a
function key with a monitor symbol. Press FN and the labeled function key
simultaneously. Refer to your laptop's documentation for more
information about your laptop's key combination or go to the InFocus
website at: http://www.infocus.com/Support/LaptopActivation.aspx.
? No laptop image? Try pressing the Auto Image button on the keypad.
Get help on page 17.
press Power button
turn on computer or
video device
activate laptop’s external port
monitor key or
LCD/CRT key
FN key
9

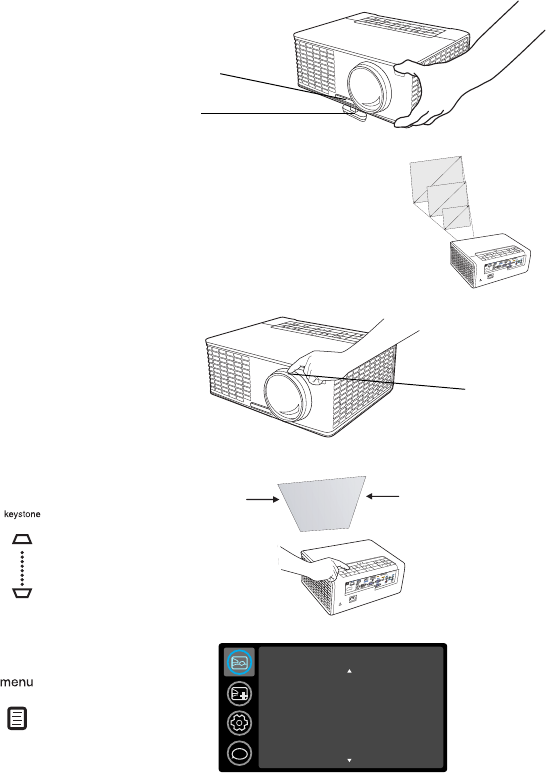

Adjusting the image
If necessary, adjust the height of the projector by pressing the elevator foot release
button to extend the foot.
If necessary, rotate the leveling foot located at the rear of the projector.
Avoid placing your hands near the hot exhaust vent at the front of the projector.
Position the projector the desired distance from the screen at a 90 degree angle to
the screen.
See page 6 for a table listing screen sizes and distances.

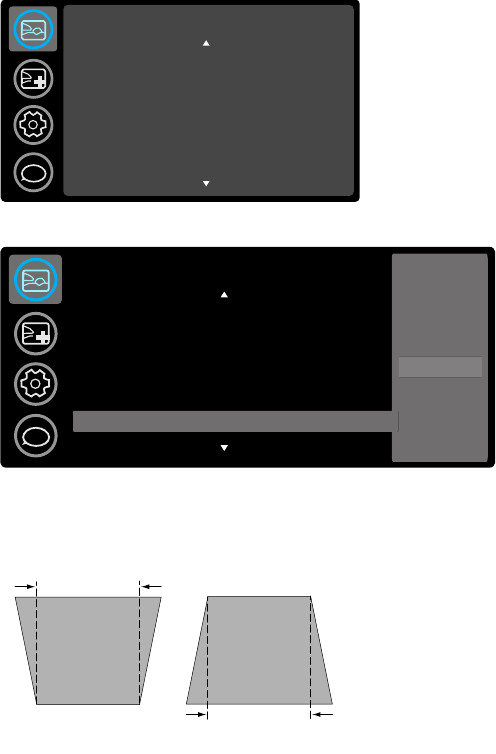

Adjust the focus.
If the image is not square, first make sure that the projector is perpendicular to the
screen. If the image is larger or smaller on the top or bottom edge of the screen,
press the top Keystone button to reduce the upper part of the image, and press
the bottom Keystone button to reduce the lower part.
If the left or right side of the screen is larger or smaller the other, you can turn the
projector to the left or to the right a few degrees to square the image.
Adjust the Contrast or Brightness in the Basic Picture menu. See page 31 for help
with these menu adjustments.
For Aspect Ratio, keep in mind that DVD players must be configured for 16:9 in
order to view the highest quality image. For more information regarding Aspect
Ratio, see page 10.
adjust height
release button
elevator
foot
adjust distance
adjust focus
focus
adjust keystone
Basic Picture
Brightness
Contrast
Sharpness
Color
Tint
Auto Image...
Aspect Ratio
Apply Preset...
50
50
Maximum
50
50
Auto
i
adjust Basic Picture
10

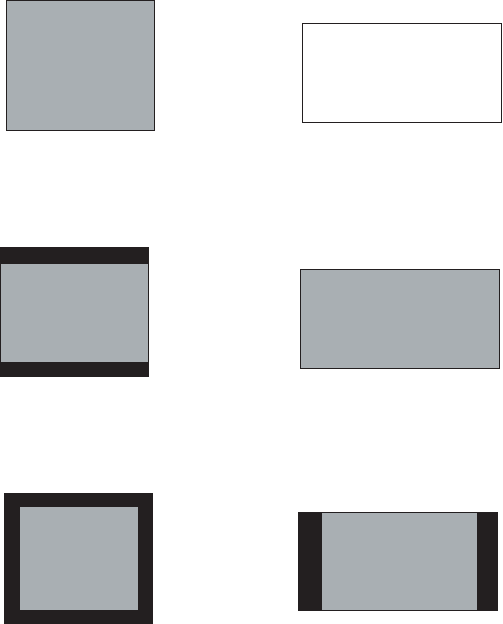

What is Aspect Ratio?
Aspect ratio is the ratio of the image width to image height. Standard TV screens
and older laptops are 4:3; HDTV and most DVDs are 16:9; and widescreen
computers are 16:10. If you are projecting onto a screen, the size/shape of the
screen will influence the aspect ratio you decide to use. If you are projecting onto
a blank wall, there are no screen size restrictions. What you plan to project will
also help you choose between 4:3, 16:9 or 16:10. Many TV shows are 4:3, while
most movies are 16:9.
If you have a 16:9 screen then you should select an aspect ratio of 16:9 for
widescreen movies or HDTV, and Native for 4:3 content. If you have a 4:3 screen
you should still use 16:9 for widescreen movies or HDTV, but you also have the
option of using either 4:3 (to fill the screen) or Native (for direct pixel mapping).
Force Wide can also be enabled to automatically resize less common aspect ratios
to 16:10.
4:3 screen 16:9 screen
4:3
mode
16:9
mode
Native
mode
11
Connecting a video device
You can connect video devices such as VCRs, DVD players, camcorders, digital
cameras, video game consoles, HDTV receivers, and TV tuners to the projector.
You can connect the audio directly to the projector to get sound from the built-in
speaker, or you can bypass the projector’s audio system and connect the audio
directly from your source to a stereo or home theater system.
You can connect the projector to most video devices that can output video. You
cannot directly connect the coaxial cable that enters your house from a cable or
satellite company, the signal must pass through a tuner first. Examples of tuners are
digital cable boxes, VCRs, digital video recorders, and satellite TV boxes. Basically,
any device that can change channels is considered a tuner.
Before connecting your projector, you should decide which aspect ratio you want
to use. The projector’s Aspect Ratio setting is accessed through the Resize button
on the remote or through the projector’s Basic Picture Menu. See page 31 for
more information.
Video device connections
No video cables are provided with the projector. You can order cables from
InFocus or provide your own.
Composite video connection
Plug the composite video cable’s yellow connector into the video-out connector
on the video device. Plug the other yellow connector into the yellow Video
connector on the projector.
If your source uses RCA connectors, connect the red audio out connector on the
audio source to the red audio in connector on the projector and white audio out
connector on the audio source to the white audio in connector on the projector.
If your source uses a 3.5mm stereo connector, connect it to the 3.5mm audio in
connector on the projector.
VGA connection
If your video device has a 15-pin VGA output, plug one end of the included
computer cable into the VGA connector on your video source. This connector
may be labeled “To Monitor” on the video source. Plug the computer cable into
the VGA connector on the projector.
Component video connection
If your HD video device has component connectors, an optional Component to
VGA adapter can be used. Plug the component cable into the video device. Plug
the other end of the component cable into the adapter and plug the adapter into
the VGA connector.
12

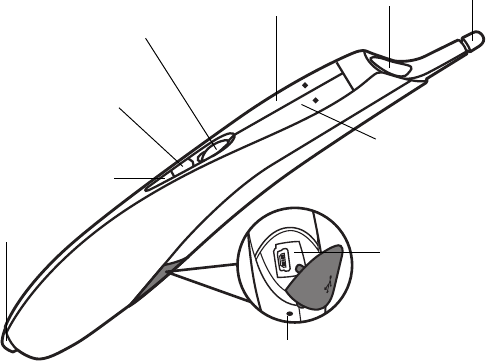

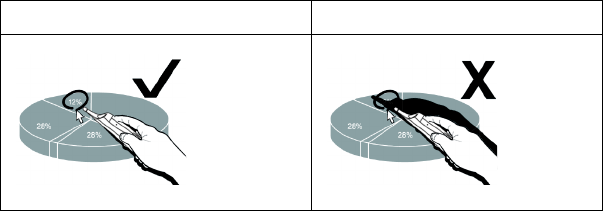

LiteBoard™ Wand
The LiteBoard Wand works like a wireless mouse - but one that works in midair,
not on your desktop. Just hold the wand in your hand, and point it at the projected
image to point, click and drag. The wand works with all your software, just like a
regular mouse.
Charging the Wand’s Battery
When the wand’s amber battery light starts to blink, its internal battery is low (if
the battery is fully discharged, you won’t be able to turn the wand on by pressing
its tip, left or right buttons).
To charge the battery, open the flap at the bottom of the wand to expose the
wand’s USB connector. Then connect a USB cable between the wand and the USB
power adapter, or a computer (if connecting to a computer, make sure the
computer is powered on). The battery light will stay on while the battery is
charging, then it will turn off when the battery is fully charged.
When charging is finished, you can disconnect the USB cable (or keep the cable
connected and use the wand while it’s charging).
NOTE: 5-10 minutes of charging is enough for about an hour of wand use. A full
charge will take 6-8 hours and will allow 20-40 hours of non-stop wand use. A fully
charged, new wand will hold a charge in standby for up to 3 weeks.
Caution: The lithium battery is only rechargeable, and is not user serviceable or
user replaceable.
Caution: Always use the included USB cable and power adapter (or your
computer) to charge the wand.
How to Use the Wand
1The IN3916 projector needs to be powered on and connected to your
computer.
2Connect the projector and your computer with a USB cable.
3Connect the projector and your computer with a VGA cable.
4Make sure the wand's battery is charged or charging.
5Turn on the projector and make sure it's displaying the computer's screen - set
the source to VGA 1 or VGA 2 (press the source button on the projector or
its remote if needed - you may need to press it several times).
6Turn on the wand by pressing its tip, left or right button - the wand's blue
status light will start to blink.
7Point the wand at the screen to point, click, and drag - just like a normal
mouse. The undo button is located at the bottom the wand. You can define
this button in the LiteBoard Wand Menu.
NOTE: See LiteBoard Wand Menu below for settings that let you fine-tune wand
motion and clicking behavior. When you’re done, set the wand aside and make sure
it isn’t pointing at the screen; it will turn itself off automatically after 1 minute.
Wand Position and Avoiding Shadows
Your Location Distance from the Screen
You can use the LiteBoard Wand right up against the screen, or around the room.
You might find that your pointing accuracy will improve if you get closer to the
screen. Also, avoid standing too far off from either side of the screen.
Avoid Shadows!
The wand won't work if its sensor is in a shadow or if it is pointing at a shadow:
Correct (no shadow) Incorrect (shadow)
13
How to Hold the Wand
You can hold the wand the way you would hold a normal pencil or pen, or you can
hold it like a remote control - use in whichever position is most comfortable.
NOTE: If the wand is up close to the screen, you can press its tip against the
projection surface to click and drag. Not recommended for use with fabric
screens.
Using More than One Wand
The projector can work with more than one wand, but you can only use one wand
at a time. When you want to switch to a different wand:
1Point the current wand away from the projected image for at least 3 seconds.
2Press the tip, left or right button on the new wand to turn it on, and then start
using the new wand.
NOTE: Settings in the projector's LiteBoard Wand menu (see below) apply to all
wands used with that projector.
Wand Features
Buttons and Wand Tip
The wand's three top buttons are equivalent to the left, right, and scroll wheel
buttons on a mouse. The wand's tip is also a button, and is equivalent to the left
mouse button.
NOTE: By default, the Scroll Wheel button changes wand motion between Auto,
Normal and Draw. Auto switches between Draw, Normal and Stable mode
depending on the image size and distance. Normal makes clicking easier, but
Draw allows smoother motion. You can change the Scroll Wheel button to
perform other functions, including a standard middle button mouse click (see
LiteBoard Wand Menu below).
Battery Light
The amber battery light shows the status of the wand's built-in battery (see below
for battery information). The battery light will turn on while the wand is charging,
and it will blink if the battery is low (2-4 hours of wand use left).
USB connector
Link light
Battery light
Reset button
Right mouse button
Left mouse button
Scroll Wheel button
Sensor Tip
Undo button
14
Link Light
The blue link light shows the status of the wand's wireless connection to the
projector. The link light will blink frequently (more than once per second) when
the wand is attempting to link to the projector; then it will blink less frequently
(about once every 4 seconds) after the wand has linked to the projector.
NOTE: The link light will stay off when the wand is off.
USB Connector
The wand's USB connector is behind a flap on the back of the wand. The USB
connector is only used for charging the wand's battery - using the included USB
power adapter, or a computer.
NOTE: You can use the wand while charging the battery, but after the battery is
charged (battery light turns off), you can unplug the USB cable and continue to use
the wand without a cable.
Undo Button
The wand's Undo button will function the same as the computer's Escape, Delete,
or Backspace buttons, or the same as a Ctrl+Z (Windows/Linux) or Cmd+Z (Mac
OS) command, depending on which function you assign to it in the LiteBoard
Wand menu.
Sensor
The wand's optical sensor opening is located above the wand's tip. Don't block the
sensor, and make sure it always has a clear view of the screen.
NOTE: The sensor won't work if you point it at a shadow or away from the
screen.
Reset Button
The wand has a reset button, behind a small hole on its underside. Under normal
conditions, you should not need to reset the wand. See the Troubleshooting
section below for more information.
Internal Radio
The wand has a built-in wireless transmitter/receiver which it uses to communicate
with the projector.
Lithium Battery Information
Manufacturer: TD HiTech Energy Inc.
Model: E3BE105K1002 (Sanyo UF14500P)
Rating: 4.2V+/-0.05VDC/800mAh
Caution: Lithium battery is only rechargeable, and not user replaceable. Not user
serviceable.

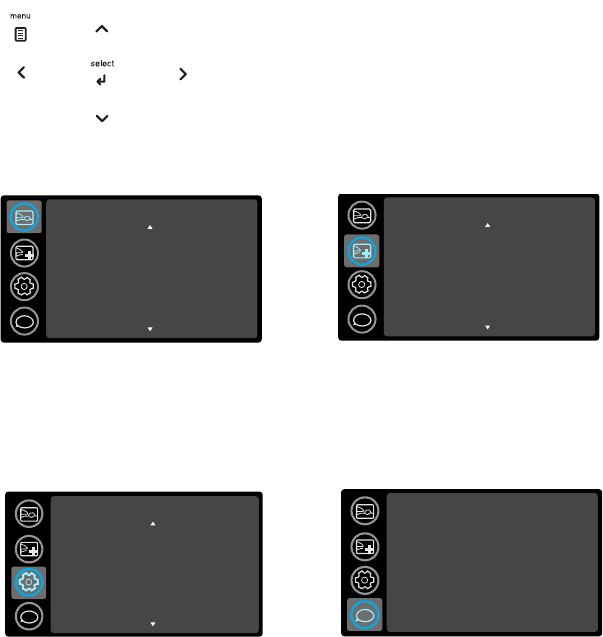

LiteBoard Wand Menu

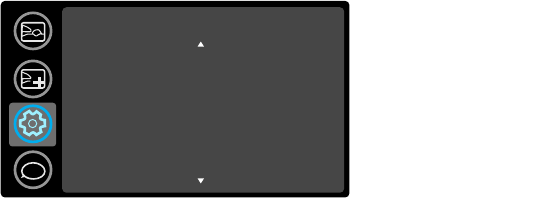

You can access the LiteBoard Wand menu from the projector's Setup menu. To
change the settings in this menu, highlight a setting, then press Select (on the
projector or its remote) one or more times - each press of Select will change to
the next value for the setting.
Enabled: controls whether the projector lets you use LiteBoard Wands. Set this
to Ye s to allow wand use. Set this to No to prevent wand use.
Motion: controls wand motion. When set to Auto, the motion mode will switch
between Normal, Draw and Stable depending on the image size and distance.
When set to Normal, motion is set up to work best for normal computer use.
When set to Draw, motion is set up to work best for on-screen drawing. When
set to Stable, motion is filtered for maximum stability. When set to Press to
Move, the mouse pointer only moves when you hold down the wand’s tip or the
left button on the wand (use the right button to click).
Click Speed: controls the motion pause when you click and only applies if Motion
is set to Normal or Stable. Longer click speeds will make it easier to double-
click, but will increase the delay before motion resumes after you click.
Scroll Button Mode: selects the function of the wand's Scroll Wheel button. You
can use the Scroll Wheel button to change wand motion, or perform keyboard or
mouse button shortcuts.
NOTE: The PwrPnt Annotate setting sets up the Scroll Wheel button to
control drawing (annotating) during Microsoft PowerPoint slide shows. The first
press of the Scroll Wheel button will turn on the drawing function, the next press
will turn off the drawing function, the next press will turn it on again, etc.
Undo Button: selects the function of the wand's undo Button.
Link Channel: selects the radio channel used for wand communication. This
should be set to Auto unless you encounter interference (see Troubleshooting
below for more information).
15
Troubleshooting LiteBoard
For the most up-to-date information, visit our support site at www.infocus.com/
support
• If the wand doesn't work at all, or it works intermittently, try one of these
solutions:
- Press to Move may be enabled; try holding down one of the wand’s buttons
while moving the wand.
- Press the tip, left or right button on the wand to turn it on.
- If the wand's blue Link light never blinks, then the wand's battery is fully dis-
charged; connect the wand to the USB power adapter or your computer.
- Make sure the wand is not pointing at a shadow and make sure its tip is not
in a shadow.
- If the room is brightly lit, reduce the room illumination.
- If you're trying to use the computer's mouse at the same time as the wand,
point the wand away from the screen while using the mouse.
- If someone else is using a different wand with the same projector, they must
stop using it before you can use another wand.
- Change the Link Channel value in the LiteBoard Wand menu.
- Reset the wand: push the end of a paper clip into the reset opening on the
underside of the wand.
• If accurate clicking is difficult, try one of these solutions:
- Hold the wand steadier when clicking.
- Use the wand right up against the screen so it's easier to avoid unexpected
movements.
- Change the Motion value in the LiteBoard Wand menu.
• If it is difficult to draw or move freely because the wand wants to move in
straight lines or draw extra lines, try changing the Motion value in the
LiteBoard Wand menu.
• If the mouse pointer is in the wrong place on the screen, or the mouse
pointer's movement is restricted to only part of the screen, try one of these
solutions:
- Make sure your projector is displaying the computer's screen and not some
other source (such as DVD, VCR, etc.). To change the source, press the
Source button on the projector or its remote.
- Make sure the projector is displaying the same image as the computer's main
or built-in monitor (don't extend your desktop onto multiple monitors). To
correct this:
On Windows XP: Open the Display control panel, click Settings, click the dis-
play that represents the projector, then un-check “Extend my Windows desk-
top...”.
On Windows Vista: Right-click on the desktop, choose Personalize..., click
Display Settings, click the display that represents the projector, then un-check
“Extend the desktop...”
On Macintosh: Select System Preferences from the Apple Menu, then select
Displays. Click Arrangement, and check “Mirror Displays.”
• If the battery light does not turn on when the wand is being charged, try one
of the following:
- Make sure a USB cable is connected between the wand and either the USB
power adapter, or a USB port on your computer.
- If the wand is connected to the USB power adapter, make sure the adapter
is plugged in to a live electrical outlet. If the wand is connected to your com-
puter, make sure the computer is powered on.
- If the wand still won't charge, contact InFocus support at www.info-
cus.com/support.
16
Shutting down the projector
Screen Save Time
You can make the black screen appear after a preset number of minutes by turning
on the Screen Save Time feature in the Setup menu. See page 33.
Auto Off Time
The projector also has an Auto Off Time feature that automatically turns the
projector off after no active sources are detected and no user interaction with the
projector is performed for 30 minutes. By default, this feature is off. You can
change the length of time, see page 33.
Turning off the projector
To turn the projector off, press the Power button on the remote or keypad. The
lamp turns off and the LED blinks amber for 1 minute while the fans continue to
run to cool the lamp. When the lamp has cooled, the LED lights amber and the
fans stop. Unplug the power cable to completely power off the projector.

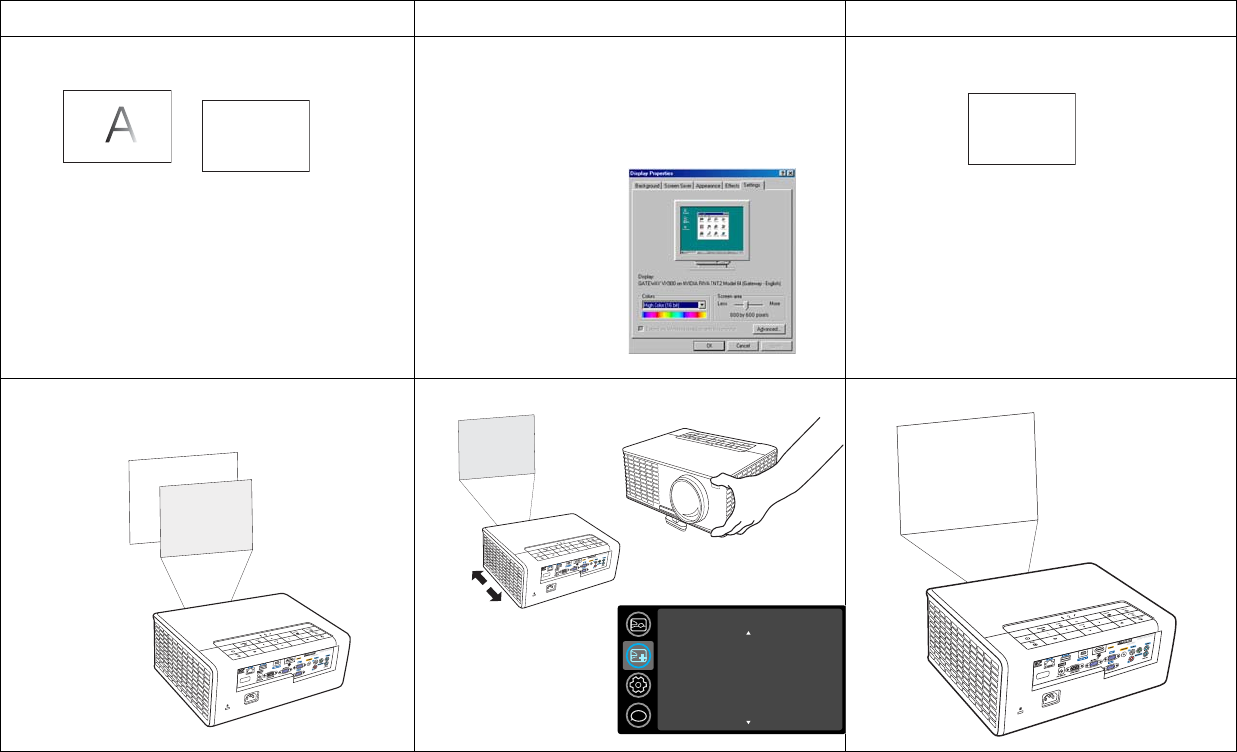

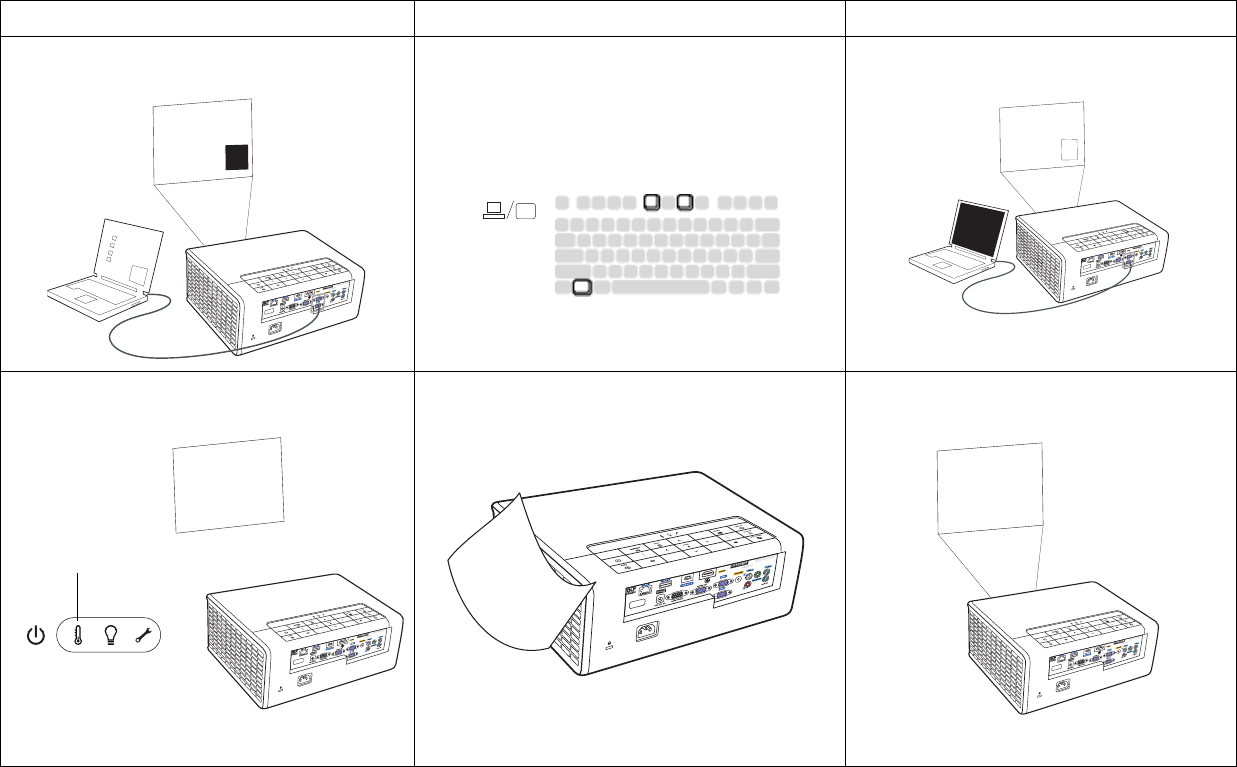

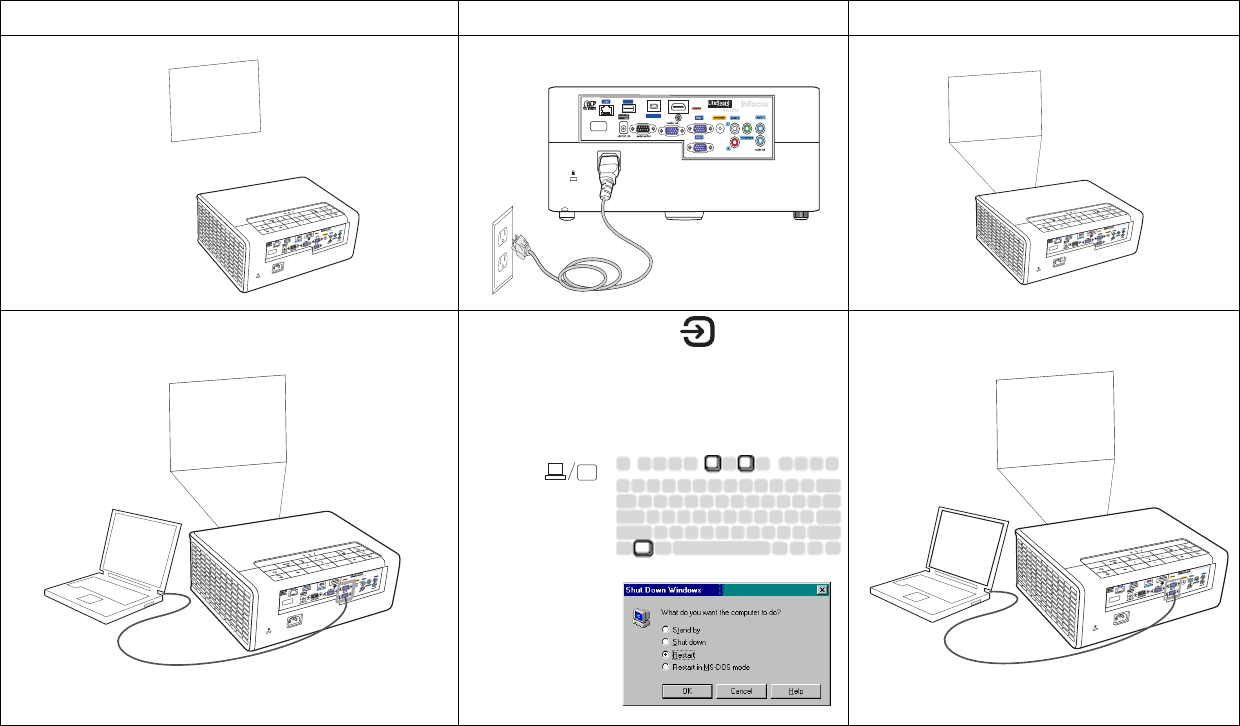

Troubleshooting your setup
If your image appears correctly on the screen, skip to the next section. If it does
not, troubleshoot the setup.
The Status Indicator Panel on top of the projector indicates the state of the
projector and can help you troubleshoot.

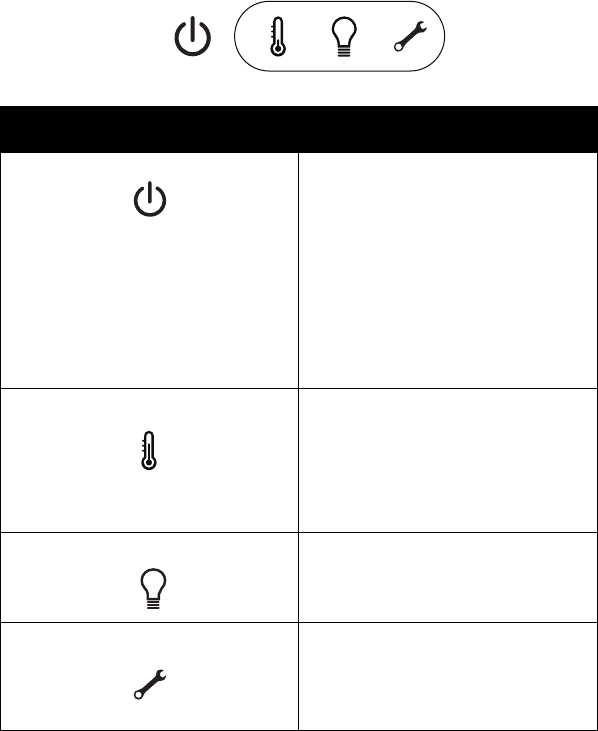

Table 2: Status indicator light behavior and meaning
Icon Meaning
Power, solid amber
Power, blinking green
Power, solid green
Power, blinking amber
The projector is plugged in.
The power button has been pressed and
the software is initializing.
The projector is on and initialized.
The power button has been pressed to
turn the projector off and the fans are
running to cool the projector.
Thermometer The projector is too hot. Make sure the
vents aren’t blocked (see page 22). Turn
off the projector and wait one minute,
then turn the projector on again. Contact
Technical Support if the problem persists.
Visit www.infocus.com/support to contact
service.
Lamp Turn off the projector and wait one
minute, then turn the projector on again.
If the lamp light turns on again, replace the
lamp and reset the lamp timer.
Wrench/Service Turn off the projector and wait one
minute, then turn the projector on again.
If the service lamp turns on again, service
is required. Visit www.infocus.com/
support to contact service.
17
Problem Solution Result
No start up screen Plug power cord into the projector
press power button
Correct image
Only start up screen appears Press the Source button
activate laptop’s external port
Computer image projected
USB A
USB mini B
Startup
Screen
A
Startup
Screen
Restart laptop
A
A
18
Problem Solution Result
No computer image, just the words “Signal
out of range”
Press the Auto Image button on keypad
Adjust computer refresh rate in Control Panel >
Display > Settings > Advanced > Adapter
(location varies by operating system)
You may also need to set a different resolution on
your computer, as shown in the following
problem, “image fuzzy or cropped”
Computer image projected
Only my laptop’s background appears, not the
Desktop icons
Disable “Extend my Windows Desktop” in
Control Panel > Display > Settings > Display 2
(location varies by operating system)
Background and Desktop projected
Signal out of
the range
A
A
A
A
A
Uncheck this
option, then
click Apply
A
A
19
Image fuzzy or cropped Set your computer’s display resolution to the
native resolution of the projector (Start >
Settings > Control Panel > Display > Settings tab)
Image clear and not cropped
Image not centered on screen Move projector, adjust height Correct image
Problem Solution Result
A
A
For a laptop,
disable laptop
monitor or
turn-on dual-
display mode
A
Advanced Picture
Red Gain
Green Gain
Blue Gain
Red Offset
Green Offset
Blue Offset
Horz Position
Vert Position
50
50
50
50
50
50
50
50
i
Adjust horizontal
or vertical
position in
Advanced Picture
20

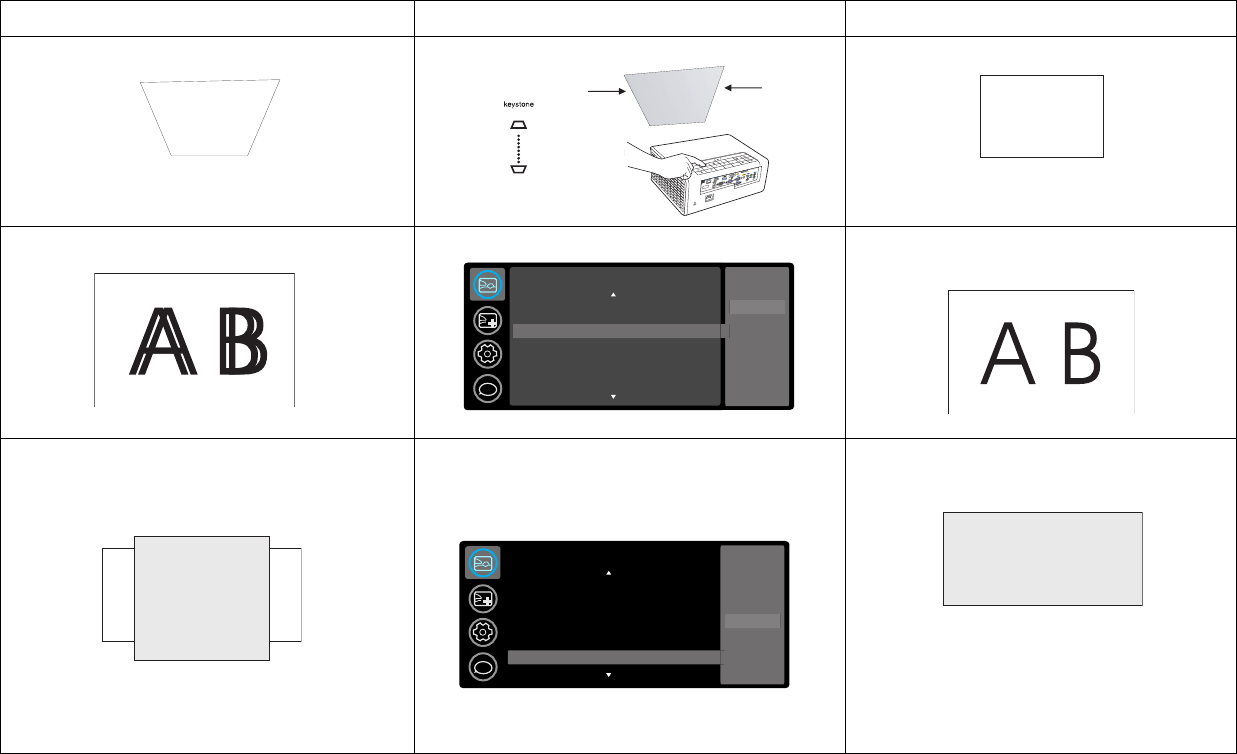

Image not square Adjust Keystone on keypad Square image
Image not sharp Adjust Sharpness in the Basic Picture menu Correct image
Image does not fit 4:3 or 16:9 screen Change aspect ratio to 4:3 or 16:9 in Basic
Picture>Aspect ratio menu
Correct image
Problem Solution Result
Maximum
High
Normal
Low
Minimum
Basic Picture
Brightness
Contrast
Sharpness
Color
Tint
Auto Image...
Aspect Ratio
Apply Preset...
50
50
Maximum
50
50
16:9
i
Auto
Native
4:3
16:9
16:10
Letterbox
Panorama
Basic Picture
Brightness
Contrast
Sharpness
Color
Tint
Auto Image...
Aspect Ratio
Apply Preset...
50
50
Maximum
50
50
16:9
i
21

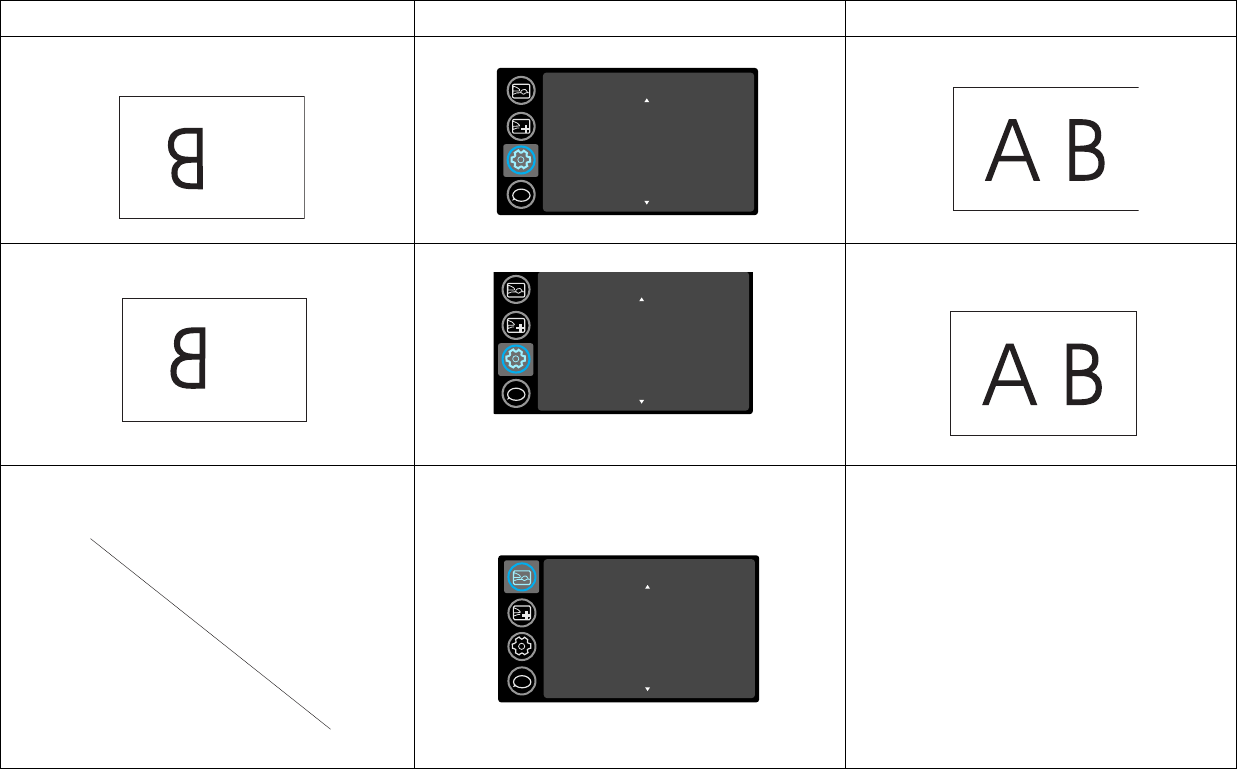

Image upside down Turn off Ceiling Mount in Setup menu Correct image
Image reversed left to right Turn off Rear Project in Setup menu Correct image
Projected colors don’t match source
Adjust color, tint, brightness, contrast in the
Basic Picture menu
Correct image
Problem Solution Result
A
Setup
Auto Source
Power-Up Source
Composite SCART
Video Standard
Closed Caption
Ceiling Mount
Rear Project
Prevent PC Screen Saver
On
VGA1
RGB
Auto
Off
Off
Off
On
i
A
Setup
Auto Source
Power-Up Source
Composite SCART
Video Standard
Closed Caption
Ceiling Mount
Rear Project
Prevent PC Screen Saver
On
VGA1
RGB
Auto
Off
Off
Off
On
i
COLOR
Basic Picture
Brightness
Contrast
Sharpness
Color
Tint
Auto Image...
Aspect Ratio
Apply Preset...
50
50
Maximum
50
50
Auto
i
COLOR
22
The video embedded in my PowerPoint
presentation does not play on the screen
Turn off the internal LCD display on your laptop Embedded video plays correctly
Lamp won’t turn on, Temperature light is on Make sure vents aren’t blocked, turn off the
projector and allow it to cool for one minute
Lamp turns on
Problem Solution Result
A
A
B
B
A
A
B
B
Temperature light
Startup
Screen
23
Still need assistance?
If you need assistance, visit our website at www.infocus.com/service or call us.
Check out our HOW TO section there for additional information on using this
projector for home theater or gaming applications. See the Quick Start Poster/
Booklet for support contact information.
This product is backed by a limited warranty. An extended warranty plan may be
purchased from your dealer. When sending the projector in for repair, we
recommend shipping the unit in its original packing material, or having a
professional packaging company pack the unit. Please insure your shipment for its
full value.

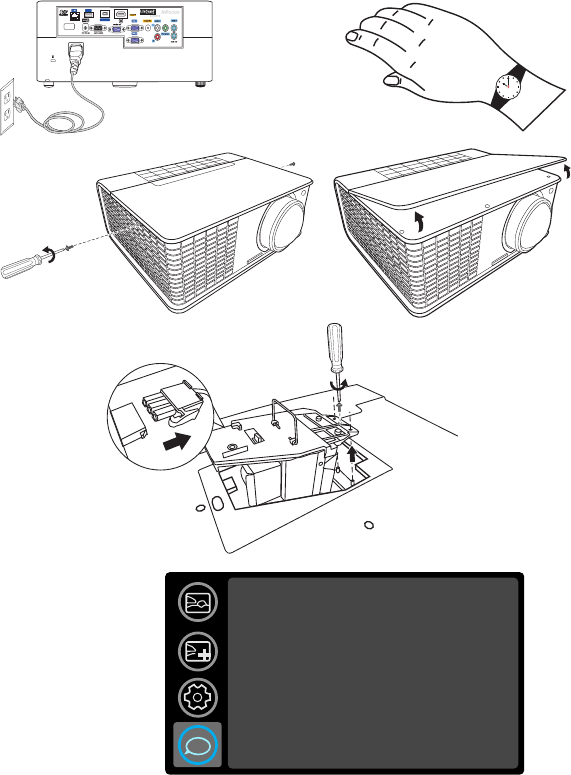

“Replace lamp” message appears at startup,
lamp won’t turn on, Lamp light is turned on Lamp must be replaced (see page 38) Lamp turns on
Problem Solution Result
Lamp light
lamp door
replace lamp
Startup
Screen
24

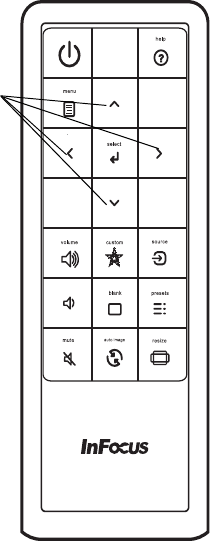

Using the remote control
The remote uses two (2) AA batteries (not provided). They are easily installed by
removing the cover from the remote’s back, aligning the + and - ends of the
batteries, sliding them into place, and then replacing the cover.
Caution:
• When replacing the remote batteries, be aware that using batteries other
than AA batteries may risk severe damage to the remote. When disposing of
the batteries, be sure to do so in an enviromentally proper manner.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Ensure the batteries' polarity (+/-) is aligned correctly.
• Do not mix new and old batteries together, or mix different types of batteries
together.
• Replace the batteries as soon as they run out.
• Remove batteries from the remote control when storing or not in use for a
prolonged period.
To operate, point the remote at the front of the projector (not at the computer).
The range of optimum operation is about 15 feet (4.5m).
Press the remote’s Power button to turn the projector on and off (see page 12 for
shutdown info).
Press the remote’s Menu button to open the projector’s menu system. Use the
arrow buttons to navigate, and the Select button to select features and adjust
values in the menus. See page 30 for more info on the menus.
The remote also has:
•Volum e buttons to adjust the sound.
•Custom button that can be assigned to a special function, like Blank Screen
or Freeze (see page 33).
•Source button to switch between sources.
•Blank button to blank the screen.
•Presets button to select stored settings (see page 31).
•Mute button to silence the audio.
•Auto Image button to resynch the projector to the source.
•Resize button to switch among aspect ratios (see page 31).
•Help button to get help with connecting sources and improving the picture.
Troubleshooting the remote
• Make sure the batteries are installed in the proper orientation and are not
dead.
• Make sure you’re pointing the remote at the projector or the screen, not the
computer, and are within the remote range of 15 feet (4.5m). For best results,
point the remote at the projector.
navigation
buttons
25
Using the audio
Using the projector’s speakers
Connect the audio source to either the Audio 1 or Audio 2 connectors to hear
audio through the projector speakers.
To assign the audio to a particular source, go to the Setup menu and choose the
Audio Inputs feature. Defaults are as follows: Audio 1 is set to VGA 1 and VGA 2
with microphone, and Audio 2 is set to Composite with audio. See page 33 for
details.
Amplified speakers may also be connected to the projector using the Audio Out
connector.
To adjust the volume, press the Volum e buttons on the keypad or remote.
Troubleshooting Audio
If you aren’t hearing the audio, check the following:
• Make sure the audio cable is connected to the Audio 1 or 2 connector on the
projector, and that the other end of the cable is connected to an “audio out”
connector on the source (not a “line-in” or “microphone” connector).
• Make sure the volume is turned up enough. Press the Volume button on the
keypad or remote.
• Make sure the correct source is active.
• Adjust the audio source.
• If playing a video, make sure the playback has not been paused.
USBA
USBmini B
connect audio cable
adjust volume
26
Playing sound through the projector
This projector is equipped with a 20-watt stereo speaker system, a dedicated
microphone input, and advanced audio processing for superb audio performance.
External amplified speakers may also be connected using the audio out connector
on the projector.
This system has assignable audio. Audio 1, Audio 2 and/or the microphone can be
assigned in any combination through the Audio Inputs feature described on
page 33. Note: This system allows the mixing of the microphone audio and other
audio inputs. Refer to Mic Volume in the Setup menu to adjust the mix.
By default, Audio 1 plus microphone is associated with VGA 1 and VGA 2. Audio
2 plus microphone is associated with the Composite Video.
About the microphone input
• If you wish to use a microphone, connect a 3.5 mini jack cable Dynamic
Microphone to the projector.
• You can use a wireless microphone as long as a wireless module is attached to
the projector’s microphone input jack and it works well with the associated
devices. To ensure a quality use of the wireless microphone, it is
recommended that your microphone conforms to the specifications listed in
the table below.
• There are two ways to adjust the microphone volume.
• Adjust the microphone volume level in the Setup > Mic Volume menu.
•Press the Volu me key on the keypad or remote to adjust the volume of the
projector speaker and audio out signal.
• If the microphone is not working, check the volume setting and cable
connection.
You might get feedback noise from the microphone when you are too close to the
speaker of the projector. Move the microphone away from the speaker of the
projector. The greater volume you require, the greater distance you need to be
away from the speaker to prevent feedback noise.
NOTE: Only Dynamic Microphones should be used. Do not use active (phantom-
powered) microphones as projector damage may occur.
Signal Parameter Min Max
Microphone Transducer Principle Dynamic
Impedance 300 1K ohm
Frequency response 600 16k Hz
27
Using the keypad buttons
Most buttons are described in detail in other sections, but here is an overview of
their functions:
Power–turns the projector on and off (page 8).
Auto Image–resets the projector to the source (page 27).
Presets–cycles through the available preset settings (page 31).
Keystone–adjusts squareness of the image (page 9).
Menu–opens the on-screen menus (page 30).
Select–confirms choices made in the menus (page 30).
Up/Down/Left/Right arrows–navigates to and adjusts settings in the menus
(page 30).
Vol u m e –adjusts sound (page 25).
Source–changes the active source (page 8).
Help–accesses the projector’s help feature.
menu navigation
buttons
28
Optimizing computer images
After the projector is running and the image is on the screen, you can optimize the
image using the onscreen menus. For general information on using the menus, see
page 30.
• Select default image settings using a preset appropriate to your environment.
• Adjust the Keystone, Contrast, or Brightness in the Basic Picture menu
(page 31).
• Change the Aspect Ratio. Choose the option that best fits your input source
(page 31).
• Adjust the Color Temperature in the Advanced Picture menu (page 31).
• Adjust the Phase, Tracking, or Horizontal or Vertical position in the Advanced
Picture menu (page 32).
• Once you have optimized the image for a particular source, you can save the
settings using Presets. This allows you to quickly recall these settings later
(page 31).
Presentation features
Several features are provided to make giving presentations easier. Here is an
overview, details are found in the menu section.
• The Custom key allows you to assign various features to the button. The
default effect is Source Info, which displays information about the projector
and current source. See page 33 for details.
• The Search Screen option lets you change the appearance of the blank screen
and start up screen (page 34).
• Two options, Auto Off and Screen Save Time, are provided to automatically
shut down the projector after several minutes of inactivity or display a black
screen. This helps preserve lamp life (page 33).
29
Optimizing video images
After your video device is connected properly and the image is on the screen, you
can optimize the image using the onscreen menus. For general information on
using the menus, see page 30.
• Adjust the Keystone, Contrast, Brightness, Color, or Tint in the Basic Picture
menu (page 31).
• Change the Aspect Ratio. Choose the option that best fits your input source
(page 31).
• Select a Sharpness setting (page 31).
• Adjust the Color Temperature. Select a listed warmth value (page 32).
• Turn on Overscan to remove noise on the edges of the image (page 32).
Customizing the projector
You can customize the projector for your specific setup and needs. See page 33 to
page 34 for details on these features.
• For rear projection, turn Rear Project on in the Setup menu.
• For ceiling mounted projection, turn Ceiling Mount on in the Setup menu.
• Specify which source the projector checks first for active video during power-
up.
• Specify the function of the Custom key on the remote.
• Turn the projector’s display messages on and off.
• Turn on power saving features.
• Specify appearance of blank screen and startup screen.
• Specify the language viewed on the menus.
• Save settings for the active source as a preset.
30
Using the menus
To open the menus, press the Menu button on the keypad or remote. (The menus
automatically close after 60 seconds if no buttons are pressed.) Use the arrow
buttons to move up and down to highlight the desired menu, then press the
Select button.
To change a menu setting, highlight it, press Select, then use the up and down
arrow buttons to adjust the value or select an option or turn the feature on or off.
Press Select to confirm your changes. Use the arrows to navigate to another
setting. When your adjustments are complete, press Menu to access a different
menu; press the Menu button at any time to navigate to the higher-level menu and
ultimately close the menus.
The menus are grouped by usage:
• The Basic Picture menu provides common image adjustments.
• The Advanced Picture menu provides more complex image adjustments.
• The Setup menu provides set-up type adjustments that are not changed often.
• The Status and Service menu provides information about the projector and
source.
keypad navigation
buttons
Basic Picture
Brightness
Contrast
Sharpness
Color
Tint
Auto Image...
Aspect Ratio
Apply Preset...
50
50
Maximum
50
50
Auto
i
Advanced Picture
BrilliantColor™
White Peaking
Color Temp
Force Wide
Overscan
Phase
Sync Threshold
Tracking
Normal Look
50
Warmest
Off
Off
50
50
50
i
Basic Picture menu Advanced Picture menu
Setup
Auto Source
Power-up Source
USB Display Source
Composite SCART
Video Standard
Closed Caption
Ceiling Mount
Rear Project
On
VGA1
On
RGB
Auto
Off
Off
Off
i
Status and Service
Source Info
Projector Info
LiteBoard™ Info
Reset Lamp Hours...
Factory Reset...
Service Code...
ii
Setup menu Status and Service menu
31
Basic Picture menu
To adjust the following settings, highlight the setting, press Select, use the up and
down arrows to adjust the values, then press Select to confirm the changes.
Brightness: changes the intensity of the image.
Contrast: controls the degree of difference between the lightest and darkest
parts of the picture and changes the amount of black and white in the image.
Sharpness: (video sources only) changes the clarity of the edges of a video image.
Select a sharpness setting.
Color: adjusts a video image from black and white to fully saturated color. The
color setting applies to video sources only.
Tint: adjusts the red-green color balance in the image of NTSC video images. The
tint setting applies to NTSC video sources only.
Auto Image: resets the projector to the source.
Aspect Ratio: Aspect ratio is the ratio of the image width to image height. TV
screens are usually 4:3. HDTV and most DVDs are 16:9.
Select Auto to have the projector choose the ratio. Choose Native to see the
unmodified input with no resizing by the projector. Select 16:9 to watch enhanced
widescreen DVDs.
For more information regarding Aspect Ratio, see page 10.
Apply Preset...: Presets are provided that optimize the projector for displaying
computer presentations and video images under certain conditions.
There is also a user-definable preset. To set this preset, adjust the image and select
Save User in the Presets menu. You can recall these settings in the future by
selecting the User preset.
Keystone: adjusts the image vertically and makes a squarer image. You can also
adjust keystone from the keypad.
Digital Zoom: reduces the size of projector’s display area. If the display area has
been resized by this setting, it can be moved by changing the Horz Shift and Ver t
Shift settings.
Horz Shift/Vert Shift: moves the display area horizontally or vertically if its size
has been changed by the Digital Zoom setting.
Basic Picture
Brightness
Contrast
Sharpness
Color
Tint
Auto Image...
Aspect Ratio
Apply Preset...
50
50
Maximum
50
50
Auto
i
Basic Picture menu
Auto
Native
4:3
16:9
16:10
Letterbox
Panorama
Basic Picture
Brightness
Contrast
Sharpness
Color
Tint
Auto Image...
Aspect Ratio
Apply Preset...
50
50
Maximum
50
50
16:9
i
Aspect ratio
increasing keystone decreasing keystone
32
Advanced Picture menu
BrilliantColor™: produces an expanded on-screen color spectrum that delivers
enhanced color saturation for bright, true-to-life images. Choose Normal Look for
most video sources and Bright Look for most computer sources.
White Peaking: increases the brightness of whites that are near 100%.
Color Temperature: changes the intensity of the colors. Select a listed relative
warmth value.
Force wide: when this is off, the analog locking algorithms choose the standard
mode resolution (4:3) as the preferred default resolution. When this is on, the
analog locking algorithms choose wide mode resolution (16:10) as the preferred
default resolution.
Overscan: removes noise around the video image.
Phase: adjusts the horizontal phase of a computer source.
Sync Threshold: (progressive signals only) If a hardware device, such as a DVD
player, is not syncing properly with the projector, select this option to help it to
sync when connected to the projector.
Tr a c k i n g : adjusts the vertical scan of a computer source.
Color Space: applies to computer and component video sources. It allows you to
select a color space that has been specifically tuned for the input signal. When
Auto is selected, the projector automatically determines the standard. To choose a
different setting, turn off Auto, then choose RGB for computer sources or choose
either REC709 or REC601 for component video sources.
Noise Reduction: reduces temporal and/or spatial noise in the image.
Set Black Level...: analyzes the current input image and calculates an offset value
which is then added to the analog to digital converter black level value. This
ensures optimum black level for each analog source.
Detect Film: determines whether the original source of the input video was film
(progressive) or video (interlaced).
3D Control: allows you to enjoy 3D (stereoscopic) content. Your IN3916
supports two synchronization modes (External Sync and DLP Link™) for
controlling LCD shutter glasses. In addition to the projector, you will need a pair of
3D shutter glasses, 3D content, and 3D compatible source (and emitter). Ensure
the glasses you choose are consistent with the synchronization mode you will be
using.
3D Sync Invert: (Only applies when 3D control is set to DLP Link™.) If the
image appears to flutter, look odd or if the image depth looks off or you
experience eye strain, turn this feature on to see if the image improves.
Gamma: select the appropriate gamma from among Video, Film, Bright, and CRT.
Red/Green/Blue Gain: adjusts the gain of the red, green or blue channel of the
image.
Red/Green/Blue Offset: adjusts the offset of the red, green or blue channel of
the image.
Horizontal/Vertical Position: adjusts the position of a computer source.
Advanced Picture
BrilliantColor™
White Peaking
Color Temp
Force Wide
Overscan
Phase
Sync Threshold
Tracking
Normal Look
50
Warmest
Off
Off
50
50
50
i
Advanced Picture menu
33
Setup menu
Language: allows you to select a language for the onscreen display.
LiteBoard™ Wand: allows you to control the operation of the LiteBoard Wand.
Mic Volume: adjusts the relative volume of the microphone versus audio in.
Key Click: turns the key click sound on or off. When this setting is on, pressing
keys on the keypad causes the projector’s speaker to play a “click” sound.
Custom Key: allows you to assign a different function to the Custom button,
allowing you to quickly and easily use the effect. Highlight an effect and press
Select to choose a different one.
•Blank Screen: displays an empty screen.
•Mute: turns off all sound.
•Aspect Ratio: toggles among 4:3, 16:9, and Native (see page 10 and
page 31).
•Source: cycles through available sources.
•Auto Image: resets the projector to the source (page 27).
• Freeze Screen: pauses the projected image.
•Source Info: the default action. Shows the Source Info menu.
•Projector Info: shows the Projector Info menu.
•Overscan: removes noise around the image.
•AV Mute: enables or disables AV Mute function.
•Closed Captions: enables or disables Closed Captions.
Blank Key: select what to display when the blank key on the remote is pressed:
your custom snapshot, a solid color screen (blue, black or white), the factory logo
screen, a timer, or test patterns. The timer option is useful for classroom tests or
break times during meetings.
Source Keys: Enables or disables Source Keys on the optional Commander-2
remote.
AC Power On: When this feature is on, the projector automatically turns on
when electrical power is connected. This allows control of ceiling mounted
projectors with a wall power switch.
Auto Off Time: automatically turns the projector off after no signals are
detected for a preset number of minutes. If an active signal is received before the
projector powers down, the image will be displayed.
Screen Save Time: automatically blanks the screen with a black color after no
signals are detected for a preset number of minutes. The image returns when an
active source is detected or a remote or keypad button is pressed.
Sleep Timer: Allows the projector to automatically power off after it has been
on for a specified amount of time.
Always-On Functions: allows you to control which projector functions will
work even when the projector is in standby (powered off but connected to AC
Power). Press Up or Down to highlight the function you want to change, then
press select or left and right to change the function to either Yes or No. Press
menu when done. Note that some functions must always have the same value; in
this case when you change one value, other values in the submenu may also change
automatically.
Lamp Low Power: toggles between on and off. Turn it on to lower the light
output of the lamp. This also lowers the fan speed, making the projector quieter.
Power Sounds: controls whether the projector makes a sound when powered on
and off.
Internal Speaker: turns the internal speaker on or off.
Audio Inputs: assign an audio input to a specific video/computer source input.
Press up or down to highlight the source you want to change, then press Select or
the left and right arrow keys to change the source’s audio input. Press Menu when
done changing audio inputs.
Auto Source: When this feature is On, the projector automatically finds the
active source, checking the selected Power-up Source first. When this feature is
Off, the projector defaults to the source selected in Power-up Source. To display
another source, you must manually select one by pressing the Source button on
the remote or keypad.
34
Power-up Source: determines which source the projector checks first for active
video during power-up.
Composite SCART: selects SCART connection type. This setting is only used
for projectors where SCART can be connected to a single existing source (e.g.
VGA), not on projectors where SCART must be connected to multiple sources
(e.g. composite + component).
Video Standard: When this feature is set to Auto, the projector attempts to
automatically pick the video standard based on the input signal it receives. (The
video standard options may vary depending on your region of the world.) If the
projector is unable to detect the correct standard, the colors may not look right
or the image may appear “torn.” If this happens, manually select a video standard by
selecting NTSC, PAL, or SECAM from the Video Standard menu.
Closed Captions (muted): controls closed caption display while audio is muted.
If this setting is not off, and audio is muted, and the source is NTSC and contains
captions on the selected channel, then the projector must display caption text
overlaid on the image.
Closed Captions (unmuted): controls closed caption display while audio is not
muted. If this setting is not off, and audio is not muted, and the source is NTSC and
contains captions on the selected channel, then the projector must display caption
text overlaid on the image.
Ceiling Mount: turns the image upside down for ceiling-mounted projection.
Rear Project: reverses the image so you can project from behind a translucent
screen.
Prevent PC Screen Saver: prevents your computer from going into Screen Save
mode. The projector must be connected to the PC via a USB cable for this feature
to work.
Search Screen: allows you to display a blank screen instead of the default screen
at startup, and when no source is detected.
Ta k e S n a p s h o t. .. : captures the current image and allows it to be used as the
search screen image.
Disable Snapshot: allows the user to disable the snapshot capability.
Show Messages: displays status messages (such as “Searching”) in the lower-left
corner of the screen.
Menu Offset: allows you to change the position of the On Screen Display items.
Menu Transparency: allows you to change how much of the projected image
behind the menu you can see. As the value increases, more of the image behind the
menu is visible.
Magnify Controls: determines whether the select key can be used to change
magnify settings when the OSD menu is not visible.
Keypad: enables or locks the projector keypad.
Glow Ring: controls the appearance of the optional glow ring status indicator.
PIN Protect: The PIN (personal identification number) feature allows you to
password protect your projector. Once you enable the PIN feature, you must
enter the PIN before you can project an image. The default PIN on this projector is
Menu-Source-Select-Up-Down. Use the navigation buttons on the remote or
keypad to enter the correct 5-button press sequence. When all 5 numbers are
entered correctly, press the Select button on the remote or keypad to select OK.
If the message “Wrong PIN” appears, verify the code and re-enter it. If you mis-
enter a number, you must enter 5 numbers and press the Select button in order
to access the “Wrong PIN” message and re-enter the code.
To enter the PIN at projector startup:
Power up the projector. The “Enter PIN” dialog box appears after the startup
screen. Enter the PIN. Use the navigation buttons on the remote or keypad to
enter the correct button press sequence. See the description above for
instructions.
To change the PIN:
Setup menu
Setup
Auto Source
Power-up Source
USB Display Source
Composite SCART
Video Standard
Closed Caption
Ceiling Mount
Rear Project
On
VGA1
On
RGB
Auto
Off
Off
Off
i
35
Select “Change PIN...” in the Setup menu. Enter the existing PIN. Enter the new
PIN. You can navigate between OK and Cancel by pressing the up and down
buttons on the keypad. Select OK or Cancel by pressing the Select button. Verify
the new PIN.
If you lose or forget your custom PIN:
Contact InFocus support. Go to www.infocus.com/support
Serial Port Baud Rate: selects the serial port and baud rate.
Serial Port Echo: controls whether the serial port echoes characters.
36
Status and Service menu
Source Info: a read-only display of current source settings.
Projector Info: a read-only display of current projector settings.
LiteBoard™ Info: a read-only display of current LiteBoard™ settings.
Reset Lamp Hours: resets the lamp hours used counter in the Projector Info
menu to zero. Do this only after changing the lamp.
Factory Reset: restores all settings to their default.
Service Code: only used by authorized service personnel.
Status and Service
Source Info
Projector Info
LiteBoard™ Info
Reset Lamp Hours...
Factory Reset...
Service Code...
i
i
Status and Service menu
37
Maintenance
Cleaning the lens
1Apply a non-abrasive camera lens cleaner to a soft, dry cloth.
•Projector must be off and the lens must be at room temperature.
•Avoid using an excessive amount of cleaner, and don’t apply the cleaner
directly to the lens. Abrasive cleaners, solvents or other harsh chemicals
might scratch the lens.
2Lightly wipe the cleaning cloth over the lens in a circular motion.
WARNINGS:
•Turn the projector off and unplug power cord before cleaning any part of
the projector.
•Do not touch or block the projector lens with any objects as this can
damage the projector lens. Use the lens cap when the projector is not in
use and during transport. Scratches, gouges and other lens damage are not
covered by the product warranty.
•Do not open any cover on the projector, except the lamp cover.
•Do not attempt to service this product yourself as opening and removing
covers may expose you to dangerous voltage and other hazards. Refer all
servicing to qualified service personnel.
Using the security lock
The projector has a security lock for use with a Cable Lock System. Refer to the
information that came with the lock for instructions on how to use it.
USB A
USB mini B
security
lock
38
Replacing the projection lamp
The Lamp Hours timer in the Projector Info menu counts the number of hours the
lamp has been in use. Twenty hours before the lamp life expires, the message
“Replace lamp” appears on the screen at startup.
•NOTE: Be sure to use the InFocus lamp module designed for this projector.
You can order new lamps from www.infocus.com (in select areas), your
retailer or your dealer. Only genuine InFocus lamps are tested for use
in this projector. Use of non InFocus lamps may cause electrical shock and
fire, and may void the projector warranty. InFocus is not liable for the
performance, safety or certification of any other lamps.
WARNINGS:
• The projector uses a high-pressure mercury glass lamp. The lamp may fail
prematurely, or it may rupture with a popping sound if jolted, scratched, or
handled while hot. The risk of lamp failure or rupture also increases as the
lamp age increases; please replace the lamp when you see the “Replace Lamp”
message.
• To avoid burns, allow the projector to cool for at least 60 minutes before you
replace the lamp.
• Unplug the power cord before replacing the lamp.
• Do not drop the lamp module. The glass may shatter and cause injury.
• Do not touch the glass surface of the lamp module. Fingerprints can obscure
projection sharpness and may cause the glass to shatter.
• Be extremely careful when removing the lamp housing. In the unlikely event
that the lamp ruptures, small glass fragments may be generated. The lamp
module is designed to contain most of these fragments, but use caution when
removing it.
• Before replacing a ruptured lamp, clean the lamp compartment and dispose of
cleaning materials. Wash hands after lamp replacement.
• When replacing the lamp while the projector is ceiling-mounted, wear
protective eyewear to prevent eye injury.
Hg – Lamp contains mercury. Manage in accordance with local disposal
laws. See www.lamprecycle.org.
39
1Turn off the projector and unplug the power cord.
2Wait 60 minutes to allow the projector to cool thoroughly.
3Remove the lamp door, located on top of the projector, by (a) removing the
two screws on either side of the lamp door, (b) sliding the lamp door towards
the front of the projector, and (c) tilting and lifting the door off.
4Disconnect the lamp connector.
5Loosen the captive screw that attaches the lamp housing to the projector.
NOTE: If the projector is installed on a ceiling mount, be careful not to drop
the lamp module once the captive screw is loosened.
6Carefully lift the lamp straight up, off of the alignment pins; being careful not to
pinch the lamp connector. Dispose of the lamp in an environmentally proper
manner.
7Install the new lamp module, aligning the pins properly. Be careful not to pinch
the lamp connector.
8Tighten the screw. (NOTE: If the pins have not been aligned properly, the
screw will not tighten securely.)
9Re-attach the lamp connector to the projector.
10 Replace the lamp door by (a) aligning the hinges, (b) putting the lamp door
down and (c) sliding it back into place.
11 Replace the lamp door screws and tighten securely.
12 Plug in the power cord and press the Power button to turn the projector back
on.
13 To reset the lamp hour timer, navigate to the Status and Service menu and
select Reset Lamp Hours. See page 36 for details.
USBA
USB mini B
turn off and unplug
projector
wait 60 minutes
loosen screw
Disconnect lamp Connector
Status and Service
Source Info
Projector Info
LiteBoard™ Info
Reset Lamp Hours...
Factory Reset...
Service Code...
ii
40
INDEX
