Qixiang Electron Science and Technology 3318UVE Land Mobile Radio User Manual
Qixiang Electron Science& Technology Co., Ltd Land Mobile Radio
user manual
User Manual
TWO WAY RADIO
Model Name:3318UVE
FCC ID:T4K3318UVE
THANK YOU!
including kinds of professional function, best stability and great reliability as well as exterior smooth lines,
novel, fashionable, sturdy and durable.
are able to realize dual PTT functions. 51 groups of CTCSS encode/decode and 1 group of user-dened
CTCSS encode/decode, 1024 groups of DCS encode/decode, 5TONE/2TONE/DTMF encode/decode,
built-in radio functions, etc..It is a meticulous build functional and Multi frequency band radio for radio
amateur and commercial users.
3318UVE will provide you with reliable, clear and efficient communication service. The
3318UVE introduces innovative DSP digital signal processing technology, high degree integration, it is
The 3318UVE includes plenty of TX, RX channels, as well as UU,VV and UV standby modes which
CAUTIONS
1.
damage.
3.Please use assorted battery and charger to avoid damage.
4.Please use assorted antenna to ensure the communication distance.
5.Please avoid exposing the radio under the sunshine for a long time or storing it in too hot places. High temperature will
shorten the life of electronic devices.
6.Please avoid storing the radio in the dusty, dirty and damp areas.
7.Please keep the radio dry. Do not wash radio with ardent chemicals and detergents.
8.Do not transmit without antenna.
back close to any plastics.
and its case. Then contact local
dealers.
3318UVE is excellent designed with advanced technology. The following tips will be helpful for you in
Keep the 3318UVE and accessories away from children.
2.Please do not try to open or modify the 3318UVE without permission, non-professionals operation may also cause
9.When using this radio , we recommend transmitting for 1 minute then receiving for 4 minutes. continuously
transmitting for long time or working in high power will heat the back of the radio. Do not place the radio 's hot
performing your obligation under warranty and understanding the safety of radio usage.
10.If any abnormal smell or smoke coming from the radio , please turn off the power instantly and take off the battery
UNPACKING
table before discarding the packing material.
If any items are missing or have been damaged during shipment, please contact with dealers immediately.
Item Number Quantity
Antenna QA09UV2 1
Li-ion Battery QB-26L 1
Battery Charger QBC-26L 1
AC Adaptor QPS-01 1
Belt Clip BC01 1
Hand Strap GS01 1
Instruction Manual 1
Certicate 1
Supplied Accessories
Please carefully unpack the radio . We recommend that you identify the items listed in the following

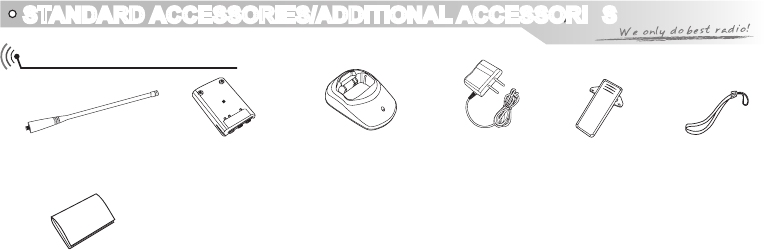

STANDARD ACCESSORIES/ADDITIONAL ACCESSORIES
Standard Accessories
Antenna*1
QA09UV2 Li-ion Battery
QB-26L(1500mAh)
Instruction
Manual
Battery Charger
QBC-26L
AC Adaptor
(12V/500mA)
QPS-01
Belt Clip
BC01
Hand Strap
GS01
BATTERY INFORMATION
Charging Operation
The battery is not charged at the factory, please charge it before use. Charge the battery for the rst time
after purchase or extended storage (more than 2 months) may not bring the battery to its normal operating
capacity. After repeating fully charge/ discharge cycle for two or three times, the operating capacity will
reach the best performance. The battery life is over when its operating time decreases even though it is
fully and correctly charged. Replace the battery.
Battery Charger Type
Please use our company's designated charger, other models may cause explosion and injure people. After
installing the battery, if the radio red light twinkles and remind changing battery, please charge the battery.
Notice for Charging Battery
Do not shortcircuit our company designated charger. Never attempt to remove the casing from the battery, ▲
we show no responsibility on the faulty caused by modifying freely without permission of our factory.
The ambient temperature should be between 5 ▲℃ and 40℃ in charging. Charging outside this range
may not fully charge the battery.
Always switch off the transceiver equipped with a battery before charging. Otherwise, it will interfere ▲
with correct charging.
To avoid interfering the charging procedure, please do not cut off the power or take out the battery ▲
during charging.
Do not recharge the battery if it is already fully charged. This may shorten the life of the battery or ▲

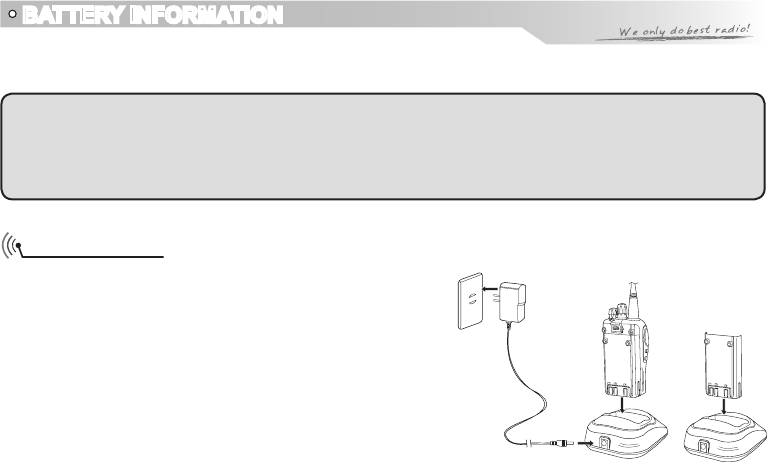

How to Charge
1.Plug the AC adaptor into the AC outlet, then plug the
cable of AC adaptor into the DC jack, the indicator
lights orange for 1s and turns into GREEN---waits to
charge.
charger; make sure the battery terminals are in contact
with the charging terminals well. LED turns into twinkling
RED---pre-charging begins.
3.Pre-charging for about 5 minutes, LED twinkles stop
then charging begins.
4.It takes about 4 hours to fully charge the battery, when
LED turns into GREEN— full charged.
BATTERY INFORMATION
WARNING:
When keys or ornamental chains and other electric metals contact with the battery terminals, the battery
may cause damage or hurt bodies. If the battery terminal short circuit, it will generate a lot of heat, please
be careful when you bring or use the battery, please put battery or radio into insulated container. Do not put
it into metal container.
damage the battery.
▲
Ac Input
2.Slide the battery or radio with battery into the
Do not charge the battery or radio if it is damp. Dry it before charging to avoid danger.
has been fully charged, the charger will charge battery in voltage consumption and fail to indicate correctly.
BATTERY INFORMATION
STATUS self-examine
when power on (No battery) Pre-charging Charge
normally
Full
Charged Trouble
LED Orange
(for 1 second) Green Red light twinkles
for 5 minutes Red Green Red twinkles
for a long time
5.Charging Process:
6.LED Indicator:
NOTE: Trouble means battery heating, battery short-circuit or charger short-circuit.
Status LED
Standby (self-examine orange lights
1second when power on)
Pre-charging (pre-charging stage)
Charging (charge in constant currency)
Full charged (charge in constant voltage)
Green light
Red light twinkles for about 5 minutes
RED light lightens for about 4 hours
Green light
NOTE: When charging a power-on radio equipped with battery, the LED will not turn into green to
show the full charge status. Only when turn off the radio, the LED can indicate normally.
Because when the radio is power on, it would consumes energy, the charger cannot detect when battery
How to Store the Battery
1. If the battery needs to be stored for a long
period, the battery should be removed from
the radio. It's state of charge should be 50-
100% of full charge.
2.It should be kept in low temperature, dry
environment.
3.To keep away from hot places and direct
sunlight.
Charging Prompt
1. Self- examination: When charging, ORANGE light twinkles for 1 second and goes out. That means the
charger has passed its self-examination and it can charge the battery normally. If the light remains orange
or the red light twinkles, which means the charger can not pass its self-examination or charge the battery.
2. Trickle pre-charging: When the battery has been inserted into the charger and red light twinkles, which
means the remnant voltage is low, the charger trickle charge the battery (pre-charging status), until the
battery reaches a certain electric quantity, the charger automatically turns into normal charging. And
if the red light stop twinkling, which means the remnant voltage meets a certain electric quantity, the
charger will charge the battery normally.
BATTERY INFORMATION
NOTE:The time for Trickle pre-charging should not exceed 30 min. If after 30 min, the red indicator is still
twinkling, it means it is unable to charge battery. Please kindly check battery and charger.
WARNING
▲Do not short circuit battery terminals.
▲Never attempt to remove the casing from the battery
pack.
▲Never assemble the battery in dangerous surroundings,
spark may cause explosion.
▲Do not put the battery in hot environment or throw it
into fire, it may also cause explosion.
INSTALLATION & CONNECTION

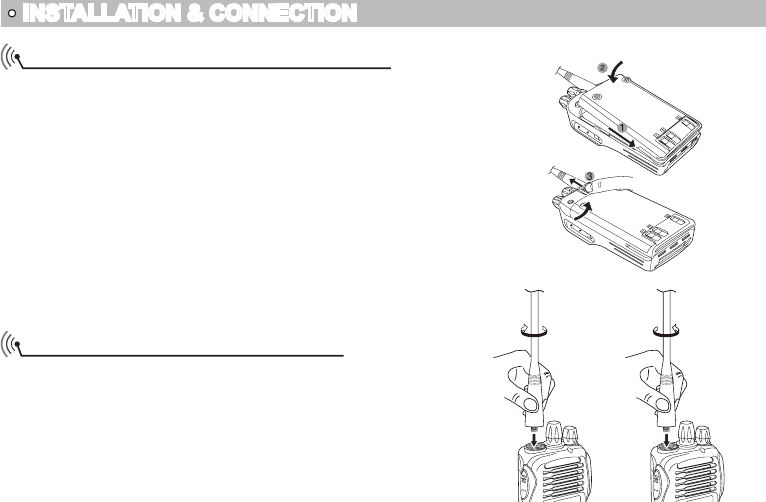

1. Match the three grooves of the battery pack with the corresponding
"click" sounds, the battery has been locked.
3. To remove the battery pack, slide up the release latch and
remove the pack away from the radio.
Installing / Removing the Li-ion Battery
Installing / Removing the Antenna
■ Installing the Antenna:
by holding the antenna base and turning it clockwise until secure.
■ Removing the Antenna:
Turn the antenna anticlockwise to remove it.
guides on the back of the radio and push.
2. Press the battery pack and radio rmly together until the
release latch on the top of the radio locks. After hearing a
Screw the antenna into the connector on the top of the radio
INSTALLATION & CONNECTION
Installing Optional Speaker / Microphone
Unveil the MIC-SP jack cover and then insert the
Speaker/Microphone plug into MIC-SP jack.
Speaker/Microphone.
Installing the Hand Strap
Slide the loop of the hand strap through the eyelet on
strap through the loop to secure the hand strap in place.
Installing / Removing the Belt Clip
■ Installing the Belt Clip:
Place the belt clip to the corresponding grooves on the
■ Removing the Belt Clip:
Anticlockwise turn screws to remove the belt clip.
back of the radio , and then Clockwise screw it.
Note:The radio is less water resistant while using the
the upper rear of the radio, pull the entire hand
GETTING ACQUAINTED

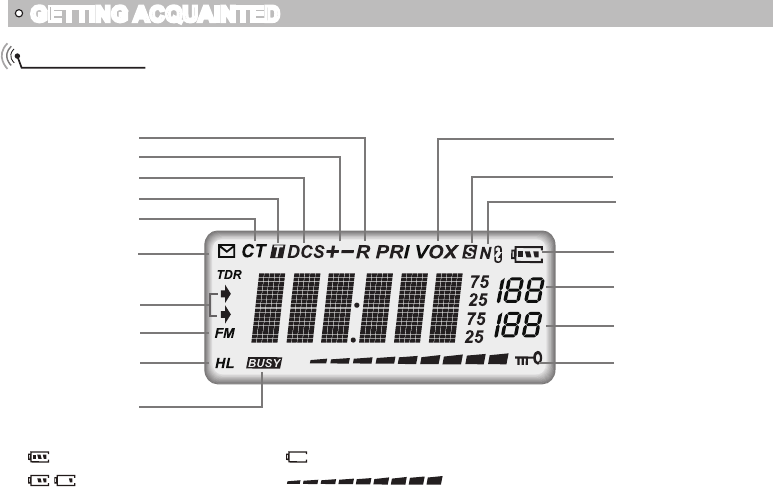

LCD Display
On LCD display screen, you will see various icons which stand for the selected functions and sometimes
you may forget the meaning of them. Here you will nd the following table extremely useful.
Frequency
Reverse
Offset Frequency
DCS
Optional Signaling
CTCSS
FUNC Icon
The arrow points to
main channel
FM radio
TX Power
Busy Channel
VOX Function
Scan Skip
Narrow band
Battery Capacity
Function Menu
Number, Channel
Number
FM Channel Number
channel Number
Keypad Lock
NOTE:
Battery capacity indicator(full) No power, replace battery pack or charge battery
Real time display receiving signal
strength/Power Indicator
Battery capacity remnant
GETTING ACQUAINTED
1
3
2
7
4
8
5
9
6
1211
10
GETTING ACQUAINTED

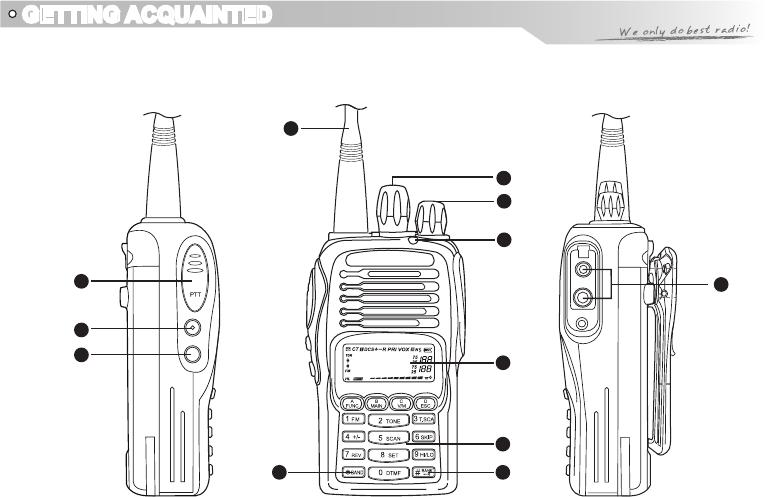

1 Antenna
2 Selector Knob
3 Power/Volume switch
radio
4 TX/RX indicator, RX is GREEN or BLUE, TX is RED
5 LCD display
Displays current frequency/channel and operations
6 Keypad
Enters desired frequency/channel or operations by keypad
7 PTT key
Press PTT key to talk, release this key to receive.
8 PF1 key
9 PF2 key
10 Speaker/Microphone jack, programming software jack
11 Single-band Switching
12 Memory Bank Operation
Rotate it clockwise to turn on radio, rotate it anticlockwise until heard "click" to turn off the
When radio is power on, rotate it clockwise to increase volume, anticlockwise to reduce volume.

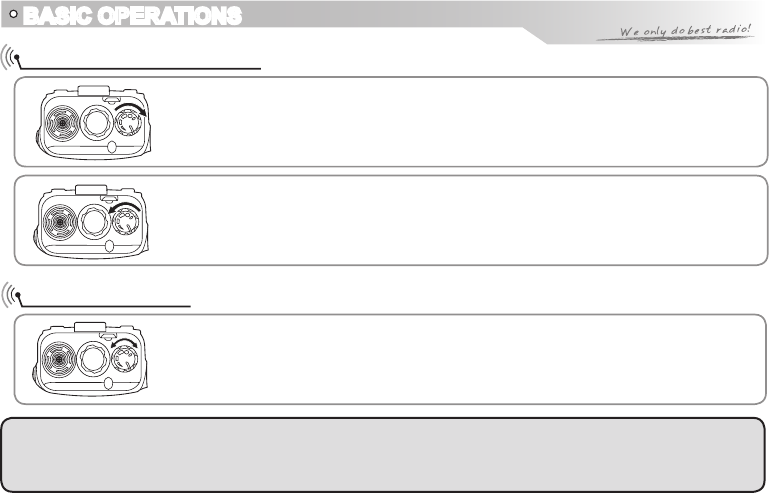

Turn the Radio On & OFF
NOTE:
Press the side key programmed as Squelch Off to monitor the background noise. Turn [POWER] / [VOLUME]
to adjust the volume. Turn [Selector Knob] to adjust squelch level for current channel.
BASIC OPERATIONS
Under power-off state, turn [POWER]/ [VOLUME] clockwise to turn on the
radio.
Under power-on state, turn [POWER]/ [VOLUME] anticlockwise to turn off the
radio.
Under power-on state, turn [POWER] / [VOLUME] to adjust volume. Clockwise-up,
anticlockwise -down.
When adjusting the volume, user can press the key programmed as Squelch Off to
monitor volume level.
Adjusting Volume
Switch between Main band and Sub band
Under standby state, press key to switch between Main band and Sub band.
Arrow indicates the Main band.
Switch between Channel mode and VFO mode
Under standby state, press key to set main band as Channel mode or frequency
mode (VFO).
BASIC OPERATIONS
Channel Adjusting
channel switch clockwise to increase channel number, anticlockwise to decrease channel number.
Frequency Adjusting
Rotate channel switch clockwise to increase frequency, anticlockwise to decrease frequency. Frequency
change depends on chosen frequency step.
With radio in Channel mode or FM radio channel mode, rotate channel switch to adjust channel. Rotate
With radio in VFO mode or FM radio frequency mode, rotate channel switch to adjust frequency.
BASIC OPERATIONS
Frequency Input by Keypad
Under frequency mode or FM radio frequency mode, you can directly enter frequency through keypad.
1. key to switch into VFO.
NOTE:
number on the right of main frequency.
Enter the desired frequency by keypad.
2.
NOTE:
frequency range. If frequency setup is beyond range or not matching with step size, the input is unavailable.
Under the FM radio mode, the frequency step size input by numeric keys is 100k.
Channel Input by Keypad
by entering three numbers (000-199). If the entered channel is not a saved channel,
For example, entering 001 is channel 1, 030 is channel 30, 125 is channel 125.
Squelch Off Momentary / Squelch Off
Side key [PF2] can be setup for Squelch off Momentary or Squelch off function by programming software.
When the radio is under Channel mode, it shows current channel
The frequency input of main channel or FM radio is relevant to the stepping and radio
Under channel mode of radio or FM radio, you can switch to desired channel
When your radio is under Channel mode, press
the radio will emit beep to prompt wrong input and return to current channel.
BASIC OPERATIONS
Transmitting
According to [PF2] key setup in programming software, hold [PF2] key to monitor the channel to ensure it
is not busy, press PTT key and talk to speaker.
Please keep the distance between mouth and speaker to be 2.5-5CM, speak in normal tone to get the best
acoustic delity.
Receiving
at the same time, and the arrow icon will ash, you can hear the calling.
NOTE:
is programmed with decode signal, only the same signaling call can be heard.
Squelch off: Press [PF2] key, squelch circuit is not mute, back-ground noise can be heard. Press
1.
[PF2] key again, squelch circuit is mute.
Squelch off Momentary: Press and hold [PF2] key, squelch circuit is not mute, back-ground noise can
2.
be heard. Release [PF2] key, squelch circuit is mute.
NOTE: The above functions are only available after [PF2] key setup in programming software.
NOTE: When press and hold PTT key, transceiver is transmitting if the red LED light is on, release PTT key
to receive calls.
When your radio is called by other party, green or blue LED light will be on, LCD backlight will be on
You may not receive the calling when your radio is set at high squelch level. If current channel
BASIC OPERATIONS
Emergency Alarm
Under standby state, press and hold [PF1] key which is programmed with ALARM function until LCD
displays "ALARM
Side Key [PF1] function instruction
[PF1] key can be setup in Function Menu 45 for below functions:
VOLT:
1. Battery capacity inquiry: Under standby, press [PF1] key, LCD displays current battery capacity,
press this key again to exit.
CALL:
2. Transmit the prestored DTMF/5TONE Encode signal in channel.
FHSS(Version D):
3. Frequency hopping function. Press [PF1] key, turn on frequency hopping function,
LCD display "FHSS
Note: Receiver and Sender must have same hopping frequency, and must setup MSK decode signalling.
ALARM:
4. Long pressing [PF1] key, LCD display "ALARM
SUBPTT:
5.
Transmit tone pulse frequency:
6. Press and hold PTT key, then press [PF1] key to transmit selected tone
pulse frequency.
", Emergency alarm function is started. This radio has 4 Alarm modes for optional,
can be setup in programming software. Power off radio to exit Alarm.
", radio will communicate in pre-set hopping frequency range.
", radio will enable the preset alarm function.
Press [PF1] key, radio will transmit on sub-band frequency.
BASIC OPERATIONS
Side key [PF2] function instruction
Squelch off: Press [PF2] key, squelch circuit is not mute, back-ground noise can be heard. Press [PF2]
1.
key again, squelch circuit is mute.
Squelch off Momentary: Press and hold [PF2] key, squelch circuit is not mute, back-ground noise can
2.
be heard. Release [PF2] key, squelch circuit is mute.
Transmit DTMF/5TONE/2TONE signaling: Press and hold [PTT] key, then press [PF2] key to transmit
3.
selected DTMF/5TONE/2TONE signaling.
4.
general functions setup.
Delete channel
Under standby state, press
1. key, the top left corner of LCD displays " " icon, press key to
switch into channel mode, channel number ashes.
Edit channel
Under frequency mode (VFO), enter desired frequency and settings, press
1. key, the top left corner of
LCD displays " " icon, press key to switch into channel mode, channel number ashes.
Rotate channel switch to select desired editing channel number.
2.
Press
3. key, the top left corner of LCD displays " " icon, press and hold
emits "DUDU" beep, channel is stored successfully.
Press and hold [PF2] key to turn on transceiver, until radio emits "DU" beep, radio enter into
key until radio
BASIC OPERATIONS
Programming scan
Setup the frequency of L1 channel, U1 channel, L2 channel and U2 channel will realize VFO frequency
scanning border limited. L1 & L2 is starting frequency, U1 & U2 is end frequency. When VFO frequency
between L1~ U1 or L2 ~ U2, transceiver will scan frequencies between L1 ~ U1 or L2 ~ U2. When VFO
In VFO mode, enter desired frequency and relative setup, press
1. key, the top left corner of LCD
displays " " icon, then press key switch into channel mode, channel number ashes
Rotate channel switch to choose desired channel number.
2.
Press
3. key, the top left corner of LCD displays " " icon, then press
"DUDU" beep, channels are saved successfully.
NOTE: To make this setup, L1 and U1 must in same frequency band. L2 and U2 must in same frequency
band.
Rotate channel switch to select desired deleting channel number.
2.
Press
3. key, the top left corner of LCD displays " " icon, press and hold
emits "DUDU" beep and clear up frequency information of current channel, deletion is successful.
NOTE: This process can be applied for deleting FM radio channels.
key until radio
frequency is lower than L1 or L2, radio will scan frequencies higher than L1 or L2. When VFO
frequency is higher than U1 or U2, radio will scan frequencies higher than U1 or U2.
key until radio emits
SHORTCUT OPERATIONS
Add/Cancel Optional signal decode function
Under standby state, press key, the top left corner of LCD displays " " icon, press key.
LCD display "
1. DTMF" and "
T
" icon, DTMF signal add in current channel.

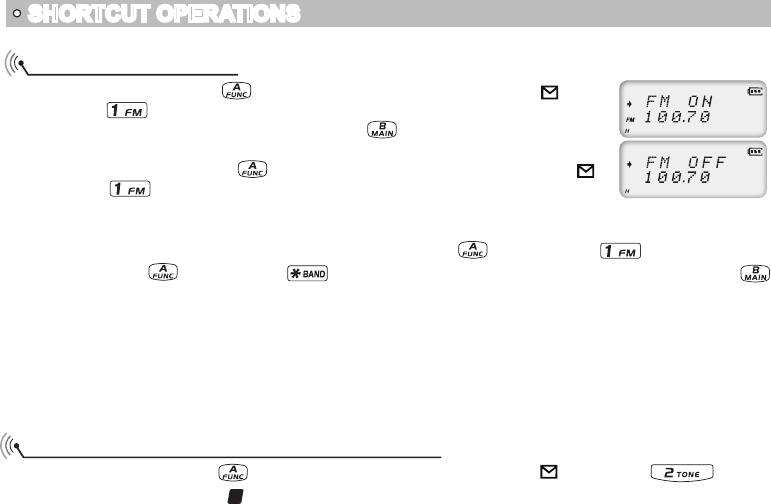

Turn On/ Off FM Radio
Under standby state, press key, the top left corner of LCD displays " " icon,
then press key, LCD displays "FM ON" and current FM radio frequency, FM
radio function is on. When FM radio is on, press key, LCD displays "FM OFF",
FM radio is mute.
When FM radio is on, press key, the top left corner of LCD displays " "
icon, press
For Version D
Version D has FM/AM/SW/LW total 4 FM radio bands. Press key then press key to turn on FM
radio, later press key then press key to switch between FM/AM/SW/LW band, quickly press
key will mute /un-mute FM radio.
FM: 64~108MHz(RX)
AM: 118~136MHz(RX)
SW: 2.3~29.99MHz(RX)
LW: 0.52~1.71MHz(RX)
Note：AM/SW/LW require special antenna. When AM is on, the downside RX channel is occupied.
key to turn off FM radio and return to radio state. Re-start
radio also can exit FM radio function.
SHORTCUT OPERATIONS
CTCSS/DCS Scan
Press key, the top left corner of LCD displays " " icon, press key to
enter into CTCSS/DCS scan. Under this state, rotate channel switch to change scan
direction. When scan the matching CTCSS/DCS signaling, it will stay 5seconds and
then go on scanning. Press any other keys except , , key to exit.
NOTE: When this function is on, user must setup 07th menu to be TONE option, then DTMF/5TONE/2TONE/
MSK can be used.
NOTE:
no setting CTCSS/DCS signaling.
In current channel, if signaling set as CTCSS, it will scan CTCSS, if sets as DCS, it will scan DCS.
Repeat above operation, LCD display "
2. 5TONE" and "
T
" icon, 5TONE signal add
in current channel.
Repeat above operation, LCD display "
3. 2TONE" and "
T
" icon, 2TONE signal add
in current channel.
Repeat above operation, LCD display "
4. MSK" and "
T
" icon, MSK signal add in
current channel.(Version D)
Repeat above operation, LCD display "5. OFF", the "
T
" icon disappear, no optional
signal in current channel.
This function is invalid when radio works in professional mode or the arrow directed channel
SHORTCUT OPERATIONS
Offset Frequency Direction Setup
Under standby state, press key, the top left corner of LCD displays " " icon,
press key to choose offset frequency direction. There are 3 options, Positive
offset, Minus offset, shut off offset.
(+) Positive offset:
6. Indicates TX frequency is higher than RX frequency. When
enable reverse function, the RX frequency is higher than TX frequency.
(-) Minus offset:7. Indicates TX frequency is lower than RX frequency. When
enable reverse function, the RX frequency is lower than TX frequency.
None:
8. Indicates shut offset off.
Under frequency mode (VFO) or channel mode, press key then press key to choose positive offset
direction(+), minus offset direction (-) , shut offset off one by one (Please refer to offset frequency setup).
NOTE:
Frequency/Channel Scan
Under corresponding mode, press key, the top left corner of LCD displays " " icon, then press
key to start frequency scan or channel scan.
Frequency Scan
1.
Under VFO mode, frequency scan is available. This function is used for monitoring
numeric key or key to exit.
Channel Scan
2.
Under channel mode, this function is used for monitoring signal of each channel
This function is unavailable in professional radio mode.
signal of various communication frequency by radio ‘step’ setup, press
SHORTCUT OPERATIONS
▼
▼
▼
NOTE:
Frequency scan is of all bands scan, it scans upwards as your STEPPING setting.
In channel scan, the skipped channel is not in the line of scanning. Scan upwards as per channel no.
(please refer to channel scan skip).
Frequency/channel scan can change scan direction by rotating channel switch, when find a matching carrier
If turn off radio in scan mode, when re-power on, radio will resume scanning automatically.
Channel Scan Skip
Under channel mode, press key, the top left corner of LCD displays " " icon, then press key to
set current arrow directed channel as Channel scan skip. Repeat above operation
to cancel channel scan skip.
LCD displayed
1. "
S
" means the current channel will not be scanned.
"
2.
S
" icon disappeared means the current channel will be scanned.
Frequency Reverse
Under standby state, press key, the top left corner of LCD displays " " icon,
then press key to set arrow directed channel as frequency reverse, repeat
above operation to turn off frequency reverse.
When LCD displays "
1. R" icon, it means current arrow directed channel open the
frequency reverse function, the TX frequency and RX frequency is interchanged,
in this mode. Press numeric key or key to exit.
wave and signaling, the radio will stay 5 seconds then go on scanning. (Please refer to scan setup)

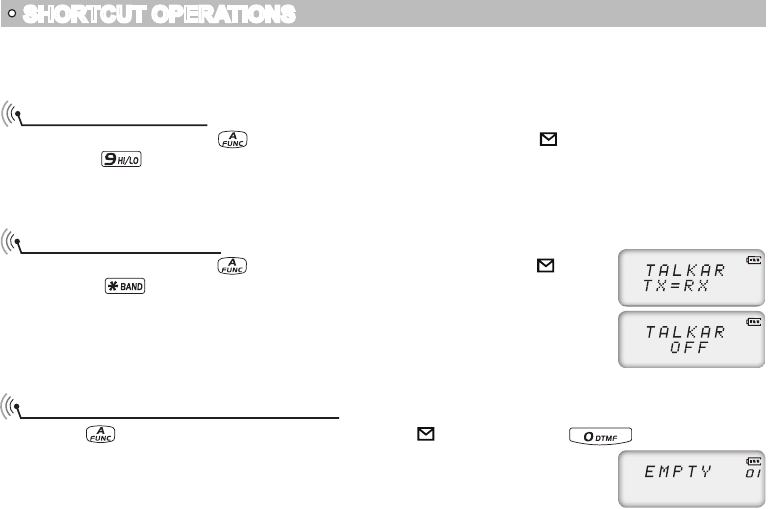

SHORTCUT OPERATIONS
TX Power selection
Under standby state, press key, the top left corner of LCD displays " " icon,
then press key to choose High/Low power for current arrow directed channel.
When LCD displays "
1. L" icon, it means low power is chose.
When LCD displays "
2. H" icon, it means high power is chose.
Talk Around function
Under standby state, press key, the top left corner of LCD displays " " icon,
then press , the arrow directed channel will enable talk around, repeat the
above operation to close talk around.
TX=RX:
1. Enable talk around, current channel transmit at RX frequency, if CTCSS/
DCS signaling is set, it will interchange decoding CTCSS/DCS as encoding.
OFF:
2. Close talk around.
if CTCSS/DCS signaling is set, it will also interchange.
When "
2. R" icon disappears, it means reverse function is close.

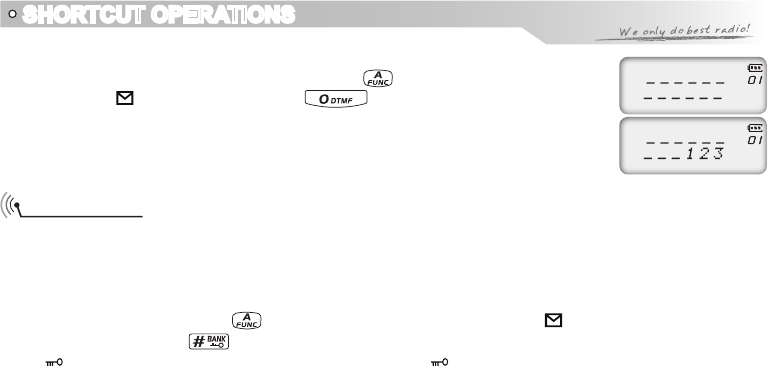

DTMF code Transmit and Enquiry
Press
1. key, the top left corner of LCD displays " " icon, then press key, LCD displays
DTMF data and group number (total 16groups) of current group.
Rotate channel switch to choose desired group and DTMF data, press PTT key
2.
to transmit selected DTMF signaling. If current group not edit DTMF data, LCD
SHORTCUT OPERATIONS
Keypad lock
In order to prevent wrong operation, user can make use of keypad lock function.
When keypad lock is turned on, only channel selector is available for changing channels, all other keys are
locked. Keypad lock operation can be done through software programming and radio itself.
1) Radio itself operation
Under standby state, press key, the top left corner of LCD displays " " icon,
then press and hold
" " icon, keypad is locked. Repeat above operation, " " icon disappears, key
lock function is cancelled.
2) Software Programming
ON: Keypad lock option tick on.
OFF: Keypad lock option tick off.
Note: When keypad lock is turned on by software programming, the radio itself keypad lock operation is
invalid.
displays "EMPTY".
When current group displays "
3. EMPTY", press key, the top left corner of LCD
displays " " icon, press and hold
now you can enter desired DTMF data by keypad.
When nished editing, press side key [PF2] to save DTMF signaling.
4.
key until radio emits "DU"
beep, radio enters into DTMF edit state, LCD displays "___________",
key until radio emits "DU" beep, LCD displays
SHORTCUT OPERATIONS
Single-band Switching
CTCSS/DCS encode and decode
To reduce the interference from the sub-channel when the main channel be used.
You can use single-band switching function, turn off the sub-channel bands quickly.
In standby mode, press the
1. button, the radio will display the PC channel,
and turn off the processor channel.
Click the
2. button again, the radio will display the processor channel, and
turn off the PC channel.
Press the
3. button again to return to dual-band show.
Press
1. key then press [PF2] to enter into setup.
Press [PF2] key to choose CTCSS, DCS or OFF, when choose DCS, press
2. key to select positive
or negative code.
Rotate Channel selector to choose desired CTCSS/DCS encode and decode.
3.
Press
4. key or key to conrm and exit.
SENIOR FUNCTION OPERATIONS
Display Mode Setup
There are three kinds of display modes for optional.
1.
Press
2. / key to choose No.01 function item, it shows "DSP" on LCD.
Rotate channel switch to choose desired setup.
3.
FREQ:
frequency, press key to switch into VFO mode.
CH: Channel mode, 1~24 items of function menu will hide automatically, user can
only operate some functions. It is unable to switch into VFO by pressing
key. This model can be used for Amateur mode.
NAME:
+channel name, press key to switch into VFO mode.
Press
4. key or key to conrm and exit.
Resume Factory Default
work normally because of wrong operation or error setup.
1.
Press 2. / key to choose No.02 function item, it shows "RESTOR" on LCD.
Rotate channel switch to choose desired setup.
3.
Frequency+Channel mode, radio displays current channel name +
Press [PF2] key to turn on radio, hold [PF2] key until radio emits beep.
Channel+Name Tag mode, radio displays current channel number
You can make all the settings of radio return to the factory default settings when radio can not
Press [PF2] key to turn on radio, hold [PF2] key until radio emits beep.
SENIOR FUNCTION OPERATIONS
OFF: No operations.
FACT: Resume all items to factory default, including channel and background
settings.
INIT: Resume background settings to factory default, channel operations are
keeping.
Press
4. key to exit current selection.
Press
5. key to conrm current selection.

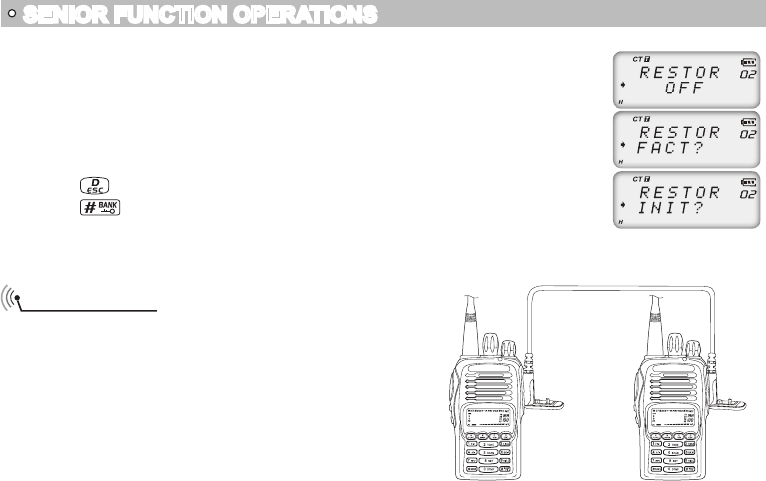

Cloning Cable
This feature will copy the programmed data and parameters
from the master unit to slave units. It copies the parameters
and memory program settings.
Connection: Use optional CP04 cloning cable, connect
Read/write frequency port on both master and slave,
setting and programing as the requirement below.
[Settings: Master side]
Press the [PF1] side key to Power on, the display shows "CLONE", the master
1.
unit enters into copy mode .
Press [PF1] key, the display appears "CLONE XX" XX stands for the data amount
2.
being cloned.
When the data transfer is completed, slave unit restarts, the master unit display
3.
appears "CLONE 04".
Master unit remain copy mode state to prepare for the next copy, if reboot the
4.
master means exit copy mode to return to normal mode.
[Settings: Slave side]
In the standby mode, when the slave receives the data, the display shows "
1. CLONE XX" XX stands for
the data being cloned.
When data reception is complete, the slave unit returns to normal mode and
2.
restart automatically.
Turn off the slave's power, remove the cable, insert another slave which you want
3.
to copy.
If the data is not successfully transmitted, turn off the master and slave, check if the cable connections are
correct, and then repeat the whole process again.
SENIOR FUNCTION OPERATIONS
Memory Bank Exit
Memory Bank Switch
10 memory banks 0-9 are available for 3318UV, bank 0 includes all edited channels. Bank 1-9 can be
assigned maximum 32channels, a channel can be assigned to more groups by software programming or
radio itself operation.
Assign channel to memory bank:
In Memory channel mode, cho
1. ose a memory channel, press key, bank number show in the
channel number position as "-X" twinkling.
Turn Channel selector to choose desired memory bank, press
2. key, the
memory channel will be assigned to the bank.
If the bank already has 32 channels, the new assigned channel will replace
3.
the last channel in bank.
key twice to exit and return to channel mode.
In Channel mode, press key twice to enter memory bank mode, press key then press
key to enter into function menu.
Press
1. / key to choose menu 35(A)/18(D), LCD show "BAK--".
Turn Channel switch to choose bank 0--9, press
2. key conrm
Rotate the channel switch clockwise to enter into desired memory bank.
3.
Note: When the bank linking is on, if no channel in the selected bank, radio will enter into the next linking bank.
When the bank linking is off, if no channel in the selected bank, current channel will be assigned to this bank.

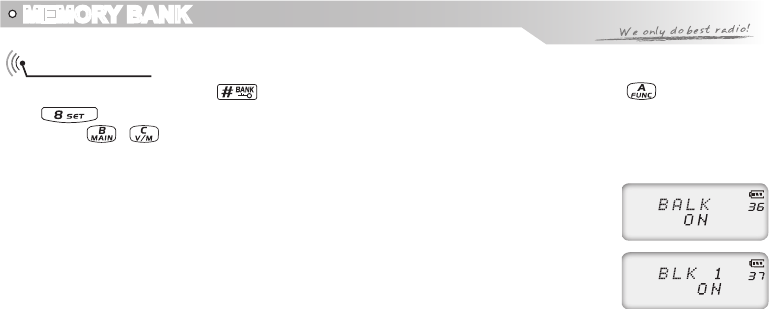

MEMORY BANK
When radio in memory bank mode, press
Bank linking
In channel mode, press 1. key twice to enter into memory bank mode, press key then press
key to enter into function menu.
Press
2. / key to choose menu 36(A)/19(D), LCD show "BALK".
ON: Turn on Bank linking.
The following menus allow adding or deleting banks.
Menu 37(A)/20(D) BANK LINK 1 ON/OFF
Menu 38(A)/21(D) BANK LINK 2 ON/OFF
Menu 39(A)/22(D) BANK LINK 3 ON/OFF
Menu 40(A)/23(D) BANK LINK 4 ON/OFF
Menu 41(A)/24(D) BANK LINK 5 ON/OFF
Menu 42(A)/25(D) BANK LINK 6 ON/OFF
Menu 43(A)/26(D) BANK LINK 7 ON/OFF
Menu 44(A)/27(D) BANK LINK 8 ON/OFF
Menu 45(A)/28(D) BANK LINK 9 ON/OFF
Menu 46(A)/29(D) BANK LINK 0 ON/OFF
OFF: Turn off Bank linking, hide menu 37-46(A)/20-29(D).
When bank linking is on, one or more banks can be added into scan list. In memory bank mode, enable the
0-9 will add or delete the corresponding memory bank.
MEMORY BANK
scanning function, radio will scan the channels in current bank. During scanning, long pressing key

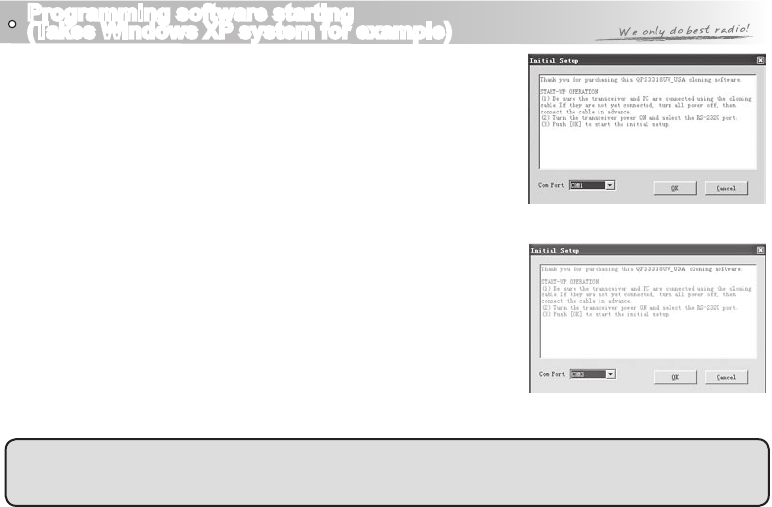

Programming software starting
(Takes Windows XP system for example)
(picture 1)
(picture 2)
1.Double Click "QPS3318UV_USA setup.exe", then go on installing as
computer command.
2.Click "START" menu of computer, choose "USB To COM" in QPS3318UV_
USA item and click it. Please install USB To Comport drive program as
computer command.
3.Please plug PC03 programming cable into USB port of PC device,
4.Double click "QPS3318UV_USA" shortcut icon, or click QPS3318UV_
USA item in "START" menu to open programming software interface.
5.Choose "COM Port" as computer command, then click "OK" to start
programming software.
NOTE:
should be connected to computer, otherwise the software can not run.
NOTE: In same computer, if programming cable plugs into different USB
port, the COM Port number is different.
situation is happened, please shut down programming software, remove
programming cable from computer, then re-plug cable into computer and
re-start programming software, re-choose COM Port, the programming
will work normally.
then connect to radio.
Before programming, radio should be turned on rstly.
Not turn on or turn off radio when it is connecting with computer,
otherwise it may cause radio not read or write data. If this
The programming software is attached with product identifying system. In first time run, the radio
General
Frequency Range
)
VHF：(RX) 220
)
FM
radio
FM: 64~108MHz(RX)
Channel Capacity 200 channels
Channel Spacing 12.5KHz
Phase-locked Step 0.1KHz
Operation Voltage 7.4V DC ±20%
Battery Life More than 12 Hours(1500mAh),
by 5-5-90 working cycle
Frequency Stability ±2.5ppm
Operation Temperature -20℃~ +55℃
Size 117.5x60x35.5mm (with battery)
Weight 235g (with battery)
TECHNICAL SPECIFICATION
Receiving Part
band
Sensitivity
(12dB SINAD) ≤0.35μV
Adjacent Channel
Selecitvity ≥60dB
Intermodulation ≥60dB
Spurious Rejection ≥70dB
Hum & Noise ≥40dB
Audio Distortion ≤5%
Audio Power Output 1000mW/10%
~260MHz
TROUBLE SHOOTING GUIDE
Problem Corrective Action
No power
A.The battery may be exhausting. Recharge or replace the battery.
B.The battery may not be installed correctly. Remove the battery
and install it again.
C.The power switch is broken; send it to local dealers to repair.
D.Battery touch is broken; send it to local dealers to repair.
Battery power dies shortly after
charging. The battery life is nished. Replace the battery pack with a new one.
Transceiver cannot scan The channels are not in scan list. (Professionals set it.)
All band noisy after programmed Turn on squelch when programmed. Non-professionals are advised
not rammed to adjust this function.
No sound after using earphone.
for a while Earphone jack is broken. Please contact with local dealers to repair.
Communication distance
becomes short, and Low
sensitivity
A.Check whether the antenna is in good conduction and the antenna
base do not come adrift.
B.Antenna connector is broken or not or with sundries. Whether it
has set in low power output. (Please contact with local dealers to
repair.)
Cannot talk or hear other
members in your group
A.Different frequency or channel, please change it.
B.Different CTCSS/DCS/DTMF, please reset it.
C.Out of communication range.
Can not power on or frequent
power off Check weather the battery touch is out of sharp or broken.
The receiving sound gets low or
intermittent
Check weather the MIC is stoppage. Otherwise, please contact with
local dealers to repair it.
Receiving intermittent with in big
noise
A.Out of communication range or obstruct by tall buildings or in big
noise.
B.450 lter is broken, Please contact with local dealers to repair.
Loudspeaker become lower or
with"ka ka"sound after using a
certain time
Check whether the loudspeaker is broken, Iron powder or sundries is
in the loudspeaker. Please contact with local dealers to repair.
Receive voice from the other
party but can not transmit Check [PTT] key.
Receiving indicator with green
light but no sound
A.Low volume, please clockwise to turn on.
B.Loudspeaker is broken, please contact with local dealers to repair.
C.Earphone jack is broken, please contact with local dealers to repair.
D.Volume switch is broken.
TROUBLE SHOOTING GUIDE
ATTACHED CHART
CTCSS Frequency Chart
1 62.5 12 94.8 23 136.5 34 177.3 45 218.1
2 67.0 13 97.4 24 141.3 35 179.9 46 225.7
3 69.3 14 100.0 25 146.2 36 183.5 47 229.1
4 71.9 15 103.5 26 151.4 37 186.2 48 233.6
5 74.4 16 107.2 27 156.7 38 189.9 49 241.8
6 77.0 17 110.9 28 159.8 39 192.8 50 250.3
7 79.7 18 114.8 29 162.2 40 196.6 51 254.1
8 82.5 19 118.8 30 165.5 41 199.5 52 user-dened
9 85.4 20 123.0 31 167.9 42 203.5
10 88.5 21 127.3 32 171.3 43 206.5
11 91.5 22 131.8 33 173.8 44 210.7
ATTACHED CHART
1024 groups DCS frequency chart
000 001 002 003 004 005 006 007
010 011 012 013 014 015 016 017
020 021 022 023 024 025 026 027
030 031 032 033 034 035 036 037
040 041 042 043 044 045 046 047
050 051 052 053 054 055 056 057
060 061 062 063 064 065 066 067
070 071 072 073 074 075 076 077
100 101 102 103 104 105 106 107
110 111 112 113 114 115 116 117
120 121 122 123 124 125 126 127
130 131 132 133 134 135 136 137
140 141 142 143 144 145 146 147
150 151 152 153 154 155 156 157
160 161 162 163 164 165 166 167
170 171 172 173 174 175 176 177
200 201 202 203 204 205 206 207
210 211 212 213 214 215 216 217
220 221 222 223 224 225 226 227
230 231 232 233 234 235 236 237
240 241 242 243 244 245 246 247
ATTACHED CHART
250 251 252 253 254 255 256 257
260 261 262 263 264 265 266 267
270 271 272 273 274 275 276 277
300 301 302 303 304 305 306 307
310 311 312 313 314 315 316 317
320 321 322 323 324 325 326 327
330 331 332 333 334 335 336 337
340 341 342 343 344 345 346 347
350 351 352 353 354 355 356 357
360 361 362 363 364 365 366 367
370 371 372 373 374 375 376 377
400 401 402 403 404 405 406 407
410 411 412 413 414 415 416 417
420 421 422 423 424 425 426 427
430 431 432 433 434 435 436 437
440 441 442 443 444 445 446 447
450 451 452 453 454 455 456 457
460 461 462 463 464 465 466 467
470 471 472 473 474 475 476 477
500 501 502 503 504 505 506 507
510 511 512 513 514 515 516 517
520 521 522 523 524 525 526 527
530 531 532 533 534 535 536 537
540 541 542 543 544 545 546 547
550 551 552 553 554 555 556 557
560 561 562 563 564 565 566 567
570 571 572 573 574 575 576 577
600 601 602 603 604 605 606 607
610 611 612 613 614 615 616 617
620 621 622 623 624 625 626 627
630 631 632 633 634 635 636 637
640 641 642 643 644 645 646 647
650 651 652 653 654 655 656 657
660 661 662 663 664 665 666 667
670 671 672 673 674 675 676 677
700 701 702 703 704 705 706 707
710 711 712 713 714 715 716 717
720 721 722 723 724 725 726 727
730 731 732 733 734 735 736 737
740 741 742 743 744 745 746 747
750 751 752 753 754 755 756 757
760 761 762 763 764 765 766 767
770 771 772 773 774 775 776 777
ATTACHED CHART
NOTE: N stands for positive code. I stands for inverted code. 1024 groups of DCS in total.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
