User Manual with RF Exposure based on Occupational Limits

FCC ID:T4KAT778V

We only do best radio!

Nice Housing, Stoutness & Stability, Advanced and Reliable functions, Perfect

company philosophy of innovation and practicality.

NOTE

When programming the transceiver, read the factory initial data rstly, then rewrite the frequency and signaling etc.,

otherwise errors may occur because of different frequency band etc..

AT-778 Mobile Radio Applicable Software: QPS778

& Valuable. AT 778 mobile radio especially designs for drivers and it pursues

Models Apply To This Manual: AT778 Mobile radio

Thank you for choosing this vehicle transceiver,

always provides high quality products, And this transceiver is no

exception. As you learn how to use this transceiver, you will find that

is pursuing "user friendliness". For example, each time you

change the menu no. in Menu mode, you will see a text message on the

display that lets you know what you are conguring.

Though friendly design for user, this transceiver is technically

complicated and some features may be new to you. Consider this

manual to be a personal tutorial from the designers, allow the manual to

guide you through the learning process now, then act as a reference in

the coming years.

Do not attempt to configure your transceiver while driving, it is

dangerous.

This transceiver is designed for a 13.8V DC power supply. Don't use

a 24V battery to power on the transceiver.

Do not place the transceiver in excessively dusty, humid or wet

areas, nor unstable surfaces.

Please keep it away from interferential

devices (such as TV, generator etc.).

Do not expose the transceiver to long

periods of direct sunlight nor place it close

to heating appliances.

If an abnormal odor or smoke is detected

coming from the transceiver, turn OFF the

power immediately. Contact an Anytone

service station or your dealer.

Do not transmit with high output power for extended periods; the

transceiver may overheat.

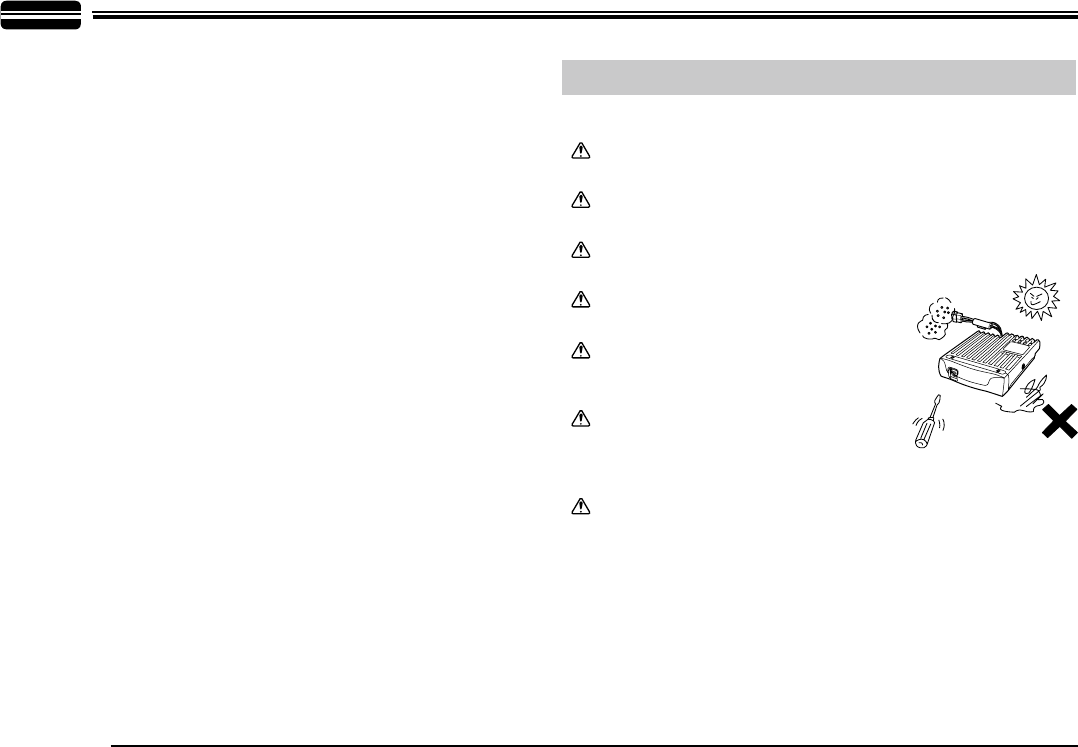

Please observe the following precautions to prevent re, personal injury,

or transceiver damage:

Precautions

mobile radio mobile radio

mobile radio

CONTENTS

New and Innovative Features ..............................................1

Supplied Accessories/Optional Accessories .....................2

Supplied Accessories ....................................................................... 2

Initial Installation ..................................................................3

Mobile Installation ............................................................................3

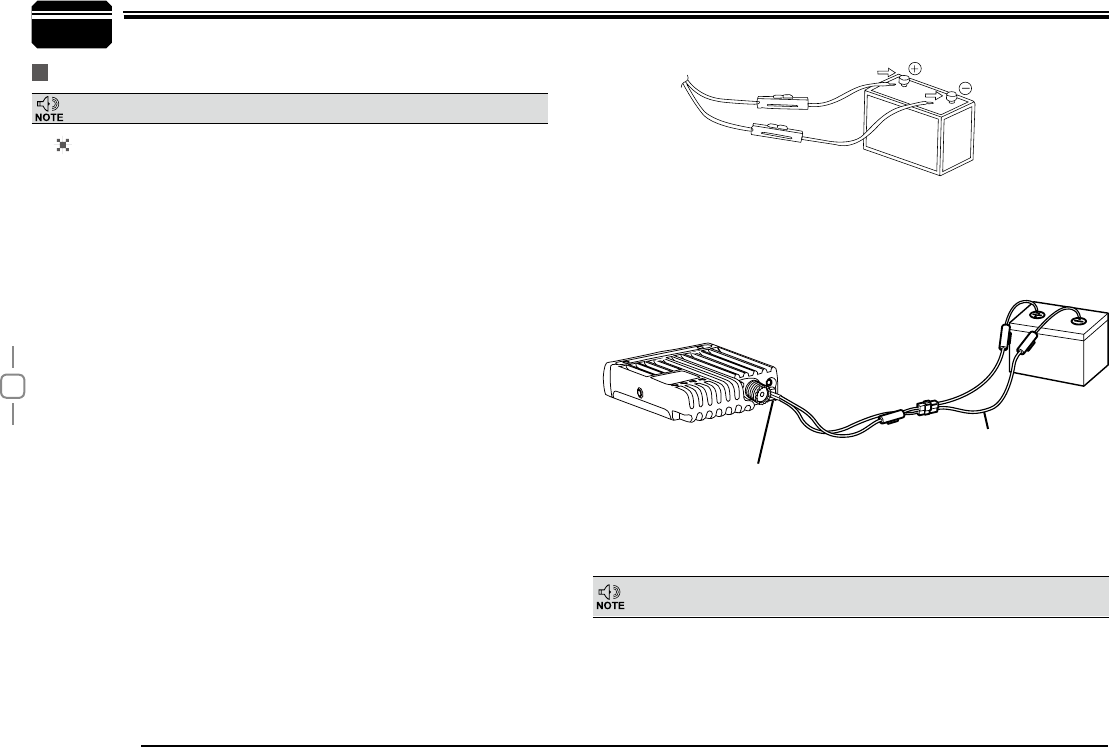

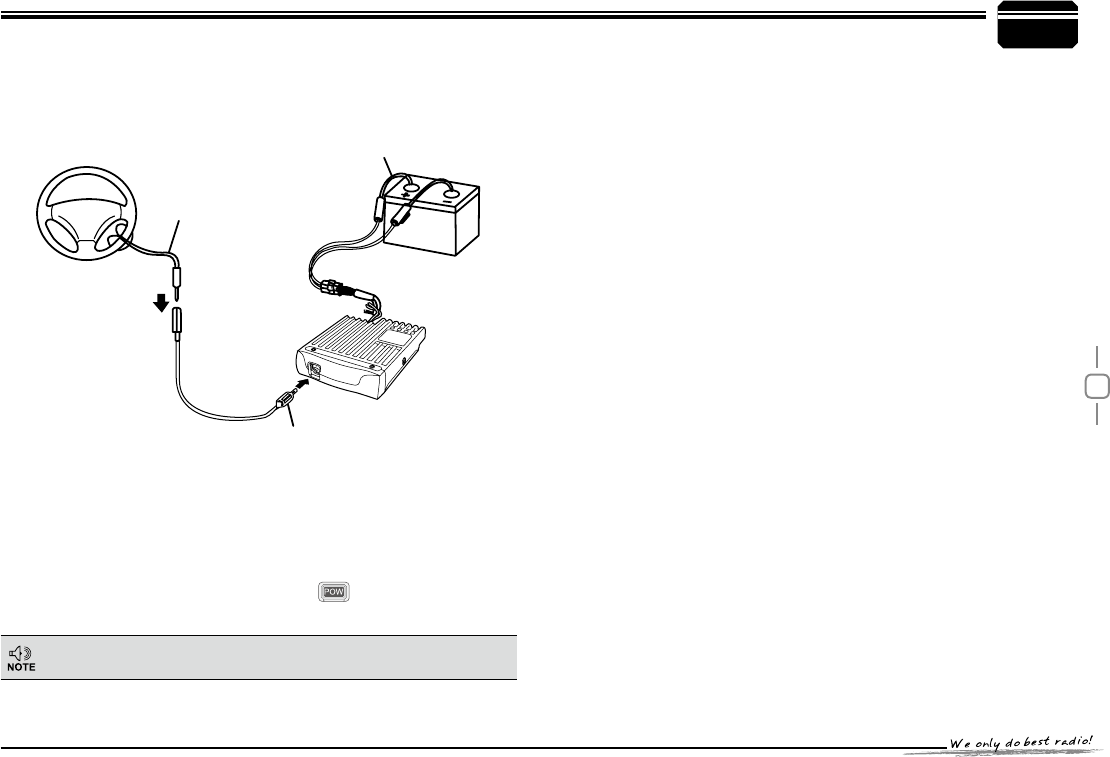

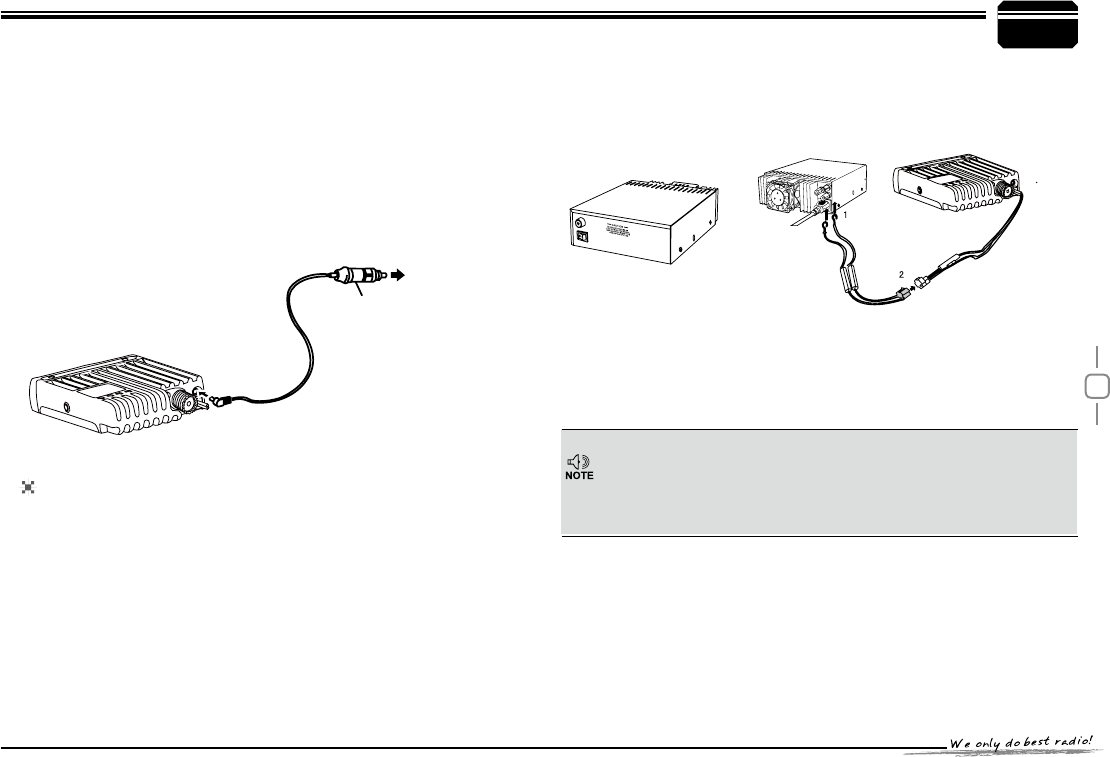

DC Power Cable Connection ...........................................................4

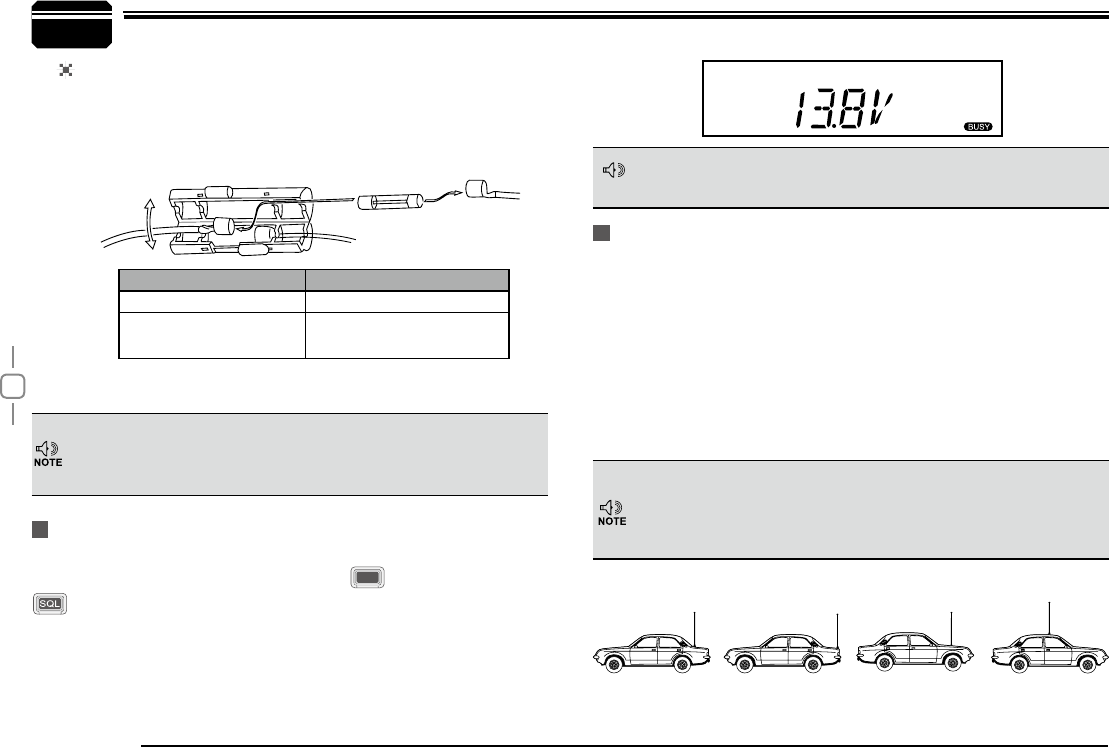

Power Supply Voltage Display ......................................................... 6

Antenna Connection ........................................................................6

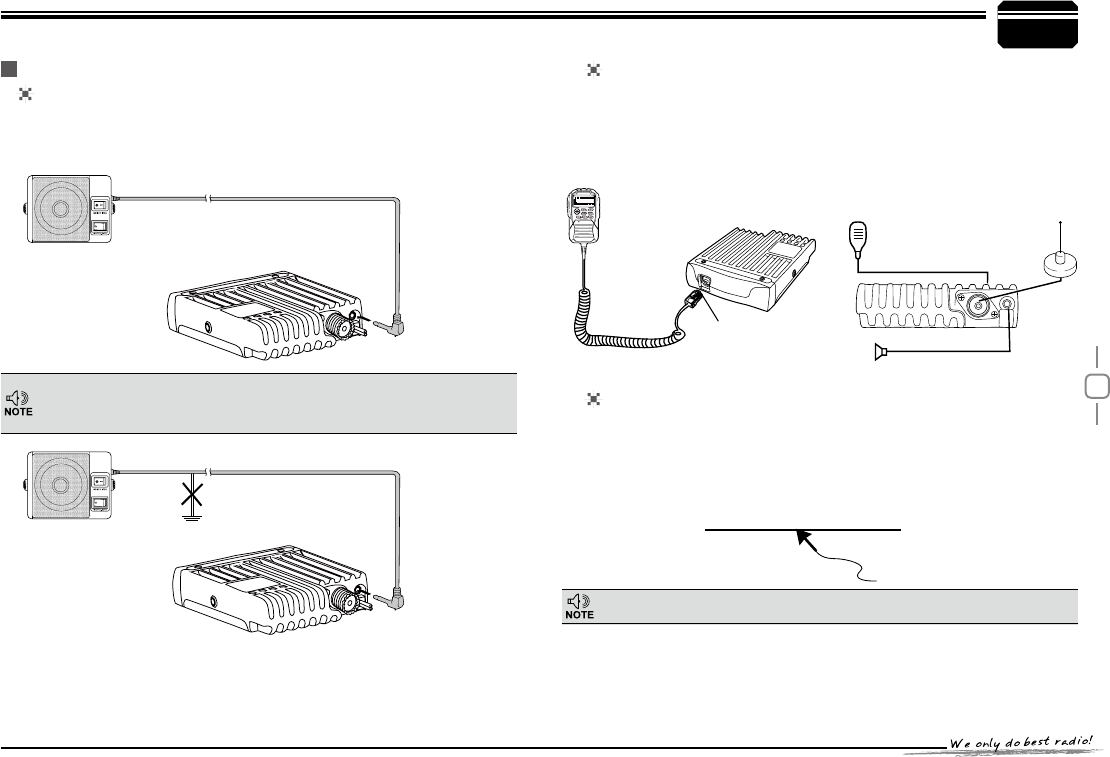

Accessories Connections .................................................................7

Getting Acquainted ..............................................................8

Front panel .......................................................................................8

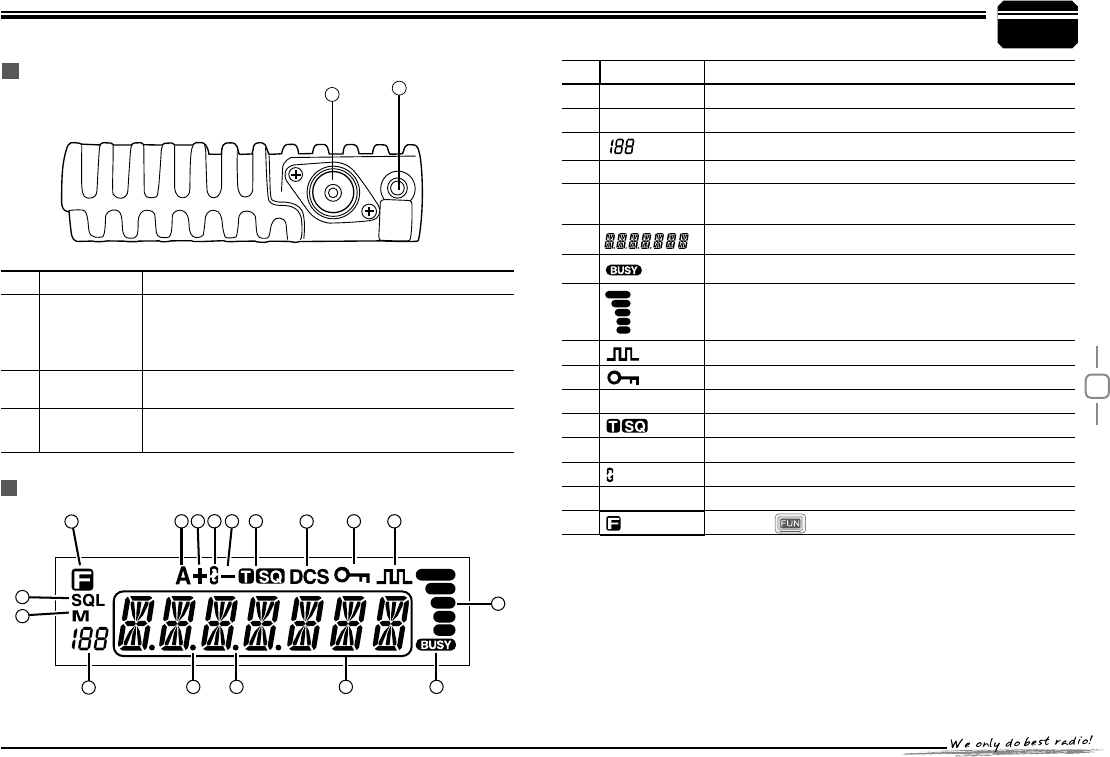

Rear panel .......................................................................................9

Display .............................................................................................9

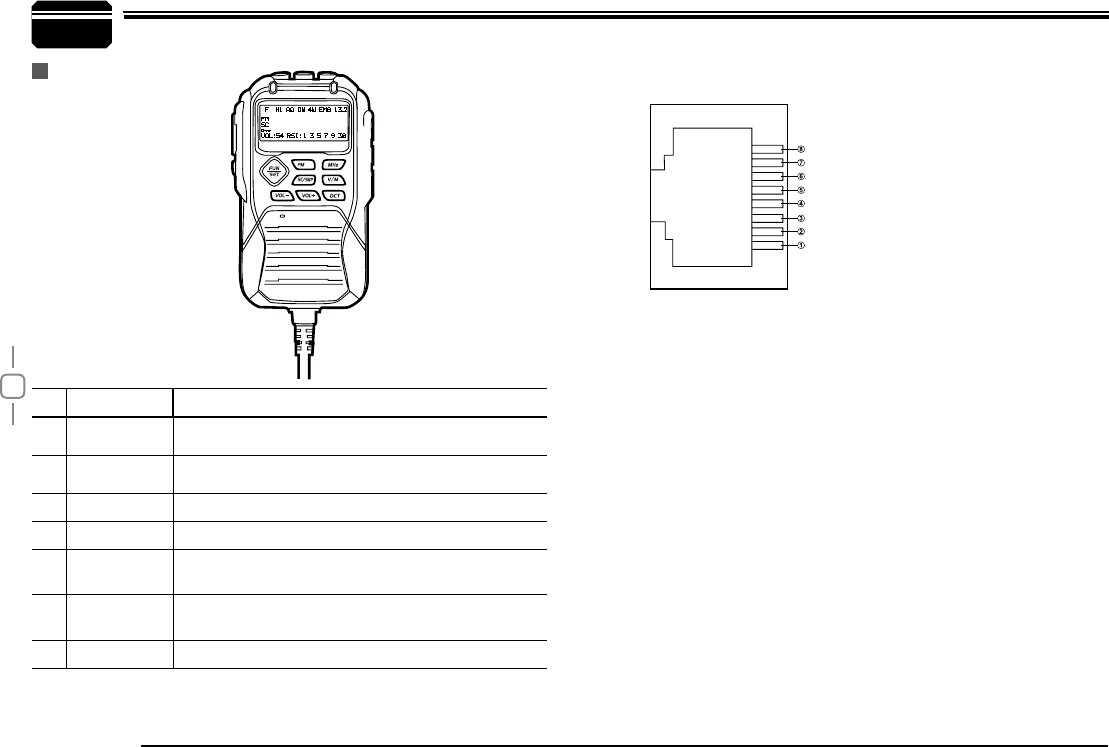

Microphone ......................................................................................10

Working Mode(Amateur Transceiver or Professional

Transceiver)

........................................................................11

Basic Operations .................................................................12

Switching the Power On/Off ............................................................12

Adjusting the Volume ......................................................................12

Switch between VFO and Channel mode ....................................... 12

Adjusting Frequency/Channel Through Selector Knob ....................12

Receiving .........................................................................................12

Transmitting .....................................................................................12

Transmitting Tone-Pulse ..................................................................13

Transmitting Optional Signaling ......................................................13

Channel Edit ....................................................................................13

Channel Delete ................................................................................13

Shortcut Operations .............................................................14

Squelch Off/Squelch Off Momentary................................................14

Squelch Level Setup ........................................................................14

Frequency/Channel Scan ................................................................14

Channel Scan ..................................................................................14

CTCSS/DCS Encode and Decode Setup ........................................14

CTCSS Scan ....................................................................................15

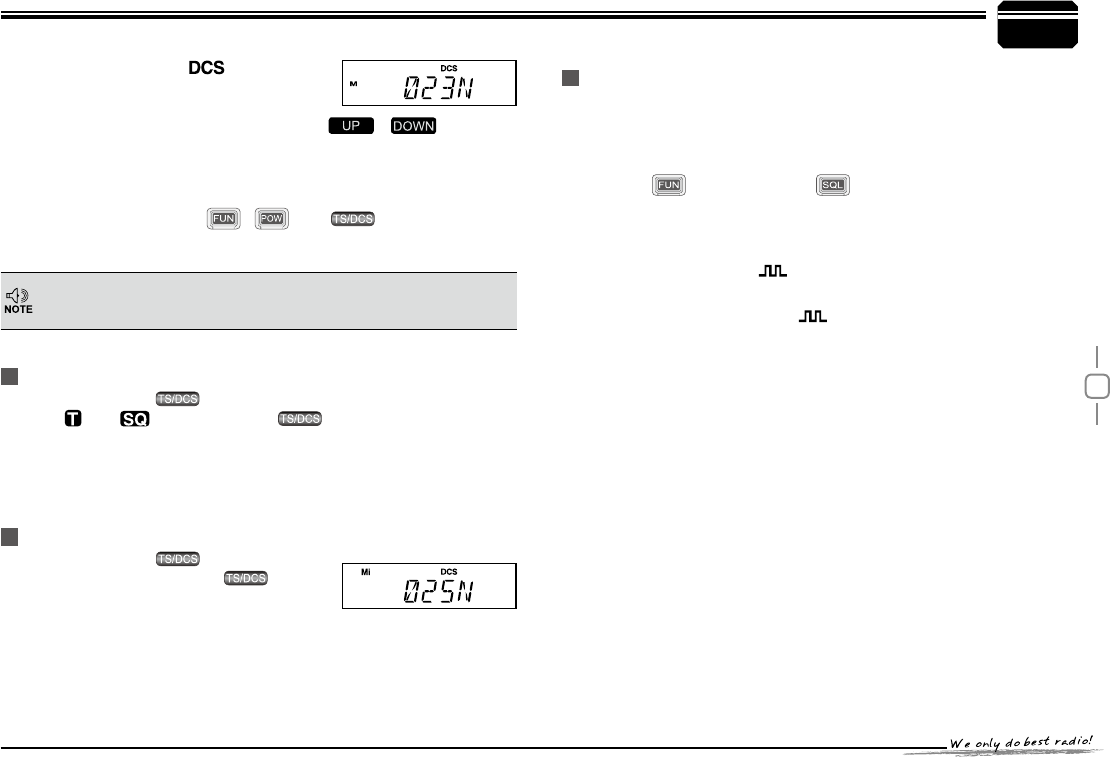

DCS Scan ........................................................................................15

Compander (Decrease the background noise and enhance audio

clarity

..................................................................................................15

Offset Direction and Offset Frequency Setup

..................................16

Keypad Lockout

...............................................................................16

Current Voltage Enquiry

...................................................................16

Auto-Dialer Setup

.............................................................................16

Transmitting Edited DTMF Tones in the Auto-dialer Memory

...........17

General Setting

.....................................................................18

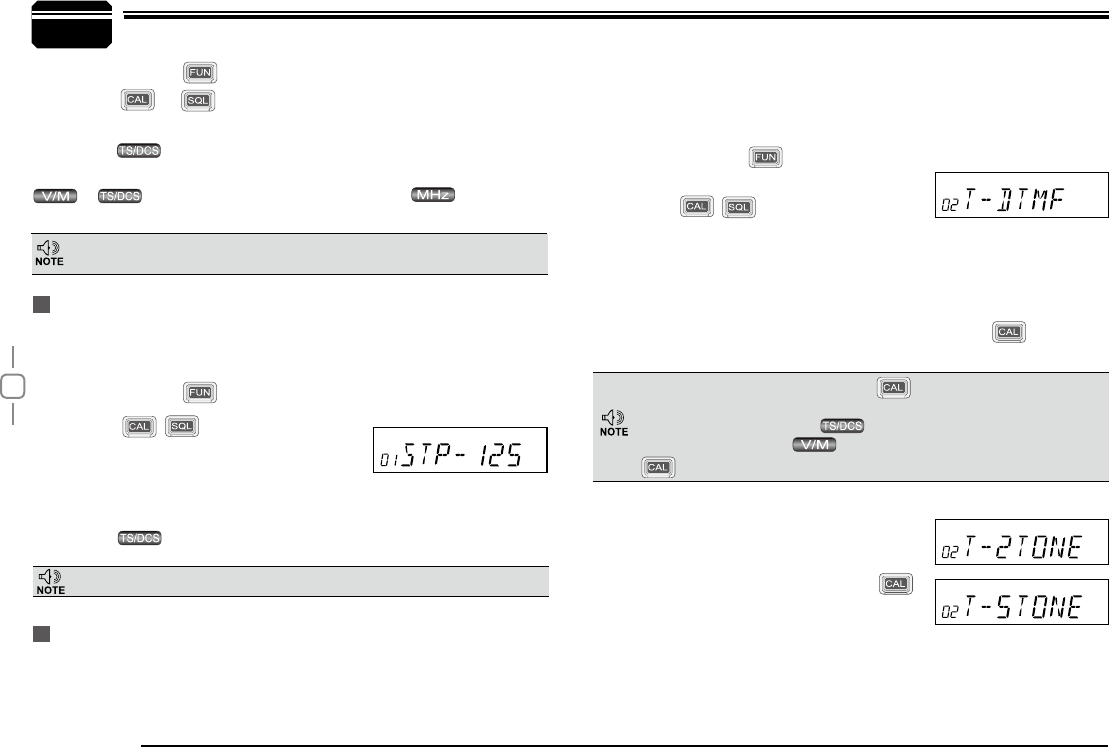

Frequency Channel Step Setup

.......................................................18

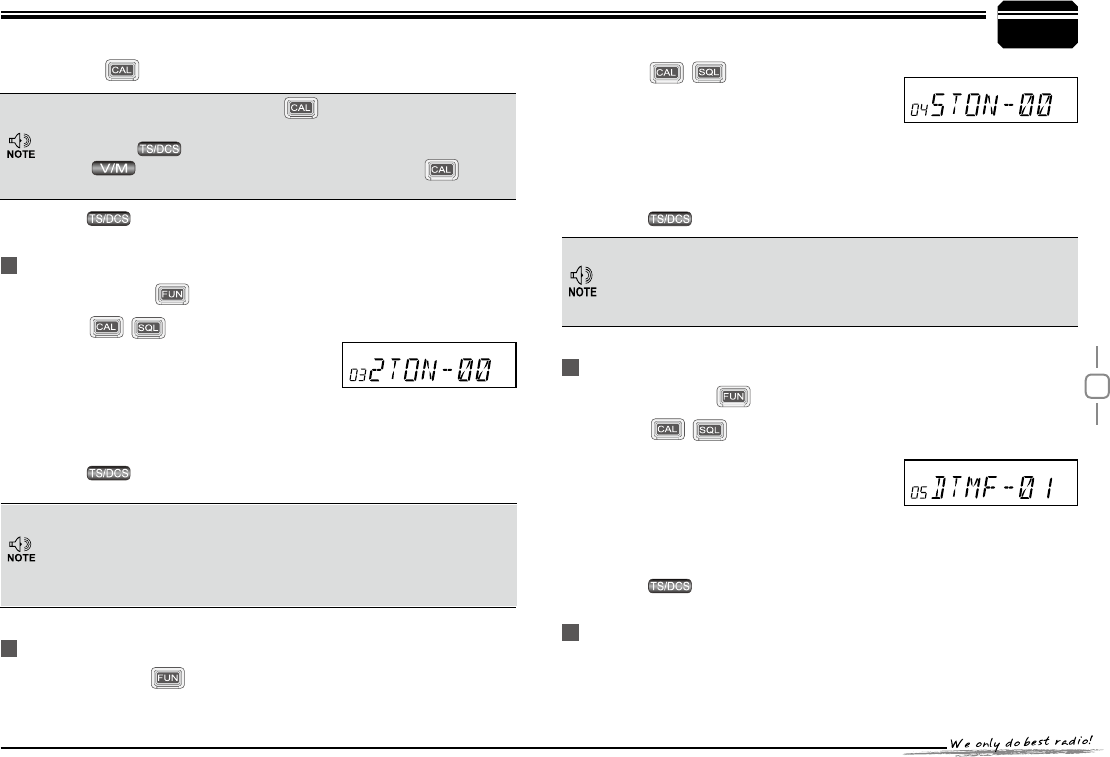

DTMF, DTMF ANI, 2Tone or 5Tone Signaling

..................................18

Sending 2-Tone Call

.........................................................................19

Sending 5-Tone Call

.........................................................................19

Sending DTMF call

..........................................................................19

Signaling Combination Setup

...........................................................19

CONTENTS

Band-width Selection .......................................................................20

TX OFF Setup ..................................................................................21

Busy Channel Lockout .....................................................................21

Editing Channel Name .....................................................................21

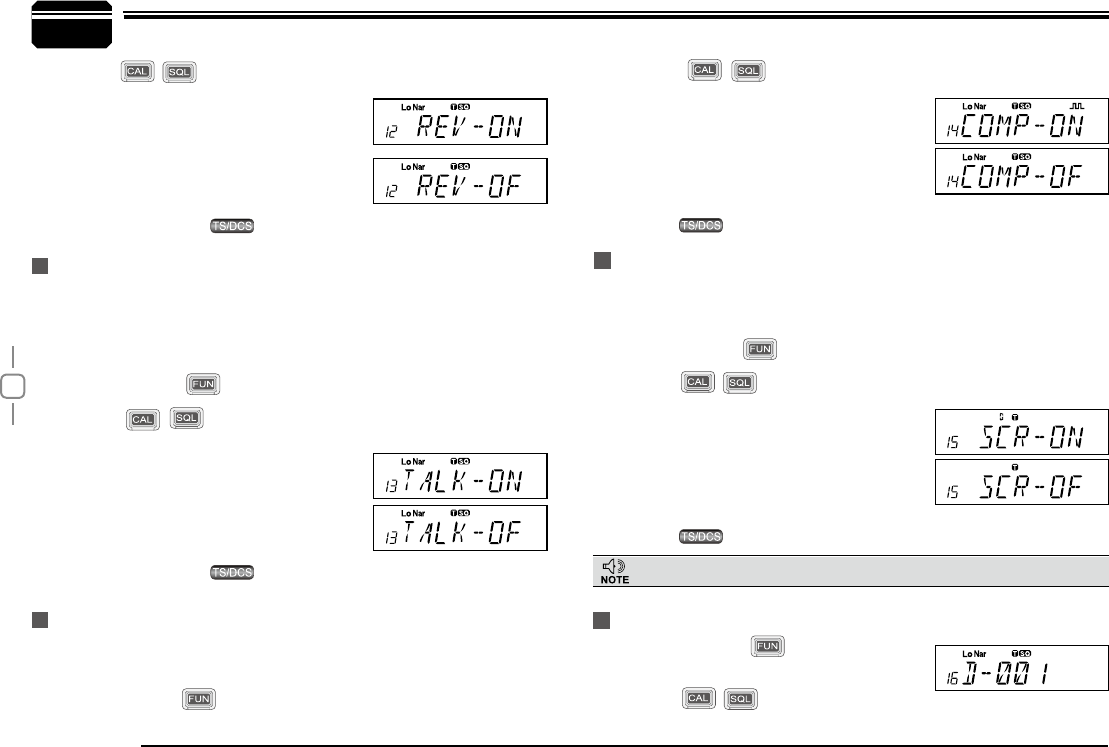

Reverse TX/RX ................................................................................21

Talk Around ......................................................................................22

Voice Compander ...........................................................................22

Scrambler Setup (Encryption) ..........................................................22

Radio's DTMF SELF ID ENQUIRY ................................................. 22

Radio's 5TONE SELF ID ENQUIRY ............................................... 23

Voice Prompt ....................................................................................23

TOT (Time-out timer) .......................................................................23

APO (Auto power off) .......................................................................23

DTMF Transmitting Time .................................................................. 24

Squelch Level Setup ........................................................................24

Scan Dwell Time Setup .................................................................... 24

LCD Backlight ..................................................................................24

Pilot Frequency ................................................................................25

Display Mode Setup .........................................................................25

PIN Setup ........................................................................................25

Address List ....................................................................................26

Factory Default .................................................................................26

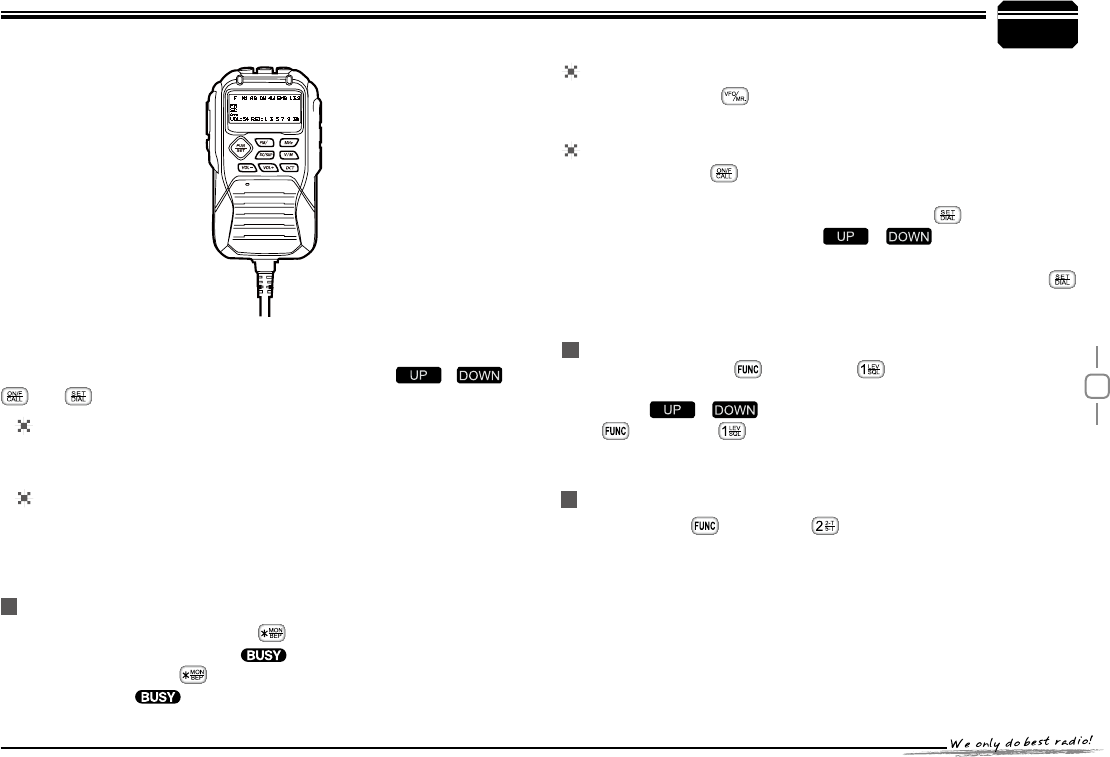

Microphone Operation .........................................................27

Function Setup By Microphone Keypad ...........................................27

Squelch Level ..................................................................................27

Optional Signaling ...........................................................................27

Scan Skip ........................................................................................28

Frequency/Channel Scan ...............................................................28

Busy Channel Lockout .....................................................................28

Reverse TX/RX ................................................................................28

TOT (Time-out timer) ........................................................................29

CTCSS/DCS Encode and Decode ...................................................29

Talk Around .....................................................................................29

Voice Prompt ....................................................................................29

LCD Backlight

.................................................................................30

Long-distance Anti-theft Alarm

..........................................31

Cable Clone

..........................................................................32

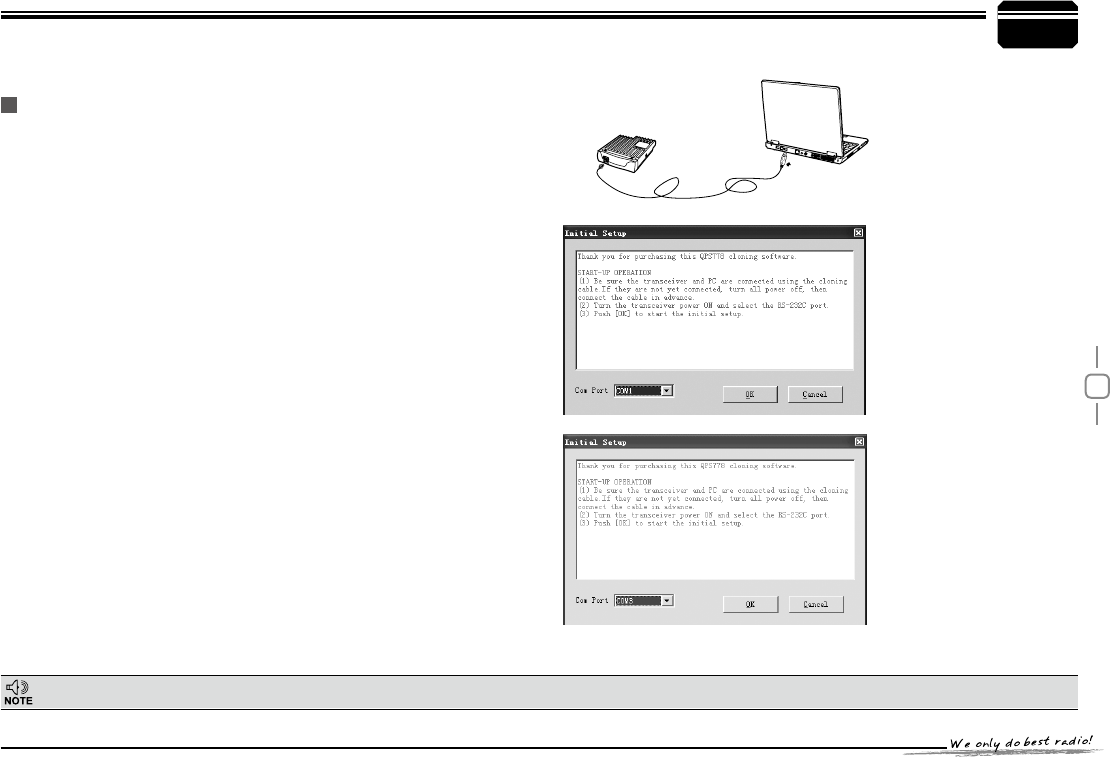

Programming Software Installing and Starting (in windows

XP system)

............................................................................33

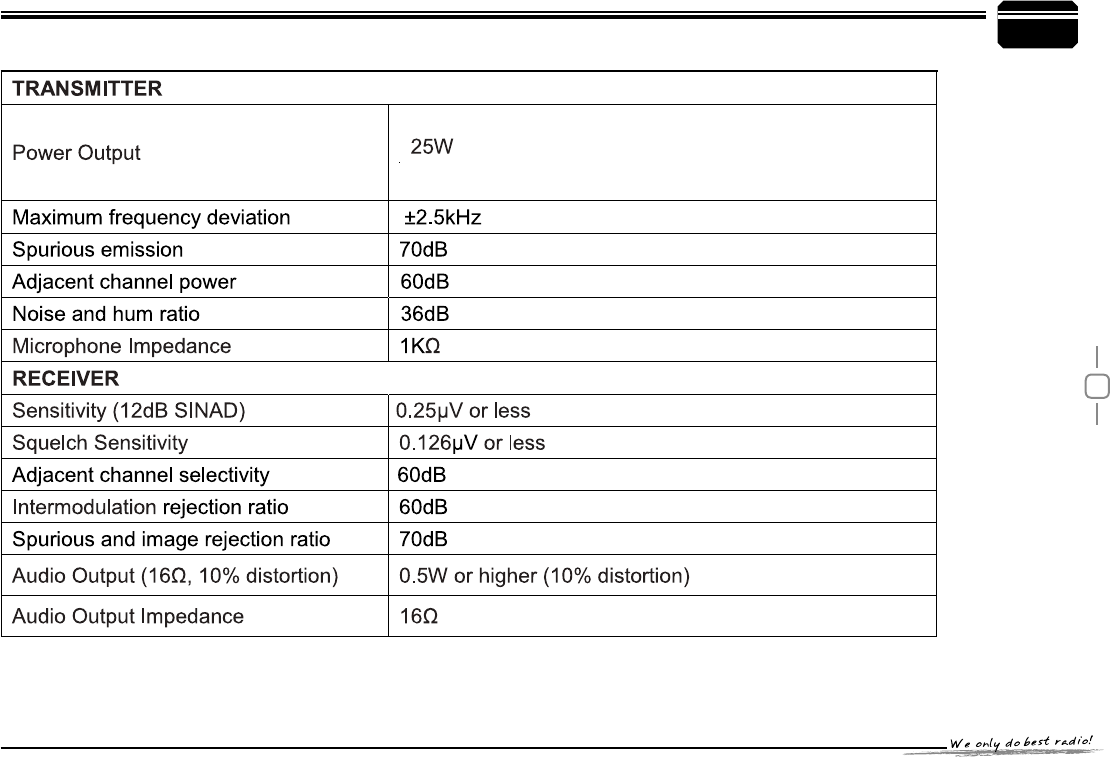

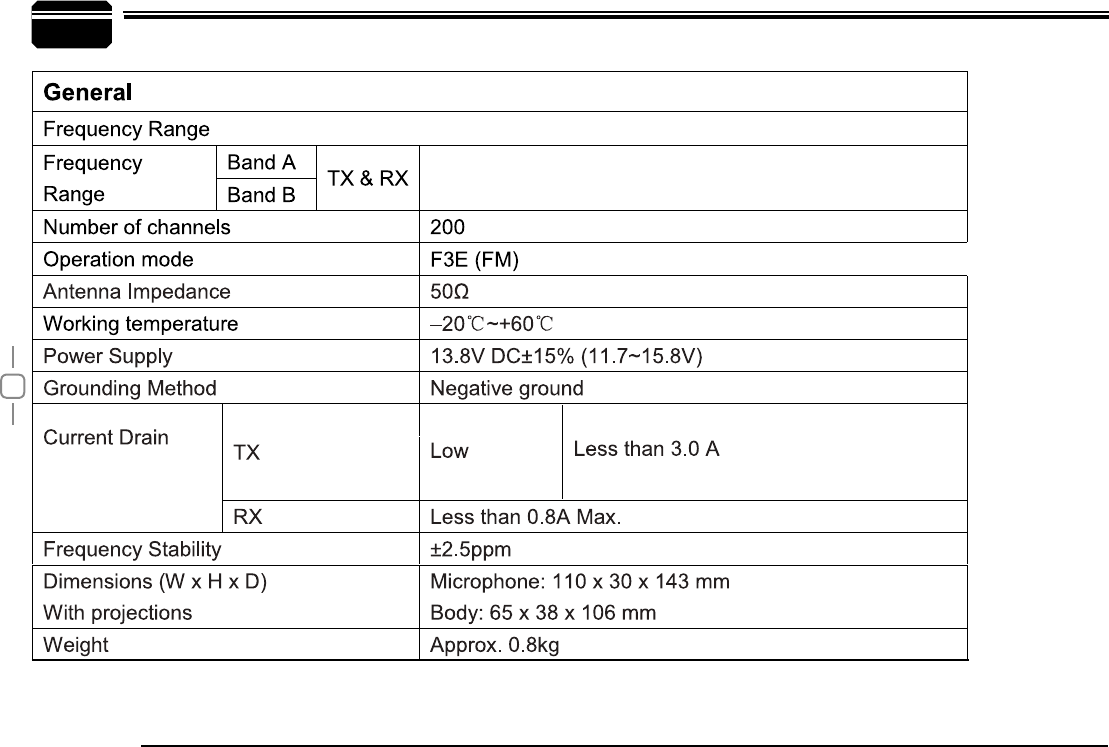

Specications

.......................................................................34

Attached Chart

......................................................................36

50 groups CTCSS Tone Frequency(Hz)

..........................................36

1024 groups DCS Code.

..................................................................36

New and Innovative Features

stability, advanced and reliable functions, perfect & valuable. This amateur mobile radio especially

designs for drivers and it pursues company philosophy of innovation and practicality. More functions as follows:

Display on a large LCD with adjustable brightness, convenient for nighttime use.

There are Amateur operation mode and Professional

operation mode for option.

Distribute buttons reasonably, convenient for operation. Adopt superior quality material, better technology and high quality radiator to ensure



stable and durable operation.

200 programmable memorized channels, identied by editing name.



Programming different CTCSS, DCS, 2Tone, 5Tone in per channel, rejecting extra calling from other radios.



Various scan functions including CTCSS/DCS Scan function.



Using

 5Tone to send Message, Emergency alarm, Call all, ANI, Remotely kill, Remotely Waken, etc.

Automatic

calling Identication function by DTMF--ANI or 5Tone--ANI .

Scramble function (Optional).



Compander function for decrease the background noise and

enhance audio clarity, it can set compander ON/OFF per channel.

Theft alarm provides extra safety.



AT 778 Mobile Radio has nice housing, stoutness &

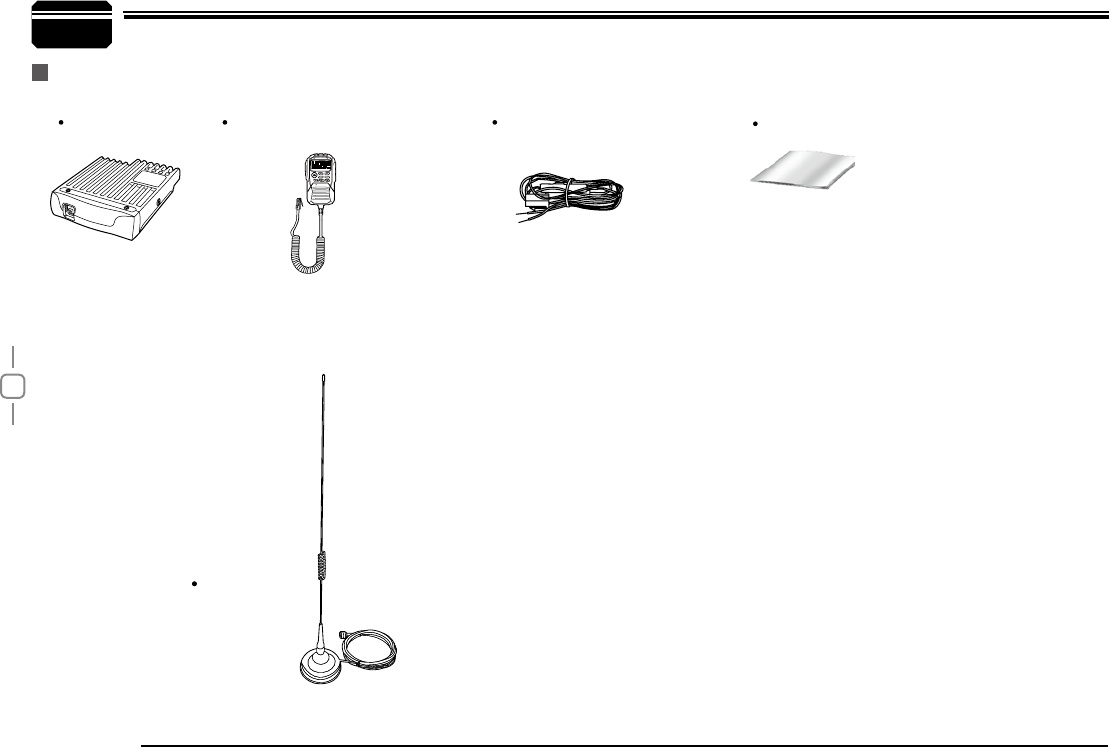

Supplied Accessories

After carefully unpacking the transceiver, identify the items listed in the table below. We suggest you keep the box and packaging.

Transceiver User Manual

Microphone (QHM-03)

(with DTMF keyboard)

DC Power Cable with

Fuse Holder(QPL-01)

Supplied Accessories

Car Antenna

(QCA-01)

Car Antenna

(QCA-01)

Antenna Gain:0dBi

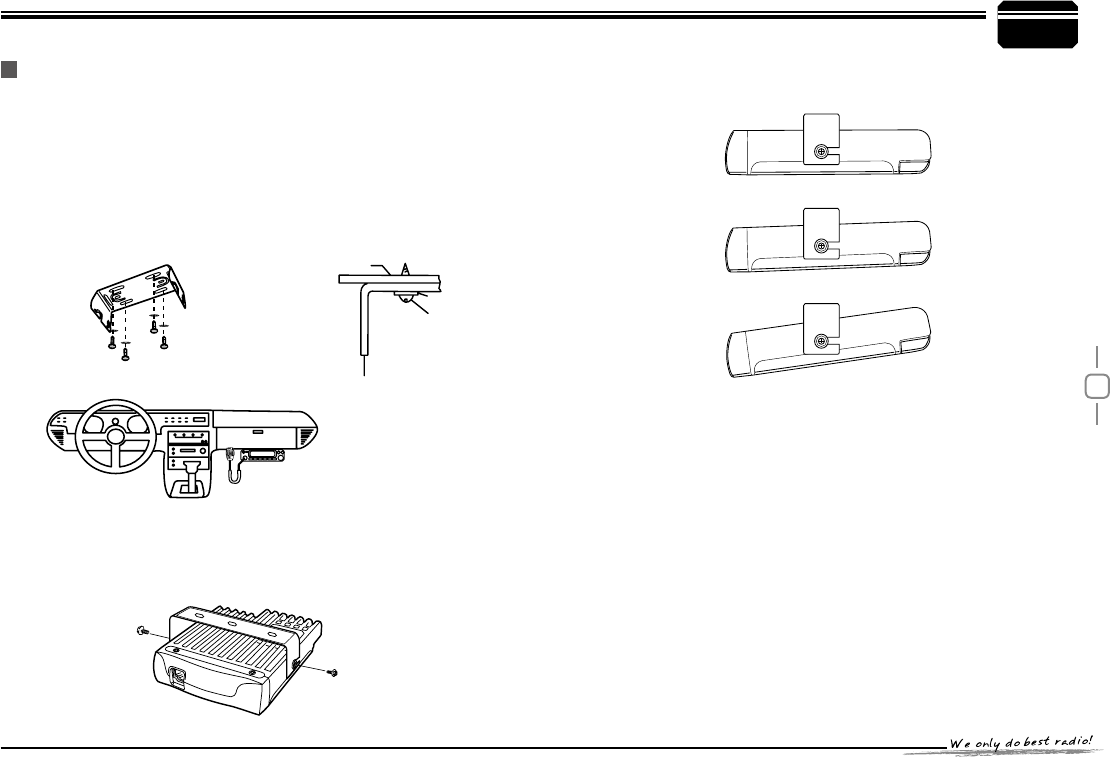

To install the transceiver, select a safe, convenient location inside your

vehicle that minimizes danger to your passengers and yourself while the

vehicle is in motion. Consider installing the unit at an appropriate position

so that knees or legs will not strike it during sudden braking of your

vehicle. Try to pick a well ventilated location that is shielded from direct

sunlight.

Install the mounting bracket in the vehicle using the supplied self-

tapping screws (4pcs) and at washers (4pcs).

Position the transceiver, then insert and tighten the supplied

hexagon SEMS screws.

Double check that all screws are tightened to prevent vehicle



vibration from loosening the bracket or transceiver.

Car body

Washer (M5)

Tapping screw

(M5x20mm)

Mounting bracket

Initial Installation

Mobile installation Determine the appropriate angle of the transceiver, using the 3 screw



hole positions on the side of the mounting bracket.

Connect the DC power cable to the transceiver's power supply

connector.

Press

the connectors rmly together until the locking tab clicks.

If the ignition-key on/off feature is desired(optional feature), use the

Red

Black

Ext. Power jack

DC power cable

Initial Installation

DC Power Cable Connection

Mobile Operation

In many cars,the cigar-lighter plug is always powered. If this is the case, you

cannot use it for the ignition key on/off function.

The vehicle battery must have a nominal rating of 12V. Never

connect the transceiver to a 24V battery. Be sure to use a 12V

vehicle battery that has sufficient current capacity. If the current

to the transceiver is insufficient, the display may darken during

transmission, or transmitting output power may drop excessively.

When the ignition key is turned to ACC or ON(Start) position with

the radio turned off, the power switch illuminates. The illumination

will be turned off when the ignition key is turned to the off position.

Route the DC power cable supplied with the transceiver directly

to the vehicle's battery terminals using the shortest path from the

transceiver.

We recommend you do not use the cigarette lighter socket as

 some

cigarette lighter sockets introduce an unacceptable voltage drop.

The entire length of the cable must be dressed so it is isolated from



heat, moisture, and the engine secondary (high voltage) ignition

system/ cables.

After installing cable, in order to avoid the risk of damp, please

use heat-resistant tap to tie together with fuse box. Don't forget to

reinforce whole cable.

In order to avoid the risk of short circuit, please cut down

connection with negative (-) of battery, then connect with radio.

Confirm the correct polarity of the connections, then attach the

power cable to the battery terminals; red connects to the positive (+)

terminal and black connects to the negative (-) terminal.

Use the full length of the cable without cutting off excess even if

 the

cable is longer than required. In particular, never remove the fuse

holders from the cable.

Reconnect any wiring removed from the negative terminal.

optional QCC-01(For Cigar-Plug connection) cable. Connect one of

the cables between the ACC terminal or a Cigar-Plug that operates

with the vehicle ignition or ACC switch on the vehicle and EXT

POWER jack on the rear side of the unit.

Locate the power input connector as close to the transceiver as possible.

Red

Black

Regulated power supply (QRP-01)

DC power cable with fuse holder (QPL-01)

Regulated

power supply

(QRP-01)

Ext. Power jack

ACC terminal

Cigar-Plug connection

Initial Installation

Before connecting the DC power to the transceiver, be sure to switch



the transceiver and the DC power supply OFF.

Do not plug the DC power supply into an AC outlet until you make all



connections.

In order to use this transceiver for fixed station operation, you will

need a separate 13.8V DC power supply (not included), power

supply( QRP-01) as optional accessories. Please contact local dealer

to require.

The recommended current capacity of your power supply is 12A.

Connect the DC power cable to the regulated DC power supply

and ensure that the polarities are correct. (Red: positive, Black:

negative).

Do not directly connect the transceiver to an AC outlet.



Use the supplied DC power cable to connect the transceiver to a



regulated power supply.

Do not substitute a cable with smaller gauge wires.



To turn on the unit, press the power switch manually while it is

illuminated. (While ignition key is at ACC or ON position)

When the ignition key is turned to ACC or ON position with the

radio's power switch on, the unit turns on automatically and the

power switch will be lit. Turn the ignition key to OFF position or

manually turn the power switch off to shut down the radio.

Using extra cable, power consumption:5MAH.

Without this function, user can turn on/off radio by Power knob.

10.

Connect the transceiver's DC power connector to the connector

2. on

the DC power cable.

Press the connectors rmly together until the locking tab clicks

.

Fixed Station Operation

The EUT can be used on vehicle.

3Initial Installation

REPLACING FUSES

If the fuse blows, determine the cause, then correct the problem.

After the problem is resolved, replace the fuse. If newly installed fuses

continue to blow, disconnect the power cable and contact your autho-

rized dealer or an authorized servi-

cecenter for assistance.

Only use fuses of the specified type and rating, otherwise the

transceiver could be damaged.

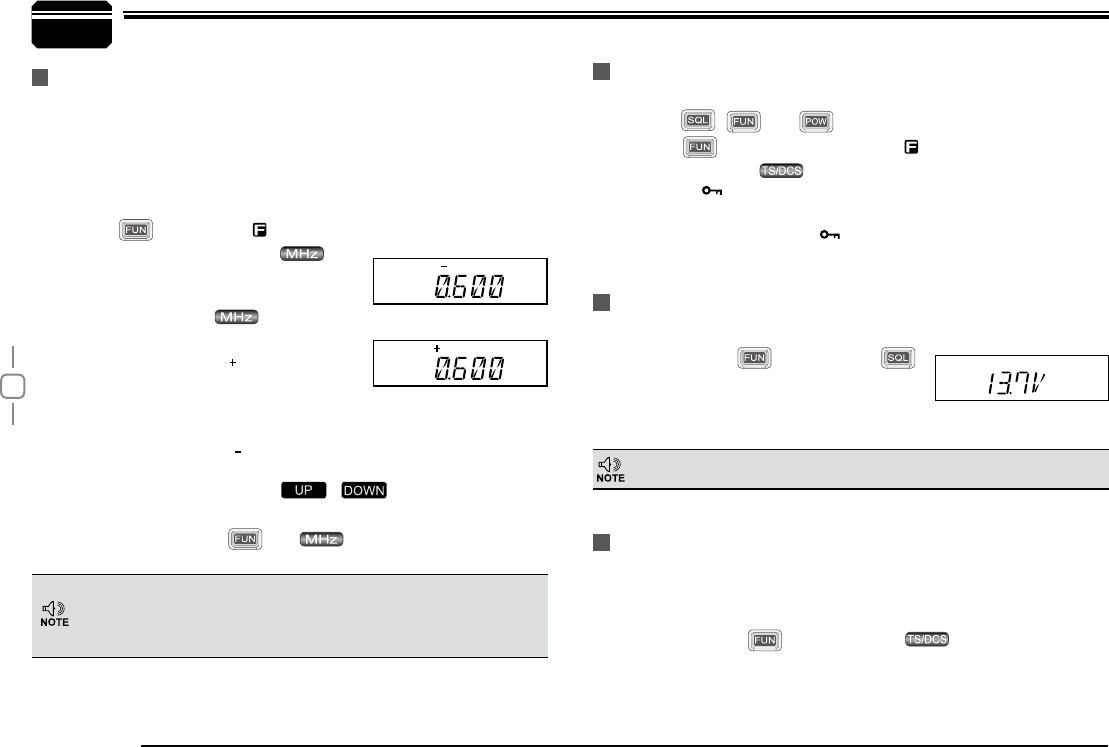

After connecting the transceiver to the power supply, the supply voltage

can be displayed on LCD by pressing the FUN key together with the

key.

The display immediately changes as the voltage supply changes, It also

displays voltage during transmission.

The transceiver will return to its normal operation when the power is

switched ON or repeat above operation.

Before operating, install an efcient, well-tuned antenna. The success of

your installation will depend largely on the type of antenna and its correct

installation. The transceiver can give excellent results if the antenna

system and its installation are given careful attention.

Use a 50Ω impedance antenna and low-loss coaxial feed-line that

has a characteristic impedance of 50Ω, to match the transceiver input

impedance. Coupling the antenna to the transceiver via feed-lines having

an impedance other than 50Ω reduces the efficiency of the antenna

system and can cause interference to nearby broadcast television

receivers, radio receivers, and other electronic equipment.

Fuse Location Fuse Current Rating

Transceiver 15A

Supplied Accessory DC

power cable 20A

If you use the transceiver for a long period when the vehicle battery is

not fully charged, or when the engine is OFF, the battery may become

discharged, and will not have sufcient reserves to start the vehicle. Avoid

using the transceiver in these conditions.

The range of displayed voltage is only from 7V to16V DC, because the

displayed value is estimated, please use a voltmeter when a more precise

reading is desired.

Power supply voltage Display

Antenna Connection

Important

Transmitting without first connecting an antenna or other matched

load may damage the transceiver. Always connect the antenna to the

transceiver before transmitting.

All xed stations should be equipped with a lightning arrester to reduce

the risk of re, electric shock, and transceiver damage.

The possible locations of antenna on a car are shown as following:

mobile radio mobile radio

SP-01

SP-01 Ground

Microphone

connector

Microphone [QHM-03] Antenna

[QCA-01]

External speaker [SP-01]

Error

http://www.qxdz.cn

Initial Installation

External Speaker

Microphone

PC Connecting

If you plan to use an external speaker, choose a speaker with an

impedance of 8Ω. The external speaker jack accepts a 3.5mm (1/8")

mono (2-conductor) plug.

For voice communications, connect a microphone equipped with an

8-pin modular plug into the modular socket on the front of the main

unit. Press rmly on the plug until the locking tab clicks. Attach the

supplied microphone hanger in an appropriate location using the

screws included in the screw set.

To utilize the optional QPS-778 software, you must rst connect the

transceiver to your PC then using an optional programming cable

PC50 (via Data socket ).

Please use QPS-778 software for programming.

External speaker adopt double port BTL, please care about the connecting

way. The speaker can not connect with the ground, otherwise the speaker

will be fault. The wrong connecting way as the following picture.

Ask your dealer about purchasing a Programming Cable PC50.

Accessories Connections

145.0000

NO. KEY FUNCTION

1Pow(Power) Power on/Off

2VOL Adjust Volume Key

3Main Dial Change frequency, memory channel and scan

direction etc.

4FUN/SET Function Key

5V/M/MW Switches between VFO mode and Channel

mode

6MHz/SHIFT Step Size Key ( step:1MHz)

7TS/DCS/LOCK Sets CTCSS and DCS value

8Call key

9SQL/D Squelch off

10 Data Terminal Data reading/writing, cloning and theft alarm

functions

11 TX lights during Transmitting

12 Mic.connector Microphone connection port

NO. KEY FUNCTION

4FUN/SET Conrms the selective functions and exit

5V/M/MW Stores data into channels

6MHz/SHIFT Sets offset direction and offset frequency

7TS/DCS/LOCK Sets Keypad lock function

9SQL/D Compander mode on/off

NO. KEY FUNCTION

Pow(Power)

Reset to factory default settings

5V/M/MW Erase the memory

7TS/DCS/LOCK Auto dialer

Enters clone data function mode

9SQL/D Enters power supply voltage indication mode

NO. KEY FUNCTION

4FUN/SET Press and hold for 2s to enter the Setting

mode

9SQL/D Monitor mode

Getting Acquainted

Front panel Press key until icon appears then press the following

key.

Press key and following key together to activate

following function:

Functions that require continuous pressing following key

to be activated

Basic Functions

CAL

NO. KEY FUNCTION

1Ext. Power

Jack

Terminal for connecting optional cable QCC01 for

use with ignition key On/Off function.

The radio will auto power on when car is driving.

The radio will auto power off when car stops.

2Ext.Speaker

Terminal Terminal for optional external speaker SP01

3Antenna

Connector Connection for 50Ω coaxial cable and antenna.

NO. KEY FUNCTION

1 SQL Squelch level.

2 MIn channel mode.

3 Indicates the channel number in channel mode.

4Decimal point

Channel skip.

5Decimal point Indicates the decimal point of frequency and the

scanning function.

6 Indicates the frequency or memory name.

7Signal is being received or monitor.

8Signal strength of receiving and transmitting.

9Compander.

10 Keypad lock .

11 DCS Set DCS function.

12 Set CTCSS function.

13 + _Offset frequency direction.

14 Scramble.

15 A Auto power off.

16 Pressing key.

Getting Acquainted

DISPLAY

Rear panel

13 10

4567

19 13

NO. KEY FUNCTION

1UP Increase frequency, channel number or setting value.

2DOWN Decrease frequency, channel number or setting value.

3PTT Press the PTT (Push-TO-Talk) key to transmit.

4Number Key Input VFO frequency or DTMF dial out etc..

5DTMF ON/

OFF Switches between DTMF dialing or function operating.

6LOCK Switch Locks out the UP、Down、Numerical keys and Function

keys.

7MIC Speak here during transmission.

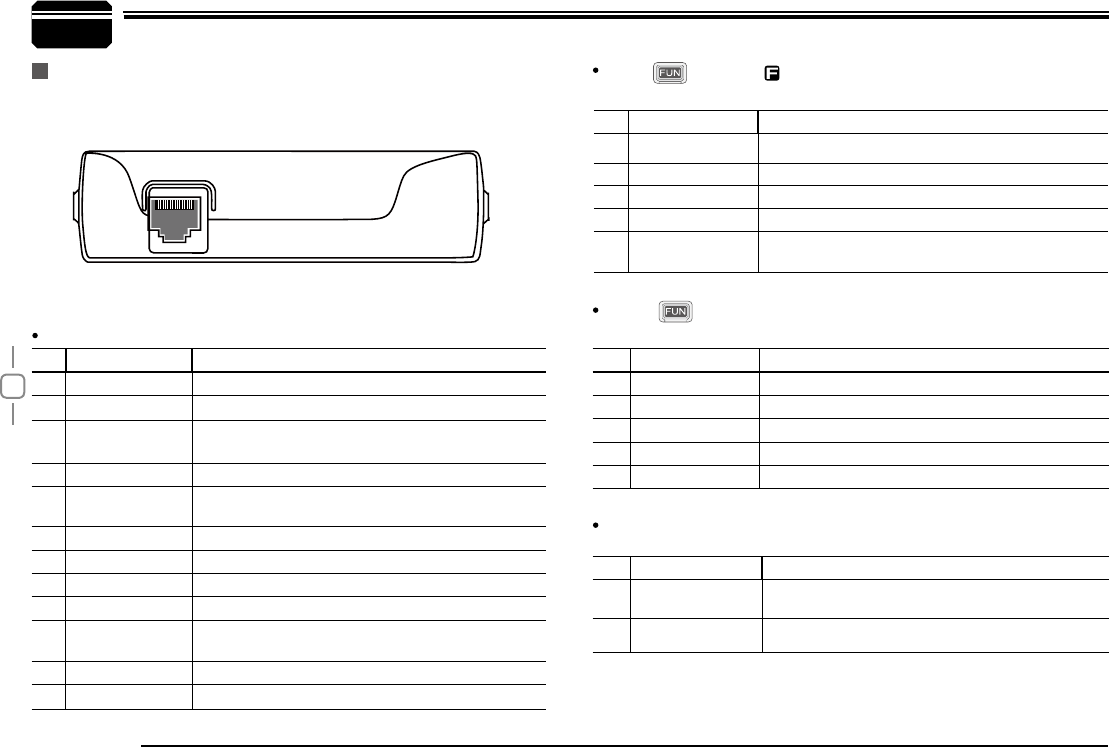

Key Pad Serial Data

+5V

DOWN

MIC GND

MIC

PTT

GND

microphone MIC Connector Diagram(in the front view of connector)

Getting Acquainted

According to practical application, you can set the radio works as

Amateur Transceiver mode or Professional Transceiver mode. There

are also 2 levels operation menu to set functions as you need. It is easy

and convenient (From No.1 to No.15 are channel function setup, From

No.15 to No.29 are general setting setup).

Working Mode:

By programming software: A. In PC software's "General Setting"

menu, choose "Display Mode" to select Amateur Transceiver

mode or Professional Transceiver mode.

By manual setupB. : Please refer to "Display Mode" in Page 25.

Amateur Transceiver Mode:

2. Except setting as "CH" mode, others

considered as Amateur transceiver mode. Under this mode, press

key to switch between Channel mode and VFO mode .

Professional Transceiver Mode:

3. When

set display mode as "CH", it enters

into Professional Transceiver mode.At

this mode, except scan, other shortcut

operation can't operate. And from No.1-

17 menu in function setting will be

auto-hidden, they should be set by PC

software.If there is corresponding name

for current channel, the LCD will display

current channel name Otherwise, it

shows current channel number. (As pic 4) (As pic 5)

Under every mode, from No.18-29 menu in

4. general setting can be

changed and saved.

VFO Mode(Frequency mode)C. :

This mode shows only frequency on

the display. Shortcut operation and

Channel setting will be changed &

stored as the latest value permanently.

Once the radio is turned off or

changed to new VFO frequency, the latest setting is remained

If transceiver programmed as professional transceiver mode and

locked, you can't return to amateur transceiver mode by manual

operation from general setting.

(Pic 4)

(Pic 5)

Frequency + Channel modeA. : When set display as "FR", it

enters into Frequency+Channel

mode, new setting of channel

operation and shortcut operation can

be temporarily used by user. Once

the radio is turned off or switched

to another channel, the temporary

Channel+Name Tag ModeB. : When set display as "NM", it enters

into Channel+Name Tag mode. At this mode, it will display

corresponding channel name when

the current channel is edited with

name. Otherwise, it will display

frequency+channel. Its operations

are the same as frequency + channel

WORKING MODE (AMATEUR TRANSCEIVER OR PROFESSIONAL TRANSCEIVER)

setting will be erased and back to initial settings.

mode.

until next change.(

In standby, press key or Microphone's

key until appear , this indicates current

channel in channel mode. Repeat above

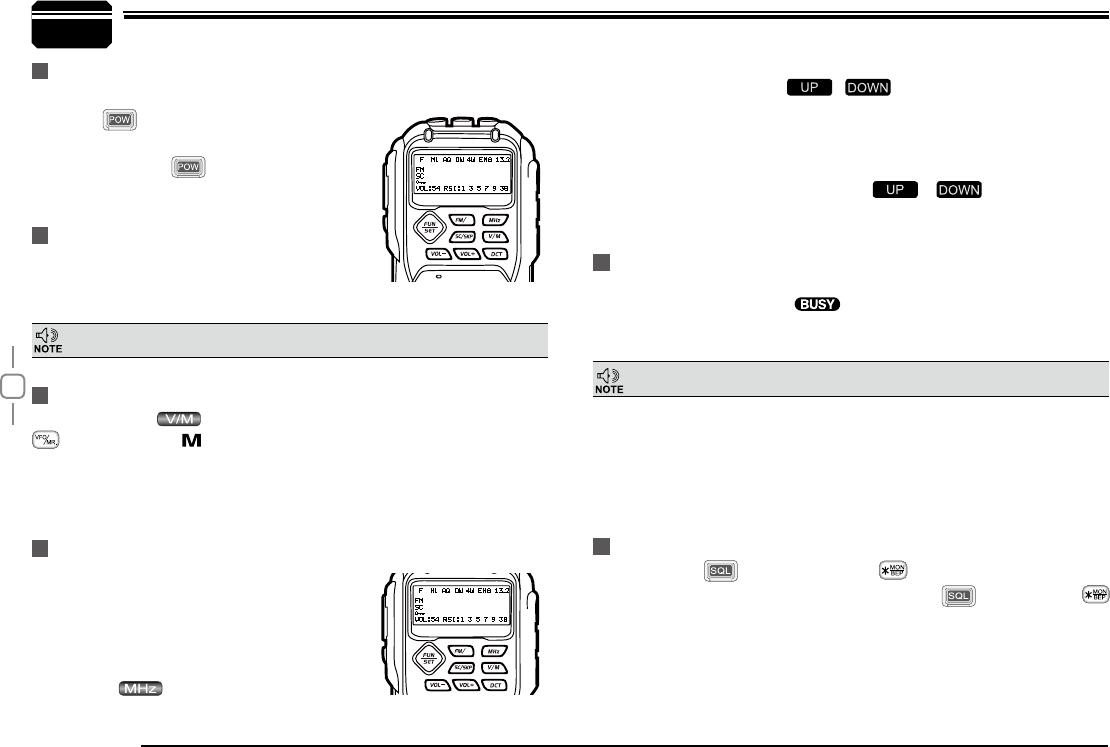

6Basic Operations

Switching The Power On/Off

Adjusting The Volume

Switch between VFO and Channel mode

Adjusting Frequency/Channel THROUGH SELECTOR KNOB

Receiving

According to the option selected during installation

Press the switch or turn the ignition key to

ACC (speed up) or ON (startup) position to power

on radio. Press the key for 1s or turn the

ignition key to OFF position to turn off.

When the channel you are operating is

called, the screen shows and field

intensity, in this way, you can hear the calling

from transmitting party.

Under frequency (VFO) mode, you can

change the current frequency to the

desired one through selector knob; Turn

clockwise to increase frequency; turn

counterclockwise to decrease. Every

gear will increase or decrease one step.

Press key, the decimal point of

Turn the VOL knob clockwise to increase the

audio level, counterclockwise to decrease.

During communication, volume can be adjusted more accurate.

If the transceiver has set at higher squelch level, it may fail to hear the calling.

operation to switch between Frequency mode

(VFO) and Channel mode.

frequency in screen will be auto-hidden. In this status, turn selector

knob or Microphone [ / ] key will increase or decrease

frequency quickly by 1MHz step.

Under channel mode, you can change the current channel to the

desired one through selector knob, clockwise turn to the forward

channel, anticlockwise turn to the backward channel. In relative

working mode, Microphone's [ / ] key has same

function for adjusting frequency and channel.

Transmitting

Press and hold

key or press MIC's key to monitor for a while to

conrm the channel desired is not busy. Release

or press Mic's

key to return standby status, then press and hold [PTT] key to speak into

microphone.

When the channel you are operating is called, the screen shows BUSY

and field intensity, you can't hear the calling from transmitting party,

it means current channel receives a matching carrier but unmatching

signaling(Refer to CTCSS/DCS encode and decode or Optional Signaling

setup).

Basic Operations

Transmitting Tone-Pulse

Transmitting OPTIONAL SIGNALING

Press and hold [PTT] key, then press Microphone [ ] key to

transmit current selected tone-pulse signal.

Press and hold [PTT] key, then press Microphone key or press

key in front panel or press Mic's key to transmit pre-stored and

selected DTMF/2Tone/5Tone optional signaling.

Channel Edit

Channel Delete

Under frequency mode (VFO), turn

selector knob to select the desired

frequency or input frequency by MIC's

numeric keys.

Press

2. key to enter CTCSS/DCS

signaling setup, turn selector knob to

select the desired signaling.

Press

3. key, LCD appears ,

icon and current channel number,

icon ashing means current channel is

Under channel mode, turn selector knob to select channel which

you want to delete.

Press

2. key and key together, current channel will be

deleted and emitted a prompt voice. icon ashing means current

channel is deleted.

empty.

Turn selector knob to select the desired channel number to store.

Press

5. key, , icon and channel number disappears and

emit a prompt voice, thus the channel storage succeed.

Please hold the microphone approximately 2.5-5.0cm from your lips

,

and then speak into the microphone in your normal speaking voice to

get best timbre.

Press and hold [PTT] key, LED lights RED and power intensity showed in

screen indicates it is transmitting, release to receive.

7Shortcut Operations

Squelch level Setup

Frequency/Channel Scan

Channel Scan

CTCSS/DCS Encode and Decode setup

Setting the radio to a tight squelch level, you can avoid unwanted signals

or noise, but you may not receive a weak signal. Therefore, it will be

better for you to select the normal squelch level.

In frequency (VFO) mode, this function is designed to monitor signal

of every communicative frequency point of transceiver "step size" you

have set.

In channel mode, this function is designed to monitor signal in every

channel.

In channel mode, Press

1. key for 1s to enter into channel scan.

Repeatedly press key to check whether set CTCSS/DCS encode

and decode in current channel or not.

While standby, press

1. key and turn

selector knob until LCD appears

and current squelch level.

Turn selector knob or press MIC [

/ ] key to set desired squelch level.

Press any key except

3. and

key to exit.

Frequency Scan

In VFO mode, press

1. for 1s to

enter into frequency scan.

Turn selector knob or press Microphone

[ / ] key to change scan direction.

Press any key except

3. and key to exit.

Turn selector knob or press Microphone

[ / ] key to change scan

direction.

Press any key except

3. and key

to exit.

squelch off/squelch off momeNTARY

key programmed as Squelch Off or Squelch Off Momentary to

monitor the weak signal.

Squelch Off: Press

1. key to disable squelch, press key

again to resume squelch.

Squelch Off Momentary: Press and hold

2. key to disable

squelch, release key to resume squelch.

The above functions should be set in programme software.

When LCD appears

1. icon, it means current channel with CTCSS

encode, turn selector knob or press Microphone's [ /

] key to select desired CTCSS encode.

When LCD appears

2. and icon,

it means current channel with CTCSS

encode and decode, turn selector knob

or press Microphone's [ / ]

to select desired CTCSS code.

Shortcut Operations

CTCSS SCAN

Repeatedly press key until LCD

displays and icons, then hold

key for 1S to enter into CTCSS scanning.

Once nding a matching CTCSS signaling, it

will stop for 15s then scan again.

Under channel mode, this operation can be temporarily used by user. Once

the radio is turned off or switched to another channel, the temporary setting

will be erased.

When LCD appears

3. icon, it means

current channe can be set with DCS

encode and decode together, turn

selector knob or press Microphone's [ / ] to select

desired DCS encode and decode.

CTCSS:62.5-254.1, Total 51groups; DCS:000N-777I total 1024

groups. N is positive code, I is inverse code.

Press any key except

5. , and keys to return into

standby status.

Repeatedly press key until LCD

displays DCS icons, then hold key for

1S to enter into DCS scanning. Once nding

a matching DCS signaling, it will stop for 15s

then scan again.

Compander function will decrease the background noise and enhance

audio clarity, especially in long range communication.

Press

key, then press key

to turn on compander function, repeat

above operation again to turn off

compander function.

Compander (Decrease the background noise and ENHANCE

AUDIO CLARITY)

When LCD appears

icon, enable

compander in current channel.

When LCD doesn't display

icon, disable compander in current

channel.

DCS SCAN

Press

1. key until LCD displays

icon, then press key until, LCD

displays icon, it indicates keypad

lockout function is valid.

Repeat above operation,

2. icon disappears, it indicates keypad

lockout function is invalid.

This will automatically transmit pre-programmed and stored DTMF

tones. And they are often used to remote control electronic devices or

AUTOPATCH phone systems available on some repeater.

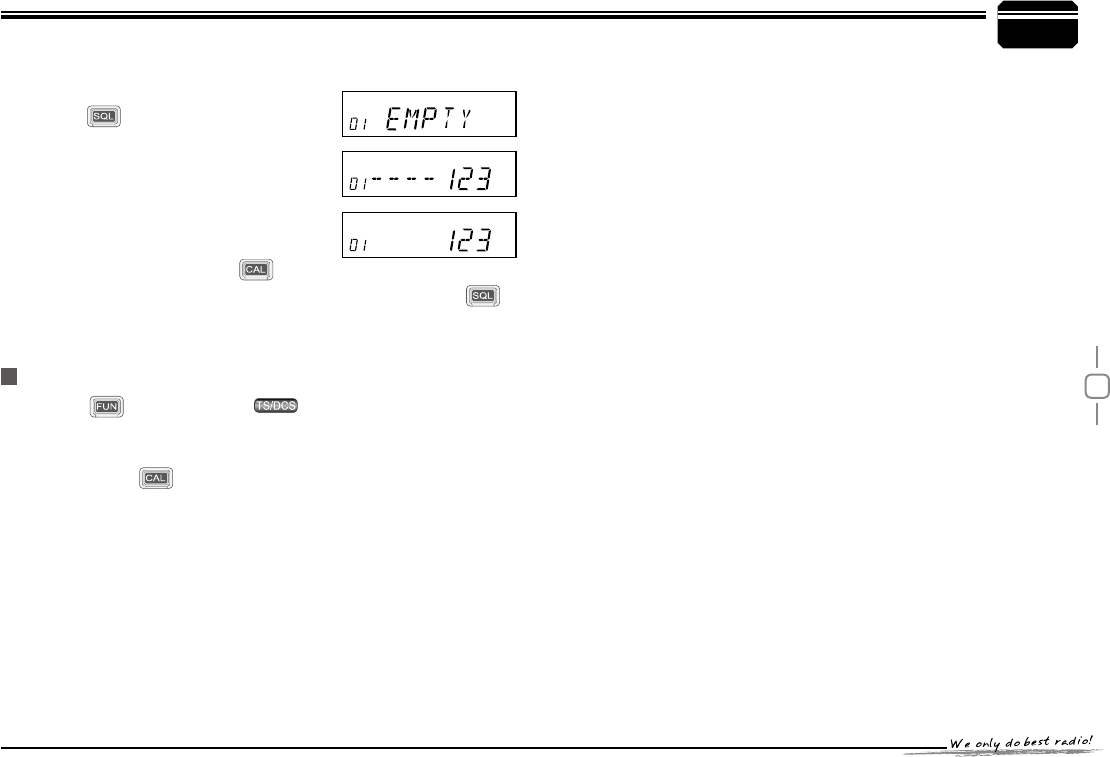

Press and hold

1. key, then press key to enter the auto-

dialer enquiry mode, LCD displays current default data and current

group displayed on left. If no data in current group, it shows

"EMPTY".

Press and hold

1. key, then press

key, LCD displays current battery voltage.

Repeat above operation to return into

VFO or Channel mode.

When LCD displays " " icon, it indicates negative offset, which

means transmitting frequency lower than receiving frequency.

Turn selector knob or Mic's [

5. / ] key to change offset

frequency, offset frequency changed as per stepping.

Press any key except

6. and key to exit into standby.

Press

1. key until the icon displays

on the LCD, then press key,

LCD displays offset direction and offset

frequency.

Repeatedly press

2. key to select

positive offset and negative offset.

When LCD displays " " icon, it indicates

positive offset, which means transmitting

frequency higher than receiving

frequency.

Avoiding unintentional operation, this function will lock main keys, all

keys except , and key are invalid.

KEYPAD LOCKOUT

Current Voltage ENQUIRY

Auto-Dialer Setup

Shortcut Operations

This function will display Current Battery Voltage.

Under channel mode, this operation can be temporarily used by

user.

Once the radio is turned off or switched to another channel, the

temporary setting will be erased.

In voltage display mode, all functions and channel or frequency

selection are invalid.

Repeater receives a signal(UP-LINK) on one frequency and re-transmits

on another frequency(DOWN-LINK). The difference between these two

frequencies is called the offset frequency. If the UP-LINK frequency

higher than DOWN-LINK frequency, the direction is positive, If it is lower,

the shift direction is negative.

Offset Direction and offset frequency setup

Shortcut Operations

Press

1. key, then press key to enter into auto-dialer

enquiry

Turn selector knob to select desired transmitting group

Press PTT or

3. key to transmit current selected DTMF tones.

Transmitting Edited DTMF tones in the Auto-dialer memory

Turn selector knob to choose group you

desired. Total:16 group, 01-16.

Press

3. key to enter into editing of

current group, press MIC's numeric

keys to set your desired data.

The display scrolls when the 7th digit

is entered. The numbers 0-9, --, A-D, *

and # can be stored up to a total of 23

digits.

After editing, press PTT or

5. key to

send current group and store edited DTMF signaling. Press

to exit and store.

18 Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.01

menu, LCD displays "STP--125".

Turn selector knob to select the desired

frequency channel step. Channel step: 5K, 6.25K, 8.33K, 10K,

Press

4. key to conrm and exit.

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. or to select the desired function option.

Turn selector knob to select the desired setup.

Press

4. to conrm and exit.

Meanwhile, if you want to edit channel name or start up menu, press

or to move forward or backward, Press to store and

exit.

Only in frequency (VFO) mode, this function is valid. Turn selector

knob to select frequency or frequency scanning which is restricted by

frequency step size.

8General Setting

Frequency Channel Step Setup

This function is auto-hidden in channel mode.

DTMF, DTMF ANI, 2Tone or 5Tone Signaling

DTMF/5Tone/2Tone signalling function as similarily as CTCSS/DCS.

Without receiving correspondent tone signalling, the speaker will remain

mute. DTMF and 5Tone signalling can be applied for other advanced

features such as ANI, PTT ID, group call, remotely stun, remotely kill,

waken,...etc.. The signalling edition must be done through programming

software. Please refer to the HELP option in the programming software

to know how to operate these features.

Press and hold

1. key for over 2s to

enter into general setting menu.

Press

2. / to choose No.2 menu,

LCD displays "T-OFF".

Turn selector knob to

3. select the desired setup.

DTMF": The channel will be mute by a DTMF signal. The

speaker won’t be open until receiving a correspondent DTMF

signal. Hold "PTT" then press [UP] or press directly to

transmit the pre-stored DTMF signaling.

In Profession transceiver mode, the functions from No.1 to No.17

will be auto-hidden.

In DTMF signaling mode,press for 2s until LCD displays

"AN---", turn selector knob to select desired digit (the other party

ID).In this mode, press to confirm exist digit and move

cursor to next, press to forward cursor.After editing, press

key to operate ANI call.

2TONE": The channel will be mute

by a 2-Tone signal. The speaker

won ’t be open un til receivi ng a

correspondent 2-Tone signal. Hold

"PTT" then press [UP] or press

directly to transmit the pre-stored

2-Tone signaling.

5Tone": The channel will be mute

by a 5-Tone signal. The Speaker won’t be open until receiving

a correspondent 5-Tone signal. Hold "PTT" then press [UP] or

12.5K,

Sending 5-Tone Call

Press

2. / key to choose No.04

menu, LCD displays "5TON XX", "XX"

indicates the group in the list.

Turn selector knob to select the desired sending 5TONE group,

Press PTT to transmit selected group.

Total:100groups, 00-99, Default:00.

Press

5. key to conrm and exit.

General Setting

Content and name of 5TONE will be edited by programming

software. This radio only query edited group or name. If there

is corresponding name for 5TONE, this operation will display

5TONE corresponding name.

Press directly to transmit the pre-stored 5-Tone signaling.

In 5Tone signaling mode, press for 2s until LCD displays

"AN---", turn selector knob to select desired digit(caller ID). In this

mode, press to conrm exist digit and move cursor to next,

press to forward cursor.After editing, press key to

operate ANI call.

Press

4. key to conrm and exit.

Sending 2-Tone Call

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.03

menu, LCD displays "2TON XX", "XX"

indicates the group in the list.

Turn selector knob to select the desired

sending 2TONE group, Press PTT to transmit selected group.

Total: 32groups, 00-31, Default: 00.

Press

5. key to conrm and exit.

Content and name of 2TONE will be edited by programming

software.

This radio only query edited group or name. If there is

corresponding name for 2TONE, this operation will display 2TONE

corresponding name.

Press and hold

1. key for over 2s to enter general setting menu

Sending DTMF call

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.05

menu, LCD displays "DTMF XX", "XX"

indicates the group in the list.

Turn selector knob to select the desired

sending DTMF group, Press PTT to

transmit selected group.

Total: 16groups, 00-16, Default: 00.

Press

5. key to conrm and exit.

Signaling Combination setup

This function is to improve the level of protecting the radio against

receiving irrelative signal.

Turn selector knob to select the desired combination.

If select "SQ", it indicates you can hear the calling from caller when

receive a matching carrier.

If LCD displays "

CTC", it indicates

you can hear the calling from caller

when receive a matching carrier and

CTCSS/DCS signaling.

If LCD displays "

TON", it indicates

you can hear the calling from caller

when receive a matching carrier and

DTMF/2TONE/5TONE signaling.

If LCD displays "

C T", it indicates

you can hear the calling from

caller when receive a matching

carrier and CTCSS/DCS and

DTMF/2TONE/5TONE signaling.

If LCD displays "

C/T", it indicates

you can hear the calling from

caller when receive a matching

carrier and either CTCSS/DCS and

DTMF/2TONE/5TONE signaling.

Press

4. key to conrm and exit.

General Setting

Press and hold

1. key for over 2s to

enter general setting menu.

Press

2. / key to choose No.06

menu, LCD displays "SPK--SQ".

This setting will be set together with adding optional signaling

and CTCSS/DCS.

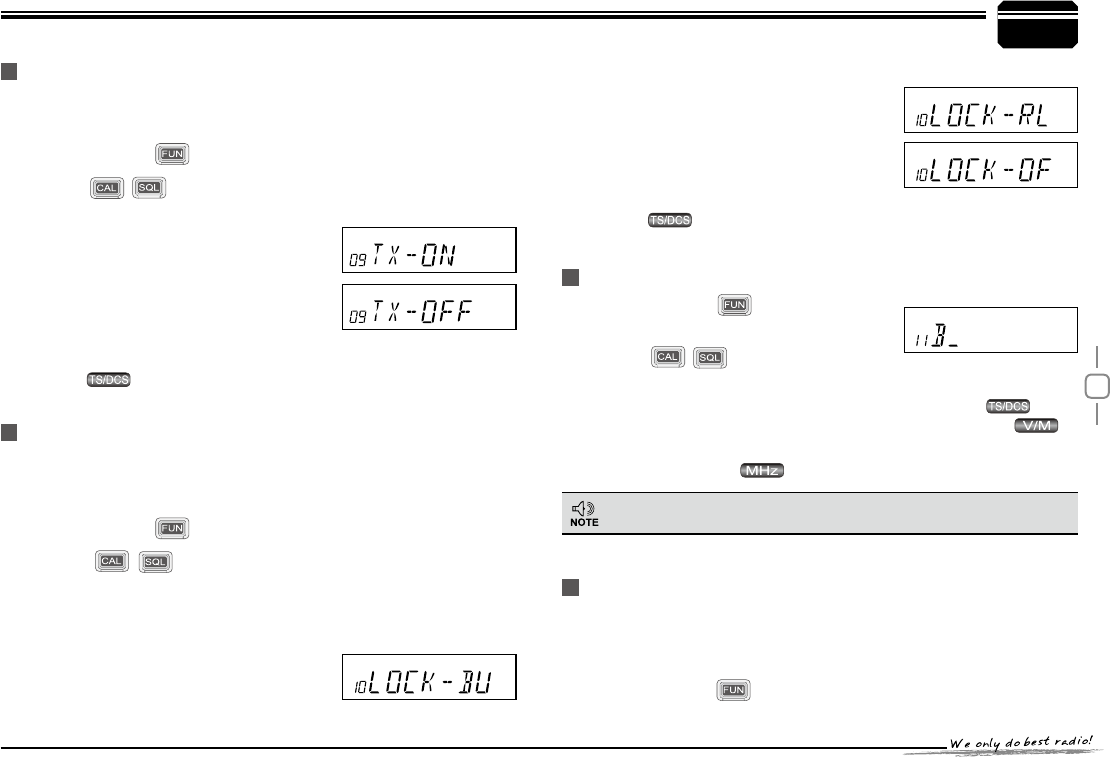

TX OFF SETUP

Disable this function, it is invalid to press PTT, current channel only

works in RX mode.

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.09 menu, LCD displays "TX-

ON".

Turn selector knob to select the desired

setting.

ON: In current channel, Press PTT to

transmit.

OFF: In current channel, Press PTT is

invalid.

Press

4. key to conrm and exit. Default:ON.

Busy Channel Lockout

BCLO is to disable transmitting while RX signal is received. Once the

channel is busy and you press PTT, the radio will beep as warning and

get back to receiving.

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.10 menu, LCD displays

"LOCK--OFF".

Turn selector knob to select the desired setting.

BU: Enable

BCLO, Carrier lockout, transmitting is inhibited when

current channel receives a matching

carrier; press [PTT] to emit error voice

prompt and back to receiving status.

RL: Enable

BTLO, transmitting is inhibited when current channel

receives a matching carrier but dis-

matching CTCSS/DCS. Press [PTT]

to emit error voice prompt and back to

receiving status.

OFF:

Busy channel lockout is disabled.

It can transmit in any receiving status.

Press

4. key to conrm and exit.

Press and hold

1. key for over 2s to

enter general setting menu.

Press

2. / key to choose No.11

menu, LCD displays cursor and ashing.

Turn selector knob to select the desired letter, press

3. key to

conrm selected letter and enter into next edition, Press to

return forward edition.

After edition, press

4. key to exit.

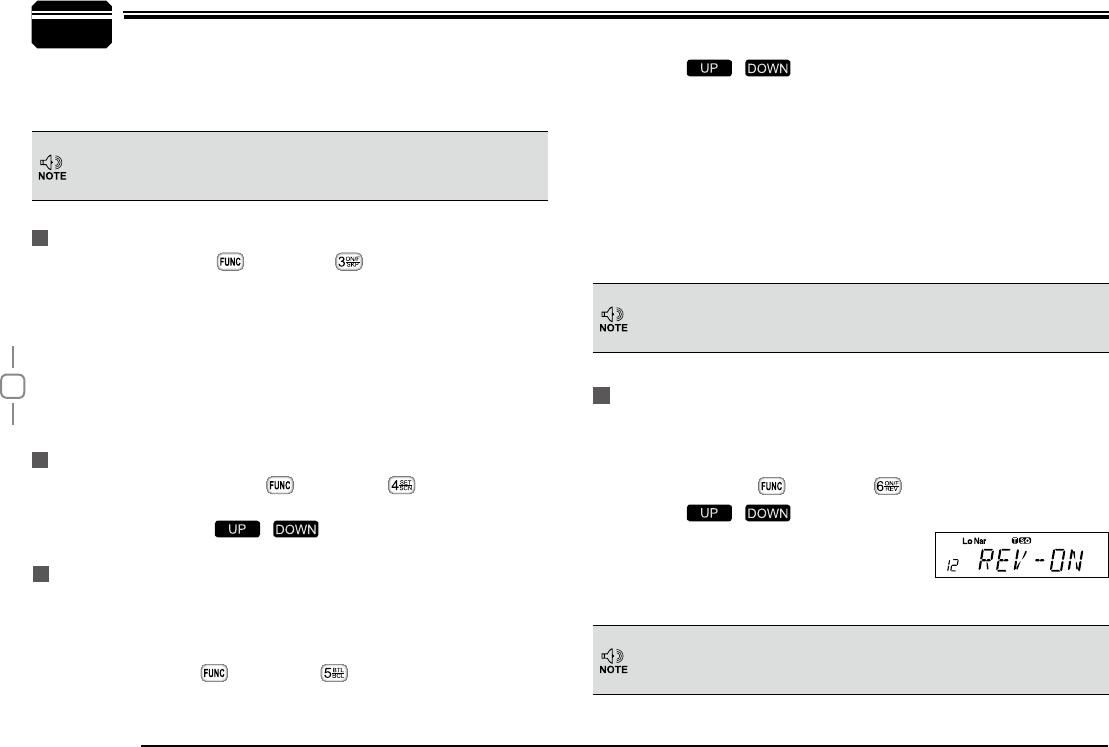

Reverse TX/RX

General Setting

Editing Channel NAME

In Frequency (VFO) mode, this function will be auto-hidden.

TX frequency turns to RX frequency & RX frequency changes to TX

frequency. The signaling will also be reversed if CTCSS/DCS signaling

exited in this channel.

Press and hold

1. key for over 2s to enter general setting menu

Press

2. / key to choose No.12

menu, LCD displays "REV—OF".

Turn selector knob to select the desired

setting.

ON: Enable Frequency Reverse

OFF: Disable Frequency Reverse.

After edition, press

4. key to exit.

Talk Around

Press

2. / key to choose No.14 menu, LCD displays

"COMP--OF".

Turn selector knob to select the desired

setting.

ON: Enable compander

OFF: Disable compander

Press

4. key to conrm and exit. Default:OFF

Scrambler setup (Encryption)

An analog voice inversion scrambler can be equipped as optionals. This

special audio process can offer a more confidential communication.

Other radios at same frequency will receive only disordered noises.

General Setting

By Talk Around function, you can directly communicate with other radios

in your group in case the repeater is not activated or when you are out of

the repeater range. The transceiver will transmit by RX frequency with its

CTCSS/DCS signaling.

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.13 menu, LCD displays

"TALK—OF".

Turn selector knob to select the desired

setting.

ON: Enable Talk Around

OFF: Disable Talk Around

After edition, press

4. key to exit.

Voice Compander

Enable this function to reduce background noise and enhance audio

clarity, especially in long range communication.

Press and hold

1. key for over 2s to enter general setting menu

Radio's DTMF SELF ID ENQUIRY

This function is optional.

Press and hold

1. key for over 2s to

enter general setting menu.

Press

2. / key to choose No.16

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.15 menu, LCD displays "SCR-

-OF".

Turn selector knob to select the desired

setting.

ON:Enable Scrambler

OFF:Disable Scrambler

Press

4. key to conrm and exit.Default:OFF.

menu, LCD displays "D--XXX", "XXX" is radio's DTMF SELF ID.

Press

3. key to conrm and exit.

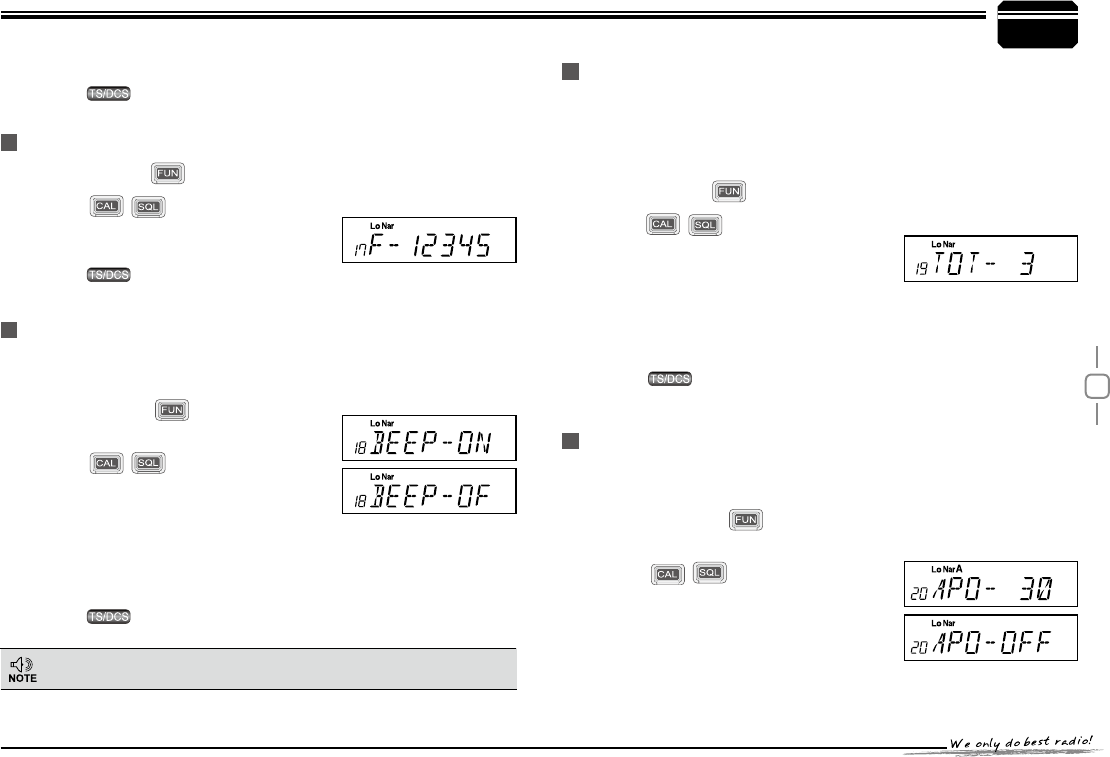

Radio's 5TONE SELF ID ENQUIRY

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.17

menu, LCD displays "F--XXXXX",

"XXXXX" is radio's 5TONE SELF ID.

Press

3. key to conrm and exit.

Voice Prompt

The prompting tone provides confirmation of entry, error status or

malfunctions of the transceiver. You can enable or disable this function.

Press and hold

1. key for over 2s to

enter general setting menu.

Press

2. / key to choose No.18

menu, LCD displays "BEEP--ON".

Turn selector knob to select the desired

setting.

ON: Enable voice prompt

OFF: Disable voice prompt

Press

4. key to conrm and exit. Default:ON.

TOT (Time-out timer)

The time-out timer limits the amount of transmitting time. When you

reach the time limit which has been programmed by your dealer, your

transmission will be cut off. In order to transmit again, you must release

PTT button to reset the timer.

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.19

menu, LCD displays "TOT--3".

Turn selector knob to select the desired

setting.

Timer: 1-30min, each level 1min

OFF: Disable TOT

Press

4. key to conrm and exit. Default:3.

APO (Auto power off)

Once APO is activated, the radio will be automatically switched off when

the pre-set timer is running to end.

Press and hold

1. key for over 2s to enter general setting

menu.

Press

2. / key to choose No.20

menu, LCD displays "APO--OFF".

Turn selector knob to select the desired

setting.

30MIN: Auto power off after 30m

General Setting

Suggestion:Enable this function to check incorrect operation and

malfunctions.

1HOUR: Auto power off after 1h

2HOUR: Auto power off after 2h

OFF: Disable Auto power off

Press

4. key to conrm and exit. Default:OFF

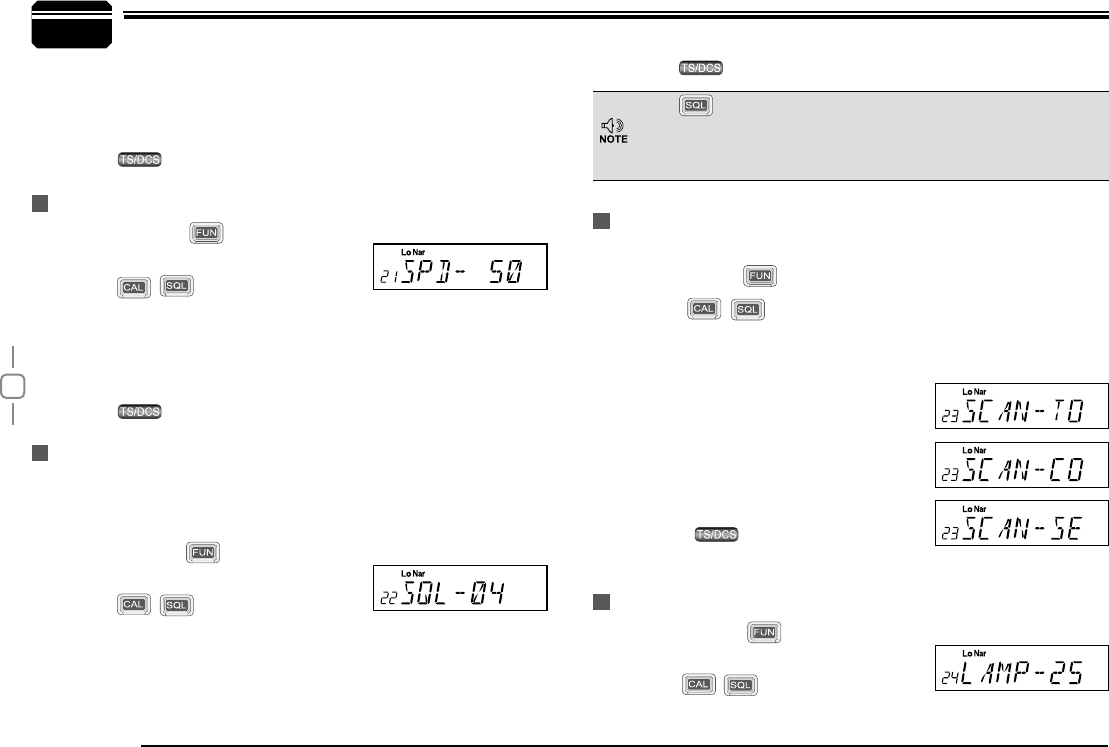

DTMF Transmitting Time

Press and hold

1. key for over 2s to

enter general setting.

Press

2. / key to choose No.21

menu, LCD displays "SPD--50".

Turn selector knob to select the desired setting.

30/50/100/200/300/500, which indicates the time for sending each

DTMF signal & the interval between each DTMF being sent.

Press

4. key to conrm and exit. Default:50MS.

Squelch level Setup

Setting the radio to a tight squelch level, you can avoid unwanted signals

or noise, but you may not receive a weak signal. Therefore, it will be

better for you to select the normal squelch level

Press and hold

1. key for over 2s to

enter general setting menu.

Press

2. / key to choose No.22

menu, LCD displays "SQL--04".

Turn selector knob to select the desired squelch level.

OF-20 total 21, OF is min setting value(ON)

Press

4. key to conrm and exit. Default:04

Scan Dwell Time Setup

There are 3 kinds of Scan Dwell Time for option.

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.23 menu, LCD displays

"SCAN--TO".

Turn selector knob to select the desired Scan Dwell Time.

TO:It pauses 15s once scanning a

matching signal, then resume scan.

CO:It pauses once scanning a matching

signal, signal disappeared then resume

scan.

SE:It stops once scanning a matching

signal.

Press

4. key to confirm the

selection and exit.Default:TO.

LCD Backlight

Press and hold

1. key for over 2s to

enter general setting menu.

Press

2. / key to choose No.24

General Setting

Press , then turn selector knob also can select the desired

squelch level.

If the transceiver has set at higher squelch level, it may fail to hear

the calling. If set at lower squelch level, the radio will be interfered.

menu, LCD displays "LAMP--25".

Turn selector knob to select the desired LCD backlight brightness

1-32 total 32 level backlight brightness.

Press

4. key to conrm and exit. Default:25.

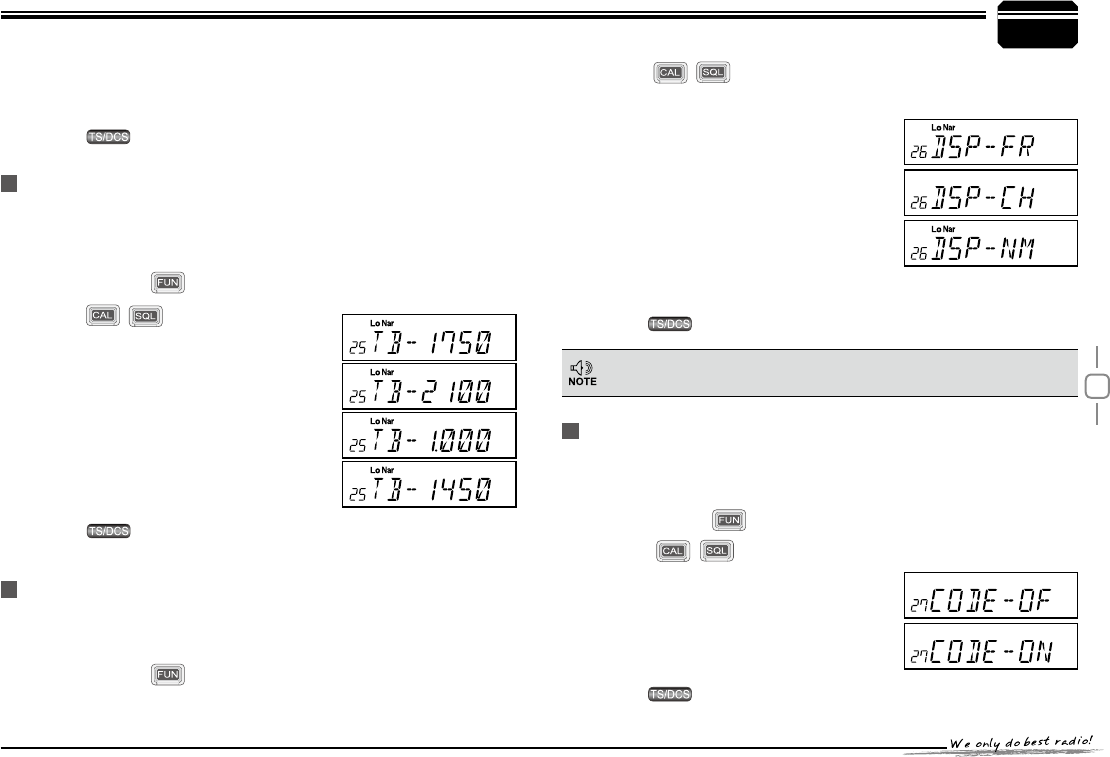

Pilot Frequency

This function uses to start repeater. It needs a certain intensity Pilot

Frequency to start dormant repeater. As usual, no need to send pilot

frequency again once repeater started.

Press and hold

1. key for over 2s to enter general setting.

Press

2. / key to choose No.25

menu, LCD displays "TB--1750".

Turn selector knob to select the desired

pilot frequency.

1750HZ:Pilot frequency1750HZ

2100HZ:Pilot frequency 2100HZ

1000HZ:Pilot frequency 1000HZ

1450HZ:Pilot frequency 1450HZ

Press

4. key to conrm the selection and exit. Default:1750HZ

Display Mode Setup

There are 3 different dispaly modes: Frequency+Channel mode, &

Channel mode&Channel+Name Tag mode.

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.26 menu, LCD displays

"DSP—FR".

Turn selector knob to select the desired

mode.

FR:Frequency+Channel mode(Amateur

transceiver mode).

CH:Channel mode(Professional

transceiver mode).

NM:Channel+Name Tag mode(Amateur

transceiver mode), if channel not

named, it displays Frequency+Channel mode.

Press

4. key to conrm and exit. Default:FR.

PIN Setup

Enable this function, you have to insert a matching PIN to enter into

normal status when radio is turned on.(Pin setup by programme

software).

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.27 menu, LCD displays

"CODE-OF".

Turn selector knob to enable/disable

Pin setup.

ON: Turn on Pin setup

OFF:Turn off Pin setup

Press

4. key to conrm and exit.Default:OFF

This function will be auto-hidden if channel mode locked.(Refer to

programme software)

General Setting

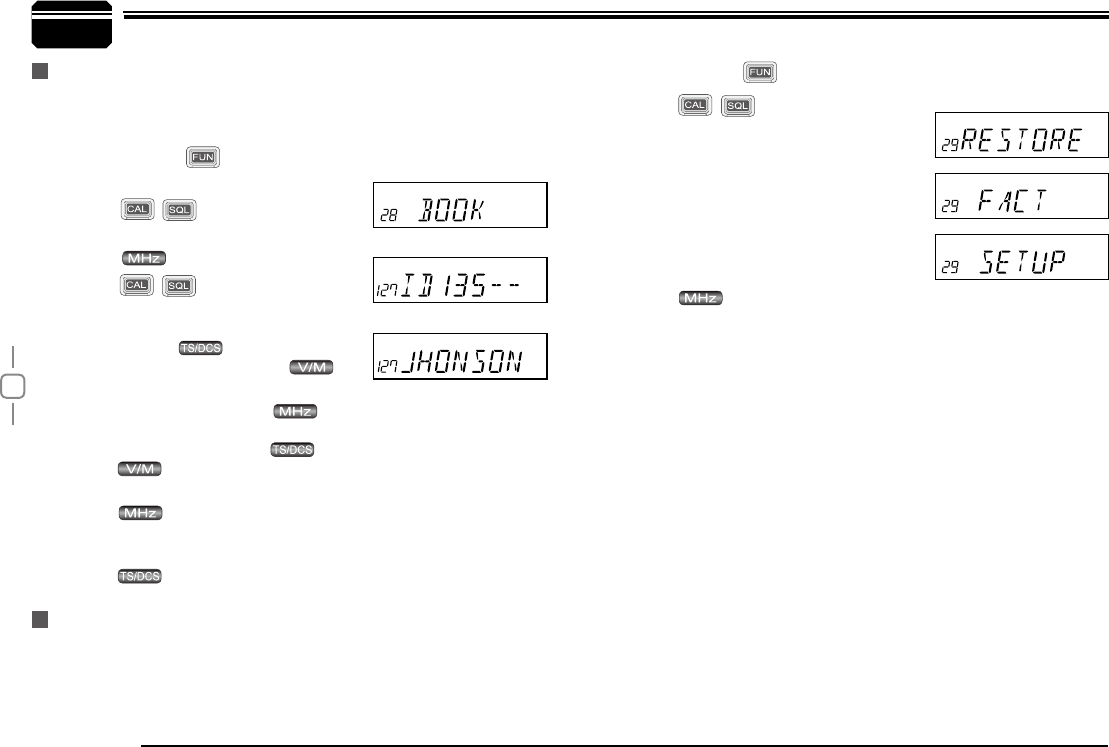

Address list

You store desired ID and corresponding ID name in address list. The

LCD displays ID corresponding name if radio received ANI calling and

nd matching ID in address list.

Factory Default

If your radio seems to be malfunctioning, resetting the microprocessor

may solve the problem. When performing the reset, you may lose

memory data and stored information. Back up or write down important

data before performing the reset.

General Setting

Press and hold

1. key for over 2s to enter general setting menu.

Press

2. / key to choose No.29

menu, LCD displays "RESTORE".

Turn selector knob to select the desired

operation.

FACT:Resume factory default for

channel, signaling and general setting.

SETUP:Return initial setup for No.18-

No.27 general setting menu.

Press

4. key to conrm.

Press and hold

1. key for over 2s to

enter general setting menu.

Press

2. / key to choose No.28

menu, LCD displays "BOOK".

Press

3. to enter into ID setting,

press / to select the desired

group (00-127, total is 128 group ID).

Turn selector knob to select desired

number, press conrm and move

cursor to next edition, press to

clear out all digits.

After nishing edition, press

4. to conrm and enter into edition

of current group's ID corresponding name.Turn selector knob to

select desired letter, press to move cursor to next edition,

Press to clear out all letters. 00-127, total 128 group ID and

corresponding ID name.

Press

5. to conrm and return into main menu. Repeat above

Step 3 and Step 4 operations to edit multi-ID and corresponding ID

name.

Press

6. key to return into standby status.

You can operate the transceiver by keypad or input desired frequency

or channel through the QHM-03 microphone (Note:In professional

transceiver mode, other keys are invalid except PTT, [ / ],

and ).

Keypad Lock

Pull down the slide switch to lock position, the lamp is turned off and

all of keypads is not work except PTT switch.

Transmitting DTMF By Microphone KeyPAD

Switches between VFO and channel mode

In standby, press key to switch between channel mode and

Frequency mode (VFO).

Short Calling

In standby, press to transmit the selected DTMF/2TONE/5TONE

in current channel.

Transmitting DTMF Code:In standby, press , LCD displays

DTMF data and group. Press [ / ] key to select the

desired transmitting DTMF group, then Press PTT to transmit.

If no DTMF data in current group, LCD displays "EMPTY", press

key again and input desired DTMF code by keypad, press PTT to

transmit and store DTMF data.

Squelch Level

In standby, press

1. , then press , LCD displays "SQL" and

current squelch level.

Press

2. / to adjust the desired squelch level. (press

, then press , turn selector knob also can adjust the desired

squelch level.

Press number key to conrm and exit.

Optional signaling

In standby, press , then press to add optional signaling, repeat

above operation to set DTMF, 2TONE or 5TONE signaling.

When rst bit of Exa byte in frequency



displays "D", it in dic ate s D TMF

function enable.

When rst bit of Exa byte in frequency



displays "T", it indicates 2Tone

function enable.

Microphone Operation

Slide DTMF key to DTMF position, press and hold the [PTT] key,

transmitting the desired DTMF signaling by the numeric key directly.

(Note:Slide DTMF key to DTMF position, the keyboard is invalid in

standby).

Function Setup By Microphone Keypad

Squelch off:In standby, press key,

the squelch is disabled when icon

ashed in LCD, Press again to enable

squelch and the icon disappears.

Reverse TX/RX

TX frequency turns to RX frequency & RX frequency changes to TX

frequency. The signaling will also be reversed if CTCSS/DCS signaling

exited in this channel.

In standby, press

1. , then press , LCD displays "REV—ON".

Press [

2. / ] to select the desired value.

ON:Enable Frequency Reverse

OFF:Disable Frequency Reverse

Press number keys to conrm and exit.

In corresponding mode, press then press key to enter into

scanning.

In scanning mode, press / to change scan direction.

Busy Channel Lockout

BCLO is to disable transmitting while RX signal is received. Once the

channel is busy and you press PTT, the radio will beep as warning and

get back to receiving.

In standby, press

1. , then press to enter into Busy Channel

Lockout.

Press [

2. / ] to select the desired value.

BU: Enable BCLO, Carrier lockout, transmitting is inhibited when

current channel receives a matching carrier; press [PTT] to

emit error voice prompt.

RL: Enable BTLO, transmitting is inhibited when current channel

receives a matching carrier but dis-matching CTCSS/DCS.

Press [PTT] to emit error voice prompt It can transmit in any

receiving status.

OFF: Busy channel lockout is disabled.

Press number keys to conrm and exit.

This function can be temporarily used in channel mode. Once the

radio is turned off or switched to another channel, the temporary

setting will be erased and back to initial settings.

Frequency/Channel scan

Scan Skip

When rst bit of Exa byte in frequency



displays "F", it indicates 5Tone function

enable.

This function can be temporarily used in Channel mode. Once the

radio is turned off or switched to another channel, the temporary

setting will be erased and back to initial settings.

This function can be temporarily used in Channel mode. Once the

radio is turned off or switched to another channel, the temporary

setting will be erased and back to initial settings.

Microphone Operation

In Channel mode, press then press , decimal point displayed

between frequency's ten digit and unit digit, it means current channel is

scan skip. Repeat above operation to set scan or scan skip in current

channel.

decimal point displayed between frequency's ten digit and unit digit,

it means current channel is scanned skip.

decimal point is not displayed between frequency's ten digit and

unit digit, it means current channel is scanned.

TOT (Time-out timer)

The time-out timer limits the amount of transmitting time. When you

reach the time limit which has been programmed by your dealer, your

transmission will be cut off. In order to transmit again, you must release

PTT button to reset the timer.

In standby, press

1. , then press LCD displays "TOT-X".

Press [

2. / ] to select the desired value.

Press number key to conrm and exit.

CTCSS/DCS Encode and Decode

In standby, press

1. , then press to enter into CTCSS/DCS

Encode and Decode.

Repeat above operation to set as below:

LCD displays

 icon, it indicates CTCSS encode set in current

channel.

LCD displays

 and icon, it indicates CTCSS encode and

decode set in current channel.

LCD displays

DCS icon, it indicates DCS encode and decode set

in current channel.

In corresponding icon, press [

3. / ] to select the desired

CTCSS/DCS encode and decode.

Press

4. , , or to conrm and exit.

Talk Around

This function can be temporarily used in Channel mode. Once the

radio is turned off or switched to another channel, the temporary

setting will be erased and back to initial settings.

By Talk Around function, you can directly communicate with other radios

in your group in case the repeater is not activated or when you are out of

the repeater range. The transceiver will transmit by RX frequency with its

CTCSS/DCS signaling.

In standby, press

1. , then press key, LCD displays "TALK--OF".

Press [

2. / ] to select the desired setting.

ON:Enable Talk Around

OFF:Disable Talk Around

Press number key to conrm and exit.

This function can be temporarily used in Channel mode. Once the

radio is turned off or switched to another channel, the temporary

setting will be erased and back to initial settings.

Voice Prompt

The prompting tone provides confirmation of entry, error status or

malfunctions of the transceiver. You can enable or disable this function.

In standby, press

1. , then press , LCD displays "BEEP--XX".

Press [

2. / ] to turn on/off BEEP voice prompt.

BEEP—OF: turn off voice prompt

BEEP—ON: turn on voice prompt

Press number key to exit and store.

Microphone Operation

LCD Backlight

In standby status, press

, then press LCD displays "LAMP-

XX".

Press [

/ ] to select desired backlight brightness(1-32

levels).

Press number keys to conrm and exit.

Microphone Operation

This function is mainly use for simple anti-theft alarm device in vehicles.

When the transceiver be removed in an improper manner, the transceiver

will emit and transmit alarming and background voice to system and

other transceiver of the same frequency.

Steering-wheel etc.

Alarm cable [QL-01(B)]

DC power cable

Battery

Alarm cable

[QL-01(A)]

Long-distance Anti-theft Alarm

Connect DC power cable with car battery.

Connect the optional alarm cable QL-01(A) to the data jack on

the front panel as shown. Secure the other end of the cable to an

object that stays xed in vehicle. (Note: if alarm cable QL-01 (A) is

not enough long, you can choose optional alarm cable QL-01 (B) to

extend).

When transceiver power off by press

2. key, the long-distance

anti-theft alarm enable.

When the alarm cable QL-01(A) or QL-01(B) is removed from the

DATA jack or cut by improper sequence, the alarm function enable

and will alarm as programmed. In alarming, the transceiver will stop

alarm once receiving a matching signal. And alarm again when a

matching signal disappeared.

Restart radio to cancel anti-theft alarming.Reconnect with alarm

cable and turn off radio, the system will return to alarm mode.

The long-distance anti-theft alarm only available when

transceiver power off.

This feature will copy the programmed data and parameters in the master unit to slave units. It copies the parameters and memory program settings.

Use optional CP50 cloning cable, connect the cable between the data jacks on both master and slave.

Press and hold key, then press key to enter into cloning mode, LCD displays "

2. CLONE".

Press master unit's [PTT] key, LCD displays "

3. SD XXX", "XXX" indicates data volume in transmitting. Slave unit displays "LD XXX", "XXX"

indicates received data volume. When the transmission is successfully nished, the master and slave unit both display "PASS". Turn off the power,

disconnect the cable and repeat step 2 to step 3 operations to clone the next slave unit.

Cable Clone

If the data is not successfully transmitted, turn off both units, make sure the cable connection is correct and repeat the entire operation from the beginning.

Programming Software Installing and Starting (in windows XP system)

Double click "QPS778 setup.exe", then follow the installing instruction.

This software has product identify system, so when rstly installing the software, you have to connect the products, otherwise you can not start the software.

Install USB Cable Driver Programme

(As pic 1)

(As pic 2)

(As pic 3)

Click start menu in computer, under "ALL PROGRAMS" menu,

choose and click "USB To Com port" in QPS778 program, install

"USB To Com port" driver by indication.

Connect the optional PC50 USB Programming cable to USB port in

PC with transceiver.(As pic 1)

Double click QPS778 shortcut or click QPS778 in procedure index

of start menu, choose serial com port as indicated then click OK to

start programming software. (As pic 2)

According to instruction, select correct "COM Port"(As pic 3), then

click "OK" to start programming software.

Note:Even in same computer, the selective COM Port is different when

USB cable connects with different USB port.

You shall install software before connecting the USB cable line. Switch

on transceiver before writing frequency. You had better not switch on or

off the power supply of transceiver when it is connected with computer,

otherwise, it will make transceiver unable to read or write frequency. In

this case, you have to turn off programming software, pull out USB cable.

then reinsert USB cable and open software, then rechoose COM Port,

it will turn into normal operation. Therefore, please connect transceiver

with computer after switching on the transceiver. Don't restart transceiver

power when it is connected with computer.

13 Specifications

136-174MHz

Specifications

67.0 79.7 94.8 110.9 131.8 156.7 171.3 186.2 203.5 229.1

69.3 82.5 97.4 114.8 136.5 159.8 173.8 189.9 206.5 233.6

71.9 85.4 100.0 118.8 141.3 162.2 177.3 192.8 210.7 241.8

74.4 88.5 103.5 123.0 146.2 165.5 179.9 196.6 218.1 250.3

77.0 91.5 107.2 127.3 151.4 167.9 183.5 199.5 225.7 254.1

Attached Chart

50 groups CTCSS Tone Frequency(Hz) 1024 groups DCS Code.

000 001 002 003 004 005 006 007

010 011 012 013 014 015 016 017

020 021 022 023 024 025 026 027

030 031 032 033 034 035 036 037

040 041 042 043 044 045 046 047

050 051 052 053 054 055 056 057

060 061 062 063 064 065 066 067

070 071 072 073 074 075 076 077

100 101 102 103 104 105 106 107

110 111 112 113 114 115 116 117

120 121 122 123 124 125 126 127

130 131 132 133 134 135 136 137

140 141 142 143 144 145 146 147

150 151 152 153 154 155 156 157

160 161 162 163 164 165 166 167

170 171 172 173 174 175 176 177

200 201 202 203 204 205 206 207

210 211 212 213 214 215 216 217

220 221 222 223 224 225 226 227

230 231 232 233 234 235 236 237

240 241 242 243 244 245 246 247

250 251 252 253 254 255 256 257

260 261 262 263 264 265 266 267

270 271 272 273 274 275 276 277

300 301 302 303 304 305 306 307

310 311 312 313 314 315 316 317

320 321 322 323 324 325 326 327

330 331 332 333 334 335 336 337

340 341 342 343 344 345 346 347

350 351 352 353 354 355 356 357

360 361 362 363 364 365 366 367

370 371 372 373 374 375 376 377

400 401 402 403 404 405 406 407

410 411 412 413 414 415 416 417

420 421 422 423 424 425 426 427

430 431 432 433 434 435 436 437

440 441 442 443 444 445 446 447

450 451 452 453 454 455 456 457

460 461 462 463 464 465 466 467

470 471 472 473 474 475 476 477

500 501 502 503 504 505 506 507

510 511 512 513 514 515 516 517

520 521 522 523 524 525 526 527

530 531 532 533 534 535 536 537

540 541 542 543 544 545 546 547

550 551 552 553 554 555 556 557

560 561 562 563 564 565 566 567

570 571 572 573 574 575 576 577

600 601 602 603 604 605 606 607

610 611 612 613 614 615 616 617

620 621 622 623 624 625 626 627

630 631 632 633 634 635 636 637

640 641 642 643 644 645 646 647

650 651 652 653 654 655 656 657

660 661 662 663 664 665 666 667

670 671 672 673 674 675 676 677

700 701 702 703 704 705 706 707

710 711 712 713 714 715 716 717

720 721 722 723 724 725 726 727

730 731 732 733 734 735 736 737

740 741 742 743 744 745 746 747

750 751 752 753 754 755 756 757

760 761 762 763 764 765 766 767

770 771 772 773 774 775 776 777

N is positive code, I is negative code, total: 232groups.

Attached Chart

SAFETYTRAININGINFORMATION



Your    radiogeneratorsRFelectromagneticenergyduring

transmitmode.Thisradioisdesignedforandclassifiedas“OccupationalUseOnly”,meaningitmustbeusedonlyduringthe

courseofemploymentbyindividualsawareofthehazards,andthewaysToMinimizeSuchhazards.ThisradioisNOTintended

forusebythe“GeneralPopulation”inanuncontrolledenvironment.ThisradiohasbeentestedandcomplieswiththeFCCRF

exposurelimitsfor“OccupationalUseOnly”.Inaddition,your   radiocomplieswith

thefollowingStandardsandGuidelineswithregardtoRFenergyandelectromagneticenergylevelsandevaluationofsuch

levelsforexposuretohumans:

�

to Radio Frequency Electromagnetic Fields.

�American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human

Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.

�American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of

Potentially Hazardous Electromagnetic Fields– RF and Microwave.

�The following accessories are authorized for use with this product. Use of accessories other than those (listed in the

instruction) specified may result in RF exposure levels exceed the FCC requirements for wireless RF exposure.

Toensureyou’reyourexposetoRFelectromagneticenergyiswithintheFCCallowablelimitsforoccupationaluse,always

adheretothefollowingguidelines

TheinformationlistedaboveprovidestheuserwiththeinformationneededtomakehimorherawareofRFexposure,

andwhattodotoas‐surethatthisradiooperateswiththeFCCRFexposurelimitsofthisradio.

ElectromagneticInterference/Compatibility

Duringtransmissions,    radiogeneratesRFenergythatcanpossiblycauseinterference

withotherdevicesorsystems.Toavoidsuchinterference,turnofftheradioinareaswheresignsarepostedtodoso.DONOT

operatethetransmitterinareasthataresensitivetoelectromagneticradiationsuchashospitals,aircraft,andblastingsites.



Occupational/ControlledUse

Theradiotransmitterisusedinsituationsinwhichpersonsareexposedasconsequenceoftheiremploymentprovided

thosepersonsarefullyawareofthepotentialforexposureandcanexercisecontrolovertheirexposure.



InordertocomplywithRFexposurerequirements,aminimumdistanceof mustbemaintainedbetweentheantenna

andallpersons



FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure

Qixiang Electron Science & Technology Co.,Ltd.

44.4

Qixiang Electron Science and Technology AT778V Mobile Radio User Manual with RF Exposure based on Occupational Limits

Qixiang Electron Science& Technology Co., Ltd Mobile Radio with RF Exposure based on Occupational Limits

Contents

User Manual with RF Exposure based on Occupational Limits

Navigation menu

Namespaces

Views

Navigation
