IQ Remote User’s Manual
Contents
REVISIONHISTORY......................................................................................................................................................1
1FOREWORD.........................................................................................................................................................2
1.1COPYRIGHTNOTICE..............................................................................................................................................................2
1.2NOTES...............................................................................................................................................................................2
1.3STATEMENT........................................................................................................................................................................3
1.4DISCLAIMER.......................................................................................................................................................................3
1.5LIMITATIONOFLIABILITY/NON‐WARRANTY...............................................................................................................................3
1.6SAFETYINSTRUCTIONS..........................................................................................................................................................3
1.7PRECAUTIONS.....................................................................................................................................................................4
1.8SAFETYINSTRUCTIONSFORPOWERCABLESANDACCESSORIES.....................................................................................................5
2OVERVIEW..........................................................................................................................................................6
2.1INTRODUCTION...................................................................................................................................................................6
3IQREMOTEHARDWAREINSTRUCTIONS...............................................................................................................7
3.1PRODUCTAPPEARANCE........................................................................................................................................................7
3.2SPECIFICATIONS...................................................................................................................................................................8
3.3INTERFACEINSTRUCTIONS.....................................................................................................................................................9
3.3.1FrontView.................................................................................................................................................................9
3.3.2BackView..................................................................................................................................................................9
3.4DIMENSION......................................................................................................................................................................10
3.5BUTTONS.........................................................................................................................................................................10
3.6INTERFACEDESCRIPTION.....................................................................................................................................................10
3.6.1InternalMIC............................................................................................................................................................10
3.6.2USB2.0OTG(Micro).................................................................................................................................................10
3.6.3Wireless(WIFIandBT)............................................................................................................................................10
3.6.4InternalAudio.........................................................................................................................................................11
3.6.5GasGauge...............................................................................................................................................................11
3.6.6FrontCamera..........................................................................................................................................................11
3.6.7RTC..........................................................................................................................................................................11
4SOFTWAREINSTRUCTIONS................................................................................................................................12
4.1BRIEFINTRODUCTION.........................................................................................................................................................12
5TIPS...................................................................................................................................................................13
1 / 16
RevisionHistory
No. Version Description Date
1 V1.0 First release 2018/06/27
2 V1.1 Revise 2018/11/30
2 / 16
1 Foreword
1.1 Copyright Notice
While all information contained herein have been carefully checked to
assure its accuracy in technical details and printing, Qolsys assumes no
responsibility resulting from any error or features of this manual, or from
improper uses of this manual or the software. Please contact our technical
department for relevant operation solutions if there is any problem that cannot
be solved according to this manual.
Qolsys reserves all rights of this manual, including the right to change the
content, form, product features, and specifications contained herein at any time
without prior notice. Please contact Qolsys for further information:
www.qolsys.com
The trademarks and registered trademarks in this manual are properties of
their respective owners. No part of this manual may be copied, reproduced,
translated or sold. No changes or other purposes are permitted without the prior
written consent of Qolsys.
Qolsys reserves the right of all publicly-released copies of this manual.
1.2 Notes
Applicable notes are listed in the following table:
Sign Notice Type Description
Notice Important information and regulations
Caution Caution for latent damage to system or harm to
personnel
3 / 16
1.3 Statement
It is recommended to read and comply with this manual before operating
Tablet which provides important guidance and helps decreasing the danger of
injury, electric shock, fire, or any damage to the device.
1.4 Disclaimer
Qolsys assumes no legal liability of accidents resulting from failure of
conforming to the safety instructions.
1.5 Limitation of Liability/Non-warranty
For direct or indirect damage to this device or other devices of Qolsys
caused by failure of conforming to this manual or the safety instructions on
device label, Qolsys assumes neither warranty nor legal liability even if the
device is still under warranty.
1.6 Safety Instructions
Keep and comply with all operation instructions, warnings, and
information.
Pay attention to warnings on this device.
Read the following precautions to decrease the danger of injury, electric
shock, fire, or any damage to the device.
4 / 16
1.7 Precautions
Pay attention to the product labels/safety instructions.
Do not try repairing this product unless declared in this manual.
Keep away from heat source, such as heater, heat dissipater, or engine
casing.
Do not insert other items into the slot (if any) of this device.
Keep the ventilation slot ventilated for cooling.
System fault may arise if other items are inserted into this device.
Installation: ensure correct installation according to instructions from the
manufacturer with recommended installation tools.
Ensure ventilation and smoothness according to relevant ventilation
standard.
5 / 16
1.8 Safety Instructions for Power Cables and Accessories
Proper power source only
Start only with power source that satisfies voltage label and the voltage
necessary according to this manual. Please contact technical support personnel
of Qolsys for any uncertainty about the requirements of necessary power
source.
Power adapter Spec.
Model: SW-070100AB
INPUT: 100-240V~50/60Hz 0.3A Max
OUTPUT: DC 7.0V,1000mA
MADE IN CHINA BY SURE-POWER
CAUTION
Risk of explosion if battery is replaced by an incorrect type
Dispose of used batteries according to the instructions
Place cables properly:
Do not place cables at any place with extrusion danger.
Cleaning Instructions
Please power off before cleaning the device.
Do not use spray detergent.
Clean with a damp cloth.
Do not try cleaning exposed electronic components unless with a dust
collector.
Support for special fault: Power off and contact technical support
personnel of Qolsys in case of the following faults:
The device is damaged.
The temperature is excessively high.
Fault is still not solved after the operation according to the manual.
6 / 16
2 Overview
2.1 Introduction
Thank you for choosing Qolsys. It is our commitment to provide our
valued customers with the embedded devices equipped with the state-of-the-art
technology and the best product services.
Tablet enables the interaction between operators/users and applications,
connects industrial control products such as wireless, transducer, battery inside,
storage, etc. Tablet adopts a display for displaying and input units such as touch
screen, keyboard, audio, kind of sensors etc. for writing working parameters or
inputting operation commands. As a digital device for realizing information
interaction between human and machine, Tablet is composed of hardware and
software. Based on its ample function interfaces and powerful user operational
interface, it is very suitable for control units such as medical device, intelligent
transportation, industrial field, etc.
Qolsys’s Tablet products are based on the most advanced ARM and
Rockchip processors and have low-power consumption and high integration.
The products are designed for applications such as industrials, medicals, and
transportations etc.
7 / 16
3 IQ Remote Hardware Instructions

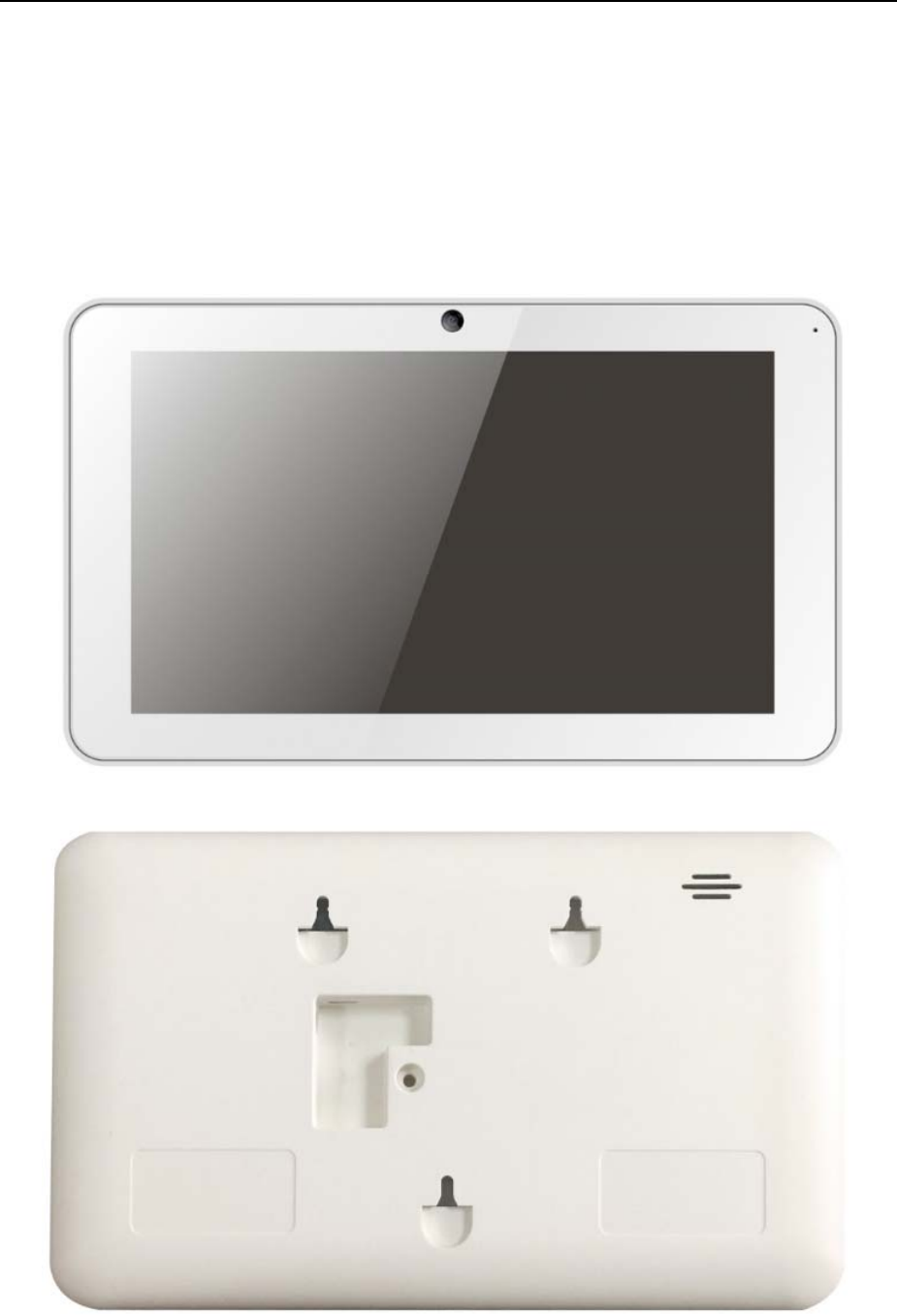

3.1 Product Appearance
Front View
Back View
8 / 16
3.2 Specifications2018
CPU Processor RK-3368H, ARM Octa-core Cortex-A53, Quad Core CPU,
1.5GHz
Memory RAM 2GB LPDDR3
Flash 16GB EMMC Flash
Display
LCD 7" TFT LCD
Resolution 1024*600 24bit Color
Display Colors 16.7M
Brightness 250cd/m2
View Angle 80U/80D, 80L/80R
Touch Screen Cap-touch, multi-point
Supported
format
Audio MP3, 3GPP, WAV
Video MP4, 3GPP
Picture BMP, GIF, JPEG, PNG
Interfaces
USB 1X Micro USB2.0 OTG
Wireless 1xwifi 802.11b/g/n/ac, 1xBluetooth4.2, with inner FPC
antenna
Internal Audio Internal Speaker
Internal MIC
RTC Supported
Gas gauge Supported
Camera 1x5M Front Camera (Fixed Focus)
Software OS Android 7.1
Power Battery 3.7V, 2400mAh
DC Power Supply 7V, 1A
Mechanical Dimensions 191x116.7x19.7mm
Weight 0.45Kg
Environment
Condition
Temperature Operating Temperature: 0℃ ~ +40℃
Storage: -20℃ ~ +45℃, Recommended:26±5℃
Humidity 10-85%RH (Non-Condensation), operating and storage
Vibration 2G, 9-26Hz (10 times in X, Y, Z directions)
9 / 16
3.3 Interface Instructions

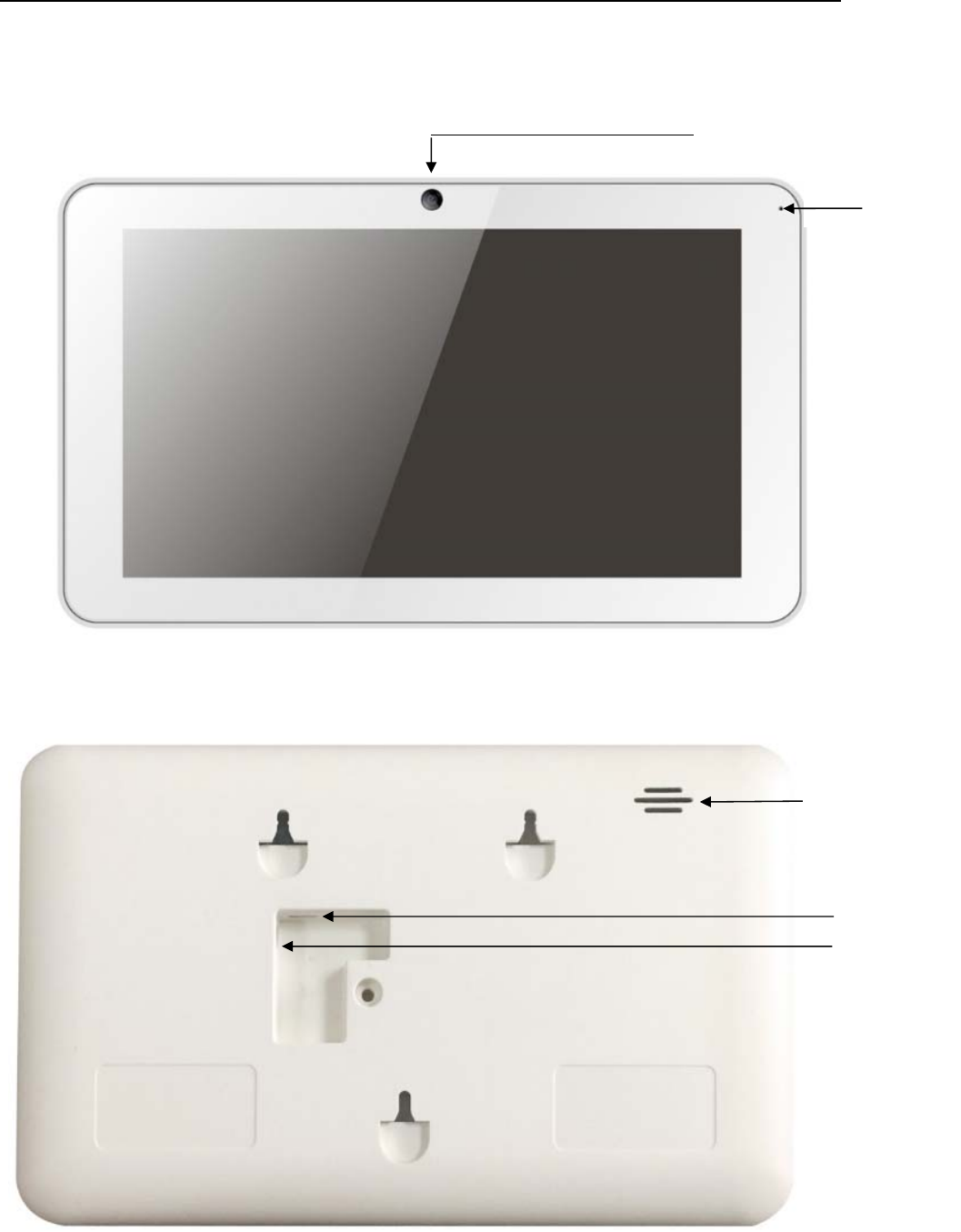

3.3.1 FrontView
3.3.2 BackView
Front Camera
MIC
DC Jack
Speaker
Micro USB
10 / 16
3.4 Dimension
Whole device Size: 191x116.7x19.7mm
3.5 Buttons
Power/Sleep/Wake button
When you are not using Tablet, you can lock it to turn off the display and
save the battery.
Lock tablet: Press the Power/Sleep/Wake button.
Unlock tablet: Press the Power/Sleep/Wake button, then drag the slider.
Turn tablet off: Press and hold the Power/Sleep/Wake button greater than
6 seconds.
Turn tablet on: Press and hold the Power/Sleep/Wake button until logo
appears.
Never apply excessive pressure to a button, because this may
cause damage that is not covered under the warranty.
3.6 Interface Description
3.6.1 InternalMIC
Internal MIC with outstanding sensitivity and high SNR makes it very
suitable for recording while suppressing the environment noise.
3.6.2 USB2.0OTG(Micro)
One hand, with a standard Micro USB 2.0 port, customer can connect the
tablet to the host machine for example a PC, then manage it like all other
android devices. On the other hand, if the tablet is connected through a USB
OTG cable, it can be a host machine to operate the device that is connected to
it.
The USB 2.0 port can apply DC 5.0V ,1A to the tablet and works properly.
3.6.3 Wireless(WIFIandBT)
The tablet supports 802.11 ac WIFI and BT4.2. With a good spec internal
antenna, both WIFI and BT can achieve better performance.
11 / 16
3.6.4 InternalAudio
The tablet has an internal omni-directional microphone and a 1.5-watt
speaker.
3.6.5 GasGauge
A gas gauge is used to monitor the capacity of the li-polymer battery so
we can figure out the status of it precisely and immediately.
3.6.6 FrontCamera
The tablet can take beautiful photo and record the high-resolution video.
3.6.7 RTC
The tablet has internal RTC so the system time can keep a long time if we
didn’t turn it on.
12 / 16
4 Software Instructions
4.1 Brief Introduction
IQ Remote has been pre-loaded with Android image, so that the system
can run Android tool to update the system image, please reference to SW-UM.
13 / 16
5 Tips
Waste Disposal
It is recommended to disassemble the device before abandoning it in conformity
with local regulations. Please ensure that the abandoned batteries are disposed according
to local regulations on waste disposal. Do not throw batteries into fire (explosive) or put
in common waste canister. Products or product packages with the sign of “explosive”
should not be disposed like household waste but delivered to specialized electrical＆
electronic waste recycling/disposal center. Proper disposal of this sort of waste helps
avoiding harm and adverse effect upon surroundings and people’s health. Please contact
local organizations or recycling/disposal center for more recycling/disposal methods of
related products.
Comply with the following safety tips:
Do not use in combustible and explosive environment
Keep away from combustible and explosive environment for fear of danger.
Keep away from all energized circuits.
Operators should not remove enclosure from the device. Only the group or person
with factory certification is permitted to open the enclosure to adjust and replace the
structure and components of the device. Do not change components unless the power
cord is removed. In some cases, the device may still have residual voltage even if the
power cord is removed. Therefore, it is a must to remove and fully discharge the device
before contact to avoid injury.
Unauthorized changes to this product or its components are prohibited.
In the aim of avoiding accidents as far as possible, it is not allowed to replace the
system or change components unless with permission and certification. Please contact
the technical department of Qolsys or local branches for help.
Pay attention to caution signs.
Caution signs in this manual remind of possible danger. Please comply with
relevant safety tips below each sign. Meanwhile, you should strictly conform to all
safety tips for operation environment.
14 / 16
Notice
Considering that reasonable efforts have been made to assure accuracy of this
manual, Qolsys assumes no responsibility of possible missing contents and information,
errors in contents, citations, examples, and source programs.
Qolsys reserves the right to make necessary changes to this manual without prior
notice. No part of this manual may be reprinted or publicly released in forms of
photocopy, tape, broadcast, e-document, etc.
FCC RF Exposure Information and Statement
This device meets the government's requirements for exposure to radio waves. The
guidelines are based on standards that were developed by independent
scientific organizations through periodic and thorough evaluation of scientific studies.
The standards include a substantial safety margin designed to assure the safety of all
persons regardless of age or health. The SAR limit of USA (FCC) is 1.6 W/kg
averaged. Device types: Tablet Computer (FCC ID: 2AAJXQS-IQRMT) has also been
tested against this SAR limit. SAR information on this and other pad can be viewed on
‐line at http://www.fcc.gov/oet/ea/fccid/. Please use the device FCC ID number for
search. This device was tested simulation typical 0mm to body. To maintain compliance
with FCC RF exposure requirements, the use of belt clips, holsters and similar
accessories should not contain metallic components in its assembly, the use of
accessories that do not satisfy these requirements may not comply with FCC RF
exposure requirements, and should be avoided.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
15 / 16
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to operate the
equipment.
IC RF Exposure Information and Statement
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. The guidelines are based on standards that were developed by
independent scientific organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety margin designed to assure
the safety of all persons regardless of age or health. The SAR limit of IC is 1.6 W/kg
averaged. Device types: Tablet Computer (IC: 11205A-QSIQRMT) has also been tested
against this SAR limit. This device was tested simulation typical 0 mm to body. To
maintain compliance with FCC RF exposure requirements, the use of belt clips, holsters
and similar accessories should not contain metallic components in its assembly, the use
of accessories that do not satisfy these requirements may not comply with FCC RF
exposure requirements, and should be avoided. The highest reported SAR value for body
condition is 1.201W/kg respectively.
IC WARNING
This device complies with Industry Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil
doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
16 / 16
US Office: Qolsys, Inc.
Address: 1900 The Alameda, 4th Floor, San Jose, CA 95126, USA
E-mail: sales@qolsys.com
Website: www.qolsys.com
