User manual
Qolsys Image Sensor Module
General Applications:
The Qolsys Image Sensor Module features the ATXMEGA123D3 microcontroller and AT86RF212
transceiver, providing Zigbee air interface to, and compatibility with Alarm.com’s 900 MHz Image
Sensors. OEMs that integrate this module will gain control to the image sensor, allowing rule-based
monitoring and camera peak-ins.
Installation and Operation:

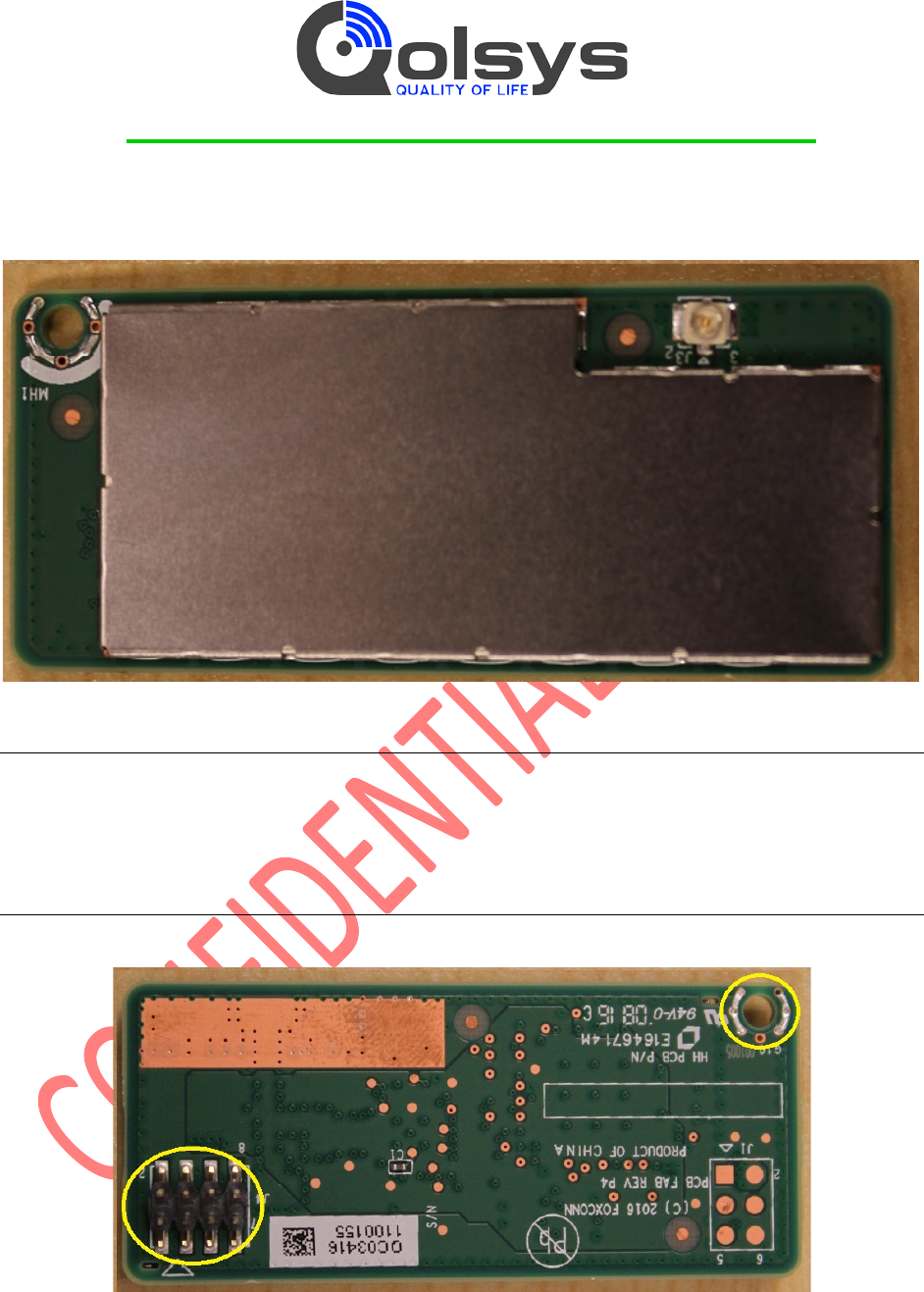

It is recommended to secure the module to a large ground plane using the mounting hole and header
pins. Do not place any large pieces of metal around or near the antenna, as it will inhibit performance.
The Qolsys Image Sensor Module operates around 915 MHz with an output power up to +10dBm. Data
and protocol specifications are beyond the scope of this document. Please contact Qolsys for the
technical specifications.
FCC Compliance:
FCCID: 2AAJXQS-IS
This equipment complies with radiation exposure limits set forth for uncontrolled environment. The
antenna(s) used for this transmitter must be installed to provide a separation of at least 20cm from all
persons and must not be collocated or operating in conjunction with any other antenna or transmitter.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
IC Compliance:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
Cet appareil est conforme aux normes d’exemption de licence RSS d’Industry Canada. Son
fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer
d’interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui
peuvent affecter son fonctionnement.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement, votre corps, et d’autres antennes ou transmetteurs.
CAN ICES-3 (B)/NMB-3(B)
Warranty Information:
IMPORTANT! Changes or modifications not expressly approved by Qolsys Inc. could void the user’s
authority to operate the equipment, as well as warranty for the product.
