Qual Tron QTIMIDSLBMCDR MODULAR RECEIVER User Manual 30Z0266 MCDRx
Qual-Tron, Inc. MODULAR RECEIVER 30Z0266 MCDRx
User Manual
QTI Page 1 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
9409 E. 55th Pl. S. • Tulsa, OK 74145 • Ph: (918) 622-7052 • Fax: (918) 664-8557
M
MC
CD
DR
R
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
N
M
MA
AN
NU
UA
AL
L

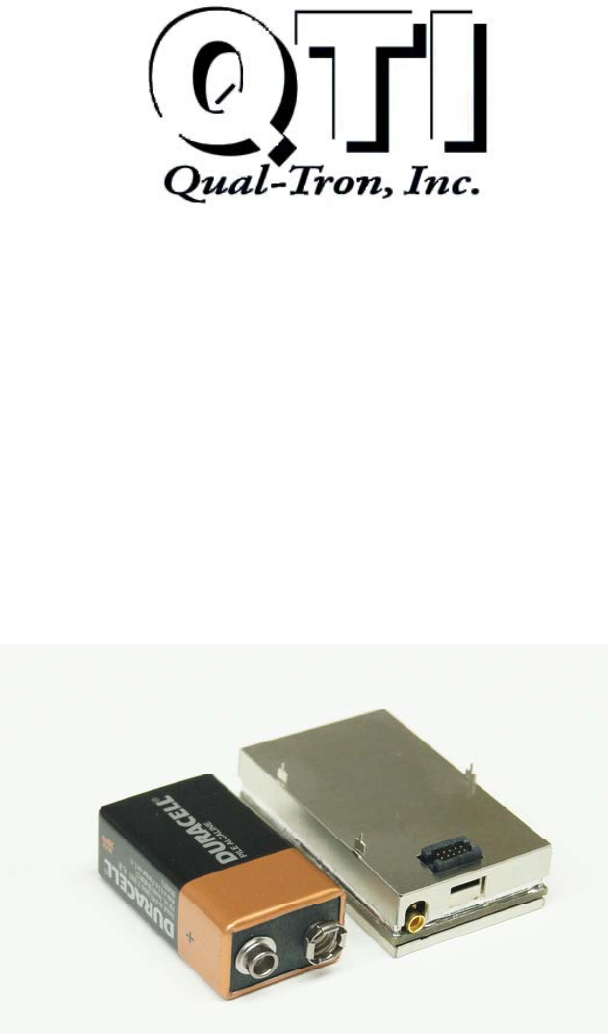

MCDR Multi-Channel Data Receiver
P/N 10D1068-L, M, H
All rights reserved. No part of this book may be reproduced or utilized in any form or by any means,
electronic or mechanical, without the prior written permission of Qual-Tron, Inc.
QTI Page 2 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
MCDR Instruction Manual
Table of Contents
Section 1: MCDR Multi-Channel Data Receiver ................................................................. 3
Description .................................................................................................................................................. 3
Model Numbers (3 models) ......................................................................................................................... 3
Design Features ........................................................................................................................................... 4
Physical Characteristics ............................................................................................................................... 4
Section 2: MCDR Operation .................................................................................................. 5
Start Up ........................................................................................................................................................ 5
Receiving ..................................................................................................................................................... 6
Items Required ............................................................................................................................................. 6
Setup ............................................................................................................................................................ 6
RF Link ........................................................................................................................................................ 6
Section 3: FCC RF Exposure Limits ..................................................................................... 6
Caution ........................................................................................................................................................ 6
Section 4: Serial Interface ....................................................................................................... 6
Message Serial Format ................................................................................................................................ 7
Status Code Table ........................................................................................................................................ 8
Command List ............................................................................................................................................. 9
Checksum .................................................................................................................................................... 12
Example Checksum ..................................................................................................................................... 13
Section 5: Maintenance ........................................................................................................... 14
Operator Maintenance ................................................................................................................................. 14
Depot Maintenance ...................................................................................................................................... 14
Equipment Storage ...................................................................................................................................... 14
Warranty ...................................................................................................................................................... 14
Return Procedures ....................................................................................................................................... 14
Troubleshooting Guide ................................................................................................................................ 14
Section 6: Frequency/Channel Calculations ......................................................................... 15
Channel to Frequency Calculation .............................................................................................................. 15
Frequency to Channel Calculation .............................................................................................................. 15
HISTORY
Revision Changes Date
C Corrected max channels from 600 to 640. Removed transmitting references 10/05/2012
B Updated Figure 2. Corrected mechanical layout J2 location 08/16/2012
A Added updated images 05/30/2012
O/I Original Issue 04/20/2012
QTI Page 3 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
Section 1: MCDR Multi-Channel Data Receiver
Description
The Multi-Channel Data Receiver (MCDR) is an OEM modular modem for users who need low power
and small size with serial communications. The MCDR is a smaller version of the MCDT-R and is
fully compatible. The MCDR is equipped with a RS-485 communications port which is a simple, low-
cost interface, utilizing few components and allows for daisy-chaining multiple receivers. The MCDR
is capable of receiving SEIWG-005 data messages, which includes a distinct ID and a status code, over
a selectable frequency range. This frequency is selectable via the synthesizer control circuit, providing
a selection of up to 1920 RF channels, depending on the model’s frequency range. The MCDR comes
in Low-Band, Mid-Band, and High-Band models, having the following frequency ranges:
Low Band Medium Band High Band
Channel 001 = 138.025 MHz Channel 001 = 154.005 MHz Channel 001 = 162.00625 MHz
Channel 640 = 154.000 MHz Channel 1600 = 162.000 MHz Channel 1920 = 174.000 MHz
Channel Spacing: 25 kHz Channel Spacing: 5 kHz Channel Spacing: 6.25 kHz
Model Numbers (3 models)
10D1068-L, -M, -H MCDR-L, -M, -H MCDR Receiver only; low, mid, or high band
Antenna: MMCX jack 50 ohm (J1)
(10D1984 MMCX to TNC 3” cable available)
Power Supply:
3.5 VDC to 16.5 VDC Receive
Connections:

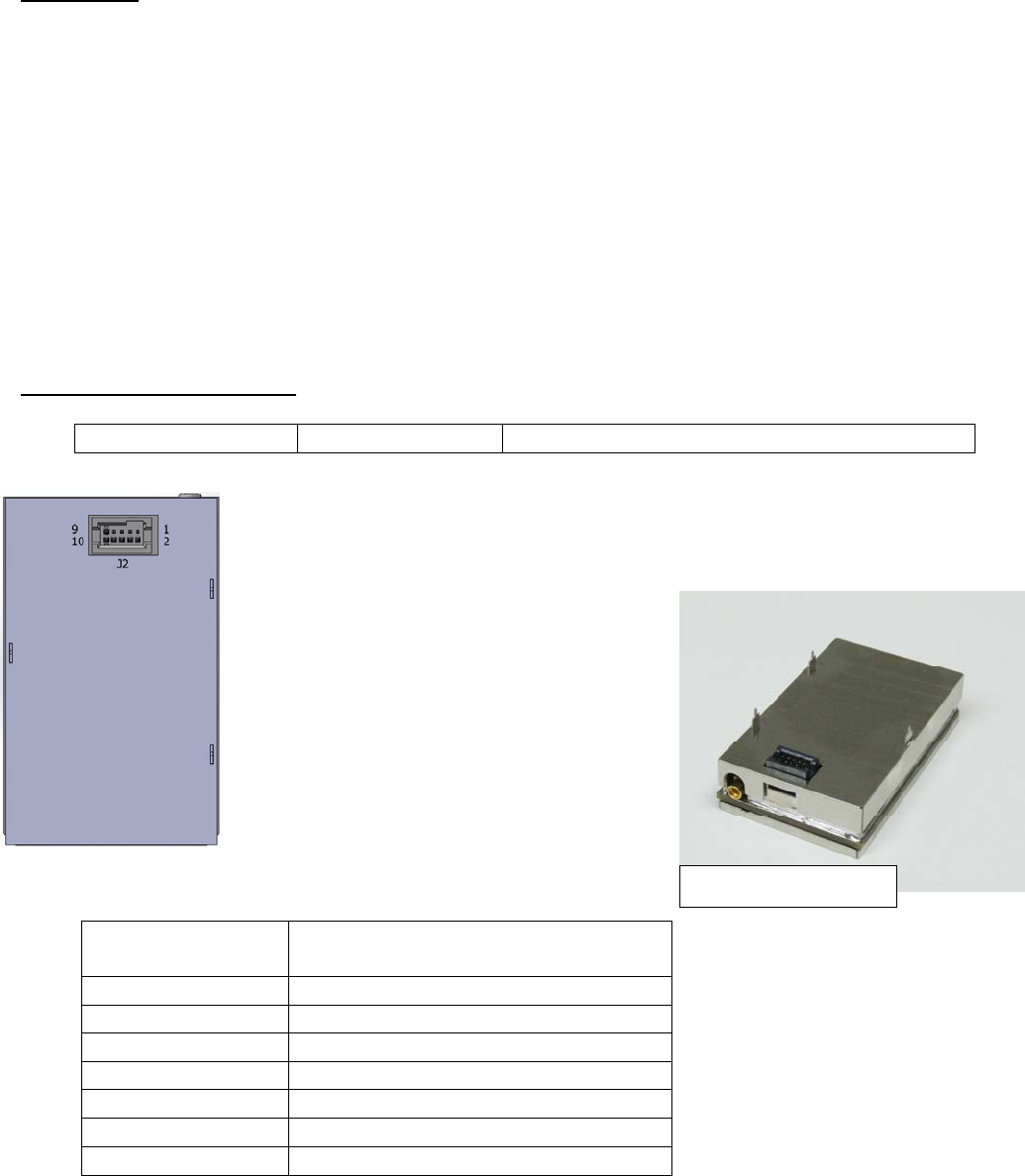

J2 - Header Pin
(10-pin TFM-105) MCDR_ Receiver Model
1, 2 Vin [Input] 3.5 to 16.5 VDC
3 Not Used
4 RS485 – B(+) [I/O]
5 RS485 – A(-) [I/O]
6 Same as pins 1,2
7 General I/O
8, 9, 10 GND
MCDR Receiver
QTI Page 4 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
Current Draw Approximations:
Mode Current Comments
Sleep 20uA MCDR wakes up on RS485 bus activity
Active 5.0mA Receiver off / Microprocessor on
Receiver On 35mW @ 3.5VDC
165mW @ 16.5VDC Receiver on – Waiting for valid RF message
Receiver Active 16.9mA RF message received – Microprocessor on
Design Features
ID Code Selection 000-999 for EMIDS, 000-063 for all other formats
Directional, sensor fault, low battery, tamper, and test status codes for EMIDS format
Able to receive and transmit MIDS 20-bit or MMIDS / EMIDS 29-bit messages
MMCX antenna port matched to 50 ohms
Conformal-coated and shielded circuit assembly
Physical Characteristics
The MCDR is light weight and comes in a compact size. This makes it ideal for mobile applications as
well as applications with tight space constraints.
Receiver Only
Weight 40 g (1.4 oz)
Height 14.4 mm (0.565 in) (0.739 in w/standoffs)
Length 56.4 mm (2.219 in)
Width 34.4 mm (1.355 in)

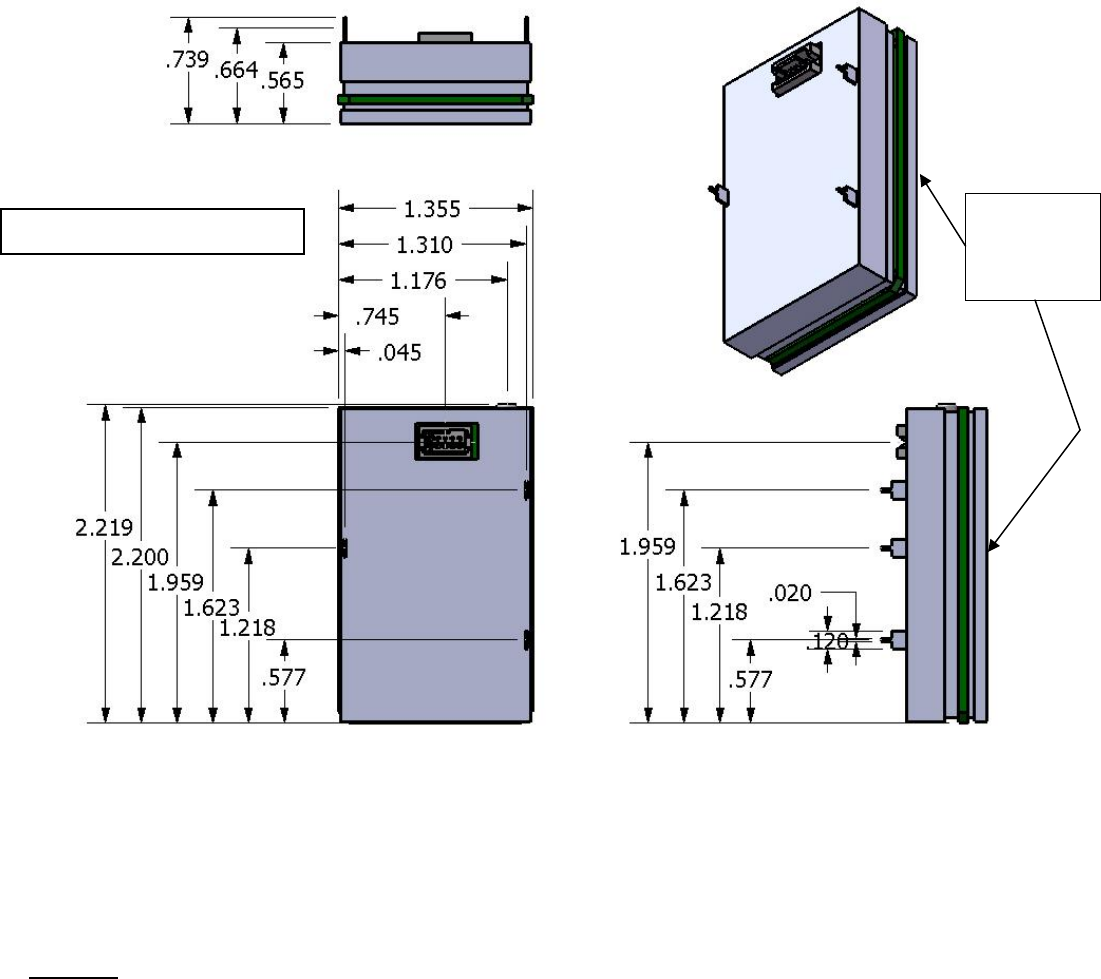

The shielding on the MCDR has been designed in a way to promote easy PCB integration. The top of
the MCDR is equipped with three alignment tabs that can be used as standoffs. By utilizing these pins
and a proper connector, you are able to design a board that will hold the MCDR. Dimensions for the
MCDR are shown in Figures 2 below.
Connections to the MCDR can be made by connecting to the J2 header and the J1 MMCX jack. The
header used on the MCDR is SAMTEC part TFM-105-XX-X-D. The recommended mate is SFM-105-
T2-L-D-P from SAMTEC. These are 2 x 5 pin headers with a 50 mil pitch. See Connections table
above to determine pin outs. Qual-Tron offers a MMCX to TNC cable (10D1984), but any industry-
standard, gold-plated MMCX plug should mate to the jack adequately. Carefully aligning and gently
rotating the MMCX plug in the jack helps reduce both the possibility of damage to either connector as
well as the force required to connect or disconnect.

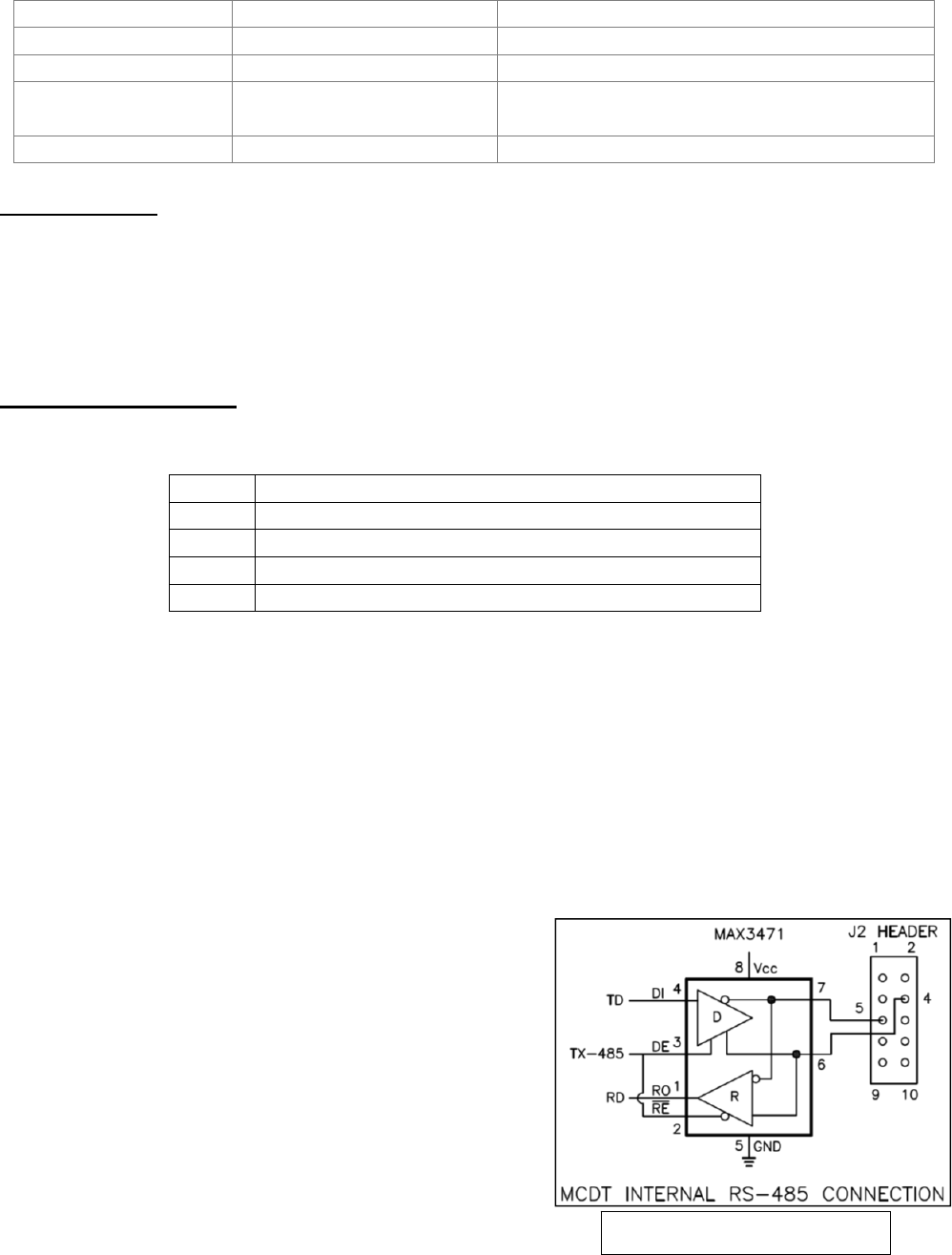

The serial RS485 I/O driver IC used by Qual-tron is a
MAXIM part. The part number is MAX3471EUA+. If the
customer also includes this IC from MAXIM in their
design, connect pin 6 of the IC to pin 4 on J2 and connect
pin 7 to pin 5 on J2. Note: Sometimes RS485 devices are
marked with the polarity reversed from normal RS485
standards. If a new or unknown device cannot
communicate, try reversing the differential lines usually
marked A & B.
Figure 1. RS485 Circuit
QTI Page 5 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
Section 2: MCDR Operation
Using the settings provided in Section 3: Serial Interface, open a serial communication program such
as HyperTerminal and supply power to the MCDR. A USB to RS485 cable is available that can
connect directly to the MCDR. The USB port from a computer is capable of powering the MCDR.
Start Up
When the MCDR is initially powered on, a “BL<CR>” output string is sent to indicate the opportunity
for entering the “Boot Loader” mode. The ability to enter the boot loader mode will timeout after 1
second.
The next serial output that is sent after the BL timeout indicates the reason for the reset or restart. It
can be one of the following messages: "PWR-ON RST", "EXT RST PIN", "COP RST", "ILLEGAL
OP RST", "ICG RST", "LVD RST", or "UNKNOWN RST".
After the reset message, the version information is sent “MCDR 029A 003G<CR>” for example. (See
the VER command for the description).
NOTE: The “BL” (Boot Loader) response provides the opportunity to enter the programming mode for
one (1) second at start up. Sending a “P” (no “<CR>”) will enter the firmware upgrade mode and
could cause the firmware to be erased. Therefore, the user is advised not to send any characters to the
unit, especially not a character “P” followed by a character “Y” to the MCDR before the version
information is received.
Figure 2. MCDR Receiver FCC ID
Label
Location
QTI Page 6 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
Receiving
During normal operation, the MCDR is capable of receiving SEIWG-005 messages via the serial port
and via radio frequency. The MCDR assumes a low-power shut-down mode to conserve power when
not in use.
Items Required
1. DC Power Source: 3.5VDC receiver to 16.5 Volts
2. Personal Computer with USB or RS232 port
3. 10-pin connector to RS-485 USB cable (QTI part# 10D1978)
4. Serial Communications Program such as HyperTerminal
Setup
1. Set the Channel. (Default CHR 001)
2. Enable receiver, if desired. (Default RCV 1)
3. Enable Push to send messages out serial port, or disable to poll for messages. (Default PSH 1)
RF Link
The operational range of the RF link is dependent upon various conditions. The high frequency of the
RF link works best under line of sight conditions. RF range may vary from 0.5 kilometer to 5
kilometers for open areas.
NOTE: Elevating an antenna will increase transmission and/or reception range significantly. The use
of relays/repeaters can also be used to increase transmission ranges. Transmitting and receiving
antennas should all be oriented in the same direction i.e. all mounted vertically or all mounted
horizontally so that they have the same polarization.
Section 3: FCC RF Exposure Limits
This device complies with the MPE (Maximum Permissible Exposure) requirements by providing a
safe separation distance of 30 cm between the antenna, including any radiating structure, and any
persons when normally operated.
Caution
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter. This device is approved with emissions having a source-based time-
averaging duty factor not exceeding 50%. Operating at a lower duty cycle than 50% will allow
proportionately shorter exposure distance than 30 cm.
Section 4: Serial Interface
The MCDR defaults to a low-power shut down mode with the receiver still operating (if installed). If
push is enabled (“PSH 1”), the MCDR will send the message via the serial port upon receiving an RF
message, and then return to shut-down immediately. The user may initiate serial communication by
sending the MCDR two carriage returns. This is to allow the MCDR time to wake-up from the power-
down mode. After 1 minute of inactivity on the serial port, the MCDR returns to low-power shut down
mode. If the user has disabled the PUSH setting (“PSH 0”) and a new RF message is received, the
MCDR will send its RS485 ID. See the SID command. This is used to wake-up the user’s application
QTI Page 7 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
processor. Once awake the user can poll to get the new message. See the NEW command. If the
MCDR is still awake and the MCDR receives a new message, the shut-down mode will not occur until
the RS485 serial ID has been sent and acknowledged. The user’s application must respond or an
infinite loop condition would occur causing the MCDR to never shut down.
The MCDR communicates over RS-485. Commands must be followed by a carriage return (<CR>).
Settings are retained only until power is turned off unless the SAV command is used to store them to
the unit’s flash memory. When sending commands and queries, a two-digit hexadecimal checksum
(cs) can be used to check data integrity. Refer to the Checksum section after the Command List.
SETTINGS
38400 baud [fixed], No parity, 8 bit, 1 stop bit, No flow control
Message Serial Format
Decoded message is sent via RS-485:
RXM TT III SS R<CR> - Received message
TT = Message Type, III = ID code, and SS = status code; TT and SS are hexadecimal, and III is
decimal. R is the receive signal strength indicator; see RSS command.
Example: RXM 0D 244 0B
Message received – Received message type “EMIDS” with an ID code of 244 and a status code of
TEST, FAULT.
MESSAGE TYPE (TT)
The message type consists of two (2) hexadecimal characters. The first character shows the parity; the
most significant bit will be set if the parity is bad. The second character identifies the type.
Good Parity Bad Parity
MIDS 07h 87h
EMIDS 0Dh 8Dh
TRSS 1Dh 9Dh
REMBASS 06h 86h
Message Type Table
NOTE: TRSS and REMBASS message formats available upon request.
QTI Page 8 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
Status Code Table
STATUS
CODE ALARM TAMP/TEST LOBATT R>L L>R MEANING
00 0 0 0 0 0 RESERVED
01 0 0 0 0 1 RESERVED
02 0 0 0 1 0 RESERVED
03 0 0 0 1 1 FAULT
04 0 0 1 0 0 RESERVED
05 0 0 1 0 1 RESERVED
06 0 0 1 1 0 RESERVED
07 0 0 1 1 1 FAULT, LOBATT
08 0 1 0 0 0 TEST
09 0 1 0 0 1 RESERVED
0A 0 1 0 1 0 RESERVED
0B 0 1 0 1 1 TEST, FAULT
0C 0 1 1 0 0 TEST, LOBATT
0D 0 1 1 0 1 RESERVED
0E 0 1 1 1 0 RESERVED
0F 0 1 1 1 1 TEST, FAULT, LOBATT
10 1 0 0 0 0 ALARM
11 1 0 0 0 1 ALARM, L>R
12 1 0 0 1 0 ALARM, R>L
13 1 0 0 1 1 RESERVED
14 1 0 1 0 0 ALARM, LOBATT
15 1 0 1 0 1 ALARM, L>R, LOBATT
16 1 0 1 1 0 ALARM, R>L, LOBATT
17 1 0 1 1 1 RESERVED
18 1 1 0 0 0 TAMP
19 1 1 0 0 1 RESERVED
1A 1 1 0 1 0 RESERVED
1B 1 1 0 1 1 TAMP, FAULT
1C 1 1 1 0 0 TAMP, LOBATT
1D 1 1 1 0 1 RESERVED
1E 1 1 1 1 0 RESERVED
1F 1 1 1 1 1 TAMP, FAULT, LOBATT
ID CODE (III)
The unit ID code consists of three (3) decimal characters, but only EMIDS messages use all three.
MIDS, TRSS and REMBASS are limited to ID codes 000-063. EMIDS uses 000-999.
STATUS CODE (SS)
Status Codes depend upon the message format. MIDS has no status code, and these characters will
always be 00. EMIDS status codes are listed in the previous table.
QTI Page 9 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
MCDR Serial Commands:
Note: It is recommended that when using a processor to control the MCDR that the format
described under Checksum be used. This format helps ensure data integrity by greatly reducing
communication errors and is more robust for machine to machine (M2M) applications.
Valid commands will return the command and the argument followed by the word “OK”.
Invalid commands return “SYNTAX ERROR”.
Invalid command arguments will return “ERR” at the end of the command and argument.
Carriage Return represents end of line and causes the line to be processed.
If command is given with “#” at the beginning, then a two digit checksum is expected before
<CR>. Returned string has a checksum if checksum sent.
Checksum is two’s compliment of the command string (everything before checksum).
A space is always included between the command and the argument: “CHR <space> 101 <CR>”.
Command List
? … Brings up the help menu
The current help menu (without checksums) appears as follows:
Commands List:
HELP/?: Show this menu
CHR: Get/Set rcv Chan
CMB: Clear message buffer
CRF: Get receive channel in Hz
M2M: Get/Set Machine to Machine mode
MSG: Get rcvd msg
NEW: Get new messages
PSH: Get/Set push mode
RCV: Get/Set receive mode
RSS: Get receive signal strength
RST: Reset
SAV: Save Current Parameters
SID: Get/Set the RS485 ID
SLP: Enter Sleep mode
SRN: Get unit serial num
TMP: Read Temp
VER: Show versions
CHR… Get/Set the receive channel. (Follow with SAV command.)
Z is the channel number, [1 = DEFAULT]:
Low Band 0-600; Mid Band 0-1600; High Band 0-1920
Get the channel: CHR<CR>
Returns: CHR Z<CR>
Set the channel: CHR Z<CR>
Returns: CHR Z OK<CR>
Invalid returns: CHR Z ERR<CR>
CMB… Clear Message Buffer; see MSG command.
Get the frequency: CMB<CR>
Returns: CMB OK<CR>
QTI Page 10 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
CRF… Get the receive channel as a frequency in Hz. (138000000-174000000)
Get the frequency: CRF<CR>
Returns: CRF Z<CR>
M2M…Get/Set machine to machine mode (follow with SAV command). In machine to machine mode
all returned messages begin with ‘#’ and end with the checksum before the <CR>. Commands
can be issued without ‘#’ and a checksum. No syntax errors are reported for unknown
commands.
Z = 0: OFF
Z = 1: ON [DEFAULT]
Get M2M mode: M2M<CR>
Returns: M2M Z<CR>
Set M2M mode: M2M Z<CR>
Returns: M2M Z OK<CR>
Invalid returns: M2M Z ERR<CR>
MSG… Recall a previous message.
Z (decimal 0-9) is the message with 0 being most recent message and 9 being the oldest
message. If the requested message is empty, all the fields will return with zeros.
Returned values: TT (hexadecimal) is the message type, III (decimal) is the ID, SS
(hexadecimal) is the status code, and R (decimal) is the RSSI. (See RSS command.)
Get a message: MSG Z<CR>
Returns: RXM TT III SS R<CR>
Invalid returns: MSG Z ERR<CR>
NEW… Read New messages. Use when PUSH is OFF. This returns the oldest unread message.
Send “NEW 1” to mark the message as read, so it will no longer be returned with the “NEW”
command.
Note: This command can also be used if the PUSH is enabled.
Returned values: TT (hexadecimal) is the message type, III (decimal) is the ID, SS
(hexadecimal) is the status code, and R (decimal) is the RSSI.
Poll for a new message: NEW<CR>
Returns: RXM TT III SS R<CR>
If no new message Returns: RXM<CR>
Mark message as read: NEW 1<CR>
Returns: NEW 1 OK<CR>
PSH… Get/Set to push new messages out the serial port.
Z = 2: ON (Pushes <CR><CR> prior to sending the new message) Version 0.2.8.A and above.
Z = 1: ON (New messages are pushed out the serial port when received.) [DEFAULT]
Z = 0: OFF (Master must poll for new messages – Receiver sends RS485 ID on receipt of new
message when in power-down mode).
Get PUSH mode: PSH<CR>
Returns: PSH Z<CR>
Set PUSH mode: PSH Z<CR>
QTI Page 11 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
Returns: PSH Z OK<CR>
Invalid returns: PSH Z ERR<CR>
RCV…Get/Set receive mode.
Z = 1: ON (receiver enabled) [DEFAULT]; CAUTION: If no receiver has been installed, the
receiver should be disabled to conserve power.
Z = 0: OFF (receiver disabled)
Get receive mode: RCV<CR>
Returns: RCV Z<CR>
Set receive mode: RCV Z<CR>
Returns: RCV Z OK<CR>
Invalid returns: RCV Z ERR<CR>
RSS… Get the receive signal strength indicator (RSSI). Returns a positive decimal number (0-9),
where higher numbers indicate stronger signal. Good signal strength is 6+. If receiver is
disabled, it returns 0 (min).
Note: This command immediately reads the RSSI value, which is useful to determine if a
frequency is being used or jammed. The “MSG” command appends the RSSI value that
occurred while receiving the message, which is useful in site selection and deployment.
Get RSSI: RSS<CR>
Returns: RSS R<CR>
RST… Reset the unit. On start-up the MCDT outputs version.
Reset the unit: RST<CR>
Returns: RST OK<CR>
SAV… Save the current parameters in flash memory. Use this to store any parameter changes.
Save current settings: SAV<CR>
Returns: SAV OK MCDT<CR>
SID… Get/Set the RS-485 serial identifier. [T = DEFAULT]
Capital character (A-Z). All MCDT’s will respond to X so it should not be used. The purpose
and use of this command is described below in Checksum.
Get protection: SID<CR>
Returns: SID Z<CR>
Set protection: SID Z<CR>
Returns: SID Z OK<CR>
Invalid returns: SID Z ERR<CR>
SLP… Shut down the serial port to conserve power. The MCDT goes to power-down mode
immediately after returning the SLP OK command. Note: To reactivate the serial port, send a
carriage return or some other ASCII character. Use “SLP 0” when RS-485 bus is shared.
Enter low power mode: SLP<CR>
Returns: SLP OK<CR>
Enter low power mode: SLP 0<CR>
Returns: <Nothing returned>
QTI Page 12 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
SRN… Get the unit serial number.
The serial number is a string up to 8 characters long.
Get serial number: SRN<CR>
Returns: SRN Z<CR>
TMP… Get the board temperature in degrees Celsius (decimal), with a tenth degree precision (250 =
25.0C).
Get temperature: TMP<CR>
Returns: TMP Z<CR>
VER… Get the unit version.
MCDR is the model, <space>, VVVV is the firmware version (Major.Minor.Build.Rev),
<space>, M is the message types supported (0 = standard [MIDS/EMIDS], 1 = custom), B is
the frequency band (0 = low, 1 = mid, 2 = high), H is the hardware capabilities (1 = receive
only, 2 = transmit only, 3 = both), R is the hardware board revision.
Get version: VER<CR>
Returns: MCDR VVVV MBHR<CR>
Checksum
To use checksum begin the command with “#” plus the unit serial ID and end the command with the
calculated checksum (cs) value followed by the carriage return <CR>. A command with an invalid
checksum or invalid serial ID is ignored and no reply is sent. The checksum is a 2 digit hexadecimal
calculated as the 2’s compliment of the sum of the command string including the “#” and serial ID.
Using the checksum also allows and requires using the serial ID. The universal serial ID is X, so all
units will acknowledge these commands. The unit will respond with its specific serial ID.
Sample syntax: Action With Checksum Without Checksum
Get receive channel: #XCHRA8<CR> CHR<CR>
Returns: #ACHR 196FF<CR> CHR 196<CR>
Set receive channel to 2: #XCHR 256<CR> CHR 2<CR>
Returns: #ACHR 2 OKB3<CR> CHR 2<CR>
Note: “A” is just a sample serial ID, and may be different.
Example checksum C-Code calculator
char CRC2sComp( char *buffr, int end) { //creates 2's complement
int c;
int calcSum = 0;
for( c = 0; c <= end; c ++ )
{ calcSum += buffr[c]; }
calcSum ^= 0xFF; //1's complement
calcSum += 1; //now 2's complement
return (char)(calcSum);
}
QTI Page 13 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
Example Checksum
Line to send is “#ACHR 597<CR>”
Convert characters to ASCII values:
# (35) + A (65) + C (67) + H (72) + R (82) + <sp> (32) + 5 (53) + 9 (57) + 7 (55)
NOTE: <CR> is not included in calculation.
Sum: 35+65+67+72+82+32+53+57+55 = 518T (206h)
1’s Complement is bit inversion: = [10 0000 0110] [01 1111 1001] = 1F9h
2’s complement is adding 1 to the 1’s complement: 1F9 + 1 = 1FAh
Drop anything higher than the lowest 8 bits: [1 1111 1010] [1111 1010] = FAh
The result is FAh, so send line as “#ACHR 597FA<CR>”
Note: Adding the checksum will result in zero for the low byte. (206h + FAh = 300h)
QTI Page 14 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
Section 5: Maintenance
Operator Maintenance
The MCDT has been designed as low cost low maintenance equipment. All components are conformal
coated which reduces the amount of maintenance required. The only required operator maintenance is
to inspect the equipment for damage and keep the equipment clean of dirt, grime, and caked on mud.
NOTE: Do not submerge the equipment in water. This could result in damage.
Depot Maintenance
Upper echelon maintenance will be performed by the supplier of the equipment. If the equipment is
beyond the user capability to repair, it can be returned to the supplier for test and evaluation. Upon
completion of the inspection, the supplier will notify the user if the unit can be repaired. If the
equipment is not covered by the warranty, an estimate will be provided for repair costs. If the
equipment is not repairable, the supplier will specify replacement costs. (Note: See warranty below for
return procedures.)
Equipment Storage
Upon return to the facility, clean equipment as noted in operator maintenance above. After cleaning,
return the equipment to the storage cases. Store the unit in a dry environment, preferably at room
temperature.
Warranty
Qual-Tron, Inc. guarantees all products to be free from defects in materials and workmanship for 12
months from the date of purchase. Damage due to misuse, accidents, lightning strikes, unauthorized
service, environmental conditions beyond the equipment specifications, acts of war or damage other
than fair, wear and tear is excluded from this warranty.
Return Procedures
For support and service, please contact the following. To return any material, contact Qual-Tron, Inc.
to receive a Return Material Authorization (RMA) number. Once an RMA number has been assigned,
ship the material to the address below and reference the RMA number on the packing slip. Qual-Tron
will return the equipment as quickly as possible to the user.
QUAL-TRON, INC.
Attn: Sales Ph: 918-622-7052
9409 E. 55th Place Fax: 918-664-8557
Tulsa, OK 74145 email: sales@qual-tron.com
Troubleshooting Guide
Defect Possible Cause Corrective Action Stage
Area Empl
Site
Will not turn on Low voltage Check power supply X
Does not receive
alarms Low voltage Check power supply X
Transmitter & receiver too
close to each other Experiment with antenna
combinations (with & without) X X
Frequency Verify transmitter and receiver are
on the same frequency X
Receiver not enabled Verify receive mode is on X
Wrong message format Check TRSS mode X
QTI Page 15 of 15 Revision: C
Form #: 30Z0266 Effective Date: 5 October 2012
Section 6: Frequency/Channel Calculations
Frequency Ranges
Frequency
Range Frequency Channel
Steps Max
Channels
Min Max
Low 138 MHz 154 MHz 25 kHz 640
Mid 154 MHz 162 MHz 5 kHz 1600
High 162 MHz 174 MHz 6.25 kHz 1920
Channel to Frequency Calculation
Channel * Channel Step + Min Frequency = Frequency for Channel
Examples:
- Low Band Channel 20
- 20 * 0.025 +138 =138.5 MHz
- Mid Band Channel 300
- 300 * 0.005 + 154 = 155.5 MHz
Frequency to Channel Calculation
(Frequency – Min Frequency) / Channel Step = Channel for Frequency
Examples:
- Low Band 151.5 MHz
- (151.5 – 138) / 0.025 = Channel 540
- High Band 172.5 MHz
- (172.5 – 162) / 0.00625 = Channel 1680
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE CONDITION
THAT THIS DEVICE DOES NOT CAUSE HARMFUL INTERFERENCE.
NOTE: QUAL-TRON, INC. IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD
VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
