Quanta Computer 94312MCGF3507G Notebook Computer User Manual S9 S10 USERGUIDE EN
Quanta Computer Inc Notebook Computer S9 S10 USERGUIDE EN
Users Manual
S9/S10 User Guide V1.0 EN cover_1-4
Lenovo
IdeaPad
S9/S10
User Guide
User Guide
V1.0
V1.0
New World. New Thinking.TM
www.lenovo.com
©Lenovo China 2007
P/N:147001827
Printed in China
MT:4067, 20013,
4231, 20015,
4187,
4068, 20014
4329
4333, 11N3G, 11G3G
S9/S10 User Guide V1.0 EN cover_2-3
First Edition (April 2008)
Before using this information and the product it supports, be sure to read the following:
• Chapter 6. Safety, Use, and Care Information on page 54.
• Appendix D. Notices on page 102.
•OneKey Rescue System User Guide included in the package with this publication.
Note
U.S. GOVERNMENT USERS – RESTRICTED RIGHTS: Our products and/or services are provided with
RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to the GSA ADP Schedule
contract with Lenovo, if any, or the standard terms of this commercial license, or if the agency is unable to accept
this Program under these terms, then we provide this Program under the provisions set forth in Commercial
Computer Software–Restricted Rights at FAR 52.227-19, when applicable, or under Rights in Data-General, FAR
52.227.14 (Alternate III).
© Copyright Lenovo 2008. All rights reserved.
If your product is not working correctly,
DO NOT RETURN IT TO THE STORE.
For technical assistance, contact a Lenovo support
specialist 24 hours a day by calling toll free 1-877-4
LENOVO (1-877-453-6686).
Additionally, you can find support information and updates
on the Lenovo Web site located at
http://consumersupport.lenovo.com.
* Only for the users from the United States.
ENERGY STAR model information
ENERGY STAR
®
is a joint program of the U.S. Environmental Protection
Agency and the U.S. Department of Energy aimed at saving money and
protecting the environment through energy efficient products and practices.
Lenovo
®
is proud to offer our customers products with an ENERGY STAR
compliant designation. Lenovo computers of the following machine types, if
the ENERGY STAR mark is affixed, have been designed and tested to conform
to the ENERGY STAR 4.0 program requirements for computers.
•20013, 20015
•4067, 4231
By using ENERGY STAR compliant products and taking advantage of the
power-management features of your computer, you reduce the consumption
of
electricity. Reduced electrical consumption contributes to potential financial
savings, a cleaner environment, and the reduction of greenhouse gas
emissions.
S9-S10 User Guide V1.0_en.book Page 1 Wednesday, July 23, 2008 5:53 PM
For more information about ENERGY STAR, visit
http://www.energystar.gov.
Lenovo encourages you to make efficient use of energy an integral part of
your day-to-day operations. To help in this endeavor, Lenovo has preset
the following power-management features to take effect when your
computer has been inactive for a specified duration:
To awaken your computer from a Sleep or System Standby mode, press any
key on your keyboard. For more information about these settings, refer to
your Windows Help and Support information system.
Table 1. ENERGY STAR power-management features, by operating system
Windows XP
•Turn off monitor: After 10 minutes
•Turn off hard disks: After 30 minutes
•System standby: After 20 minutes
•System hibernates: After 2 hours
S9-S10 User Guide V1.0_en.book Page 2 Wednesday, July 23, 2008 5:53 PM
Explanation of Hard Disk Capacity
Dear user,
While using your computer, you may discover that the nominal hard disk
capacity indicated is somewhat different from the disk capacity
displayed by the operating system. For example, a nominal 80GB hard
disk will appear as less than 80GB in the operating system. This
discrepancy is not an error in hard disk installation nor any other
problem, but a normal phenomenon of computers. This phenomenon is
primarily due to the following reasons:
I.Different standards used by the manufacturer and operating
system when calculating hard disk capacity
Hard disk manufacturers use a radix of 1000, i.e. 1G = 1,000MB, 1MB =
1,000KB, 1KB = 1,000 bytes. However, when identifying hard disk capacity,
operating systems use a radix of 1024, i.e. 1GB = 1,024MB, 1MB = 1,024KB,
1KB = 1,024 bytes. The standard adopted by your computer is that of the
hard disk manufacturers. Since the standards adopted by the hard disk
manufacturer and operating system are different, the hard disk capacity
displayed by the operating system will be different from the nominal hard
disk capacity.
For example, if the hard disk is nominally X G, even when it is completely
empty, the capacity displayed by the operating system will be:
X × 1000 × 1000 × 1000/ (1024 × 1024 × 1024) | X × 0.931 G
S9-S10 User Guide V1.0_en.book Page 3 Wednesday, July 23, 2008 5:53 PM
If a portion of the hard disk space has been used for some specific purpose,
then the capacity indicated by the operating system will be even less than
X × 0.931 G.
II.A portion of the hard disk space is used for specific purposes
Lenovo computers come with preinstalled OneKey Rescue System, so the
hard disk has a special portion partitioned before delivery, which is used to
store hard disk mirror and OneKey Rescue System program files. The size
of the reserved space for this partition varies according to the model,
operating system and software of the computer. For the sake of safety, this
partition is not evident, which is commonly referred to as a “hidden
partition”.
In addition, after the hard disk is partitioned or formatted, the system will
assign a certain amount of hard disk space for the system files.
For the above reasons, the available hard disk space indicated by the
operating system is always less than the computer’s nominal hard disk
capacity.
S9-S10 User Guide V1.0_en.book Page 4 Wednesday, July 23, 2008 5:53 PM
i
Chapter 1. Getting to Know Your
Computer ...................................... 1
Top View .......................................1
Left-side View...............................3
Right-side View ............................4
Front View.....................................5
Bottom View..................................6
Chapter 2. Using Your
Computer ...................................... 9
Putting your computer to Stand
by or Shutting It Down................9
Using the Touch Pad..................10
Using the Keyboard ...................11

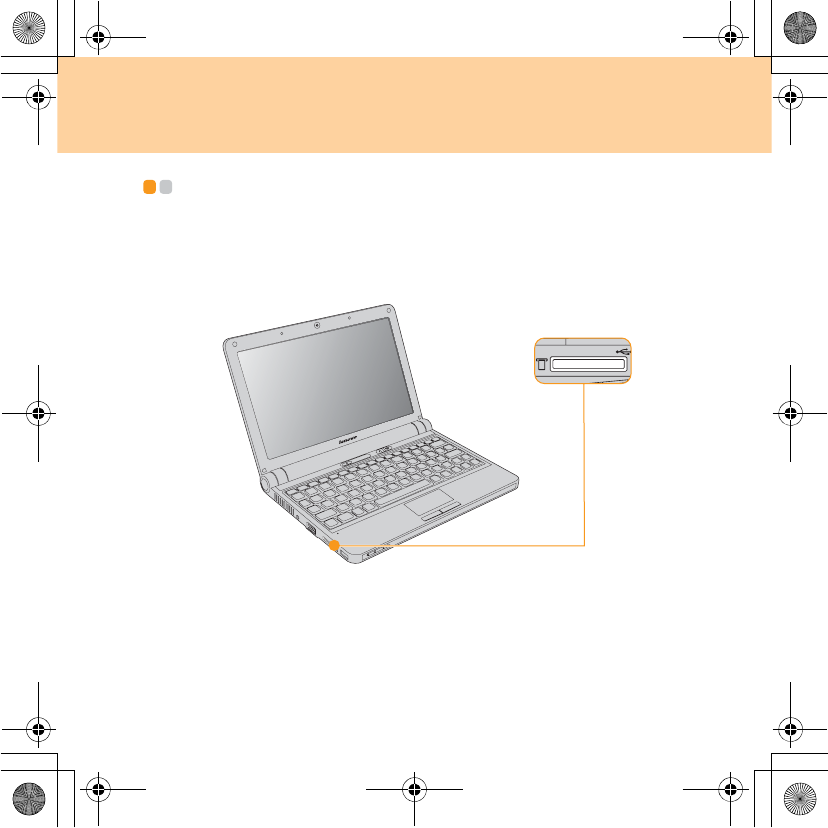

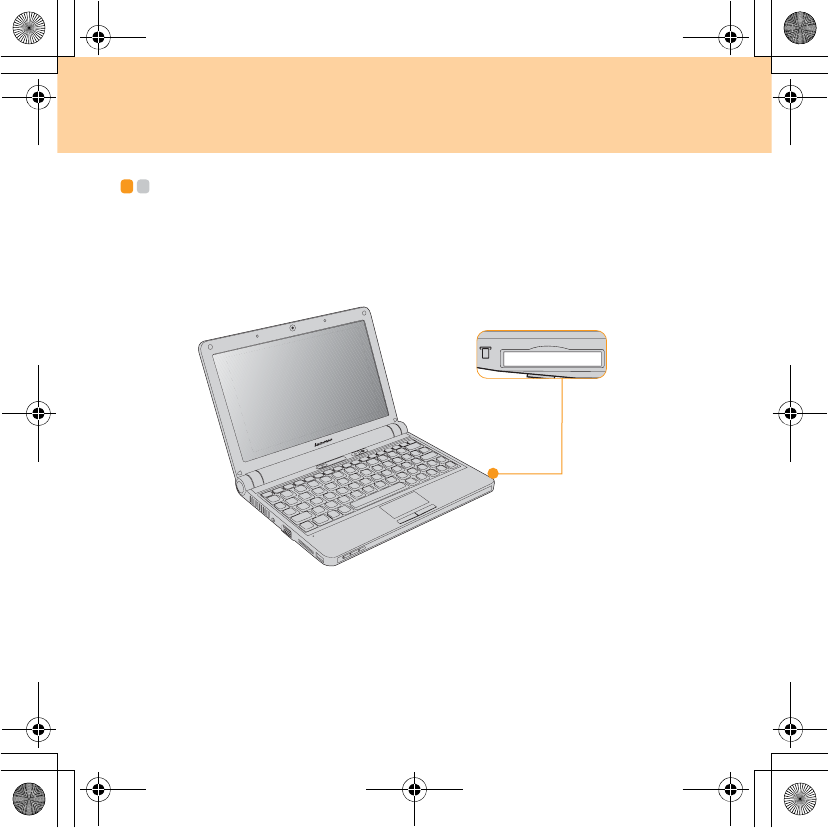

Using memory cards..................15
Using the Integrated Camera....16
Using the Internet.......................17
Securing your computer............19
Installing Device Drivers...........25
Using battery and AC
adapter .........................................25
Chapter 3. Using external
devices ........................................ 30
Connecting a Universal Serial Bus
(USB) device................................30
Connecting a PC card device....32
Connecting an external
display..........................................33

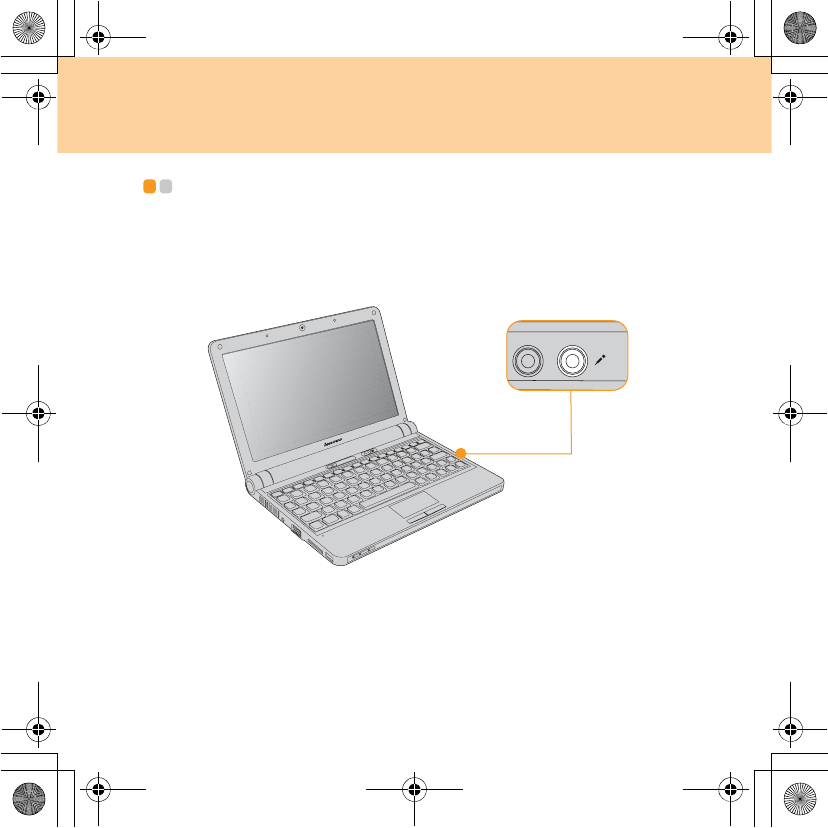

Connecting a headphone and
audio device ................................34
Connecting an external
microphone..................................35
Connecting a Bluetooth
device ...........................................36
Chapter 4. Troubleshooting .......37
Frequently Asked Questions ....37
Troubleshooting..........................39
Chapter 5. Getting Help and
Service .........................................49
Getting Help and Service ..........49
Getting Help on the Web...........50
Calling the Customer Support
Center ...........................................50
Getting Help around the
World............................................53
Chapter 6. Safety, Use, and Care
Information ..................................54
Important Safety
Information..................................54
Caring Your Computer..............71
Accessibility and Comfort.........79
Maintenance ................................82
Contents
S9-S10 User Guide V1.0_en.book Page i Wednesday, July 23, 2008 5:53 PM
ii
Contents
Appendix A. Lenovo Limited
Warranty...................................... 86
Warranty Information ............... 94
Lenovo Warranty Service
Telephone Numbers .................. 97
Appendix B. Customer
Replaceable Units (CRUs) ......... 99
Appendix C. Specifications ..... 100
Specifications ............................ 100
Appendix D. Notices ................ 102
Notices ....................................... 102
Wireless related
information ............................... 105
Electronic Emissions
Notices ....................................... 107
WEEE and Recycling
Statements ................................. 113
EU WEEE Statements .............. 114
Japan Recycling Statements.... 115
Notice for Users in the
U.S.A. ......................................... 117
Notice on Deleting Data from
Your Hard Disk ........................117
Trademarks ............................... 119
Index.......................................... 120
S9-S10 User Guide V1.0_en.book Page ii Wednesday, July 23, 2008 5:53 PM
1
Getting to Know Your Computer
Top View - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
* The illustrations in this manual may differ from the actual product.
e
f
a
b
c
d
2
Getting to Know Your Computer
Integrated camera
Computer display
The color display with TFT technology provides clear and brilliant text
and graphics.
Power button
Use the Power button to turn on the computer.
Microphone (built-in)
The built-in microphone (with noise reduction) can be used for video
conferencing, voice narration, or simple audio recordings.
OneKey Rescue System button
Wireless device button
Use this button to disable/enable wireless radio of all the integrated
wireless devices on your computer.
Getting to Know Your Computer
3

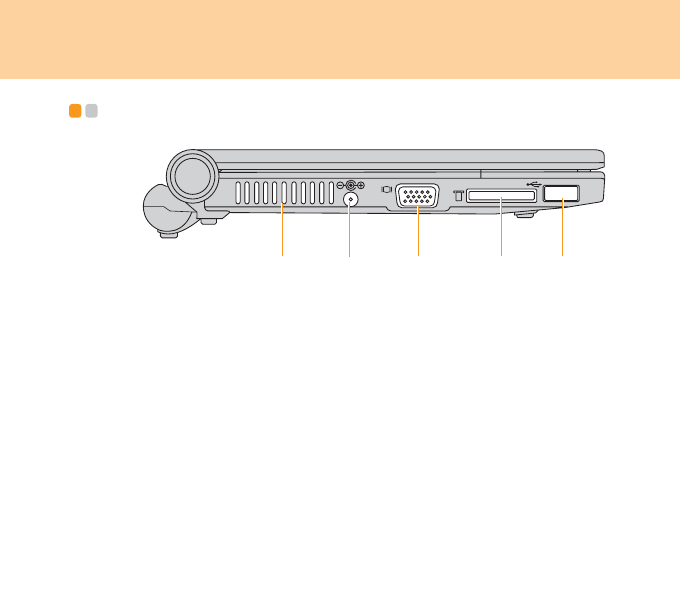

Left-side View - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Fan louvers
The fan louvers allow warm air to exit the computer.
Important:
Make sure that paper, books, clothing, cables or other objects do not block
any of the fan louvers or else overheating of the computer may occur.
AC power adapter jack
Connect the power adapter here to supply power to the computer and
charge the internal battery.
Note:
To prevent damage to the computer and battery pack, use the supplied
AC adapter only.

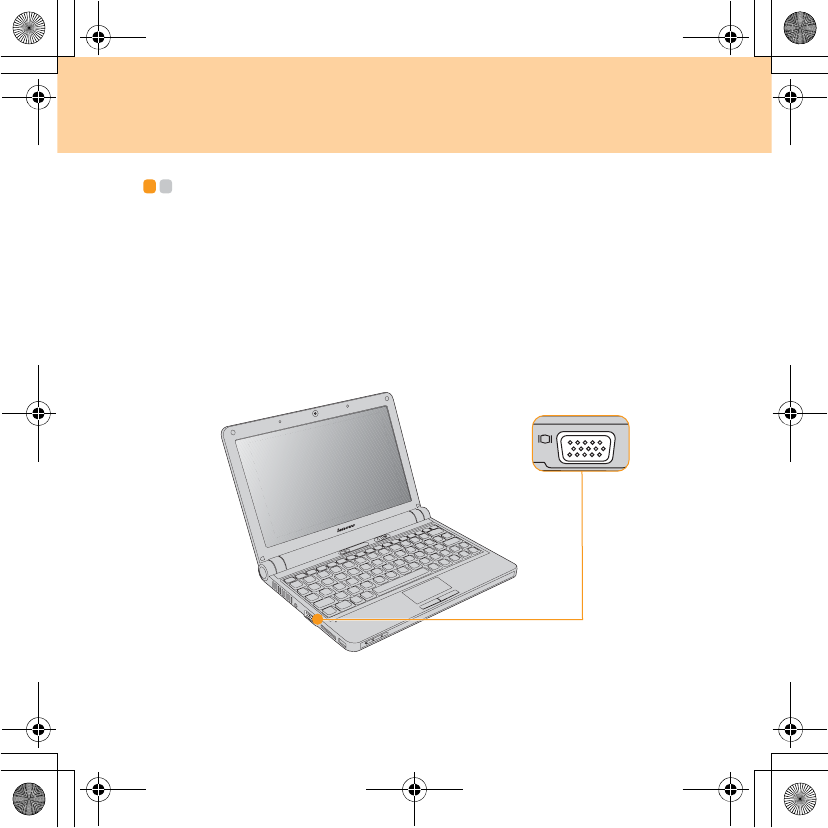

VGA port
Memory card slot
USB 2.0 port
dec
ab
4
Getting to Know Your Computer

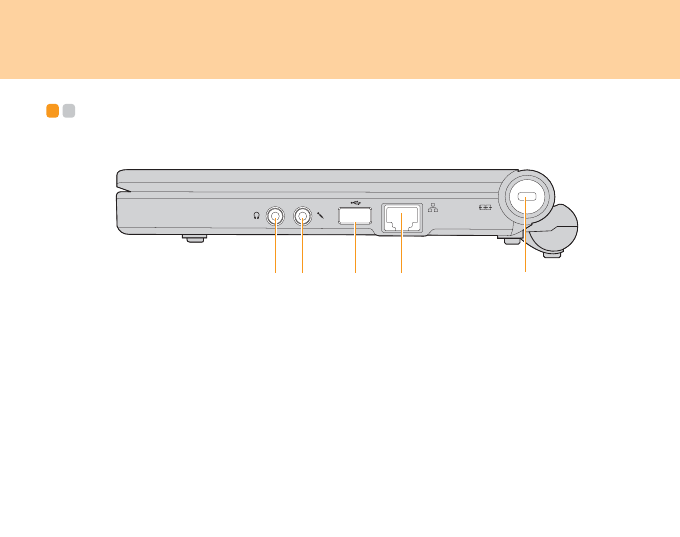

Right-side View - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Headphone jack (external)
Microphone jack (external)
USB 2.0 port
LAN port
Security keyhole
Your computer comes with a security keyhole. You can purchase a
security cable and lock to fit this keyhole.
Note:
Before purchasing any security product, verify that it is compatible with
this type of security keyhole.
e
d
ab
c
Getting to Know Your Computer
5
Front View - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
System status indicators
The system status indicators show the current status of your computer.
Power Indicator
Battery Status Indicator
Wireless radio status Indicator
Speakers
Built-in speakers for rich powerful sound.
ab
6
Getting to Know Your Computer
Bottom View - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
e
ba
d
c
Getting to Know Your Computer
7
Battery latch - spring loaded
The spring-loaded battery latch keeps the battery pack secured in
place. When you insert a battery pack, this latch automatically secures
the battery in place. To remove the battery, hold this latch in the
unlocked position.
Battery pack
Battery latch - manual
The manual battery latch is used to keep the battery pack secured.
Move the manual battery latch to the unlocked position to insert or
remove the battery pack. Move the manual latch to the locked position
after inserting the battery pack.
Expansion slot compartment
The Mobile Broadband module is secured in this compartment.
Hard Disk Drive/Memory (RAM) compartment
9
Chapter 2. Using Your Computer
Putting your computer to Stand by or Shutting It Down
- - -
When you finish working with your computer, you can put it to stand by or
shut it down.
The computer with SSD hard disk drive do not support sleep mode function.
Putting your computer to Stand By
If you will be away from your computer for only a short time, put the computer to sleep.
When the computer is in sleep, you can quickly wake it and bypass the startup process.
To put the computer to sleep, do one of the following.
Click Start and select Stand By from Turn Off Computer.
Press Fn + F1.
Warning:
Wait until the power indicator light starts blinking (indicating that the computer
is in Stand By) before you move your computer. Moving your computer while
the hard disk is spinning can damage the hard disk, causing loss of data.
To wake the computer, press the power button.
Shutting Down Your computer
If you are not going to use your computer for a day or two, shut it down.
To shut down your computer, click
Start
and select
Tu r n O f f
from Turn Off
Computer.
S9-S10 User Guide V1.0_en.book Page 9 Wednesday, July 23, 2008 5:53 PM
10
Chapter 2. Using Your Computer
Using the Touch Pad - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
The touch pad consists of a pad and two click buttons at the bottom of
the keyboard. To move the cursor on the screen, slide your fingertip
over the pad in the direction in which you want the cursor to move. The
functions of the left and right click buttons correspond to those of
the left and right mouse buttons on a conventional mouse.
a
d
c
b
S9-S10 User Guide V1.0_en.book Page 10 Wednesday, July 23, 2008 5:53 PM
Chapter 2. Using Your Computer
11
Note:
You can also attach and use a USB mouse through the USB connector.
For details, see “Connecting a Universal Serial Bus (USB) device” on
page 30.
Using the Keyboard - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer has a numeric keypad and function keys incorporated in
the standard keyboard.
Numeric Keypad
The keyboard has keys that, when enabled, work as a 10-key numeric
keypad.
To enable or disable the numeric keypad, press Fn+F7.
* The illustrations in this manual may differ from the actual product.
S9-S10 User Guide V1.0_en.book Page 11 Wednesday, July 23, 2008 5:53 PM
12
Chapter 2. Using Your Computer
Function Key Combinations
Through the use of the function keys, you can change operational features
instantly. To use this function, press and hold the Fn key ; then press one
of the function keys .
a
b
S9-S10 User Guide V1.0_en.book Page 12 Wednesday, July 23, 2008 5:53 PM
Chapter 2. Using Your Computer
13
The following describes the features of each function key.
Fn + F1: Put your computer in sleep mode.
Fn + F2: Turn off/on the LCD screen.
Fn + F3: Shift to other connected display devices.
Fn + F5: Enable/disable the built-in wireless device feature.
Fn + F6: Enable/disable the touch pad.
Fn + F7/NmLk: Enable/disable the Numeric keypad.
Fn + F8/ScrLk: Enable/disable Scroll Lock.
Fn + up/down arrow: Increase/decrease display brightness.
Fn + right/left arrow: Increase/decrease computer volume.
S9-S10 User Guide V1.0_en.book Page 13 Wednesday, July 23, 2008 5:53 PM
14
Chapter 2. Using Your Computer
OneKey Rescue System button
Press the OneKey Rescue System button to enter the main interface of
OneKey Rescue System while the power is off.
Attention:
When you press OneKey Rescue System button to turn on the computer,
please ensure that your computer is not connected with other peripherals
(such as USB storage device, etc.), otherwise the system may not operate
properly.
For details, see OneKey Rescue System User Guide.
S9-S10 User Guide V1.0_en.book Page 14 Wednesday, July 23, 2008 5:53 PM
Chapter 2. Using Your Computer
15
Using memory cards - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer comes with one Multi-media Reader slot used to insert a
memory card, such as an SD Card, a Multi-media Card, a Memory Stick or
a Memory Stick pro card.
Note:
Only use the memory card listed above; for more information about the
usage, read the instructions shipped with the memory card.
S9-S10 User Guide V1.0_en.book Page 15 Wednesday, July 23, 2008 5:53 PM
16
Chapter 2. Using Your Computer
Inserting a memory card
Gently slide the memory card with the arrow facing upward and pointing
toward the Multi-media reader slot. Slide until it clicks into place.
Removing a memory card
1Push the memory card until you hear a click.
2Gently pull the memory card out of the Multi-media reader slot.
Using the Integrated Camera - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
With the built-in camera, you can take photos or movies and use with various
applications, such as EasyCapture, MSN or Yahoo! Messenger, and so on.
S9-S10 User Guide V1.0_en.book Page 16 Wednesday, July 23, 2008 5:53 PM
Chapter 2. Using Your Computer
17
Using the Internet - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer comes with LAN port for high-speed DSL/cable modem
connection and local area network (LAN), wireless LAN for wireless
connection.
Using LAN port
The LAN port supports a standard RJ-45 connector, and allows you to
connect the computer to a high-speed DSL/cable modem connection and
local area network (LAN).
S9-S10 User Guide V1.0_en.book Page 17 Wednesday, July 23, 2008 5:53 PM
18
Chapter 2. Using Your Computer
Attention:
As the voltage of a telephone connection is higher than that of a network,
do not attempt to connect a telephone cable to the LAN port or else a short
circuit of the computer might occur.
Using wireless LAN
An isotropic antenna system is built into the display for optimal reception,
enabling wireless communication wherever you are.
To enable wireless communications, do the following;
1Press the Wireless device switch.
2Press Fn + F5.
S9-S10 User Guide V1.0_en.book Page 18 Wednesday, July 23, 2008 5:53 PM
1
Using Mobile Broadband
Using Mobile Broadband
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Safety information related to Mobile Broadband:
1Do not use the Mobile Broadband feature on your computer in highly
explosive areas (e.g. gas station) or near blasting. Though it is rare, the
Mobile Broadband module, like other cellular network devices, could
generate spark.
2Avoiding using mobie broadband feature outdoors during a
thunderstorm.
3
Use of mobile devices on board aircraft is explicitly prohibited by many
airlines companies, especially during take-off and landing. The built-in
Mobile Broadband module on your computer is a low-power radio
transceiver. When it is turned on, it intermittently receives and transmits
radio frequency (RF) energy which could cause harmful interference with
telecommunications between the aircraft and the air traffic control station.
Refer to rules or regulations of your airlines company for Mobile
Broadband use. Never enable Mobile Broadband feature on your computer
unless you are explicitly permitted to do so.
4
Follow restrictions when using your computer in hospitals. Some
equipments in hospitals are sophisticated and are susceptible to
electromagnetic interference. Do not enable Mobile Broadband feature near
medical equipment without requesting permission.
2
Using Mobile Broadband
5
The Mobile Broadband communication may affect the operation of
implanted cardiac pacemaker and other medically implanted equipment.
Patients with cardiac pacemakers shall be well aware that use of Mobile
Broadband feature on this computer may cause the implanted device to
malfunction. If patients have any doubt that there is interference taking
place, immediately disable the wireless radio on the computer and contact
the doctor for more information.
6The Mobile Broadband module embedded in your computer does not
support voice calls, hence their use for essential communications is not
possible, including emergency calls regarding the E911 rules. Therefore
you should never rely upon the device for essential communications.
What is Mobile Broadband
A Mobile Broadband network, also known as a Wireless Wide Area
Network (WWAN), provides Internet access to laptop computers, cell
phones and other devices over a large geographic area. Cellular networks
are used for data transmission, and access is usually provided by a mobile
network operator. Various Mobile Broadband standards are in use by
mobile carriers to provide this service, such as General Packet Radio
Service (GPRS), Enhanced Data Rates for Global Evolution (EDGE),
Universal Mobile Telecommunications System (UMTS, also known as
W-CDMA), High Speed Downlink Packet Access (HSDPA) and many
others.
The biggest advantage of Mobile Broadband is the fact that it is accessible
from anywhere you can get a signal from your carrier which nowadays is
almost anywhere. Laptop computer with Mobile Broadband access can
stay online on the move, and will not be tied down by a fixed line Internet
connection.
Using Mobile Broadband
3
Note:
A mobile network operator, also known as mobile carrier, is a telephony
company that provides cellular telecommunication service to its
subscribers.
Get started with Mobile Broadband
Before getting started with Mobile Broadband, you first need to choose a
mobile network operator and make sure you are in the coverage area of the
network. After that, you also need:
A Mobile Broadband ExpressCard, a Mobile Broadband PCI Mini Card,
or a USB modem. Your computer is equipped with a built-in Mobile
Broadband module (Model: F3507g), so you do not need to purchase a
Mobile Broadband ExpressCard or a USB modem separately. For
location of this module, see the location of your Mobile Broadband module.
Note:
The Mobile Broadband module described in this guide is approved for
use on the GPRS/EDGE 850/900/1800/1900MHz or WCDMA 2100/
1900/850MHz networks. Contact your mobile network operator for
more information about the network you are using.
To activate Mobile Broadband service through your local mobile
network operator. You will get a Subscriber Identity Module (SIM) card
after activation. For instructions on inserting the SIM card, see Insert the
SIM card
4
Using Mobile Broadband
Note:
A SIM card is a type of smart card used by mobile network operators to
identify their service subscribers on the mobile network. You will get the
SIM card from your mobile network operator after you have activated
the Mobile Broadband service.
A connection management software to connect/disconnect to your
Mobile Broadband network. Your computer is preloaded with Wireless
Manager to perform this task. For details on using Wireless Manager, see
Use Wireless Manager.
The location of the Mobile Broadband module
The Ericsson Mobile Broadband module (Model: F3507g) is secured under
the expansion slot cover. The Mobile Broadband module is connected with
a pair of receiving antennae which are built into the display for optimal
wireless reception.
Using Mobile Broadband
5
Insert the SIM card
To Insert the SIM card, do the following:
1Turn off the computer; then disconnect the AC adapter and all cables
from the computer.
2Close the computer display and turn it over.
3Remove the battery.
4Unlock the expansion slot cover latch , and then remove the
expansion slot cover .
a
b
6
Using Mobile Broadband
5Unlock the card holder , lift it up and then insert the SIM card
firmly into the card holder as shown in the drawing. .
6Pivot the card holder downward, and then lock the holder.
7Attach the expansion slot cover and lock the latch.
8Put the battery back in place, turn the computer over again, and
reconnect the cables.
Use Wireless Manager
Your Mobile Broadband module comes with the Wireless Manager
software. Wireless Manager provides a set of tools that you can use to
configure and manage mobile wireless connections on your laptop
computer.
Note:
For detailed information on using Wireless Manager, see the Help for the
software.
a
bc
Using Mobile Broadband
7
Connect to Mobile Internet
To get Internet access using the Mobile Broadband, do the following.
1Make sure you have enabled wireless radio on your laptop computer.
Note:
The LED wireless indicator will light on when wireless radio is enabled. If
the indicator is off, press the button to enable it.
2
Press Fn+F5, the interface for wireless device settings appears. make sure
you have enabled Mobile Broadband.
3
Click
Start
->
Programs
->
Ericsson
-> Ericsson Wireless Manager
->
Wireless Manager
, the Wireless Manager interface appears.
4Click Connect. After connection, the name of your mobile network
operator appears in My Operator. The type of mobile standard
appears in HSDPA, which may appear as GPRS, EDGE, UMTS,
HSDPA, or others, depending on the type of mobile standard your
mobile network operator provides.
8
Using Mobile Broadband
Note:
The Connect button changes to the Disconnect button
. Click
Disconnect
when you finish using the Internet.
Normally,
service charges will apply on use of Mobile Internet. Refer to your
local mobile network operator for your price plan and other informations.
Chapter 2. Using Your Computer
19
Securing your computer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This section provides information about how to help protect your
computer from theft and unauthorized use.
Attaching a Security Lock (Optional)
You can attach a security lock to your computer to help prevent it from
being removed without your permission.
Attach a security lock to the keyhole of the computer; then secure the chain
on the lock to a stationary object. Refer to the instructions shipped with the
security lock.
Refer to the “Right-side View” on page 4 for the location of the security
keyhole.
Note:
You are responsible for evaluating, selecting, and implementing the locking
devices and security features. Lenovo makes no comments, judgements, or
warranties about the function, quality, or performance of locking devices
and security features.
S9-S10 User Guide V1.0_en.book Page 19 Wednesday, July 23, 2008 5:53 PM
20
Chapter 2. Using Your Computer
Using Passwords
Using passwords helps prevent your computer from being used by others.
Once you set a password and enable it, a prompt appears on the screen
each time you power on the computer. Enter your password at the prompt.
The computer cannot be used unless you enter the correct password.
Make sure that only authorized individuals access your computer.
Establishing different kinds of passwords requires that other possible users
know the proper passwords in order to access your computer or your data.
Two passwords might be needed for your computer: the Supervisor
password, and the User password. When the Supervisor password is set,
only the Supervisor password entitles you full control of the computer.
Supervisor password
With a Supervisor password, you can get full control of the computer. It
also can be used as a power-on password if Password on boot is set to
Enabled. Also, when you enter the BIOS Setup Utility with a Supervisor
password, you are entitled to set all of the options.
User password
If a User password is set and Password on boot is set to Enabled, a
password prompt appears when you turn on the computer.
Unauthorized users cannot get access to configuration data. You can also
use the User password to enter the BIOS Setup Utility, but only a part of
the options can be set. User password can not be set if Supervisor
password is not set.
S9-S10 User Guide V1.0_en.book Page 20 Wednesday, July 23, 2008 5:53 PM
Chapter 2. Using Your Computer
21
Note:
If you set passwords through the BIOS Setup Utility and put your
computer into sleep mode by pressing Fn + F1, the following describes the
behavior of the computer when you bring it out of sleep mode:
You are prompted to enter the Windows log-on password rather than the
User password to resume operation.
To set a Supervisor Password:
Only a system administrator is able to perform this procedure.
1Turn on your computer. Press F2, while the initial screen is displayed.
The BIOS Setup Utility screen opens.
2Select Security, using the cursor directional keys.
3Select Set Supervisor Password, and press the Enter key. The Set
Supervisor Password window opens.
4Choose your Supervisor password, which can be from one to eight
alphanumeric characters in any combination. Type it in the Enter New
Password field.
5Press the Enter key once to move to the Confirm New Password field.
Retype the password you just entered to verify it.
6Commit your password to memory, and press the Enter key.
7Press F10 to exit.
8Select OK in the Setup Confirmation window.
S9-S10 User Guide V1.0_en.book Page 21 Wednesday, July 23, 2008 5:53 PM
22
Chapter 2. Using Your Computer
Changing or Removing the Supervisor Password
To change the password, do the following:
1Select Set Supervisor Password, and press the Enter key. The Set
Supervisor Password window opens.
2Select Enter Current Password and type in the correct password. Then
press Enter key once to move to Enter New Password field, type a new
supervisor password in.
3Press the Enter key once to move to the Confirm New Password field.
Retype the password you just entered to verify it.
4Commit your password to memory, and press the Enter key.
To remove password, do the following:
1Select Set Supervisor Password, and press the Enter key.
2Select Enter Current Password and type in the correct password, and
press the Enter key thrice.
Note:
Make sure the Password on boot is set to Enabled if you need the
password protection at power on.
S9-S10 User Guide V1.0_en.book Page 22 Wednesday, July 23, 2008 5:53 PM
Chapter 2. Using Your Computer
23
To set a User Password:
1Turn on your computer. Press F2, while the initial screen is displayed.
The BIOS Setup Utility screen opens.
2Select Security, using the cursor directional keys.
3Select Set User Password, and press the Enter key. The Set User
Password window opens.
4Choose your user password, which can be from one to eight
alphanumeric characters in any combination. Type it in the Enter New
Password field.
5Press the Enter key once to move to the Confirm New Password field.
Retype the password you just entered to verify it.
6Commit your password to memory, and press the Enter key.
7Press F10 to exit.
8Select OK in the Setup Confirmation window.
Note:
You can set the User Password only when the Supervisor Password has
been set.
Changing or Removing the User Password
To change the password, do the following:
1Select Set User Password, and press the Enter key. The Set User
Password window opens.
S9-S10 User Guide V1.0_en.book Page 23 Wednesday, July 23, 2008 5:53 PM
24
Chapter 2. Using Your Computer
2Type correct password in the Enter Current Password field. Then
press Enter key once to move to the Enter New Password field, type a
new user password in.
3Press the Enter key once to move to the Confirm New Password field.
Retype the password you just entered to verify it.
4Commit your password to memory, and press the Enter key.
To remove the password, do the following:
1Select Set User Password, and press the Enter key.
2Type correct user password in Enter Current Password, and press
Enter key thrice.
Note:
Make sure the Password on boot is set to Enabled if you need the
password protection at power on.
S9-S10 User Guide V1.0_en.book Page 24 Wednesday, July 23, 2008 5:53 PM
Chapter 2. Using Your Computer
25
Installing Device Drivers - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
A compatible device driver is a requirement to ensure correct operation
and performance of each component in your computer. Lenovo provides
all drivers that you need in your Disk “D:”.
Notes:
Most installations require a reboot to update the driver, otherwise the
system’s stability and audio or video effect may be compromised, or you
even have to reinstall the operating system.
Using battery and AC adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
When you need to use your computer away from electrical outlets, you
depend on battery power to keep your computer running. Different
computer components consume power at different rates. The more you use
the power-intensive components, the faster you consume battery power.
Your Computer Batteries
Your computer batteries enable you to do more, save more, and spend
more time unplugged. Mobility has revolutionized business by enabling
you to take your work wherever you go. With your computer batteries, you
will be able to work longer without being tied to an electrical outlet.
Note:
The operating system may run slower when using the battery mode.
Attention:
Any use of the battery other than the original or Lenovo battery will result
in“burning” or “fire”.
Dispose of the used battery depending on the instructions.
S9-S10 User Guide V1.0_en.book Page 25 Wednesday, July 23, 2008 5:53 PM
26
Chapter 2. Using Your Computer
Checking Battery Status
You can determine the percentage of battery power remaining by using
Windows Power options.
The rate at which you use battery power determines how long you can use
the battery of your computer between charges. As each computer user has
different habits and needs, it is difficult to predict how long a battery
charge will last. There are two main factors:
The amount of energy stored in the battery when you begin to work.
The way you use your computer: for example, how often you access the
hard disk drive and how bright you make the computer display.
Using the AC Adapter
The power to run your computer can come either from the lithium-ion (Li-
ion) battery pack provided with it, or from AC power through the AC
adapter. While you use AC power, the battery charges automatically.
The AC adapter that comes with your computer has two basic components:
1
The transformer pack that converts AC power for use with the computer.
2
The power cord that plugs into the AC outlet and into the transformer pack.
Attention:
Using an improper power cord could cause severe damage to your computer.
To use the AC adapter, do the following. Be sure to take these steps in the
order in which they are given here.
S9-S10 User Guide V1.0_en.book Page 26 Wednesday, July 23, 2008 5:53 PM
Chapter 2. Using Your Computer
27
1Connect the power cord to the transformer pack.
2Plug the power cord into an electrical outlet.
3Connect the AC adapter to the AC power adapter jack of the computer.
You can check the status of your battery at any time by looking at the
battery meter at the bottom of your display.
Notes:
When you do not use the AC adapter, disconnect it from the electrical outlet.
Do not wrap the power cord tightly around the AC power transformer
pack when it is connected to the transformer.
You can charge the battery when the AC adapter is connected to the
computer and the battery is installed. You need to charge it in any of the
following conditions:
When you purchase a new battery
If the battery status indicator (amber) starts blinking
If the battery has not been used for a long time
Before you charge the battery, make sure that its temperature is at least 10
degrees Celsius (50 degrees Fahrenheit).
S9-S10 User Guide V1.0_en.book Page 27 Wednesday, July 23, 2008 5:53 PM
28
Chapter 2. Using Your Computer
Charging the Battery
When you check the battery status and find that the battery is low, you
need to charge the battery or replace it with a charged battery.
If an AC outlet is convenient, first, connect the power cord to the
transformer pack; second, plug the power cord into an electrical outlet; and
then connect the AC adapter to the power jack of the computer.
The charging time is affected by the physical environment.
Note:
To increase the life of the battery, the computer does not start recharging
the battery if the remaining power is no less than 95 percent.
Handling the Battery
Danger:
Do not attempt to disassemble or modify the battery pack.
Attempting to do so can cause an explosion, or liquid leakage from the
battery pack.
A battery pack other than the one specified by Lenovo, or a disassembled
or modified battery pack is not covered by the warranty.
Danger:
If the rechargeable battery pack is incorrectly replaced, there is danger of an
explosion. The battery pack contains a small amount of harmful
substances. To avoid possible injury:
Replace only with a battery of the type recommended by Lenovo.
S9-S10 User Guide V1.0_en.book Page 28 Wednesday, July 23, 2008 5:53 PM
Chapter 2. Using Your Computer
29
Keep the battery pack away from fire.
Do not expose the battery pack to water or rain.
Do not attempt to disassemble the battery pack.
Do not short-circuit the battery pack.
Keep the battery pack away from children.
Danger:
Do not put the battery pack in trash that is disposed of in landfills. When
disposing of the battery, comply with local ordinances or regulations and
your company’s safety standards.
S9-S10 User Guide V1.0_en.book Page 29 Wednesday, July 23, 2008 5:53 PM
30
Chapter 3. Using external devices
Your computer has many built-in features and connection capabilities.
Attention:
Do not connect or disconnect any external device cables other than USB and
1394 cables while the computer power is on; otherwise, you might damage
your computer. To avoid possible damage to attached devices, wait at least
five seconds after the computer is shut down to disconnect external devices.
Connecting a Universal Serial Bus (USB) device - - - - - -
Your computer comes with two Universal Serial Bus compatible with USB 2.0 or
USB 1.1 devices such as a keyboard, mouse, camera, hard disk drive, printer, and
scanner. USB allows devices to be connected and disconnected without rebooting
the computer (hot swapping), and allows specific classes of hardware to be used
without requiring individual device drivers to be installed.
S9-S10 User Guide V1.0_en.book Page 30 Wednesday, July 23, 2008 5:53 PM
Chapter 3. Using external devices
31
Attention:
When using high power consumption USB device such as USB ODD, use
external device power adapter. Otherwise, it will cause the device unable to
be recognized and used, or system shut down.
S9-S10 User Guide V1.0_en.book Page 31 Wednesday, July 23, 2008 5:53 PM
32
Chapter 3. Using external devices
Connecting a PC card device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer comes with PCI Express card slot used for connecting PC
card devices that are compatible with the PCI Express card interface.
S9-S10 User Guide V1.0_en.book Page 32 Wednesday, July 23, 2008 5:53 PM
Chapter 3. Using external devices
33
Connecting an external display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
You can connect an external display to your computer, such as a VGA
monitor.
Connecting a VGA monitor
You can connect a VGA monitor by using a VGA port. To connect a VGA
monitor, plug the display cable to VGA port on your computer. To shift to
other connected display devices, press Fn + F3.
S9-S10 User Guide V1.0_en.book Page 33 Wednesday, July 23, 2008 5:53 PM
34
Chapter 3. Using external devices
Connecting a headphone and audio device - - - - - - - - - - - - - - - - -
Your computer comes with one headphone jack used for connecting
headphones, speakers, and audio devices.
S9-S10 User Guide V1.0_en.book Page 34 Wednesday, July 23, 2008 5:53 PM
Chapter 3. Using external devices
35
Connecting an external microphone - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer comes with one external microphone jack used for
connecting external microphone.
S9-S10 User Guide V1.0_en.book Page 35 Wednesday, July 23, 2008 5:53 PM
36
Chapter 3. Using external devices
Connecting a Bluetooth device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer can connect to and transfer data wirelessly to Bluetooth
devices, such as computers, PDAs, and cell phones.
Enabling Bluetooth communications
1Press the Wireless device switch latch to the right.
2Press Fn +F5.
Note:
When you do not need to use the Bluetooth function, turn it off to save
battery power.
For details on connecting a Bluetooth device, please refer to Bluetooth
device’s manual.
S9-S10 User Guide V1.0_en.book Page 36 Wednesday, July 23, 2008 5:53 PM
37
Chapter 4. Troubleshooting
Frequently Asked Questions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This section lists frequently asked questions and tells where you can find
detailed answers. For details about each publication included in the package with
your computer, see Lenovo IdeaPad S9/S10 Setup Poster.
What safety precautions should I follow when using my computer?
See “Chapter 6. Safety, Use, and Care Information“ for detailed
information about safety.
How can I prevent problems with my computer?
See “Chapter 6. Safety, Use, and Care Information” on page 54 of this
guide. More tips can be found in Chapter 1 and 2.
What are the main hardware features of my new computer?
More information can be found in Chapter 1 and 2.
Where can I find the detailed specifications for my computer?
See http://consumersupport.lenovo.com.
I need to upgrade a device or I need to replace one of the following: the hard
disk drive, memory, or the keyboard.
See “Appendix B. Customer Replaceable Units (CRUs)” on page 99 of
this guide.
My computer is not operating properly.
Study the relevant information in Chapter 2.
S9-S10 User Guide V1.0_en.book Page 37 Wednesday, July 23, 2008 5:53 PM
38
Chapter 4. Troubleshooting
Where are the recovery discs?
Your computer did not come with a recovery disc. For an explanation of
the alternative recovery methods offered by Lenovo, see OneKey Rescue
System User Guide.
How can I contact the Customer Support Center?
See “Chapter 5. Getting Help and Service” on page 49 of this Guide. For
the phone numbers of the Customer Support Center nearest to you, See
“Lenovo Warranty Service Telephone Numbers” on page 97.
Where can I find warranty information?
For the warranty applicable to your computer, including the warranty
period and type of warranty service, see “Appendix A. Lenovo Limited
Warranty” on page 86.
S9-S10 User Guide V1.0_en.book Page 38 Wednesday, July 23, 2008 5:53 PM
Chapter 4. Troubleshooting
39
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If you do not find your problem here, see Chapter 2. The following section only
describes problems that might prevent you from accessing the comprehensive
information in Chapter 2.
Display Problems
When I turn on the computer, nothing appears on the screen.
Note:
If you are using an external monitor, See “Computer Screen Problems” on
page 43.
If a user password is set, enter the correct password and press Enter.
If the user password prompt does not appear, the brightness level
might be set to minimum brightness. Adjust the brightness level by
pressing Fn + .
If the screen still remains blank, make sure that:
- The battery is installed correctly.
- The AC adapter is connected to the computer and the power cord is
plugged into a working electrical outlet.
- The computer power is on. (Press the power button again for
confirmation.)
If these items are properly set, and the screen remains blank, have the
computer serviced.
S9-S10 User Guide V1.0_en.book Page 39 Wednesday, July 23, 2008 5:53 PM
40
Chapter 4. Troubleshooting
When I turn on the computer, only a white cursor appears on a blank
screen.
Restore backed-up files to your Windows environment or the entire
contents of your hard disk to the original factory contents using OneKey
Recovery. If you still see only the cursor on the screen, have the computer
serviced.
My screen goes blank while the computer is on.
Your screen saver or power management may be enabled. Do one of the
following to exit from the screen saver or to resume from sleep or
hibernation mode:
Touch the touch pad.
Press any key.
Press the power button.
S9-S10 User Guide V1.0_en.book Page 40 Wednesday, July 23, 2008 5:53 PM
Chapter 4. Troubleshooting
41
A Password Problem
I forgot my password.
If you forgot your user password, you must take your computer to a
Lenovo authorized servicer or a marketing representative to have the
password canceled.
If you forget your supervisor password, Lenovo authorized servicer
cannot reset your password. You must take your computer to a Lenovo
authorized servicer or a marketing representative to have the system
board replaced. Proof of purchase is required, and a fee will be charged
for parts and service.
Keyboard Problems
A number appears when you enter a letter.
The numeric lock function is on. To disable it, press Fn + Insert.
All or some of the keys on the external numeric keypad do not work.
Make sure that the external numeric keypad is correctly connected to the
computer.
S9-S10 User Guide V1.0_en.book Page 41 Wednesday, July 23, 2008 5:53 PM
42
Chapter 4. Troubleshooting
Sleep or Hibernation Problems
The computer enters sleep mode unexpectedly.
If the processor overheats, the computer automatically enters sleep mode
to allow the computer to cool and to protect the processor and other
internal components. Check the settings for sleep mode.
The computer enters sleep mode (the sleep indicator turns on)
immediately after Power-on self-test (POST).
Make sure that:
The battery is charged.
The operating temperature is within the acceptable range. See
“Specifications” on page 100.
If the battery is charged and the temperature is within range, have the
computer serviced.
The critical low-battery error message appears, and the computer
immediately turns off.
The battery power is getting low. Connect the AC adapter to the
computer, or replace the battery with a fully charged one.
The computer does not return from sleep mode and the computer
does not work.
If the computer does not return from sleep mode, it may have entered
hibernation mode automatically because the battery is depleted.
S9-S10 User Guide V1.0_en.book Page 42 Wednesday, July 23, 2008 5:53 PM
Chapter 4. Troubleshooting
43
If your computer is in sleep mode. Connect the AC adapter to the
computer; then press any key or the power button.
If the sleep indicator is off, your computer is in hibernation mode or
power-off state. Connect the AC adapter to the computer; then press
the power button to resume operation.
If the system still does not return from sleep mode, your system has
stopped responding, and you cannot turn off the computer; reset the
computer. Unsaved data may be lost. To reset the computer, press and
hold the Power button for 4 seconds or more. If the computer is still not
reset, remove the AC adapter and the battery.
Computer Screen Problems
The screen is blank.
Do the following:
If you are using the AC adapter, or using the battery, and the battery
status indicator is on (is blue), press Fn + to make the screen
brighter.
If the Power indicator is in blinking blue, press any key or the Power
button to resume from the sleep mode.
If you still have the problem, do the Solution in the following problem
“The screen is unreadable or distorted.”
S9-S10 User Guide V1.0_en.book Page 43 Wednesday, July 23, 2008 5:53 PM
44
Chapter 4. Troubleshooting
The screen is unreadable or distorted.
Make sure that:
The display device driver is installed correctly.
The screen resolution and color quality are correctly set.
The monitor type is correct.
To check these settings, do as follows:
1Right-click on the desktop, and select Personalize from the popup
menu.
2Click Display Settings and check whether the screen resolution and
color quality are correctly set.
3Click the Advanced Settings button.
4Click the Adapter tab.
5Make sure that the correct device driver name is shown in the
adapter information window.
Note:
The device driver name depends on the video chip that has been
installed on your computer.
6
Click the
Properties
button. If you are prompted for an administrator
password or confirmation, enter the password or provide
confirmation. Check the “Device status” box and make sure the
device is working properly. If not, click the
Troubleshoot
button
.
7Click the Monitor tab.
8Make sure the information is correct.
9Click the Properties button or the Troubleshoot button.
S9-S10 User Guide V1.0_en.book Page 44 Wednesday, July 23, 2008 5:53 PM
Chapter 4. Troubleshooting
45
Incorrect characters appear on the screen.
Did you install the operating system or application program correctly? If
they are installed and configured correctly, have the computer serviced.
Missing, discolored, or bright dots appear on the screen every time
you turn on your computer.
This is an intrinsic characteristic of the TFT technology. Your computer’s
display contains multiple thin-film transistors (TFTs). A small number of
missing, discolored, or bright dots on the screen might exist all the time.
A message, “Unable to create overlay window,” appears when you
try to start DVD playback.
-or-
You get poor or no playback while running video playback, DVD
playback, or game applications.
Do either of the following:
If you are using 32-bit color mode, change the color depth to 16-bit
mode.
If you are using a desktop size of 1024×768 or larger, reduce the
desktop size and the color depth.
S9-S10 User Guide V1.0_en.book Page 45 Wednesday, July 23, 2008 5:53 PM
46
Chapter 4. Troubleshooting
Sound Problems
No sound can be heard from the speaker even when the volume is
turned up.
Make sure that:
The Mute function is off.
The headphone jack is not used.
Speakers is selected as a playback device.
Battery Problems
The battery cannot be fully charged by the power-off method in the
standard charge time for your computer.
For details, See “Checking Battery Status” in Chapter 2.
Your computer shuts down before the battery status indicator shows
empty.
-or-
Your computer operates after the battery status indicator shows
empty.
Discharge and recharge the battery.
The operating time for a fully charged battery is short.
For details, See “Handling the Battery” in Chapter 2.
S9-S10 User Guide V1.0_en.book Page 46 Wednesday, July 23, 2008 5:53 PM
Chapter 4. Troubleshooting
47
The computer does not operate with a fully charged battery.
The surge protector in the battery might be active. Turn off the computer
for one minute to reset the protector; then turn on the computer again.
The battery does not charge.
For details, See “Handling the Battery” in Chapter 2.
A Hard Disk Drive Problem
The hard disk drive does not work.
In the Boot menu in BIOS Setup Utility, make sure that the hard disk
drive is included in the Boot Order correctly.
A Startup Problem
The Microsoft® Windows operating system does not start.
Use the OneKey Recovery to help solve or identify your problem. For details
about OneKey Recovery, see
OneKey Rescue System User Guide
.
Other Problems
Your computer does not respond.
To turn off your computer, press and hold the power button for 4
seconds or more. If the computer still does not respond, remove the
AC adapter and the battery.
S9-S10 User Guide V1.0_en.book Page 47 Wednesday, July 23, 2008 5:53 PM
48
Chapter 4. Troubleshooting
Your computer might lock when it enters sleep mode during a
communication operation. Disable the sleep timer when you are
working on the network.
The computer does not start from a device you want.
See the Boot menu of the BIOS Setup Utility. Make sure that the startup
sequence in the BIOS Setup Utility is set so that the computer starts from
the device you want.
Also make sure that the device from which the computer starts is
enabled. In the Boot menu in the BIOS Setup Utility, make sure that the
device is included in the “Boot Order” list.
S9-S10 User Guide V1.0_en.book Page 48 Wednesday, July 23, 2008 5:53 PM
49
Chapter 5. Getting Help and Service
Getting Help and Service - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If you need help, service, technical assistance, or just want more
information about Lenovo computers, you will find a wide variety of
sources available from Lenovo to assist you. This section contains
information about where to go for additional information about Lenovo
computers, what to do if you experience a problem with your computer,
and whom to call for service should it be necessary.
Microsoft Service Packs are the latest software source for Windows product
updates. They are available by means of a Web download (connection
charges may apply) or from a disc. For more specific information and links,
go to the Microsoft Web site at http://www.microsoft.com. Lenovo offers
Up and Running technical assistance with installation of, or questions
related to, Service Packs for your Lenovo-preinstalled Microsoft Windows
product.
S9-S10 User Guide V1.0_en.book Page 49 Wednesday, July 23, 2008 5:53 PM
50
Chapter 5. Getting Help and Service
Getting Help on the Web - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
The Lenovo Web site on the World Wide Web has up-to-date information
about Lenovo computers and support. The address for the Lenovo home
page is http://consumersupport.lenovo.com.
You can find support information for your Lenovo IdeaPadTM computer at
http://consumersupport.lenovo.com. Research this Web site to learn how
to solve problems, find new ways to use your computer, and learn about
options that can make working with your Lenovo computer even easier.
Calling the Customer Support Center - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If you have tried to correct the problem yourself and still need help, during
the warranty period, you can get help and information by telephone
through the Customer Support Center. The following services are available
during the warranty period:
Proble determination - Trained personnel are available to assist you with
determining if you have a hardware problem and deciding what action
is necessary to fix the problem.
Lenovo hardware repair - If the problem is determined to be caused by
Lenovo hardware under warranty, trained service personnel are
available to provide the applicable level of service.
S9-S10 User Guide V1.0_en.book Page 50 Wednesday, July 23, 2008 5:53 PM
Chapter 5. Getting Help and Service
51
Engineering change management - Occasionally, there might be changes
that are required after a product has been sold. Lenovo or your reseller, if
authorized by Lenovo, will make selected Engineering Changes (ECs)
available that apply to your hardware.
The following items are not covered:
Replacement or use of parts not manufactured for or by Lenovo or non
warranted parts
Identification of software problem sources
Configuration of BIOS as part of an installation or upgrade
Changes, modifications, or upgrades to device drivers
Installation and maintenance of network operating systems (NOS)
Installation and maintenance of application programs
To determine if your Lenovo hardware product is under warranty and
when the warranty expires, go to http://consumersupport.lenovo.com,
and click Warranty, then follow the instructions on the screen.
Refer to your Lenovo hardware warranty for a full explanation of Lenovo
warranty terms. Be sure to retain your proof of purchase to obtain warranty
service.
If possible, be near your computer when you make your call in case the
technical assistance representative needs to help you resolve a computer
problem. Please ensure that you have downloaded the most current drivers
and system updates, and recorded information before you call. When
calling for technical assistance, please have the following information
available:
S9-S10 User Guide V1.0_en.book Page 51 Wednesday, July 23, 2008 5:53 PM
52
Chapter 5. Getting Help and Service
Machine Type and Model
Serial numbers of your computer, monitor, and other components, or
your proof of purchase
Description of the problem
Hardware and software configuration information for your system
The telephone numbers for your Customer Support Center location are
located in “Appendix A. Lenovo Limited Warranty” on page 86.
Note:
Telephone numbers are subject to change without notice. For the latest list
of Customer Support Center telephone numbers and hours of operation,
visit the Support Web site at
http://consumersupport.lenovo.com. If the number for your country or
region is not listed, contact your Lenovo reseller or Lenovo marketing
representative.
S9-S10 User Guide V1.0_en.book Page 52 Wednesday, July 23, 2008 5:53 PM
Chapter 5. Getting Help and Service
53
Getting Help around the World - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If you travel with your computer or relocate it to a country where your
Lenovo machine type is sold, your computer might be eligible for
International Warranty Service, which automatically entitles you to obtain
warranty service throughout the warranty period. Service will be
performed by service providers authorized to perform warranty service.
Service methods and procedures vary by country, and some services might
not be available in all countries. Service centers in certain countries might
not be able to service all models of a particular machine type. In some
countries, fees and restrictions might apply at the time of service.
To determine whether your computer is eligible for International Warranty
Service and to view a list of the countries where service is available, go to
http://consumersupport.lenovo.com, click Warranty, and follow the
instructions on the screen.
S9-S10 User Guide V1.0_en.book Page 53 Wednesday, July 23, 2008 5:53 PM
54
Chapter 6. Safety, Use, and Care Information
Important Safety Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This information can help you safely use your notebook personal
computer. Follow and retain all information included with your computer.
The information in this document does not alter the terms of your purchase
agreement or the Lenovo Limited Warranty. For more information, See
“Appendix A. Lenovo Limited Warranty” on page 86.
Customer safety is important. Our products are developed to be safe and
effective. However, personal computers are electronic devices. Power
cords, power adapters, and other features can create potential safety risks
that can result in physical injury or property damage, especially if misused.
To reduce these risks, follow the instructions included with your product,
observe all warnings on the product and in the operating instructions, and
review the information included in this document carefully. By carefully
following the information contained in this document and provided with
your product, you can help protect yourself from hazards and create a safer
computer work environment.
Note:
This information includes references to power adapters and batteries. In
addition to notebook computers, some products (such as speakers and
monitors) ship with external power adapters. If you have such a product,
this information applies to your product. In addition, computer products
contain a coin-sized internal battery that provides power to the system
clock even when the computer is unplugged, so the battery safety
information applies to all computer products.
S9-S10 User Guide V1.0_en.book Page 54 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
55
Conditions That Require Immediate Action
Products can become damaged due to misuse or neglect. Some product
damage is serious enough that the product should not be used again until it
has been inspected and, if necessary, repaired by an authorized servicer.
As with any electronic device, pay close attention to the product when it is
turned on. On very rare occasions, you might notice an odor or see a puff of
smoke or sparks vent from your product. Or you might hear sounds like
popping, cracking, or hissing. These conditions might merely mean that an
internal electronic component has failed in a safe and controlled manner.
Or, they might indicate a potential safety issue. However, do not take risks
or attempt to diagnose the situation yourself. Contact the Customer
Support Center for further guidance. For a list of Service and Support
phone numbers, see http://consumersupport.lenovo.com.
Frequently inspect your computer and its components for damage or wear
or signs of danger. If you have any question about the condition of a
component, do not use the product. Contact the Customer Support Center
or the product manufacturer for instructions on how to inspect the product
and have it repaired, if necessary.
In the unlikely event that you notice any of the following conditions, or if
you have any safety concerns with your product, stop using the product
and unplug it from the power source and telecommunication lines until
you can speak to the Customer Support Center for further guidance.
Power cords, plugs, power adapters, extension cords, surge protectors,
or power supplies that are cracked, broken, or damaged.
Signs of overheating, smoke, sparks, or fire.
S9-S10 User Guide V1.0_en.book Page 55 Wednesday, July 23, 2008 5:53 PM
56
Chapter 6. Safety, Use, and Care Information
Damage to a battery (such as cracks, dents, or creases), discharge from a
battery, or a buildup of foreign substances on the battery.
A cracking, hissing, or popping sound, or strong odor that comes from
the product.
Signs that liquid has been spilled or an object has fallen onto the
computer product, the power cord, or power adapter.
The computer product, power cord, or power adapter has been exposed
to water.
The product has been dropped or damaged in any way.
The product does not operate normally when you follow the operating
instructions.
Note:
If you notice these conditions with a product (such as an extension
cord) that is not manufactured for or by Lenovo, stop using that
product until you can contact the product manufacturer for further
instructions, or until you get a suitable replacement.
Safety Guidelines
Always observe the following precautions to reduce the risk of injury
and property damage.
S9-S10 User Guide V1.0_en.book Page 56 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
57
Service and Upgrades
Attention:
Do not attempt to service a product yourself unless instructed to do so
by the Customer Support Center or your documentation. Only use a
service provider who is approved to repair your particular product.
Note:
Some computer parts can be upgraded or replaced by the customer.
Upgrades typically are referred to as options. Replacement parts
approved for customer installation are referred to as Customer
Replaceable Units, or CRUs. Lenovo provides documentation with
instructions when it is appropriate for customers to install options or
replace CRUs. You must closely follow all instructions when installing
or replacing parts. The Off state of a power indicator does not
necessarily mean that voltage levels inside a product are zero. Before
you remove the covers from a product equipped with an ac power
cord, always make sure that the power is turned off and that the
product is unplugged from any power source. For more information
on CRUs, See “Appendix B. Customer Replaceable Units (CRUs)” on
page 99. If you have any questions or concerns, contact the Customer
Support Center.
Although there are no moving parts in your computer after the power
cord has been disconnected, the following warnings are required for
your safety.
S9-S10 User Guide V1.0_en.book Page 57 Wednesday, July 23, 2008 5:53 PM
58
Chapter 6. Safety, Use, and Care Information
Danger:
Hazardous moving parts. Keep fingers and other body parts away.
Attention:
Before replacing any CRUs, turn off the computer and wait three to
five minutes to let the computer cool before opening the cover.
Power Cords and Power Adapters
Danger:
Use only the power cords and power adapters supplied by the product
manufacturer. The power cord and power adapter are intended for use
with this product only. They should never be used with any other
product.
The power cords shall be safety approved. For Germany, it shall be
H03VV-F, 3G, 0.75 mm2, or better. For other countries, the suitable
types shall be used accordingly.
Never wrap a power cord around a power adapter or other object.
Doing so can stress the cord in ways that can cause the cord to fray,
crack, or crimp. This can present a safety hazard.
Always route power cords or any other cables so that they will not be
walked on, tripped over, or pinched by objects.
S9-S10 User Guide V1.0_en.book Page 58 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
59
Protect power cords and power adapters from liquids. For instance, do
not leave your power cord or power adapter near sinks, tubs, toilets, or
on floors that are cleaned with liquid cleansers. Liquids can cause a
short circuit, particularly if the power cord or power adapter has been
stressed by misuse. Liquids also can cause gradual corrosion of power
cord terminals and/or the connector terminals on a power adapter,
which can eventually result in overheating.
Always connect power cords and signal cables in the correct order and
ensure that all power cord connectors are securely and completely
plugged into receptacles.
Do not use any power adapter that shows corrosion at the ac input
pins or shows signs of overheating (such as deformed plastic) at the ac
input or anywhere on the power adapter.
Do not use any power cords where the electrical contacts on either end
show signs of corrosion or overheating or where the power cord
appears to have been damaged in any way.
S9-S10 User Guide V1.0_en.book Page 59 Wednesday, July 23, 2008 5:53 PM
60
Chapter 6. Safety, Use, and Care Information
Extension Cords and Related Devices
Danger:
Ensure that extension cords, surge protectors, uninterruptible power
supplies, and power strips that you use are rated to handle the
electrical requirements of the product. Never overload these devices. If
power strips are used, the load should not exceed the power strip
input rating. Consult an electrician for more information if you have
questions about power loads, power requirements, and input ratings.
Plugs and Outlets
Danger:
If a receptacle (power outlet) that you intend to use with your
computer equipment appears to be damaged or corroded, do not use
the outlet until it is replaced by a qualified electrician.
Do not bend or modify the plug. If the plug is damaged, contact the
manufacturer to obtain a replacement.
Do not share an electrical outlet with other home or commercial
appliances that draw large amounts of electricity; otherwise, unstable
voltage might damage your computer, data, or attached devices.
Some products are equipped with a three-pronged plug. This plug fits
only into a grounded electrical outlet. This is a safety feature. Do not
defeat this safety feature by trying to insert it into a non-grounded
S9-S10 User Guide V1.0_en.book Page 60 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
61
outlet. If you cannot insert the plug into the outlet, contact an
electrician for an approved outlet adapter or to replace the outlet with
one that enables this safety feature. Never overload an electrical outlet.
The overall system load should not exceed 80 percent of the branch
circuit rating. Consult an electrician for more information if you have
questions about power loads and branch circuit ratings.
Be sure that the power outlet you are using is properly wired, easily
accessible, and located close to the equipment. Do not fully extend
power cords in a way that will stress the cords.
Be sure that the power outlet provides the correct voltage and current
for the product you are installing.
Carefully connect and disconnect the equipment from the electrical
outlet.
Power Supply Statement
Danger:
Never remove the cover on a power supply or any part that has the
following label attached.
S9-S10 User Guide V1.0_en.book Page 61 Wednesday, July 23, 2008 5:53 PM
62
Chapter 6. Safety, Use, and Care Information
Hazardous voltage, current, and energy levels are present inside any
component that has this label attached. There are no serviceable parts
inside these components. If you suspect a problem with one of these
parts, contact a service technician.
Lithium Coin Cell Battery Notice
Danger:
Danger of explosion if battery is incorrectly replaced.
When replacing the lithium coin cell battery, use only the same or an
equivalent type that is recommended by the manufacturer. The battery
contains lithium and can explode if not properly used, handled, or
disposed of.
Do not:
Throw or immerse into water
Heat to more than 100°C (212°F)
Repair or disassemble
Dispose of the battery as required by local ordinances or regulations.
The following statement applies to users in the state of California, U.S.A.
California Perchlorate Information:
S9-S10 User Guide V1.0_en.book Page 62 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
63
Products containing CR (manganese dioxide) lithium coin cell
batteries may contain perchlorate.
Perchlorate Material — special handling may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate.
Heat and Product Ventilation
Danger:
Computers, AC adapters, and many accessories can generate heat
when turned on and when batteries are charging. Notebook computers
can generate a significant amount of heat due to their compact size.
Always follow these basic precautions:
When your computer is turned on or the battery is charging, the base, the
palm rest, and some other parts may become hot. Avoid keeping your
hands, your lap, or any other part of your body in contact with a hot
section of the computer for any extended length of time. When you use
the keyboard, avoid keeping your palms on the palm rest for a
prolonged period of time. Your computer generates some heat during
normal operation. The amount of heat depends on the amount of system
activity and the battery charge level. Extended contact with your body,
even through clothing, could cause discomfort or even a skin burn.
Periodically take breaks from using the keyboard by lifting your hands
from the palm rest; and be careful not to use the keyboard for any
extended length of time.
Do not operate your computer or charge the battery near flammable
materials or in explosive environments.
S9-S10 User Guide V1.0_en.book Page 63 Wednesday, July 23, 2008 5:53 PM
64
Chapter 6. Safety, Use, and Care Information
Ventilation slots, fans and/or heat sinks are provided with the product
for safety, comfort, and reliable operation. These features might
inadvertently become blocked by placing the product on a bed, sofa,
carpet, or other flexible surface. Never block, cover, or disable these
features.
When the AC adapter is connected to an electrical outlet and your
computer, it generates heat. Do not place the adapter in contact with any
part of your body while using it. Never use the AC adapter to warm
your body. Extended contact with your body, even through clothing,
may cause a skin burn.
For your safety, always follow these basic precautions with your computer:
Keep the cover closed whenever the computer is plugged in.
Regularly inspect the outside of the computer for dust accumulation.
Remove dust from vents and any perforations in the bezel. More
frequent cleanings might be required for computers in dusty or high-
traffic areas.
Do not restrict or block any ventilation openings.
Do not operate your computer inside furniture, as this might increase the
risk of overheating.
Airflow temperatures into the computer should not exceed 35° C (95° F).
S9-S10 User Guide V1.0_en.book Page 64 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
65
CD and DVD Drive Safety
Danger:
CD and DVD drives spin discs at a high speed. If a CD or DVD is
cracked or otherwise physically damaged, it is possible for the disc to
break apart or even shatter when the CD drive is in use. To protect
against possible injury due to this situation, and to reduce the risk of
damage to your computer, do the following:
Always store CD/DVD discs in their original packaging.
Always store CD/DVD discs out of direct sunlight and away from direct
heat sources.
Remove CD/DVD discs from the computer when not in use.
Do not bend or flex CD/DVD discs, or force them into the computer or
their packaging.
Check CD/DVD discs for cracks before each use. Do not use cracked or
damaged discs.
S9-S10 User Guide V1.0_en.book Page 65 Wednesday, July 23, 2008 5:53 PM
66
Chapter 6. Safety, Use, and Care Information
Electrical Current Safety Information
Danger:
Electric current from power, telephone, and communication cables is
hazardous.
To avoid a shock hazard:
Do not use your computer during a lightning storm.
Do not connect or disconnect any cables or perform installation,
maintenance, or reconfiguration of this product during an electrical
storm.
Connect all power cords to a properly wired and grounded electrical
outlet.
Connect to properly wired outlets any equipment that will be attached to
this product.
Whenever possible, use one hand only to connect or disconnect signal
cables.
Never turn on any equipment when there is evidence of fire, water, or
structural damage.
Disconnect the attached power cords, battery pack, and all the cables
before you open the device covers, unless instructed otherwise in the
installation and configuration procedures.
Do not use your computer until you have closed the cover. Never use the
computer when the cover is open.
S9-S10 User Guide V1.0_en.book Page 66 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
67
Connect and disconnect cables as described in the following procedures
when installing, moving, or opening covers on this product or attached
devices.
To connect:
1.Turn everything OFF.
2.First, attach all cables to devices.
3.Attach signal cables to connectors.
4.Attach power cords to outlets.
5.Turn devices ON.
To disconnect:
1.Turn everything OFF.
2.First, remove power cords from outlets.
3.Remove signal cables from connectors.
4.Remove all cables from devices.
The power cord must be disconnected from the wall outlet or receptacle
before installing all other electrical cables connected to your computer.
The power cord may be reconnected to the wall outlet or receptacle only
after all other electrical cables have been connected to the computer.
S9-S10 User Guide V1.0_en.book Page 67 Wednesday, July 23, 2008 5:53 PM
68
Chapter 6. Safety, Use, and Care Information
Laser Compliance Statement
Some personal computer models are equipped from the factory with a
CD or DVD drive. CD and DVD drives are also sold separately as
options. CD and DVD drives are laser products. The drive’s
classification label (shown below) is on the surface of the drive.
CLASS 1 LASER PRODUCT
LASER KLASSE 1
LUOKAN 1 LASERLAITE
APPAREIL A LASER DE CLASSE 1
KLASS 1 LASER APPARAT
Example of the label
S9-S10 User Guide V1.0_en.book Page 68 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
69
These drives are certified in the U.S. to conform to the
requirements of the Department of Health and Human Services 21
Code of Federal Regulations (DHHS 21 CFR) Subchapter J for
Class 1 laser products. Elsewhere, these drives are certified to
conform to the requirements of the International Electrotechnical
Commission (IEC) 60825-1 and CENELEC EN 60825-1 for Class 1
laser products.
Class 1 laser products are not considered hazardous. The design of
the laser system and the optical storage drive ensures that there is
no exposure to laser radiation above a Class 1 level during normal
operation, user maintenance, or servicing.
When a CD or DVD drive is installed, note the following
handling instructions.
Danger:
Use of controls, adjustments, or performance of procedures other
than those specified herein might result in hazardous radiation
exposure.
Do not remove the drive covers. Removing the covers of the CD or
DVD drive could result in exposure to hazardous laser radiation.
There are no serviceable parts inside the CD or DVD drive.
Some CD and DVD drives contain an embedded Class 3A or
Class 3B laser diode. Note the following statement.
S9-S10 User Guide V1.0_en.book Page 69 Wednesday, July 23, 2008 5:53 PM
70
Chapter 6. Safety, Use, and Care Information
Danger:
Laser radiation when open. Do not stare into the beam, do not view
directly with optical instruments, and avoid direct exposure to the
beam.
Liquid Crystal Display (LCD) Notice
Attention:
Mercury Information (does not apply to LED backlit models):
The fluorescent lamp in the liquid crystal display contains mercury;
dispose according to local, state or federal laws.
The LCD is made of glass, and rough handling or dropping the
computer can cause the LCD to break. If the LCD breaks and the
internal liquid crystal material contacts the eyes, mouth or clothing,
take the following actions immediately :
In case contact to the eyes or mouth, rinse with large amount of
running water for more than 15 minutes. If any symptoms are present
after washing, get medical care.
In case contact to the skin or clothing, wipe it immediately and wash
with soap and large amount of running water for more than 15
minutes. The skin or clothing maybe damaged if liquid crystal material
is left adhered.
S9-S10 User Guide V1.0_en.book Page 70 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
71
Caring Your Computer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Though your computer is designed to function reliably in normal work
environments, you need to use common sense in handling it. By following
these important tips, you will get the most use and enjoyment out of your
computer.
Be Careful about Where and How You Work
Do not leave the base of your computer, or any other part that becomes
hot during operation, in contact with your lap or any part of your body
for an extended period when the computer is functioning or when the
battery is charging. Your computer dissipates some heat during normal
operation. This heat is a function of the level of system activity and
battery charge level. Extended contact with your body, even through
clothing, could cause discomfort or, eventually, a skin burn.
When the AC adapter is connected to an electrical outlet and your
computer, it generates heat. Do not place the adapter in contact with any
part of your body while using it. Never use the AC adapter to warm
your body. Extended contact with your body, even through clothing,
may cause a skin burn.
Route the cables of an AC adapter, a mouse, a keyboard, a printer, or any
other electronic device, or communication lines, so that they cannot be
walked on, tripped over, pinched by your computer or other objects, or in
any way subjected to treatment that could disturb the operation of your
computer. Applying strong force to the cables may damage or break them.
S9-S10 User Guide V1.0_en.book Page 71 Wednesday, July 23, 2008 5:53 PM
72
Chapter 6. Safety, Use, and Care Information
Place liquids away from your computer to avoid spills, and keep your
computer away from water (to avoid the danger of electrical shock).
Do not eat or smoke over your keyboard. Particles that fall into your
keyboard can cause damage.
Store packing materials safely out of the reach of children to prevent the
risk of suffocation from plastic bags.
Keep your computer away from magnets, activated cellular phones,
electrical appliances, or speakers (within 13 cm or 5 in).
Avoid subjecting your computer to extreme temperatures (below 5°C/
41°F or above 35°C/95°F).
Some appliances, such as certain portable desktop fans or air purifiers,
can produce negative ions. If a computer is close to such an appliance,
and is exposed for an extended time to air containing negative ions, it
may become electrostatically charged. Such a charge may be discharged
through your hands when you touch the keyboard or other parts of the
computer, or through connectors on I/O devices connected to it. Even
though this kind of electrostatic discharge (ESD) is the opposite of a
discharge from your body or clothing to the computer, it poses the same
risk of a computer malfunction.
Your computer is designed and manufactured to minimize any effects of
electrostatic charge. An electrostatic charge above a certain limit,
however, can increase the risk of ESD. Therefore, when using the
computer close to an appliance that can produce negative ions, give
special attention to the following:
- Avoid directly exposing your computer to the air from an appliance
that can produce negative ions.
- Keep your computer and peripherals as far as possible from such an
appliance.
S9-S10 User Guide V1.0_en.book Page 72 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
73
- Wherever possible, ground your computer to facilitate safe
electrostatic discharge.
Note:
Not all such appliances cause a significant electrostatic charge.
When you handle options or CRUs, or perform any work inside the
computer, take the following precautions to avoid static-electricity
damage:
- Limit your movement. Movement can cause static electricity to build
up around you.
- Always handle components carefully. Handle adapters, memory
modules, and other circuit boards by the edges. Never touch exposed
circuitry.
- Prevent others from touching components.
- When you install a static-sensitive option or CRU, touch the static-
protective package containing the part to a metal expansion-slot cover
or other unpainted metal surface on the computer for at least two
seconds. This reduces static electricity in the package and your body.
- Whenever possible, remove the static-sensitive part from the static-
protective packaging and install the part without setting it down.
When this is not possible, place the static-protective packaging on a
smooth, level surface and place the part on it.
- Do not place the part on the computer cover or other metal surface.
S9-S10 User Guide V1.0_en.book Page 73 Wednesday, July 23, 2008 5:53 PM
74
Chapter 6. Safety, Use, and Care Information
Be Gentle with Your Computer
Avoid placing any objects (including paper) between the display and the
keyboard or under the keyboard.
Do not drop, bump, scratch, twist, hit, vibrate, push, or place heavy
objects on your computer, display, or external devices.
Carry Your Computer Properly
Before moving your computer, be sure to remove any media, turn off
attached devices, and disconnect cords and cables.
Be sure your computer is in sleep or hibernation mode, or turned off,
before moving it. This will prevent damage to the hard disk drive and
data loss.
When picking up your open computer, hold it by the bottom. Do not
pick up or hold your computer by the display.
Use a quality carrying case that provides adequate cushion and
protection. Do not pack your computer in a tightly packed suitcase or
bag.
For outdoor use
Backup your critical data before you take your computer outdoors.
Ensure that the battery is full.
Be sure to turn off the power and close the LCD well.
Do not leave anything between the closed LCD and the keyboard.
S9-S10 User Guide V1.0_en.book Page 74 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
75
When you leave the computer in your car, place it on the back seat to
avoid being insolated.
Carry the AC adapter and power cord with the computer.
Handle Storage Media and Drives Properly
If your computer comes with an optical drive, do not touch the surface of
a disc or the lens on the tray.
Wait until you hear the CD or DVD click into the center pivot of an
optical drive before closing the tray.
When installing your hard disk, follow the instructions shipped with
your hardware, and apply pressure only where needed on the device.
Data Safety
Do not delete unknown files or change the name of files or directories
that were not created by you; otherwise, your computer software might
fail to work.
Be aware that accessing network resources can leave your computer
vulnerable to computer viruses, hackers, spyware, and other malicious
activities that might damage your computer, software, or data.
It is your responsibility to ensure that you have adequate protection in
the form of firewalls, antivirus software, and anti-spyware software and
keep this software up to date.
S9-S10 User Guide V1.0_en.book Page 75 Wednesday, July 23, 2008 5:53 PM
76
Chapter 6. Safety, Use, and Care Information
Take Care in Setting Passwords
Remember your passwords. If you forget a supervisor or hard disk
password, Lenovo authorized service providers will not reset it, and you
might have to replace your system board or hard disk drive.
Other Important Tips
Your computer modem might use only an analog telephone network, or
public-switched telephone network (PSTN). Do not connect the modem
to a PBX (private branch exchange) or any other digital telephone
extension line because this could damage your modem. Analog phone
lines are often used in homes, while digital phone lines are often used in
hotels or office buildings. If you are not sure which kind of phone line
you are using, contact your telephone company.
Your computer might have both an Ethernet connector and a modem
connector. If so, be sure to connect your communication cable to the
correct one, so your connector is not damaged.
Register your Lenovo products with Lenovo (refer to the Web page:
http://consumersupport.lenovo.com). This can help authorities return your
computer to you if it is lost or stolen. Registering your computer also enables
Lenovo to notify you about possible technical information and upgrades.
Only an authorized Lenovo repair technician should disassemble and
repair your computer.
Do not modify or tape the latches to keep the display open or closed.
Take care not to turn your computer over while the AC adapter is
plugged in. This could break the adapter plug.
S9-S10 User Guide V1.0_en.book Page 76 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
77
Turn off your computer if you are replacing a device, or else verify that
the device is warm- or hot-swappable.
Before you install any of the following devices, touch a metal table or a
grounded metal object. This action reduces any static electricity from
your body. The static electricity could damage the device.
- ExpressCard
- Memory Card, such as SD Card, Memory Stick, MultiMediaCard, xD-
Picture Card, and Memory Stick Pro card.
- Memory module
- PCI Express Card
When transferring data to or from a Flash Media Card, such as an SD
card, do not put your computer in sleep or hibernation mode before the
data transfer is complete. To do so might cause damage to your data.
Cleaning the Cover of Your Computer
Occasionally clean your computer as follows:
1Prepare a mixture of a gentle kitchen-use detergent (one that does not
contain abrasive powder or strong chemicals such as acid or alkaline).
Use 5 parts water to 1 part detergent.
2Absorb the diluted detergent into a sponge.
3Squeeze excess liquid from the sponge.
4Wipe the cover with the sponge, using a circular motion and taking
care not to let any excess liquid drip.
S9-S10 User Guide V1.0_en.book Page 77 Wednesday, July 23, 2008 5:53 PM
78
Chapter 6. Safety, Use, and Care Information
5Wipe the surface to remove the detergent.
6Rinse the sponge with clean running water.
7Wipe the cover with the clean sponge.
8Wipe the surface again with a dry, soft lint-free cloth.
9Wait for the surface to dry completely and remove any cloth fibers
from the computer surface.
Note:
Shut down the computer and then disconnect the power cord before
cleaning the computer.
Cleaning Your Computer Keyboard
1Absorb some isopropyl rubbing alcohol on a soft, dust-free cloth.
2Wipe each keytop surface with the cloth. Wipe the keys one by one; if
you wipe several keys at a time, the cloth may hook onto an adjacent
key and possibly damage it. Make sure that no liquid drips onto or
between the keys.
3Allow to dry.
4To remove any crumbs and dust from beneath the keys, you can use a
camera blower with a brush or cool air from a hair drier.
Note:
Avoid spraying cleaner directly on the display or the keyboard.
S9-S10 User Guide V1.0_en.book Page 78 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
79
Cleaning Your Computer Display
1Gently wipe the display with a dry, soft lint-free cloth. If you see a
scratchlike mark on your display, it might be a stain transferred from
the keyboard when the cover was pressed from the outside.
2Wipe or dust the stain gently with a soft, dry cloth.
3If the stain remains, moisten a soft, lint-free cloth with water or a 50-50
mixture of isopropyl alcohol and water that does not contain
impurities.
4Wring out as much of the liquid as you can.
5Wipe the display again; do not let any liquid drip into the computer.
6Be sure to dry the display before closing it.
Accessibility and Comfort - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
As your computer enables you to work in so many places, it is important
that you remain attentive to good posture, good lighting, and proper
seating. By keeping these considerations in mind, you can improve
performance and achieve greater comfort. Lenovo is committed to
providing the latest information and technology to our customers with
disabilities.
S9-S10 User Guide V1.0_en.book Page 79 Wednesday, July 23, 2008 5:53 PM
80
Chapter 6. Safety, Use, and Care Information
Ergonomic Information
Working in the virtual office may mean adapting to frequent changes in
your environment. Following some simple rules will make things easier
and bring you the maximum benefits of your computer. Keeping in mind
such basics as good lighting and proper seating, for example, can help you
improve your performance and achieve greater comfort.
Note:
This example shows someone in a conventional setting. Even if you work
in a casual, less conventional setting, many of the tips in this section still
apply. Develop good habits, and they will serve you well.
S9-S10 User Guide V1.0_en.book Page 80 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
81
General Posture: Below are some general recommendations for assuming a
healthy working posture. It is best to periodically make minor
modifications in your working posture to deter the onset of discomfort
caused by long periods of working in the same position. Frequent, short
breaks from your work will also help to prevent any minor discomfort
associated with your working posture.
Display: Position the display to maintain a comfortable viewing distance of
510-760 mm (20-30 inches). Avoid glare or reflections on the display from
overhead lighting or outside sources of light. Keep the display screen clean
and set the brightness to levels that enable you to see the screen clearly.
Press Fn + up/down arrow to adjust display brightness.
Head Position: Keep your head and neck in a comfortable and neutral
(vertical, or upright) position.
Chair: Use a chair that gives you good back support and seat height
adjustment. Use chair adjustments to best suit your desired posture.
Arm and Hand Position: If available, utilize chair arm rests or an area on
your working surface to provide weight support for your arms. Keep your
forearms, wrists, and hands in a relaxed and neutral (horizontal) position.
Type with a soft touch without pounding the keys.
Leg Position: Keep your thighs parallel to the floor and your feet flat on the
floor or on a footrest.
S9-S10 User Guide V1.0_en.book Page 81 Wednesday, July 23, 2008 5:53 PM
82
Chapter 6. Safety, Use, and Care Information
What If You are Traveling?
It may not be possible to observe the best ergonomic practices when you
are using your computer while on the move or in a casual setting.
Regardless of the setting, try to observe as many of the tips as possible.
Sitting properly and using adequate lighting, for example, will help you
maintain desirable levels of comfort and performance.
Questions about Vision?
Your computer’s visual display screen is designed to meet the highest
standards and to provide you with clear, crisp images and large, bright
displays that are easy to see, yet easy on the eyes. Of course, any
concentrated and sustained visual activity can be tiring. If you have
questions on eye fatigue or visual discomfort, consult a vision care
specialist for advice.
Maintenance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
An important part of owning your computer is maintenance. With proper
care, you can avoid common problems. The following sections provide
information that can help you to keep your computer running smoothly.
S9-S10 User Guide V1.0_en.book Page 82 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
83
General Tips for Maintenance
1Check the capacity of your hard disk drive from time to time. If the
hard disk drive gets too full, Windows® will slow down and might
produce errors.
Note:
You can check the capacity of each hard disk drive as follows.
1. Click Start and select Computer from the start menu.
2. Right-click the hard-disk you want to check.
3. Select Properties from the popup menu.
4. Check the capacity of the hard disk drive.
5. Click the OK button to close the properties window.
2Empty your recycle bin on a regular basis.
3Use Diskeeper Lite or the Microsoft Disk Defragmenter on your hard
disk drive on a regular basis to improve data seek and read time. To
start the Disk Defragmenter, click Start -> All Programs -> Accessories
-> System Tools -> Disk Defragmenter.
To free up disk space, uninstall unused application programs.
Note:
You might also want to look for application program duplication or
overlapping versions.
Clean out your Inbox, Sent, and Trash folders from your e-mail client
program.
S9-S10 User Guide V1.0_en.book Page 83 Wednesday, July 23, 2008 5:53 PM
84
Chapter 6. Safety, Use, and Care Information
At least once a week, make a point to back up your data. If critical data is
present, it is a good idea to perform a daily backup. Lenovo has many
backup options available for your computer. CD-RW drives and CD-
RW/DVD drives are available for most computers and are easily
installed.
Use or schedule System Restore to take a system snapshot periodically.
Note:
Always take a system snapshot before installing new drivers, updating
software, or installing new software.
Update device drivers and BIOS when needed.
Profile your machine at http://consumersupport.lenovo.com to keep up
to date with current drivers and revisions.
Keep up to date on device drivers on other non-Lenovo hardware. You
might want to read the device driver information release notes prior to
updating for compatibility or known issues.
Keep a log book. Entries might include major hardware or software
changes, driver updates, minor issues you have experienced and how
you resolved them.
If you ever need to run a recovery operation on your computer to return
the contents of the hard disk to the factory-installed state, the following
tips might help along the way:
Remove all external devices such as the printer, keyboard, and so
on.
Make sure that the battery is charged and that you have the AC
power adapter connected.
Boot into the BIOS and load the default settings.
S9-S10 User Guide V1.0_en.book Page 84 Wednesday, July 23, 2008 5:53 PM
Chapter 6. Safety, Use, and Care Information
85
Turn off the computer and start the recovery process.
If your computer uses discs as the recovery media, do not remove
the disc from the drive until you are prompted to do so.
If required, you can find your country's Customer Support Center at the
following Web address: http://consumersupport.lenovo.com.
When calling the Customer Support Center, please make sure you have
your machine type, model, and serial number available and the
computer is in front of you. Also, if the machine is producing error
codes, it is helpful to have the error screen on or the message written
down.
Device drivers are programs that contain instructions for the operating
system about how to operate or “drive” a certain piece of hardware. Each
hardware component on your computer has its own specific driver. If you
add a new component, the operating system needs to be instructed on
how to operate that piece of hardware. After you install the driver, the
operating system can recognize the hardware component and understand
how to use it.
Note:
Due to the fact that drivers are programs, like any other file on your
computer, they are susceptible to corruption and might not perform
properly if corruption occurs.
S9-S10 User Guide V1.0_en.book Page 85 Wednesday, July 23, 2008 5:53 PM
86
Appendix A. Lenovo Limited Warranty
This Lenovo Limited Warranty applies only to Lenovo hardware products
you purchased for your own use and not for resale. This warranty may
sometimes be referred to as the “Statement of Limited Warranty” (SOLW)
in other documents from Lenovo.
What This Warranty Covers
Lenovo warrants that each hardware product is free from defects in materials
and workmanship under normal use during the warranty period. The
warranty period for the product starts on the original date of purchase
specified on your invoice unless Lenovo informs you otherwise in writing.
The warranty period and type of warranty service that apply to your product
are designated below under the section titled “Warranty Information.”
THIS WARRANTY IS YOUR EXCLUSIVE WARRANTY AND
REPLACES ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. SOME STATES OR
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS
OR IMPLIED WARRANTIES, SO THE ABOVE EXCLUSION MAY NOT
APPLY TO YOU. IN THAT EVENT, SUCH WARRANTIES APPLY ONLY
TO THE EXTENT REQUIRED BY LAW AND ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD. NO WARRANTIES APPLY
AFTER THAT PERIOD. SOME STATES OR JURISDICTIONS DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION ON DURATION MAY NOT
APPLY TO YOU.
S9-S10 User Guide V1.0_en.book Page 86 Wednesday, July 23, 2008 5:53 PM
Appendix A. Lenovo Limited Warranty
87
How to Obtain Warranty Service
If the product does not function as warranted during the warranty period,
you may obtain warranty service by contacting Lenovo or an approved
service provider. Each of them is referred to as a “Service Provider.” A list
of Service Providers and their telephone numbers is available at
consumersupport.lenovo.com.
Warranty service may not be available in all locations and may differ from
location to location. Charges may apply outside a Service Provider’s
normal service area. Contact a local Service Provider for location-specific
information.
What Your Service Provider Will Do to Correct Problems
When you contact a Service Provider, you must follow the problem
determination and resolution procedures specified.
Your Service Provider will attempt to diagnose and resolve your problem
over the telephone or through remote assistance. Your Service Provider
may direct you to download and install designated software updates.
Some problems can be resolved with a replacement part that you install
yourself (such as mouse, speaker), called a “Customer Replaceable Unit” or
“CRU.” If so, your Service Provider will ship the CRU to you for you to
install.
If your problem cannot be resolved over the telephone or remotely, through
your application of software updates, or with a CRU, your Service Provider
S9-S10 User Guide V1.0_en.book Page 87 Wednesday, July 23, 2008 5:53 PM
88
Appendix A. Lenovo Limited Warranty
will arrange for service under the type of warranty service designated for
the product under the section titled “Warranty Information.”
If your Service Provider determines that it is unable to repair your product,
your Service Provider will replace it with one that is at least functionally
equivalent.
If your Service Provider determines that it is unable to either repair or
replace your product, your sole remedy is to return the product to your
place of purchase or to Lenovo and your purchase price will be refunded.
Exchange of a Product or Part
When the warranty service involves the exchange of a product or part, the
item your Service Provider replaces becomes Lenovo’s property and the
replacement becomes yours. All removed items must be genuine and
unaltered. The replacement may not be new, but will be in good working
order and at least functionally equivalent to the item replaced. The
replacement assumes the warranty status of the replaced item.
Before your Service Provider exchanges a product or part, you agree to:
1. remove all features, parts, options, alterations, and attachments not
under warranty service;
2. ensure that the product is free of any legal obligations or restrictions
that prevent its exchange;
3. obtain authorization from the owner to have your Service Provider
service a product that you do not own.
S9-S10 User Guide V1.0_en.book Page 88 Wednesday, July 23, 2008 5:53 PM
Appendix A. Lenovo Limited Warranty
89
Your Additional Responsibilities
Where applicable, before service is provided, you agree to:
1. follow the service request procedures that your Service Provider
specifies;
2. backup or secure all programs and data contained in the product;
3. provide your Service Provider with all system keys or passwords and
sufficient, free, and safe access to your facilities to permit the terms of
this warranty to be fulfilled;
4. ensure that all information about identified or identifiable individuals
(“Personal Data”) is deleted from the product or that, with respect to
any remaining Personal Data you did not delete, you are in compliance
with all applicable laws.
Use of Personal Information
If you obtain service under this warranty, Lenovo will store, use and
process information about your warranty issue and your contact
information, including name, phone numbers, address, and e-mail address.
Lenovo will use this information to perform service under this warranty
and to improve our business relationship with you, such as to conduct
internal reviews of the efficiency of the warranty service we provide to you.
We may contact you to inquire about your satisfaction regarding our
warranty service or to notify you about any product recalls or safety issues.
We may also provide this information to entities acting on our behalf to
accomplish these purposes.
S9-S10 User Guide V1.0_en.book Page 89 Wednesday, July 23, 2008 5:53 PM
90
Appendix A. Lenovo Limited Warranty
What This Warranty Does not Cover
This warranty does not cover the following:
uninterrupted or error-free operation of a product;
loss of, or damage to, your data;
any software programs, whether provided with the product or installed
subsequently;
failure or damage resulting from misuse, accident, modification,
unsuitable physical or operating environment, natural disasters, power
surges, or improper maintenance by you;
any third party products, including those that Lenovo may procure and
provide with or integrate into the Lenovo product at your request;
any technical or other support, such as assistance with “how-to”
questions and those regarding product set-up and installation.
This warranty is voided by removal or alteration of identification labels on
the product or its parts.
Limitation of Liability
Lenovo is responsible for loss of, or damage to, your product only while it
is 1) in your Service Provider’s possession or 2) in transit in those cases in
which the Service Provider is responsible for the transportation.
Neither Lenovo nor your Service Provider is responsible for any of your
data including confidential, proprietary, or personal data contained in a
S9-S10 User Guide V1.0_en.book Page 90 Wednesday, July 23, 2008 5:53 PM
Appendix A. Lenovo Limited Warranty
91
product. You should remove and/or backup all such information from the
product prior to its service or return.
Circumstances may arise where, because of a default on Lenovo’s part or
other liability, you may be entitled to recover damages from Lenovo. In each
such instance, regardless of the basis on which you are entitled to claim
damages from Lenovo (including fundamental breach, negligence,
misrepresentation, or other contract or tort claim), except and to the extent
that liability cannot be waived or limited by applicable laws, Lenovo is liable
for no more than the amount of actual direct damages suffered by you, up to
the amount you paid for the product. This limit does not apply to damages
for bodily injury (including death) and damage to real property and tangible
personal property for which Lenovo is required by law to be liable.
This limit also applies to Lenovo’s suppliers, resellers, and your Service
Provider. It is the maximum for which Lenovo, its suppliers, resellers, and
your Service Provider are collectively responsible.
UNDER NO CIRCUMSTANCES IS LENOVO, ITS SUPPLIERS,
RESELLERS, OR SERVICE PROVIDERS LIABLE FOR ANY OF THE
FOLLOWING EVEN IF INFORMED OF THEIR POSSIBILITY: 1) THIRD
PARTY CLAIMS AGAINST YOU FOR DAMAGES; 2) LOSS OF, OR
DAMAGE TO, YOUR DATA; OR 3) SPECIAL, INCIDENTAL, OR
INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL
DAMAGES, INCLUDING LOST PROFITS, BUSINESS REVENUE,
GOODWILL, OR ANTICIPATED SAVINGS. SOME STATES OR
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
S9-S10 User Guide V1.0_en.book Page 91 Wednesday, July 23, 2008 5:53 PM
92
Appendix A. Lenovo Limited Warranty
Dispute Resolution
If you acquired the product in Cambodia, Indonesia, Philippines,
Vietnam or Sri Lanka, disputes arising out of or in connection with this
warranty shall be finally settled by arbitration held in Singapore and this
warranty shall be governed, construed and enforced in accordance with the
laws of Singapore, without regard to conflict of laws. If you acquired the
product in India, disputes arising out of or in connection with this
warranty shall be finally settled by arbitration held in Bangalore, India.
Arbitration in Singapore shall be held in accordance with the Arbitration
Rules of Singapore International Arbitration Center (“SIAC Rules”) then in
effect. Arbitration in India shall be held in accordance with the laws of
India then in effect. The arbitration award shall be final and binding for the
parties without appeal and shall be in writing and set forth the findings of
fact and the conclusions of law. All arbitration proceedings shall be
conducted, including all documents presented in such proceedings, in the
English language, and the English language version of this warranty
prevails over any other language version in such proceedings.
Other Rights
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR
JURISDISCTION TO JURISDICTION. YOU ALSO MAY HAVE OTHER
RIGHTS UNDER APPLICABLE LAW OR WRITTEN AGREEMENT WITH
LENOVO. NOTHING IN THIS WARRANTY AFFECTS STATUTORY
RIGHTS, INCLUDING RIGHTS OF CONSUMERS UNDER NATIONAL
LEGISLATION GOVERNING THE SALE OF CONSUMER GOODS THAT
CANNOT BE WAIVED OR LIMITED BY CONTRACT.
S9-S10 User Guide V1.0_en.book Page 92 Wednesday, July 23, 2008 5:53 PM
Appendix A. Lenovo Limited Warranty
93
European Economic Area (EEA)
Customers in the EEA may contact Lenovo at the following address:
Lenovo Warranty & Service Quality Dept., PO Box 19547, Inverkip Road,
Greenock, Scotland PA16 9WX. Service under this warranty for Lenovo
hardware products purchased in EEA countries may be obtained in any
EEA country in which the product has been announced and made available
by Lenovo.
This Lenovo Limited Warranty is available in other languages at
consumersupport.lenovo.com.
S9-S10 User Guide V1.0_en.book Page 93 Wednesday, July 23, 2008 5:53 PM
94
Appendix A. Lenovo Limited Warranty
Warranty Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
If required, your Service Provider will provide repair or exchange service
depending on the type of warranty service specified for your product and the
available service. Scheduling of service will depend upon the time of your
call, parts availability, and other factors.
Product or
Machine
Type
Country or Region of
Purchase
Warranty
Period
Type of
Warranty
Service
Notebook:
20005, 2781
Taiwan
Parts and Labor -
1 year
Battery pack -
1 year
3, 4
China (Hong Kong S.A.R.),
China (Macau S.A.R.)1, 4
United States of America,
Canada 1, 3
India, Indonesia, Malaysia,
Singapore, Thailand,
Philippines, Vietnam, South
Africa, Australia, New
Zealand, France
1, 3 or 4
Russia
Parts and Labor -
2 years
Battery pack -
1 year
1, 4
S9-S10 User Guide V1.0_en.book Page 94 Wednesday, July 23, 2008 5:53 PM
Appendix A. Lenovo Limited Warranty
95
A warranty period of 3 years on parts and 1 year on labor means that
Lenovo provides warranty service without charge for:
a.parts and labor during the first year of the warranty period (or a longer
period as required by law); and
b.parts only, on an exchange basis, in the second and third years of the
warranty period. Your Service Provider will charge you for any labor
provided in performance of the repair or replacement(s) in the second
and third year of warranty period.
Types of Warranty Service
1Customer Replaceable Unit (“CRU”) Service
Under CRU Service, your Service Provider will ship CRUs to you for you to
install. Most CRUs are easy to install whereas others may require some
technical skill and tools. CRU information and replacement instructions are
shipped with your product and are available from Lenovo at any time
upon request. You may request that a Service Provider install some CRUs
under one of the other types of warranty service designated for your
product. Installation of external CRUs (such as mice, keyboards, or
monitors) is your responsibility. Lenovo specifies in the materials shipped
with a replacement CRU whether the defective CRU must be returned.
When return is required, 1) return instructions, a prepaid return shipping
label, and a container are included with the replacement CRU, and 2) you
may be charged for the replacement CRU if your Service Provider does not
receive the defective CRU within thirty (30) days of your receipt of the
replacement.
S9-S10 User Guide V1.0_en.book Page 95 Wednesday, July 23, 2008 5:53 PM
96
Appendix A. Lenovo Limited Warranty
2On-site Service
Under On-site Service, your Service Provider will either repair or exchange
the product at your location. You must provide a suitable working area to
allow disassembly and reassembly of the Lenovo product. For some
products, certain repairs may require your Service Provider to send the
product to a designated service center.
3Courier or Depot Service
Under Courier or Depot Service, your product will be repaired or
exchanged at a designated service center, with shipping arranged by your
Service Provider. You are responsible for disconnecting the product. A
shipping container will be provided to you for you to return your product
to a designated service center. A courier will pick up your product and
deliver it to the designated service center. Following its repair or exchange,
the service center will arrange the return delivery of the product to you.
4Customer Carry-In or Mail-In Service
Under Customer Carry-In or Mail-In Service, your product will be repaired
or exchanged at a designated service center, with delivery or shipping
arranged by you. You are responsible to deliver or mail, as your Service
Provider specifies, (prepaid unless specified otherwise) the product
suitably packaged to a designated location. After the product has been
repaired or exchanged, it will be made available for your collection. Failure
to collect the product may result in your Service Provider disposing of the
product as it sees fit. For Mail-in Service, the product will be returned to
you at Lenovo’s expense, unless your Service Provider specifies otherwise.
S9-S10 User Guide V1.0_en.book Page 96 Wednesday, July 23, 2008 5:53 PM
Appendix A. Lenovo Limited Warranty
97
Lenovo Warranty Service Telephone Numbers - - - - - - - - - - -
Warranty Service Telephone Numbers
The phone numbers provided below are correct as of the time of printing
and are subject to change without notice. For the latest warranty service
contact telephone number in a country please contact Lenovo, or your
reseller in your country.
Singapore 800 6012 047
Malaysia 1800 18 2388
Thailand 1800 06 0087
Indonesia 001 803 0601 2003
Philippines 1800 111 00724
Vietnam 1800 1528
India Toll free 1800 113324
Alternate No.011-26388288
SMS 9900173324
P.R.China 400-810-8888
Hong Kong (852) 2516-3919
Taiwan (886) 0800-000-702
Macau 0800-689
United States 1-877-453-6686
Canada 1-877-453-6686
France 0826-536-686
South Africa 0861-536-686
S9-S10 User Guide V1.0_en.book Page 97 Wednesday, July 23, 2008 5:53 PM
98
Appendix A. Lenovo Limited Warranty
Australia 1300 557 073
New Zealand 0800 446 833
Russia Toll free 8-800-700-7888
Alternate No.+7-(495) 662-7888
Additionally, you can find support information, and updates, including
service phone numbers for unlisted countries on the Lenovo Web site
located at:
http://consumersupport.lenovo.com.
S9-S10 User Guide V1.0_en.book Page 98 Wednesday, July 23, 2008 5:53 PM
99
Appendix B. Customer Replaceable Units (CRUs)
Customer Replaceable Units (CRUs) are computer parts that can be
upgraded or replaced by the customer. There are two types of CRUs:
internal and external. External CRUs are easy to install, whereas internal
CRUs require some technical skills and in some cases might require tools
such as a screwdriver. However, both internal and external CRUs are safe
for removal by the customer.
Customers are responsible for replacing all external CRUs. Internal CRUs
can be removed and installed by customers or by a Lenovo service
technician during the warranty period.
Your computer contains the following types of external CRUs:
External CRUs (pluggable): These CRUs unplug from the computer.
Examples of these types of CRUs include the AC adapter and power cord.
External CRUs with latches: These CRUs include a latch to help you
remove and replace the part. Examples of these types of CRUs include
the notebook main battery, an optical drive, a hard-disk drive, and an
extended battery.
Your computer contains the following types of internal CRUs:
Internal CRUs (located behind an access panel): These CRUs are
isolated parts within the computer that are concealed by an access panel
that is typically secured by either one or two screws. Once the access
panel is removed, only the specific CRU is visible. Examples of these
types of CRUs include memory modules and hard disk drives.
Internal CRUs (located within the product): These CRUs are accessible
only by opening the computer’s outer case. Examples of these CRUs
include PCI Express Mini Cards and the integrated keyboard.
S9-S10 User Guide V1.0_en.book Page 99 Wednesday, July 23, 2008 5:53 PM
100
Appendix C. Specifications
Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Size Width: approximate 250.2 mm
Depth: approximate 183 mm
Height: approximate 22 to 27.5 mm
Environment
Temperature
– Operating with no optical disc in the drive: 5° to 35°C
(41° to 95°F)
– Operating with an optical disc in the drive: 10° to
35°C (50° to 95°F)
Note:
When you charge the battery pack, its temperature must
be at least 10°C (50°F).
Relative humidity:
– Operating with no optical disc in the drive: 8% to 95%
– Operating with an optical disc in the drive: 8% to 80%
S9-S10 User Guide V1.0_en.book Page 100 Wednesday, July 23, 2008 5:53 PM
Appendix C. Specifications
101
Power source
(AC adapter)
Input rating of the AC adapter: 90-264 V ac, 47 to 63 Hz
40W/60W
Battery
pack
Lithium-ion (Li-Ion) battery pack
–Nominal voltage: 11.1 V dc
–Capacity: 53Wh or 28Wh
S9-S10 User Guide V1.0_en.book Page 101 Wednesday, July 23, 2008 5:53 PM
102
Appendix D. Notices
Notices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Lenovo may not offer the products, services, or features discussed in this
document in all countries. Consult your local Lenovo representative for
information on the products and services currently available in your area.
Any reference to a Lenovo product, program, or service is not intended to
state or imply that only that Lenovo product, program, or service may be
used. Any functionally equivalent product, program, or service that does
not infringe any Lenovo intellectual property right may be used instead.
However, it is the user’s responsibility to evaluate and verify the
operation of any other product, program, or service.
Lenovo may have patents or pending patent applications covering subject
matter described in this document. The furnishing of this document does
not give you any license to these patents. You can send license inquiries, in
writing, to:
Lenovo (United States), Inc.
1009 Think Place - Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing
LENOVO PROVIDES THIS PUBLICATION “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of
express or implied warranties in certain transactions, therefore, this
statement may not apply to you.
S9-S10 User Guide V1.0_en.book Page 102 Wednesday, July 23, 2008 5:53 PM
Appendix D. Notices
103
This information could include technical inaccuracies or typographical
errors. Changes are periodically made to the information herein; these
changes will be incorporated in new editions of the publication. Lenovo
may make improvements and/or changes in the product(s) and/or the
program(s) described in this publication at any time without notice.
The products described in this document are not intended for use in
implantation or other life support applications where malfunction may
result in injury or death to persons. The information contained in this
document does not affect or change Lenovo product specifications or
warranties. Nothing in this document shall operate as an express or
implied license or indemnity under the intellectual property rights of
Lenovo or third parties. All information contained in this document was
obtained in specific environments and is presented as an illustration. The
result obtained in other operating environments may vary.
Lenovo may use or distribute any of the information you supply in any
way it believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided
for convenience only and do not in any manner serve as an endorsement of
those Web sites. The materials at those Web sites are not part of the
materials for this Lenovo product, and use of those Web sites is at your own
risk.
Any performance data contained herein was determined in a controlled
environment. Therefore, the result obtained in other operating
environments may vary significantly. Some measurements may have been
made on development-level systems and there is no guarantee that these
measurements will be the same on generally available systems.
Furthermore, some measurements may have been estimated through
S9-S10 User Guide V1.0_en.book Page 103 Wednesday, July 23, 2008 5:53 PM
104
Appendix D. Notices
extrapolation. Actual results may vary. Users of this document should
verify the applicable data for their specific environment.
The software interface and hardware configuration described in all the
manuals included with your computer may not match the actual
configuration of the computer you purchased.
Export classification notice
This product is subject to the Untied States Export Administration
Regulations (EAR) and has an Export Classification Control Number
(ECCN) of 4A994.b. It can be re-exported except to any of the embargoed
countries in the EAR E1 country list.
Television output notice
The following notice applies to models that have the factory-installed
television-output feature.
This product incorporates copyright protection technology that is protected
by U.S. patents and other intellectual property rights. Use of this copyright
protection technology must be authorized by Macrovision, and is intended
for home and other limited viewing uses only unless otherwise authorized
by Macrovision. Reverse engineering or disassembly is prohibited.
S9-S10 User Guide V1.0_en.book Page 104 Wednesday, July 23, 2008 5:53 PM
Appendix D. Notices
105
Wireless related information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Wireless Interoperability
Wireless LAN PCI Express Mini Card is designed to be interoperable with
any wireless LAN product that is based on Direct Sequence Spread Spectrum
(DSSS), Complementary Code Keying (CCK), and/or Orthogonal Frequency
Division Multiplexing (OFDM) radio technology, and is compliant to:
The IEEE 802.11b/g Standard on Wireless LANs, as defined and
approved by the Institute of Electrical and Electronics Engineers.
The Wireless Fidelity (WiFi) certification as defined by the Wi-Fi Alliance.
Bluetooth
Daughter Card is designed to be interoperable with any
Bluetooth
product that is compliant to
Bluetooth
Specification 2.0 + EDR as defined by the
Bluetooth
SIG. Following profiles are supported by
Bluetooth
Daughter Card:
Generic Access
Service Discovery
Serial Port
Dial-up Networking
FAX
LAN Access using PPP
Personal Area Network
Generic Object Exchange
Generic Object Push
File Transfer
Synchronization
Audio Gateway
Headset
Printer
S9-S10 User Guide V1.0_en.book Page 105 Wednesday, July 23, 2008 5:53 PM
106
Appendix D. Notices
Human Interface Devices (Keyboard/Mouse)
Basic Image
Handsfree
AV
Usage Environment and Your Health
Wireless LAN PCI Express Mini Card and Bluetooth Daughter Card emit
radio frequency electromagnetic energy like other radio devices. However,
the level of energy emitted is far much less than the electromagnetic energy
emitted by wireless devices like for example mobile phones.
Due to the fact that Wireless LAN PCI Express Mini Card and Bluetooth
Daughter Card operate within the guidelines found in radio frequency
safety standards and recommendations, Lenovo believes the integrated
wireless cards are safe for use by consumers. These standards and
recommendations reflect the consensus of the scientific community and
result from deliberations of panels and committees of scientists who
continually review and interpret the extensive research literature.
In some situation or environment, the use of Wireless LAN PCI Express
Mini Card or Bluetooth Daughter Card may be restricted by the proprietor
of the building or responsible representatives of the organization. These
situations may for example include:
Using the integrated wireless cards on board of airplanes, or in hospitals
In any other environment where the risk of interference to other devices
or services is perceived or identified as harmful.
If you are uncertain of the policy that applies on the use of wireless devices
in a specific organization (e.g., airport or hospital), you are encouraged to
ask for authorization to use Wireless LAN PCI Express Mini Card or
Bluetooth Daughter Card prior to turning on the computer.
S9-S10 User Guide V1.0_en.book Page 106 Wednesday, July 23, 2008 5:53 PM
Appendix D. Notices
107
S9-S10 User Guide V1.0_en.book Page 107 Wednesday, July 23, 2008 5:53 PM
Electronic Emissions Notices - - - - - - - - - - - - - - - -
The following information refers to Lenovo IdeaPad S9/S10, machine type 4067,20013
Federal Communications Commission (FCC) Statement
1. This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to cor-
rect the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
<RXDUHFDXWLRQHGWKDWFKDQJHVRUPRGLÀFDWLRQVQRWH[SUHVVO\DSSURYHGE\WKH
party responsible for compliance could void your authority to operate the equip-
ment.
4068,20014; 4231,20015,4187,4329,4333,11N3G,11G3G
108
Appendix D. Notices
Responsible party:
Lenovo (United States) Incorporated
1009 Think Place - Building One
Morrisville, NC 27650
U.S.A.
Telephone: (919) 294-5900
S9-S10 User Guide V1.0_en.book Page 108 Wednesday, July 23, 2008 5:53 PM
3. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
4. FCC RF Radiation Exposure Statement:
• This Transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
• This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. This device was tested for typical lap held oper-
ations with the device contacted directly to the human body to the back side of
the notebook computer. To maintain compliance with FCC RF exposure com-
pliance requirements, avoid direct contact to the transmitting antenna during
transmitting.
Appendix D. Notices
109
German Class B Compliance Statement
Deutschsprachiger EU Hinweis:
Hinweis für Geräte der Klasse B EU-Richtlinie zur Elektromagnetischen
Ver t rägli chk eit
Dieses Produkt entspricht den Schutzanforderungen der EU-Richtlinie
2004/108/EG (früher 89/336/EWG) zur Angleichung der
Rechtsvorschriften über die elektromagnetische Verträglichkeit in den
EU-Mitgliedsstaaten und hält die Grenzwerte der EN 55022 Klasse B ein.
S9-S10 User Guide V1.0_en.book Page 109 Wednesday, July 23, 2008 5:53 PM
Industry Canada Class B Emission Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformité à la réglementation d’Industrie Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
110
Appendix D. Notices
Zulassungsbescheinigung laut dem Deutschen Gesetz über die
elektromagnetische Verträglichkeit von Betriebsmitteln, EMVG vom 20.
Juli 2007 (früher Gesetz über die elektromagnetische Verträglichkeit von
Geräten), bzw. der EMV EG Richtlinie 2004/108/EC (früher 89/336/EWG),
für Geräte der Klasse B.
Dieses Gerät ist berechtigt, in Übereinstimmung mit dem Deutschen
EMVG das EG-Konformitätszeichen - CE - zu führen. Verantwortlich für
die Konformitätserklärung nach Paragraf 5 des EMVG ist die Lenovo
(Deutschland) GmbH, Gropiusplatz 10, D-70563 Stuttgart.
Informationen in Hinsicht EMVG Paragraf 4 Abs. (1) 4:
Das Gerät erfüllt die Schutzanforderungen nach EN 55024 und EN 55022
Klasse B.
S9-S10 User Guide V1.0_en.book Page 110 Wednesday, July 23, 2008 5:53 PM
Um dieses sicherzustellen, sind die Geräte wie in den Handbüchern
beschrieben zu installieren und zu betreiben. Des Weiteren dürfen auch nur
von der Lenovo empfohlene Kabel angeschlossen werden. Lenovo
übernimmt keine Verantwortung für die Einhaltung der
Schutzanforderungen, wenn das Produkt ohne Zustimmung der Lenovo
verändert bzw. wenn Erweiterungskomponenten von Fremdherstellern
ohne Empfehlung der Lenovo gesteckt/eingebaut werden.
Deutschland:
Einhaltung des Gesetzes über die elektromagnetische Verträglichkeit
von Betriebsmittein
Dieses Produkt entspricht dem “Gesetz über die elektromagnetische
Verträglichkeit von Betriebsmitteln” EMVG (früher “Gesetz über die
elektromagnetische Verträglichkeit von Geräten”). Dies ist die Umsetzung
der EU-Richtlinie 2004/108/EG (früher 89/336/EWG) in der
Bundesrepublik Deutschland.
Appendix D. Notices
111
European Union Compliance Statement Class B Compliance
European Union - Compliance to the Electromagnetic Compatibility Directive
This product is in conformity with the protection requirements of EU
Council Directive 2004/108/EC on the approximation of the laws of the
Member States relating to electromagnetic compatibility. Lenovo cannot
accept responsibility for any failure to satisfy the protection requirements
resulting from a non-recommended modification of the product, including
the installation of option cards from other manufacturers.
This product has been tested and found to comply with the limits for Class
B Information Technology Equipment according to European Standard EN
55022. The limits for Class B equipment were derived for typical residential
environments to provide reasonable protection against interference with
licensed communication devices.
Properly shielded and grounded cables and connectors must be used in
order to reduce the potential for causing interference to radio and TV
communications and to other electrical or electronic equipment. Such
cables and connectors are available from Lenovo authorized dealers.
Lenovo cannot accept responsibility for any interference caused by using
other than recommended cables and connectors.
S9-S10 User Guide V1.0_en.book Page 111 Wednesday, July 23, 2008 5:53 PM
112
Appendix D. Notices
Japanese VCCI Class B Statement
Japan Compliance Statement for Power line Harmonics
A statement of compliance to the IEC 61000-3-2 harmonics standard is
required for all products connecting to the power mains and rated less than
20A per phase.
Korea Class B
S9-S10 User Guide V1.0_en.book Page 112 Wednesday, July 23, 2008 5:53 PM
Appendix D. Notices
113
WEEE and Recycling Statements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
General Recycling Statement
Lenovo encourages owners of information technology (IT) equipment to
responsibly recycle their equipment when it is no longer needed. Lenovo
offers a variety of programs and services to assist equipment owners in
recycling their IT products. Information on product recycling offerings can
be found on Lenovo’s Internet site at
http://www.pc.ibm.com/ww/lenovo/about/environment
S9-S10 User Guide V1.0_en.book Page 113 Wednesday, July 23, 2008 5:53 PM
114
Appendix D. Notices
EU WEEE Statements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
The Waste Electrical and Electronic Equipment (WEEE) mark applies only
to countries within the European Union (EU) and Norway. Appliances are
labeled in accordance with European Directive 2002/96/EC concerning
waste electrical and electronic equipment (WEEE). The Directive
determines the framework for the return and recycling of used appliances
as applicable throughout the European Union. This label is applied to
various products to indicate that the product is not to be thrown away, but
rather reclaimed upon end of life per this Directive.
Users of electrical and electronic equipment (EEE) with the WEEE marking
per Annex IV of the WEEE Directive must not dispose of end of life EEE as
unsorted municipal waste, but use the collection framework available to
them for the return, recycle, recovery of WEEE and minimize any potential
effects of EEE on the environment and human health due to the presence of
hazardous substances. For additional WEEE information go to:
http://consumersupport.lenovo.com.
S9-S10 User Guide V1.0_en.book Page 114 Wednesday, July 23, 2008 5:53 PM
Appendix D. Notices
115
Japan Recycling Statements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Collecting and Recycling a Disused Lenovo Computer or
Monitor
If you are a company employee and need to dispose of a Lenovo computer
or monitor that is the property of the company, you must do so in
accordance with the Law for Promotion of Effective Utilization of
Resources. Computers and monitors are categorized as industrial waste
and should be properly disposed of by an industrial waste disposal
contractor certified by a local government. In accordance with the Law for
Promotion of Effective Utilization of Resources, Lenovo Japan provides,
through its PC Collecting and Recycling Services, for the collecting, reuse,
and recycling of disused computers and monitors. For details, visit the
Lenovo Web site at
www.ibm.com/jp/pc/service/recycle/pcrecycle
http://www.ibm.com/jp/pc/service/recycle/pcrecycle
Pursuant to the Law for Promotion of Effective Utilization of Resources, the
collecting and recycling of home-used computers and monitors by the
manufacturer was begun on October 1, 2003. This service is provided free
of charge for home-used computers sold after October 1, 2003. For details,
visit the Lenovo Web site at
www.ibm.com/jp/pc/service/recycle/personal
http://www.ibm.com/jp/pc/service/recycle/personal
S9-S10 User Guide V1.0_en.book Page 115 Wednesday, July 23, 2008 5:53 PM
116
Appendix D. Notices
Disposing of a Lenovo Computer Components
Some Lenovo computer products sold in Japan may have components that
contain heavy metals or other environmental sensitive substances. To
properly dispose of disused components, such as a printed circuit board or
drive, use the methods described above for collecting and recycling a
disused computer or monitor.
Disposing a Disused Battery Pack from Lenovo Notebook
Computers
Your Lenovo notebook computer has a lithium ion battery pack or a nickel
metal hydride battery pack. If you are a company employee who uses a
Lenovo notebook computer and need to dispose of a battery pack, contact
the proper person in Lenovo sales, service, or marketing, and follow that
person’s instructions. You also can refer to the instructions at
www.ibm.com/jp/pc/environment/recycle/battery
http://www.ibm.com/jp/pc/environment/recycle/battery
If you use a Lenovo notebook computer at home and need to dispose of a
battery pack, you must comply with local ordinances and regulations. You
also can refer to the instructions at
www.ibm.com/jp/pc/environment/recycle/battery
http://www.ibm.com/jp/pc/environment/recycle/battery
S9-S10 User Guide V1.0_en.book Page 116 Wednesday, July 23, 2008 5:53 PM
Appendix D. Notices
117
Notice for Users in the U.S.A. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
California Perchlorate Information:
Products containing CR (manganese dioxide) lithium coin cell batteries
may contain perchlorate.
Perchlorate Material — special handling may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice on Deleting Data from Your Hard Disk - - - - - - - - - - - - -
As computers spread into every corner of life, they process more and more
information. The data on your computer, some of it sensitive, is stored on a
storage device called the hard disk. Before you dispose of, sell, or hand
over your computer, you need to delete that data.
Handing your computer over to someone else without deleting the loaded
software, such as operating systems and application software, may even
violate License Agreements. You are advised to check the terms and
conditions of those Agreements.
Deleting the data from the hard disk is not easy.
There are methods that seem to delete the data:
Move the data to the recycle bin, and then choose the Empty recycle bin
command.
Use the Delete command.
Format your hard disk, using the software for initializing it.
S9-S10 User Guide V1.0_en.book Page 117 Wednesday, July 23, 2008 5:53 PM
118
Appendix D. Notices
Using the preinstalled recovery program, bring the hard disk back to
factory-ship state.
These operations, however, only change the file allocation of the data; they
do not delete the data itself. In other words, the data retrieval processing is
disabled under an operating system such as Windows. The data is still
there, even though it seems to be lost. Thus, it is sometimes possible to read
the data by use of special software for data recovery. There is a risk that
people of bad faith may read and misuse the critical data on hard disks for
unexpected purposes.
To prevent the leakage of data, it becomes very important that you take
responsibility for deleting all the data from the hard disk when you dispose
of, sell, or hand over your computer. You can destroy the data physically by
smashing the hard disk with a hammer, or magnetically by means of strong
magnetic power, thus making the data unreadable. But we recommend that
you make use of the software (payware) or service (pay service) specifically
developed for the purpose.
S9-S10 User Guide V1.0_en.book Page 118 Wednesday, July 23, 2008 5:53 PM
Appendix D. Notices
119
Trademarks - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Lenovo, lenovo logo, IdeaPad, VeriFace, OneKey Rescue (OneKey
Recovery, OneKey AntiVirus), APS, Power Express, Energy Management
and ReadyComm are either registered trademarks or trademarks of Lenovo
in the United States and/or other countries.
Microsoft, Windows, Windows Vista and MSN are trademarks of Microsoft
Corporation in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service
marks of others.
All other trademarks and registered trademarks are trademarks or
registered trademarks of their respective holders. In this manual, ™ and ®
marks are not specified.
S9-S10 User Guide V1.0_en.book Page 119 Wednesday, July 23, 2008 5:53 PM
120
Index
A
AC adapter
Using ......................................... 25
B
Battery
Charging.................................... 28
Bluetooth
Connecting................................ 36
Interoperability ....................... 105
Switch........................................ 13
Usage Environment ................ 106
C
Camera ............................................... 16
Caring Your Computer...................... 71
Cleaning
Computer Cover ....................... 77
Computer Display .................... 79
Computer Keyboard................. 78
Customer Replaceable Unit (CRU) parts
list ....................................................... 99
Customer Support Center ................. 50
D
Display
Cleaning ....................................79
Drivers................................................25
F
FCC Statement .................................107
Frequently Asked Questions.............37
Function key combinations ...............12
H
Hard Disk Drive
Problems....................................47
Headphone/SPDIF jack.....................34
Help
Customer Support Center ........50
Help and Service.......................49
on the Web ................................50
Hibernation Mode Problems.............42
S9-S10 User Guide V1.0_en.book Page 120 Wednesday, July 23, 2008 5:53 PM
Index
121
I
Internet ...............................................17
K
Keyboard
Cleaning.....................................78
Problems....................................41
Using..........................................11
L
Lenovo Limited Warranty .................86
M
Maintenance .......................................82
Microphone
Built-in.........................................2
External......................................35
Multi-media Reader Slot....................15
N
Notice
Electronic Emissions ...............107
EU Environmental...................111
for US Users.............................117
Numeric Keypad................................11
O
OneKey Rescue System button............2
P
Password
Problems....................................41
Using..........................................20
PCI Express card (new card) slot.......32
Power button........................................2
Problems
Battery........................................46
Computer Screen.......................43
Display.......................................39
Hard Disk Drive........................47
Hibernation Mode.....................42
Keyboard ...................................41
S9-S10 User Guide V1.0_en.book Page 121 Wednesday, July 23, 2008 5:53 PM
122
Index
Password................................... 41
Sleep Mode................................ 42
Sound ........................................ 46
Startup....................................... 47
S
Security............................................... 19
Speaker.................................................2
Specifications ................................... 100
Storage Media
Handling ................................... 75
T
Touch pad .......................................... 10
Trademarks ...................................... 119
Troubleshooting................................. 39
U
USB port ..................................... 3,4,30
V
VGA port........................................3,33
Volume button...................................13
W
Web
Help ...........................................50
Wireless LAN
Connecting ................................18
Interoperability .......................105
Usage Environment ................106
S9-S10 User Guide V1.0_en.book Page 122 Wednesday, July 23, 2008 5:53 PM
