User Manual

6/15/2017MicrosoftConfidential1



MOTIONCONTROLLERMANUAL

DocumentVersion1.0



Distribution:

Internal Only

External All

External Restricted If restricted, specify restricted to whom:

Quanta Computer Inc.



CONTENTS

Motioncontrollerrequirements..............................................................................................................2

Motioncontrollerlayout.........................................................................................................................2

FirstRunexperience................................................................................................................................2

ConnectingYourcontroller.................................................................................................................2

Beforesetup....................................................................................................................................3

Pairingyourcontrollersforthefirsttime.........................................................................................3

Reconnectingafterfirstpairing.......................................................................................................4

Poweringoffcontroller...........................................................................................................................5

DeviceIndicators....................................................................................................................................5

DeviceRecovery.....................................................................................................................................5

UpdatingDevicefirmware......................................................................................................................6



QuantaComputerInc.

211,WenHwa2ndRd.,GuishanDist.,

TaoYuanCity,Taiwan



2



MOTIONCONTROLLERREQUIREMENTS

Motioncontrollerproperoperationrequires:

‐ WindowsMixedRealitycompatiblePC

‐ WindowsMixedRealitycompatibleHeadMountedDisplay(HMD)

‐ Windows10creatorsupdatesoftwarerelease



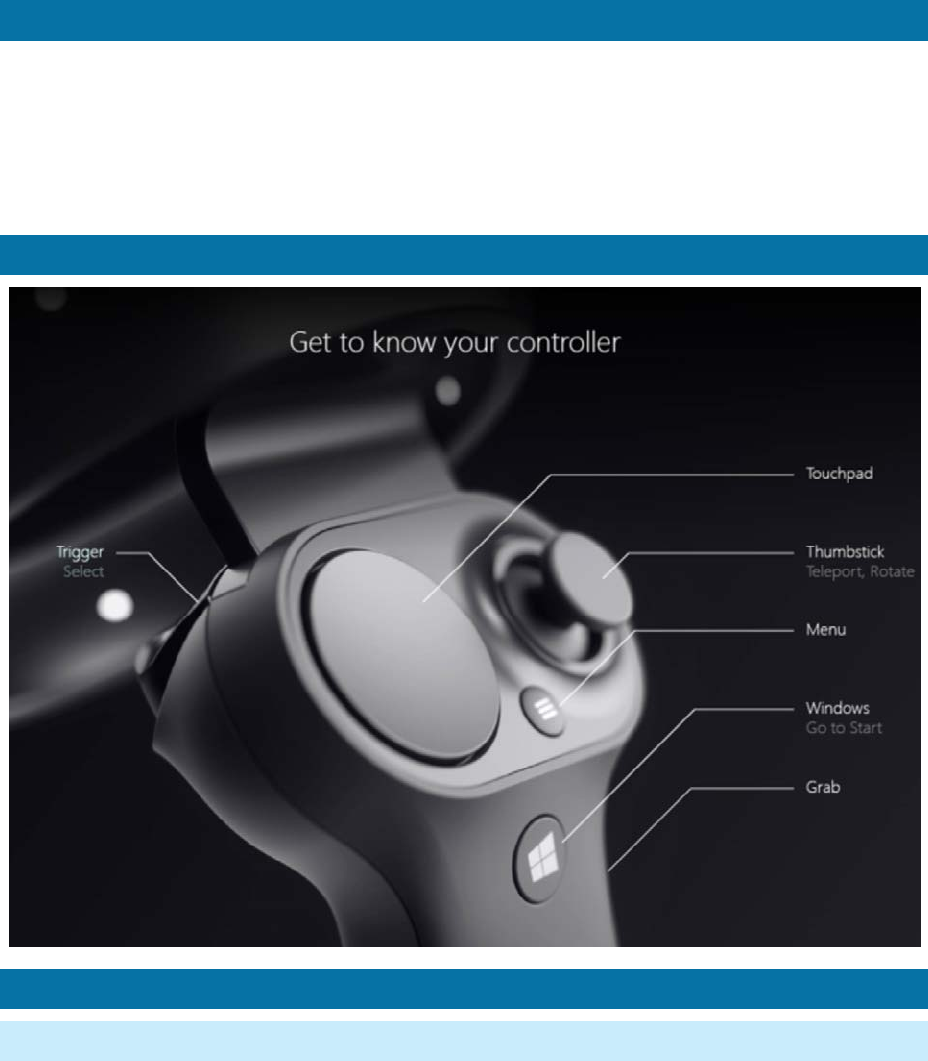

MOTIONCONTROLLERLAYOUT



FIRSTRUNEXPERIENCE

CONNECTINGYOURCONTROLLER

Thefirstrunexperiencewillguidetheuserthroughpoweringonandconnectingthecontroller.It’salso

possibletopoweronandconnectthecontrollerthroughthenativeBluetoothpageinWindows

Settings.

QuantaComputerInc.

211,WenHwa2ndRd.,GuishanDist.,

TaoYuanCity,Taiwan



3

BEFORESETUP

Beforepairing,youwillneed:

 Twomotioncontrollers.

 Batteriesforthecontrollers.EachcontrollertakestwoAAbatteries.

 ABluetoothdongle(ifyourmachinedoesn'tsupportBluetooth).

PAIRINGYOURCONTROLLERSFORTHEFIRSTTIME

1. Chooseoneofthecontrollerstopair.We'llrunthroughthisprocessforeachcontroller.

2. TurnthecontrolleronbypressingtheWindowsbuttonfor2seconds.YoushouldseetheLEDs

ontheconstellationflashanddevicevibrate,indicatingthatthedeviceison.

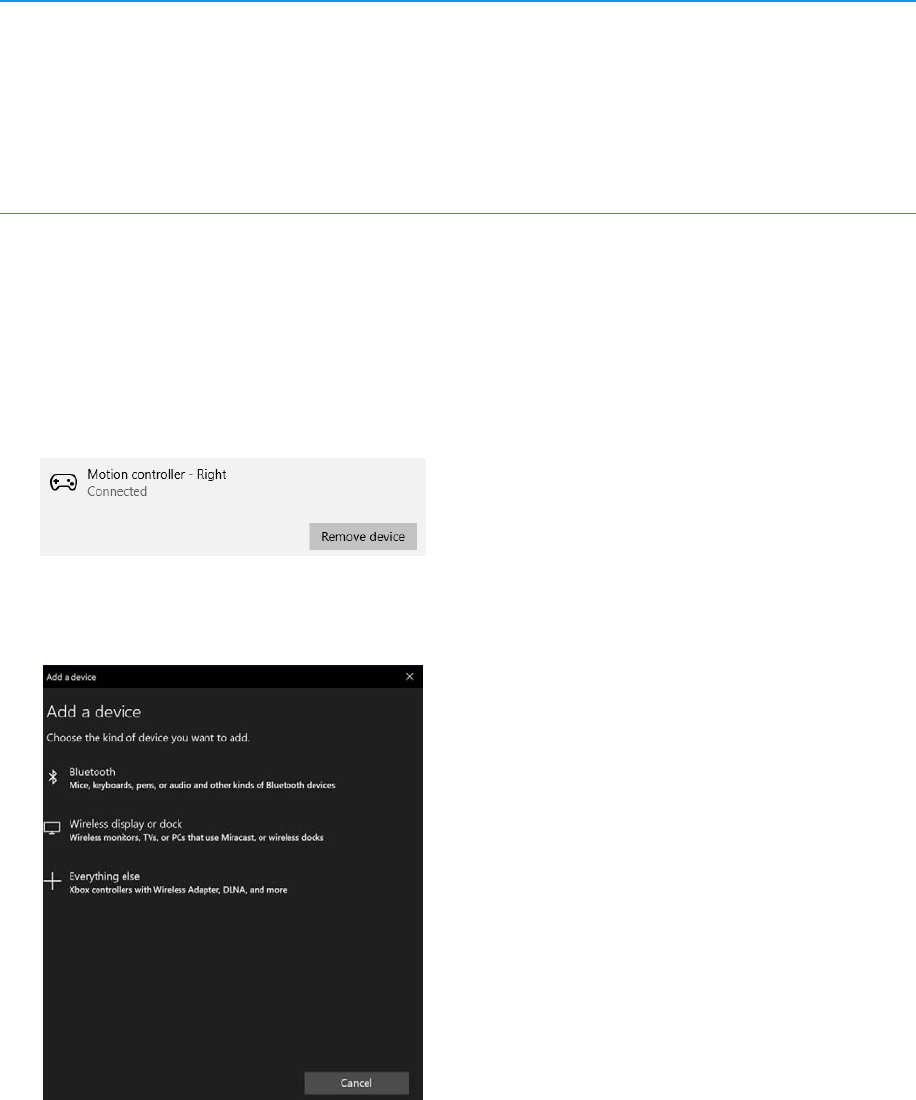

3. GotoSettings‐>Devices‐>Bluetoothandotherdevices.

4. Removeoldcontrollers,ifnecessary.Ifyou'vealreadypairedadifferentcontrollerinthepast,

removeitbyclickingonthecontrollerthatappearsinthepanelandchoosing'RemoveDevice'.



5. PairingYourDevice

1. ClickAddBluetoothorotherdeviceontheSettingsmenu.



2. ChooseBluetooth

3. Removethebatterycover.

QuantaComputerInc.

211,WenHwa2ndRd.,GuishanDist.,

TaoYuanCity,Taiwan



4

4. Presspairingbuttonmorethan3secondsononedevice.

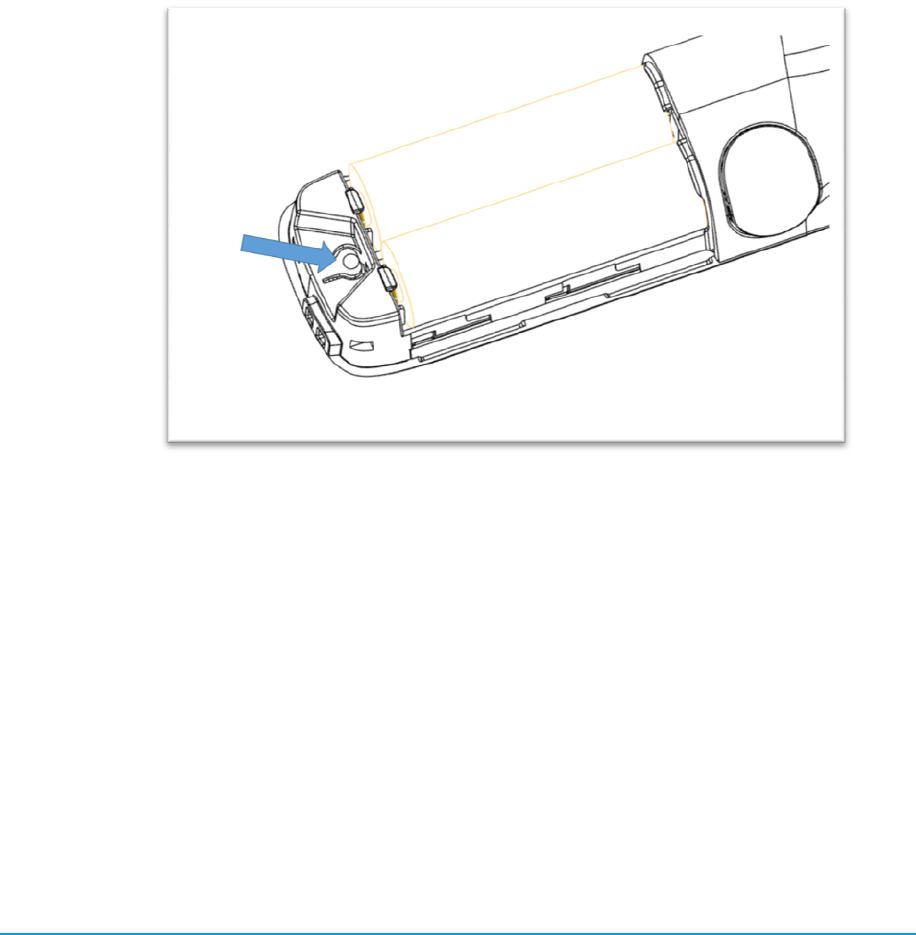

 Thepairingbuttonislocatedunderneaththebatterydoornexttothebatteries.



5. DeviceLEDconstellationwillblink,indicatingthatdeviceisinpairingmode.Deviceis

onpairingmode60secondsatthetime.

6. Youshouldsee"MotionController‐Left"or"Motioncontroller‐Right"appearinthe

Bluetoothmenu.

7. Select"Connect",devicewillmakesinglevibratewhenconnected.WindowsBluetooth

settingsshouldindicatestateas'Connected'.

8. Replacethebatterycover.

9. Repeatthesestepstopairtheothermotioncontroller.

DevicecanbebondedwithsinglehostPCatthetime.

Youcanun‐pairdevicebyremovingcontrollerfromWindowsBluetoothsettingorsettingthedevice

againintopairingmode.



RECONNECTINGAFTERFIRSTPAIRING

 Afterdevicehasbeensuccessfullypairedwithhost,itwillreconnectnexttimewhenpowered

on.

QuantaComputerInc.

211,WenHwa2ndRd.,GuishanDist.,

TaoYuanCity,Taiwan



5

POWERINGOFFCONTROLLER

 PressWindowsbuttonfor4secondstopoweroffthecontroller.Thedevicewillvibratetwice

andtheLEDswillturnoff.

 Ifdeviceisnottrackedoritismotionless30seconds,controllerwillmovetolowpowerstateto

savepower,pickingupcontrollerorpressingbuttonwillwakeupthedevice.

 Yourdevicewillalsoautomaticallypoweroffiftherehasnotbeenmotionfor10minutes.

DEVICEINDICATORS

MotioncontrollerusesLEDconstellationringandhapticsforindicatingaboutitsstate.

ActivityTrigger



Indication

Poweron/off



Windowsbuttonpress



LEDgoeson/offanddevicevibrates2times



Idle



ControllernottrackedbyHMDor



motionlessfor30seconds

Lightblinkslowlyevery3secondstoindicate



thedeviceisinidlemode

Pairing



Pairingbuttonpress



Lightsslowlypulsewhenthedeviceisin



pairingmode

Connect/Disconnect



Controllerconnectedordisconnected



to/fromhostPC

Devicevibratesonce



LowBatteryLevelDuringpoweronwhenbatterylevel



is"Low"

Lightsblinktwicewhenthedeviceisturned



on

CriticalBatteryLevelDuringpoweronwhenbatterylevel



is"Critical"

Lightwillblinkthreetimeswhenturnedonif



thebatteryiscriticallylow.Itwillthenturn

offbyitself.

DeviceUpdate



Whenfirmwareupdatestarted



LEDconstellationhascircularblinking



pattern



DEVICERECOVERY

Ifthecontrollerisn’tworkingcorrectlyandyou’reunabletoupdatethedevice,youcanalwaysrestore

thedevicetofactoryconditions.ToRecoveryourdevice:

1. Poweroffdevice

2. Openbatterycover(Ensureyouhavegoodbatterieswhenperformingdevicerecovery)

3. Presspairingbutton

4. Keepthepairingbuttonpressedandpoweronthedevicebypressinghome/Windowsbutton

for4seconds

5. Releasebothbuttonsandletthedevicepoweron,It’sokifittakesafewsecondsforittoturn

on(thereisnoindicationduringdevicerecoveryprocess)

QuantaComputerInc.

211,WenHwa2ndRd.,GuishanDist.,

TaoYuanCity,Taiwan



6

6. Oncetherecoveryiscomplete,you’llneedtopairthecontrollertoyourPCagain

7. AfterconnectingwithhostandHMDdevicewillupdatefirmwaretolatestavailable



UPDATINGDEVICEFIRMWARE



Motioncontrollerfirmwarewillbeupdatedautomaticallywhenthereisnewfirmwareavailablethrough

WindowsUpdateservice.



FirmwareupdatewillhappenimmediatelyafterestablishingconnectionwithHMDandcontroller

cannotbeusedduringtheupdate.Updatedurationdependsonnewfirmwaretobeprogrammedandis

indicatedbyilluminatingLEDconstellationincircularblinkingpattern.



Afterupdateiscompleteddevicere‐connectstohostPCandisreadytouse.



QuantaComputerInc.

211,WenHwa2ndRd.,GuishanDist.,

TaoYuanCity,Taiwan



7



FederalCommunicationCommissionInterferenceStatement

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,may

causeharmfulinterferencetoradiocommunications.

However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis

equipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedetermined

byturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneof

thefollowingmeasures:

‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser'sauthoritytooperatethisequipment.

RadiationExposureStatement:

TheproductcomplywiththeFCCportableRFexposurelimitsetforthforanuncontrolledenvironment

andaresafeforintendedoperationasdescribedinthismanual.ThisTransmittermustnotbeco‐

locatedoroperatinginconjunctionwithanyotherantennaortransmitter.



QuantaComputerInc.

211,WenHwa2ndRd.,GuishanDist.,

TaoYuanCity,Taiwan



8

Battery

Thisproductusenon‐chargeableAAbattery2pcspercontroller.

"Useonlybatterieslistedintheuser‐instructions".





QuantaComputerInc.

211,WenHwa2ndRd.,GuishanDist.,

TaoYuanCity,Taiwan



9



DeclarationofConformity

Hereby,QuantaComputerInc.declaresthattheradioequipmenttypeA85CyKisincompliancewith,

EMCDDirective:2014/30/EU

‐EN300328V2.1.1:2016‐11

REDDirective2014/53/EU

‐EN301489‐1V2.2.02017‐03(draft)

‐EN301489‐17V3.2.02017‐03(draft)

‐EN55032:2015+AC:2016‐07

‐EN61000‐4‐2:2009

‐EN61000‐4‐3:2006+A1:2008+A2:2010

LVDDirective2014/35/EU

‐EN60950‐1:2006/A11:2009/A1:2010/A12:2011/A2:2013



YeartobeginaffixingCEmarking2017.



Radio Type / Description Transmitter Frequency

(MHz) Maximum Outut Power

Bluetooth BR + EDR 2402 ~ 2480 12 dBm


