Quanta Computer BCM94313HMG 802.11g/DRAFT 802.11n WLAN PCI-E MINICARD User Manual S10 3 UserGuide V1 0 EN

Quanta Computer Inc 802.11g/DRAFT 802.11n WLAN PCI-E MINICARD S10 3 UserGuide V1 0 EN

Contents

Users Manual 1

New World. New Thinking.TM
www.lenovo.com
©Lenovo China 2009
P/N: 147002750
Printed in China
S10-3 UserGuide V1.0 cover_1-4
Lenovo
IdeaPad S10-3
User Guide V1.0
First Edition (November 2009)
•
Notes
© Copyright Lenovo 2009.
S10-3 UserGuide V1.0 cover_2-3
If your product is not working correctly,
DO NOT RETURN IT TO THE STORE.
For technical assistance, contact a Lenovo support
specialist 24 hours a day by calling toll free 1-877-4
LENOVO (1-877-453-6686).
Additionally, you can find support information and updates
on the Lenovo Web site located at
http://consumersupport.lenovo.com.
* Only for the users from the United States.
Before using this information and the product it supports, be sure to read Important safety
information on page iii and Notices in Appendix E first.
•Some instructions in this guide may assume that you are using Windows® 7. If you are using
other Windows operating system, some operations may be slightly different. If you are using
other operating systems, some operations may not apply to you, but it won’t substantially affect
your use of this computer.
•The features described in this guide are common to most models. Some features may not be
available on your computer and/or your computer may include features that are not described in
this user guide.
LENOVO products, data, computer software, and services have been developed exclusively at private expense
and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and
restricted rights to use, reproduction and disclosure. LIMITED AND RESTRICTED RIGHTS NOTICE: If
products, data, computer software, or services are delivered pursuant a General Services Administration “GSA”
contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
Dear user,
Thank you for purchasing your new Lenovo notebook computer!
Before using this product, make sure to read this user guide carefully.
We are pleased that you have chosen Lenovo for your mobile computing
needs. To help you master the usage of your new computer quickly, we
have prepared this user guide. In this manual you will find information on
the system configuration, basic operating instructions, and important
notices. We have done our best to avoid any errors in making sure that the
information provided in this manual is accurate and reliable. However, due
to the short length of the user guide it is impossible to cover all topics in
great depth. For this reason, we apologize for any omissions you might
find.
Lenovo is always trying to improve the performance and reliability of its
products. For that reason, the hardware and software components shown
within the user guide might not perfectly match those of your system.
However, any inconsistencies between what is described in the user guide
and the operations of your computer should not substantially affect your
use.
Thank you for your cooperation.
S10-3 UserGuide V1.0_en.book Page 1 Tuesday, November 10, 2009 11:04 AM
Explanation of hard disk capacity
Dear user,
While using your computer, you may find that the nominal hard disk
capacity indicated is somewhat different from the disk capacity
displayed by the operating system. For example, a nominal 40GB hard
disk will appear as less than 40GB in the operating system. This
discrepancy is not an error in hard disk installation nor any other
problem, but a normal phenomenon of computers. This phenomenon is
primarily due to the following reasons:
I. Different standards used by the manufacturer and operating
system when calculating hard disk capacity
Hard disk manufacturers use a radix of 1000, i.e., 1G = 1,000MB, 1MB =
1,000KB, 1KB = 1,000 bytes. However, when identifying hard disk capacity,
operating systems use a radix of 1024, i.e., 1GB = 1,024MB, 1MB = 1,024KB,
1KB = 1,024 bytes. The standard adopted by your computer is that of the
hard disk manufacturers. Since the standards adopted by the hard disk
manufacturer and operating system are different, the hard disk capacity
displayed by the operating system will be different from the nominal hard
disk capacity.
For example, if the hard disk is nominally X G, even when it is completely
empty, the capacity displayed by the operating system will be:
X × 1000 × 1000 × 1000/ (1024 × 1024 × 1024) ≈ X × 0.931 G
S10-3 UserGuide V1.0_en.book Page 2 Tuesday, November 10, 2009 11:04 AM
In addition, if a portion of the hard disk space has been used for some
specific purpose, then the capacity indicated by the operating system will
be even less than X × 0.931 G.
II. A portion of the hard disk space is used for specific purposes
Lenovo computers may come with preinstalled OneKey Rescue system, so
the hard disk has a special portion partitioned before delivery, which is
used to store hard disk mirror and OneKey Rescue system program files.
The size of the reserved space for this partition varies according to the
model, operating system and software of the computer. For the sake of
safety, this partition is not apparent, which is commonly referred to as a
“hidden partition”.
In addition, after the hard disk is partitioned or formatted, the system will
assign a certain amount of hard disk space for the system files.
For the above reasons, the available hard disk space indicated by the
operating system is always less than the computer’s nominal hard disk
capacity.
S10-3 UserGuide V1.0_en.book Page 3 Tuesday, November 10, 2009 11:04 AM
S10-3 UserGuide V1.0_en.book Page 4 Tuesday, November 10, 2009 11:04 AM
i
Important safety information...... iii
Important safety information....iii
Chapter 1. Getting to know your
computer ....................................... 1
Top view........................................ 1

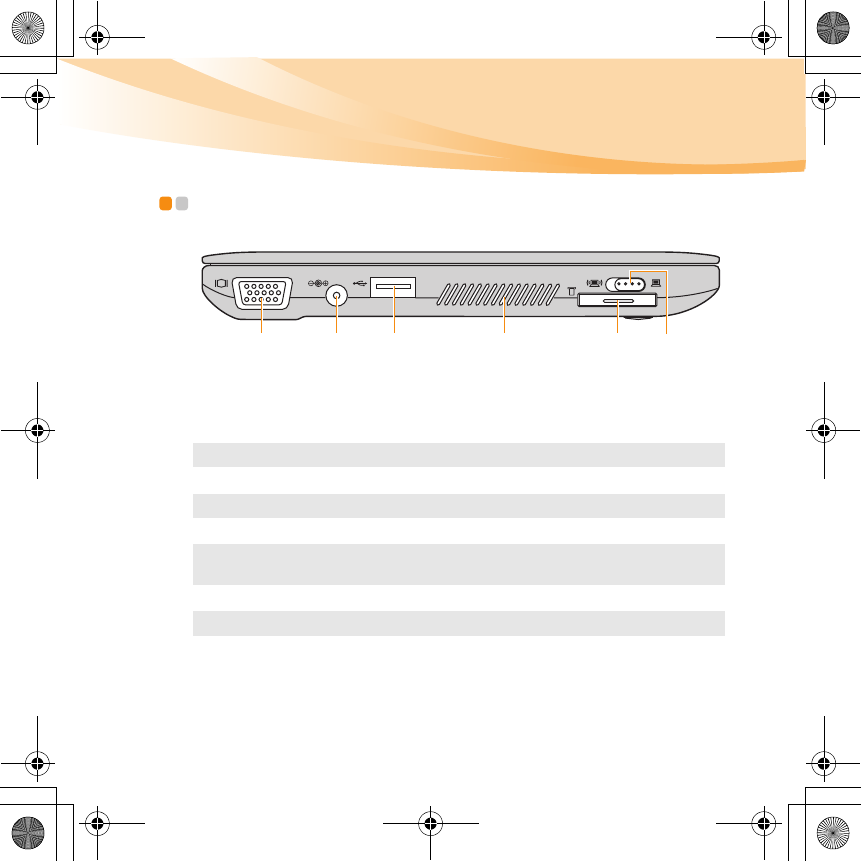

Left-side view ...............................3
Right-side view.............................4
Bottom view.................................. 5
Chapter 2. Learning the
basics ............................................ 7
First use..........................................7
Using AC adapter and
battery ..........................................10

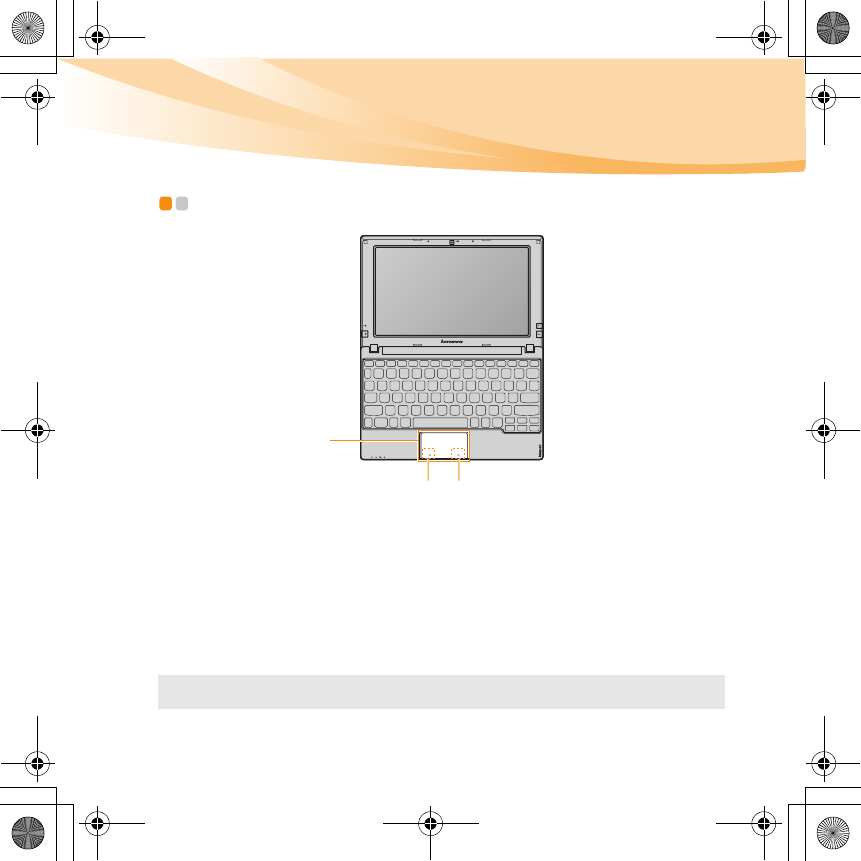

Using the touchpad.................... 13

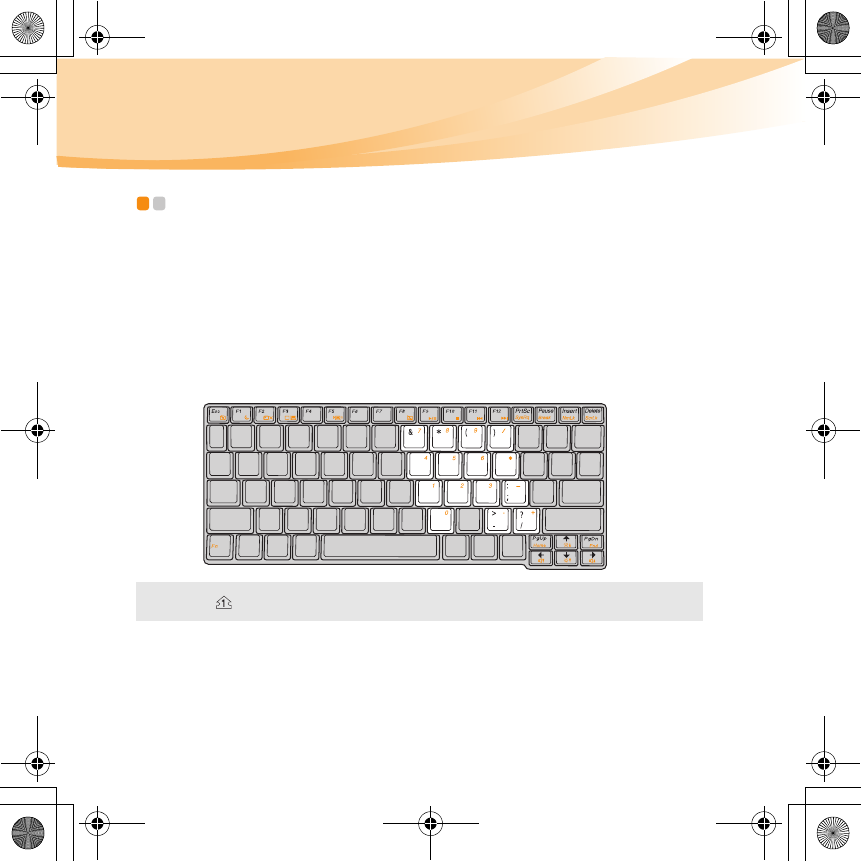

Using the keyboard....................14
Special buttons............................ 17
System status indicators............19
Securing your computer............ 20
Connecting external devices.....22
Using Lenovo Quick Start
(select models only) ................... 25
Chapter 3. Using the Internet .... 27
Wired connection .......................27
Wireless connection ...................29
Chapter 4. OneKey Rescue
system..........................................34
OneKey Rescue system .............34
Chapter 5. Troubleshooting .......37
Frequently asked questions......37
Troubleshooting .........................40
Chapter 6. Upgrading and
replacing devices ........................48
Replacing the battery.................48
Replacing the hard disk drive ..50
Replacing memory .....................54
Appendix A. Getting help and
service..........................................58
Getting help on the Web ...........59
Calling the customer support
center............................................59
Getting help around the
world............................................62
Lenovo warranty service
telephone numbers.....................62
Appendix B. Use, and care
Information ..................................63
Caring your computer ...............63
Accessibility and comfort..........69
Maintenance................................71
Contents
S10-3 UserGuide V1.0_en.book Page i Tuesday, November 10, 2009 11:04 AM
ii
Contents
Appendix C. Lenovo limited
warranty ...................................... 76
Warranty information ............... 86
Appendix D. Customer replaceable
units (CRUs)................................ 90
Appendix E. Notices................... 92
Notices......................................... 92
ENERGY STAR model
information ................................. 95
Wireless related information.... 97
Electronic emissions notices... 101
WEEE and recycling
statements ................................. 108
Turkish statement of
compliance................................ 108
EU WEEE statements .............. 109
Japan recycling statements..... 110
Notice for users in the
U.S.A.......................................... 112
Notice on deleting data from your
hard disk ................................... 112
Appendix F. Features and
specifications ........................... 114
Trademarks............................... 116
Index.......................................... 117
S10-3 UserGuide V1.0_en.book Page ii Tuesday, November 10, 2009 11:04 AM
iii
Important safety information
Important safety information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This information can help you safely use your notebook personal
computer. Follow and retain all information included with your computer.
The information in this document does not alter the terms of your purchase
agreement or the Lenovo Limited Warranty. For more information, see
“Appendix C. Lenovo limited warranty” on page 76.
Read this first
Personal computers are electronic devices. Power cords, power adapters,
and other features can create potential safety risks that can result in
physical injury or property damage, especially if misused.
The safety risks are categorized as follows:
Danger:
Physical injury or even death may be caused.
Attention:
Property damage or even minor injury may be caused.
To protect yourself from hazards and create a safer computer work
environment, follow the instructions hereafter.
S10-3 UserGuide V1.0_en.book Page iii Tuesday, November 10, 2009 11:04 AM
iv
Important safety information
Unpack

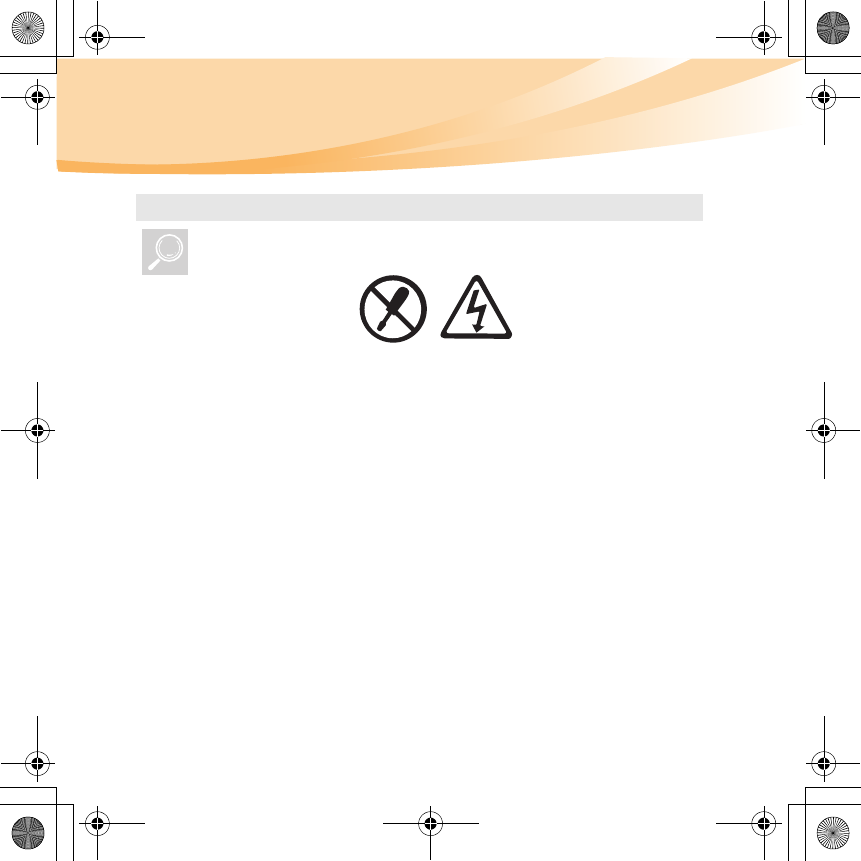

Inspect the covers of the computer and the AC adapter, especially
parts with the following labels attached for any crack or damage.
Danger:
• Hazardous voltage, current, and energy levels are present
inside any component that has this label attached.
S10-3 UserGuide V1.0_en.book Page iv Tuesday, November 10, 2009 11:04 AM
Important safety information
v
Working place
Do NOT use the computer in humid places such as a bathroom.
Keep the computer and other parts away from liquids.
Danger:
• An electric shock may be caused by spilled liquid.
Do NOT use the computer during a lightning storm.
Attention:
• Lightning storms may damage the computer and result in an
electric shock.
Ensure your computer and other components maintain good
ventilation.
Danger:
• Placing the working computer or other parts on a bed, sofa or
other flexible surface may block the ventilation slots causing
overheating of your computer or other parts and increases the
risk of fire.
Turn off wireless devices where they may cause interference, such as in
a hospital or at an airport.
S10-3 UserGuide V1.0_en.book Page v Tuesday, November 10, 2009 11:04 AM
vi
Important safety information
Correct usage procedures
Use ONLY the power cord, power adapter and battery pack shipped
with the computer. Never use these devices with another product.
Be sure the power outlet is suitable for the plug and provides the
correct voltage and current for the product you are using.
Danger:
• An unsuitable power supply may damage your computer and
can cause an electric shock or fire.
Do NOT use a power outlet, power cord, power adapter or battery
pack that appears to be damaged or corroded.
Do NOT share an electrical outlet with other home or commercial
appliances that draw large amounts of electricity.
If power strips are used, the load should NOT exceed the power strip’s
input rating. Unplug the power cord if there are any cracking, hissing,
or popping sounds, or if a strong odor comes from the computer.
Danger:
• Overloading the power supply may cause unstable voltages
which might damage the computer, data, attached devices, or
even cause a fire.
S10-3 UserGuide V1.0_en.book Page vi Tuesday, November 10, 2009 11:04 AM
Important safety information
vii
Do NOT wrap the power cord around the power adapter or other
objects.
Do NOT squeeze or pinch the cord, or place heavy objects on it.
Attention:
• Stressing the cord may cause the cord to fray, crack or crimp
which may present a safety hazard.
Avoid keeping your hands, your lap, or any other part of your body in
contact with a hot section of the working computer for any extended
length of time.
Attention:
• Extended contact with your body, even through clothing, could
cause discomfort or even a skin burn.
Do not drop, bump, scratch, hit or place heavy objects on the liquid
crystal display (LCD) of your computer.
Attention:
• Direct contact with liquid crystal material from a broken LCD is
hazardous; if contact occurs, rinse with large amount of running
water for more than 15 minutes.
S10-3 UserGuide V1.0_en.book Page vii Tuesday, November 10, 2009 11:04 AM
viii
Important safety information
Service and upgrades
Do NOT attempt to service a product yourself unless instructed to do
so by the customer support center or your documentation.
Attention:
• DO NOT take risks or attempt to diagnose the situation
yourself. Contact the customer support center for further
guidance. For a list of service and support phone numbers,
go to http://consumersupport.lenovo.com.
Lenovo provides documentation with instructions when it is
appropriate for customers to install options or replace units (CRUs).
Closely follow all instructions when installing or replacing parts.
Disconnect the attached power cords, battery pack, and all the cables
before you open the device covers, unless instructed otherwise in the
installation and configuration procedures.
Keep the covers closed whenever the computer is plugged in.
S10-3 UserGuide V1.0_en.book Page viii Tuesday, November 10, 2009 11:04 AM
1
Chapter 1. Getting to know your computer

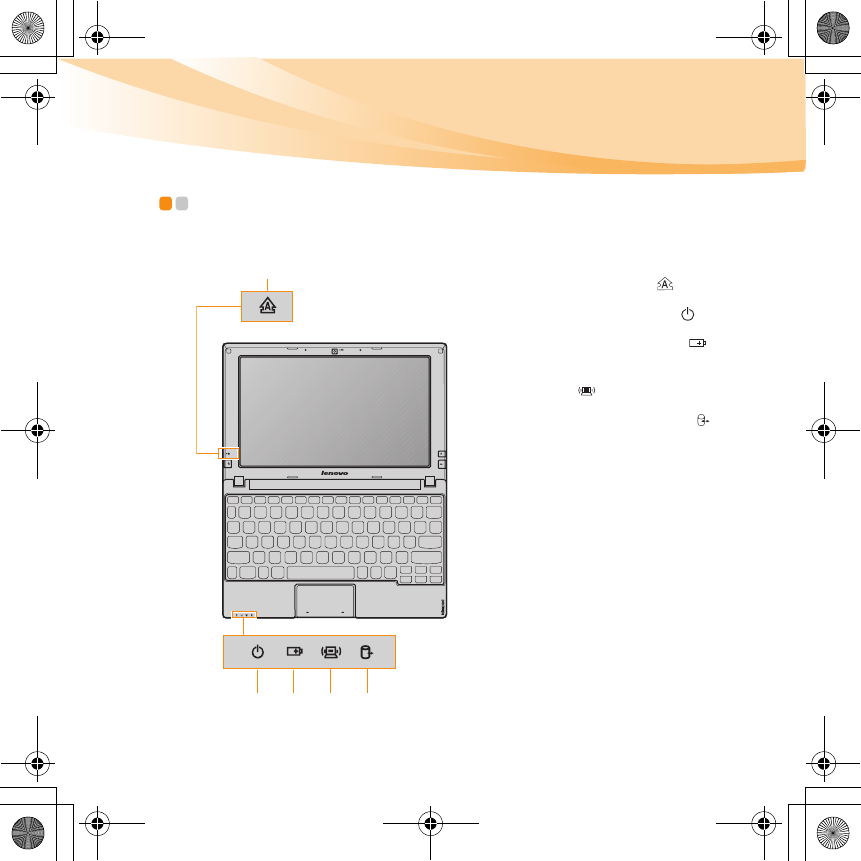

Top view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Note: The illustrations in this manual may differ from the actual product. Please refer to
the actual product.
a
b
a
h
e
c
d
i
g
f
S10-3 UserGuide V1.0_en.book Page 1 Tuesday, November 10, 2009 11:04 AM
2
Chapter 1. Getting to know your computer
Attention:
•Do NOT open the display panel beyond 130 degrees. When closing the display
panel, be careful NOT to leave pens or any other objects in between the display
panel and the keyboard. Otherwise, the display panel may be damaged.
System status
indicators
For details, see “System status indicators” on page 19.
Power button Press this button to turn on the computer.
Integrated
camera
Use the camera for video communication.
Built-in
microphone
The built-in microphone (with noise reduction) can be used
for video conferencing, voice narration, or simple audio
recordings.
Computer
display
The LCD display with LED backlight provides brilliant
visual output.

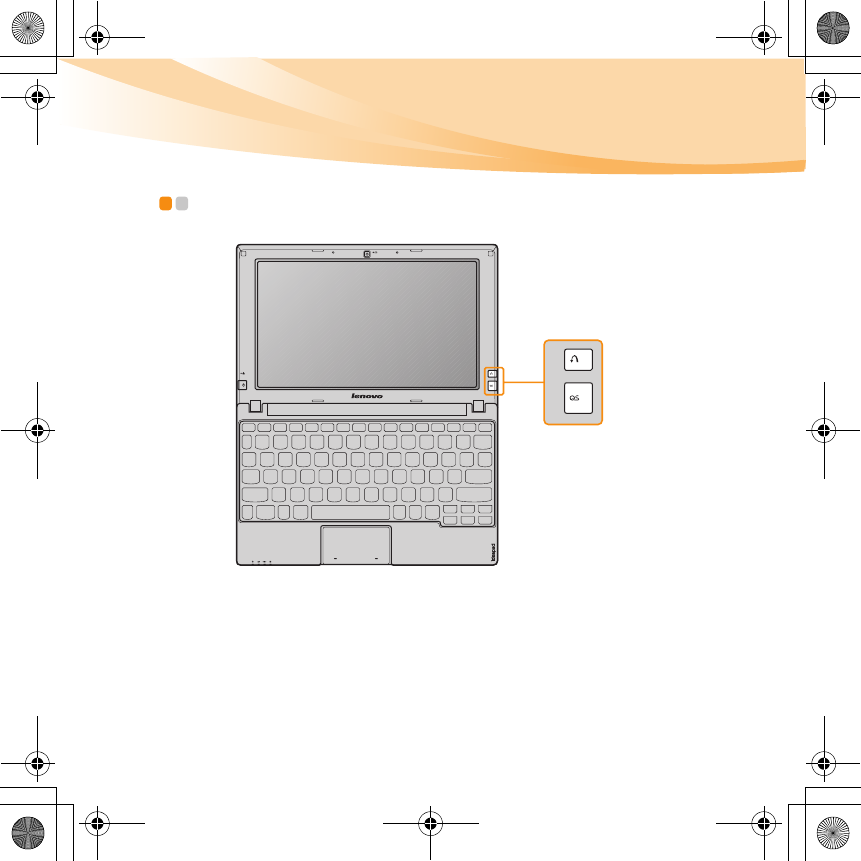

OneKey Rescue
system button
Press this button to open OneKey Rescue system (If
OneKey Rescue system has been preinstalled) when the
computer is powered off.
Note: For details, see “Chapter 4. OneKey Rescue system” on page 34.
Quick Start
button
When the computer is powered-off, press this button to enter
the Lenovo Quick Start if it has been installed.
One-piece
touchpad
The touchpad functions as a conventional mouse with
built-in left-click and right-click buttons.
Note: For details, see “Using the touchpad” on page 13.
Wireless module
antennas (select
models only)
The built-in antennas ensure optimal reception of wireless
communication radio.
S10-3 UserGuide V1.0_en.book Page 2 Tuesday, November 10, 2009 11:04 AM
Chapter 1. Getting to know your computer
3
Left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
VGA port Connects to external display devices.
AC power
adapter jack
Connect the AC adapter here.
Note: For details, see “Using AC adapter and battery” on page 10.
USB port Connects to USB devices.
Note: For details, see “Connecting a universal serial bus (USB) device” on page 24.
Fan louvers Dissipate internal heat.
Note: Make sure that none of the fan louvers are blocked or else overheating of the
computer may occur.
Memory card slot Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 22.
Integrated
wireless device
switch
Use this switch to turn on/off the wireless radio of all
wireless devices on your computer.
fedab
c
S10-3 UserGuide V1.0_en.book Page 3 Tuesday, November 10, 2009 11:04 AM
4
Chapter 1. Getting to know your computer

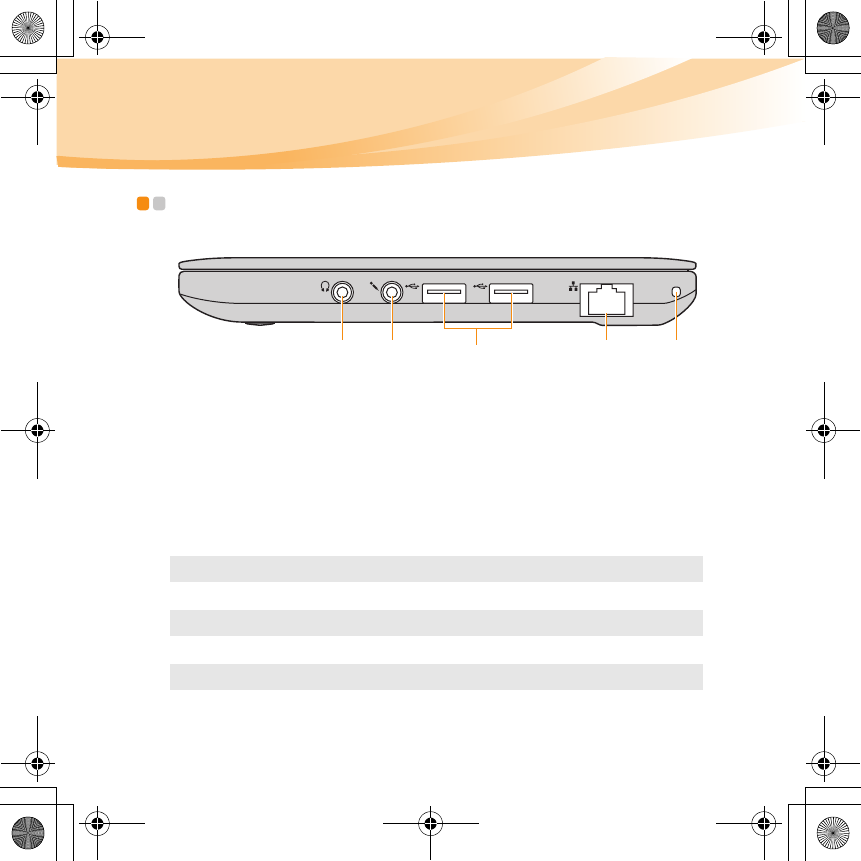

Right-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Headphone jack Connects to external headphones.
Attention:
•Listening to music at high volume over extended periods of time
may damage your hearing.
Microphone jack Connects to external microphones.
USB port Connects to USB devices.
Note: For details, see “Connecting a universal serial bus (USB) device” on page 24.
RJ-45 port
Connects to an Ethernet network.
Note: For details, see “Wired connection” on page 27.
Kensington slot Attach a security lock (not supplied) here.
Note: For details, see “Attaching a security lock (not supplied)” on page 20.
edab
c
S10-3 UserGuide V1.0_en.book Page 4 Tuesday, November 10, 2009 11:04 AM
Chapter 1. Getting to know your computer
5
Bottom view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
d
ab cb
ef
S10-3 UserGuide V1.0_en.book Page 5 Tuesday, November 10, 2009 11:04 AM
6
Chapter 1. Getting to know your computer
Battery latch -
manual
The manual battery latch is used to keep the battery pack
secured in place.
Speakers The stereo speakers provide rich and powerful sound.
Hard disk/
Memory/Mini PCI
ExpressCard slot
compartment
Battery pack For details, see “Using AC adapter and battery” on page 10.
SIM card slot
(select models
only)
Insert a SIM card (not supplied) for using Mobile
Broadband.
Notes:
•After removing the battery pack, you can insert a SIM card into this slot.
•For details, see “Using Mobile Broadband (select models only)” on page 31
Battery latch -
spring loaded
The spring-loaded battery latch keeps the battery pack
secured in place.
S10-3 UserGuide V1.0_en.book Page 6 Tuesday, November 10, 2009 11:04 AM
7
Chapter 2. Learning the basics
First use
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Read the manuals
Read the supplied manuals before using your computer.
Connect to the power
The supplied battery pack is not fully charged at purchase.
To charge the battery and begin using your computer, insert the battery
pack and connect the computer to an electrical outlet. The battery is
automatically charged while the computer is running on AC power.
Install the battery pack
Refer to the supplied Setup Poster to install the battery pack.
Connect the computer to an electrical outlet
1
Connect the power cord to the AC adapter.
2
Connect the AC adapter to the AC power adapter jack of the computer.
3
Plug the power cord into an electrical outlet.
S10-3 UserGuide V1.0_en.book Page 7 Tuesday, November 10, 2009 11:04 AM
8
Chapter 2. Learning the basics
Turn on the computer
Press the power button to turn on the computer.
Configure the operating system
You may need to configure the operation system when it is first used. The
configuration process may include the procedures below.
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Putting your computer into sleep state or shutting it down
When you finish working with your computer, you can put it into sleep
state or shut it down.
Putting your computer into sleep state
If you will be away from your computer for only a short time, put the
computer into sleep state.
When the computer is in sleep state, you can quickly wake it to resume use,
and bypass the startup process.
S10-3 UserGuide V1.0_en.book Page 8 Tuesday, November 10, 2009 11:04 AM
Chapter 2. Learning the basics
9
To put the computer into sleep state, do one of the following.
•Click and select Sleep from the Start menu.
•Press Fn + F1.
To wake the computer, do one of the following.
• Press the power button.
• Press any key on the keyboard.
Shutting down your computer
If you are not going to use your computer for a day or two, shut it down.
To shut down your computer, click and select Shut down from the Start
menu.
Note: Wait until the power indicator light starts blinking (indicating that the
computer is in sleep state) before you move your computer. Moving your
computer while the hard disk is spinning can damage the hard disk, causing
loss of data.
S10-3 UserGuide V1.0_en.book Page 9 Tuesday, November 10, 2009 11:04 AM
10
Chapter 2. Learning the basics
Using AC adapter and battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Checking battery status
You can determine the percentage of battery power remaining by checking
the battery icon in the notification area.
Charging the battery
When you find that the battery power is low, you need to charge the
battery or replace it with a fully charged one.
You need to charge the battery in any of the following situations:
• When you purchase a new battery
• If the battery status indicator starts blinking
• If the battery has not been used for a long time
Note: As each computer user has different habits and needs, it is difficult to predict
how long a battery charge will last. There are two main factors:
• The amount of energy stored in the battery when you commence work.
• The way you use your computer: for example, how often you access the
hard disk drive and how bright you make the computer display.
S10-3 UserGuide V1.0_en.book Page 10 Tuesday, November 10, 2009 11:04 AM
Chapter 2. Learning the basics
11
Removing the battery pack
If you are not going to use the computer for an extended period of time, or
if you need to send your computer to Lenovo for service, etc., remove the
battery pack from the computer. Before removing the battery pack, make
sure the computer has been shut down.
Notes:
•You are advised to insert the battery pack when using your computer to prevent
small particles from entering the inside of your computer.
•To increase the life of the battery pack, the computer does not start recharging
the battery immediately after it drops from fully charged.
•Charge the battery at a temperature between 50 °F and 80 °F (10 °C-30 °C).
•Full charge or discharge is not required.
S10-3 UserGuide V1.0_en.book Page 11 Tuesday, November 10, 2009 11:04 AM
12
Chapter 2. Learning the basics
Handling the battery
If the rechargeable battery pack is replaced with an incorrect type, there may
be danger of an explosion. The battery pack contains a small amount of
harmful substances. To avoid possible injury
and detriment to the
environment, pay attention to the following points:
• Replace only with a battery of the type recommended by Lenovo.
• Keep the battery pack away from fire.
• Do not expose the battery pack to water or rain.
• Do not attempt to disassemble the battery pack.
• Do not short-circuit the battery pack.
• Keep the battery pack away from children.
• Do not put the battery pack in trash that is disposed of in landfills. When
disposing of the battery, comply with local ordinances or regulations and
your company’s safety standards.
S10-3 UserGuide V1.0_en.book Page 12 Tuesday, November 10, 2009 11:04 AM
Chapter 2. Learning the basics
13
Using the touchpad - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
One-piece touchpad To move the cursor on the screen, slide your
fingertip over the pad in the direction in which you
want the cursor to move.
Bottom left area The function corresponds to that of the left mouse
button on a conventional mouse, which can be
implemented by clicking this area.
Bottom right area The function corresponds to that of the right mouse
button on a conventional mouse, which can be
implemented by clicking this area.
Note: You can enable/disable the touchpad using Fn+F6.
a
b
c
S10-3 UserGuide V1.0_en.book Page 13 Tuesday, November 10, 2009 11:04 AM
14
Chapter 2. Learning the basics
Using the keyboard - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer has a numeric keypad and function keys incorporated in its
standard keyboard.
Numeric keypad
The keyboard has keys that, when enabled, work as a 10-key numeric
keypad.
To enable or disable the numeric keypad, press Fn+Insert.
Note: The indicator will light on if the numeric keypad is enabled.
7890
P
O
IU
J
M
KL
S10-3 UserGuide V1.0_en.book Page 14 Tuesday, November 10, 2009 11:04 AM
Chapter 2. Learning the basics
15

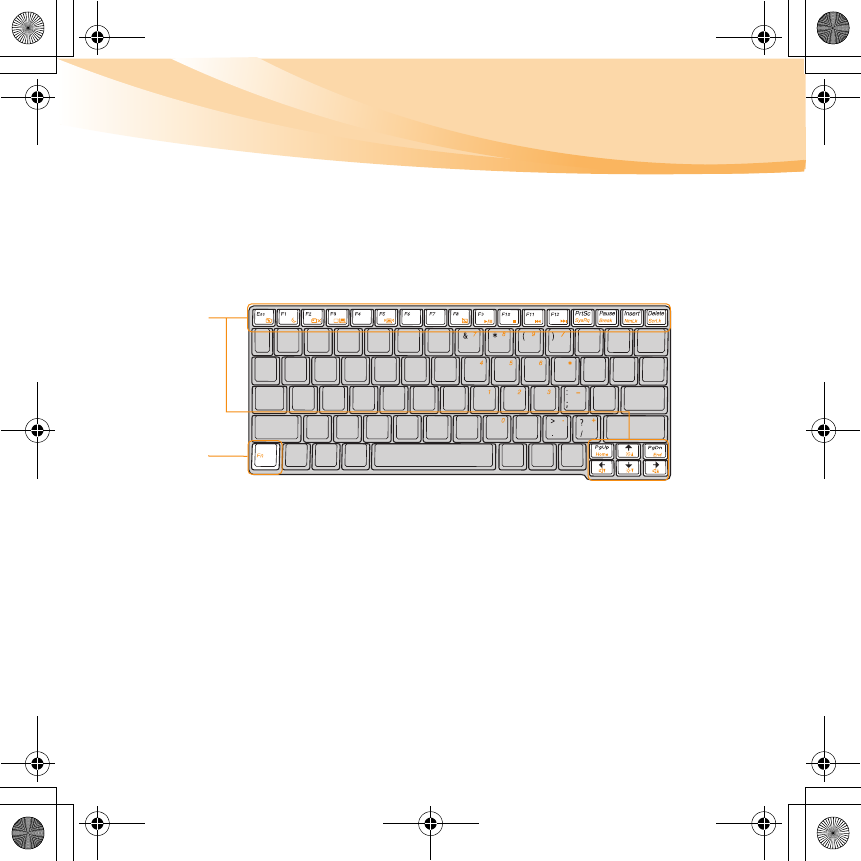

Function key combinations
Through the use of the function keys, you can change operational features
instantly. To use this function, press and hold Fn ; then press one of the
function keys .
7890
P
O
I
U
J
M
KL
a
b
S10-3 UserGuide V1.0_en.book Page 15 Tuesday, November 10, 2009 11:04 AM
16
Chapter 2. Learning the basics
The following describes the features of each function key.
Fn + Esc: Turn on/off the integrated camera.
Fn + F1: Enter sleep mode.
Fn + F2: Turn on/off the LCD screen.
Fn + F3: Open the interface for the display device switch
to select notebook or external display.
Fn + F4: Open the interface for display resolution settings.
Fn + F5: Open the interface for integrated wireless devices
settings (enable/disable).
Fn + F6: Enable/Disable the touchpad.
Fn + F7: Start/Pause playback of Windows Media Player.
Fn + F8: Stop playback of Windows Media Player.
Fn + F9: Skip to the previous track.
Fn + F10: Skip to the next track.
Fn + F11: Activate the F12 function.
* You can press Fn+F11 during computer startup to open
the boot selection menu.
Fn + PrtSc: Activate the system request.
Fn + Pause: Activate the break function.
Fn + Insert: Enable/Disable the numeric keypad.
Fn + Delete: Enable/Disable the Scroll Lock.
Fn + ↑／↓ :Increase/Decrease display brightness.
Fn + →／← :Increase/Decrease volume level.
S10-3 UserGuide V1.0_en.book Page 16 Tuesday, November 10, 2009 11:04 AM
Chapter 2. Learning the basics
17
Special buttons - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
S10-3 UserGuide V1.0_en.book Page 17 Tuesday, November 10, 2009 11:04 AM
18
Chapter 2. Learning the basics
OneKey Rescue system button
• When the computer is powered off, press this button to enter the
OneKey Rescue system if Lenovo OneKey Rescue system has been
preinstalled.
• Under Windows operating systems, press this button to start Lenovo
OneKey Recovery.
Quick Start button
• When the computer is powered-off, press this button to enter Lenovo
Quick Start if it has been installed.
• Under Windows operating systems, press this button to launch a self-
defined program, file or a Website.
Note:
For details, see “OneKey Rescue system” on page 34.
Note:
For details, see “Using Lenovo Quick Start (select models only)” on page 25.
Note: To re-define the Quick Start button, select Self-defined program setting
(start → All Programs → Lenovo → Energy Management → Self-defined
program setting).
S10-3 UserGuide V1.0_en.book Page 18 Tuesday, November 10, 2009 11:04 AM
Chapter 2. Learning the basics
19
System status indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
These indicators inform you of the computer status.
b c d e
aCaps lock indicator
Power status indicator
Battery status indicator
Wireless communication
indicator
Hard disk drive indicator
S10-3 UserGuide V1.0_en.book Page 19 Tuesday, November 10, 2009 11:04 AM
20
Chapter 2. Learning the basics
Securing your computer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
This section provides information about how to help protect your
computer from theft and unauthorized use.
Attaching a security lock (not supplied)
You can attach a security lock to your computer to help prevent it from
being removed without your permission. For details on installing the
security lock, please refer to the instructions shipped with the security lock
that you have purchased.
Refer to the “Right-side view” on page 4 for the location of the Kensington
slot.
Notes:
•Before purchasing any security product, verify that it is compatible with this
type of security keyhole.
•You are responsible for evaluating, selecting, and implementing the locking
devices and security features. Lenovo offers no comment, judgement, or
warranty regarding the function, quality or performance of locking devices and
security features.
S10-3 UserGuide V1.0_en.book Page 20 Tuesday, November 10, 2009 11:04 AM
Chapter 2. Learning the basics
21
Using VeriFace™
VeriFace is a face recognition software which takes a digital snapshot,
extracts key features of your face, and creates a digital map that becomes
the system’s “password”.
If you want to activate VeriFace for the first time, click the VeriFace icon on
the desktop to register your facial image.
For more instructions on VeriFace, see the help file on your software.
Using passwords
Using passwords helps prevent your computer from being used by others.
Once you set a password and enable it, a prompt appears on the screen
each time you power on the computer. Enter your password at the prompt.
The computer cannot be used unless you enter the correct password.
For details about how to set the password, see the help to the right of the
screen in BIOS Setup Utility.
Notes:
•The face registration and verification works best in an environment with steady
and even light.
•You can determine whether to use this function when you log on the system.
Note: This password can be from one to seven alphanumeric characters in any
combination.
Note: To enter BIOS Setup Utility, press F2 when the Lenovo logo appears on the
screen while the computer is starting up.
S10-3 UserGuide V1.0_en.book Page 21 Tuesday, November 10, 2009 11:04 AM
22
Chapter 2. Learning the basics
Connecting external devices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Your computer has a wide range of built-in features and connection
capabilities.
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• High Capacity Secure Digital (SDHC) card
• MultiMediaCard (MMC)
• Memory Stick (MS)
• Memory Stick PRO (MS PRO)
Notes:
•Insert ONLY one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
S10-3 UserGuide V1.0_en.book Page 22 Tuesday, November 10, 2009 11:04 AM
Chapter 2. Learning the basics
23
Inserting a memory card
1
Push the dummy card until you hear a click. Gently pull the dummy
card out of the memory card slot.
2
Slide the memory card in until it clicks into place.
Removing a memory card
1
Push the memory card until you hear a click.
2
Gently pull the memory card out of the memory card slot.
Note: The dummy card is used for preventing dust and small particles from
entering the inside of your computer when the memory card slot is not in use.
Retain the dummy card for future use.
Note: Before removing the memory card, disable it via Windows safely remove
hardware and eject media utility to avoid data corruption.
S10-3 UserGuide V1.0_en.book Page 23 Tuesday, November 10, 2009 11:04 AM
24
Chapter 2. Learning the basics
Connecting a universal serial bus (USB) device
Your computer comes with three USB ports compatible with USB devices.
Connecting a Bluetooth enabled device (select models only)
If your computer has an integrated Bluetooth adapter card, it can connect to
and transfer data wirelessly to other Bluetooth enabled devices, such as
notebook computers, PDAs and cell phones. You can transfer data between
these devices without cables at up to 10 meters range in open space.
Enabling Bluetooth communications on your computer
1
Slide the integrated wireless device switch to .
2
Press Fn + F5 to make configuration.
Note: When using a high power consumption USB device such as USB ODD, use
the external device’s power adapter. Otherwise, the device may not be
recognized, and system shut down may result.
Note: The actual maximum range may vary due to interference and transmission
barriers. To get the best possible connection speed, place the device as near
your computer as possible.
Notes:
•When you do not need to use the Bluetooth function, turn it off to save battery
power.
•You need to pair the Bluetooth enabled device with your computer before you can
transfer data between them. Read the documentation supplied with the Bluetooth
enabled device for details on how to pair the device with your computer.
S10-3 UserGuide V1.0_en.book Page 24 Tuesday, November 10, 2009 11:04 AM
Chapter 2. Learning the basics
25
Using Lenovo Quick Start
(select models only) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
With a boot time of just a few seconds, Lenovo Quick Start offers a handy
environment that allows you to enjoy an instant access to functions such as
Web browsing, instant messaging and other entertainment functions
without entering the traditional operating system.
Notes:
•If Lenovo Quick Start is not installed, a prompt notice will appear on the screen
when you start it.
•The Web browser of Lenovo Quick Start is designed for you to get an instant
access to online information and does not fully support video streaming. You
may experience low frame rate when watching online video in Lenovo Quick
Start. To view online video, restart the computer to your Windows operating
system and use Internet Explorer to play the online video.
S10-3 UserGuide V1.0_en.book Page 25 Tuesday, November 10, 2009 11:04 AM
26
Chapter 2. Learning the basics
Starting Lenovo Quick Start
Press the QS button when the computer is powered-off. The following will
appear on the screen after a few seconds.
Exiting Lenovo Quick Start
• Click to restart the computer.
• Click to turn off the computer.
S10-3 UserGuide V1.0_en.book Page 26 Tuesday, November 10, 2009 11:04 AM
27

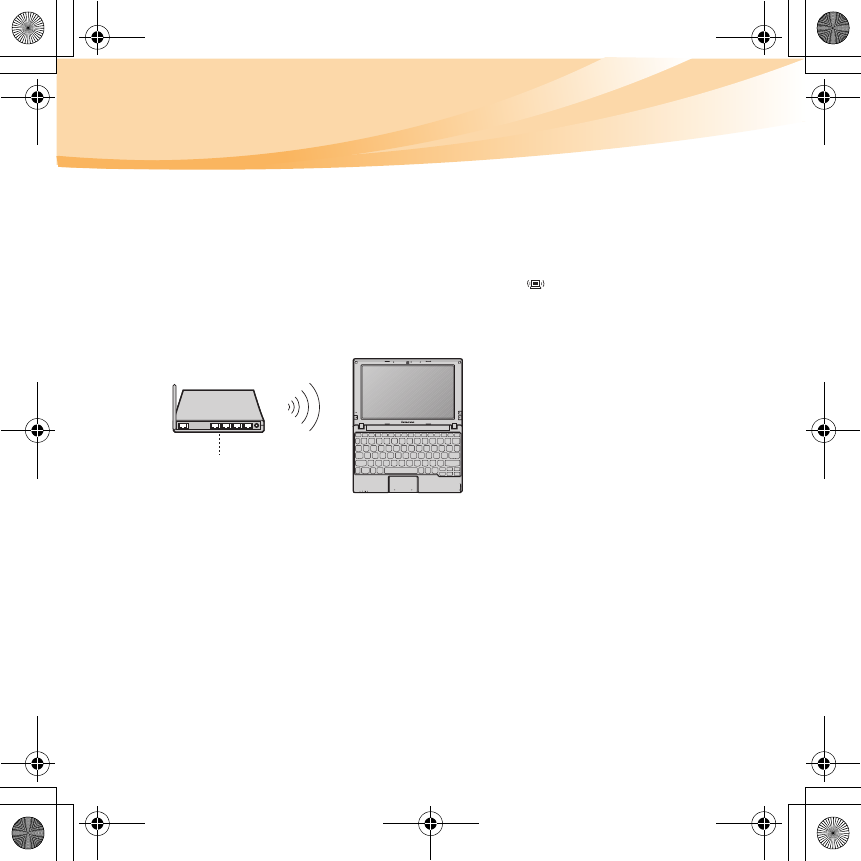

Chapter 3. Using the Internet
As a global network, the Internet connects computers worldwide,
providing services such as e-mailing, information searching, electronic
commerce, Web browsing and entertainment.
You can connect the computer to the Internet in the following ways:
Wired connection: uses physical wiring to connect.
Wireless network technology: connect without wiring.
Wired connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Wired connections are a reliable and safe way to connect the computer to
the Internet. Generally, the following two accessing methods are widely
used.
Cable Cable Internet services use a cable modem connected to
the residential cable TV line.
DSL DSL is a family of related technologies that bring
high-speed network access to homes and small
businesses over ordinary telephone lines.
S10-3 UserGuide V1.0_en.book Page 27 Tuesday, November 10, 2009 11:04 AM
28
Chapter 3. Using the Internet

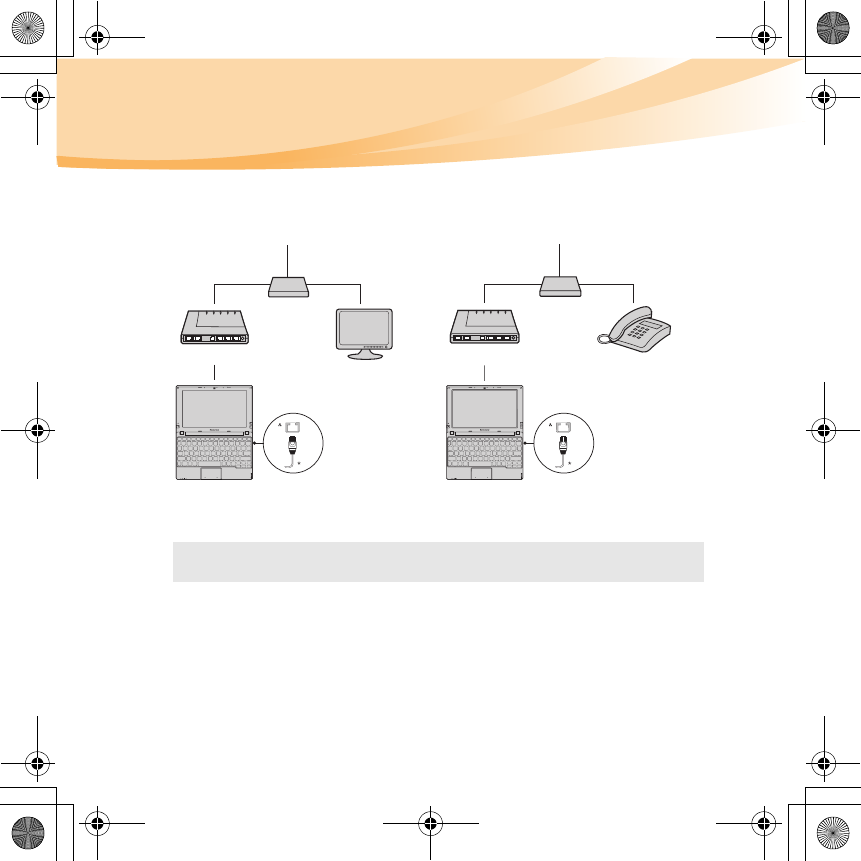

Hardware connection:
Cable DSL
Software configuration
Consult your Internet Service Provider (ISP) for details on how to configure
your computer.
Note: The above diagrams are for reference only. Actual connection method may
vary.
TV cable
Splitter *
Cable modem *
* Not supplied.
Telephone line
Splitter *
DSL modem *
S10-3 UserGuide V1.0_en.book Page 28 Tuesday, November 10, 2009 11:04 AM
Chapter 3. Using the Internet
29
Wireless connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Wireless connections provide mobile access to the Internet, allowing you to
stay online anywhere the wireless signal covers.
Divided by the signal scales, wireless connection to the Internet can be built
based on the following standards.
Wi-Fi Wi-Fi networks cover a small physical area, like a home,
office, or small group of buildings. An access point is
necessary for the connection.
WiMAX WiMAX networks connect several Wireless LAN systems
to cover a metropolitan area, providing high-speed
broadband access without the need for cables.
Mobile Broadband The Mobile Broadband network provides Internet access
to computers, cell phones and other devices over a large
geographic area. Mobile networks are used for data
transmission, and access is usually provided by a mobile
network operator. A Mobile Broadband SIM card is
necessary for the connection.
Note: Your computer may not support all wireless connection methods.
S10-3 UserGuide V1.0_en.book Page 29 Tuesday, November 10, 2009 11:04 AM
30
Chapter 3. Using the Internet
Using Wi-Fi/WiMax (select models only)
Enabling wireless connection
To enable wireless communications, do the following:
1
Slide the integrated wireless device switch to .
2
Press Fn + F5 to make configuration.
Hardware connection
Software configuration
Consult your Internet Service Provider (ISP) and search Windows Help and
Support Center for details on how to configure your computer.
Access point *
Wi-Fi/WiMax network
* Not supplied
S10-3 UserGuide V1.0_en.book Page 30 Tuesday, November 10, 2009 11:04 AM
Chapter 3. Using the Internet
31
Using Mobile Broadband (select models only)
Before getting started with Mobile Broadband, you first need to choose a
mobile network operator and make sure you are in the coverage area of the
network. After that, you also need:
• To activate the Mobile Broadband service through your local mobile
network operator. You will get a Subscriber Identity Module (SIM) card
after activation. For instructions on inserting the SIM card, refer to
“Inserting the SIM card” on page 32.
Notes:
•Various standards are in use by mobile operators to provide Mobile Broadband
services. The Lenovo Mobile Broadband module may support one or more of the
following standards:
GSM (Global System for Mobile Communications)
TD-SCDMA (Time Division-Synchronous Code Division Multiple Access)
SCDMA (Synchronous Code Division Multiple Access)
EV-DO (Evolution Data Optimized)
HSPA (High Speed Packet Access)
•Mobile Broadband is a subscription service. Refer to your local mobile network
operator for availability, cost and other information.
•A SIM card is a type of smart card used by mobile network operators to identify
their service subscribers on the mobile network. You will get the SIM card from
your mobile network operator after you have activated the Mobile Broadband
service.
S10-3 UserGuide V1.0_en.book Page 31 Tuesday, November 10, 2009 11:04 AM
