Clover Flex
Starter Kit
Quick Start Guide
1 Clover Flex Starter Kit Quick Start Guide 2
We are continuously
improving our software.
Visit clover.com/setup
to get the latest version
of this guide.
In Europe, visit eu.clover.com/setup
Clover Flex is a powerful and easy-to-use
payment terminal that can also support
point-of-sale (POS) functionality.
Its integrated hardware lets you take payments, print
receipts, scan inventory, and run your day-to-day business
operations wherever you are. It connects online by Wi-Fi or
3G, and provides high-level login security through the built-in
fingerprint sensor.
With its chargeable battery, the Starter Kit allows Clover Flex
to take payments where your customers are–at a table in
your restaurant or across town at your customer’s site.
Clover Flex enables secure credit and debit card transac-
tions via EMV chip cards (insert), magnetic stripe cards
(swipe) and EMV contactless payments (tap), including
Apple Pay and Android Pay.
About
3 Clover Flex Starter Kit Quick Start Guide 4
Clover Flex Starter Kit
Clover Flex
(In the device box)

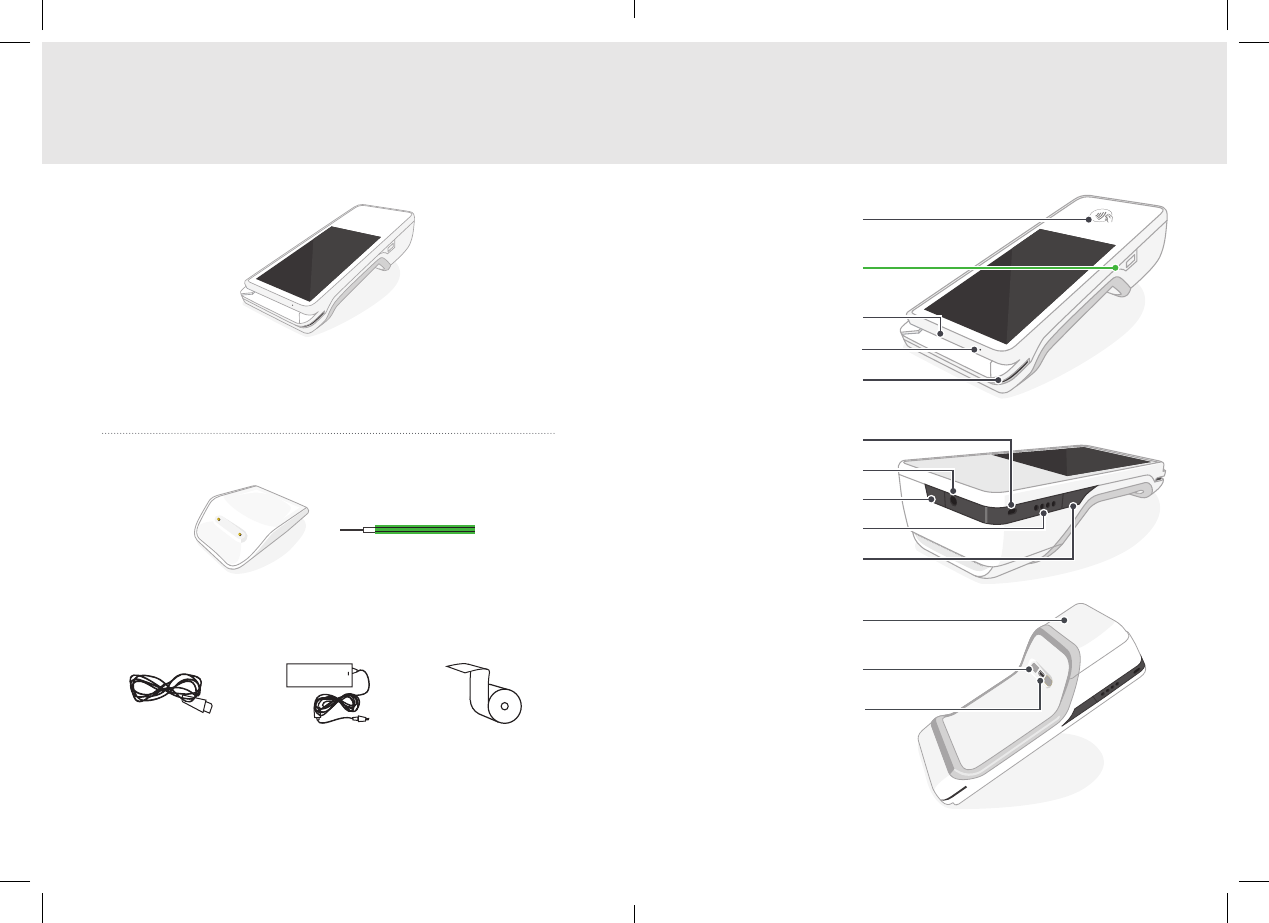

Clover Flex Features
Contactless
payment reader
Power button
& fingerprint sensor
Microphone
Magnetic stripe
card reader
Anti-theft security slot
Audio jack
Barcode scanner
Barcode trigger
Receipt paper door
Charging pads
USB Type-C connector
Speakers
Chip card reader
Power cord
(2 for EU)
Charging cradle
Receipt paper
Screwdriver
Power brick
5 Clover Flex Starter Kit Quick Start Guide 6
Set Up your Clover Flex Recommended Usage
Clover Flex should be held with the chip-card reader facing
toward you and the printer pointed away from you. We recom-
mend holding it with your non-dominant hand and using your
dominant hand to tap the screen and take payment.
Barcode Scanning
Point the scanner toward the barcode on the item or the
receipt and hold down the barcode trigger. You will get the best
results by holding the device 4–10 inches (10cm–25cm) from
the item.
Barcode trigger
Hand Holding Position
(Only for EU) Install the micro SIM card. See page 8 for
more details. SIM cards have been pre-installed for US.

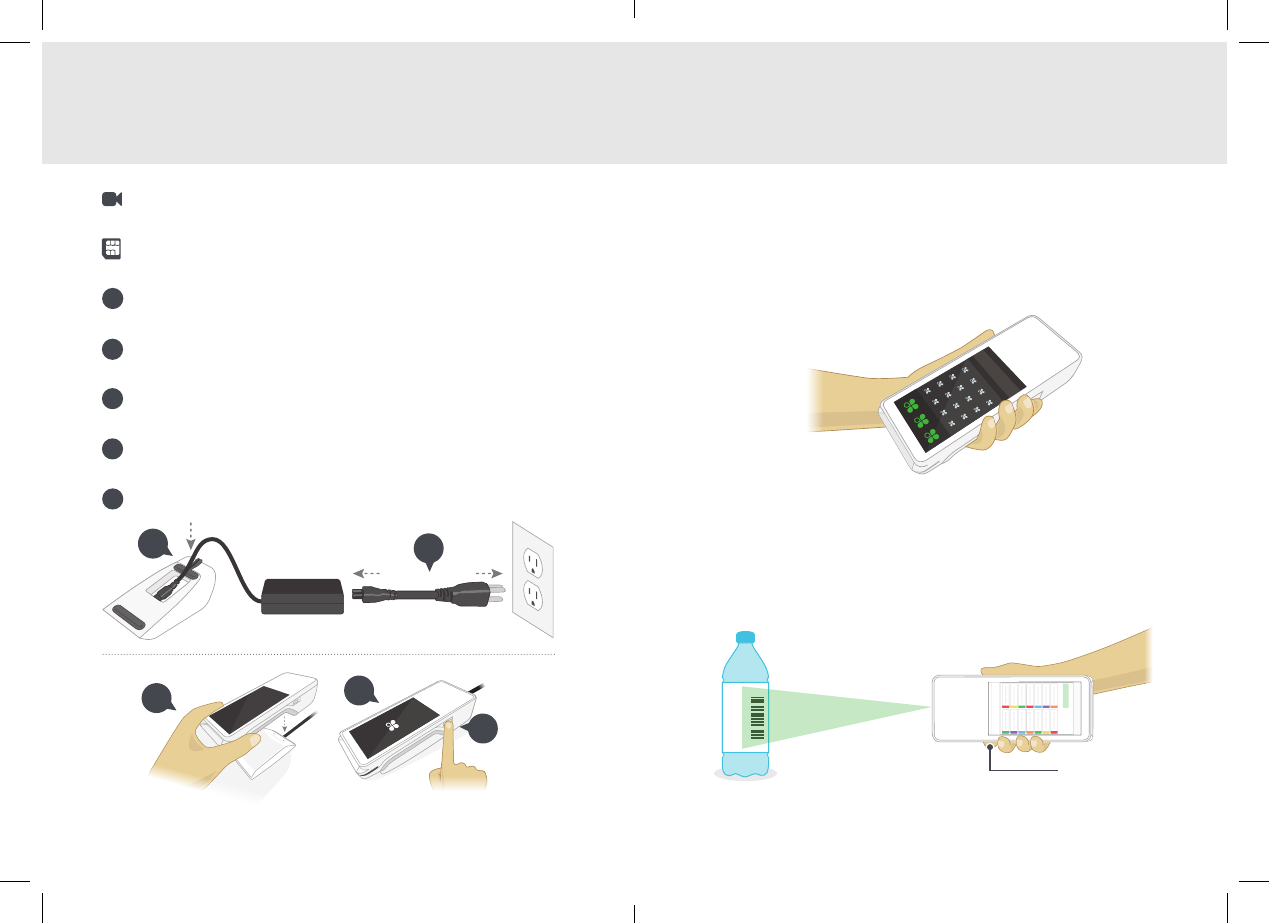

Plug the power brick into the charging cradle and press the
cord into the rubber base so that it is ush on the counter.
Attach the power cord to the power brick and plug the
power cord into a power source.
Place the device on the charging cradle. If it's properly
connected, a battery icon will appear on the screen.
While it charges, press and hold the power button until the
Clover logo appears on the screen.
Follow the on-screen instructions to continue setting up.
12
1
2
4
3
5
35
Video set up: clover.com/setup
EU: eu.clover.com/setup
4
7 Clover Flex Starter Kit Quick Start Guide 8
Payment Methods

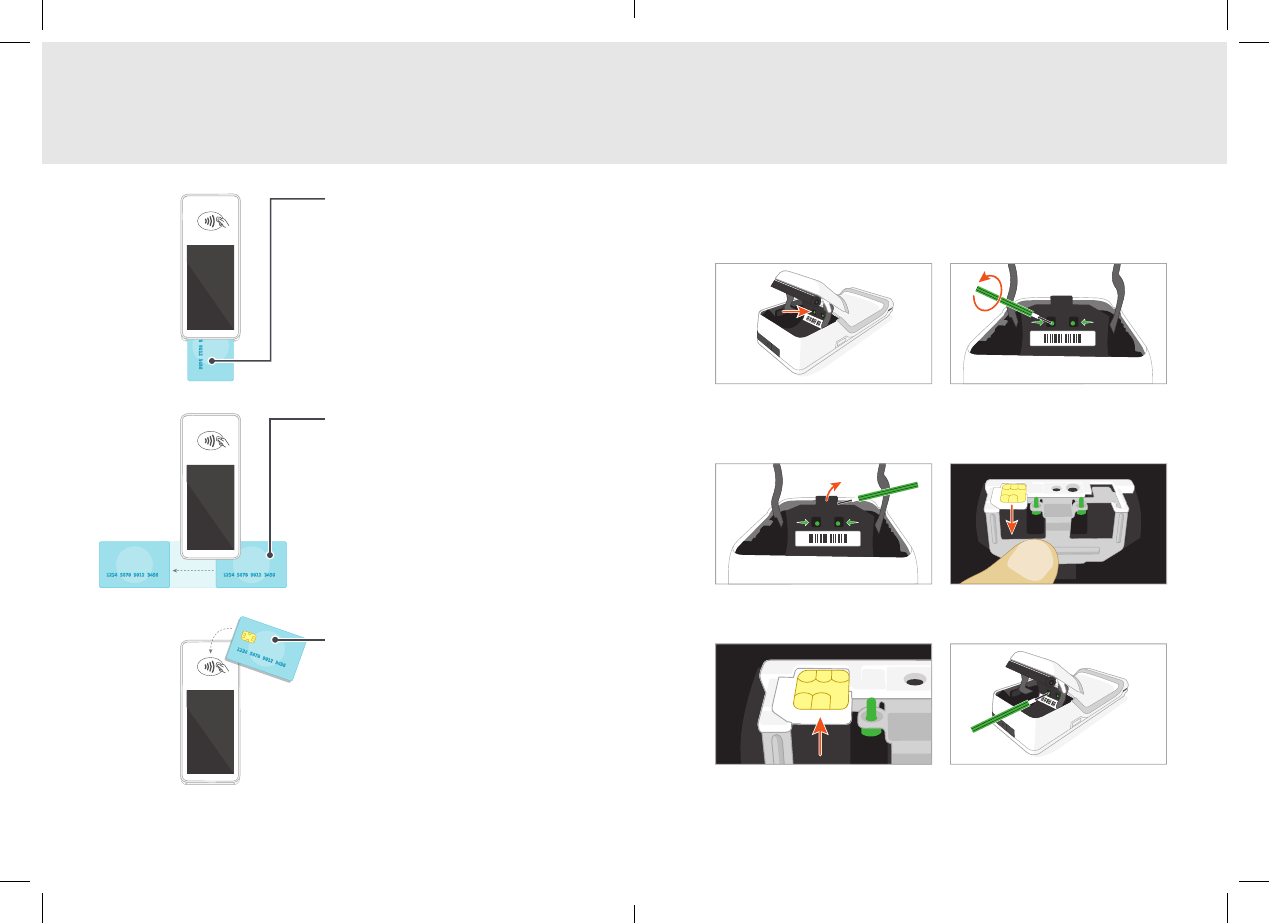

Magnetic Stripe Cards
Swipe the card with the
magnetic stripe facing
down. You can swipe the
card from right to left or
left to right.
Chip Cards
Insert the card with the
chip end first. Remove the
card when prompted by
the device, then follow the
on-screen instructions.
Contactless Payments
Tap chip cards with
contactless capabilities,
and phones and watches
with contactless payments
(including Apple Pay
and Android Pay) on the
contactless symbol.
Clover Flex SIM Installation
(Only for EU) Micro SIM cards are pre-installed for the US.
First, power off the Clover Flex device.
7-8
Open the receipt paper door and
locate the screws above the serial
number (S/N).
Use the screwdriver to turn the
screws counter-clockwise 7–8
times; the screws won’t fall out.
Use your fingernail or screwdriver
to pull down black ap.
Insert your card into the tray with
the card meeting the angled edge.
Finally, close the ap, tighten the
screws, and power on the device.
Remove the placeholder or current
SIM card from the left tray.
9 Clover Flex Starter Kit Quick Start Guide 10
Applications
Clover comes with apps that take payments, run your front of
house, and manage your back of house. Go to App Market to
browse and install more apps to meet your needs.
Sale
Enter an amount
and take multiple
payment types.
Refund
Refund a payment
or an amount
directly on a card.
Transactions
View, search,
reprint, and refund
transactions.
Tips
Add paper tips
to your credit
card payments.
Setup
Personalize your
Clover devices to
suit your business.
App Market
Add features to
your devices based
on your needs.
Useful Resources
Web Access
Some apps can be accessed via your
web browser. We’ve put shortcuts to
these web pages at clover.com/home.
Please use Chrome, Safari, or Firefox.
In Europe, visit eu.clover.com/home.
Need Help?
Visit help.clover.com, use the Help app,
or call us anytime at the phone number
given in your welcome email.
