User Manual
![](/img.php?id=230060&img=bg1.png)
11Mbps MiniUSB Wireless Adapter
Date of Issue: January. 25, 2002
Technical Support
The firmware version of the MiniUSB Wireless Adapter is displayed on the utility About window.
Users could download the most recent software version from the supplier’s web site or refer to
the selling contact for the latest software information. If you have difficulty resolving the problem
while installing or using the 11Mbps MiniUSB Wireless Adapter, please contact the supplier for
support.
About This Manual
11Mbps MiniUSB Wireless Adapter User Manual is first published on January, 2002. The
manual includes procedures for the setup of the 11Mbps MiniUSB Wireless Adapter under
Windows XP, Windows 2000, Windows 98 or Windows ME. Take a moment to read through
this manual and familiarize yourself with wireless technology.
![](/img.php?id=230060&img=bg3.png)
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received; including interference that may cause undesired operation.
Federal Communications Commission (FCC) Statement
This Equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
Limited Warranty
This Warranty constitutes the sole and exclusive remedy of any buyer or reseller’s equipment and the
sole and exclusive liability of the supplier in connection with the products and is in lieu of all other
warranties, express, implied or statutory, including, but not limited to, any implied warranty of
merchantability of fitness for a particular use and all other obligations or liabilities of the supplier.
In no even will the supplier or any other party or person be liable to your or anyone else for any
damages, including lost profits, lost savings or other incidental or consequential damages, or inability to
use the software provided on the software media even if the supplier or the other party person has been
advised of the possibility of such damages.
The following are special terms applicable to your hardware warranty as well as services you may use
during part of the warranty period. Your formal Warranty Statement, including the warranty
applicable to our Wireless LAN products, appears in the Quick Installation Guide, which accompanies
your products.
Duration of Hardware Warranty: One Year
Replacement, Repair or Refund Procedure for Hardware:
If your unit needs a repair or replacement, return it to your dealer/distributor in its original packaging.
When returning a defective product for Warranty, always include the following documents:
n The Warranty Repair Card
n A copy of the invoice/proof of purchase, and
n The RMA Report Form (To receive a Return Materials Authorization form (RMA), please contact
the party from whom you purchased the product).
Upon proof-of-purchase we shall, at its option, repair or replace the defective item at no cost to the
buyer.
This warranty is contingent upon proper use in the application for which the products are intended and
does not cover products which have been modified without the reseller’s approval or which have been
subjected to unusual physical or electrical demands or damaged in any way.
![](/img.php?id=230060&img=bg5.png)
Please complete the information below and include it along with your products.
Name:
Title:
Company:
Telephone:
Fax:
Email:
City/State/Zipcode:
Country:
Product Name:
Serial Number:
MAC Address:
Invoice Date:
Product Description:
If you have any further questions, please contact your local authorized reseller for support.
Table of Contents
FCC Information........................................................................................... 2
Limited Warranty.......................................................................................... 3
Chapter 1 About MiniUSB Wireless Adapter...........................................1
1-1 Features and Benefits............................................................................ 1
1-2 Applications.......................................................................................... 2
1-3 Product Kit ........................................................................................... 3
Chapter 2 Getting Started...........................................................................4
2-1 Before Installation................................................................................. 4
Chapter 3 Install Driver for Windows ........................................................5
3-1 Set up MiniUSB Wireless Adapter for Windows XP............................... 5
3-2 Set up MiniUSB Wireless Adapter for Windows 2000 .......................... 11
3-3 Set up MiniUSB Wireless Adapter for Windows 98/ ME ...................... 14
Chapter 4 Configure the MiniUSB Adapter...........................................18
4-1 Install the WLAN Utility ...................................................................... 18
4-2 Use the WLAN Utility .......................................................................... 20
Limited Warranty........................................................................................ 30
![](/img.php?id=230060&img=bg7.png)
-1-
About MiniUSB Wireless Adapter 1
The 11Mbps IEEE 802.11b MiniUSB Wireless Adapter is a standard USB adapter that fits into any
standard USB slot in a notebook computer. Its 11Mbps data rate gives equivalent Ethernet speed to
access corporate network or the Internet in a wireless environment. In addition, a detachable antenna
version is specifically designed for system integrator application. When installed, 11Mbps MiniUSB
Wireless Adapter is able to communicate with any 802.11 and 802.11b compliant products.
1-1 Features and Benefits
1. Fully IEEE 802.11b compatible.
2. Direct Sequence Spread Spectrum (DSSS) technology provides robust, interference-resistant
and secure wireless connection.
3. Supports 1, 2, 5.5 and 11 Mbps data rate.
4. Working range up to 800 ft. in an open environment.
5. Seamless connectivity to wired Ethernet and PC network LAN’s augments existing networks
quickly and easily.
6. Greater flexibility to locate or move networked PCs.
7. Wireless connection without the cost of cabling.
8. Easy to install and user friendly, just Plug and Play.
9. Low power consumption.
10. Supports a variety of operating systems (Win98/ME/2000/XP)
11. 64-bit and 128-bits WEP encryption capable.

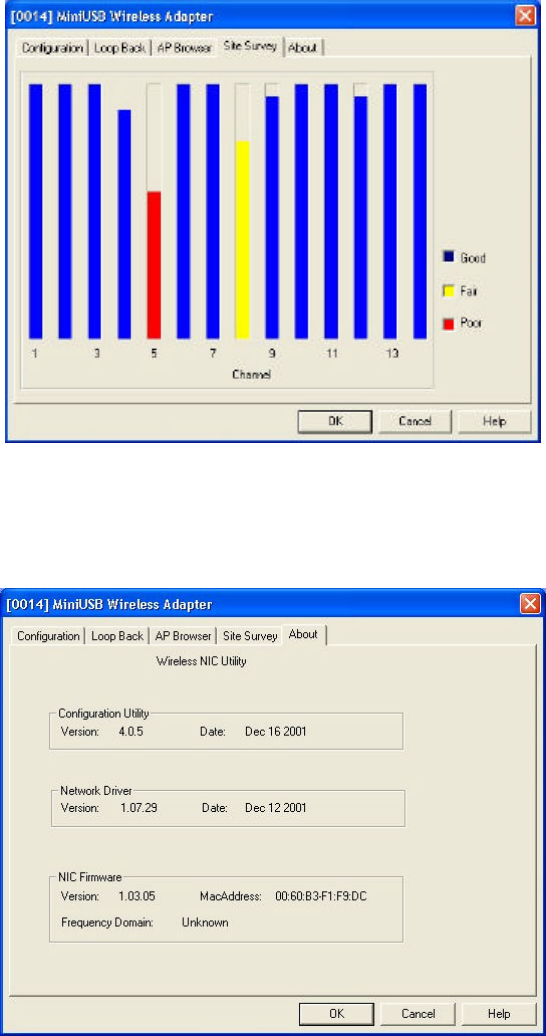

12. Provides Window-based Diagnostic Tools, most notably, Site Survey, Link Quality Test and
Access Point Browser.
![](/img.php?id=230060&img=bg8.png)
-2-
1-2 Applications
11Mbps MiniUSB Wireless Adapter offers a fast, reliable, cost-effective solution for wireless client
access to the network in applications like these:
1. Remote access to corporate network information
E-mail, file transfer and terminal emulation.
2. Difficult-to-wire environments
Historical or old buildings, asbestos installations, and open area where wiring is difficult to
deploy.
3. Frequently changing environments
Retailers, manufacturers and those who frequently rearrange the workplace and change
location.
4. Temporary LANs for special projects or peak time
C1- Trade shows, exhibitions and construction sites where a temporary network will be
practical.
C2- Retailers, airline and shipping companies need additional workstations during peak period.
C3- Auditors requiring workgroups at customer sites.
5. Access to database for mobile workers
Doctors, nurses, retailers, accessing their database while being mobile in the hospital, retail
store or office campus.
6. SOHO (Small Office and Home Office) users
SOHO users need easy and quick installation of a small computer network.
7. High security connection
The secure wireless network can be installed quickly and provide flexibility. (Please refer to
page 22 for encryption configuration.)
![](/img.php?id=230060&img=bg9.png)
-3-
1-3 Product Kit
11Mbps MiniUSB Wireless Adapter comes with the following items. Please go through each item
below. If any of listed items appears to be damaged or missing, please contact your local dealer.
11Mbps MiniUSB Wireless Adapter
l 11Mbps MiniUSB Wireless Adapter………………….…………………….….….. x 1
l MiniUSB Cable …………………………………………………………………….. x1
l 11Mbps PC Card Software and Documentation CD…………………… ……..…... x 1
l 11Mbps MiniUSB Wireless Adapter Quick Start Guide……..…………………..… x 1
![](/img.php?id=230060&img=bga.png)
-4-
Getting Started 2
This chapter describes the instructions that guide you through the proper installation of your 11Mbps
MiniUSB Wireless Adapter for the Windows XP/2000/ME/98 operating systems.
The complete installation of the 11Mbps MiniUSB Wireless Adapter consists of the following steps:
STEP 1: Install the corresponding driver and utility.
STEP 2: Set basic settings.
STEP 34: Finish Installation.
2-1 Before Installation
In addition to the items shipped with the client adapter, you will also need the following in order to
install the adapter:
1. Because the MiniUSB Wireless Adapter is built into your notebook/laptop, you may directly
proceed to the driver installation for your MiniUSB Wireless Adapter.
2. A computer equipped with a Type II or Type III USB slot, and a USB card and socket services
compliant with revision 2.10 of the USB specification (or higher).
3. Windows XP/2000/98/ME (with a Windows installation CD-ROM, diskettes for use during
installation)
4. Minimum 500 Kbytes free disk space for installing driver and utility program.
![](/img.php?id=230060&img=bgb.png)
-5-
Install Driver for Windows 3
This section describes the installation of the 11Mbps MiniUSB Wireless Adapter driver for the
Windows 98/ME/2000 and Windows XP operating systems. The installation procedures for
Windows XP refer to 3-1 Set up MiniUSB Wireless Adapter for Windows XP; for Windows 2000 please
see 3-2 Set up MiniUSB Wireless Adapter for Windows 2000; for Windows 98/ME refer to 3-3 Set up
MiniUSB Wireless Adapter for Windows 98/ME.
Note: Before you start the installation, you are advised to keep the Windows CD-ROM
in case you might need certain system files.
3-1 Set up MiniUSB Wireless Adapter for Windows XP

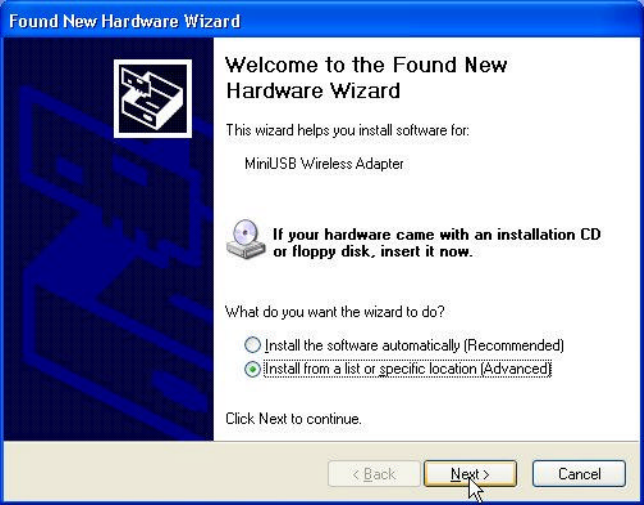

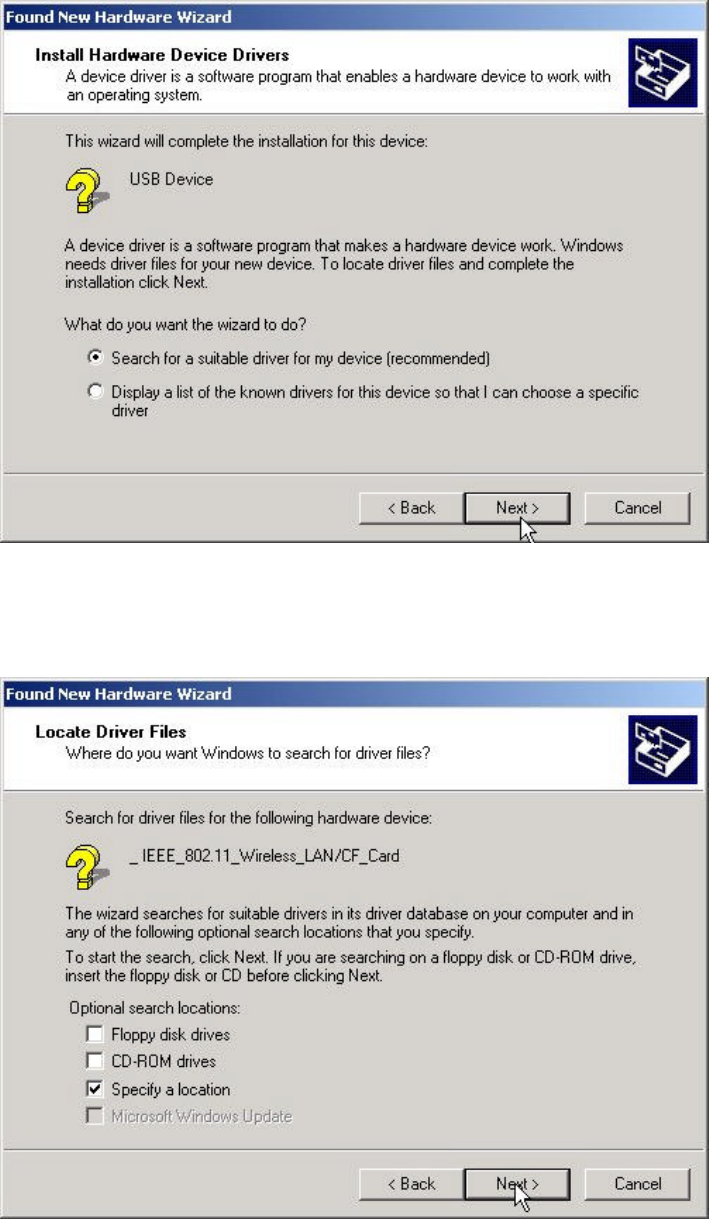

Step 1: After inserting the 11Mbps MiniUSB Wireless Adapter into the USB slot on your notebook,
the Windows will auto-detect the MiniUSB Wireless Adapter and a “Found New
Hardware
Wizard” window will show up. Select “
Install from a list or specific (Advanced)” to install the
driver.
![](/img.php?id=230060&img=bgc.png)
-6-
![](/img.php?id=230060&img=bgd.png)
-7-

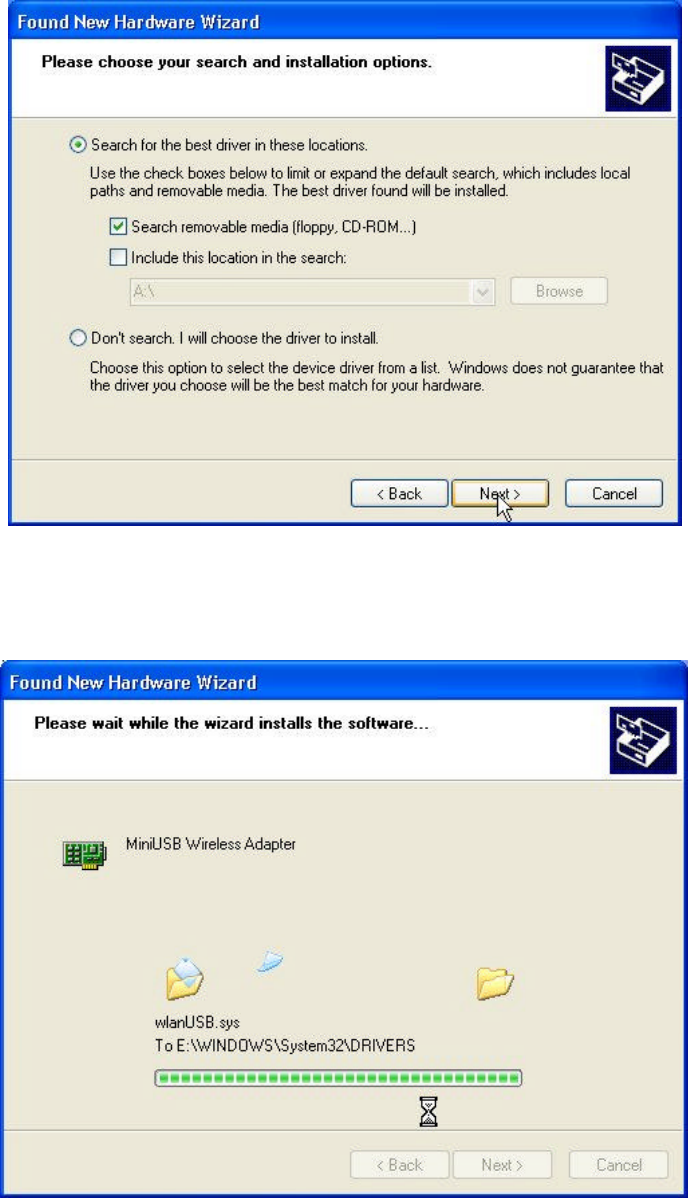

Step 2: Insert the Product CD-ROM into the CD-ROM drive. Check the “Search removable
media (floppy, CD-ROM…)” check box and click on Next to install the driver.
Step 3: The windows will find “MiniUSB Wireless Adapter” and start copying corresponding
files into the system. Click on Next to continue.
![](/img.php?id=230060&img=bge.png)
-8-
Step 4: Click Finish
to complete the installation.
Step 5: Right click “My Computer
” from Start, select Properties, go to the Hardware tab and
click the Device Manager
button to see if any error icon appears next to the Network
Adapter/MiniUSB Wireless Adapter. If no, your 11Mbps MiniUSB Wireless Adapter is working
well.
Check if there is any error
icon next to the IEEE 802.11
MiniUSB Wireless Adapter
![](/img.php?id=230060&img=bgf.png)
-9-

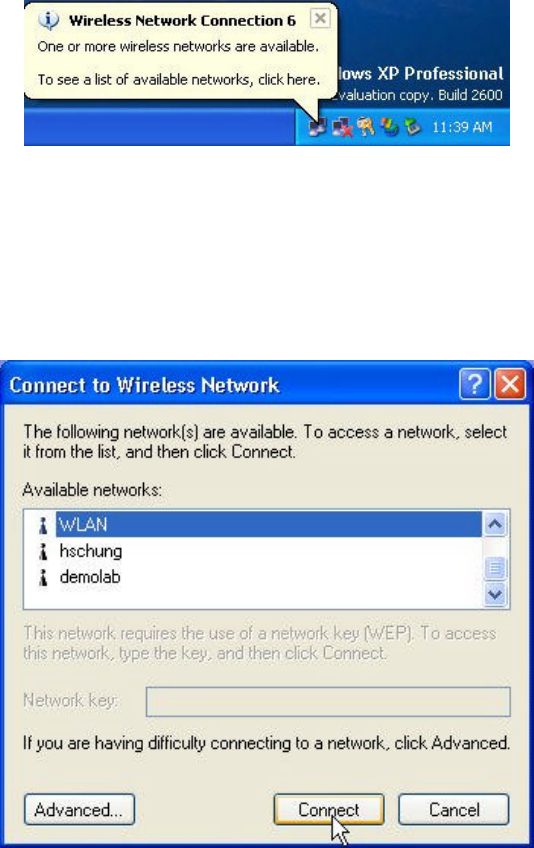

Step 5: After installing the MiniUSB Wireless Adapter, the Windows XP will display a “Wireless
Network Connection # ” message.
Click on the message and the “Automatic Wireless Network Configuration will then appear automatically
and allow use to choose to connect a wireless infrastructure network (Access Point), shown as the

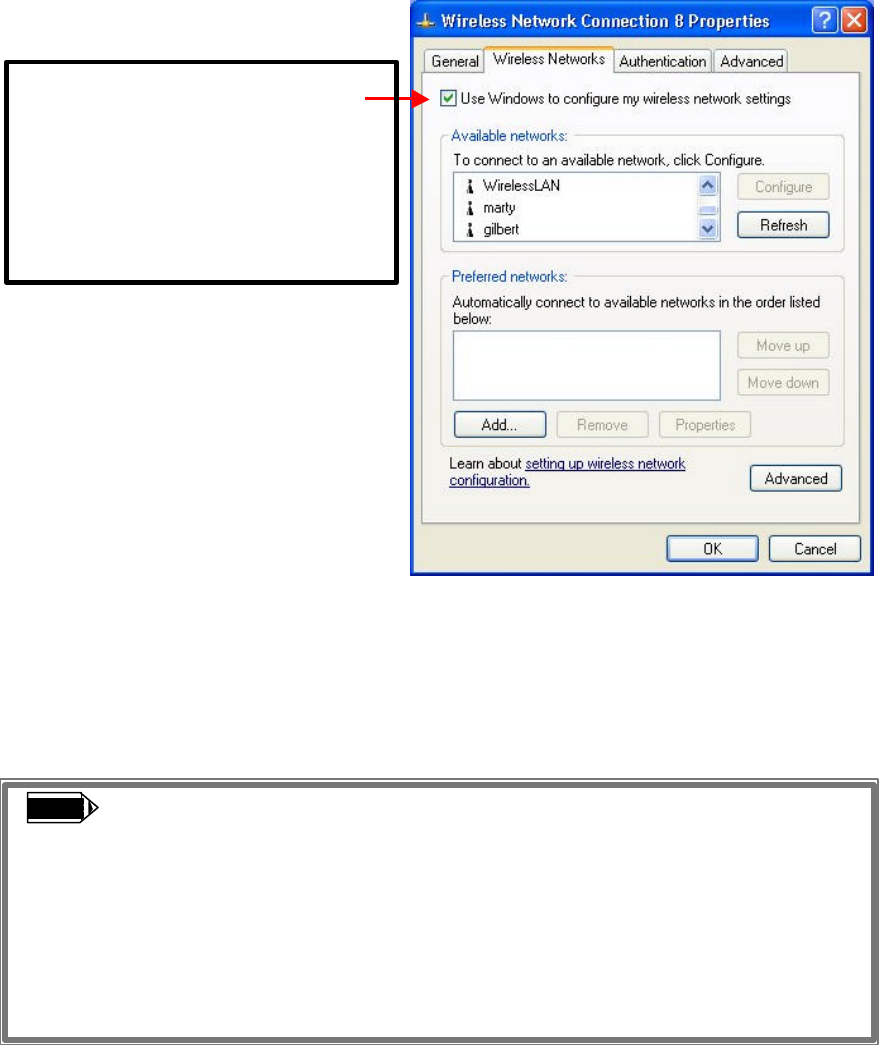

below figure. You may click the Advanced button to make advanced configuration for the Wireless
LAN CF Card, shown as below.
![](/img.php?id=230060&img=bg10.png)
-10-
For more information on using the automatic wireless network configuration please refer to Windows
XP Help file.
However, the WLAN Utility, which comes with the MiniUSB Wireless Adapter, provides you more
tools to configure the MiniUSB Wireless Adapter and monitor the wireless connection. For more
information on installing and using the WLAN utility, please refer to the following sections “Installation
of the W LAN Utility” on page 18 and “Usage of the WLAN Utility” on page 20.
Note:
To use the WLAN utility under Windows XP, you need to disable the
Automatic Wireless Network Configuration first. Steps are described as follows:
n Right click the Network Connections icon. Select Properties.
n Go to the Wireless Networks tab.
n Uncheck the “
Use Windows to configure my wireless network settings”
check box and click the OK button (see the above picture).
If you desire to use our WLAN
Utility, you need to disable the
Windows XP Automatic Wireless
Network Configuration first by
un-checking this check box.
![](/img.php?id=230060&img=bg11.png)
-11-
3-2 Set up MiniUSB Wireless Adapter for Windows 2000

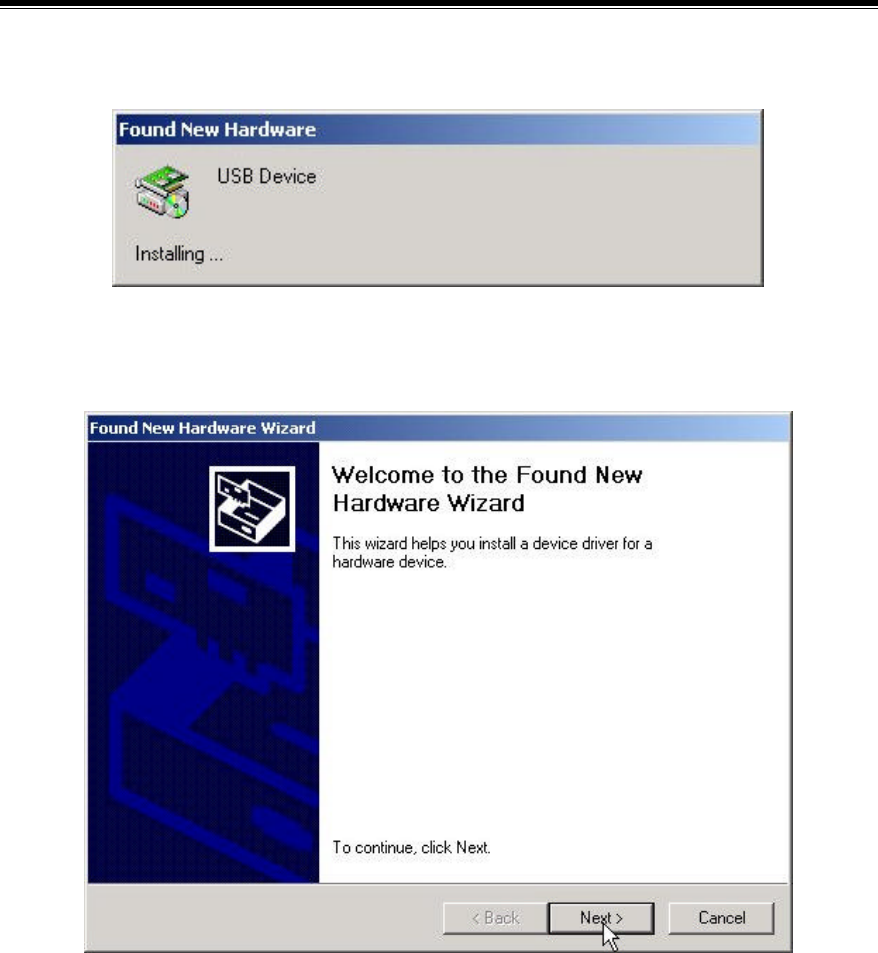

Step 1: After inserting the 11Mbps MiniUSB Wireless Adapter into the USB slot on your computer,
Windows will auto-detect the 11Mbps MiniUSB Wireless Adapter.
Step 2: A “Found New
Hardware Wizard” window shows up. Click Next to proceed.
![](/img.php?id=230060&img=bg12.png)
-12-
Step 3: Select “Search for a suitable driver for my device (recommended)”.
Step 4: Insert the Product CD-ROM into the CD-ROM drive. Specify the location where the
driver is placed. Click on Next to install the driver.
![](/img.php?id=230060&img=bg13.png)
-13-
Step 5: The windows will find “USB Device”. Click on Next to continue.
Step 6: Click Finish
to complete the installation.
![](/img.php?id=230060&img=bg14.png)
-14-
Step 7: Open Control Panel/System
/Device Manager, and check Network Adapters to see if
any error icon appears. If no, your MiniUSB Wireless Adapter is working well.
3-3 Set up MiniUSB Wireless Adapter for Windows 98/ ME
Step 1: After inserting the 11Mbps MiniUSB Wireless Adapter into the USB slot on your computer,
Windows will auto-detect new hardware and will display an “Add New Hardware Wizard” window.
Click Next to continue.
Check if there is any error
icon next to the MiniUSB
Wireless Adapter
![](/img.php?id=230060&img=bg15.png)
-15-

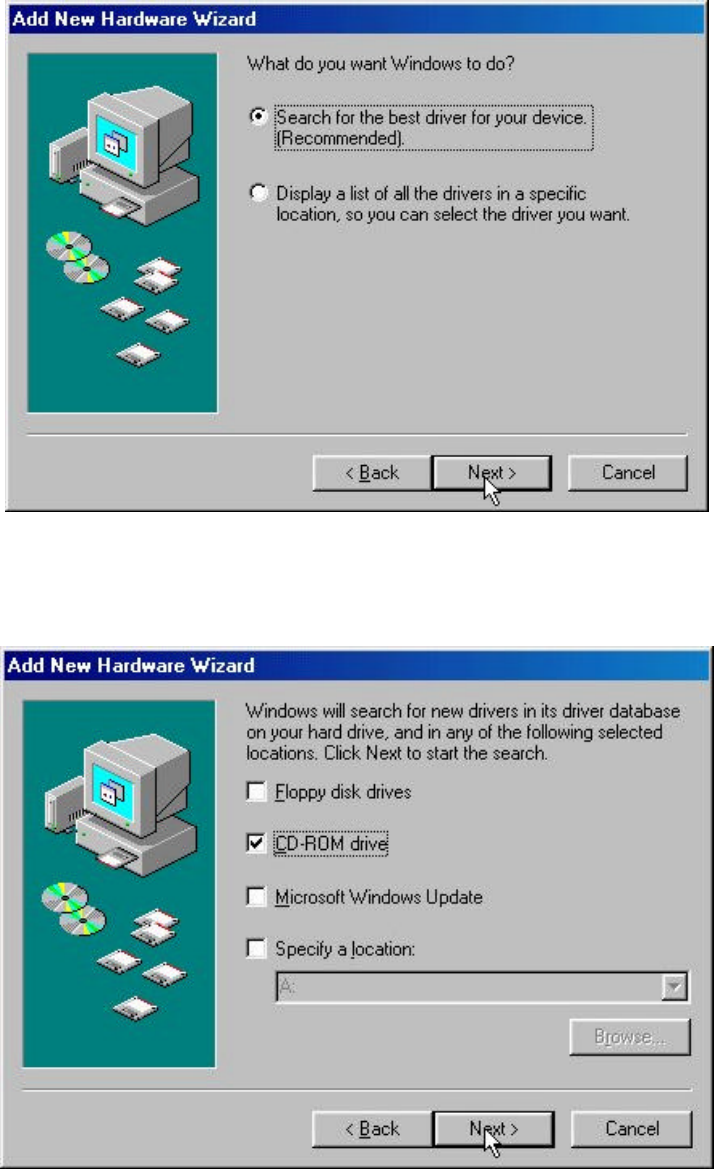

Step 2: Select “Search for the best driver for your device (Recommended)” and click Next to
proceed.
Step 3: Insert the Product CD-ROM into the CD-ROM drive. Select the “CD-ROM drive”
check box and click on Next to install the driver.
![](/img.php?id=230060&img=bg16.png)
-16-

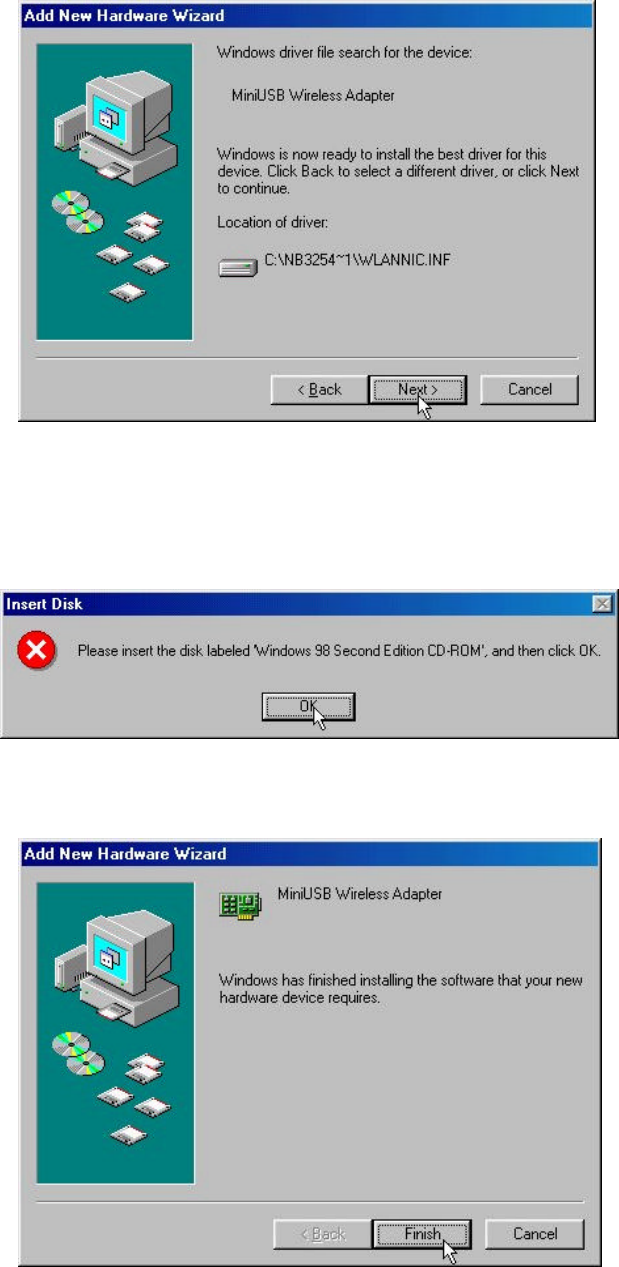

Step 4: The Windows will find “MiniUSB Wireless Adapter
”. Click Next to continue.
Step 5: Once the [Please insert the disk labeled “Windows 98/ME CD-ROM”, and then
click OK] window appears, enter the path corresponding to the appropriate drives and click OK.
Usually these files can be found at C:Windows or C:Windows\system.
Step 6: Click Finish to complete the software installation.
![](/img.php?id=230060&img=bg17.png)
-17-
Step 7: Restart the computer.
Step 8: Open Control Panel/System
/Device Manager, and check Network Adapters to see if
any error icon appears next to the IEEE 802.11 MiniUSB Wireless Adapter. If no, your 11Mbps
MiniUSB Wireless Adapter is working well.
Check if there is any
error icon next to the
MiniUSB Wireless Adapter
![](/img.php?id=230060&img=bg18.png)
-18-
Configure the MiniUSB Adapter 4
This chapter gives you assistance with detailed configuration for the 11Mbps MiniUSB Wireless
Adapter under Windows XP/2000/98/ME.
4-1 Install the WLAN Utility
To install the WLAN Utility, follow these steps:
Step 1: Insert the Product CD-ROM or floppy disk again.
Step 2: Go to the utility folder and run setup.exe.
Step 3: The InstallShield Wizard will show up and guide you through the rest of the setup process.
Run the Setup Utility
Choose Destination
Location and click Next
to continue.
![](/img.php?id=230060&img=bg19.png)
-19-
Select a program folder
and click Next.
You may add a shortcut
in the startup folder as
desired.
Upon completion, go to Program Files and run the WLAN Utility and its icon will appear in the
System Tray in the bottom right corner of your task bar. Clicking on the icon will open the
configuration window. When you minimize the window, the system tray icon will be loaded in the
System Tray again.
The color behind the system tray icon indicates the link status:
Blue indicates a good or excellent link.
Yellow indicates a usable but weak link.
Red indicates no or very poor link quality. When you minimize the window, the system tray
icon will be loaded in the System Tray again.
![](/img.php?id=230060&img=bg1a.png)
-20-
4-2 Use the WLAN Utility
The WLAN Utility enables you to make configuration changes and perform user-level diagnostics on
your 11Mbps MiniUSB Wireless Adapter in the Windows XP/2000/98/ME operating system
environments. The WLAN Utility consists of window with 5 items for you to monitor and configure
the 11Mbps MiniUSB Wireless Adapter: Configuration, Loop Back, AP Browser, Site Survey
and About.
Configuration:
The Configuration item allows you to modify the configuration parameters for the 11Mbps MiniUSB
Wireless Adapter such as Profile, Network Type , Ad-Hoc Channel
, Transmit Rate, ESSID,
WEP, RTS/CTS, Fragment Threshold, and Power Save mode. Furthermore, you may monitor

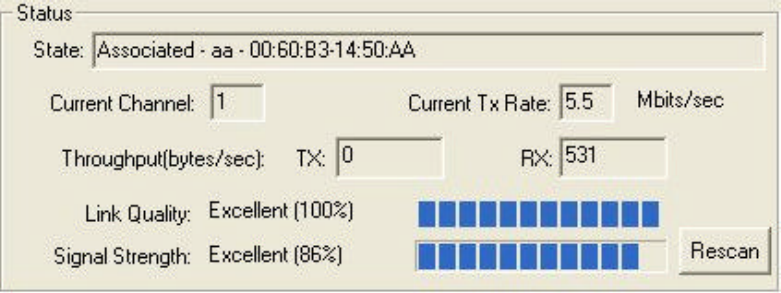

the current status of the MiniUSB Wireless Adapter such as State, Current Channel, Current Tx
Rate, Throughput, Link Quality and Signal Strength.
![](/img.php?id=230060&img=bg1b.png)
-21-

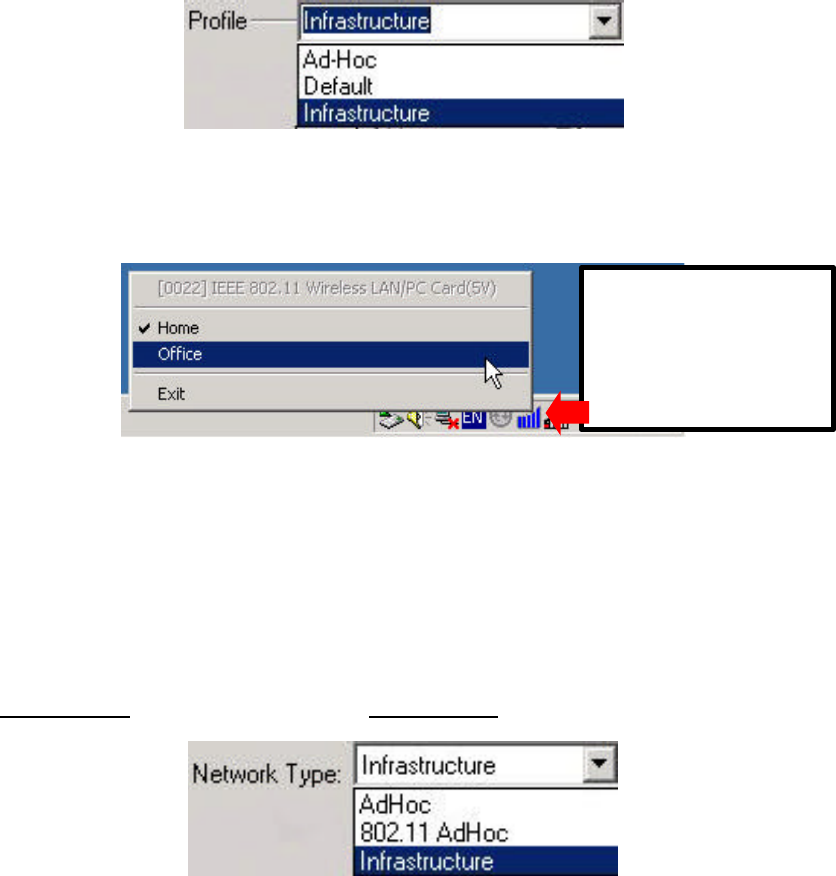

Profile
The Profile field allows you to set values for all parameters by selecting a previously defined profile.
To create the profile, go to the Profile field, type a profile name and set the corresponding parameters.
If one of the profiles is no longer used, you may remove it by clicking the Delete button. After
changing parameters, save the profile and click the Apply button to take effect. You can have
multiple profiles and modify the profile at any time.
Alternatively, you may choose the profile by right clicking the system tray icon on the task bar, making
the configuration more friendly and efficient.
Network Type
There are 3 network types for the 11Mbps MiniUSB Wireless Adapter to operate. If you need to
access company network or Internet via an Access Point, select “Infrastructure”. To set up a
group of wireless stations for file and printer sharing, select “AdHoc” or “802.11 AdHoc” (without
Access Point). If Ad-Hoc (without access point) is selected, you need to set wireless stations with
the same channel. For 802.11 AdHoc, the same ESS ID are required to the wireless stations.
You may right click
the WLAN system
tray icon to choose
the pre-set profiles
![](/img.php?id=230060&img=bg1c.png)
-22-
ESSID
The ESS ID is the unique ID used by Access Points and stations to identify a wireless LAN. Wireless
clients associating to any Access Point must have the same ESSID. The default setting is ANY, which
allows your MiniUSB Wireless Adapter to automatically associate to any Access Point (Infrastructure
mode) in the vicinity of your wireless adapter. Alternatively, you may check the ESS ID check box
to specify the ESS ID. It will then attempt to associate with Access Points or stations with the same
ESS ID. The ESS ID can be set up to 32 characters and is case sensitive.
Check here before entering the ESS ID
If there two Access Points with the same ESSID, you may check the BSS ID check box and enter the
MAC address of the Access Point you desire to connect to.
Check here before entering the BSS ID
Transmit Rate
The 11Mbps MiniUSB Wireless Adapter provides various data rate options for you to select. Data
rates options include Fully Automatic, 2 Mb, Auto 1 or 2 Mb, 5.5 Mb, and 11 Mb. In most
networking scenarios, you will see that the factory-set default “Fully Automatic” will prove the most
efficient. This setting will allow your 11Mbps MiniUSB Wireless Adapter to operate at the maximum
data rate. When the communications quality drops below a certain level, the PC Card will
automatically switch to a lower data rate. Transmission at lower data speeds are usually more reliable.
However, when the communications quality improves again, the 11Mbps MiniUSB Wireless Adapter
will gradually increase the data rate again, until it has reached the highest available transmit rate.
![](/img.php?id=230060&img=bg1d.png)
-23-
WEP
To prevent unauthorized wireless stations from accessing data transmitted over the network, the
WLAN Utility offers highly secure data encryption, known as WEP, making your data transmission
over air more secure. To activate the WEP Encryption, check the WEP Enabled
check box. An
Encryption window will then appear. The instructions are as follows:
Ø
Pull down the Encryption (WEP) menu and select either 64bit or 128bit encryption method.
Ø
Specify the encryption keys. There are two methods to set the WEP keys, as described below:
Create Encryption Keys by Using a Passphrase
To create encryption keys by using a passphrase, click the Create Key with Passphrase check
box and type a character string in the Passphrase field. As you type, the utility uses an algorithm
to generate 4 keys automatically. Select either the 64bit or 128bit encryption first, and type a
string in the Create Key with Passphrase field. Select one key from the 4 WEP keys and click
OK. Then click the Apply button on the Configuration tab to make the setting take effect.
Create Encryption Keys Using a Passphrase (128bit)
![](/img.php?id=230060&img=bg1e.png)
-24-
Create Encryption Keys Manually
You can also create encryption keys manually by clicking the Create Keys Manually check
box.
For 64bit encryption you may choose:
n Alphanumeric: 5 characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9” (e.g.
MyKey)
n Hexadecimal: 10 hexadecimal digits in the range of “A -F”, “a-f” and “0-9” (e.g.
11AA22BB33)
For 128bit encryption you may choose:
n Alphanumeric: 13 characters (case sensitive) ranging from “a-z”, “A-Z” and “0-9” (e.g.
MyKey12345678)
n Hexadecimal: 26 hexadecimal digits in the range of “A -F”, “a-f” and “0-9” (e.g.
00112233445566778899AABBCC).
After entering the WEP keys in the key field, select one key as active key, click the OK button and
then click the Apply button on the Configuration tab to make the setting take effect.
Create Encryption Keys Manually – Hexadecimal (64bit)
Note: The WEP key must be set up exactly the same on the Wireless LAN stations as
they are on the wireless Access Points. If you set “MyKey” for the Wireless LAN
CF Card, the same WEP Key “MyKey” must be assigned to the Access Point or other
stations.
![](/img.php?id=230060&img=bg1f.png)
-25-

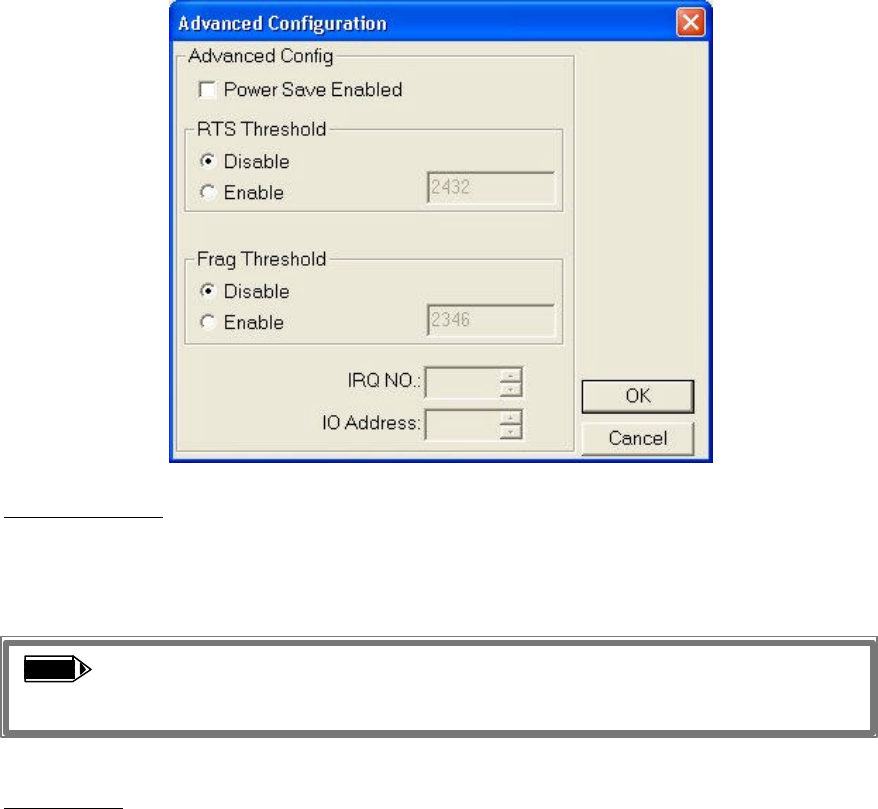

Advance
The WLAN Utility also offers the advanced configuration for user to set the 11Mbps MiniUSB
Wireless Adapter under certain network environment. These advanced options include Power
Management, RTS/CTS and Fragmentation Threshold. To enable the advanced configuration, go to
the Configuration tab and click the Advance button.
Power Management
The Power Save option is designed to conserve battery life of you computer. When Power Save is
enabled, your 11Mbps Wireless LAN CF Card will go into sleep mode to minimize power
consumption.
Note: When power saving mode is enabled, the Access Points you use need to support
power saving as well so that the communication can be established.
RTS Threshold
RTS Threshold is a mechanism implemented to prevent the “Hidden Node” problem. “Hidden
Node” is a situation in which two stations are within range of the same Access Point, but are not within
range of each other. The following figure illustrates an example of the “Hidden Node” problem.
Both stations (STA) are within range of the Access Point, however, they cannot hear each other.
Therefore, they are hidden nodes for each other. When a station starts data transmission with the
Access Point, it might not notice that the other station is already using the wireless medium. When
these two stations send data at the same time, they might collide when arriving simultaneously at the
Access Point. The collision will most certainly result in a loss of messages for both stations.
![](/img.php?id=230060&img=bg20.png)
-26-
Thus, the RTS Threshold mechanism provides a solution to prevent data collisions. When you enable
RTS Threshold on a suspect “hidden station”, this station and its Access Point will use a Request to
Send/Clear to Send protocol (RTS/CTS). The station will send an RTS to the Access Point,
informing that it is going to transmit the data. Upon receipt, the Access Point will respond with a CTS
message to all station within its range to notify all other stations to defer transmission. It will also
confirm the requestor station that the Access Point has reserved it for the time-frame of the requested
transmission.
If the “Hidden Node” problem is an issue, please specify the packet size. The RTS mechanism will be
activated if the data size exceeds the value you set. It is highly recommended that you set the value
ranging from 0 to 1500. The default value is Disable.
Note: Enabling RTS Threshold would cause redundant network overhead that could
negatively affect the throughput performance instead of providing a remedy.
Frag. Threshold
Fragmentation mechanism is used for improving the efficiency when high traffic flows along in the
wireless network. If your 11Mbps MiniUSB Wireless Adapter often transmit large files in wireless
network, you can enable the Fragmentation Threshold by clicking the Enable button and the
mechanism will split the packet. The value can be set from 256 to 1500. The default value is
Disable .
IRQ NO./IO Address
To avoid device conflict, you may modify the IRQ No. and IO Address for your device (Only available
under Windows NT).
![](/img.php?id=230060&img=bg21.png)
-27-
Status:
The Status field on the Configuration menu provides the following information.
State: When operating in Infrastructure mode, this field shows the MAC address of the Access Point
with which the MiniUSB Wireless Adapter is communicating. When operating in Ad-Hoc mode, it
shows the virtual MAC address used by computers participating in the Ad-Hoc network.
Current Channel: Shows the channel on which the connection is made.
Current Tx Rate: Shows the highest transmit rate of the current association.
Throughput: Shows the short term transmit and receive throughput in bytes/second, and is continuously
updated.
Link Quality: Based on the quality of the received signal of the Access Point beacon. There are 5
states of link quality:
100%~80%: Excellent link.
80%~60%: Good link quality.
60%~40%: Fair link quality.
Under 40%: Poor or no connection.
Signal Strength: Based on the received signal strength measurement of the baseband processor of the
Beacon signal. Same as link quality, there are 5 states of signal strength:
100%~80%: Excellent signal strength.
80%~60%: Good signal strength.
60%~40%: Fair signal strength.
Under 40%: Poor or no signal strength.
You can click the Rescan button to force the radio to rescan all available channels. If your link
quality or signal strength is poor, rescanning can be used to push the radio off a weak Access Point and
search for a better link with another Access Point.
![](/img.php?id=230060&img=bg22.png)
-28-
Loop Back:
The Loop Back tool helps you examine data transmission quality between your 11Mbps MiniUSB
Wireless Adapter and any workstation on the network. By entering IP address of 2 remote station,
setting ping interval and packet size, you may know whether communication has been made
successfully or not. Additionally, you may run the loopback test (proprietary) by clicking the Loop
back button to verify the communication quality between your wireless station and Access Point. The
Refresh button is used for setting the counters back to 0.
AP Browser:
By clicking the Rescan button, the AP Browser can display Access Points around the working
environment. Besides showing the ESSID of each Access Point, it also displays BSSID, Channel,
Signal, Quality and Supported Rates. To join any of the displayed Access Points, highlight the
Access Point you desire to connect and then click the Join BSS (when there are more than 2 Access
Points with the same ESSID), or Join ESS button to join the group.
![](/img.php?id=230060&img=bg23.png)
-29-
Site Survey:
When the Site Survey screen is displayed, the channel quality of all 14 radio channels will be
displayed. These channel quality measurements are shown on each gauge for the 14 radio channels.
The blue bar indicated the channel quality is clear and good. The higher the blue bar is, the better
quality you have (i.e., less interference). The yellow bar indicates the channel quality is fair and the
red bar indicates the channel is busy or having severe interference.
About:
The About item shows the versions of the Wireless LAN Utility, driver, firmware of the 11Mbps
MiniUSB Wireless Adapter. Also, the MAC address and frequency domain are displayed.
![](/img.php?id=230060&img=bg24.png)
-30-
Limited Warranty
This Warranty constitutes the sole and exclusive remedy of any buyer or reseller’s equipment and the
sole and exclusive liability of the supplier in connection with the products and is in lieu of all other
warranties, express, implied or statutory, including, but not limited to, any implied warranty of
merchantability of fitness for a particular use and all other obligations or liabilities of the supplier.
In no even will the supplier or any other party or person be liable to your or anyone else for any
damages, including lost profits, lost savings or other incidental or consequential damages, or inability to
use the software provided on the software media even if the supplier or the other party person has been
advised of the possibility of such damages.
The following are special terms applicable to your hardware warranty as well as services you may use
during part of the warranty period. Your formal Warranty Statement, including the warranty
applicable to our Wireless LAN products, appears in the Quick Installation Guide which accompanies
your products.
Duration of Hardware Warranty: One Year
Replacement, Repair or Refund Procedure for Hardware:
If your unit needs a repair or replacement, return it to your dealer/distributor in its original packaging.
When returning a defective product for Warranty, always include the following documents:
n The Warranty Repair Card
n A copy of the invoice/proof of purchase, and
n The RMA Report Form (To receive a Return Materials Authorization form (RMA), please
contact the party from whom you purchased the product).
Upon proof-of-purchase we shall, at its option, repair or replace the defective item at no cost to the
buyer.
This warranty is contingent upon proper use in the application for which the products are intended and
does not cover products which have been modified without the reseller’s approval or which have been
subjected to unusual physical or electrical demands or damaged in any way.
CAUTION:
In order to comply with the FCC and Industry Canada RF Exposure requirements, it is
recommended, when using Notebook Computer with built-in USB Module wireless LAN, a
separation distance of at least 2.5cm must be maintained between the antenna of this
device and all persons.
![](/img.php?id=230060&img=bg25.png)
-31-
Please complete the information below and include it along with your products.
Name:
Title:
Company:
Telephone:
Fax:
Email:
City/State/Zipcode:
Country:
Product Name:
Serial Number:
MAC Address:
Invoice Date:
Product Description:
If you have any further questions, please contact your local authorized reseller for support.
