TempConfidential_[STC]Quick Guide_English_draft_v4_20161020

QuantaComputerInc.



QuantaQT‐133W‐aa1

QuickGuide



ModelNo:QT‐133W‐aa1

QuickGuidereleaseversion:01

QuickGuidereleasedate:20160930



QuantaQT‐133W‐aa1deviceQuickGuide

Packagecontents

TheQT‐133W‐aa1devicehaveincludedbelowitemswhenopenedthecartonpacking.Pleasemakesurethat

youhavereceivedallofcontentsbeforedeviceinstalling.

 QT‐133W‐aa1unitx1

 Powercordx1

 Adaptorx1

 Quickguidepaperx1



InstallingQT‐133W‐aa1

1. ConnectpowercordandadaptortoQT‐133W‐aa1.Presspowerbuttontopowerontheunit.When

poweredon,thescreenandtheLEDwillturnon.



GettingtoknowQT‐133W‐aa1

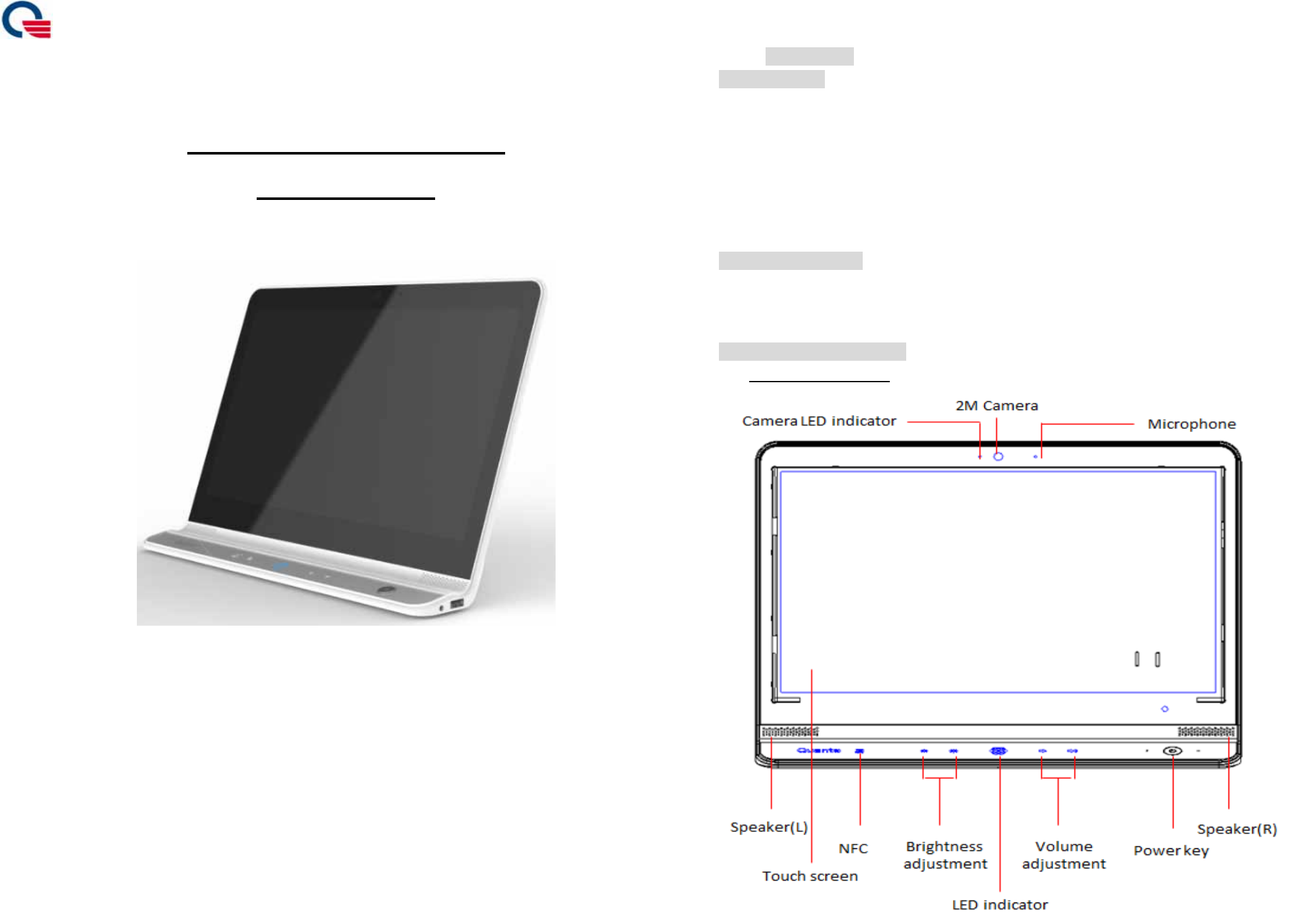

 Frontsideintroduction



QuantaComputerInc.

 Backsideintroduction



Devicespecificationlist

Specification

PrincipleMediaPC(All‐in‐One)

Dimension156.3(L)x327.6(W)x217.4(H)

Weight1310(g)

Screen13.3inchestouchscreen

Memory2GB

Storage16GB

OSAndroid4.4.4

I/Oports3externalUSBports;Powerjack;Ethernet;Headsetjack

Wireless

2.4GWIFI(802.11b/g/n)

BT/BLE4.0

NFC

Camera

Resolution1600*1200pixel

Focusingrange0.29m~1.57m

EFL2.48

F/NO.2.4

FOV70.4(deg)

Speaker2Wx2,withwoofer3W

Power

Consumption

ChargermodeW/OLCD:19V/0.25A/4.75W

Audio100%+WIFI+BT+Ethernet:19V/0.48A/9.12W

PowerInput19V,2A

Batterycapacity2500mAh

Estimatestandby

time1.4h@Audio100%+WIFI+BT+Ethernet

OperationRange 0~35℃,0%~85%RH



FederalCommunicationsCommission(FCC)Statement

15.21

Youarecautionedthatchangesormodificationsnotexpresslyapprovedbythepartresponsibleforcompliance

couldvoidtheuser’sauthoritytooperatetheequipment.



15.105(b)

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart

15oftheFCCrules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnot

installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.

However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment

offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:



‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

1)thisdevicemaynotcauseharmfulinterferenceand

2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation

ofthedevice.



USBport

Woofer

Hatchback

QuantaComputerInc.

FCCRFRadiationExposureStatement:

1. ThisTransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.

2. ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolledenvironment.

Thisequipmentshouldbeinstalledandoperatedwithaminimumdistanceof10mmbetweentheradiator

andyourbody.


