Quanta Computer Inc 7 TABLET PC Quick Guide

User Manual Quick Guide

Start
Here
(product marketing name)
註解 [(LJC1]: Please note that this draft is
only for the purpose of checking the written
descriptions and scope of content.
The content and images have yet to be
formatted using the Verizon template. All
formatting in this document is for
simulation only.
Items to be determined and/or provided
have been highlighted in yellow.
My Verizon
You’re now connected to Verizon 4G LTE. Lightning
fast, Lightning strong. For more information, visit
verizonwireless.com/4GLTE.
REGISTER at verizonwireless.com/myverizon, to
learn how to use your device.
• Go to My Verizon
• Click on Support
• Click on Get Help with Your
• Click Device
• Click on Select Another Device
My Verizon allows you to manage your account, pay
your bill, purchase accessories & more.
Assistance is at your fingertips anytime at
verizonwireless.com.
Customer Service is at your disposal at 1-800-922-
0204 or Prepaid Customer Service at 1-800-786-
8419 or at any Verizon Wireless Store.
A User Guide is available on demand—simply
download at support.vzw.com/phones or call 1-1-
888-987-HELP (4357) to order a copy.
Not all features, apps or services may be available with your plan,
tablet operating system and software version. Please contact
your wireless service provider for more information.
Tablet Features
NOTE: Devices and software are constantly evolving—the screen
images and icons you see here are for reference only.
Notifications
panel
Status panel &
Quick settings
Front-facing camera
and camcorder lens
Apps
Google™
Search
Navigation
Bar
1. Back
2. Home
3. Recent apps
NOTE: Listed in order
from left to right
S
p
eakers
Top View
Bottom View
Back View
WARNING! Use only an approved charging accessory to charge your
tablet. Improper handling of the charging port, as well as the
use of an incompatible charger, may cause damage to your device
and void the warranty.
3.5 MM headphone jack
Charger port
3.2MP rear camera and camcorder lens
Tablet Side View
Microphone
Power/lock key
Volume key
SIM card slot
microSD™
card slot
Setting Up Your Tablet
Installing & Removing the SIM Card
NOTE: if not already installed, follow the instructions below to insert
your 4G LTE SIM card.
1. Open the cover to the SIM card slot and carefully
insert the 4G LTE SIM card with Verizon logo face
up.
2. Push the SIM until it clicks into place.
*A Subscriber Identity Module (SIM Card) is a “smartcard” that houses
personal information, such as your mobile phone number,
calling plan, and account information, such as contacts, text
messages, and call history. The Verizon Wireless 4G LTE SIM Card
is compatible with any Verizon Wireless 4G LTE certified device. The
4G LTE SIM Card can move from one device to another and
your wireless service will support the services that are compatible with
your new device and service plan. To see which devices are
compatible with the Verizon Wireless 4G LTE SIM Card, visit
verizonwireless.com/certifieddevice.
註解 [(LJC2]: SIM card drawing will be
revised to match actual Verizon SIM card.
Arrow will be added to indicate direction of
insertion.
Removing the SIM card
• Open the cover to the SIM card slot and
carefully push the 4G LTE SIM card
inward to release from the slot.
註解 [(LJC3]: This image will be updated
so that the SIM card is already inserted in
the slot. An arrow will be added to indicate
direction of removal.
Installing & Removing the microSD Card
Your tablet supports a removable microSD™ or
microSDHC™ memory cards (not included) for
storage or music, pictures and other files.
1. Locate the microSD card slot on the side of the
tablet and remove the microSD card slot cover.
2. Orient the microSD card with the gold strips facing
down.
3. Carefully slide the microSD card into the microSd
slot (as shown) until it "clicks" into place.
4. Replace the microSD slot cover.
註解 [(LJC4]: Micro-SD card logo will
be revised to match actual micro-SD card.
Arrow will be added to indicate direction of
insertion.
Removing your microSD card
1. Remove the microSD card slot cover.
2. Push the microSD card inward until the card
"clicks" and carefully slide the card out of the
microSD card slot.
NOTE: The card should pop partially out of the slot.
3. Replace the microSD slot cover.

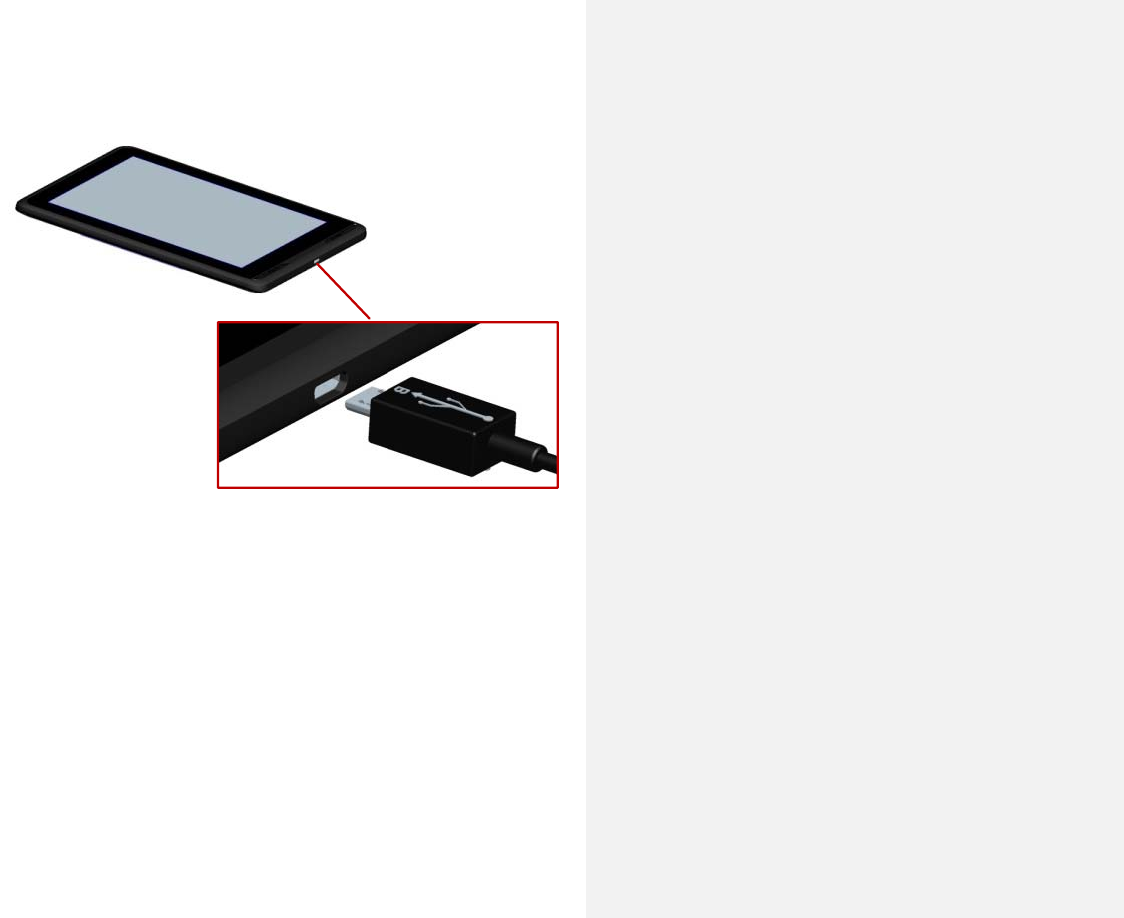

Charging Your Battery
1. Connect the USB cable to the Charging Head.
(image with callouts & clear indication on which side
of USB conn. faces up)
2. Insert the charger into the charger port at the
bottom end of the tablet.
3. Plug the outlet connector into a compatible
electrical outlet.
WARNING! Please use only an approved charging accessory to
charge your tablet. Improper handling of the charging port, as well as
the use of an incompatible charger, may cause damage to your tablet
and void the warranty.
Powering Your Tablet On/Off
It’s important to fully charge the battery before
turning on your tablet.
To power on your tablet:
• Press and hold the Power/Lock (icon) on
the right side of your tablet.
To power off your tablet:
1. Press and hold the Power/Lock (icon) until the
Tablet options screen appears.
2. Tap Power off -> OK.
Backup Assistant℠ Plus
Backup Assistant and Media Manager are now
Backup Assistant Plus. Protect your contacts and
access your media when you need it on the go or at
home. Go to verizonwireless.com/baplus.
Setting Up Your Google Account
Follow the onscreen instructions to quickly set up
your tablet and email accounts.
Now your Gmail™, Google™ contacts, and Google
calendar events can all be loaded to your tablet
automatically.
Record your Google account information. Please
keep this document in a safe place.
Username: @gmail.com
Password: .
Setting Up Other Email Accounts
To add additional email accounts, tap Apps (icon) ->
Settings (icon) -> Accounts -> + Add account
(located in the upper right hand corner of the
display).
• Corporate is for Exchange server work
email accounts.
• Email is for most personal email accounts.
For account details, contact the account
provider.
• Google is for adding another Gmail
account.
Locking/Unlocking Your Device
To lock the display:
• Press Power/Lock (icon).
To unlock the display:
• Press Power/Lock (icon) to wake the
display, then drag your finger across the
screen in any direction.
Wi-Fi® Enhanced Connectivity
Offers a seamless transition between connections
when you switch from the Verizon network to a Wi-Fi
network. When you launch an internet-capable app,
like the browser, your
tablet scans for available Wi-Fi networks even when
Wi-Fi is turned off, and prompts you to connect to an
available Wi-Fi network. If you have a usage-based
plan, you can save on
your subscribed monthly data allowance by using a
Wi-Fi connection rather than the Verizon network.
Bluetooth®
Bluetooth is a short-range wireless communications
technology for exchanging information over a
distance of about 30 feet. You don't need to line up
the devices to send information with Bluetooth. If the
devices are in range, you can exchange information
between them, even if they are in different rooms.
Turning Bluetooth On or Off
1. From the Home screen, tap Apps (icon) ->
Settings (icon) -> Bluetooth.
2. In a single motion touch and slide the Bluetooth
slider (icon) to the right and turn it on (icon). The
slider color indicates the activation status. When
active, (BT icon) displays in the Status area in the
upper right corner of the screen.
Pairing your tablet to a Bluetooth Headset
1. Make sure the device you are pairing with is in
discoverable mode.
NOTE: Refer to the guide that came with the device for details.
2. Tap Apps (icon) -> Settings (icon) -> Bluetooth
3. The tablet will automatically scan for nearby
devices.
4. Touch a device to connect.
5. If necessary, tap Pair, or enter the device
passkey (0000) to connect to the device. When the
device is connected, the Bluetooth indicator appears
in the status panel.
NOTE: Using a mobile device or accessory while driving may cause
distraction and may be illegal. Always obey the laws and drive safely.
Prepaid Tablet Service—Activate Your
Tablet
Verizon Wireless offers month to month, pay as you
go 4G LTE Mobile Broadband service that puts you
in charge of your Internet access on your tablet. Surf
the web at blazing speeds and enjoy thousands of
apps with the freedom of no long-term contract, no
activation fees, and no termination fees. Easily
manage your account directly from the Settings
menu of your tablet. All of our data plans require a
credit card or select debit cards and will
automatically renew every month unless canceled.
Activate Your Prepaid Device
1. Make sure your SIM card is inserted. With the
device powered on, from the Pay as you go screen
in the Setup wizard, select Sign up.
2. You will automatically be directed to the Verizon
Wireless Mobile Broadband portal.
3. Select your data plan and follow the instructions
on the screen to create your account and complete
your activation.
4. You will receive a confirmation email when
registration is complete and your data plan is active.
NOTE: Subject to specific terms of use. For coverage details,
verizonwireless.com/coveragelocator.
Apps & More
Play it up with music, videos, wallpapers, apps and
games. Keep up with Twitter™ and Facebook.
Media Store
Find apps for entertainment, travel, productivity,
navigation, games, wallpaper and more. Go to
verizonwireless.com/mediastore.
Email
Check email on the go with popular Internet-based
email accounts, including Yahoo!® Mail, AOL® Mail,
Gmail™, Windows Live® Hotmail® and Verizon.net.
Web Browsing
Take the Internet with you on the go. You can reach
the latest news, get the weather and follow your
stocks. From the Home Screen, tap Apps (icon) ->
Chrome (icon).
Location Based Services
This device can determine its location, which is
useful for services such as navigation, shopping and
weather. To use Location Based Services, go to
Settings to turn on location
services.
Your wireless device can determine its (and your) physical,
geographical location (“Location Information”) and can associate
Location Information with other data. Additionally, certain applications,
services and programs are capable of accessing, collecting, storing
and using Location Information and disclosing Location Information to
others. You should use caution when determining whether or not
Location Information should be made available to others and you
should review any applicable third party policies before providing
access. To limit potential unauthorized access to your Location
Information, Verizon Wireless offers various mechanisms and settings
to manage access to location data. By enabling location settings you
are permitting third party access to Location Information through
software, widgets or peripheral components you choose to download,
add or attach to your wireless device or through web access,
messaging capabilities or other means and you are authorizing
Verizon Wireless to collect, use and disclose your Location
Information as appropriate to provide you with any location services
that you enabled.
VZ Navigator®
Get premium GPS voice navigations and 3D maps
with spoken real-time traffic alerts. Find movie times,
event info and gas stations. Go to
verizonwireless.com/navigator.
Customer Information
Your Wireless Device and Third Party Services
Verizon Wireless is the mobile carrier associated with this wireless
device, but many services and features offered through this wireless
device are provided by or in conjunction with third parties. Verizon
Wireless is not responsible for your use of this wireless device or any
non-Verizon Wireless applications, services and products including
any personal information you choose to use, submit or share with
others. Specific third party terms and conditions, terms of use, and
privacy policies shall apply. Please review carefully all applicable
terms and conditions and policies prior to using this wireless device
and any associated application, product or service.
(QR code)
© 2013 Verizon Wireless. All Rights Reserved.
(model number)

Navigation menu
