Quanta Computer SPSPN533 NFC module ( for notebook PC) User Manual
Quanta Computer Inc NFC module ( for notebook PC)
user manual
![](/img.php?id=1625221&img=bg1.png)
Edison Chen # 13825
NFC test instruction
Brand : Quanta
Model : PN533
![](/img.php?id=1625221&img=bg2.png)
Open touch to share tool
OpenStart\allprograms\touchtoshare
![](/img.php?id=1625221&img=bg3.png)

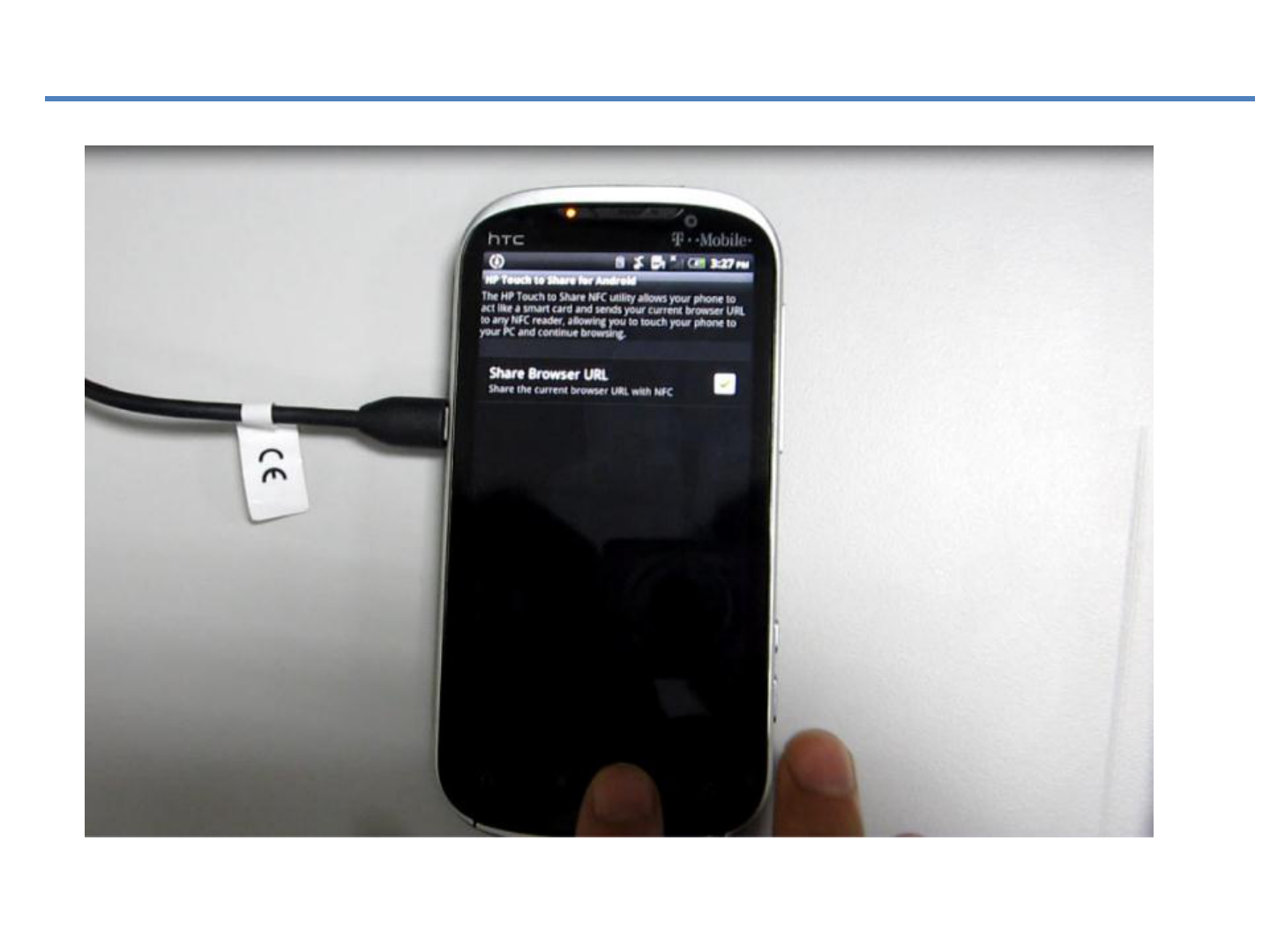

Setting share browser URL with enable NFC
![](/img.php?id=1625221&img=bg4.png)

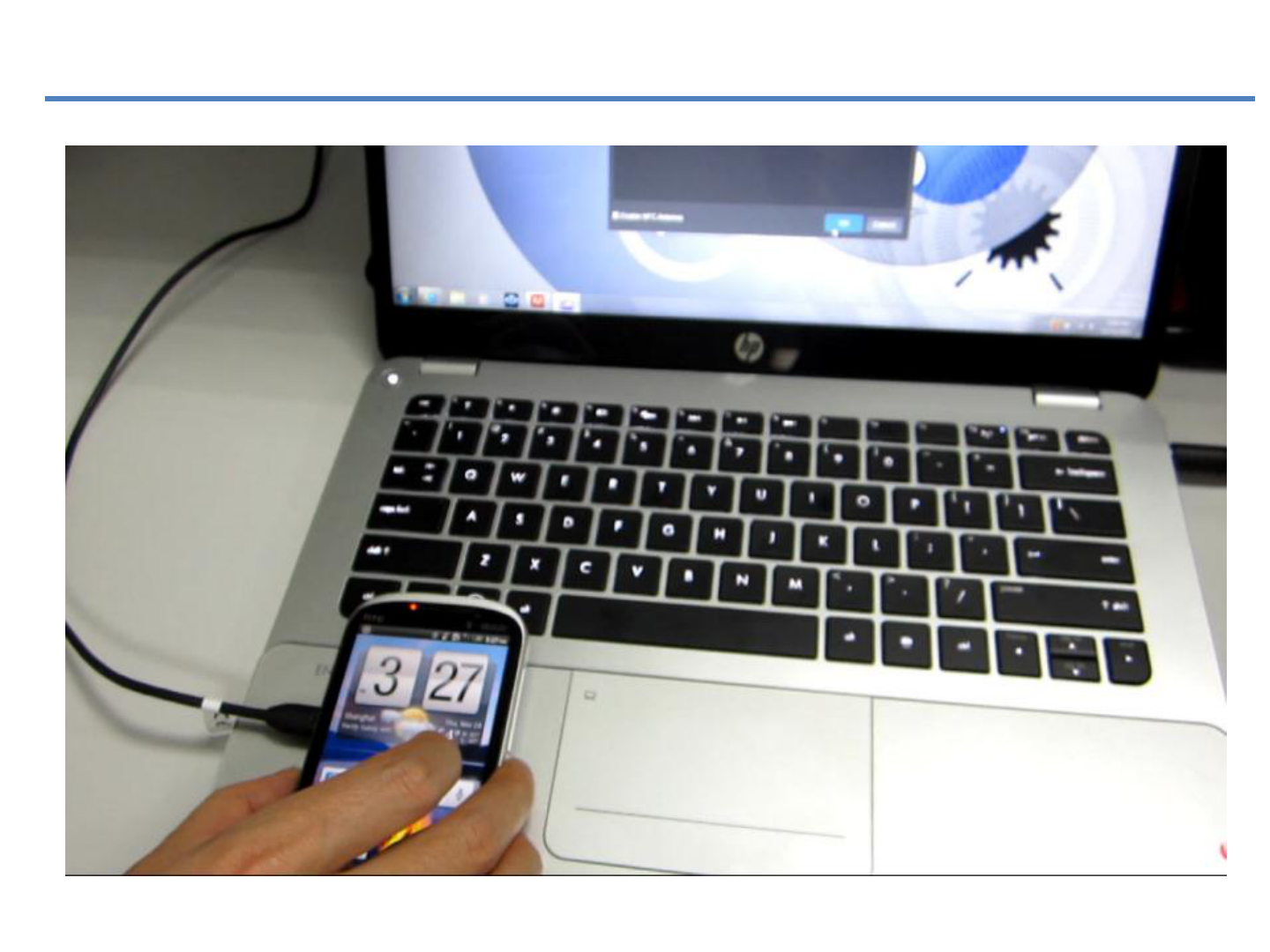

Put the RFID Card or mobile phone on NFC location
![](/img.php?id=1625221&img=bg5.png)
ShowtheURL
The NFC connect is success with mobile phone
![](/img.php?id=1625221&img=bg6.png)
NFC Module Location
NFCmodule
![](/img.php?id=1625221&img=bg7.png)
Thanks.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: HFS-SPSPN533 ".
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
This module is intended for OEM integrator only and limited to host with brand: HP and model: TPN-Q105. The OEM integrator is still responsible for the FCC compliance requirement of the end
product, which integrates this module.
Industry Canada Interference Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
This module is intended for OEM integrator only and limited to host with brand: HP and model: TPN-Q105. The OEM integrator is still responsible for the IC compliance requirement of the end
product, which integrates this module.
The final end product must be labeled in a visible area with the following: “Contains transmitter module IC: 1787B-SPSPN533”.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
