Quanta Computer TA1WM3B2200BG Notebook Computer User Manual Using the Gateway M280 Convertible Tablet PC
Quanta Computer Inc Notebook Computer Using the Gateway M280 Convertible Tablet PC
Contents
- 1. Users Manual 1
- 2. Users Manual 2
Users Manual 1
![](/img.php?id=565823&img=bg1.png)
Chapter 1
1
Getting Help
• Using the Gateway Web site
• Using Help and Support
•Using BigFix
• Using Your Computer guide
• Using online help
2www.gateway.com
Chapter 1: Getting Help
Thank you for purchasing our
convertible tablet PC!
You have made an excellent decision choosing Gateway. We are sure that
you will be pleased with the outstanding quality, reliability, and
performance of your new convertible tablet PC. Each and every Gateway
convertible tablet PC uses the latest technology and passes through the
most stringent quality control tests to ensure that you are provided with
the best product possible.
Your new Gateway convertible tablet PC is designed to provide an
exceptional balance of performance and portability. Your convertible
tablet PC uses the latest chipset and mobile processor technologies to
manage the processor speed and power consumption for a greater battery
life experience. This design provides you with maximum performance
when plugged into AC power balanced with optimized battery life when
on battery power.
Please read this guide carefully to familiarize yourself with our range of
services and support. We have highlighted some basic care and safety
information to help you keep your convertible tablet PC in good
operating condition.
Gateway stands behind our value proposition to our customers — to
provide best-of-class service and support in addition to high-quality,
brand-name components at affordable prices. If you ever have a problem,
our knowledgeable, dedicated customer service department will provide
you with fast, considerate service.
We sincerely hope that you will receive the utmost satisfaction and
enjoyment from your new Gateway convertible tablet PC for years to
come.
Thank you again, from all of us at Gateway.
![](/img.php?id=565823&img=bg3.png)
3
www.gateway.com
Gateway Web site
Gateway Web site
Gateway's online support is available 24 hours per day, 7 days per week
and provides the most current drivers, product specifications, tutorials,
and personalized information about your convertible tablet PC. Visit the
Gateway Support Web site at support.gateway.com.
Using Support
The Support site is divided into seven major areas:
■Support Home
■Product Support
■Downloads
■Customer Service
■Upgrade Center
■Resources
■Contact Us
4www.gateway.com
Chapter 1: Getting Help
Support Home
Tap or click Support Home. To view support documents for your
convertible tablet PC, type your serial number in the Serial Number box,
then tap or click Submit.
Tap or click the arrow button to open the Select Your Computer Product
box, then tap or click Notebook Computers to access product
documentation, specifications, and guides for all Gateway notebooks.
Product Support
Tap or click Product Support to view a list of all the products that Gateway
supports.
Downloads
Tap or click Downloads to get the latest software updates for BIOS and
driver upgrades. By entering your serial number you get drivers specific
to your convertible tablet PC. Tap or click Browse All Downloads to walk
through a step-by-step wizard to locate your drivers.
Customer Service
Tap or click Customer Service to view information about your account and
general information about warranties and special offers.
Upgrade Center
Tap or click Upgrade Center to view and purchase upgrades for your
convertible tablet PC.
Resources
Tap or click Resources to access utilities to help you manage your
convertible tablet PC.
Contact Us
Tap or click Contact Us to access links to customer care with a live
technician, including chat and e-mail. Tap or click Call Us to get a list of
Gateway telephone numbers for both sales and support. For more
information, see “Telephone support” on page 147.
![](/img.php?id=565823&img=bg5.png)
5
www.gateway.com
Help and Support
Help and Support
Your convertible tablet PC includes Help and Support, an easily accessible
collection of help information, troubleshooters, and automated support.
Use Help and Support to answer questions about Windows and to help
you quickly discover and use the many features of your Gateway
convertible tablet PC.
To start Help and Support:
■Tap or click Start, then tap or click Help and Support. Help and Support
opens.
You can find help information by tapping or clicking a link, performing
a search, or browsing the index.
![](/img.php?id=565823&img=bg6.png)
6www.gateway.com
Chapter 1: Getting Help
Searching for a topic
To search for a topic in Help and Support, type a word or phrase (keyword)
in the Search box located at the top of any Help and Support screen, then
tap or click the arrow button.
For each search, you receive the following search result types:
■Suggested Topics - These topics are located in Help and Support and
are relevant to your search topic.
■Full-text Search Matches - These topics are located in Help and
Support and contain the words you entered in the Search box.
■Microsoft Knowledge Base - These topics are located on the Microsoft
Web site and contain the words you entered in the Search box. You
must be connected to the Internet to search for and access these
topics.
To view a list of your search results, tap or click the results header for
the type of results you want to view.
To view a topic, tap or click the topic name in the Search Results list.
BigFix
Your convertible tablet PC may include BigFix. BigFix monitors your
convertible tablet PC for problems and conflicts. It automatically gathers
information about the latest bugs, security alerts, and updates from BigFix
sites on the Internet. Whenever BigFix detects a problem, it alerts you
by flashing the blue taskbar icon. To fix the problem, tap or click on that
icon to open BigFix.
To start BigFix:
■Tap or click Start, All Programs, Accessories, System Tools, then tap
or click BigFix.
![](/img.php?id=565823&img=bg7.png)
7
www.gateway.com
Using Your Computer guide
To learn more about using BigFix:
■From the BigFix program, tap or click Help, then tap or click Tutorial.
Using Your Computer guide
In addition to this guide, the Using Your Computer guide has been included
on your hard drive. The Using Your Computer guide includes information
on using Windows, using the Internet, sending a fax, and changing
power-saving settings as well as other topics.
To access the Using Your Computer guide:
■Tap or click Start, All Programs, then tap or click Gateway
Documentation.

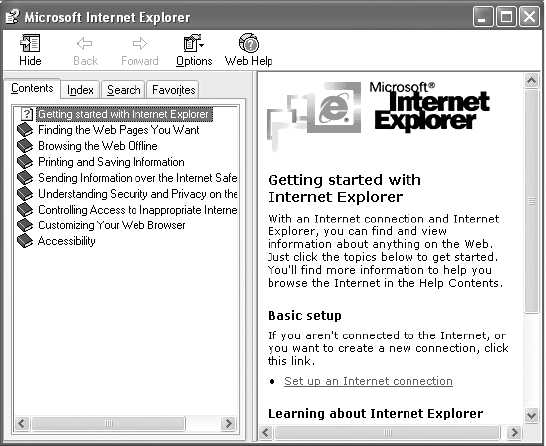

Online help
Many programs provide information online so you can research a topic
or learn how to perform a task while you are using the program. You can
access most online help information by selecting a topic from a Help
menu or by tapping or clicking a Help button.
![](/img.php?id=565823&img=bg8.png)
8www.gateway.com
Chapter 1: Getting Help
You can search for information by viewing the help contents, checking
the index, searching for a topic or keyword, or browsing through the
online help.
![](/img.php?id=565823&img=bg9.png)
Chapter 2
9
Checking Out Your Gateway
Convertible Tablet PC
• Identifying features
• Locating your convertible tablet PC’s model
and serial number

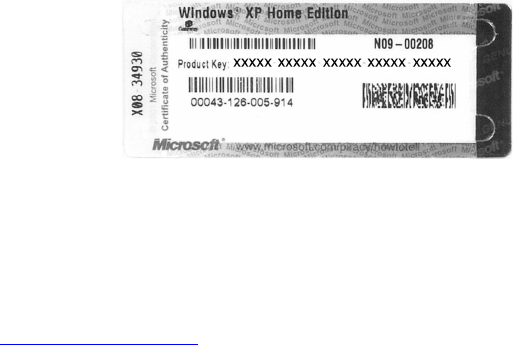

• Locating the Microsoft Certificate of
Authenticity
• Locating the specifications for your
convertible tablet PC
• Purchasing accessories
![](/img.php?id=565823&img=bga.png)
10 www.gateway.com
Chapter 2: Checking Out Your Gateway Convertible Tablet PC
Front
Component Icon Description
LCD panel
release
latch
Open the LCD panel by sliding the release latch.
Pen Write, tap, and input directly on your convertible tablet PC’s
display using the cordless pen.
Speaker Provides audio output when headphones or amplified speakers
are not plugged in.
Microphone
jack
Plug a microphone into this jack.
Headphone
jack
Plug amplified speakers or headphones into this jack. The
built-in speakers are turned off when speakers or headphones
are plugged into this jack.
Memory
card reader
Insert a memory card from a digital camera, MP3 player, PDA,
or cellular telephone into the memory card reader. For more
information, see “Using the memory card reader” on page 65.
The memory card reader supports Memory Stick®, Memory
Stick Pro®, MultiMediaCard™, and Secure Digital™.
![](/img.php?id=565823&img=bgb.png)
11
www.gateway.com
Left
Left
Component Icon Description
Power
connector
Plug the AC adapter cable into this connector.
Docking port Connect the port replicator to this port.
Warning: Power is passed through this port. This docking
connection is certified to UL 1950 for use only with port
replicators designed for your Gateway notebook.
Monitor port Plug an analog VGA monitor or projector into this port. For
more information, see “Viewing the display on a projector or
monitor” on page 69.
Ethernet jack Plug a 10/100/1000 Ethernet network cable into this jack. The
other end of the cable can be plugged into a cable modem,
DSL modem, or an Ethernet network jack. For more
information, see “Connecting to a cable or DSL modem or to
an Ethernet network” on page 26.
USB ports Plug USB devices (such as a diskette drive, flash drive,
printer, scanner, camera, keyboard, or mouse) into these
ports.
![](/img.php?id=565823&img=bgc.png)
12 www.gateway.com
Chapter 2: Checking Out Your Gateway Convertible Tablet PC
Right
IEEE 1394 port Plug an IEEE 1394 (also known as Firewire® or i.Link®)
device (such as a digital camcorder) into this 4-pin IEEE 1394
port.
PC Card slot Insert one Type II PC Card into this slot. For more information,
see “Adding and removing a PC Card” on page 67.
Power switch Slide to turn the power on or off. You can also configure the
power switch for Standby/Resume mode. For more
information on configuring the power switch mode, see
“Changing Power-Saving Settings” in
Using Your Computer
which has been included on your hard drive. To access this
guide, tap or click Start, All Programs, then tap or click
Gateway Documentation.
Speaker Provides audio output when headphones or amplified
speakers are not plugged in.
Component Icon Description
![](/img.php?id=565823&img=bgd.png)
13
www.gateway.com
Right
Component Icon Description

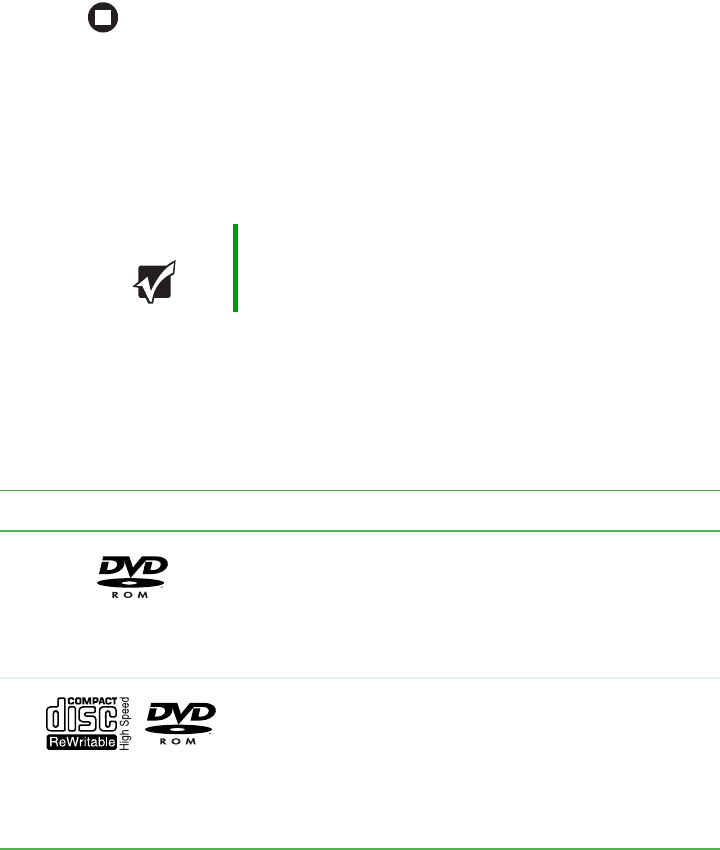

Modular bay Use this bay for a DVD drive or combination DVD/CD-RW
drive. For more information, see “Changing modules” on
page 60.
To determine the type of drive in the modular bay, examine
the drive tray’s plastic cover and compare the logo to those
listed in “Identifying drive types” on page 62.
Important: Your convertible tablet PC may have come with
a DVD or combination DVD/CD-RW. To order a different
module, contact Gateway.
Ventilation fan Helps cool internal components.
Warning: Do not work for long periods with the convertible
tablet PC resting on your lap. If the air vents are blocked,
the convertible tablet PC may become hot enough to harm
your skin.
Caution: Do not block or insert objects into these slots. If
these slots are blocked, your convertible tablet PC may
overheat resulting in unexpected shutdown or permanent
damage to the convertible tablet PC.
Caution: Provide adequate space around your convertible
tablet PC so air vents are not obstructed. Do not use the
convertible tablet PC on a bed, sofa, rug, or other similar
surface.
Kensington™
lock slot
Secure your convertible tablet PC to an object by
connecting a Kensington cable lock to this slot.
Modem jack Plug a modem cable into this jack. For more information,
see “Connecting the dial-up modem” on page 25.
![](/img.php?id=565823&img=bge.png)
14 www.gateway.com
Chapter 2: Checking Out Your Gateway Convertible Tablet PC
Bottom
Component Icon Description
System label Includes the product model number. For more information,
see “Identifying your model” on page 17.
Memory bay Install a memory module into this bay. For more
information, see “Adding or replacing memory” on
page 87.
Pen latch Slide to release the pen.
Battery latch Slide to release the battery. For more information, see
“Changing batteries” on page 78.
Battery Provides power when the convertible tablet PC is not
plugged into AC power.
Hard drive bay The hard drive is located in this bay. For more information,
see “Replacing the hard drive kit” on page 100.
![](/img.php?id=565823&img=bgf.png)
15
www.gateway.com
Keyboard area
Keyboard area
Component Icon Description
Keyboard Provides all the features of a full-sized computer keyboard. For
more information, see “Using the keyboard” on page 33.
Touchpad Provides all the functionality of a mouse. For more information,
see “Using the EZ Pad touchpad” on page 39.
![](/img.php?id=565823&img=bg10.png)
16 www.gateway.com
Chapter 2: Checking Out Your Gateway Convertible Tablet PC
LCD panel
Component Icon Description
Microphone Record audio through this microphone. The built-in
microphone is turned off while an external microphone is
connected. For the location of your microphone jack, see
“Left” on page 11 and “Back” on page 106.
Tablet control
buttons
See “Tablet Control Buttons” on page 37 for a description of
each button.
Status
indicators
Inform you of the power status or when a drive is in use. For
more information, see “Status indicators” on page 31.
Power button Press to turn the power on or off. You can also configure the
power button for Standby/Resume mode. For more
information on configuring the power button mode, see
“Changing Power-Saving Settings” in
Using Your Computer
which has been included on your hard drive. To access this
guide, click Start, All Programs, then click Gateway
Documentation.
![](/img.php?id=565823&img=bg11.png)
17
www.gateway.com
Identifying your model
Identifying your model
Gateway model and serial number
The label on the bottom of your convertible tablet PC contains
information that identifies your convertible tablet PC model and its
features. Gateway Customer Care will need this information if you call
for assistance.
Important The labels shown in this section are for informational
purposes only. Label information varies by model, features
ordered, and location.
Gateway
model
number
![](/img.php?id=565823&img=bg12.png)
18 www.gateway.com
Chapter 2: Checking Out Your Gateway Convertible Tablet PC
Microsoft Certificate of Authenticity
The Microsoft Certificate of Authenticity label found on the bottom of
your convertible tablet PC includes the product key code for your
operating system.
Finding your specifications
For more information about your convertible tablet PC, such as memory
size, memory type, and hard drive size, visit Gateway’s Support site at
support.gateway.com. The Support site also has links to additional
Gateway documentation and detailed specifications. For more
information, see “Gateway Web site” on page 3.
![](/img.php?id=565823&img=bg13.png)
19
www.gateway.com
Accessories
Accessories
To order accessories, visit the Accessory Store at accessories.gateway.com.
Batteries and automobile/airplane power adapters
If you run your convertible tablet PC on battery power for extended
periods, you may want to buy an additional battery so you can swap
batteries when necessary. See “Changing batteries” on page 78 for more
information about using an additional battery.
With an automobile/airplane power adapter, you can save battery power
by plugging your convertible tablet PC into an automobile cigarette
lighter or an airplane in-flight power receptacle.
Carrying cases
Gateway has large-capacity carrying cases if you need additional space
for accessories or supplies.
Memory
Large programs, such as multimedia games or graphics programs, use a
lot of memory. If your programs are running more slowly than you think
they should, try adding more memory. See “Adding or replacing
memory” on page 87 for more information.
Port replicators
Although you can attach devices directly to your convertible tablet PC,
a port replicator lets you make all of those connections at one time. When
you travel with your convertible tablet PC, you merely disconnect from
the port replicator instead of unplugging all the devices.
A port replicator also provides additional ports and other expansion
features not included with your convertible tablet PC. See “Using the
Optional Port Replicator” on page 103 for more information about using
a port replicator with your convertible tablet PC.
20 www.gateway.com
Chapter 2: Checking Out Your Gateway Convertible Tablet PC
Printers
You can attach almost any type of printer to your convertible tablet PC.
The most common types are inkjet and laser printers, which print in color
or black and white.
Inkjet printers and cartridges are relatively inexpensive, but they are
slower than laser printers. Using an inkjet color printer, you can print
pictures, banners, and greeting cards, as well as documents.
Laser printers and cartridges are more expensive, but they print much
faster than inkjet printers. Laser printers are better than inkjet printers
when you are printing large documents.
USB flash drive
Use a USB flash drive for storing files or transferring files to another
computer.
![](/img.php?id=565823&img=bg15.png)
Chapter 3
21
Getting Started
• Installing the battery
• Connecting the AC adapter
• Connecting the dial-up modem
• Connecting to a cable or DSL modem or to
an Ethernet network
• Turning your convertible tablet PC on and
off
• Using the status indicators
• Using the keyboard, buttons, and the EZ
Pad touchpad
• Using the display and pen
• Adjusting the volume
• Connecting to a wireless network
![](/img.php?id=565823&img=bg16.png)
22 www.gateway.com
Chapter 3: Getting Started
Installing the battery
To install the battery:
1Close the LCD panel.
2Turn your convertible tablet PC over so the bottom is facing up.
3Hold the battery label-side down and lower it into the open battery
bay until the battery clicks into place.
4Slide the battery lock to the locked position.
Connecting the AC adapter
You can run your convertible tablet PC using an AC adapter or your
convertible tablet PC’s battery. The battery was shipped to you partially
charged. You should use the AC adapter right away to fully charge the
battery. Allow three hours for the battery to fully charge.
Important If the battery is not fully charged before you use your
convertible tablet PC on battery power for the first time, the
battery life may be much shorter than you expect. If the
battery life seems short even after being charged for
three hours, the battery may need to be recalibrated. For
information on recalibrating the battery, see “Recalibrating
the battery” on page 77.
![](/img.php?id=565823&img=bg17.png)
23
www.gateway.com
Connecting the AC adapter
To connect the AC adapter:
1Connect the power cord to the AC adapter.
2Connect the AC adapter to your convertible tablet PC’s power
connector.
Caution Make sure that you use the AC adapter that came with your
convertible tablet PC or one of the same type purchased
from Gateway.
Replace the power cord if it becomes damaged. The
replacement cord must be of the same type and voltage
rating as the original cord or your convertible tablet PC may
be damaged.
![](/img.php?id=565823&img=bg18.png)
24 www.gateway.com
Chapter 3: Getting Started
3Plug the power cord into a wall outlet. The battery charge indicator
turns on (see “Status indicators” on page 31 for the location of the
battery charge indicator). If the battery charge indicator does not
turn on, unplug the adapter from your convertible tablet PC, then
plug it back in.
4When you finish using your convertible tablet PC for the first time,
turn off your convertible tablet PC and leave your convertible tablet
PC connected to AC power until the battery charge indicator turns
blue.
Protecting from power source problems
During a power surge, the voltage level of electricity coming into your
convertible tablet PC can increase to levels far above normal levels and
cause data loss or system damage. Protect your convertible tablet PC and
peripheral devices by connecting them to a surge protector, which absorbs
voltage surges and prevents them from reaching your convertible tablet
PC.
Warning Do not attempt to disassemble the AC adapter. The
AC adapter has no user-replaceable or user-serviceable
parts inside. The AC adapter has dangerous voltages that
can cause serious injury or death. Contact Gateway about
returning defective AC adapters.
Important If the battery charge indicator does not turn blue after
three hours, contact Gateway Customer Care at
support.gateway.com.
Warning High voltages can enter your convertible tablet PC through
both the power cord and the modem connection. To protect
your convertible tablet PC and avoid electrical shock, use
a surge protector. If you have a telephone modem, use a
surge protector that has a modem jack. If you have a cable
modem, use a surge protector that has an antenna/cable
TV jack. During an electrical storm, unplug both the surge
protector and the modem.
![](/img.php?id=565823&img=bg19.png)
25
www.gateway.com
Connecting the dial-up modem
Connecting the dial-up modem
Your convertible tablet PC has a built-in 56K modem that you can use
to connect to a standard telephone line.
To connect the modem:
1Insert one end of the modem cable into the modem jack on the
right side of your convertible tablet PC.
2Insert the other end of the modem cable into a telephone wall jack.
The modem will not work with digital or PBX telephone lines.
3Start your convertible tablet PC, then start your communications
program.
Warning To reduce the risk of fire, use only No. 26 AWG or larger
telecommunications line cord.
![](/img.php?id=565823&img=bg1a.png)
26 www.gateway.com
Chapter 3: Getting Started
Connecting to a cable or DSL
modem or to an Ethernet network
Your convertible tablet PC has a network jack that you can use to connect
to a cable or DSL modem or to an Ethernet network.
To connect to a cable or DSL modem or to an Ethernet network:
1Insert one end of the network cable into the network jack on
the back of your convertible tablet PC.
2Insert the other end of the network cable into a cable modem, DSL
modem, or Ethernet network jack.
3Start your convertible tablet PC.
![](/img.php?id=565823&img=bg1b.png)
27
www.gateway.com
Starting your convertible tablet PC
Starting your convertible tablet
PC
To start your convertible tablet PC:
1Slide the latch on the front of your notebook, then lift the LCD
panel.
2If you do not have the power on lid lift feature activated, press the
power switch button on the LCD panel. For more information, see
“Turning on the Power on Lid Lift feature” on page 28.
The power button is preset to On/Off mode. However, you can also
set it to function in Standby/Resume mode.
Tips & Tricks For more information about changing the power switch
mode, see “Changing Power-Saving Settings” in
Using
Your Computer
which has been included on your hard
drive. To access this guide, tap or click Start,
All Programs, then tap or click Gateway Documentation.
![](/img.php?id=565823&img=bg1c.png)
28 www.gateway.com
Chapter 3: Getting Started
3If you are starting your convertible tablet PC for the first time, follow
the on-screen instructions to set up your convertible tablet PC.
Turning on the Power on Lid Lift feature
The Power on Lid Lift feature turns on your convertible tablet PC
whenever you open the LCD panel. Your convertible tablet PC was
shipped to you with the Power on Lid Lift feature turned off.
To turn on the Power on Lid Lift feature:
1Turn on your convertible tablet PC.
2As soon as it starts and you see a startup screen, press F2. The BIOS
Setup utility opens.
3Open the Advanced menu.
4Highlight Wake From Lid, then select Enabled by pressing the spacebar.
5Open the Exit menu, then highlight Exit Saving Changes and press
ENTER.
6Select Yes, then press ENTER.
Warning Do not work for long periods with the convertible tablet PC
resting on your lap. If the air vents are blocked, the
convertible tablet PC may become hot enough to harm
your skin.
Caution Provide adequate space around your convertible tablet PC
so air vents are not obstructed. Do not use the convertible
tablet PC on a bed, sofa, rug, or other similar surface.
![](/img.php?id=565823&img=bg1d.png)
29
www.gateway.com
Turning off your convertible tablet PC
Waking up your convertible tablet PC
When you have not used your convertible tablet PC for several minutes
or if you close the LCD panel without turning off your convertible tablet
PC, it may enter a power-saving mode called Standby. While in Standby,
the power indicator flashes.
If your convertible tablet PC is in Standby mode, press the power button
to “wake” it up.
Turning off your convertible
tablet PC
To turn off your convertible tablet PC:
1Tap or click Start, then tap or click Turn Off Computer. The Turn Off
Computer dialog box opens.
2Tap or click Turn Off. Windows shuts down and turns off your
convertible tablet PC.
Tips & Tricks For more information about changing the power button
mode, see “Changing Power-Saving Settings” in
Using
Your Computer
which has been included on your hard
drive. To access this guide, tap or click Start,
All Programs, then tap or click Gateway Documentation.
Important If for some reason you cannot use the Turn Off Computer
option in Windows to turn off your convertible tablet PC,
press and hold the power button for about five seconds,
then release it.
![](/img.php?id=565823&img=bg1e.png)
30 www.gateway.com
Chapter 3: Getting Started
Restarting (rebooting) your
convertible tablet PC
If your convertible tablet PC does not respond to keyboard, touchpad,
or mouse input, you may have to close programs that are not responding.
If closing unresponsive programs does not restore your convertible tablet
PC to normal operation, you may have to restart (reboot) your convertible
tablet PC.
To close unresponsive programs and restart your convertible tablet
PC:
1Press the Windows Security button . The Windows Security dialog
box opens. For more information, see “Tablet Control Buttons” on
page 37.
-OR-
Press CTRL+ALT+DEL. The Windows Security dialog box opens.
2Tap or click Task Manager. The Windows Task Manager dialog box
opens.
3Tap or click the program that is not responding.
4Tap or click End Task.
5Tap or click X in the top-right corner of the Windows Task Manager
dialog box.
6If your convertible tablet PC does not respond, turn it off, wait ten
seconds, then turn it on again.
Important If your convertible tablet PC does not turn off immediately,
complete the following steps until your convertible tablet
PC turns off:
1 Slide and hold the power switch for about five seconds,
then release it.
2 Insert a straightened paper clip into the reset hole on
the bottom of your convertible tablet PC.
3 Unplug the power cord and remove the battery for more
than 10 seconds.
![](/img.php?id=565823&img=bg1f.png)
31
www.gateway.com
Status indicators
As a part of the regular startup process, a program to check the disk
status runs automatically. When the checks are finished, Windows
starts.
Status indicators
Status indicators inform you when a drive is being used or when a button
has been pressed that affects how the keyboard is used.

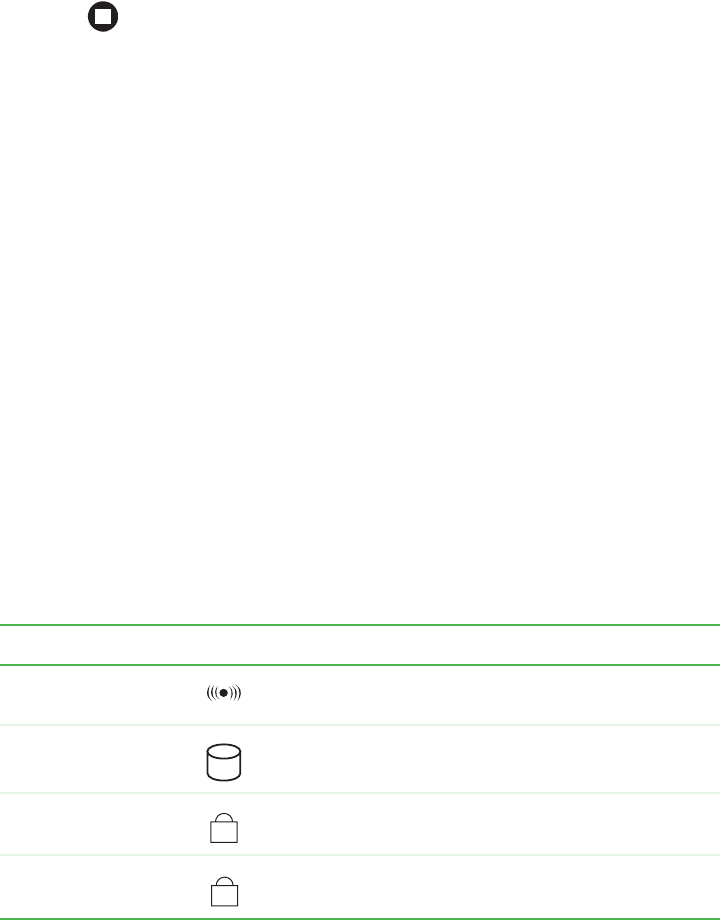

Indicator Icon Description
Wireless network
(optional)
■LED on - Wireless network is turned on.
■LED off - Wireless network is turned off.
Drive ■LED blinking - The hard drive or DVD drive is in use.
■LED off - The hard drive or DVD drive is not in use.
Num lock ■LED on - Numeric keypad is turned on.
■LED off - Numeric keypad is turned off.
Caps lock ■LED on - Caps lock is turned on.
■LED off - Caps lock is turned off.
1
A
![](/img.php?id=565823&img=bg20.png)
32 www.gateway.com
Chapter 3: Getting Started
Battery charge The LED shows the battery activity and status.
■LED blue - battery is fully charged.
■LED purple - battery is charging.
■LED blinking red - battery charge is very low.
■LED solid red - battery is malfunctioning.
This LED only lights up when your convertible tablet PC
is connected to AC power or the battery charge is very
low.
Power The LED shows your convertible tablet PC’s power
status.
■LED on - convertible tablet PC is on.
■LED blinking - convertible tablet PC is in Standby
mode.
■LED off - convertible tablet PC is off.
Indicator Icon Description
![](/img.php?id=565823&img=bg21.png)
33
www.gateway.com
Using the keyboard
Using the keyboard
Your convertible tablet PC features a full-size keyboard that functions the
same as a desktop computer keyboard. Many of the keys have been
assigned alternate functions, including shortcut keys for Windows,
function keys for specific system operations, and the Num Lock keys for
the numeric keypad.
Tips & Tricks You can attach an external keyboard to the
convertible tablet PC or port replicator using a USB
port. You do not need to shut down the convertible
tablet PC to connect a USB keyboard.
Function keys/
System keys
Navigation keys/
Volume keys
FN key Windows
key
Numeric
keypad
Application
key
Arrow keys/LCD
brightness keys
![](/img.php?id=565823&img=bg22.png)
34 www.gateway.com
Chapter 3: Getting Started
Key types
The keyboard has several different types of keys. Some keys perform
specific actions when pressed alone and other actions when pressed in
combination with another key.
Key type Icon Description
Function keys Press these keys labeled F1 to F12 to perform actions
in programs. For example, pressing F1 may open help.
Each program uses different function keys for different
purposes. See the program documentation to find out
more about the function key actions.
System keys Press these colored keys in combination with the FNkey
to perform specific actions. For more information, see
“System key combinations” on page 35.
Navigation keys Press these keys to move the cursor to the beginning
of a line, to the end of a line, up the page, down the page,
to the beginning of a document, or to the end of a
document.
Volume keys Press these colored keys in combination with the FNkey
to increase or decrease the volume or to turn off all
sound.
FN key Press the FNkey in combination with a colored system
key to perform a specific action.
Windows key Press this key to open the Windows Start menu. This
key can also be used in combination with other keys to
open utilities like F(Search utility), R(Run utility), and
E(Explorer utility).
Numeric keypad Use these keys to type numbers when the numeric
keypad is turned on. Press FN+PAD LOCK to turn on
the numeric keypad.
Application key Press this key for quick access to shortcut menus and
help assistants in Windows.
Arrow keys Press these keys to move the cursor up, down, right, or
left.
LCD brightness
keys
Press these colored keys in combination with the FN key
to control the screen brightness.
![](/img.php?id=565823&img=bg23.png)
35
www.gateway.com
Using the keyboard
System key combinations
When you press the FN key and a system key at the same time, your
convertible tablet PC performs the action identified by the text or icon
on the key.
Press and hold FN, then
press this system key...
To...
Turn the optional wireless network on or off. For more
information, see the printed network guide that came
with your notebook.
Warning: Radio frequency wireless communication can
interfere with equipment on commercial aircraft. Current
aviation regulations require wireless devices to be turned
off while traveling in an airplane. 802.11g (also known
as wireless Ethernet or Wifi) communication devices are
examples of devices that provide wireless
communication.
Enter Standby mode. Press the power button to leave
Standby mode. For more information, see “Changing
Power-Saving Settings” in
Using Your Computer
which
has been included on your hard drive. To access this
guide, click Start, All Programs, then click Gateway
Documentation.
Toggle the notebook display in the following order:
■The LCD
■An external monitor or projector (a monitor or projector
must be plugged into the monitor port on your
notebook)
■Both displays at the same time
For more information, see “Viewing the display on a
projector or monitor” on page 69.
Play or Pause the CD or DVD.
Stop playing the CD or DVD.
![](/img.php?id=565823&img=bg24.png)
36 www.gateway.com
Chapter 3: Getting Started
Skip back one CD song or DVD track.
Skip ahead one CD song or DVD track.
Turn on Num Lock so you can use the numeric keypad.
Press this key combination again to turn off Num Lock.
The Num Lock status indicator appears when this
function is turned on.
Increase the brightness of the display.
Decrease the brightness of the display.
Mute the sound. Press the key combination again to
restore the sound. For more information, see “Adjusting
the volume” on page 48.
Increase volume. For more information, see “Adjusting
the volume” on page 48.
Decrease volume. For more information, see “Adjusting
the volume” on page 48.
Press and hold FN, then
press this system key...
To...
![](/img.php?id=565823&img=bg25.png)
37
www.gateway.com
Tablet Control Buttons
Tablet Control Buttons
Press the tablet control buttons to control the convertible tablet PC while
it is in tablet mode. The buttons have dimples so you can press them
with your pen.
Button Icon Press to...
Screen rotation Rotate the display orientation. For more information,
see “Changing display orientation” on page 44.
Windows security Open the Windows Task Manager. Also is used for
domain authentication or logon screen.
Tablet input panel Open the tablet input panel.
Screen
rotation
Table t i npu t
panel
XtraBright/
XtraDim
Windows
security
![](/img.php?id=565823&img=bg26.png)
38 www.gateway.com
Chapter 3: Getting Started
XtraBright/XtraDim Increase the LCD panel brightness above the normal
brightest setting for 255 seconds. Use this feature in
bright lighting situations, such as outside in bright
sunlight.
Press a second time to decrease the brightness
below the normal dimmest setting. Use this feature
in dim lighting situations.
Press a third time to return the display to the normal
brightness setting.
Important: Using this feature will affect battery
performance.
For more information, see “XtraBright/XtraDim” on
page 45.
Button Icon Press to...
![](/img.php?id=565823&img=bg27.png)
39
www.gateway.com
Using the EZ Pad touchpad
Using the EZ Pad touchpad
The EZ Pad™ consists of a touchpad, two buttons, and a scroll zone.
When you move your finger on the touchpad, the pointer (arrow) on the
screen moves in the same direction. You can use the scroll zone to scroll
through documents. Use of the scroll zone may vary from program to
program.
Touchpad
Left button Right button
Scroll
zone
![](/img.php?id=565823&img=bg28.png)
40 www.gateway.com
Chapter 3: Getting Started
You can use the EZ-Pad left and right buttons below the touchpad to select
objects.
Tips & Tricks For instructions on how to adjust the double-click speed,
pointer speed, right-hand or left-hand configuration, and
other touchpad settings, see “Changing the mouse or
touchpad settings” in
Using Your Computer
which has
been included on your hard drive. To access this guide,
click Start, All Programs, then click Gateway
Documentation.
To... Do this...

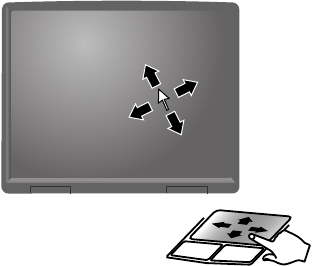

Move the pointer on
the screen.
Move your finger
around on the
touchpad. If you run
out of space and
need to move the
pointer farther, lift
your finger, move it to
the middle of the
touchpad, then
continue moving your
finger.
Select an object on
the screen.
Position the pointer
over the object.
Quickly press and
release the left
button once. This
action is called
clicking
.
Start a program or
open a file or folder.
Position the pointer
over the object.
Press the left button
twice in rapid
succession. This
action is called
double-clicking
.
![](/img.php?id=565823&img=bg29.png)
41
www.gateway.com
Using the EZ Pad touchpad
Access a shortcut
menu or find more
information about
an object on the
screen.
Position the pointer
over the object.
Quickly press and
release the right
button once. This
action is called
right-clicking
.
Move an object on
the screen.
Position the pointer
over the object.
Press the left button
and hold it down,
then use the
touchpad to move
(drag) the object to
the appropriate part
of the screen.
Release the button to
drop the object
where you want it.
Tips & Tricks You received your notebook with the EZ Pad touchpad set
to only accept clicking by using the touchpad buttons. You
can change this feature to allow tapping on the touchpad
to simulate clicking the left button. For more information,
see “Changing the mouse or touchpad settings” in
Using
Your Computer
which has been included on your hard
drive. To access this guide, click Start, All Programs, then
click Gateway Documentation.
To... Do this...
![](/img.php?id=565823&img=bg2a.png)
42 www.gateway.com
Chapter 3: Getting Started
Using the display
Your convertible tablet PC’s screen combines the eye-soothing readability
of a liquid-crystal display with the responsiveness of a pen controller. The
screen provides a hard, smooth writing surface, minimizes glare, and
increases readability.
■Unlike other touchscreens and PDAs, your convertible tablet PC’s
display responds only to your convertible tablet PC’s pen. Your
convertible tablet PC will not respond to a PDA pen or the touch of
a fingertip.
■Steady your hand on the display surface while writing. The pressure
of your hand or fingers will not affect any open programs.
■Switching from AC to battery power dims the display slightly to save
battery power.
Important If you prefer maximum brightness while on battery power,
use the XtraBright/XtraDim button. For more information,
see “Tablet Control Buttons” on page 37.
![](/img.php?id=565823&img=bg2b.png)
43
www.gateway.com
Using the display
Converting the display from notebook to
tablet mode
To convert the display from notebook mode to tablet mode:
1Open the LCD panel to the normal viewing position.
2Locate the rotation direction arrow on the LCD panel hinge.
3Rotate the LCD panel in the direction of the rotation direction arrow
until the panel is backwards. The panel soft-locks into the final
position.
Rotation direction arrow
![](/img.php?id=565823&img=bg2c.png)
44 www.gateway.com
Chapter 3: Getting Started
4Close the LCD panel onto the keyboard. There is a click when the
LCD panel latch locks.
Changing display orientation
You can change the display orientation from the default, landscape
(horizontal), to portrait (vertical) or secondary landscape (180 degrees
from the default) using the Screen Rotation button. For more
information, see “Tablet Control Buttons” on page 37.
To change display orientation:
■Press the Screen Rotation button to step through display
orientations.
To change orientation properties:
■Double-tap or double-click the Tablet and Pen Settings icon in the
taskbar, then tap or click the Display tab.
![](/img.php?id=565823&img=bg2d.png)
45
www.gateway.com
Using the display
Adjusting brightness
To adjust screen brightness:
■Use the increase brightness and decrease brightness keys on the
keyboard. For more information, see “System key combinations” on
page 35.
XtraBright/XtraDim
Use XtraBright to increase the LCD panel brightness above the normal
brightest setting for 255 seconds. Use this feature in bright lighting
situations, such as outside in bright sunlight.
Use XtraDim to decrease the brightness below the normal dimmest
setting. Use this feature in dim lighting situations.
To use XtraBright/XtraDim:
■Press the XtraBright/XtraDim button to increase the LCD panel
brightness above the normal brightest setting for 255 seconds. For
more information, see “Tablet Control Buttons” on page 37.
-OR-
■Press the XtraBright/XtraDim button a second time to decrease the
brightness below the normal dimmest setting. For more information,
see “Tablet Control Buttons” on page 37.
![](/img.php?id=565823&img=bg2e.png)
46 www.gateway.com
Chapter 3: Getting Started
Using the pen
Your convertible tablet PC’s pen is the only device that can write, tap,
and input directly on your convertible tablet PC’s display.
The pen can do everything a mouse does. Just think “tap” instead of
“click”.
Storing and removing the pen
To store the pen in your convertible tablet PC:
1Locate the pen holder on the right side of your convertible tablet PC.
For more information, see “Right” on page 12.
2Slide the pen into the holder with the pocket clip down until the
pen clicks into place.
Caution A finger-tap or PDA stylus has no effect on your convertible
tablet PC’s display, and ink pens and other pointed objects
could damage the surface. Always use the pen that came
with your convertible tablet PC. You can order extra pens
from Gateway.
Caution Do not sharply strike the display. Although the display is
durable, it can break.
With a mouse: With a pen:
Point and click Point and tap
Double-click Double-tap
Click-and-drag Tap-and-drag
Right-click Button-tap
(press the pen button while tapping or press and hold with
the pen)
![](/img.php?id=565823&img=bg2f.png)
47
www.gateway.com
Using the pen
To remove the pen from our convertible tablet PC:
1Locate the pen latch on the bottom of your convertible tablet PC.
For more information, see “Bottom” on page 14.
2Slide the pen latch until the pen is released from the pen holder.
![](/img.php?id=565823&img=bg30.png)
48 www.gateway.com
Chapter 3: Getting Started
Adjusting the volume
You can use the volume control to adjust the overall volume of your
convertible tablet PC.
To adjust the overall volume level using hardware controls:
■If you are using external speakers, turn the knob on the front of the
speakers.
-OR-
Use the mute and volume control buttons on the keyboard. For more
information, see “System key combinations” on page 35.
Tips & Tricks For instructions on how to adjust the volume in Windows,
see “Adjusting the Volume” in
Using Your Computer
which
has been included on your hard drive. To access this guide,
tap or click Start, All Programs, then tap or click Gateway
Documentation.
![](/img.php?id=565823&img=bg31.png)
49
www.gateway.com
Turning your wireless radio on or off
Turning your wireless radio on or
off
Your Gateway convertible tablet PC may have a factory-installed wireless
networking mini-PCI card.
To turn the wireless radio on or off:
■Press FN+F7.
Warning Radio frequency wireless communication can interfere
with equipment on commercial aircraft. Current aviation
regulations require wireless devices to be turned off while
traveling in an airplane. IEEE 802.11a, IEEE 802.11b, and
IEEE 802.11g communication devices are examples of
devices that provide wireless communication.
Warning In environments where the risk of interference to other
devices or services is harmful or perceived as harmful, the
option to use a wireless device may be restricted or
eliminated. Airports, hospitals, and oxygen or flammable
gas laden atmospheres are limited examples where use
of wireless devices may be restricted or eliminated. When
in environments where you are uncertain of the sanction
to use wireless devices, ask the applicable authority for
authorization prior to use or turning on the wireless device.
50 www.gateway.com
Chapter 3: Getting Started
![](/img.php?id=565823&img=bg33.png)
Chapter 4
51
Using Windows XP
Tablet PC 2005
• Using Tablet PC extensions
• Adjusting tablet and pen settings
52 www.gateway.com
Chapter 4: Using Windows XP Tablet PC 2005
Using Windows XP Tablet PC 2005
The Microsoft Windows XP Tablet PC 2005 operating system is a fully
functioning version of Windows XP Professional with added pen-based
computing features:
■Tablet and Pen Settings — set properties for the pen, tablet buttons,
and display screen
■Tablet PC Input Panel (TIP) — use its writing pad, soft keyboard, and
voice recognition for entering data

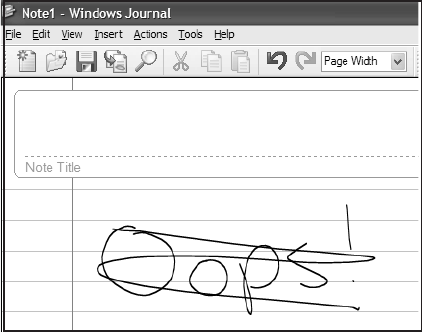

■Windows® Journal — hand-write documents, then turn them into
text or image files
■Sticky Notes — make a quick note with your pen or voice and drop
it into another program
■Document annotation — insert handwritten notes into Word
documents and other programs
■Enhanced speech and voice recognition — say what you are thinking,
and your tablet will understand
■Inkball — practice and master pen input with this game of strategy
■MicroSoft OneNote — capture, organize, and reuse your notes on
notebook computers, desktop computers, or tablet PCs.
The What’s New in Windows XP link in the Help and Support Center and
the Windows XP Start Here booklet that shipped with your tablet PC can
help you learn more about using Windows XP Tablet PC 2005.
![](/img.php?id=565823&img=bg35.png)
53
www.gateway.com
Using Tablet PC extensions
Using Tablet PC extensions
Calibration
The first time you use your convertible tablet PC, you should calibrate
your pen for both portrait and landscape orientations. Calibration
ensures the accuracy of the pen and adjusts the screen’s performance for
different users.
If the on-screen pointer does not seem to line up with the tip of the
pen—for example, because someone else has used your convertible
tablet PC and adjusted it for their own use—recalibrate it to your tapping
patterns.
Recalibrate if you write with the opposite hand from the previous
user—right-handed writer to left-handed writer.
To open the calibration program:
■Double-tap or double-click (Tablet and Pen Settings) in the taskbar.
Tap or click Properties, then tap or click Calibrate. Follow the
on-screen instructions.
Gestures
A gesture is a shape you draw with your tablet PC pen to send a command
to your convertible tablet PC. In Input Panel, you can also use gestures
to control the insertion point in the active program. When you use these
gestures, you get the same result as pressing the corresponding key on a
standard keyboard.
■Open the Tablet Input Panel by waving the pen back and forth over
the screen.
■Backspace by drawing a right-to-left line on the display surface.
■In most text input programs, you can erase text by scratching it out.
Windows interprets a scratchout as a delete command.
![](/img.php?id=565823&img=bg36.png)
54 www.gateway.com
Chapter 4: Using Windows XP Tablet PC 2005
■To erase, draw a short, wide “Z.”
■You will find more information about gestures and gesture symbols,
as well as handwriting tips, in the TIP help. For more information,
see “Tablet Input Panel (TIP)” on page 55.
Pen button
The pen button serves the same function as the right button on a mouse.
Press it and tap (button-tap) to open right-click menus when they are
available.
Tips
■Hold the pen the same way you hold a writing pen, and steady your
writing hand by resting it on the display surface.
■Line up the pointer before you tap, in cases where the pointer and
pen point are out of alignment. The screen reads the position of the
pointer, not the tap.
■Store the pen in the convertible tablet PC’s pen holder. Store extra
pens in a drawer to avoid prolonged pressure on the pen tip.
■The pen has internal electronics, so keep it dry and avoid contact
with liquids.
![](/img.php?id=565823&img=bg37.png)
55
www.gateway.com
Using Tablet PC extensions
■Your convertible tablet PC responds to most Penabled™ EMR pens
manufactured by Wacom®.
Tablet Input Panel (TIP)
Tap the Keyboard icon near the Start button to open the Tablet Input
Panel (TIP). Use the TIP to enter data by hand, soft keyboard, or voice
into a word processing program or a text-entry form.
■Access the TIP keyboard and writing pad by tapping or clicking the
tabs near the bottom of the window.
■To set up speech options, tap or click the Tools and Options icon ,
then tap or click Speech.
TIP tips
■Open a program for your input (for example, a word processing
program or a Web form) before using the writing pad or soft
keyboard.
Tools and Options
Help
![](/img.php?id=565823&img=bg38.png)
56 www.gateway.com
Chapter 4: Using Windows XP Tablet PC 2005
■To adjust writing pad and keyboard settings, tap or click the Tools
and Options icon , then tap or click Options.
■For security and accuracy when entering masked text (such as
passwords), use your convertible tablet PC Input Panel’s soft
keyboard instead of the writing pad.
Using speech recognition
The convertible tablet PC is designed to accept and interpret the human
voice, both for dictation (speech recognition) and for
keyboard-equivalent voice commands.
■Set up speech recognition through your convertible tablet PC Input
Panel’s Tools menu.
■Learn more about voice commands in the Accessibility section of
the Help and Support Center.
![](/img.php?id=565823&img=bg39.png)
57
www.gateway.com
Adjusting tablet and pen settings
■Use the built-in microphone or an external microphone.
■To modify the speech recognition function, see “Adjusting the Tablet
PC Input Panel Settings” on page 58.
Adjusting tablet and pen settings
Windows XP Tablet PC 2005 includes a control panel for adjusting pen,
display, and button preferences such as:
■Right-handed or left-handed use
■Pen calibration in portrait and landscape modes
■Button functions
■Pen actions such as double-tapping
To change tablet and pen settings:
1Tap or click the Tablet and Pen Settings icon in the taskbar, then
tap or click Properties. The Tablet and Pen Properties dialog box opens.
2Tap or click the Pen Options tab.
3Change the pen options settings, then tap or click OK.
Programming the buttons
Most of the tablet control buttons on your convertible tablet PC can be
reprogrammed with new functions.
To reprogram button functions:
1Tap or click the Tablet and Pen Settings icon in the taskbar, then
tap or click Properties. The Tablet and Pen Properties dialog box opens.
2Tap or click the Tablet Buttons tab.
![](/img.php?id=565823&img=bg3a.png)
58 www.gateway.com
Chapter 4: Using Windows XP Tablet PC 2005
3Change the button settings, then tap or click OK.
Adjusting the Tablet PC Input Panel Settings
To adjust writing pad, writing tools, and speech settings:
1Tap or click the Keyboard icon .
2Tap or click the Tools and Options icon , then tap or click Options.
3Tap or click a tab, then change the input panel settings.
![](/img.php?id=565823&img=bg3b.png)
Chapter 5
59
Using Drives and Ports
• Changing modules
• Using DVD drives
• Using the media card reader
•Using a PC Card
• Viewing the display on a monitor, projector,
or television
• Connecting a video camera to your
convertible tablet PC
![](/img.php?id=565823&img=bg3c.png)
60 www.gateway.com
Chapter 5: Using Drives and Ports
Changing modules
Your convertible tablet PC’s modular bay supports different bay modules,
such as a DVD or combination DVD/CD-RW drive.
To change bay modules:
1Make sure that the drive is empty.
2Turn off your convertible tablet PC (do not place it in Standby or
Hibernate mode).
3Close the LCD panel.
4Disconnect your convertible tablet PC from the optional port
replicator (see “Disconnecting from the port replicator” on
page 110).
Modular bay
lock screw
Modular
bay latch
61
www.gateway.com
Changing modules
5Turn your convertible tablet PC over so the bottom is facing up.
6Remove the module bay lock screw.
7Slide and hold the module bay latch. The module may move out
slightly.
8Slide the module out.
Screw
![](/img.php?id=565823&img=bg3e.png)
62 www.gateway.com
Chapter 5: Using Drives and Ports
9Firmly push the new module straight into the bay until the latch
clicks into place.
10 Replace the module bay lock screw.
Using the DVD drive
You can use your convertible tablet PC to enjoy a wide variety of
multimedia features.
Identifying drive types
Your Gateway convertible tablet PC may contain one of the following
drive types. Look on the front of the drive for one or more of the
following logos:
Important Some music CDs have copy protection software. You may
not be able to play these CDs on your convertible tablet PC.
If your drive has this logo... This is your drive type... Use your drive for...
DVD drive Installing programs,
playing audio CDs,
playing DVDs, and
accessing data. You
cannot use this drive to
create CDs or DVDs.
Combination
DVD/CD-RW drive
Installing programs,
playing audio CDs,
playing DVDs, accessing
data, and recording music
and data to recordable
CDs. You cannot use this
drive to create DVDs.
![](/img.php?id=565823&img=bg3f.png)
63
www.gateway.com
Using the DVD drive
Inserting a CD or DVD
To insert a CD or DVD:
1Press the eject button on the DVD drive. After the tray opens slightly,
pull the disc tray completely open.
2Place the disc in the tray with the label facing up, then press down
carefully on the disc until it snaps into place.
3Push the tray in until it is closed.
Important When you place a single-sided disc in the tray, make sure
that the label side is facing up. If the disc has two playable
sides, place the disc so the name of the side you want to
play is facing up.
Activity indicator
Manual eject hole
Eject button
![](/img.php?id=565823&img=bg40.png)
64 www.gateway.com
Chapter 5: Using Drives and Ports
Playing a CD
Use a music program or Windows Media Player on your convertible tablet
PC to:
■Play music CDs
■Create MP3 and WMA music files from your music CDs
■Edit music track information
■Use your music files to build a music library
Playing a DVD
A Digital Versatile Disc (DVD) is similar to a standard CD but has greater
data capacity. Because of this increased capacity, full-length movies,
several albums of music, or several gigabytes of data can fit on a single
disc. You can play DVDs with a DVD program or Windows Media Player.
Creating CDs
You can use a CD burning program, Windows XP, Windows Media Player,
or Windows Movie Maker to copy or create data CDs, create music CDs,
create video CDs, and more.
Tips & Tricks For more information about playing CDs, see “Using
Windows Media Player” in
Using Your Computer
which has
been included on your hard drive. To access this guide, tap
or click Start, All Programs, then tap or click Gateway
Documentation.
Tips & Tricks For more information about playing DVDs, see “Using
Windows Media Player” and “Using CyberLink PowerDVD”
in
Using Your Computer
which has been included on your
hard drive. To access this guide, tap or click Start,
All Programs, then tap or click Gateway Documentation.
![](/img.php?id=565823&img=bg41.png)
65
www.gateway.com
Using the memory card reader
Using the memory card reader
You can use memory cards to transfer pictures from a digital camera to
your convertible tablet PC. You can also use the memory card reader to
transfer data between your convertible tablet PC and a device that uses
memory cards, such as a PDA, MP3 player, or cellular telephone.
Memory card types
The memory card reader supports Memory Stick®, Memory Stick Pro®,
MultiMediaCard™, and Secure Digital™.
Inserting a memory card
To insert a memory card:
■Insert the memory card into the memory card slot with the label
facing up and the arrow on the label pointing towards the
convertible tablet PC.
Tips & Tricks For more information about creating CDs, see “Using
Windows Media Player”, “Using Nero Express”, and
“Editing videos” in
Using Your Computer
which has been
included on your hard drive. To access this guide, tap or
click Start, All Programs, then tap or click Gateway
Documentation.
![](/img.php?id=565823&img=bg42.png)
66 www.gateway.com
Chapter 5: Using Drives and Ports
Using a memory card
To access a file on a memory card:
1Tap or click Start, then tap or click My Computer.
2Double-tap or double-click the drive letter (for example, the E: drive),
then double-tap or double-click the file name.
Removing a memory card
Important Insert the SmartMedia card with the label facing down.
Your convertible tablet PC only accepts 3.3V SmartMedia
cards.
Important Do not use the remove hardware icon in the taskbar
to remove the memory card. If you use the remove
hardware icon, your convertible tablet PC may not
recognize your memory card reader until you restart your
convertible tablet PC.
![](/img.php?id=565823&img=bg43.png)
67
www.gateway.com
Adding and removing a PC Card
To remove a memory card:
1Push the memory card into the convertible tablet PC. The memory
card pops out slightly.
2Pull the memory card out of the convertible tablet PC.
3Insert the protector into the memory card slot.
Adding and removing a PC Card
Your convertible tablet PC has a PC Card slot (also known as a PCMCIA
card slot). This slot accepts one Type II card. You do not need to restart
your convertible tablet PC when changing most cards because your
convertible tablet PC supports hot-swapping. Hot-swapping means that
you can insert a PC Card while your convertible tablet PC is running. If
your PC Card does not work after hot-swapping, see the PC Card
manufacturer’s documentation for further information.
![](/img.php?id=565823&img=bg44.png)
68 www.gateway.com
Chapter 5: Using Drives and Ports
To insert a PC Card:
■Push the card firmly into the PC Card slot label-side up until the
outer edge of the card is flush with the side of your convertible tablet
PC.
To remove a PC Card:
1Tap or click the remove hardware icon in the taskbar, the PC Card
name, then tap or click Stop.
-OR-
Turn off your convertible tablet PC.
2Release the eject button by pressing the PC Card eject button once.
Important If the remove hardware icon does not appear on the
taskbar, tap or click the show hidden icons button.
![](/img.php?id=565823&img=bg45.png)
69
www.gateway.com
Viewing the display on a projector or monitor
3Eject the PC Card by pressing the eject button again.
Viewing the display on a
projector or monitor
You can use your convertible tablet PC for giving presentations by
connecting an external monitor or projector to your monitor (VGA) port.
Your convertible tablet PC supports simultaneous LCD and CRT display.
Simultaneous display lets you control the presentation from your
convertible tablet PC and at the same time face your audience.
To use a projector or external monitor:
1Turn off your convertible tablet PC.
2Plug the projector or monitor cable into the VGA port on your
convertible tablet PC or optional port replicator. For the location of
the VGA port, see “Left” on page 11 and “Back” on page 106.
3Turn on your convertible tablet PC.
![](/img.php?id=565823&img=bg46.png)
70 www.gateway.com
Chapter 5: Using Drives and Ports
4Plug the projector’s or monitor’s power cord into an AC power source
and turn it on. Windows recognizes the new hardware and searches
for its driver. You may need to install the driver from the disc
supplied by the manufacturer or download the driver from the
manufacturer’s Web site.
5After the driver is installed, button-tap or right-click any empty space
on the desktop, then tap or click Properties. The Display Properties
dialog box opens.
6Tap or click the Settings tab.
7Button-tap or right-click the second monitor icon (labeled 2), then
tap or click Attached.
8Tap or click Apply.
9Adjust properties such as Screen Resolution or Color Quality if
necessary.
10 Tap or click OK.
![](/img.php?id=565823&img=bg47.png)
71
www.gateway.com
Viewing the display on a television
Viewing the display on a
television
The S-Video out jack on your optional port replicator lets you view your
convertible tablet PC display on a television screen using a standard
S-Video cable.
To view your convertible tablet PC display on a television:
1With your convertible tablet PC off, connect one end of a standard
S-Video cable to the S-Video out jack on your port replicator. For the
location of the S-Video out jack, see “Back” on page 106.
2Connect the other end of the cable to the Video in jack on your
television or VCR.
3Turn on the television or VCR.
4Start your convertible tablet PC.
Important Press FN+F3 to switch between viewing the display on the
LCD panel and viewing the display on the projector or
monitor.
Important If an external monitor or projector is connected and you
close the LCD panel, your convertible tablet PC may turn
off the LCD panel, but will not enter Standby mode.
Important To turn on external video by default, connect the television
(or other external video device) before starting your
convertible tablet PC.
Important Audio is not transmitted through the S-Video out jack. Use
the built-in speakers or a set of headphones or external
powered speakers, or connect your convertible tablet PC
to a stereo system using the headphone jack to hear sound
while playing a DVD. DVD playback to a VCR will be
scrambled by copyright protection software.
72 www.gateway.com
Chapter 5: Using Drives and Ports
5Tap or click Start, then tap or click Control Panel. The Control Panel
window opens. If your Control Panel is in Category View, tap or click
Appearance and Themes.
6Tap/Double-tap or click/double-click the Display icon. The Display
Properties dialog box opens.
7Tap or click the Settings tab.
8Tap or click Advanced. The Multiple Monitors and Intel Properties dialog
box opens.
9Tap or click the Intel Extreme Graphics tab.
10 Tap or click the Graphics Properties button. The Intel Graphics
Controller Properties dialog box opens.
![](/img.php?id=565823&img=bg49.png)
73
www.gateway.com
Viewing the display on a television
11 Tap or click the Television button.
12 Tap or click Apply.
Changing from one display to another
After you have set up the second display on your convertible tablet PC
to be a television, you can quickly switch between viewing the display
on the LCD panel and viewing it on the television.
Important If you are traveling internationally, you may need to change
the video standard. For example, many televisions in Asia
use PAL instead of NTSC.
To... Press
Change the display from the LCD panel to the television CTRL+ALT+F2
Change the display from the television to the LCD panel CTRL+ALT+F3
![](/img.php?id=565823&img=bg4a.png)
74 www.gateway.com
Chapter 5: Using Drives and Ports
Connecting a video camera to
your convertible tablet PC
Your convertible tablet PC has a 4-pin IEEE 1394 port (also known as a
Firewire® or i.Link® port) for connecting devices such as a video camera.
To connect your video camera to your convertible tablet PC:
1Connect one end of the IEEE 1394 cable to your video camera. For
the location of the IEEE 1394 port, see “Left” on page 11.
2Connect the other end of the cable to the IEEE 1394 port on
the side of your convertible tablet PC.
Important For more information about using the IEEE 1394 port on
your video camera, see your camera’s documentation.
Tips & Tricks For more information about editing video, see “Editing
videos” in
Using Your Computer
which has been included
on your hard drive. To access this guide, tap or click Start,
All Programs, then tap or click Gateway Documentation.
![](/img.php?id=565823&img=bg4b.png)
Chapter 6
75
Managing Power
• Checking and recharging the battery
• Recalibrating the battery
• Changing batteries
• Extending the life of the battery
![](/img.php?id=565823&img=bg4c.png)
76 www.gateway.com
Chapter 6: Managing Power
Monitoring the battery charge
Your new Gateway convertible tablet PC is designed to provide an
exceptional balance of performance and portability. Your convertible
tablet PC uses the latest chipset and mobile processor technologies to
manage the processor speed and power consumption for a greater battery
life experience. This design provides you with maximum performance
when plugged into AC power balanced with optimized battery life when
on battery power.
Closely monitor the battery charge. When the battery charge gets low,
change the battery or connect to AC power immediately to prevent losing
any unsaved work. To monitor the battery charge:
■Double-tap or double-click the power cord icon or battery icon
in the taskbar. The Power Meter dialog box opens.
■Pressing FN+STATUS to view the power status box, which opens in
the upper-left corner of the screen. The power status box shows the
current power source, the battery charge level, and the power
management mode.
■Look at the battery charge indicator (see “Status indicators” on
page 31):
■LED blue - battery is fully charged.
■LED purple - battery is charging.
■LED blinking red - battery charge is very low.
■LED solid red - battery is malfunctioning.
■Wait for a Low Battery warning message to appear.
Important If the power cord or battery icon does not appear on the
taskbar, tap or click the show hidden icons button. If
the icon still does not appear, make sure that Always
show icon on the taskbar is checked on the Advance tab
in the
Power Options Properties
dialog box.
For more information, see “Changing advanced settings”
in
Using Your Computer
which has been included on your
hard drive. To access this guide, tap or click Start,
All Programs, then tap or click Gateway Documentation.
![](/img.php?id=565823&img=bg4d.png)
77
www.gateway.com
Recharging the battery
If your battery charge indicator displays what looks like an inaccurate
charge, you may need to recalibrate the battery. For more information,
see “Recalibrating the battery” on page 77.
Recharging the battery
The battery recharges while it is installed and your convertible tablet PC
is connected to AC power. While the battery recharges, the battery charge
indicator turns on and the power cord icon in the taskbar has a lightning
bolt .
Recalibrating the battery
If your convertible tablet PC unexpectedly goes into Standby mode while
you are using it but the battery charge is not low, you may need to
recalibrate your battery. You should also recalibrate the battery
periodically to maintain the accuracy of the battery gauge.
To recalibrate the battery:
1Connect the AC adapter, then turn on your convertible tablet PC.
2As soon as your convertible tablet PC starts and you see a startup
screen, press F2. The BIOS Setup utility opens.
3Open the Advanced menu.
4Highlight Battery Auto Learning, then select Enabled by pressing the
spacebar.
Important If the power cord or battery icon does not appear on the
taskbar, tap or click the show hidden icons button. If
the icon still does not appear, make sure that Always
show icon on the taskbar is checked on the Advance tab
in the
Power Options Properties
dialog box.
For more information, see “Changing notebook power
settings” in
Using Your Computer
which has been included
on your hard drive. To access this guide, tap or click Start,
All Programs, then tap or click Gateway Documentation.
![](/img.php?id=565823&img=bg4e.png)
78 www.gateway.com
Chapter 6: Managing Power
5Open the Exit menu, then highlight Exit Saving Changes and press
ENTER.
6Select Yes, then press ENTER.
The battery recalibration process begins and a screen opens showing
you the progress. The entire process will take several hours.
When the recalibration has finished, the message “Press [Esc] key to
exit” appears.
7Press ESC. The battery charge indicator now displays an accurate
battery charge. If the battery charge indicator does not show an
accurate charge, contact Gateway Customer Care.
Changing batteries
If your convertible tablet PC is connected to AC power, you can change
the battery while your convertible tablet PC is turned on. If your
convertible tablet PC is not plugged into an AC outlet, you must turn
your convertible tablet PC off while changing the battery.
Important Do not interrupt the battery recalibration process. If
recalibration is interrupted, you must start the process over
again.
Warning Danger of explosion if battery is incorrectly replaced.
Replace only with a battery specifically manufactured for
your Gateway convertible tablet PC. Discard used batteries
according to local hazardous material regulations.
The battery used in this device may present a fire or
chemical burn hazard if mishandled. Do not disassemble,
heat above 212°F (100°C), or incinerate. Dispose of used
battery promptly. Keep away from children.
![](/img.php?id=565823&img=bg4f.png)
79
www.gateway.com
Changing batteries
To change the battery:
1Disconnect your convertible tablet PC from the optional port
replicator (see “Disconnecting from the port replicator” on
page 110).
2If your convertible tablet PC is on and is connected to AC power,
go to Step 3.
-OR-
If your convertible tablet PC is on and is not plugged into an AC
outlet, save your work and turn off your convertible tablet PC.
3Close the LCD panel.
4Turn your convertible tablet PC over so the bottom is facing up.
Battery lock
Battery latch Battery
80 www.gateway.com
Chapter 6: Managing Power
5Slide the battery lock to the unlocked position, then slide the battery
release latch.
6Lift the battery out of the bay.
7Place a recharged battery into the bay and press down until it snaps
into place.
8Slide the battery lock to the locked position.
9Turn your convertible tablet PC over.
![](/img.php?id=565823&img=bg51.png)
81
www.gateway.com
Extending battery life
10 Open the LCD panel and press the power button.
Extending battery life
Conserving battery power
To conserve power while using the battery to power your convertible
tablet PC:
■Dim the display as low as is comfortable. For dim or dark
environments, use the XtraBright/XtraDim button to set your
display to the dimmest setting possible.
■Remove PC Cards when you do not need them. Many PC Cards use
a small amount of power while inserted, even if they are not being
used.
■Modify the power management settings for maximum power
savings.
■Close the LCD panel to turn off the display while you are not using
your convertible tablet PC. The display stays off until you open the
panel again.
■Use Hibernate mode for maximum power savings while your
convertible tablet PC is not in use.
Tips & Tricks For more information about using power management
settings, see “Changing Power-Saving Settings” in
Using
Your Computer
which has been included on your hard
drive. To access this guide, tap or click Start,
All Programs, then tap or click Gateway Documentation.
Tips & Tricks For more information about using Hibernate mode, see
“Changing notebook power settings” in
Using Your
Computer
which has been included on your hard drive. To
access this guide, tap or click Start, All Programs, then
tap or click Gateway Documentation.
![](/img.php?id=565823&img=bg52.png)
82 www.gateway.com
Chapter 6: Managing Power
■Use the DVD drive only when necessary. This drive uses a large
amount of power.
■Recharge the battery often, take an extra battery, and fully recharge
the batteries before traveling. For more information, see “Recharging
the battery” on page 77 and “Changing batteries” on page 78.
■Turning off the Power on Lid Lift feature. For more information, see
“Turning on the Power on Lid Lift feature” on page 28.
Using alternate power sources
To extend battery life, use alternate power sources whenever possible.
■If traveling internationally, take electrical adapters. Save the battery
for times when you cannot use a power adapter. If you plan on taking
your AC power adapter, also take a single-plug surge protector.
■If you will have access to an EmPower™ in-flight power receptacle,
an automobile power outlet, or an automobile cigarette lighter, use
a power inverter. Save the battery for times when you cannot use a
power adapter.
■To find AC power outlets in airports, look for them next to support
pillars, in large areas such as boarding gates, and under banks of
telephones.
Changing power modes
You can use the following power modes to lengthen the life of your
convertible tablet PC’s battery:
■Standby - while your convertible tablet PC is in Standby, it switches
to a low power state where devices, such as the display and drives,
turn off.
Tips & Tricks For more information about traveling with your convertible
tablet PC, see “Traveling with your notebook” in
Using Your
Computer
which has been included on your hard drive. To
access this guide, tap or click Start, All Programs, then
tap or click Gateway Documentation.
![](/img.php?id=565823&img=bg53.png)
83
www.gateway.com
Extending battery life
■Hibernate - (also called save to disk) writes all current memory (RAM)
information to the hard drive, then turns your convertible tablet PC
completely off. The next time you turn on your convertible tablet
PC, it reads the memory information from the hard drive and opens
the programs and documents that were open when you activated
Hibernate mode.
Using power saving modes
Always save your work before using Standby mode. In Standby mode,
your convertible tablet PC reduces or turns off the power to most devices
except memory. However, the information in memory is not saved to the
hard drive. If power is interrupted, the information is lost.
When in Hibernate mode, your convertible tablet PC saves all memory
information to the hard drive, then turns the power completely off.
If your convertible
tablet PC is...
...and you want to... ...then
On Enter Standby mode Press FN+F4.
On Enter Hibernate
mode (must be
activated)
Tap or click Start, then tap or click
Turn Off Computer. Press and hold
SHIFT, then tap or click Hibernate.
In Standby or
Hibernate mode
Exit Standby or
Hibernate mode
Press the power button.
84 www.gateway.com
Chapter 6: Managing Power
