Users Manual

1



VRCONTROLLERMANUAL



VRCONTROLLERREQUIREMENTS

VRCONTROLLERproperoperationrequires:

‐ WindowsMixedRealitycompatiblePC

‐ WindowsMixedRealitycompatibleHeadMountedDisplay(HMD)

‐ Windows10creatorsupdatesoftwarerelease



VRCONTROLLERLAYOUT



2

FIRSTRUNEXPERIENCE

CONNECTINGYOURCONTROLLER

Thefirstrunexperiencewillguidetheuserthroughpoweringonandconnectingthecontroller.It’salso

possibletopoweronandconnectthecontrollerthroughthenativeBluetoothpageinWindows

Settings.

BEFORESETUP

Beforepairing,youwillneed:

 TwoVRCONTROLLERs.

 Batteriesforthecontrollers.EachcontrollertakestwoAAbatteries.

 ABluetoothdongle(ifyourmachinedoesn'tsupportBluetooth).

PAIRINGYOURCONTROLLERSFORTHEFIRSTTIME

1. Chooseoneofthecontrollerstopair.We'llrunthroughthisprocessforeachcontroller.

2. TurnthecontrolleronbypressingtheWindowsbuttonfor2seconds.YoushouldseetheLEDs

ontheconstellationflashanddevicevibrate,indicatingthatthedeviceison.

3. GotoSettings‐>Devices‐>Bluetoothandotherdevices.

4. Removeoldcontrollers,ifnecessary.Ifyou'vealreadypairedadifferentcontrollerinthepast,

removeitbyclickingonthecontrollerthatappearsinthepanelandchoosing'RemoveDevice'.



5. PairingYourDevice

3

1. ClickAddBluetoothorotherdeviceontheSettingsmenu.



2. ChooseBluetooth

3. Removethebatterycover.

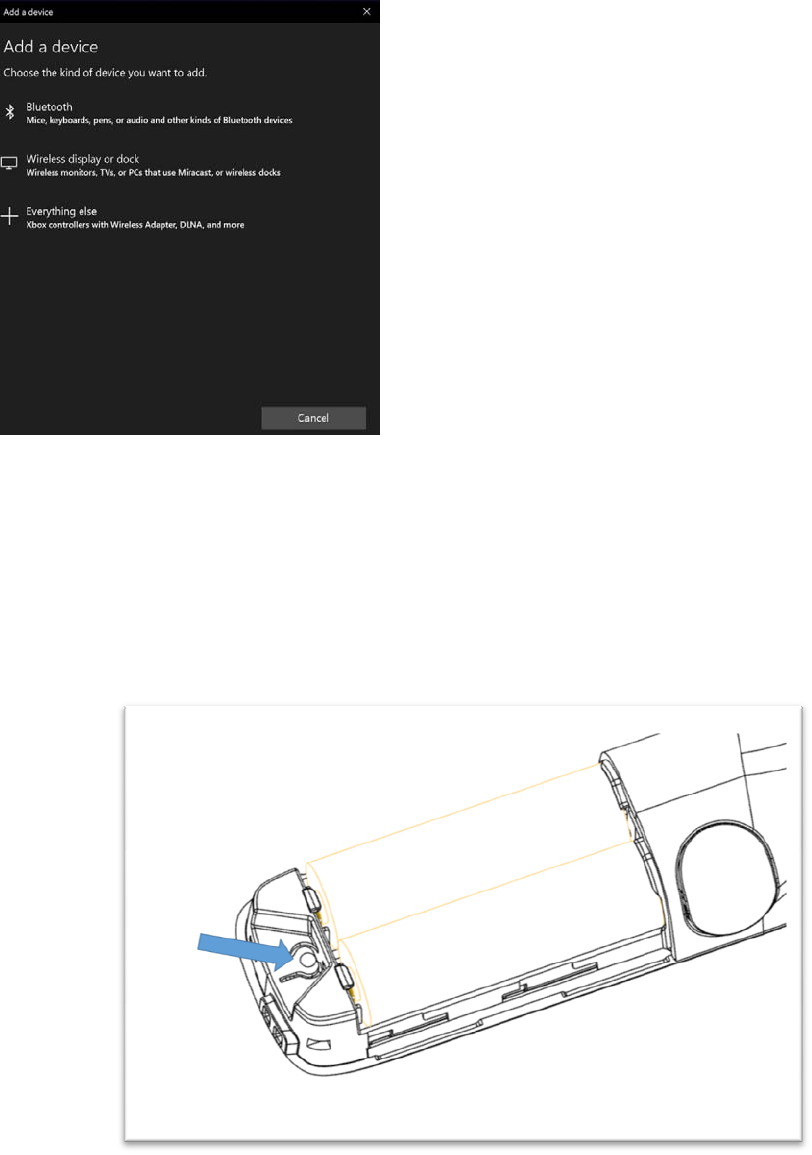

4. Presspairingbuttonmorethan3secondsononedevice.

 Thepairingbuttonislocatedunderneaththebatterydoornexttothebatteries.



4



5. DeviceLEDconstellationwillblink,indicatingthatdeviceisinpairingmode.Deviceis

onpairingmode60secondsatthetime.

6. Youshouldsee"VRCONTROLLER‐Left"or"VRCONTROLLER‐Right"appearinthe

Bluetoothmenu.

7. Select"Connect",devicewillmakesinglevibratewhenconnected.WindowsBluetooth

settingsshouldindicatestateas'Connected'.

8. Replacethebatterycover.

9. RepeatthesestepstopairtheotherVRCONTROLLER.

DevicecanbebondedwithsinglehostPCatthetime.

Youcanun‐pairdevicebyremovingcontrollerfromWindowsBluetoothsettingorsettingthedevice

againintopairingmode.



RECONNECTINGAFTERFIRSTPAIRING

 Afterdevicehasbeensuccessfullypairedwithhost,itwillreconnectnexttimewhenpowered

on.

POWERINGOFFCONTROLLER

 PressWindowsbuttonfor4secondstopoweroffthecontroller.Thedevicewillvibratetwice

andtheLEDswillturnoff.

 Ifdeviceisnottrackedoritismotionless30seconds,controllerwillmovetolowpowerstateto

savepower,pickingupcontrollerorpressingbuttonwillwakeupthedevice.

 Yourdevicewillalsoautomaticallypoweroffiftherehasnotbeenmotionfor10minutes.

DEVICEINDICATORS

VRCONTROLLERusesLEDconstellationringandhapticsforindicatingaboutitsstate.

ActivityTriggerIndication

Poweron/off



Windowsbuttonpress



LEDgoeson/offanddevicevibrates2times



Idle



ControllernottrackedbyHMDor



motionlessfor30seconds

Light



blinkslowlyevery3secondstoindicate



thedeviceisinidlemode

Pairing



Pairingbuttonpress



Lightsslowlypulsewhenthedeviceisin



pairingmode

Connect/Disconnect



Controllerconnectedordisconnected



to/fromhostPC

Devicevibratesonce



Low



BatteryLevelDuringpoweronwhenbatterylevel



is"Low"

Lightsblinktwicewhenthedeviceisturned



on

5

CriticalBatteryLevelDuringpoweronwhenbatterylevel



is"Critical"

Lightwillblinkthreetimeswhenturnedonif



thebatteryiscriticallylow.Itwillthenturn

offbyitself.

DeviceUpdate



Whenfirmwareupdatestarted



LEDconstellationhascircularblinking



pattern



DEVICERECOVERY

Ifthecontrollerisn’tworkingcorrectlyandyou’reunabletoupdatethedevice,youcanalwaysrestore

thedevicetofactoryconditions.ToRecoveryourdevice:

1. Poweroffdevice

2. Openbatterycover(Ensureyouhavegoodbatterieswhenperformingdevicerecovery)

3. Presspairingbutton

4. Keepthepairingbuttonpressedandpoweronthedevicebypressinghome/Windowsbutton

for4seconds

5. Releasebothbuttonsandletthedevicepoweron,It’sokifittakesafewsecondsforittoturn

on(thereisnoindicationduringdevicerecoveryprocess)

6. Oncetherecoveryiscomplete,you’llneedtopairthecontrollertoyourPCagain

7. AfterconnectingwithhostandHMDdevicewillupdatefirmwaretolatestavailable



UPDATINGDEVICEFIRMWARE



VRCONTROLLERfirmwarewillbeupdatedautomaticallywhenthereisnewfirmwareavailable

throughWindowsUpdateservice.



FirmwareupdatewillhappenimmediatelyafterestablishingconnectionwithHMDandcontroller

cannotbeusedduringtheupdate.Updatedurationdependsonnewfirmwaretobeprogrammedandis

indicatedbyilluminatingLEDconstellationincircularblinkingpattern.



Afterupdateiscompleteddevicere‐connectstohostPCandisreadytouse.



6



FederalCommunicationCommissionInterferenceStatement

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,may

causeharmfulinterferencetoradiocommunications.

However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthis

equipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedetermined

byturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneof

thefollowingmeasures:

‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser'sauthoritytooperatethisequipment.

RadiationExposureStatement:

TheproductcomplywiththeFCCportableRFexposurelimitsetforthforanuncontrolledenvironment

andaresafeforintendedoperationasdescribedinthismanual.ThisTransmittermustnotbeco‐

locatedoroperatinginconjunctionwithanyotherantennaortransmitter.



7

IndustryCanadastatement

 ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).Operationissubject

tothefollowingtwoconditions:

1) thisdevicemaynotcauseinterference,and

2) thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesired

operationofthedevice.

 LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradio

exemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:

1) l'appareilnedoitpasproduiredebrouillage,et

2) l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesile

brouillageestsusceptibled'encompromettrelefonctionnement.



 ThisClassBdigitalapparatuscomplieswithCanadianICES‐003.

 CetappareilnumériquedelaclasseBestconformeàlanormeNMB‐003duCanada.



 ThisdevicecomplieswithRSS‐310ofIndustryCanada.Operationissubjecttotheconditionthat

thisdevicedoesnotcauseharmfulinterference.

 CetappareilestconformeàlanormeRSS‐310d'IndustrieCanada.L'opérationestsoumiseàla

conditionquecetappareilneprovoqueaucuneinterférencenuisible.



 Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperatinginconjunctionwithanyother

antennaortransmitter,excepttestedbuilt‐inradios.

 Cetappareiletsonantennenedoiventpasêtresituésoufonctionnerenconjonctionavecune

autreantenneouunautreémetteur,exceptionfaitesdesradiosintégréesquiontététestées.



 TheCountyCodeSelectionfeatureisdisabledforproductsmarketedintheUS/Canada.

 Lafonctiondesélectiondel'indicatifdupaysestdésactivéepourlesproduitscommercialisésaux

États‐UnisetauCanada.



8



Battery

Thisproductusenon‐chargeableAAbattery2pcspercontroller.

"Useonlybatterieslistedintheuser‐instructions".





9



DeclarationofConformity

Hereby,QuantaComputerInc.declaresthattheradioequipmenttypeVRC100‐L,VRC100‐Risin

compliancewith,

EMCDDirective:2014/30/EU

‐EN300328V2.1.1:2016‐11

REDDirective2014/53/EU

‐EN301489‐1V2.2.02017‐03(draft)

‐EN301489‐17V3.2.02017‐03(draft)

‐EN55032:2015+AC:2016‐07

‐EN61000‐4‐2:2009

‐EN61000‐4‐3:2006+A1:2008+A2:2010

LVDDirective2014/35/EU

‐EN60950‐1:2006/A11:2009/A1:2010/A12:2011/A2:2013



YeartobeginaffixingCEmarking2017.



Radio Type / Description Transmitter Frequency

(MHz) Maximum Output Power

Bluetooth BR + EDR 2402 ~ 2480 5.5 dBm


