W30T User Manual HTML Version

User Manual

User's Manual

Satellite W30t-A/W30Dt-A

Satellite Click

Toshiba Click

series

Table of Contents

Chapter 1 TOSHIBA Legal, Regulatory and Safety

Regulatory Information ......................................................................... 1-2

Video Standard Notice .......................................................................... 1-7

OpenSSL Toolkit License Issues ......................................................... 1-7

ENERGY STAR® Program .................................................................. 1-10

Disposing of the computer and the computer's batteries ............... 1-11

General Precautions ........................................................................... 1-11

Safety Icons ......................................................................................... 1-13

Chapter 2 Getting Started

Equipment checklist ............................................................................. 2-1

Dual operating mode ............................................................................. 2-1

Conventions ........................................................................................... 2-1

Using your computer for the first time ................................................ 2-2

Turning off the power .......................................................................... 2-11

Chapter 3 The Grand Tour

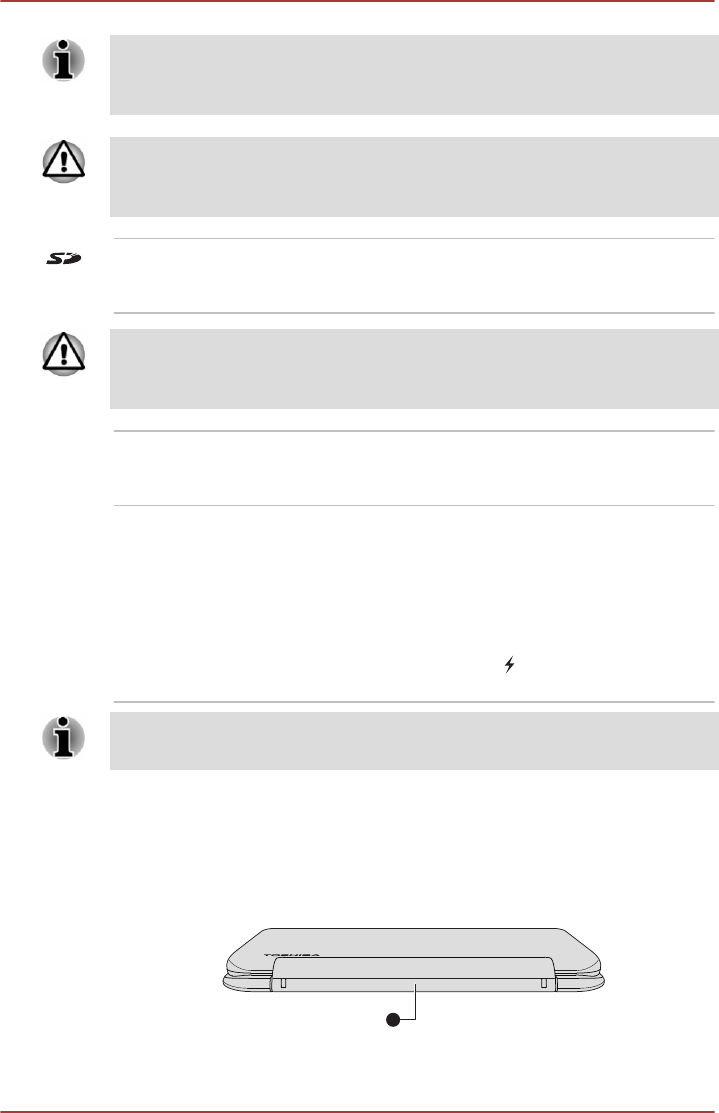

Front with the display closed ............................................................... 3-1

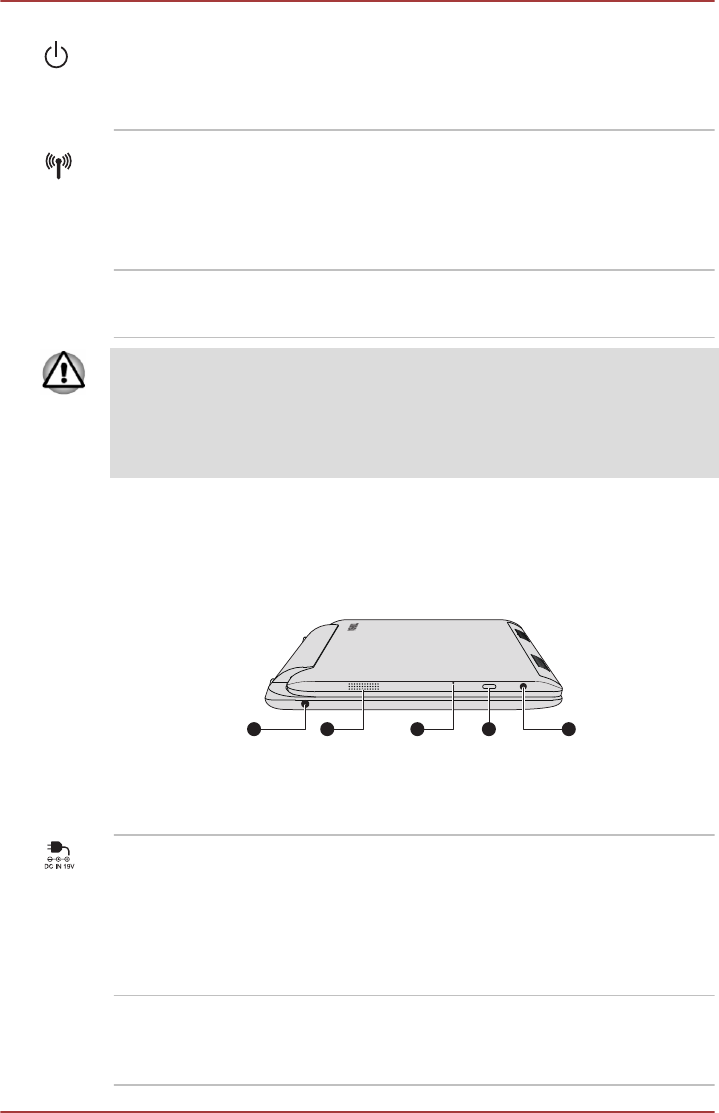

Left side .................................................................................................. 3-2

Right side ............................................................................................... 3-3

Back ........................................................................................................ 3-4

Underside ............................................................................................... 3-5

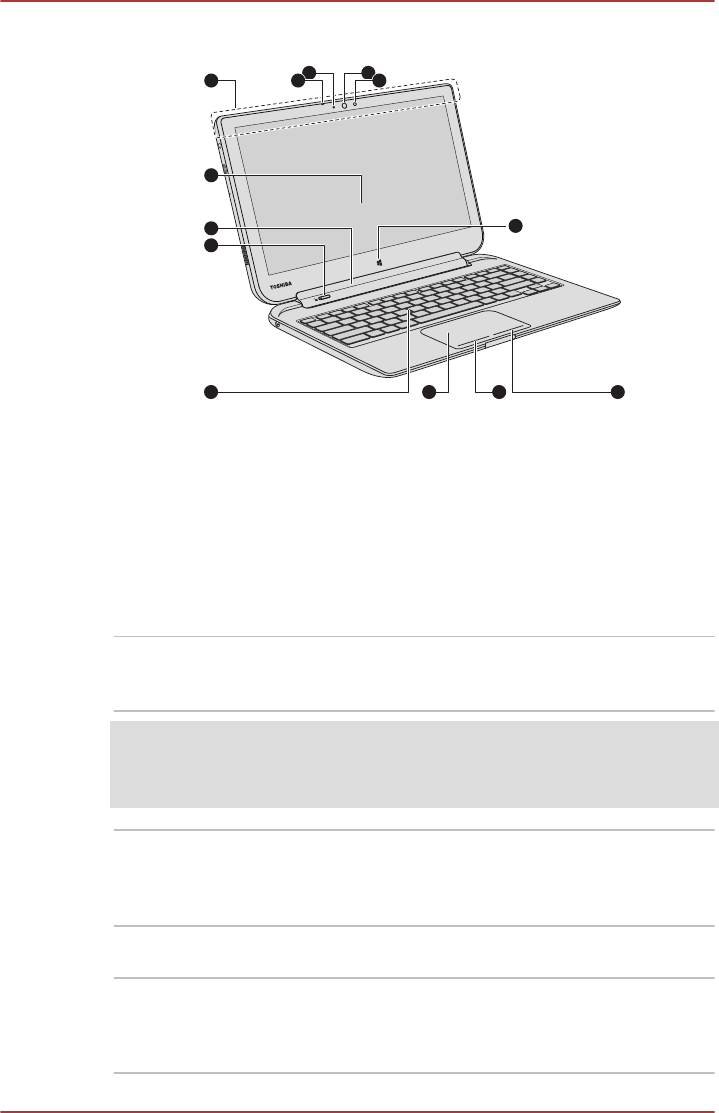

Front with the display open .................................................................. 3-5

Internal Hardware Components ........................................................... 3-8

Power Condition Descriptions ........................................................... 3-10

Chapter 4 Operating Basics

Operating in Tablet Mode ..................................................................... 4-1

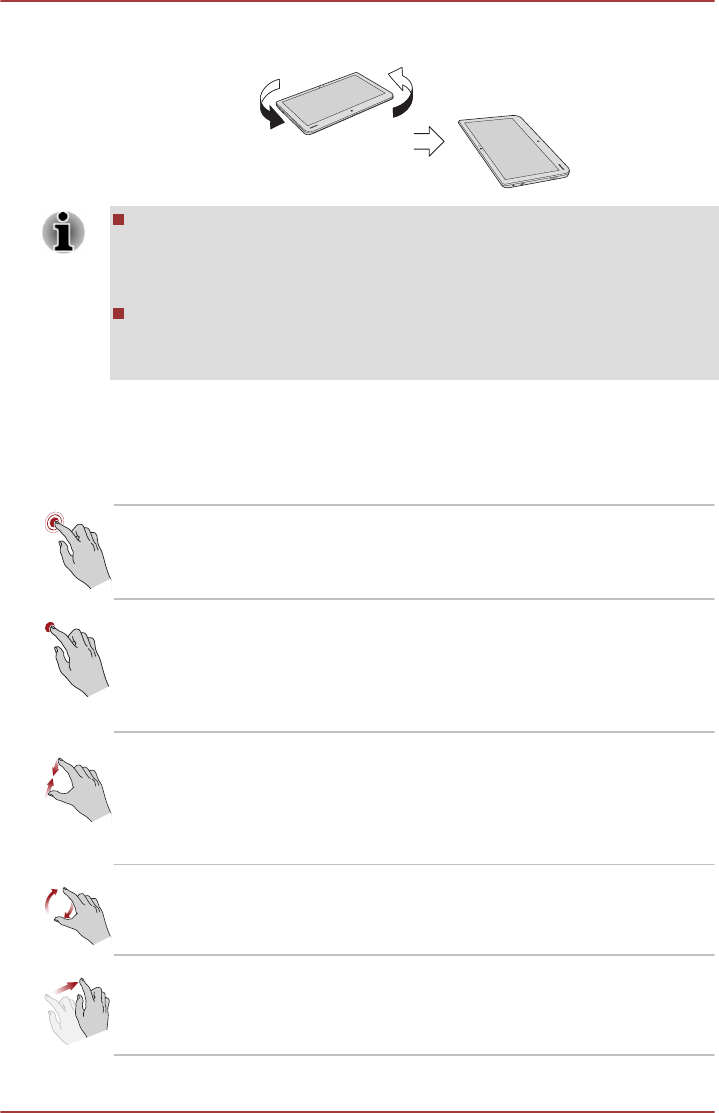

Using the Touch Screen ....................................................................... 4-2

Using the Touch Pad ............................................................................. 4-3

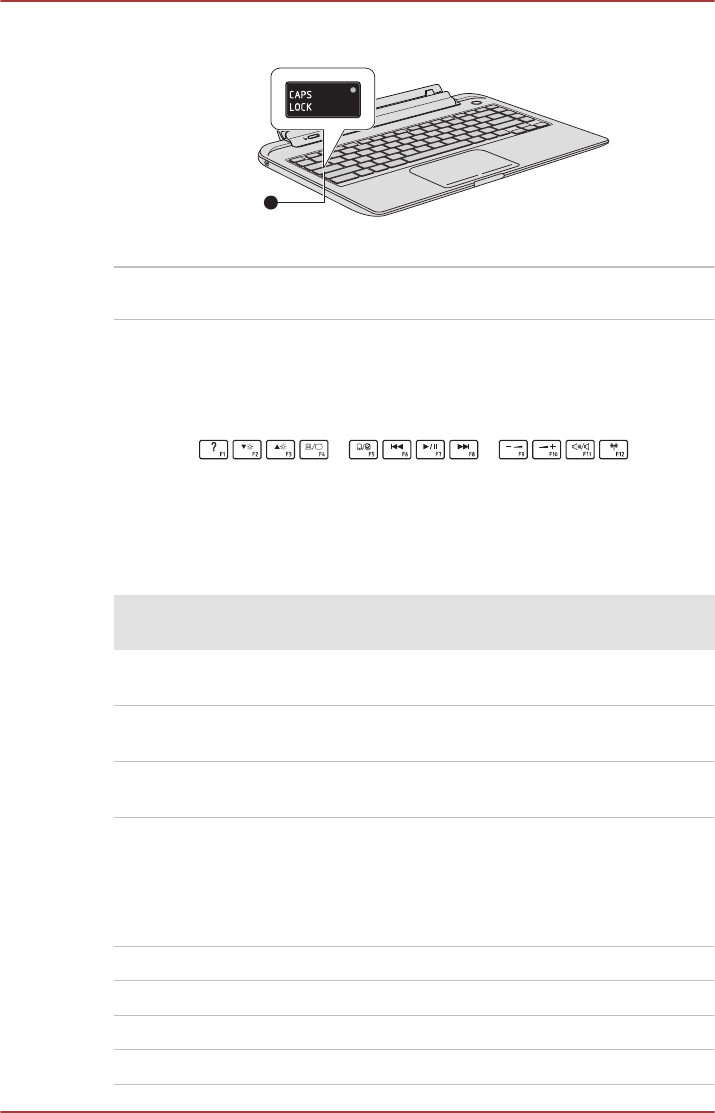

The Keyboard ......................................................................................... 4-4

Battery .................................................................................................... 4-7

Memory media ..................................................................................... 4-11

External display ................................................................................... 4-14

Optional TOSHIBA Accessories ........................................................ 4-16

Sound System and Video mode ......................................................... 4-16

User's Manual ii

Chapter 5 Utilities and Advanced Usage

Utilities and Applications ...................................................................... 5-1

Special features ..................................................................................... 5-4

TOSHIBA Password Utility ................................................................... 5-6

TOSHIBA System Settings ................................................................... 5-8

TOSHIBA Media Player by sMedio TrueLink+ .................................... 5-9

TOSHIBA PC Health Monitor .............................................................. 5-11

TOSHIBA Setup Utility ........................................................................ 5-12

USB Charge .......................................................................................... 5-13

System Recovery ................................................................................ 5-15

Chapter 6 Troubleshooting

Problem solving process ...................................................................... 6-1

Hardware and system checklist ........................................................... 6-4

TOSHIBA support ................................................................................ 6-13

Chapter 7 Appendix

Specifications ........................................................................................ 7-1

AC Power Cord and Connectors .......................................................... 7-2

Information for Wireless Devices ........................................................ 7-3

Legal Footnotes ................................................................................... 7-12

Glossary ............................................................................................... 7-14

Index

User's Manual iii

User's Manual iv

Chapter 1

TOSHIBA Legal, Regulatory and

Safety

This chapter states the Legal, regulatory and safety information applicable

to TOSHIBA computers.

laws, this manual cannot be reproduced in any form without the prior

written permission of TOSHIBA. No patent liability is assumed, with respect

to the use of the information contained herein.

First edition July 2013

other intellectual property covered by copyright laws belongs to the author

or to the copyright owner. Copyrighted material can be reproduced only for

personal use or use within the home. Any other use beyond that stipulated

above (including conversion to digital format, alteration, transfer of copied

material and distribution on a network) without the permission of the

to civil damages or criminal action. Please comply with copyright laws in

making any reproduction from this manual.

Disclaimer

This manual has been validated and reviewed for accuracy. The

instructions and descriptions it contains are accurate for your computer at

the time of this manual’s production. However, succeeding computers and

manuals are subject to change without notice. TOSHIBA assumes no

liability for damages incurred directly or indirectly from errors, omissions or

discrepancies between the computer and the manual.

Trademarks

Intel, Intel SpeedStep, Intel Core and Centrino are trademarks or registered

trademarks of Intel Corporation.

AMD, the AMD Arrow logo, PowerPlay, Vari-Bright and combinations

thereof are trademarks of Advanced Micro Devices, Inc.

User's Manual 1-1

Windows, Microsoft and Windows logo are registered trademarks of

Microsoft Corporation.

The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by Toshiba Corporation and

its affiliates is under license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing

LLC in the United States and other countries.

sMedio and sMedio TrueLink+ are trademarks or registered trademarks of

sMedio, Inc.

Secure Digital and SD are trademarks of SD Card Association.

QUALCOMM is a trademark of Qualcomm Incorporated, registered in the

United States and other countries. ATHEROS is a trademark of Qualcomm

Atheros, Inc., registered in the United States and other countries.

Realtek is a registered trademark of Realtek Semiconductor Corporation.

DTS, the Symbol, & DTS and the Symbol together are registered

trademarks and DTS Studio Sound is a trademark of DTS, Inc. © DTS, Inc.

All other product names and service names in this manual may be

trademarks or registered trademarks of their respective companies.

Regulatory Information

FCC information

FCC notice "Declaration of Conformity Information"

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

User's Manual 1-2

Only peripherals complying with the FCC class B limits may be attached to

this equipment. Operation with non-compliant peripherals or peripherals not

recommended by TOSHIBA is likely to result in interference to radio and

TV reception. Shielded cables must be used between the external devices

and the computer’s micro HDMI port, as well as the micro USB 2.0 port,

and Universal Serial Bus (USB 3.0) port on the TOSHIBA Keyboard Dock.

Changes or modifications made to this equipment, not expressly approved

by TOSHIBA or parties authorized by TOSHIBA could void the user’s

authority to operate the equipment.

FCC conditions

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

Contact

Address: TOSHIBA America Information Systems, Inc.

9740 Irvine Boulevard

Irvine, California 92618-1697

Telephone: (949) 583-3000

This information is only applicable for the countries/regions where it is

required.

EU Declaration of Conformity

This product is carrying the CE-Mark in

accordance with the related European Directives.

Responsible for CE-Marking is TOSHIBA EUROPE

GMBH, Hammfelddamm 8, 41460 Neuss,

Germany. The complete and official EU

Declaration of Conformity can be found on

TOSHIBA’s web site http://epps.toshiba-teg.com

on the Internet.

CE compliance

This product is labeled with the CE Mark in accordance with the applicable

European Directives, notably RoHS Directive 2011/65/EU, Radio

Equipment and Telecommunications Terminal Directive 1999/5/EC,

User's Manual 1-3

Ecodesign Directive 2009/125/EC (ErP) and the related implementing

measures.

This product and the original options are designed to observe the related

EMC (Electromagnetic Compatibility) and safety standards. However,

TOSHIBA cannot guarantee that this product still observes these EMC

standards if options or cables not produced by TOSHIBA are connected or

implemented. In this case the persons who have connected/implemented

those options/cables have to provide assurance that the system (PC plus

options/cables) still fulfils the required standards. To avoid general EMC

problems, the following guidance should be noted:

Only CE marked options should be connected/implemented

Only best shielded cables should be connected

Working environment

This product was designed to fulfil the EMC (Electromagnetic Compatibility)

requirements to be observed for so-called “Residential, commercial and

light industry environments”. TOSHIBA do not approve the use of this

product in working environments other than the above mentioned

“Residential, commercial and light industry environments”.

For example, the following environments are not approved:

Industrial Environments (e.g. environments where a mains voltage of

380 V three-phase is used)

Medical Environments

Automotive Environments

Aircraft Environments

Any consequences resulting from the use of this product in working

environments that are not approved are not the responsibility of TOSHIBA.

The consequences of the use of this product in non-approved working

environments may be:

Interference with other devices or machines in the near surrounding

area.

Malfunction of, or data loss from, this product caused by disturbances

generated by other devices or machines in the near surrounding area.

Therefore TOSHIBA strongly recommend that the electromagnetic

compatibility of this product should be suitably tested in all non-approved

working environments before use. In the case of automobiles or aircraft,

the manufacturer or airline respectively should be asked for permission

before use of this product.

Furthermore, for general safety reasons, the use of this product in

environments with explosive atmospheres is not permitted.

User's Manual 1-4

VCCI Class B Information (Japan Only)

この装置は、クラスＢ情報技術装置です。この装置は、家庭環境で使

用することを目的としていますが、この装置がラジオやテレビジョン

受信機に近接して使用されると、受信障害を引き起こすことがあります。

取扱説明書に従って正しい取り扱いをしてください。

ＶＣＣＩ－Ｂ

Canadian regulatory information (Canada only)

This digital apparatus does not exceed the Class B limits for radio noise

emissions from digital apparatus as set out in the Radio Interference

Regulation of the Canadian Department of Communications.

Note that Canadian Department of Communications (DOC) regulations

provide, that changes or modifications not expressly approved by

TOSHIBA Corporation could void your authority to operate this equipment.

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numérique de la class B respecte toutes les exgences du

Règlement sur le matériel brouileur du Canada.

Following information is only valid for EU-member

States:

Disposal of products

The crossed out wheeled dust bin symbol indicates that

products must be collected and disposed of separately

from household waste. Integrated batteries and

accumulators can be disposed of with the product. They

will be separated at the recycling centres.

The black bar indicates that the product was placed on the

market after August 13, 2005.

By participating in separate collection of products and

batteries, you will help to assure the proper disposal of

products and batteries and thus help to prevent potential

negative consequences for the environment and human

health.

For more detailed information about the collection and

recycling programmes available in your country, please

visit our website (http://eu.computers.toshiba-europe.com)

or contact your local city office or the shop where you

purchased the product.

User's Manual 1-5

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that

batteries and/or accumulators must be collected and

disposed of separately from household waste.

If the battery or accumulator contains more than the

specified values of lead (Pb), mercury (Hg), and/or

cadmium (Cd) defined in the Battery Directive (2006/66/

EC), then the chemical symbols for lead (Pb), mercury

(Hg) and/or cadmium (Cd) will appear below the crossed

out wheeled dust bin symbol.

By participating in separate collection of batteries, you will

help to assure the proper disposal of products and

batteries and thus help to prevent potential negative

consequences for the environment and human health.

For more detailed information about the collection and

recycling programmes available in your country, please

visit our website (http://eu.computers.toshiba-europe.com)

or contact your local city office or the shop where you

purchased the product.

These symbols may not stick depending on the country and region where

you purchased.

REACH - Compliance Statement

The new European Union (EU) chemical regulation, REACH (Registration,

Evaluation, Authorization and Restriction of Chemicals), entered into force

on 1 June 2007. TOSHIBA will meet all REACH requirements and is

committed to provide our customers with information about the chemical

substances in our products according to REACH regulation.

Please consult the following website www.toshiba-europe.com/computers/

info/reach for information about the presence in our articles of substances

included on the candidate list according to article 59(1) of Regulation (EC)

No 1907/2006 („REACH“) in a concentration above 0.1 % weight by weight.

Following information is only for Turkey:

Compliant with EEE Regulations: TOSHIBA meets all requirements of

Turkish regulation 26891 “Restriction of the use of certain hazardous

substances in electrical and electronic equipment”.

The number of possible pixel failures of your display is defined

according to ISO 9241-307 standards. If the number of pixel failures is

less than this standard, they will not be counted as defect or failure.

User's Manual 1-6

Battery is a consumption product, since the battery time depends on

the usage of your computer. If the battery can not be charged at all,

then it is a defect or failure. The changes in battery time is not a defect

or failure.

Following information is only for India:

The use of this symbol indicates that this product may not

be treated as household waste.

By ensuring this product is disposed of correctly, you will

help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

For more detailed information about recycling of this

product, please visit our website (http://www.toshiba-

india.com) or contact call center (1800-200-8674).

These symbols may not stick depending on the country and region where

you purchased.

Video Standard Notice

THIS PRODUCT IS LICENSED UNDER THE AVC, THE VC-1 AND

MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL

AND NON-COMMERCIAL USE OF A CONSUMER FOR (I) ENCODING

VIDEO IN COMPLIANCE WITH THE ABOVE STANDARDS ("VIDEO")

AND/OR (II) DECODING AVC, VC-1 AND MPEG-4 VIDEO THAT WAS

ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND

NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A

VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE SUCH

VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY

OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT

RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES

AND LICENSING MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE

HTTP://WWW.MPEGLA.COM.

OpenSSL Toolkit License Issues

LICENSE ISSUES

==============

The OpenSSL toolkit stays under a dual license, i.e. both the conditions of

the OpenSSL License and the original SSLeay license apply to the toolkit.

See below for the actual license texts. Actually both licenses are BSD-style

Open Source licenses. In case of any license issues related to OpenSSL

please contact openssl-core@openssl.org.

OpenSSL License

User's Manual 1-7

------------------------

/*=====================================================

Redistribution and use in source and binary forms, with or without

modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice,

this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright

notice, this list of conditions and the following disclaimer in the

documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software

must display the following acknowledgment:

"This product includes software developed by the OpenSSL Project for

use in the OpenSSL Toolkit. (http://www.openssl.org/)"

4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be

used to endorse or promote products derived from this software

without prior written permission. For written permission, please contact

openssl-core@openssl.org.

5. Products derived from this software may not be called "OpenSSL" nor

may "OpenSSL" appear in their names without prior written permission

of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following

acknowledgment:

"This product includes software developed by the OpenSSL Project for

use in the OpenSSL Toolkit (http://www.openssl.org/)"

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS''

AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN

NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS

BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,

EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR

SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS

INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF

LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY

OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE

POSSIBILITY OF SUCH DAMAGE.

=====================================================

This product includes cryptographic software written by Eric Young

(eay@cryptsoft.com). This product includes software written by Tim

Hudson (tjh@cryptsoft.com).

Original SSLeay License

User's Manual 1-8

----------------------------------

This package is an SSL implementation written by Eric Young

(eay@cryptsoft.com).

The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the

following conditions are aheared to. The following conditions apply to all

code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code;

not just the SSL code. The SSL documentation included with this

distribution is covered by the same copyright terms except that the holder

is Tim Hudson (tjh@cryptsoft.com).

code are not to be removed.

If this package is used in a product, Eric Young should be given attribution

as the author of the parts of the library used.

This can be in the form of a textual message at program startup or in

documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without

modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list

of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright

notice, this list of conditions and the following disclaimer in the

documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software

must display the following acknowledgement:

"This product includes cryptographic software written by Eric Young

(eay@cryptsoft.com)"

The word 'cryptographic' can be left out if the rouines from the library

being used are not cryptographic related :-).

4. If you include any Windows specific code (or a derivative thereof) from

the apps directory (application code) you must include an

acknowledgement:

"This product includes software written by Tim Hudson

(tjh@cryptsoft.com)"

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO

EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR

ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,

PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF

User's Manual 1-9

USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN

CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE

OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

The licence and distribution terms for any publically available version or

derivative of this code cannot be changed. i.e. this code cannot simply be

copied and put under another distribution licence [including the GNU Public

Licence.]

ENERGY STAR® Program

Your Computer model may be ENERGY STAR®

compliant. If the model you purchased is compliant, it is

labeled with the ENERGY STAR logo on the computer and

the following information applies.

TOSHIBA is a partner in the ENERGY STAR Program and

has designed this computer to meet the latest ENERGY

STAR guidelines for energy efficiency. Your computer

ships with the power management options preset to a

configuration that will provide the most stable operating

environment and optimum system performance for both

AC power and battery modes.

To conserve energy, your computer is set to enter the low-

power Sleep Mode which shuts down the system and

display within 15 minutes of inactivity in AC power mode.

TOSHIBA recommends that you leave this and other

energy saving features active, so that your computer will

operate at its maximum energy efficiency. You can wake

the computer from Sleep Mode by pressing the power

button.

Products that earn the ENERGY STAR prevent

greenhouse gas emissions by meeting strict energy

efficiency guidelines set by the US EPA and the EU

Commission. According to the EPA, a computer meeting

the new ENERGY STAR specifications will use between

20% and 50% less energy depending on how it is used.

Visit http://www.eu-energystar.org or http://

www.energystar.gov for more information regarding the

ENERGY STAR Program.

User's Manual 1-10

Disposing of the computer and the computer's

batteries

Contact an authorized TOSHIBA service provider for details regarding how

to dispose of the computer and the batteries.

General Precautions

TOSHIBA computers are designed to optimize safety, minimize strain and

withstand the rigors of portability. However, certain precautions should be

observed to further reduce the risk of personal injury or damage to the

computer.

Be certain to read the general precautions below and to note the cautions

included in the text of the manual.

Provide adequate ventilation

Always make sure your computer and AC adaptor have adequate

ventilation and are protected from overheating when the power is turned on

or when an AC adaptor is connected to a power outlet (even if your

computer is in Sleep Mode). In this condition, observe the following:

Never cover your computer or AC adaptor with any object.

Never place your computer or AC adaptor near a heat source, such as

an electric blanket or heater.

Never cover or block the air vents including those located at the base

of the computer.

Always operate your computer on a hard flat surface. Using your

computer on a carpet or other soft material can block the vents.

Always provide sufficient space around the computer.

Overheating your computer or AC adaptor could cause system failure,

computer or AC adaptor damage or a fire, possibly resulting in serious

injury.

Creating a computer-friendly environment

Place the computer on a flat surface that is large enough for the computer

and any other items you are using, such as a printer.

Leave enough space around the computer and other equipment to provide

adequate ventilation. Otherwise, they may overheat.

To keep your computer in prime operating condition, protect your work area

from:

Dust, moisture, and direct sunlight.

Equipment that generates a strong electromagnetic field, such as

stereo speakers (other than speakers that are connected to the

computer) or speakerphones.

Rapid changes in temperature or humidity and sources of temperature

change such as air conditioner vents or heaters.

User's Manual 1-11

Extreme heat, cold, or humidity.

Liquids and corrosive chemicals.

Stress injury

Carefully read the Instruction Manual for Safety and Comfort. It contains

information on the prevention of stress injuries to your hands and wrists

that can be caused by extensive keyboard use. It also includes information

on work space design, posture and lighting that can help reduce physical

stress.

Heat injury

Avoid prolonged physical contact with the computer. If the computer is

used for long periods, its surface can become very warm. While the

temperature will not feel hot to the touch, if you maintain physical

contact with the computer for a long time, for example if you rest the

computer on your lap or if you keep your hands on the palm rest, your

skin might suffer a low-heat injury.

If the computer has been used for a long time, avoid direct contact

with the metal plate supporting the various interface ports as this can

become hot.

The surface of the AC adaptor can become hot when in use but this

condition does not indicate a malfunction. If you need to transport the

AC adaptor, you should disconnect it and let it cool before moving it.

Do not lay the AC adaptor on a material that is sensitive to heat as the

material could become damaged.

Pressure or impact damage

Do not apply heavy pressure to the computer or subject it to any form of

strong impact as this can damage the computer's components or otherwise

cause it to malfunction.

Cleaning the computer

To help ensure long, trouble-free operation, keep the computer free of dust

and dirt, and use care with all liquids around it.

Be careful not to spill liquids into the computer. If the computer does

get wet, turn the power off immediately and let the computer dry

completely - in these circumstance you should get the computer

inspected by an authorized service provider in order to assess the

scope of any damage.

Clean the plastics of the computer using a slightly water dampened

cloth.

You can clean the display screen by spraying a small amount of glass

cleaner onto a soft, clean cloth and then wiping the screen gently with

the cloth.

User's Manual 1-12

Never spray cleaner directly onto the computer or let liquid run into any part

of it. Never use harsh or caustic chemical products to clean the computer.

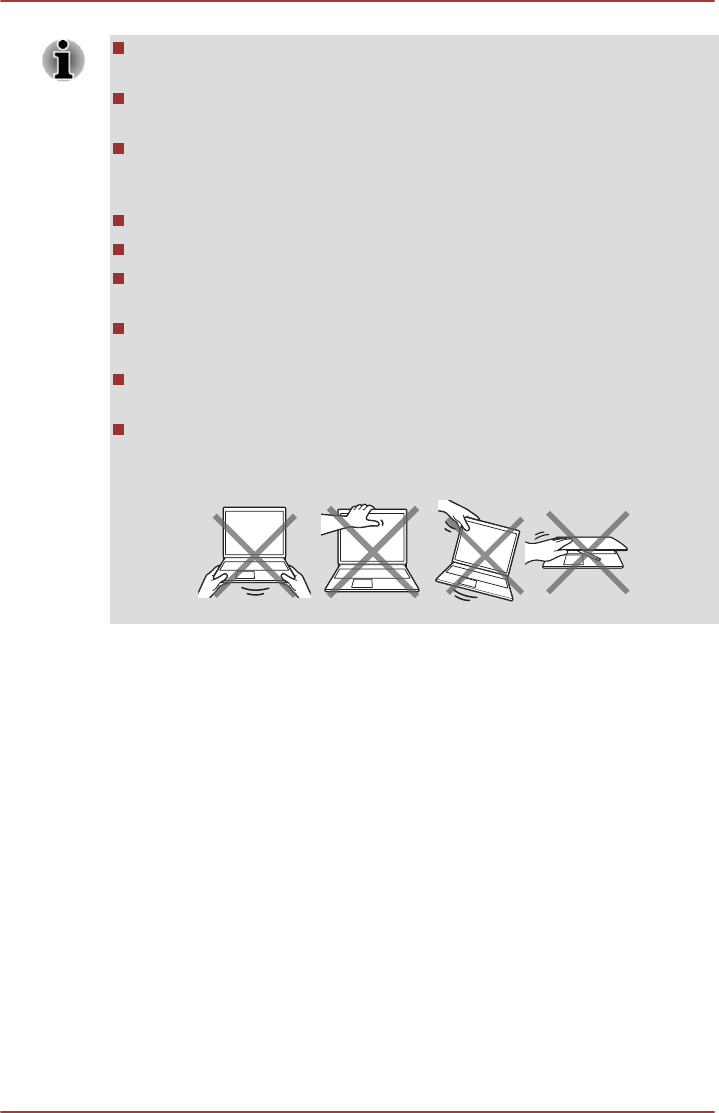

Moving the computer

While the computer is designed for flexible day-to-day usage you should

exercise a few simple precautions when moving it in order to help ensure

trouble-free operation.

Turn off (shut down) the computer.

Disconnect the AC adaptor and all peripherals before moving the

computer (The keyboard dock, however, can be moved when

connected).

Close the display panel (not applicable in tablet mode).

Do not pick up the computer by its display panel.

Before carrying your computer, shut it down, disconnect the AC

adaptor and allow it to cool down - a failure to follow this instruction

may result in minor heat injury.

Be careful not to subject the computer to impact or shock - a failure to

follow this instruction could result in damage to computer, computer

failure or loss of data.

Never transport your computer with any cards installed - this may

cause damage to either the computer and/or the card resulting in

computer failure.

Always use a suitable carry case when transporting the computer.

When carrying your computer, be sure to hold it securely so that it

does not fall or hit anything.

Do not carry your computer by holding any of its protruding elements.

Mobile phones

Please be aware that the use of mobile phones can interfere with the audio

system. The operation of the computer will not be impaired in any way, but

it is recommended that a minimum distance of 30cm is maintained between

the computer and a mobile phone that is in use.

Instruction Manual for Safety and Comfort

All important information on the safe and proper use of this computer is

described in the enclosed Instruction Manual for Safety and Comfort. Be

sure to read it before using the computer.

Safety Icons

Safety icons are used in this manual to bring important information to your

attention. Each type of message is identified as shown below.

User's Manual 1-13

Indicates a potentially hazardous situation, which could result in death or

serious injury, if you do not follow instructions.

A caution informs you that improper use of equipment or failure to follow

instructions may cause data loss, equipment damage, or may result in

minor or moderate injury.

Please read. A note is a hint or advice that helps you make best use of

your equipment.

User's Manual 1-14

Chapter 2

Getting Started

This chapter provides an equipment checklist, and basic information to

start using your computer.

Some of the features described in this manual may not function properly if

you use an operating system that was not pre-installed by TOSHIBA.

Equipment checklist

Carefully unpack your computer, taking care to save the box and

packaging materials for future use.

Hardware

Check to make sure you have all the following items:

TOSHIBA Portable Personal Computer

TOSHIBA Keyboard Dock

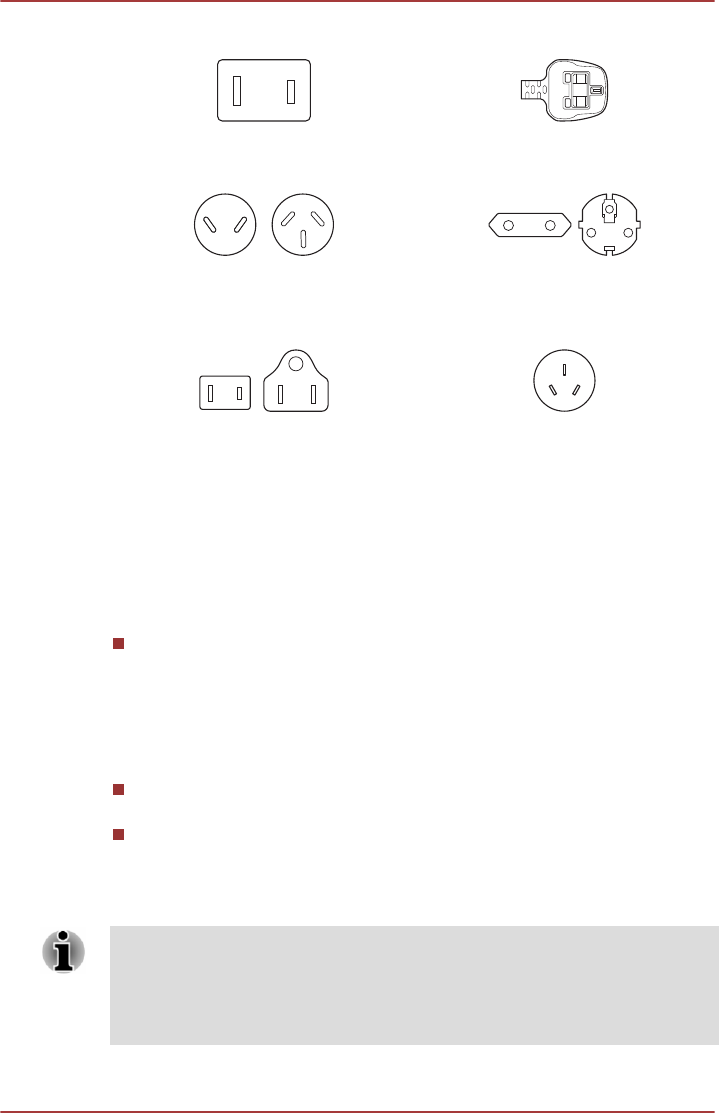

AC adaptor and power cord (2-pin plug or 3-pin plug)

Documentation

User Information Guide

Instruction Manual for Safety and Comfort

If any of the items are missing or damaged, contact your dealer

immediately.

Dual operating mode

The computer is provided with a TOSHIBA Keyboard Dock and support

dual operating mode - it can be easily converted from a tablet PC to a

laptop PC. Throughout this manual, operating your computer as a tablet

PC and a laptop PC is called "tablet mode" and "laptop mode" respectively.

Conventions

This manual uses the following formats to describe, identify, and highlight

terms and operating procedures.

User's Manual 2-1

HDD or Hard disk

Drive

Some models are equipped with a "Solid State

Drive (SSD)" instead of a hard disk drive. In this

manual, the word "HDD" or "Hard disk drive" also

refers to the SSD unless otherwise stated.

Click Tap the Touch Pad or click the left Touch

Pad control button once (laptop mode).

Left click the mouse once.

Tap the touch screen once.

Right-click Click the right Touch Pad control button

once (laptop mode).

Right click the mouse once.

Press and hold on the touch screen.

Double-click Tap the Touch Pad or click the left Touch

Pad control button twice (laptop mode).

Left click the mouse twice.

Tap the touch screen twice.

Charm By swiping in from the right edge of the touch

screen or pointing the mouse pointer to the

lower-right (or upper-right) corner of your screen,

you will find a list of charms: Search, Share,

Start, Devices and Settings.

Desktop Click the Desktop tile from the Start screen to

access the desktop.

Start screen You can go to the Start screen by clicking the

Start charm. You can also use the Windows®

logo key ( ) on the keyboard dock or the

computer to go to the Start screen. For detailed

information, please refer to the Windows Help

and Support.

Using your computer for the first time

Be sure to read the enclosed Instruction Manual for Safety and Comfort for

information on the safe and proper use of this computer. It is intended to

help you be more comfortable and productive while using a notebook

computer. By following the recommendations in it you may reduce your

chance of developing a painful or disabling injury to your hand, arms,

shoulders or neck.

This section provides basic information to start using your computer. It

covers the following topics:

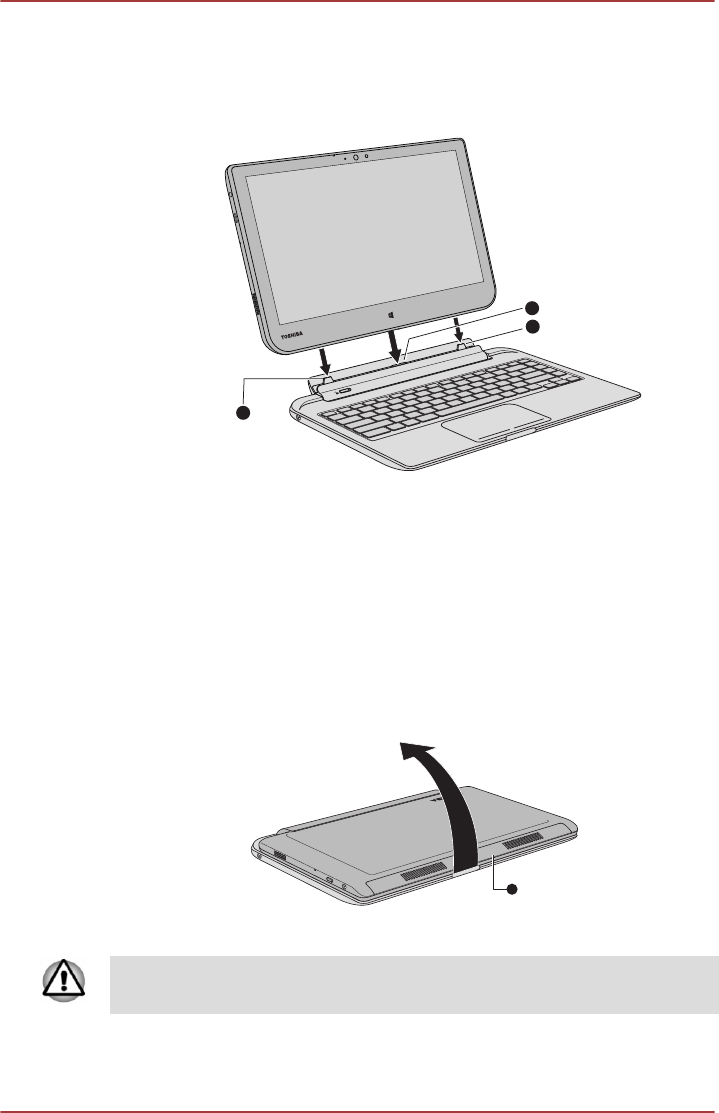

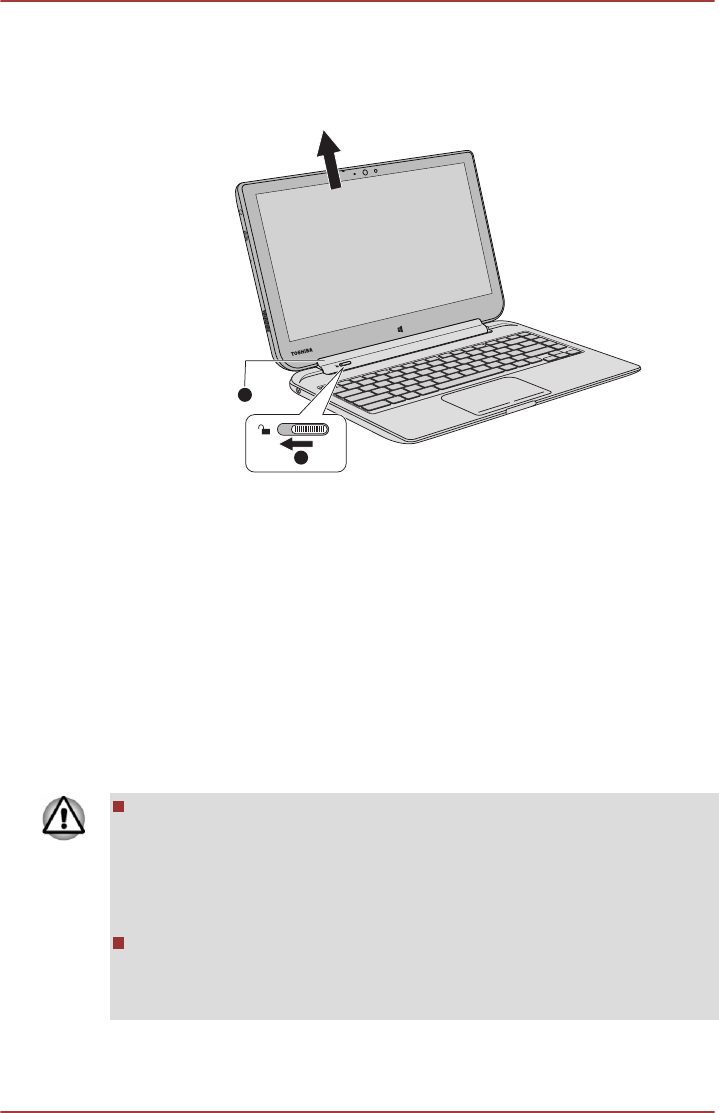

Connecting TOSHIBA Keyboard Dock

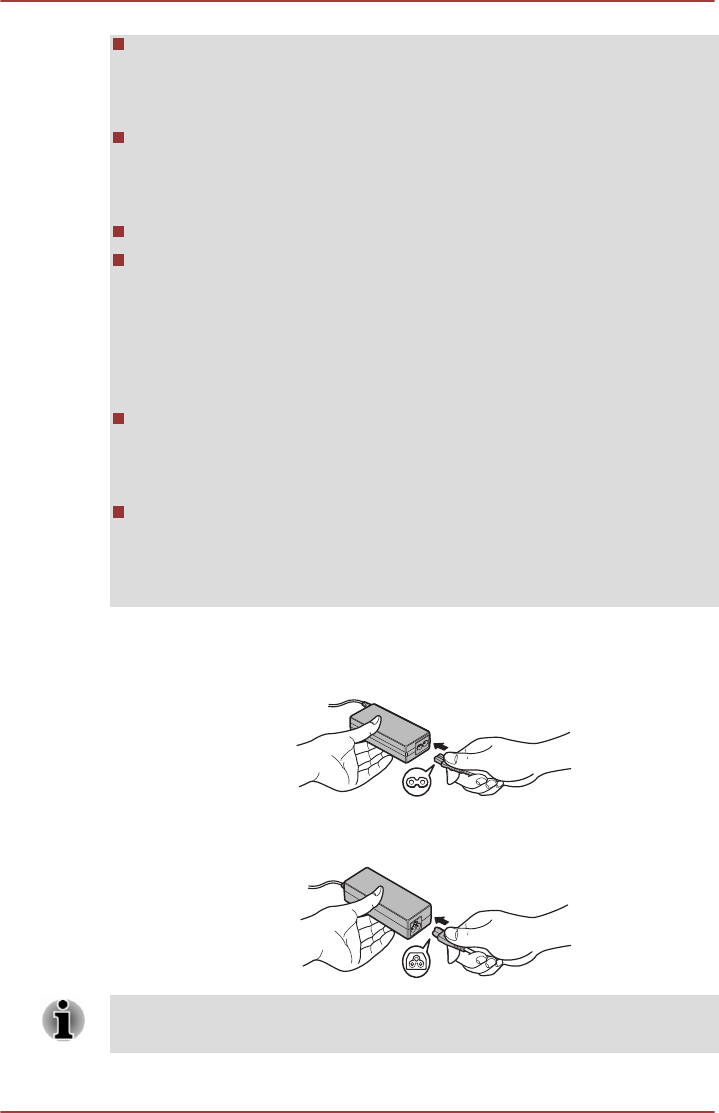

Connecting the AC adaptor

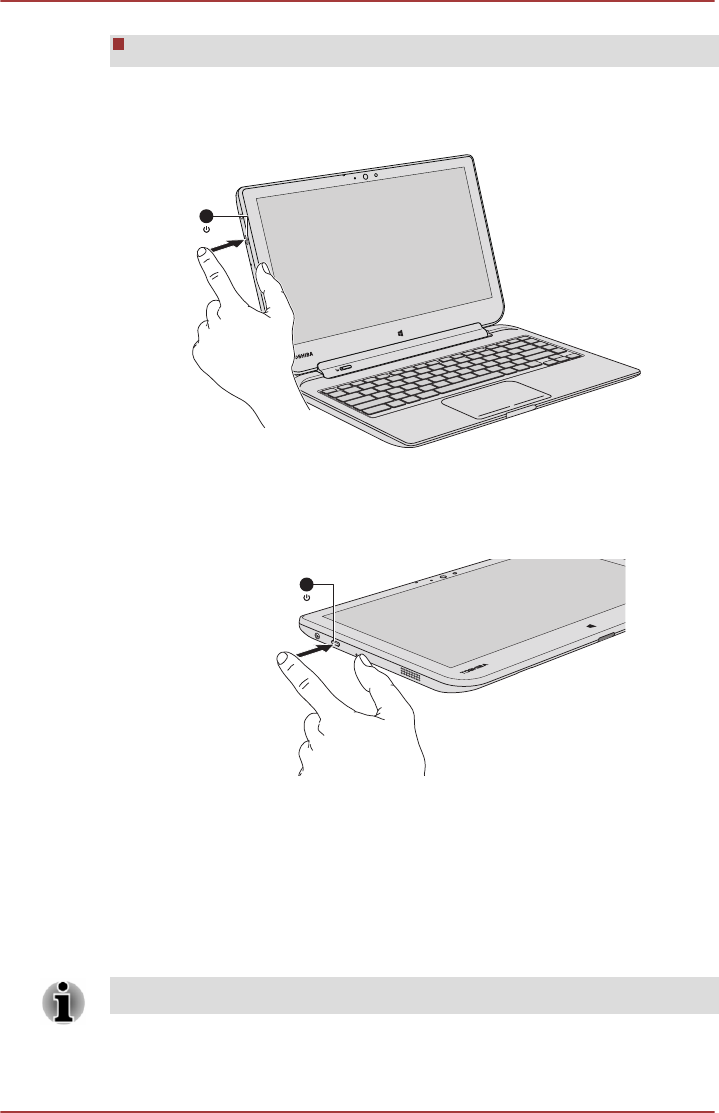

Turning on the power

User's Manual 2-2

Initial setup

Getting to know Windows

Use a virus-check program and make sure it is updated regularly.

Never format storage media without checking its content - formatting

destroys all stored data.

It is a good idea to periodically back up the internal Solid State Drive

or other main storage device to external media. General storage

media is not durable or stable over long periods of time and under

certain conditions may result in data loss.

Before you install a device or application, save any data in memory to

the Solid State Drive or other storage media. Failure to do so may

result in the loss of data.

Connecting TOSHIBA Keyboard Dock

TOSHIBA Keyboard Dock can turn your computer into a laptop for

extensibility including a physical keyboard and more ports.

To use the computer in laptop mode, you need to connect TOSHIBA

Keyboard Dock to the computer by following the steps below:

1. Hold the computer on both the left and right sides.

2. Align the docking interface located on the computer with the docking

connector on the keyboard dock.

User's Manual 2-3

3. Press down the computer until it clicks into place. The docking

connector on the keyboard dock engages the docking interface on the

computer.

Figure 2-1 Connecting the keyboard dock

1. Hook 2. Docking connector

Computer appearance depends on the model you purchased.

When you are operating in laptop mode, the computer body can be opened

to a wide range of angles for optimal viewing.

While holding down the palm rest with one hand so that the body of the

keyboard dock is not raised, slowly lift the computer body - this will allow

the angle of the display screen to be adjusted to provide optimum clarity.

Figure 2-2 Opening the computer body

1. Computer body

Use reasonable care when opening and closing computer body. Opening it

vigorously or slamming it shut could damage the computer.

User's Manual 2-4

Be careful not to open the computer body too far as this could put

stress on the hinges and cause damage.

Please close the computer body when you move or are carrying the

computer.

Do not lift the computer by the palm rest on the keyboard dock. Fail to

follow this instruction may cause damage to the computer or result in

minor injury.

Do not press or push with excess force on the display screen.

Do not lift the computer by the display screen.

Do not close the computer with pens or any other objects left in

between the computer and the keyboard dock.

Please be careful not to hurt your fingers when you are docking the

computer to the keyboard dock.

Never remove the computer without unlocking by the release latch,

otherwise it may cause damage to the computer.

Never turn the computer holder without the computer docked,

otherwise it may cause damage or possibly result in mechanical

malfunction.

To disconnect and remove the computer from the keyboard dock, follow

the steps below:

1. Disconnect and remove all peripheral devices and cables connected

to the computer.

User's Manual 2-5

2. Slide and hold the Release latch to the left (unlock position) and then

slowly lift the computer to release it from the computer holder and

completely off the keyboard dock.

Figure 2-3 Removing the computer from the keyboard dock

1. Release latch 2. Computer holder

Computer appearance depends on the model you purchased.

Connecting the AC adaptor

Connect the AC adaptor when you need to charge the battery or you want

to operate from AC power. It is also the fastest way to get started, because

the battery pack will need to be charged before you can operate from

battery power.

The AC adaptor can automatically adjust to any voltage ranging from 100

to 240 volts and to a frequency of either 50 or 60 hertz, enabling you to use

this computer in almost any country/region. The adaptor converts AC

power to DC power and reduces the voltage supplied to this computer.

Always use the TOSHIBA AC adaptor that was included with your

computer, or use AC adaptors specified by TOSHIBA to avoid any risk

of fire or other damage to the computer. Use of an incompatible AC

adaptor could cause fire or damage to the computer possibly resulting

in serious injury. TOSHIBA assumes no liability for any damage

caused by use of an incompatible adaptor.

Never plug the AC adaptor into a power source that does not

correspond to both the voltage and the frequency specified on the

regulatory label of the unit. Failure to do so could result in a fire or

electric shock, possibly resulting in serious injury.

User's Manual 2-6

Always use or purchase power cables that comply with the legal

voltage and frequency specifications and requirements in the country

of use. Failure to do so could result in a fire or electric shock, possibly

resulting in serious injury.

The supplied power cord conforms to safety rules and regulations in

the region the computer is bought and should not be used outside this

region. For use in other regions, please buy power cords that conform

to safety rules and regulations in the particular region.

Do not use a 3-pin to 2-pin conversion plug.

When you connect the AC adaptor to the computer, always follow the

steps in the exact order as described in this User’s Manual.

Connecting the power cable to a live electrical outlet should be the last

step otherwise the adaptor DC output plug could hold an electrical

charge and cause an electrical shock or minor bodily injury when

touched. As a general safety precaution, avoid touching any metal

parts.

Never place your computer or AC adaptor on a wooden surface,

furniture, or any other surface that could be marred by exposure to

heat since the computer base and AC adaptor's surface increase in

temperature during normal use.

Always place your computer or AC adaptor on a flat and hard surface

that is resistant to heat damage.

Refer to the enclosed Instruction Manual for Safety and Comfort for

detailed precautions and handling instructions.

1. Connect the power cord to the AC adaptor.

Figure 2-4 Connecting the power cord to the AC adaptor (2-pin plug)

Figure 2-5 Connecting the power cord to the AC adaptor (3-pin plug)

Either a 2-pin or 3-pin adaptor/cord will be included with the computer

depending on the model.

User's Manual 2-7

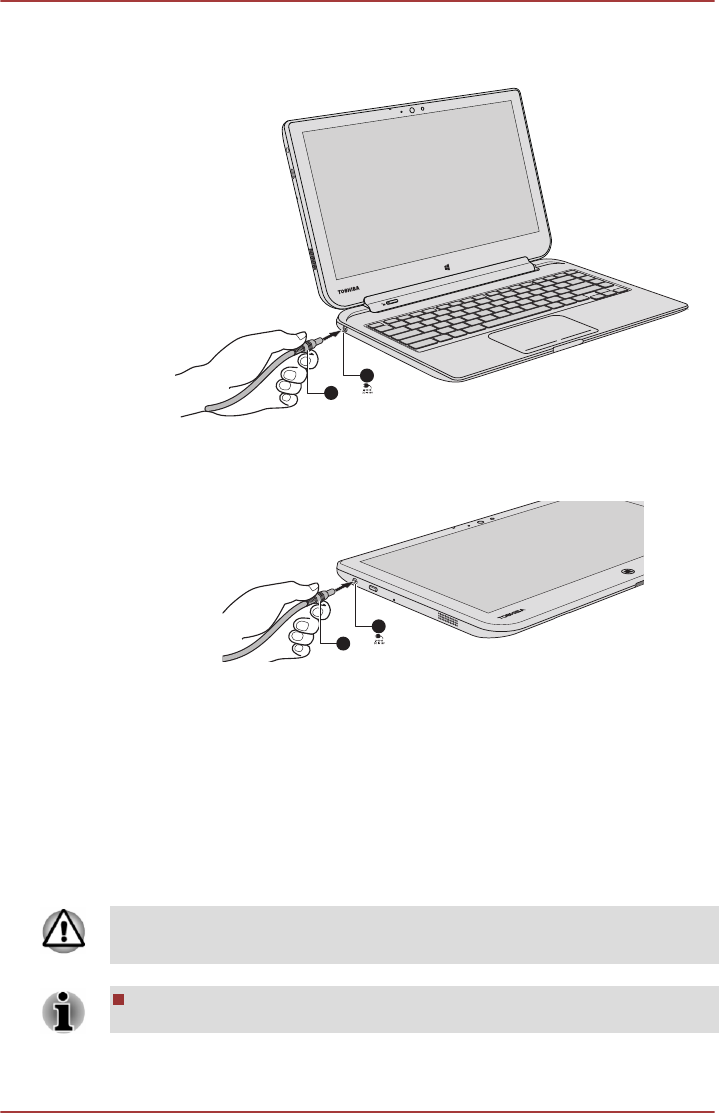

2. Connect the AC adaptor’s DC output plug to the DC IN 19V jack.

Figure 2-6 Connecting the DC output plug to the computer (laptop mode)

1. DC IN 19V jack 2. DC output plug

Figure 2-7 Connecting the DC output plug to the computer (tablet mode)

1. DC IN 19V jack 2. DC output plug

Computer appearance depends on the model you purchased.

3. Plug the power cord into a live wall outlet - the DC IN/Battery indicator

should glow.

Turning on the power

This section describes how to turn on the power - the Power indicator will

then indicate the status. Please refer to the Power Condition Descriptions

section for more information.

Never keep your body too close to the computer while turning on the

power.

After you turn on the power for the first time, do not turn it off until you

have set up the operating system.

User's Manual 2-8

Volume cannot be adjusted during Windows Setup.

1. Press the computer's power button.

Figure 2-8 Turning on the power (laptop mode)

1. Power button

Computer appearance depends on the model you purchased.

Figure 2-9 Turning on the power (tablet mode)

1. Power button

Computer appearance depends on the model you purchased.

Initial setup

The Windows Startup Screen will be the first screen displayed when you

turn on the power. Follow the on-screen instructions on each screen in

order to properly install the operating system.

When it is displayed, be sure to read the License Terms carefully.

User's Manual 2-9

Getting to know Windows

For detailed information on what is new and how to operate Windows 8,

please refer to the Windows Help and Support.

Start screen

The Start screen is the launching pad for everything you can do in the

Windows operating system, providing new and easy ways to access

everything from your favorite apps and Web sites to your contacts and

other important information.

From the Start screen, you can just start typing to search for what you

want. From there, you can easily switch between results for apps, files, and

more.

Charms

Use the Windows Charms to start apps, find documents, set up system

components, and perform most other computing tasks.

By pointing the mouse pointer to the upper or lower right corner of your

screen, you will find a list of charms: Search, Share, Start, Devices and

Settings.

Search This Charm allows you to locate items on your

computer. It can help you find apps, documents,

photos, and your favorite music.

Share This Charm allows you to share music and

photos with your favorite social Web sites.

Start This Charm takes you to the Start screen or, if

already on the Start screen, returns you to your

last app.

Devices This Charm allows you to manage your hardware

devices.

Settings This Charm allows you to manage your system

settings.

Tiles

Tiles can be accessed and launched from the Start screen.

Typical Start screen tiles are the Desktop tile and Mail tile, as well as tiles

representing all other applications downloaded to your system.

User's Manual 2-10

Windows Store

Although many applications will be pre-installed or built-in to your

computer, you will also have the ability to download many other

applications at the click of your mouse.

In the Windows Store you can search for and browse thousands of apps,

all grouped into easy to find categories.

Sign-in options

Windows offers a number of sign-in options including Password( ),

PIN( ) and Picture password( ) authentication to prevent from

unauthorized access. You are allowed to select an option on the Windows

methods set for a user account. Password authentication is the default

sign-in option.

Turning off the power

The power can be turned off in one of the following modes, either Shut

Down Mode, Sleep Mode or Hibernation Mode.

Shut Down Mode

When you turn off the power in Shut Down Mode, no data will be saved

and the computer will boot to the operating system's main screen the next

time it is turned on.

1. If you have entered data, either save it to the Solid State Drive or to

other storage media.

2. Make sure all disk/disc activity has stopped before removing the disk/

disc.

If you turn off the power while a disk (disc) is being accessed, you may

lose data or damage the disk.

Never turn off the power while an application is running. Doing so

could cause loss of data.

Never turn off the power, disconnect an external storage device or

remove storage media during data read/write. Doing so can cause

data loss.

3. Click the Settings charm.

4. Click Power and then select Shut down.

5. Turn off any peripheral devices connected to your computer.

Do not turn the computer or peripheral devices back on immediately - wait

a short period to avoid any potential damage.

User's Manual 2-11

Restarting the computer

Certain conditions require that you reset the computer, for example if:

You change certain computer settings.

If you need to restart the computer, there are two ways this can be

achieved:

In the Settings charm, click Power and then select Restart.

Press CTRL, ALT and DEL simultaneously (once) on the keyboard

dock to display the menu window, and then select Restart by clicking

the power icon ( ) in the lower-right corner.

Sleep Mode

If you have to interrupt your work, you are able to turn off the power without

exiting from your software by placing the computer into Sleep Mode. In this

mode data is maintained in the computer's main memory so that when you

turn on the power again, you can continue working right where you left off.

When you have to turn off your computer aboard an aircraft or in places

where electronic devices are regulated or controlled, always completely

shut down the computer. This includes turning off any wireless

communication functionalities, and cancelling settings that reactivate the

computer automatically, such as a timer recording function. Failure to

completely shut down the computer in this way could allow the operating

system to reactivate and run pre-programmed tasks or preserve unsaved

data, which could interfere with aviation or other systems, possibly causing

serious injury.

Before entering Sleep Mode, be sure to save your data.

Do not switch to Sleep Mode while transferring data to external media,

such as USB devices, memory media or other external memory

devices, as data will be lost.

The computer will automatically go into Sleep Mode according to the

settings in the Power Options (to access it, click Desktop -> Desktop

Assist -> Control Panel -> System and Security -> Power

Options). To prevent the computer from automatically entering Sleep

Mode, disable Sleep Mode within the Power Options.

To restore the operation of the computer from Sleep Mode, press the

power button or any key on the keyboard dock for a short amount of

time. Please note that keyboard keys can only be used if the Wake-up

on Keyboard option is enabled within the TOSHIBA System Settings.

User's Manual 2-12

If the computer enters Sleep Mode while a network application is

active, the application might not be restored when the computer is

next turned on and the system returns from Sleep Mode.

To use the Hybrid Sleep function, configure it in the Power Options.

Benefits of Sleep Mode

The Sleep Mode feature provides the following benefits:

Restores the previous working environment more rapidly than the

Hibernation Mode feature.

Saves power by shutting down the system when the computer

receives no input or hardware access for the time period set by the

System Sleep Mode feature.

Allows the use of the panel power off feature.

Executing Sleep Mode

You can enter Sleep Mode in one of three ways:

In the Settings charm, click Power and then select Sleep.

Close the display panel. Please note that this feature must be enabled

within the Power Options.

Press the power button. Please note that this feature must be enabled

within the Power Options.

When you turn the power back on, you can continue where you left off

when you shut down the computer.

When the computer is in Sleep Mode, the Power indicator will blink

white.

If you are operating the computer on battery power, you can lengthen

the overall operating time by turning it off into Hibernation Mode -

Sleep Mode will consume more power while the computer is off.

Sleep Mode limitations

Sleep Mode will not function under the following conditions:

Power is turned back on immediately after shutting down.

Memory circuits are exposed to static electricity or electrical noise.

Hibernation Mode

The Hibernation Mode feature saves the contents of memory to the Solid

State Drive when the computer is turned off so that, the next time it is

turned on, the previous state is restored. Please note that the Hibernation

Mode feature does not save the status of any peripheral devices connected

to the computer.

User's Manual 2-13

Save your data. While entering Hibernation Mode, the computer saves

the contents of memory to the Solid State Drive. However, for safety

sake, it is best to save your data manually.

Data will be lost if you disconnect the AC adaptor before the save is

completed.

Do not switch to Hibernation Mode while transferring data to external

media, such as USB devices, memory media or other external

memory devices, as data will be lost.

Benefits of Hibernation Mode

The Hibernation Mode feature provides the following benefits:

Saves data to the Solid State Drive when the computer automatically

shuts down because of a low battery condition.

You can return to your previous working environment immediately

when you turn on the computer.

Saves power by shutting down the system when the computer

receives no input or hardware access for the time period set by the

System Hibernate feature.

Allows the use of the panel power off feature.

Starting Hibernation Mode

To enter Hibernation Mode, follow the steps below.

1. Click the Settings charm.

2. Click Power and then select Hibernate.

In order to show Hibernate in Power menu, you need to setup according to

the following steps:

1. Click Desktop -> Desktop Assist -> Control Panel -> System and

Security -> Power Options.

2. Click Choose what the power button does or Choose what closing

the lid does.

3. Click Change settings that are currently unavailable.

4. Select the Hibernate check box from Shutdown settings.

5. Click the Save changes button.

Automatic Hibernation Mode

The computer can be configured to enter Hibernation Mode automatically

when you press the power button or close the lid. In order to define these

settings, you can follow the steps as described below:

1. Click Power Options and then click Choose what the power button

does or Choose what closing the lid does.

User's Manual 2-14

2. Enable the desired Hibernation Mode settings for When I press the

power button and When I close the lid.

3. Click the Save changes button.

Data save in Hibernation Mode

When you turn off the power in Hibernation Mode, the computer will take a

moment to save the current data in memory to the Solid State Drive.

After you turn off the computer, and the content of memory has been saved

to the Solid State Drive, turn off the power to any peripheral devices.

Do not turn the computer or devices back on immediately. Wait a moment

to let all capacitors fully discharge.

User's Manual 2-15

Chapter 3

The Grand Tour

This chapter identifies the various components of the computer - it is

recommended that you become familiar with each before you operate the

computer.

Legal Footnote (Non-applicable Icons)

For more information regarding Non-applicable Icons, please refer to the

Legal Footnotes section.

Please handle your computer carefully to avoid scratching or damaging the

surface.

Front with the display closed

The following figure shows the front of the computer with its display panel

in the closed position.

Figure 3-1 Front of the computer with display panel closed

4 4

1 2 3

1. DC IN/Battery indicator 3. Wireless communication indicator

2. Power indicator 4. Cooling vents*

* Provided with some models.

Product appearance depends on the model you purchased.

DC IN/Battery

indicator

The DC IN/Battery indicator shows the condition

of the DC IN and the battery's charge - white

indicates the battery is fully charged while the

power is being correctly supplied from the AC

power adaptor.

Please refer to the Power Condition Descriptions

section for more information on this feature.

User's Manual 3-1

Power indicator The Power indicator glows white when the

computer is turned on. However, if you turn the

computer off into Sleep Mode, this indicator will

blink white.

Wireless

communication

indicator

The Wireless communication indicator glows

amber when the Bluetooth or Wireless LAN

functions are turned on.

Only some models are equipped with Bluetooth

and Wireless LAN functions.

Cooling vents The cooling vents help the processor to avoid

overheating.

Do not block the cooling vents. Keep foreign metal objects, such as

screws, staples and paper clips, out of the cooling vents. Foreign metal

objects can create a short circuit, which can cause damage and fire,

possibly resulting in serious injury.

Carefully clean the dust on the cooling vents’ surface using a soft cloth.

Left side

The following figure shows the left side of the computer.

Figure 3-2 The left side of the computer

1 2 3 4 5

1. DC IN 19V jack (dock) 4. Power button

2. Stereo speakers 5. DC IN 19V jack (tablet)

3. Force shutdown hole (tablet)

DC IN 19V jack The AC adaptor connects to this jack in order to

power the computer and charge its internal

batteries. Please note that you should only use

the model of AC adaptor supplied with the

computer at the time of purchase - using the

wrong AC adaptor can cause damage to the

computer.

Stereo speakers The speakers emit sound generated by your

software as well as audio alarms, such as low

battery condition, generated by the system.

User's Manual 3-2

Force shutdown hole Insert a slender object such as a needle into this

hole to force a shut down when the computer is

hung.

Power button Press this button to turn the computer's power on

or off.

Right side

The following figure shows the right side of computer.

Figure 3-3 The right side of the computer

1 2 3 4 7 8

1. Volume up/down button 5. Memory media slot

2. Headphone/Microphone combo jack 6. Stereo speakers

3. Micro HDMI port 7. Force shutdown hole (dock)

4. Micro USB 2.0 port 8. Universal Serial Bus (USB 3.0) port

Volume up/down

buttons

Press the button to increase or decrease the

volume.

Headphone/

Microphone combo

jack

A 3.5 mm mini headphone/microphone combo

jack enables connection of a monaural

microphone or a stereo headphone.

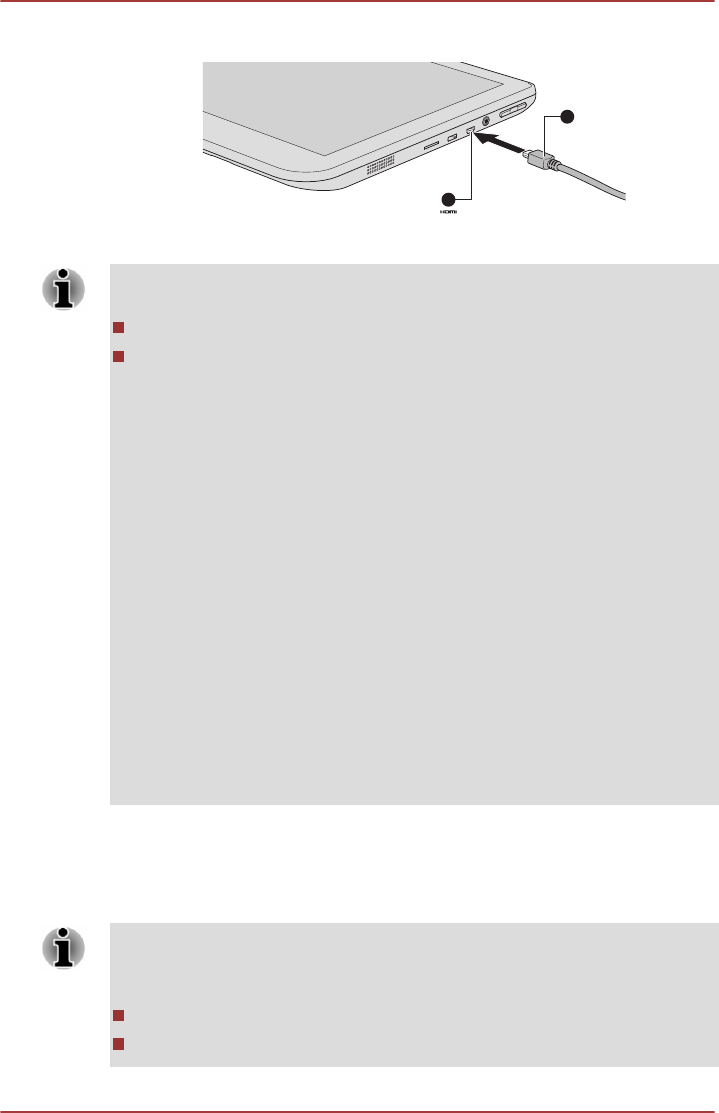

Micro HDMI port The micro HDMI port can connect to HDMI cable

with Type D connector.

An HDMI cable sends video and audio signals. In

addition to this, it can send and receive control

signals.

Please refer to the HDMI port section for details.

Micro USB 2.0 port The computer acts both as a host and a client via

this port. It allows you to connect the computer to

another computer for transferring data. When

acting as a host, the computer can fast and

directly communicate with other client devices

without the assistance of another computer.

User's Manual 3-3

Please note that it is not possible to confirm the operation of all functions of

all USB devices that are available. Some functions associated with a

specific device might not operate properly.

Keep foreign metal objects, such as screws, staples and paper clips, out of

the USB port. Foreign metal objects can create a short circuit, which can

cause damage and fire, possibly resulting in serious injury.

Memory media slot This slot lets you insert a micro SD™/SDXC™/

SDHC™ memory card. Refer to the Memory

media section for more information.

Keep foreign metal objects, such as screws, staples and paper clips, out of

the Memory media slot. Foreign metal objects can create a short circuit,

which can cause damage and fire, possibly resulting in serious injury.

Stereo speakers The speakers emit sound generated by your

software as well as audio alarms, such as low

battery condition, generated by the system.

Universal Serial Bus

(USB 3.0) port

One Universal Serial Bus port, which complies to

the USB 3.0 standard, is provided on the right

side of the computer.

The USB 3.0 port is compliant with USB 3.0

standard and backward compatible with USB 2.0

devices.

The port with the icon ( ) has Sleep and Charge

function.

USB 3.0 port(s) may work as USB 2.0 port(s) when operating in USB

Legacy Emulation mode.

Back

The following figure shows the back of computer.

Figure 3-4 The back of the computer

1. Computer holder

User's Manual 3-4

Computer holder The holder provides firm support to the computer.

Underside

The following figures show the underside of the computer. You should

ensure that the display is closed before the computer is turned over to

avoid causing any damage.

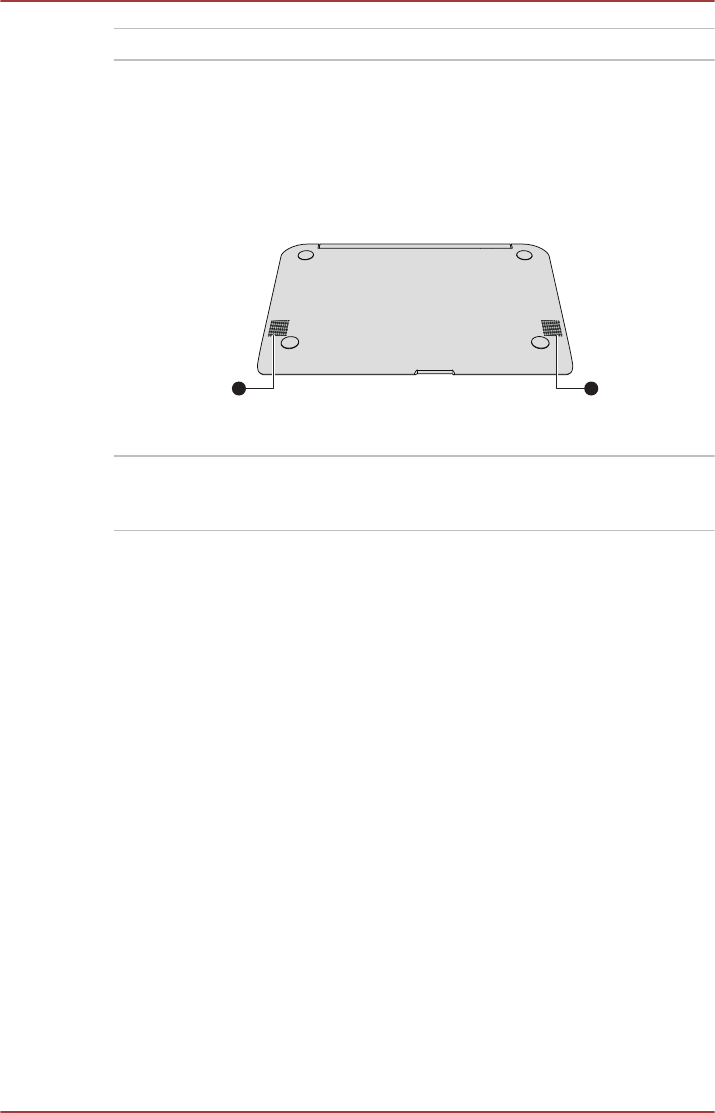

Figure 3-5 The underside of the computer

1 3 1

1. Stereo speakers

Stereo speakers The speakers emit sound generated by your

software as well as audio alarms, such as low

battery condition, generated by the system.

Front with the display open

This section shows the computer with the display panel open. In order to

open the display, lift the display panel up and position it at a comfortable

viewing angle for you.

User's Manual 3-5

Figure 3-6 The front of the computer with the display panel open

9 10 1112

245

1. Wireless communication antennas

(not shown)

8. Release latch

2. Microphone* 9. Keyboard

3. Web Camera LED 10. Touch Pad

4. Web Camera 11. Touch Pad control button

5. Ambient light sensor (not shown) 12. Touch Pad control button

6. Display screen 13. Windows button

7. Computer holder

* Provided with some models.

Product appearance depends on the model you purchased.

Wireless

communication

antennas

Some computers in this series are equipped with

the Wireless LAN/Bluetooth antennas.

Legal Footnote (Wireless LAN)

For more information regarding Wireless LAN, please refer to the Legal

Footnotes section.

Microphone The built-in microphone allows you to import and

record sounds for your application - please refer

to the Sound System and Video mode section for

more information.

Web Camera LED The Web Camera LED glows when the Web

Camera is operating.

Web Camera Web Camera is a device that allows you to

record video or take photographs with your

computer. You can use it for video chatting or

video conferences using a communication tool.

User's Manual 3-6

Do not point the web camera directly at the sun.

Do not touch or press strongly on the web camera lens. Doing so may

reduce image quality. Use an eyeglass cleaner (cleaner cloth) or other

soft cloth to clean the lens if it becomes dirty.

Ambient light sensor Ambient light sensor can detect the light quality

and intensity outside and can use this information

to automatically adjust the display screen

brightness.

Display screen 33.78cm (13.3") LCD screen, configured with the

following resolutions:

HD, 1366 horizontal x 768 vertical pixels

Please be aware that, when the computer is

operating on the AC adaptor, the image

displayed on the internal screen will be

somewhat brighter than when it operates on

battery power. This difference in brightness

levels is intended to save power when operating

on batteries.

Legal Footnote (LCD)

For more information regarding LCD, please refer to the Legal Footnotes

section.

Keyboard Your computer’s keyboard contains character

keys, control keys, function keys, and special

Windows keys, providing all the functionality of a

full-size keyboard.

Refer to the The Keyboard section for details.

Touch Pad The Touch Pad located in the palm rest is used

to control the movement of the on-screen pointer.

To use the Touch Pad, simply touch and move

your fingertip across it in the direction you want

the on-screen pointer to go.

Touch Pad control

buttons

The two buttons below the Touch Pad are used

like the buttons on a standard mouse - press the

left button to select a menu item or to manipulate

text or graphics designated by the pointer, and

press the right button to display a menu or other

function depending on the software you are

using.

User's Manual 3-7

Windows button Press this button to open the Start screen or, if

already on the Start screen, returns you to your

last app.

Internal Hardware Components

This section describes the internal hardware components of your computer.

The actual specifications may vary depending on the model you

purchased.

Battery pack This computer includes one battery pack in the

computer and another in the keyboard dock.

However, please do not attempt to dismount or

replace them by yourself. Please contact an

authorized TOSHIBA service provider, if

necessary.

The rechargeable lithium-ion battery packs

provide power to the computer when the AC

adaptor is not connected.

For more detailed information on the use and

operation of the battery pack please refer to the

Battery section.

Legal Footnote (Battery Life)

For more information regarding Battery Life, please refer to the Legal

Footnotes section.

CPU The processor type varies depending on model.

To check which type of processor is included in

your model, open the TOSHIBA PC Health

Monitor utility by clicking Desktop -> Desktop

Assist -> Support & Recovery -> PC Health

Monitor, and then click PC Information. .

Legal Footnote (CPU)

For more information regarding CPU, please refer to the Legal Footnotes

section.

User's Manual 3-8

Hard Disk Drive or

Solid State Drive

The capacity of the hard disk drive varies

depending on the model.

To check which type of HDD/SSD is included in

your model, open the TOSHIBA PC Health

Monitor utility by clicking Desktop -> Desktop

Assist -> Support & Recovery -> PC Health

Monitor, and then click PC Information.

Please note that part of the hard disk's overall

capacity is reserved as administration space.

In this manual, the word "HDD" or "Hard disk drive" also refers to the

SSD unless otherwise stated.

SSD is a large-capacity storage media which uses Solid-State

Memory in place of a magnetic disk of the hard disk.

Under certain unusual conditions of prolonged non-use and/or exposure to

high temperatures, the SSD may be vulnerable to data retention errors.

Legal Footnote (Hard Disk Drive (HDD) Capacity)

For more information regarding Hard Disk Drive (HDD) Capacity, please

refer to the Legal Footnotes section.

RTC battery The internal RTC battery backs up the Real Time

Clock (RTC) and calendar.

Video RAM The memory in a computer's graphics adaptor,

used to store the image displayed on a bitmap

display.

The amount of Video RAM available is

dependent on the computer's system memory.

Desktop -> Desktop Assist -> Control Panel ->

Appearance and Personalization -> Display ->

Adjust resolution.

The amount of Video RAM can be verified by

clicking the Advanced settings button in the

Screen Resolution window.

Legal Footnote (Memory (Main System))

For more information regarding Memory (Main System), please refer to the

Legal Footnotes section.

User's Manual 3-9

Display controller The display controller interprets software

commands into hardware commands that turn

particular parts on the screen on or off.

The display controller also controls the video

mode and uses industry standard rules to govern

the screen resolution and the maximum number

of colors that can be displayed at a time.

Therefore, software written for a given video

mode will run on any computer that supports that

mode.

Legal Footnote (Graphics Processing Unit (GPU))

For more information regarding Graphics Processing Unit (GPU), please

refer to the Legal Footnotes section.

Power Condition Descriptions

Power conditions

The computer's operating capability and battery charge status are affected

by different power conditions, including whether an AC adaptor is

connected and what the charge level is for that battery.

The LED in the table below refers to the DC IN/Battery indicator.

Power on Power off

(no operation)

AC adaptor

connected

Battery fully

charged

• Operates

• No charge

• LED: white

• No charge

• LED: white

Battery partially

charged or no

charge

• Operates

• Charge

• LED: amber

• Quick charge

• LED: amber

User's Manual 3-10

Power on Power off

(no operation)

AC adaptor

not

connected

Remaining

battery capacity

is above low

battery trigger

point

• Operates

• LED: off

Remaining

battery capacity

is below low

battery trigger

point

• Operates

• LED: flashes

amber

Remaining

battery capacity

is exhausted

Computer shuts

down

DC IN/Battery indicator

Check the DC IN/Battery indicator to determine the status of the battery

pack and the power status with the AC adaptor connected. The following

indicator conditions should be noted:

Flashing amber The battery charge is low. The AC adaptor must

be connected in order to recharge the battery.

Amber Indicates the AC adaptor is connected and the

battery is charging.

White Indicates the AC adaptor is connected and the

battery is fully charged.

No light Under any other conditions, the indicator does

not light.

If the battery pack becomes too hot while it is being charged, the charge

will stop and the DC IN/Battery indicator will go out. When the battery

pack's temperature falls to a normal range, charging will resume - this

process will occur regardless of whether the computer's power is on or off.

Power indicator

Check the Power indicator to determine the power status of the computer -

the following indicator conditions should be noted:

White Indicates power is being supplied to the

computer and the computer is turned on.

User's Manual 3-11

Blinking white Indicates that the computer is in Sleep Mode and

that there is sufficient power available (AC

adaptor or battery) to maintain this condition.

No light Under any other conditions, the indicator does

not light.

User's Manual 3-12

Chapter 4

Operating Basics

This chapter describes the basic operations of your computer and

highlights the precautions that should be taken when using it.

Operating in Tablet Mode

When operating the computer in tablet mode, follow the instructions below.

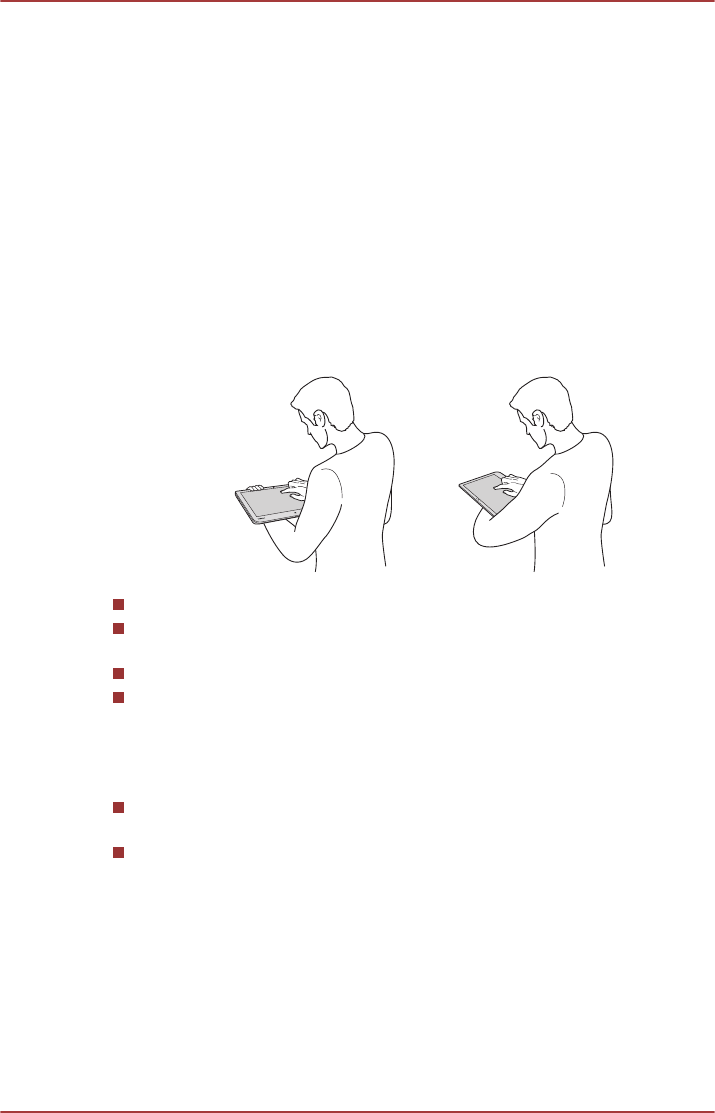

Figure 4-1 Operating the computer

Hold the computer firmly on your forearm. Do not block the vent.

Remove the AC adaptor from the computer when using it held in your

forearm.

Do not use the computer while walking or driving a car.

Do not expose the computer to rapid temperature changes (such as

would be the case if you brought the computer from a cold

environment into a warm room). When rapid temperature changes are

unavoidable, leave the computer for around two hours before turning it

on to prevent the formation of condensation.

Remove all external peripheral devices and their connection cables

from the computer before carrying.

Do not drop the computer or apply excessive impact to it. Do not leave

the computer in a car or similar environment where it is exposed to

direct sunlight.

Changing the screen orientation

When operating the computer in tablet mode, you can change the screen

orientation to Portrait mode by rotating the computer sideways. The screen

orientation automatically changes according to the rotation angle detected.

User's Manual 4-1

Figure 4-2 Rotating the computer sideways

Avoid having direct contact with the other edges of the hand held

device while the wireless device is turned on and transmitting. Only

factories installed wireless transmitter can be used with this hand held

device to satisfy RF exposure compliance.

In the Portrait mode, some drivers/utilities may not perform install and

uninstall operation. If it occurs, switch to the Landscape mode to

proceed.

Using the Touch Screen

You can use your finger to manipulate icons, buttons, menu items, the on-

screen keyboard, and other items on the touch screen.

Tap Simply tap your finger once on the touch screen

to activate an item, such as an app.

Press and hold Press your finger down and leave it there for a

few seconds until a white square appears. This

will show information to help you learn more

about an item or will open a menu specific to

what you are doing.

Pinch or stretch Touch the screen or an item with two or more

fingers, and then move the fingers toward each

other (pinch) or away from each other (stretch).

This will show different levels of information or

visually zooms in or out.

Rotate Put two or more fingers on an item and then turn

your hand to rotate things in the direction you

turn your hand. Only some items can be rotated.

Slide Drag your finger on the touch screen to move

through what's on the screen.

User's Manual 4-2

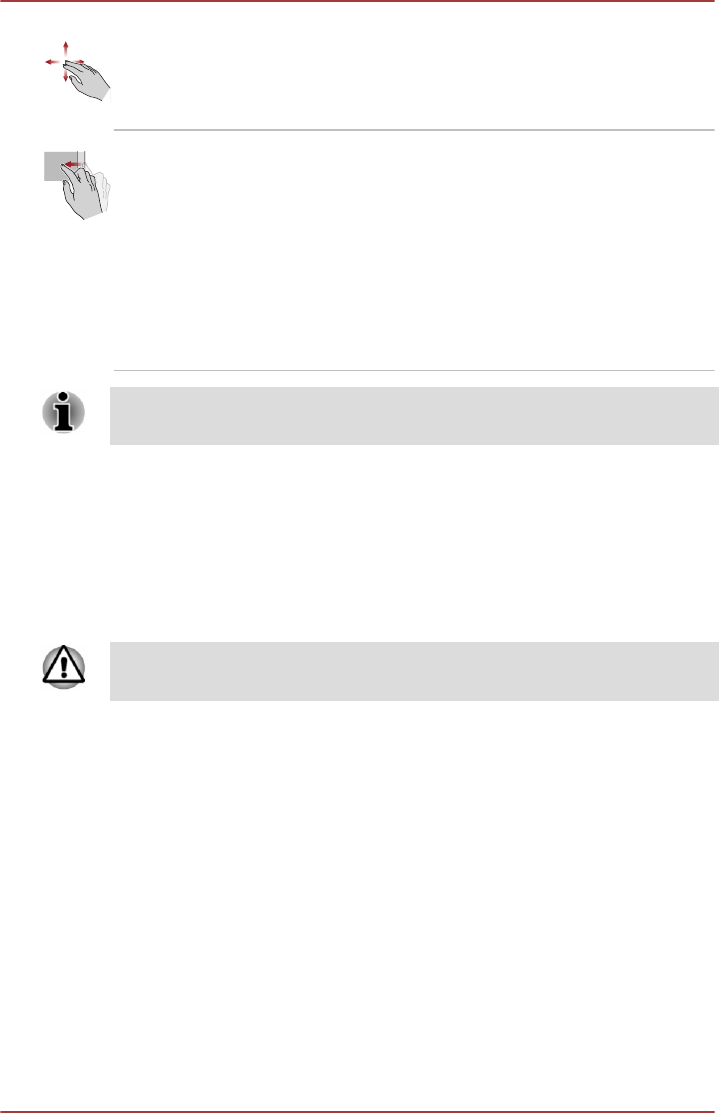

Swipe to select Quickly slide down an item with your finger, such

as an app tile to select it. This usually opens the

app commands.

Swipe from edge Quickly move your finger in from the edge of the

screen, without pausing when you first touch it.

Swipe from the left edge: shows your recently

opened apps, and so on.

Swipe from the right edge: opens or closes the

Charms (Search, Share, Start, Devices,

Settings).

Swipe from the top or bottom edge: opens or

closes the app command bar.

For details and more advanced touch screen gestures to interact with

Windows 8, please refer to Help and Support.

Do not press or push with excess force on the touch screen.

Do not apply excess force when cleaning the touch screen.

Never touch the screen with a sharp object such as a ball-point pen

which may scratch or damage the surface.

Using the Touch Pad

The Touch Pad located on the TOSHIBA Keyboard Dock may support the

following gestures:

Tap Tap once on the Touch Pad to activate an item,

such as an app.

Two-Finger Tap Tap once on the Touch Pad with two fingers

together to display a menu or other function

depending on the software you are using.

(Similar to right-click)

Pinch or stretch Place two or more fingers down on the Touch

Pad and move them toward each other (pinch) or

away from each other (stretch). This will show

different levels of information or visually zooms in

or out.

User's Manual 4-3

Two-Finger Scroll Place two fingers down and slide them vertically

or horizontally from anywhere on the Touch Pad.

This allows you to operate the scroll bars of a

window.

Swipe Quickly move your finger in from the edge of the

Touch Pad, without pausing when you first touch

it.

Swipe from the left edge: shows your recently

opened apps.

Swipe from the right edge: opens or closes the

charms (Search, Share, Start, Devices, Settings).

Swipe from the top edge: opens or closes the

app command bar.

Some of the Touch Pad operations described in this section are only

supported in certain applications.

The Keyboard

The number of keys available on the keyboard dock will depend on which

country/region your computer is configured for, with keyboards being

available for numerous languages.

There are different types of keys, specifically typewriter keys, function keys,

Windows special keys and the keypad overlay.

Never remove the key caps on your keyboard. Doing so could cause

damage to the parts under the key caps.

Keyboard indicator

The following figure shows the position of the CAPS LOCK indicator which

shows the following conditions:

When the CAPS LOCK indicator glows, the keyboard will produce capitals

when any letter is typed.

User's Manual 4-4

Figure 4-3 CAPS LOCK indicator

1. CAPS LOCK indicator

CAPS LOCK This indicator glows green when letter keys are

locked into their uppercase format.

Function Key

The function keys (F1 ~ F12) are the twelve keys at the top of your

keyboard.

You can configure the function keys Mode as "Special function mode" or

"Standard F1-F12 mode" by clicking Desktop -> Desktop Assist -> Tools

& Utilities -> System Settings -> Keyboard.

"Special function mode" allows you to use special functions without

pressing the FN key.

Special

function mode

Standard F1-

F12 mode

Function

F1 FN + F1 Launches the help file supplied with

the software.

F2 FN + F2 Decreases the computer's display

panel brightness in individual steps.

F3 FN + F3 Increases the computer's display

panel brightness in individual steps.

F4 FN + F4 Changes the active display device.

To use a simultaneous mode, you

must set the resolution of the internal

display panel to match the resolution

of the external display device.

F5 FN + F5 Enables or disables the Touch Pad.

F6 FN + F6 Moves media backward.

F7 FN + F7 Plays or pauses media playback.

F8 FN + F8 Moves media forward.

User's Manual 4-5

Special

function mode

Standard F1-

F12 mode

Function

F9 FN + F9 Decreases the computer's volume.

F10 FN + F10 Increases the computer's volume.

F11 FN + F11 Turns the sound on or off.

F12 FN + F12 Turns the Airplane mode on or off.

FN + 1 FN + 1 Reduces the icon size on the desktop

or the font sizes within one of the

supported application windows.

FN + 2 FN + 2 Enlarges the icon size on the desktop

or the font sizes within one of the

supported application windows.

FN + Space FN + Space Changes the display resolution.

FN + Z FN + Z Turns the keyboard backlight on or

off. This function is supported with

some models.

Some functions will show the toast notification at the edges of the screen.

Those toast notifications are disabled at factory default. You can enable

them in the Function Key application.

To access it, click Desktop -> Desktop Assist -> Tools & Utilities ->

Function Key.

Windows special keys

The keyboard provides two keys that have special functions in Windows,

the Windows Start Button key activates the Start screen while the

application key has the same function as the secondary (right) mouse

button.

This key activates the Windows Start screen.

This key has the same function as the secondary (right) mouse button.

Touch keyboard

Touch keyboard is an on-screen virtual keyboard allowing you to type on

the touch screen. Touch keyboard provides a full-size keyboard, a thumb

keyboard with keys split on either side of the screen and it can also switch

to a handwriting panel.

User's Manual 4-6

To use the touch keyboard, tap in an area where you can type. The

keyboard will open automatically.

To manually open the touch keyboard, please follow either of the below:

In the Settings charm, click Keyboard -> Touch keyboard and

handwriting panel.

Click the keyboard icon ( ) in the taskbar of your Windows

desktop.

Battery

This section explains battery types, use, recharging methods and handling.

Battery types

The computer has different types of batteries.

Battery pack

When the AC adaptor is not connected, the computer's main power source

are two lithium ion batteries, also referred to in this manual as the main

battery.

Real Time Clock (RTC) battery

The Real Time Clock (RTC) battery provides power for the internal real

time clock and calendar function and also maintains the system

configuration while the computer is turned off. If the RTC battery becomes

completely discharged, the system will lose this information and the real

time clock and calendar will stop working.

You can change the Real Time Clock settings in the BIOS setup utility.

Please refer to TOSHIBA Setup Utility section for further information.

The RTC battery does not charge while the computer is turned off even if

the AC adaptor is attached.

Care and use of the battery pack

This section provides the important safety precautions in order to handle

your battery packs properly.

Refer to the enclosed Instruction Manual for Safety and Comfort for

detailed precautions and handling instructions.

The computer's RTC battery is a Ni-MH battery and should be

replaced only by your dealer or by a TOSHIBA service representative.

The battery can explode if not properly replaced, used, handled or

disposed. Dispose of the battery as required by local ordinances or

regulations.

User's Manual 4-7

Charge the battery pack only in an ambient temperature between 5

and 35 degrees Celsius. Otherwise, the electrolyte solution might leak,

battery pack performance might deteriorate and the battery life might

be shortened.

Charging the batteries

When the power in the battery pack becomes low, the DC IN/Battery

indicator will flash amber to indicate that only a few minutes of battery

power remain. If you continue to use the computer while the DC IN/Battery

indicator flashes, the computer will enable Hibernation Mode so that you do

not lose any data, and automatically turn itself off.

You must recharge a battery pack when it becomes discharged.

Procedures

To recharge a battery pack, connect the AC adaptor to the DC IN 19V jack

and plug the other end into a working outlet - the DC IN/Battery indicator

will glow amber while the battery is being charged.

Charging Time

The following table shows the approximate time required to fully charge a

discharged battery.

Tablet mode

Battery type Power off Power on

Battery pack (23.56Wh, 2

cell) - Tablet

about 4.5 hours about 4.5 hours

RTC battery Doesn’t charge about 24 hours

Laptop mode

Battery type Power off Power on

Battery pack (23.56Wh, 2

cell) - Tablet

about 4.5 hours about 4.5 hours

Battery pack (23.56Wh, 2

cell) - TOSHIBA Keyboard

Dock

about 4.5 hours about 4.5 hours

RTC battery Doesn’t charge about 24 hours

Please be aware that the charging time when the computer is on is affected

by ambient temperature, the temperature of the computer and how you are

User's Manual 4-8

using the computer - if you make heavy use of external devices for

example, the battery might scarcely charge at all during operation.

Battery charging notice

The battery may not begin charging immediately under the following

conditions:

The battery is extremely hot or cold (if the battery is extremely hot, it

might not charge at all). To ensure the battery charges to its full

capacity, you should charge it at room temperature of between 5°C to

35°C (41°F to 95°F).

The battery is nearly completely discharged. In this instance you

should leave the AC adaptor connected for a few minutes and the

battery should begin charging.

The DC IN/Battery indicator may show a rapid decrease in battery

operating time when you try to charge a battery under the following

conditions:

The battery has not been used for a long time.

The battery has completely discharged and been left in the computer

for a long time.

In such cases you should follow the steps as detailed below:

1. Fully discharge the battery by leaving it in the computer with the power

on until the system automatically turns itself off.

2. Connect the AC adaptor to the DC IN 19V jack of the computer, and to

a wall outlet that is supplying power.

3. Charge the battery until the DC IN/Battery indicator glows white.

Repeat these steps two or three times until the battery recovers normal

capacity.

Monitoring battery capacity

Remaining battery power can be monitored using the following methods.

Clicking the battery icon on the Taskbar

Via the Battery Status in the Windows Mobility Center window

You should wait at least 16 seconds after turning on the computer

before trying to monitor the remaining operating time. This is because

the computer needs this time to check the battery's remaining capacity

and then calculate the remaining operating time, based on this

together with the current power consumption.

Please be aware that the actual remaining operating time may differ

slightly from the calculated time.

User's Manual 4-9

With repeated discharges and recharges, the battery's capacity will

gradually decrease. In view of this it will be noted that an often used,

older battery will not operate for as long as a new battery even when

both are fully charged.

Maximizing battery operating time

A battery's usefulness depends on how long it can supply power on a

single charge, while how long the charge lasts in a battery depends on:

Processor speed

Screen brightness

System Sleep Mode

System Hibernation Mode

Display power off period

Solid State Drive power off period

How often and for how long you use the Solid State Drive and external

disk drives.

How much charge the battery contained to begin with.

How you use optional devices, such as a USB device, to which the

battery supplies power.

Whether you enable Sleep Mode, which can conserve battery power if

you are frequently turning the computer off and on.

Where you store your programs and data.

Whether you close the display panel when you are not using the

keyboard - closing the display saves power.

The environmental temperature - operating time decreases at low

temperatures.

Batteries exhausted time

When you turn off the power of your computer with batteries fully charged,

the batteries will be exhausted within the following approximate period (in

tablet mode).

Tablet mode

Battery type Sleep Mode Shut Down Mode

Battery pack (23.56Wh, 2

cell)

about 3 days about 45 days

RTC battery about 30 days about 90 days

Laptop mode

User's Manual 4-10

Battery type Sleep Mode Shut Down Mode

Two battery packs

(23.56Wh, 2 cell)

about 5 days about 45 days

RTC battery about 30 days about 90 days

Extending battery life

To maximize the life of your battery packs:

At least once a month, disconnect the computer from a power source and

operate it on battery power until the battery pack fully discharges. Before

doing so, follow the steps as detailed below.

1. Turn off the computer's power.

2. Disconnect the AC adaptor and turn on the computer's power - if it

does not turn on then go to Step 4.

3. Operate the computer on battery power for five minutes. If you find

that the battery pack has at least five minutes of operating time,

continue operating until the battery pack is fully discharged, however, if

the DC IN/Battery indicator flashes or there is some other warning to

indicate a low battery condition, go to Step 4.

4. Connect the AC adaptor to the DC IN 19V jack of the computer, and

to a wall outlet that is supplying power. The DC IN/Battery indicator

should glow amber to indicate that the battery pack is being charged,

however, in the event that DC IN/Battery indicator does not glow this

indicates that power is not being supplied - check the connections for

the AC adaptor and the power cord.

5. Charge the battery pack until the DC IN/Battery indicator glows

white.

Memory media

The computer is equipped with a memory media slot that can

accommodate some kinds of memory media with various memory

capacities so that you can easily transfer data from devices, such as digital

cameras and Personal Digital Assistants.

Keep foreign objects out of the memory media slot. Never allow metal

objects, such as screws, staples and paper clips, to enter the computer or

Keyboard. Foreign metal objects can create a short circuit, which can

cause computer damage and fire, possibly resulting in serious injury.

User's Manual 4-11

This Memory media slot supports the following memory media:

Secure Digital (SD) Card (microSD/SDHC/SDXC Card).

Please note that not all memory media have been tested and verified

to work correctly. Therefore, it is not possible to guarantee that all

memory media will operate properly.

Memory media

This section provides the important safety precautions in order to handle

your memory media.

Points to note about microSD/SDHC/SDXC memory cards

microSD/SDHC/SDXC memory cards comply with SDMI (Secure Digital

Music Initiative), which is a technology adopted to prevent unlawful copy or

playback of digital music. For this reason, you cannot copy or playback

protected material on other device, and you may not reproduce any

copyrighted material except for your personal enjoyment.

The supported maximum capacity of memory card is 64GB.

Memory media format

New media cards are formatted according to specific standards. If you wish

to reformat a media card, be sure to do so with a device that uses media

cards.

Formatting microSD/SDHC/SDXC memory cards

microSD/SDHC/SDXC memory cards are sold already formatted in

conformity to specific standards. If you reformat an microSD/SDHC/SDXC

memory card, be sure to reformat it with a device such as digital camera or

digital audio player that uses microSD/SDHC/SDXC memory cards, not

with the format command provided within Windows.

Should you need to format all areas of the memory card, including the

protected area, you will need to obtain an appropriate application that

applies the copy protection system.

Media care

Observe the following precautions when handling the card.

Do not twist or bend cards.

Do not expose cards to liquids or store in humid areas or lay media

close to containers of liquid.

Do not touch the metal part of a card or expose it to liquids or let it get

dirty.

User's Manual 4-12

After using card, return it to its case.

The card is designed so that it can be inserted only one way. Do not

try to force the card into the slot.

Do not leave a card partially inserted in the slot. Press the card until

you hear it click into place.

Memory cards have a limited lifespan, so it is important to backup

important data.

Do not write to a card if the battery power is low. Low power could

affect writing accuracy.

Do not remove a card while read/write is in progress.

For more details on using memory cards, see manuals accompanying the

cards.

Inserting memory media

The following instructions apply to all types of supported media devices. To

insert memory media, follow the steps as detailed below:

1. Turn the memory media so that the contacts (metal areas) face up.

2. Insert the memory media into the memory media slot on the right side

of the computer.

Figure 4-4 Inserting memory media

1. Memory media slot 2. Memory media

Make sure the memory media is oriented properly before you insert it.

If you insert the media in wrong direction, you may not be able to

remove it.

When inserting the memory media, do not touch the metal contacts.

You could expose the storage area to static electricity, which can

destroy data.

Do not turn the computer off or switch to Sleep Mode or Hibernation

Mode while files are being copied - doing so may cause data to be

lost.

3. Push the memory media gently until you hear a click.

User's Manual 4-13

Removing memory media

The following instructions apply to all types of supported media devices. To

remove memory media, follow the steps as detailed below:

1. Click the Desktop tile and open the Safely Remove Hardware and

Eject Media icon on the Windows Taskbar.

2. Point to memory media and click the left Touch Pad control button.

3. Push the memory media until you hear a click to partially release it.

4. Grasp it and pull it out of the slot.

If you remove the memory media or turn off the power while the

computer is accessing the memory media, you may lose data or

damage the media.

Do not remove the memory media while the computer is in Sleep or

Hibernation Mode. The computer could become unstable or data in

the memory media could be lost.

Do not remove only the miniSD/microSD Card while leaving the

adaptor in the memory media slot.

External display

Your computer video capabilities can be enhanced with additional displays.

External displays allows you to share your desktop or extend the desktop

area.

Connecting an external display

Your computer comes with a built-in display, but you can also connect

other external displays via available ports on the computer.

The HDMI port

HDMI (High-Definition Multimedia Interface) port digitally transfers both

video and audio data without reducing the quality. HDMI-compatible

external display devices including televisions can be connected via the

HDMI port.

To connect an HDMI-compatible display device, follow the steps as

detailed below:

As the port operation of all HDMI display devices have not been confirmed,

some HDMI display devices may not function properly.

To connect a device to the HDMI port, you must purchase an HDMI cable.

1. Plug one end of the HDMI cable into the HDMI port of your HDMI

display device.

2. Plug the other end of the HDMI cable into the micro HDMI port on your

computer.

User's Manual 4-14

Figure 4-5 Connecting the HDMI port on the computer

1. Micro HDMI port 2. HDMI cable (Type D connector)

Please do not plug/unplug an HDMI display device under the following

conditions:

The system is starting up.

The system is shutting down.

When you connect a television or external monitor to the HDMI port, the

display output device is set to HDMI.

When you unplug the HDMI cable and re-plug it, please wait at least 5

seconds before you re-plug the HDMI cable again.

When you change the display output device, the playback device may not

switch automatically. In this case, in order to set the playback device to the

same device as the display output device, please adjust the playback

device manually by the following steps:

1. Click Desktop -> Desktop Assist -> Control Panel -> Hardware and

Sound -> Sound.

2. In the Playback tab, select the playback device which you want to

switch to.

3. To use the internal speakers on your computer, select Speakers. To use

the television or the external monitor that you have connected to the

computer, select a different playback device.

4. Click the Set Default button.

5. Click OK to close the Sound dialog.

Settings for display video on HDMI

To view video on the HDMI display device, be sure to configure the

following settings otherwise you may find that nothing is displayed.

Be sure to use the function key to select the display device before starting

to play video. Do not change the display device while playing video.

Do not change the display device under the following conditions.

While data is being read or written.

While communication is being carried out.

User's Manual 4-15

Selecting HD Format

To select the display mode, follow the steps as detailed below:

1. Click Desktop -> Desktop Assist -> Control Panel.

2. Click Appearance and Personalization.

3. Click Display.

4. Click Change display settings.

5. Click Advanced settings.

6. Click List All Modes.

7. Select one of the mode at List All Modes.

Changing the display settings

After one or more external displays are connected, the operating system

can automatically detect, identify and setup the display settings.

You can also manually manage how the external displays will work and

change the display settings by pressing P while holding down the

Windows ( ) key. If you disconnect the external display before you turn

the computer's power off, be sure to switch to the internal display.

Optional TOSHIBA Accessories

You are able to add a number of options and accessories in order to make

your computer even more powerful and convenient to use. For reference,

the following list details some of the items that are available from your

reseller or TOSHIBA dealer:

Universal AC Adaptor If you frequently use your computer at more than

one site, it may be convenient to purchase an

additional AC adaptor to be kept at each site in

order to remove the need to always carry the

adaptor with you.

Not all the accessories are available in your region. Please contact your

reseller or TOSHIBA dealer for more information.

Sound System and Video mode

This section describes some of the audio control functions.

Volume Mixer

The Volume Mixer utility lets you control the audio volume for playback of

devices and applications under Windows.

To launch the Volume Mixer utility, click Desktop and right click on the

speaker icon on the Taskbar, and then select Open Volume Mixer

from the sub menu.

User's Manual 4-16

To adjust the volume level of speakers or headphones, move the

Speakers slider.

To adjust the volume level of an application that you are using, move

the slider for the corresponding application.

Microphone Level

Follow the steps below to change the microphone recording level.

1. Right click on the speaker icon on the Taskbar, and select Recording

devices from the sub menu.

2. Select Microphone, and click Properties.

3. On the Levels tab move the Microphone slider to increase or

decrease the microphone volume level.

If you feel the microphone volume level is inadequate, move the

Microphone Boost slider to a higher level.

Audio Enhancements

In order to apply the sound effects for your current speaker, follow the

steps below.

1. Click Desktop and right click on the Speakers icon on the Taskbar,

and then select Playback devices from the sub menu.

2. Select Speakers, and click Properties.

3. On the Enhancements tab select the sound effects you would like,

and click Apply.

Realtek HD Audio Manager

You can confirm and change the audio configuration using the Realtek HD

Audio Manager. To launch the Realtek HD Audio Manager:

Click Desktop -> Desktop Assist -> Control Panel -> Hardware

and Sound -> Realtek HD Audio Manager.

When you first launch the Realtek HD Audio Manager, you will see two

device tabs. Speakers is the default output device. Microphone is the

default input device. To change the default device, click the Set Default

Device button under the chosen device tab.

Information

Click the Information button to view hardware information, software

information, and language setting.

Power Management

The audio controller in your computer can be turned off when the audio

function is not used. To adjust the configuration of audio power

management, click the Power Management button .

User's Manual 4-17

When audio power management is enabled, the circle button at the

upper left of the Power Management is blue and convex.

When audio power management is disabled, the button is black and

concave.

Speaker Configuration

Click the Auto Test button to confirm the internal speakers or the

headphone sound is coming from the right direction.

Default Format

You can change the sample rate and bit depth of sound.

DTS Sound

DTS Sound™ utilizes advanced patented techniques to retrieve audio cues

buried in the original source material and deliver immersive surround sound

complete with deep, rich bass and crystal clear dialog.

DTS Sound is provided with some models. It provides the following

features:

Immersive surround sound with bass and dialog enhancement

Broad sweet spot with elevated sound image

Improved volume output delivering maximum volume without creating

clipping or distortion

Dialog enhancement for clear and intelligible vocals

Bass enhancement for rich, low frequency production

High frequency definition for crisp details

To access the utility, Click Desktop -> Desktop Assist -> Media &

Entertainment -> DTS Sound.

U.S. patents apply to this product. See http://patents.dts.com.

Manufactured under license from DTS Licensing Limited.

Video mode

Video mode settings are configured via the Screen Resolution dialog.

To open the Screen Resolution dialog, click Desktop -> Desktop Assist -

> Control Panel -> Appearance and Personalization -> Display ->

Change display settings.

If you are running some applications (for example a 3D application or video

playback), you may see some disturbance, flickering or frame dropping on

your screen.

If that occurs, adjust the resolution of display, lowering it until the screen is

displayed properly.

User's Manual 4-18

Chapter 5

Utilities and Advanced Usage

This chapter describes the utilities and special features of this computer,

and the advanced usage of some utilities.

Utilities and Applications

This section describes the pre-installed utilities that come with the

computer and details how to start them. For further information on their

operation, you may refer to each utility's online manual, help files or

README.TXT file (if applicable).

All the utilities described here can be accessed from Desktop -> Desktop

Assist.

Furthermore, some utilities can also be launched from Start screen and

desktop shortcut.

TOSHIBA Desktop

Assist

TOSHIBA Desktop Assist is a graphical user

interface that provides access to specific tools

and TOSHIBA utilities and applications that make

the use and configuration of the computer easier.

To access this utility, click Desktop -> Desktop

Assist.

User's Manual 5-1

TOSHIBA Display

Utility

TOSHIBA Display Utility includes Desktop Text

Size utility, Split Screen utility and Other Settings.

Desktop Text Size allows you to make the text

size bigger or smaller on the desktop according

to your usage and favorite. You can change the

text size on the display and on the title bar of

windows by changing the scaling of the text size.

When the scaling is smaller, more information will

appear on the display simultaneously but the text

size becomes smaller. When the scaling is

larger, less information will appear on the display

simultaneously but the text size becomes larger.

You can install Split Screen utility by yourself.

Split Screen utility enables you to create multiple

display zones on a screen and to fit the active

windows to within those zones.

To access this utility, click Desktop -> Desktop

Assist -> Tools & Utilities -> Display Utility.

For details on Desktop Text Size utility and Split

Screen utility, see the help file.

TOSHIBA Password

Utility

This utility allows you to set a password in order

to restrict access to the computer.

To access this utility, click Desktop -> Desktop

Assist -> Tools & Utilities -> Password Utility.

TOSHIBA System

Settings

This utility allows you to customize your

hardware settings according to the way you work

with the computer and the peripherals you use.

To access this utility, click Desktop -> Desktop

Assist -> Tools & Utilities -> System Settings.

For more information, please refer to the

TOSHIBA Setup Utility section.

TOSHIBA HDD

Accelerator

TOSHIBA HDD Accelerator is a utility that can

improve hard drive access performance by using

part of the main memory of the computer as a

cache.

To access this utility, click Desktop -> Desktop

Assist -> Tools & Utilities -> System Settings -

> HDD Accelerator.

TOSHIBA Setup

Utility

TOSHIBA Setup Utility is a BIOS setup utility that

provides you a menu-based user interface so

that you can easily view and change BIOS

settings.

For more information, please refer to the

TOSHIBA Setup Utility section.

User's Manual 5-2

TOSHIBA eco Utility This computer is equipped with "eco mode". This

mode slightly lowers performance of some

devices to reduce electric power consumption.

You can realize measurable power savings by

using it continuously.

TOSHIBA eco Utility helps control the power

consumption of your computer. Various

information can help you understand your degree

of contribution to the environment.

Furthermore, this utility contains Peak shift

function that can help reduce power usage during

periods of peak demand by shifting some power

consumption to periods when demand is lower.

To access this utility, click Desktop -> Desktop

Assist -> Tools & Utilities -> eco Utility.

For details on TOSHIBA eco utility, see the help

file.

TOSHIBA Media

Player by sMedio

TrueLink+

This software is a multimedia player which can

be used to play back video, music and photo.

TOSHIBA Media Player can play back contents

on a local library/home network/SkyDrive.

To access it, click the Media Player icon on the

Start screen.

For details, please refer to the Tutorial.

TOSHIBA Function

Key

This utility allows you to perform some features

by pressing a specified key or combined with the

FN key.

To setup this utility, click Desktop -> Desktop

Assist -> Tools & Utilities -> Function Key.

For details, please refer to the section.

TOSHIBA Service

Station

This application allows your computer to

automatically search for TOSHIBA software

updates or other alerts from TOSHIBA that are

specific to your computer system and its

programs. When enabled, this application

periodically transmits to our servers a limited

amount of system information, which will be

treated in strict accordance with the rules and

regulations as well as applicable data protection

law.

To access this utility, click Desktop -> Desktop

Assist -> Support & Recovery -> Service

Station.

User's Manual 5-3

TOSHIBA PC Health

Monitor

The TOSHIBA PC Health Monitor application

proactively monitors a number of system

functions such as power consumption, battery

health and system cooling, informing you of

significant system conditions. This application

recognizes the system and individual component

serial numbers and will track specific activities

related to their usage.

To access this utility, click Desktop -> Desktop

Assist -> Support & Recovery -> PC Health

Monitor.

For details on TOSHIBA PC Health Monitor, see

the help file.

TOSHIBA Resolution+

Plug-in for Windows

Media Player

The plug-in lets you upconverts wmv and mp4

videos on Windows Media Player.

For more information, please refer to the

TOSHIBA Resolution+ Plug-in for Windows

Media Player Help.

To access it, click Desktop -> Desktop Assist -

> Media & Entertainment -> TOSHIBA

Resolution+ Plug-in for Windows Media

Player - Help.

TOSHIBA Audio

Enhancement

TOSHIBA Audio Enhancement provides you the

function of audio source filtering, earphone audio

enhancement, or speaker audio enhancement.

To change the settings, click Desktop ->

Desktop Assist -> Media & Entertainment ->

Audio Enhancement.

You may not have all the software listed above depending on the model

you purchased.

To access the setup files of the drivers/utilities, type Applications from the

Start screen, and then click Applications and Drivers from the list that

appears.

TOSHIBA Media Player by sMedio TrueLink+ application is not included in

the setup files above but can be downloaded from Windows Store.

Special features

The following features are either unique to TOSHIBA computers or are

advanced features which make the computer more convenient to use.

Access each function using the following procedures.

*1 To access the Power Options, click Desktop -> Desktop Assist ->

Control Panel -> System and Security -> Power Options.

User's Manual 5-4

Display automatic

power off *1

This feature automatically cuts off power to the

computer's display panel when there is no

keyboard input for a specified time, with power

being restored the next time a key is pressed.

This can be specified in the Power Options.

SSD automatic power

off *1

This feature automatically cuts off power to the

Solid State Drive when it is not accessed for a

specified time, with power being restored when

the Solid State Drive is next accessed. This can

be specified in the Power Options.

System automatic

Sleep/Hibernation

Mode *1

This feature automatically shuts down the system

into either Sleep Mode or Hibernation Mode

when there is no input or hardware access for a

specified time. This can be specified in the Power

Options.

Power on password Two levels of password security, supervisor and

user, are available to prevent unauthorized

access to your computer.

Intelligent power

supply *1

A microprocessor in the computer's intelligent

power supply detects the battery's charge,

automatically calculates the remaining battery

capacity and protects electronic components

from abnormal conditions such as a voltage

overload from the AC adaptor. This can be

specified in the Power Options.

Battery save mode *1 This feature lets you configure the computer in

order to save battery power. This can be

specified in the Power Options.

Panel power on/off *1 This feature automatically turns power to the

computer off when the display panel is closed,

and turns it back on when the display panel is

opened. This can be specified in the Power

Options.

Low battery

automatic Hibernation

Mode *1

When battery power is exhausted to the point

that computer operation cannot be continued, the

system automatically enters Hibernation Mode

and shuts itself down. This can be specified in

the Power Options.

Sleep Mode If you have to interrupt your work, you can use

this feature to allow you to turn off power to the

computer without exiting from your software.

Data is maintained in the computer's main

memory so that when you next turn on the

power, you can continue working right where you

left off.

User's Manual 5-5

Hibernation Mode This feature lets you turn off the power to the

computer without exiting from your software. The

contents of main memory are automatically

saved to the Solid State Drive so that when you

next turn the power on again, you can continue

working right where you left off. Refer to the

Turning off the power section, for more details.

USB Wakeup function This function restores the computer from Sleep

Mode depending on the external devices

connected to the USB ports.

For example, if a mouse or USB keyboard is

connected to a USB port, clicking the mouse

button or pressing the keyboard will wakeup the

computer.

Heat dispersal *1 To protect against overheating, the processor is

equipped with an internal temperature sensor

which activates a cooling fan or lowers the

processing speed if the computer's internal

temperature rises to a certain level. You are able

to select whether to control this temperature by

either turning on the fan first, then if necessary

lowering the processor speed, or by lowering the

processor speed first, then if necessary turning

on the fan. Both of these functions are controlled

through the Power Options.

When the processor's temperature falls within

normal range, the fan and the processor

operation will return to its standard speed.

If the processor's temperature reaches an

unacceptably high level with either setting, the

computer automatically shuts down to prevent

any damage. In this instance all unsaved data in

memory will be lost.

TOSHIBA Password Utility

The TOSHIBA Password Utility provides two levels of password security:

User and Supervisor.

Passwords set by the TOSHIBA Password Utility function are different from

the Windows password.

User Password

To start the utility, click the following items:

User's Manual 5-6

Desktop -> Desktop Assist -> Tools & Utilities -> Password Utility ->

User Password

User authentication may be required to validate user rights when using

TOSHIBA Password Utility to delete or change passwords, etc.

Set (button)

Click this button to register a password. After a password is set, you

will be prompted to enter it when you start the computer.

After you set the password, a dialog box will be displayed asking

whether you want to save it to other media. If you forget the password,

you can open the password file on another computer. Be sure to keep

the media in a safe place.

When entering the character string to register the password, enter

from the keyboard character by character and do not enter as ASCII

code or copy-and-paste the character string. In addition, ensure that

the registered password is correct by outputting the character string to

the password file.

When entering a password, do not enter any characters (for example

"!" or "#") produced by pressing the SHIFT or ALT keys.

Delete (button)

Click this button to delete a registered password. Before you can

delete a password, you must first enter the current password correctly.

Change (button)

Click this button to change a registered password. Before you can

change a password, you must first enter the current password

correctly.

Owner String (text box)

You can use this box to associate text with the password. After you

enter text, click Apply or OK. When the computer is started, this text

will be displayed together with the prompt asking you to enter a

password.

You can launch the BIOS setup utility to set, change or delete the HDD

Password or HDD Master Password.

Please refer to TOSHIBA Setup Utility section for further information.

If you forget your HDD User Password, TOSHIBA will NOT be able to

assist you, and your HDD will be rendered COMPLETELY and

PERMANENTLY INOPERABLE. TOSHIBA will NOT be held

responsible for any loss of any data, any loss of use or access to your

HDD, or for any other losses to you or any other person or

organization that result from the loss of access to your HDD. If you

can’t accept this risk, don’t register the HDD User Password.

User's Manual 5-7

When saving the HDD User Password shut down or restart the

computer. If the computer is not shut down or restarted, the saved

data may not be correctly reflected. For more information on shutting

down or restarting the computer, refer to Turning on the power.

Supervisor Password

If you set a Supervisor Password, some functions might be restricted when

a user logs on with the User Password. To set a Supervisor Password:

Desktop -> Desktop Assist -> Tools & Utilities -> Password Utility ->

Supervisor Password

This utility lets you do the following:

Specify restrictions for general users.

Starting the computer using a password

If you have already registered a user password, there is one way to start

the computer:

Enter the password manually.

The password is necessary only if the computer was shut down in

Hibernation mode or boot mode. It is not needed in Sleep mode and

Restart.

To enter a password manually, follow the steps as detailed below:

1. Turn on the power as described in the Getting Started section. The

following message will appear in the screen:

Password=

At this point, the function keys do not work. They will function after you

enter the password.

2. Enter the Password.

3. Press ENTER.

If you enter the password incorrectly three times in a row, or if you don’t

enter the password within 1 minute, the computer shuts off. In this case,

some features that can power on the computer automatically (Wake-up on

LAN, Task Scheduler, etc) may not work. You must turn the computer back

on to retry password entry.

TOSHIBA System Settings

TOSHIBA System Settings is the TOSHIBA configuration management tool

available through the Windows operating system.

User's Manual 5-8

To run TOSHIBA System Settings, click Desktop -> Desktop Assist ->

Tools & Utilities -> System Settings.

The TOSHIBA System Settings window contains a number of tabs to allow

specific functions of the computer to be configured.

In addition there are also three buttons: OK, Cancel and Apply.

OK Accepts your changes and closes the TOSHIBA

System Settings window.

Cancel Closes the window without accepting your

changes.

Apply Accepts all your changes without closing the

TOSHIBA System Settings window.

Some options shown in grey are possible to confirm their status.

TOSHIBA System Settings screen may have the following tabs:

General—Allows you to view the current BIOS version or change

certain settings back to their default values

Sleep and Charge—Allows you to set advanced features for sleep

mode, hibernate mode, and shutdown state.

Display—Allows you to select the internal LCD and/or external monitor

when the computer boots up

Boot Options—Allows you to change the sequence in which your

computer searches the drives for the operating system

Keyboard—Allows you to access the wake-on keyboard function, or to

configure the function keys

USB—Allows you to set conditions for USB

SATA—Allows you to set conditions for SATA

LAN—Allows you to set conditions for LAN

The settings or options explained here may vary depending on the model

you purchased.

After you changed the settings, a dialog box may appear to prompt you that

the changes will take effect after the computer is restarted. Make sure to

restart your computer immediately to apply these changes.

TOSHIBA Media Player by sMedio TrueLink+

Please be aware of the following limitations when you use the TOSHIBA

Media Player by sMedio TrueLink+:

Notes on use

This software is a multimedia player which can be used to play back video,

music and photo.

User's Manual 5-9

It is recommended that the AC adaptor be connected while TOSHIBA

Media Player is running. Power saving features may interfere with

smooth playback. When TOSHIBA Media Player is used with a battery

power, set the Power Options to "Balance".

The screen saver is disabled while TOSHIBA Media Player is playing

a video file or slideshows of photos.

The computer will not enter Sleep, Hibernation and shut-down mode

automatically, while TOSHIBA Media Player is running.

The display automatic power off function is disabled while TOSHIBA

Media Player is playing a video file or slideshows of photos.

The Resolution+ function was specially adjusted for the internal

monitor. Hence, please turn OFF Resolution+ when viewing on

external monitor.

Playback of high bit rate content may cause frame dropping, audio

skipping or decrease in computer performance.

The above problems could be remedied by turning Resolution+ off.

Tap/click the Refresh button on app commands to refresh the content

displayed on Library Screen. It won’t be refreshed automatically.

If sleep, hibernation, shutdown or reboot operation is in process during

uploading the files to SkyDrive, the operation will not be properly

completed.

This app doesn’t support to playback content protected by DRM. If you

try to play DRM protected content with Resolution+ On state, this app

may be closed.

Photos uploaded to SkyDrive are limited to a maximum resolution of

2048 x 2048 pixels. Any photo over that resolution will be scaled

proportionally to a maximum size of 2048 x 2048 pixels.

This app doesn't support DMS.

The playback of some media files may not be normal by this player.

This may also happen when using Windows Media Player and Video

app.

Operating TOSHIBA Media Player by sMedio TrueLink+

The steps for playing a video file on a local library:

1. Click My Local Library on the Start Page of TOSHIBA Media Player.

2. Click a video file to playback.

The steps for playing a music file on a local library:

1. Click My Local Library on the Start Page of TOSHIBA Media Player.

2. Click Music in the upper-left corner of the screen.

3. Select an artist icon or album icon for playback.

4. Click a music file to playback.

The steps for playing a photo file on a local library:

1. Click My Local Library on the Start Page of TOSHIBA Media Player.

2. Click Photos in the upper-left corner of the screen.

User's Manual 5-10

3. Select a folder icon or date icon for playback.

4. Click a photo file to playback.

Opening TOSHIBA Media Player by sMedio TrueLink+

Manual

The features and operations about TOSHIBA Media Player are explained

in the TOSHIBA Media Player Manual.

Use the following procedure to open TOSHIBA Media Player Manual:

Click the Tutorials icon on the Start Page of TOSHIBA Media Player.

Use the following procedure to open TOSHIBA Media Player Online help:

When TOSHIBA Media Player is running, click Help of the Settings charm.

TOSHIBA PC Health Monitor

The TOSHIBA PC Health Monitor application proactively monitors a

number of system functions such as power consumption, battery health

and the system cooling, informing you of significant system conditions. This

application recognizes the system and individual component serial

numbers, and will track specific activities related to the computer and their

usage.

The collected information includes device operation time and number of

actuations or status changes (i.e.: number of power button and FN key

combination uses, AC adaptor, battery, LCD, fan, HDD, sound volume,

wireless communication functionalities and USB information), date of initial

system use, and also computer and device usage (i.e.: power settings,

battery temperature and recharging, CPU, memory, backlight illumination

time, and temperatures for various devices). The stored data uses a very

small portion of the total Solid State Drive capacity, approximately 10MB or

less per year.

This information is used to identify and provide a notification of system

conditions which may effect the performance of your TOSHIBA computer. It

may also be used to help diagnose problems should the computer require

service by TOSHIBA or TOSHIBA's authorized service providers.

Additionally, TOSHIBA may also use this information for quality assurance

analysis.

Subject to the use restrictions above, the HDD data logged may be

transferred to entities located outside of your country or region of residence

(e.g., European Union). Those countries may or may not have the same

data protection laws or data protection levels as required by your home

country or region.

Once enabled, you may disable the TOSHIBA PC Health Monitor at any

time by uninstalling the software via Uninstall a program in the Control

Panel. Doing so will automatically delete all collected information from the

HDD/SSD.

User's Manual 5-11

The TOSHIBA PC Health Monitor software does not extend or modify

TOSHIBA's obligations under its standard limited warranty in any way.

TOSHIBA's standard limited warranty terms and limitations apply.

Starting the TOSHIBA PC Health Monitor

The TOSHIBA PC Health Monitor can be started by clicking Desktop ->

Desktop Assist -> Support & Recovery -> PC Health Monitor.

The TOSHIBA PC Health Monitor main screen will be displayed and on

clicking Please click here to enable TOSHIBA PC Health Monitor, the

"PC Health Monitor Software Notice & Acceptance" screen will be

displayed. Please carefully read the information displayed. Selecting

ACCEPT and clicking OK will enable the program. By enabling the

TOSHIBA PC Health Monitor software, you agree with these terms and

conditions and to the use and sharing of the collected information. Once

the program is enabled, the TOSHIBA PC Health Monitor screen is

displayed, and the program will begin monitoring system functions and

collecting information.

A message will be displayed if any changes which may interfere with the

operation of the program are detected. Follow the instructions displayed on

screen in the message.

TOSHIBA Setup Utility

TOSHIBA Setup Utility is a BIOS setup utility that provides you a menu-

based user interface so that you can easily view and change BIOS

settings.

To enter the BIOS setup utility, follow the steps below:

1. Save your work.

2. In the Settings charm, click Power and then select Restart.

3. Hold down the Volume down button until TOSHIBA Setup Utility is

loaded.

If TOSHIBA Keyboard Dock is connected, the BIOS setup utility can also

be launched through the keyboard operation.

1. Save your work.

2. In the Settings charm, click Power and then select Restart.

3. Hold down the F2 key and then release this key one second after the

computer is power on.

To save the changes and exit the utility, press the F10 key and proceed by

selecting Yes with the keyboard dock or select Exit -> Exit Saving

Changes -> Yes. The computer will restart immediately.

Navigating the utility

TOSHIBA Setup Utility can be navigated through the touch screen.

User's Manual 5-12

Some buttons on the computer are also designated to execute the

corresponding key function on the keyboard dock. Details are described as

follows:

Button Key Function

Windows Enter key Proceed or confirm

operation

Volume up Up arrow key Select an item

Volume down Down arrow key Select an item

Orientation lock - Turn on/off the virtual on-

screen keyboard

USB Charge

Your computer can supply USB Bus power (DC5V) to the USB port.

The port with the icon ( ) (hereinafter called "compatible port") supports

the following feature:

USB Sleep and Charge

System ON CDP Charge

USB Sleep and Charge

You can use the Sleep and Charge function to charge certain USB-

compatible external devices such as mobile phones or portable digital

music players. Your computer can supply USB bus power (DC5V) to the

compatible port even when the computer is turned OFF. "Power OFF"

includes Sleep Mode, Hibernation Mode or shutdown state.

To set USB Sleep and Charge feature, click Desktop -> Desktop Assist -

> Tools & Utilities -> System Settings -> Sleep and Charge.

Move the slider to enable or disable the Sleep and Charge function.

The Sleep and Charge function may not work with certain external

devices even if they are compliant with the USB specification. In those

cases, turn the power of the computer ON to charge the device.

When Sleep and Charge function is enabled, USB bus power (DC5V)

will be supplied to compatible ports even when the power of the

computer is turned OFF. USB bus power (DC5V) is similarly supplied

to the external devices which are connected to the compatible ports.

However, some external devices cannot be charged solely by

supplying USB bus power (DC5V). As for the specifications of the

external devices, please contact the device manufacturer or check the

specifications of the external devices thoroughly before use.

User's Manual 5-13

Using the sleep and charge function to charge external devices will

take longer than charging the devices with their own chargers.

If Sleep and Charge function is enabled, the computer’s battery will

discharge during hibernation or when the computer is turned off. It is

recommended that you connect the AC adaptor to the computer while

using Sleep and Charge function.

External devices connected to the USB bus power (DC5V) function

that interfaces with the power ON/OFF of the computer may always be

in an operational state.

When there is a current overflow of the external devices connected to

the compatible ports, USB bus power (DC5V) supply may be stopped

for safety reasons.

When Sleep and Charge function is enabled, the USB Wakeup

function may not work for compatible ports. In that case, if there is a

USB port that does not have the Sleep and Charge function, attach

the mouse or keyboard to it. If all USB ports have the Sleep and

Charge function, change to disable Sleep and Charge function. The

USB Wakeup function will now work, but the Sleep and Charge

function will be disabled.

Metal paper clips or hair pins/clips will generate heat if they come into

contact with USB ports. Do not allow USB ports to come into contact with

metal products, for example when carrying the computer in your bag.

Your PC has multiple charging modes so that many different USB devices

can be supported for Sleep and Charge function.

Auto Mode (Default) is suitable for a wide range of digital audio players.

While using Auto Mode, your computer can supply USB bus power at

maximum 2.0A to the compatible ports while the computer is turned off.

When USB device cannot be charged by Auto Mode, change to Alternate

Mode.

This function may not be able to be used with some connected external

devices even if the appropriate mode is selected. In this situation, disable

and stop using this function.

Some external devices cannot use Auto Mode. As for the specifications of

the external devices, please contact the device’s manufacture or check the

specifications of the external device thoroughly before use.

Always use the USB cable that was included with your USB device.

Function under Battery Mode

This option can be used to enable/disable sleep and charge under battery

mode. It also displays the remaining battery capacity.

Move the slider to enable or disable this function.

User's Manual 5-14

Enabled Enables Sleep and Charge function under battery

mode.

Disabled Enables Sleep and Charge function only when

the AC adaptor is connected.

Disable features when

the battery level

reaches

Specifies the lower limit of remaining battery life

by moving the slider bar. If the remaining battery

life falls below the setting, the Sleep and Charge

function will be stopped.

This setting is only available when the Function

under Battery Mode is enabled.

System ON CDP Charge

This function enable/disable CDP (Charging Downstream Port) to use rapid

USB charge while the computer is powered on. When "System ON CDP

Charge Mode" is enabled, your computer can supply USB bus power

(DC5V, 1.5A) to the compatible ports while the computer is turned on.

To set System ON CDP Charge Mode, click Desktop -> Desktop Assist -

> Tools & Utilities -> System Settings -> USB.

Enabled Rapid USB battery charge at maximum 1.5A

while PC is powered On.

Disabled Conventional USB battery charge while PC is

powered On.

The "System ON CDP Charge Mode" may not work with certain external

devices even if they are compliant with the USB specifications. In those

cases, use a USB port without "USB Sleep and Charge function" or disable

“System ON CDP Charge Mode”.

It is recommended that AC adaptor be connected to the computer while

supplying USB bus power (DC5V, 1.5A).

When your computer battery capacity is too low to continue, "System ON

CDP Charge Mode" may not work. In those cases, connect the AC adaptor

and reboot the computer.

Always use the USB cable that was included with your USB device.

When "System ON CDP Charge Mode" or “USB Sleep and Charge

function” is enabled, the “USB Wakeup” function may not work. In that

case, use a USB port without "USB Sleep and Charge function" or disable

both “System ON CDP Charge Mode” and “USB Sleep and Charge

function”.

System Recovery

There is a hidden partition allocated on the Solid State Drive for the System

Recovery Options in the event of a problem.

User's Manual 5-15

You can also create recovery media and restore the system.

The following items will be described in this section:

Creating Recovery Media

Restoring the pre-installed software from your created Recovery

Media

Restoring the pre-installed software from the Recovery Solid State

Drive

Creating Recovery Media

This section describes how to create Recovery Media.

Be sure to connect the AC adaptor when you create Recovery Media.

Be sure to close all other software programs except the Recovery

Media Creator.

Do not run software such as screen savers which can put a heavy

load on the CPU.

Operate the computer at full power.

Do not use power-saving features.

Do not write to the media when the virus check software is running.

Wait for it to finish, then disable virus detection programs including any

software that checks files automatically in the background.

Do not use utilities, including those intended to enhance Solid State

Drive access speed. They may cause unstable operation and damage

data.

Do not shut down/log off or Sleep/Hibernate while writing or rewriting

the media.

Set the computer on a level surface and avoid places subjected to

vibrations such as airplanes, trains, or cars.

Do not use on an unstable surface such as a stand.

A recovery image of the software on your computer is stored on the Solid

State Drive, and can be copied to USB Flash Memory by using the

following steps:

1. Select the USB Flash Memory.

The application will allow you to choose from a variety of different

media onto which the recovery image can be copied including USB

Flash Memory.

USB Flash Memory will be formatted and all the data in the USB Flash

Memory will be lost when proceeding.

2. Turn on your computer and allow it to load the Windows operating

system from the Solid State Drive as normal.

3. Insert the USB Flash Memory into one available USB port.

User's Manual 5-16

4. Click Desktop -> Desktop Assist -> Support & Recovery ->

Recovery Media Creator.

5. After Recovery Media Creator starts, select the type of media and the

title you wish to copy, and then click the Create button.

Restoring the pre-installed software from your created

Recovery Media

If the pre-installed files are damaged, you are able to use the Recovery

Media you have created to restore the computer to the state it was in when

you originally received it. To perform this restoration, follow the steps

below:

When you reinstall the Windows operating system, the hard disk will

be reformatted and all data will be lost.

Please make sure to use the default Boot Mode option in the BIOS

setup utility before restoring.

1. Launch the BIOS setup utility.

Please refer to TOSHIBA Setup Utility section for further information.

In the BIOS setup screen, select Advanced -> System Configuration

-> Boot Mode -> UEFI Boot (Default).

If you set the Boot Mode as CSM Boot, the recovery media created by

Recovery Media Creator will NOT be able to restore.

If you create a recovery image using advanced recovery tools from

Control Panel, please also make sure to use the default Boot Mode

option (UEFI Boot) in the BIOS setup utility before restoring.

1. Insert the recovery USB Flash Memory into one available USB port.

2. In the Settings charm, click Power and then select Restart.

3. Hold down the F12 key and then release this key one second after the

computer is power on.

In tablet mode, hold down the Volume up button until the Boot menu

is loaded.

4. Use the Volume up and the Volume down button to select the

appropriate option from the menu according to your actual recovery

media and press the Windows button to confirm the selection.

5. A menu will be displayed from which you should follow the on-screen

instructions.

If you have previously chosen to remove the recovery partition and are

trying to create "Recovery Media", you will see the following message: "The

Recovery Media Creator can not be launched because there is no recovery

partition."

When there is no recovery partition, the Recovery Media Creator cannot

make Recovery Media.

User's Manual 5-17

However, if you have already created a "Recovery Media", you can use it

to restore the recovery partition.

If you have not created "Recovery Media", please contact TOSHIBA

support for assistance.

Restoring the pre-installed software from the

Recovery Solid State Drive

A portion of the total Solid State Drive space is configured as a hidden

recovery partition. This partition stores files which can be used to restore

pre-installed software in the event of a problem.

If you subsequently set up your Solid State Drive again, do not change,

delete or add partitions in a manner other than specified in the manual,

otherwise you may find that space for the required software is not

available.

In addition, if you use a third-party partitioning program to reconfigure the

partitions on your Solid State Drive, you may find that it becomes

impossible to setup your computer.

Make sure that the AC adaptor is connected during the restoring process.

When you reinstall the Windows operating system, the Solid State Drive

may be reformatted and all data may be lost.

1. In the Settings charm, click Power and then select Restart.

2. Hold down 0 (zero) key and then release this key one second after the

computer is power on.

In tablet mode, hold down the Volume up button until the Boot menu

is loaded and then select HDD Recovery.

3. Select Troubleshoot.

4. Select Reset your PC.

5. Follow the on screen instructions to finish the recovery.

You can also perform the restoration through PC settings in the operating

system:

1. Click the Settings charm and click Change PC settings.

2. Click General under PC settings.

3. Scroll down to Remove everything and reinstall Windows and click

Get started.

4. Follow the on screen instructions to finish the recovery.

User's Manual 5-18

Chapter 6

Troubleshooting

TOSHIBA has designed this computer for durability, however, should

problems occur you are able to use the procedures detailed in this chapter

to help determine the cause.

All users should become familiar with this chapter as knowing what might

go wrong can help prevent problems from occurring in the first place.

Problem solving process

Resolving problems will be much easier if you observe the following

guidelines:

Stop immediately when you recognize a problem exists as taking

further action may result in data loss or damage, or you may destroy

valuable problem related information that can help solve the problem.

Observe what is happening - write down what the system is doing and

what actions you performed immediately before the problem occurred.

Make a screenshot of the current display.

Please also be aware that the questions and procedures described in this

chapter are meant only as a guide, they are not definitive problem solving

techniques. In reality many problems can be solved simply, but a few may

require help from TOSHIBA Support - if you find you need to consult

others, be prepared to describe the problem in as much detail as possible.

Preliminary checklist

You should always consider the simplest solution first - the items detailed

in this checklist are easy to fix and yet can cause what appears to be a

serious problem:

Make sure you turn on all peripheral devices before you turn on the

computer - this includes your printer and any other external device you

are using.

Before you attach an external device you should first turn the

computer off, then when you turn the computer back on again it will

recognize the new device.

Make sure all optional accessories are configured properly in the

computer's setup program and that all required driver software has

been loaded (please refer to the documentation included with the

optional accessories for further information on its installation and

configuration).

User's Manual 6-1

Check all cables to ensure they are correctly and firmly attached to the

computer - loose cables can cause signal errors.

Inspect all connecting cables for loose wires and all connectors for

loose pins.

Always try to make detailed notes of your observations and keep them in a

permanent error log - this will help you to describe your problems to

TOSHIBA Support. In addition, if a problem recurs, the log you have made

will help to identify the problem faster.

Analyzing the problem

Sometimes the computer will give you clues that can help you identify why

it is malfunctioning. In view of this you should keep the following questions

in mind:

Which part of the computer is not operating properly - keyboard, Solid

State Drive, display panel, Touch Pad, Touch Pad control buttons - as

each device will produce different symptoms.

Check the options within the operating system to ensure that its

configuration is set properly.

What appears on the display? Does it display any messages or

random characters? Make a screenshot of the current display and, if

possible, look up the messages in the documentation included with the

computer, software or operating system.

Check that all connecting cables are correctly and firmly attached as

loose cables can cause erroneous or intermittent signals.

Do any indicators light, if so, which ones, what color are they and do

they stay on or blink? Write down what you see.

Do you hear any beeps, if so how many, are they long or short and are

they high pitched or low pitched? In addition, is the computer making

any unusual noises? Write down what you hear.

Record your observations so you can describe them in detail to TOSHIBA

Support.

Software The problems may be caused by your software

or disk. If you cannot load a software package,

the media may be damaged or the program

might be corrupted - in these instances try

loading another copy of the software if possible.

If an error message appears while you are using

a software package you should refer to the

documentation supplied with it as this will usually

include a problem solving section or a summary

of error messages.

Next, you should check any error messages

against the operating system documentation.

User's Manual 6-2

Hardware If you cannot find a software problem, you should

then check the setup and configuration of your

hardware. First run through the items in the

preliminary checklist as described previously

then, if you still cannot correct the problem, try to

identify the source - the next section provides

checklists for individual components and

peripherals.

Before using a peripheral device or application software that is not an

authorized TOSHIBA part or product, make sure the device or software can

be used with your computer. Use of incompatible devices may cause injury

or may damage your computer.

If something goes wrong

Your computer does not respond to the keyboard commands

If an error occurs and the computer does not respond to your keyboard

commands, follow the steps below:

Press the power button and hold it down for five seconds. Once the

computer has turned itself off, wait between ten and fifteen seconds before

turning the power on again by pressing the power button.

Your program stops responding

If you are working with a program that suddenly freezes all operations,

chances are the program has stopped responding. You can exit the failed

program without shutting down the operating system or closing other

programs.

To close a program that has stopped responding:

1. Press CTRL, ALT, and DEL simultaneously (once), then click Task

Manager. The Windows Task Manager window appears.

2. Select the program you want to close, then click End Task. Closing

the failed program should allow you to continue working. If it does not,

continue with the next step.

3. Close the remaining programs one by one by selecting the program

name, then End Task. Closing all programs should allow you to

continue working. If it does not, power off your computer and then

restart it.

The computer will not start

Make sure you attached the AC adaptor and power cord/cable properly.

If you are using the AC adaptor, check that the wall outlet is working by

plugging in another device, such as a lamp.

Verify that the computer is on by looking at the Power indicator.

User's Manual 6-3

If the indicator is glowing, the computer is on. Also, try turning the computer

off and then on.

If you are using an AC adaptor, verify that the computer is receiving power

from the external power source by looking at the DC IN/Battery indicator. If

the indicator is glowing, the computer is connected to a live external power

source.

The computer will not load advanced options during startup

The advanced option will be loaded when you hold down one of the

following keys on the keyboard dock during startup. The equivalent button

operation in tablet mode are also described.

Advanced option Key & button operations

BIOS utility F2

while holding down Volume down button,

press Power button

Boot menu F12

while holding down Volume up button, press

Power button

Recovery options 0 (zero)

If your computer starts to load the Operating System instead of desired

advanced options, follow the steps below:

1. In the Settings charm, click Power and then select Restart.

2. Hold down the corresponding key and then release this key one

second after the computer is power on.

In tablet mode, hold down the corresponding button (no need to press

Power button) until the advanced option is loaded.

3. Follow the on-screen instructions to proceed.

Hardware and system checklist

This section discusses problems caused by your computer’s hardware or

attached peripherals. Basic problems may occur in the following areas:

Power

Keyboard

Internal display panel

Solid State Drive

Memory Media Card

Pointing Device

USB device

Sound system

External monitor

Wireless LAN

Bluetooth

User's Manual 6-4

Power

When the computer is not plugged into an AC power outlet, the battery

pack is the primary power source. However, your computer also has a

number of other power resources, including an intelligent power supply and

a Real Time Clock (RTC) battery, all of which are interrelated with any one

having the ability to produce apparent power problems.

Overheating power down

If the processor's temperature reaches an unacceptably high level with

either setting, the computer will automatically shut down to prevent any

damage - in this instance all unsaved data in memory will be lost.

Problem Procedure

Computer shuts

down automatically

Leave the computer off until the it reaches room

temperature. If the computer has reached room

temperature and it still does not start, or if it starts

but shuts down quickly, contact TOSHIBA Support.

AC power

If you have trouble turning on the computer with the AC adaptor connected

you should check the status of the DC IN/Battery indicator. Please refer to

the Power Condition Descriptions section for further information.

Problem Procedure

AC adaptor doesn’t

power the computer

Check the connections to make sure that the

power cord/adaptor is firmly connected to the

computer and a working power outlet.

Check the condition of the cord and terminals. If

the cord is frayed or damaged it should be

replaced, while if the terminals are soiled, they

should be cleaned with a clean cotton cloth.

If the AC adaptor still does not power the

computer, you should contact TOSHIBA Support.

Battery

If you suspect a problem with the battery, you should check the status of

the Battery indicator.

Problem Procedure

Battery doesn’t

power the computer

The battery may be discharged - connect the AC

adaptor to recharge the battery.

User's Manual 6-5

Problem Procedure

Battery doesn’t

charge when the AC

adaptor is attached

If the battery is completely discharged, it will not

begin charging immediately, in these instances you

should wait a few minutes before trying again. If

the battery still does not charge, you should check

that the power outlet the AC adaptor is connected

to is supplying power - this can be tested by

plugging another appliance into it.

Battery doesn’t

power the computer

as long as expected

If you frequently recharge a partially charged

battery, the battery might not charge to its full

potential - in these instances you should fully

discharge the battery and then attempt to charge it

again.

Check the Power saver option under Select a

power plan in the Power Options.

Real Time Clock

Problem Procedure

The BIOS setting

and system date/

time are lost

The charge in the Real Time Clock (RTC) battery

has run out - you will need to set the date and time

in the BIOS setup utility by using the following

steps:

1. Launch the BIOS setup utility.

Please refer to TOSHIBA Setup Utility section

for further information.

2. Set the date in the System Date field.

3. Set the time in the System Time field.

4. Select Exit -> Exit Saving Changes - a

confirmation message will be displayed.

5. Select Yes - the BIOS setup utility will end

and the computer will restart.

Keyboard

Keyboard problems can be caused by the setup and configuration of the

computer - please refer to the The Keyboard section for further information.

User's Manual 6-6

Problem Procedure

Output to screen is

garbled

Please refer to your software's documentation to

ensure that it is not remapping the keyboard in any

way (remapping involves changing or reassigning

the function of each key).

If you are still unable to use the keyboard, you

should contact TOSHIBA Support.

Internal display panel

Apparent computer's display panel problems may be related to the

computer's setup and configuration - please refer to the TOSHIBA System

Settings section, for further information.

Problem Procedure

No display Press the function keys to adjust the display

priority, and to make sure it is not set for output to

an external monitor.

Markings appear on

the computer's

display panel

These marks may have come from contact with the

keyboard and Touch Pad while the display panel

has been closed. You should try to remove the

marks by gently wiping the display panel with a

clean dry cloth or, if this fails, with a good quality

LCD screen cleaner. In this latter instance you

should always follow the instructions with the

screen cleaner and always ensure you let the

display panel dry properly before closing it.

Solid State Drive

Problem Procedure

Slow performance The files on the Solid State Drive may be

fragmented - in this instance you should run the

disk Defragmentation utility to check the condition

of your files and the Solid State Drive. Please refer

to the operating system's documentation or online

Help File for further information on operating and

using the Defragmentation utility.

As a last resort you should reformat the Solid State

Drive and then reload the operating system and all

other files and data. If you are still unable to

resolve the problem, contact TOSHIBA Support.

User's Manual 6-7

Memory Media Card

For further information, please refer to Operating Basics.

Problem Procedure

Memory media card

error occurs

Remove the memory media card from the

computer and then reinsert it in order to ensure it is

firmly connected.

If the problem persists, then you should refer to the

documentation supplied with your memory media

card for further information.

You cannot write to

a memory media

card

Remove the memory media card from the

computer and check to ensure that it is not write

protected.

You cannot read a

file

Check to ensure the required file is actually on the

memory media card that is inserted into the

computer.

If you are still unable to resolve the problem,

contact TOSHIBA Support.

Pointing device

If you are using a USB mouse, you should also refer to both the USB

mouse section and the documentation supplied with your mouse.

Touch Pad

Problem Procedure

The Touch Pad does

not work

Check the Device Select settings.

Click Desktop -> Desktop Assist -> Control

Panel -> Hardware and Sound -> Mouse.

On-screen pointer

does not respond to

pointing device

operation

In this instance the system might be busy - Try

moving the mouse again after waiting a short

while.

User's Manual 6-8

Problem Procedure

Double-tapping

(Touch Pad) does

not work

In this instance, you should initially try changing

the double-click speed setting within the Mouse

Control utility.

1. To access this utility, click Desktop ->

Desktop Assist -> Control Panel ->

Hardware and Sound -> Mouse.

2. Within the Mouse Properties window, click the

Buttons tab.

3. Set the double-click speed as required and

click OK.

The on-screen

pointer moves too

fast or too slow

In this instance, you should initially try changing

the speed setting within the Mouse Control utility.

1. To access this utility, click Desktop ->

Desktop Assist -> Control Panel ->

Hardware and Sound -> Mouse.

2. Within the Mouse Properties window, click the

Pointer Options tab.

3. Set the pointer speed as required and click

OK.

The reaction of

Touch pad is either

too sensitive or not

sensitive enough

Adjust the touch Sensitivity.

To access it, click Desktop -> Desktop Assist ->

Control Panel -> Hardware and Sound ->

Mouse.

If you are still unable to resolve the problem,

contact TOSHIBA Support.

USB mouse

Problem Procedure

On-screen pointer

does not respond to

mouse operation

In this instance the system might be busy - Try

moving the mouse again after waiting a short

while.

Remove the mouse from the computer and then

reconnect it to a free USB port in order to ensure it

is firmly attached.

User's Manual 6-9

Problem Procedure

Double-clicking does

not work

In this instance, you should initially try changing

the double-click speed setting within the Mouse

Control utility.

1. To access this utility, click Desktop ->

Desktop Assist -> Control Panel ->

Hardware and Sound -> Mouse.

2. Within the Mouse Properties window, click the

Buttons tab.

3. Set the double-click speed as required and

click OK.

The on-screen

pointer moves too

fast or too slow

In this instance, you should initially try changing

the speed setting within the Mouse Control utility.

1. To access this utility, click Desktop ->

Desktop Assist -> Control Panel ->

Hardware and Sound -> Mouse.

2. Within the Mouse Properties window, click the

Pointer Options tab.

3. Set the pointer speed as required and click

OK.

The on-screen

pointer moves

erratically

The elements of the mouse responsible for

detecting movement might be dirty - please refer to

the documentation supplied with the mouse for

instructions on how to clean it.

If you are still unable to resolve the problem,

contact TOSHIBA Support.

USB device

In addition to the information in this section, please also refer to the

documentation supplied with your USB device.

Problem Procedure

USB device does not

work

Remove the USB device from the computer and

then reconnect it to a free port in order to ensure it

is firmly attached.

Ensure that any required USB device drivers are

properly installed - to achieve this you should refer

to both the device documentation and the

operating system documentation.

User's Manual 6-10

Sound system

In addition to the information in this section, please also refer to the

documentation supplied with your audio device.

Problem Procedure

No sound is heard Press the function keys to increase or decrease

volume.

Check the software volume settings.

Please check to see if Mute is turned to Off

Check to make sure the headphone connection is

secure.

Check within the Windows Device Manager

application to ensure the sound device is enabled

and that the device is properly working.

Annoying sound is

heard

In this instance you may be experiencing feedback

from either the internal microphone or an external

microphone connected to the computer - please

refer to Sound System and Video mode for further

information.

Volume cannot be adjusted during Windows start

up or shut down.

If you are still unable to resolve the problem,

contact TOSHIBA Support.

External monitor

Please also refer to Operating Basics, and to the documentation supplied

with your monitor for further information.

Problem Procedure

Monitor does not

turn on

After confirming that the monitor's power switch is

on, you should check the connections to make

sure that the power cord/adaptor is firmly

connected to the monitor and to a working power

outlet.

User's Manual 6-11

Problem Procedure

No display Try adjusting the contrast and brightness controls

on the external monitor.

Press the function key in order to change the

display priority and ensure that it is not set for the

internal display only.

Check to see if the external monitor is connected.

When the external monitor is set as the primary

display device in extended desktop mode, it will not

display when the computer wakes up from Sleep

Mode if the external monitor has been

disconnected while in Sleep Mode.

To keep this from happening, do not disconnect

the external monitor while the computer is in Sleep

or Hibernation Mode.

Remember to turn off the computer before

disconnecting the external monitor.

When the display panel and an external monitor

are set to clone mode and they are turned off by

the timer, the display panel or the external monitor

may not display when turned on again.

If this occurs, press the function key to re-set the

display panel and external monitor to clone mode.

Display error occurs Check that the cable connecting the external

monitor to the computer is firmly attached.

If you are still unable to resolve the problem,

contact TOSHIBA Support.

Wireless LAN

Problem Procedure

Cannot access

Wireless LAN

Make sure the computer's Wireless communication

function is on.

If problems persist, contact your LAN

administrator.

User's Manual 6-12

Bluetooth

Problem Procedure

Cannot access

Bluetooth device

Check to ensure the computer's Wireless

Communication function is on.

Check to ensure the Bluetooth Manager

application is running on the computer and that

power to the external Bluetooth device is turned

on.

Check to ensure that no optional Bluetooth Adaptor

is installed in the computer - the built-in Bluetooth

hardware cannot operate simultaneously with

another Bluetooth controller.

If you are still unable to resolve the problem,

contact TOSHIBA Support.

TOSHIBA support

If you require any additional help using your computer or if you are having

problems operating the computer, you may need to contact TOSHIBA for

additional technical assistance.

Before you call

Some problems you experience may be related to software or the

operating system so it is important that you investigate other sources of

assistance first. Before contacting TOSHIBA, try the following:

Review troubleshooting sections in the documentation supplied with

your software and/or peripheral devices.

If a problem occurs when you are running software applications,

consult the software documentation for troubleshooting suggestions

and consider calling the software company's technical support

department for assistance.

Consult the reseller or dealer from where you purchased your

computer and/or software - they are your best resource for current

information and support.

TOSHIBA technical support

If you are still unable to solve the problem and suspect that it is hardware

related, visit TOSHIBA technical support website http://www.toshiba.co.jp/

worldwide/.

User's Manual 6-13

Chapter 7

Appendix

Specifications

This section summarizes the computer’s technical specifications.

Physical Dimensions

Physical Dimensions shown below do not include parts that extend beyond

the main body. The physical dimensions may vary depending on the model

you purchased.

Size 331.2 (w) x 215 (d) x 13.9(h) millimeters (Tablet only)

331.2 (w) x 215 (d) x 24.7(h) millimeters (laptop mode)

(not including parts that extend beyond the main body).

Environmental Requirements

Conditions Ambient temperature Relative humidity

Operating 5°C (41°F) to 35°C

(95°F)

20% to 80%

(noncondensing)

Non-operating -20°C (-4°F) to 60°C

(140°F)

10% to 90%

(noncondensing)

Wet-bulb temperature 29°C maximum

Conditions Altitude (from sea

level)

Operating -60 to 3,000 meters

Non-operating -60 to 10,000 meters

maximum

Power Requirements

AC adaptor 100-240V AC

50 or 60 Hz (cycles per second)

Computer 19V DC

User's Manual 7-1

AC Power Cord and Connectors

The power cord’s AC input plug must be compatible with the various

international AC power outlets and the cord must meet the standards for

the country/region in which it is used. All cords must meet the following

specifications:

Wire size: Minimum 0.75 mm2

Current rating: Minimum 2.5 amperes

Certification agencies

China: CQC

U.S. and Canada: UL listed and CSA certified

No. 18 AWG, Type SVT or SPT-2

Australia: AS

Japan: DENANHO

Europe:

Austria: OVE Italy: IMQ

Belgium: CEBEC The Netherlands: KEMA

Denmark: DEMKO Norway: NEMKO

Finland: FIMKO Sweden: SEMKO

France: LCIE Switzerland: SEV

Germany: VDE United Kingdom: BSI

In Europe, two conductors power cord must be VDE type, H05VVH2-F or

H03VVH2-F and for three conductors power cord must be VDE type,

H05VV-F.

For the United States and Canada, two pin plug configuration must be a

2-15P (250V) or 1-15P (125V) and three pin plug configuration must be

6-15P (250V) or 5-15P (125V) as designated in the U.S. National Electrical

code handbook and the Canadian Electrical Code Part II.

The following illustrations show the plug shapes for the U.S.A. and

Canada, the United Kingdom, Australia, Europe and China.

User's Manual 7-2

USA

UL approved

United Kingdom

BS approved

Australia

AS approved

Europe

Approved by the appropriate

agency

Canada

CSA approved

China

CCC approved

Information for Wireless Devices

Wireless Technology Interoperability

The Wireless LAN is compatible with other LAN systems Direct Sequence

Spread Spectrum (DSSS) /Orthogonal Frequency Division Multiplexing

(OFDM) radio technology, and is compliant to:

The IEEE 802.11 Standard on Wireless LANs (Revision a/b/g/n, b/g/n

or Revision a/b/g/n/ac), as defined and approved by the Institute of

Electrical and Electronics Engineers.

Bluetooth® Modules are designed to be interoperable with any product with

Bluetooth wireless technology that is based on Frequency Hopping Spread

Spectrum (FHSS) radio technology, and is compliant to:

Bluetooth Specification (depending on the model you purchased), as

defined and approved by the Bluetooth Special Interest Group.

Logo certification with Bluetooth wireless technology as defined by the

Bluetooth Special interest Group.

This Bluetooth product is not compatible with devices using Bluetooth

Version 1.0B specifications.

The wireless devices have not completed verification of connection and

operation with all devices which are using the Wireless LAN or Bluetooth

radio technology.

Bluetooth and Wireless LAN devices operate within the same radio

frequency range and may interfere with one another. If you use Bluetooth

User's Manual 7-3

and Wireless LAN devices simultaneously, you may occasionally

experience a less than optimal network performance or even lose your

network connection.

If you should experience any such problem, immediately turn off either one

of your Bluetooth or Wireless LAN.

Please visit http://www.pc.support.global.toshiba.com, if you have any

questions about using Wireless LAN or Bluetooth Module.

In Europe visit http://www.toshiba-europe.com/computers/tnt/bluetooth.htm

Wireless Devices and your health

Wireless products, like other radio devices, emit radio frequency

electromagnetic energy. The level of energy emitted by Wireless products

however is far much less than the electromagnetic energy emitted by

wireless devices like for example mobile phones.

Because Wireless products operate within the guidelines found in radio

frequency safety standards and recommendations, TOSHIBA believes

Wireless products is safe for use by consumers. These standards and

recommendations reflect the consensus of the scientific community and

result from deliberations of panels and committees of scientists who

continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless products may be

restricted by the proprietor of the building or responsible representatives of

the organization. These situations may for example include:

Using the Wireless products equipment on board of airplanes, or

In any other environment where the risk of interference to other

devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices

in a specific organization or environment (e.g. airports), you are

encouraged to ask for authorization to use the Wireless device prior to

turning on the equipment.

Wireless LAN Technology

The computer’s wireless communication function supports some wireless

communication devices.

Only some models are equipped with both Wireless LAN and Bluetooth

functions.

Do not use the Wireless LAN (Wi-Fi) or Bluetooth functionalities near a

microwave oven or in areas subject to radio interference or magnetic

fields. Interference from a microwave oven or other source can disrupt

Wi-Fi or Bluetooth operation.

User's Manual 7-4

Turn all wireless functionalities off when near a person who may have

a cardiac pacemaker implant or other medical electric device. Radio

waves may affect pacemaker or medical device operation, possibly

resulting in serious injury. Follow the instruction for your medical

device when using any wireless functionality.

Always turn off wireless functionality if the computer is near automatic

control equipment or appliances such as automatic doors or fire

detectors. Radio waves can cause malfunction of such equipment,

possibly resulting in serious injury.

It may not be possible to make a network connection to a specified

network name using the ad hoc network function. If this occurs, the

new network (*) will have to be configured for all computers connected

to the same network in order to re-enable network connections.

* Please be sure to use new network name.

Security

TOSHIBA strongly recommend that you enable encryption

functionality, otherwise your computer will be open to illegal access by

an outsider using a wireless connection. If this occurs, the outsider

may illegally access your system, eavesdrop, or cause the loss or

destruction of stored data.

TOSHIBA is not liable for the loss of data due to eavesdropping or

illegal access through the wireless LAN and the damage thereof.

Card Specifications

Form Factor PCI Express Mini Card

Compatibility IEEE 802.11 Standard for Wireless LANs

Network Operating

System

Microsoft Windows Networking

Media Access

Protocol

CSMA/CA (Collision Avoidance) with

Acknowledgment (ACK)

Radio Characteristics

Radio Characteristics of Wireless LAN module may vary according to:

Country/region where the product was purchased

Type of product

Wireless communication is often subject to local radio regulations.

Although Wireless LAN wireless networking products have been designed

for operation in the license-free 2.4GHz and 5GHz band, local radio

regulations may impose a number of limitations to the use of wireless

communication equipment.

User's Manual 7-5

Radio Frequency Band 5GHz (5150-5850 MHz) (Revision a

and n)

Band 2.4GHz (2400-2483.5 MHz) (Revision

b/g and n)

The range of the wireless signal is related to the transmit rate of the

wireless communication. Communications at lower transmit range may

travel larger distances.

The range of your wireless devices can be affected when the

antennas are placed near metal surfaces and solid high-density

materials.

Range is also impacted due to "obstacles" in the signal path of the

radio that may either absorb or reflect the radio signal.

Radio Frequency Interference Requirements

This device is restricted to indoor use due to its operation in the 5.15 to

5.25GHz frequency range.

High-power radars are allocated as primary users (i.e. priority users) of the

bands 5.25 to 5.35GHz and 5.65 to 5.85GHz and that these radars could

cause interference and/or damage to LE-LAN devices.

Bluetooth wireless technology

Some computers in this series have Bluetooth wireless communication

function which eliminates the need for cables between electronic devices

such as computers, printers and mobile phones. When it is enabled,

Bluetooth provides the wireless personal area network environment which

is safe and trustworthy, that is quick and easy.

You cannot use the computer's built-in Bluetooth functions and an external

Bluetooth adaptor simultaneously. For reference, Bluetooth wireless

technology has the following features:

Security

Two advanced security mechanisms ensure a high level of security:

Authentication prevents access to critical data and makes it impossible

to falsify the origin of a message.

Encryption prevents eavesdropping and maintains link privacy.

Worldwide operation

The Bluetooth radio transmitter and receiver operate in the 2.4GHz band,

which is license-free and compatible with radio systems in most countries

in the world.

User's Manual 7-6

Radio links

You can easily establish links between two or more devices, with these

links being maintained even if the devices are not within a line-of-sight of

each other.

Radio Regulatory Information

The Wireless device must be installed and used in strict accordance with

the manufacturer’s instructions as described in the user documentation that

comes with the product. This product complies with the following radio

frequency and safety standards.

Europe

Restrictions for Use of 2400.0-2483.5MHz Frequencies in Europe

France: Outdoor use

limited to 10mW

e.i.r.p. within the

band

2454-2483.5MHz

Military Radiolocation use.

Refarming of the 2.4GHz band has

been ongoing in recent years to

allow current relaxed regulation Full

implementation planned 2012.

Italy: - For private use, a general

authorization is required if WAS/

RLAN’s are used outside own

premises. For public use, a general

authorization is required.

Luxembourg: Implemented General authorization required for

network and service supply.

Norway: Implemented This subsection does not apply for

the geographical area within a

radius of 20 km from the centre of

Ny-Alesund.

Russian

Federation:

- Only for indoor applications.

Restrictions for Use of 5150-5350MHz Frequencies in Europe

Italy: - For private use, a general

authorization is required if WAS/

RLAN’s are used outside own

premises.

Luxembourg: Implemented General authorization required for

network and service supply.

User's Manual 7-7

Russian

Federation:

Limited e.i.r.p 100mW. Permitted to use

only for indoor applications, closed

industrial and warehouse areas,

and on board aircraft.

1. Permitted to use for local

networks of aircraft crew

service communications on

board aircraft in area of the

airport and at all stages of

flight.

2. Permitted to use for public

wireless access local networks

on board aircraft during a flight

at the altitude not less than

3000m.

Restrictions for Use of 5470-5725MHz Frequencies in Europe

Italy: - For private use, a general

authorization is required if WAS/

RLAN’s are used outside own

premises.

Luxembourg: Implemented General authorization required for

network and service supply

Russian

Federation:

Limited e.i.r.p 100mW. Permitted to use

only for indoor applications, closed

industrial and warehouse areas,

and on board aircraft.

1. Permitted to use for local

networks of aircraft crew

service communications on

board aircraft in area of the

airport and at all stages of

flight.

2. Permitted to use for public

wireless access local networks

on board aircraft during a flight

at the altitude not less than

3000m.

To remain in conformance with European spectrum usage laws for

Wireless LAN operation, the above 2.4GHz and 5GHz channel limitations

apply for outdoor usage. The user should use the wireless LAN utility to

User's Manual 7-8

check the current channel of operation. If operation is occurring outside of

the allowable frequencies for outdoor use, as listed above, the user must

contact the applicable national spectrum regulator to request a license for

outdoor operation.

Canada - Industry Canada (IC)

This device complies with RSS-210 of the Industry Canada Rules.

Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired

operation.

Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada

applicable aux appareils radio exempts de licence. Son fonctionnement est

sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de

brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage

reçu, y compris un brouillage susceptible de provoquer un fonctionnement

indésirable.

Les dispositifs fonctionnant dans la bande 5.15-5.25GHz sont réservés

uniquement pour une utilisation à l'intérieur afin de réduire les risques de

brouillage préjudiciable aux systèmes de satellites mobiles utilisant les

mêmes canaux.

Les utilisateurs devraient aussi être avisés que les utilisateurs de radars de

haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la

priorité) pour les bandes 5.25-5.35GHz et 5.65-5.85GHz et que ces radars

pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-

EL.

The term “IC” before the equipment certification number only signifies that

the Industry Canada technical specifications were met.

USA-Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation.

Refer to the FCC information section for the detailed information.

This device and its antenna(s) must not be co-located or operating in

conjunction with any other antenna or transmitter.

The radiated output power of the Wireless device is far below the FCC

radio frequency exposure limits. Nevertheless, the Wireless device shall be

used in such a manner that the potential for human contact during normal

operation is minimized.

The installer of this radio equipment must ensure that the antenna is

located or pointed such that it does not emit RF field in excess of Health

User's Manual 7-9

Canada limits for the general population; consult Safety Code 6, obtainable

from Health Canada’s website www.hc-sc.gc.ca

Taiwan

Article 12 Without permission granted by the NCC, any

company, enterprise, or user is not allowed to

change frequency, enhance transmitting power or

alter original characteristic as well as performance

to an approved low power radio frequency devices.

Article 14 The low power radio-frequency devices shall not

influence aircraft security and interfere legal

communications;

If found, the user shall cease operating

immediately until no interference is achieved.

The said legal communications means radio

communications is operated in compliance with the

Telecommunications Act.

The low power radio-frequency devices must be

susceptible with the interference from legal

communications or ISM radio wave radiated

devices.

Australia and New Zealand regulatory compliance

This equipment incorporates a radio transmitting device, in normal use a

separation distance of 20cm will ensure radio frequency exposure levels

complies with the Australian and New Zealand Standards.

Using this equipment in Japan

In Japan, the frequency bandwidth of 2,400MHz to 2,483.5MHz for second

generation low-power data communication systems such as this equipment

overlaps that of mobile object identification systems (premises radio station

and specified low-power radio station).

1. Important notice

The frequency bandwidth of this equipment may operate within the same

range as industrial devices, scientific devices, medical devices, microwave

ovens, licensed radio stations and non-licensed specified low-power radio

stations for mobile object identification systems (RFID) used in factory

production lines (Other Radio Stations).

1. Before using this equipment, ensure that it does not interfere with any

of the equipment listed above.

User's Manual 7-10

2. If this equipment causes RF interference to other radio stations,

promptly change the frequency being used, change the location of

use, or turn off the source of emissions.

3. Contact an authorized TOSHIBA service provider if you have

problems with interference caused by this product to Other Radio

Stations.

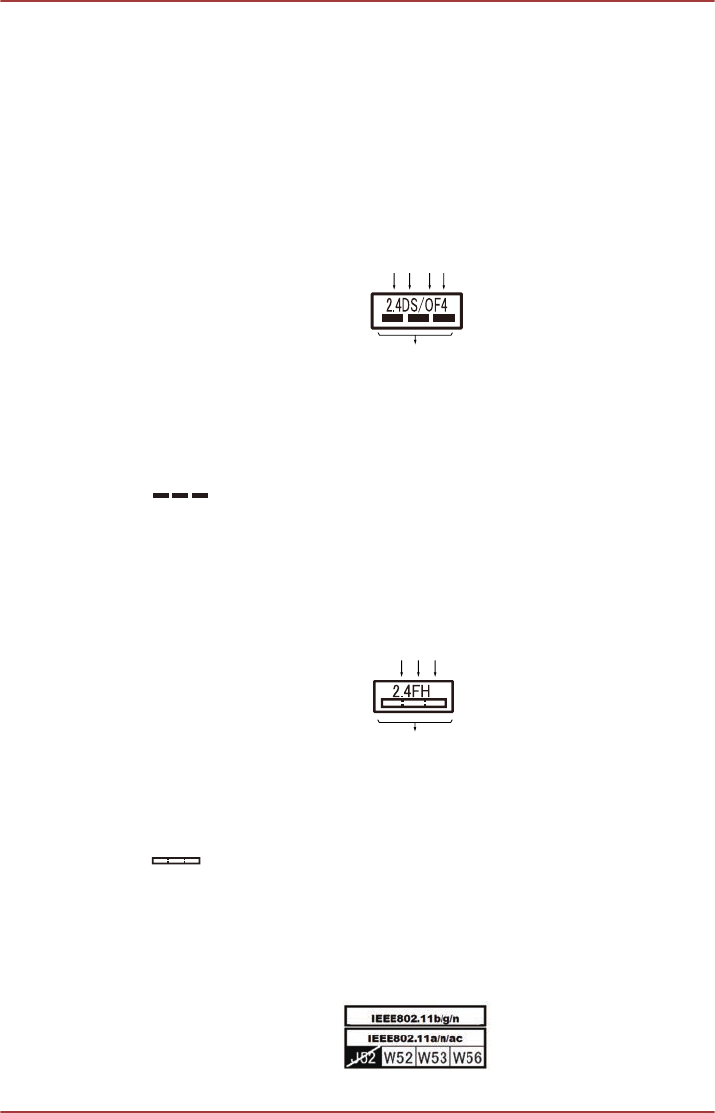

2. Indication for Wireless LAN

The indication shown below appears on this equipment.

(1)(2) (3)(4)

(5)

1. 2.4 : This equipment uses a frequency of 2.4GHz.

2. DS : This equipment uses DS-SS modulation.

3. OF : This equipment uses OFDM modulation.

4. 4 : The interference range of this equipment is less than 40m.

5. : This equipment uses a frequency bandwidth from 2,400MHz

to 2,483.5MHz. It is possible to avoid the band of mobile object

identification systems.

3. Indication for Bluetooth

The indication shown below appears on this equipment.

(4)

(1) (2) (3)

1. 2.4 : This equipment uses a frequency of 2.4 GHz.

2. FH : This equipment uses FH-SS modulation.

3. 1 : The interference range of this equipment is less than 10m.

4. : This equipment uses a frequency bandwidth from 2,400 MHz

to 2,483.5 MHz. It is impossible to avoid the band of mobile object

identification systems.

4. About the JEITA

5GHz Wireless LAN supports W52/W53/W56 Channel.

User's Manual 7-11

Radio approvals for wireless devices

This equipment is approved to the radio standard by the countries/regions

in the following table.

If you use this equipment in the countries/regions which are not listed in the

table blow, please contact TOSHIBA Support.

As of July 2013

Austria Belgium Bulgaria Canada

Cyprus Czech Rep Denmark Estonia

Finland France Germany Greece

Hong Kong Hungary Iceland India

Indonesia Ireland Italy Japan

Korea Latvia Liechtenstein Lithuania

Luxemburg Malta Monaco Netherlands

Norway Philippines Poland Portugal

Romania Slovak Republic Slovenia Spain

Sweden Switzerland UK USA

Legal Footnotes

Non-applicable Icons

Certain computer chassis are designed to accommodate all possible

configurations for an entire product series. Therefore, please be aware that

your selected model may not have all the features and specifications

corresponding to all of the icons or switches shown on the computer

chassis.

CPU

Central Processing Unit (CPU) Performance Legal Footnotes.

CPU performance in your computer product may vary from specifications

under the following conditions:

use of certain external peripheral products

use of battery power instead of AC power

use of certain multimedia, computer generated graphics or video

applications

use of standard telephone lines or low speed network connections

use of complex modeling software, such as high end computer aided

design applications

User's Manual 7-12

use of several applications or functionalities simultaneously

use of computer in areas with low air pressure (high altitude >1,000

meters or >3,280 feet above sea level)

use of computer at temperatures outside the range of 5°C to 30°C

(41°F to 86°F) or >25°C (77°F) at high altitude (all temperature

references are approximate and may vary depending on the specific

computer model - please refer to your computer documentation or visit

the TOSHIBA website at www.pcsupport.toshiba.com for details).

CPU performance may also vary from specifications due to design

configuration.

Under some conditions, your computer product may automatically shut-

down. This is a normal protective feature designed to reduce the risk of lost

data or damage to the product when used outside recommended

conditions. To avoid risk of lost data, always make back-up copies of data

by periodically storing it on an external storage medium. For optimum

performance, use your computer product only under recommended

conditions. Read additional restrictions in your product documentation.

Contact TOSHIBA technical service and support, refer to TOSHIBA support

section for more information.

64-Bit Computing

Certain 32-bit device drivers and/or applications may not be compatible

with a 64-bit CPU/operating system and therefore may not function

properly.

Memory (Main System)

Part of the main system memory may be used by the graphics system for

graphics performance and therefore reduce the amount of main system

memory available for other computing activities. The amount of main

system memory allocated to support graphics may vary depending on the

graphics system, applications utilized, system memory size and other

factors.

Battery Life

Battery life may vary considerably depending on product model,

configuration, applications, power management settings and features

utilized, as well as the natural performance variations produced by the

design of individual components. Published battery life numbers are

achieved on select models and configurations tested by TOSHIBA at the

time of publication. Recharge time varies depending on usage. Battery may

not charge while computer is consuming full power.

After going through many charge and discharge cycles, the battery will lose

its ability to perform at maximum capacity and will need to be replaced.

This is a normal phenomenon for all batteries. To purchase a new battery

pack, see the accessories information that is shipped with your computer.

User's Manual 7-13

Hard Disk Drive (HDD) Capacity

1 Gigabyte (GB) means 109 = 1,000,000,000 bytes using powers of 10.

The computer operating system, however, reports storage capacity using

powers of 2 for the definition of 1 GB = 230 = 1,073,741,824 bytes, and

therefore shows less storage capacity. Available storage capacity will also

be less if the product includes one or more pre-installed operating systems,

such as Microsoft Operating System and/or pre-installed software

applications, or media content. Actual formatted capacity may vary.

LCD

Over a period of time, and depending on the usage of the computer, the

brightness of the LCD screen will deteriorate. This is an intrinsic

characteristic of LCD technology.

Maximum brightness is only available when operating in AC power mode.

Screen will dim when the computer is operated on battery power and you

may not be able to increase the brightness of the screen.

Graphics Processing Unit (GPU)

Graphics processing unit (GPU) performance may vary depending on

product model, design configuration, applications, power management

settings and features utilized. GPU performance is only optimized when

operating in AC power mode and may decrease considerably when

operating in battery power mode.

Total Available Graphics Memory is the total of, as applicable, Dedicated

Video Memory, System Video Memory and Shared System Memory.

Shared System Memory will vary depending on system memory size and

other factors.

Wireless LAN

The transmission speed over the wireless LAN and the distance over which

wireless LAN can reach may vary depending on surrounding

electromagnetic environment, obstacles, access point design and

configuration, and client design and software/hardware configurations.

The actual transmission speed will be lower than the theoretical maximum

speed.

Copy Protection

Applicable copy protection standards included in certain media may

prevent or limit recording or viewing of the media.

Glossary

The terms in this glossary cover topics related to this manual. Alternate

naming is included for reference.

User's Manual 7-14

Abbreviations

AC: Alternating Current

AMT: Intel Active Management Technology

ASCII: American Standard Code for Information

Interchange

BIOS: Basic Input/output System

BD-ROM: Blu-ray Disc Read-only Memory

bps: bits per second

CD: Compact Disc

CD-ROM: Compact Disc Read-only Memory

CD-RW: Compact Disc-rewritable

CMOS: Complementary Metal-oxide Semiconductor

CPU: Central Processing Unit

DC: Direct Current

DDR: Double Data Rate

DIMM: Dual Inline Memory Module

DVD: Digital Versatile Disc

DVD-R: Digital Versatile Disc-recordable

DVD-RAM: Digital Versatile Disc-random Access Memory

DVD-R DL: Digital Versatile Disc Recordable Dual Layer

DVD-ROM: Digital Versatile Disc-read Only Memory

DVD-RW: Digital Versatile Disc-rewritable

DVD+R DL: Digital Versatile Disc Recordable Double Layer

FAT: File Allocation Table

FCC: Federal Communications Commission

FHD: Full High Definition

GB: gigabyte

GBps: gigabytes per second

HD: High Definition

HD+: High Definition Plus

HDD: Hard Disk Drive

HDMI: High-definition Multimedia Interface

HDMI CEC: High-definition Multimedia Interface Consumer

Electronics Control

HTML: Hypertext Markup Language

User's Manual 7-15

IEEE: Institute of Electrical and Electronics Engineers

I/O: Input/Output

IRQ: interrupt request

ISP: Internet Service Provider

KB: kilobyte

LAN: Local Area Network

LCD: Liquid Crystal Display

LED: Light Emitting Diode

MB: megabyte

MBps: megabytes per second

MMC: Multi Media Card

OCR: Optical Character Recognition (Reader)

PC: Personal Computer

PCI: Peripheral Component Interconnect

PCMCIA: Personal Computer Memory Card International

Association

RAM: Random Access Memory

RGB: Red, Green, and Blue

RFI: Radio Frequency Interference

ROM: Read Only Memory

RTC: Real Time Clock

S/P DIF: Sony/philips Digital Interface Format

SD: Secure Digital

SDHC: Secure Digital High Capacity

SDXC: Secure Digital Extended Capacity

SDRAM: Synchronous Dynamic Random Access Memory

SSD: Solid State Drive

TFT: Thin-film Transistor

URL: Uniform Resource Locator

USB: Universal Serial Bus

WAN: Wide Area Network

WQHD: Wide Quad High Definition

www: World Wide Web

User's Manual 7-16

Index

AC adaptor

additional 4-16

connecting 2-6

DC IN 19V jack 3-2

Battery

extending life 4-11

monitoring capacity 4-9

real time clock 3-9, 4-7

save mode 5-5

types 4-7

Battery indicator

Bluetooth 7-6

Cleaning the computer 1-12

Cooling vents 3-2, 3-8

DC IN

indicator 3-1

DC IN/Battery indicator 3-11

Display

automatic power off 5-5

opening 2-4

screen 3-7

Display controller 3-10

Documentation list 2-1

Dual Pointing Device

Touch Pad 6-8

Equipment checklist 2-1

External monitor

problems 6-11

Hard disk drive

automatic power off 5-5

HW Setup

accessing

window

Keyboard

function keys 4-5

Function keys F1...F12 4-5

problems 6-6

Windows special keys 4-6

Media care

Card care 4-12

memory media card

inserting 4-13

removing 4-14

User's Manual Index-1

Memory media slot 4-11

Moving the computer 1-13

MultiMediaCard

removing 4-14

Password

power on 5-5

Starting the computer by

password 5-8

Supervisor 5-8

user 5-6

Pointing Device

Touch Pad 3-7

Power

conditions 3-10

Hibernation Mode 2-13

panel on/off 5-5

Shut Down mode 2-11

Sleep Mode 2-12

turning off 2-11

turning on 2-8

Problems

AC power 6-5

Analyzing the problem 6-2

Battery 6-5

Dual Pointing device 6-8

External monitor 6-11

Hardware and system

checklist 6-4

HDD 6-7

Internal display panel 6-7

Keyboard 6-6

Memory Media Card 6-8

Overheating power

down 6-5

Power 6-5

Real Time Clock 6-6

Sound system 6-11

TOSHIBA support 6-13

Touch Pad 6-8

USB device 6-10

USB mouse 6-9

Recovery hard disk drive 5-18

Recovery Media 5-17

Restarting the computer 2-12

Sleep Mode

setting 2-12

System automatic 5-5

Sound system

problems 6-11

TOSHIBA Desktop Assist 5-1

TOSHIBA Display Utility 5-2

Touch Screen

USB device

problems 6-10

Video mode 4-18

Video RAM 3-9

User's Manual Index-2

Web Camera 3-6

Wireless communication 7-4

User's Manual Index-3
