Quanta Computer WF2H Notebook PC w/ Wireless Keyboard User Manual A26391 K115 Z120 2 7619

Quanta Computer Inc Notebook PC w/ Wireless Keyboard A26391 K115 Z120 2 7619

Contents

Users Manual Revised 042202

CELSIUS
.com EasyGuide
CELSIUS Mobile H
English
Are there ...
... any technical problems or other questions which you would like to be clarified?
Please contact:
· your sales partner
· your sales outlet
Further information can be found in the "Safety, Warranty and Ergonomics" booklet.
The latest information on our products, tips, updates, etc., can be found on the internet under:
http://www.fujitsu-siemens.com
Dieses Handbuch wurde auf Recycling-Papier gedruckt.
This manual has been printed on recycled paper.
Ce manuel est imprimé sur du papier recyclé.
Este manual ha sido impreso sobre papel reciclado.
Questo manuale è stato stampato su carta da riciclaggio.
Denna handbok är tryckt på recyclingpapper.
Dit handboek werd op recycling-papier gedrukt.
Herausgegeben von/Published by
Fujitsu Siemens Computers GmbH
Bestell-Nr./Order No.: A26391-K115-Z120-1-19
Printed in the Federal Republic of Germany
AG 1001 10/01
A2
639
1-K11
5
-Z12
0
-1-7
6
1
9
CELSIUS Mobile H
Operating Manual
Introduction
Important notes
Preparing the workstation
for use
Working with the
workstation
Connecting external
devices
Settings in BIOS Setup
Troubleshooting and tips
Memory expansion
Technical data
Index
August 2001 edition
DPMS and VESA are registered trademarks of Video Electronics Standards Association.
Intel is a registered trademark, Pentium and Celeron are trademarks of Intel Corporation,
USA.
Microsoft, MS, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft
Corporation.
OS/2 and PS/2 are registered trademarks of International Business Machines, Inc.
Zip is a trademark of Iomega Corporation.
Bluetooth is a trademark owned by Bluetooth SIG Inc., U.S.A.
Macrovision is a trademark of Macrovision Corporation, USA.
All other trademarks referenced are trademarks or registered trademarks of their respective
owners, whose protected rights are acknowledged.
Copyright ã Fujitsu Siemens Computers GmbH 2001
All rights, including rights of translation, reproduction by printing, copying or similar methods,
in part or in whole, are reserved.
Offenders will be liable for damages.
All rights, including rights created by patent grant or registration of a utility model or design,
are reserved.
Delivery subject to availability. Right of technical modification reserved.
A26391-K115-Z120-2-7619
Contents
Introduction .....................................................................................................................................1
Notational conventions ......................................................................................................................2
Important notes ...............................................................................................................................3
Safety................................................................................................................................................3
Notes on installing and removing boards and modules ..............................................................5
Manufacturer’s notes .........................................................................................................................6
Copyright-protected technology .................................................................................................6
Energy saving............................................................................................................................6
Disposal and recycling...............................................................................................................7
CE marking........................................................................................................................................7
GS symbol.........................................................................................................................................7
Battery storage..................................................................................................................................7
Transporting the workstation..............................................................................................................7
Before you travel .......................................................................................................................8
Transporting the workstation......................................................................................................8
Cleaning the workstation ...................................................................................................................9
Preparing the workstation for use................................................................................................11

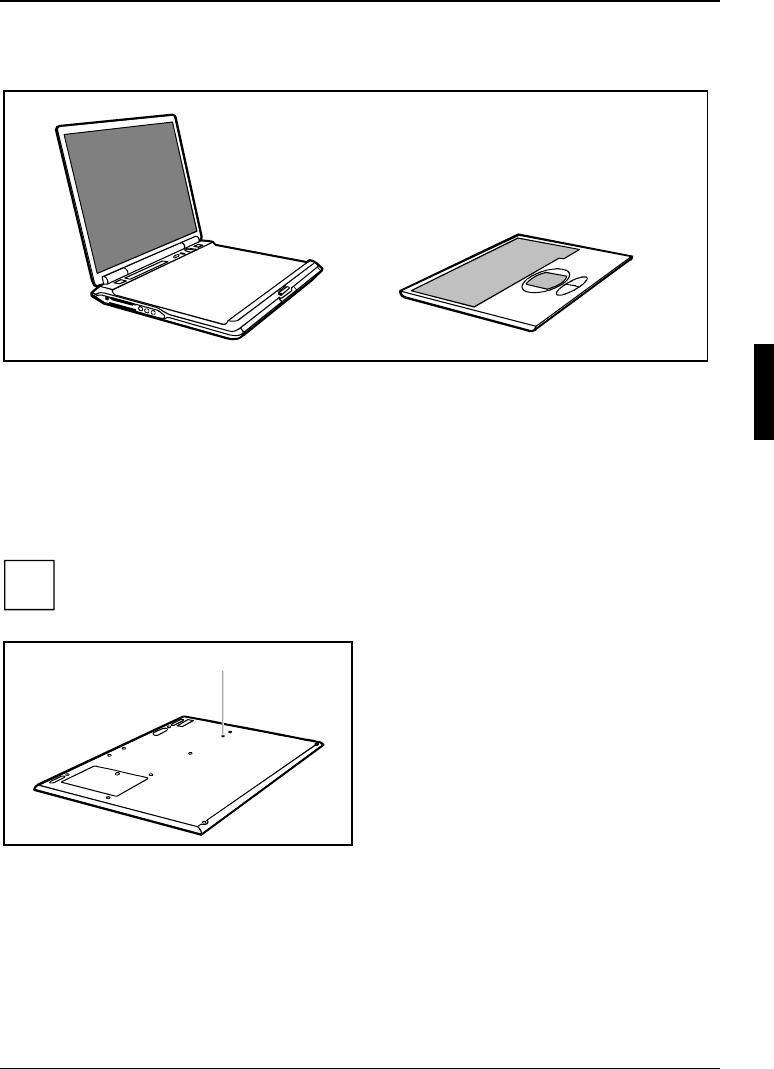

Unpacking and checking the delivery...............................................................................................11
Switching on the workstation for the first time..........................................................................12

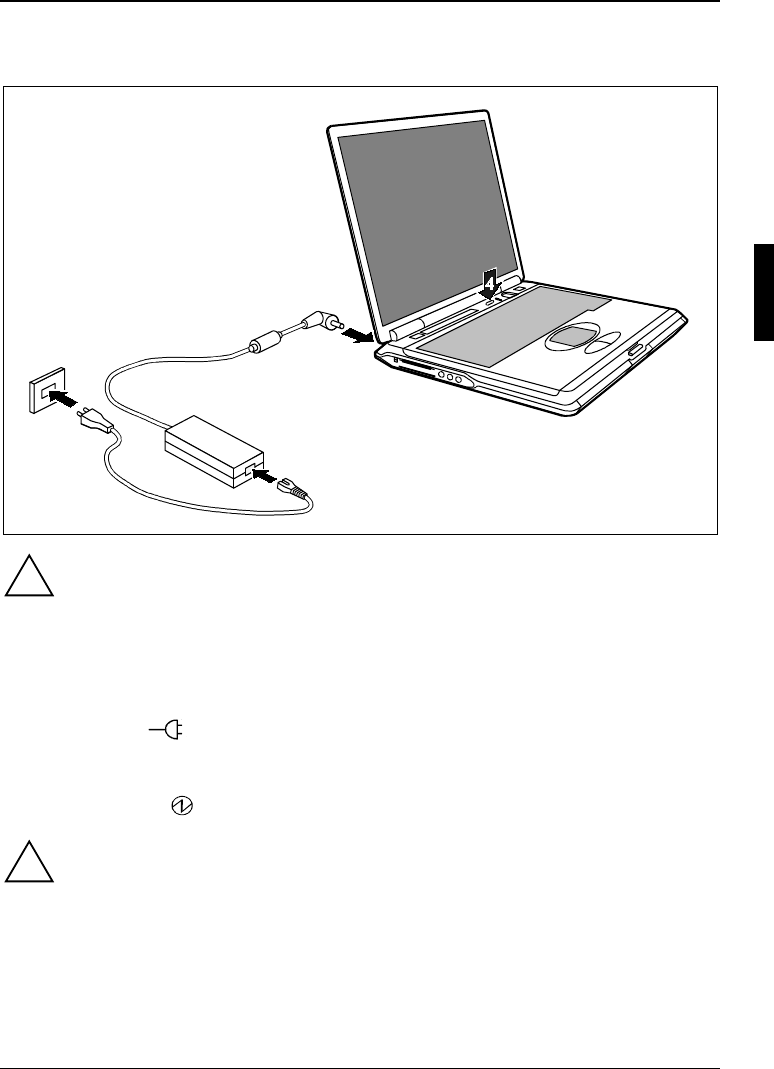

Connecting the power adapter and switching on the workstation .....................................13
First-time software installation..........................................................................................14
Working with the workstation.......................................................................................................15

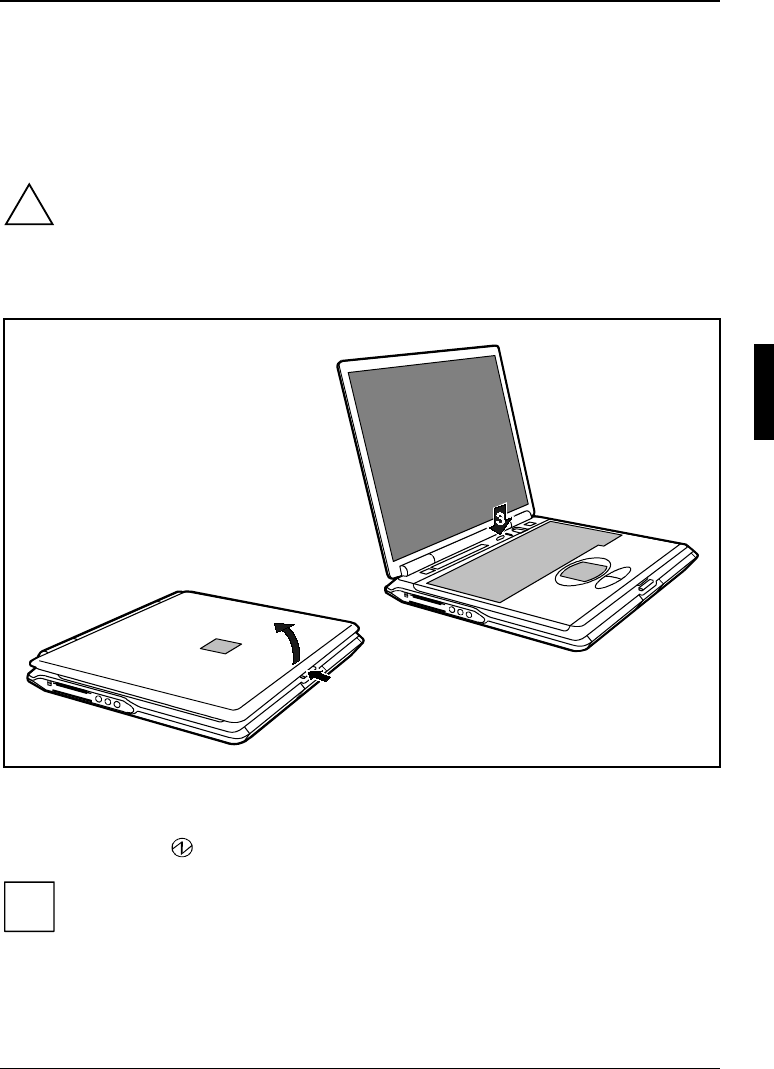

Switching the workstation on ...........................................................................................................15
Switching off the workstation ...........................................................................................................16
Switching off workstation via operating system........................................................................16

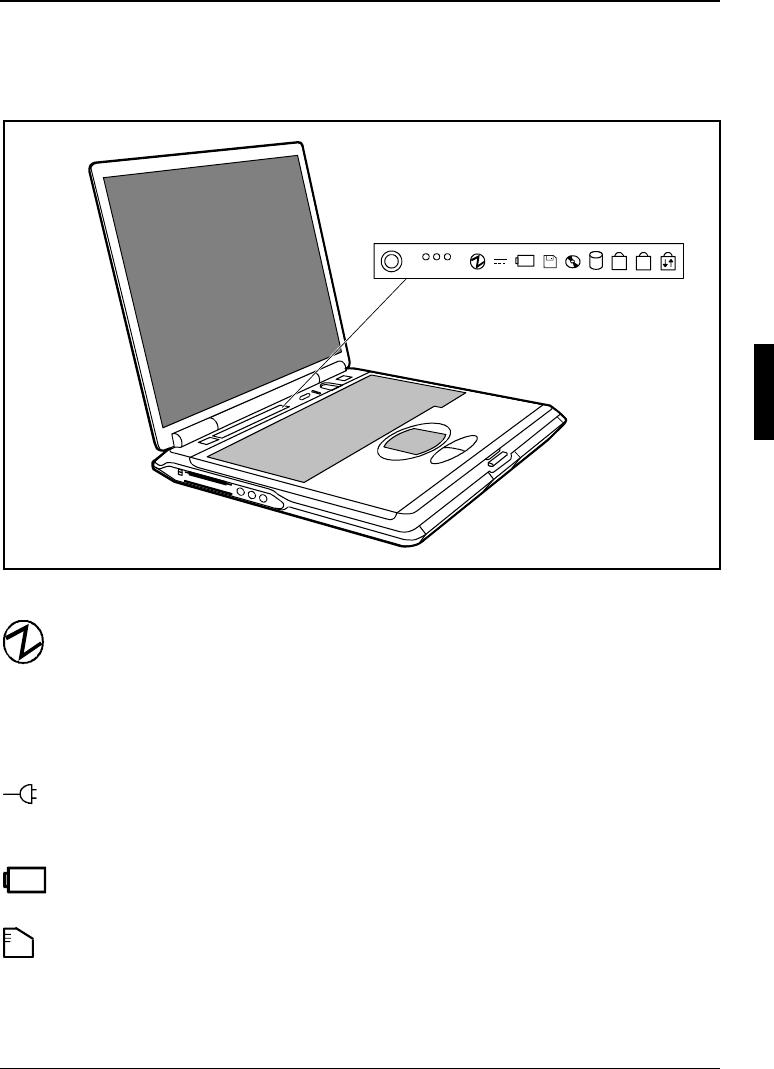

Indicators.........................................................................................................................................17

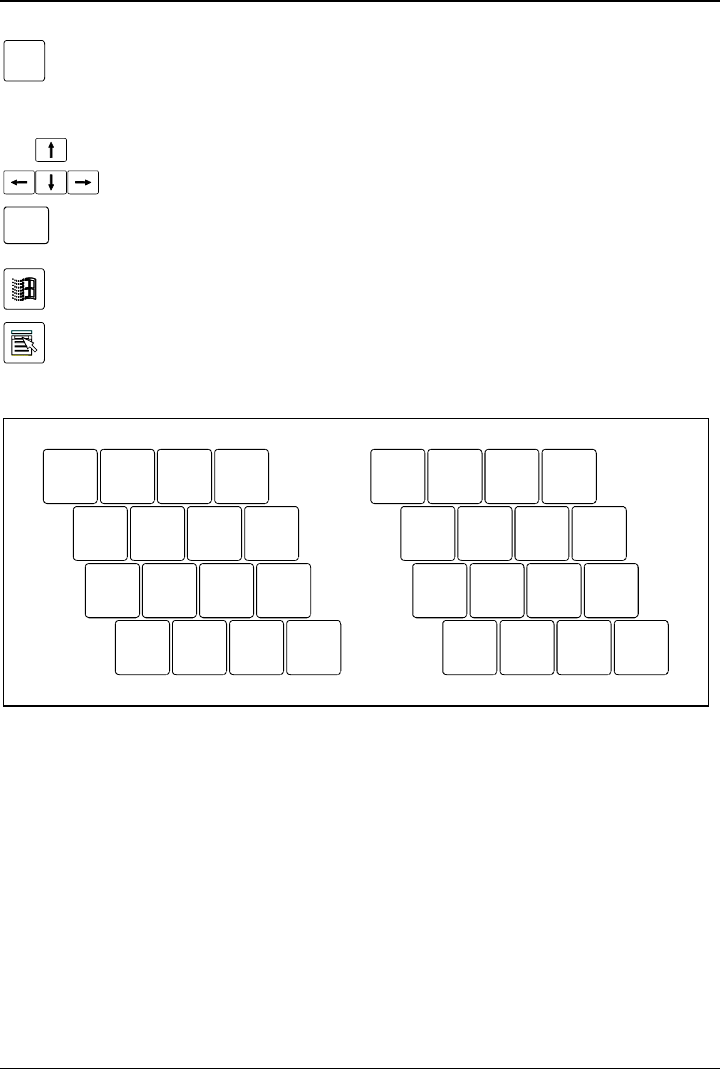

Keyboard.........................................................................................................................................19

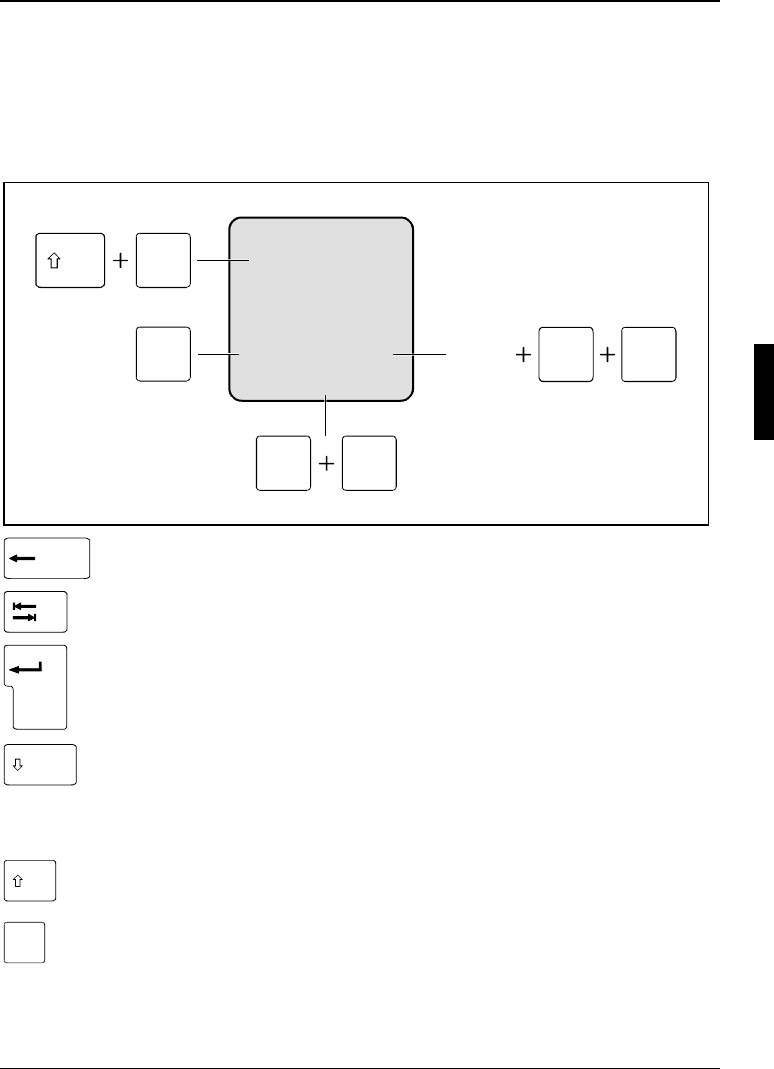

Key combinations ....................................................................................................................21

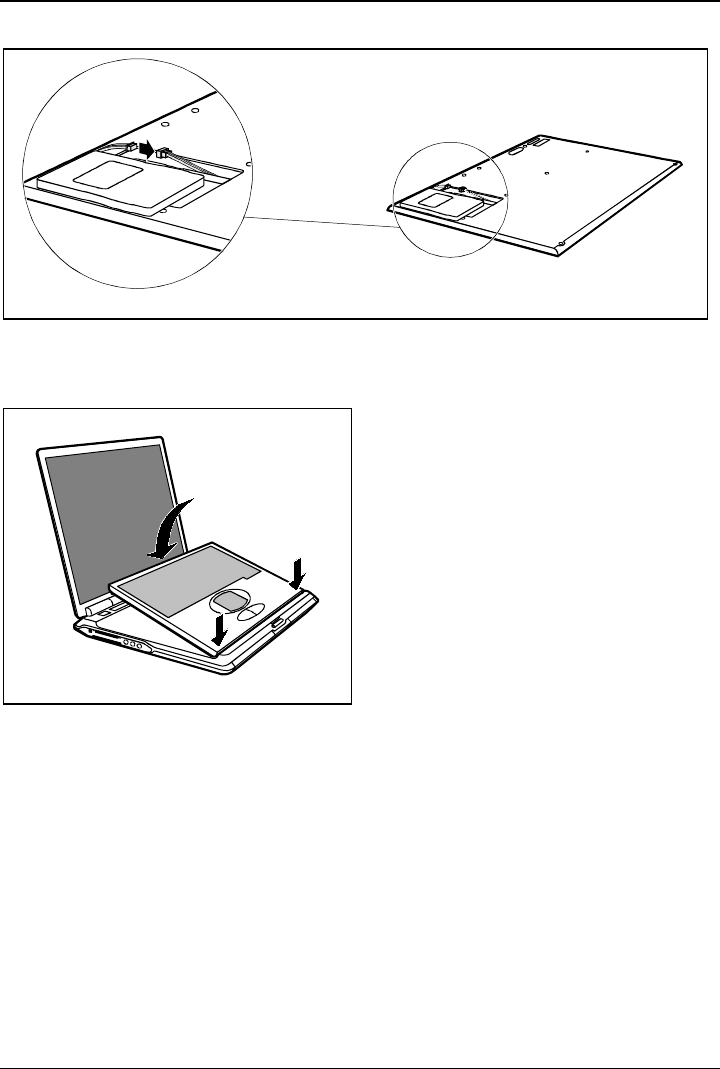

Preparing the removable radio keyboard for use......................................................................23
Operating the removable radio keyboard for use .....................................................................25
Switching the keyboard on and off ...................................................................................26
Operating the keyboard without a radio connection..........................................................26
Indicators on the keyboard...............................................................................................27

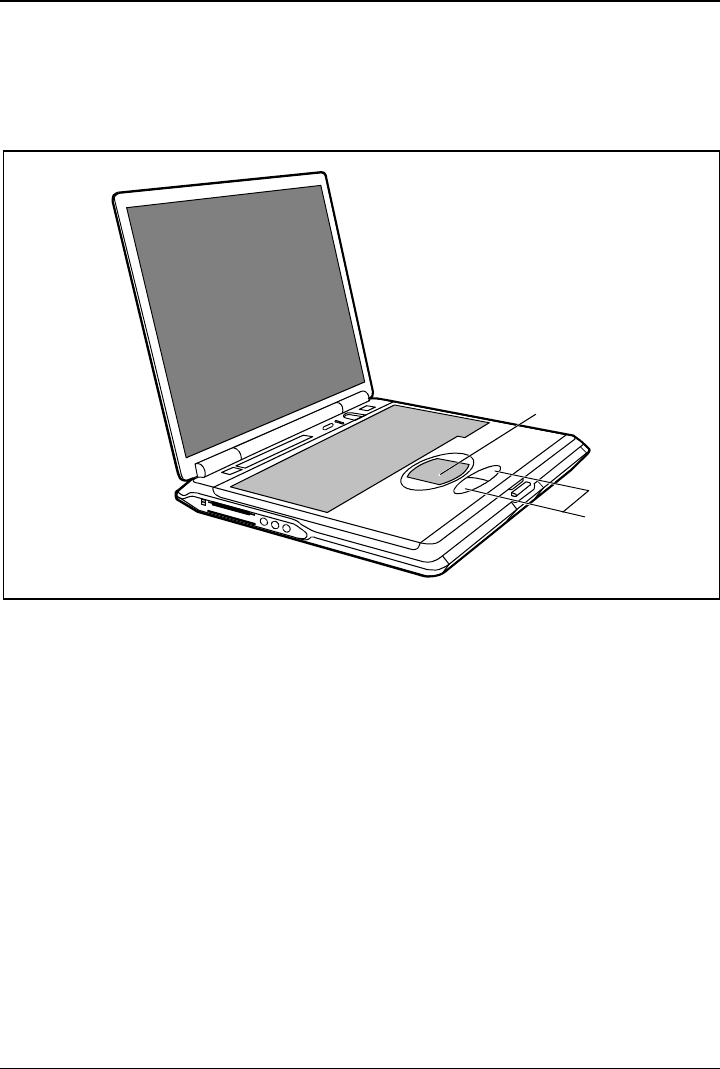

Touchpad and touchpad buttons..............................................................................................28
Display settings ...............................................................................................................................29
Battery.............................................................................................................................................30
Performing the battery learning cycle.......................................................................................30
Charging the battery ................................................................................................................31
Monitoring charging time..........................................................................................................31
Inserting and removing the battery...........................................................................................31
Removing the battery.......................................................................................................32
Installing the battery.........................................................................................................33
Using the power-management features ...........................................................................................34
Energy-saving modes of workstation .......................................................................................35
Operating systems with ACPI (Windows 98, Windows ME und Windows 2000) ..............35
Operating systems with APM (Windows 95, Windows NT with APM extensions).............36
PHDISK (for Windows 98 and Windows NT only) ....................................................................37
Additional power-management features...........................................................................37
Hard disk .........................................................................................................................................38
Contents
A26391-K115-Z120-2-7619
Inserting and removing modules ..................................................................................................... 38
Removing modules.......................................................................................................... 38
Installing modules ........................................................................................................... 39

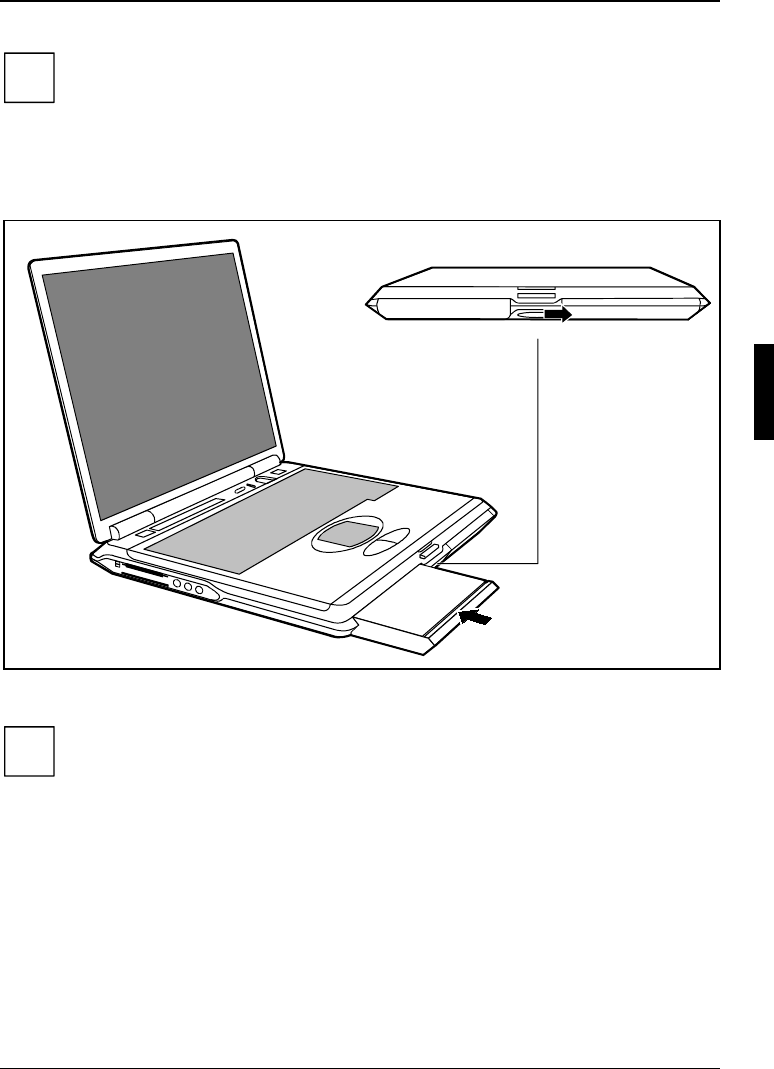

Optical drives.................................................................................................................................. 40
Optical drive indicator.............................................................................................................. 40
Inserting or removing a CD/DVD............................................................................................. 40
Floppy Disk Drive............................................................................................................................ 41

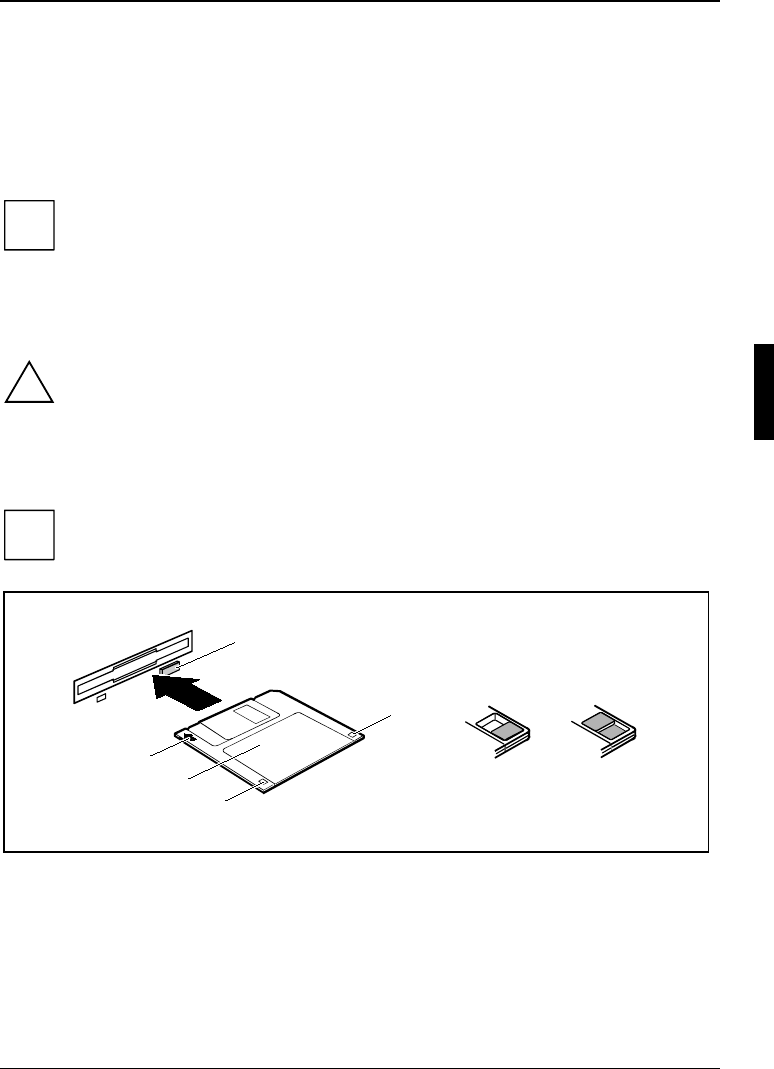

Working with floppy disks........................................................................................................ 41
56k-Modem..................................................................................................................................... 42

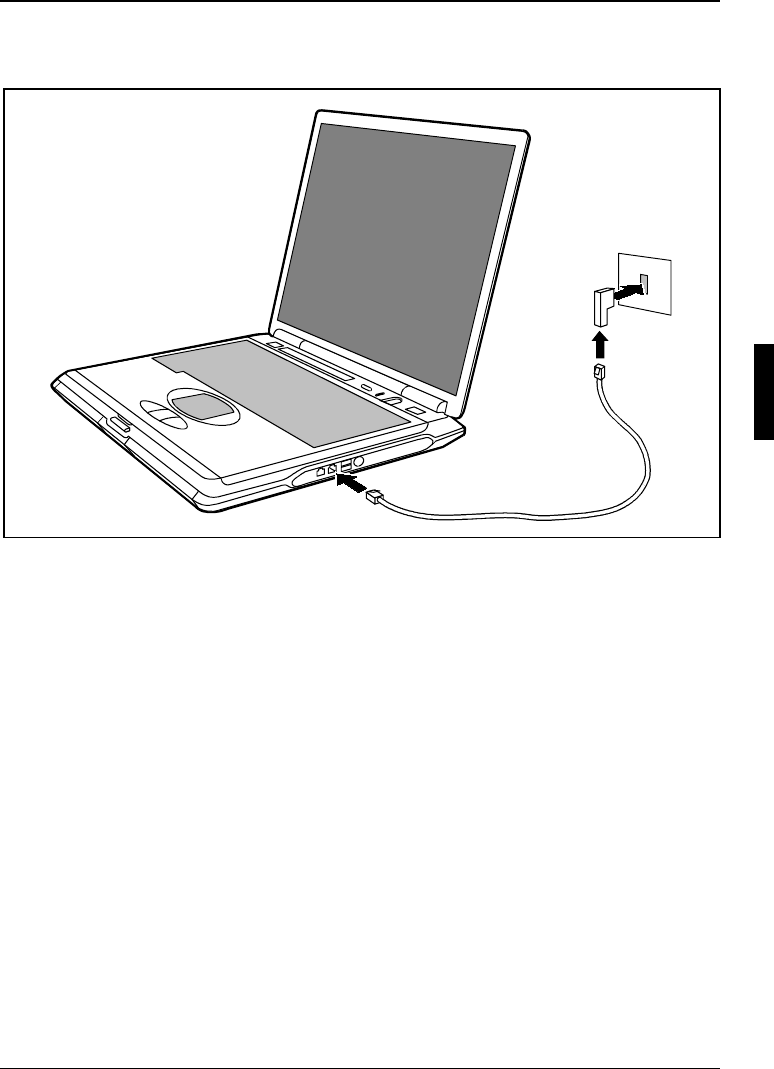

Connecting workstation modem to telephone connection........................................................ 43
Connecting IEEE1394 (FireWire) .................................................................................................... 43
PC cards......................................................................................................................................... 44
Installing a PC card................................................................................................................. 44
Removing a PC card............................................................................................................... 45
SmartCards..................................................................................................................................... 45
Inserting a SmartCard............................................................................................................. 46

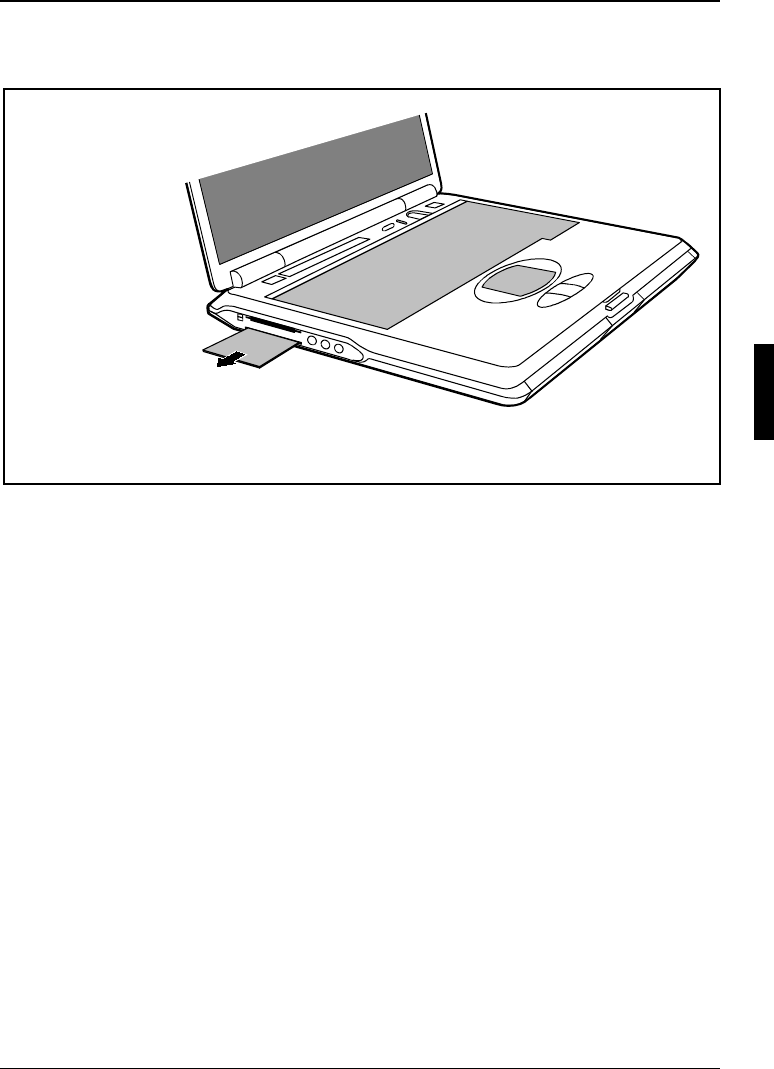

Sliding out a SmartCard .......................................................................................................... 47
Microphone and loudspeakers ........................................................................................................ 48

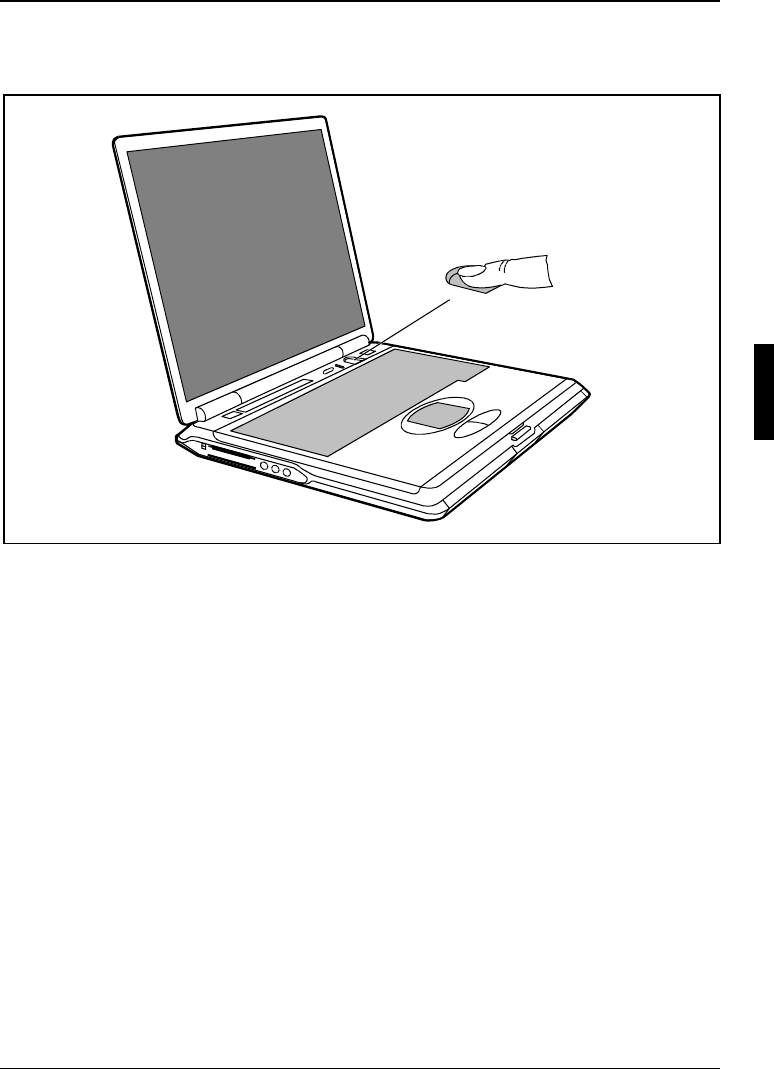

Fingerprint reader............................................................................................................................ 49
Property and data protection........................................................................................................... 50
Security functions under Windows .......................................................................................... 50
BIOS Setup security functions................................................................................................. 50
Setting passwords........................................................................................................... 51
Canceling passwords ...................................................................................................... 52
Removable keyboard ..............................................................................................................52
Kensington Lock...................................................................................................................... 53
Connecting external devices........................................................................................................ 55

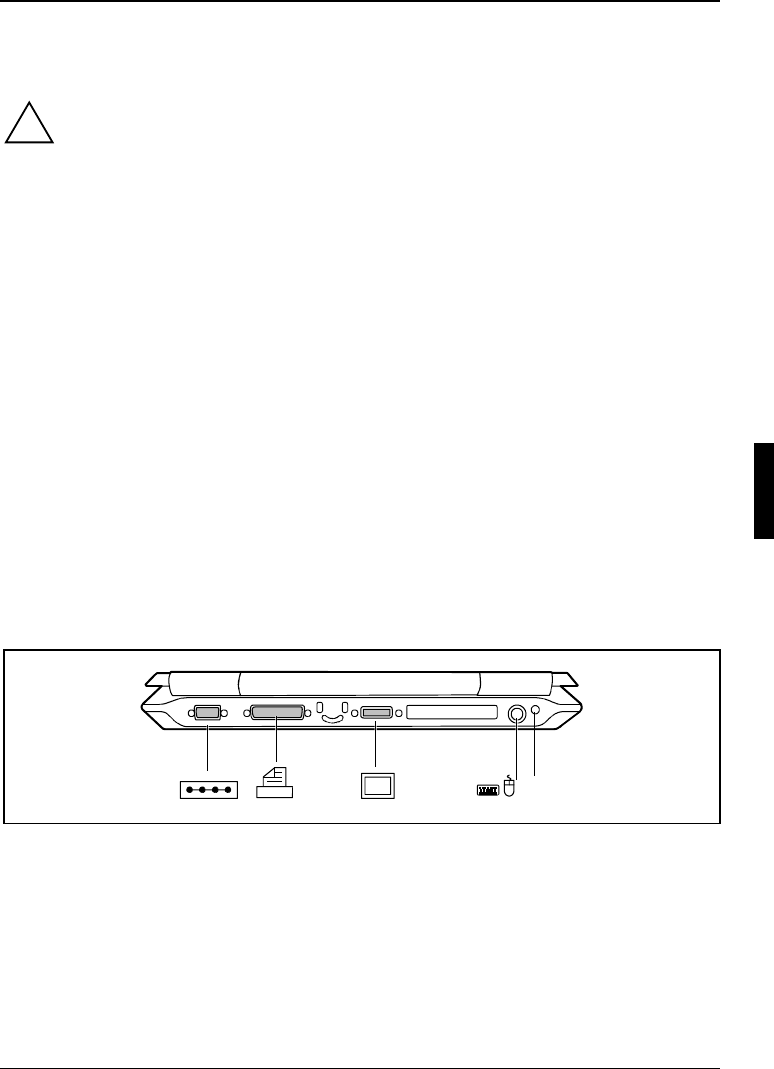

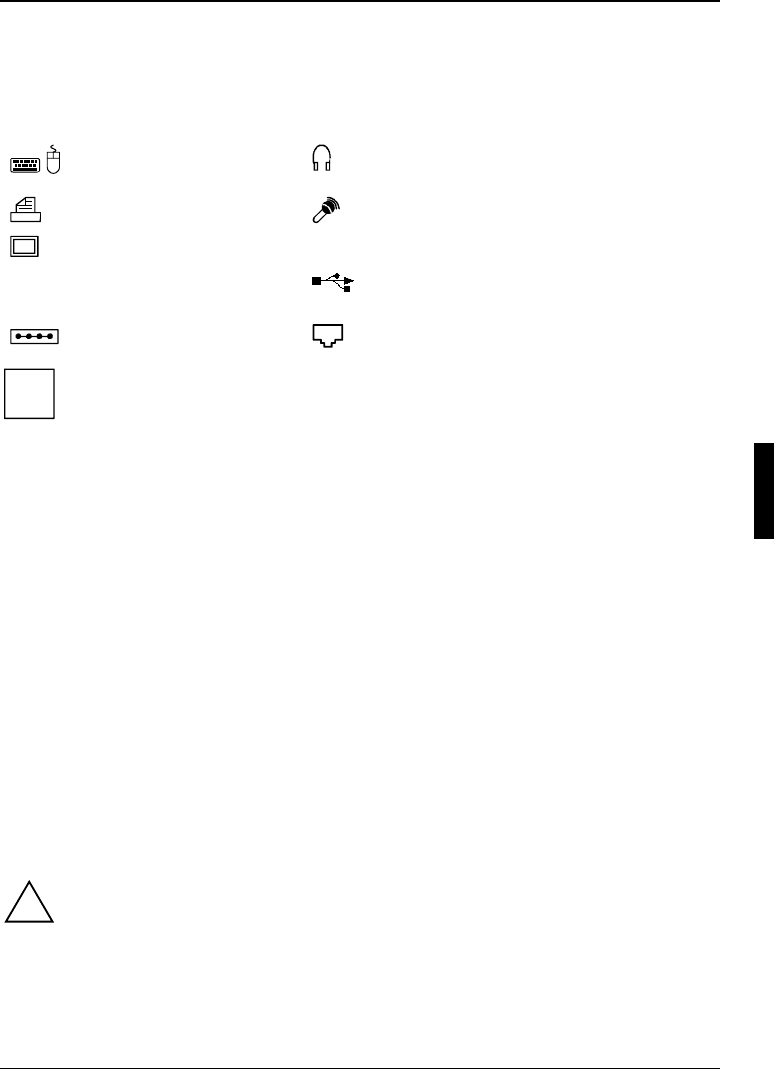

Ports ............................................................................................................................................... 55
Connecting an external monitor....................................................................................................... 57
Connecting an external keyboard.................................................................................................... 58
Connecting an external PS/2 mouse...............................................................................................58
Connecting a serial mouse.............................................................................................................. 58
Using the parallel port ..................................................................................................................... 58
Using the serial port ........................................................................................................................ 58
Establishing an infrared connection................................................................................................. 59
Connecting USB devices ................................................................................................................ 59
Settings in BIOS Setup................................................................................................................. 61
Start BIOS Setup ............................................................................................................................ 61
Operating BIOS Setup .................................................................................................................... 61
Exiting BIOS Setup ......................................................................................................................... 62
Contents
A26391-K115-Z120-2-7619
Troubleshooting and tips..............................................................................................................63
Installing new software ............................................................................................................63
Saving and restoring system files ............................................................................................63
Restoring the hard disk contents under Windows ....................................................................63
The workstation's date or time is incorrect...............................................................................64
Battery indicator does not illuminate ........................................................................................64
The LCD screen of the workstation remains blank...................................................................64
The workstation's LCD display is difficult to read .....................................................................64
The external monitor stays blank .............................................................................................65
The external monitor is blank or the image is unstable ............................................................65
The workstation does not start after switch on.........................................................................66
The workstation stops working.................................................................................................66
The mouse does not work........................................................................................................67
The floppy disk cannot be written.............................................................................................67
The printer does not print.........................................................................................................67
Acoustic warnings....................................................................................................................68
Error messages on the screen.................................................................................................68
Memory expansion........................................................................................................................71
Removing and installing memory extension.............................................................................71
Technical data................................................................................................................................75
Workstation .....................................................................................................................................75
Battery.............................................................................................................................................76
Power adapter .................................................................................................................................77
Wireless Keyboard Product Specification ........................................................................................77
Index...............................................................................................................................................79
A26391-K115-Z120-2-7619 1
Introduction
Your CELSIUS Mobile H is a versatile and ergonomic workstation. Innovative technology and
ergonomic design make this workstation the ideal user-friendly and reliable travel companion.
To simplify the initial start-up of your workstation, one or two operating systems are preinstalled on
the hard disk (dual-installation). If two operating systems are preinstalled, you can select which of
the two operating systems you want to install during initial start-up.
The energy-saving processor and the energy-saving functions that can be configured allow you to
make the most effective use of the battery capacity.
Your WORKSTATION has 128 -1024 Mbyte of main memory installed, depending on the upgrade level.
Data is stored on a hard disk drive. Your workstation is also equipped with a 3 1/2-inch disk drive.
Depending on the model, your workstation is delivered with a CD-RW drive, a DVD-ROM drive or a
combo drive (CD-RW/DVD). A PC card slot (CardBus or PCMCIA) enables the notebook to operate
two type II PC cards or one type III PC card. Depending on the variant, your workstation may be
equipped with an internal mini-PCI board.

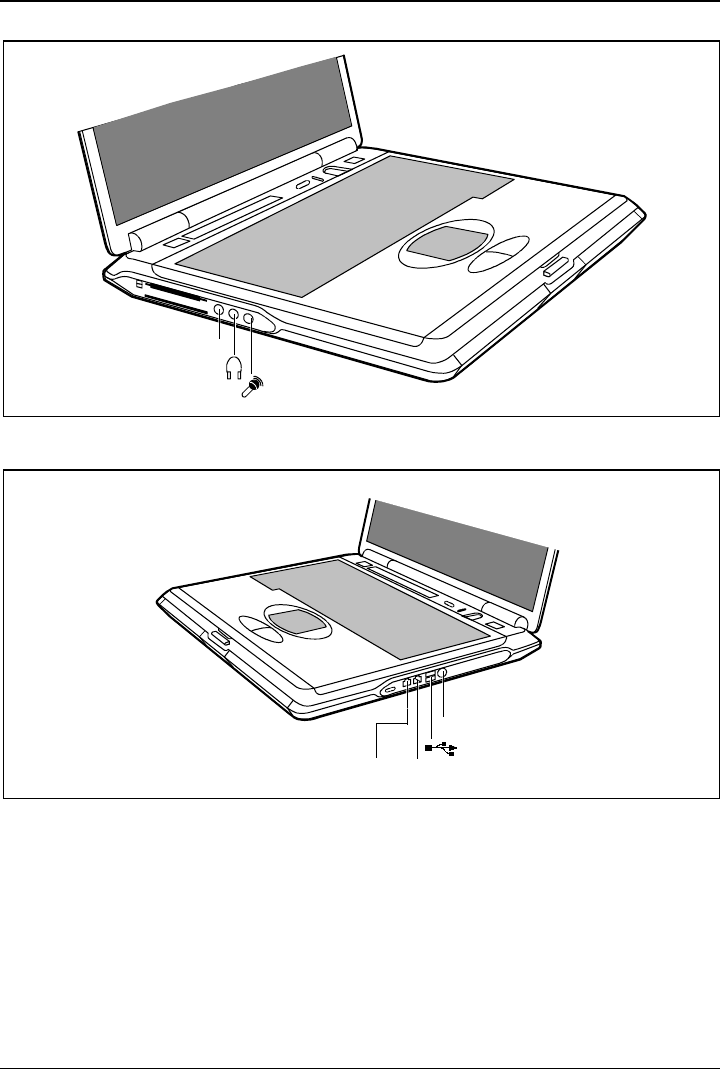

Your workstation has connectors for external devices such as an external monitor, a printer, and a
mouse. The ECP capable parallel port is designed for fast bidirectional data transfer. You can
connect peripheral devices such as a scanner, loudspeakers, gamepads, keyboard, or mouse via
the two USB ports. In addition, your workstation is equipped with a TV-Out connector to connect to a
television.
For mouse control, the workstation has a touchpad with touchpad buttons.
An audio controller, two built in loudspeakers, and a built in microphone provide your workstation
with audio functionality. You can thus incorporate voice, noise effects and music into your
workstation environment. You can also connect an external microphone and an external
loudspeaker.
The system settings of the workstation can be configured via the user-friendly BIOS Setup
programme. Certain system settings (e.g. screen display, energy saving functions) can be modified
via various key combinations while you are using the workstation.
Your workstation has a number of security features to ensure that no unauthorised persons can
access your data. For example, you can activate a screen saver with password protection. The
security functions in the BIOS Setup also allow you to protect your data by means of passwords.
This Operating Manual tells you how to put your workstation into operation and how to operate it in
daily use.
Additional information on your workstation is contained in the following documents:
· in the "Safety and Warranty" manual
· in the "Getting Started" manual
· in the documentation of the operating system
· in the information files (e.g. *.TXT, *.DOC, *.WRI, *.HLP)
Introduction Notational conventions
2A26391-K115-Z120-2-7619
Notational conventions
The following symbols are used in this manual:
!Indicates information which is important for your health or for preventing
physical damage. Failure to follow the instructions may lead to loss of data,
invalidate your warranty, destroy the notebook, or endanger your life.
i
Indicates important information which is required to use the system
properly.
Ê Text which follows this symbol describes activities that must be performed
in the order shown.
This font indicates screen outputs.
This font indicates programme names, commands, or menu items.
"Quotation marks" indicate names of chapters, data carriers, and terms that are being
emphasised.
A26391-K115-Z120-2-7619 3
Important notes
Most of the safety information is contained in the "Getting Started" manual. Some of the most
important information is outlined below. The manufacturer's notes contain helpful information on
your device.
Safety
This CELSIUS Mobile Workstation complies with the relevant safety regulations for data processing
equipment. If you have any questions, contact your sales outlet or our Help Desk.
! Pay attention to the information provided in the manual "Safety and Warranty" and in the
following security notes.
Observe the sections in the manual marked with the symbol on the left.
· When connecting and disconnecting cables, observe the relevant notes in this operating
manual.
· Only use batteries designed for this notebook.
Do not store batteries for longer periods in the notebook.
Take care not to drop the batteries or otherwise damage their casing (fire risk).
If the rechargeable batteries are defective, they must not be used.
Do not touch the contacts of the batteries.
Never interconnect the positive and negative terminals of a battery.
Used batteries must be disposed of in accordance with local regulations (special waste).
· If a lithium battery (button cell) is installed in the notebook for real-time buffering, please note
that:
The lithium battery may only be replaced by authorised, specially trained personnel. Incorrect
handling may lead to a risk of explosion.
The lithium battery may be replaced only with an identical battery or with a type recommended
by the manufacturer.
The lithium battery must be disposed of in accordance with local regulations concerning special
waste.

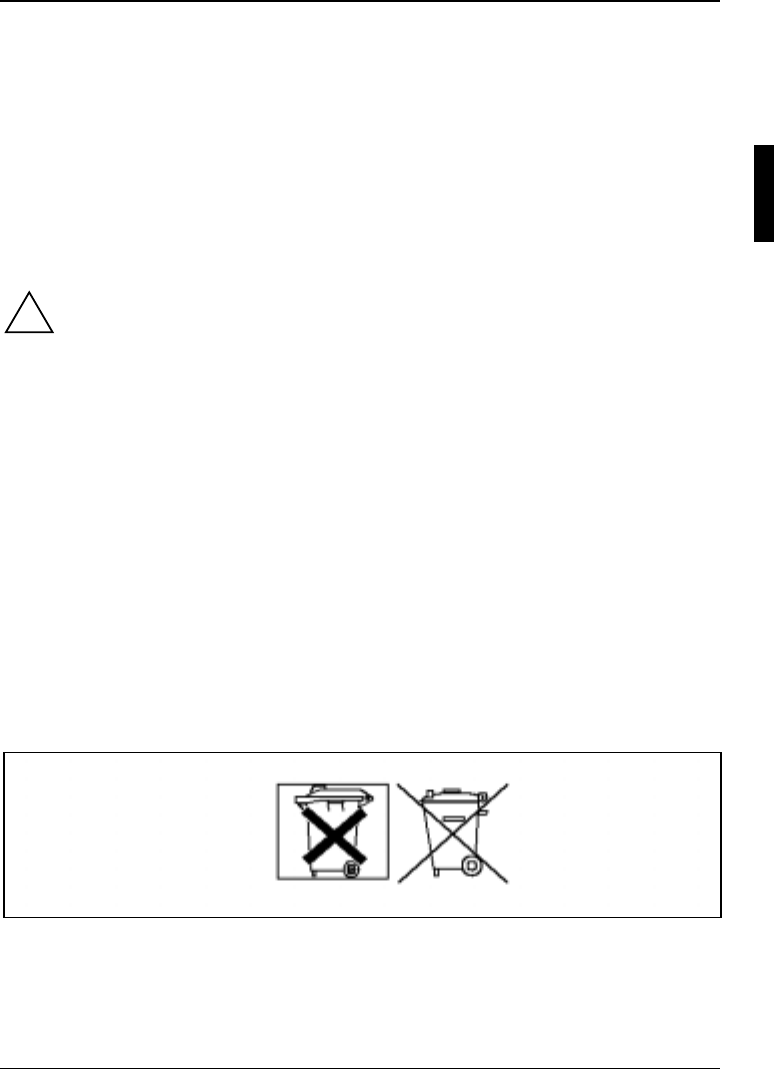

· All batteries containing pollutants are marked with one of the two symbols below (crossed-out
garbage can).
In addition, the marking is provided with the chemical symbol of the heavy metal decisive for
the classification as a pollutant.
Important notes Safety
4A26391-K115-Z120-2-7619
Cd Cadmium
Hg Mercury
Pb Lead
· During installation and before operating the device, please observe the instructions on
environmental conditions in the chapter entitled "Technical data" as well as the instructions in
the chapter "Preparing the workstation for use".
· When cleaning the device, please observe the relevant notes in the paragraph "Cleaning the
workstation".
· If the workstation is brought into the installation site from a cold environment, condensation can
form. Before operating the workstation, wait until it is absolutely dry and has reached
approximately the same temperature as the installation site.
· Switch off the workstation and / or the radio keyboard in hospitals or near to an electronic
medical system. Do not take the workstation into an operating theatre with the radio keyboard
switched on as the radio waves emitted from the keyboard can adversely affect the functioning
of electronic medical systems.
· Keep the workstation at a distance of at least 20 cm away from a pacemaker as its proper
functioning can be adversely affected by radio waves otherwise.
· Switch off the workstation and / or the radio keyboard whilst driving or whilst on board a flight.
· Do not use the radio keyboard near to flammable gases as they can cause an explosion or a
fire.
The company Fujitsu Siemens Computers GmbH cannot be held responsible for radio or television
faults arisng from unauthorised changes made to this device. Fujitsu Siemens is, furthermore, not
responsible for replacing and / or exchanging connector cables and devices which have not been
specified by Fujitsu Siemens Computers GmbH. The user is solely responsible for repairing faults
arising from such unauthorised changes made to a device and for replacing and / or exchanging
devices.
Safety Important notes
A26391-K115-Z120-2-7619 5
Notes on installing and removing boards and modules
!Only qualified technicians should repair the device. Unauthorised opening or incorrect
repair may greatly endanger the user (electric shock, fire risk).
Boards with electrostatic sensitive devices (ESD) are identifiable by the label shown.
When you handle boards fitted with ESDs, you must, under all circumstances, observe the following
points:
· You must statically discharge yourself before working with boards (e.g. by touching a grounded
object).
· The equipment and tools you use must be free of static charges.
· Remove the power plug from the mains supply before inserting or removing boards containing
ESDs.
· Always hold boards with ESDs by their edges.
· Never touch pins or conductors on boards fitted with ESDs.
Important notes Manufacturer’s notes
6A26391-K115-Z120-2-7619
Manufacturer’s notes
Keep this operating manual together with your device. If you pass on the device to third parties, you
should include this manual.
Copyright-protected technology
This product incorporates copyright protection technology that is protected by method claims of
certain U. S. patents and other intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorised by Macrovision
Corporation, and is intended for home and other limited viewing uses only unless otherwise
authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Energy saving
If you will not be using your notebook, switch it off.
Make use of the device's energy saving functions (see "Working with the workstation"). The
notebook uses less power when the power management features are enabled. You will then be able
to work for longer before having to recharge the battery.
Energy saving under Windows
If a monitor with energy saving features is connected to your notebook, you can use the Screen Saver
tab to activate the energy saving features of the monitor. Select the following item in the start menu:
Settings - Control Panel - Display - Display Properties - Screen Saver - Energy saving functions for the
display. You can set additional energy saving functions in the start menu by selecting the following
item: Settings - Control Panel - Energy - Extended.
Energy Star
The notebook from Fujitsu Siemens Computers is designed to conserve
electricity by dropping to less than 8 W when it goes into standby/suspend
mode and to less than 3 W when it goes into OFF mode. With this level of
power management, the notebook qualifies for the U.S. Environmental
Protection Agency's (EPA) Energy Star Computers award.
The EPA estimates that computer equipment uses 5 percent of all business electricity and that this
is growing rapidly. If all desktop PCs and peripherals enter a low-power mode when not in use, the
overall savings in electricity could amount to $ 2 milliard annually. These savings could also prevent
the emission of 20 million tons of carbon dioxide into the atmosphere - the equivalent of 5 million
automobiles.
As an Energy Star Partner, Fujitsu Siemens Computers GmbH has determined that this product
meets the Energy Star guidelines for energy efficiency.
Important notes CE marking
6a A26391-K113-Z120-1-7619
This device complies with Part 15 of the FCC Rules. Operation is subject to the follwoing conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received including interference that may undesired operation.
FCC Class B Compliance Statement
The following statement applies to the products covered in this manual, unless otherwise specified
herein. The statement for other products will appear in the accompanying documentation.
NOTE:
This equipment has been tested and found to comply with the limits for a "Class B" digital device,
pursuant to Part 15 of the FCC rules and meets all requirements of the Canadian Interference-
Causing Equipment Regulations. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in strict accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
interference to radio or television reception, which can be determined by turning the equipment off
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
The users manual or instruction manual for an international or uninternational radiator shall caution the
user that changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
Fujitsu Siemens Computers GmbH is not responsible for any radio or television interference caused
by unauthorised modifications of this equipment or the substitution or attachment of connecting
cables and equipment other than those specified by Fujitsu Siemens Computers GmbH. The
correction of interference caused by such unauthorised modification, substitution or attachment will
be the responsibility of the user.
The use of shielded I/O cables is required when connecting this equipment to any and all optional
peripheral or host devices. Failure to do so may violate FCC rules.
Important notes CE marking
6b A26391-K113-Z120-1-7619
The following section is a general overview of considerations while operating a wireless device.
Additional limitations, cautions, and concerns for specific countries are listed in the specific country
sections (or country group sections). The wireless devices in your system are only qualified for use in
Radio and Telecom Terminal Equipment Directive 1999/5/EC as per
- CTR21 (if fitted with a modem device)
- ETS 300 328-2 (if fitted with a 2.4 GHz band embedded wireless device)
- ETS 301 489-17 (if fitted with a 2.4 GHz band embedded wireless device)
European radio approval information (for products fitted with EU-approved radio devices)
This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF)
wireless communication devices), operating in the 2.4 GHz band, may be present (embedded) in your
notebook system which is intended for home or office use. This section is only applicable if these devices
are present. Refer to the system label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualified for use in the European Union or
associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the
is well below the RF exposure limits as set by the European Commission through the R&TTE directive
European States qualified under wireless approvals:
system label. The power output of the wireless device or devices that may be embedded in you notebook
EU Austria, Belgium, Denmark, Finland, France (with frequency restrictions), Germany, Greece,
Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden and the United Kingdom.
Accept EUIceland, Liechtenstein, Norway and Switzerland
transmitting power such as wireless LAN
using the wireless device in, is not listed, please contact your local Radio Approval agency for
requirements. Wireless devices are closely regulated and use may not be allowed.
The power output of the wireless device or devices that may be embedded in your notebook is well
and recommendations, Gateway believes these devices are safe for use. Regardless of the power levels
, care should be taken to minimize human contact during normal operation. As a general guideline,
a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device
near the body (this does not include extremities) is typical. This device should be used more than 20 cm
restrictions on wireless devices. Examples of common restrictions are listed below:
1. Radio frequency wireless communication can interfere with equipment on commercial aircraft.
Current aviationregulations require wireless devices to be turned off while traveling in an airplan.
802.11B (also known as wirelessEthernet or Wifi) and Bluetooth communication devices are
examples of devices that provide wireless communication.
2. In environments where the risk of interference to other devices or services is harmful or
perceived as harmful, theoption to use a wireless device may be restricted or eliminated.
- ETS 301 489-1 (if fitted with a 2.4 GHz band embedded wireless device)
European States with restrictions on use:
EU In France, the frequency range is restricted to 2446-2483.5 MHz for devices above 10 mW
Accept EU No limitations at this time.
the countries identified by the Radio Approval Marks on the system rating label. If the country you will be
below the RF exposure limits as known at this time. Because the wireless devices (which may be
embedded into your notebook) emit less energy than is allowed in radio frequency safety standards
(8 inches) from the body when wireless devices are on and transmitting. Some circumstances require
Airports, Hospitals, and Oxygen or flammablegas laden atmospheres are limited examples where
use of wireless devices may be restricted or eliminated. Whenin environments where you are
uncertain of the sanction to use wireless devices, ask the applicable authority forauthorizationprior
to use or turning on the wireless device.
3. Every country has different restrictions on the use of wireless devices. Since your system is equipped
with awireless device, when traveling between countries with your system, check with the local
Radio Approvalauthorities prior to any move or trip for any restrictions on the use of a wireless
device in the destination country.
Important notes CE marking
6c A26391-K113-Z120-1-7619
4. If your system came equipped with an internal embedded wireless device, do not operate the wireless
This Information Technology Equipment has been tested and found to comply with the following
European directives:
- EMC Directive 89/336/EEC with amending directives 92/31/EEC & 93/68/EEC as per
- EN 55022 Class B
- EN 61000-3-2
- EN 61000-3-3
- EN 55024
device unlessall covers and shields are in place and the system is fully assembled
5. Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless
device will voidthe authorization to use it. 
6. Only use drivers approved for the country in which the device will be used.
CE marking Important notes
A26391-K115-Z120-2-7619 7
Declaration of Conformity (DoC)
according to the Directive 99/5/EC (R&TTE)
Intended use: Notebook PC with Bluetooth keyboard
To be used in: Austria, Belgium, Denmark, Finland, France,
Germany, Spain, Italy, Luxembourg, The Netherlands, Switzerland,
Greece, Norway, Sweden UK, Portugal, Iceland, Ireland
Use may be subject to licensing
Usage may be constrained in certain countries
NOTE:
Please refer to the Declaration of Conformity on the last page of the manual.
Important notes Transporting the workstation
8A26391-K115-Z120-2-7619
Disposal and recycling
This device has been manufactured to the highest possible degree from materials which can be
recycled or disposed of in a manner that is not environmentally damaging. The device may be taken
back after use to be recycled, provided that it is returned in a condition that is the result of normal
use. Any components not reclaimed will be disposed of in an environmentally acceptable manner.
Do not throw lithium batteries into the household waste. They must be disposed of in accordance
with local regulations concerning special waste.
If you have any questions on disposal, please contact your local office, our Hotline/Help Desk, or:
Fujitsu Siemens Computers GmbH
Recyclingcenter
D-33106 Paderborn
Tel: +49 5251 81 80 10
Fax: +49 5251 81 80 15
CE marking
The shipped version of this device complies with the requirements of the EEC directives
89/336/EEC "Electromagnetic compatibility" and 73/23/EEC "Low voltage directive".
GS symbol
In normal screen mode (dark characters against a light background) the LCD panel satisfies the
ergonomic requirements for the GS symbol.
Battery storage
i
If you do not use the batteries for long periods, remove them from the workstation. Never
store the batteries in the unit.
Store the battery in a fully charged state. The battery should be stored in a dry area at a
temperature between 0°C and +30°C. The lower the temperature at which the batteries are stored,
the lower is the rate of self-discharge.
If storing for a long period of time (longer than two months) batteries should be fully charged before
storage.
To be able to use the optimum battery charging capacity, you should work in the battery mode until
the battery is completely discharged, and then recharge the battery.
Transporting the workstation
Please observe the points listed below when transporting your workstation.
A26391-K115-Z120-2-7619 9
Before you travel
!As the removable keyboard is operated by a radio connection ,your workstation may not
be switched on during a flight.

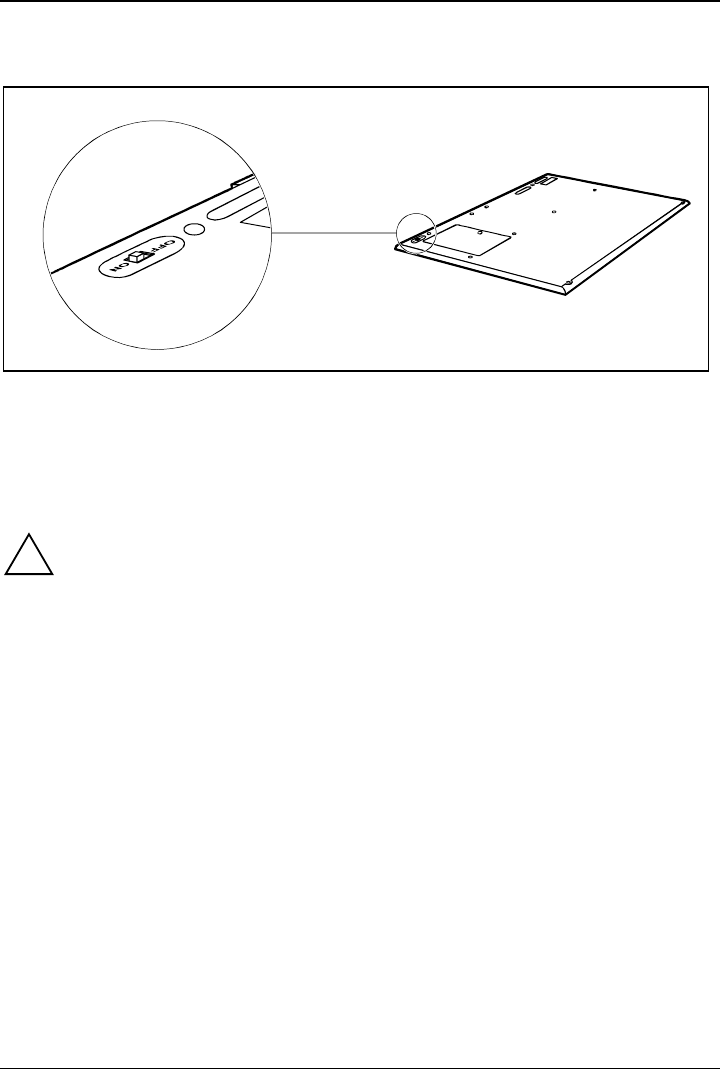

Switch off the keyboard also (see chapter " Switching the keyboard on and off").
· Copy important data from the hard disk onto a floppy disk.
· If you are travelling abroad, ensure that the power adapter can be operated with the local
mains voltage. If this is not the case, obtain the appropriate power adapter for your workstation.
Do not use any other voltage converter!
i
If you travel in another country, check whether the local power supply and the
specifications of the power cable are compatible. If this is not the case, buy a power cable
that matches the local conditions. Do not use a connection adapter for electrical devices
to connect the workstation.
If you use a modem, incompatibilities with the local telecommunications system may
result.
Transporting the workstation
· Remove all data carriers (e.g. floppy disk, CD) from the drives.
· Switch off the workstation.
· Unplug the power adapter and all peripheral devices from the mains outlet.
· Disconnect the power adapter cable and the data cables of all peripheral devices.
· Close the LCD display of the workstation so that it locks into place.
· If the notebook needs to be shipped, use the original packaging or other suitable packaging to
protect it from damage caused by mishandling.
· To protect against damaging jolts and bumps, use a carrying case to transport your
workstation.
· Protect the workstation from severe shocks and extreme temperatures (e.g., direct sunlight in a
car).
Important notes Transporting the workstation
Cleaning the workstation Important notes
A26391-K115-Z120-2-7619 10
Cleaning the workstation
Ê Switch off the workstation.
Ê Pull the power plug of the network adapter out of the mains outlet.

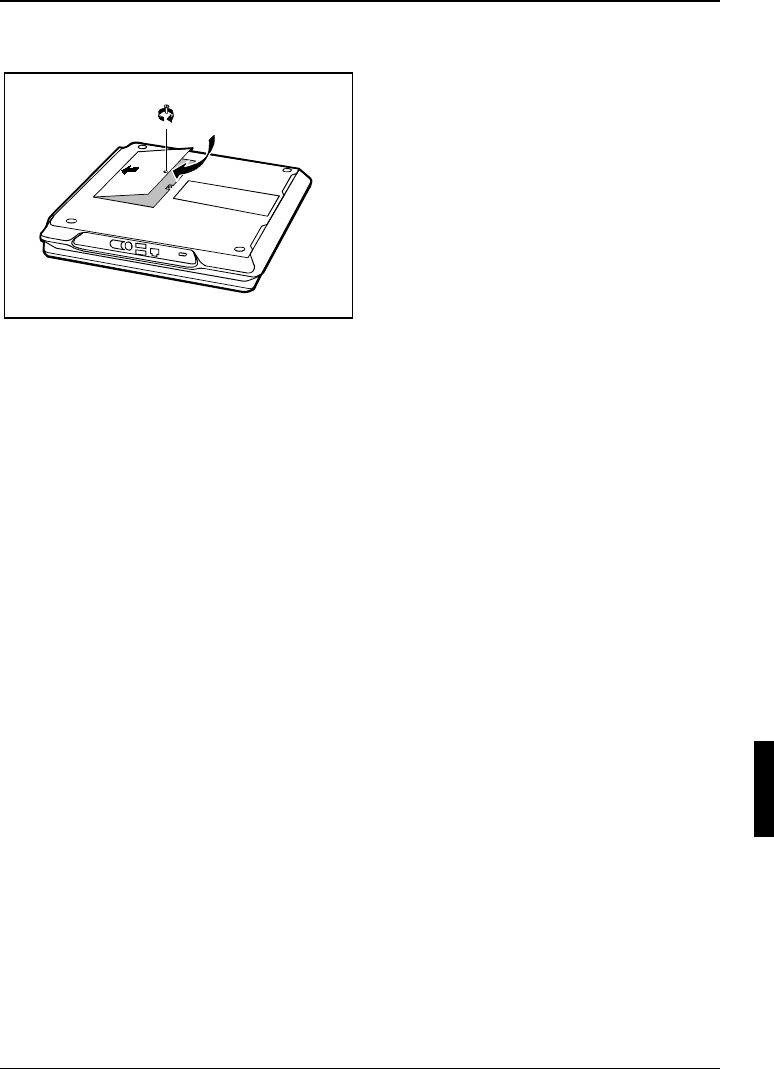

Ê Remove the battery.
How to remove the battery is described in the section "Inserting and removing the battery".
!Do not clean any interior parts yourself; leave this job to a service technician.
Do not use any cleaning agents that contain abrasives or may corrode plastic.
Ensure that no liquid enters the workstation.
Wipe the casing with a dry cloth.
If particularly dirty, use a cloth that has been moistened in mild domestic detergent and then
carefully wrung out.
To clean the keyboard and the touchpad, you can use disinfectant wipes.
Wipe the LCD screen with a soft, moistened cloth.
A26391-K115-Z120-2-7619 11
Preparing the workstation for use
!Please read the chapter "Important notes".
Before you can work with your workstation, you need to charge the battery and install and configure
the delivered software. The operating system and drivers required are preinstalled.

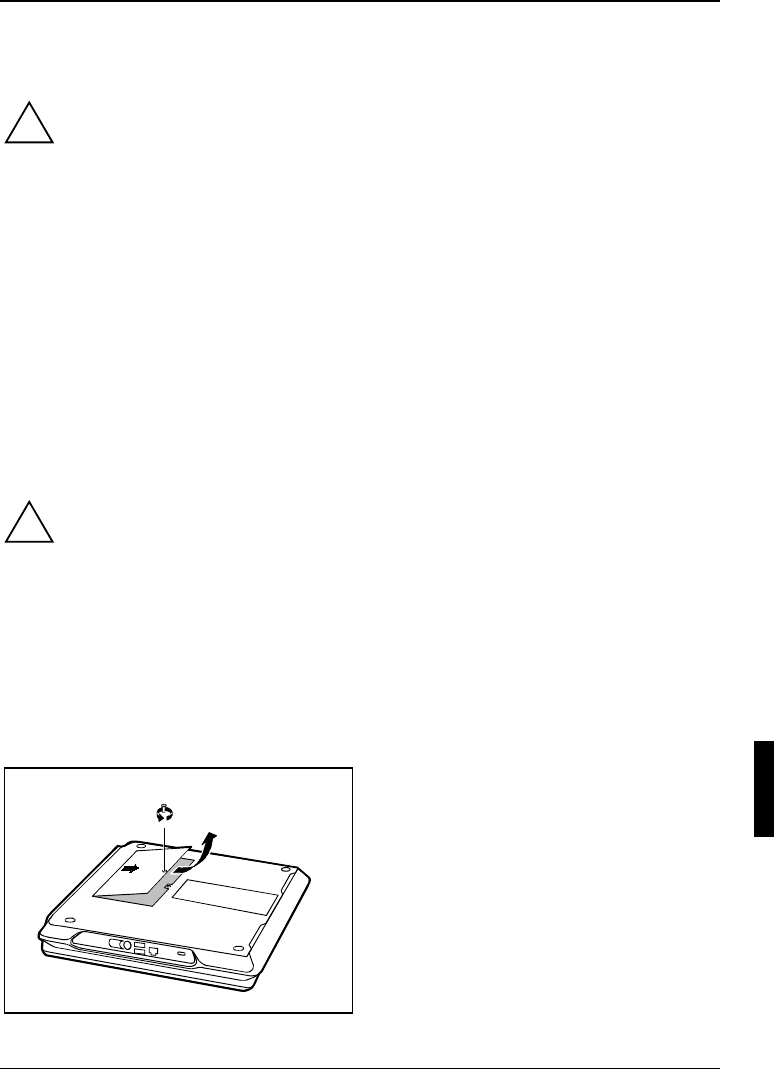

Upon delivery, the battery can be found in the battery compartment and is not charged. You need to
charge the battery if you want to operate your workstation with a rechargeable battery.
If you use the workstation in a normal office situation, run it off the mains using the power adapter.
Unpacking and checking the delivery
Ê Unpack all the individual parts.
Ê Check the delivery for damage incurred during transportation.
Ê Check whether the delivery agrees with the details in the delivery note.
i
Should you discover that the delivery does not correspond to the delivery note, notify you
r
local sales outlet immediately.
Do not discard the original packing material of the devices. Keep the original packing
material in case you need to ship the equipment again.
Preparing the workstation for use Unpacking and checking the delivery
12 A26391-K115-Z120-2-7619
Switching on the workstation for the first time
When you switch on your workstation for the first time the supplied software is installed and
configured. You should plan some time for this, as this process must not be interrupted.
!Do not place the workstation on a soft surface (e.g., a carpet or soft furnishings). The
space between the workstation's feet must be clear.. Place the workstation on a flat,
stable, nonslippery surface.
Do not place the power adapter on heat-sensitive material.
The workstation and the power adapter should be at least 200 mm apart.
Keep other objects 100 mm away from the workstation and its power adapter to ensure
adequate ventilation.
Never cover the fan intake or exhaust openings of the workstation or the power adapter.
The power cable supplied conforms to the requirements of the country in which you
purchased your workstation. Make sure that the power cable is approved for use in the
country in which you intend to use it.
The power adapter's AC cord should only be connected to a mains outlet if the
workstation is already connected to the power adapter.
Do not expose the workstation to extreme environmental conditions. Protect it from dust,
humidity and heat.
Upon delivery, the battery can be found in the battery compartment and is not charged.
Ê Place the workstation on a flat, stable, nonslippery surface.
2
1

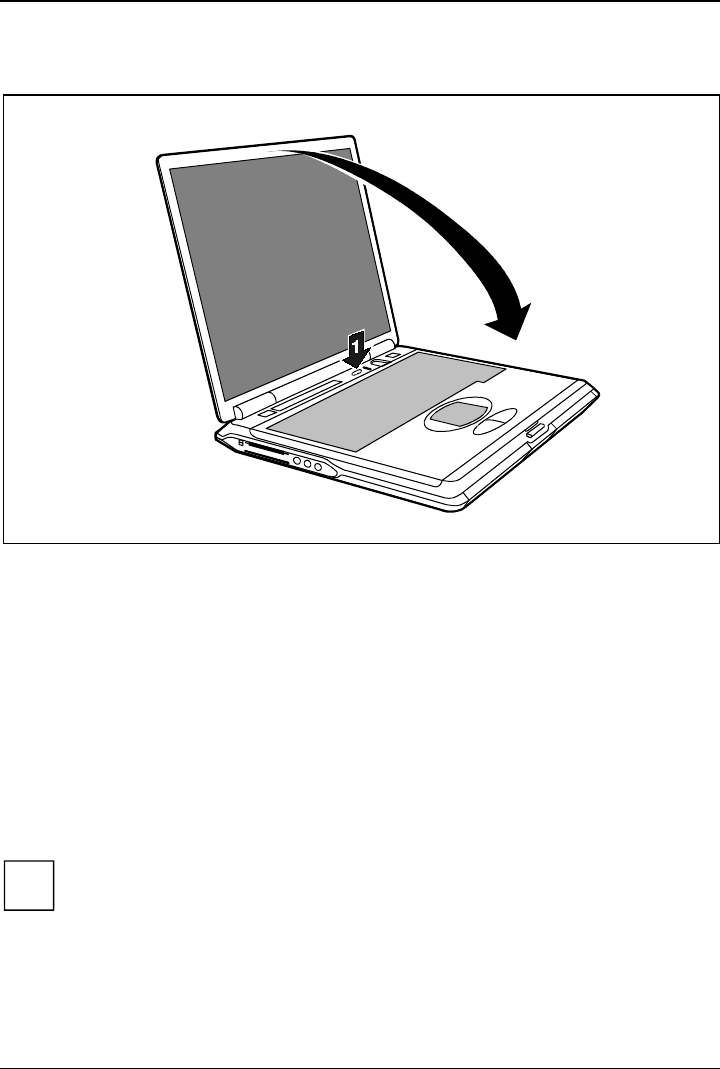

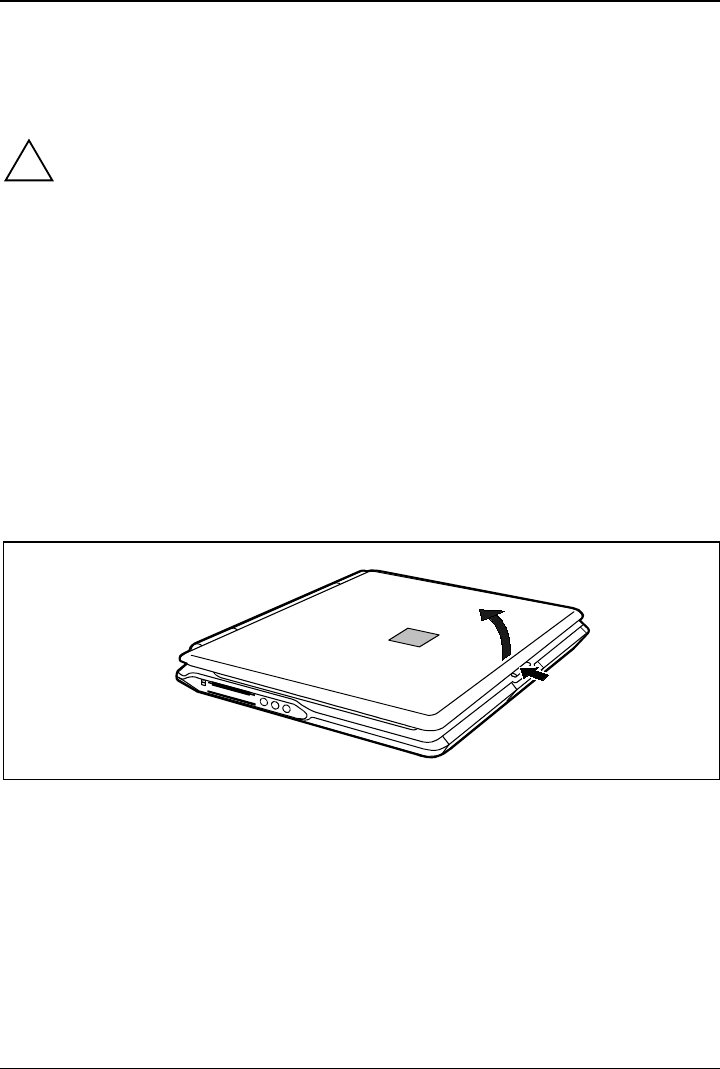

Ê Press the release button (1) and open the LED display panel (2).
Unpacking and checking the delivery Preparing the workstation for use
A26391-K115-Z120-2-7619 13

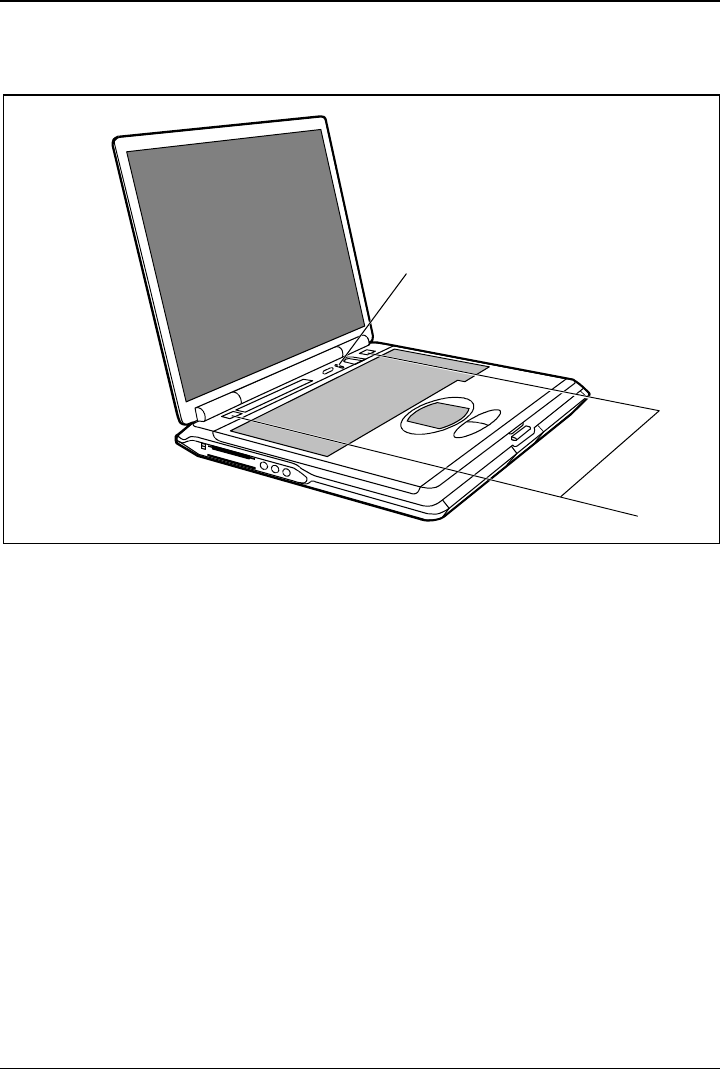

Connecting the power adapter and switching on the workstation
2
3
1
!Use only the the power adapter provided.
Ê Plug the DC output connector on the power adapter into the DC input connector (DC IN) on the
workstation (1).
Ê Connect the power cable to the power adapter (2).
Ê Plug the power cable into the mains supply (3).
The power indicator on the workstation should illuminate. The battery will charge.

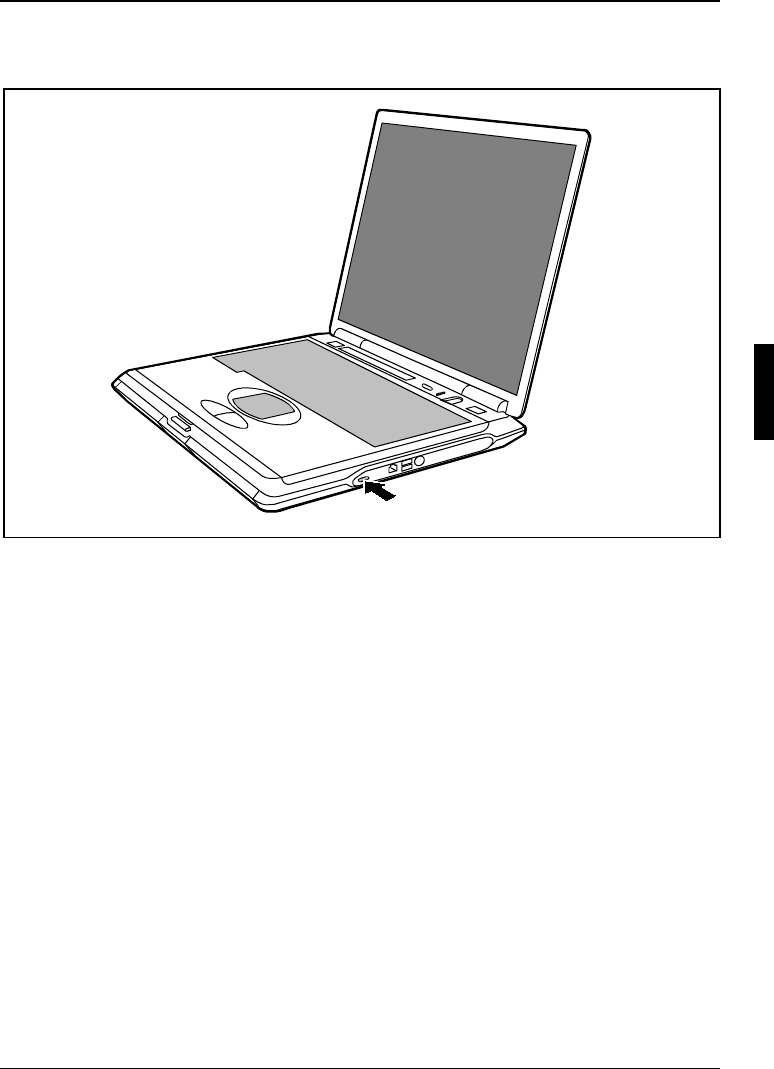

Ê Press the Suspend/Resume button (4), and release it again.
The Suspend/Resume button functions like an ON/OFF switch.
The power-on indicator on the workstation lights up.
! After switch-on a self-test (POST, Power On Self Test) is automatically carried out. Never
switch the workstation off during the self-test.
Preparing the workstation for use Unpacking and checking the delivery
14 A26391-K115-Z120-2-7619
First-time software installation
!Leave the external power adapter connected to your workstation during the initial
installation.
Once the installation has been started the workstation must not be switched off!
During installation the workstation may only be rebooted when you are requested to do
so!
Ê During installation, follow the instructions on screen.
Consult the operating system manual if there is anything unclear about the requested input data.
i
You will find further information about the system, drivers, utilities, updates, manuals etc.
on the "CELSIUS Mobile Driver CD" supplied.
A26391-K115-Z120-2-7619 15
Working with the workstation
This chapter describes the basics for operating your workstation.
The chapter on "Connecting external devices" has instructions on how to connect external devices
(e.g. mouse, printer) to the workstation.
!Please take note of the information in the chapter "Important notes".
Switching the workstation on
2
1
Ê Press the release button (1) and open the LED display panel (2).
Ê Press the Suspend/Resume button to switch on the workstation (3).
The power-on indicator on the workstation lights up.
i
You can configure the Suspend/Resume button under Start - Settings - Control Panel -
Power Options - Power Options Properties.
If you have assigned a password, you must enter this when requested to do so, in order
to start the operating system password.
Working with the workstation Switching off the workstation
16 A26391-K115-Z120-2-7619
Switching off the workstation
2
Ê Shut down the operating system properly.
If the workstation is not switched off automatically, press the Suspend/Resume button (1) and
release it again.
Ê Immediately press the Suspend/Resume button again once, and hold it down for approximately
four seconds until you hear an acoustic signal.
The workstation is switched off.
Ê Close the LCD display of the workstation (2) so that it locks into place.
Switching off workstation via operating system
How you can switch off your workstation via the operating system is dependent on the settings of
the power-management feature. Additional information is contained in the section "Removing the
battery" in this chapter.
i
Save all open files before switching the workstation into the Standby mode to avoid data
loss when the workstation remains switched off for a longer time.
Indicators Working with the workstation
A26391-K115-Z120-2-7619 17
Indicators
The following icons appear in the display field of your workstation:
A1
The meanings of the symbols are as follows:
Power-on indicator
· The indicator lights up:The workstation is on.
· The indicator flashes (1 second on / 1 second off):
The workstation is in energy-saving mode.
· The indicator is dark:
The workstation is switched off.
Power indicator
The power adapter is supplying power to the workstation.
07% Battery indicator
The battery charge state is indicated in the status indicator panel.
1Indicator PC card 1
The indicator lights up when a PC card disk in slot 1 is being accessed.
You must not remove the PC card from the slot when this indicator is lit.
Working with the workstation Indicators
18 A26391-K115-Z120-2-7619
2Indicator PC card 2
The indicator lights up when a PC card disk in slot 2 is being accessed.
You must not remove the PC card from the slot when this indicator is lit.
Hard disk indicator
The indicator lights up when the hard disk drive is being accessed.
Floppy disk drive indicator
The indicator lights up when a floppy disk in the floppy disk drive is being accessed.
You must not remove the floppy disk from the floppy disk drive when this indicator is
shown.
Optical drive indicator
The indicator is lit when the CD/DVD in the optical drive is being accessed.
You must not remove the CD/DVD from the drive when this indicator is lit.
CapsLK CapsLK indicator (Caps Lock)
The Ï key has been pressed. All the characters you type appear in uppercase. In the
case of overlay keys, the character printed on the upper left of the key appears when that
key is pressed.
ScrLK Scroll indicator (Scroll Lock)
The [Scr] key has been pressed. The effect this key has varies from programme to
programme.
NumLK NumLK indicator (Num Lock)
The key combination [Fn] + [Num LK] has been pressed. The numbers on the lower left
on keys in the integrated numeric keypad are enabled.
Keyboard Working with the workstation
A26391-K115-Z120-2-7619 19
Keyboard
The following description of keys refers to Windows. Additional functions supported by the keys are
described in the relevant manuals supplied with your application programmes.
The figure below shows how to access the different characters on keys with overlaid functions. The
example applies when the CapsLK indicator is not lit.
7
/
{7
7
/
{7
7
/
{7
Alt Gr 7
/
{7
Fn 7
/
{7
NumLk
Backspace key
The Backspace key deletes the character to the left of the cursor.
Tab key
The Tab key moves the cursor to the next tab stop.
Enter key (return)
The enter key terminates a command line. The command you have entered is
executed when you press this key.
Caps Lock key
The Caps Lock key activates uppercase mode (CapsLK indicator lit). The Caps
Lock function causes all the characters you type to appear in uppercase. In the
case of overlay keys, the character printed on the upper left of the key appears
when that key is pressed.
To cancel the Caps Lock function, simply press the Caps Lock key again.
Shift key
The Shift key causes uppercase characters to appear. In the case of overlay keys,
the character on the upper left of the keycap appears when that key is pressed.
Alt Gr Alt Gr key
The [Alt Gr] key causes the characters in the lower middle of the keycap to appear
(e.g. { in the case of the [7] key shown on the example keyboard).
Working with the workstation Keyboard
20 A26391-K115-Z120-2-7619
Fn Fn key
The [Fn] key enables the special functions indicated on overlay keys (see "Key
combinations").
If the external keyboard does not feature an [Fn] key, you can simultaneously press
the [Ctrl] + [Alt Gr] keys or the [Ctrl] + [Alt] keys.
Cursor keys
The cursor keys move the cursor in the direction of the arrow, i.e. up, down, left, or
right.
Pause
Break Pause key
The [Pause] key temporarily suspends display output. Output will resume when you
press any other key.
Start key
The Start key invokes the Windows Start menu.
Menu key
The Menu key invokes the menu for the marked item.
Numeric keypad
7 890
UI OP
J
M
K
;
L
:_
Ö
/
{
(
[
)
]
=
}
µ, . -
1
789 *
456-
123+
0/
.
2
1 = Characters enabled when NumLK indicator is not lit (see "Indicators").
2 = Characters enabled when NumLK indicator is lit (see "Indicators").
If the numeric keypad is enabled (NumLK indicator is lit) and you hold down the [Fn] key, you can
output the characters printed in blue on the bottom right of the keys.
Keyboard Working with the workstation
A26391-K115-Z120-2-7619 21
Key combinations
The following description of key combinations refers to functions when using Microsoft Windows.
Some of the following key combinations may not function in other operating systems and with some
device drivers.
Other key combinations are described in the relevant manuals supplied with your application
programmes.
Key combinations are performed as follows:
Ê Press and hold the first key in the combination.
Ê While holding the first key down, press the other key or keys in the combination.
i
If the external keyboard does not feature an [Fn] key, you can simultaneously press
the [Ctrl] + [Alt Gr] keys or the [Ctrl] + [Alt] keys.
Fn +F3 Enlarge MS-DOS screen
This key combination enlarges the screen in the MS-DOS mode to the full-
screen mode or switches it back to the normal display mode.
F4
Fn +Switch internal touchpad on/off
This key combination enables and disables the touchpad function.
To do this, set the setting Internal Pointing Device to Auto Disabled in the BIOS
Setup in the menu Advanced - Keyboard/Mouse Features.
Fn +F5 Switch Speed Skp© mode on
This key combination switches between the possible speed Skp© modes:
- Maximum power
- Battery-optimised power (reduced process speed in battery mode)
F6
Fn +Switching the loudspeakers on/off
This key combination switches your notebook's integrated loudspeakers off and
on.
Fn +F7 Increasing the volume
This key combination raises the volume of the integrated loudspeakers.
F8
Fn +
Reducing the volume
This key combination reduces the volume of the integrated loudspeakers.
F9
Fn +LCD off
This key combination switches off the LCD screen to save power.
Fn +F10 Switching between internal and external screen
If an external monitor is connected, the monitor on which the output is to be
displayed can be selected with this key combination. You can opt to use:
· just the workstation's LCD screen
· just the external monitor
· both the LCD screen and the external monitor.
Fn +F11 Increasing screen brightness
This key combination increases screen brightness.
Working with the workstation Keyboard
22 A26391-K115-Z120-2-7619
Fn +F12 Decreasing screen brightness
This key combination decreases screen brightness.
Ctrl +C Halting the current operation
This key combination can be used to halt an operation instantly without
clearing the keyboard buffer.
+ Backtab (Shift+Tab)
This key combination moves the cursor back to the previous
tabular stop.
Ctrl Alt Del Carrying out a warm boot
Warm boot
This key combination restarts the workstation. First hold down
the [Ctrl] and [Alt] key, and then press the [Del] key. With
Windows 98, Windows 2000, Windows ME and Windows NT
Task Manager appears first. Then you must press all three
keys again to re-boot.
Keyboard Working with the workstation
A26391-K115-Z120-2-7619 23
Preparing the removable radio keyboard for use
Before using your CELSIUS Mobile H workstation, you must fit or connect a battery in the
removable keyboard. You do this as follows:
1
21
3
Ê Lift the keyboard at the two positions indicated (1).
Ê Remove the keyboard in the direction of the arrow (2).
Ê Turn the keyboard over (3).
1
Ê Open the battery compartment at the rear of
the keyboard.
Ê Lift off the battery cell cover.
Working with the workstation Keyboard
24 A26391-K115-Z120-2-7619
Ê Plug the battery connector into the connector in the battery compartment.
Ê Close the battery compartment.
1
1
Ê Hold the keyboard at an angle and ensure
that the pins (1) fit into the matching
recesses.
Keyboard Working with the workstation
A26391-K115-Z120-2-7619 25
Operating the removable radio keyboard for use
The keyboard can be removed as described above.
The keyboard is permanently linked to the workstation by means of a wireless connection. The right-
hand indicator on the keyboard lights as soon as a wireless connection is established. No keyboard
input is possible until the indicator lights. Occasionally it can take up to 15 seconds to establish a
connection (normally 2 to 5 seconds).
The battery indicator is on when the battery is charging. The battery is charged only when the
keyboard is attached to the workstation. The battery indicator flashes if the battery is low and the
keyboard is removed. Re-attach the keyboard so that the battery can recharge.
i
Place the keyboard on the device as often as possible so that the battery can be charged.
1If you cannot establish a wireless connection
between the keyboard and the workstation,
press the Reset button on the rear of the
keyboard (hole on the rear of the keyboard).
Working with the workstation Keyboard
26 A26391-K115-Z120-2-7619
Switching the keyboard on and off
Ê Switch the keyboard ON or OFF with the ON/OFF switch.
Switch off the keyborad whenever you do not intend to use it for a prolonged period of time or whilst
on board a flight.
Operating the keyboard without a radio connection
!Since the removable keyboard is operated by a radio connection, your workstation may
only be switched on during a flight if you operate the workstation without a radio
connection in the way described.
Ê Connect the PS/2 lead cable supplied to the right-hand port on the keyboard and to the
CELSIUS Mobile Workstation.
Keyboard Working with the workstation
A26391-K115-Z120-2-7619 27

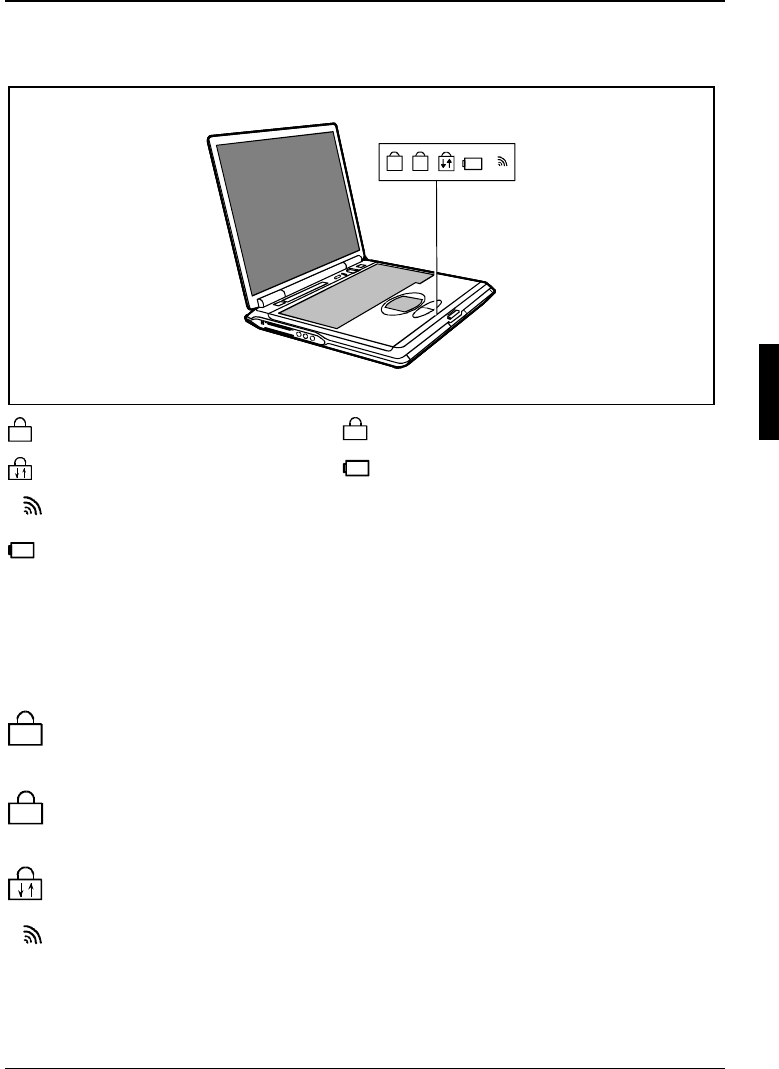

Indicators on the keyboard
22
A1 BT
1NumLK indicator (Num Lock)
A
CapsLK indicator (Caps Lock)
Scroll indicator (Scroll Lock) Rechargeable battery indicator keyboard
BT Radio connection
Rechargeable battery indicator keyboard
Shows how much charge the battery has left.
· The indicator lights up:
The battery is charging.
· The indicator flashes:
The battery is nearly empty.
Place the keyboard on the workstation again so that the battery can be recharged.
1NumLK indicator (Num Lock)
The key combination [Fn] + [Num LK] has been pressed. The numbers on the lower left
on keys in the integrated numeric keypad are enabled.
ACapsLK indicator (Caps Lock)
The Caps Lock key has been pressed. All the characters you type appear in uppercase.
In the case of overlay keys, the character printed on the upper left of the key appears.
Scroll indicator (Scroll Lock)
The [Scr] key has been pressed. This key has varies from programme to programme.
BT Radio connection indicator
· The indicator lights up:
The radio connection is active.
Keyboard input with touchpad and touchpad buttons is only possible if the indicator is lit.
Working with the workstation Keyboard
28 A26391-K115-Z120-2-7619
Touchpad and touchpad buttons
The touchpad enables you to move the mouse pointer on the screen. The two touchpad buttons
allow the selection and execution of commands. They correspond to the buttons on a conventional
mouse.
1
2
1 = Touchpad 2 = Touchpad buttons
Moving the pointer
Ê Move your finger on the touchpad.
Selecting
Ê Tap the touchpad once or press the left button once.
Executing a command
Ê Tap the touchpad twice or press the left button twice.
Dragging an object
Ê Move the pointer to the item you wish to select.
Ê Select the desired object, and leave your finger on the touchpad.
Ê Drag the object to the desired position.
Ê Lift your finger from the touchpad.
Display settings Working with the workstation
A26391-K115-Z120-2-7619 29
Display settings
Setting the desktop area
You can change the screen resolution under Start - Settings- Control Panel - Display - Settings and then
selecting from the Resolution field.
Adjusting the font size
Under Start - Settings - Control Panel - Display - Settings you can choose between a larger and a
smaller font in the Font size field.
Adjusting the speed of the mouse pointer
You can change the speed of the mouse pointer under Start - Settings - Control Panel - Mouse and
clicking on the Motion tab.
Setting the display brightness
You can adjust the brightness of your LCD screen with the keys [Fn] and [F12] or [Fn] and [F11]:
With [Fn] and [F12], screen brightness will be reduced and with [Fn] and [F11] increased.
Synchronising the display on the LCD screen and an external monitor
Your workstation supports the simultaneous display on the LCD monitor and an external monitor. If
the picture does not appear correctly on the LCD monitor, press the key combination [Fn] + [F10]
several times, or switch the external monitor off and then on again. This achieves good picture
synchronisation.
Working with the workstation Battery
30 A26391-K115-Z120-2-7619
Battery
The battery is one of the most important components of your workstation. When not plugged into a
mains outlet, the workstation runs on its built-in battery. You can increase the life of the battery by
caring for the battery properly. The average battery life is around 500 charge/discharge cycles.
You can extend the battery life by taking advantage of the available energy saving functions.
!Only use batteries released for your workstation.
Take care not to drop the batteries or otherwise damage their casing (fire risk).
If the rechargeable batteries are defective, they must not be used.
Do not touch the contacts of the batteries.
Never interconnect the positive and negative terminals of a battery.
Used batteries must be disposed of in accordance with local regulations (special waste).
Observe the information on battery storage in the chapter "Important notes".
Performing the battery learning cycle
The battery contains electronics that continuously monitor the battery charging level and display the
current charging level. To compensate for measuring errors in the electronics, and because the
chemical properties of the battery change over time, the electronics must be recalibrated regularly.
This calibration is carried out using a battery learning cycle. Using the battery learning cycle ensures
that the maximum battery capacity can always be used. During the learning cycle a defined charging
cycle is carried out.
i
The battery learning cycle lasts between four and six hours and must not be aborted.
During this period you can not work with the workstation!
Ê Restart the workstation (switching On/Off or warm boot).
The following display briefly appears on the screen during start-up:
<ESC> Diagnostic screen <F12> Boot Menu <F2> BIOS Setup <F6> Battery
learning
Ê Press function key [F6].
The learning cycle is started. When the learning cycle is ended, a corresponding message is
displayed.
Battery Working with the workstation
A26391-K115-Z120-2-7619 31
Charging the battery
The battery indicator displays the remaining battery charge (see the section "Indicators"). When you
switch on the workstation, it takes a few seconds before the battery status is displayed.
You can charge the battery by connecting the workstation to the power adapter (see "Connecting
the power adapter and switching on the workstation").
The battery can only be charged when the ambient temperature is between 5°C and max. 35°C.
With the workstation switched on and off, the battery will completely recharge in approximately three
to four hours.
Work in the battery mode until an acoustic warning prompts you to recharge and the battery
indicator begins to flash. The workstation battery should not be charged before this point.
If you do not connect the power adapter within five minutes of the signals described above, your
workstation automatically switches itself off.
Monitoring charging time
The remaining battery charge is indicated by the battery symbol in the status indicator panel (see
the section "Indicators"). When you switch on the workstation, it takes a few seconds before the
battery status is displayed.
During mobile operation you can also use a "battery charge meter" for energy-saving monitoring
under Windows.
A battery icon is shown in the taskbar. When you position the cursor on the battery icon, the battery
charge level is displayed with a blue status bar. This blue bar progressively decreases as the battery
discharges.
Inserting and removing the battery
!Only use batteries released for this workstation.
Never use force when inserting or removing a battery.
Make sure that no foreign objects enter the slots.
Ê Switch off the workstation.
Ê Place the workstation on a flat surface.
Ê Open the LCD display panel.
Working with the workstation Battery
32 A26391-K115-Z120-2-7619

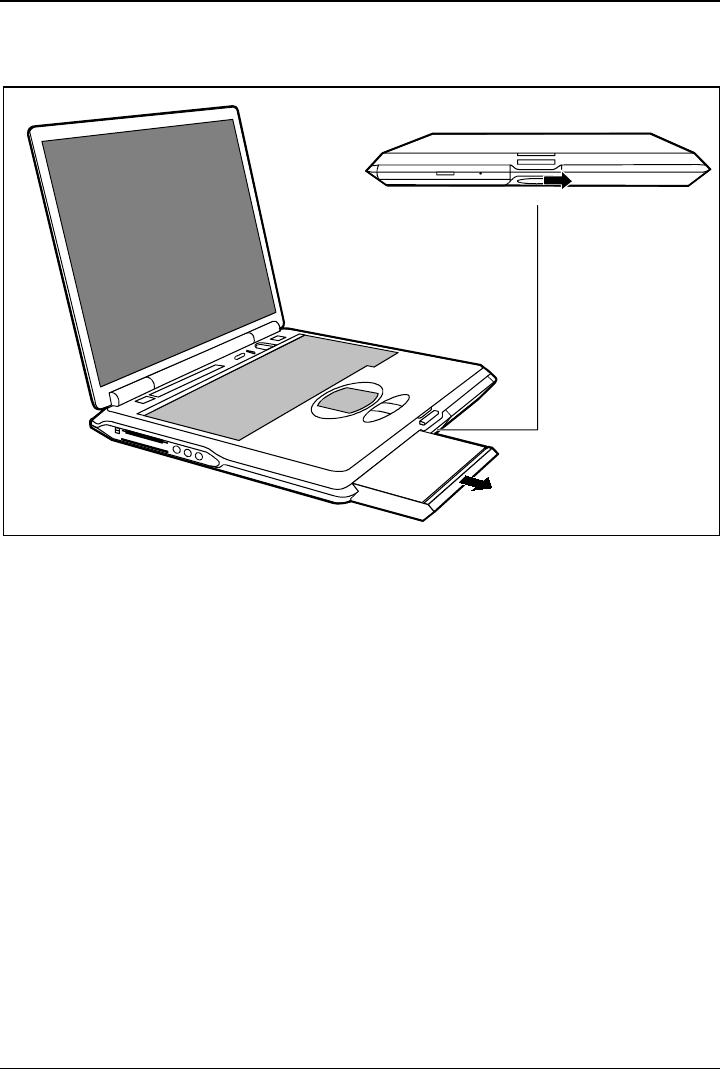

Removing the battery
2
1
Ê Push the slide in the direction of the arrow up to the stop (1).
Ê Pull the battery out of the casing in the direction of the arrow (2).
Battery Working with the workstation
A26391-K115-Z120-2-7619 33

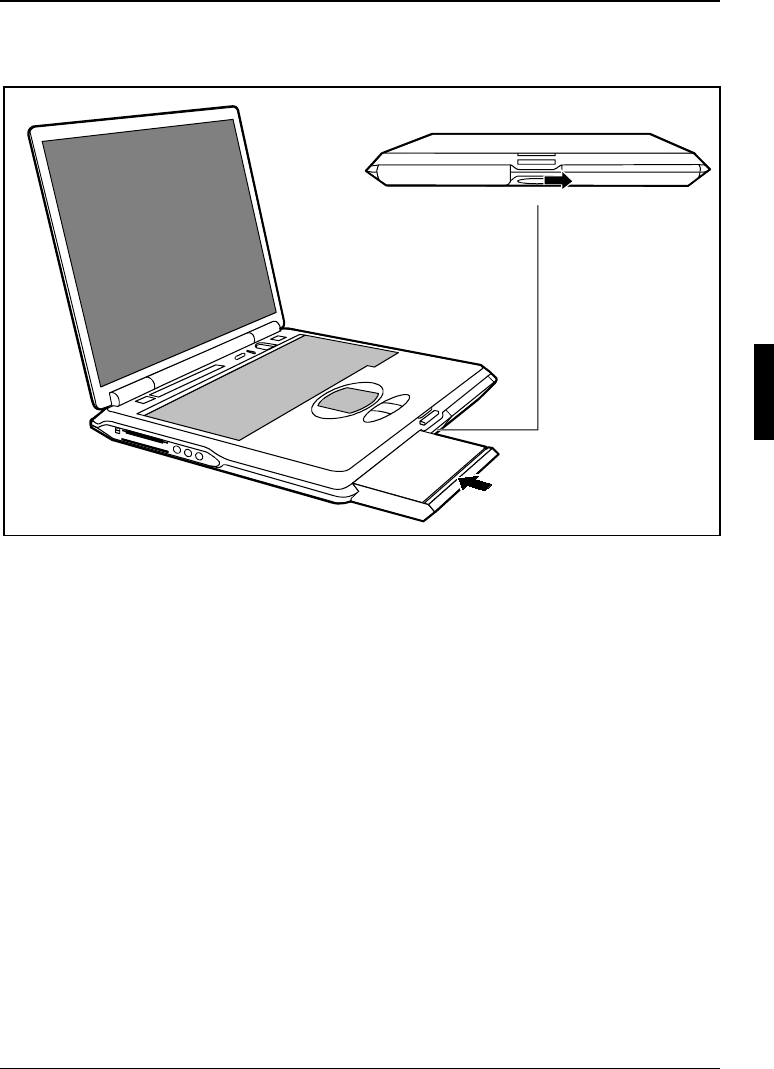

Installing the battery
2
1
Ê Push the slide in the direction of the arrow up to the stop (1).
Ê Position the battery at the edge of the casing (2) and then press it into the workstation.
Working with the workstation Using the power-management features
34 A26391-K115-Z120-2-7619
Using the power-management features
The workstation uses less power when the power management features are enabled. You will then
be able to work longer when using the battery before having to recharge it.
i
If you are connected to a network or use the integrated modem, PC LAN card, or PC
modem card, we advise against enabling an energy saving mode. This could lead to an
interruption of your network connection.
When not using the workstation for long periods of time, first end the energy saving mode,
then switch off the workstation. Never switch off the workstation with the
Suspend/Resume button while the workstation is in one of the energy-saving modes.
If your workstation is in an energy-saving mode mode:
· Do not connect any external peripheral devices.
· Do not disconnect any external peripheral devices.
· Do not attempt to switch the workstation on if the built-in battery is flat.
· Do not change or remove the floppy disk, if inserted.
· Do not add or remove RAM.
· Do not add or remove a PC card.
· Do not replace or remove the battery.
Using the power-management features Working with the workstation
A26391-K115-Z120-2-7619 35
Energy-saving modes of workstation
You can set two energy-saving modes with your workstation.
In the Suspend mode (Suspend to DRAM/Standby) all current data (active programmes, files) are
buffered in the main memory, and in the Save-to-Disk mode (Save to Disk/HibernateMode) all current
data are saved on the hard disk. Then the workstation is switched off. After the workstation is
switched on, you can continue working exactly where you left off before.
Operating systems with ACPI
(Windows 98, Windows ME und Windows 2000)
i
For operating systems with ACPI you can set the energy-saving functions under Settings -
Control Panel - Power Management (e.g. Standby, Hibernate mode and LCD off).
You can configure the Suspend/Resume button and the lid switch in the Settings tab unde
r
Settings – Control Panel – Power Management.
Settings for energy-saving functions in the BIOS Setup are not taken into account by
operating systems with ACPI.
Changing settings
Ê Double-click on the My Computer symbol.
Ê Double-click on the Control Panel symbol.
Ê Double-click on the Power management symbol in the Control Panel window.
The Properties dialogue field appears.
Ê Adjust the setting to your needs.
Ê Click on OK to save the settings.
i
With Windows 2000 and Windows ME the default setting for Hibernate mode is Disabled.
With Windows 98 please read the chapter "PHDISK (for Windows 98 and Windows NT
only)".
Additional information on this service programme is contained in the help function of Windows 98
and Windows 2000.
Working with the workstation Using the power-management features
36 A26391-K115-Z120-2-7619
Operating systems with APM (Windows 95, Windows NT with APM
extensions)
i
For operating systems with APM (Advanced Power Management) you can set the energy-
saving functions in the BIOS Setup (e.g. Suspend to RAM, Save to Disk, LCD off etc.).
Setting energy-saving modes
Ê Call the BIOS Setup.
Ê Set which energy-saving mode you want to use in the Power menu.
Ê Set the Auto Suspend Timeout parameter in the Power menu to a time period after which the
workstation is to be switched into the energy-saving mode.
Suspend to DRAM
In this mode the current data in the main memory (DRAM) is stored. The data is stored for as long
as the workstation is supplied with energy. If the battery is full, the data is stored for a matter of
days. Without a battery and without a power supply the current data is lost.
Save to Disk
So that the current data can be saved, sufficient memory must be available on the hard disk. If the
operating system Windows NT or OS/2 Warp is used, a Save-to-Disk partition must be created on
the hard disk (see manual for respective operating system).
In this case also see the section "PHDISK (for Windows 98 and Windows NT only)".
Using the power-management features Working with the workstation
A26391-K115-Z120-2-7619 37
PHDISK (for Windows 98 and Windows NT only)
i
You will find a description of how to use the PHDISK programme on our internet page:
www.mobile-cd.de. Select Tipps &Tricks - PHDISK Suspend to Disk.
The PHDISK service programme reserves the memory space required for the use of Save-to-Disk
mode. The programme creates a file for saving the main memory contents and the system register
when your notebook is switched over to Save-to-Disk mode. The position of the first and last free
sectors are saved in the "CMOS" after running this programme.
- Run PHDISK after you have installed or removed memory modules.
- Run PHDISK after you have installed or restored Windows NT.
- Run PHDISK after you have replaced your hard disk.
- Run PHDISK if you have received a BIOS error message in conjunction with Save-to-Disk
mode during the self test (POST).
i
In Windows NT the PHDISK service programme is not supported by the NTFS file system.
In Windows 2000, Windows Me and Windows XP the required memory space on the hard
disk is not reserved until you make the required Hibernate mode settings under Settings -
Control Panel - Energy Options.
Additional power-management features
Closed cover switch
When you close the LCD display panel, the workstation switches into Standby mode. Opening the
LCD display panel ends Standby mode.
Ê Set the value On in the BIOS Setup in the Power - Advanced Features menu for the Lid Closure
Suspend parameter if your workstation is to go into the energy-saving mode when the lid is
folded down.
Ê If the energy-saving mode is to be ended again by folding up the LCD screen, then also set the
LidOpen Resume parameter to On.
Power Button
You can configure the Suspend/Resume button.
If you want to use the Suspend/Resume button as an ON/OFF switch, set the Power Button
parameter to Power Off in the Power - Advanced Features menu in the BIOS Setup.
Standby Timeout
With this mode the LCD screen and internal components automatically switch off after a defined
period of time. Any activity automatically returns the workstation to normal operation.
Hard Disk timeout
With this mode the motor of the hard disk drive is switched off as soon as no activity with the
keyboard or the pointing device, or any other input or output activity takes place for a time period
defined in the BIOS Setup.
This parameter is set in the Power menu in the BIOS Setup. When the hard disk is accessed, the
motor of the hard disk drive is automatically switched on again.
Working with the workstation Hard disk
38 A26391-K115-Z120-2-7619
Hard disk
The hard disk is the most important storage medium of your workstation. You can work considerably
faster and more efficiently if you copy applications and files from floppy disks or CDs to your hard
disk.
When the hard disk is accessed, the hard disk indicator lights up .
Inserting and removing modules
Modules can be optical drives, additional hard disk or floppy disk drives or batteries.
!Only use modules released for this workstation.
Do not use force when installing or removing a module.
Make sure that no foreign objects enter the slots.
Ê Switch off the workstation.
Ê Place the workstation on a flat surface.
Ê Open the LCD display panel.

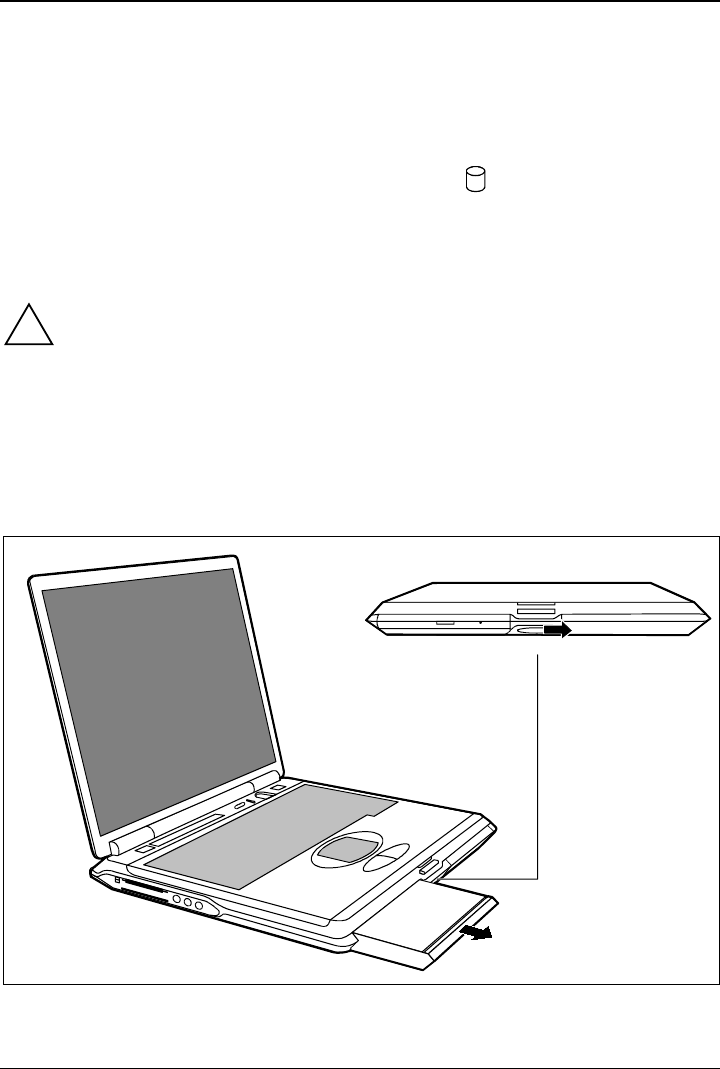

Removing modules
2
1
Ê Push the slide in the direction of the arrow up to the stop (1).
Inserting and removing modules Working with the workstation
A26391-K115-Z120-2-7619 39
i
To remove the left-hand module, push the slide to the right. To remove the right-hand
module, push the slide to the left.
Ê Remove the module the direction of the arrow (2).
Installing modules
2
1
Ê Push the slide in the direction of the arrow up to the stop (1).
i
To install the left-hand module, push the slide to the right. To install the right-hand
module, push the slide to the left.
Ê Position the module at the edge of the casing (2) and then press it into the workstation.
Ê Release the slide (2).
Working with the workstation Optical drives
40 A26391-K115-Z120-2-7619
Optical drives
Depending on the model, your workstation is equipped with a CR-ROM drive, a CD-RW drive, a
DVD-ROM drive or a combo drive (CD-RW/DVD).
!This device contains a light-emitting diode, classified according to IEC 825-1:1993:
LASER CLASS 1, and must not be opened.
Avoid touching the surface of a CD/DVD. Handle CDs/DVDs only by their edges!
Always store CDs/DVDs in their cases. Thus you avoid dust contamination, scratches,
bending or other damage.
Protect your CDs/DVDs from dust, mechanical vibration and direct sunlight!
Avoid storing a CD/DVD in areas subject to high temperatures or humidity.
You may use both 8-cm and 12-cm CDs/DVDs in the optical drive.
When using CDs/DVDs of poor quality vibrations and reading errors may occur.
Optical drive indicator
The indicator flashes when a CD/DVD is inserted. The indicator goes out when the drive is
ready-to-operate. The indicator lights up when the drive is accessed.
i
If the indicator does not go out after the CD/DVD is inserted, and continues to flash, the
CD/DVD is probably damaged or dirty.
Inserting or removing a CD/DVD
The workstation must be switched on.
Ê Push the insert/eject button.
The drive tray will open.
Ê Pull the drive tray completely out.
Ê Place the CD/DVD in the drive tray with the label facing upwards.
or
Ê Take out an inserted CD/DVD.
Ê Push in the drive tray until you feel it lock into place.
Floppy Disk Drive Working with the workstation
A26391-K115-Z120-2-7619 41
Manual removal (emergency removal)
In the event of a power failure or damage to the drive it may be necessary to manually remove the
CD/DVD.
Ê Switch off the workstation.
Ê Push a pen or a piece of wire (such as a paper clip) into the opening for manual ejection.
The drive tray is unlocked. You can now pull the drive tray out of the drive.
i
Please see the drive documentation for the location of the opening for manual removal.
Floppy Disk Drive
!Never clean the floppy disk drive with cleaning disks. Any attempt would destroy the
read/write head in the disk drive within 20 seconds.
Make sure that no floppy disk is inserted in the floppy disk drive during transport.
Otherwise the eject button may break off and the floppy disk drive will be damaged.
Working with floppy disks
i
Follow the instructions supplied by the vendor of the floppy disks.
3
2
1
5
6
47
1 = Insertion direction
2 = Label area
3 = Write protection tab for a 1.44 Mbyte floppy disk
4 = Identification of a 1.44 MB floppy disk or write protect switch on a 120 MB floppy disk
5 = Eject button for inserted floppy disks
6 = Disk is write-protected
7 = Disk is not write-protected
Working with the workstation 56k-Modem
42 A26391-K115-Z120-2-7619
To insert a diskette:
Ê Push the floppy disk into the drive in the insertion direction (1) until it engages. The label
should be facing upward.
To remove a diskette:
Ê Push the eject button (5).
Protect the floppy disk against being overwritten or erased
Ê Slide the write-protect slider into position (6). The hole is now visible.
Deactivate write protection
Ê Slide the write-protect slider into position (7). The hole is now covered.
56k-Modem
Depending on the device version, a modem may already be installed in your workstation. The 56k
modem supports all data communication applications, such as:
· Modem operation: High-speed downloads at up to 56,000 bit/s (V.90). Downward-compatible to
V.34 modems.
· Fax mode: Transmitting and receiving at up to 14,400 bit/s
· Simple country adaptation with programme
The modem complies with the EU Directive 91/263/EEC (Telecommunications terminal equipment
directive) and has been checked in agreement with the guideline TBR-21.
The modem can be operated in the following countries:
Multifrequency (MFC) dialing
Belgium, Denmark, Germany, Finland, France, Greece, Great Britain, Holland, Ireland, Iceland,
Italy, Luxembourg, Norway, Austria, Portugal, Sweden, Switzerland and Spain.
Pulse dialing:
Belgium, France, Holland and Italy.
Also in: Poland, Slovenia, South Africa and Hungary.
Connecting IEEE1394 (FireWire) Working with the workstation
A26391-K115-Z120-2-7619 43
Connecting workstation modem to telephone connection
1
2
3
Ê Connect the modem cable supplied to the country-specific telephone adapter (1).
Ê Connect the modem cable to the modem port of the workstation (2).
Ê Connect the modem cable to your telephone wall socket (3).
Connecting IEEE1394 (FireWire)
Peripheral devices such as digital audio/video devices or other high-speed devices can be
connected via IEEE1394 (FireWire). Your workstation can be equipped with an IEEE1394 (FireWire)
connection, which operates at 400 Mbit per second, as an option.
Ê Connect the peripheral device to the IEEE1394 (FireWire) connection on the left-hand side of
your workstation.
Working with the workstation PC cards
44 A26391-K115-Z120-2-7619
PC cards
Two PC card slots enable the notebook to operate two type II PC cards or one type III PC card
(CardBus or PCMCIA) .
! Consult the documentation supplied by the PC card's manufacturer and follow the
instructions provided.
Never use force when inserting or removing a PC card.
Make sure that foreign objects do not fall into the PC card slot.
Installing a PC card
Ê Insert the PC card, contacts first, into the lower slot guide. The labelled side of the PC card
should be facing upward.
Ê Gently push the PC card into the slot until you feel it click into place.
i
Consult the documentation supplied with the PC card for information on how to install the
necessary device drivers.
For further information refer to the information files (e.g. *.TXT, *.DOC, *.WRI or *.HLP)
provided on the PC card driver diskette or the information in the operating system manual.
You can push the PC card slot eject buttons down flush into the case. Press the eject
buttons until they snap in.
NOTE:
This device and its antenna(s) must not be co-located or operating in conjunction with
any other antenna or transmitter.
SmartCards Working with the workstation
A26391-K115-Z120-2-7619 45

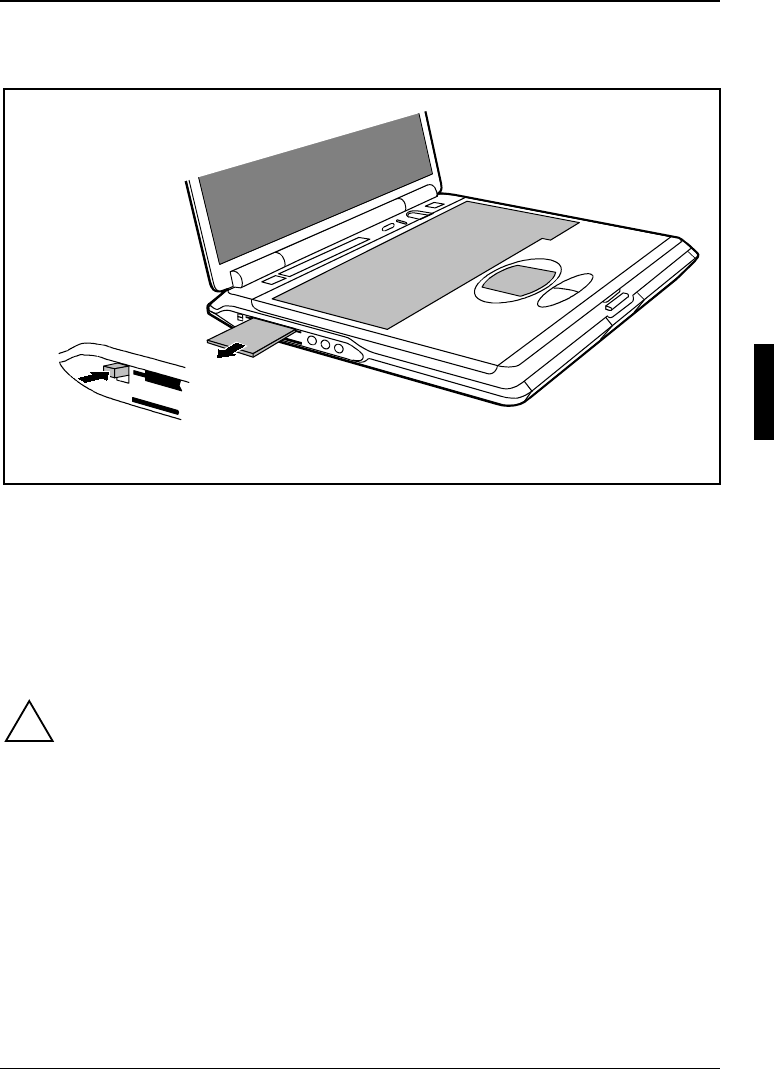

Removing a PC card
1
2
Ê Press the eject button (1). It will project further out of the workstation's case. If the eject buttons
are pushed in flush with the workstation casing, they must first be snapped out. Press the eject
buttons until they snap out.
Ê Slide the PC card out of the workstation (2).
SmartCards
The SmartCard slot permits the operation of a SmartCard.
! Consult the documentation supplied by the SmartCard's manufacturer and follow the
instructions provided.
Never use force when installing or removing a SmartCard.
Make sure that foreign objects do not fall into the SmartCard slot.
Working with the workstation SmartCards
46 A26391-K115-Z120-2-7619
Inserting a SmartCard
Ê Insert the SmartCard, contacts first, into the lower slot guide. The labelled side of the
SmartCard must be facing upward.
Ê Gently push the SmartCard into the slot until you feel it click into place.
i
Consult the documentation supplied with the SmartCard for information on how to install
the necessary device drivers.
For further information refer to the information files (e.g. *.TXT, *.DOC, *.WRI or *.HLP)
provided on the SmartCard driver diskette or the information in the operating system
manual.
SmartCards Working with the workstation
A26391-K115-Z120-2-7619 47
Sliding out a SmartCard
1
Ê Slide the SmartCard out of its location (1).
Working with the workstation Microphone and loudspeakers
48 A26391-K115-Z120-2-7619
Microphone and loudspeakers
1
2
1 = built-in microphone 2 = built-in loudspeakers
Your workstation contains a built-in microphone (1) and two loudspeakers (2).
If you attach an external microphone, the built-in microphone is disabled. The internal loudspeakers
switch off when you attach headphones or external loudspeakers to the audio jack.
Fingerprint reader Working with the workstation
A26391-K115-Z120-2-7619 49
Fingerprint reader
The workstation is equipped with a fingerprint reader. Instead of entering a user password, you can
also log on to the system with a fingerprint.
Working with the workstation Property and data protection
50 A26391-K115-Z120-2-7619
Property and data protection
Your workstation enables you to protect your system and personal data against unauthorised
access in a number of ways. By combining these options, you can achieve maximum protection for
your system.
Security functions under Windows
Under Windows you can activate a screen saver and protect it with a password. Only those users
who know the password can deactivate the screen saver and access any open files.
BIOS Setup security functions
The Security menu in BIOS Setup offers you various options for protecting your personal data against
unauthorised access. By combining these options, you can achieve maximum protection for your
system.
Preventing unauthorised BIOS Setup entry
You can activate this protection by setting a supervisor or a user password in the Security menu
(Set Supervisor Password/Set User Password).
Preventing unauthorised system access
You can activate this protection by setting a password in the Security menu. In addition, you must
select the entry Enabled in the Password on boot field.
Preventing unauthorised access to the hard disk drives
You activate this protection when you set a hard disk passwords in the Hard Disk Security submenu
of the Security menu. To do this, set the entry HDD password to Enabled.
If set, the hard disk passwords are checked at each system startup, regardless of whether
Password On Boot is set to Enabled or Disabled.
Preventing unauthorised access to floppy disk drive
To activate this protection, select the value Supervisor for the Diskette access field in the Security
menu.
Property and data protection Working with the workstation
A26391-K115-Z120-2-7619 51
Setting passwords
A user password can only be set if a supervisor password has been assigned. The supervisor or
user password prevents unauthorised callup of BIOS Setup. Only those who know one of the two
passwords can call BIOS Setup.
With the supervisor password you have access to all functions of the BIOS Setup. With the user
password you only have access to part of the functions of the BIOS Setup.
The user password prevents unauthorised access to your workstation. With the user password you
can prevent booting of the operating system. Only those who know the user password can access
the system.
i
Passwords can be up to eight characters long. All alphanumerical characters can be
used; no differentiation is made between upper-case and lower-case.
Passwords are not displayed as they are entered.
If you have forgotten a password, contact your system administrator or contact our
customer service centre.
To set or change a password, proceed as follows:
Ê Call BIOS Setup and select the Security menu (see chapter "Settings in BIOS Setup"). You must
additionally change into the Hard Disk Security submenu for the hard disk passwords.
Ê Mark the Set Supervisor Password or Set User Password field and press the Enter key.
You are asked to enter a password:
Enter new Password:
Ê Enter the password and press the Enter key.
You are asked to confirm the password:
Re-enter new Password:
Ê Enter the password again and press the Enter key.
The new password is saved.
Notice: Changes have been saved [continue]
Ê To prevent booting of the operating system, mark the Password on boot field and select the
value Enabled.
If you do not want to make any other settings, you can exit BIOS Setup.
Ê Select the option Exit Saving Changes in the Exit menu.
The workstation is rebooted and the new password is effective.
Working with the workstation Property and data protection
52 A26391-K115-Z120-2-7619
Canceling passwords
Supervisor / User password
i
If you cancel the supervisor password, you automatically deactivate the user password.
To cancel a password (without setting a new password):
Ê Call BIOS Setup and select the Security menu (see chapter "Settings in BIOS Setup").
Ê Mark the Set Supervisor Password or Set User Password field and press the Enter key.
You are asked to enter a password:
Enter new Password:
Ê Press the Enter key twice.
Ê Select the option Exit Saving Changes in the Exit menu.
The workstation is rebooted and the password is cancelled.
Hard disk password
To cancel a password (without setting a new password):
Ê Call BIOS Setup and select the Security menu (see chapter "Settings in BIOS Setup").
Ê Change into the submenu Hard Disk Security.
Ê Set the entry HDD password to Disabled in the Hard Disk Security submenu.
Ê Select the option Exit Saving Changes in the Exit menu.
The workstation is rebooted and the password is cancelled.
Removable keyboard
To protect your workstation from unauthorised users, you can also remove the keyboard.
Property and data protection Working with the workstation
A26391-K115-Z120-2-7619 53
Kensington Lock
a = Kensington Lock
You can protect your workstation from theft with the Kensington Lock device (a) and a Kensington
MicroSaver.
A26391-K115-Z120-2-7619 55
Connecting external devices
!Under all circumstances, please observe the safety notes provided in the "Important
notes" chapter.
Read the documentation on the external device before connecting it.
Do not connect or disconnect cables during a thunderstorm.
Do not pull on the cable when disconnecting a cable. Always take hold of the actual plug.
Adhere to the order described in the following when you connect external devices to the
workstation or separate them from the workstation:
Connecting devices to the workstation
1) Turn off all power and equipment switches.
2) Remove all power plugs from the mains outlets.
3) Connect all the cables to the workstation and the external devices.
4) Plug all data communication cables into the utility sockets.
5) Plug all power cables into the mains supply.
Disconnecting devices from workstation
1) Turn off all power and equipment switches.
2) Remove all power plugs from the mains outlets.
3) Unplug all data communication cables from the utility sockets.
4) Disconnect all the cables from the workstation and the external devices.
Ports
DC In
Connections on the rear
Connecting external devices Ports
56 A26391-K115-Z120-2-7619
Line In
Connections on the left side
Modem
IR
LAN
Connections on the right side
Connecting an external monitor Connecting external devices
A26391-K115-Z120-2-7619 57
The ports are marked with the following symbols (or with similar symbols):
LAN LAN-port
(Local Area Network, for
Network connection)
DC In Port for power adapter
PS/2 port (for keyboard or
mouse)
Headphones port
Parallel port Microphone connector
Monitor port IR Infrared port
TV TV out socket
(video output)
USB port
Serial port Modem port
i
Some of the external devices require special drivers (see the operating system and
external device documentation).
Connecting an external monitor
An external monitor can be connected to the workstation. The screen controller in your workstation
supports extended SXGA resolutions of up to 1280x1024/60 Hz and 16 bit colour depth.
· Using the [Fn] + [F10] key combination you can switch back and forth between the external
monitor and the LCD screen.
· If your workstation is equipped with a TFT monitor, you can display the same picture on the
external monitor and the LCD screen simultaneously.
Ê Switch off the workstation and the external monitor.
Ê Connect the external monitor to the monitor port on your workstation.
Ê First switch on the monitor and then the workstation.
Setting the refresh rate for your external monitor
The refresh rate must be correctly set so that the image does not flicker.
Ê To change the refresh rate or resolution select the monitor type in the menu Start - Settings -
Control Panel - Display - Settings - Advanced - Monitor.
Ê Now select the Adapter tab.
Ê Adjust the refresh rate and then click Apply.
!If the refresh rate set is too high, the monitor may be damaged. Please see the
documentation included with your monitor for the maximum possible refresh rate.
Connecting external devices Connecting an external keyboard
58 A26391-K115-Z120-2-7619
Connecting an external keyboard
You do not need to switch off your workstation.
Ê Simply connect the external keyboard to the PS/2 port on your workstation.
Connecting an external PS/2 mouse
You do not need to switch off the workstation.
Ê Simply connect the mouse to the PS/2 port on your workstation.
Connecting a serial mouse
Ê Switch off the workstation.
Ê Connect the mouse to the parallel port on your workstation.
Ê Switch the workstation on.
Ê Run the mouse service programme under Start - Settings - Control Panel and select the General
tab.
Ê Select the correct mouse type.
Ê Restart the workstation.
Using the parallel port
Ê Switch off the workstation.
Ê Connect the data cable of the printer to the parallel port on the workstation.
Ê Plug the printer power cable into the mains outlet.
Ê First switch on the printer, then the workstation.
Using the serial port
Ê Switch off the workstation.
Ê Connect the data cable of the printer to the parallel port on the workstation.
Ê Plug the printer power cable into the mains outlet.
Ê First switch on the printer, then the workstation.
Establishing an infrared connection Connecting external devices
A26391-K115-Z120-2-7619 59
Establishing an infrared connection
Using the infrared software for Windows, you can communicate with another PC or printer equipped
with an infrared interface.
i
Before you can establish an infrared connection, you must have activated the infrared
software. Additional information on the infrared interface is contained in the Windows help
in the Start menu under the topic "Infrared".
Configuring the infrared connection
By default, the mode for the infrared port is set to FIR ("Fast IrDA Mode") in the BIOS Setup. If you
want to communicate with a system on which Windows ME is not running, you can change the
setting to IrDA. Please note that IrDA is the slower mode and is generally used on older computers.
Connecting USB devices
On the USB ports you can connect external devices that also have a USB port (e.g. a printer, a
scanner or a modem).
i
USB devices are hot-pluggable. This allows cables from USB devices to be connected
and disconnected with the system switched on.
Additional information can be found in the documentation for the USB devices.
Ê Connect the data cable to the external device.
Ê Connect the data cable to a USB port .
i
Device drivers
The devices you connect to the USB ports usually require no driver of their own, as the
required software is already included in the operating system. However, if the USB device
requires its own software, please install it from the data carrier provided with the USB
device.
A26391-K115-Z120-2-7619 61
Settings in BIOS Setup
In BIOS Setup you can set the system functions and the hardware configuration of the workstation.
The settings can only be changed via the keyboard.
When it is supplied, the workstation is set to factory default settings. You can change these settings
in BIOS Setup. Any changes you make take effect as soon as you save and quit the BIOS Setup.
The BIOS Setup programme contains the following menus:
Main: for system settings as time, date, hard disk and monitor selection
Advanced: for system settings such as ports and keyboard
Security: for password settings and safety functions
Power: for setting the energy saving functions
Boot: for configuring the boot sequence
Info: for displaying the system configuration (e.g. processor and memory configuration)
Exit: to exit the BIOS Setup
Start BIOS Setup
Ê Restart the workstation (switching On/Off or warm boot).
The following display briefly appears on the screen during start-up:
<ESC> Diagnostic screen <F12> Boot Menu <F2> BIOS Setup <F6> Battery
learning
Ê When this message appears, press the key [F2].
i
If a password has been assigned:
Ê Enter the password and press the Enter key.
If you have forgotten the password, contact your system administrator or contact our
Hotline/Help Desk.
Operating BIOS Setup
i
Press the [F1] key to display help on the operation of BIOS Setup.
The description of the individual settings is shown in the right-hand window of the BIOS
Setup.
You can revert to the default settings for the BIOS Setup menu you are currently in, by
using the [F9] function key.
Ê Use the cursor key å or ç to select the menu you wish to access to make changes.
Ê Press the Enter key.
The menu is displayed on the screen.
Ê Use the cursor key æ or è to select the field you wish to change.
Ê Press the space bar to confirm your selection.
Ê Press the [ESC] key to exit the selected menu.
Ê For future reference, make a note of the changes you have made (for example, in this manual).
Settings in BIOS Setup
62 A26391-K115-Z120-2-7619
Exiting BIOS Setup
To exit BIOS Setup, select the Exit menu from the menu bar. You can then decide which settings you
want to save. The Exit menu offers the following options.
You must mark the required option and activate it with the Enter key.
Exit Saving Changes
Select Exit Saving Changes and Yes to save the current settings and exit the BIOS Setup. The device is
rebooted and the new settings come into effect.
Exit Discard Changes
Select Exit Discard Changes and Yes to discard the changes you have made. The settings which were
in force when BIOS Setup was called remain effective. BIOS Setup is terminated and the device is
rebooted.
Load Setup Default
To revert all the menus of BIOS Setup to the default entries, select Load Setup Default and Yes.
Discard Changes
To load the values of all the menus of BIOS Setup that were in effect when BIOS Setup was called,
select Discard Changes and Yes. If you want to exit BIOS Setup with these settings, select Exit Saving
Changes and Yes.
Save Changes
To save settings without exiting BIOS Setup, select Save Changes and Yes.
A26391-K115-Z120-2-7619 63
Troubleshooting and tips
! Take note of the hints in the chapter "Connecting external devices", when you connect or
disconnect cables.
If a fault occurs in your workstation, try to eliminate it with the measures described in this chapter. If
you fail to correct the problem, proceed as follows:
Ê Make a note of the steps and the circumstances that led to the fault. Also make a note of any
error messages displayed.
Ê Switch off the workstation.
Ê Contact your sales outlet or our Hotline/Help Desk.
Installing new software
When installing programmes or drivers, important files may be overwritten and modified. To be able
to access the original data in the case of any problems following installation, you should backup
your hard disk prior to installation.
Saving and restoring system files
With "Microsoft Backup" you can create backup copies of your system files and restore the files. We
recommend that you create a backup copy of all important files after switching on your workstation
for the first time.
Click on Start and select Accessories and System Tools.
Ê Click on Backup.
Ê Depending on whether you want to create a backup copy or restore the files, select either the
Backup or the Restore tab.
Ê Follow the instructions on the screen.
Restoring the hard disk contents under Windows
Using the Windows Recovery CD and the CELSIUS Mobile Driver CD, you can restore the operating
system of your workstation.
During restoring the operating manual the contents of your hard disk will be overwritten. After this,
operating system, drivers and software utilities will be reinstalled. For this reason you should try to
save important data to a backup medium before you restore the hard disk contents.
Ê Insert the "Start-Disk for Windows" into the floppy disk drive and switch the workstation on.
Ê Follow the instructions on the screen.
i
Detailed PC knowledge is required for manual partitioning.
Ê Insert the Windows Recovery CD into the optical drive.
Ê Start the Setup programme on the CD.
You must then reinstall all the drivers. Use the "CELSIUS Mobile Driver CD".
Troubleshooting and tips
64 A26391-K115-Z120-2-7619
The workstation's date or time is incorrect
Ê Double-click on the clock in the task bar and adjust the time.
or
Ê Set the time and/or date in the BIOS Setup menu Main.
i
If the date and time are repeatedly incorrect when you switch on the workstation, the
buffer battery that supplies the internal clock is dead.
Connect the workstation via its power adapter to a grounded mains outlet or install a fresh
battery. The buffer battery will take approximately two days to complete its recharge.
Should the problem persist, please contact our Hotline/Help Desk.
Battery indicator does not illuminate
Battery is not installed or is defective
If the battery status indicator does not light up, either no battery is installed or there is no contact
between the workstation and the battery.
Ê Check whether the battery is installed correctly in its compartment.
It may be necessary to replace the battery with a new one. When you dispose of used batteries,
please observe the safety instructions in the chapter "Important notes".
The LCD screen of the workstation remains blank
Monitor is switched off
Ê Press a key or enter the password
External monitor or television set connected
Ê Set the setting Display Settings to LCD BIOS-Setup in the menu Advanced - Video Features.
The workstation's LCD display is difficult to read
Reflection
Ê Turn the workstation or alter the tilt of the LCD display.
Troubleshooting and tips
A26391-K115-Z120-2-7619 65
The external monitor stays blank
If your screen remains blank this may be due to the following:
Monitor is switched off
Ê Switch the external monitor on.
Power saving has been activated (screen is blank)
Ê Press any key to continue.
Brightness is set too dark
Ê Adjust the brightness of the monitor.
The workstation has been configured to drive the internal LCD display
Ê Press the key combination [Fn] + [F10] (selecting internal/external display).
The external monitor's power cable or data cable is not connected properly
Ê Switch off the external monitor and the workstation.
Ê Check whether the power cable is plugged properly into the power adapter and into the mains
outlet.
Ê Check whether the data cable is properly connected to the workstation and the external monitor
(if it is plugged in with a connector).
Ê Switch on the external monitor and the workstation.
The external monitor is blank or the image is unstable
Two causes are possible: An incorrect type has been selected for the external monitor or the wrong
screen resolution has been set for the application programme.
Ê Terminate the application programme with [Alt] + [F4].
If the fault continues to occur after ending the programme, switch over to the workstation's internal
LCD screen with [Fn] + [F10]. Change the following setting:
Ê Select Start - Settings- Control Panel - Display - Settings and then the screen resolution you
require in the Resolution field.
or
Ê Select the correct monitor under Start - Settings- Control Panel - Display - Settings - Advanced
Properties - Monitor - Modify.
Troubleshooting and tips
66 A26391-K115-Z120-2-7619
The workstation does not start after switch on
If the workstation does not start after switch on, this may be due to one of the following:
The battery is not installed correctly.
Ê Switch off the workstation.
Ê Check whether the battery is installed correctly in its compartment.
Ê Switch the workstation on.
The battery is dead
Ê Charge the battery.
Or
Ê Install a charged battery.
Or
Ê Connect the power adapter to the workstation.
The power adapter is not connected correctly.
Ê Switch off the workstation.
Ê Check whether the power adapter is connected correctly to the workstation.
Ê Check whether the power cable is plugged properly into the power adapter and into the mains
outlet.
Ê Switch the workstation on.
The workstation stops working
If the workstation stops working, this may have the following reasons:
The workstation is in Standby or Suspend mode
Ê Reactivate the workstation by pressing a key (Standby mode) or by switching it back on
(Suspend mode).
An application programme has caused the malfunction
Ê Close the application programme or restart the workstation by switching it On/Off or with a
warm boot.
The battery is dead
Ê Charge the battery.
Or
Ê Install a charged battery.
Or
Ê Connect the power adapter to the workstation.
Troubleshooting and tips
A26391-K115-Z120-2-7619 67
The mouse does not work
If the connected mouse does not work, the following can cause it:
Incorrect setting in BIOS Setup
Ê Check the setting Hotplug in the BIOS Setup in the menu Advanced - Keyboard/Mouse Features.
The setting must be set to Enabled.
Touchpad driver is not installed properly
Ê Deinstall the touchpad driver.
Ê Install the actual driver from the "CELSIUS Mobile Driver CD".
Mouse driver is not loaded
Ê Check whether the correct mouse driver is properly installed and is present before the
application programme is started.
Detailed information can be found in the User Guides for the mouse or application programme.
Mouse is not connected
Ê Switch off the workstation.
Ê Check that the mouse cable is correctly connected to the workstation.
If you use an adapter or extension lead with the mouse cable, check the connections.
Ê Switch the workstation on.
The floppy disk cannot be written
Ê Check whether the disk is OK and is not write-protected.
The printer does not print
Ê Make sure that the printer is switched on and is on-line (see the manuals supplied with the
printer).
Ê Check that the cable connecting the workstation and the printer is connected properly.
Ê Check that the correct printer driver is installed.
Ê Check in the BIOS Setup whether the Advanced - I/O Device Configuration field is set to Enabled
for the port you are using.
The respective entry in the fields of Serial Port or Parallel Port must match the setting in the
application programme under Windows.
Troubleshooting and tips
68 A26391-K115-Z120-2-7619
Acoustic warnings
A beep sounds every few seconds
The battery is almost flat.
Ê Charge the battery.
Error messages on the screen
This section describes the error messages generated by the BIOS-Setup. Error messages displayed
by the operating system or programmes are described in the relevant manuals.
CMOS Battery Bad
If the error message occurs repeatedly, then the buffer battery in the workstation is dead.
Ê Connect the workstation via its power adapter to a mains outlet. The buffer battery will take
approximately two days to complete its recharge.
If the error message appears repeatedly, please contact the place of purchase or our
Hotline/Help Desk.
System CMOS checksum bad – Default configuration used
The system configuration information is incorrect.
Ê Restart the workstation.
Ê Enter the BIOS Setup programme by pressing [F2].
Ê Select the Exit menu in the BIOS Setup.
Ê Select the Default Setup entry and click on OK.
If the error message appears repeatedly, please contact the place of purchase or our
Hotline/Help Desk.
Insert system diskette and press Enter key to reboot
The operating system cannot be loaded or the hard disk contains no operating system or is not
formatted.
Ê Insert a system disk.
Ê Press any key to continue.
Invalid system disk - Replace the disk, and then press any key
The inserted disk is not a system disk or the inserted system disk is defective.
Ê Insert another system disk.
Ê Press any key to continue.
If you wish to boot from floppy disk:
Ê Insert a system disk.
Ê Press any key to continue.
Diskette drive A error
Ê Start the BIOS Setup and make sure that the parameter for floppy disk drive A has been set to
the format 1.44 Mbyte, 3 1/2 inch.
Troubleshooting and tips
A26391-K115-Z120-2-7619 69
Extended memory failed at offset: xxxx Failing Bits: zzzz zzzz
When testing the extended memory an error has resulted at the address xxxx.
Ê Check whether the additional memory module has been inserted correctly.
Should you receive this error message again, please contact your dealer.
Failure Fixed Disk n
The settings of the hard disk drive are incorrect.
Ê Start the BIOS Setup (IDE Adapter 0 Master submenu) and select the correct settings.
Fixed Disk address conflict Diskette Drive address conflict
There is an I/O address conflict.
Ê Start the BIOS Setup and check the corresponding settings.
Incorrect Drive A type - run SETUP
Ê Start the BIOS Setup and make sure that the parameter for floppy disk drive A has been set to
the format 1.44 Mbyte, 3 1/2 inch.
Keyboard controller error
Ê Switch off the workstation with the Suspend/Resume button.
Ê Wait 3 - 5 seconds and switch on the workstation again.
If this error message appears again, please contact your point of sale or our Hotline/Help Desk.
Keyboard error
If you use an external keyboard:
Ê Check the connection and reboot the workstation.
If this error message appears again, please contact your point of sale or our Hotline/Help Desk.
nn Stuck key
Ê Make sure that no key is pressed.
If this error message appears again, please contact your point of sale or our Hotline/Help Desk.
Operating system not found
Ê Check in the BIOS Setup whether your hard disk has been set correctly.
Ê Make sure that the operating system is installed on the corresponding drive.
Troubleshooting and tips
70 A26391-K115-Z120-2-7619
Not enough Save-to-Disk partition or file exists on Fixed Disk - Save-to-Disk feature is
disabled.
The Save-to-Disk mode is not available to you, as no memory space has been assigned to this
mode.
Ê Use the PHDISK service programme to assign the memory space required for this mode.
Press <F1> to resume, <F2> to SETUP.
This error message appears if an error occurs during the self-test before starting the operating
system.
Ê Press the [F1] function key to start the operating system.
Ê Enter the BIOS Setup programme by pressing [F2].
Previous boot incomplete - Default configuration used
Due to an error during the previous system boot, default values were used for certain settings.
Check the BIOS Setup and the settings.
Ê Press the [F1] function key when prompted to do so.
Real Time clock error
Ê Contact your sales outlet or our Hotline/Help Desk.
nnnnK Shadow RAM failed at offset: xxxx Failing Bits: zzzz
Ê Contact your sales outlet or our Hotline/Help Desk.
System battery is dead - Replace and run SETUP
Ê Contact your sales outlet or our Hotline/Help Desk.
System cache error - Cache disabled
Ê Contact your sales outlet or our Hotline/Help Desk.
nnnnK System RAM failed at offset: xxxx Failing Bits: zzzz
Ê If you have installed a DIMM, you should remove the module and reboot the workstation.
If the error message is no longer displayed, the error concerned is DIMM-related. Should you
receive this error message again, please contact your dealer.
System timer error
Ê Contact your sales outlet or our Hotline/Help Desk.
A26391-K115-Z120-2-7619 71
Memory expansion
!The workstation must be switched off when installing/removing the memory modules and
may not be in the Suspend mode.
So that the current data can be saved in the Save to Disk suspend mode, sufficient
memory space must be available on the hard disk (at least the size of the main
memory +16 Mbytes).
Install only memory expansions that satisfy the requirements and rules governing safety,
RFI and electromagnetic compatibility and relating to telecommunications terminal
equipment (see the chapter "Important notes").
Use only memory expansions which have been released for your workstation (128, 256,
and 512 Mbyte modules, SD RAM, JEDEC 144 pin SO DIMM, 3.3 V).
Never use force when installing or removing memory modules.
Make sure that foreign objects do not fall into the memory module compartment.
The main memory of your workstation can be expanded to a maximum of 512 Mbyte with another
memory module. The workstation will not start without memory modules, as no fixed main memory
is installed.
Removing and installing memory extension
!Please note the information provided in the "Notes on installing and removing boards and
modules" section in the chapter "Important notes".
Ê Switch off the workstation and the connected peripherals.
Ê Close the LCD display of the workstation so that it locks into place.
Ê Unplug the power adapter from the mains outlet.
Ê Remove the battery (see "Removing the battery").
Ê Disconnect all cables connected to workstation.
Ê Place the workstation bottom-up on a flat surface.
Removing cover
1
2
3
Ê Remove the screw (1).
Ê Lift the cover off the workstation in the
direction of the arrow (2).
Ê Pull off the cover from the workstation in the
direction of the arrow (3).
Memory expansion
72 A26391-K115-Z120-2-7619

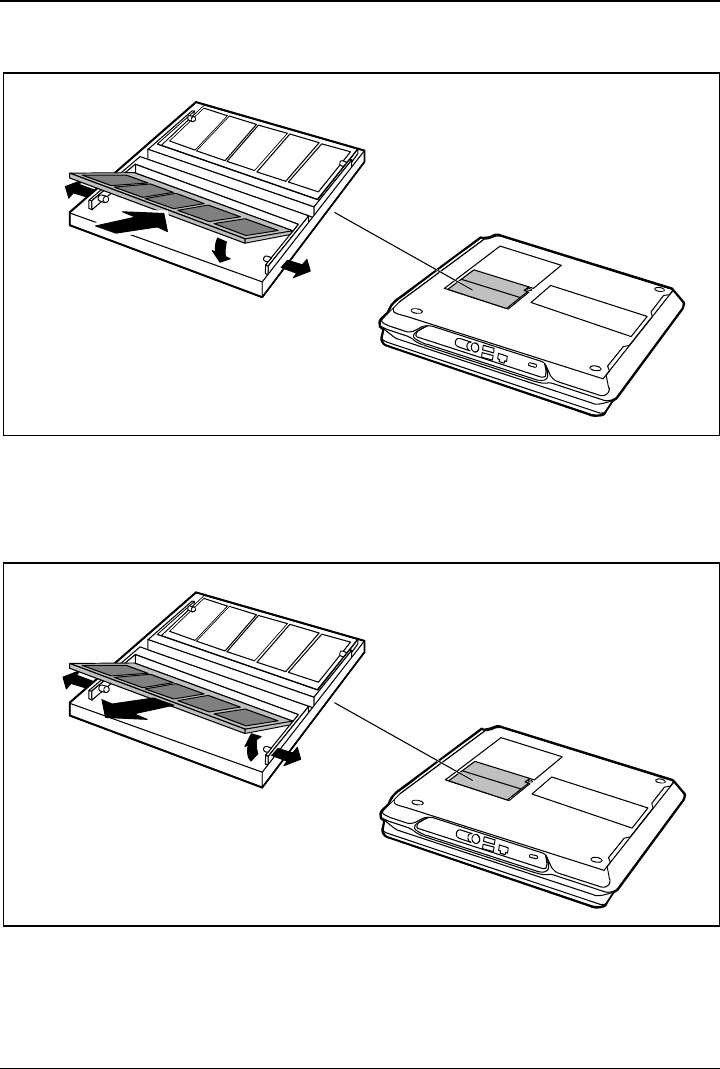

Installing memory modules
1
3
1
2
Ê Carefully push the two mounting clips outwards (1).
Ê Insert the memory module, contacts first, into the slot (2).
Ê Carefully push the memory module downwards until you feel it latch into place (3).
Removing memory modules
1
2
1
3
Ê Carefully push the two mounting clips outwards (1).
The memory module will flap upward (2).
Ê Pull the memory module out of its slot (3).
Memory expansion
A26391-K115-Z120-2-7619 73
Mounting the cover
3
2
1
Ê Place the cover on its mounting location (1).
Ê Close the cover on the bottom of the
workstation (2).
Ê Fasten the cover with the screw (3).
Ê Refit the battery.
Ê Place the workstation right side up on a flat, stabile, nonslip surface.
Ê Reconnect the cables.
A26391-K115-Z120-2-7619 75
Technical data
Workstation
Processor: Intel Mobile Pentium III Tualatin 1.13 GHz
Chipset: Intel 830 MP
Socket: µFCPGA2
Main memory: Maximum 1 Gbyte PC 133 SO DIMM
2 slots for 512 Mbyte modules
JEDEC 144 pin
Possible modules: · Combo drive (CD-RW/DVD)
· Floppy disk drive LS-240
· Hard disk drive
· Battery
· DVD drive, 8/20X speed (CD-ROM)
· CD-RW drive, 24/4/8X speed
Electrical data
Regulations complied with: EN60950, IEC60950, UL1950, CSA22.2 No.
950, ISO9241, FCC Part 15 Class B
Protection class: III
Maximum power draw:
(workstation on with battery charging) 80 W
LCD display panel
Display diagonal: 15 Zoll UXGA TFT
LVDS-port
Supported screen resolution: max. UXGA, 1600x1200
Graphics
Chip: NVIDIA Quadro2go graphics card with DDR
RAM
Video memory: 64 MB
Supported resolutions on external monitor:
Colour depth: max. UXGA, 1600x1200
32 bit
Audio
Sound: ESS Allegro ES1988
Technical data Workstation
76 A26391-K115-Z120-2-7619
Modem (Mini PCI modem)
Combo Modem with LAN 56K, V.90 / Ethernet 10/100, PME, AOL 2.0,
WOL
Combo module: IEEE1394b
Input devices
Keyboard: 88 keys
Touchpad: 3 keys
Slots
PC Card slots (CardBus/PCMCIA): PCMCIA 2 x Typ II or 1 x Typ III,
PC card controller O2 Micro OZ711E1 and
OZ6912
Ports
·PS/2 port: 6-pin mini DIN female connector
·Parallel port: 25-pin female connector, bi-directional, ECP
capable
·Monitor port: Female connector, DVI-I, 24- and 5-pin (digital
and analogue)
·Serial port: 9-pin male connector, RS232C
·Microphone jack: connector, mono
·Headphone port: connector, stereo
·Video port: 7-pin mini DIN female connector
·Modem port: Female connector, RJ-11 once
·USB port (Universal Serial Bus): twice
·Infrared interface: FIrDA 1.1 (Max 4M)
·LAN connector: Female connector, RJ-45
·Kensington Lock
Environmental conditions
Environment class 7K1 DIN IEC 721
Temperature:
·Operating (7K1) 5 °C .... 35 °C
·Transport (2K2) -15 °C .... 60 °C
Dimensions
Width/depth/height: 341 mm/278 mm/42 mm
Weight: approx. 3,3 kg
Battery Technical data
A26391-K115-Z120-2-7619 77
Battery
Rated voltage: 11,1 V
Rated capacity 66 Wh
Charging time (when not in operation): 3 hours
Operating time with a battery: approx. > 3 hours (without power management)
Power adapter
Primary
·Rated voltage: 100 V to 240 V (automatic)
·Frequency: 50 Hz to 60 Hz (automatic)
Secondary
·Rated voltage: 19 V
·Max. rated current: 4,2 A
You can readily order an additional power adapter and an additional power cable.
Wireless Keyboard Product Specification
Product Wireless Keyboard
Radio specification 1. Frequency range: 2.402 – 2.480 GHz
2. RF output Power: Class 3
3. Receiver Sensitivity: -70 dBm at 0.1% BER
4. Cover distance: 3 meter (max)
Electrical characteristics 1. Power supply: Transmitter board at keyboard
site will be powered by Li-ion 1100 mAh
battery; receiver board at PC site is powered
by 5 Volt DC through USB connector
2. Power consumption: 80 mA max.
(transmitter board)
3. Visual indicator: LED indicators: CapsLock,
NumLock, ScrollLock, Battery status,
Bluetooth connection status
4. Auto reconnecting: Automatically reconnect
keyboard with notebook PC
5. Battery life: 24 hours (20.000 times key
press)
Technical data Wireless Keyboard Product Specification
78 A26391-K115-Z120-2-7619
Intended use purpose of the equipment Notebook with detachable keyboard which can
communicate wireless with the notebook
Type of modulation GFSK
Channel spacing 1 MHz
Designation of emission ETSI 300.328
ETSI 300 826
Transmit RF power or power range -6 dBm ~ 0 dBm
Duty cycle 625us
Channel access protocol TDMA
Duplex direction Duplex
Antenna Type Micro Strip ANT
Peak Gain > 3 dBi, <- 5 dBi
Vswr<= 2
Return loss <= -10 dBm
Reference standard or other specification Bluetooth spec. V1.1
A26391-K115-Z120-2-7619 79
Index
1
1394 Firewire 43
5
56k modem 42
A
Access, preventing
floppy disk drive 50
hard disk drive 50
system 50
Acoustic warnings 68
ACPI 35
changing settings 35
Alt Gr key 19
APM 36
Save to Disk 36
setting energy-saving modes 36
suspend to DRAM 36
B
Backtab 22
Battery 30 see auch Akku see Akku
capacity 7
charge status 31
charging 31
disposal 7
important notes 30
learning cycle 30
lifetime 30
removing 32, 33
self-discharge 7
storing 7
symbol 31
Battery charge metre 31
Battery indicator 17, 64
fails to light 64
lights green 17, 27
lights orange 17, 27
lights red 17, 27
Battery maintenance 31
Battery status indicator see Akkuanzeige see
Akkuanzeige
Battery symbol see Akkuanzeige
Beep, error message 68
BIOS setup
exiting 62
BIOS Setup 61
operating 61
preventing access 50
preventing calling 50
settings 61
starting 61
Board 5
Buffer battery, load 64
C
CapsLK indicator 18, 27
CardBus see PC-Card see PC-Card
CD/DVD
inserting 40
removing 40
CD-ROM drive 40
indicator 18, 40
manually opening 41
CD-RW drive 40
indicator 18, 40
CE marking 7
CELSIUS Mobile Driver CD 63
Cleaner diskette 41
Cleaning 9
Closed cover switch 37
Combo drive 40
Configuration, BIOS Setup 61
Connecting
external devices 55
USB port 59
Contents of delivery 11
Copyright-protected technology 6
Ctrl+Alt+Del 22
Ctrl+C 22
D
Damage during transport 11
DataAudio controller 75
battery 76
dimensions 76
electrical 75
environmental conditions 76
Graphics controller 75
input devices 76
LCD screen 75
modem 76
ports 76
power adapter 77
slots 76
technical 75
battery 76
power supply unit 77
workstation 75
workstation 75
Data protection 50
Index
80 A26391-K115-Z120-2-7619
Date, not correct 64
Date/Time incorrect 64
Desktop Area
setting 29
Devices
connecting 55, 59
Display
blank Display
image unstable 65
difficult to read 64
Display brightness
increasing 21, 29
reducing 22, 29
Display output, switch between 21
Disposal 7
Drifting screen display 65
Driver CD 63
DVD-ROM drive 40
indicator 18, 40
manually opening 41
E
Eject buttons
SmartCard 46
Electrical data, workstation 75
Electromagnetic compatibility 7
Emergency removal, CD/DVD 41
Energy consumption 34
Energy saving 6
Energy saving functions 6, 34
additional 37
closed cover switch 37
hard disk timeout 37
power button 37
standby timeout 37
Energy-saving modes 35
setting 36
Enter key 19
Errorcorrection 63
Error message
acoustic 68
on the screen 68
ESD 5
External devices, connecting 59
External monitor
indicator synchronising 29
External monitor is blank 65
F
Fingerprint 49
Firewire 43
Floppy disk
cannot write 67
inserting 42
removing 42
working with 41
write-protection 42
Floppy disk drive 41
cleaning 41
transportation 41
Fn+F10 21
Fn+F5 21
Fn+F6 21
Fn+F7 21
Fn+F8 21
Full-screen, MS-DOS screen 21
G
Guarantee coupon booklet 11
H
Halt an operation 22
Hard disk 38
restoring the operating system 63
Hard disk indicator 18
Hard disk password, cancelling 52
Hard Disk timeout 37
Hardware
configuring 61
Headphone port 57
I
IEEE1394 (FireWire), connecting 43
Important notes 3
Indicator
CapsLK 18
floppy disk drive 18
Num Lock 18
optical drive 18, 40
PC card 17
scroll (Scroll Lock) 18
Indicators 17
Infrared connection 59
Infrared software 59
Infrared-port 57
Initial installation
software 14
Integrated LAN 43
Internal touchpad 21
Index
A26391-K115-Z120-2-7619 81
K
Kensington Lock 53
Key Alt Gr 19
Backspace 19
Caps Lock 19
cursor control keys 20
Cursor key 20
Enter 19
Fn 20
Fn key 20
Fn+F11 21
Fn+F12 22
Fn+F3 21
Fn+F4 21
Fn+F9 21
menu 20
numeric keypad 20
Pause 20
Return 19
Shift 19
Shift key+Tab 22
Shift+Tab 22
Start 20
Tab 19
Tab key 19
Key combination 21, 22
Ctrl+C 22
Fn+F10 21
Fn+F11 21
Fn+F12 22
Fn+F3 21
Fn+F4 21
Fn+F5 21
Fn+F6 21
Fn+F7 21
Fn+F8 21
Fn+F9 21
Keyboard 19
cleaning 9
external 58
removable 52
wireless 77
Keyboard port 58
L
LAN port 57
LAN, integrated 43
LCD monitor
indicator synchronising 29
LCD screen
cleaning 9
increasing the brightness 21, 29
opening 15
reducing the brightness 22, 29
reflected glare 64
remains blank 64
setting the Desktop Area 29
setting the font size 29
settings 29
switch off 21
technical data 75
LCD screen is blank 64
LCD-display 17
Lifetime, battery 30
Loudspeaker 48
switching off/on 21
M
Main memory see Speichererweiterung
Manual removal, CD/DVD 41
Memory
expansion 71
Memory configuration see
Speichererweiterung
Memory expansion
installing 71
mounting the cover 73
removing 71
removing the cover 71
Memory module 71
installing 71
mounting the cover 73
removing 71
removing the cover 71
Memory module cover
mounting 73
removing 71
Memory modules
installing 72
removing 72
Menu key 20
Microphone 48
Microphone jack 57
Microsoft Backup 63
Mobile operation 7
Modem 42
Modem port 57
Module
installing 39
removing 38
Monitor
error message 68
external 57, 65
refresh rate 57
remains blank 65
Monitor port 57 see Bildschirmanschluss
Monitor settings 29
Mouse
does not work 67
Index
82 A26391-K115-Z120-2-7619
external 58
PS/2 mouse 58
serial mouse 58
Mouse port 58
MS-DOS screen, enlarge 21
N
No picture 65
Notational conventions 2
Notes 3
battery 30
boards 5
CE marking 7
cleaning 9
disposal 7
energy saving 6
manufacturer 6
safety 3
transporting 7
Num Lock indicator 27
Numeric keypad 19, 20
NumLK indicator 18, 27
O
Operating from the battery 34
Operating system, restoring 63
Operating, workstation 15
Optical drive 40
indicator 18, 40
P
Packing material 11
Parallel port 57, 58
Password
supervisor password 51
user password 51
Pause key 20
PC card 44 see PC-Card
eject button, push into 44
installing 44
removing 45
PHDISK 37
Pointer, changing the speed 29
Pointer, no mouse pointer 67
Ports 55
Power adapter connection 57
Power button 37
Power indicator 17
Power supply unit 13
Power, saving 6
Power-on indicator 17
Preparing for use 11
Printer
connecting 58
does not print 67
serial 58
Property protection 50
Protection 50
PS/2 port 57, 58
R
Recovery CD 63
Recycling 7
S
Safety 3
Save to Disk 36
Screen saver 50
Screen too bright 64
Scroll indicator (Scroll Lock) 27
Scroll Lock, indicator 18, 27
Scroll, indicator 18, 27
Security functions
BIOS Setup 50
Windows 50
Security measures 50
Self-discharge 7
Serial port 57, 58
connecting a mouse 58
connecting a printer 58
Setting the font size 29
Setup see BIOS-Setup
Shift key 19
SmartCard 45
inserting 46
sliding out 47
Software
installing new software 63
new installation 63
Software, initial installation 14
Speed Skp
switching on 21
Standby mode
terminating 66
Standby Timeout 37
Start disk for Windows ME 63
Start key 20
Status indicator panel 17
Storage, battery 7
Summer time 64
Supervisor password
cancelling 52
setting 51
Suspend mode
terminating 66
Suspend to DRAM 36
Suspend/Resume button 15
Symbols, explanation of 2
Index
A26391-K115-Z120-2-7619 83
Symbols, status indicator panel 17
Synchronisation, screen display 29
System access
preventing unauthorised access 50
System configuration 61
System expansion see Speichererweiterung
System files 63
System settings, BIOS Setup 61
System startup
from the floppy disk drive
preventing 50
preventing from the hard disk drive 50
preventing system booting from the floppy
disk drive 50
preventing system booting from the hard
disk drive 50
preventing unauthorised system
access 50
T
Technical data 75
Timenot correct 64
Time, daylight savings 64
Tips 63
Touchpad 28
buttons 28
cleaning 9
dragging items 28
executing commands 28
moving the pointer 28
selecting items 28
Transport 7, 8
Travel, workstation 8
Troubleshooting 63
TV-Out socket 57
U
USB devices
connecting 59
software 59
USB port 57, 59
connecting devices 59
User password
cancelling 52
User Password
setting 51
V
VGA port see Bildschirmanschluss
Volume
decreasing 21
increasing 21
W
Warm boot 22
Wireless data transfer 59
Wireless keyboard 77
Workstation
before you travel 8
cleaning 9
disconnecting devices 55
operating 15
operating system not starting 66
preparation for use 11
stops working 66
switching off 16
switching off via operating system 16
switching on 15
transporting 7, 8
Write protection, floppy disk 42
