User Manual 2 of 2
![](/img.php?id=319478&img=bg1.png)
2 Customizing my computer48
English

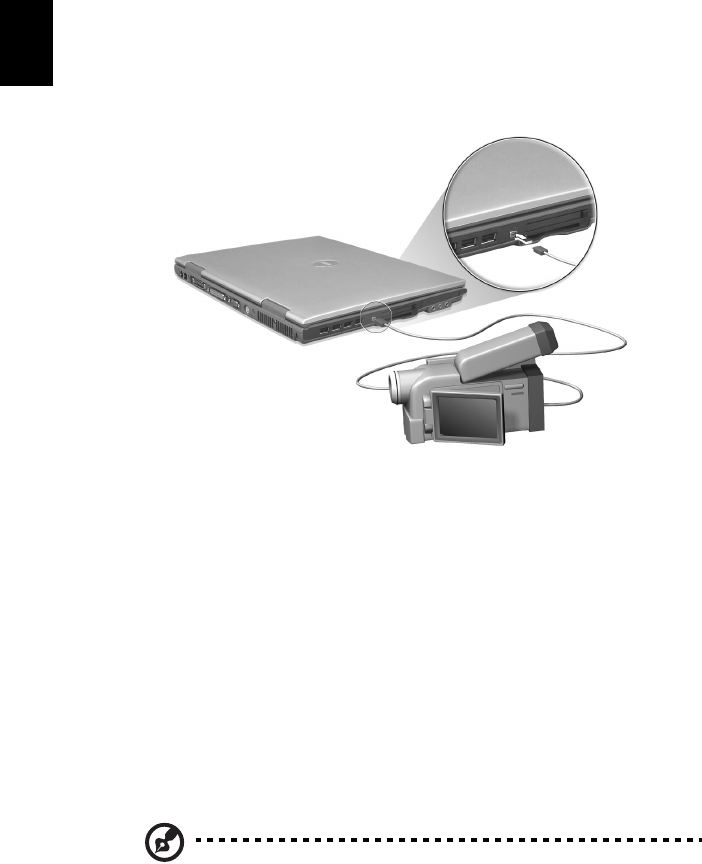

IEEE 1394 port
The computer's IEEE 1394 port allows you to connect to an IEEE 1394
supported devices like a video camera or digital camera.
See your video or digital camera's documentation for details.
PC Card slot
The type II CardBus PC Card slot found on the left side of the computer
accepts credit-card-sized cards that enhance the usability and
expandability of the computer. These cards should have a PC Card logo
on them.
PC Cards (formerly PCMCIA) are add-on cards for portable computers,
giving you expansion possibilities long afforded by desktop PCs.
Popular PC cards include flash, fax/data modem, LAN, wireless LAN and
SCSI cards. CardBus improves on the 16-bit PC card technology by
expanding the bandwidth to 32 bits.
Note: Refer to your card’s manual for details on how to install and
use the card and its functions.
![](/img.php?id=319478&img=bg2.png)
49
English

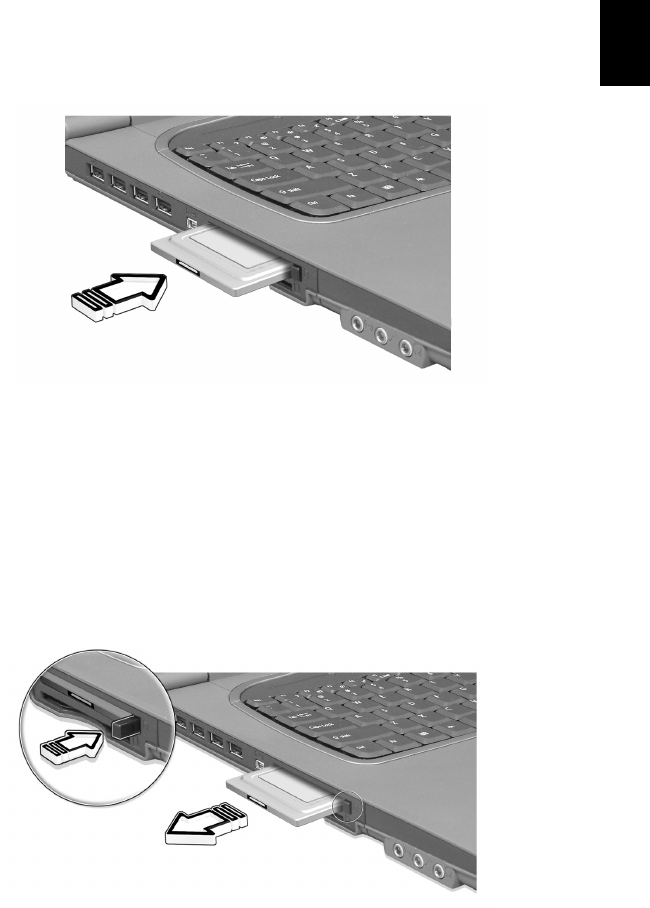

Inserting a PC Card
Insert the card into the slot and make the proper connections (e.g.,
network cable), if necessary. See your card manual for details.
Ejecting a PC Card
Before ejecting a PC Card:
1 Exit the application using the card.
2 Left-click on the PC Card icon on the taskbar and stop the card
operation.
3 Press the slot eject button to pop out the eject button (a); then
press it again to eject the card (b).
![](/img.php?id=319478&img=bg3.png)
2 Customizing my computer50
English
Port expansion devices
Two types of expansion devices are available for your computer:
•I/O replicator - adds serial port and parallel port connections to
your computer.
•EasyPort - adds a host of ports for your computer, and allows you
to connect and disconnect peripherals from your computer in one
quick step.
See your dealer for more information.
Upgrade options
Your computer delivers superior power and performance. However,
some users and the applications they use may demand more. This
computer allows you to upgrade key components when you need
increased performance.
Note: Contact your authorized dealer if you decide to perform a
key component upgrade.
Memory upgrade
Memory is expandable to 2 GB, employing 256/512/1024-MB industry
standard soDIMMs (Small Outline Dual Inline Memory Modules). The
computer supports DDR (Double Data Rate) RAM.
There are two memory slots on your computer, one of which is
occupied by standard memory. You can upgrade memory by installing
a memory module into the one available slot, or replacing the standard
memory with a higher-capacity memory module.
Installing memory
Follow these steps to install memory:
1 Turn off the computer, unplug the AC adapter (if connected) and
remove the battery pack. Then turn the computer over to access its
base.
![](/img.php?id=319478&img=bg4.png)
51
English

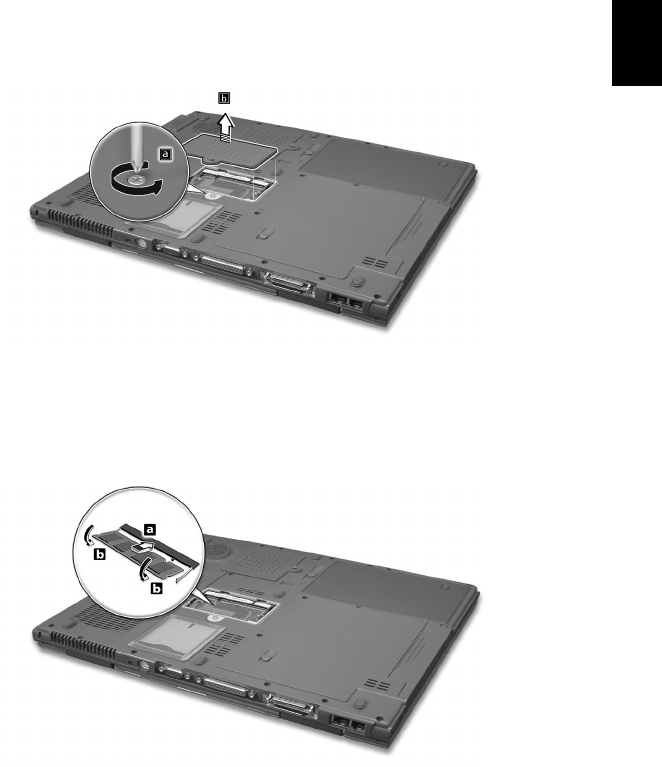

2 Remove the screws from the memory cover (a); then lift up and
remove the memory cover (b).
3 Insert the memory module diagonally into the slot (a), then gently
press it down (b) until it clicks into place.
4 Replace the memory cover and secure it with the screw.
5 Reinstall the battery pack, and reconnect the AC adapter.
6 Turn on the computer.
The computer automatically detects and reconfigures the total
memory size.
![](/img.php?id=319478&img=bg5.png)
2 Customizing my computer52
English

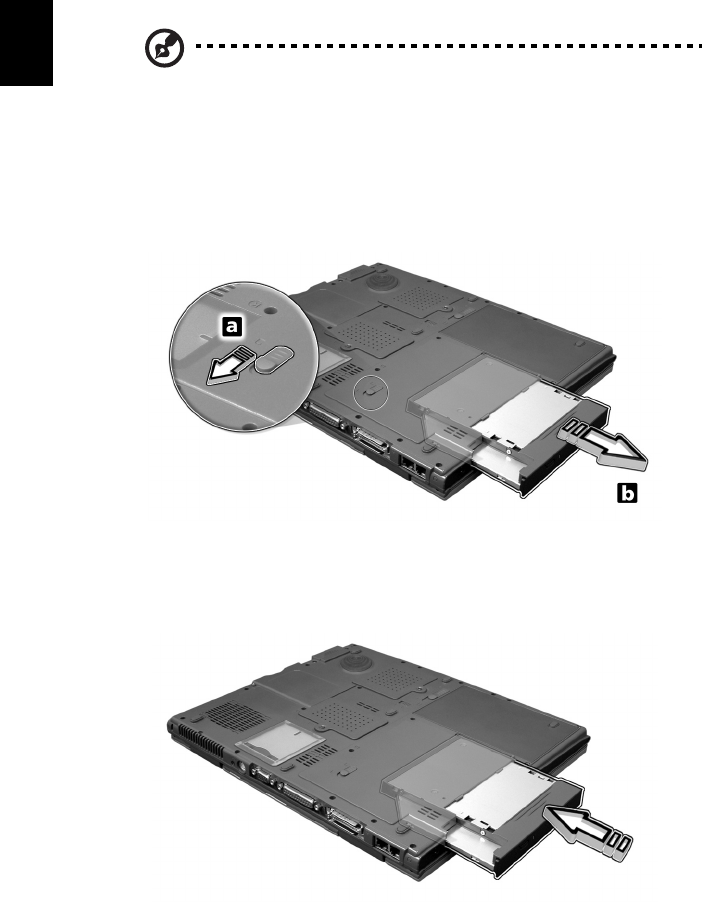

Swapping AcerMedia drive modules
Note: The hard disk drive module is not hot-swappable. You have
to turn off your computer before you can swap the module.
You can swap the AcerMedia drive with any optional AcerMedia
modules. First slide the AcerMedia release latch as shown in the
illustration (a). Then remove the optical drive from the AcerMedia bay
(b).
Then insert the optional AcerMedia module into the AcerMedia bay
until the it click into place.
![](/img.php?id=319478&img=bg6.png)
53
English
Using system utilities

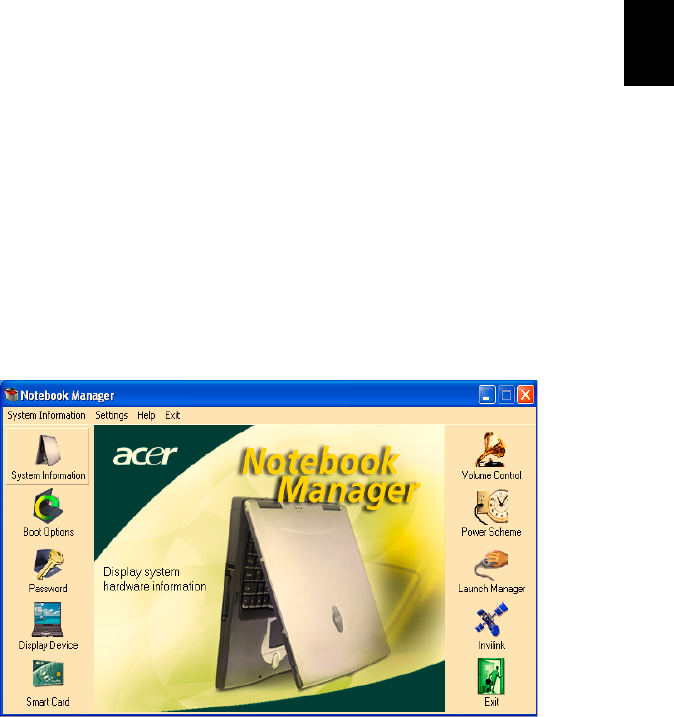

Notebook Manager
The computer has a built-in system setup program called Notebook
Manager. The Windows-based Notebook Manager allows you to set
passwords, the startup sequence of the drives, and power
management settings. It also shows current hardware configurations.
To start the Notebook Manager, press Fn-F2 or follow these steps:
1Click on Start, Programs, then Notebook Manager.
2 Select the Notebook Manager application to run the program.
Click on Help for more information.
![](/img.php?id=319478&img=bg7.png)
2 Customizing my computer54
English

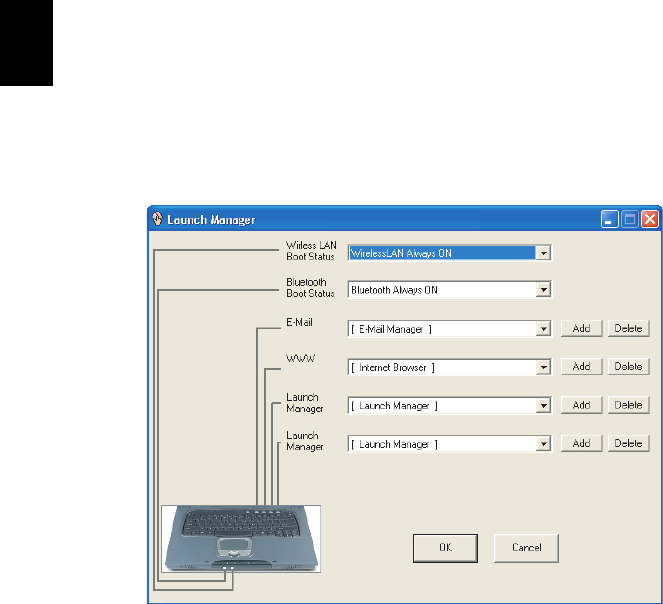

Launch Manager
Launch Manager allows you to set the five launch keys located above
the keyboard. See “Touchpad” on page 22 for the location of the
launch key.
You can access the Launch Manager by clicking on Start, Programs,
and then Launch Manager to start the application.
BIOS Utility
The BIOS Utility is a hardware configuration program built into your
computer’s BIOS (basic input/output system).
Your computer is already properly configured and optimized, and you
do not need to run this utility. However, if you encounter
configuration problems, you may need to run it.
To activate the BIOS Utility, press F2 during the POST (power-on self-
test) while the TravelMate logo is being displayed.
![](/img.php?id=319478&img=bg8.png)
3 Troubleshooting my
computer
![](/img.php?id=319478&img=bg9.png)
This chapter instructs you on how to deal with
common system problems. Read it before
calling a technician if a problem occurs.
Solutions to more serious problems require
opening up the computer. Do not attempt to
open the computer by yourself. Contact your
dealer or an authorized service center for
assistance.
key link: www.acersupport.com
![](/img.php?id=319478&img=bga.png)
57
English
Frequently-asked questions
The following is a list of possible situations that may arise during the
use of your computer. Easy answers and solutions are provided for
each one.
I slid the power switch and opened the display, but the computer does
not start or boot-up.
Look at the Power indicator:
•If it is not lit, no power is being applied to the computer. Check the
following:
•If you are running on battery power, it may be low and unable
to power the computer. Connect the AC adapter to recharge
the battery pack.
•Make sure that the AC adapter is plugged in properly to the
computer and to the power outlet.
•If it is lit, check the following:
•Is a non-bootable (non-system) CD in the optical drive?
Remove or replace it with a system diskette and press Ctrl-Alt-
Del to restart the system.
•The operating system files may be damaged or missing. Insert the
startup disk you created during Windows setup into the optical
drive and press Ctrl-Alt-Del to restart the system. This will
diagnose your system and make necessary fixes.
Nothing appears on the screen.
The computer’s power management system automatically blanks the
screen to save power. Press any key to turn the display back on.
If pressing a key does not turn the display back on, two things might
be the cause:
•The brightness level might be too low. Press Fn-→
→→
→ (increase) and
Fn-←
←←
← (decrease) to adjust the brightness level.
•The display device might be set to an external monitor. Press the
display toggle hot key Fn-F5 to toggle the display back to the
computer.
•If the Sleep indicator is lit, the computer is in Sleep mode. Slide
and release the power switch to resume.
![](/img.php?id=319478&img=bgb.png)
3 Troubleshooting my computer58
English
Image is not full-screen.
The computer display has a native resolution of 1024 x 768 (XGA) for
the 14.1” and 1400 x 1050 (SXGA+) for the 15.0”. If you set the
resolution lower than this, the screen expands to fill the computer
display. Right-click on your Windows desktop and select Properties to
bring up the Display Properties dialog box. Then click on the Settings
tab to make sure that the resolution is set to the appropriate
resolution. Resolutions lower than the specified resolution are not full-
screen on the computer or on an external monitor.
No audio is heard from the computer.
Check the following:
•The volume may be muted. In Windows, look at the volume
control (speaker) icon on the taskbar. If it is crossed-out, click on
the icon and deselect the Mute option.
•The speakers may be turned off. Press Fn-F8 to turn the speakers
on (this hot key also turns the speakers off).
•The volume level may be too low. In Windows, look at the volume
control icon on the taskbar. You can also use the volume control
buttons to adjust the volume. See “Hot keys” on page 17 for more
detail.
•If headphones, earphones or external speakers are connected to
the line-out port on the computer’s rear panel, the internal
speakers automatically turn off.

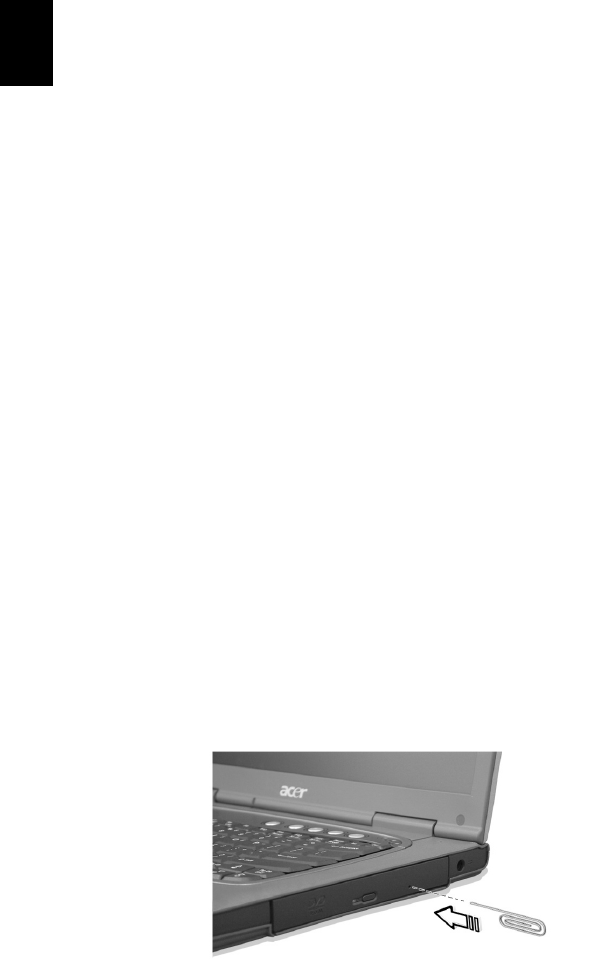

I want to eject the optical drive tray without turning on the power. I
cannot eject the optical drive tray.
There is a mechanical eject button on the optical drive. Simply insert
the tip of a pen or paperclip and push to eject the tray.
![](/img.php?id=319478&img=bgc.png)
59
English
The keyboard does not respond.
Try attaching an external keyboard to the USB 2.0 connector on the
left of the computer. If it works, contact your dealer or an authorized
service center as the internal keyboard cable may be loose.
The infrared port does not work.
Check the following:
•Make sure that the infrared ports of the two devices are facing
each other (+/- 15 degrees) a maximum of 1 meter apart.
•Make sure there is a clear path between the two infrared ports.
Nothing should be blocking the ports.
•Make sure you have the appropriate software running on both
devices (for file transfers) or you have the appropriate drivers (for
printing to an infrared printer).
•During the POST, press F2 to access the BIOS Utility and verify that
the infrared port is enabled.
•Make sure both devices are IrDA-compliant.
The printer does not work.
Check the following:
•Make sure that the printer is connected to a power outlet and that
it is turned on.
•Make sure that the printer cable is connected securely to the
computer’s parallel port and the corresponding port on the
printer.
•During POST, press F2 to access the BIOS Utility and verify that the
parallel port is enabled.
I want to set up my location to use the internal modem.
To properly use your communications software (e.g., HyperTerminal),
you need to set up your location:
1Click on Start, Settings, Control Panel.
2 Double-click on Modems.
3Click on Dialing Properties and begin setting up your location.
Refer to the Windows manual.
![](/img.php?id=319478&img=bgd.png)
3 Troubleshooting my computer60
English
Troubleshooting tips
This notebook computer incorporates an advanced design that delivers
onscreen error message reports to help you solve problems.
If the system reports an error message or an error symptom occurs, see
“Error messages” on page 61. If the problem cannot be resolved,
contact your dealer. See “Requesting service” on page 62.
![](/img.php?id=319478&img=bge.png)
61
English
Error messages
If you receive an error message, note the message and take the
corrective action. The following table lists the error messages in
alphabetical order together with the recommended course of action.
If you still encounter problems after going through the corrective
measures, please contact your dealer or an authorized service center
for assistance. Some problems may be solved using the BIOS Utility.
Error Messages Corrective Action
CMOS Battery Bad Contact your dealer or an authorized service
center.
CMOS Checksum Error Contact your dealer or an authorized service
center.
Disk Boot Failure Insert a system (bootable) diskette into the floppy
drive (A:), then press Enter to reboot.
Equipment
Configuration Error
Press F2 (during POST) to enter the BIOS Utility;
then press Esc to exit and reconfigure the
computer.
Hard Disk 0 Error Contact your dealer or an authorized service
center.
Hard Disk 0 Extended
Type Error
Contact your dealer or an authorized service
center.
I/O Parity Error Contact your dealer or an authorized service
center.
Keyboard Error or No
Keyboard Connected
Contact your dealer or an authorized service
center.
Keyboard Interface
Error
Contact your dealer or an authorized service
center.
Memory Size Mismatch Press F2 (during POST) to enter the BIOS Utility;
then press Esc to exit and reconfigure the
computer.
![](/img.php?id=319478&img=bgf.png)
3 Troubleshooting my computer62
English
Requesting service
International Traveler’s Warranty (ITW)
Your computer is backed by an International Traveler’s Warranty (ITW)
that gives you security and peace of mind when traveling. Our
worldwide network of service centers are there to give you a helping
hand.
An ITW passport comes with your computer. This passport contains all
you need to know about the ITW program. A list of available,
authorized service centers is in this handy booklet. Read this passport
thoroughly.
Always have your ITW passport on hand, especially when you travel to
receive the benefits from our support centers. Place your proof-of-
purchase in the flap located inside the front cover of the ITW passport.
If the country you are traveling in does not have an Acer-authorized
ITW service site, you can still get in contact with our offices worldwide.
There are two ways to access Acer for technical support and
information:
•Internet service worldwide (www.acersupport.com)
•Technical support numbers in various countries
You can view a list of technical support numbers by following these
steps:
1Click on Start, Settings, Control Panel.
2 Double-click on System.
3Click on the Support Information button.
Before you call
Please have the following information available when you call Acer for
online service, and please be at your computer when you call. With
your support, we can reduce the amount of time a call takes and help
solve your problems efficiently.
If there are error messages or beeps reported by your computer, write
them down as they appear on the screen (or the number and sequence
in the case of beeps).
![](/img.php?id=319478&img=bg10.png)
63
English
You are required to provide the following information:
Name:________________________________________
Address:______________________________________
______________________________________________
Telephone number:____________________________
Machine and model type:_______________________
Serial number:_________________________________
Date of purchase:______________________________
![](/img.php?id=319478&img=bg11.png)
3 Troubleshooting my computer64
English
![](/img.php?id=319478&img=bg12.png)
Appendix A
Specifications
![](/img.php?id=319478&img=bg13.png)
This appendix lists the general specifications
of your computer.
![](/img.php?id=319478&img=bg14.png)
67
English
Microprocessor
•Intel® Pentium® M Processor with 1024 KB level 2 cache featuring
the new Enhanced Intel® SpeedStep™ technology
Memory
•Main memory expandable to 2 GB
•Dual 200-pin soDIMM sockets
•PC2100 DDR-SDRAM (Double Data Rate-Synchronous Dynamic
Random Access Memory) support
•512 KB Flash ROM BIOS
Data storage
•One high-capacity, Enhanced-IDE hard disk
•One 5.25-inch internal removable optical drive (AcerMedia bay)
Display and video
•Thin-Film Transistor (TFT) liquid crystal display (LCD) displaying 16-
bit high color up to 1024 x 768 eXtended Graphics Array (XGA)
resolution for 14.1” and 1600 x 1200 Ultra eXtended Graphics
Array (UXGA) resolution for 15”
•4X AGP bus with 3D acceleration
•Simultaneous LCD and CRT display support
•Dual display capability
•S-video for output to a television or display device that supports S-
video input
•"Automatic LCD dim" feature that automatically decides the best
settings for your display and conserves power
Audio
•16-bit AC’97 stereo audio with built-in wavetable synthesizer
•Dual speakers and microphone
•Separate audio ports for headphone-out, line-in and microphone-
in devices
Keyboard and pointing device
•84-/85-/88-key Windows keyboard
![](/img.php?id=319478&img=bg15.png)
Appendix A Specifications68
English
•Ergonomically-centered touchpad pointing device with 4-way
scroll button
I/O ports
•One type II CardBus PC Card slot
•One RJ-45 jack (Ethernet 10/100)
•One RJ-11 phone jack (V.90/V.92)
•One DC-in jack
•One parallel port (ECP/EPP)
•One external monitor port
•One speaker/headphone-out jack (3.5mm mini jack)
•One audio line-in jack (3.5mm mini jack)
•Four (4) USB 2.0 ports
•One FIR port (IrDA)
•One expansion connector
•One Smart Card slot
Weight and dimensions
•2.56 kg (5.6 lbs) with battery and optical drive for 14”
330 (W) x 272 (D) x 25.4~28.5 (H) mm
•2.69 kg (5.91 lbs) with battery and optical drive for 15”
330 (W) x 272 (D) x 27.9~29.5 (H) mm
Environment
•Temperature
•Operating: 5°C ~ 35°C
•Non-operating: -20°C ~ 65°C
•Humidity (non-condensing)
•Operating: 20% ~ 80% RH
•Non-operating: 20% ~ 80% RH
System
•ACPI support
•DMI 2.0-compliant
![](/img.php?id=319478&img=bg16.png)
69
English
•Microsoft® Windows® operating system
Power
•Battery pack
•65 wh Li-Ion battery pack
•1.5-hour rapid charge / 3.5-hour charge-in-use
•AC adapter
•75-Watt
• Auto sensing 100~240Vac, 50~60Hz
Options
•256/512/1024-MB memory upgrade modules
•Additional Li-Ion battery pack
•Additional AC adapter
•DVD/CD-RW module (includes DVD playback software; DVD-RW
available in the future)
•EasyPort port replicator
•External battery charger
•Secondary hard drive
•USB floppy drive
• 802.11b wireless communication
![](/img.php?id=319478&img=bg17.png)
Appendix A Specifications70
English
![](/img.php?id=319478&img=bg18.png)
Appendix B
Notices
![](/img.php?id=319478&img=bg19.png)
This appendix lists the general notices of your
computer.
![](/img.php?id=319478&img=bg1a.png)
73
English
FCC notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the device and receiver
•Connect the device into an outlet on a circuit different from that to which
the receiver is connected
•Consult the dealer or an experienced radio/television technician for help
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables
to maintain compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to
comply with the Class B limits may be attached to this equipment. Operation
with non-certified peripherals is likely to result in interference to radio and TV
reception.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user’s authority, which is granted by the Federal Communications
Commission, to operate this computer.
Use conditions
This part complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
![](/img.php?id=319478&img=bg1b.png)
Appendix B Notices74
English
Notice: Canadian users
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numérique de la classe B respected toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Modem notices
FCC
This equipment complies with Part 68 of the FCC rules. Located on the bottom
side of the modem is a label that contains, among other information, the FCC
Registration Number and Ringer Equivalence Number (REN) for this equipment.
Upon request, you must provide this information to your telephone company.
If your telephone equipment causes harm to the telephone network, the
telephone company may discontinue your service temporarily. If possible, they
will notify you in advance. But, if advance notice is not practical, you will be
notified as soon as possible. You will also be informed of your right to file a
complaint with the FCC.
Your telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the proper functioning of your
equipment. If they do, you will be notified in advance to give you an
opportunity to maintain uninterrupted telephone service.
If this equipment should fail to operate properly, disconnect the equipment
from the phone line to determine if it is causing the problem. If the problem is
with the equipment, discontinue use and contact your dealer or vendor.
TBR 21
This equipment has been approved [Council Decision 98/482/EC - “TBR-21”] for
pan-European single terminal connection to the Public Switched Telephone
Network (PSTN). However, due to differences between the individual PSTNs
provided in different countries, the approval does not, of itself, give an
unconditional assurance of successful operation on every PSTN termination
point. In the event of problems, you should contact your equipment supplier in
the first instance.
![](/img.php?id=319478&img=bg1c.png)
75
English
Important safety instructions
Read these instructions carefully. Save these instructions for future reference.
1 Follow all warnings and instructions marked on the product.
2 Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
3 Do not use this product near water.
4 Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product.
5 Slots and openings in the cabinet and the back or bottom are provided for
ventilation; to ensure reliable operation of the product and to protect it
from overheating, these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed, sofa,
rug, or other similar surface. This product should never be placed near or
over a radiator or heat register, or in a built-in installation unless proper
ventilation is provided.
6 This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
7 Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
8 If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
9 Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the
product.
10 Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks. Refer all
servicing to qualified service personnel.
11 Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a When the power cord or plug is damaged or frayed
b If liquid has been spilled into the product
c If the product has been exposed to rain or water
d If the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are covered
by the operating instructions since improper adjustment of other
![](/img.php?id=319478&img=bg1d.png)
Appendix B Notices76
English
controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal condition.
e If the product has been dropped or the cabinet has been damaged
f If the product exhibits a distinct change in performance, indicating a
need for service.
12 Replace the battery with the same type as the product's battery we
recommend. Use of another battery may present a risk of fire or explosion.
13 Warning! Batteries may explode if not handled properly. Do not
disassemble or dispose of them in fire. Keep them away from children and
dispose of used batteries promptly.
14 Use only the proper type of power supply cord set (provided in your
accessories box) for this unit. It should be a detachable type: UL listed/CSA
certified, type SPT-2, rated 7A 125V minimum, VDE approved or its
equivalent. Maximum length is 15 feet (4.6 meters).
Laser compliance statement
The CD or DVD drive used with this computer is a laser product. The CD or DVD
drive’s classification label (shown below) is located on the drive.
CLASS 1 LASER PRODUCT
CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO
BEAM.
APPAREIL A LASER DE CLASSE 1 PRODUIT
LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN CAS
D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.
LUOKAN 1 LASERLAITE LASER KLASSE 1
VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET
NICHT DEM STRAHLL AUSSETZEN
PRODUCTO LÁSER DE LA CLASE I
ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO. EVITE
EXPONERSE A LOS RAYOS.
ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN.
VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.
VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA
SÅTEESEENSTIRRA EJ IN I STRÅLEN
VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ IN I
STRÅLEN
ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I STRÅLEN
![](/img.php?id=319478&img=bg1e.png)
77
English
Lithium battery statement
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to local regulations. Recycle if at all possible.
ADVARSEL!
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun
ske med batteri af samme fabrikat og type. Léver det brugte batteri tilbage til
leverandøren.
ADVARSEL
Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en
tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i
henhold til fabrikantens instruksjoner.
VARNING
Explosionsfara vid felaktigt batteribyte. Anvãnd samma batterityp eller en
ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvãnt
batteri enligt fabrikantens instruktion.
VAROITUS
Päristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan
laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan
ohjeiden mukaisesti.
VORSICHT!
Explosionsgefahr bei unsachgemäßen Austausch der Batterie Ersatz nur durch
denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung
gebrauchter Batterien nach Angaben des Herstellers.
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques.
Nevertheless, some pixels may occasionally misfire or appear as black or colored
dots. This has no effect on the recorded image and does not constitute a
malfunction.
Macrovision copyright protection notice
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
78 Appendix B Notices
English
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and
4,907,093 licensed for limited viewing uses only.
A-Tick notice
For safety reasons, only connect headsets with a telecommunications compliance
label. This includes customer equipment previously labeled permitted or certified.
FCC RF EXPOSURE INFORMATION ( 802.11b Wireless LAN)
In August 1996 the Federal Communications Commission (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated safety standard
for human exposure to radio frequency electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with the safety standard
previously set by both U.S. and international standards bodies.
The design of this notebook computet complies with the FCC guidelines and these
international standards. Use only the supplied or an approved antenna. Unauthorized
antennas, modifications, or attachments could result in violation of FCC regulations.
This device was tested for typical lap held operations with the device directly
contacted to the human body to the back side of the notebook computer. To
maintain compliance with FCC RF exposure compliance requirements, avoid direct
contact to the transmitting antenna during transmitting. This device and its antenna
must not be co-located or operating in conjunction with any other antenna or
transmitter.
![](/img.php?id=319478&img=bg20.png)
Appendix C
802.11b Guide
![](/img.php?id=319478&img=bg21.png)
Copyright© 2002 Intel Corporation.
Back to Contents
Installation under Windows XP
Preliminary Notes
The installation instructions in this section are based on the following assumptions:
• The Intel(R) PRO/Wireless LAN Mini PCI Adapter hardware has already been installed in
the computer in accordance with the computer manufacturer's instructions.
• The computer has not been powered on since the hardware installation was completed.
• No other wireless LAN card is installed in this computer.
To install the driver before installing hardware, use Start > Run and browse to the file
SetupWLD.exe in the path PROW7100\WINXP on the Intel CD. After running SetupWLD.exe,
shut down the computer and install the hardware. When the computer restarts, the driver will be
automatically installed.
Before proceeding, make sure that you are operating Windows XP with administrative rights.
If you log in to Windows XP without administrative rights, you may run into problems during the
installation.
The Intel(R) PROSet utility or the Windows XP wireless configuration feature can be used to
configure wireless network settings. The instructions below include steps for installing the
PROSet utility and for turning off the Windows XP configuration feature. If you do not turn off the
Windows XP feature, you will not be able to use PROSet to configure wireless network settings.
For information on how to use the Windows XP feature, see your Windows XP documentation.
Driver Installation
To install drivers under Windows* XP, follow these steps:
1. Power up the computer in which the Intel(R) PRO/Wireless Mini PCI Adapter hardware
has just been installed.
2. Log in with administrative rights if prompted by Windows XP.
3. Wait for Windows to detect the newly installed hardware and display the Found New
Hardware Wizard dialog. Verify that Install the software automatically
(Recommended) is selected. If Windows does not detect the new hardware, see
Troubleshooting.
4. Insert the Intel CD into your CD drive. The New Hardware Found Wizard searches for
the correct driver files and copies them to your hard drive.
5. On the Network Name screen, click Next to accept the default Network Name (SSID)
101, or enter a specific SSID for your network, then click Next.
![](/img.php?id=319478&img=bg22.png)
6. On the Data Encryption screen, click Next to accept the default encryption setting
None, or enter specific encryption settings for your network, then click Next.
7. On the Found New Hardware Wizard screen, click Finish. Proceed to disable the
Windows XP wireless configuration feature.
Disable Windows XP Wireless Configuration (Required)
To disable the Windows XP wireless configuration feature so that you can use Intel(R) PROSet
for wireless configuration, continue as follows:
Instructions are written for use with the Windows XP Start Menu and Control Panel Category
View, not with "Classic" Start Menu or Control Panel views.
8. Click Start and Control Panel.
9. On the Pick a category screen, click Network and Internet Connections, then under
the heading or pick a Control Panel icon click Network Connections.
10. In the Network Connections window, right-click your Wireless Network Connection
and select Properties.
11. Select the Wireless Networks tab.
12. Click to clear ("deselect") the check box Use Windows to configure my wireless
network settings, then click OK on the Wireless Network tab. Do not click any other
tabs. Continue with the installation of PROSet.
Intel(R) PROSet Installation (Required)
Continue with the following steps to install the Intel PROSet wireless configuration utility
(required):
Some versions of this product do not support the Intel(R) PRO Network Connections menu
screen for installation of utility software. If the Intel(R) PRO Network Connections menu screen
does not appear, or if it does not have a menu item for Wireless LAN Adapters, you can start the
PROSet installer manually using Start > Run and browsing to the file PROSet.msi in the path
APPS/PROSet/2K-NET32 on the Intel CD supplied with the product. Skip Steps 13 and 14 below
and continue with Step 15.
13. Display the Intel(R) PRO Network Connections screen by removing and re-inserting the
Intel CD, or by running autorun.exe from the CD. Click Wireless LAN Adapters.
14. On the Intel PRO/Wireless LAN Adapters menu screen, click Install Software.
15. On the Welcome to the InstallShield Wizard for Intel(R) PROSet screen, click Next.
16. On the License Agreement screen, after reading the license agreement, select I accept
the terms in the license agreement and click Next.
17. On the Setup Type screen, select Typical and then click Next. This is the recommended
setting for a first-time installation.
18. On the Ready to Install the Program screen click Install.
19. After the software is installed on your computer, click Finish. Click Exit to close the
Intel(R) PRO Network Connections screen or leave it open if you wish to install
Wireless Administration Tools.
20. To launch Intel PROSet, double-click the PROSet icon in the system tray or follow the
path Start > Programs > Intel Network Adapters > Intel(R) PROSet. For additional
information on the program, press F1 or click Help while the program is running.
Administration Tools Installation (Optional)
![](/img.php?id=319478&img=bg23.png)
Continue with the following steps to install the Intel(R) Wireless Administration Tools Site Survey
and AP Discovery (optional):
Some versions of this product do not support the Intel(R) PRO Network Connections menu
screen for installation of the Administration Tools. If the Intel(R) PRO Network Connections menu
screen does not appear, or if it does not have a menu item for Wireless LAN Adapters, you can
start the Administration Tools installer manually using Start > Run and browsing to the file
APAdmin.msi in the path APPS/PROSet/2K-NET32 on the Intel CD supplied with the product.
Skip Steps 21 and 22 below and continue with Step 23.
21. On the Intel(R) PRO Network Connections screen, click Wireless LAN Adapters.
You can display this screen by removing and re-inserting the Intel CD, or by running
autorun.exe from the CD.
22. On the Intel PRO/Wireless LAN Adapters menu screen, click Install AP Admin Tools.
23. On the Welcome to the InstallShield Wizard for Intel(R) Wireless Administration
Tools screen, click Next.
24. On the License Agreement screen, after reading the license agreement, select I accept
the terms in the license agreement and click Next.
25. On the Setup Type screen, verify that Typical is selected, then click Next.
26. On the Ready to Install the Program screen click Install.
27. After the software is installed on your computer, click Finish. Click Exit to close the
Intel(R) PRO Network Connections screen.
28. To launch the Wireless Administration Tools, follow the path Start > Programs > Intel(R)
PRO Wireless > Access Point Administration Tools and select AP Discovery or Site
Survey. For additional information on either program, press F1 or click Help while the
program is running.
Back to Contents
Copyright© 2002 Intel Corporation.
Back to Contents
Installation under Windows 2000
Preliminary Notes
The installation instructions in this section are based on the following assumptions:
• The Intel(R) PRO/Wireless LAN Mini PCI Adapter hardware has already been installed in
the computer in accordance with the computer manufacturer's instructions.
• The computer has not been powered on since the hardware installation was completed.
• No other wireless LAN card is installed in this computer.
To install the driver before installing hardware, use Start > Run and browse to the file
SetupWLD.exe in the path PROW7100\WIN2K on the Intel CD. After running SetupWLD.exe,
shut down the computer and install the hardware. When the computer restarts, the driver will be
automatically installed.
![](/img.php?id=319478&img=bg24.png)
After loading the Windows 2000 operating system, be sure to log in with administrative
rights. If you log in to Windows 2000 without administrative rights, you may run into problems
during the installation.
During initial adapter installation and configuration, it may take up to two minutes for adapter
settings to be confirmed.
Driver Installation
To install driver software in Windows* 2000, follow these steps:
1. Power up the computer in which the Intel(R) PRO/Wireless LAN Mini PCI Adapter
hardware has just been installed.
2. Log in with administrative rights when prompted by Windows 2000.
3. Wait for Windows to detect the newly installed hardware and display the Found New
Hardware Wizard dialog. If Windows does not detect the new hardware, see
Troubleshooting.
4. Insert the Intel CD-ROM into your CD-ROM drive. If the Intel(R) PRO Network
Connections menu screen appears, leave it open and click the Found New Hardware
Wizard dialog to make that the active window.
5. On the Install Hardware Device Drivers screen verify that Search for a suitable driver
for my device (recommended) is selected, then click Next.
6. When the Locate Driver Files dialog appears, verify that the item CD-ROM drives is
checked and click Next.
7. When the Driver Files Search Results dialog appears, indicating that a driver was
found, click Next.
8. On the Network Name screen, click Next to accept the default Network Name (SSID)
101, or enter a specific SSID for your network, then click Next.
9. On the Data Encryption screen, click Next to accept the default encryption setting
None, or enter specific encryption settings for your network, then click Next.
10. On the Found New Hardware Wizard screen, click Finish. Proceed to install Intel
PROSet.
Intel(R) PROSet Installation (Required)
Continue with the following steps to install the Intel PROSet wireless configuration utility
(required):
Some versions of this product do not support the Intel(R) PRO Network Connections menu
screen for installation of utility software. If the Intel(R) PRO Network Connections menu screen
does not appear, or if it does not have a menu item for Wireless LAN Adapters, you can start the
PROSet installer manually using Start > Run and browsing to the file PROSet.msi in the path
APPS/PROSet/2K-NET32 on the Intel CD supplied with the product. Skip Steps 11 and 12 below
and continue with Step 13.
11. On the Intel(R) PRO Network Connections screen, click Wireless LAN Adapters.
This screen may have been launched in step 4 above. If the screen is not visible
when you close the Found New Hardware Wizard dialog, display it by removing and re-
inserting the Intel CD, or by running autorun.exe from the CD.
12. On the Intel PRO/Wireless LAN Adapters menu screen, click Install Software.
13. On the Welcome to the InstallShield Wizard for Intel(R) PROSet screen, click Next.
![](/img.php?id=319478&img=bg25.png)
14. On the License Agreement screen, after reading the license agreement, select I accept
the terms in the license agreement and click Next.
15. On the Setup Type screen, verify that Typical is selected, then click Next. This is the
recommended setting for a first-time installation.
16. On the Ready to Install the Program screen click Install.
17. After the software is installed on your computer, click Finish. Click Exit to close the
Intel(R) PRO Network Connections screen or leave it open if you wish to install
Wireless Administration Tools.
18. To launch Intel PROSet, double-click the PROSet icon in the system tray or follow the
path Start > Programs > Intel Network Adapters > Intel(R) PROSet. For additional
information on the program, press F1 or click Help while the program is running.
During initial adapter installation and configuration, it may take up to two minutes for adapter
settings to be confirmed.
Administration Tools Installation (Optional)
Continue with the following steps to install the Intel(R) Wireless Administration Tools Site Survey
and AP Discovery (optional):
Some versions of this product do not support the Intel(R) PRO Network Connections menu
screen for installation of the Administration Tools. If the Intel(R) PRO Network Connections menu
screen does not appear, or if it does not have a menu item for Wireless LAN Adapters, you can
start the Administration Tools installer manually using Start > Run and browsing to the file
APAdmin.msi in the path APPS/PROSet/2K-NET32 on the Intel CD supplied with the product.
Skip Steps 19 and 20 below and continue with Step 21.
19. On the Intel(R) PRO Network Connections screen, click Wireless LAN Adapters.
This screen may have been launched in step 4 above. If the screen is not visible
when you close the Found New Hardware Wizard dialog, display it by removing and re-
inserting the Intel CD, or by running autorun.exe from the CD.
20. On the Intel PRO/Wireless LAN Adapters menu screen, click Install AP Admin Tools.
21. On the Welcome to the InstallShield Wizard for Intel(R) Wireless Administration
Tools screen, click Next.
22. On the License Agreement screen, after reading the license agreement, select I accept
the terms in the license agreement and click Next.
23. On the Setup Type screen, verify that Typical is selected, then click Next.
24. On the Ready to Install the Program screen click Install.
25. After the software is installed on your computer, click Finish. Click Exit to close the
Intel(R) PRO Network Connections screen.
26. To launch the Wireless Administration Tools, follow the path Start > Programs > Intel(R)
PRO Wireless > Access Point Administration Tools and select AP Discovery or Site
Survey. For additional information on either program, press F1 or click Help while the
program is running.
Back to Contents
Copyright© 2002 Intel Corporation.
Back to Contents
![](/img.php?id=319478&img=bg26.png)
Installation under Windows Me
Preliminary Notes
The installation instructions in this section are based on the following assumptions:
• The Intel(R) PRO/Wireless LAN Mini PCI Adapter hardware has already been installed in
the computer in accordance with the computer manufacturer's instructions.
• The computer has not been powered on since the hardware installation was completed.
• No other wireless LAN card is installed in this computer.
To install the driver before installing hardware, use Start > Run and browse to the file
SetupWLD.exe in the path PROW7100\WINSE-ME on the Intel CD. After running
SetupWLD.exe, shut down the computer and install the hardware. When the computer restarts,
the driver will be automatically installed.
Driver Installation
To install the software in Windows* Me (Millennium Edition), follow these steps:
1. Power up the computer in which the Intel(R) PRO/Wireless LAN Mini PCI Adapter
hardware has just been installed.

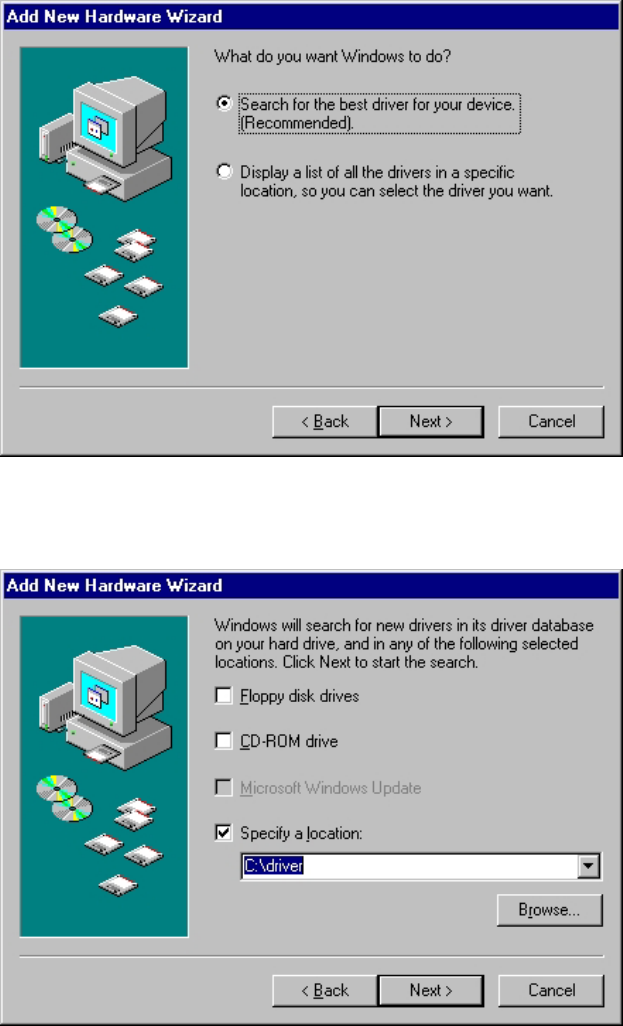

2. Wait for Windows to detect the newly installed hardware and display the Add New
Hardware Wizard dialog. DO NOT click Next. Verify that Automatic search for a better
driver (Recommended) is selected. If Windows does not detect the new hardware, see
Troubleshooting.
3. Insert the Intel CD into your CD drive. Windows installs the driver from the CD. If the
installation does not start automatically, click Next on the Add New Hardware Wizard
screen.
4. On the Network Name screen, click Next to accept the default Network Name (SSID)
101, or enter a specific SSID for your network, then click Next.
5. On the Data Encryption screen, click Next to accept the default encryption setting
None, or enter specific encryption settings for your network, then click Next.
6. Click Finish on the Add New Hardware Wizard screen when the driver installation is
complete.
7. When prompted to restart the computer, click No. You will restart it manually later.
Proceed to install PROSet.
Intel(R) PROSet Installation (Required)
To install the Intel PROSet utility, continue with the following steps:
Some versions of this product do not support the Intel(R) PRO Network Connections menu
screen for installation of utility software. If the Intel(R) PRO Network Connections menu screen
does not appear, or if it does not have a menu item for Wireless LAN Adapters, you can start the
PROSet installer manually using Start > Run and browsing to the file PROSet.msi in the path
APPS/PROSet/WN98SEME on the Intel CD supplied with the product. Skip Steps 8 and 9 below
and continue with Step 10.
![](/img.php?id=319478&img=bg27.png)
8. Display the Intel(R) PRO Network Connections screen by removing and re-inserting the
Intel CD, or by running autorun.exe from the CD. Click Wireless Adapters.
9. On the Intel PRO/Wireless LAN Adapters menu screen, click Install Software.
10. On the Welcome to the InstallShield Wizard for Intel(R) PROSet II screen, click Next.
11. On the License Agreement screen, after reading the license agreement, select I accept
the terms in the license agreement and click Next.
12. On the Setup Type screen, select Typical and then click Next. This is the recommended
setting for a first-time installation.
13. On the Ready to Install the Program screen click Install.
14. After the software is installed on your computer, click Finish.
15. When prompted to restart the computer, click Yes.
16. To launch Intel PROSet, double-click the PROSet icon in the system tray or follow the
path Start > Programs > Intel Network Adapters > Intel(R) PROSet. For additional
information on the program, press F1 or click Help while the program is running.
Administration Tools Installation (Optional)
After restarting the computer, continue with the following steps to install the Intel(R) Wireless
Administration Tools Site Survey and AP Discovery (optional):
Some versions of this product do not support the Intel(R) PRO Network Connections menu
screen for installation of the Administration Tools. If the Intel(R) PRO Network Connections menu
screen does not appear, or if it does not have a menu item for Wireless LAN Adapters, you can
start the Administration Tools installer manually using Start > Run and browsing to the file
APAdmin.msi in the path APPS/PROSet/WN98SEME on the Intel CD supplied with the product.
Skip Steps 17 and 18 below and continue with Step 19.
17. On the Intel(R) PRO Network Connections screen, click Wireless LAN Adapters.
You can display this screen by removing and re-inserting the Intel CD, or by running
autorun.exe from the CD.
18. On the Intel PRO/Wireless LAN Adapters menu screen, click Install AP Admin Tools.
19. On the Welcome to the InstallShield Wizard for Intel(R) Wireless Administration
Tools screen, click Next.
20. On the License Agreement screen, after reading the license agreement, select I accept
the terms in the license agreement and click Next.
21. On the Setup Type screen, verify that Typical is selected, then click Next.
22. On the Ready to Install the Program screen click Install.
23. After the software is installed on your computer, click Finish.
24. To launch the Wireless Administration Tools, follow the path Start > Programs > Intel(R)
PRO Wireless > Access Point Administration Tools and select AP Discovery or Site
Survey. For additional information on either program, press F1 or click Help while the
program is running.
Back to Contents
Copyright© 2002 Intel Corporation.
Back to Contents
Installation under Windows 98SE
![](/img.php?id=319478&img=bg28.png)
Preliminary Notes
The installation instructions in this section are based on the following assumptions:
• The Intel(R) PRO/Wireless LAN Mini PCI Adapter hardware has already been installed in
the computer in accordance with the computer manufacturer's instructions.
• The computer has not been powered on since the hardware installation was completed.
• No other wireless LAN card is installed in the computer.
To install the driver before installing hardware, use Start > Run and browse to the file
SetupWLD.exe in the path PROW7100\WINSE-ME on the Intel CD. After running
SetupWLD.exe, shut down the computer and install the hardware. When the computer restarts,
the driver will be automatically installed.
Driver Installation
To install the software in Windows* 98SE, follow these steps:
1. Power up the computer in which the Intel(R) PRO/Wireless LAN Mini PCI Adapter
hardware has just been installed.

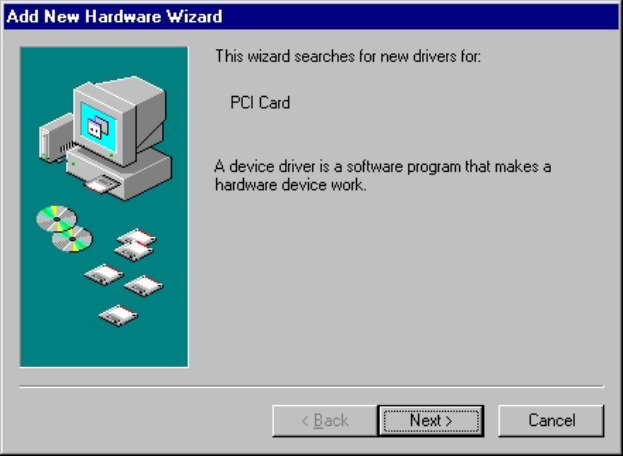

2. Wait for Windows to detect the newly installed hardware and display the Add New
Hardware Wizard dialog. Click Next. If Windows does not detect the new hardware, see
Troubleshooting.
3. Insert the Intel CD into your CD drive.
4. On the New Hardware Wizard screen, select Search for the best driver for you
device (Recommended), and click Next, then select CD drive and click Next.
5. On the Network Name screen, click Next to accept the default Network Name (SSID)
101, or enter a specific SSID for your network, then click Next.
6. On the Data Encryption screen, click Next to accept the default encryption setting
None, or enter specific encryption settings for your network, then click Next.
7. On the Add New Hardware Wizard screen, click Finish.
8. When prompted to restart the computer, click No. You will restart it manually later.
Proceed to the installation of PROSet.
Intel(R) PROSet Installation (Required)
To install the Intel PROSet utility, continue with the following steps:
Some versions of this product do not support the Intel(R) PRO Network Connections menu
screen for installation of utility software. If the Intel(R) PRO Network Connections menu screen
does not appear, or if it does not have a menu item for Wireless LAN Adapters, you can start the
PROSet installer manually using Start > Run and browsing to the file PROSet.msi in the path
APPS/PROSet/WN98SEME on the Intel CD supplied with the product. Skip Steps 9 and 10
below and continue with Step 11.
9. Display the Intel(R) PRO Network Connections screen by removing and re-inserting the
Intel CD, or by running autorun.exe from the CD. Click Wireless Adapters.
10. On the Intel PRO/Wireless LAN Adapters menu screen, click Install Software.
11. On the Welcome to the InstallShield Wizard for Intel(R) PROSet II screen, click Next.
12. On the License Agreement screen, after reading the license agreement, select I accept
the terms in the license agreement and click Next.
![](/img.php?id=319478&img=bg29.png)
13. On the Setup Type screen, select Typical and then click Next. This is the recommended
setting for a first-time installation.
14. On the Ready to Install the Program screen click Install.
15. After the software is installed on your computer, click Finish.
16. When prompted to restart the computer, click Yes.
17. To launch Intel PROSet, double-click the PROSet icon in the system tray or follow the
path Start > Programs > Intel Network Adapters > Intel(R) PROSet. For additional
information on the program, press F1 or click Help while the program is running.
Administration Tools Installation (Optional)
After restarting the computer, continue with the following steps to install the Intel(R) Wireless
Administration Tools Site Survey and AP Discovery (optional):
Some versions of this product do not support the Intel(R) PRO Network Connections menu
screen for installation of the Administration Tools. If the Intel(R) PRO Network Connections menu
screen does not appear, or if it does not have a menu item for Wireless LAN Adapters, you can
start the Administration Tools installer manually using Start > Run and browsing to the file
APAdmin.msi in the path APPS/PROSet/WN98SEME on the Intel CD supplied with the product.
Skip Steps 18 and 19 below and continue with Step 20.
18. On the Intel(R) PRO Network Connections screen, click Wireless LAN Adapters.
You can display this screen by removing and re-inserting the Intel CD, or by running
autorun.exe from the CD.
19. On the Intel PRO/Wireless LAN Adapters menu screen, click Install AP Admin Tools.
20. On the Welcome to the InstallShield Wizard for Intel(R) Wireless Administration
Tools screen, click Next.
21. On the License Agreement screen, after reading the license agreement, select I accept
the terms in the license agreement and click Next.
22. On the Setup Type screen, verify that Typical is selected, then click Next.
23. On the Ready to Install the Program screen click Install.
24. After the software is installed on your computer, click Finish.
25. To launch the Wireless Administration Tools, follow the path Start > Programs > Intel(R)
PRO Wireless > Access Point Administration Tools and select AP Discovery or Site
Survey. For additional information on either program, press F1 or click Help while the
program is running.
Back to Contents
Copyright© 2002 Intel Corporation.
Back to Contents Page
Using Wireless Profiles in PROSet
• Creating a New Profile
• Creating a VPN Profile
• Importing and Exporting Profiles
• Automatic Profile Distribution
• Editing an Existing Profile
![](/img.php?id=319478&img=bg2a.png)
• Deleting a Profile
• Connecting to a Network without a Profile
• Profile Connection Preferences
• Loading a Profile from the Task Tray
A profile is a saved group of network settings. Profiles are displayed in the Profile List in the
PROSet General page. Profiles can be arranged in order of network connection priority. You can
connect to one network using the first profile in the Profile List, then automatically connect to
another network using the next profile. This allows you to stay connected while roaming freely
from one wireless network to another. Although you can assign multiple profiles to a single
network, you can only use one profile per connection.
Profile general settings include, the network name (SSID), channel, security settings, and TCP/IP
settings. The Networks tab allows you to add, edit and delete profiles.
Creating a New Profile
To add a new profile, use the Profile Wizard sequence of dialogs to configure the profile contents.
The following example uses all of the Profile Wizard dialogs. Some settings may not be required
for all profiles.
To create a new profile and connect to a network:
1. Select the wireless adapter in the left-side pane.
2. From the General page, click the Networks tab.
3. Click the Add button. The General Settings dialog displays.
NOTE: If this is the first time you have created a profile, click the profile named Default in
the Profile List, click the Edit button and rename the default profile in the Profile Name
field on the General page.
Step 1 of 4: General Settings
4. Enter a profile name in the Profile Name field.
5. Enter the network SSID, in the Network Name (SSID) field.
6. Click the operating mode to use, Infrastructure or Ad hoc.
7. The Mandatory AP option is not required unless the adapter has to connect to a specific
access point or computer. Click the Mandatory AP button to force the adapter to connect
to a specific access point. Enter the Ethernet address for the access point or computer
(Ad-hoc). Click OK to save the setting and return to the General Settings page.
8. The Mandatory AP option is not required unless the adapter has to connect to a specific
access point or computer. Click the Mandatory AP button to force the adapter to connect
to a specific access point. Enter the Ethernet address for the access point or computer
(Ad-hoc). Click OK to save the setting and return to the General Settings page.Click the
Configure TCP/IP and VPN settings checkbox to access the TCP/IP and VPN settings.
If these settings are not required, leave the box unchecked, proceed to step 9.
9. Check the Enable Auto-Import check box to allow this profile to be imported. Refer to
Automatic Profile Distribution for more information.
10. Click Next.
Step 2 of 4: TCP/IP and VPN Client Settings
11. Use these options to configure TCP/IP and VPN settings for a VPN profile. Click Next
when finished.
Step 3 of 4: Security Settings
12. Select Open or Shared in the Network Authentication drop-down menu. Open, does not
use any authentication method. Shared uses the WEP key as the authentication method.
13. Click the Enable data encryption (WEP) checkbox to configure WEP encryption
settings.
14. Click the Password protect this profile checkbox to assign a password to the profile.
15. Click Next.
Step 4 of 4: Password Protection Settings
16. Click the Password protect this profile checkbox.
17. Enter a password in the Password field.
18. Reenter the same password in the Confirm New Password field.
19. Click the Back button to change or verify the settings or click Finish when you have
completed the profile settings and return to the Networks page.
20. Click the new profile name shown in the Profile List. Use the up and down arrows to
position the priority of the new profile in the priority list.
21. Click the Advanced button to set the network connection preferences.
22. Click the Connect button to connect to the network.
23. Click OK to close the PROSet dialog.
Creating a VPN Profile
To create a VPN profile:
1. Select the wireless adapter in the left-side pane.
2. From the General page, click the Networks tab.
3. Select the profile to add VPN settings to from the Profile List.
4. Click the Edit button and the General page appears.
5. Click the Network tab.
6. Click the Configure button for the TCP/IP Settings. Make sure that Obtain an IP
address automatically and Obtain DNS address automatically is selected.
7. Click the Close button to close the dialog.
8. Click the Configure button for the VPN Client Settings.
9. Click Enable VPN for this profile checkbox.
10. Select the VPN client software from the Available VPN Clients drop-down menu.
11. Select the VPN profile if your VPN client software displays the VPN tunnel name.
12. Click the Close button to close the dialog.
13. Click OK on any of the pages to save all the settings and return to the Networks page.
14. Click the VPN profile name shown in the Profile List. Use the up and down arrows to
position the priority of new profile in the priority list.
15. Click the Connect button to connect to the network. The VPN profile name displays a
connect icon. Note: There must be an IP address assigned before the VPN client
software can be launched. Click the Details button to verify that an IP address has been
assigned.
16. Follow the on-screen instructions and enter your credentials before connecting.
17. Click OK to close the PROSet dialog.
Importing and Exporting Profiles
Important: Only password protected profiles can be imported and exported. Refer to Setting a
Profile Password for more information.
To import profiles:
1. From the General page, click the Networks tab.
2. Click the Advanced button.
3. Click the Import/Export button.
4. Click the Import button.
5. Locate the profile to import on your hard disk or enter the profile name in the File name
field. The profile extension is .profile.
6. Click the Import to import the profile into the Profile List.
7. Click OK twice to return to the General page.
8. Click OK to close the PROSet dialog.
To export profiles:
1. From the General page, click the Networks tab.
2. Click the Advanced button.
3. Click the profiles to export from the export profile list.
4. Click the Browse button and select a directory to save the profiles in. Click OK to return
to the previous dialog.
5. Click the Export button to start exporting the profiles.
6. Click OK twice to return to the General dialog.
7. Click OK to close the PROSet dialog.
Automatic Profile Distribution
The Enable Auto-Import feature allow a network administrator to distribute a profile automatically
to computers connected to a network. The Enable Auto-Import box is located on the Profile
Wizard dialogs. When the checkbox is checked the profile must be copied to a specific directory
on the host computer, from there it can be distributed to multiple computers. Once the profile is
received by the remote computer it will automatically be available for use from the Scan profile
list. If an attempt is made to edit a distributed profile that is password protected, a password
prompt will appear.
Automatically importing WLAN profiles is accomplished by monitoring the import folder on your
hard disk for new profile files. Only profile that have the Enable Auto-Import checked on the
Profile Wizard dialog can be automatically imported. If a profile of the same name already exists
in the Profile List, a dialog is displayed from which you can either reject the import, or accept in
which case the existing profile will be replaced. All imported profiles will be placed at the bottom
of the Profile List, and the profile file will be immediately deleted after the import whether the
import was successful or not.
To distribute a profile to other computers on a network:
1. Select a profile to be edited from the Profile List in the Networks page, and click the Edit
button or click the Add button to create a new profile using the Profile Wizard.
2. Check the Enable Auto-Import checkbox on the General page.
3. Click OK (Edit a profile) or Finish (Add a profile) to save the setting.
4. Copy the profile to the Programs Files/Intel/PROSet/Import directory. The profile is now
ready to distribute to other computers.
Editing an Existing Profile
To edit an existing profile:
1. Select the wireless adapter in the left-side pane.
2. From the General page, click the Networks tab.
3. Click the Edit button. The General page displays.
4. Click on the General, Security, Network and Password tabs to make the necessary
changes for the network profile settings:
5. Click OK on any of the pages to save all the settings and return to the Networks page.
6. Click the new profile name shown in the Profile List. Use the up and down arrows to
position the priority of new profile in the priority list.
7. Click the Advanced button to set the network connection preferences.
8. Click the Connect button to connect to the network.
9. Click OK to close the PROSet dialog.
Deleting a Profile
To delete a profile:
1. Select the wireless adapter in the left-side pane.
2. From the General page, click the Networks tab.
3. Click the profile to be deleted from the Profile List.
4. Click the Delete button.
5. Click Yes to permanently delete the profile.
Connecting to a Network Without a Profile
To connect to an available network without a profile:
1. Select the wireless adapter in the left-side pane.
2. From the General page, click the Networks tab.
3. Click the Scan button.
4. Select the network profile name with <no profile> shown, and click the Connect button.
5. Click the No, connect me directly without creating a profile option. Note, you can click
Yes, create a profile for this network now to create a profile to be used later.
6. Click OK to connect.
Profile Connection Preferences
To access the profile connection preference option:
1. From the General page, click the Networks tab.
2. Click the Advanced button.
3. Under the Auto-connection heading, click the one of the following options:
• Connect to available networks using profiles only (Default setting): Use the profiles in the
Profile List to connect to any available network.
• Connect to any available network if no matching profile is found: Connect to any available
network without using a profile from the Profile List.
![](/img.php?id=319478&img=bg2e.png)
4. Click OK to save the setting and return to the previous dialog.
Loading a Profile from the Task Tray
To load a profile from the Task Tray:
1. Right-click PROSet icon in the task tray.
2. Select the Intel PRO/Wireless LAN 7100 3B Mini PCI Adapter.
3. Click Select Profile and select the profile to be launched.
Back to Contents Page
Copyright© 2002 Intel Corporation.
Back to Contents Page
Connecting to a Network using PROSet
• Connecting to a Network Automatically
• Scanning for Available Networks
• Connecting to a Network Using an Access Point
• Connecting to a Peer-to-Peer (Ad Hoc) Network
• Disconnecting from a Network
• Switching the Adapter Off and On
• Switching Between Wired and Wireless Adapters
Connecting to a Network Automatically
The Configuration Service feature operates in background to automatically display available
networks not listed in the Profile List. This method provides automatic connection in a 2.4
environment to available networks in the range of your wireless adapter. The Configuration
Service constantly monitors your wireless adapter's connection status. If no matching profiles are
found in the Profile List for a network, a dialog automatically displays the available network
access points and computers (ad hoc mode) within range of the wireless adapter. The
Configuration Service can also be used if there is more than one wireless adapter installed using
802.11b bands.
The Configuration Service features are as follows:
• The Configuration Service is launched when you log on to your computer.
• No active profile switching will be performed. Once the adapter is associated with the
access point, if a higher priority profile becomes available, no switching will occur.
• The Configuration Service is only be available if the PROSet is installed.
• If a connection to an access point cannot be made using any of the profiles in the Profile
List, a dialog will display the available networks.
• If there are multiple profiles listed for an available network, a dialog box will list the
profiles for you to choose from.
![](/img.php?id=319478&img=bg2f.png)
The Configuration Service can be used in two ways:
• To connect using preferred profiles only. In this mode the Configuration Service will
attempt to connect to a network access point using the Profile List only. If a matching
profile is not found, a dialog appears that lists available networks. From this dialog you
can connect to any available network. You can also close this dialog without connecting
by clicking the Cancel button. The adapter will remain unassociated, and the list of
available networks will NOT be displayed again unless a new available network is
detected.
• To connect to any available network (if no matching profile found). In this mode, the
Configuration Service attempts to connect to a network access point using the Profile
List. If no matching profile is found, the Configuration Service attempts to automatically
connect to any available network. This mode is set in the Advanced Setting.
Enabling Automatic Connection
The Configuration Service also monitors for the "resume status" after a laptop computer suspend
event. When this occurs, the Configuration Service will re-enable the automatic connection
service.
These features can be enabled again after rebooting your computer or after a suspend and
resume cycle.
Disabling Automatic Connection
The Configuration Service watches for another profile management service, such as Windows*
XP Zero Config and AAA clients, to be detected. When another service is found, the
Configuration Service stops processing connection information and a dialog box gives you the
option of disabling the Configuration Service or continuing your wireless connection without
interruption.
To re-enable the Configuration Service:
1. Reboot your computer.
2. Resume after a computer suspend.
3. Use the Advanced Settings options to manually re-enable the Configuration Service.
NOTE: The Configuration Service displays a list of available networks within the range of
your wireless adapter when no matching profiles are found in the Profile List and the
Connect button is not used to connect to a network.
When the Configuration Service is disabled, the current connection will continue with the following
PROSet features disabled:
• The Connect button on the Profile page is disabled.
• The Scan button can be used to scan for available networks, but the Connect button is
disabled when used to connect to a network.
• Ad hoc mode is disabled and the Connect button in the Ad Hoc Connect dialog box is
disabled.
• From the Task Tray menu, launching an ad hoc profile and applying a profile is disabled.
![](/img.php?id=319478&img=bg30.png)
• The buttons described above will not be disabled if you click the message: Another
wireless LAN utility is communicating with the Intel PRO/Wireless LAN Adapter. To avoid
conflicts, PROSet has temporarily disabled its Profile Management features.
Scanning for Available Networks
A fast way to connect to a network is to use the Scan button to search for a network access point
in range of your wireless adapter. When a network is found, you can instantly connect without a
profile or create a new profile.
NOTE: Profiles with the Enable Auto-Import feature enabled will also be displayed in the
profile list of available networks. Refer to Automatic Profile Distribution for more
information.
To scan for available networks:
1. From the General page, select the wireless adapter on the left side pane.
2. Select the Networks tab.
3. Click the Scan button.
4. The Available Networks dialog displays the names of the available networks.
5. Select the network from the list, and click the Connect button. Click the Refresh button
to refresh the list of available networks.
6. To connect without creating a profile, click No, connect me directly without creating a
profile.
Click Yes, create a profile for this network now to create a new profile using the Profile
Wizard.
7. Click OK to connect to a network.
Connecting to a Network Using an Access Point
An infrastructure network consists of one or more access points and one or more computers with
wireless adapters installed. Each access point must have a wired connection to the Local Area
Network (LAN).
The following describes how to create a new profile using the Profile Wizard and
connect to an access point using the Connect button. You can also connect to a network,
by using the Scan button.
1. From the General page, select the wireless adapter on the left side pane.
2. Click the Networks tab.
3. Click the Add button.
4. Enter the profile name in the text box.
5. Enter a network name (SSID) in the text box.
6. Select Infrastructure for the operating mode.
7. The Mandatory AP option is not required unless the adapter has to connect to a specific
access point or computer. Click the Mandatory AP button to force the adapter to connect
to a specific access point. Enter the Ethernet address for the access point or computer
(Ad-hoc). Click OK to save the setting and return to the General Settings page.
![](/img.php?id=319478&img=bg31.png)
8. Click the Configure TCP/IP and VPN settings check box and click the Next button to
access the TCP/IP and VPN settings. If these settings are not required, leave the box
unchecked and proceed to step 11.
9. Click the Next button to select the WEP security settings.
10. Click the Password protect this profile checkbox and click Next button to access the
Password Protection settings. Click Finish after the password information has been
entered. If this option is not required, leave the box unchecked and proceed to step 11.
11. Click OK to save the profile settings and return to the Networks page.
12. Under Transmit channel, Channel 7 is the default transmit channel. Unless the other
computers in the ad hoc network use a different channel, there is no need to change the
default channel. To change the channel, click the Adapter tab and click the Configure
button under Adapter Settings. Select a channel from the 802.11b Channel List pull-
down menu. Click OK to save the setting.
13. Click OK to save the settings and return to the Networks page.
14. After creating the new profile, click the profile in the Profile List. Profiles using
infrastructure mode are indicated by a computer icon next to the profile name.
15. Click the Connect button to connect to the ad hoc network.
Connecting to a Peer-to-Peer (Ad Hoc) Network
In peer-to-peer (ad hoc) mode, you can send and receive information to other computers without
using an access point. Each computer in a peer-to-peer network is called a peer.
To create or join an ad hoc network, enter a personal password. Network related settings (SSID),
operating mode, WEP 128-bit encryption, and IP addresses are automatically created. Once a
network connection is established, after permission rights are given by other computers in the ad
hoc network, you can freely share files. All wireless clients in the ad hoc network must use the
same network name (SSID) and channel number. For a list of allowed 802.11b ad hoc channels,
refer to the Adapter Settings for more information.
NOTE: While scanning with an ad hoc profile set to a specific transmit channel, if an ad
hoc network is found on another channel, you will be connected using the new channel.
The new channel number is displayed in the Adapter Settings.
There are two ways to connect to an ad hoc network:
• Connect using an ad hoc profile. Refer to Creating a New Profile for details.
Select an ad hoc profile from the Profile List and click the Connect button. This method
uses a pre-defined ad hoc profile created by the Profile Wizard. The ad hoc profile is
displayed in the Profile List.
• One-time ad hoc session. Refer to Starting an Ad Hoc (peer-to-peer) Connection below
for details.
This method does not use a pre-defined profile. To connect to any ad hoc network, use
the Scan button to scan for any ad hoc networks, enter the password (SSID), then click
the Connect button to connect. To end the session, click the Close button to end the
session.
Ending an Ad Hoc Session
To end an ad hoc session, click the Close button. After the session is ended, an attempt is made
to re-connect to the last profile used from the Profile List.
Creating an Ad Hoc Profile Using the Profile Wizard
The following describes how to create a new ad hoc profile using the Profile Wizard
and connect to an ad hoc network. You can also connect to a network, by using the Scan button.
1. From the General page, select the wireless adapter on the left side pane.
2. Click the Networks tab.
3. Click the Add button.
4. Enter the profile name in the text box.
5. Enter a network name (SSID) in the text box.
6. Select Ad Hoc for the operating mode.
7. The Mandatory AP option is not required unless the adapter has to connect to a specific
access point or computer. Click the Mandatory AP button to force the adapter to connect
to a specific access point. Enter the Ethernet address for the access point or computer
(Ad-hoc). Click OK to save the setting and return to the General Settings page.
8. Click the Configure TCP/IP and VPN settings check box and click the Next button to
access the TCP/IP and VPN settings. If these settings are not required, leave the box
unchecked and proceed to step 11.
9. Click the Next button to select the WEP security settings.
10. Click the Password protect this profile checkbox and click Next button to access the
Password Protection settings. Click Finish after the password information has been
entered. If this option is not required, leave the box unchecked and proceed to step 11.
11. Click OK to save the profile settings and return to the Networks page.
12. Under Transmit channel, Channel 7 is the default transmit channel. Unless the other
computers in the ad hoc network use a different channel, there is no need to change the
default channel. To change the channel, click the Adapter tab and click the Configure
button under Adapter Settings. Select a channel from the 802.11b Channel List pull-
down menu. Click OK to save the setting.
13. Click OK to save the settings and return to the Networks page.
14. After creating the new profile, click the profile in the Profile List. Profiles using
infrastructure mode are indicated by a computer icon next to the profile name.
15. Click the Connect button to connect to the ad hoc network.
Starting an Ad Hoc (peer-to-peer) Connection
To communicate properly, all computers/peers on an ad hoc network must have Intel wireless
adapters installed. To connect to an ad hoc network for a one-time session:
1. From the General page, select the wireless adapter on the left side pane.
2. Click the Networks tab.
3. Click the Start button.
4. Enter the password (SSID) in the text box.
5. Under Transmit channel, Channel 7 is the default transmit channel. Unless the other
computers in the ad hoc network use a different channel, there is no need to change the
default channel. To change the channel, click the Advanced button. Select a channel
from the pull-down channel menu under Adapter Configuration. Click OK to save the
setting and return to the Ad Hoc dialog.
6. Under IP Address, the IP address is automatically assigned for your laptop wireless
adapter. However, this DHCP assigned IP address can be changed. To change the IP
address, click the Advanced button. Select Manual under Network Configuration, and
enter the IP address and subnet mask for your laptop wireless adapter. Click OK to save
the setting and return to the Ad Hoc dialog.
7. Select the peer name from the displayed list of computers in the ad hoc network.
8. Click the Connect button to connect to the ad hoc network.
9. Under Send Files, files can be sent to another computer in the ad hoc network. To send
a file, click the Send File button. Locate the file you want to sent, and click Send.
10. Click the Close button to end the ad hoc session.
Disconnecting from a Network
To disconnect from a network, turn the radio to OFF from the General page in PROSet.
Switching the Adapter Off and On
When your laptop is switched on, the adapter radio is constantly transmitting signals. In certain
situations, such as in a plane, signals from the radio may cause interference. This software
function allows you to use your laptop with the radio switched off.
To switch off the adapter radio from the General page (next to Wireless Device) click the Off
button for the following results:
• The wireless adapter is not associated with the network.
• PROSet can be used to edit or add profile contents.
To switch on the adapter radio on from the General page (next to Wireless Device), click the On
button for the following results:
• With PROSet active, the wireless adapter will try to associate with the network access
point using the last profile. If the adapter cannot connect to the access point, the
Configuration Service will attempt to find an available network. Refer to Configuration
Service above for more information.
![](/img.php?id=319478&img=bg34.png)
82
English
![](/img.php?id=319478&img=bg35.png)
Appendix D
Bluetooth Modem Guide
1
Section One: Introduction
The Bluetooth/Modem Combo Module is a cost-effective wireless access. The
Bluetooth circuit of this module is compliant to Bluetooth 1.1 standard. With V.92
technology, the modem part can achieve internet connection rates up to 56 kbits/s with
backward compatibility. The V.92 Feature include PCM Upstream, Modem On Hold,
Quick Connection and V.44 Data compression. The Audio CODEC will be placed on the
notebook and contact with Modem Codec by AC-Link Interface. The combo card complies
with MDC Domestic form factor.
1.1 Features
1.1.1 Bluetooth Function
o Bluetooth radio firmware is upgradeable for bug fixes, initial version compatible
with Bluetooth specification version 1.1.
o Fully compliant to Bluetooth SIG (BQB) compatibility testing.
o USB Pin assignment is to use MDC reserve pin to communicate with
Host.interface
o Bluetooth Profile Support
- General Access Profile
- Service Discovery Application Profile
- Serial Port Profile
- Dial-up Networking Profile
- LAN Access Profile
- Generic Object Exchange Profile
- File Transfer Profile
- Object Push Profile
- Synchronization Profile
o Drivers support Windows 98, 98SE, ME, 2000, XP.
o Supports Power Management ACPI 1.94 (or later)
o Bluetooth performance must exceed 500 kbps, using OBEX.
1.1.2 Modem Function
o AC’97/MC’97 2.2 compliant
o Support Modem Digital Line Guard: The product shall incorporate circuitry to
sense whenever the current on the line exceeds approximately 130mA, and should
immediately go back on hook.
2
o The call progress signal shall be scaled digitally according to the speaker level
setting (ATL1, L2, L3)
o ITU-T V.92 PCM Upstream and V.90 data rates with auto-fallback to V.34,
V.32terbo, V.32bis and fallbacks
o TIA/EIA 602 standard for AT Command set
o Supports V.42 error correction and V.44, V.42bis/MNP5 data compression
o FAX capabilities: ITU-T V.17, V.29, V.27ter, V.21 Ch2 and TIA/EIA 578 Class1
FAX
o Support Wake up on Ring and meet WHQL test requirement..
1.2 Hardware Requirements
Supply Voltage 3.3V & 1.8V
Frequency Range 2.400-2.4835 GHz
Antenna Load 50 Ohm
Receive Sensitivity –80 dBm@0.1% BER
Maximum Receiver Signal -20 dBm
TX Power 4 dBm maximum (class 2)
RF Power Control Step Size 2 dB
Range 10 meters at 0 dBm TX power (class 2)
Radio Compliant with Bluetooth standard version 1.1
Pico Net 1 master to 7 slaves
Operating Channels 79 channels of 1 MHz BW
Security Full support of Bluetooth security provisions
including hardware support for full length 128
bit encryption keys.
Host Interface (USB) USB specification 1.1 compliant and using
MDC reserve pin to communicate with Host
Software Requirements Windows 98SE, ME, 2000, XP.
Mechanical Requirements 27mm x 45mm x 4.7mm(1.2/0.8/2.7mm)
![](/img.php?id=319478&img=bg38.png)
3
Section Two: Bluetooth Installation
The following steps provide instructions for installing Bluetooth.
1. Make sure your MDC BT/Modem Combo card already insert into your notebook.
2. Make sure your notebook operating system support Windows 98SE or ME or 2000 or
XP.
2.1 Bluetooth Installation
Proceed to the following section.
1. Execute the program ‘Setup.exe’ in the CD. Windows displays the dialog as below. Click
‘Next’ to begin the process.
![](/img.php?id=319478&img=bg39.png)
4
2.The “License Agreement” windows will pop up, please read it carefully. If you agree it, and
choose ‘I agree the terms in the license agreement’ and click on ‘Next’.
3. “Destination Folder” appears, specify the location of the driver and software to be installed
then press ‘Next’ bottom.
![](/img.php?id=319478&img=bg3a.png)
5
4. When all the above process are done, it will show ‘Ready to Install the Program”
window. Make sure the driver software is ready to be installed, click ‘Install’.
5.Choose ‘Install the software automatically [Recommened]’, then Click ‘Next’ to continue.
![](/img.php?id=319478&img=bg3b.png)
6
6. Congratulations! Bluetooth has been installed successfully.
Please click ‘Finish’ to confirm the completion of installation.
7. Then click ‘Finish’ to exit the InstallShield Wizard.
![](/img.php?id=319478&img=bg3c.png)
7
Section Three: Modem Installation
The following steps provide instructions for installing your 56K Internal modem.
1. Check the BT/modem Module already inserted into the slot.
2. Insert the connector of RJ-11 cable into the female connector of modem. The connector is
keyed and will no allow incorrect insertion. Plug the other end of the RJ-11 cable into an
available phone jack.
3.1 Driver Installation
Your modem is using the Plug and Play (PnP) capabilities of you computer. PnP is a set of
specifications that define the ability for the computer hardware and operating system to
automatically configure all compliant devices that are installed, relieving the user of the need
to determine which addresses and interrupts to user for each device.
Proceed to the following section.
1. Start Windows 98, an “PCI Card” dialog with drive selected will appear. Click “Next”
2. Search for the best driver for Modem card and click Next to continue.
![](/img.php?id=319478&img=bg3d.png)
8
3 Please release your driver to “c:\driver” or any specific location you want.
![](/img.php?id=319478&img=bg3e.png)
9
4. After Windows finishes loading, select My Computer\Control
Panel\System\Device Manager. If you can see the modem device on this Device
Manager, then you already complete the Modem Driver installation.
10
3.2 AT Commands
Basic AT Commands
A summary of the commands implemented by the modem are shown in Table1. Commands
may be executed when the modem is in COMMAND mode. COMMAND mode is entered upon
one of the following conditions:
After power up.
At the termination of a connection.
After the execution of a command other than dial or answer commands (ATO or AT&T).
Upon the receipt of the ESCAPE SEQUENCE (three consecutive characters matching the
contents of S register 2) while online mode.
Upon the on-to-off transition of DTR if D1, &D2, or &D3 has been set.
AT Commands
Basic AT Commands
Command Function Command Function
A/ Re-execute command A Go off-hook and attempt to answer a call
B0 Select V.22 connect @1200 bps B1 Select Bell 212A connect @1200 bps
C1 Return OK message Dn Dial modifier
E0 Turn off command echo E1 Turn on command echo
H0 Initiate a hang-up sequence H1 If on-hook, go off-hook and enter
I0 Report product code command mode
I1 Report pre-computed checksum I2 Report “OK” if the calculated checksum
I3 Report firmware revision, model, equals the prestored checksum or if the
and interface type prestored checksum value is FFh
I4 Report response programmed by OEM I5 Report the country code parameter
I6 Report modem data pump model I7 Report the DAA code
and code revision L0 Set low speaker volume
L1 Set low speaker volume L2 Set medium speaker volume
L3 Set high speaker volume M0 Turn speaker off
M1 Turn speaker on during handshaking M2 Turn speaker on during handshaking and
and turn speaker off while receiving while receiving carrier
carrier M3 Turn speaker off during dialing and
N0 Turn off auto mode detection receiving carrier and turn speaker on
N1 Turn on auto mode detection during answering
P Force pulse dialing Q0 Allow result codes to DTE
Q1 Inhibit result codes to DTE Sn Select S-Register n as default
Sn? Return the value of S-Register n Sn=v Set default S-Register n to value v
T Force DTMF dialing
V0 Report short form result codes V1 Report long form result codes
W0 Report DTE speed only W1 Report line speed, EC protocol and DTE
W2 Report DCE speed only speed
X0 Report basic call progress result codes, X1 Report basic call progress result codes
i.e., Ok, Connect, Ring, No Carrier and connections speeds (Ok, Connect,
(also, for busy, if enabled, and dial tone Ring, No Carrier (also, for busy, if
not detected), No Answer and Error enabled, and dial tone not detected), No
X2 Report basic call progress result codes Answer, Connect XXXX, and Error
and connections speeds, i.e., Ok, X3 Report basic call progress result codes
Connect, Ring, No Carrier (also, for and connections rate, i.e., Ok, Connect,
busy, if enabled, and dial tone not Ring, No Carrier, No Answer, Connect
detected), No Answer, Connect XXXX, XXXX, Busy, and Error
and Error Y0 Disable long space disconnect before on-
X4 Report all call progress result codes hook
and connections rate, i.e., Ok, Connect,
Ring, No Carrier, No Answer, Connect
XXXX, Busy, No Dial Tone and Error Z0 Restore stored profile 0 after warm reset
Z1 Soft reset and restore stored profile 1 &C0 Soft reset and force RLSD active
11
after warm reset regardless of the carrier state
&C1 Allow RLSD to follow the carrier state
&D0 Interpret DTR On-to-OFF transition &D1 Interpret DTR On-to-OFF transition
per &Qn per &Qn
&Q0, &Q5, &Q6 The modem ignores DTR &Q0, &Q1, &Q4, &Q5, &Q6 Asynchronous escape
&Q1, &Q4 The modem hangs up &Q2, &Q3 The modem hangs up
&Q2, &Q3 The modem hangs up
&D2 Interpret DTR On-to-OFF transition &D1 Interpret DTR On-to-OFF transition
per &Qn per &Qn
&Q0 through &Q6 The modem hangs up &Q0, &Q1, &Q4, &Q5, &Q6 Soft reset
&Q2, &Q3 The modem hangs up
&F0 Restore factory configuration 0
&G0 Disable guard tone &G1 Disable guard tone
&G2 Enable 1800 Hz guard tone &J0 Set S-Register response only for com-
patibility
&K0 Disable DTE/DCE flow control
&K3 Enable RTS/CTS DTE/DCE flow &K4 Enable XON/XOFF DTE/DCE flow
control control
&K6 Enable both RTS/CTS and XON/XOFF&M0 Select direct asynchronous mode
flow control
&P0 Set 10 pps pulse dial with 39%/61%
make/break
&P1 Set 10 pps pulse dial with 33%/67% &P2 Set 20 pps pulse dial with 39%/61%
make/break make/break
&Q0 Select direct asynchronous mode
&Q5 Modem negotiates an error corrected &Q6 Select asynchronous operation in normal
link mode
&R0 CTS tracks RTS (sync) or CTS is &R1 CTS is always active (sync) or CTS is
normally ON and will turn OFF normally ON and will turn OFF
only if required by flow control (async) only if required by flow control (async)
&S0 DSR is always active &S1 DSR will become active after answer
&T0 Terminate any test in progress tone has been detected and inactive after
&T1 Initiate local analog loop back the carrier has been lost
&T2 Returns ERROR result code &T3 Initiate local digital loop back
&V Display current configuration and &W0 Store the current configuration as
stored profiles profile 0
&Y0 Recall stored profile 0 upon power up
&Zn=x Store dial string x (up to 34 digits) %E0 Disable line quality monitor and auto
to location n (0 to 3) retrain
%E1 Enable line quality monitor and auto %E2 Enable line quality monitor and fallback/
retrain fall forward
When modem receives a break from the DTE:
\K0,2,4 Enter on-line command mode, no \K1 Clear buffers and send break to remote
break sent to the remote modem modem
\K3 Send break to remote modem \K5 Send break to remote modem in sequence
immediately with transmitted data
When modem receives \B in on-line command state:
\K0,1 Clear buffers and send break to remote \K2,3 Send break to remote modem immediately
modem
\K4,5 Send break to remote modem in sequence with transmitted data
When modem receives break from the remote modem:
\K0,1 Clear data buffers and send break to \K2,3 Send a break immediately to DTE
DTE \K4,5 Send a break with received data to the
DTE
\N0 Select normal speed buffered mode \N1 Select direct mode
\N2 Select reliable link mode \N3 Select auto reliable mode
12
\N4 Force LAPM mode \N5 Force MNP mode
\V0 Connect messages are controlled \V1 Connect messages are displayed in the
by the command settings X, W, and S95 single line format
+MS Select modulation +H0 Disable Rockwell Protocol Interface (RPI)
+H1 Enable RPI and set DTE speed to /Video ready mode
19200 bps +H2 Enable RPI and set DTE speed to 38400 bps
+H3 Enable RPI and set DTE speed to +H11 Enable RPI+ mode
57600 bps +H16 Enable Video Ready mode
**0 Download to flash memory at last **1 Download to flash memory at 38.4 kbps
sensed speed **2 Download to flash memory at 57.6 kbps
-SDR=0 Disable distinctive ring -SDR=1 Enable distinctive ring type 1
-SDR=2 Enable distinctive ring type 2 -SDR=3 Enable distinctive ring type 1 and 2
-SDR=4 Enable distinctive ring type 3 -SDR=5 Enable distinctive ring type 1 and 3
-SDR=6 Enable distinctive ring type 2 and 3 -SDR=7 Enable distinctive ring type 1, 2 and 3
ECC Commands
%C0 Disable data compression %C1 Enable MNP 5 data compression
\A0 Set maximum block size in MNP to 64 \A1 Set maximum block size in MNP to 128
\A2 Set maximum block size in MNP to 192 \A3 Set maximum block size in MNP to 256
\Bn Send break of n x 100 ms
MNP 10 Commands
-K0 Disable MNP 10 extended services -K1 Enable MNP 10 extended services
-K2 Disable MNP 10 extended services -SEC=0 Disable MNP 10-EC
detection only
-SEC=1, [<tx level>] Enable MNP 10-EC and set transmit level<tx level> 0 to 30 (0 dBm to -30 dBm)
FAX Class 1
+Fclass=1 Service class +FAE=0 Disable data/fax auto answer
+FAE=1 Enable data/fax auto answer +FRH=n Receive data with HDLC framing
+FRM=n Receive data +FRS=n Receive silence, nx10 ms
+FTH=n Transmit data with HDLC framing +FTM=n Transmit data
+FTS=n Stop transmission and wait, nx10 ms
V.92 Command set
1.AT%TT61 V.92 generate V.92 PCM upstream signal for PTT testing.
2.AT+PQC=255 to clear all stored fast connect profiles.
![](/img.php?id=319478&img=bg42.png)
13
14
S-Registers
Register Function Range/units Default
S0 Rings to auto-answer 0-255/rings 0
S1 Ring counter 0-255/rings 0
S2 Escape character 0-255/ASCII 43
S3 Carriage return character 0-127/ASCII 13
S4 Line feed character 0-127/ASCII 10
S5 Backspace character 0-255/ASCII 8
S6 Wait time for dial tone 2-255/s 2
S7 Wait time for carrier 1-255/s 50
S8 Pause time for dial delay modifier 0-255/s 2
S9 Carrier detect response time 1-255/.1 s 0
S10 Carrier loss disconnect time 1-255/.1 s 20
S11 DTMF tone duration 50-255/.001 s 95
S12 Escape prompt delay 0-255/.02 s 50
S14 General bit mapped options status 8 (8h)
S16 Test mode bit mapped options status (&T) 7
S18 Test timer 0-255/s 0
S19 Auto Sync options 0
S20 Auto Sync HDLC address or BSC 0-255 0
Sync character
S21 V.24/general bit mapped options status 48 (30h)
S22 Speaker/results bit mapped options status 112 (70h)
S23 General bit mapped options status 0
S24 Sleep inactivity timer 0-255/s 10
S25 Delay to DTR off 0-255/s or .01s 0
S26 RTS-to-CTS delay 0-255/.01 s 0
S27 General bit mapped options status 0
S28 General bit mapped options status 0
S29 Flash dial modifier time 0-255/10 ms 0
S30 Disconnect inactivity timer 0-255/10 s 0
S31 General bit mapped options status 0
S32 XON character 0-255/ASCII 10 (Ah)
S33 XOFF character 0-255/ASCII 0
S36 LAPM failure control 7
S37 Line connection speed 0
S38 Delay before forced hang-up 0-255/s 0
S39 Flow control bit mapped options status 0
S40 General bit mapped options status 0
S41 General bit mapped options status 0
S46 Data compression control 0
S48 V.42 negotiation control 7
S82 LAPM break control 0
S86 Call failure reason code 0-255 0
S91 PSTN transmit attenuation level 0-15/dBm 10 (country dependent)
S92 Fax transmit attenuation level 0-15/dBm 10 (country dependent)
S95 Result code messages control 150
15
Result Code Summary
OK 0 CONNECT 1
RING 2 NO CARRIER 3
ERROR 4 CONNECT 1200 5
NO DIAL TONE 6 BUSY 7
NO ANSWER 8 CONNECT 0600 9
CONNECT 2400 10 CONNECT 4800 11
CONNECT 9600 12 CONNECT 7200 13
CONNECT 12000 14 CONNECT 14400 15
CONNECT 19200 16 CONNECT 38400 17
CONNECT 57600 18 CONNECT 115200 19
CONNECT 230400 20 CONNECT 75TX/1200RX 22
CONNECT 1200TX/75RX 23 DELAYED 24
BLACKLISTED 32 FAX 33
DATA 35 CARRIER 300 40
CARRIER 1200/75 44 CARRIER 75/1200 45
CARRIER 1200 46 CARRIER 2400 47
CARRIER 4800 48 CARRIER 7200 49
CARRIER 9600 50 CARRIER 12000 51
CARRIER 14400 52 CARRIER 16800 53
CARRIER 19200 54 CARRIER 21600 55
CARRIER 24000 56 CARRIER 26400 57
CARRIER 28800 58 CONNECT 16800 59
CONNECT 21600 61 CONNECT 24000 62
CONNECT 26400 63 CONNECT 28800 64
COMPRESSION: CLASS 5 66 COMPRESSION: V.42 bis 67
COMPRESSION: NONE 69 PROTOCOL: NONE 70
PROTOCOL: LAPM 77 CARRIER 31200 78
CARRIER 33600 79 CONNECT 33600 84
CONNECT 31200 91 CARRIER 32000 150
CARRIER 34000 151 CARRIER 36000 152
CARRIER 38000 153 CARRIER 40000 154
CARRIER 42000 155 CARRIER 44000 156
CARRIER 46000 157 CARRIER 48000 158
CARRIER 50000 159 CARRIER 52000 160
CARRIER 54000 161 CARRIER 56000 162
CONNECT 32000 165 CONNECT 34000 166
CONNECT 36000 167 CONNECT 38000 168
CONNECT 40000 169 CONNECT 42000 170
CONNECT 44000 171 CONNECT 46000 172
CONNECT 48000 173 CONNECT 50000 174
CONNECT 52000 175 CONNECT 54000 176
CONNECT 56000 177 +FCERROR +F4
![](/img.php?id=319478&img=bg45.png)
16
Section Four: FCC Notice
4.1 FCC Compliance
This Equipment complies with Part 68 of the FCC Rules. On this equipment is a label that contains,
among other information, the FCC registration number and Ringer Equivalence Number (REN) for this
equipment. You must, upon request, provide this information to your telephone company.
If your telephone equipment causes harm to the telephone network, the Telephone Company may
discontinue your service temporarily. If posible, they will be notify in advience. But if advance notice
isn’t practical, you will notified as soon as possible. You will be informed of your right to file a
complaint with the FCC.
Your telephone company may make changes in its facilities, equipment, operations or procedures that
could affect proper operation of your equipment. If they do, you will be notified in advance to give you
an opportunity you maintain uninterrupted telephone service.
The FCC prohibits this equipment’s should fail to operate properly, disconnect the equipment from the
phone line to determine if it is causing the problem. If the problem is with the equipment, discontinue
use and contact your dealer or vendor.
4.2 FCC Class B Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy, and if not installed and used in accordance with the instructions, may cause harmful
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on , the user
is encouraged to try to correct the interference by one or more of the following measures:
z Reorient or relocate the receiving antenna
z increase the separation between the equipment and the receiver
z Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
z Consult the dealer or an experienced radio/TV technician for help
Notice: (1)Shielded cables, if any, must be used in order to comply with the emission limits. (2) Any
change or modification not expressly approved by the grantee of the equipment authorized could void
the user authority to operate the equipment.
Caution: Please make sure you already disconnect the phone cable before you want to touch or
remove modem module.
4.3 Exposure to Radio Frequency Radiation
The radiated output power of the this internal wireless radio is far below the FCC radio frequency
exposure limits.
The internal wireless radio operates within guidelines found in radio frequency safety standards and
recommendations, which reflect the consensus of the scientific community. The level of energy emitted
is far less than the electromagnetic energy emitted by wireless devices such as mobile phones. However,
the use of wireless radios may be restricted in some situations or environments, such as aboard
airplanes. If you are unsure of restrictions, you are encouraged to ask for authorization before turning on
the wireless radio.
![](/img.php?id=319478&img=bg46.png)
17
![](/img.php?id=319478&img=bg47.png)
18
![](/img.php?id=319478&img=bg48.png)
19
