Quantum5x Systems QT256 Wireless Microphone, Model QT-256 User Manual USERMANUAL1

Quantum5x Systems Inc. Wireless Microphone, Model QT-256 USERMANUAL1

Manual

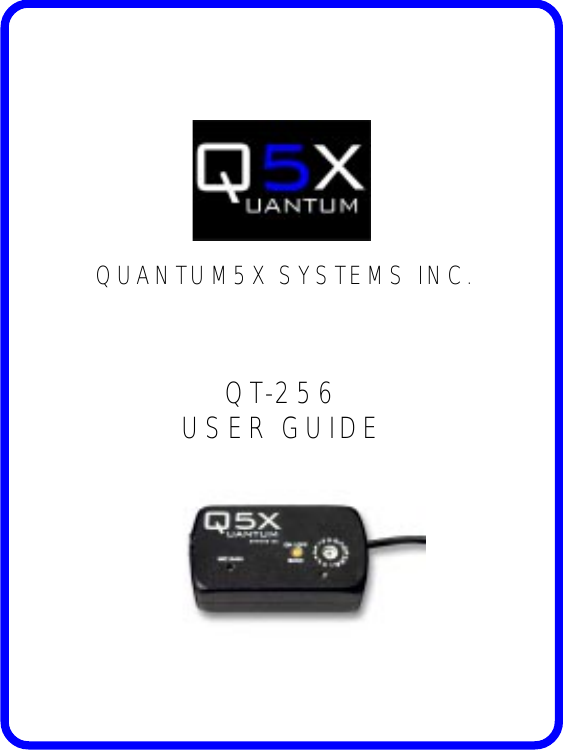

QUANTUM5X SYSTEMS INC.QT-256USER GUIDE

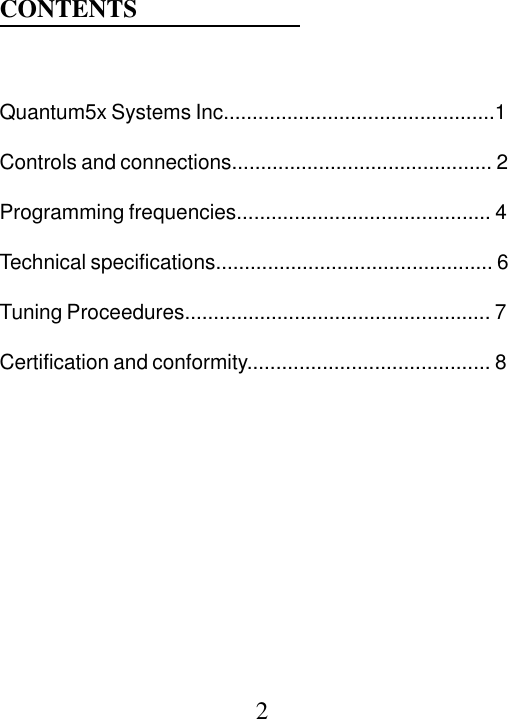

Quantum5x Systems Inc...............................................1Controls and connections............................................. 2Programming frequencies............................................ 4Technical specifications................................................ 6Tuning Proceedures..................................................... 7Certification and conformity.......................................... 8CONTENTS2

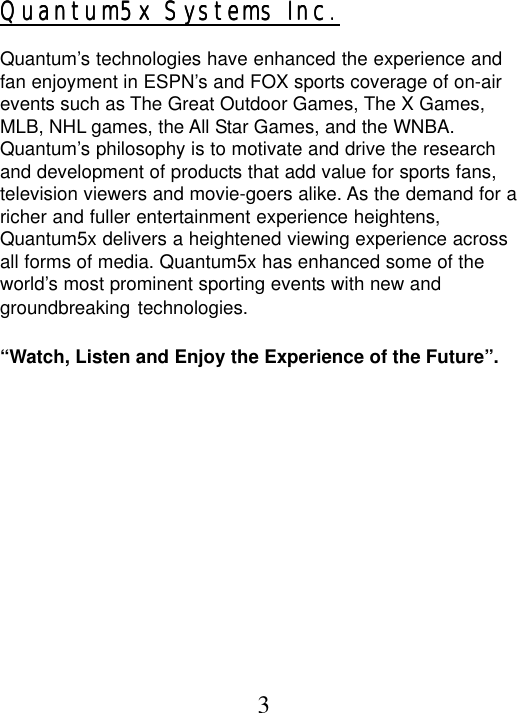

Quantum5x Systems Inc.Quantum5x Systems Inc.Quantum5x Systems Inc.Quantum5x Systems Inc.Quantum5x Systems Inc.Quantum’s technologies have enhanced the experience andfan enjoyment in ESPN’s and FOX sports coverage of on-airevents such as The Great Outdoor Games, The X Games,MLB, NHL games, the All Star Games, and the WNBA.Quantum’s philosophy is to motivate and drive the researchand development of products that add value for sports fans,television viewers and movie-goers alike. As the demand for aricher and fuller entertainment experience heightens,Quantum5x delivers a heightened viewing experience acrossall forms of media. Quantum5x has enhanced some of theworld’s most prominent sporting events with new andgroundbreaking technologies.“Watch, Listen and Enjoy the Experience of the Future”.3

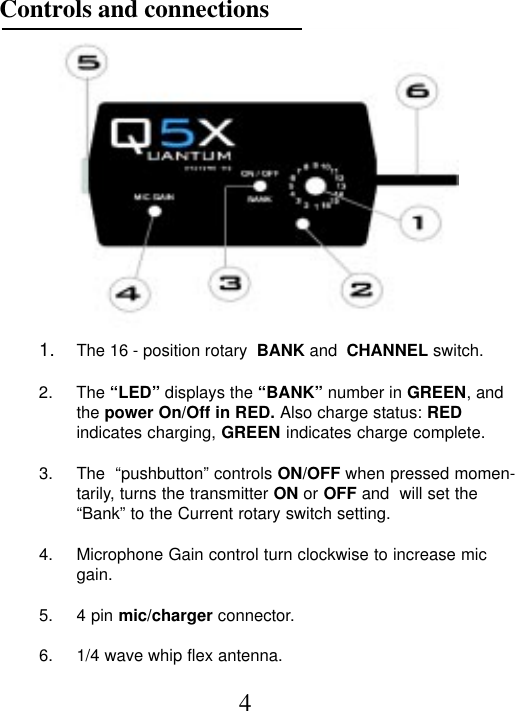

4Controls and connections1. The 16 - position rotary BANK and CHANNEL switch.2. The “LED” displays the “BANK” number in GREEN, andthe power On/Off in RED. Also charge status: REDindicates charging, GREEN indicates charge complete.3. The “pushbutton” controls ON/OFF when pressed momen-tarily, turns the transmitter ON or OFF and will set the“Bank” to the Current rotary switch setting.4. Microphone Gain control turn clockwise to increase micgain.5. 4 pin mic/charger connector.6. 1/4 wave whip flex antenna.

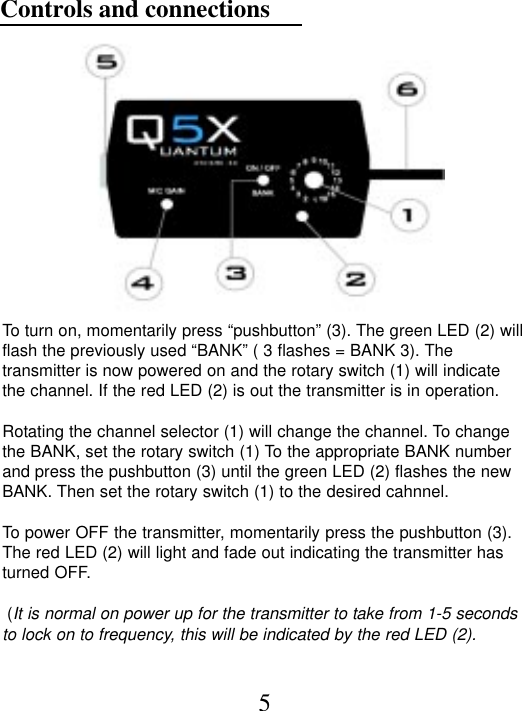

5Controls and connectionsTo turn on, momentarily press “pushbutton” (3). The green LED (2) willflash the previously used “BANK” ( 3 flashes = BANK 3). Thetransmitter is now powered on and the rotary switch (1) will indicatethe channel. If the red LED (2) is out the transmitter is in operation.Rotating the channel selector (1) will change the channel. To changethe BANK, set the rotary switch (1) To the appropriate BANK numberand press the pushbutton (3) until the green LED (2) flashes the newBANK. Then set the rotary switch (1) to the desired cahnnel.To power OFF the transmitter, momentarily press the pushbutton (3).The red LED (2) will light and fade out indicating the transmitter hasturned OFF. (It is normal on power up for the transmitter to take from 1-5 secondsto lock on to frequency, this will be indicated by the red LED (2).

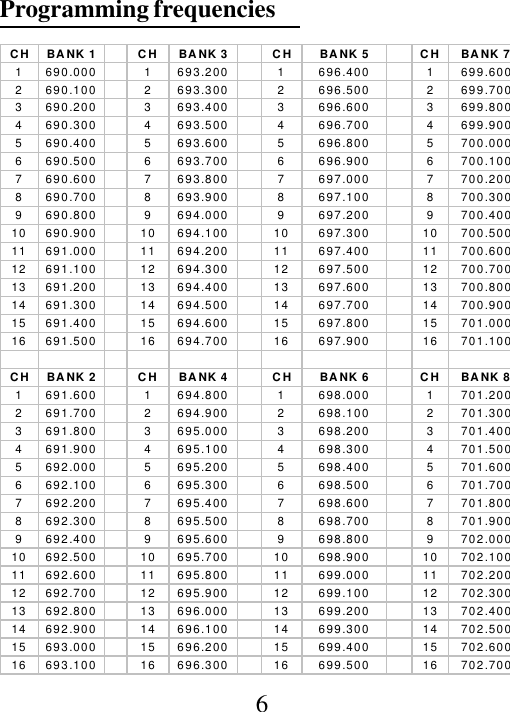

6Programming frequenciesCH BANK 1 CH BANK 3 CH BANK 5 CH BANK 71 690.000 1 693.200 1 696.400 1 699.6002 690.100 2 693.300 2 696.500 2 699.7003 690.200 3 693.400 3 696.600 3 699.8004 690.300 4 693.500 4 696.700 4 699.9005 690.400 5 693.600 5 696.800 5 700.0006 690.500 6 693.700 6 696.900 6 700.1007 690.600 7 693.800 7 697.000 7 700.2008 690.700 8 693.900 8 697.100 8 700.3009 690.800 9 694.000 9 697.200 9 700.40010 690.900 10 694.100 10 697.300 10 700.50011 691.000 11 694.200 11 697.400 11 700.60012 691.100 12 694.300 12 697.500 12 700.70013 691.200 13 694.400 13 697.600 13 700.80014 691.300 14 694.500 14 697.700 14 700.90015 691.400 15 694.600 15 697.800 15 701.00016 691.500 16 694.700 16 697.900 16 701.100CH BANK 2 CH BANK 4 CH BANK 6 CH BANK 81 691.600 1 694.800 1 698.000 1 701.2002 691.700 2 694.900 2 698.100 2 701.3003 691.800 3 695.000 3 698.200 3 701.4004 691.900 4 695.100 4 698.300 4 701.5005 692.000 5 695.200 5 698.400 5 701.6006 692.100 6 695.300 6 698.500 6 701.7007 692.200 7 695.400 7 698.600 7 701.8008 692.300 8 695.500 8 698.700 8 701.9009 692.400 9 695.600 9 698.800 9 702.00010 692.500 10 695.700 10 698.900 10 702.10011 692.600 11 695.800 11 699.000 11 702.20012 692.700 12 695.900 12 699.100 12 702.30013 692.800 13 696.000 13 699.200 13 702.40014 692.900 14 696.100 14 699.300 14 702.50015 693.000 15 696.200 15 699.400 15 702.60016 693.100 16 696.300 16 699.500 16 702.700

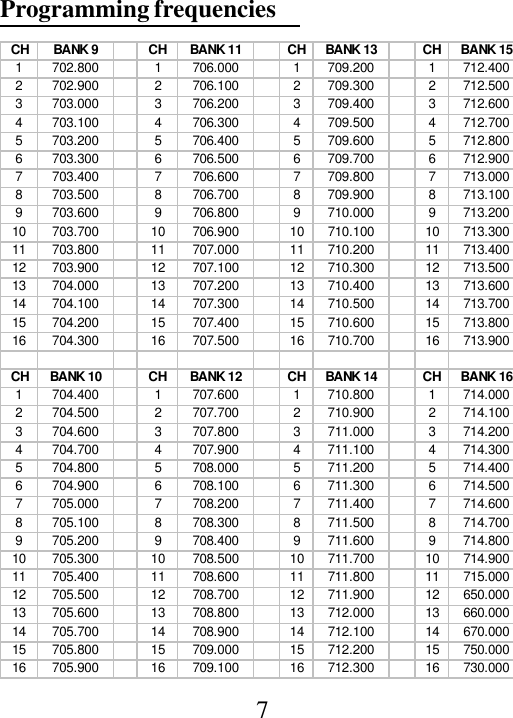

7Programming frequenciesCH BANK 9 CH BANK 11 CH BANK 13 CH BANK 151 702.800 1 706.000 1 709.200 1 712.4002 702.900 2 706.100 2 709.300 2 712.5003 703.000 3 706.200 3 709.400 3 712.6004 703.100 4 706.300 4 709.500 4 712.7005 703.200 5 706.400 5 709.600 5 712.8006 703.300 6 706.500 6 709.700 6 712.9007 703.400 7 706.600 7 709.800 7 713.0008 703.500 8 706.700 8 709.900 8 713.1009 703.600 9 706.800 9 710.000 9 713.20010 703.700 10 706.900 10 710.100 10 713.30011 703.800 11 707.000 11 710.200 11 713.40012 703.900 12 707.100 12 710.300 12 713.50013 704.000 13 707.200 13 710.400 13 713.60014 704.100 14 707.300 14 710.500 14 713.70015 704.200 15 707.400 15 710.600 15 713.80016 704.300 16 707.500 16 710.700 16 713.900CH BANK 10 CH BANK 12 CH BANK 14 CH BANK 161 704.400 1 707.600 1 710.800 1 714.0002 704.500 2 707.700 2 710.900 2 714.1003 704.600 3 707.800 3 711.000 3 714.2004 704.700 4 707.900 4 711.100 4 714.3005 704.800 5 708.000 5 711.200 5 714.4006 704.900 6 708.100 6 711.300 6 714.5007 705.000 7 708.200 7 711.400 7 714.6008 705.100 8 708.300 8 711.500 8 714.7009 705.200 9 708.400 9 711.600 9 714.80010 705.300 10 708.500 10 711.700 10 714.90011 705.400 11 708.600 11 711.800 11 715.00012 705.500 12 708.700 12 711.900 12 650.00013 705.600 13 708.800 13 712.000 13 660.00014 705.700 14 708.900 14 712.100 14 670.00015 705.800 15 709.000 15 712.200 15 750.00016 705.900 16 709.100 16 712.300 16 730.000

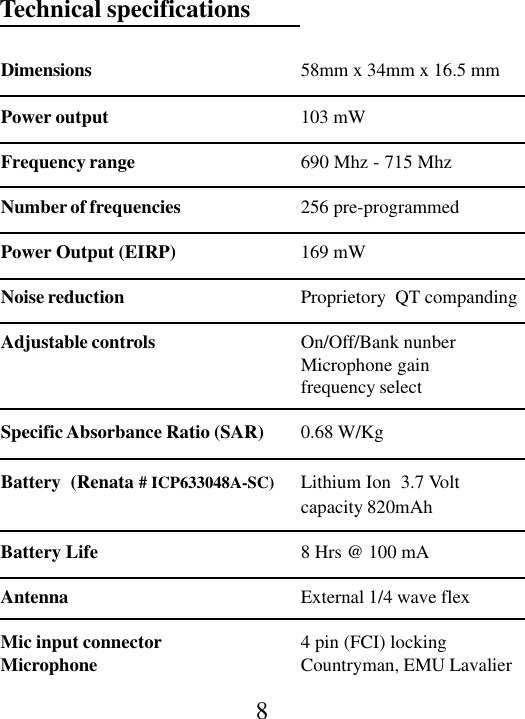

8Technical specificationsDimensions 58mm x 34mm x 16.5 mmPower output 103 mWFrequency range 690 Mhz - 715 MhzNumber of frequencies 256 pre-programmedPower Output (EIRP) 169 mWNoise reduction Proprietory QT compandingAdjustable controls On/Off/Bank nunberMicrophone gainfrequency selectSpecific Absorbance Ratio (SAR) 0.68 W/KgBattery (Renata # ICP633048A-SC) Lithium Ion 3.7 Voltcapacity 820mAhBattery Life 8 Hrs @ 100 mAAntenna External 1/4 wave flexMic input connector 4 pin (FCI) lockingMicrophone Countryman, EMU Lavalier

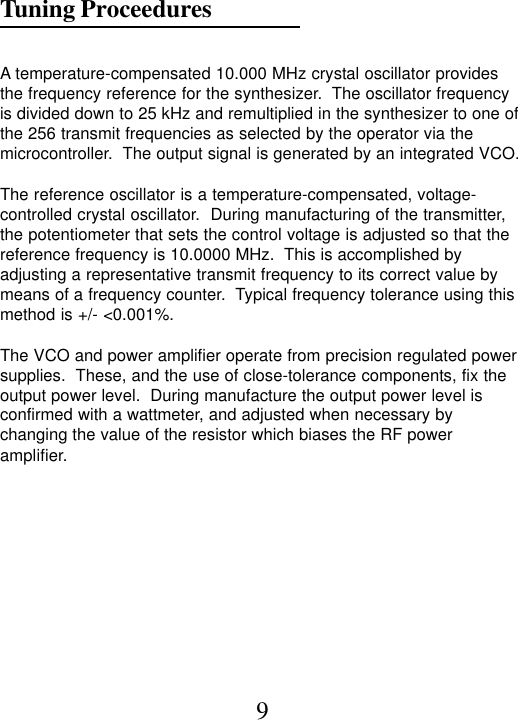

Tuning Proceedures9A temperature-compensated 10.000 MHz crystal oscillator providesthe frequency reference for the synthesizer. The oscillator frequencyis divided down to 25 kHz and remultiplied in the synthesizer to one ofthe 256 transmit frequencies as selected by the operator via themicrocontroller. The output signal is generated by an integrated VCO.The reference oscillator is a temperature-compensated, voltage-controlled crystal oscillator. During manufacturing of the transmitter,the potentiometer that sets the control voltage is adjusted so that thereference frequency is 10.0000 MHz. This is accomplished byadjusting a representative transmit frequency to its correct value bymeans of a frequency counter. Typical frequency tolerance using thismethod is +/- <0.001%.The VCO and power amplifier operate from precision regulated powersupplies. These, and the use of close-tolerance components, fix theoutput power level. During manufacture the output power level isconfirmed with a wattmeter, and adjusted when necessary bychanging the value of the resistor which biases the RF poweramplifier.

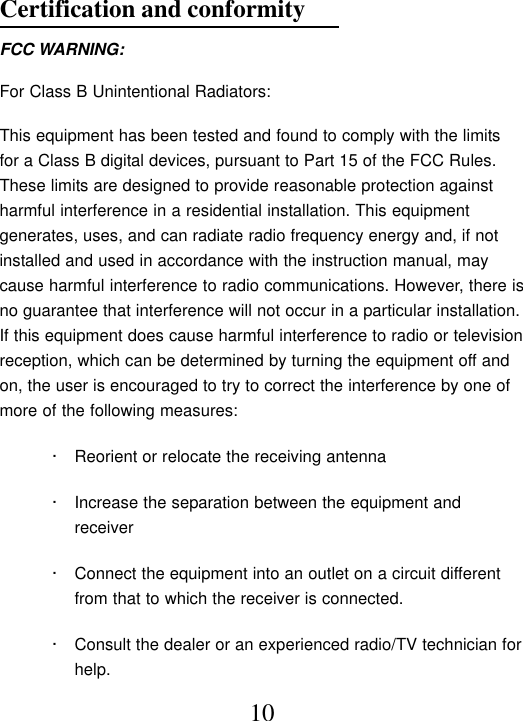

Certification and conformityFCC WARNING:For Class B Unintentional Radiators:This equipment has been tested and found to comply with the limitsfor a Class B digital devices, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipmentgenerates, uses, and can radiate radio frequency energy and, if notinstalled and used in accordance with the instruction manual, maycause harmful interference to radio communications. However, there isno guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one ofmore of the following measures:· Reorient or relocate the receiving antenna· Increase the separation between the equipment andreceiver· Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.· Consult the dealer or an experienced radio/TV technician forhelp.10

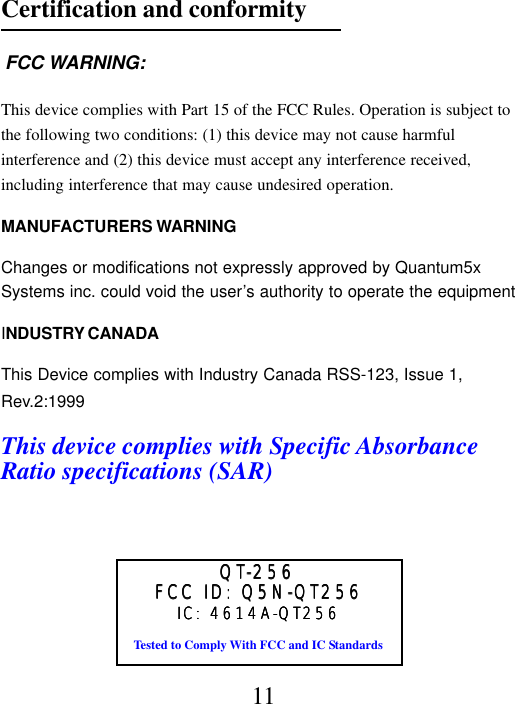

FCC ID: Q5N-QT256FCC ID: Q5N-QT256FCC ID: Q5N-QT256FCC ID: Q5N-QT256FCC ID: Q5N-QT256Tested to Comply With FCC and IC StandardsQTQTQTQTQT-256-256-256-256-256IC: 4614A-QT256IC: 4614A-QT256IC: 4614A-QT256IC: 4614A-QT256IC: 4614A-QT256Certification and conformity FCC WARNING:This device complies with Part 15 of the FCC Rules. Operation is subject tothe following two conditions: (1) this device may not cause harmfulinterference and (2) this device must accept any interference received,including interference that may cause undesired operation.MANUFACTURERS WARNINGChanges or modifications not expressly approved by Quantum5xSystems inc. could void the user’s authority to operate the equipmentINDUSTRY CANADAThis Device complies with Industry Canada RSS-123, Issue 1,Rev.2:1999This device complies with Specific AbsorbanceRatio specifications (SAR)11
www.quantum5x.comwww.quantum5x.comwww.quantum5x.comwww.quantum5x.comwww.quantum5x.com
